Assembly Instructions for Accurate Furniture AFDVglass
Thank you for choosing Sanus Systems Accurate Furniture. Every effort has been made to ensure that your Sanus fur-
niture is perfect. If you have questions or feel that there is a problem of any kind, please contact us at 800.359.5520 or
www.sanus.com. We can quickly help with any issues regarding assembly or missing parts. Replacement parts for Sanus
products purchased through authorized dealers will be shipped directly to you.
Supplied Parts and Hardware:
(4) Foot - a
(8) Shelf Connector - b
(20) Glass Protector - c
(8) 9” Pillar - d
(4) Top Bolt Washer - e
(4) Top Bolt - f
(3) Lower Shelf - g
(1) Top Shelf - h
Sanus Systems 3785 Lexington Avenue North Saint Paul, MN 55126
800.359.5520 www.sanus.com
AFDVglass
AFAglass
AFDVglass shown with matching AFAglass audio stand and HTB4 speaker stands.
Sanus Systems 3785 Lexington Avenue North Saint Paul, MN 55126
800.359.5520 www.sanus.com 071003
1
4
rim
rib

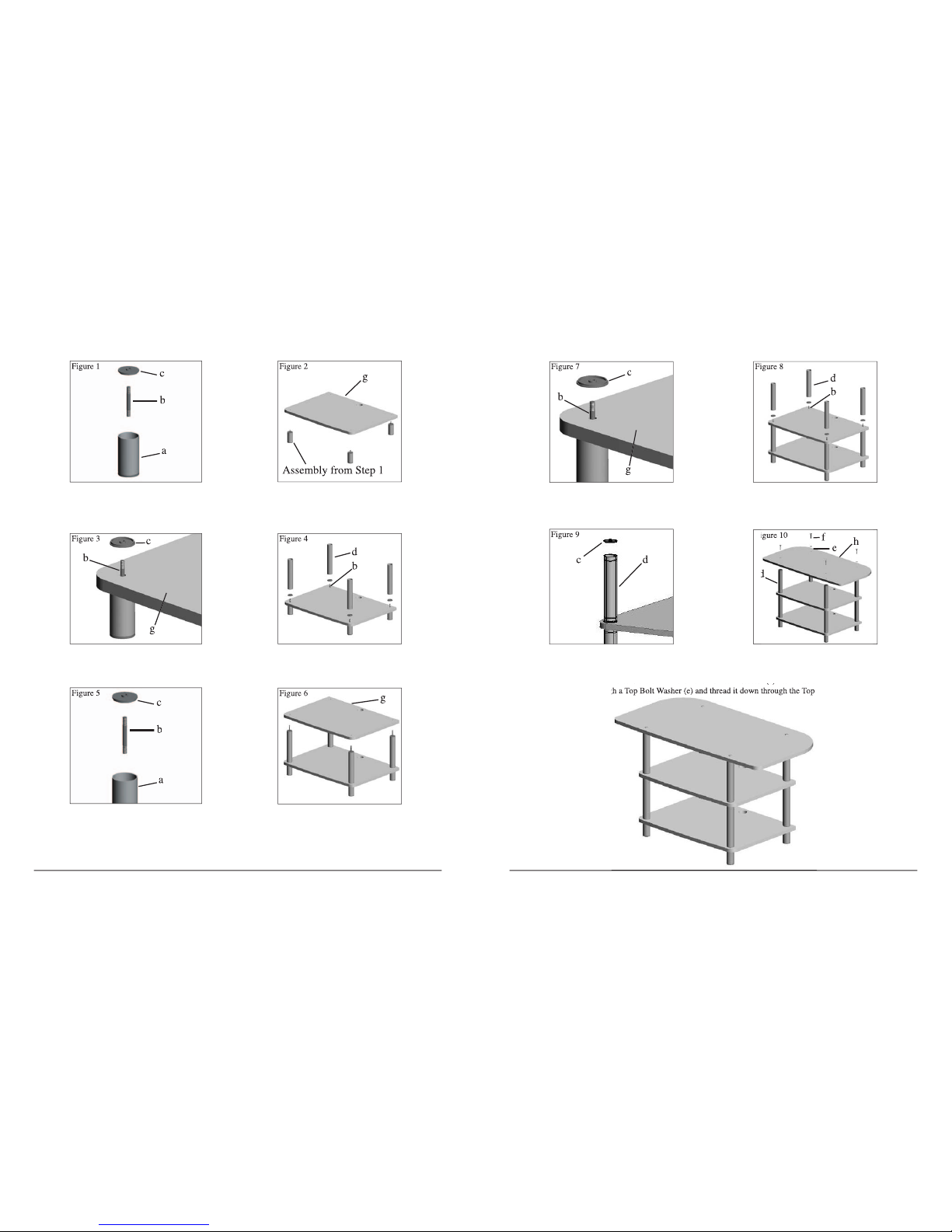

1] Thread a Shelf Connector (b) into each Foot (a). Next slide a Glass Protector (c) over each Shelf Connector as shown
in Figure 1. Make sure the rim on each Glass Protector  ts down inside each Foot.
2] Place a Lower Shelf (g) onto the four Feet as shown in Figure 2. Make sure the small rib on each Glass Protector (c)
 ts inside the holes in the Lower Shelf.
3] Place a Glass Protector (c) down over each Shelf Connector (b) showing through the Lower Shelf (g) as shown in
Figure 3. Make sure the small rib on each Glass Protector  ts inside the holes in the Lower Shelf.
4] Thread a 9” Pillar (d) down onto each Shelf Connector (b) as shown in Figure 4.
5] Thread a Shelf Connector (b) down into the top of each of the four 9” Pillars (d). Place a Glass Protector (c) down
over each Shelf Connector as shown in Figure 5. Make sure the rim on each Glass Protector  ts down inside each of the
9” Pillars.
6] Place another Lower Shelf (g) onto the assembly as shown in Figure 6. Make sure the small rib on each Glass Protector
(c)  ts inside the holes in the Lower Shelf.
7] Repeat Step 3 as shown in Figure 7.
8] Repeat Step 4 as shown in Figure 8.
9] Place a Glass Protector (c) onto each 9” Pillar (d) as shown in Figure 9. Make sure that the rim on the Glass Protec-
tor  ts down inside the 9” Pillars.
10] Add the Top Shelf (h). Make sure the small rib on each Glass Protector (c)  ts inside the holes in the Top Shelf.
10] Add the Top Shelf (h). Make sure the small rib on each Glass Protector (c)  ts inside the holes in the Top Shelf.
Place each Top Bolt (f) through a Top Bolt Washer (e) and thread it down through the Top Shelf into the 9” Pillars (d)
Place each Top Bolt (f) through a Top Bolt Washer (e) and thread it down through the Top Shelf into the 9” Pillars (d)
as shown in Figure 10.
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5
Figure 6
Figure 7
Figure 8
Figure 9
Figure 10
Figure 10
2
3
a
b
c
a
b
c
Assembly from Step 1
g
c
d
g
c
d
c
h
f
e
b
g
b
b
b
g
b
d
d
d
