FORWARD
This service manual contains the technical data of each component
inspection and repair for the SYM JET 4 R 50 series scooter. The manual is
shown with illustrations and focused on “Service Procedures”, “Operation Key
Points”, and “Inspection Adjustment” so that provides technician with service
guidelines.
If the style and construction of the scooter ,JET 4 R 50 series, are different
from that of the photos, pictures shown in this manual, the actual vehicle shall
prevail. Specifications are subject to change without notice.
SERVICE DEPARTMENT
SANYANG INDUSTRY CO., LTD.

HOW TO USE THIS MANUAL
This service manual describes basic information of different system parts
and system inspection & service for JET 4 R 50 scooters. In addition, please
refer to the manual contents in detailed for the model you serviced in inspection
and adjustment.
The first chapter covers general information and trouble diagnosis.
The second chapter covers service maintenance information.
The third to the tenth chapters cover engine and driving systems.
The eleventh to fourteenth chapters are contained the parts set of assembly
body.
The fifteenth chapter is electrical equipment.
The sixteenth chapter is wiring diagram.
The seventeenth chapter is special tool.
Please see index of content for quick having the special parts and system
information.
All information, illustration, directions and specifications included in this manual
are current as at the time of publication. SANYANG reserves the rights to make
changes at any time without prior notice and without incurring any obligation
whatever. Without written consent by SANYANG can not copy any part of this
manual.

CONTENTS
CONTENTS
GENERAL INFORMATION/TROUBLE DIAGNOSIS ...................................1
SERVICE MAINTENANCE INFORMATION.................................................2
LUBRICATION SYSTEM ..............................................................................3
FUEL SYSTEM..............................................................................................4
ENGINE REMOVAL......................................................................................5
CYLINDER HEAD/ CYLINDER/PISTON ......................................................6
ALTERNATOR..............................................................................................7
"V" TYPE BELT ............................................................................................8
FINAL DRIVING MECHANISM.....................................................................9
CRANKCASE SHAFT...................................................................................10
BODY COVER...............................................................................................11
BRAKE SYSTEM ..........................................................................................12
STEERING/FRONT WHEEL/FRONT SHOCK ABSORBER........................13
REAR WHEEL/ REAR SHOCK ABSORBER...............................................14
ELECTRICAL EQUIPMENT..........................................................................15
WIRING DIAGRAM .......................................................................................16
SPECIAL TOOL ............................................................................................17

MECHANISM ILLUSTRATIONS
Fuse &C.D.I Battery
Headlight switch
/starter switch
Tail light
Fuel tank/oil cap
Storage box
Ignition switch
Rear brake level
Side stand
Frame number
Gear oil
filling bolt
Gear oil draining
bolt
Front turn
signal light
Front light/
Position light
High& Low beam/ Turn
signal/Horn switch
Air Cleaner
Kick starter
pedal
Main stand
Front brake level
Exhaust muffler
Rear turn
signal light
Engine number

MECHANISM ILLUSTRATIONS
Fuse &C.D.I Battery
Headlight switch
/starter switch
Tail light
Fuel tank/oil cap
Storage box
Ignition switch
Rear brake level
Side stand
Frame number
Gear oil
filling bolt
Gear oil draining
bolt
Front turn
signal light
Front light/
Position light
High& Low beam/ Turn
signal/Horn switch
Air Cleaner
Kick starter
pedal
Main stand
Front brake level
Exhaust muffler
Rear turn
signal light
Engine number

1. GENERAL INFORMATION/TROUBLE DIAGNOSIS
1-1
SYMBOLS AND MARKS...................1-1
GENERAL SAFETY...........................1-2
SERVICE PRECAUTIONS.................1-3
SPECIFICATIONS..............................1-6
TORQUE VALUES (ENGINE)..............1-7
TORQUE VALUES (FRAME)...............1-8
TROUBLES DIAGNOSIS.....................1-9
LUBRICATION POINTS ......................1-13
SYMBOLS AND MARKS
Symbols and marks are used in this manual to indicate what and where the special service are
needed, in case supplemental information is procedures needed for these symbols and marks,
explanations will be added to the text instead of using the symbols or marks.
Warning Means that serious injury or even death may result if procedures are not
followed.
Caution Means that equipment damages may result if procedures are not followed.
Engine oil
Limits to use SAE SAE 20 JASO FC class engine oil. Warranty will not cover
the damage that caused by not apply with the limited engine
oil.( Recommended oil: MAX-2 serial oils)
Gear oil King Bramax HYPOID GEAR OIL #140 is recommended.
Grease King Mate G-3 is recommended.
Locking sealant
Apply sealant, medium strength sealant should be used unless otherwise
specified.
Oil seal Apply with lubricant.
Renew Replace with a new part before installation.
Brake fluid Use recommended brake fluid DOT3 or WELLRUN brake fluid.
Special tools Special service tools.
Correct Meaning correct installation.
Wrong Meaning wrong installation.
Indication Indication of components.
Directions Indicates position and operation directions.
Components assembly directions each other.
Indicates where the bolt installation direction, --- means that bolt cross
through the component (invisibility).

1. GENERAL INFORMATION/TROUBLE DIAGNOSIS
1-2
GENERAL SAFETY
Carbon monoxide
If you must run your engine, ensure the place is
well ventilated. Never run your engine in a
closed area. Run your engine in an open area, if
you have to run your engine in a closed area, be
sure to use an extractor.
Caution
Gasoline
Gasoline is a low ignition point and explosive
material. Work in a well-ventilated place, no
flame or spark should be allowed in the work
place or where gasoline is being stored.
Caution
Used engine oil
Caution
Hot components
Caution
Battery
Caution
Brake shoe
Do not use an air hose or a dry brush to clean
components of the brake system, use a vacuum
cleaner or the equivalent to avoid dust flying.
Caution
Brake fluid
Caution
Exhaust contains toxic gas which may cause
one to lose consciousness and even result in
death.
yBattery emits explosive gases; flame is
strictly prohibited. Keep the place well
ventilated when charging the battery.
yBattery contains sulfuric acid (electrolyte)
which can cause serious burns so be careful
do not be spray on your eyes or skin. If you
get battery acid on your skin, flush it off
immediately with water. If you get battery
acid in your eyes, flush it off immediately
with water, then go to hospital to see an
ophthalmologist.
yIf you swallow it by mistake, drink a lot of
water or milk, and take some laxative such
as castor oil or vegetable oil, and then go to
see a doctor.
yKeep electrolyte beyond reach of children.
Gasoline is highly flammable, and may explode
under some conditions, keep it away from
children.
Prolonged contact with used engine oil (or
transmission oil) may cause skin cancer
although it might not be verdict.
We recommend that you wash your hands
with soap and water right after contacting.
Keep the used oil beyond reach of children
Inhaling asbestos dust may cause disorders
and cancer of the breathing system.
Spilling brake fluid on painted, plastic, or rubber
parts may cause damage to the parts. Place a
clean towel on the above-mentioned parts for
protection when servicing the brake system.
Keep brake fluid beyond reach of children.
Components of the engine and exhaust
system can become extremely hot after
engine running. They remain very hot even
after the engine has been stopped for some
time. When performing service work on these
parts, wear insulated gloves and wait until
coolin
g
off.

1. GENERAL INFORMATION/TROUBLE DIAGNOSIS
1-3
SERVICE PRECAUTIONS
yAlways use with SANYANG genuine parts
and recommended oils. Using non-designed
parts for SANYANG motorcycle may damage
the motorcycle.
ySpecial tools are designed for remove and
install of components without damaging the
parts being worked on. Using wrong tools
may result in parts damaged.
yWhen servicing this motorcycle, use only
metric tools. Metric bolts, nuts, and screws
are not interchangeable with the English
system, using wrong tools and fasteners may
damage this vehicle.
yClean the outside of the parts or the cover
before removing it from the motorcycle.
Otherwise, dirt and deposit accumulated on
the part's surface may fall into the engine,
chassis, or brake system to cause a damage
yWash and clean parts with high ignition point
solvent, and blow dry with compressed air.
Pay special attention to O-rings or oil seals
because most cleaning agents have an
adverse effect on them.

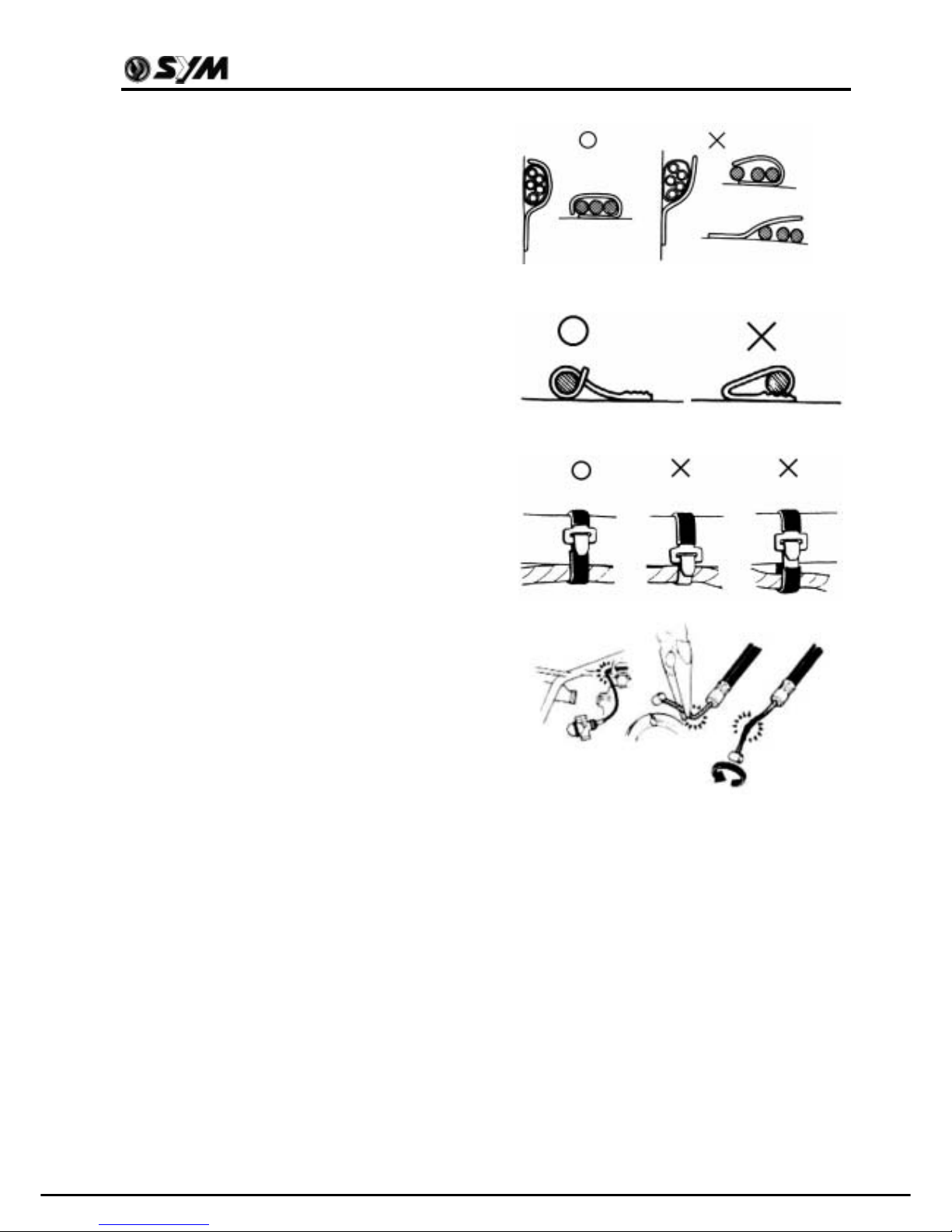

zNever bend or twist a control cable to prevent
stiff control and premature worn out.
yRubber parts may become deteriorated when
old, and prone to be damaged by solvent and
oil. Check these parts before installation to
make sure that they are in good condition,
replace if necessary.
yWhen loosening a component which has
different sized fasteners, operate with a
diagonal pattern and work from inside out.
Loosen the small fasteners first. If the bigger
ones are loosen first, small fasteners may
receive too much stress.
yStore complex components such as
transmission parts in the proper assemble
order and tie them together with a wire for
ease of installation later.

1. GENERAL INFORMATION/TROUBLE DIAGNOSIS
1-4
yThe length of bolts and screws for
assemblies, cover plates or boxes is different
from one another, be sure they are correctly
installed. In case of confusion, Insert the bolt
into the hole to compare its length with other
bolts, if its length out side the hole is the
same with other bolts, it is a correct bolt.
Bolts for the same assembly should have the
same length.
yTighten assemblies with different dimension
fasteners as follows: Tighten all the fasteners
with fingers, then tighten the big ones with
special tool first diagonally from inside toward
outside, important components should be
tightened 2 to 3 times with appropriate
increments to avoid warp unless otherwise
indicated. Bolts and fasteners should be kept
clean and dry. Do not apply oil to the threads.
yWhen oil seal is installed, fill the groove with
grease, install the oil seal with the name of
the manufacturer facing outside, check the
shaft on which the oil seal is to be installed
for smoothness and for burrs that may
damage the oil seal.
yRemove residues of the old gasket or sealant
before reinstallation, grind with a grindstone if
the contact surface has any damage.
yThe ends of rubber hoses (for fuel, vacuum,
or coolant) should be pushed as far as they
can go to their connections so that there is
enough room below the enlarged ends for
tightening the clamps.
yRubber and plastic boots should be properly
reinstalled to the original correct positions as
designed.
yThe tool should be pressed against two (inner
and outer) bearing races when removing a
ball bearing. Damage may result if the tool is
pressed against only one race (either inner
race or outer race). In this case, the bearing
should be replaced. To avoid damaging the
bearing, use equal force on both races.
yLubricate the rotation as assembling. Check if
positions and operation for installed parts is
in correct and properly.
Cables and Harness Routing
Both of these examples can result in bearing damage.
Manufacturer's
name
Groove
Clamp
Connector
Boots

1. GENERAL INFORMATION/TROUBLE DIAGNOSIS
1-5
Note the following when routing cables and wire
Harnesses:
zA loose wire, cable or harness may cause
safety hazard. After clamping, check each
wire to make sure it is secured.
zDo not squeeze wires against the weld or its
clamp.
zSecure wires and wire harnesses to the
frame with respective wire band at the
designated locations. Tighten the bands so
that only the insulated surfaces contact the
wires or wire harnesses.
zRoute harnesses so that they neither pull
too tight nor have excessive slack.
zProtect wires or wire harnesses with
electrical tape or tube if they contact a sharp
edge or corner.
zRoute wire harnesses to avoid sharp edges
or corners.
zAvoid the projected ends of bolts and
screws.
zKeep wire harnesses far away from the
exhaust pipes and other hot parts.
zBe sure grommets are seated in their
groves properly.
zAfter clamping, check each harness to be
certain that it is not interfered with any
moving or sliding parts.
zAfter routing .check that the wire harnesses
are not twisted or kink.
zWire harnesses routed along the handlebar
should not be pulled too tight or have
excessive slack, be rubbed against or
interfere with adjacent or surrounding parts
in all steering positions.
zThoroughly clean the surface where tape is
to be applied.
zWrap electrical tape around the damaged
parts or replace them.

1. GENERAL INFORMATION/TROUBLE DIAGNOSIS
1-6
SPECIFICATIONS
MAKER SANYANG MODEL JD05W/JE05W
Overall Length 1900 mm Front TELESCOPIC FORK
Overall Width 655 mm
Suspen
sion
System
Rear UNIT SWING
Overall Height 1140 mm Front 120/60-13
DIMENSION
Wheel Base 1300 mm
Tire
Specifi
cations
Rear 130/70-12
Front 43.5 kg
Rear 69.5 kg Front DISK (ø 226 mm)
Curb Weight
Total 113kg
Brake
System
Rear DRUM (ø 110 mm)
Passengers/
Weight Two men/188 kg Max. Speed 45 km/hr
Front 72kg
Performa
nce
Climb Ability 18° Below
Rear 116 kg Primary Reduction Belt,3.00～1.0
WEIGHT
Total Weight
Total 263kg Secondary
Reduction GEAR
Type 2-STROKE ENGINE Clutch Auto Centrifugal clutch
Installation and
arrangement Vertical, below center, incline 80°
Deceleration
equipment
Transmission C.V.T
Fuel Used Unleaded (93/95) Speedometer 0 ~ 80 km/hr
Cycle/Cooling 4-stroke/forced air
cooled Horn 80~112 dB/A
Bore 39 mm Muffler Expansion & Pulse Type
Stroke 41.4 mm
Exhaust Pipe Position
and Direction Right side, and Backward
Cylinder
Number/Arran
gement Single Cylinder Lubrication System forced circulation &
splashing
Displacement 49.4 cc CO(g/km) 1.057
Compression
Ratio 7.2±0.2 : 1
Exhaust
Emission
(IDLE) HC(g/km) 0.149
Idle speed 1900±100 rpm Fuel tank capacity 5.20L
Max. HP 2.5KW/ 6000 rpm Air Filtration Paper filter
Max. Torque 4.1N.m /5000 rpm Noise Emission < 84dB(A)
Ignition C.D.I.
ENGINE
Starting System Electrical & Kick starter

1. GENERAL INFORMATION/TROUBLE DIAGNOSIS
1-7
TORQUE VALUES (ENGINE)
ITEM Q'TY
THREAD DIA
(mm) TORQUE VALUE(Kg-m) REMARKS
Cylinder head bolts 4 7 1.6~2.0 Tighten to head
Crankcase flange bolt 7 6 0.8~1.2
Mission case flange bolt 7 8 2.4~3.0
Mission oil refilling bolt 1 8 1.0~1.5
Mission oil draining plug 1 10 1.0~1.5
Spark plug 1 10 1.1~1.7
Start motor flange bolt 2 6 0.8~1.2
Stator flange bolt 2 6 0.8~1.2
Pulse generator flange bolt 2 6 0.8~1.2
Flywheel nut 1 10 3.5~4.5
Inlet pipe flange bolt 4 6 0.8~1.2
Oil pump set plate flange bolt 1 6 0.8~1.2
Cooling fan flange bolt 4 6 0.8~1.2
Fan cover flange bolt 3 6 0.8~1.2
Carburetor insulated joint flange bolt 2 6 0.8~1.2
Shroud 1 6 0.8~1.2
Movable drive face nut 1 12 3.5~4.5
Driven pulley plate nut 1 10 5.5~6.5
L.crankcase cover flange bolt 10 6 0.8~1.2
Rear brake shoe anchor pin flange nut 1 8 1.5~2.0
Rear brake arm flange bolt 1 6 0.8~1.2
Kick starter arm bolt 1 6 0.8~1.2
Exhaust pipe bolts 3 8 2.4~3.0
Exhaust pipe connecting nuts 2 6 0.8~1.2

1. GENERAL INFORMATION/TROUBLE DIAGNOSIS
1-8
TORQUE VALUES (FRAME)
ITEM Q'TY
THREAD DIA
(mm) TORQUE VALUE(Kg-m) REMARKS
Steering handle nut 1 10 4.0~5.0kgf-m
Steering stem mounting nut 1 25 1.0~1.2kgf-m
Front brake caliper bolt 2 8 2.4~3.0kgf-m
Front wheel axle nut 1 12 5.0~7.0kgf-m
Front cushion upper
mounting nut 4 8 2.4~3.0kgf-m
Exhaust pipe connection nut 2 6 0.8~1.2kgf-m
Exhaust muffler mounting
bolt 3 8 2.4~3.0kgf-m
Rear cushion upper
mounting bolt 1 10 3.5~4.5kgf-m
Rear cushion lower
mounting bolt 1 8 2.4~3.0kgf-m
Rear wheel nut 1 16 11.0~13.0kgf-m
Bolts for the brake disc 5 8 2.4~3.0kgf-m
Engine hanger bolt 2 10 4.5~5.5kgf-m
Engine hanger bracket bolt 2 10 4.5~5.5kgf-m
Bolt for rear brake arm 1 6 0.8~1.2kgf-m
Brake hose bolt 2 10 3.3~3.7kgf-m
Rear brake arm lever nuts 1 6 0.8~1.2kgf-m
Brake master cylinder
mounting bolts 2 6 1.0~1.4kgf-m
Speedometer cable locking
screw 1 5 0.15~0.3
Main standard nut 1 10 3.5~4.5
Foot-starting lever bolt 1 6 1.6~1.8
Air cleaner bolts 2 6 1.0~1.4
The torque values listed in above table are for more important tighten torque values. Please see
standard values for not listed in the table.
Standard Torque Values for Reference
TYPE TIGHTEN TORQUE TYPE TIGHTEN TORQUE
5mm bolt、nut 0.45~0.60kgf-m 3mm screw 0.05~0.08kgf-m
6mm bolt、nut 0.80~1.20kgf-m 4mm screw 0.10~0.15kgf-m
8mm bolt、nut 1.80~2.50kgf-m 5mm screw 0.35~0.50kgf-m
10mm bolt、nut 3.00~4.00kgf-m 6mm screw、SH nut 0.70~1.10kgf-m
12mm bolt、nut 5.00~6.00kgf-m 6mm bolt、nut 1.00~1.40kgf-m
8mm bolt、nut 2.40~3.00kgf-m
10mm bolt、nut 3.50~4.50kgf-m

1. GENERAL INFORMATION/TROUBLE DIAGNOSIS
1-9
TROUBLES DIAGNOSIS
A. Engine hard to start or can not be started
Check and adjustment Fault condition Probable causes
Loosen carburetor drain bolt
to check if there is gasoline
inside the carburetor
Fuel supplied tom
carburetor sufficient No fuel is supplied to
carburetor
Remove spark plug, install
it into spark plug cap, and
perform a spark test
against engine ground.
Perform cylinder
compression pressure test.
Check if sparks Weak sparks, no spark
at all
Low compression
pressure or no pressure
Re-start by following the
starting procedures
No ignition There are some signs of
ignition, nut engine can
not be started
Remove the spark plug
again and check it.
Remove carburetor after 30 minutes
and connect a hose onto fuel rich
circuit. Then blow the hose with air
Dry spark plug Wet spark plug
Blowing in normal Blowing clogged
1. No fuel in fuel tank
2. Check if the pipes, fuel tank to
carburetor and intake vacuum,
are clogged.
3. Float valve clogged
4. Lines in fuel tank evaporation
system clogged
5. Malfunction of fuel pump
6. Loosen or damaged fuel pump
vacuum hose
7. Fuel filter clogged
1. Malfunction of spark plug
2. Spark plug foul
3. Malfunction of CDI set
4. Malfunction of AC generator
5. Ignition coil is in open or short
circuit
6. Ignition coil leads open or short
circuit
7. Malfunction of main switch
1. Piston ring seized
2. Malfunction of cylinder valves
3. Worn cylinder and piston ring
4. Cylinder gasket leak
5. Sand hole in compression parts
6. Crankcase leakage for
pre-compression
1. Malfunction of throttle valve
operation
2. Air sucked into intake manifold
3. Incorrect ignition timing
1. Fuel level in carburetor too high
2. Malfunction of throttle valve
operation
3. Throttle valve opening too wide
1. Malfunction of automatic by-
starter
Cylinder compression
pressure normal

1. GENERAL INFORMATION/TROUBLE DIAGNOSIS
1-10
B. Engine run sluggish (Speed does not pick up, lack of power)
Check and adjustment Fault condition Probable causes
Try gradual acceleration
and check engine speed
Engine speed can be
increased. Engine speed can not be increased.
Check ignition timing
(Using ignition lamp)
Check cylinder compression
pressure (using compression
pressure gauge)
Ignition timing correct Incorrect ignition timing
Compression pressure correct No compression pressure
Check if carburetor jet is
clogged
No clogged Clogged
Remove spark plug
Check if engine over heat
No foul or discoloration Fouled and discoloration
No knock Knock
1. Air cleaner clogged
2. Poor fuel supply
3. Lines in fuel tank evaporation
system clogged
4. Exhaust pipe clogged
1. Malfunction of CDI
2. Malfunction of AC alternator
1. Cylinder & piston ring worn out
2. Cylinder gasket leaked
3. Sand hole in compression parts
4. Valve deterioration
5. Crankcase leakage for
pre
-
compression
1. Remove dirt
1. Remove dirt
2. Incorrect spark plug heat range
1. Piston and cylinder worn out
2. Lean mixture
3. Poor fuel quality
4. Too much carbon deposited in
combustion chamber
5. Ignition timing too advanced
Normal Engine overheat
Continually drive in
acceleration or high speed
1. Too much carbon deposited in
combustion chamber
2. Lean mixture
3. Poor fuel quality
4. Lean mixture

1. GENERAL INFORMATION/TROUBLE DIAGNOSIS
1-11
C. Engine runs sluggish (especially in low speed and idling)
D. Engine runs sluggish (High speed)
Check ignition timing
(using ignition lamp)
Good spark Poor
No air sucked Air sucked
Good Poor
Abnormal
Air sucked through
carburetor gasket
Adjust the air screw of
carburetor
Remove spark plug, install
spark plug into spark plug
cap and perform spark test
against engine ground
Normal
Check and adjustment Fault condition Probable causes
Check for fuel supplying
system in automatic fuel cup
Check if carburetor clogged
1. Incorrect ignition timing (malfunction
of CDI or AC alternator)
1. Rich mixture (loosen the screw)
2. Lean mixture (tighten the screw)
1. Poor heat insulation gasket
2. Carburetor lock loose
3. Poor intake gasket
4. Poor carburetor O-ring
1. Spark plug fouled
2. Malfunction of CDI
3. Malfunction of AC generator
4. Malfunction of ignition coil
5. Open or short circuit in spark plug
leads
6. Malfunction of main switch
1. Insufficient fuel in fuel tank
2. Fuel filter clogged
3. Restricted fuel tank vent
Good Poor
Check and adjustment Fault condition Probable causes
Check ignition timing
1. Malfunction of CDI
2. Malfunction of AC alternator
Normal Abnormal
No clogged Clogged 1. Cleaning

1. GENERAL INFORMATION/TROUBLE DIAGNOSIS
1-12
E. CLUTCH, DRIVING AND DRIVING PULLEY
1. Clutch ling spring broken
2. Clutch outer stick with clutch balance weights
3. Connection parts in clutch and shaft worn out
or burned
Engine can be started but
motorcycle can not be moved.
FAULT CONDITIONS PROBABLE CAUSES
1. Driving belt worn out or deformation
2. Driving disk damaged
3. Driving pulley spring broken
4. Clutch ling broken
5. Driving slide-shaft gear groove broken
6. Transmission gear damaged
7. Transmission gear worn out or burned
Engine running and misfire as
motorcycle initial forward moving
or jumping suddenly (rear wheel
rotating as engine in running)
Poor initial driving ( Poor
climbing performance)
1. Driving belt worn out or deformation
2. Balance weight roller worn out
3. Driving sliding gear shaft worn out
4. Driving disk spring deformation
5. Driving sliding gear shaft worn out
6. Greased in driving belt and sliding gear.

1. GENERAL INFORMATION/TROUBLE DIAGNOSIS
1-13
LUBRICATION POINTS
Acceleration cable/ Front & rear brake lever pivot
Steering shaft bearing
Seat lock
Speedometer gear /
Front wheel bearing
Side stand shaft
Main stand shaft
Rear wheel bearing

2. Service Maintenance Information
2-1
General Information·······························2-1
Periodical Maintenance Schedule········2-2
Air Cleaner··············································2-3
Fuel Lines ···············································2-3
Fuel Filter················································2-4
Engine Oil Line·······································2-4
Oil Pump Control Cable·························2-5
Battery·····················································2-5
Tire ··························································2-6
Rear Drum Brake Free Play···················2-6
Disc Brake System Hose·······················2-错
误！未定义书签。
Steering System·····································2-9
Suspension·············································2-9
Transmission Oil··································· 2-10
Spark Plug············································· 2-10
Control Cable Lubrication···················· 2-11
Driver Belt·············································· 2-11
Ignition Timing······································ 2-11
Throttle Valve Operation······················ 2-11
Carburetor Idle Speed Adjustment ····· 2-12
Cylinder Compression Pressure Test· 2-12
Headlight Adjustment··························· 2-13
General Information
Specification
Item Jet 4 R 50 series
Tire dimension Front:120/60–13, Rear: 130/70-12
Tire pressure at cold Only rider Front: 2.0 kg/cm2, Rear: 2.0 kg/cm2
Rear brake lever free play 10~20 mm
Transmission oil / Recommendation Type: HYPOID GEAR OIL
Oil: SAE #140 Quantity: 0.12 L, Replacement: 0.11L
Spark plug / Recommendation Type:BR8HSA / Plug gap: 0.6-0.7mm
Driving belt width Standard 18.0mm
Ignition timing F mark 13°, BTDC/1700 rpm
Acceleration operation 2~6 mm
Idle speed 1900±100 rpm
Cylinder compression pressure 7±1 kgf/cm²
