Sanyo DVD-HP70 User manual

Service Manual
FILE NO.
REFERENCE No. SM5810736
PRODUCT CODE No.
137 128 01
Portable DVD Player DVD-HP70 (XE)
CONTENTS
Laser Beam Safety Precaution ........................................ 1
Exploded View (Packing & Accessory) ............................ 2
Exploded View (Cabinet & Chassis) ................................ 3
Parts List .......................................................................... 4
Schematic Diagram .......................................................... 8
Wiring Diagram ................................................................ 26
Wiring Connection ............................................................ 33

- 1 -
• Pickup that emits a laser beam is used on this CD section.
CAUTION :
USE OF CONTROLS OR ADJUSTMENTS OR
PERFORMANCE OF PROCEDURES OTHER
THAN THOSE SPECIFIED HEREIN MAY RESULT
IN HAZARDOUS RADIATION EXPOSURE.
LASER OUTPUT................ 0.6 mW Max. (CW)
WAVE LENGTH ................. 790 nm
LASER BEAM SAFETY PRECAUTION
CAUTION –INVISIBLE LASER RADIATION WHEN OPEN AND
INTERLOCKS DEFEATED. AVOID EXPOSURE TO BEAM.
ADVARSEL –USYNLIG LASER STRÅLING VED ÅBNING, NÅR
SIKKERHEDSAFBRYDERE ER UDE AF FUNKTION, UNDGÅUDS ÆTTELSE
FOR STRÅLING.
VARNING –OSYNLIG LASER STRÅLNING NÄR DENNA DEL ÄR ÖPPNAD
OCH SPÄRR ÄR URKOPPLAD. STRÅLEN ÄR FARLIG.
VORSICHT –UNSICHTBARE LASERSTRAHLUNG TRITT AUS, WENN
DECKEL GEÖFFNET UND WENN SICHERHEITSVERRIEGELUNG
ÜBERBRÜCKT IST. NICHT, DEM STRAHL AUSSETZEN.
VARO –AVATTAESSA JA SUOJALUKITUS OHITETTAESSA OLET ALTTIINA
NÄKYMÄTTÖMÄLLE LASERSÄTEILYLLE. ÄLÄKATSO SÄTEESEEN.

- 2 -
EXPLODED VIEW (PACKING & ACCESSORY)
1
2
3
4
5
6
5
7
8
10
5
11
12
5
13
9

- 3 -
EXPLODED VIEW(CABINET & CHASSIS)

- 4 -
PARTS LIST
CAUTION : Regular type resistors and capacitors are not listed. To know those values, refer to the schematic diagram.
Regular type resistors are less than 1/4W carbon type and 0 ohm chip resistors.
Regular type capacitors are less than 50V and less than 1000µF of Ceramic type and Electrolytic type.
PRODUCT SAFETY NOTICE
EACH PRECAUTION IN THIS MANUAL SHOULD BE FOLLOWED DURING SERVICING. COMPONENTS IDENTIFIED WITH
THE IEC SYMBOL !
!! IN THE PARTS LIST AND THE SCHEMATIC DIAGRAM DESIGNATE COMPONENTS IN WHICH SAFETY
CAN OF SPECIAL SIGNIFICANCE. WHEN REPLACING A COMPONENT IDENTIFIED , USE ONLY THE REPLACEMENT
PARTS DESIGNATED, OR PARTS WITH THE SAME RATINGS OF RESISTANCE, WATTAGE OR VOLTAGE THAT ARE
DESIGNATED IN THE PARTS LIST IN THIS MANUAL. LEAKAGE-CURRENT OR RESISTANCE MEASUREMENTS MUST
BE MADE TO DETERMINE THAT EXPOSED PARTS ARE ACCEPTABLY INSULATED FROM THE SUPPLY CIRCUIT
BEFORE RETURNING THE PRODUCT TO THE CUSTOMER.
PACKING & ACCESSORIES
REF.NO. PART NO. DESCRIPTION
1 645 080 1570 GIFT BOX
2 645 080 1563 INSTRUCTION MANUAL
3 645 080 1624 POLYBAG,IB
4 645 080 1648 POLYBAG,UNIT
5 645 080 1617 POLYBAG,AC ADAPTOR
6 645 079 9716 CAR ADAPTOR
7 645 068 5729 EAR PHONE
8 645 080 0900 REMOTE CONTROL
9 645 080 1105 TRAVELLING BAG
10 645 080 0528 AV CORD
11 645 080 1624 POLYBAG,BATTERY
12 645 079 9723 BATTERY
13 !
!! 645 080 0887 AC ADAPTOR,PSE
645 080 1631 POLYBAG,CARRYING CASE
645 080 1594 CARTON OUTER
CABINET , CHASSIS & FIXING PARTS
REF.NO. PART NO. DESCRIPTION
1 645 080 1426 DECORATION PLATE
2 645 080 1419 DVD DOOR
3 645 080 1204 SCREW 1.2X4,HOOK BRACKET
4 645 080 1488 HOOK BRACKET
5 645 080 1433 HOOK
6 645 080 1402 DVD TOP PANEL
7 645 080 0962 PVC PLATE
8 645 080 1099 DUSTPROOF NOT
9 645 080 1471 SECSOR COVER
10 645 080 1136 STOPPER RUBBER
12 645 080 1457 BUTTON LEFT SELECT KEY
13 645 080 1082 SPEAKER CLOTH
14 645 080 0986 SPRING C
15 645 080 0931 PVC PLATE
16 645 080 1495 BUTTON EXCHANGE
18 645 080 1044 CONDUCTIVE GASKET
19 645 080 0863 DVD DECK
20 645 080 1242 SCREW 2.0X8,DVD STEEL PLATE
21 645 080 1198 SCREW 2.0X5,DVD STEEL PLATE
22 645 080 1051 SPONGE
23 645 080 1440 BUTTON OPEN KEY
24 645 080 1389 INSERT
25 645 080 1327 SWITCH PLATE
26 645 080 1006 SPRING B
27 645 080 1341 HINGE
28 645 080 1167 SCREW 2.6X4,PVC PLATE
29 645 080 1181 SCREW 2.6X6,HINGE
30 645 080 0979 PVC PLATE
31 645 080 0993 SPRING A
32 645 080 1266 SCREW 1.6X4,OPEN KEY
33 645 080 1310 STEEL PLATE
34 645 080 1235 SCREW 1.7X5,STEEL PLATE
35 645 080 1013 DVD DOOR SHAFT
36 645 080 1464 BUTTON RIGHT SELECT KEY
37 645 080 1211 SCREW 2.6X4,DVD BTM CAB
38 645 080 1396 BUTTON POWER SWITCH
39 645 080 1372 DVD BOTTOM CABINET
40 645 080 1112 RUBBER FOOT,
FOR DVD BOTTOM SUPPORT
41 645 080 1259 SCREW 2.6X8,DVD BTM CAB
42 645 080 1068 SPONGE
43 645 080 1297 DVD STEEL PLATE
44 645 080 1150 RUBBER COVER
45 645 080 1228 SCREW 2.0X8,
DVD PCB TO DVD BTM CAB
46 645 080 1143 RUBBER,MONITOR FRONT
47 645 080 1235 SCREW 1.7X5,
MONITOR FRONT TO BACK
48 645 080 1280 MONITOR FRONT CABINET
49 645 080 0917 PVC PLATE
50 645 080 0955 PVC PLATE
51 645 080 0948 PVC PLATE
52 645 080 1020 COPPER FOIL PAPER
53 645 080 1808 INSULATION PVC PLATE
54 645 079 9808 LCD PANEL 7
54-1 645 080 0818 BACK LIGHT 7
55 645 080 1129 RUBBER FOOT,FOR LCD PANEL
56 645 080 1174 SCREW 2.6X5,
MONITOR F-CAB COVER
57 645 080 1365 MONITOR F-CAB COVER
58 645 080 1358 MONITOR MIDDLE CABINET
59 645 080 1273 MONITOR BACK CABINET
ELECTRICAL-PARTS
REF.NO. PART NO. DESCRIPTION
11 645 080 0870 SPEAKER 16OHM 0.2W
645 080 1075 SPONGE
645 080 1037 ELECTRIC SPONE
645 080 1334 MONITOR FRONT STEEL PLATE
645 075 1110 BATTERY
645 080 0504 4P HOUSING,FOR SPEAKER WIRE
645 080 0511 8P HOUSING,
FOR INPUT POWER WIRE
645 080 0825 J WIRE AWG18 UL,FOR BACKLIGHT
645 080 0832 J WIRE AWG26 UL,
PANEL TO MONITOR MAIN GN
645 080 0856 J WIRE AWG28,
HV 5V TO MONITOR MAIN L7
DVD MAIN P.W.BOARD ASSY
REF.NO. PART NO. DESCRIPTION
17 614 334 4230 ASSY,PWB,DVD MAIN(Only initial)
CON01 645 075 8805 SOCKET 24P,DVD DECK BOTTOM
CON02 645 075 8799 SOCKET 13P,DVD DECK TOP
D0001 645 075 8508 DIODE IN5819
D0002 645 068 5262 DIODE 1N4148
D0003 645 068 5262 DIODE 1N4148
D0004 645 068 5262 DIODE 1N4148
D0005 645 068 5248 DIODE ZENER 4.3V
D0006 645 075 8508 DIODE IN5819
D0007 645 075 8508 DIODE IN5819
D0008 645 075 8508 DIODE IN5819
D0011 645 068 5286 DIODE IN5822
D0013 645 068 5231 DIODE ZENER 15V
F0001 645 068 5323 FUSE
J0001 645 075 8782 SOCKET 8P
REF.NO. PART NO. DESCRIPTION

- 5 -
PARTS LIST
REF.NO. PART NO. DESCRIPTION
J0003 645 075 8812 SOCKET
J0004 645 068 5446 DC INPUT JACK
J0005 645 075 8737 SOCKET 18P,TV TUNER
J0012 645 075 8768 DIGITAL OUT JACK
J0015 645 075 8751 AUDIO JACK
J0022 645 073 2164 HEADPHONE JACK
J0024 645 075 8744 SOCKET 4P
J0030 645 075 8775 VODIO JACK
L0001 645 068 4869 MAGNET BEAD
L0002 645 075 8492 COIL 47UH
L0003 645 068 4913 MAGNET BEAD 33OHM
L0004 645 075 8492 COIL 47UH
L0005 645 068 4913 MAGNET BEAD 33OHM
L0006 645 068 4913 MAGNET BEAD 33OHM
L0007 645 075 8331 MAGNET BEAD 33 OHM
L0008 645 068 4913 MAGNET BEAD 33OHM
L0009 645 068 4913 MAGNET BEAD 33OHM
L0010 645 068 4913 MAGNET BEAD 33OHM
L0011 645 068 4913 MAGNET BEAD 33OHM
L0012 645 068 4913 MAGNET BEAD 33OHM
L0013 645 075 8324 CHIP CHOKE 1.8 UH
L0014 645 068 5200 MAGNET BEAD 10UH
L0015 645 068 4913 MAGNET BEAD 33OHM
L0016 645 068 4913 MAGNET BEAD 33OHM
L0017 645 068 4913 MAGNET BEAD 33OHM
L0018 645 068 4913 MAGNET BEAD 33OHM
L0019 645 075 8324 CHIP CHOKE 1.8 UH
L0020 645 075 8331 MAGNET BEAD 33 OHM
L0021 645 075 8485 COIL 47UH
L0023 645 075 8324 CHIP CHOKE 1.8 UH
L0024 645 068 4913 MAGNET BEAD 33OHM
L0025 645 068 4913 MAGNET BEAD 33OHM
L0026 645 075 8324 CHIP CHOKE 1.8 UH
L0027 645 068 4913 MAGNET BEAD 33OHM
L0029 645 068 4913 MAGNET BEAD 33OHM
L0031 645 068 4913 MAGNET BEAD 33OHM
L0035 645 075 8317 CHIP CHOKE 10UH
L0036 645 075 8317 CHIP CHOKE 10UH
L0045 645 068 4913 MAGNET BEAD 33OHM
L0046 645 068 4913 MAGNET BEAD 33OHM
L0047 645 068 4913 MAGNET BEAD 33OHM
LED01 645 068 5163 LED
Q0001 645 068 5125 TRANSISTOR 3906
Q0002 645 068 5125 TRANSISTOR 3906
Q0003 645 075 8461 TRANSISTOR AO3407
Q0004 645 075 8478 TRANSISTOR 8550
Q0005 645 068 5118 TRANSISTOR 3904
Q0006 645 068 5118 TRANSISTOR 3904
Q0007 645 068 5118 TRANSISTOR 3904
Q0008 645 068 5118 TRANSISTOR 3904
Q0009 645 075 8478 TRANSISTOR 8550
Q0010 645 068 5118 TRANSISTOR 3904
Q0011 645 068 5125 TRANSISTOR 3906
Q0012 645 075 8461 TRANSISTOR AO3407
Q0013 645 068 5118 TRANSISTOR 3904
Q0014 645 075 8447 TRANSISTOR 2907
Q0016 645 068 5125 TRANSISTOR 3906
Q0019 645 068 5118 TRANSISTOR 3904
Q0020 645 068 5095 TRANSISTOR 2SB1182
Q0021 645 075 8454 TRANSISTOR 2SK3018
Q0022 645 068 5118 TRANSISTOR 3904
Q0023 645 075 8454 TRANSISTOR 2SK3018
Q0024 645 068 5118 TRANSISTOR 3904
Q0025 645 075 8461 TRANSISTOR AO3407
Q0026 645 068 5118 TRANSISTOR 3904
Q0027 645 068 5118 TRANSISTOR 3904
Q0028 645 075 8461 TRANSISTOR AO3407
Q0029 645 068 5118 TRANSISTOR 3904
Q0030 645 068 5118 TRANSISTOR 3904
Q0031 645 068 5125 TRANSISTOR 3906
Q0032 645 075 8447 TRANSISTOR 2907
R0121 645 075 8010 RESISTOR EVM3ES,ADJUSTABLE
RN001 645 068 4678 CHIP RES 33OHM X4 +-5%
RN002 645 068 4678 CHIP RES 33OHM X4 +-5%
RN004 645 068 4678 CHIP RES 33OHM X4 +-5%
RN013 645 068 4678 CHIP RES 33OHM X4 +-5%
RP001 645 075 8034 SVR WHE 1012-B10K,BRIGHTNESS
RP002 645 075 8027 SVR WHE 1022-C10K,VOLUME
SW001 645 068 5347 SWITCH TACT
SW002 645 068 5347 SWITCH TACT
SW003 645 075 8652 SWITCH SLIDE,AC/DC
SW004 645 075 8645 SWITCH TACT,WIDE/NOR
SW005 645 075 8645 SWITCH TACT,PAUSE
SW006 645 075 8645 SWITCH TACT,PREV
SW007 645 075 8645 SWITCH TACT,PLAY
SW008 645 075 8645 SWITCH TACT,NEXT
SW009 645 075 8645 SWITCH TACT,STOP
SW010 645 075 8645 SWITCH TACT,MENU
SW011 645 075 8645 SWITCH TACT,UP
SW012 645 075 8645 SWITCH TACT,LEFT
SW013 645 075 8645 SWITCH TACT,ENTER
SW014 645 075 8645 SWITCH TACT,RIGHT
SW015 645 075 8645 SWITCH TACT,DOWN
SW016 645 075 8652 SWITCH SLIDE,VIDEO
U0001 645 075 8430 IC WM8714ED
U0002 645 068 4968 IC TDA2822
U0003 645 075 8416 IC BA5954
U0004 645 075 8423 IC 6849
U0005 645 075 8362 IC K4S641632H
U0006 645 075 8409 IC 4052
U0007 645 075 8386 IC MP1410
U0008 645 075 8379 IC AAT1343
U0009 645 075 8355 IC MT1389FE-C
U0010 645 075 8393 IC AT24C02N
U0012 645 075 8348 IC A29800
U0013 645 068 4999 IC C4558
U0014 645 068 4999 IC C4558
U0015 645 075 8409 IC 4052
Y0001 645 075 8515 CRYSTAL 27MHZ
645 068 5644 LED SUPPORT,FOR LED01
645 068 5316 FUSE CHIP,FOR F1
645 075 8522 SENSOR,REMOTE
MONITOR HV P.W.BOARD ASSY
REF.NO. PART NO. DESCRIPTION
614 334 4254 ASSY,PWB,MONITOR HV(Only initial)
CR01P 645 079 9952 DIODE DA204UT106
CR02P 645 079 9952 DIODE DA204UT106
D001P 645 079 9907 DIODE ZENER 5.6V,UDZTE-17
D003P 645 079 9907 DIODE ZENER 5.6V,UDZTE-17
D007P 645 079 9914 DIODE ZENER 9.1V,H2K9B
D008P 645 079 9921 DIODE ZENER 6.2V,HZK7A
F0001 645 080 0535 FUSE 1A 63V
L0001 645 080 0405 CHOKE 100UH,CDH74-101J
Q001P 645 079 9877 TRANSISTOR SSN3906,PNP
T0001 645 080 0894 TRANSFORMER
U001P 645 079 9730 IC QZ970
U002P 645 079 9853 TRANSISTOR FD8958A,MOSFET
U003P 645 079 9853 TRANSISTOR FD8958A,MOSFET
MONITOR MAIN P.W.BOARD ASSY
REF.NO. PART NO. DESCRIPTION
614 334 4247 ASSY,PWB,MONITOR MAIN
(Only initial)
CON01 645 080 0481 8P WAFER,FOR DVD MAIN PCB J16
CON02 645 080 0498 32P WAFER,FOR PANEL
D0004 645 079 9969 DIODE DAN202K
D0005 645 079 9969 DIODE DAN202K
D0006 645 079 9969 DIODE DAN202K
DT001 645 079 9945 DIODE RLS4148
DT002 645 079 9891 DIODE ISV215
IC003 645 079 9747 IC PU5100
IC004 645 079 9754 IC M5237
IC201 645 079 9792 IC IR3Y31M
IC501 645 079 9778 IC 74HC4538
L0000 645 080 0429 CHOKE 18UH 10%
L0003 645 080 0436 CHOKE 22UH 5%
REF.NO. PART NO. DESCRIPTION

- 7 -- 6 -
PARTS LIST
REF.NO. PART NO. DESCRIPTION
L0004 645 080 0436 CHOKE 22UH 5%
L0005 645 080 0436 CHOKE 22UH 5%
L0006 645 080 0443 CHOKE 100UH 10%
L0007 645 080 0450 CHOKE 100UH 10%
L0008 645 080 0443 CHOKE 100UH 10%
L0010 645 080 0443 CHOKE 100UH 10%
L0015 645 080 0443 CHOKE 100UH 10%
LT001 645 080 0436 CHOKE 22UH 5%
LT002 645 080 0436 CHOKE 22UH 5%
LT003 645 080 0436 CHOKE 22UH 5%
LT004 645 080 0436 CHOKE 22UH 5%
LT010 645 080 0399 CHOKE 0.82UH 5%
Q0002 645 079 9846 TRANSISTOR FDN338P
Q0003 645 079 9839 TRANSISTOR FDN337N
Q0004 645 079 9839 TRANSISTOR FDN337N
Q0010 645 079 9815 TRANSISTOR 2SB1184,PNP
QT002 645 079 9884 TRANSISTOR IMZ1
QT003 645 079 9884 TRANSISTOR IMZ1
QT004 645 079 9860 TRANSISTOR DTC144EKA
RT059 645 080 0412 CHIP BEAD 600OHM
S0201 645 080 0474 CHIP SEMI VR 50K OHM B
S0202 645 080 0474 CHIP SEMI VR 50K OHM B
U0003 645 079 9761 IC 8D02
UT004 645 079 9785 IC NJM2107F
VRT01 645 080 0474 CHIP SEMI VR 50K OHM B
VRT04 645 080 0467 CHIP SEMI VR 10K OHM B
VRT05 645 080 0474 CHIP SEMI VR 50K OHM B
X0201 645 079 9822 CRYSTAL 3.579545MHZ
ZT001 645 079 9921 DIODE ZENER 6.2V
ZT002 645 079 9938 DIODE ZENER 9.1V
ZT003 645 079 9945 DIODE RLS4148
NOTE

- 9 -- 8 -

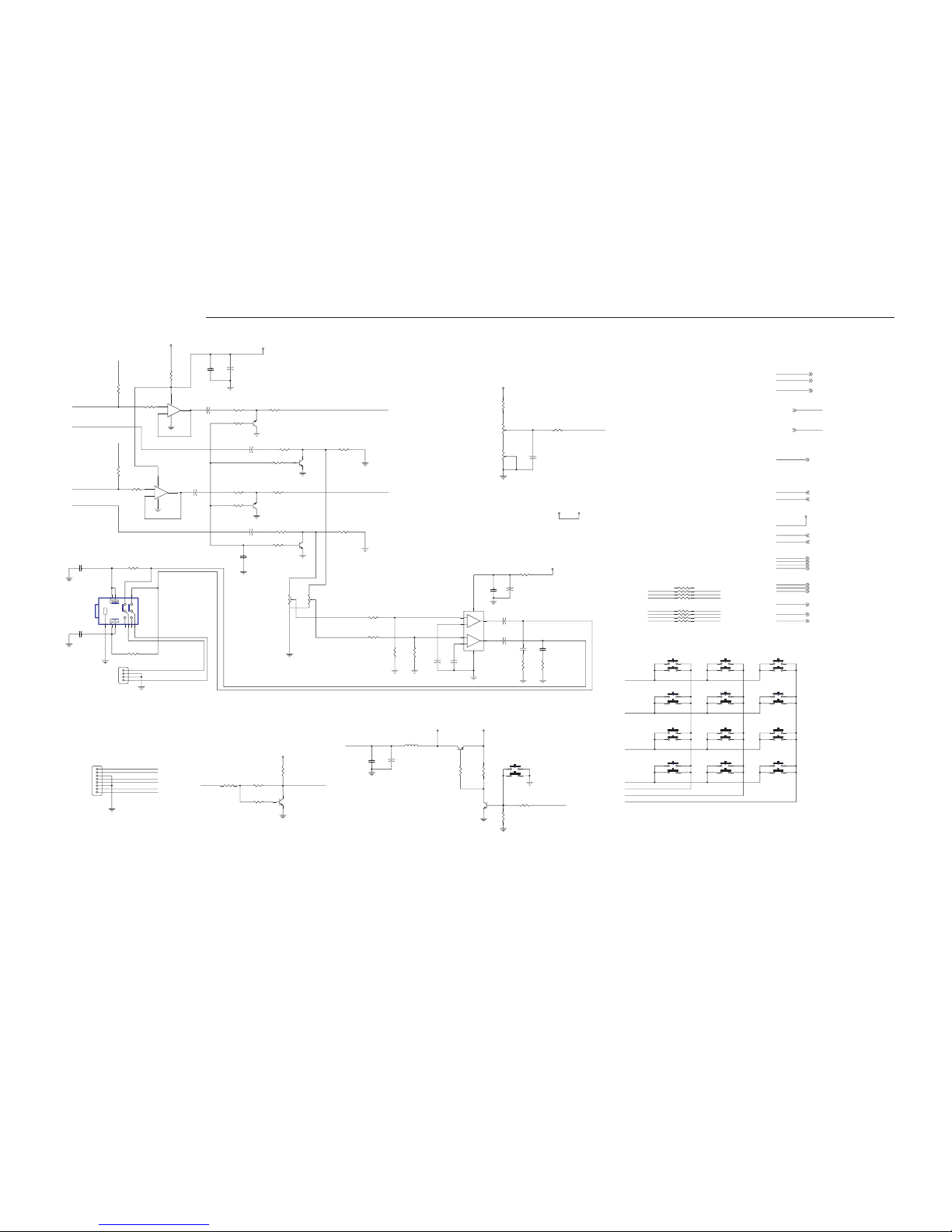

SCHEMATIC DIAGRAM (DVD-1)
1
AA
U2
DOWN
LEFT
UP
RIGHT
ENTER
MENU
PAUSE
PLAY
PREV
NEXT
STOP
TO MONITOR
BOARD(1)CON1
WIDE/NOR
MONITOR_Y(VIDEO)
MONITOR_CONTROL
MONITOR_WIDE/NOR
MONITOR_C
SPR
MONITOR_C
MONITOR_CONTROL
TFT_+9V1
ON-DCIN
SP_L
KEYSCAN_X1
KEYSCAN_X2
KEYSCAN_X3
KEYSCAN_X4
KEYSCAN_Y1
KEYSCAN_Y2
KEYSCAN_Y3
MONITOR_WIDE/NOR
MONITOR_Y(VIDEO)
TFT_+9V1
AVCM AVCM
MUTE_ON
AIN/OUT_R
MUTE_ON
VOLIN_R
VOLIN_L
HEAD_R
HEAD_L
ON/OFF_DCIN
AVCM
AIN/OUT_L
SPL
TFT_+9V1
HEAD_RR'
MUTE_ON
SPL
SP_R
SP_L
SP_R
MUTE_ON
AV-IN/OUT_SW
AIN/OUT_R
AIN/OUT_L
SPR
ADCIN
ADCIN
WIDE/NOR
KEYSCAN_Y2
KEYSCAN_Y1
KEYSCAN_X4
KEYSCAN_Y3
KY2
KY1
KX4
KY3
KX1
KY1
KY3
KX2
KX4
KY2
KX3
MUTE_ON
WIDE/NOR
IN/OUT_MUTE
ON-DCIN
+5V
KX2
KX1
KX3 KEYSCAN_X2
KEYSCAN_X3
KEYSCAN_X1
ON/OFF_DC
HEAD_RR'
HEAD_LL'
HEAD_L
HEAD_R
HEAD_LL'
MONITOR_C[ 5 ]
MONITOR_Y(VIDEO) [ 5 ]
HEAD_L [ 5 ]
HEAD_R [ 5 ]
AVCM[ 5 ]
AV-IN/OUT_SW [ 5 ]
AIN/OUT_R [ 5 ]
AIN/OUT_L [ 5 ]
KY1 [ 2 ]
KY2 [ 2 ]
KY3 [ 2 ]
KX3 [ 2 ]
KX4 [ 2 ]
KX2 [ 2 ]
KX1 [ 2 ]
MUTE_ON [ 4 ]
WIDE/NOR [ 6 ]
IN/OUT_MUTE [ 2 ]
ON-DCIN [ 1 ]
+5V [ 1 ]
DC IN
MONITOR_ON/OFFDCIN
ADCIN
ON/OFF_DCIN
ON/OFF_DCIN
ON/OFF_DCIN
VIDEO_+5V
+5V VCC
VIDEO_+5V
R47
1K
C93
0.1uF
R98
1k
+
C46
10uF/16V
R116
1.5K
+
C91
10uF/16V
R202
0
R163
2.2(0805)
R93
10k
R74
1k
R120
1.5K
RN4
33x4
1
2
3
45
6
7
8
SW10
TD-06XAX
1
3
4
2
RN1
33x4
1
2
3
45
6
7
8
CB106
0.1uF
R110
10k
SW14
TD-06XAX
1
3
4
2
+
C169
100uF/16V
SW12
TD-06XAX
1
3
4
2
SW4
TD-06XAX
1
3
4
2
R111
10k
SW11
TD-06XAX
1
3
4
2
+
C53
100uF/16V
Q5
3904
SW13
TC-2402X-G01
1
3
4
2
SW1
TC-0030
1
34
2
+
C51
100uF/16V
SW15
TD-06XAX
1
3
4
2
Q13
3904
C100
0.01uF
R46
100k
+
C90
10uF/16V
R66
330
Q8
3904
+
C86
10uF/16V
SW7
TC-2402X-G01
1
3
4
2
R43
330
R91
10
+
C89
10uF/10V-0805
SW8
TD-06XAX
1
3
4
2
1
2
3
4
J24
R52
330
R38
10k
SW5
TD-06XAX
1
3
4
2
R121
R62
1k
SW6
TD-06XAX
1
3
4
2
R44
10k
R106
100k
SW9
TD-06XAX
1
3
4
2
+
C82
10uF/10V-0805
-
+
+
-
TDA2822
1
2
4
3
6
7
8
5
+
C45
10uF/16V
+
C8
47uF/16V
J22
1
3
4
2
567
8
910
11
R103
10k
CB64
0.1uF
+
-
U13B
C4558
5
67
8
4
Q20
B1182
Q22
3904
C85
0.1uF
C84
0.1uF
+
-
U13A
C4558
3
21
8
4
R50
4.7
R92
330
R49
4.7
R90
330
R112
10k
Q7
3904
R198
10
R115
100k
R34
OPEN
L14
10uH-1A
R77
330
R78
27k
C43
1uF
R51
10
Q30
3904
1
2
3
4
5
6
7
8
J1
R203
4.7k
+
C69
10uF/16V
R104
10k
C99
0.01uF
R40
10k
RP2
10k
R71
1k
R45
100k
RP1
10k
This is a basic schematic diagram.

- 11 -- 10 -

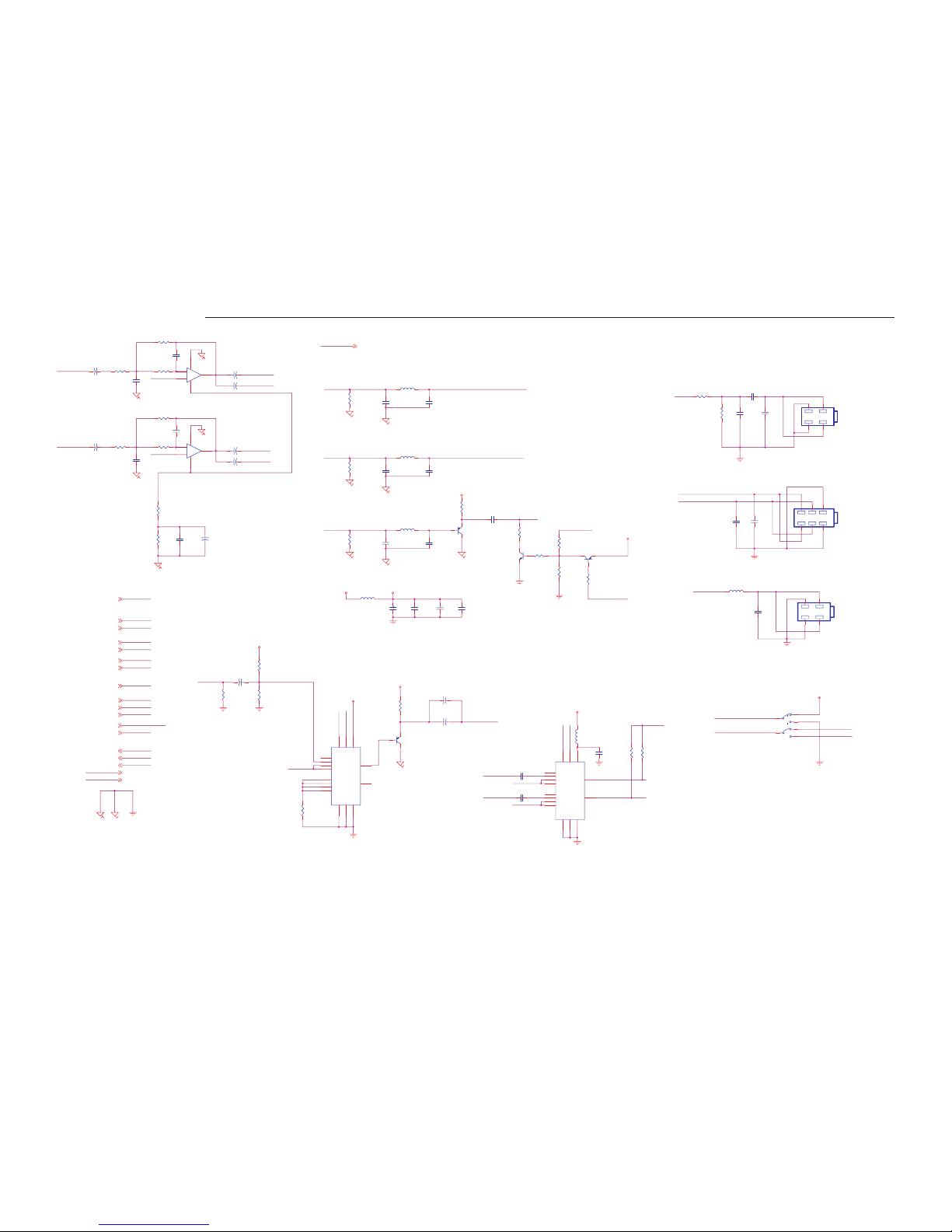

SCHEMATIC DIAGRAM (DVD-2)
VIDEO IN/OUT
COAXIAL OUT
AUDIO IN/OUT
COAXIAL
COAXIAL OUT
IN
OUT
DAC_L
AVCM
ADCIN
DAC_R
AVCM
ADCIN
AVCM
MONITOR_Y(VIDEO)
ASPDIF
MONITOR_C
HEAD_R
DAC_R
HEAD_L
MONITOR_Y(VIDEO)
DAC_L
AVIN/OUT_DET
AVCM
+5V
VIDEO_+5V
AIN/OUT_L
AIN/OUT_R
HEAD_L
SC
SC
Y2_SC
Y3_CVBS DVD_CVBS
Y1_SY SY
VIDEO_JACK
MONITOR_C
Y3_CVBS
Y2_SC
Y1_SY
AV-IN/OUT_SW
AVIN/OUT_SW
AIN/OUT_R
AIN/OUT_L
ASPDIF
AV-IN/OUT_SW
VIDEO_IN
DVD_CVBS
VIDEO_JACK
HEAD_R
VIDEO_IN
SY
TV_SW
AVIN/OUT_SW
MONITOR_Y(VIDEO)Y_OUT
IN/OUT_DET
AVIN/OUT_SW
HEAD_LL
HEAD_RR
AVCM
HEAD_LL
HEAD_RR
AIN/OUT_R
AVIN/OUT_SW
HEAD_RR'
HEAD_LL'
TV_SW
AIN/OUT_L
MONITOR_Y(VIDEO) [ 7 ]
HEAD_L[ 7 ]
ASPDIF[ 2 ]
MONITOR_Y(VIDEO)[ 6 ]
DAC_L[ 4 ]
DAC_R[ 4 ]
HEAD_R[ 7 ]
MONITOR_C[ 6 ]
AVIN/OUT_DET
[ 2 ]
AVCM[ 7 ]
+5V [ 1,2,3,4,5]
VIDEO_+5V [ 7 ]
AIN/OUT_R[ 7 ]
AIN/OUT_L[ 7 ]
Y3_CVBS[ 2 ]
Y2_SC[ 2 ]
Y1_SY[ 2 ]
AV-IN/OUT_SW
[ 6 ]
AVIN/OUT_SW
[ 6 ]
VIDEO_+5V
+5V
VIDEO_+5V
ON/OFF_DCIN
VIDEO_+5V
VIDEO_+5V
ON/OFF_DCIN
VIDEO_+5V
ON/OFF_DCIN
R99
100k
R96
100k
U6
4052
12
14
15
1
2
5
7
4
6
11
3
8
10
13
16
9
X0
X1
X2
Y0
Y2
Y1
VEE
Y3
INH
X3
Y
VSS
A
X
VCC
B
C98
47pF
CB7
0.1uF
Q11
3906
R56
100
R12
1K
R169
10k
C66
47pF
R170
1k
+
-
U14B
C4558
5
67
84
CB59
0.1uF
R70
12k
R168
100
C65
47pF
C73
150pF
Q32
2907
R94
330
+
C71
100uF/16V
R72
6.8k
Q6
3904
+
C3
10uF/10V-0805
J30
1
3
2
4
R82
1k
R73
1.5k
R55
12k
J15
1
3
2
4
5
6
SW16
1
3
4
2
56
C44 4.7uF/10V-0805
Q14
2907
+
-
U14A
C4558
3
21
84
J12
JACK1
1
2
4
3
+
C9
100uF/16V
C80
2200pF
L18
FB/0805
C112
0.1uF
R118
330
U15
14052
12
14
15
1
2
5
7
4
6
11
3
8
10
13
16
9
X0
X1
X2
Y0
Y2
Y1
VEE
Y3
INH
X3
Y
VSS
A
X
VCC
B
R109
47k
R60
6.8k
R114
10k
C70
0.1uF
C59
330pF
C60
150pF
L23
1.8uH/0805
+
C62
10uF/10V-0805
R97
39
+
C75
10uF/10V-0805
R84
10
R123
75
C74
0.1uF
R67
75
L26
1.8uH/0805
+
C72
47uF/6.3V-SMD
L19
1.8uH/0805
R61
1.5k
CB12
1uF/0805
L13
1.8uH/0805
+
C37
10uF/10V-0805
C68
1000pF
C47 4.7uF/10V-0805
C88
47pF
C81
1000pF
L27
FB/0805
CB6
0.1uF
R80
10k
+
C4
10uF/10V-0805
C57
NC
CB60
0.1uF
C87
47pF
R58
10k
+
C40
10uF/10V-0805
C64
2200pF
R57
75
CB107
NC
R85
39
+
C7
10uF/10V-0805
C96
47pF
This is a basic schematic diagram.

- 13 -- 12 -
SCHEMATIC DIAGRAM (DVD-3)
MUTE_ON
SLRCK
SLRCK
ASDAT0
DAC_R
SDAT0
ABCK
SBCLK
ALRCK
ACLK
DAC_L
SACLK
ASDAT0 SDAT0
SBCLKABCK SACLKACLK
ALRCK
DV33
DAC_R
DAC_L
TV_SW
AVIN/OUT_SW MUTE
MUTE_ON[ 6 ]
ACLK[ 2 ]
ASDAT0[ 2 ] ALRCK[ 2 ] ABCK[ 2 ]
DV33[ 1 ]
DAC_R[ 5 ]
DAC_L[ 5 ]
ON/OFF_DCIN
+5V
ON/OFF_DCIN
ON/OFF_DCIN
+
C48
10uF/16V
C35
2.2uF-0805
Q1
3906
C36
10uF-16V-1206
R41
1M
Q27
3904
R154
10k
R127
10k
L8
FB-0805
R108
10k
Q29
3904
R132
OPEN
D12
1N4148
12
+
C16
10uF/10V-0805
Q31
3906
CB44
0.1uF
R166
10k
D5
4.3V
R129
330
D3
1N4148
12
+
C10
47uF/6.3V-SMD
CB43
0.1uF
C33
10uF-16V-1206
U1
WM8714
1
2
3
4
5
6
7 8
9
10
11
12
13
14
LRCIN
DIN
BCKIN
NC1
CAP
VOUTR
GND VDD
VOUTL
MUTE
NC2
D-EMP
FMT
SCKI
C34
2.2uF-0805
R37
43K
R133
10k
R156 0
R164
470/0805
R157 0
Q16
3906
R161
10k
D4
1N4148
1 2
R36
10k
Q2
3906
RN13
33x4
1
2
3
4
5
6
7
8
+
C49
100uF/16V
This is a basic schematic diagram.

- 15 -- 14 -
SCHEMATIC DIAGRAM (DVD-4)
FLASH
DRA M
PCE#
MA5
DQM0
SDA
DQ15
MA10
MA11
MA2
DQ8
AD[0..7]
DBA0
WE#
A[0..19]
DQ6
DQ10
MA4
MA6
RAS#
DCAS#
SCL
DQ9
DCLKSDCLK
CS#
MA0
DRAS#
DRAS#
DCKE
DWE#
RAS#
DQ3
DQ11
SDCLK
DQ0
WE#
DQ12
MA3
DBA1
MA8
DCLK
DQ2
MA1
DCKE
DQ5
SDCKE
DQ4
SDCKE
CAS#
CAS#
DCAS#
DQ13
DCS#
MA7 DQ1
PWR#
DCS#
BA1
PRD#
MA[0..11]
DQ7
DQ[0..15]
DWE#
BA[0..1]
CS#
BA0
MA9
DQ14
DQM[0..1]
SDA
SCL
SD33
DQM1
DBA0
DBA1
A18
A14
AA20
A7
A3
A19
A2
A16
AD4
A17
A11
A6
A5 PRD#
A8
AD6
AD0
AD5
PWR#
A15
A1
PCE#
AD1
A13 AD7
A4
A12 A0
A10
AD3
AD2
A20
A9
CAS#[2]
SCL[2]
PRD#[2]
SDA[2]
DCKE[2]
CS#[2]
DQM[0..1][2]
MA[0..11][2]
RAS#[2]
PCE#[2]
BA[0..1][2]
AD[0..7][2]
A[0..19][2]
DCLK[2]
WE#[2]
DQ[0..15][2]
PWR#[2]
DV33
DV33
SD33
SD33
SD33
SD33
FLASH_VCC
FLASH_VCC
FLASH_VCC
+5V
FLASH_VCC
DV33
L11
FB/0805
CB49
0.1uF
L24
FB / 0805
CB115
0.1uF
L10
NC
CB52
0.1uF
R15
OPEN
R232 33
R17
OPEN
R31 33
R11
OPEN
R23
OPEN
R33
10k
U5
K4S641632H
TSOP(II)-54/SMD
1
2
4
12
5
7
9
8
10
46
11
13
15
16
17
18
19
35
22
23
24
25
26
14
41
29
30
31
32
33
34
36
37
38
39
40
43
42
44
52
45
47
49
48
50
51
53
54
20
21
3
6
27
28
VCC
DQ0
DQ1
VSSQ
DQ2
DQ3
VCCQ
DQ4
DQ5
VSSQ
DQ6
DQ7
DQML
WE
CAS
RAS
CS
A11
A10/AP
A0
A1
A2
A3
VCC
VSS
A4
A5
A6
A7
A8
A9
NC
CKE
CLK
DQMH
NC
VCCQ
DQ8
DQ9
VSSQ
DQ10
DQ11
VCCQ
DQ12
DQ13
DQ14
DQ15
VSS
BA0/A13
BA1/A12
VCCQ
VSSQ
VCC
VSS
R155
OPEN
CB40
0.1uF
R14
OPEN
U10
24C02
SOP8/SMD
1
2
3
45
6
7
8
NC
NC
NC
GND SDA
SCL
WP
VCC
RN2
33x4
1
2
3
4
5
6
7
8
R25
1k
C42
1uF
R32 33
R24
1k
U12
A29800 FLASH
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24 25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
A15
A14
A13
A12
A11
A10
A9
A8
NC1
NC2
WE
RESET
NC3
NC4
RYBY
A18
A17
A7
A6
A5
A4
A3
A2
A1 A0
CE
VSS1
OE
DQ0
DQ8
DQ1
DQ9
DQ2
DQ10
DQ3
DQ11
VCC
DQ4
DQ12
DQ5
DQ13
DQ6
DQ14
DQ7
DQ15/A-1
VSS2
BYTE
A16
R231 33 CB37
0.1uF
This is a basic schematic diagram.

- 17 -- 16 -

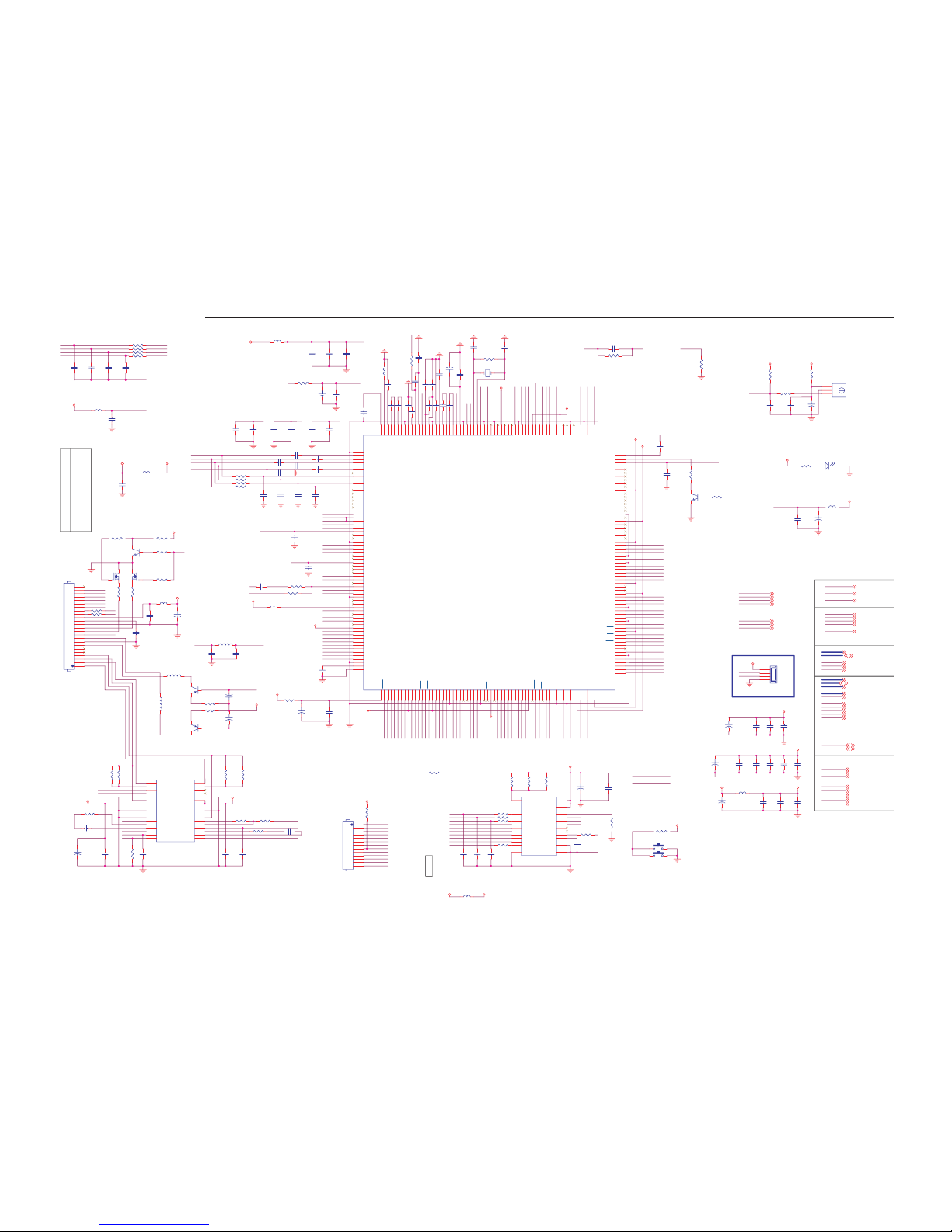

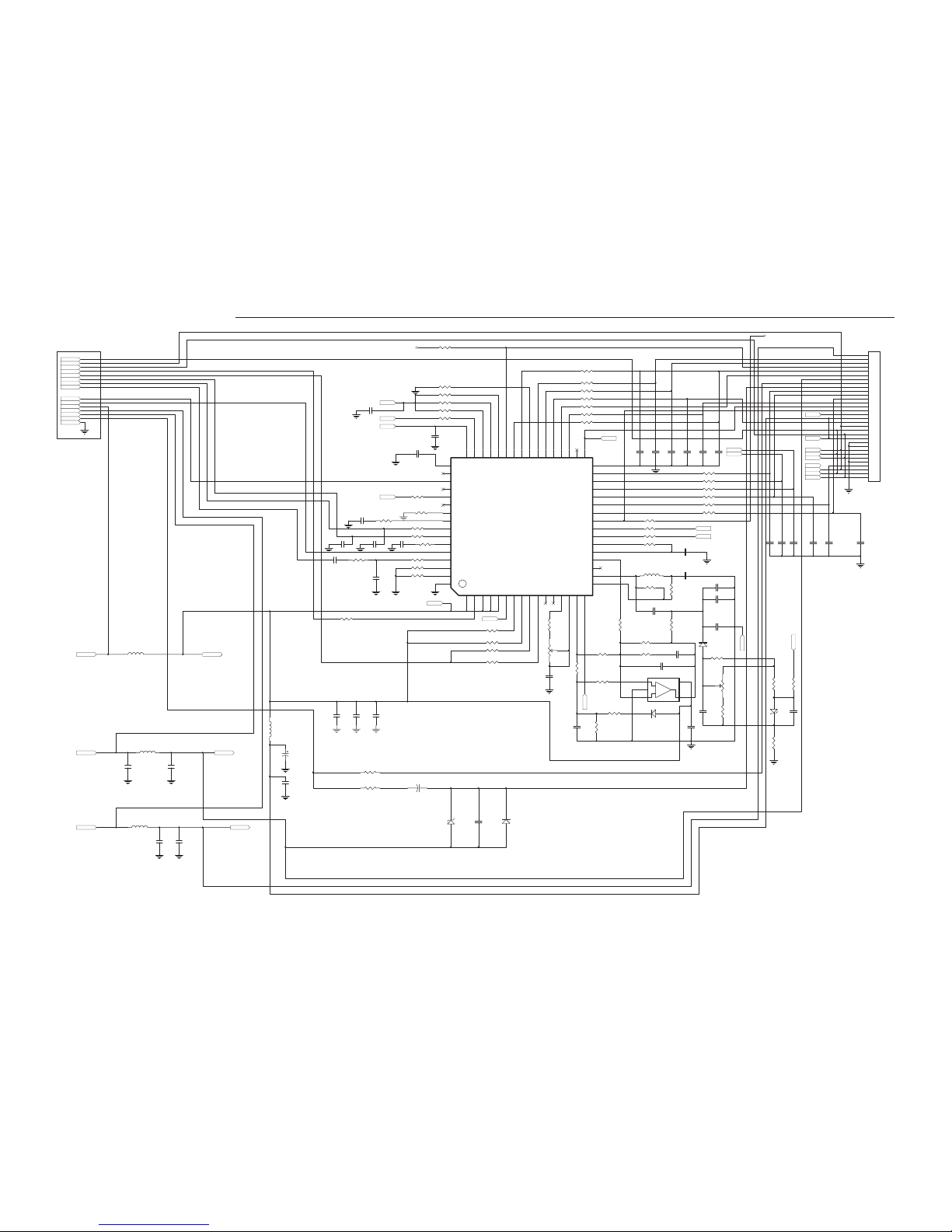

SCHEMATIC DIAGRAM (DVD-5)
C/c
TopRay
TOP1100S
9LD-CD
VR-CD
MEMORY
NC
16
21
3
22
6
7
RF
11
VC-PD
5
17
12
20
NC
MD
NC
10
F+
A/a
T+
TOP1100S
FLASH
B/b
GND-LD
GND-PD
1
F
F-
15
PIN1
18
19
14
23
4
-->
SW-CD/DVD
RS-232
2
II C
D/d
VR-DVD
POWER
CONTRL
T-
VCC-PD
13
24
8
LD-DVD
E
DCKE
V1P4
A[0..19]
HU+
WE#
MDI1
DMSO
VR-CD
F+
DQ[0..15]
V1P4
RFV33
SL+
V1P4
AVIN/OUT_SW
BA[0..1]
RFO
H-
HW+
AD[0..7]
HU-
T-
RAS#
W
MUTE
DMSO
V
FOSO
LDO1
FMO
T+
CAS#
DQM[0..1]
C
SL-
A
FOO
STBY
V1P4
WIDE/NOR
T-
PCE#
HV+
PWR#
V20
SDA
DCLK
VR-DVD
HW-
E
FOSO
LDO2
URST#
MA[0..11]
TRSO
B
LDO_V33
TxD
F
FMSO
ENDM
HV-
PRD#
FMSO
RxD
T+
F-
FGADIN
DMO
ENDMSTBY
TRSO
IOA
TRO
SCL
U
D
DMSO
IOA
CS#
DACVDD3
IR REMOTE
RFV18
COVER_SW
KX1
KX3
KY3
KX2
KY2
KX4
KY1
ASPDIF
Y2_SC
Y3_CVBS
Y1_SY
DV33
+5V
V18
V18
MA1
A5
DQ14
VREF
DQ12
DQ2
KX1
DQ4
A4
V2P8
FOO
A14
JITFN
DQ10
RFV18
A2
WE#
BA1
A15
TEZISLV
JITFO
DQ0
PLLVDD3
DQ8
CAS#
A1 VREFN
IR
D
A13
COVER_SW
Y0
DCKE
DQM0
AD7
A0
AD1
CS#
ALRCK
ADIN
MA2
DQM1
E
MA3
MA7
RFVDD3
RFV33
MA4
V1P4
DQ7
ADIN
C
URST#
TXD
PWR#
A10
AD4
FMO
DMO
TRO
XO
KY2
A7
FS
A17
V2P8
MDI2
A19
RFVDD3
A11
B
RAS#
PCE#
Y1_SY
DQ5
V18
KX2
AD0
DACVDD3
SDA
A9
Y2_SC
VREFP
MA6
PRD#
ACLK
DQ13
RXD
SCL
A12
V1P4
DQ15
MA0
ASDAT0
LDO2
A18
RFO
STBY
MA10
KY3
V1P4
DQ11
BA0
KX3
RFVDD3
ASPDIF
DQ3
ABCK
JITFO
DACVDD3
V20
DQ6
KX4
WIDE/NOR
MA5
AD6
USBVDD
MDI1
A16
PLLVDD3
MA9
A8
ALRCK
AD3
DACVDD3
DCLK
DQ1
RFVDD3
DACVDD3
RFVDD3
LDO1
MA8
A6
A3
MA11
V1P4
AD5
AD2
F
Y3_CVBS
DQ9
DQS0
KY1
JITFN
PUH5V
A
V20
LD-DVD
LD-CD
XI
ACLK
ABCK
ALRCK
ASDAT0
DQS0IOA
IN/OUT_MUTE
AVIN/OUT_SW
IN/OUT_DET
HU-
H+
H-
HW+
SL+
HW-
HV+
HU+
SL-
W
V
HV-
U
A20
GND
FG
DCLK [ 3 ]
URST# [ 1 ]
DQ[0..15] [ 3 ]
CS# [ 3 ]
WE# [ 3 ]
MA[0..11] [ 3 ]
PWR# [ 3 ]
PRD# [ 3 ]
BA[0..1] [ 3 ]
SDA [ 3 ]
PCE# [ 3 ]
A[0..19] [ 3 ]
DCKE [ 3 ]
DQM[0..1] [ 3 ]
SCL [ 3 ]
CAS# [ 3 ]
RAS# [ 3 ]
AD[0..7] [ 3 ]
KY1 [ 7 ]
KY2 [ 7 ]
KX2 [ 7 ]
KX4 [ 7 ]
KY3 [ 7 ]
KX1 [ 7 ]
KX3 [ 7 ]
AVIN/OUT_SW [ 5,6 ]
AVIN/OUT_DET [ 5 ]
MUTE [ 4 ]
WIDE/NOR [ 6 ]
ASPDIF [ 5 ]
Y3_CVBS [ 5 ]
Y2_SC [ 5 ]
Y1_SY [ 5 ]
+5V [ 5,6 ]
DV33 [2,3 ]
V18 [ 3 ]
ACLK [ 4 ]
ABCK [ 4 ]
ALRCK [ 4 ]
ASDAT0 [ 4 ]
IN/OUT_MUTE [ 5 ]
AVCC
V18
DV33
+5V MO_VCC
AVCC
LDO_V33
MO_VCC
MO_VCC
DV33
V18
DV33
MO_VCC
DV33
5V
DV33
5V
RFV33
DV33
DV33
V18
DV33
V18
V18
DV33
RFV33
DV33
DV33
V18
MO_VCC
AVCC
+5V
+
CE14
10uF/10V-0805
+
CE24
10uF/10V-0805
U4
6849/6869
HSOP28/SMD
2
4
7
28
9
10
11
12
13
14
15
24
23
22
21
8
17
25
27
20
18
16
26
29
30
A3
A2
A1
RNF
H1+
H1-
H2+
H2-
H3+
H3-
VH
FG
PS
EC
ECR
GND
CNF
VCC
VM1
FR
SB
BR
VM2
G1G2
C12 0.47uF
R138
10k
C127
C
CB130
0.1uF
CB132
0.1uF
CB36
15pF
CB4
0.1uF
R215 18k
L29
FB/0805
CB48 0.047uF
C18
0.1uF
SW2
TC-0030
1
3
4
2
CB28
0.1uF
+
C140
10uF/10V-0805
C121 1uF
R141
100k
J2
4x1 W/HOUSING
1
2
3
4
R159 4.7
L16
FB/0805
C138
1uF
CB95
0.1uF
Q21
2SK3018
2
3
1
CB26
0.1uF
R7
1/0805
CB75
0.1uF
CB91
0.1uF
R286
6.8
L31 FB/0805
C119 1uF
C118 1uF
R217 10k
R145 0
CB18
0.1uF
C32 1000pF
C162
0.01uF
R139
0
CB41
1500pF
CB80
0.1uF
R136 0
R16
560
CB85
0.1uF
R209 R
R167
20K
BOTTOM
CON1
HEADER 24 SMD0.5 BOTTOM
H24S/P0.5/A
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
R147 0
+
C128
10uF/10V-0805
R150
10k
C20 NC
R148 0
CB38
0.1uF
C114 0.1uF
R152 0
R149 0
CB21
0.1uF
Q24
3904
R214 20k
+
C136
10uF/10V-0805
C126 0.1uF
L3
FB/0805
C139
0.015uF
R4 100k
CB29
0.1uF
+
C11 10uF/10V-0805
CB62
0.1uF
C125
0.1uF
R146 0
+
CE31
47uF/6.3V-SMD
TOP
CON2
H13S/P1.0
HEADER 13 SMD1.0 TOP
1
2
3
4
5
6
7
8
9
10
11
12
13
C24 NC
C14
22pF
R8
R
R27
1k
R53
1/0805
CB125
0.1uF
R63
10 VRM-5052
1
2
3
O
G
V
C6 1000p
C146 150pF
R100 0
+
C56
10uF/16V
R158
1k
R220
10k
CB88
0.1uF
C137
0.01uF
CB11
0.1uF
C58
0.1uF
R210
R
U3
5954
1
9
10
12
3
2
15
7
14
13
21
19
20
24
27
6
4
5
28
8
11
17
18
16
23
22
25
26
29
30
VINFC
PVCC1
PGND
VOSL+
CF2
CF1
VOTK+
VNFFC
VOFC+
VOFC-
PVCC2
PGND
VNFTK
CTK2
BIAS
VOSL
VINSL+
VINSL-
STBY
VCC
VOSL-
VOLD+
VOLD-
VOTK-
VINLD
PREGND
CTK1
VINTK
G1G2
CB101
0.1uF
R221
OPEN
R28
100
R140
0
Y1
27.0000MHz
C122 1uF
C41
0.1uF
R143 47
R48
1/0805
R223 20k
CB65
0.1uF
CB13
15pF
R142
10k
CB128
0.1uF
R101 0
Q9
8550
1
3
2
C123 C
R137
100k
R10 R
C134
330pF
Q26
3904
CB66
0.1uF
R9
1/0805
L15
FB/0805
CB109
0.1uF
Q23
2SK3018
2
3
1
C141 150pF
LED 5*2mm RED
R95 15k
L35
10uH
C110 0.033uF
R128
1k
L45
FB/0805
C17
0.1uF
CE18
1uF
R69
1/0805
L17
FB/0805
C50 0.047uF
+
CE12
10uF/10V-0805
L36
10uH
CB63
0.1uF
R160 4.7
C120 1uF
CB97
0.1uF
R13 100k
CB15
15pF
+
CE1
10uF/10V-0805
R83
1/0805
R283
33
C22 NC
R151
47
CB8
0.1uF
R216 15k
R68
1k
C113
0.1uF
+
CE3
10uF/10V-0805
+
CE25
10uF/10V-0805
L47
FB/0805
C124
0.1uF
R144 0
CB2
0.1uF
R3
10k
C179 20pF
C38 0.1uF
C21 NC
C23 NC
L46
FB/0805
R246 750k
CB17
15pF
U9
MT1389
2
250
3
4
5
1
252
253
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
256
28
27
30
29
32
31
43
26
25
33
34
35
36
42
41
45
39
40
46
38
37
59
75 74
72 71
70
69 68
52
91
62
63
87
86
64
65
84 83
82
81
73
93
53
54
55
56
80
57
58
67
92
85
60
61
76
78
90
79
66
77
94
95 96
97 98
99
100 101
102 103
104
105
116
106
107
244
245
108 109
110 111
112
122
113
114 115
117 118
120 119
121
123
124 125
126
128
127
129
192
191
190
189
188
187
186
185
184
183
182
181
180
179
178
177
176
175
174
173
172
171
170
169
167
168
166
165
164
163
162
161
160
159
158
156
157
155
154
153
152
151
150
148
149
147
146
145
144
143
141
142
140
139
138
137
136
134
135
133
132
131
130
249
255
24
254
231
230
238 237
248
247
236
251
246
243
241
242
240
239
234 235
232
224
225
222
221 220
219
226
218 217
215
213
214
204
211
210 209
208
212
207 206
205
203
202
201 200
199
198 197
196
195 194
193
233
44
47
48
49
50
51
88 89
216
223
228 229
227
DVDA
CEQP
DVDB
DVDC
DVDD
AGND
OSP
OSN
DVDRFIP
DVDRFIN
MA
MB
MC
MD
SA
SB
SC
SD
CDFON
CDFOP
TNI
TPI
MDI1
MDI2
LDO2
LDO1
AVDD3
V2REFO
SGND
VREFO
V20
TEO
FEO
USB_VSS
RFLVL/RFON
CSO/RFOP
TEZISLV
OP_OUT
OP_INN
OP_INP
FOO
TRO
USBM
TROPENPWM
PWMOUT1/V_ADIN9
USB_VDD3
FMO
DMO
HIGHA0
HIGHA1
HIGHA2
HIGHA3
HIGHA4
HIGHA5
HIGHA6
HIGHA7
DVDD18
AD7
DVSS
APLLCAP
AD5
AD4
APLLVSS
APLLVDD3
AD3
AD2
AD1
AD0
DVDD3
IOA0
IOA2
IOA3
IOA4
IOA5
DVDD3
IOA6
IOA7
A16
A17
DVSS
IOA18
IOA19
IOA20
IOA1
ALE
IOOE
IOWR
IOCS
DVSS
UWR
URD DVDD18
UP1_2
UP1_3
UP1_4
UP1_5
UP1_6
UP1_7
UP3_0
UP3_1
DVSS
UP3_4
UP3_5
RFVDD3
RFRPDC
DVDD3
ICE
PRST
IR
INT0
DVDD18
DQM0
DQS0
RD7
RD6
RD5
RD4
DVSS
RD3
RD2
RD1
RD0
RD15
RD14
DVDD3
RD13
YUV0/CIN
FS
VREF
DACVDDC
RD16
RD17
RD18
RD19
RD20
RD21
DVDD3
RD22
RD23
DQM2
DQM3
RD24
RD25
DVSS
RD26
DVDD18
RD27
RD28
RD29
RD30
DVDD3
RD31/ASDATA5
RA4
RA5
RA6
DVSS
RA7
DVSS
RA8
RA9
RA11
RCLK
CKE
DVDD3
RCLKB
RVREF/V_ADIN3
DVDD18
RA3
RA2
DVSS
RA1
RA0
RA10
BA1
DVSS
BA0
DVDD3
RCS
RAS
CAS
RWE
DQM1
DQS1
DVSS
RD8
RD9
RD10
RD11
DR12
RFGND
IREF
SVDD3
RFGC
JITFN
JITFO
LPFOP
LPFIN
CRTPLP
HRFZC
LPFIP
CEQN
RFRPAC
S_VREFN
ADCVSS
S_VREFP
S_VCM
ADCVDD3
PLLVDD3
LPFON
PLLVSS
MC_DATA
SPDIF
ASDATA4
DVDD18
ASDATA3
ASDATA2
RFGND18
ASDATA1
ASDATA0
ACLK
ALRCK
ABCK
DVDD3
SPBCK/ASDATA5
SPLRCK
SPDATA
SPMCLK
DVDD3
HSYNC/V_ADIN2
YUV7/ASDATA5
VSYNC/V_ADIN1
YUV6/R
YUV5/B
DACVSSA
YUV4/G
DACVDDA
YUV3/CVBS
DACVSSB
YUV2/C
DACVDDB
YUV1/Y
DACVSSC
IDACEXLP
USBP
FG/V_ADIN8
TDI/V_ADIN4
TMS/V_ADIN5
TCK/V_ADIN6
TDO/V_ADIN7
AD6
IOA21/V_ADIN0
DVSS
DVSS
XTALO
XTALI
RFVDD18
CB1
0.1uF
C131
330pF
C13
22pF
C150
2200pF
C173
0.1uF
CB122
0.1uF
C109 0.1uF
CB87
1uF
CB131
0.1uF
Q4
8550
1
32
+
CE32
10uF/10V-0805
C19
0.1uF
R219 20k
CB42
C
This is a basic schematic diagram.

- 19 -- 18 -

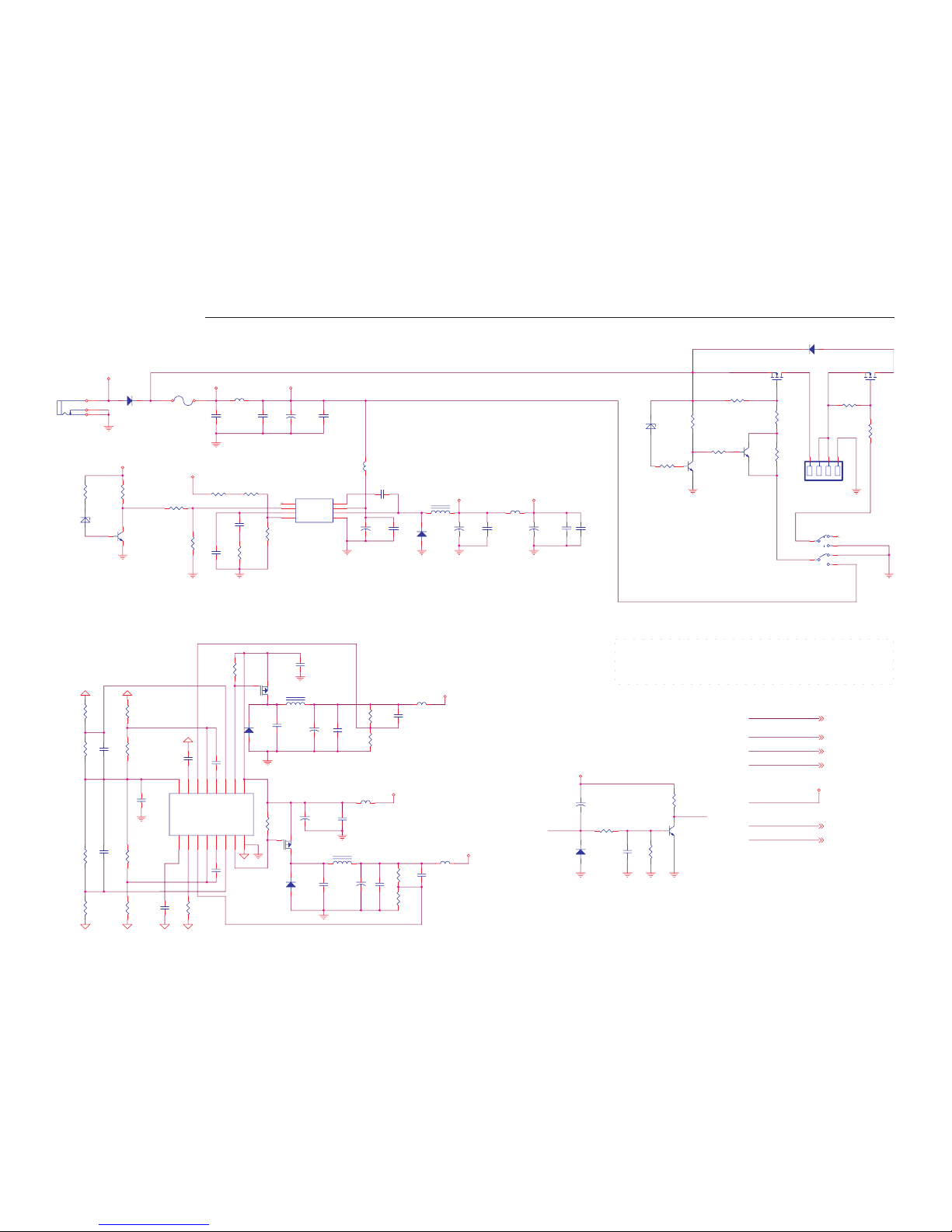

SCHEMATIC DIAGRAM (DVD-6)
ON
OFF
MP1410
1,DC IN ( 5 TO 6
2 TO 3,POWER ON;5 T O 4
2 TO 1,BATTARY
CHARGE)
2,NO DC IN (5 TO 6
2 TO 3,BATTA RY DIS CHARGE;5 TO
4
2 TO 1,POWE R OFF)
1k
10k
10V
3904
10k
ON-DCIN
ON/OFF_DCIN
ON/OFF_DCIN
DV33
URST#
ON-DCIN
URST#
+5V
NON2
NON2
V18
5V
MUTE
+5V [ 5,6 ]
V18 [ 3 ]
DV33 [2,3 ]
URST# [ 2 ]
ON-DCIN [ 6 ]
5V [ 2 ]
5V
5V +5V
DC DC-IN
DCIN
ON/OFF_DCIN
DV33
ON/OFF_DC
+5V
DV33
V18
R89
12k
L5
FB/0805
CB22 1000pF
R18
10k
D7
1N5819(SS14)
12
CB19
0.47uF
+
C28
47uF/6.3V-SMD
R87
1k
R21
33k
R81
10k
CB98
0.022uF
R65
10k
D8
1N5819(SMD)
12
R86
20k
F1
W200/P200
CB9
470pF
R113
0(0603)
R88
1k
Q10
3904
R64
1k
CB24
0.47uF
J3
134
2
CB10
1000pF
+
C151
47uF/6.3V-SMD
R42
47k
L7
FB(1206)
L12
FB/0805
+
C5
47uF/16V
R1
1k
R30
33k
L4
47uH-0.8A
R117
10k
CB30
0.1uF
CB25
0.47uF
D2
1N4148
12
U7
1
2
3
4
5
6
7
8BS
VIN
VSW
GNDFB
COMP
EN
SYNC
R119
10k
R2
10k
CB32
220pF
+
C29
47uF/6.3V-SMD
Q25
AO3407
R122
27k
Q28
AO3407
L1
FB(DIP)
CB39
0.1uF
+
C168
10uF/16V
Q3
AO3407
D6
1N5819
SS14
12
R59
OPEN
CB3
0.01uF
R54
1.2K
CB55
0.1uF
R22
47k
CB54
0.1uF
Q17
OPEN
C15
0.1uF
R39
200k
SW3
1
3
4
2
56
L21
47uH-1.5A
D1
1N5819(SS14)
12
Q18
OPEN
R6
3k
CB34
220pF
CB102
0.1uF
R29
47k
CB35
0.1uF
R35
200k
L6
FB/0805
CB33
1000pF
CE2
10uF/10V-0805
R76
OPEN
CB27
100pF
CB20
1uF R26
47k
CB14
0.47uF
R79
1k
+
C2
100uF/16V
R105
5.1K
D9
OPEN
J4
DC-INPUT
1
2
3R75
OPEN
R19
47k
CB31
0.1uF
R193
10k
U8
AAT1343
1
2
3
4
5
6
7
8
16
15
14
13
12
11
10
9
CT
RT
NON1
INV1
FB1
DT1
OUT1
GND
VREF
SCP
NON2
INV2
FB2
DT2
OUT2
VCC
+
C1
100uF/16V
L2
47uH-0.8A
R102
1.2K
R107
10K
CB23
0.22uF
R20
47k
Q19
3904
Q12
AO3407
CB72
0.022uF
C30
10uF/16V-1206
L20
FB/1206
CB73
100pF
D13
15V-2
D11
SK34(SMD)
1
2
This is a basic schematic diagram.

- 21 -- 20 -

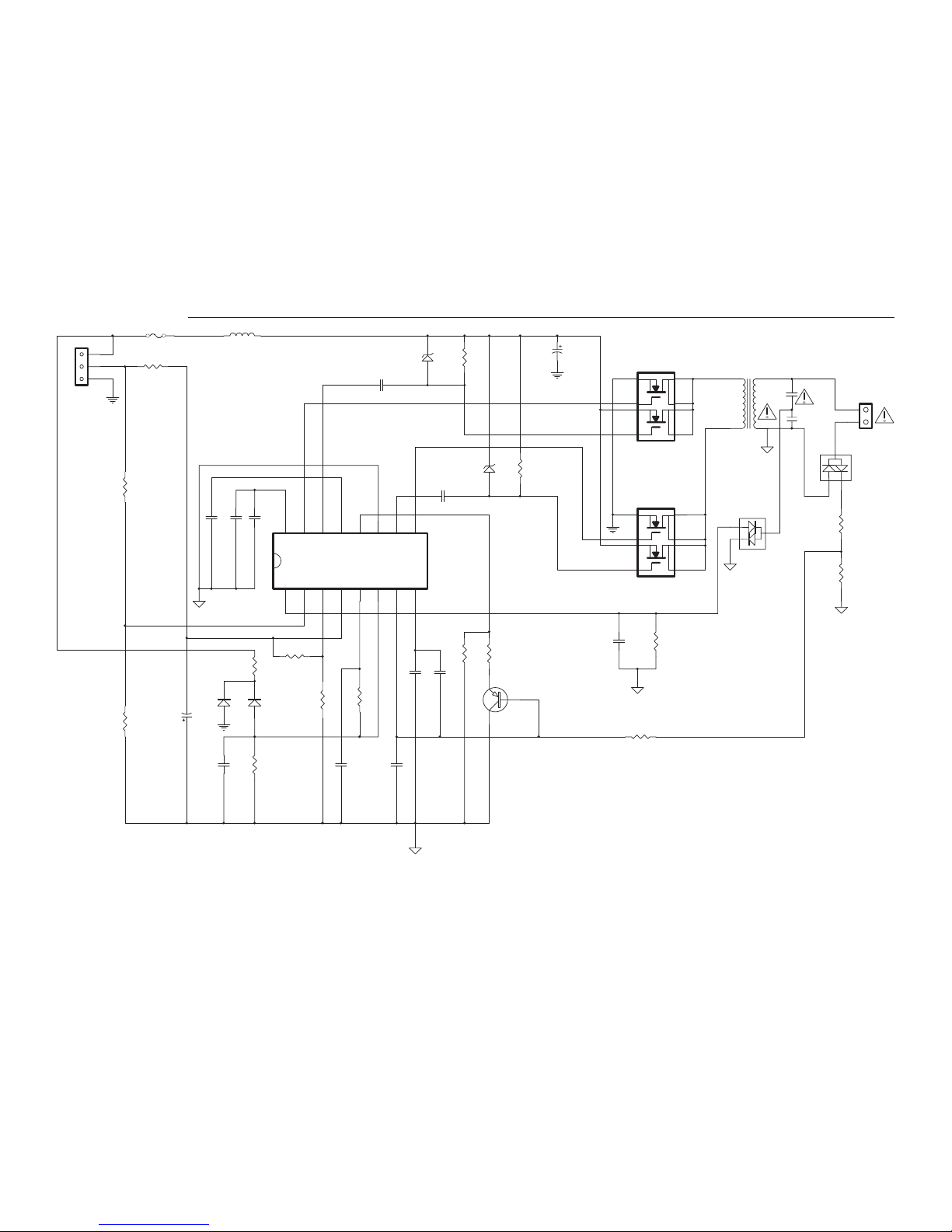

SCHEMATIC DIAGRAM (HV)
OUP
1
ENR
2
SST
3
VDD
4
REF
5
ADJ
6
FB
7
OMP
8
CTIM R 16
PD RV _B 15 PD RV _R 14
CT 13 RT 12
GNDR 11
PD RV _C 10
NDRV_D 9
U1P OZ970
1 7
3 6
T1
.
1
2
3
4 5
6
7
8
U2P
.
1
2
3
4 5
6
7
8
U1P
.
2
1
.
.
CR1P
.
CR2P
.
R4P
22
R5P
10K
R7P
100K
D1P
5.6V
R1P
10K
R11P
10K
D3P
5.6V
C3P
0.047uF
C7P
330P C4P
1uF
C4AP
0.22uF
C2P
0.1uF
R3P
68K
R2P
1K
D8P
6.2V
D7P
9V R8P
300
C12P
0.1uF
C18P
470P
C16P
1500PuF
C15P
0.022uF
R6P
47K R10P 100K
Q1P
SSN3906
C17P
0.1uF R12P 1M
R13P 39K
C14P
0.047uF
C8P
10P/3KV
R15P
820
R14P
820
.
.
1
2
3
R26P
10K
L1
100uH
C11P
10uF/16V
+9V
+5V
C1P
10uF/25V
C13P
0.022uF
C9P
10K
F1
1A/60V
This is a basic schematic diagram.

- 23 -- 22 -
SCHEMATIC DIAGRAM (MONITOR -1)
C0
22P
C203
0.01uF C232
1200P
R242
1M
C201 10uF/16V
R237 18K
R232
1K
R241 4K7
R240
18K
R233
560
C233
0.1uF
R231
1K
C214 1uF C216
1uF C218
1uF
R224 560
R219
OPEN
C250
0.01uF
C223
0.01uF
C222
0.01uF
R221 27K
R227
56K
C207
0.01uF
R228 15K
C224
0.01uF
R226 18K
R210 27K
R220
82K
R222
82K
R223 27K
C208 0.1uF
R211 1M
C212
0.47uF/16V
C213
0.01uF
R216
8K2
R215
5K6
X201 4.43
C202 680P
R208
12K R207 18K
C230
0.01uF
C206
0.01uF
C220 100uF/16V
C209
0.01uF
R236 680K
C217
1uF
R278
56K
R271 27K
R272
18K
R206 330
L0
18uH
1
2
3
4
5
6
7
8
16
15
14
13
12
11
10
9
IC3
PU5100
R32 24K
R30 4K7
R34 10
R31 10
R35
10
R46
4K7 R47
10K R50
10K
R49
2K
R42 4K7
R48
2K
R40
7K5
R41 10K
R38 7K5
R81
2K
C27 0.1uF
R36
1K
C26 0.1uF
C43 0.1 C45
0.1uF
C44
0.1
C41
0.1uF
C40 100
C37
220
C46
0.0033uF
C38
100P R37
27K
R44 22K
R45 2K C42
0.0033uF
C35
47uF/16V
C36
0.1uF
C39
100P
R39
27K
D6
DAN202K
L5
22uH
C34
1uF
C58
0.1uF
C30
47uF/16V D4
DAN202K
L3
22uH
C29
0.1uF
C28
47uF/10V
L7
100uH
L4 22uH
D5 DAN202K
C33
0.1uF
C32
47uF/10V
C47
0.33uF
R58
22K
R57
470
R59
5K6
R60
1K8
Q10
B1184
1 2 3
IC4
M5237
6 5 4
1 2 3
QT3 IMZ1
RT3
4K7 RT32 10
RT6
4K7 RT26 10 RT4 10K
RT5 1K
RT2
10
CT12
10uF/16V
VRT1
10K
RT22
0
C210
0.01uF
C204
100P
R252 8K2 R253 22K
2 1 6
45 47 46 48 38 37 36 19 20 21 22
3
44
5
11
15
14
16
13
4
18
17 43 25 8 12 7 41 40 39 33 35 34 9 42
30
31
10
27
28
32
29
26
24
23
IC201
IR3Y31
R238
330K
R78 1K
Q6
T146
R83
1K
S201
50KB
S202
50KB
R225
56K
C231 47uF
C205 0.01uF
C221
1uF
3 2 1
4 5 6
QT2 IMZ1
Q2
FIN338N
Q3
FIN337N
Q4
FIN337N
15 8
14 12
16 13 11
9
IC501
74HC4538
R501
12K
C501
220P
R217
10
HSY
FRPT
CSY
VGH
FRPV
VB
VR
VG
VSH
VGL
COM
DMI
GND-EARTH
R202
10M
+9V ~ +12V
TO: HV BOARD
TO: PAGE 3 of 4
From: DVD BOARD
1
2
3
4
5
6
7
8
+9V ~ +12V
+9V ~ +12V
GND
Y
C
GND
WIDE/NOR.
BR
CON1
.
C234
1uF
C227
1uF
L6 100uH
L10 100uH
C215 1uF/50V
C217 1uF/50V
C219 1uF/50V
T146
T146
T146
L6 100uH
R273
10K
R274
5K6
R212 22K
R205
RES
R43
4K7
VDD1
+5V
R574
100K
R575
100K R579 100K
R578
100K
R577
100K R576
100K
BLK
TO: MONITOR BOARD(2)
TO: PAGE 2 of 4
7.5V
-15V
L15 100uH
This is a basic schematic diagram.

- 25 -- 24 -
SCHEMATIC DIAGRAM (MONITOR -2)
LT2
22uH
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
1 2 3 4 5 6 7 8 9
10 11 12 13 14 15 16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33
U3
8D02
VCC_IN VCC1
LT4
2.2uF
VGH_IN VGH
LT3
2.2uF
VGL_IN VGL
1 2
RT15 560
1 2
RT19 100
1 2
RT20 100
1 2
RT23 100
1 2
RT24 560
1 2
RT25 51K
1 2
RT12 OPEN
1 2
RT11 OPEN
1 2
RT10 OPEN
1 2
RT9 OPEN
1 2
RT8 OPEN
1 2
RT7 2K
12
CT22
0.47uF
1 2
RT42 100
1 2
RT41 100
1 2
RT40 100
1 2
RT39 100
1 2
RT38 100
1 2
RT37 100
1 2
RT36 100
VCC
UON
1 2
CT23 1U
VCC
GND
12
CT29
680P
12
CT30
680P
12
CT31
680P
12
CT32
680P
12
CT43
680P
12
CT44
680P
12 RT43 2K
12 RT44 560
12 RT46 TBD
VCC
GND
1 2
RT59 39
1 2
RT60 OPEN
1 2
RT61 OPEN
1 2
RT62 39
1 2
RT63 39
1 2
RT45 OPEN
LT10
0.82UH
GND
1 2
RT64 39
1 2
CT33
1000P
1 2
RT49
10K
1 2
CT36
100P
12
RT48
39K
1 2
CT37
1000P
1 2
RT47
39
VCC
GND
1 2
RT1
560 1 2
RT28 2K
1 2
RT29 2K
1 2
RT30 2K
1 2
RT31 2K
1 2
RT27
39
12
CT26
1000P
VRT4
10K
CK C
12
CT45 56P
12
CT34 OPEN
12
CT35 OPEN
12
CT52
56P
12
CT51
56P
12
CT53
680P
BLUE
RED
GRE E N
STH2
BLUE
RED
GRE E NPort
Port
1 2
CT46 OPEN
1 2
CT47 OPEN
1 2
RT50
10K
12 RT52 1M
12 RT54 51K 12
RT53
20K 1 2
CT39 0.1uF
1 2
CT40 680P
12
RT55 51K
+
-
1
2
3
5
4
UT4
NJM2107F
1 2
RT57
3.9K
1 2
RT56
68K
1 2
RT58
2K
12
CT41
0.1uF
DT1
.
12
CT3 0.1uF
1 2
CT48 27P
GND1
DT2 I SV214
12
CT50
0.1uF
1 2
RT65
0
1 2
RT67
39K
1 2
RT68
10K
VRT5
10K
12
CT49
0.1uF
1 2
RT13
0
1 2
RT69
15K
12
ZT2
8.2V
VGL
VDD2
VCC
GND
DSOE
DS
UD
STV
CPV
VGL
VGOFF
VCOM
CPH1
STH1
INH
RST
VCC
RLC
VCC
5V
VDD2
VGH
BLUE
RED
GREEN
VDD2
BLUE
RED
GREEN
OE
STH2
BLUE
RED
GREEN
-15V
+5V
17V
VCC1
VGH
DSOE
DS
UD
STV
CPV
VGL
VGOFF
VCOM
CPH1
STH1
INH
RST
VCC
RLC
VCC
5V
VDD2
OE
GREEN
RED
BLUE
GREEN
RED
BLUE
STH2
GREEN
RED
BLUE 1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32 CON2
.
RT33
100
RT34
100
+
CT25
1uF
ZT1
6.2V ZT3
1N4148
CT35
0.047uF
VR
VG
VB
CSY
DM1
BLK
HSY
FRP
N/P
FRDV
VDD1
VGH
VGL
VGOFF
VCOM
GND
GND
COM
VR
VG
VB
CSY
DM1
BLK
HSY
FRPT
N/P
FRDV
VDD1
VGH
VGL
COM
GND
+5V
+5V
+5V
CT118
OPE N
RT17 100
RT18
OPE N
CT7
680P
CT18
OPE N
CT8
OPEN
CT17
680P RT21 100
CT34
1U
CT19
OPEN
RT35
39
CT116
0.1uF CT119 0.1uF CT55 0.1uF
LT1
22uH
CT10
10uF/16V
CT9
0.1uF
CT3
0.1uF CT4
0.1uF
CT15
0.1uF CT16
OPEN
TO: PAGE 1 of 4
TO: PANEL
(VCC= +5V)
This is a basic schematic diagram.

- 27 -- 26 -

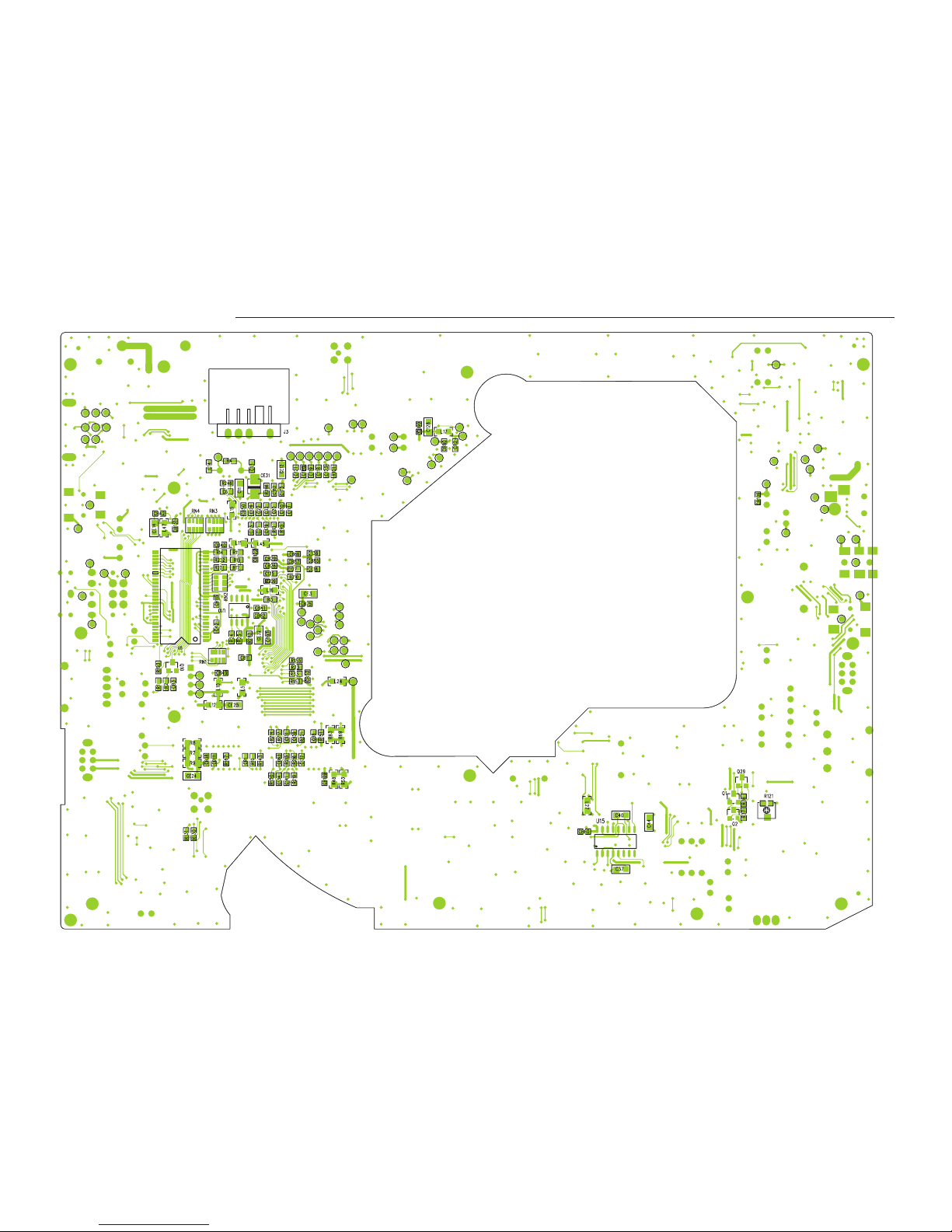

WIRING DIAGRAM (DVD MAIN A SIDE)

- 29 -- 28 -
WIRING DIAGRAM (DVD MAIN B SIDE)

- 31 -- 30 -

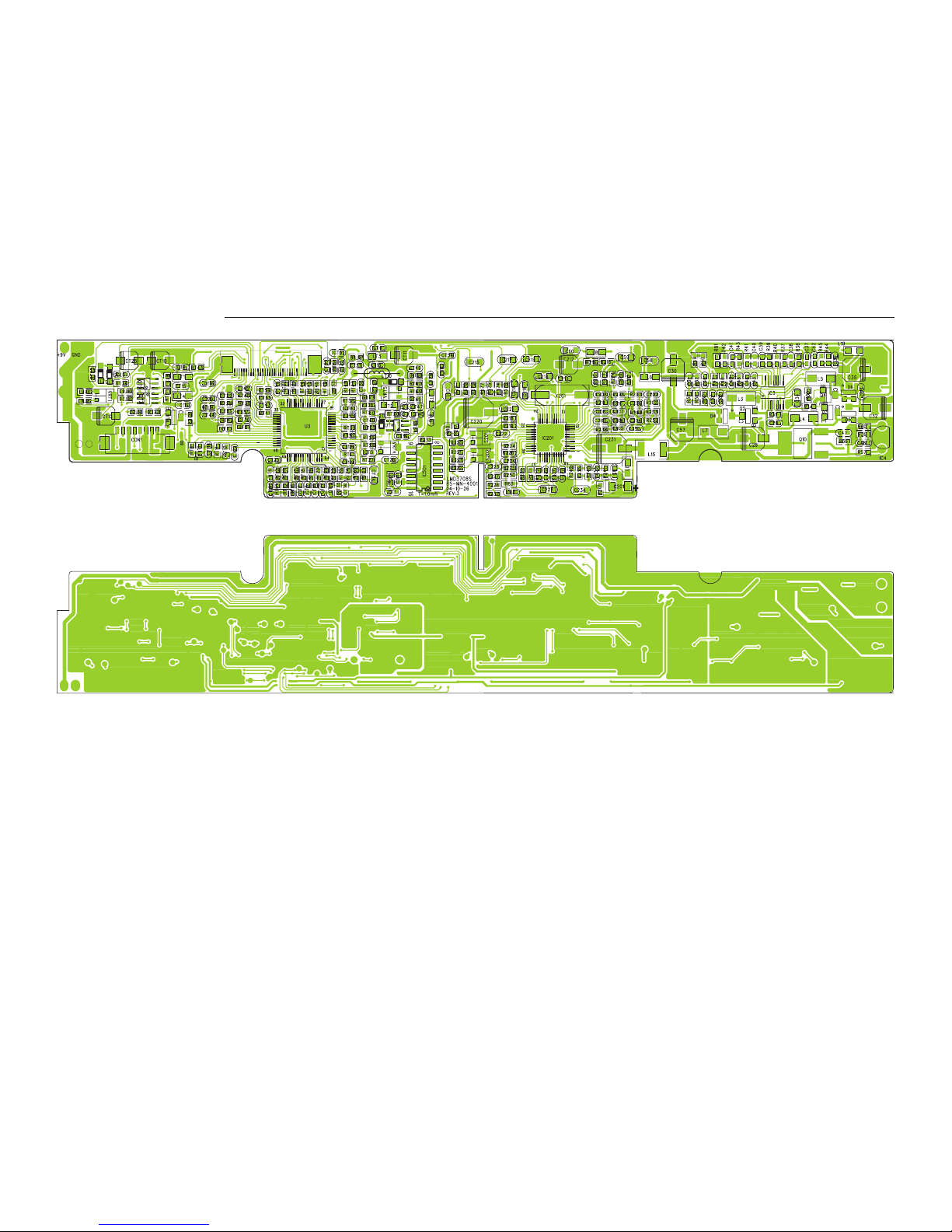

WIRING DIAGRAM (MONITOR MAIN)

- 33 -- 32 -
BATTERY CHARGE BOARD PCB
BATTERY Li -ION
CON2
02MV1103A
3PIN
CON1
DVD LOADER
J16
MONITORMAINPCB
8" PANEL
32 PIN
HIGH VOLTAGE PCB
HIGH VOLTAGE
CON
8PIN
32 PIN
DVDMAINPCB
J9
2PIN 2PIN SPEAKER
LEFT
SPEAKER
RIGHT
85ME1102B
HIGH VOLTAGE
82MN0201H
CON2
13PIN
CON1
J3
4PIN
4PIN
3600mA
24PIN
J1
J2
85MN4001
GND
+9V +5V
WIRING CONNECTION
This is a basic wiring connection.
WIRING DIAGRAM (MONITOR HV)
SANYO Electric Co., Ltd.
Osaka, Japan
May./ '05 / BB Printed in Japan
