Sanyo DC-TS750 User manual

FILE NO.
Service Manual
CONTENTS
DVD Home Theater System DC-TS750
PRODUCT CODE No.
129 636 06
REFERENCE No. SM5810311
Specification ..................................................................... 1
Laser beam safety precaution .......................................... 2
DVD Mechanism replacement ......................................... 2
Mechanism Replacement ................................................ 3
Trouble shooting .............................................................. 5
Service mode ................................................................... 9
How to load software for MPEG P.W.Board .................... 12
Tuner Adjustment for US,CA ........................................... 12

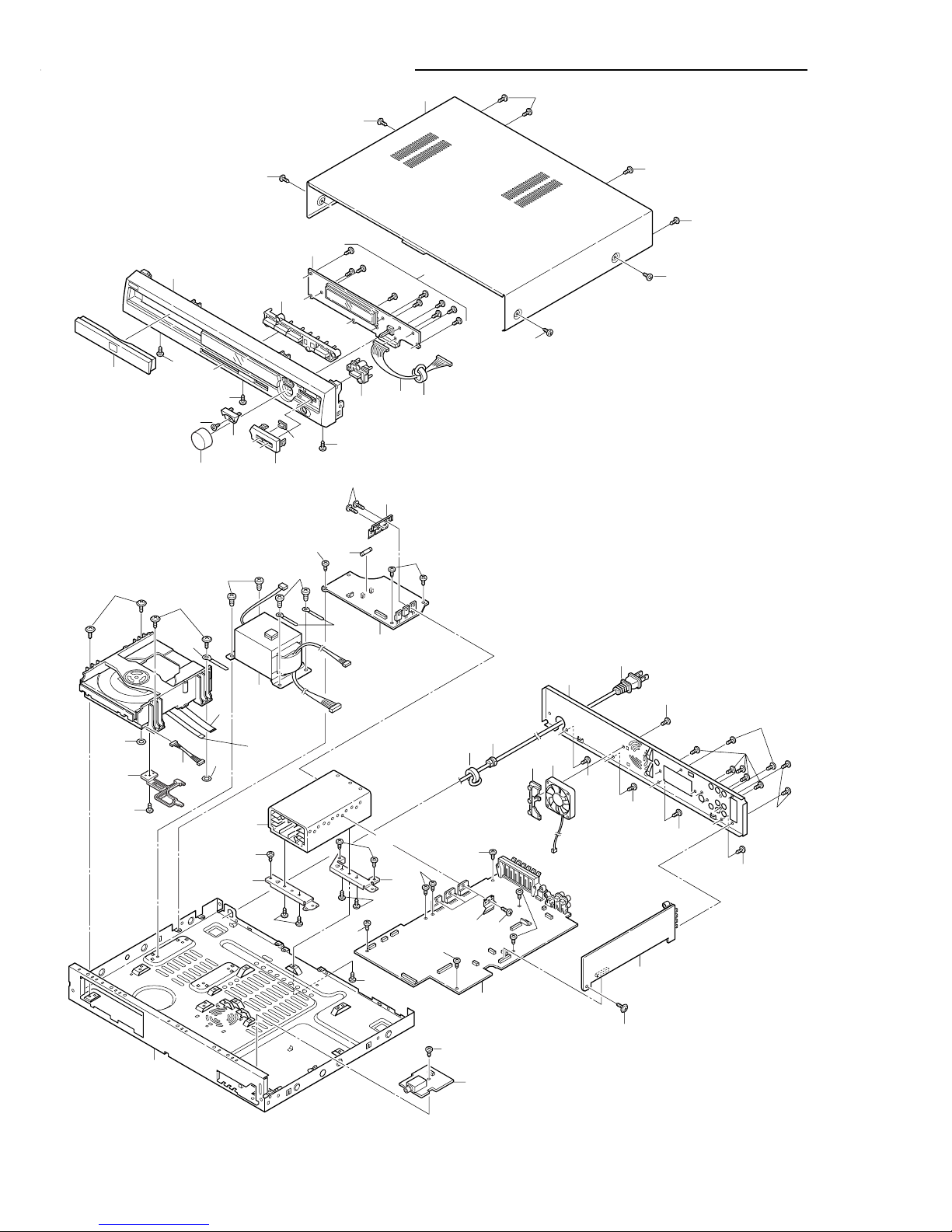

Exploded View (Cabinet & Chassis) ................................ 13
Parts List .......................................................................... 14
Exploded View (DVD Mechanism) ................................... 19
Parts List .......................................................................... 19

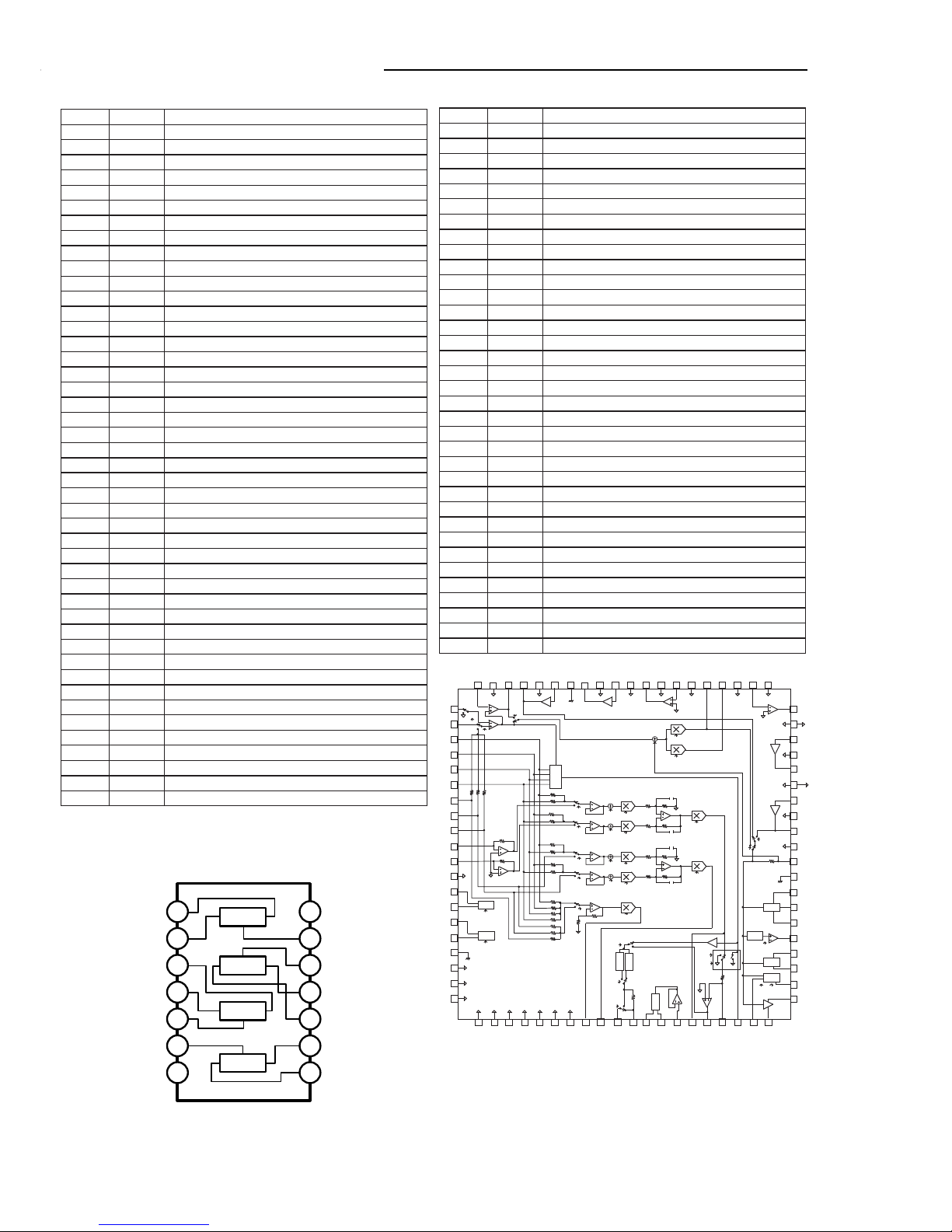

IC Block Diagram & Description ....................................... 20
Block diagram (DVD back end) ........................................ 36
(AU)
REMOTE CONTROLLER RB-TS750MT
Schematic Diagram (DVD) ............................................... 38
Schematic Diagram (MPEG) ............................................ 40
Schematic Diagram (AMP)............................................... 42
Wiring Diagram (MAIN,AMP-DVD A side) ..................... 44
(A side for CA Top Left) ................................................ 46
(A side for CA Bottom Left) ........................................... 48
(A side for CA Top Right) .............................................. 50
(A side for CA Bottom Right) ......................................... 52
(B side) ........................................................................... 54
Schematic Diagram (FRONT , TUNER ).......................... 56
Wiring Diagram (FRONT and TUNER) .......................... 58
Wiring Diagram (HEADPHONE , POWER SUPPLY
and MECH SW)................................... 60
Wiring Connection ............................................................ rear

- 1 -
SPECIFICATIONS
Amplifier
Main amplifier
Stereo mode
26W x 2
(at 8 ohms, 10% distortion)
Dolby Digital mode
26W x 2
(at 8 ohms, 10% distortion, with Centre/Surround/Subwoofer
amplifier off)
Centre amplifier
26W
(at 8 ohms, 10% distortion, with Main/Surround/Subwoofer amplifier
off)
Surround amplifier
26W x 2
(at 8 ohms, 10% distortion, with Main/Centre/Subwoofer amplifier
off)
Subwoofer amplifier
50 W
(at 4 ohms, 10% distortion, with Main/Centre/Surround amplifier
off)
US is Active Subwoofer.
Input:
VIDEO (AUDIO) IN 1: 500 mV/50 kΩ
VIDEO (AUDIO) IN 2: 500 mV/50 kΩ
Outputs:
SPEAKERS:
FRONT (L/R): 8 Ω
CENTER: 8 Ω
SURROUND (L/R): 8 Ω
SUBWOOFER: 4 Ω
MONITOR OUT:
S-VIDEO:(XE,UK)
Y: 1.0 Vp-p (75 Ω)
C: 0.286 Vp-p (75 Ω) NTSC, 0.3 Vp-p (75 Ω) PAL
VIDEO: 1.0 Vp-p (75 Ω)
DVD Player
Type:
DVD video player
Playback standard:
PAL or NTSC
Laser:
Semiconductor laser, wavelength: 650/790 nm
Laser output (Continuous wave max.):
1 mW (DVD)
0.5 mW (CD)
Signal to noise ratio:
More than 105 dB
Harmonic distortion
0.003 %
Wow and flutter:
Below measurable level
Tuner
Reception frequency:
FM: 87.5 - 108 MHz
AM: 522 - 1,710 kHz
General
Power requirements:
AC 230 - 240 V, 50 Hz
Power consumption:
120 W
Dimensions:
435(W) x 75(H) x 375(D) mm
Weight:
6.4 kg
Speaker system
Front left, Front right, Centre, Surround left and Surround right
speakers (SX-TS750S, magnetic shield)
Unit used:
8 cm cone type, full range
Maximum power handling capacity:
40 W (peak)
Nominal impedance:
8 Ω
Dimensions:
125(W) x 105(H) x 112(D) mm
Weight:
0.72 kg/speaker
Subwoofer (SX-TS750W)
Unit used:
13 cm cone type
Maximum power handling capacity:
80 W (peak)
Nominal impedance:
4 Ω
Dimensions:
160(W) x 415(H) x 310(D) mm
Weight:
4.9 kg
Specifications subject to change without notice.

- 2 -
(Connectors)
Do not connect or disconnect while power is on.
Connecting or disconnecting signal wires or the main power cord
when the power is on may destruct the unit or fixture.
When connecting, push all the way in securely.
An insufficient insertion may cause a bad contact, leading to an
erroneous operation.
Do not connect or disconnect roughly by an excessively strong
force, or a broken wire or bad contact may result.
Semiconductors are connected. Do not touch connector terminals
directly.
If the worker is grounded, there is nothing to worry about static
electricity, but the rust on the connector terminal surface caused
by the touch may result in bad contact.
(Caution)
Before disconnecting FFC
cable, make it "SHORT" as
shown left.
After connecting FFC
cable,make it "OPEN" as
shownleft.
(Power source)
The power source need be good in quality (free from
instantaneous interruptions or noises).
A low quality power source may well cause malfunction.
(Storage)
Do not place or store in a dusty place or a place where dew
condensation is possible.
The entry and deposition of dirt or dust into or on the pickup lens
or moving section will cause malfunction or degradation.
Also, dew condensation causes rust; the rust penetrate into the
precision part of a pickup, causing malfunction, or degrading the
optical quality of the internal lens and reflector, which also leads
to malfunction.
1. Cautionary instructions in handling the assy
(Safety instructions)
Optical pickup
The laser beam used in the pickup is classified as "class 2".
Exposing your eyes or skin to the beam is harmful. Take care
not to do so.
(Caution against static electricity and leakage voltage)
Ground securely the work tables, tools, fixtures, soldering irons
(including those made of ceramic) and measuring instruments
used in the production lines and inspection departments that
handle loaders. The workers shall also be grounded.
(Cautionary instructions in handling)
Do not touch the object lens when handling a loader, or the lens
will be stained, resulting in inadequate playability.
There is no power supply protection circuit provided for this
product or adjustment/inspection device. Short-circuiting may
lead to fire or damage.
Take care so as to protect from exposure to water, the entry of
metallic pieces or dew condensation.
In particular, a strong magnet adjacent to the pickup will not
only get inoperative but can damage the pickup if a small metallic
piece, such as a screw or swarm, enters.
The loader edge can cause injury if inadvertently handled.
Do not touch a rotating disk, or injury may result.
This product is a precision device. Handle carefully.
A shock or dropping will cause misalignment or destruction. If it
should occur, refer to clause 2.
This product is so designed as to endure an initial shock
equivalent to a drop from a height of approx. 90 cm under the
packed condition.
After the initial shock, the resistivity will still remain at a level of
50 to 60 G, but the mechanical robustness will weaken.
Do not place in a dusty location.
The entry and deposition of dirt into or on the pickup lens or
moving section will cause malfunction or degradation.
DVD MECHANISM REPLACEMENT
(OPEN)(SHORT)
LASER BEAM SAFETY PRECAUTION
•Pick-up that emits a laser beam is used in this CD player section.
CAUTION :
USE OF CONTROLS OR ADJUSTMENTS
OR PERFORMANCE OF PROCEDURES
OTHER THAN THOSE SPECIFIED HEREIN
MAY RESULT IN HAZARDOUS RADIATION
EXPOSURE
LASER OUTPUT.......... 0.6 mW Max. (CW)
WAVELENGTH ............. 790 nm
CAUTION – INVISIBLE LASER RADIATION WHEN OPEN AND
INTERLOCKS DEFEATED. AVOID EXPOSURE TO BEAM.
ADVARSEL – USYNLIG LASER STRÅLING VED ÅBNING, NÅR
SIKKERHEDSAFBRYDERE ER UDE AF FUNKTION, UNDGÅ UDS ÆTTELSE
FOR STRÅLING.
VARNING – OSYNLIG LASER STRÅLNING NÄR DENNA DEL ÄR ÖPPNAD
OCH SPÄRR ÄR URKOPPLAD. STRÅLEN ÄR FARLIG.
VORSICHT – UNSICHTBARE LASERSTRAHLUNG TRITT AUS, WENN
DECKEL GEÖFFNET UND WENN SICHERHEITSVERRIEGELUNG
ÜBERBRÜCKT IST. NICHT, DEM STRAHL AUSSETZEN.
VARO – AVATTAESSA JA SUOJALUKITUS OHITETTAESSA OLET ALTTIINA
NÄKYMÄTTÖMÄLLE LASERSÄTEILYLLE. ÄLÄ KATSO SÄTEESEEN.

- 4 -
Do not remove the pick-up from base mechanism because of
adjustment difficulty.
GREASE
CDF-409
GREASE
CDF-409
GREASE
CDF-409
GREASE
EM-30LG
GREASE
EM-30LG
A
: Clean the groove by alcohol well.
A
A
GREASE
EM-30LG
GREASE
EM-30LG
Apply screw lock
GREASE
EM-30LG
GREASE
EM-30LG
4. Base mechanism mounting parts.
5. Base mechanism parts. 6. Tray parts.
MECHANISM REPLACEMENT

- 5 -
TROUBLE SHOOTING
DAC5V LINE CONFIRM
3.3V LINE CONFIRM
IC412 PERIPHERAL CIRCUIT
CONFIRM (IC411,IC410 etc)
LOADER CHANGE
MUTE CIRCUIT
Q8880 PERIPHERAL CIRCUIT
CONFIRM
DAC IC870 NG
DAC IC870 PERIPHFRAL CONFIRM
DAC IC870 NG
3.3V,DAC5V
CONFIRM
CN870 Pin18,43
LOADER CHANGE
OK?
IC820 ABCLK
ALRCLK,ASDAT CONFIRM
Pin 40,41,45,46,47
IC820 Pin
FLOATING CONFIRM
IC820 NG
VIDEO COMPOSITE OUT ; OK
TUNER OUTPUT ; OK
VIDEO 1,2 OUTPUT ; OK
DVD/CD OUTPUT ; NG
IC870 Pin9~14
CONFIRM
N
Y
N
N
N
Y
Y
C,SL,SR,SW PERIPHERAL CONFIRM
(IC470,IC480,IC451,IC471,IC481,IC472,IC482,IC483
PERIPHERAL CONFIRM)
MATIRIX SURROUND CONFIRM
(IC493,IC490,IC491 PERIPHERAL CONFIRM)
L,R SIGNAL LINE CONFIRM
(BETWEEN IC450 Pin 3,13
TO IC462 Pin 1,3)
IC870 Pin 9~12 CONFIRM
IC493 Pin 12,13 CONFIRM
TUNER OUTPUT ; L,R OK / C,SL,SR,SW NG
VIDEO 1,2 OUTPUT ; L,R OK / C,SL,SR,SW NG
DVD/CD OUTPUT ; L,R OK / C,SL,SR,SW NG
TUNER OUTPUT ; L,R OK / C,SL,SR,SW NG
VIDEO 1,2 OUTPUT ; L,R OK / C,SL,SR,SW NG
DVD/CD OUTPUT ; L,R OK / C,SL,SR,SW OK
TUNER OUTPUT ; OK
VIDEO 1,2 OUTPUT ; OK
DVD/CD OUTPUT ; L,R OK / C,SL,SR,SW NG
TUNER OUTPUT ; NG
VIDEO 1,2 OUTPUT ; NG
DVD/CD OUTPUT ; L,R NG / C,SL,SR,SW OK
Y
This is a basic trouble shooting.

- 7 -- 6 -
TROUBLE SHOOTING
IC430,IC601 +5V POWER ONLY
IC430 RESET
X4300,X4301 CLOCK
IC430 ACTIVE
IC601 COMMUNICATION
STANDBY LED LIGHT
POWER SUPPLY ; STANDBY mode
IC430 ACTIVE / P-RELAY (for UK,XE) ; HIGH / P-CON ; LOW
±12V,±7V,DVD-POWER ; OFF / FIL,-30V ; ON
AC CORD PLUG
P-COM ; HIGH
DVD-POWER ; HIGH
STANDBY LED ; OFF
IC430 STANDBY DATA WAIT
±12V,±7V ; ON
IC450,IC451 COMMUNICATION
INITIALIZE ADAC (IC870)
RESET LOADER
READ,WRITE DATA IN EEPROM (IC801)
IC800 START COMMUNICATION WITH IC430
START CONTROL OF LOADER
PICK INITIALIZE SPINDLE ROTATE
IC601 VFD DATA RCVD
DISPLAY OPENNING
PLAYBACK MODE
FROM MPU STANDBY DATA SEND
IC430 STANDBY DATA RCVD
IC430 VFD DATA RCVD
IC430 VFD DATA SEND
POWER KEY PRESS
DISC Y/N
VFD INDICATE
"READING"
IVFD INDICATE
"NO DISC"
NG
NY
DVD FUNCTION
IC430 VDD,RESET,OSC CONFIRM
IC430 COMMUNICATION CONFIRM
P-CON,FIL,-30V CONFIRM
NG
NG *1
IC601 & IC430 PERIPHERAL CONFIRM
-30V FILAMENT VOLTAGE CONFIRM
COMMUNICATION LINE CONFIRM
VDD,CLOCK CONFIRM
IC800,IC820 PERIPHERAL CIRCUIT CONFIRM
POWER KEY CONFIRM
IC601 COMMUNICATION CONFIRM
LED PERIPHERAL CIRCUIT CONFIRM
PROTECT CIRCUIT CONFIRM
IC462,IC472,IC482,IC483 CONFIRM
P-CON
±12V,±7V,P-CON CONFIRM
DVD-POWER CONFIRM (IC410,IC411 etc)
NG
FM,AM,VIDEO1,VIDEO2 (VIDEO,TV)
NG
LED PERIPHERAL CIRCUIT CONFIRM
NG
NG
IC800,IC818,IC820,IC821 BUS-LINE CONFIRM
NG
LOADER CONFIRM
COMMUNICATION LINE CONFIRM (FFC)
P-COM ; HIGH /
DVD-POWER ; LOW
STANDBY LED ; OFF
IC430 STANDBY DATA WAIT
±12V,±7V ; ON
IC450,IC451 COMMUNICATION
IC430 VFD DATA SEND
IC601 VFD DATA RCVD
VFD INDICATE "VIDEO1" or "VIDEO2"
NG
NG
IC450,IC451,IC241 COMMUNICATION
IC430 VFD DATA SEND
IC601 VFD DATA RCVD
VFD INDICATE "FM" or "AM"____k(M)Hz
NG
POWER KEY CONFIRM
IC601 COMMUNICATION CONFIRM
LED PERIPHERAL CIRCUIT CONFIRM
PROTECT CIRCUIT CONFIRM
IC462,IC472,IC482,IC483 CONFIRM
±12V,±7V,P-CON CONFIRM
TUNERVIDEO1, VIDEO2 (VIDEO,TV)
*1 *1
COMMUNICATION LINE CONFIRM
REMOCON NG IC430 & DS601 PERIPHERAL CONFIRM
REMOCON OK IC430 PERIPHERAL CONFIRM
IC430
X4301
X4300
IC450
IC451
IC601
IC870
IC801
IC410
IC411
IC241
DS601
IC800
IC818
IC820
IC821
REG.
REG.
TU-PLL
IR
DVD-MPU
FLASH
MPEG
SDROM
SYSCON
SYS-CLK
SUB-CLK
FUNCTION
VOLUME
VFD-DRV
6CH-DAC
EEPROM

- 9 -- 8 -
SERVICE MODE
B. How to enter Service Mode.
You can enter Service Mode in any one of the following ways (1 to 2).
A. Market / Region SETUP
In the initial condition for this model, Market and Region
information are undefined.
In the following cases, be sure to set up Market/Region.
1. When updating the system using CD-R
(Part code : 0PRADF9635--AC).
2. When replacing a DVD substrate.
While Market/Region information are undefined, the message
"Region Undefined" is displayed on the screen.
NOTE: Even if the condition is not under 1 or 2 above, if the
message "Region Undefined" is displayed, be sure to set up
Market/Region.
1. Pushing the covered key located beneath Book Mark key on
RB-1500 or REM-S1500.
2. Simultaneously pushing both Shift key and ON SCREEN key on
RB-TS750SS.
TROUBLE SHOOTING
IC402,IC401 PERIPHERAL
CONFIRM
IC211,IC231,IC241,(IC251)
PERIPHERAL CONFIRM
TUNER OUTPUT ; NG
VIDEO 1,2 OUTPUT ; OK
DVD/CD OUTPUT ; OK
CN241 Pin10,11
5.6V,12V OK?
Y
N
IC820 OUTPUT LINE CONFIRM
Pin 101~110 PERIPHERAL
CONFIRM
LPF CONFIRM
CRYSTAL RESONATOR
CHANGE
IC820
VIDEO OUTPUT
NORMAL OK?
IC800,IC820 NG
FLOATING CONFIRM
IC800,IC820 NG
NO COLOR or ABNORMAL
X8230
27MHz
OK?
Y
N
N
Y
LOADER CHANGE
IC820 OUTPUT LINE CONFIRM
Pin101~110
CONFIRM
NPF CONFIRM
LOADER CHANGE
OK?
IC820,IC800 Pin
FLOATING CONFIRM
IC800,IC820 NG
IC820
VIDEO OUTPUT
NORMAL OK?
N
N
Y
NO PICTURE
AUDIO OK
Y

- 10 -
SERVICE MODE
C. Setup Procedures
1. Displaying SERVICE MODE screen
Display Service Mode screen following the instructions "How to
enter Service Mode" above.
2. Displaying Internal Setup screen
Push NEXT button within three seconds after operating the Service
Mode display.

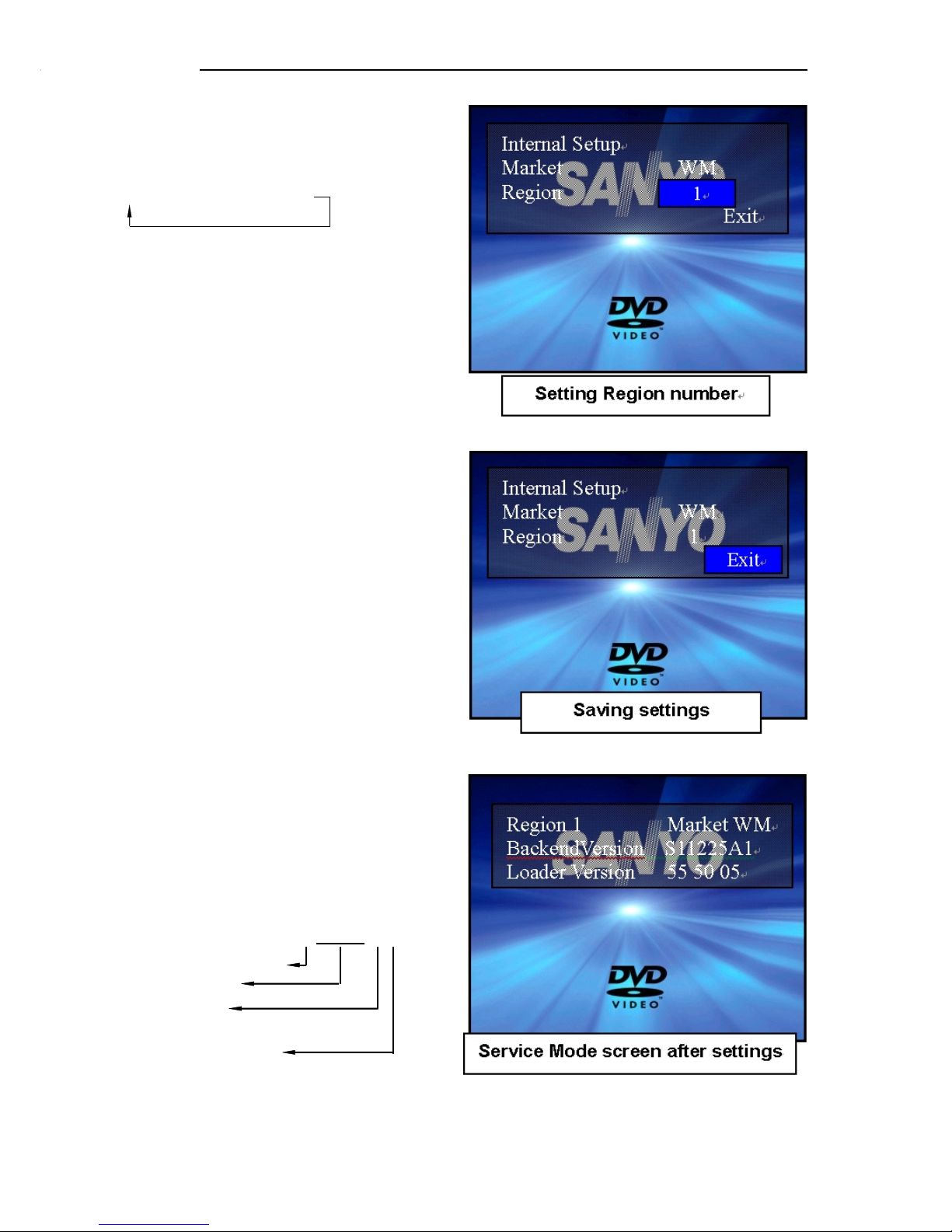

On the Internal Setup screen shown on the right, set up Market and
Region.
3. Setting Market code
3.1. While a highlighted indicator is displayed on the right side of the
Market denotation, push ENT button on the remote controller.
With each push the indicator will advance as shown below.
WM -> SFC -> EUR -> S18 -> SS -> PA
3.2. Specify the code of the model in accordance with the Market/
Region Setup Table above.
3.3 Once the desired code is displayed, push p button to move the
highlighted indicator to the Region input area.
Market/Rejion setup table.
Model Market Region
DCS-TS750/AU AU 4

- 11 -
SERVICE MODE
4. Setting REGION code
4.1 While a highlighted indicator is displayed on the right side of
the Region denotation, push ENT button on the remote
controller. With each push the indicator will advance as
shown below.
1 -> 2 -> 3 -> 4 -> 5 -> 6
4.2 Specify the number of the model in accordance with the
Market/Region Setup Table above.
4.3 Once the desired number is displayed, push pbutton to move
the highlighted indicator to Exit area.
5. Saving settings
5.1 Make sure that the Market and Region settings are properly
set.
(If any of the settings are incorrect, you can make a change
by moving the indicator using p button, and following
procedures 3 and 4 above. )
5.2 After ensuring that the settings are all correct, push ENT
button while the indicator is on Exit area. The settings are
now saved.
6. Finishing settings
6.1 After a few seconds, the Internal Setup screen disappears,
and then the Service Mode screen is displayed again for
three seconds as shown on the right.
You should check the settings.
Backend version S 11225 A 0
Brand (S : SANYO , F : FISHER)
Version ( 2 0 0 1 , 12 , 25)
Sub Version (A,B,......Z)
Region ( 0 : Region undefined
1 ~ 6 : Region defined
F : Region Free )
6.2 Power OFF.

- 12 -
1.FM
Step Adjusting Connection S G Se t Adjustment Remark
Circuit Input Output Frequency Position
1 IF Alignment FM ANT.
SG=66dBµV
IC231 3,22pin
TP24, TP25 98MHz --- XF233 0.0 ±0.05V
2 Cover --- Connect Digital DC voltmeter 87.5MHz Low L2102
Alignment voltage of
87.9MHz is 1.1 ±0.1V.
voltage --- to TP11(H), TP12(E). 108MHz High Confirm voltage of
107.9MHz is <9.0V.
3 Tracking Connect FM SG to FM Antenna Connect to VTVM 90MHz Low L2101 Max.
(SG=8dBµV) TP13(L) or TP14(R), TP15(E) 106MHz High
2.AM
Step Adjusting Connection S G Se t Adjustment Remark
Circuit Input Output Frequency Position
1 Cover --- Connect Digital DC voltmeter 522kHz Low --- more than 0.8V
voltage --- toTP11(H), TP12(E). 1710 kHz High --- less than 9.0V
2 Tracking Connect AM SG to Connect to VTVM 603kHz Low L2151-a Max.
Test loop Ant.(SG=80dBµV) TP13(L) or TP14(R), TP15(E). 1404kHz High
1
T002 94V-0
1AD4B10D1140B
E
J2102
J2202
J2101
J2003
J2105
C2122
D2151
L2151
R2101
XF221
<GND>
C2113
J2204
J2203
J2103
J2001 J2002
D2102
D2101
C2104
XF211
D2104 D2103
IC211
L2102
L2101
L2103
J2008
J2005
J2004
R2113
J2104
CN201
J2006
J2007
CN202
TP2 TP1<VT>
(FROM CN499)
CN241
+12V 5.6V TU_R
A_GND
TU_L
TU_DO TU_CE
TU_DATA
TU_CLK
RDS
DIST
D2451
J2242
J2241
J2140
C2311
C2313
XF233
C2303
XF222
J2010
C2302
C2317
R2309
R2302
C2301
XF231
IC231
C2321
C2328
C2327
C2305
RCH
LCH
LA1844
C2307
J2113
J2110
J2219
J2115
J2114
J2013
J2014
J2216
J2213 J2212
J2111
C2306
J2210
D2301 R2311 R2301
C2901
L2503
J2214
J2215
J2011
J2112
J2015
J2016
J2012
J2116
J2218
J2217
0VADJ
Q2451
J2133
J2232
J2132
J2131
J2130
L2451
J2032
D2452
J2034
J2030
J2031
C2452
J2033
C2457
X2451
IC241
C2451
LC72121
CE
DI
CLK
DO
J2234
J2134
J2039
J2038
J2230
J2233
DIST1
DIST0
DIST2
J2231
R2151
C2152
C2130
R2153
C2151
C2117
R2114
C2123
R2106
C2101
C2103
C2121
R2111 C2112
C2102
C2105 R2104
R2102
R2103
C2106
C2107 R2112
C2126
C2109
C2108
C2111
C2131
C2132
R2461
R2464
R2462 R2463
C2903
R2304
C2309
R2307
R2306
C2310 C2308
R2308
C2315 C2312
R2305
C2318
C2319
C2304
C2330
C2320
R2303
C2316
C2314
C2902
R2712
R2812
R2459
R2458
C2322
R2455
C2462
C2461
R2452
R2453
C2456
C2455 C2454
C2453
IC241
C2463
C2464
R2454
R2460
FM SG IN
75 OHM
AM
LOOP ANT
(E)
(H)
TP11
(VT)
TP12
(GND)
L2151-a
TP24
(IC231 3PIN)
TP25
(IC231 22PIN)
XF233
0V ALIGNMENT
TP14(RCH)
TP15(GND)
TP13(LCH)
L2102
SERVICE MODE
D. IMPORTANT NOTE
1. Once the "Market/Region" settings are written into EEPROM (IC801) on the DVD substrate, they cannot be reset.
(However, updating the system using CD-R enables you to make new settings.)
2. While the Internal Setup screen is displayed, pushing the Power button enables you to terminate the operations without
HOW TO LOAD SOFTWARE FOR MPEG P.W.BOARD
1. Power on, then open tray.
2. It take on CD-ROM for UPDATE software to the tray, and tray close.
3. Display " UP DATE" in the TV screen.
4. For the time being, tray open and FL display remain "UP DATE".
5. When software loading finished, FL display "STANDBY".
6. Next, set up market code and region code by "SERVICE MODE"
CD-ROM part code is "0PRADF9635--AC".
• Use a plastic screw driver for adjustments.
• MODE : STEREO
• Speaker impedance : 8 Ω
• TUNING
FM : 87.5MHz - 108MHz(50kHz step)
AM : 522kHz - 1710kHz(9kHz step)
SG RF Level : 75Ωopen Voltage dBµV
Antenna : 75Ωunbalanced Direct, Modulation : 1 kHz
Dev. : ±22.5kHz(MONO) ±22.5kHz(STEREO)
±6.75kHz(PILOT)
Output Level : about 100mV at TP13,TP14,TP15
TUNER ADJUSTMENTS

- 13 -
EXPLODED VIEW (CABINET & CHASSIS)
1
2
3
Y01
Y01
Y01
Y04 Y04
Y05
Y06
Y06
Y07
Y11
Y12
Y12
Y13 Y13
Y14
Y13 Y13
Y13
Y11
Y15
Y16
Y18
Y19
Y19
Y19
Y17
Y17
Y17
Y17
Y11
Y08 Y08
Y09
Y09
Y10
Y05
Y02
Y03
Y03
Y03
Y03
Y03
Y03
Y03
4
5
6
7
851
54
53
52 55
57
9
10
11
72
75
73
74
71
12
13
14 15
16
17
18
19
Y20
59
60 61
62

- 14 -
FRONT P.W.BOARD ASSY
REF.NO. PART NO. DESCRIPTION
71 614 321 8210 ASSY,PWB,FRONT(Only initial)
BR601 614 314 6988 MOUNTING,FL
CN601 645 016 9809 PLUG,16P,FRONT-MAIN
D6030 407 012 4406 DIODE 1SS133
D6040 407 012 4406 DIODE 1SS133
D6101 408 032 5404 LED SLP-9118C-51H-S-T1,
STANDBY
DS601 407 217 8407 PHOTO DIODE SPS-440-1-G
FL601 645 043 7311 FLOURESCENT TUBE
IC601 410 427 6507 IC MPD16315GB-3BS
or 409 519 6907 IC PT6315
Q6000 405 110 5400 TR KRA102M-A
or 405 000 0508 TR DTA114ES
R6031 401 019 9501 CARBON 47 JA 1/4W
S6001 645 048 1727 SWITCH,ROTARY(ENCODER)
S6040 645 006 5958 SWITCH,PUSH 1P-1T
or 614 220 5471 SWITCH,TACT
or 614 240 1002 SWITCH,TACT
S6041 645 006 5958 SWITCH,PUSH 1P-1T
or 614 220 5471 SWITCH,TACT
or 614 240 1002 SWITCH,TACT
ELECTRICAL-PARTS
REF.NO. PART NO. DESCRIPTION
51 614 323 5415 ASSY,WIRE,MAIN_FRONT 16P
52 614 323 3237 ASSY,WIRE,LOADING-DVD
PH-PH 5P,AWG26,L=110
53 645 054 1049 TRANS,POWER,AC240V,50HZ
54 423 028 8207 FUSE 250V 1A
55 645 053 3853 MOTOR,FAN DC 0.84W,FAN
57 614 256 5308 POWER CORD
or 645 032 1887 CORD,POWER-2.0MK
59 645 053 8384 FLEXIBLE FLAT CABLE,PICK-FFC
UL2896-24-P0.5-250MM
60 645 053 8506 FLEXIBLE FLAT CABLE,IF-FFC
UL2896-8-P1.0-140MM
61 645 051 0649 CORE,FERRITE,AC-CORD
or 645 031 7637 CORE,FERRITE,AC-CORD
or 645 051 0656 CORE,FERRITE,FRONT-MAIN
or 645 042 8999 CORE,FERRITE,FRONT-MAIN
62 645 051 0649 CORE,FERRITE,HP-MAIN
or 645 031 7637 CORE,FERRITE,HP-MAIN
Y12 411 021 6405 SCR S-TPG BIN 3X8,
HOLDER H/S-BOTTOM
Y13 411 021 6405 SCR S-TPG BIN 3X8,MAIN PWB
Y14 411 021 6405 SCR S-TPG BIN 3X8,IC-HEAT SINK
Y15 411 021 6405 SCR S-TPG BIN 3X8,PHONE PWB
Y16 411 020 9902 SCR S-TPG BRZ+FLG 3X8,
TUN PWB
Y17 411 021 3701 SCR S-TPG BIN 3X10,
BOTTOM-REAR
Y18 411 021 3701 SCR S-TPG BIN 3X10,
MOUNTING FAN-REAR
Y19 411 021 3701 SCR S-TPG BIN 3X10,
REAR-ELECT PART
Y20 411 165 3803 SCR S-TPG BIN 2.3X10,
FRONT-ESC VOL
REF.NO. PART NO. DESCRIPTION
PARTS LIST
PRODUCT SAFETY NOTICE
EACH PRECAUTION IN THIS MANUAL SHOULD BE FOLLOWED DURING SERVICING. COMPONENTS IDENTIFIED WITH THE
IEC SYMBOL !
!! IN THE PARTS LIST AND THE SCHEMATIC DIAGRAM DESIGNATED COMPONENTS IN WHICH SAFETY CAN
BE OF SPECIAL SIGNIFICANCE. WHEN REPLACING A COMPONENT IDENTIFIED BY !
!! , USE ONLY THE REPLACEMENT
PARTS DESIGNATED, OR PARTS WITH THE SAME RATINGS OF RESISTANCE, WATTAGE OR VOLTAGE THAT ARE DESIGNATED
IN THE PARTS LIST IN THIS MANUAL. LEAKAGE-CURRENT OR RESISTANCE MEASUREMENTS MUST BE MADE TO
DETERMINE THAT EXPOSED PARTS ARE ACCEPTABLY INSULATED FROM THE SUPPLY CIRCUIT BEFORE RETURNING THE
PRODUCT TO THE CUSTOMER.
CAUTION :Regular type resistors and capacitors are not listed. To know those values, refer to the schematic diagram.
Regular type resistors are less than 1/4 W carbon type and chip resistors.
Regular type capacitors are less than 50 V and less than 1000 µF type of Ceramic type and Electrical type.
PACKING & ACCESSORIES
REF.NO. PART NO. DESCRIPTION
614 324 4820 CARTON CASE,INNER
614 322 7847 CUSHION,LEFT,LEFT
614 322 7854 CUSHION,RIGHT,RIGHT
614 324 4837 INSTRUCTION MANUAL
645 052 1621 POLY BAG,VIDEO/AUDIO
645 011 9736 POLY BAG,INST MANUAL
645 048 1994 POLY SHEET,SET
645 005 1227 ASSY,ANTENA,LOOP
614 245 0055 ANTENNA,FM ANT
645 041 1373 CABLE,VIDEO
645 053 5345 REMOCON,RB-TS750SS
614 324 2680 ASSY,BOX,SPEAKER,SATELLITE
614 324 0990 ASSY,BOX,SPEAKER,WOOFER
645 043 9735 BATTERY COVER,SERVICE PART
or 645 048 5053 BATTERY COVER
CABINET & CHASSIS
REF.NO. PART NO. DESCRIPTION
1 614 323 6917 ASSY,CABINET,FRONT
2 614 322 7700 ASSY,DEC,DVD TRAY
3 614 322 4839 KNOB,ROTARY,VOL,VOLUME
4 614 322 4785 DEC,ESCUTCHEON,VOL
5 614 322 4778 DEC,ESCUTCHEON,POWER
6 614 322 4761 DEC,WINDOW,STANDBY
7 614 322 4686 BUTTON,PLAY,PLAY/FUNCTION
8 614 322 4693 BUTTON,POWER,POWER SW
9 614 322 7625 ASSY,CABINET,BENDING,
AFTER BENDING
10 614 322 5997 MOUNTING,FFC,MOUNTING
11 614 291 6568 MOUNTING,PWB,IC-HEAT SINK
12 614 322 7694 ASSY,CABINET,BOTTOM
13 614 322 4808 HEAT SINK
14 614 322 4822 HOLDER,H/SINK,BOTTOM,
HEAT SINK
15 614 322 4815 HOLDER,H/SINK,REAR,HEAT SINK
16 614 316 1417 MOUNTING,IC,IC-HEAT SINK
17 614 129 1901 FIXER,AC CORD
or 614 284 1884 FIXER,AC CORD
18 614 310 3837 MOUNTING,FAN,FAN
19 614 324 3144 PANEL,REAR
FIXING PARTS
REF.NO. PART NO. DESCRIPTION
Y01 411 021 6405 SCR S-TPG BIN 3X8,
FRONT-BOTTOM FIX
Y02 411 165 3803 SCR S-TPG BIN 2.3X10,
FRONT-PWB FIX
Y03 411 098 4205 SCR S-TPG BIN 3X8,CABINET
Y04 411 020 9803 SCR S-TPG BRZ+FLG 3X6,
DVD MECHA
Y05 614 129 9082 LUG
Y06 411 092 0906 WASHER Z 2.6X10X0.5,BASE FIX
Y07 411 021 2704 SCR S-TPG BIN 2.6X6,MOUNTING
Y08 411 001 3905 SCR S-TPG BIN 4X6,PT
Y09 411 021 6405 SCR S-TPG BIN 3X8,POWER PWB
Y10 411 021 6405 SCR S-TPG BIN 3X8,IC-HEAT SINK
Y11 411 021 6405 SCR S-TPG BIN 3X8,
HOLDER H/S-BOTTOM

- 15 -
PARTS LIST
REF.NO. PART NO. DESCRIPTION REF.NO. PART NO. DESCRIPTION
S6042 645 006 5958 SWITCH,PUSH 1P-1T
or 614 220 5471 SWITCH,TACT
or 614 240 1002 SWITCH,TACT
S6043 645 006 5958 SWITCH,PUSH 1P-1T
or 614 220 5471 SWITCH,TACT
or 614 240 1002 SWITCH,TACT
S6050 645 006 5958 SWITCH,PUSH 1P-1T
or 614 220 5471 SWITCH,TACT
or 614 240 1002 SWITCH,TACT
S6060 614 215 9828 SWITCH,TACT
or 645 035 9224 SWITCH,PUSH 1P-1T
POWER SUPPLY P.W.BOARD ASSY
REF.NO. PART NO. DESCRIPTION
72 614 324 0662 ASSY,PWB,DG(Only initial)
CN401 614 310 2519 PLUG,10P
or 645 005 8158 PLUG,10P
CN402 645 005 9315 PLUG,2P
D4005 407 099 4603 ZENER DIODE MTZJ3.9B
D4008 407 099 6102 ZENER DIODE MTZJ10B
D4009 407 012 4406 DIODE 1SS133
D4010 407 012 4406 DIODE 1SS133
D4012 407 099 6805 ZENER DIODE MTZJ13B
FPC41 645 031 7903 HOLDER,FUSE
or 645 006 4760 HOLDER,FUSE
FPC42 645 031 7903 HOLDER,FUSE
or 645 006 4760 HOLDER,FUSE
IC401 409 463 6701 IC KIA7805API
IC402 409 521 9705 IC KA78R12STU
L4000 645 038 7364 INDUCTOR,70U
PR400 645 042 2515 PROTECTOR,0.2A 125V
Q4001 405 143 6504 TR KTA1267-GR
or 405 004 4601 TR 2SA608-F-SPA
or 405 004 5103 TR 2SA608-G-SPA
or 405 006 1806 TR 2SA933S-R
or 405 006 1905 TR 2SA933S-S
Q4002 405 143 6504 TR KTA1267-GR
or 405 004 4601 TR 2SA608-F-SPA
or 405 004 5103 TR 2SA608-G-SPA
or 405 006 1806 TR 2SA933S-R
or 405 006 1905 TR 2SA933S-S
Q4006 405 138 6502 TR KTB1366Y
Q4007 405 143 6504 TR KTA1267-GR
or 405 004 4601 TR 2SA608-F-SPA
or 405 004 5103 TR 2SA608-G-SPA
or 405 006 1806 TR 2SA933S-R
or 405 006 1905 TR 2SA933S-S
R4008 402 081 1004 FUSIBLE RES 10 JA 1/4W
R4013 402 083 7707 RESISTOR 1K J- 1W
WR401 614 017 8203 TERMINAL BOARD
WR402 614 017 8203 TERMINAL BOARD
MAIN,AMP/DVD P.W.BOARD ASSY
REF.NO. PART NO. DESCRIPTION
73 614 324 0624 ASSY,PWB,MAIN,AMP_DVD
(Only initial)
C1050 403 373 7902 ELECT 150U M 6.3V
C1901 403 373 7902 ELECT 150U M 6.3V
C4108 403 325 9701 ELECT 4700U M 25V
C4109 403 325 2306 ELECT 4700U M 35V
C4110 403 325 2306 ELECT 4700U M 35V
C4120 403 370 7004 ELECT 330U M 6.3V
C4128 403 373 8404 ELECT 220U M 10V
C4130 403 373 9302 ELECT 100U M 25V
C4199 403 359 3805 ELECT 2200U M 10V
or 403 359 3805 ELECT 2200U M 10V
or 403 330 2001 ELECT 2200U M 16V
C4307 403 305 1602 CERAMIC 27P J 50V
C4308 403 305 1503 CERAMIC 22P J 50V
C4648 403 184 9805 MT-POLYEST 0.22U J 50V
C4649 403 184 9805 MT-POLYEST 0.22U J 50V
C4651 403 184 9805 MT-POLYEST 0.22U J 50V
C4652 403 184 9805 MT-POLYEST 0.22U J 50V
C4653 403 184 9300 MT-POLYEST 0.047U J 50V
C4654 403 184 9300 MT-POLYEST 0.047U J 50V
C4748 403 184 9805 MT-POLYEST 0.22U J 50V
C4749 403 184 9805 MT-POLYEST 0.22U J 50V
C4751 403 184 9805 MT-POLYEST 0.22U J 50V
C4752 403 184 9805 MT-POLYEST 0.22U J 50V
C4755 403 374 0001 ELECT 33U M 35V
C4756 403 374 0001 ELECT 33U M 35V
C4848 403 184 9805 MT-POLYEST 0.22U J 50V
C4849 403 184 9805 MT-POLYEST 0.22U J 50V
C4851 403 185 0108 MT-POLYEST 0.47U J 50V
C4852 403 185 0108 MT-POLYEST 0.47U J 50V
C4854 403 184 9300 MT-POLYEST 0.047U J 50V
C4856 403 374 0001 ELECT 33U M 35V
C4857 403 374 0001 ELECT 33U M 35V
C8231 403 305 1404 CERAMIC 18P J 50V
C8232 403 305 1404 CERAMIC 18P J 50V
C8535 403 373 7902 ELECT 150U M 6.3V
CN100 645 037 6207 SOCKET,FFC 24P
CN160 614 310 2465 PLUG,5P
or 645 005 9292 PLUG,5P
CN162 645 043 8882 SOCKET,FPC 8P
CN410 645 006 1998 PLUG,5P
CN411 645 004 2904 PLUG,4P
CN412 614 310 2519 PLUG,10P
or 645 005 8158 PLUG,10P
CN413 614 310 2465 PLUG,5P
or 645 005 9292 PLUG,5P
CN420 614 310 2434 PLUG,2P
or 645 005 7366 PLUG,2P
CN470 645 051 9437 TERMINAL,SP-6P
CN490 645 037 3831 JACK,RCA,VIDEO
CN491 645 044 9086 SOCKET,DIN 4P,S-VIDEO
CN492 645 053 8346 JACK,RCA-4P,RCA-4P
CN496 614 310 2571 PLUG,16P
or 645 016 9809 PLUG,16P
CN497 645 033 7826 PLUG,11P
CN499 614 305 6317 CORD,1P CONNECTOR
D1101 407 221 1807 DIODE KDS120E
or 407 179 1805 DIODE DAP222
D1102 407 221 1906 DIODE KDS121E
or 407 162 8507 DIODE DAN222
D4100 407 196 5800 DIODE 1N5402BD82
D4101 407 196 5800 DIODE 1N5402BD82
D4102 407 196 5800 DIODE 1N5402BD82
D4103 407 196 5800 DIODE 1N5402BD82
D4104 407 196 5800 DIODE 1N5402BD82
D4105 407 196 5800 DIODE 1N5402BD82
D4106 407 097 8009 DIODE MPG06G
D4107 407 097 8009 DIODE MPG06G
D4108 407 097 8009 DIODE MPG06G
D4109 407 097 8009 DIODE MPG06G
D4110 407 097 8009 DIODE MPG06G
D4111 407 097 8009 DIODE MPG06G
D4112 407 099 5303 ZENER DIODE MTZJ5.6B
D4113 407 099 9509 ZENER DIODE MTZJ30B
D4114 408 044 6307 DIODE SB140L 19C2-004
D4115 408 044 6307 DIODE SB140L 19C2-004
D4199 407 099 5303 ZENER DIODE MTZJ5.6B
D4200 407 012 4406 DIODE 1SS133
D4201 407 012 4406 DIODE 1SS133
D4300 407 097 8009 DIODE MPG06G
D4301 407 012 4406 DIODE 1SS133
D4501 407 012 4406 DIODE 1SS133
D4502 407 012 4406 DIODE 1SS133
D4580 407 099 5303 ZENER DIODE MTZJ5.6B
D4581 407 063 9207 ZENER DIODE MTZJ7.5B
D4582 407 063 9207 ZENER DIODE MTZJ7.5B
D4800 407 012 4406 DIODE 1SS133
D4801 407 012 4406 DIODE 1SS133
IC100 409 482 3903 IC LA9702WL-MPB
IC101 409 521 9606 IC CD4066BCM
IC130 409 500 6404 IC LC78661W-D
IC141 409 447 3702 IC T224162B-35S
or 410 367 3604 IC LC324265AT-25DV-TLM

- 16 -
REF.NO. PART NO. DESCRIPTION
PARTS LIST
REF.NO. PART NO. DESCRIPTION
or 409 447 3702 IC T224162B-35S
or 410 375 9407 IC LC324265AT-25DV-MPB
or 410 388 4505 IC M11B416256A-35T
IC160 409 532 0005 IC LA6560-A
IC410 409 519 7201 IC PQ1CG21H2RZ,REG
IC411 409 519 7201 IC PQ1CG21H2RZ,REG
IC412 409 521 9804 IC KA7805R
IC430 410 438 1706 IC M38039MC-074FP,MICON
IC450 409 521 9507 IC CD4052BCM
IC451 409 519 7003 IC NJW1150M,6CH-VOL
IC460 409 426 1903 IC KIA4558F
or 409 039 7804 IC NJM4558M
IC461 409 426 1903 IC KIA4558F
or 409 039 7804 IC NJM4558M
IC462 409 472 5306 IC LM1876TF
IC470 409 426 1903 IC KIA4558F
or 409 039 7804 IC NJM4558M
IC471 409 426 1903 IC KIA4558F
or 409 039 7804 IC NJM4558M
IC472 409 472 5306 IC LM1876TF
IC480 409 426 1903 IC KIA4558F
or 409 039 7804 IC NJM4558M
IC481 409 426 1903 IC KIA4558F
or 409 039 7804 IC NJM4558M
IC482 409 521 9200 IC LM4700TF
IC483 409 521 9101 IC LM3876TF
IC490 409 426 1903 IC KIA4558F
or 409 039 7804 IC NJM4558M
IC491 409 426 1903 IC KIA4558F
or 409 039 7804 IC NJM4558M
IC493 409 521 9606 IC CD4066BCM
IC495 409 426 1903 IC KIA4558F
or 409 039 7804 IC NJM4558M
IC800 409 522 0701 IC ZR36705TQC
IC801 410 430 9601 IC S524C20D21-SCT0
or 410 429 7809 IC S524C20D21-SCB0
or 410 429 7908 IC AT24C02N-10SI-2.7
IC802 409 505 0803 IC PST3627U
IC806 410 430 9403 IC 74VHCT08AMTCX
IC818 410 440 2500 IC ASSY
(IC LE28DW8163T-70T-MPB)
IC820 410 422 1408 IC ZR36732
IC821 409 482 0209 IC K4S161622D-TC80
IC850 409 521 9309 IC RC1117S
IC851 409 521 9408 IC RC1117S33
IC870 409 501 9701 IC PCM1602Y
or 409 534 1208 IC PCM1602KY,DAC 6CH
L1001 645 034 7887 INDUCTOR,1000 OHM
or 645 020 1813 INDUCTOR,1000 OHM
L1090 645 034 7887 INDUCTOR,1000 OHM
or 645 020 1813 INDUCTOR,1000 OHM
L1100 645 034 7887 INDUCTOR,1000 OHM
or 645 020 1813 INDUCTOR,1000 OHM
L1190 645 034 7887 INDUCTOR,1000 OHM
or 645 020 1813 INDUCTOR,1000 OHM
L1191 645 034 7887 INDUCTOR,1000 OHM
or 645 020 1813 INDUCTOR,1000 OHM
L1300 645 034 7887 INDUCTOR,1000 OHM
or 645 020 1813 INDUCTOR,1000 OHM
L1301 645 034 7887 INDUCTOR,1000 OHM
or 645 020 1813 INDUCTOR,1000 OHM
L4100 645 053 8544 INDUCTOR,210U
L4101 645 045 8613 INDUCTOR,10U
or 645 048 4469 INDUCTOR,22U
L4102 645 045 8613 INDUCTOR,10U
or 645 048 4469 INDUCTOR,22U
L4103 645 053 8544 INDUCTOR,210U
L4104 645 045 8613 INDUCTOR,10U
or 645 048 4469 INDUCTOR,22U
L4300 645 001 4550 INDUCTOR,10U K
L4650 645 053 7493 INDUCTOR,0.7U
L4651 645 053 7493 INDUCTOR,0.7U
L4750 645 053 7493 INDUCTOR,0.7U
L4751 645 053 7493 INDUCTOR,0.7U
L4850 645 053 7493 INDUCTOR,0.7U
L4851 645 045 6206 INDUCTOR,AIR 0.7U
L4960 645 040 6430 INDUCTOR,2.2U M
L4961 645 040 6430 INDUCTOR,2.2U M
L4962 645 040 6430 INDUCTOR,2.2U M
L8240 645 034 7887 INDUCTOR,1000 OHM
or 645 020 1813 INDUCTOR,1000 OHM
L8301 645 034 7887 INDUCTOR,1000 OHM
or 645 020 1813 INDUCTOR,1000 OHM
L8507 645 034 7887 INDUCTOR,1000 OHM
or 645 020 1813 INDUCTOR,1000 OHM
L8780 645 034 7887 INDUCTOR,1000 OHM
or 645 020 1813 INDUCTOR,1000 OHM
L8781 645 034 7887 INDUCTOR,1000 OHM
or 645 020 1813 INDUCTOR,1000 OHM
LUG03 645 023 8987 FIXER
LUG04 645 023 8987 FIXER
LUG05 645 023 8987 FIXER
LUG06 645 023 8987 FIXER
LUG07 645 006 4432 FIXER
LUG08 645 006 4432 FIXER
LUG09 645 023 8987 FIXER
LUG10 645 023 8987 FIXER
PR410 645 042 2737 PROTECTOR,7A 125V
PR411 645 042 2737 PROTECTOR,7A 125V
PR412 645 042 2515 PROTECTOR,0.2A 125V
PR420 645 027 4169 PROTECTOR,0.125A 125V
PR450 645 042 2515 PROTECTOR,0.2A 125V
PR451 645 042 2515 PROTECTOR,0.2A 125V
Q1000 405 146 2107 TR KTC3875-Y
or 405 146 2206 TR KTC3875-GR
or 405 014 4509 TR 2SC2412K-R
or 405 011 1006 TR 2SC1623-L6
Q1001 405 146 1704 TR KTA1504-Y
or 405 146 9700 TR KTA1504-GR
or 405 134 5905 TR 2SA1037AK-R
or 405 002 0308 TR 2SA1037K-R
or 405 005 5508 TR 2SA812-M6
Q1002 405 146 2107 TR KTC3875-Y
or 405 146 2206 TR KTC3875-GR
or 405 014 4509 TR 2SC2412K-R
or 405 011 1006 TR 2SC1623-L6
Q1003 405 146 2107 TR KTC3875-Y
or 405 146 2206 TR KTC3875-GR
or 405 014 4509 TR 2SC2412K-R
or 405 011 1006 TR 2SC1623-L6
Q1004 405 146 2107 TR KTC3875-Y
or 405 146 2206 TR KTC3875-GR
or 405 014 4509 TR 2SC2412K-R
or 405 011 1006 TR 2SC1623-L6
Q1005 405 158 5905 TR KTA1505-Y
or 405 035 5509 TR 2SA1036K-R
Q1006 405 158 5905 TR KTA1505-Y
or 405 035 5509 TR 2SA1036K-R
Q1010 405 153 2008 TR 2SK3018
Q1011 405 146 2107 TR KTC3875-Y
or 405 146 2206 TR KTC3875-GR
or 405 014 4509 TR 2SC2412K-R
or 405 011 1006 TR 2SC1623-L6
Q1012 405 146 2107 TR KTC3875-Y
or 405 146 2206 TR KTC3875-GR
or 405 014 4509 TR 2SC2412K-R
or 405 011 1006 TR 2SC1623-L6
Q1013 405 146 1704 TR KTA1504-Y
or 405 146 9700 TR KTA1504-GR
or 405 134 5905 TR 2SA1037AK-R
or 405 002 0308 TR 2SA1037K-R
or 405 005 5508 TR 2SA812-M6
Q1014 405 146 2107 TR KTC3875-Y
or 405 146 2206 TR KTC3875-GR
or 405 014 4509 TR 2SC2412K-R
or 405 011 1006 TR 2SC1623-L6
Q1016 405 146 2107 TR KTC3875-Y
or 405 146 2206 TR KTC3875-GR

- 17 -
PARTS LIST
REF.NO. PART NO. DESCRIPTION REF.NO. PART NO. DESCRIPTION
or 405 014 4509 TR 2SC2412K-R
or 405 011 1006 TR 2SC1623-L6
Q1020 405 146 2107 TR KTC3875-Y
or 405 146 2206 TR KTC3875-GR
or 405 014 4509 TR 2SC2412K-R
or 405 011 1006 TR 2SC1623-L6
Q1021 405 146 2107 TR KTC3875-Y
or 405 146 2206 TR KTC3875-GR
or 405 014 4509 TR 2SC2412K-R
or 405 011 1006 TR 2SC1623-L6
Q1510 405 146 1704 TR KTA1504-Y
or 405 146 9700 TR KTA1504-GR
or 405 134 5905 TR 2SA1037AK-R
or 405 002 0308 TR 2SA1037K-R
or 405 005 5508 TR 2SA812-M6
Q1511 405 146 1605 TR KRC102S
or 405 132 3101 TR DTC114EKA
Q1520 405 146 1704 TR KTA1504-Y
or 405 146 9700 TR KTA1504-GR
or 405 134 5905 TR 2SA1037AK-R
or 405 002 0308 TR 2SA1037K-R
or 405 005 5508 TR 2SA812-M6
Q1521 405 146 2107 TR KTC3875-Y
or 405 146 2206 TR KTC3875-GR
or 405 014 4509 TR 2SC2412K-R
or 405 011 1006 TR 2SC1623-L6
Q4100 405 141 3604 TR KTA1273-Y
Q4101 405 159 0503 TR KRC107S
or 405 141 5608 TR DTC114YKA
Q4102 405 159 0503 TR KRC107S
or 405 141 5608 TR DTC114YKA
Q4103 405 159 0503 TR KRC107S
or 405 141 5608 TR DTC114YKA
Q4200 405 146 2107 TR KTC3875-Y
or 405 146 2206 TR KTC3875-GR
or 405 014 4509 TR 2SC2412K-R
or 405 011 1006 TR 2SC1623-L6
Q4201 405 146 2107 TR KTC3875-Y
or 405 146 2206 TR KTC3875-GR
or 405 014 4509 TR 2SC2412K-R
or 405 011 1006 TR 2SC1623-L6
Q4203 405 146 2107 TR KTC3875-Y
or 405 146 2206 TR KTC3875-GR
or 405 014 4509 TR 2SC2412K-R
or 405 011 1006 TR 2SC1623-L6
Q4204 405 159 0503 TR KRC107S
or 405 141 5608 TR DTC114YKA
Q4206 405 159 0503 TR KRC107S
or 405 141 5608 TR DTC114YKA
Q4207 405 146 2107 TR KTC3875-Y
or 405 146 2206 TR KTC3875-GR
or 405 014 4509 TR 2SC2412K-R
or 405 011 1006 TR 2SC1623-L6
Q4208 405 146 2107 TR KTC3875-Y
or 405 146 2206 TR KTC3875-GR
or 405 014 4509 TR 2SC2412K-R
or 405 011 1006 TR 2SC1623-L6
Q4209 405 143 8706 TR KTC3199-GR
or 405 017 9600 TR 2SC3330-T
or 405 017 9709 TR 2SC3330-U
or 405 011 8500 TR 2SC1740S-R
or 405 011 8609 TR 2SC1740S-S
Q4300 405 141 3703 TR KTA1271-Y
or 405 008 2405 TR 2SB698-F
or 405 008 2504 TR 2SB698-G
Q4302 405 146 2107 TR KTC3875-Y
or 405 146 2206 TR KTC3875-GR
or 405 014 4509 TR 2SC2412K-R
or 405 011 1006 TR 2SC1623-L6
Q4303 405 146 2107 TR KTC3875-Y
or 405 146 2206 TR KTC3875-GR
or 405 014 4509 TR 2SC2412K-R
or 405 011 1006 TR 2SC1623-L6
Q4500 405 159 0503 TR KRC107S
or 405 141 5608 TR DTC114YKA
Q4501 405 159 0503 TR KRC107S
or 405 141 5608 TR DTC114YKA
Q4502 405 151 6107 TR KRA107S
or 405 141 5707 TR DTA114YKA
Q4503 405 166 7007 TR KTD1304
Q4504 405 166 7007 TR KTD1304
Q4510 405 146 2107 TR KTC3875-Y
or 405 146 2206 TR KTC3875-GR
or 405 014 4509 TR 2SC2412K-R
or 405 011 1006 TR 2SC1623-L6
Q4511 405 146 2107 TR KTC3875-Y
or 405 146 2206 TR KTC3875-GR
or 405 014 4509 TR 2SC2412K-R
or 405 011 1006 TR 2SC1623-L6
Q4512 405 146 2107 TR KTC3875-Y
or 405 146 2206 TR KTC3875-GR
or 405 014 4509 TR 2SC2412K-R
or 405 011 1006 TR 2SC1623-L6
Q4513 405 146 2107 TR KTC3875-Y
or 405 146 2206 TR KTC3875-GR
or 405 014 4509 TR 2SC2412K-R
or 405 011 1006 TR 2SC1623-L6
Q4514 405 151 6107 TR KRA107S
or 405 141 5707 TR DTA114YKA
Q4515 405 151 6107 TR KRA107S
or 405 141 5707 TR DTA114YKA
Q4580 405 146 2107 TR KTC3875-Y
or 405 146 2206 TR KTC3875-GR
or 405 014 4509 TR 2SC2412K-R
or 405 011 1006 TR 2SC1623-L6
Q4581 405 146 2107 TR KTC3875-Y
or 405 146 2206 TR KTC3875-GR
or 405 014 4509 TR 2SC2412K-R
or 405 011 1006 TR 2SC1623-L6
Q4582 405 146 1704 TR KTA1504-Y
or 405 146 9700 TR KTA1504-GR
or 405 134 5905 TR 2SA1037AK-R
or 405 002 0308 TR 2SA1037K-R
or 405 005 5508 TR 2SA812-M6
Q4620 405 159 0503 TR KRC107S
or 405 141 5608 TR DTC114YKA
Q4621 405 159 0503 TR KRC107S
or 405 141 5608 TR DTC114YKA
Q4640 405 166 7007 TR KTD1304
Q4641 405 166 7007 TR KTD1304
Q4740 405 166 7007 TR KTD1304
Q4741 405 166 7007 TR KTD1304
Q4840 405 166 7007 TR KTD1304
Q4841 405 166 7007 TR KTD1304
Q4842 405 151 6107 TR KRA107S
or 405 141 5707 TR DTA114YKA
Q4843 405 159 0503 TR KRC107S
or 405 141 5608 TR DTC114YKA
Q4844 405 159 0503 TR KRC107S
or 405 141 5608 TR DTC114YKA
Q4845 405 151 6107 TR KRA107S
or 405 141 5707 TR DTA114YKA
Q4846 405 159 0503 TR KRC107S
or 405 141 5608 TR DTC114YKA
Q4848 405 159 0503 TR KRC107S
or 405 141 5608 TR DTC114YKA
Q4900 405 166 7007 TR KTD1304
Q4901 405 166 7007 TR KTD1304
Q4902 405 159 0503 TR KRC107S
or 405 141 5608 TR DTC114YKA
Q4903 405 159 0503 TR KRC107S
or 405 141 5608 TR DTC114YKA
Q4905 405 151 6107 TR KRA107S
or 405 141 5707 TR DTA114YKA
Q4906 405 166 7007 TR KTD1304
Q4907 405 166 7007 TR KTD1304
Q4911 405 159 0503 TR KRC107S
or 405 141 5608 TR DTC114YKA

- 18 -
REF.NO. PART NO. DESCRIPTION
PARTS LIST
REF.NO. PART NO. DESCRIPTION
Q4920 405 166 7007 TR KTD1304
Q4921 405 151 6107 TR KRA107S
or 405 141 5707 TR DTA114YKA
Q8880 405 146 1704 TR KTA1504-Y
or 405 146 9700 TR KTA1504-GR
or 405 134 5905 TR 2SA1037AK-R
or 405 002 0308 TR 2SA1037K-R
or 405 005 5508 TR 2SA812-M6
Q8882 405 159 0503 TR KRC107S
or 405 141 5608 TR DTC114YKA
R4107 401 202 8205 MT-GLAZE 3K FA 1/16W
R4108 401 230 2503 MT-GLAZE 1K FA 1/16W
R4111 401 218 4604 MT-GLAZE 5.6K FA 1/16W
R4112 401 230 2503 MT-GLAZE 1K FA 1/16W
R4115 402 085 2205 RESISTOR 6.8 J- 2W
R4116 402 081 0106 FUSIBLE RES 2.2 JA 1/4W
R4650 402 082 1300 RESISTOR 4.7 J- 1W
R4651 402 082 1300 RESISTOR 4.7 J- 1W
R4658 402 082 2802 RESISTOR 10 J- 1W
R4659 402 082 2802 RESISTOR 10 J- 1W
R4750 402 082 1300 RESISTOR 4.7 J- 1W
R4751 402 082 1300 RESISTOR 4.7 J- 1W
R4758 402 082 2802 RESISTOR 10 J- 1W
R4759 402 082 2802 RESISTOR 10 J- 1W
R4850 402 082 1300 RESISTOR 4.7 J- 1W
R4851 402 082 8606 RESISTOR 2.2 J- 1W
R4858 402 082 2802 RESISTOR 10 J- 1W
R4859 402 082 2802 RESISTOR 10 J- 1W
RY420 614 224 4531 RELAY
or 645 035 6582 RELAY
SG491 645 045 7449 SURGE-ABSORBER
SG492 645 045 7449 SURGE-ABSORBER
SG493 645 045 7449 SURGE-ABSORBER
SG871 645 045 7449 SURGE-ABSORBER
SG872 645 045 7449 SURGE-ABSORBER
SH401 614 322 4877 SHIELD,SP,SOCKET
X1300 645 052 2970 OSC,CERAMIC 16.93MHZ
X4300 645 053 4393 OSC,CERAMIC 8.00MHZ
X4301 645 053 8339 OSC,CRYSTAL 32.768KHZ
or 645 032 1627 OSC,CRYSTAL 32.768KHZ
X8000 645 052 2994 OSC,CERAMIC 12.50MHZ
X8230 645 053 4270 OSC,CRYSTAL 27.000MHZ
or 645 045 8293 OSC,CRYSTAL 27.000MHZ
HEADPHONE P.W.BOARD ASSY
REF.NO. PART NO. DESCRIPTION
74 614 321 8241 ASSY,PWB,HEADPHONE
(Only initial)
CN405 614 310 2465 PLUG,5P
or 645 005 9292 PLUG,5P
CN407 645 009 0042 JACK,PHONE D6.43
L4050 645 001 4550 INDUCTOR,10U K
R4050 402 082 1201 RESISTOR 330 J- 1W
R4051 402 082 1201 RESISTOR 330 J- 1W
SG405 645 045 7449 SURGE-ABSORBER
SG406 645 045 7449 SURGE-ABSORBER
SG409 645 045 7449 SURGE-ABSORBER
TUNER P.W.BOARD ASSY
REF.NO. PART NO. DESCRIPTION
75 614 324 0631 ASSY,PWB,TUNNER(Only initial)
C2457 403 259 0508 NP-ELECT 1U M 50V
or 403 106 1603 NP-ELECT 1U Q 50V
CN201 645 005 0695 TERMINAL,ANT
or 645 031 7910 TERMINAL
CN202 614 221 8273 TERMINAL
CN241 645 033 7833 SOCKET,11P
D2101 407 157 8109 VARACTOR DI SVC211-B
D2102 407 157 8109 VARACTOR DI SVC211-B
D2103 407 012 4406 DIODE 1SS133
D2104 407 012 4406 DIODE 1SS133
D2151 407 012 4406 DIODE 1SS133
D2301 407 063 9108 ZENER DIODE MTZJ6.8B
D2451 407 012 4406 DIODE 1SS133
D2452 407 153 7502 ZENER DIODE GZS3.0B
D2454 407 012 4406 DIODE 1SS133
IC211 409 292 5807 IC TA8176SN
IC231 409 474 3201 IC LA1844ML
IC241 409 439 4502 IC LC72121M-D
L2101 645 018 0163 COIL,AIR
L2102 645 018 0255 COIL,AIR
L2103 645 002 1534 INDUCTOR,8.2U K
or 645 031 7859 INDUCTOR,8.2U K
L2151 645 023 0127 TUNER
L2451 645 001 4581 INDUCTOR,100U K
or 645 031 7842 INDUCTOR,100U K
L2503 645 004 0511 INDUCTOR,270U J
Q2451 405 151 5209 TR KRA107M
or 405 000 0904 TR DTA114YS
X2451 645 023 4965 OSC,CRYSTAL 7.2MHZ
XF211 645 026 2975 FILTER,BP 108MHZ
or 614 252 1045 FILTER,LC
XF221 645 010 7665 CERAMIC FILTER 10.70MHZ
or 614 231 0199 FILTER
or 614 030 5074 I.F FILTER
XF222 645 010 7665 CERAMIC FILTER 10.70MHZ
or 614 231 0199 FILTER
or 614 030 5074 I.F FILTER
XF231 614 246 0849 FILTER
XF233 645 039 9923 TRANS,IF 10.7MHZ

- 19 -
REF.NO. PART NO. DESCRIPTION
PARTS LIST
EXPLODED VIEW (DVD MECHANISM)
DM02
DM03
DM13
DM14
DM09
DM06
DM04
DM07
DM05
DM12
DM08
DM10
DM11
DM23
DM17
DM17
DM17
DM18
DM18
DM18
DM17
DM18
DM37
DM38
DM21
DM22
DM26
DM28
DM27
DM29
DM36
DM39
DM34
DM33
DM30
DM32
DM24
DM25
DM20
DM19
DVD MECHANISM ASSY
REF.NO. PART NO. DESCRIPTION
614 324 6954 ASSY,KIT770AVM2,MECHANISM
DM02 614 320 2264 DISC,CHUCK DISC
DM03 614 320 2356 SLIDE,BASE UP/DOWN
DM04 614 323 3923 BELT,SQUARE,LOADING
DM05 614 320 2271 GEAR,LOADING GEAR
DM06 412 061 7803 SPECIAL SCREW,
HOLDER RAIL FIX
DM07 614 320 2349 PULLEY,LOADING RETARD PULLY
DM08 614 320 5845 CHASSIS,LOADING CHASSIS
DM09 614 320 2363 TRAY,TRAY
DM11 411 021 2704 SCR S-TPG BIN 2.6X6,
PWB MECHA IF FIX
DM12 645 032 4352 ASSY,MOTOR LOADING
DM13 645 051 4920 MAGNET(CHUCK)
DM14 614 320 2288 HOLDER,CHUCK HOLDER
DM17 411 021 1806 SCR S-TPG BIN 2.6X10,BASE FIX
DM18 411 092 0906 WASHER Z 2.6X10X0.5,BASE FIX
DM19 614 324 6961 ASSY,MECHA,KIT700AVM2BASE,
BASE MECHA
DM20 411 184 0302 SCR S-TPG PAN PCS 1.7X4.5,
RACK FIX
DM21 614 310 2083 GEAR,RACK,MOVE PICKUP(FREE)
DM22 614 310 6159 SPRING,COMP,
FOR BACK RUSH(RACK)
DM23 614 310 2076 GEAR,RACK,MOVE PICKUP(FIX)
DM24 411 018 4704 SCR PAN PCS 1.7X5,LIMIT SW FIX
DM25 645 040 9899 SWITCH,MICRO 1P-2T,LIMIT SW
DM26 412 057 8304 SPECIAL WASHER,
FOR GEAR 4 FIX
DM27 614 310 2069 GEAR,GEAR-5
DM28 614 310 6142 SPRING,COMP,FOR BACK RUSH
DM29 614 310 2052 GEAR.,GEAR-4
DM30 412 057 8304 SPECIAL WASHER,
FOR GEAR 2 FIX
DM32 614 310 2038 GEAR.,GEAR-2
DM33 411 106 7709 SCR PAN PCS 1.7X2.5,
SLED MOTOR FIX
DM34 645 051 5194 ASSY,MOTOR,SLED MOTOR
DM36 614 310 2045 GEAR.,GEAR-3
DM37 614 320 2301 MOUNTING,
BASE MECHA MOUNTING
DM38 614 310 6128 SPACER,MECHA,
BASE MECHA FLOATING
DM39 614 322 9070 SPACER,MECHA,
BASE MECHA FLOATING
MECHA SW P.W.BOARD ASSY
REF.NO. PART NO. DESCRIPTION
DM10 614 320 2219 ASSY,PWB MECHA SW,
MOTOR & SW PWB(Only initial)
CN001 645 006 0922 PLUG,5P,MOTOR & SW PLUG
or 614 310 2618 PLUG,5P,MOTOR & SW PLUG
S0001 645 051 5378 SWITCH,LEVER,MECHA SW

- 20 -
1G 2G 3G 8G 9G 10G4G 5G 6G 7G
(2G~9G)
(3G~5G,7G)
(5G,7G)
a
c
b
d
e
f
g
hj
k
m
n
p
r
col
Dp
39 38 37 36 35 34 33 32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
F2 F2 1G 2G 3G 4G 5G 6G 7G 8G 9G 10G NX NX NX NX NX P1 P2 P3 P4 P5 P6 P7 P8 P9 P10 P11 P12P13 P14 P15 P16 NP NP F1 F1
CONNECTION
PIN NO.
39
NP NP
1
PIN CONNECTION
ANODE CONNECTION
NOTE 1) F1,F2 ------ Filament
2) NP ---------- No pin
3) NX ---------- No extent pin
4) DL ---------- Datum Line
5) 1G~10G --- Grid
P1
P2
P3
P4
P5
P6
P7
P8
P9
P10
P11
P12
P13
P14
P15
P16
a
b
h
j
k
f
g
m
c
r
p
n
e
d
-
-
1G 2G
a
b
h
j
k
f
g
m
c
r
p
n
e
d
-
Dp
3G
a
b
h
j
k
f
g
m
c
r
p
n
e
d
-
Dp
4G
a
b
h
j
k
f
g
m
c
r
p
n
e
d
col
Dp
5G
a
b
h
j
k
f
g
m
c
r
p
n
e
d
-
-
6G
a
b
h
j
k
f
g
m
c
r
p
n
e
d
col
Dp
7G
a
b
h
j
k
f
g
m
c
r
p
n
e
d
-
-
8G
a
b
h
j
k
f
g
m
c
r
p
n
e
d
-
-
9G 10G
-
-
-
-
-
IC BLOCK DIAGRAM & DESCRIPTION
FL601 Fluorecent Tube

- 21 -
IC BLOCK DIAGRAM & DESCRIPTION
IC100 LA9702WL-MPB (Read Channel)
Pin No. Pin name Function
1 RFN
2 RFP
3 PD1
4 PD2
5 PD3
6 PD4
7 PD5
8 PD6
9 PD7
10 PD8
11 PD9
12 VCC
Power supply
13 LDD1
14 LDS1
15 LDD2
16 LDS2
17 GND
18 SGC
19 FEBL
20 TEBL
21 VGA
22 BST
Equalizer boost adjustment
23 FOST
24 TOST
25 BCATH
BCA shureshud adjustment terminal
26 REFI
Base power setting
27 SREF
Servo signal base power output
28 RREC
Reflection output
29 FE
Focus error output
30 TE
Tracking error output
31 THC
TE hold time constant value condenser connect
32 WO
Warble output terminal
33 ISET
BPF center frequency setting register connect terminal
34 WOI
Push pull signal input
35 WOO
Push pull signal output
36 TEO
3 beam TE gain setting terminal
37 TEN
3 beam TE gain setting terminal
38 CP
Charge pump gain setting register, condenser connect terminal
39 BHI
40 RFON
RF - output
41 RFOP
RF + output
42 BH
RF bottom ditection output
43 PHI
peak hold ditection constant register connect
44 PH
RF peak detection output
45 BCA
RF signal - input
RF signal + input
Pickup signal input
Pickup signal input
Pickup signal input
Pickup signal input
Pickup signal input
Pickup signal input
Pickup signal input
Pickup signal input
Pickup signal input
APC1 output
APC1 moniter power input
APC2 output
APC2 moniter power input
GND
Servo gain control terminal(RREC, FE, TE)
Focus balance adjustment terminal
Tracking balance adjustment terminal
RF gain adjustment terminal
Focus offset adjustment terminal
Tracking offset adjustment terminal
Bottom hold detect constant setting register connection terminal
BCA output
Pin No. Pin name Function
46 DEF
Defect output (H : Defect detection)
47 DEFC
Defect detection condenser connect terminal
48 TC
Defect detection constant setting register terminal
49 GND
GND (DTD system)
50 LPC
RF DC servo condenser connect terminal
51 CPOF
Charge pump OFF terminal (H : OFF)
52 EQO2
RF equalizer setting terminal
53 TH
Tracking hold (H : hold)
54 EQL2
RF equalizer setting terminal
55 VCC
Power supply (DPD system)
56 EQO4
RF equalizer setting terminal
57 XHTR
Tracking, bottom detection band switching ( L : high band)
58 EQI4
RF qualizer setting terminal
59 XQBH
Bottom detection time constant switching ( L : high speed)
60 EQ03
61 EQSCT
Equalizer switching ( H : 77 pin select, L : 52pin select)
62 EQI3
63 DPD/TE
DPD, 3 beam tracking switching ( H : DPD)
64 RFO2
RF output
65 RFO1
RF output
66 VCC
Power supply ( RF system)
67 EQI1
68 PP/TE
3 beam, push pull tracking switching ( L : 3 beam)
69 EQO1
70 LDON2
APC 2 beam laser ON terminal ( H : ON)
71 EQI2
72 LDON1
73 EQO2
74 GND
GND (RF system)
75 EQL1
76 RFSCT
RF input switching ( H : RF differential input, PP error)
77 EQO1
78 CAO
customize amp. output
79 PREF
Base voltage output ( pick use)
80 CAN
RF equalizer setting terminal
RF equalizer setting terminal
RF equalizer setting terminal
RF equalizer setting terminal
RF equalizer setting terminal
APC 1 beam laser ON terminal ( H : ON)
RF equalizer setting terminal
RF equalizer setting terminal
RF equalizer setting terminal
customize amp. input
30KOHM
30KOHM
30KOHM
30KOHM
30KOHM
30KOHM
1
RFN
2
RFP
3
PD1
4
PD2
5
PD3
6
PD4
7
PD5
8
PD6
9
PD7
10
PD8
11
PD9
Vcc
LDD1
LDS1
LDD2
LDS2
GND
SGC
FEBL
TEBL
21
VGA
22
BST
23
FOST
24
TOST
25
BCATH
26
REFI
27
SREF
28
RREC
29
FE
30
TE
31
THC
32
WO
33
ISET
34
WOI
35
WOO
36
TEO
37
TEN
38
CP
39
EHI
40
RFON
41
RFOP
42
SH
44
PH
43
PHI
45
BCA
46
DEF
47
DEFC
49
GND
50
LPC
48
TC
53
TH
52
EOO2
51
CPOF
55
Vcc
54
EQL2
56
EQO4
57
XHTR
58
EQI1
59
XQBH
60
BQ03
61
EQSCT
62
EQI3
63
DPD/TE
64
RF02
65
RF01
66
Vcc
67
EQI1
68
PP/TE
69
EQO1
70
LDON2
71
EQI2
72
LDON1
73
EQO2
74
GND
75
EQL1
76
RFSCT
77
EQO1
78
CAO
79
PREF
80
CAN
12
13
14
15
16
17
18
19
20
LDON1
LDON2
APC
APC
SGC
FEBL
TEBL
DPD
VGA BST FOST TOST BCATH REFI SREF
XQBH
Vcc
TH
CPOF
PREF RFSCT LDON1 LDON2 PP/TE Vcc DPD/TE EQSCT
XHTR
1.5KOHM
3KOHM
3KOHM
DPD/
TE PREF
VGA
BST
30KOHM
30KOHM
80KOHM
80KOHM
PREF
Vcc
30KOHM
30KOHM
30KOHM
30KOHM
30KOHM
30KOHM
30KOHM
RFSC1
RFSCT
5KOHM
FOST FEBL
FOST FEBL
RFSCT
5KOHM
SREF
TOST
PP/TE
TEBL
TOST
PP/TE
TEBL
5KOHM 120KOHM
120KOHM
5KOHM
20pF
5KOHM 200KOHM
15pF
200KOHM
15pF
5KOHM
SGC
20pF
SGC
30KOHM
10KOHM
SGC
DPD/TE
TH OPOF
TE XHTR
REF
REF
DPD/TE
EQSCT
10KOHM
DEF
PH
SREF SREF
SREF
PH
BH
XHTR XQBH
BPF
LPF2
LPF1
PREF
RESCT
RESCT
PREF
BCATH
IC101,493 CD40668BCM(Quad Bilateral Switch)
1
2
3
4
5
6
78
9
10
11
12
13
14
SW C
SW D
SW B
SW A V
DD
CONTROL A
CONTROL D
IN/OUT
OUT/IN
OUT/IN
IN/OUT
IN/OUT
OUT/IN
OUT/IN
IN/OUT
CONTROL B
CONTROL C
V
SS
