Sanyo DC-TS760 User manual

FILE NO.
Service Manual
CONTENTS
DVD Home Theater System DC-TS760
PRODUCT CODE No.
129 656 05
REFERENCE No. SM5810384
Specification .......................................................................... 1
Laser beam safety precaution ............................................... 2
Mechanism replacement ....................................................... 2
Trouble shooting ................................................................... 5
Service mode ........................................................................ 9
How to load software for MPEG P.W.Board ......................... 12
Tuner Adjustment .................................................................. 13

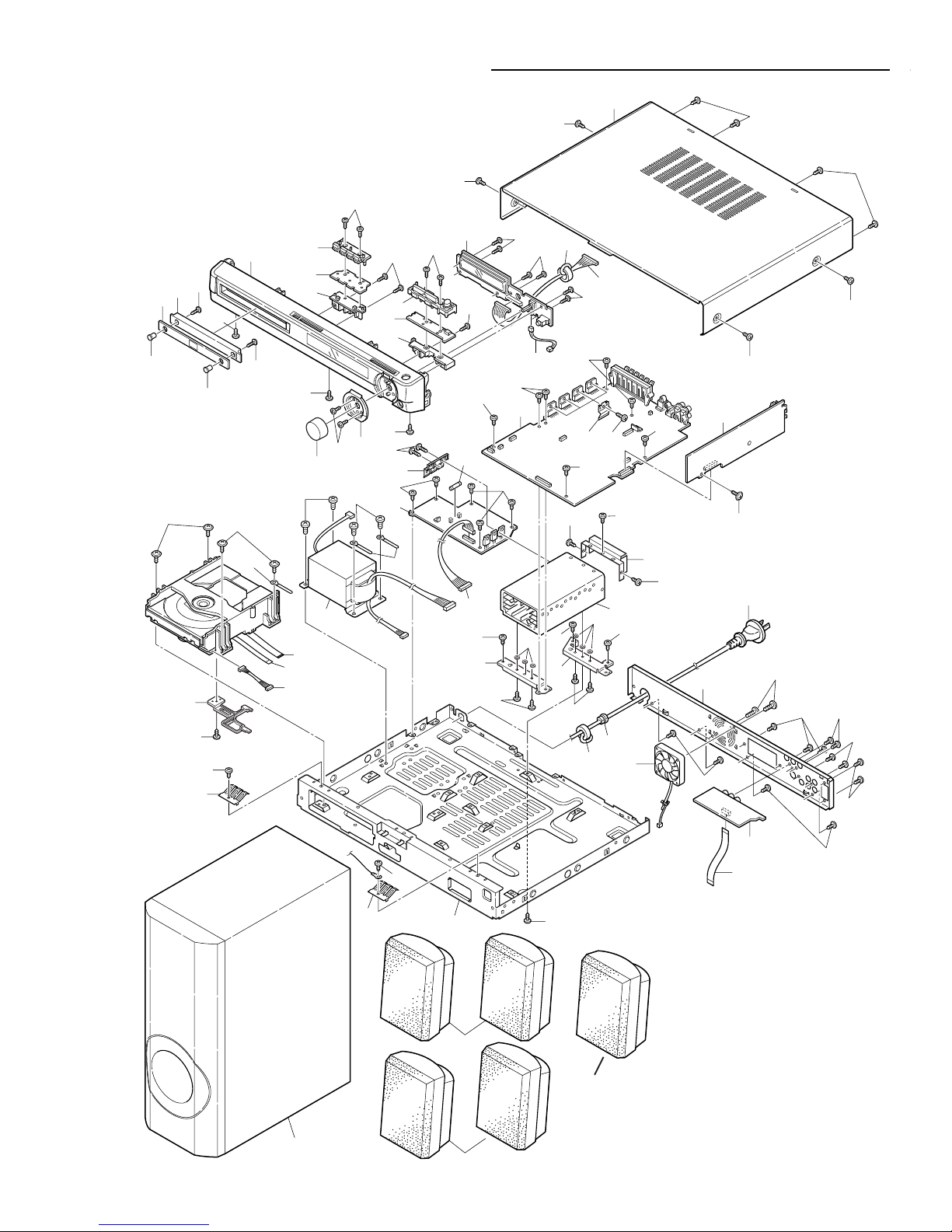

Exploded View (Cabinet & Chassis) ..................................... 14
Parts List ............................................................................... 15
Exploded View (DVD Mechanism) ........................................ 20
Parts List ............................................................................... 20
IC Block Diagram & Description ............................................ 21
Block diagram ....................................................................... 36
Schematic Diagram (DVD) .................................................... 38
(AU)
Schematic Diagram (MPEG) ................................................. 40
Schematic Diagram (AMP )................................................... 42
Wiring Diagram (MAIN A side) ............................................ 44
(MAIN A side Top Left) ....................................................... 46
(MAIN A side Bottom Left) .................................................. 48
(MAIN A side Top Right) ..................................................... 50
(MAIN A side Bottom Right) ................................................ 52
(B side) ................................................................................ 54
Schematic Diagram (FRONT , TUNER)................................ 56
Wiring Diagram (FRONT , SW1 BUTTON, SW2 BUTTON,
MECHA SW and MECHA IF) ............................................... 58
Wiring Diagram (TUNER and COMPONENT) .................... 60
Wiring Diagram (POWER SUPPLY) ................................... 62
Wiring Connection................................................................. rear

- 1 -
SPECIFICATIONS
Amplifier
Main amplifier
Stereo mode
33 W x 2 (at 8 ohms, 10% distortion)
Dolby Digital mode
33 W x 2 (at 8 ohms, 10% distortion, with Centre/Surround/
Subwoofer amplifier off)
Centre amplifier
33 W (at 8 ohms, 10% distortion, with Main/Surround/Subwoofer
amplifier off)
Surround amplifier
33 W x 2 (at 8 ohms, 10% distortion, with Main/Centre/Subwoofer
amplifier off)
Subwoofer amplifier
55 W (at 4 ohms, 10% distortion, with Main/Centre/Surround
amplifier off)
Inputs:
VIDEO (AUDIO) IN 1: 500 mV/50 kΩ
VIDEO (AUDIO) IN 2: 500 mV/50 kΩ
Outputs:
SPEAKERS:
FRONT (L/R): 8 Ω
CENTER: 8 Ω
SURROUND (L/R): 8 Ω
SUBWOOFER: 4 Ω
MONITOR OUT:
S-VIDEO:
Y: 1.0 Vp-p (75 Ω)
C: 0.3 Vp-p (75 Ω) PAL, 0.286 Vp-p (75 Ω) NTSC
VIDEO: 1.0 Vp-p (75 Ω)
COMPONENT VIDEO OUT:
Y: 1.0 Vp-p (75 Ω)
CB, CR: 0.7 Vp-p (75 Ω)
DVD Player
Type:
DVD video player
Playback standard:
PAL or NTSC
Laser:
Semiconductor laser, wavelength: 650/790 nm
Laser output (Continuous wave max.):
1 mW (DVD)
0.5 mW (CD)
Signal to noise ratio:
More than 105 dB
Wow and flutter:
Below measurable level
Tuner
Reception frequency:
FM: 87.5 - 108 MHz
AM: 522 - 1710 kHz
General
Power requirements:
AC 230 ~ 240 V, 50 Hz
Power consumption:
120 W
Dimensions:
435(W) x 65(H) x 378(D) mm
Weight:
5.6 kg
Speaker system
Front left, Front right, Centre, Surround left and Surround right
speakers (SX-TS760S, magnetic shield)
Unit used:
8 cm cone type, full range
Maximum power handling capacity:
50 W (peak)
Nominal impedance:
8 Ω
Dimensions:
94(W) x 144(H) x 85(D) mm
Weight:
0.6 kg/speaker
Subwoofer (SX-TS760W)
Unit used:
13 cm cone type
Maximum power handling capacity:
80 W (peak)
Nominal impedance:
4 Ω
Dimensions:
160(W) x 395(H) x 305(D) mm
Weight:
4.6 kg
IMPORTANT INFORMATION
Because its products are subject to continuous improvement, SANYO
reserves the right to modify product designs and specifications without
notice and without incurring any obligation.

- 2 -
1. Cautionary instructions in handling the assy
(Safety instructions)
Optical pickup
The laser beam used in the pickup is classified as "class 2".
Exposing your eyes or skin to the beam is harmful. Take care
not to do so.
(Caution against static electricity and leakage voltage)
Ground securely the work tables, tools, fixtures, soldering irons
(including those made of ceramic) and measuring instruments
used in the production lines and inspection departments that
handle loaders. The workers shall also be grounded.
(Cautionary instructions in handling)
Do not touch the object lens when handling a loader, or the lens
will be stained, resulting in inadequate playability.
There is no power supply protection circuit provided for this
product or adjustment/inspection device. Short-circuiting may
lead to fire or damage.
Take care so as to protect from exposure to water, the entry of
metallic pieces or dew condensation.
In particular, a strong magnet adjacent to the pickup will not only
get inoperative but can damage the pickup if a small metallic
piece, such as a screw or swarm, enters.
The loader edge can cause injury if inadvertently handled.
Do not touch a rotating disk, or injury may result.
This product is a precision device. Handle carefully.
A shock or dropping will cause misalignment or destruction. If it
should occur, refer to clause 2.
This product is so designed as to endure an initial shock
equivalent to a drop from a height of approx. 90 cm under the
packed condition.
After the initial shock, the resistivity will still remain at a level of
50 to 60 G, but the mechanical robustness will weaken.
Do not place in a dusty location.
The entry and deposition of dirt into or on the pickup lens or
moving section will cause malfunction or degradation.
DVD MECHANISM REPLACEMENT
(Connectors)
Do not connect or disconnect while power is on.
Connecting or disconnecting signal wires or the main power cord
when the power is on may destruct the unit or fixture.
When connecting, push all the way in securely.
An insufficient insertion may cause a bad contact, leading to an
erroneous operation.
Do not connect or disconnect roughly by an excessively strong
force, or a broken wire or bad contact may result.
Semiconductors are connected. Do not touch connector terminals
directly.
If the worker is grounded, there is nothing to worry about static
electricity, but the rust on the connector terminal surface caused
by the touch may result in bad contact.
(Caution)
Before disconnecting FFC
cable, make it "SHORT" as
shown left.
After connecting FFC
cable,make it "OPEN" as
shownleft.
(Power source)
The power source need be good in quality (free from instantaneous
interruptions or noises).
A low quality power source may well cause malfunction.
(Storage)
Do not place or store in a dusty place or a place where dew
condensation is possible.
The entry and deposition of dirt or dust into or on the pickup lens or
moving section will cause malfunction or degradation.
Also, dew condensation causes rust; the rust penetrate into the
precision part of a pickup, causing malfunction, or degrading the
optical quality of the internal lens and reflector, which also leads to
malfunction.
(OPEN)(SHORT)

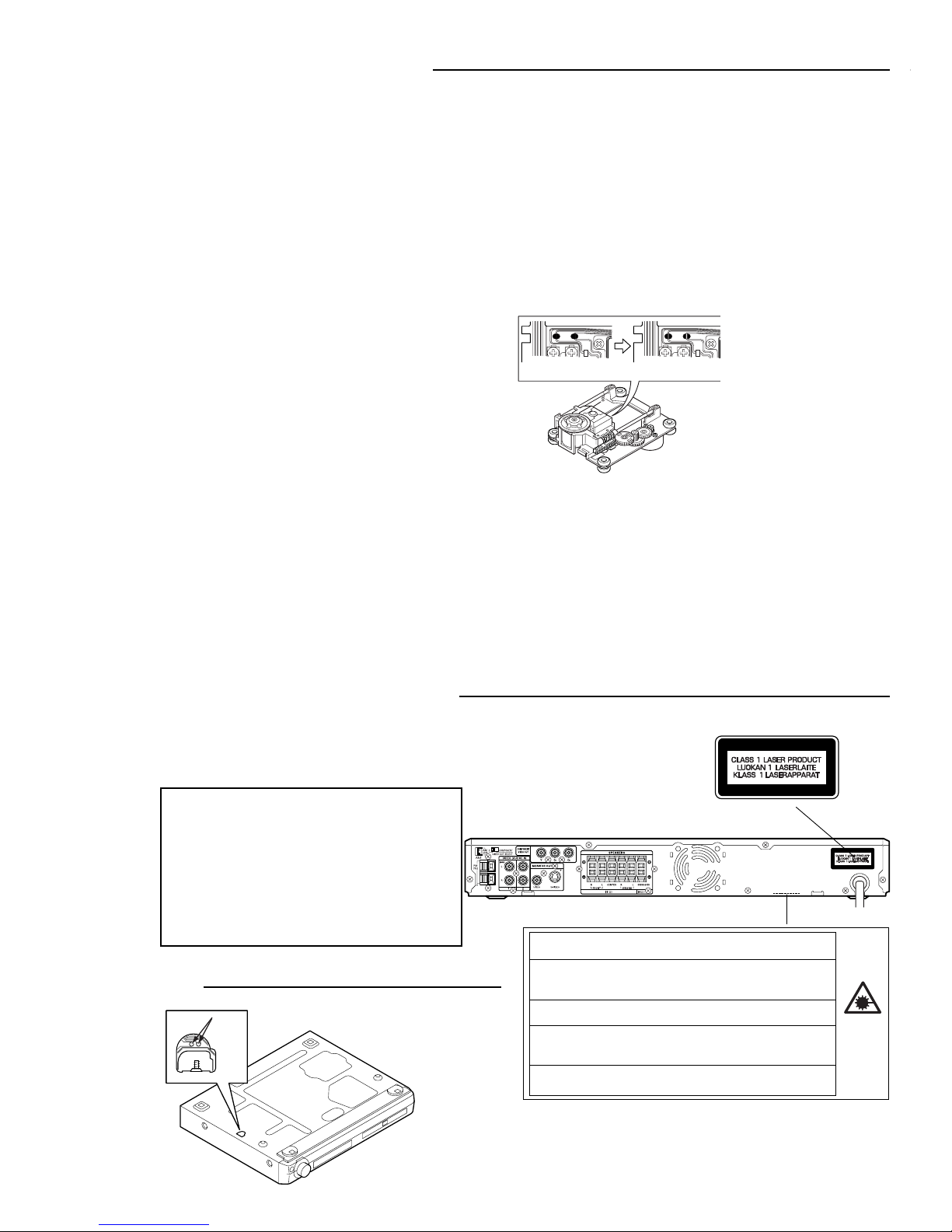

LASER BEAM SAFETY PRECAUTION
•Pick-up that emits a laser beam is used in this CD player section.
CAUTION :
USE OF CONTROLS OR ADJUSTMENTS
OR PERFORMANCE OF PROCEDURES
OTHER THAN THOSE SPECIFIED HEREIN
MAY RESULT IN HAZARDOUS RADIATION
EXPOSURE
LASER OUTPUT.......... 0.6 mW Max. (CW)
WAVELENGTH ............. 790 nm
RESET
Short
It is reset by short.
CAUTION – INVISIBLE LASER RADIATION WHEN OPEN AND
INTERLOCKS DEFEATED. AVOID EXPOSURE TO BEAM.
ADVARSEL – USYNLIG LASER STRÅLING VED ÅBNING, NÅR
SIKKERHEDSAFBRYDERE ER UDE AF FUNKTION, UNDGÅ UDS ÆTTELSE
FOR STRÅLING.
VARNING – OSYNLIG LASER STRÅLNING NÄR DENNA DEL ÄR ÖPPNAD
OCH SPÄRR ÄR URKOPPLAD. STRÅLEN ÄR FARLIG.
VORSICHT – UNSICHTBARE LASERSTRAHLUNG TRITT AUS, WENN
DECKEL GEÖFFNET UND WENN SICHERHEITSVERRIEGELUNG
ÜBERBRÜCKT IST. NICHT, DEM STRAHL AUSSETZEN.
VARO – AVATTAESSA JA SUOJALUKITUS OHITETTAESSA OLET ALTTIINA
NÄKYMÄTTÖMÄLLE LASERSÄTEILYLLE. ÄLÄ KATSO SÄTEESEEN.

- 3 -
1
2
MECHANISM REPLACEMENT
4. How to install the motor.
2. How to remove the tray.
3. How to insert the tray.
1
1
2
1
1
2
4
4
3
5
1
2
ROUND
HOLE
MOTOR
PULLEY
SHASSIS
HOLE
TRIANGLE
MARK
SOLDERING
MECHA
P.W.B
1
1
1
2
Escutcheon
3
Side of DVD mechanism
Front Rear
Cylindrical thing

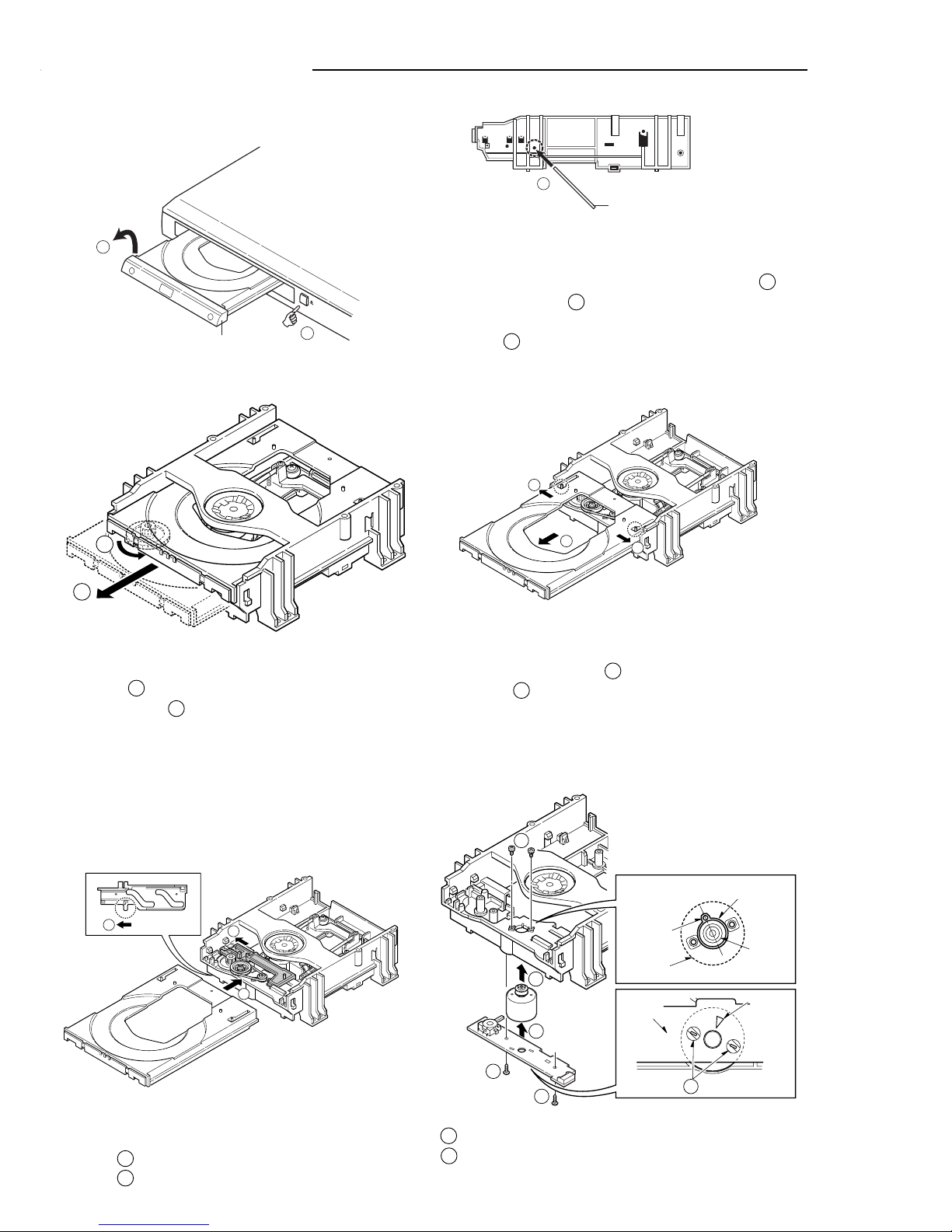

1. How to Remove DVD Mechanism
First, it is necessary to remove Escutcheon.
Move both the right and left 1 tray pins to the ends.
Remove the 2 tray.
Rotate the 1 gear.
Move forward the 2 tray.
1 Adjust the motor terminal to boss in the chassis.
2 Adjust the round hole of the motor to the triangle mark of
P.W.B,and solder it.
Move the 1 slide to the left end.
Insert the 2 tray.
How to remove Escutcheon.
An eject button is pushed and a tray is taken out.
Please remove Escutcheon, as shown in the left figure 2 .
When an eject button 1 does not function. Above figure
Please insert a cylindrical thing with a diameter of 3mm or less
in the hole 3 in the side of a DVD mechanism.
A tray is pushed out.

- 4 -
Do not remove the pick-up from base mechanism because of
adjustment difficulty.
G-SANKOL CFD-409Z
or
G-HANARL SF-106B
G-SANKOL CFD-409Z
or
G-HANARL SF-106B
G-SANKOL CFD-409Z
or
G-HANARL SF-106B
A
: Clean the groove by alcohol well.
A
A

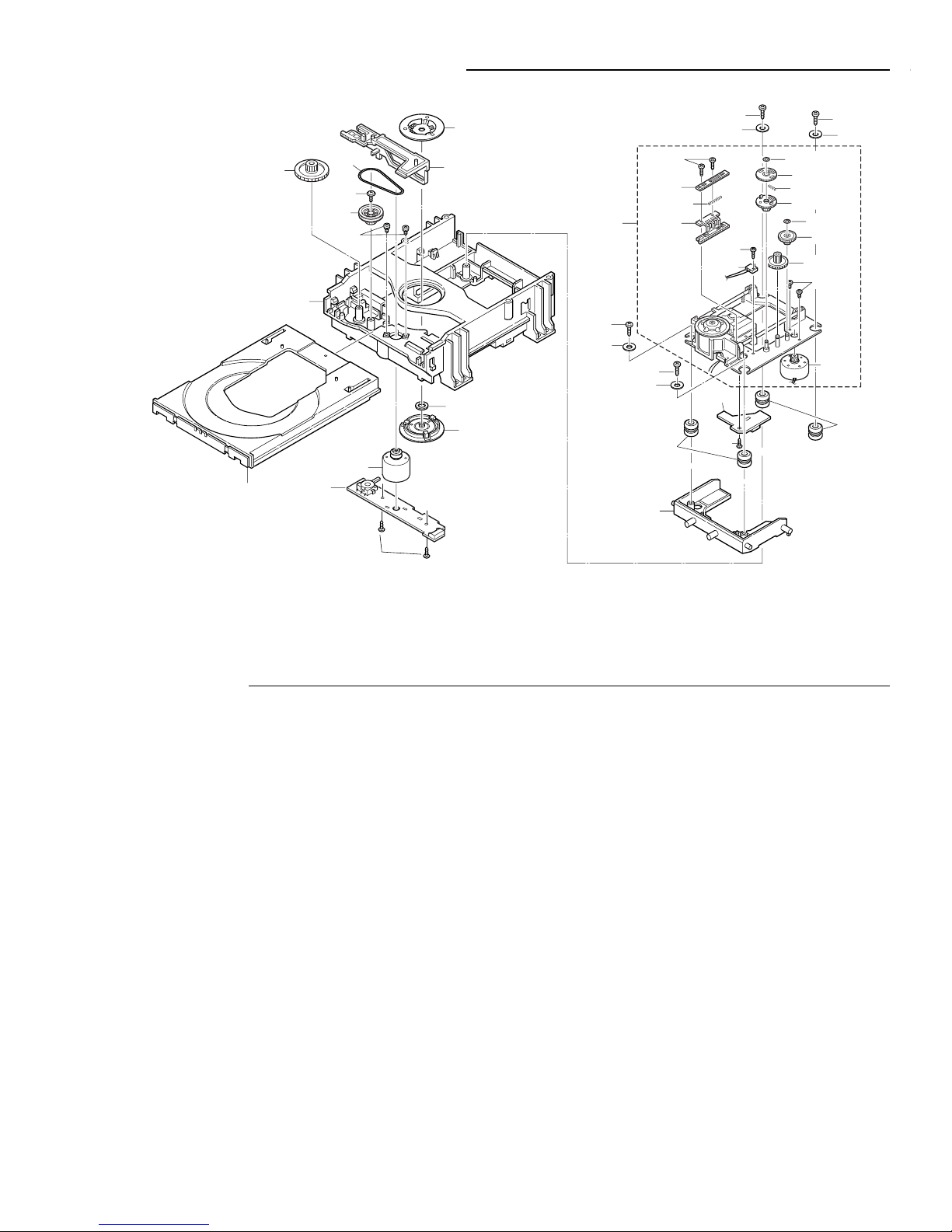

G-FLOIL GREASE SY-31S
or
G-FLOIL GREASE MEN-223R
G-FLOIL GREASE SY-31S
or
G-FLOIL GREASE MEN-223R
Apply screw lock
G-FLOIL GREASE SY-31S
or
G-FLOIL GREASE MEN-223R
G-FLOIL GREASE SY-31S
or
G-FLOIL GREASE MEN-223R
G-FLOIL GREASE SY-31S
or
G-FLOIL GREASE MEN-223R
G-FLOIL GREASE SY-31S
or
G-FLOIL GREASE MEN-223R

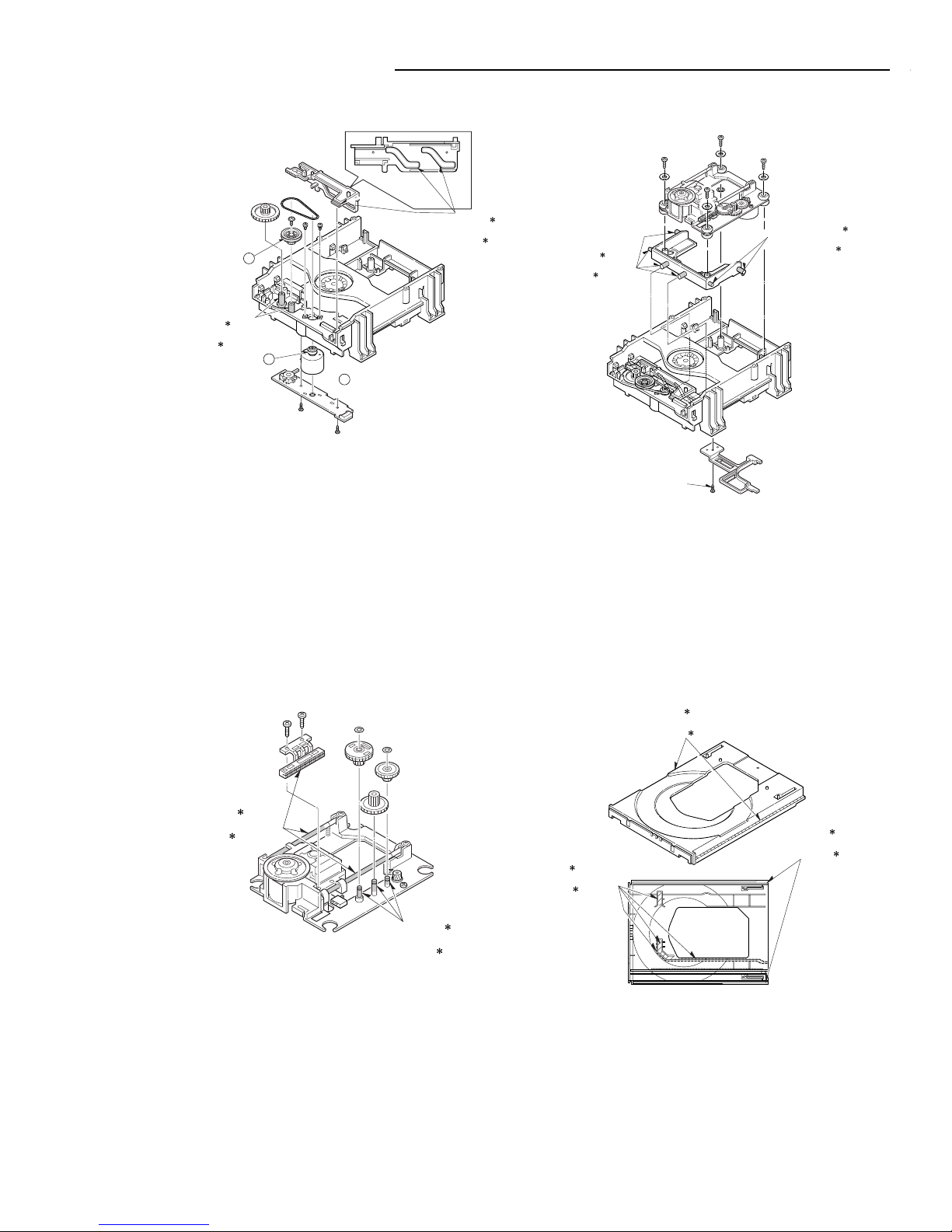

5. Base mechanism mounting parts.
6. Base mechanism parts. 7. Tray parts.
MECHANISM REPLACEMENT

- 5 -
TROUBLE SHOOTING
DAC5V LINE CONFIRM
3.3V LINE CONFIRM
IC412 PERIPHERAL CIRCUIT
CONFIRM (IC411,IC410 etc)
LOADER CHANGE
MUTE CIRCUIT
Q8880 PERIPHERAL CIRCUIT
CONFIRM
DAC IC870 NG
DAC IC870 PERIPHFRAL CONFIRM
DAC IC870 NG
3.3V,DAC5V
CONFIRM
CN870 Pin1,15,18
LOADER CHANGE
OK?
IC800 AMCLK,ALRCLK,
AOUT0~2,ML,MC,MD1 CONFIRM
Pin2~7,12~14,47
IC820 Pin
FLOATING CONFIRM
IC820 NG
VIDEO COMPOSITE OUT ; OK
TUNER OUTPUT ; OK
VIDEO 1,2 OUTPUT ; OK
DVD/CD OUTPUT ; NG
IC870 Pin17,19,21,23,25,27
CONFIRM
N
Y
N
N
N
Y
Y
C,SL,SR,SW PERIPHERAL CONFIRM
(IC451,471,472,482,483,452,450,491
PERIPHERAL CONFIRM)
Q SURROUND , Volume CONFIRM
(IC452,451 PERIPHERAL CONFIRM)
IC460,451 CONFIRM
TUNER OUTPUT ; L,R OK / C,SL,SR,SW NG
VIDEO 1,2 OUTPUT ; L,R OK / C,SL,SR,SW NG
DVD/CD OUTPUT ; L,R OK / C,SL,SR,SW NG
TUNER OUTPUT ; L,R OK / C,SL,SR,SW NG
VIDEO 1,2 OUTPUT ; L,R OK / C,SL,SR,SW NG
DVD/CD OUTPUT ; L,R OK / C,SL,SR,SW OK
TUNER OUTPUT ; NG
VIDEO 1,2 OUTPUT ; OK
DVD/CD OUTPUT ; OK
Y

- 7 -
- 6 -

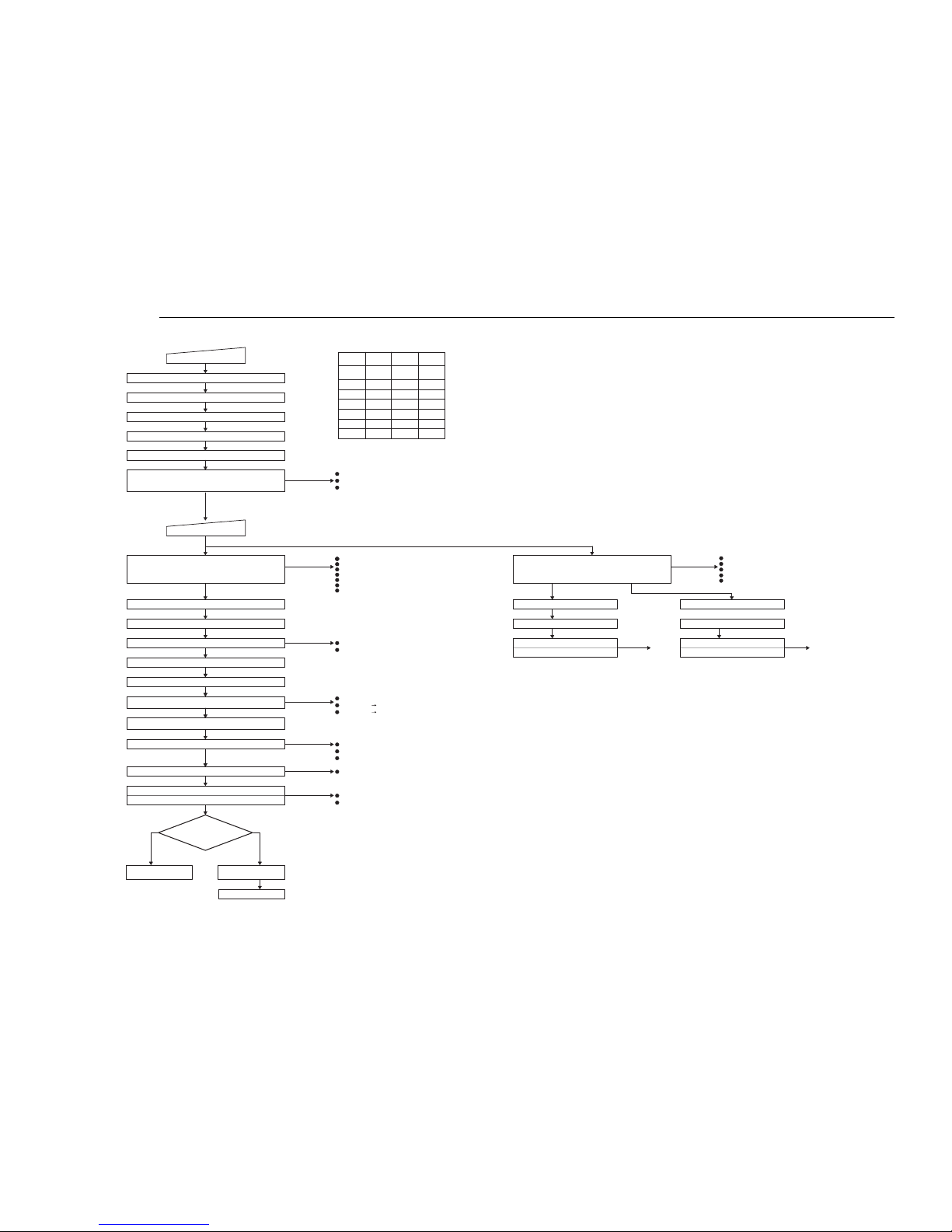

TROUBLE SHOOTING
IC430,IC601 +5V POWER ONLY
IC430 RESET
X4300 CLOCK
IC430 ACTIVE
IC601 COMMUNICATION
POWER SUPPLY ; STANDBY mode
IC430 ACTIVE / P-CON ; LOW
±12V,±7V,DVD-POWER ; OFF / FIL,-30V ; ON
AC CORD PLUG
P-COM ; HIGH
DVD-POWER ; HIGH
IC430 STANDBY DATA WAIT
±12V,±7V ; ON
IC451,IC452 COMMUNICATION
INITIALIZE ADAC (IC870)
RESET LOADER
READ,WRITE DATA IN EEPROM (IC801)
IC800 START COMMUNICATION WITH IC430
START CONTROL OF LOADER
PICK INITIALIZE SPINDLE ROTATE
IC601 VFD DATA RCVD
DISPLAY OPENNING
PLAYBACK MODE
FROM MPU STANDBY DATA SEND
IC430 STANDBY DATA RCVD
IC430 VFD DATA RCVD
IC430 VFD DATA SEND
POWER KEY PRESS
DISC Y/N
VFD INDICATE
"READING"
IVFD INDICATE
"NO DISC"
NG
NY
DVD FUNCTION
IC430 VDD,RESET,OSC CONFIRM
IC430 COMMUNICATION CONFIRM
P-CON,FIL,-30V CONFIRM
NG
NG *1
IC601 & IC430 PERIPHERAL CONFIRM
-30V FILAMENT VOLTAGE CONFIRM
COMMUNICATION LINE CONFIRM
VDD,CLOCK CONFIRM
IC800 PERIPHERAL CIRCUIT CONFIRM
POWER KEY CONFIRM
IC601 COMMUNICATION CONFIRM
PROTECT CIRCUIT CONFIRM
IC462,IC472,IC482,IC483 CONFIRM
P-CON
±12V,±7V,P-CON CONFIRM
DVD-POWER CONFIRM (IC410,IC411 etc)
FM,AM,VIDEO1,VIDEO2 (VIDEO,TV)
NG
NG
NG
IC800,IC818,IC822 BUS-LINE CONFIRM
NG
LOADER CONFIRM
COMMUNICATION LINE CONFIRM (FFC)
P-COM ; HIGH /
DVD-POWER ; LOW
IC430 STANDBY DATA WAIT
±12V,±7V ; ON
IC451,IC452 COMMUNICATION
IC430 VFD DATA SEND
IC601 VFD DATA RCVD
VFD INDICATE "VIDEO1" or "VIDEO2"
NG
NG
IC451,IC452,IC241 COMMUNICATION
IC430 VFD DATA SEND
IC601 VFD DATA RCVD
VFD INDICATE "FM" or "AM"____k(M)Hz
NG
POWER KEY CONFIRM
IC601 COMMUNICATION CONFIRM
PROTECT CIRCUIT CONFIRM
IC462,IC472,IC482,IC483 CONFIRM
±12V,±7V,P-CON CONFIRM
TUNERVIDEO1, VIDEO2 (VIDEO,TV)
*1 *1
COMMUNICATION LINE CONFIRM
REMOCON NG IC430 & DS601 PERIPHERAL CONFIRM
REMOCON OK IC430 PERIPHERAL CONFIRM
IC430
X4300
IC451
IC601
IC870
IC801
IC410
IC411
IC241
DS601
IC800
IC818
IC821
IC822
TU-PLL
IR
DVD-MPU
&
MPEG
FLASH
SDROM
SDRAM
SYSCON
SYS-CLK
FUNCTION
&
VOLUME
VFD-DRV
6CH-DAC
EEPROM
REG.
REG.

- 8 -
TROUBLE SHOOTING
IC402,IC401 PERIPHERAL
CONFIRM
IC211,IC231,IC241,(IC251)
PERIPHERAL CONFIRM
TUNER OUTPUT ; NG
VIDEO 1,2 OUTPUT ; OK
DVD/CD OUTPUT ; OK
CN241 Pin10,11
5.6V,12V OK?
Y
N
IC800 OUTPUT LINE CONFIRM
Pin 169~173 PERIPHERAL
CONFIRM
LPF CONFIRM
CRYSTAL RESONATOR
CHANGE
IC800
VIDEO OUTPUT
NORMAL OK?
IC800 NG
FLOATING CONFIRM
IC800 NG
NO COLOR or ABNORMAL
X8230
27MHz
OK?
Y
N
N
Y
LOADER CHANGE
IC800 OUTPUT LINE CONFIRM
Pin169~173
CONFIRM
LPF CONFIRM
LOADER CHANGE
OK?
IC800 Pin
FLOATING CONFIRM
IC800 NG
IC800
VIDEO OUTPUT
NORMAL OK?
N
N
Y
NO PICTURE
AUDIO OK
Y
IC211,231,IC241(IC251) NG
N
IC460,IC451 PERIPHERAL CONFIRM
N

- 9 -
SERVICE MODE
B. How to enter Service Mode.
You can enter Service Mode in any one of the following ways (1 to 3).
A. Market / Region SETUP
In the initial condition for this model, Market and Region
information are undefined.
In the following cases, be sure to set up Market/Region.
1. When updating the system using CD-R
(Part code : 0PRADF9655--AA).
2. When replacing a DVD substrate.
While Market/Region information are undefined, the message
"Region Undefined" is displayed on the screen.
NOTE: Even if the condition is not under 1 or 2 above, if the
message "Region Undefined" is displayed, be sure to set up
Market/Region.
1. Pushing the covered key located beneath Book Mark key on RB-
1500 or REM-S1500.
2. Simultaneously pushing both Shift key and ON SCREEN key on
REM-TS760MT(US),RB-TS760MT(CA) , RB-TS760ST(UK,XE) or
RB-TS760SS(AU).

- 10 -
SERVICE MODE
C. Setup Procedures
1. Displaying SERVICE MODE screen
Display Service Mode screen following the instructions "How to
enter Service Mode" above.
Region 0
Market
WM
BackendVersion
S21225A1
LoaderVersion
55 50 05
Value
2. Displaying Internal Setup screen
Push NEXT button within three seconds after operating the
Service Mode display.
On the Internal Setup screen shown on the right, set up Market
and Region.
Internal Setup
Markett W M
Region 1
Exit
00-WM 01-SFC 02-UK
03-XE
S18
05-SS 06-PA 07-AU 08-CN 09-JP
00
04-

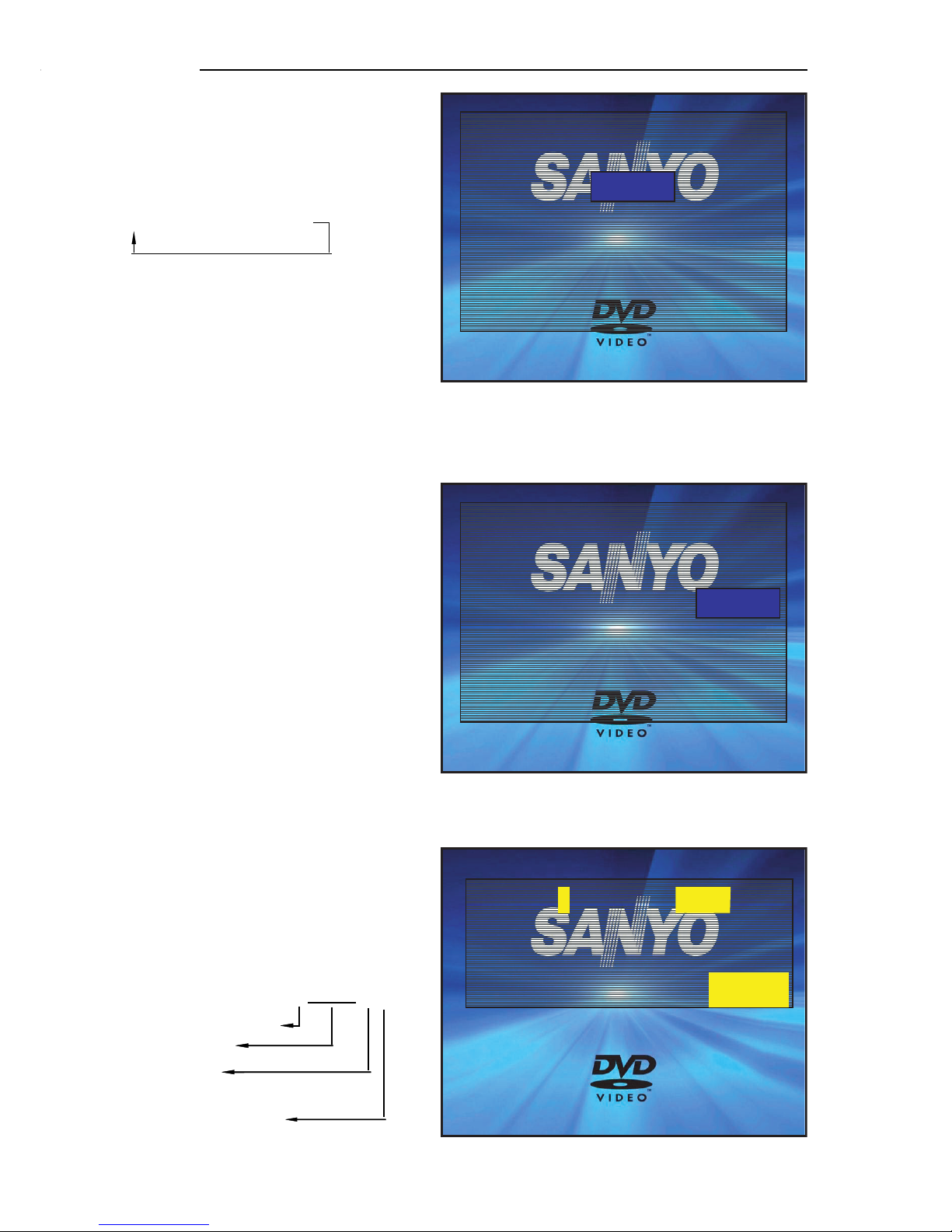

3. Setting Market code
3.1. While a highlighted indicator is displayed on the right side
of the Market denotation, push ENT button on the remote
controller.
With each push the indicator will advance as shown
below.
Internal Setup
Markett W M
Region 1
Exit
00-WM 01-SFC 02-UK
03-XE
S18
05-SS 06-PA 07-AU 08-CN
09-JP
00
04-
3.2. Specify the code of the model in accordance with the
Market/Region Setup Table above.
3.3 Once the desired code is displayed, push p button to
move the highlighted indicator to the Region input area.
Market/Region setup table.
Model Market Region
DC-760/AU AU 4
(Reference figure)

- 11 -
SERVICE MODE
4. Setting REGION code
4.1 While a highlighted indicator is displayed on the right side
of the Region denotation, push ENT button on the remote
controller. With each push the indicator will advance as
shown below.
1 -> 2 -> 3 -> 4 -> 5 -> 6
4.2 Specify the number of the model in accordance with the
Market/Region Setup Table above.
4.3 Once the desired number is displayed, push pbutton to
move the highlighted indicator to Exit area.
00
1
1
Internal Setup
Market
Region
Exit
00-WM 01-SFC 02-UK 03-XE
S18
05-SS 06-PA 07-AU 08-CN 09-JP
04-
5. Saving settings
5.1 Make sure that the Market and Region settings are properly
set.
(If any of the settings are incorrect, you can make a change
by moving the indicator using pbutton, and following
procedures 3 and 4 above. )
5.2 After ensuring that the settings are all correct, push ENT
button while the indicator is on Exit area. The settings are
now saved.
Internal Setup
00
Market
1
Region
Exit
00-WM 01-SFC 02-UK 03-XE
S18
05-SS 06-PA 07-AU 08-CN 09-JP
04-
6. Finishing settings
6.1 After a few seconds, the Internal Setup screen disappears,
and then the Service Mode screen is displayed again for
three seconds as shown on the right.
You should check the settings.
Region 1
Market
WM
BackendVersion
S21225A1
LoaderVersion
55 50 05
Value
Backend version S 21225 A 1
Brand (S : SANYO , F : FISHER)
Version ( 2 0 0 2 , 12 , 25)
Sub Version (A,B,......Z)
Region ( 0 : Region undefined
1 ~ 6 : Region defined )
6.2 Power OFF.
(Reference figure)
(Reference figure)
(Reference figure)

- 12 -
SERVICE MODE
D. IMPORTANT NOTE
1. Once the "Market/Region" settings are written into EEPROM (IC818) on the DVD substrate, they cannot be reset.
(However, updating the system using CD-R enables you to make new settings.)
2. While the Internal Setup screen is displayed, pushing the Power button enables you to terminate the operations without
making any settings.
HOW TO LOAD SOFTWARE FOR MPEG P.W.BOARD
1. Power on, then open tray.
2. It take on CD-ROM for UPDATE software to the tray, and tray close.
3. Display " READING " in the TV screen.
4. For the time being, tray open and FL display remain "UP DATING".
5. When software loading finished, FL display "GOODBY".
6. Next, set up market code and region code by "SERVICE MODE"
CD-ROM part code is "0PRADF9655--AA".
CAUTION
After an MAIN board(614 325 6151) or IC ASSY(410 469 7906) exchange should carry out loading of the software by the
newest CD-R, and should check operation.

- 13 -
• Use a plastic screw driver for adjustments.
SG RF Level : 75Ωopen Voltage dBµV
Antenna : 75Ωunbalanced Direct, Modulation : 1 kHz
Dev. : ±22.5kHz(MONO) , ±22.5kHz(STEREO) , ±6.75kHz(PILOT)
Output Level : about 100mV at TP13,TP14,TP15

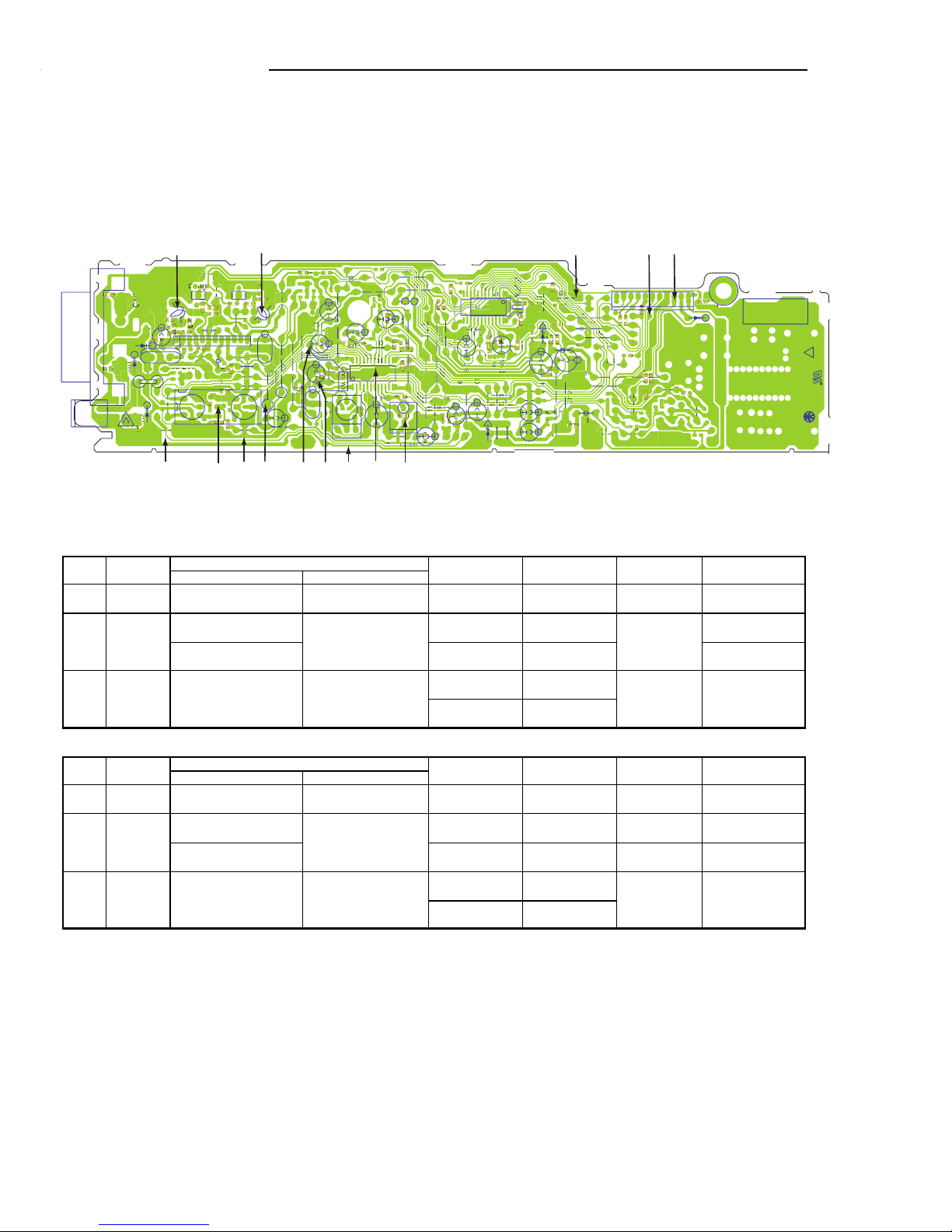

TUNER ADJUSTMENTS
1AD4B10D1740B
T002 94V-0
1
1
1
TP11(VT)
(VT
VT)
T)
T)
TP11
T
T
T
TP12(GND)
)
2(G
GN
ND
ND)
TP12(G
D)
)
NC
RDS
TU-CLK
TU-DATA
TU-CE TU-DO
TU-L
A-GND
TU-R 5.6V +12V
E
E
J2203
J2003
2003
J2003
3
J
C2
C
C2122
2
C
D2151
D21
1
D2
D21
D
1
1
L21
51
R2101
101
R
210
R21
0
R
1
R
210
C2113
J2202
2202
J
J22
J2101
J
01
J2
0
J2007
00
7
J
7
J
J2005
200
J20
J
J
2102
D2102
21
D2101
D
10
D21
01
0
0
1
01
0
C2104
C
2104
C2
C
04
C
4
XF211
XF211
XF211
4
04
D210
04
4
04
IC211
211
IC
C
1
11
C2
2
C
C
2
C2
2
C
C
L2101
01
2
L
1
L2
2
L
L
2
L21
2
L
L
1
L2
1
L
L
21
L2103
103
L
1
3
L
L2
1
L
1
10
J2004
004
J
0
J
J2002
02
J200
2
2
J2
2
2001
J20
1
00
2
J
R2113
13
2
13
R
R
3
3
J2009
J2008
J2
2201
J
J2
CN203
CN203
CN20
C
C
03
CN2
CN201
CN
C
C
N2
J2204
4
22
220
204
04
J2
J220
J2
22
20
)
04
J
D2103
3
D21
D210
D
3
3
XF221
XF221
1
L2102
L21
10
02
L
S
SH201
1
B2101
B2101
210
B
CN202
CN202
N202
2
2
2
2
2
2
2
2
2
CN
J2064
064
64
J2
J
20
64
J
4
J2061
J2061
J206
61
J
D2451
J2261
261
J
2063
J2
06
3
J
3
J2161
CN241CN241
J2062
J2262
262
J
22
J2
J
2
62
C2311C2311
C
1
1
31
C2313
C2313
C2313
3
3
C
XF233
F23
23
XF2
33
33
X
3
2303
C2
3
0
03
3
C
30
3
0
0
3
XF222
J2026
J202
6
6
6
2302
2
23
2
3
2
02
2
C2
C
C
C
C2317
C2317
7
31
1
3
7
7
1
17
C2
2
2
C
17
7
1
1
C23
23
3
R2309
3
0
2
R
9
9
R2302
R230
02
R
R
2
2
2
R
30
23
02
02
23
30
23
02
2
2
C2301
C230
01
C2301
301
1
1
23
XF231
IC231
IC
3
C2
C2
1
3
1
3
C2
C
C2321
C
2
C
2
232
C
C2328
C
32
28
32
8
C
32
8
C2327
C2305
5
0
5
C23
C
RCH
RC
H
RCH
RC
H
LCH
LCH
LA1844
4
4
8
1
A
L
IC231
LA184
1
4
3
8
C2
1
C
A
C2307
C
2
C23
2307
C
0
0
0
J2124
J2124
4
4
4
4
4
4
4
4
J222
J2221
212
J2121
J2121
1
1
12
J2222
J22
J2
222
J2
J
222
J
J
J
J
2022
J2
2
0
22
C
20
C
2
C
0
J2021
0
J20
2
J
J2226
26
2
6
2
J2227
27
2
7
22
J2126
6
6
21
2
J
2306
2306
2306
C2
C2
C2
J2228
J22
8
2
2
J2
2
2
2
2
2
D230
D230
1
1
D
1
R2311 R2301
L2503
L25
503
3
L
50
J2225
25
2
5
2
J2224
J222
24
4
J
2
J2
J2024
J202
202
4
4
J
J2123
2
2
1
J
2
2
3
J2027
J2028
J202
J2028
J2
J
J
J
J
J2223
22
22
23
J2
3
J2125
J
J
1
5
2
25
5
0VADJ
ADJ
0V
0V
VA
D
J
DJ
DJ
J
DJ
D
J
2023
023
02
23
J2
3
J
3
1
C
2
901
J2122
22
J
J2
J21
212
J2025
02
J
5
J
J
5
J2229
J2142
21
J2
J
1
2
4
J2243
J22
2
43
J
43
J2143
J
J21
J2
214
J2144
144
J214
4
44
J2
214
2145
21
J2
45
14
5
J
L2451
L
L2451
J2045
45
45
J
04
J20
5
J
204
D2452
D
2452
24
2
4
2
D
D2
D
24
D
24
D2
D
24
D
4
2
2
2
J20
0
J
20
J
J2047
047
J20
47
0
7
7
7
7
7
J20
0
J
0
J2046
6
204
J
J2
2
6
2
6
J2
6
046
6
0
0
46
046
6
20
2
6
2452
2
4
C
2
2
2
C
2
C
C
C2
J2042
04
2
20
J
42
J
2
2
J
J2
C2457
24
45
7
C
5
2
C
7
7
X2451
X
X
X2
24
X24
245
51
51
451
X
IC241
C2
4
41
1
2
C
C
1
4
C2
C
C
C2451
5
45
C
51
24
2
1
LC72121
7
L
21
12
2
7
C
L
J2141
1
J214
J214
41
J214
21
J2041
J204
041
J
Q2451
Q2
Q24
45
45
J2244
244
224
J22
2
4
2043
4
04
J2
43
2
3
J2
C2465
4
2
C
C
6
5
C2
5
C2
J21
J2
2146
J
J21
J2044
J20
44
204
44
4
4
4
J
J2048
J
0
J
0
8
8
8
J224
J2
24
J
2
2
41
242
J22
24
24
2
42
R21
R2
R2
R
R
R
151
51
51
1
1
1
1
152
52
152
2
152
2
52
2
2
152
C2
C2
C2
C
C2
C2
C2
C
C2
2153
153
R2153
15
R2
5
5
R
5
R
R2153
2151
151
C2
15
C2
215
C2
5
C
7
7
7
C2117
17
C2
C
C
C
C2117
7
C
R2114
4
R
1
R211
R2
11
R211
R
1
C2123
C
123
C
2
21
C2
12
C2
12
C21
C2
12
C
2
R2106
210
R210
106
6
6
6
C
C
101
C2
C
0
21
10
C2
C2
10
1
C
21
10
C2
C
0
1
1
C
1
2
1
C2
1
C
2121
C2
21
C
2
212
C2
1
C2
12
212
C2
2
C
2
12
C
R2111
R2
1
111
I
1
I
1
C211
12
C2
2
C
211
C2102
C
02
C
0
C21
C
10
C2
10
C210
C
10
C
0
2105
C2
C
0
21
C2
0
C2
10
5
210
C2
0
C
0
5
R2
2104
R
R
0
R2
10
R
R2
10
R2
210
R
R
0
R2102
02
10
21
R21
21
R
01
R2
01
R2
R2103
0
R
0
R21
0
0
R2
10
R210
0
0
R
0
C2
106
C2
C
0
2
10
C2
C2
10
2
10
C2
C
0
C2107
C
07
C
0
C21
C
0
C2
10
C21
C
0
C
0
112
1
2
11
11
2
11
1
R
R
R
R
R
R
R
R
R
C2
C
126
C
2
C2
12
C2
12
C2
C
12
C
2
C2109
210
C
C2
9
09
9
9
C2108
C
2108
C
0
8
21
C2
210
C2
10
C2
C2
210
C
0
2111
1
C2
C
1
21
211
C2
C2
11
211
1
C2
C
1
2130
30
C2
0
3
C
213
C2
13
C2
213
3
C2
3
C
C
C
131
3
2
C2
13
C2
13
C
C
2
C2
13
3
C
C
C
C2132
2
C2
C
C2
1
C2
21
10
2
2
10
03
03
0
C2
1
C
10
0
C21
R2
R
R
2
R2
R2
81
81
81
812
812
2
1
R2
R2
R
81
81
1
8
R
R
R
R
2
R2
R2
24
4
246
6
61
61
6
1
R2
R
R
R
246
6
6
2
R2464
64
4
R
6
R246
R2
46
R246
R
6
R2462
62
R
6
R246
R2
46
R246
R
6
R2463
R
63
3
R
6
3
246
R2
R2
46
R246
R2
R
6
2903
903
C2
C
0
29
90
C2
C2
90
2
90
C2
C
0
R28
R
R
R281
R
R2
81
811
1
1
R281
R
R
1
R2
2712
R
R
1
R2
271
2
R2
71
R2
271
R
R
1
R2711
1
R
R
1
271
R2
R2
71
R271
R2
R
1
4
4
4
4
R230
04
R2
304
304
R2
R
R
R
3
4
R
304
4
R
C
C
C
C23
309
C2
C2
309
9
9
C2309
309
C2
C
9
R
R
R
R
R2307
0
R2
307
R2
7
7
7
R2307
R2
7
R
R
R
R2306
306
306
R2
6
6
R2
R
R
30
0
06
06
6
230
30
C2
2310
C2310
310
310
C2
1
2
0
2308
08
0
8
23
30
C
30
C2
C
C
C
230
0
0
C
C
C
C2
7
23
7
2
17
C2
C
1
C
1
C
R2308
0
8
0
R
R230
3
30
R2
8
R230
0
R
R23
8
C2315
5
23
C
15
C
C2312
2
C
31
C231
C
C
2
5
5
5
R
R
R
R
R2305
R
0
R2
305
R2
R2305
R
5
R
2318
C23
8
38
8
8
C
C2319
31
9
C23
C
C
23
30
C2
30
C2
4
4
4
4
23
30
C2
0
C
C2304
4
2330
3
330
33
C2
C
C
23
C
C
C
23
3
3
C2
C
0
23
C
C
320
C2
2
320
C2
0
0
320
C2
0
C
03
0
0
0
0
0
23
3
R2
R2
3
23
3
R2
23
3
R2
R
3
2316
C2
16
C
1
23
C2
31
C2
31
6
6
231
C2
1
C
1
C2316
C2314
4
14
1
C
C231
31
C2
C231
1
1
C
2
2
2
290
02
C2
C2
902
C
C
290
02
C2
C
2
R
R
R245
R2
4
R2
45
9
9
9
9
R245
4
R
5
R
R
R
R245
4
2
R2
45
8
8
R245
4
R
5
C2322
2
C
2
C232
3
C2
32
C232
C
2
R2455
R
55
55
R
5
R245
R
4
R2
45
R245
R
R
5
C246
62
246
62
J
2
J
2
1
1
46
C24
61
C2
461
C
C
46
C24
61
C
1
R2452
R24
52
R245
452
R2
4
2
R24
R
R
R2453
R
R2
53
24
453
6
6
6
5
5
5
5
5
5
5
5
C
C
24
45
C2
C
C2
45
C2
C
C
24
45
C
C
C
C
C
C
5
456
C
C2455
55
C245
C245
5
C
C
C
C245
C2
45
45
C2
4
4
4
4
C245
C2
45
5
C
4
3
3
3
C2453
453
453
C2
C
C
C
C2453
453
3
C
C
C
IC24
IC241
IC2
IC
C2463
3
2463
C
6
C2
246
C2
46
C246
246
C
6
2464
C2
C
6
246
6
C2
C2
46
246
6
C2
C
6
R2465
5
6
R
6
R246
6
R2
46
R246
6
R
6
2454
R2
4
4
45
4
54
4
54
4
45
R2460
60
R
6
R246
R2
46
R246
R
6
TP12
(GND)
L2151 TP11 TP12 TP25 XF231 IC231 XF233
L2101 L2102 TP15 TP13 TP14
TP24
1.FM
Step Adjusting Connection SG Set Adjustment Remark
Circuit Input Output Frequency Position
1IF Alignment FM ANT.
SG=66dBµV
IC231 3,22pin
TP24, TP25 98.0MHz --- XF233 0.0 ± 0.05V
2 Cover --- Connect Digital DC voltmeter 87.5MHz Low L2102
Alignment voltage is
more than 0.8V.
voltage --- to TP11(H), TP12(E). 108.0MHz High Confirm voltage is less
than 9.0V.
3Tracking Connect FM SG to FM Antenna Connect to VTVM 90.0MHz Low L2101 Max.
(SG= about 8dBµV) TP13(L) or TP14(R), TP15(E) 106.0MHz High
2.AM
Step Adjusting Connection SG Set Adjustment Remark
Circuit Input Output Frequency Position
1IF Alignment Loop Ant. IC231 19pin(DCCUT) TP26(GND) 522kHz XF231
2Cover --- Connect Digital DC voltmeter 522kHz Low --- more than 0.8V
voltage --- toTP11(H), TP12(E). 1710 kHz High --- less than 9.0V
3Tracking Connect AM SG to Connect to VTVM 603kHz Low L2151-a Max.
Test loop Ant.
(SG= About 80dBµV)
TP13(L) or TP14(R), TP15(E). 1404kHz High

- 14 -
EXPLODED VIEW (CABINET & CHASSIS)
1
2
2
34
Y02
Y03
Y04
Y04
Y02
Y01
Y01
Y01
5
612
13
7
89
10
11
Y05
Y05
Y06
Y06
Y06
Y08
Y08
Y08
Y08
Y08
Y09
Y10
Y11
Y12 Y12
Y13
Y13
Y15
Y15
Y15
Y15
Y22
Y26
Y23
Y26
Y26
Y25
Y26
Y16 Y16
Y17
Y17
Y19
Y20
Y20
Y21
Y18
Y18
Y07
Y07 Y07
Y07
Y07
Y07
14
15
16
17
18
19
19 20
23
24
21
22
59
61
60
71
72
73
74 75
76
77
51
52
53
54
55
56
57
58
24
24
62
63
Y13
Y27
Y27
Y15

- 15 -
PARTS LIST
CAUTION :Regular type resistors and capacitors are not listed. To know those values, refer to the schematic diagram.
Regular type resistors are less than 1/4 W carbon type and chip resistors.
Regular type capacitors are less than 50 V and less than 1000 µF type of Ceramic type and Electrical type.
REF.NO. PART NO. DESCRIPTION
PRODUCT SAFETY NOTICE
EACH PRECAUTION IN THIS MANUAL SHOULD BE FOLLOWED DURING SERVICING. COMPONENTS IDENTIFIED WITH THE
IEC SYMBOL !
!! IN THE PARTS LIST AND THE SCHEMATIC DIAGRAM DESIGNATED COMPONENTS IN WHICH SAFETY AND
PERFORMANCE CAN BE OF SPECIAL SIGNIFICANCE. WHEN REPLACING A COMPONENT IDENTIFIED BY !
!! , USE ONLY THE
REPLACEMENT PARTS DESIGNATED, OR PARTS WITH THE SAME RATINGS OF RESISTANCE, WATTAGE OR VOLTAGE THAT
ARE DESIGNATED IN THE PARTS LIST IN THIS MANUAL. LEAKAGE-CURRENT OR RESISTANCE MEASUREMENTS MUST BE
MADE TO DETERMINE THAT EXPOSED PARTS ARE ACCEPTABLY INSULATED FROM THE SUPPLY CIRCUIT BEFORE
RETURNING THE PRODUCT TO THE CUSTOMER.
PACKING & ACCESSORIES
REF.NO. PART NO. DESCRIPTION
614 326 8062 CARTON CASE,INNER
614 325 9237 CUSHION,LEFT
614 325 9244 CUSHION,RIGHT
614 326 8079 INSTRUCTION MANUAL
645 052 1621 POLY BAG,VIDEO/AUDIO
645 012 2958 POLY BAG,INST MANUAL
645 048 1994 POLY SHEET,SET & SP-BOX
645 020 7020 ASSY,ANTENA,LOOP
614 245 0055 ANTENNA
645 041 1373 CABLE,VIDEO
645 058 1120 REMOCON,RB-TS760SS
645 043 9735 BATTERY COVER,SERVICE PART
23 614 326 5641 ASSY,BOX,SPEAKER,
SUB WOOFER(SX-TS760W/CA)
24 614 326 5634 ASSY,BOX,SPEAKER,
SATELLITE(SX-TS760S/CA)
CABINET & CHASSIS
REF.NO. PART NO. DESCRIPTION
1614 326 7980 ASSY,CABINET,FRONT
2614 325 8223 CAP,DVD TRAY
3614 326 3517 ASSY,DEC,ESCUTCHEON TRAY
4 614 325 5680 DEC,DVD TRAY
5614 322 4839 KNOB,ROTARY,VOLUME
6614 325 5703 DEC,ESCUTCHEON VOL
7614 325 5628 BUTTON,FUNCTION,FUNCTION
8614 325 5765 MOUNTING,BUTTON FUNCTION
9614 325 5611 BUTTON,POWER,POWER /PLAY
10 614 325 5758 MOUNTING,BUTTON POWER
11 614 325 5635 CABINET,TOP/SIDE
12 614 316 1417 MOUNTING,IC,IC-HEAT SINK
13 614 291 6568 MOUNTING,PWB,IC-HEAT SINK
14 614 325 5666 COVER,FAN,FAN
15 614 325 5727 HEAT SINK
16 614 322 4815 HOLDER,H/SINK,REAR,HEAT SINK
17 614 322 4822 HOLDER,H/SINK,BOTTOM,
HEAT SINK
18 614 322 5997 MOUNTING,FFC,MOUNTING
or 614 320 5852 MOUNTING,FFC,MOUNTING
19 614 313 6545 SPRING,PLATE,EARTH
20 614 325 5604 ASSY,CABINET,BOTTOM
21 614 129 1901 FIXER,AC CORD
or 614 284 1884 FIXER,AC CORD
or 614 129 4971 FIXER,AC CORD
22 614 326 3890 PANEL,REAR
FIXING PARTS
REF.NO. PART NO. DESCRIPTION
Y01 411 021 6405 SCR S-TPG BIN 3X8,
CABINET FRONT-BOTTOM
Y02 411 098 4700 SCR S-TPG BIN 2.3X8,
DEC ESC-TRAY
Y03 411 098 4700 SCR S-TPG BIN 2.3X8,
CABINET FRONT-ESC VOL
Y04 411 098 4700 SCR S-TPG BIN 2.3X8,
PWB-BUTTON FUNCTION
Y05 411 098 4700 SCR S-TPG BIN 2.3X8,
PWB-BUTTON POWER
Y06 411 098 4700 SCR S-TPG BIN 2.3X8,
CABINET FRONT-PWB FIX
Y07 411 098 4205 SCR S-TPG BIN 3X8,CABINET
Y08 411 021 6405 SCR S-TPG BIN 3X8,MAIN PWB
Y09 411 021 6405 SCR S-TPG BIN 3X8,IC-HEAT SINK
Y10 411 020 9902 SCR S-TPG BRZ+FLG 3X8,
TUN PWB
Y11 411 021 6405 SCR S-TPG BIN 3X8,
HOLDER H/S-PWB
Y12 411 021 6405 SCR S-TPG BIN 3X8,POWER PWB
Y13 411 021 6405 SCR S-TPG BIN 3X8,
COVER FAN-HEAT SINK
Y15 411 021 6405 SCR S-TPG BIN 3X8,
HOLDER H/S-BOTTOM
Y16 411 001 3905 SCR S-TPG BIN 4X6,PT
Y17 614 130 0382 LUG,LEAD TREATMENT
Y18 411 020 9803 SCR S-TPG BRZ+FLG 3X6,
DVD MECHA
Y19 411 021 2704 SCR S-TPG BIN 2.6X6,MOUNTING
Y20 411 021 6405 SCR S-TPG BIN 3X8,
EARTH SPRING PLATE
Y21 411 021 6405 SCR S-TPG BIN 3X8,
HOLDER H/S-BOTTOM
Y22 411 021 3701 SCR S-TPG BIN 3X10,
REAR-VIDEO OUT PWB
Y23 411 182 7501 SCR S-TPG BIN 5X16,
FAN-PANEL REAR
Y25 411 021 3701 SCR S-TPG BIN 3X10,
BOTTOM-REAR
Y26 411 021 3701 SCR S-TPG BIN 3X10,
REAR-ELECT PART
Y27 412 011 5903 SPECIAL WASHER,
HOLDER HEAT SINK
ELECTRICAL-PARTS
REF.NO. PART NO. DESCRIPTION
51 614 325 7721 ASSY,WIRE,FRONT-SW1
52 614 325 7714 ASSY,WIRE,MAIN_FRONT
53 423 028 8405 FUSE 250V 1.6A
54 614 325 7707 ASSY,WIRE,MAIN_DG
55 645 059 1389 TRANS,POWER,TS760_AU
56 645 058 3445 FLEXIBLE FLAT CABLE,PICK-FFC
or 645 053 8384 FLEXIBLE FLAT CABLE,PICK-FFC
57 645 058 3452 FLEXIBLE FLAT CABLE,IF-FFC
or 645 056 3010 FLEXIBLE FLAT CABLE,IF-FFC
58 614 323 3237 ASSY,WIRE,LOADING-DVD
59 614 256 5308 POWER CORD
or 645 032 1887 CORD,POWER-2.0MK
60 645 058 3469 FLEXIBLE FLAT CABLE,
MAIN-COMPONENT
or 645 054 1056 FLEXIBLE FLAT CABLE,
MAIN-COMPONENT
61 645 053 3853 MOTOR,FAN DC 0.84W,FAN
62 645 051 0656 CORE,FERRITE
or 645 042 8999 CORE,FERRITE
63 645 051 0649 CORE,FERRITE
or 645 031 7637 CORE,FERRITE

- 16 -
PARTS LIST
SW2,BUTTON P.W.BOARD ASSY
REF.NO. PART NO. DESCRIPTION
71 614 325 6205 ASSY,PWB,SW2,BUTTON
(Only initial)
CN621 614 035 4911 SOCKET,DIP 2P
S6201 645 037 2759 SWITCH,PUSH
or 645 006 5958 SWITCH,PUSH 1P-1T
or 614 220 5471 SWITCH,TACT
or 614 240 1002 SWITCH,TACT
S6202 645 037 2759 SWITCH,PUSH
or 645 006 5958 SWITCH,PUSH 1P-1T
or 614 220 5471 SWITCH,TACT
or 614 240 1002 SWITCH,TACT
S6203 645 037 2759 SWITCH,PUSH
or 645 006 5958 SWITCH,PUSH 1P-1T
or 614 220 5471 SWITCH,TACT
or 614 240 1002 SWITCH,TACT
S6204 645 037 2759 SWITCH,PUSH
or 645 006 5958 SWITCH,PUSH 1P-1T
or 614 220 5471 SWITCH,TACT
or 614 240 1002 SWITCH,TACT
SW1,BUTTON P.W.BOARD ASSY
REF.NO. PART NO. DESCRIPTION
72 614 325 6199 ASSY,PWB,SW1,BUTTON
(Only initial)
C6101 403 157 3601 CERAMIC 100P J 50V
CN611 614 310 2595 PLUG,3P
or 645 005 8226 PLUG,3P
CN612 614 035 4911 SOCKET,DIP 2P
S6101 645 037 2759 SWITCH,PUSH
or 645 006 5958 SWITCH,PUSH 1P-1T
or 614 220 5471 SWITCH,TACT
or 614 240 1002 SWITCH,TACT
S6102 645 037 2759 SWITCH,PUSH
or 645 006 5958 SWITCH,PUSH 1P-1T
or 614 220 5471 SWITCH,TACT
or 614 240 1002 SWITCH,TACT
S6103 645 037 2759 SWITCH,PUSH
or 645 006 5958 SWITCH,PUSH 1P-1T
or 614 220 5471 SWITCH,TACT
or 614 240 1002 SWITCH,TACT
FRONT P.W.BOARD ASSY
REF.NO. PART NO. DESCRIPTION
73 614 325 6168 ASSY,PWB,FRONT(Only initial)
BR601 614 325 5734 HOLDER,FL
CN602 645 016 9809 PLUG,16P,FRONT-MAIN
CN603 614 310 2595 PLUG,3P
or 645 005 8226 PLUG,3P
CN605 645 012 0008 JACK,PHONE D3.6
DS601 407 205 1205 PHOTO DIODE SPS-440-1-E
or 407 232 4002 PHOTO DIODE SPS-440-1-VG
FL601 645 057 2043 FLOURESCENT TUBE
IC601 410 427 6507 IC MPD16315GB-3BS
or 409 519 6907 IC PT6315
L6051 645 001 4550 INDUCTOR,10U K
L6052 645 006 9864 INDUCTOR,80U
or 645 058 8839 INDUCTOR,80U
L6053 645 006 9864 INDUCTOR,80U
or 645 058 8839 INDUCTOR,80U
LG601 614 129 9082 LUG,FRONT-BOTTOM
R6031 401 019 9501 CARBON 47 JA 1/4W
S6001 645 048 1727 SWITCH,ROTARY(ENCODER)
SG601 645 055 3202 SURGE-ABSORBER
SG602 645 055 3202 SURGE-ABSORBER
SG603 645 055 3202 SURGE-ABSORBER
MAIN,AMP-DVD P.W.BOARD ASSY
REF.NO. PART NO. DESCRIPTION
74 614 325 6151 ASSY,PWB,MAIN,AMP_DVD
(Only initial)
C1900 403 373 7902 ELECT 150U M 6.3V
C1911 403 373 7902 ELECT 150U M 6.3V
C4102 403 325 0302 ELECT 2200U M 25V
C4103 403 325 0302 ELECT 2200U M 25V
C4108 403 325 9701 ELECT 4700U M 25V
C4109 403 325 2306 ELECT 4700U M 35V
C4110 403 325 2306 ELECT 4700U M 35V
C4120 403 370 7004 ELECT 330U M 6.3V
C4128 403 373 8404 ELECT 220U M 10V
C4130 403 373 9302 ELECT 100U M 25V
C4199 403 359 3805 ELECT 2200U M 10V
or 403 359 3805 ELECT 2200U M 10V
or 403 330 2001 ELECT 2200U M 16V
C4301 403 325 0401 ELECT 1000U M 6.3V
C4648 403 184 9805 MT-POLYEST 0.22U J 50V
C4649 403 184 9805 MT-POLYEST 0.22U J 50V
C4651 403 184 9805 MT-POLYEST 0.22U J 50V
C4652 403 184 9805 MT-POLYEST 0.22U J 50V
C4653 403 184 9300 MT-POLYEST 0.047U J 50V
C4654 403 184 9300 MT-POLYEST 0.047U J 50V
C4748 403 184 9805 MT-POLYEST 0.22U J 50V
C4749 403 184 9805 MT-POLYEST 0.22U J 50V
C4751 403 184 9805 MT-POLYEST 0.22U J 50V
C4752 403 184 9805 MT-POLYEST 0.22U J 50V
C4755 403 374 0001 ELECT 33U M 35V
C4756 403 374 0001 ELECT 33U M 35V
C4848 403 184 9805 MT-POLYEST 0.22U J 50V
C4849 403 184 9805 MT-POLYEST 0.22U J 50V
C4854 403 184 9300 MT-POLYEST 0.047U J 50V
C4867 403 374 0001 ELECT 33U M 35V
C4868 403 185 0108 MT-POLYEST 0.47U J 50V
C4869 403 185 0108 MT-POLYEST 0.47U J 50V
C4870 403 374 0001 ELECT 33U M 35V
C8211 403 373 7902 ELECT 150U M 6.3V
C8535 403 373 7902 ELECT 150U M 6.3V
CN100 645 057 2951 SOCKET,FPC 24P
or 645 037 6207 SOCKET,FFC 24P
CN160 614 310 2465 PLUG,5P
or 645 005 9292 PLUG,5P
CN162 645 057 2814 SOCKET,FPC 6P
or 645 057 4269 SOCKET,FPC 6P
CN410 645 006 1998 PLUG,5P
CN411 645 004 2904 PLUG,4P
or 614 310 2755 PLUG,4P
CN412 614 310 2502 PLUG,9P
or 645 005 8141 PLUG,9P
CN420 614 310 2434 PLUG,2P
or 645 005 7366 PLUG,2P
CN470 645 057 4399 TERMINAL,SPEAKER,6P,SP-6P
CN490 645 037 3831 JACK,RCA,VIDEO
CN491 645 044 9086 SOCKET,DIN 4P,S-VIDEO
CN492 645 057 4375 JACK,RCA-4,RCA-4P
CN496 614 310 2571 PLUG,16P
or 645 016 9809 PLUG,16P
CN497 645 033 7826 PLUG,11P
CN498 645 059 1587 SOCKET,FPC 11P
CN499 614 221 8273 TERMINAL
D1700 407 149 0807 DIODE 1SS355
D4100 407 196 5800 DIODE 1N5402BD82
D4101 407 196 5800 DIODE 1N5402BD82
D4102 407 196 5800 DIODE 1N5402BD82
D4103 407 196 5800 DIODE 1N5402BD82
D4104 407 196 5800 DIODE 1N5402BD82
D4105 407 196 5800 DIODE 1N5402BD82
D4106 407 097 8009 DIODE MPG06G
D4107 407 097 8009 DIODE MPG06G
D4108 407 097 8009 DIODE MPG06G
D4109 407 097 8009 DIODE MPG06G
D4110 407 097 8009 DIODE MPG06G
D4111 407 097 8009 DIODE MPG06G
D4112 407 099 5402 ZENER DIODE MTZJ6.2B
D4113 407 099 9103 ZENER DIODE MTZJ27B
D4114 408 044 6307 DIODE SB140L 19C2-004
D4115 408 044 6307 DIODE SB140L 19C2-004
D4198 407 099 6409 ZENER DIODE MTZJ11B
D4199 407 099 4603 ZENER DIODE MTZJ3.9B
D4201 407 012 4406 DIODE 1SS133
REF.NO. PART NO. DESCRIPTION

- 17 -
PARTS LIST
REF.NO. PART NO. DESCRIPTIONREF.NO. PART NO. DESCRIPTION
D4300 407 012 4406 DIODE 1SS133
D4301 407 012 4406 DIODE 1SS133
D4302 407 012 4406 DIODE 1SS133
D4303 407 012 4406 DIODE 1SS133
D4580 407 099 5303 ZENER DIODE MTZJ5.6B
D4581 407 063 9207 ZENER DIODE MTZJ7.5B
D4582 407 063 9207 ZENER DIODE MTZJ7.5B
D4800 407 012 4406 DIODE 1SS133
D4801 407 012 4406 DIODE 1SS133
D4804 407 012 4406 DIODE 1SS133
D4805 407 012 4406 DIODE 1SS133
IC100 409 518 1507 IC LA9703WL-MPB
IC130 409 531 6107 IC LC78663NRW
or 409 514 5004 IC LC78663NW
IC131 410 433 0308 IC M11L416256SA-35T
or 410 431 3509 IC IS41LV16256-35T
IC160 409 532 0005 IC LA6560-A
IC161 409 168 9106 IC BA10358F
or 409 528 3805 IC NJM12904M
IC410 409 519 7201 IC PQ1CG21H2RZ,REG
IC411 409 519 7201 IC PQ1CG21H2RZ,REG
IC412 409 521 9804 IC KA7805R
IC430 410 472 4206 IC M38507M8-152FP,MICON
IC450 409 426 1903 IC KIA4558F
or 409 039 7804 IC NJM4558M
IC451 409 543 1107 IC BD3811K1,6CH-VOL
IC452 409 543 1008 IC QS7785CF
IC453 409 543 7208 IC KTC801U-Y
IC454 409 543 6409 IC KRX101U
IC455 409 543 7208 IC KTC801U-Y
IC460 409 426 1903 IC KIA4558F
or 409 039 7804 IC NJM4558M
IC461 409 357 2901 IC NJM4556AL
IC462 409 472 5306 IC LM1876TF
IC471 409 542 9609 IC NJM2058V
IC472 409 472 5306 IC LM1876TF
IC482 409 521 9200 IC LM4700TF
IC483 409 521 9101 IC LM3876TF
IC484 409 543 6409 IC KRX101U
IC491 409 542 9609 IC NJM2058V
IC800 409 546 2002 IC ZR36748
IC801 410 448 8405 IC S524A40X21-SCT0
or 410 448 8504 IC S524A40X21-SCB0
or 410 429 7908 IC AT24C02N-10SI-2.7
IC802 409 505 0803 IC PST3627U
IC806 410 430 9403 IC 74VHCT08AMTCX
IC818 410 469 7906 IC ASSY
(IC LE28DW8163T-70T-MPB,
LE28DW8163T-70T-MPB)
IC822 410 453 9602 IC LC3816161ET-70-MPB
or 409 482 0209 IC K4S161622D-TC80
IC850 409 534 5800 IC PQ2L2182MS
IC870 409 540 1605 IC LC708746V
L1000 645 034 7887 INDUCTOR,1000 OHM
or 645 020 1813 INDUCTOR,1000 OHM
or 645 045 7869 IMPEDANCE,1000 OHM P
L1002 645 034 7887 INDUCTOR,1000 OHM
or 645 020 1813 INDUCTOR,1000 OHM
or 645 045 7869 IMPEDANCE,1000 OHM P
L1302 645 034 7887 INDUCTOR,1000 OHM
or 645 020 1813 INDUCTOR,1000 OHM
or 645 045 7869 IMPEDANCE,1000 OHM P
L4100 645 053 8544 INDUCTOR,210U
L4101 645 045 8613 INDUCTOR,10U
or 645 048 4469 INDUCTOR,22U
L4102 645 045 8613 INDUCTOR,10U
or 645 048 4469 INDUCTOR,22U
L4103 645 053 8544 INDUCTOR,210U
L4104 645 045 8613 INDUCTOR,10U
or 645 048 4469 INDUCTOR,22U
L4300 645 001 4550 INDUCTOR,10U K
L4650 645 057 4405 INDUCTOR,0.7U
or 645 053 7493 INDUCTOR,0.7U
L4651 645 057 4405 INDUCTOR,0.7U
or 645 053 7493 INDUCTOR,0.7U
L4750 645 057 4405 INDUCTOR,0.7U
or 645 053 7493 INDUCTOR,0.7U
L4751 645 057 4405 INDUCTOR,0.7U
or 645 053 7493 INDUCTOR,0.7U
L4850 645 057 4405 INDUCTOR,0.7U
or 645 053 7493 INDUCTOR,0.7U
L4851 645 057 7673 INDUCTOR,AIR 0.7U
or 645 045 6206 INDUCTOR,AIR 0.7U
L4960 645 040 6430 INDUCTOR,2.2U M
L4961 645 040 6430 INDUCTOR,2.2U M
L4962 645 040 6430 INDUCTOR,2.2U M
L8060 645 034 7887 INDUCTOR,1000 OHM
or 645 020 1813 INDUCTOR,1000 OHM
L8202 645 034 7887 INDUCTOR,1000 OHM
or 645 020 1813 INDUCTOR,1000 OHM
L8780 645 034 7887 INDUCTOR,1000 OHM
or 645 020 1813 INDUCTOR,1000 OHM
L8781 645 034 7887 INDUCTOR,1000 OHM
or 645 020 1813 INDUCTOR,1000 OHM
LUG01 645 023 8987 FIXER
LUG02 645 023 8987 FIXER
LUG03 645 023 8987 FIXER
LUG04 645 023 8987 FIXER
LUG05 645 023 8987 FIXER
LUG06 645 006 4425 FIXER
LUG07 645 023 8987 FIXER
PR410 645 042 2737 PROTECTOR,7A 125V
PR411 645 042 2737 PROTECTOR,7A 125V
PR412 645 042 2515 PROTECTOR,0.2A 125V
PR418 645 042 2652 PROTECTOR,10A 125V
PR419 645 042 2652 PROTECTOR,10A 125V
PR420 645 027 4169 PROTECTOR,0.125A 125V
PR450 645 042 2515 PROTECTOR,0.2A 125V
PR451 645 042 2515 PROTECTOR,0.2A 125V
Q1002 405 146 2107 TR KTC3875-Y
or 405 146 2206 TR KTC3875-GR
or 405 014 4509 TR 2SC2412K-R
or 405 011 1006 TR 2SC1623-L6
Q1003 405 146 2107 TR KTC3875-Y
or 405 146 2206 TR KTC3875-GR
or 405 014 4509 TR 2SC2412K-R
or 405 011 1006 TR 2SC1623-L6
Q1004 405 146 2107 TR KTC3875-Y
or 405 146 2206 TR KTC3875-GR
or 405 014 4509 TR 2SC2412K-R
or 405 011 1006 TR 2SC1623-L6
Q1005 405 158 5905 TR KTA1505-Y
or 405 035 5509 TR 2SA1036K-R
Q1006 405 158 5905 TR KTA1505-Y
or 405 035 5509 TR 2SA1036K-R
Q1016 405 146 2107 TR KTC3875-Y
or 405 146 2206 TR KTC3875-GR
or 405 014 4509 TR 2SC2412K-R
or 405 011 1006 TR 2SC1623-L6
Q4100 405 141 3604 TR KTA1273-Y
Q4101 405 159 0503 TR KRC107S
or 405 141 5608 TR DTC114YKA
Q4102 405 159 0503 TR KRC107S
or 405 141 5608 TR DTC114YKA
Q4103 405 159 0503 TR KRC107S
or 405 141 5608 TR DTC114YKA
Q4206 405 159 0503 TR KRC107S
or 405 141 5608 TR DTC114YKA
Q4209 405 143 8706 TR KTC3199-GR
or 405 017 9600 TR 2SC3330-T
or 405 017 9709 TR 2SC3330-U
or 405 011 8500 TR 2SC1740S-R
or 405 011 8609 TR 2SC1740S-S
Q4302 405 146 2107 TR KTC3875-Y
or 405 146 2206 TR KTC3875-GR
or 405 014 4509 TR 2SC2412K-R
or 405 011 1006 TR 2SC1623-L6
Q4303 405 146 2107 TR KTC3875-Y
or 405 146 2206 TR KTC3875-GR
or 405 014 4509 TR 2SC2412K-R

- 18 -
PARTS LIST
REF.NO. PART NO. DESCRIPTION
or 405 011 1006 TR 2SC1623-L6
Q4580 405 146 2107 TR KTC3875-Y
or 405 146 2206 TR KTC3875-GR
or 405 014 4509 TR 2SC2412K-R
or 405 011 1006 TR 2SC1623-L6
Q4581 405 146 2107 TR KTC3875-Y
or 405 146 2206 TR KTC3875-GR
or 405 014 4509 TR 2SC2412K-R
or 405 011 1006 TR 2SC1623-L6
Q4582 405 146 1704 TR KTA1504-Y
or 405 146 9700 TR KTA1504-GR
or 405 134 5905 TR 2SA1037AK-R
or 405 002 0308 TR 2SA1037K-R
or 405 005 5508 TR 2SA812-M6
Q4620 405 166 7007 TR KTD1304
Q4621 405 166 7007 TR KTD1304
Q4622 405 166 7007 TR KTD1304
Q4623 405 166 7007 TR KTD1304
Q4640 405 166 7007 TR KTD1304
Q4641 405 166 7007 TR KTD1304
Q4740 405 166 7007 TR KTD1304
Q4741 405 166 7007 TR KTD1304
Q4840 405 166 7007 TR KTD1304
Q4841 405 166 7007 TR KTD1304
Q4844 405 159 0503 TR KRC107S
or 405 141 5608 TR DTC114YKA
Q4848 405 159 0503 TR KRC107S
or 405 141 5608 TR DTC114YKA
Q4852 405 166 7007 TR KTD1304
Q8880 405 146 1704 TR KTA1504-Y
or 405 146 9700 TR KTA1504-GR
or 405 134 5905 TR 2SA1037AK-R
or 405 002 0308 TR 2SA1037K-R
or 405 005 5508 TR 2SA812-M6
Q8881 405 159 0503 TR KRC107S
or 405 141 5608 TR DTC114YKA
Q8882 405 159 0503 TR KRC107S
or 405 141 5608 TR DTC114YKA
R4107 401 219 1008 MT-GLAZE 1.6K FA 1/16W
R4108 401 230 2503 MT-GLAZE 1K FA 1/16W
R4111 401 218 4604 MT-GLAZE 5.6K FA 1/16W
R4112 401 230 2503 MT-GLAZE 1K FA 1/16W
R4115 402 085 2205 RESISTOR 6.8 J- 2W
R4116 402 081 0106 FUSIBLE RES 2.2 JA 1/4W
R4650 402 082 1300 RESISTOR 4.7 J- 1W
R4651 402 082 1300 RESISTOR 4.7 J- 1W
R4658 402 082 2802 RESISTOR 10 J- 1W
R4659 402 082 2802 RESISTOR 10 J- 1W
R4750 402 082 1300 RESISTOR 4.7 J- 1W
R4751 402 082 1300 RESISTOR 4.7 J- 1W
R4758 402 082 2802 RESISTOR 10 J- 1W
R4759 402 082 2802 RESISTOR 10 J- 1W
R4851 402 082 1300 RESISTOR 4.7 J- 1W
R4858 402 082 2802 RESISTOR 10 J- 1W
R4859 402 082 2802 RESISTOR 10 J- 1W
R4867 402 082 8606 RESISTOR 2.2 J- 1W
RN100 645 057 4252 R-NETWORK 8.2KX4 1/16W
RN101 645 057 4290 R-NETWORK 47KX4 1/16W
RN410 645 058 5043 R-NETWORK 4.7KX4 1/16W
RN801 645 057 4238 R-NETWORK 33X4 1/16W
SG491 645 055 3202 SURGE-ABSORBER
SG492 645 055 3202 SURGE-ABSORBER
SG493 645 055 3202 SURGE-ABSORBER
SG871 645 055 3202 SURGE-ABSORBER
SG872 645 055 3202 SURGE-ABSORBER
SH401 614 322 4877 SHIELD,SP,SOCKET
X1500 645 017 0157 OSC,CERAMIC 16.93MHZ
or 645 059 7060 OSC,CERAMIC 16.93MHZ
X4300 645 053 4393 OSC,CERAMIC 8.00MHZ
or 645 059 1570 OSC,CERAMIC 8.00MHZ
X8230 645 053 4270 OSC,CRYSTAL 27.000MHZ
or 645 045 8293 OSC,CRYSTAL 27.000MHZ
TUNER P.W.BOARD ASSY
REF.NO. PART NO. DESCRIPTION
75 614 326 3838 ASSY,PWB,TUNER(Only initial)
B2101 645 006 3602 INDUCTOR,1.1UH
C2457 403 259 0508 NP-ELECT 1U M 50V
or 403 106 1603 NP-ELECT 1U Q 50V
CN201 645 057 1893 TERMINAL,TUNER
CN202 614 305 6317 CORD,1P CONNECTOR
CN203 614 310 2298 PLUG,2P
or 645 004 2683 PLUG,2P
CN241 645 033 7833 SOCKET,11P
D2101 407 157 8109 VARACTOR DI SVC211-B
D2102 407 157 8109 VARACTOR DI SVC211-B
D2103 407 012 4406 DIODE 1SS133
D2104 407 012 4406 DIODE 1SS133
D2151 407 012 4406 DIODE 1SS133
D2301 407 063 9108 ZENER DIODE MTZJ6.8B
D2451 407 012 4406 DIODE 1SS133
D2452 407 153 7502 ZENER DIODE GZS3.0B
D2455 407 012 4406 DIODE 1SS133
IC211 409 292 5807 IC TA8176SN
IC231 409 474 3201 IC LA1844ML
IC241 409 439 4502 IC LC72121M-D
L2101 645 018 0163 COIL,AIR
L2102 645 018 0255 COIL,AIR
L2103 645 002 1534 INDUCTOR,8.2U K
L2151 645 023 0127 TUNER
L2451 645 001 4581 INDUCTOR,100U K
L2503 645 004 0511 INDUCTOR,270U J
Q2451 405 151 5209 TR KRA107M
or 405 000 0904 TR DTA114YS
R2101 401 017 0708 CARBON 270 JA 1/4W
R2301 401 017 0708 CARBON 270 JA 1/4W
R2311 401 017 0708 CARBON 270 JA 1/4W
SH201 614 325 5796 SHIELD,FM ANT
X2451 645 023 4965 OSC,CRYSTAL 7.2MHZ
XF211 645 026 2975 FILTER,BP 108MHZ
or 614 252 1045 FILTER,LC
XF221 645 010 7665 CERAMIC FILTER 10.70MHZ
or 614 231 0199 FILTER
or 614 030 5074 I.F FILTER
XF222 645 010 7665 CERAMIC FILTER 10.70MHZ
or 614 231 0199 FILTER
or 614 030 5074 I.F FILTER
XF231 614 246 0849 FILTER
XF233 645 039 9923 TRANS,IF 10.7MHZ
POWER SUPPLY P.W.BOARD ASSY
REF.NO. PART NO. DESCRIPTION
76 614 326 3845 ASSY,PWB,DG(Only initial)
CN401 614 310 2502 PLUG,9P
or 645 005 8141 PLUG,9P
CN402 645 005 9315 PLUG,2P
D4005 407 099 4603 ZENER DIODE MTZJ3.9B
D4008 407 099 6102 ZENER DIODE MTZJ10B
D4009 407 012 4406 DIODE 1SS133
D4010 407 012 4406 DIODE 1SS133
D4012 407 099 6805 ZENER DIODE MTZJ13B
D4014 407 012 4406 DIODE 1SS133
FPC41 645 031 7903 HOLDER,FUSE
or 645 006 4760 HOLDER,FUSE
FPC42 645 031 7903 HOLDER,FUSE
or 645 006 4760 HOLDER,FUSE
IC401 409 463 6701 IC KIA7805API
IC402 409 521 9705 IC KA78R12STU
L4000 645 038 7364 INDUCTOR,70U
or 645 059 0467 INDUCTOR,13U
PR400 645 042 2515 PROTECTOR,0.2A 125V
Q4001 405 143 6504 TR KTA1267-GR
or 405 004 4601 TR 2SA608-F-SPA
or 405 004 5103 TR 2SA608-G-SPA
or 405 006 1806 TR 2SA933S-R
or 405 006 1905 TR 2SA933S-S
Q4002 405 143 6504 TR KTA1267-GR

- 19 -
PARTS LIST
REF.NO. PART NO. DESCRIPTION
or 405 004 4601 TR 2SA608-F-SPA
or 405 004 5103 TR 2SA608-G-SPA
or 405 006 1806 TR 2SA933S-R
or 405 006 1905 TR 2SA933S-S
Q4006 405 138 6502 TR KTB1366Y
Q4007 405 143 6504 TR KTA1267-GR
or 405 004 4601 TR 2SA608-F-SPA
or 405 004 5103 TR 2SA608-G-SPA
or 405 006 1806 TR 2SA933S-R
or 405 006 1905 TR 2SA933S-S
R4008 402 081 1004 FUSIBLE RES 10 JA 1/4W
R4013 402 083 7707 RESISTOR 1K J- 1W
WR401 614 017 8203 TERMINAL BOARD
WR402 614 017 8203 TERMINAL BOARD
COMPONENT P.W.BOARD ASSY
REF.NO. PART NO. DESCRIPTION
77 614 325 6212 ASSY,PWB,COMPONENT
(Only initial)
CN351 645 054 1018 JACK,RCA-3,COMPONENT
CN352 645 059 1037 SOCKET,FPC 11P
L3501 645 001 5441 INDUCTOR,2.2U K
L3502 645 001 5441 INDUCTOR,2.2U K
L3503 645 001 5441 INDUCTOR,2.2U K
S3501 645 043 7250 SWITCH,SLIDE 2P-2TX4

- 20 -
REF.NO. PART NO. DESCRIPTION
PARTS LIST
EXPLODED VIEW (DVD MECHANISM)
DM02
DM03
DM13
DM14
DM09
DM06
DM04
DM07
DM05
DM12
DM08
DM10
DM23
DM17
DM17
DM17
DM18
DM18
DM18
DM17
DM18
DM37
DM38
DM40
DM21
DM22
DM26
DM28
DM27
DM29
DM36
DM39
DM34
DM33
DM30
DM32
DM24
DM25
DM20
DM19
DM41
DM11
DM11
DVD MECHANISM CHASSIS
REF.NO. PART NO. DESCRIPTION
614 325 4393 ASSY,MECHA,780,
MECHANISM ASSY
DM02 614 325 0074 DISC,CHUCK DISC
DM03 614 320 2356 SLIDE,BASE UP/DOWN
DM04 614 323 3923 BELT,SQUARE,LOADING
DM05 614 320 2271 GEAR,LOADING GEAR
or 614 324 5230 GEAR,LOADING GEAR
DM06 412 061 7803 SPECIAL SCREW,HOLDER RAIL FIX
DM07 614 320 2349 PULLEY,LOADING RETARD PULLY
DM08 614 325 0067 CHASSIS,LOADING CHASSIS
DM09 614 320 2363 TRAY,TRAY
DM11 411 022 7807 SCR S-TPG PAN 2X6,
PWB MECHA IF FIX
DM12 645 032 4352 ASSY,MOTOR LOADING
DM13 645 051 4920 MAGNET(CHUCK),MAGNET CHUCK
or 645 054 0448 MAGNET(CHUCK),MAGNET CHUCK
DM14 614 325 0081 HOLDER,CHUCK HOLDER
DM17 411 021 1806 SCR S-TPG BIN 2.6X10,BASE FIX
DM18 411 092 0906 WASHER Z 2.6X10X0.5,BASE FIX
DM19 614 325 7936 ASSY,MECHA,700 BASE 6P,
BASE MECHA
DM20 411 184 0302 SCR S-TPG PAN PCS 1.7X4.5,
RACK FIX
DM21 614 310 2083 GEAR,RACK,MOVE PICKUP(FREE)
DM22 614 310 6159 SPRING,COMP,
FOR BACK RUSH(RACK)
DM23 614 310 2076 GEAR,RACK,MOVE PICKUP(FIX)
DM24 411 018 4704 SCR PAN PCS 1.7X5,LIMIT SW FIX
DM25 645 040 9899 SWITCH,MICRO 1P-2T,LIMIT SW
DM26 412 057 8304 SPECIAL WASHER,FOR GEAR 4 FIX
DM27 614 310 2069 GEAR,GEAR-5
DM28 614 310 6142 SPRING,COMP,FOR BACK RUSH
DM29 614 310 2052 GEAR.,GEAR-4
DM30 412 057 8304 SPECIAL WASHER,FOR GEAR 2 FIX
DM32 614 310 2038 GEAR.,GEAR-2
DM33 411 106 7709 SCR PAN PCS 1.7X2.5,
SLED MOTOR FIX
DM34 645 051 5194 ASSY,MOTOR,SLED MOTOR
DM36 614 310 2045 GEAR.,GEAR-3
DM37 614 325 0098 MOUNTING,
BASE MECHA MOUNTING
DM38 614 325 0104 SPACER,MECHA,
BASE MECHA FLOATING
DM39 614 323 6498 SPACER,MECHA,
BASE MECHA FLOATING
DM41 411 044 7502 SCR PAN+SW 2X5,
LOADING MOTOR FIX
MECHA SW P.W.BOARD ASSY
REF.NO. PART NO. DESCRIPTION
DM10 614 325 0012 ASSY,PWB,MECHA SW(Only Initial)
CN001 614 310 2618 PLUG,5P,
MOTOR&SW PWB SOCKET
or 645 006 0922 PLUG,5P,
MOTOR&SW PWB SOCKET
MECHA IF P.W.BOARD ASSY
REF.NO. PART NO. DESCRIPTION
DM40 614 325 7554 ASSY,PWB MECHA IF(Only Initial)
CN002 645 057 2821 SOCKET,FPC 6P,
MECHA IF FFC SOCKET
or 645 055 9211 SOCKET,FPC 6P,
MECHA IF FFC SOCKET
