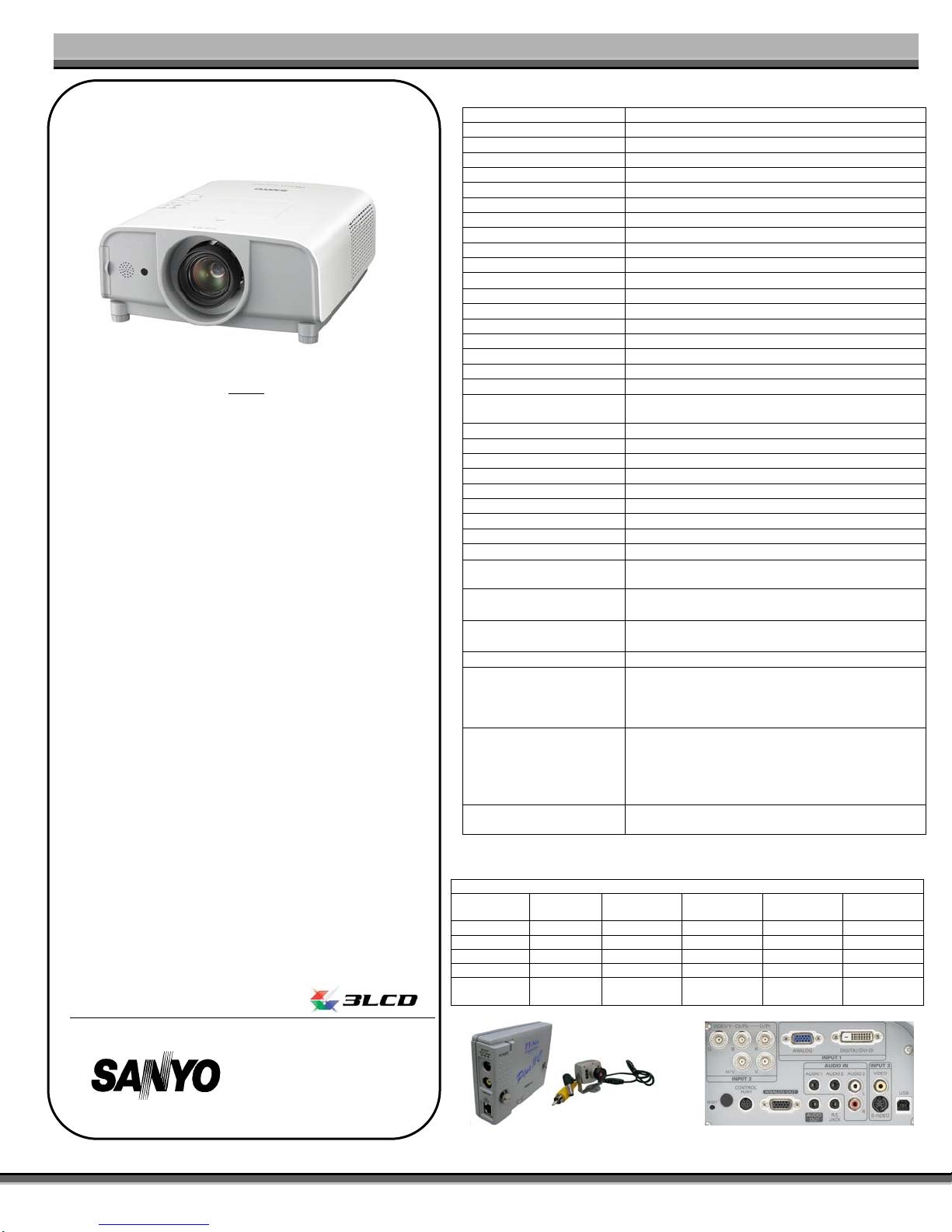

4200 ANSI LUMENS zHIGH RESOLUTION SXGA+ zMULTIMEDIA PROJECTORS
Issued 04/08 © 2008 SANYO
PLC-ET30L
SXGA+ Portable Multimedia Projectors
RESOLUTION AND MORE
The PLC-ET30L projector has a SXGA+ resolution of (1400 x 1050), and
10-Bit digital gamma correction.
EASY INSTALLATION
The symmetric Lens Center Design offers unlimited setup options to meet
specific staging requirements. This includes a 360° positioning function.
To further increase installation convenience, the significantly improved
Up/Down/Left/Right lens shift ensures flawless image projection even at the
most challenging positions. The many custom screen adjustments and digital
keystone correction (U/D, +/- 40 degrees) all contribute to versatile installation.
REMARKABLE BRIGHTNESS
The high-tech optical system and the 330W NSHA lamp deliver an impressive
4200 ANSI lumens brightness level.
EXCEPTIONAL CONTRAST RATIO
With a high-contrast optical system the PLC-ET30L achieves a remarkable
contrast ratio of 1300:1.
HIGH RELIABILITY
The newly-designed cabinet has a sophisticated One-Way Flow System
design, a system that efficiently controls the air flow that cools the projector with
a single intake and exhaust vent. A Filter Warning function alerts the user to
clean clogged filters, hence maintaining picture quality.
EASY MAINTENANCE
The PLC-ET30L embodies both beauty and practicality with its detachable top
cover. The user can effortlessly flip open the top plate to clean and replace the
Prism Block system. Well-maintained LCD panels significantly reduce artifact
from projected images.
NETWORK CONNECTIVITY
An optional PJ-Net Camera (POA-PN03C) and PJ Master Software (POA-
PJNM01) allow for control and administration of projectors via a network. The
user can monitor the actual picture and check projector status and control
projector functions via any web browser. A warning notification will be
automatically sent to the registered user’s email whenever the projector
encounters problems.
WHISPER QUIET FAN
The Whisper Quiet fan system produces an amazingly low noise level of
only 35 dBA (Eco mode).
Specifications
Resolution SXGA+ (1400 x 1050)
Brightness (typical) 4200
A
NSI Lumens
Uniformity 90% (corner to center)
LCD Panel System 1.0” TFT Poly wo/Micro Lens
Number of Pixels 4,410,000 (1,470,000 x 3)
Contrast Ratio 1300:1
Projection Image (diagonal) 30”-300”
A
spect Ratio 4:3
Throw Distance Dependent on Lens
Zoom/Focus Dependent on Lens
Up/Down Ratio Dependent on Lens
Digital Keystone Correction
Vert. + 40°/-40°
Projection System Dichroic mirror & X prism system w/PBS
Projection Lens Dependent on Lens
Lens Throw Ratio Dependent on Lens
Projection Lamp 330W NSHA
Scanning Frequency H 15-100kHz; V 50-100Hz (auto sense/select)
Dot Clock 165MHz(analog), 130MHz(digital)
Color System PAL/PAL-M/PAL-N/SECAM/NTSC/NTSC4.43
Computer Compatibility UXGA(only analog RGB), WXGA, SXGA+, SXGA, XGA,
SVGA, VGA, MAC
Sound Output 1W
V
oltage 100-120V/200-240V AC; 50/60/Hz (auto sense/select)
BTU Rating 1706
dB Rating 35 dB
A
(eco mode)
Power Consumption 500W
Dimensions (WxHxD) 13.7” x 6.5”x 17.6”(including protrusion)
Net Weight 17.9 lbs.
User Maintenance Clean air filters, replace lamp assembly
Computer Input Terminal 1
RGB (D-Sub15 x1, DVI-D x1)
•
Audio (stereo mini jack x 1)
Terminal 2 RGB/Component/Composite (BNC x 5)
Audio (stereo mini jack x 1)
V
ideo Input Terminal
Composite (RCA)
•
S-Video (mini Din 4)
•Stereo Audio (RCA x 2)
A
dditional Input Terminals
USB (type B) •Control (mini Din 8-pin)
•Remote control jack x 1 (mini jack)
Output Terminals
Monitor Out (D-Sub 15 x 1)
•
Audio (stereo mini-jack)
Included Accessories Wireless/Wired I/R Remote Control w/Mouse Pad and Laser
Pointer •AC power cord •VGA Cable •USB Cable
•Owner’s manual (quick manual & CD-ROM)
•2 “AAA” Batteries •PIN Code label •Serial Cable
Optional Accessories
•
POA-PN03C – Optional PJ-Net Camera
•POA-PJNM01 – PJ Master Software
•610 335 8093 – Replacement Lamp
•945 087 1468 – Replacement Remote
•Optional Lenses (see below)
Warranty 3 years parts and labor; 90 days original lamp;
Quick Repair Program under warranty
Because its products are subject to continuous improvement, SANYO reserves the right to
modify product design and specifications without notice and without incurring any obligations.
Optional Lens Specifications
On Axis
Short Fixed Short Zoom STD Zoom Long Zoom Ultra Long Zoom
Part No. LNS-W11 LNS-W10 LNS-S11 LNS-T10 LNS-T11
Zoom Fixed Power Power Power Power
Throw Ratio 0.8:1 1.2 -1.6:1 1.6 - 2.1:1 2.1- 3.4:1 3.4 - 5.4:1
F Stop 2.3 2.3-2.6 1.7-2.1 2.0-2.6 2.1-2.52
Lens Shift
(U/D, L/R) 1:1 10:0-1:1 13:7-7:13 10:0-1:1 13:7-7:13 10:0-1:1 13:7- 7:13 10:1-1:1 13:7-7:13
*LNS-S10 Lens can not be used with PLC-ET30L
Rear Back Panel
PJ-Net Camera
POA-PN03C
21605 Plummer Street
Chatsworth, CA 91311
Ph: 888-337-1215 (toll-free)
Fax [phone]
www.san
y
opro
j
ectors.com
PRESENTATION TECHNOLOGIES
*Lens sold separately
