10,000 ANSI LUMENS zTRUE XGA zDIGITAL MULTIMEDIA PROJECTOR
Issued 12/02

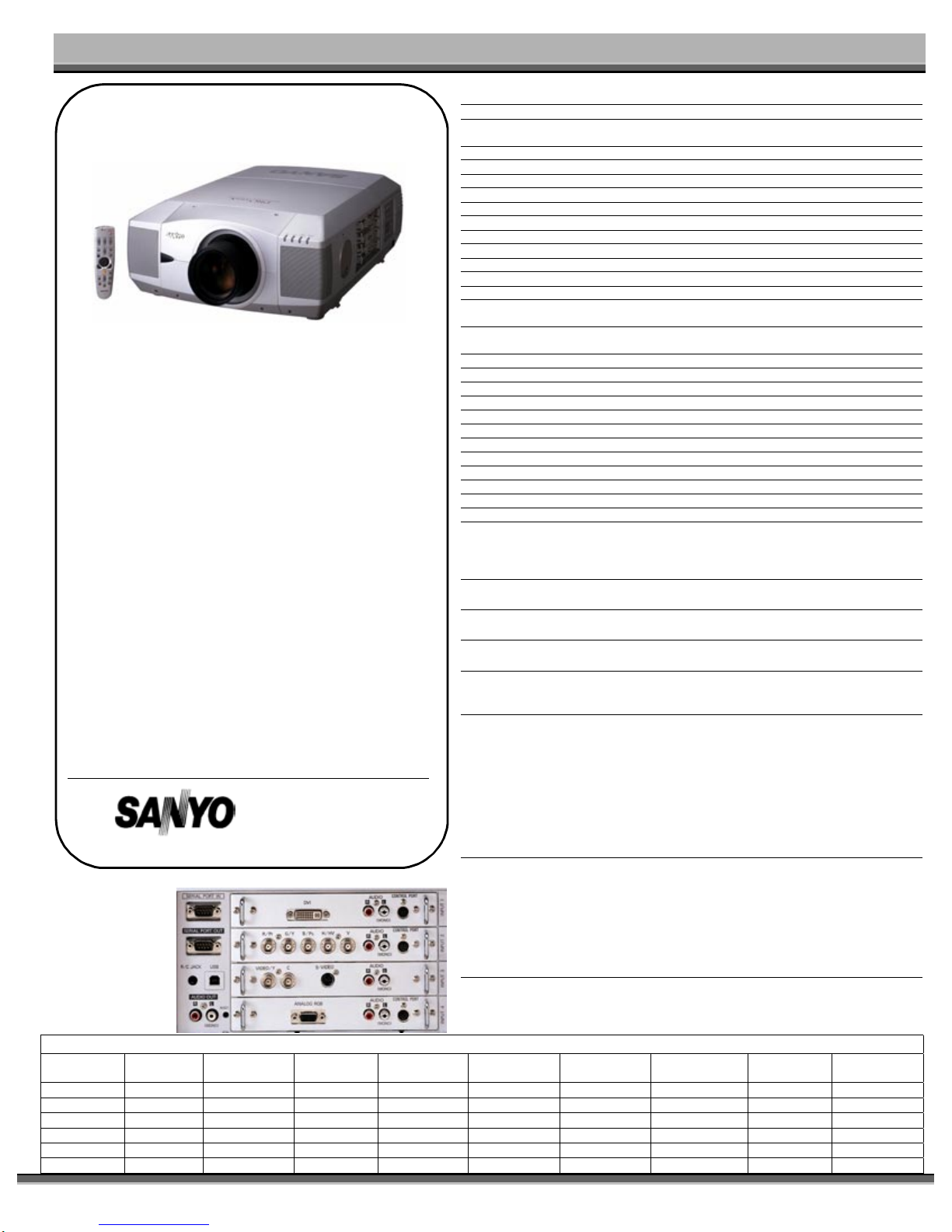

PLC-XF45
XGA Digital Multimedia Projector
WORLD S FIRST 10,000 ANSI LUMENS LCD PROJECTOR!
Utilizing four high-output 250 watt UHP lamps as its light source,
the PLC-XF45 delivers an amazing 10,000 ANSI lumens of
brightness.
OUTSTANDING CONTRAST RATIO — 1100:1
Through its new high-contrast optical system, utilizing micro lens
technology, the PLC-XF45 is able to achieve an outstanding
contrast ratio of 1100:1. A micro lens is integrated into each
individual pixel on the three LCD panels increasing light
efficiency, resulting in significantly brighter images.
SANYO s NEW PROGRESSIVE IC
A newly developed progressive integrated circuit provides highly
improved playback of moving images. 1080 interlaced signals
are converted into progressive signals while 2-3 pulldown
doubles the resolution of images from DVD playback.
NETWORK CONTROL/ADMINISTRATION
An optional network board allows for simple control and
management of the projector via a CAT5 network connection.
The network board, which can memorize and store up to 55 PC
modes, can also be used in parallel with RS-232 controllers.
REAL COLOR MANAGER
The Real Color Manager System provides white balance
adjustment and gamma correction from a PC using the included
image adjustment software by simply comparing the on-screen
image to a printed color chart.
NEW ONE-TOUCH LENS REPLACEMENT
Attaching the included One-Touch lens mount adapters to your
projector and lenses makes installation and removal of our
optional lenses quick and easy.
PRESENTATION
TECHNOLOGIES
21605 Plummer Street
Chatsworth, CA 91311
Ph: 818.998.7322 ext. 288
Fax [phone]
www.sanyolcd.com
PLC-XF45
Multi-Versatile
Interface
(POA-MD11DVI)
(POA-MD16VD1)
(POA-MD03VD2A)
(POA-MD04VGA)
Specifications
Resolution XGA (1024 x 768)
Brightness 10,000 ANSI Lumens (4-lamp mode)
5,000 ANSI Lumens (2-lamp mode)
Uniformity 90% (corner to corner)
LCD Panel System 1.8” TFT polysilicon type w/micro lens x 3
Number of Pixels 2,359,296 (786,432 x 3)
Contrast Ratio 1100:1 (full on/off)
Projection Lens Lens Sold Separately
Image Size Dependent on Lens
Aspect Ratio 4:3
Throw Distance Dependent on Lens
Zoom/Focus Dependent on Lens
Throw Ratio Dependent on Lens
Zoom Ratio Dependent on Lens
Power Lens Shift Up/Down Ratio 10:0 – 0:10 or 8:1 – 1:8
Left/Right Ratio 7:3 – 3:7
Digital Keystone
Correction +/- 40°
Projection Lamp 250W UHP x 4
Scanning Frequency H Sync: 15-120kHz, V Sync: 50-120Hz
Dot Clock 230MHz
Color System PAL/PAL-M/PAL-N/SECAM/NTSC/NTSC4.43
Computer Compatibility UXGA, SXGA, XGA, SVGA, VGA, MAC
Voltage 120-240V AC, 50//60 Hz (auto sense/select)
BTU Rating 5118
dB Rating 46.0
Power Consumption 1500W
Dimensions (WxHxD) 22.9”x9.9”x30.8”
Net Weight 81.6 lbs.
User Maintenance Clean air filters, replace lamp assembly
Detachable Input Panels
POA-MD11DVI Digital Visual Interface (DVI-I) •Left & Right
Audio
(RCA x 2) •Control (Min DIN 8-pin)
POA-MD16VD1 RGB & Component (5-BNC) •Left & Right Audio
(RCA x 2) •Control (Min DIN 8-pin)
POA-
MD03VD2A Composite & Y/C (2-BNC) •S-Video
•Left & Right Audio (RCA x 2)
POA-
MD04VGA VGA (D-Sub 15) •Left & Right Audio (RCA x 2)
•Control (Min DIN 8-pin)
Fixed Input/Output Panel Serial in & Serial out (D-Sub 9 x 2) •Audio out
(RCA x 2) •USB (type B) •Wired RC jack (Stereo
mini)
Included Accessories Wired/Wireless I/R Remote Control with Mouse
Pad and Laser Pointer •AC power cord x 3 •VGA
and DVI Cable •Wired remote cable •Real Color
Manager CD-ROM
•Lens Mount Adapters (POA-LNA02 & POA-
LNA01)
•PS/2, Serial, MAC Control cables •Light Block
Sheets •Dust cover •MAC/VGA and DVI/VGA
Adapters
•Owner’s manual
Optional Accessories POA-MD08HD - HD-SDI Input Board
POA-MD09VD3 - Faroudja™ Input Board
POA-MD13NET - Network Board
POA-LNA02 - Lens Mount Adapter
(for LNS-W02, W02KS, M01, S01
lenses)
POA-LNA01 - Lens Mount Adapter (for all other
lenses)
PLCCSE14 - Hard Shipping Case
Warranty Three years parts and labor; 90 days original lamp;
Quick Repair Program under warranty
Because its products are subject to continuous improvement, SANYO reserves the right to
modify product design and specifications without notice and without incurring any obligations.
Lens Specifications
Type Short Fixed Short Zoom On-Axis
Short Fixed Standard Zoom 1 Standard Zoom 2 Standard Zoom 3 Semi-Long Zoom Long Fixed Long Zoom
Part No. LNS-W01 LNS-W02 LNS-W03 LNS-S01 LNS-S02 LNS-S03 LNS-M01 LNS-T01 LNS-T02
Zoom No Yes (power) No Yes (power) Yes (power) Yes (power) Yes (power) NO Yes (power)
Throw Ratio 1.2:1 1.35 — 1.8:1 0.8:1 1.8 — 2.9:1 2.0 — 2.6:1 2.6 — 3.5:1 3.5 — 4.6:1 7.0:1 4.6 — 6.0:1
F Stop 2.5 2.5 — 2.9 2.6 2.6 — 3.5 2.0 — 2.3 1.7 — 2.6 2.0 — 2.6 2.0 2.0 — 2.9
Lens Shift 8:1 — 1:8 8:1- 1:8 1:1 10:0 — 0:10 10:0 — 0:10 8:1- 1:8 8:1- 1:8 8:1- 1:8 8:1- 1:8
Weight 12.8 lbs. 5.5 lbs. 6.6 lbs 3.7 lbs. 4.2 lbs. 8.2 lbs. 4.2 lbs. 8.4 lbs. 6.8 lbs.
