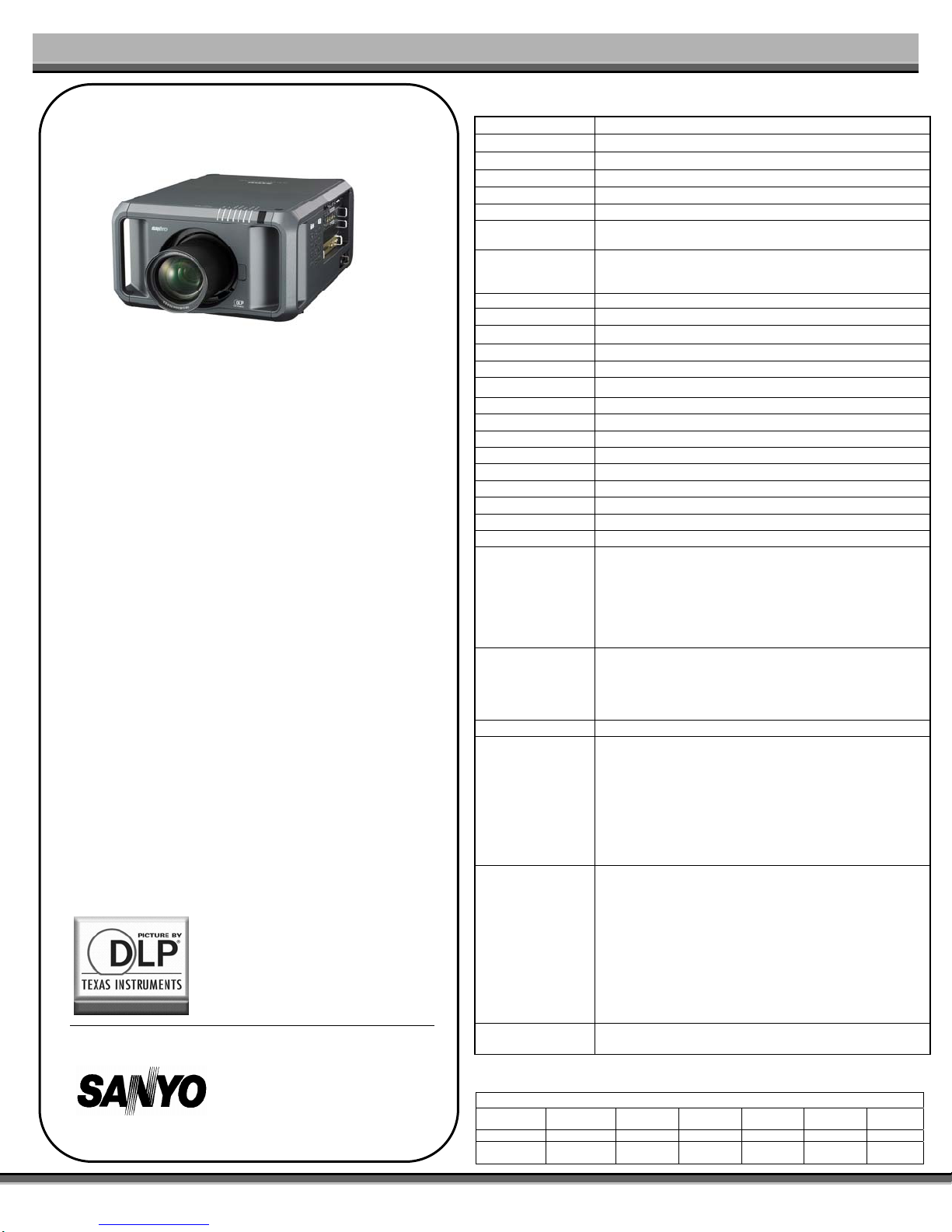

7500 ANSI LUMENS zSXGA+ zDLP MULTIMEDIA PROJECTOR
Issued 6/09 ©2011 SANYO
PDG-DET100L
Active Maintenance Filter, DICOM simulation and more
7,500 lumens, and SXGA+ for a high brightness and superior image
The PDG-DET100L answers thegrowing needs in the digital signage market for
use in brighter environments. This bright projector is designed to handle SXGA+
high quality resolution image projection, it meets the changing needs of the
marketplace for more widespread use of high definition input signals. Attention to
detail and accuracy in image projection allows use of the projector in more
demanding situations, such as medical simulation, specialized design fields or
CAD applications. The PDG-DET100L has two different typesof user-changeable
color wheels. 6 segments color wheel provides rich color reproduction, 4 segments
wheels offers high brightness.
Dust-resistant sealed optical engine and *35,000 hour-use ‘Active
Maintenance Filter’, for cleaner and highly durable projection
New, improved, sealed optical engine cooling design prevents dust build-up while
maintaining optimal brightness and contrast. The traditional problems of
maintaining high projection quality are overcome with thePDG-DET100L.
* ECO lamp mode
Various features for versatile installation
Equipped with ‘Edge Blending function that allows what feels like boundary-less
images with multi-image display possibilities. Built-in ‘Color Matching’ function
correcting variations in color reproduction when using more than one projector.
Capable of projecting two images simultaneously either using built-in picture-in-
picture mode or picture-by-picture mode.
DICOM Simulation Mode
PDG-DET100L allows DICOM*1 simulation mode*2 and which can
approximate an image to DICOM Part14 Grayscale Standard Display
Function. This mode offers Clearbase and Bluebase DICOM simulation
modes, and is helpful for use in medical institutions and education.
*1 Medical Imaging and Communications in Medicine (DICOM) is standard in medical imaging.
*2 Do not use for medical diagnosis.
24/7 feature "Lamp interval function”
The lamp interval" function can be used to automatically switch the lamp that is
turned on to an alternate lamp aftera certain period of time in order to reduce
the initial lamp deterioration. A user can select from
[Off/Auto/200h/500h/1000h/2000h] or 24h" interval time, and rotate each lamp
for 24/7 usage.
Specifications
Resolution SXGA+ (1400 x 1050)
Brightness (typical) 7,500 ANSI lumens
Contrast Ratio 7,500:1
Panel System 0.95" DMD single chip
Number of Pixels 1,470,000
Uniformity 90%
Scanning Frequency Horizontal: 15-120KHz, Vertical: 48-120Hz,
Dot Clock: 230 MHz or less (analog)
Input signal
compatibility
WUXGA/UXGA/WSXGA+/SXGA+/SXGA/WXGA/XGA/SVGA/VGA/MAC,
1080p-24/25/30/48/50/60, 1080psf-24/25/30, 1080i-50/60,
720p-50/60/575p/480p/575i/480i
Color System PAL / SECAM / NTSC / NTSC4.43 / PAL-M/N
Zoom/Focus depends on Lens
Image Size(diagonal) Minimum 50” - Maximum 600” (Projection distance differs by lens)
Throw Distance depends on Lens
Throw Ratio depends on Lens
Up/Down Ratio Up/Down (21:-1 ～-1:21) Left/Right (19:1 ～1:19) depends on Lens
Digital Keystone V: +/- 30 °, H: +/- 30 °
Digital Zoom 49x - 1/4x
Projection Lamp(s) 330W VIDI™ UHP x2
Voltage 100V-240V AC (auto voltage)
Power Consumption 848W
Fan Noise 36 dB (Eco1)
BTU Rating 2893
Weight 43.7 lbs
Dimensions 15.75" (w) x 9.55" (h) x 20.61" (d) (including protrusion)
Terminals
PC Input/Output
Input 1: Digital video input x 2 ; DVI-D x 1(HDCP compatible),
HDMI x 1(Ver 1.3b(Deep color))
Analog RGB input x 1 ; D-sub 15-pin x 1
Input 2: BNC x 5 (RGBHV, VIDEO/Y-Pb/Cb-Pr/Cr), S-video x 1
Input 3: Expansion slot (empty)
Input 4: RJ45 LAN x 1, Serial D-sub9 IN x 1
(Expansion slot:POA-MD13NET2)
Terminals
Controller
input/output, and
other
Monitor output : D-sub15 x 1(Analog RGB, Y-
Pb/Cb-Pr/Cr, VIDEO)
Serial port : D-sub9 IN x 1 / OUT x 1
Wired remote control port : Mini-jack x 1
Service port : USB type B x 1
Replacement Lamp : 610 343 5336 Remote: 645 099 0199
Included Accessories
Rich color reproduction color wheel (6 Segments) set x 1
High Brightness Color Wheel (4 Segments) set x 1 (Installed)
Wireless (wired incl.) remote control x 1 (AA battery x 2)
Cable cover 1-type (support cover x 1, cover x 1)
Removable power cord x 1, Fixing bracket for power cord x 1
Computer cable (D-sub type) x 1
Real Color Manager Pro (CD-ROM),
Instruction manual x 1, Warranty Card,
Lens hole cover x 1, PIN code-locking seal x 1
Optional Accessories
POA-FIL131 – Replacement AMF
POA-MD23ADI - DVI/D-sub module
POA-MD25VD3 – 5BNC/VIDEO module
POA-MD18DVI – DVI module
POA-MD16VD1 – 5BNC module
POA-MD17SDID – HD&SD – SDI module (SD-SDI not compatible)
POA-MD13NET2 – Network module
POA-MD27NET – Network module
POA-MD04VGA – D-sub15 module
POA-MD21WARP – Warp & Blending
Optional Lenses (see below)
Warranty Three years parts and labor; 90 days original lamp; Quick repair
program under warranty
Because its products are subject to continuous improvement, SANYO reserves the right to
modify product design and specifications without notice and without incurring any obligations.
Optional Lens Specifications
On-Axis
Short Fixed Short Zoom Short Zoom STD Zoom Long Zoom Ultra Long Zoom
Part No. LNS-W52 LNS-W51 LNS-W50 LNS-S50 LNS-T50 LNS-T51
Throw Ratio 0.9:1 1.3-1.6:1 1.6-1.9:1 1.9-3.1:1 3.0-5.0:1 5.2-8.6:1
21605 Plummer Street
Chatsworth, CA 91311
Ph: 888-337-1215 (toll-free)
Fax [phone]
www.sanyoprojectors.com
PRESENTATION TECHNOLOGIES
DLP® and the DLP logo are registered
trademarks of Texas Instruments.
BrilliantColor™ and DynamicBlack™ are
trademarks of Texas Instruments.
*Lens sold separately
