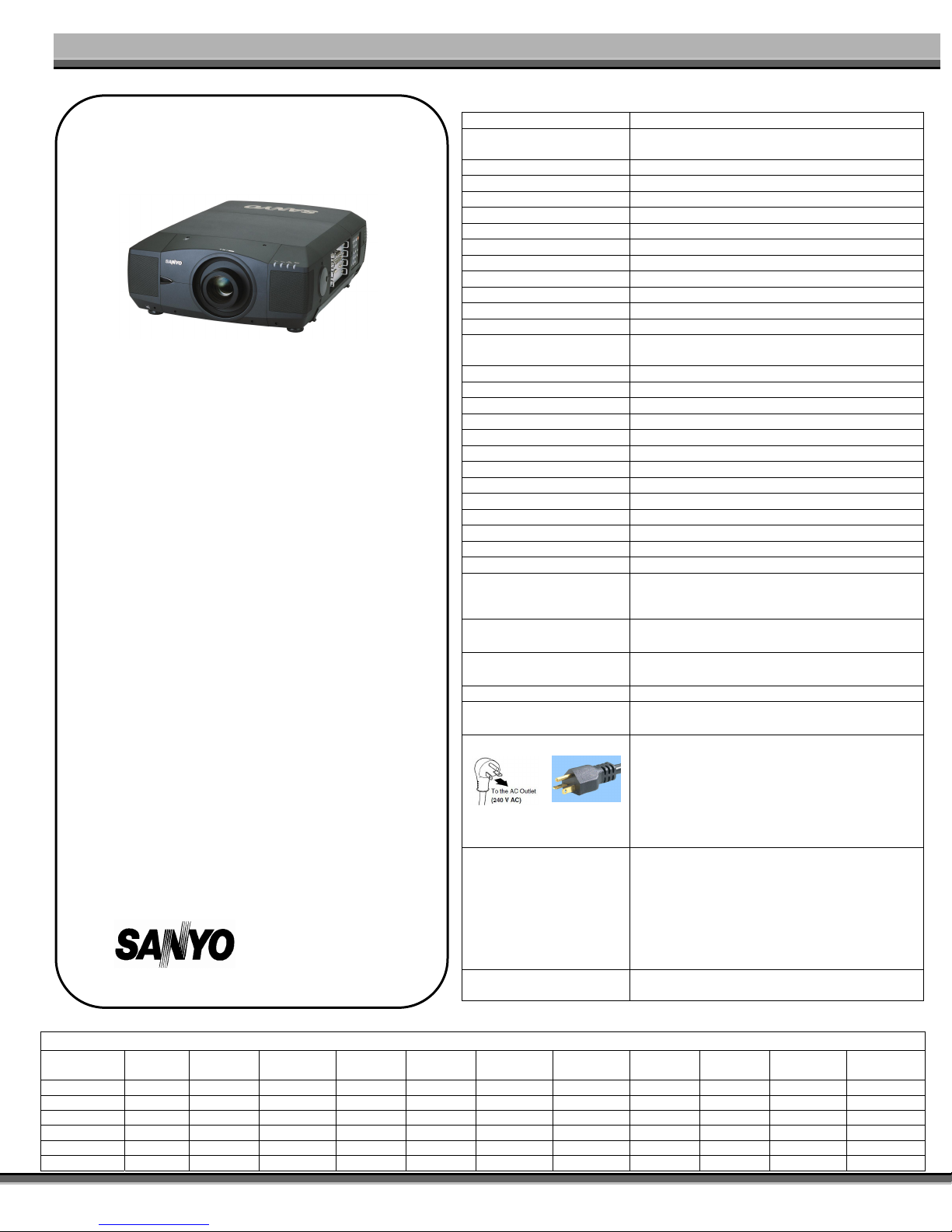

7000 ANSI LUMENS z24P/60P TRUE HD 16:9 MULTIMEDIA PROJECTOR
Issued 7/06 © 2006 SANYO
PLV-HD150
24P/60P True High Definition Resolution
16:9 Multimedia LCD Projector
TRUE HD RESOLUTION WITH 24P/60P CAPABILITY
The PLV-HD150 utilizes three true high definition resolution
(1920x1080) LCD panels that reproduce high definition picture
quality from various sources. The PLV-HD150 has 24P
capability for film playback, as well as 60P capability for
computer graphics (60P capability only through DVI input).
OUTSTANDING CONTRAST RATIO – 1000:1
Through its new High-Contrast Optical system that utilizes micro
lens technology, the PLV-HD150 is able to achieve an
outstanding contrast ratio of 1000:1. A micro lens is integrated
into each individual pixel on the three LCD panels that in turn
increase light efficiency, resulting in significantly brighter images.
7000 ANSI LUMENS
Utilizing four high-output 300-Watt UHP lamps as its light
source, the PLV-HD150 delivers an incredible 7000 ANSI
lumens of brightness.
SUPERIOR COLOR REPRODUCTION
The PLV-HD150 provides superior color purity with SANYO’s
6500º K color temperature optical system. Superb HDTV image
performance is achieved through a newly developed 12-bit
Progressive Scan Integrated Circuit. As a result of 30-bit color
processing (10bit each for R/G/B), 2-3 pulldown, and 1080i to
progressive conversion, the reproduction of moving images is
remarkably improved.
CUSTOMIZABLE START-UP LOGO
The PLV-HD150 captures logo files and displays the preset logo
on screen during the projector’s short period of warm up session
before startup.
EFFICIENT LAMP MANAGEMENT SYSTEM
This system monitors and displays the status of each lamp and
cumulated usage hours on screen. When full brightness is not
required, two of those lamps can be switched off as desired.
Also, if a lamp expires while either four or two lamps are in use,
the Fail-Safe Operation feature automatically switches to the
matched pair of good lamps.
PRESENTATION TECHNOLOGIES
21605 Plummer Street
Chatsworth, CA 91311
Ph: 888-337-1215 (toll-free)
Fax [phone]
www.sanyolcd.com
Specifications
Resolution True High Definition (1920 x 1080)
Brightness 7000 ANSI Lumens (4-lamp mode)
3500 ANSI Lumens (2-lamp mode)
Uniformity 90% (corner to corner)
LCD Panel System 1.65” TFT polysilicon type w/micro lensx 3
Number of Pixels 6,220,800 (2,073,600 x 3)
Contrast Ratio 1,000:1 (Full on/off)
Projection Lens Lens Sold Separately
Image Size Dependent on Lens
Aspect Ratio 16:9
Throw Distance Dependent on Lens
Zoom/Focus Dependent on Lens
Throw Ratio Dependent on Lens
Zoom Ratio Dependent on Lens
Power Lens Shift Up/Down Ratio 7:-1 – -1:7 or 8:1 – 1:8 or 1:1
Left/Right Ratio 3:2 – 2:3
Digital Keystone Correction No
Projection Lamp 300W UHP x 4
Scanning Frequency H Sync: 15-120kHz, V Sync: 50-120Hz
Dot Clock 230MHz
Color System PAL/PAL-M/PAL-N/SECAM/NTSC/NTSC4.43
Computer Compatibility True HD, UXGA, SXGA, XGA, SVGA,VGA, MAC
Voltage 240V AC(8A Max Ampere), 50/60 Hz (auto sense/select)
BTU Rating 5459
dB Rating 51.0
Power Consumption 1600W
Dimensions (WxHxD) 22.9”x9.9”x30.8”
Net Weight 81.6 lbs. (w/o Up-Converted Transformer)
User Maintenance Clean air filters, replace lamp assembly
Detachable Input Panels
Input 1
(POA-MD17SDID)
Dual SDI Input (HD/SD SDI) / SDI Output
Input 2
(POA-MD16VD1) RGBHV & Component (BNC x 5) •Left and Right Audio
(RCA x 2) •Control (Min DIN 8-pin)
Input 3
(POA-MD18DVI) DigitalVisual Interface (DVI-I w/HDCP) •Left & Right
Audio (RCA x 2) •Control (Min DIN 8-pin)
Input 4 Open
Fixed Input/Output Panel Serial in & Serial out (D-Sub 9 x 2) •Audio out (RCA x 2)
•USB (type B) •Wired RC jack (Stereo mini)
Included Accessories
From Up-Converted
From projector Transformer
(240V AC) (120V AC)
Wired/Wireless I/R Remote Control with MousePad
•AC power cord •Wired remote cable
•DVI cable and DVI-VGA cable •RealColor Manager
CD-ROM •Lens Mount Adapters (POA-LNA02 & POA-
LNA01) •2 “AA” batteries •Light BlockSheets
•Dust cover •Owner’s manual
•Up-Converted Transformer(120V->240V)
Optional Accessories POA-MD08HD - HD-SDI Input Board
POA-MD13NET2 -Network Board
POA-MD09VD3 - Faroudja™ Input Board
POA-MD04VGA - D-Sub15 Input Board
POA-MD03VD2A -Video Y/C & S-Video Input Board
POA-LNA02 - Lens Mount Adapter (LNS-W02/M01/S01)
POA-LNA01 - Lens Mount Adapter (for all other lenses)
6103235394 - Replacement Lamp
Warranty Three years parts and labor; 90days original lamp;
Quick Repair Program under warranty
Because its products are subject to continuous improvement, SANYO reserves the right to
modify product design and specifications without notice and without incurring any obligations
Lens Specifications
Type Short
Fixed Short Zoom On-Axis Short Fixed Short Zoom Short Zoom Standard Zoom 1 Standard Zoom 2 Semi-Long Zoom Long Fixed Long Zoom Long Zoom
Part No. LNS-W01 LNS-W02 LNS-W03 LNS-W04 LNS-W06 LNS-S02 LNS-S03 LNS-M01 LNS-T01 LNS-T02 LNS-T03
Zoom No Yes (power) No Yes (power) Yes (power) Yes (power) Yes (power) Yes (power) NO Yes (power) Yes (power)
Throw Ratio 1.2:1 1.35 – 1.8:1 0.8:1 1.5 – 2.0:1 1.1 – 1.5:1 2.0 – 2.6:1 2.6 – 3.5:1 3.5 – 4.5:1 7.0:1 4.6 – 6.0:1 6.2 – 9.0:1
F Value 2.5 2.5 – 2.9 2.6 1.7 – 2.3 2.3 – 2.8 2.0 – 2.3 1.7 – 2.6 2.0 – 2.6 2.0 2.0 – 2.9 2.2 – 2.5
Lens Shift 8:1 – 1:8 8:1 – 1:8 1:1 8:1 – 1:8 8:1 – 1:8 7:-1 – -1:7 8:1 – 1:8 8:1 – 1:8 8:1 – 1:8 8:1 – 1:8 8:1 – 1:8
Weight 12.8 lbs. 5.5 lbs. 6.6 lbs 6.2 lbs. 6.6 lbs. 4.2 lbs. 8.2 lbs. 4.2 lbs. 8.4 lbs. 6.8 lbs. 16.1 lbs.
* Lens sold separately
