Sanyo VCC-HD2100 - Full HD 1080p Network Camera User manual

VCC-HD2300/HD2300P
VCC-HD2100/HD2100P
Features of This Camera
Specifications
Name and Function of Each Component
Connections
Lens Installation
Lens Adjustment
Viewing Firmware Version
Introduction1
/
17

VCC-HD2300/HD2300P
VCC-HD2100/HD2100P
Copyright Notice
How to use this manual
Co
py
ri
g
ht Notice/How to Use This Manual1
/
8

This instruction manual is copyrighted by SANYO Electric Co., Ltd. No materials contained in this manual
may be reproduced in any format without the prior permission of the copyright holder.
Microsoft, Windows, ActiveX and Internet Explorer are registered trademarks or trademarks of Microsoft
Corporation in the United States and other countries.
The official name for “Windows” used in this manual is Microsoft® Windows® Operating System.
In this manual, note that the word “Windows” refers to both “Microsoft® Windows® XP Operating System”
and “Microsoft® Windows® Vista Operating System”.
Intel and Pentium are registered trademarks or trademarks of Intel Corporation and its subsidiaries in the
United States and other countries.
IBM and IBM PC/AT are trademarks of International Business Machines Corporation.
HDMI, the HDMI Logo and High-Definition Multimedia Interface are trademarks or registered trademarks of
HDMI Licensing LLC.
All other brands and product names in this manual are the registered trademarks or trademarks of their
respective owners.
The following license is applied to OpenSSL.
LICENSE ISSUES
==============
The OpenSSL toolkit stays under a dual license, i.e. both the conditions of
the OpenSSL License and the original SSLeay license apply to the toolkit.
See below for the actual license texts. Actually both licenses are BSD-style
Open Source licenses. In case of any license issues related to OpenSSL
please contact [email protected].
OpenSSL License
---------------
/* ====================================================================
* Copyright (c) 1998-2008 The OpenSSL Project. All rights reserved.
*
* Redistribution and use in source and binary forms, with or without
* modification, are permitted provided that the following conditions
* are met:
*
* 1. Redistributions of source code must retain the above copyright
* notice, this list of conditions and the following disclaimer.
*
* 2. Redistributions in binary form must reproduce the above copyright
* notice, this list of conditions and the following disclaimer in
* the documentation and/or other materials provided with the
* distribution.
*
* 3. All advertising materials mentioning features or use of this
* software must display the following acknowledgment:
* "This product includes software developed by the OpenSSL Project
* for use in the OpenSSL Toolkit. (http://www.openssl.org/)"
*
* 4. The names "OpenSSL Toolkit" and "OpenSSL Project" must not be used to
* endorse or promote products derived from this software without
* prior written permission. For written permission, please contact
* [email protected].
Co
py
ri
g
ht Notice/How to Use This Manual 2
/
8

*
* 5. Products derived from this software may not be called "OpenSSL"
* nor may "OpenSSL" appear in their names without prior written
* permission of the OpenSSL Project.
*
* 6. Redistributions of any form whatsoever must retain the following
* acknowledgment:
* "This product includes software developed by the OpenSSL Project
* for use in the OpenSSL Toolkit (http://www.openssl.org/)"
*
* THIS SOFTWARE IS PROVIDED BY THE OpenSSL PROJECT ``AS IS'' AND ANY
* EXPRESSED OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE
* IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
* PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE OpenSSL PROJECT OR
* ITS CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL,
* SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT
* NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES;
* LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION)
* HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT,
* STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE)
* ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED
* OF THE POSSIBILITY OF SUCH DAMAGE.
* ====================================================================
*
* This product includes cryptographic software written by Eric Young
* ([email protected]). This product includes software written by Tim
* Hudson ([email protected]).
*
*/
Original SSLeay License
-----------------------
/* Copyright (C) 1995-1998 Eric Young ([email protected])
* All rights reserved.
*
* This package is an SSL implementation written
* by Eric Young ([email protected]).
* The implementation was written so as to conform with Netscapes SSL.
*
* This library is free for commercial and non-commercial use as long as
* the following conditions are aheared to. The following conditions
* apply to all code found in this distribution, be it the RC4, RSA,
* lhash, DES, etc., code; not just the SSL code. The SSL documentation
* included with this distribution is covered by the same copyright terms
* except that the holder is Tim Hudson ([email protected]).
*
* Copyright remains Eric Young's, and as such any Copyright notices in
* the code are not to be removed.
* If this package is used in a product, Eric Young should be given attribution
* as the author of the parts of the library used.
* This can be in the form of a textual message at program startup or
* in documentation (online or textual) provided with the package.
*
* Redistribution and use in source and binary forms, with or without
* modification, are permitted provided that the following conditions
* are met:
* 1. Redistributions of source code must retain the copyright
Co
py
ri
g
ht Notice/How to Use This Manual 3
/
8

* notice, this list of conditions and the following disclaimer.
* 2. Redistributions in binary form must reproduce the above copyright
* notice, this list of conditions and the following disclaimer in the
* documentation and/or other materials provided with the distribution.
* 3. All advertising materials mentioning features or use of this software
* must display the following acknowledgement:
* "This product includes cryptographic software written by
* Eric Young ([email protected])"
* The word 'cryptographic' can be left out if the rouines from the library
* being used are not cryptographic related :-).
* 4. If you include any Windows specific code (or a derivative thereof) from
* the apps directory (application code) you must include an acknowledgement:
* "This product includes software written by Tim Hudson ([email protected])"
*
* THIS SOFTWARE IS PROVIDED BY ERIC YOUNG ``AS IS'' AND
* ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE
* IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE
* ARE DISCLAIMED. IN NO EVENT SHALL THE AUTHOR OR CONTRIBUTORS BE LIABLE
* FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL
* DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS
* OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION)
* HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT
* LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY
* OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF
* SUCH DAMAGE.
*
* The licence and distribution terms for any publically available version or
* derivative of this code cannot be changed. i.e. this code cannot simply be
* copied and put under another distribution licence
* [including the GNU Public Licence.]
*/
Co
py
ri
g
ht Notice/How to Use This Manual 4
/
8

This manual consists of three resident windows:
1INDEX window
This window shows a table of contents.
The headline of the topic currently opened at the main window is highlighted, so the current location among the
manual can be easily confirmed.
2TITLE window
This window shows the headline of the current topic. This TITLE window never scrolls not to hide the headline.
3MAIN window
This window shows the main detail contents.
Co
py
ri
g
ht Notice/How to Use This Manual 5
/
8

1Previous/Next
Clicking or on the top right of the TITLE window will display the previous page or the next
page, respectively.
2Page end
is located at the end of the page.
This mark is also linked to the top of the page. Click on this mark to jump to the top of the page.
Co
py
ri
g
ht Notice/How to Use This Manual 6
/
8

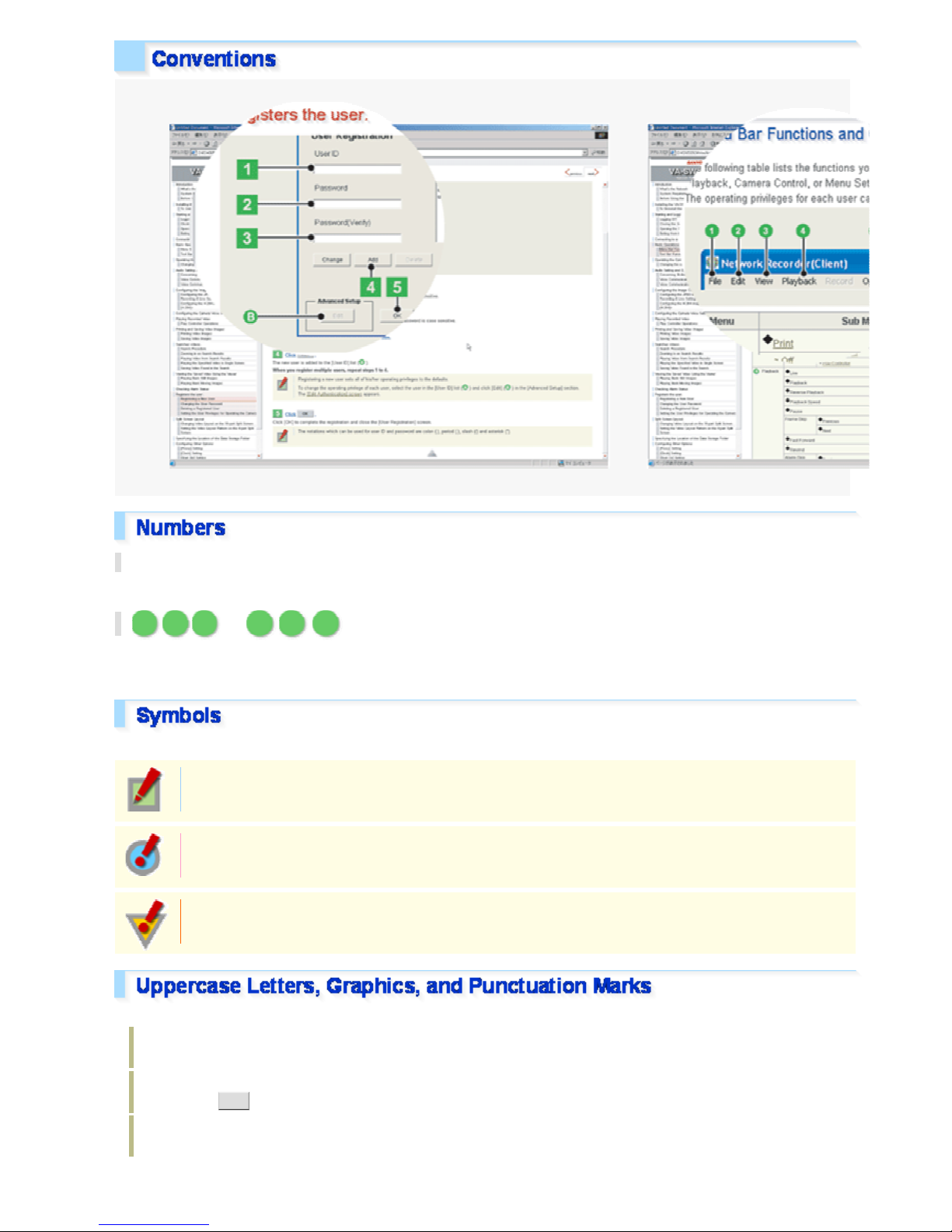

123 ...
Boxed numbers indicate procedural instructions.
123... ABC...
Circled numbers or circled alphabetic letters are used in sections that describe screen component names or other
information.
This manual uses the following three kinds of symbols depending on the content of the provided information.
Memo:
Indicates supplementary or related information.
Reference:
Provides references to the associated settings that must be configured on other menu screens.
Caution:
Indicates prohibited or restricted operating and setting instructions.
This manual uses the following notations to present user-interface related information:
Information such as the screen title is represented in all uppercase alphabetic letters, as displayed on the
screen (Example: NETWORK SETTINGS).
Information such as operation buttons and icons are represented as graphics, as displayed on the screen
(Example: SET ).
The names of specific setting items, tabs, dialog boxes and the like are enclosed in square brackets [ ]
(Example: [TITLE]).
Co
py
ri
g
ht Notice/How to Use This Manual 7
/
8

The options or values that you select in a pull-down menu or using radio buttons are enclosed in double
quotes “ ” (Example: “ON”, “80”).
Each section describing a configuration procedure begins with a screenshot of the corresponding initial
configuration screen.
The purpose of this screenshot is to show you the factory default value for each setting item provided on the
screen.
Co
py
ri
g
ht Notice/How to Use This Manual 8
/
8

VCC-HD2300/HD2300P
VCC-HD2100/HD2100P
Accessing the Camera
Control Panel/Tool Panel
CAMERA SETTINGS
Displaying LIVE video
Transmitting Image Data
Others
Q&A1
/
10

I cannot access the camera.
1The camera IP address you entered is wrong.
Enter the correct IP address (URL) in the Web browser (Internet Explorer).
2The camera port number you entered is wrong.
If you are using a port number other than 80, enter the correct port number in the Web browser
(Internet Explorer).
3Your have accessed with “http://” where you should be using HTTPS.
When using HTTPS, access with “https://”. Also make sure to enter the port number if you have
changed it to other than 443.
4Access is restricted by security setting (The error message “403 forbidden” is displayed).
Contact your network administrator and ask him/her to change the security settings.
I cannot access the camera from within my home/company network.
1The PC and camera IP addresses (local addresses) are configured with different subnet masks.
To use a PC and a camera within the same network, their subnet masks must be the same.
Change settings so that the PC and camera have the same subnet mask.
2The Web browser you are using is configured to connect to the Internet via proxy server.
Change the Web browser settings so that the use of proxy server is disabled.
3The address you are trying to access is not a local address.
Enter a local address to access a camera located in the same network.
You cannot access a camera by entering a URL (or router
g
lobal address and camera port number)
registered with the dynamic DNS service or a URL that is compliant with the global address.
I cannot access the camera from the Internet.
1There is a wrong network setting in the camera.
Configure the default gateway correctly. When using the dynamic DNS service, check whether the
entered DNS server address and domain name registered with the dynamic DNS service are
correct.
2Registration to the dynamic DNS service is yet to be done. (When using the dynamic DNS service)
Go to the dynamic DNS service site and check that the address for your camera is correctly
registered.
3Port forwarding is not configured on your router.
Port forwarding must be configured on your router for you to be able to access a camera from the
Internet. For the configuration method, refer to your router's instruction manual.
Q&A 2
/
10

4Your router is configured with packet filtering or the like which restricts access from the Internet.
Change the settings in your router to allow access from the Internet. For the configuration method,
refer to your router's instruction manual.
5The IP address you entered is a local address (the one you use at your home).
When accessing via Internet, enter the global address (or the URL registered with the DDNS
service) and port number of the camera as its IP address.
The camera has been suddenly disconnected.
1Another user has changed the password.
Configure the password settings again.
2Another user has changed the camera settings.
Access again after a while.
I get stuck at the Login screen.
The password is changed.
Check the password and try again.
The access lamp does not go on.
1The LAN cable that connects directly to the camera is broken.
Connect the LAN cable.
2The LAN cable has been unplugged.
Connect the LAN cable.
3The switching hub is turned off.
Turn on the switching hub.
I forgot the camera IP address/port number.
Press the SET button provided on the left-side face of the camera and, on the SELECT MENU
screen, select [FIRMWARE VERSION] to check the firmware version.
Using the supplied “Auto IP Setup” software, execute a camera search.
Q&A 3
/
10

Buttons on the control panel/tool panel do not respond.
1You do not have the required operation privilege.
Some buttons on the control panel/tool panel are operable only when you have an adequate
operation privilege. Log in as a user with an adequate operation privilege.
2You have not configured the required operation settings.
The Remote Alarm buttons are operable only when you have set [ALARM OUT 1/2] to “REMOTE”
on the ALARM SETTINGS screen.
The [MENU] button does not respond.
Users other than admin and operator do not have the necessary privilege for performing operations
from the configuration menu.
Without the required operation privilege, you will be presented with an authentication check dialog
box when you click the [MENU] button on the live screen.
In this case, you can change the operation privilege by entering a user name with an adequate
operation privilege and its password in the dialog box.
Q&A 4
/
10

I cannot set [SENSE UP] in [IRIS].
You cannot set [SENSE UP] when [SHUTTER] is set to “SHORT” or “LONG”.
Set [SHUTTER] to “OFF”.
I cannot set [SHUTTER] to “SHORT” or “LONG”.
You cannot configure the electronic shutter settings if you have set [SENSE UP] in [IRIS].
Set [SENSE UP] in [IRIS] to “OFF”.
I cannot turn off the AGC.
1If [DAY/NIGHT] is set to “AUTO”, you cannot set [AGC] to “OFF”. (When using VCC-HD2300P/VCC
-HD2300)
Set [DAY/NIGHT] to “COLOR” or “B/W”.
2You cannot set [AGC] to “OFF” when [SENSE UP] in [IRIS] is set to “ON”.
Set [SENSE UP] in [IRIS] to “OFF”.
Q&A 5
/
10

I cannot display LIVE video.
1ActiveX control is not installed in your PC.
Install ActiveX.
2There is network congestion.
It may take some time until the screen can be displayed. Please wait.
The message “THE UNIT IS BUSY” appears on the screen if the number of simultaneously
accessible users is already reached.
3The version of the installed ActiveX control is old.
When another ActiveX control for network cameras is installed, video may not be displayed due to
compatibility issues between the different versions. Install the H.264 Plug-In included in the
supplied CD-ROM or the latest H.264 Plug-In you can download from SANYO CCTV System Web
page.
4The Web browser you are using for accessing the camera is configured to connect to the Internet
via proxy server.
Some proxy servers block UDPs during H.264 browsing. In this case, either change the settings to
browse H.264 using HTTP, or browse using JPEG.
I cannot install the “H.264 Plug-In” included in the supplied CD-ROM.
1The OS of your PC is not a recommended OS.
The OS must be Windows Vista, Windows XP Home Edition or Windows XP Professional SP2 or
later for the H.264 Plug-In to run.
2You are not logged into the PC with administrator privileges.
To install the H.264 Plug-In in a PC, you need OS administrator privileges. If you are logged in with
user privileges, log out and log in again with administrator privileges to do the installation.
An error code appears and no LIVE video is displayed.
1The configured IP address or domain name is wrong.
Configure the IP address or domain name correctly.
2If the address or domain name is correct, then the network connection has timed out.
Use the network when it is not congested, or check whether there are other applications using the
network and if there are, stop them for example.
The screen has suddenly stopped refreshing.
A camera power or network fault has occurred.
Q&A 6
/
10

Check the power supply status and/or the network environment.
The video image is distorted and cannot be displayed correctly.
1The maximum bit rate for video streaming is configured with a value higher than the network
bandwidth.
Lower the resolution and/or image quality.
2The performance of the PC is low.
Make sure that your PC meets the operation requirements specified in the “Operating Environment”
section.
Or replace the video card in the PC with another with higher performance.
The image quality is bad.
The color quality for your PC monitor is configured to less than 16 bits.
On the [Display Properties] -[Settings] tab, configure the [Color quality] setting for your PC to 16 bits
or more.
Frame rate is low, or the moving image stops temporarily.
1Among the multiple accesses to the camera, some are from narrowband networks.
Change the minimum bit rate for video streaming to a large value.
2There are multiple accesses or accesses with request for multiple resolutions.
The frame rate and/or image quality may decrease if the number of accesses or resolution of
streaming images increase. Set lower resolution, image quality, and/or frame rate.
The frame rate of video in maximum video size is slow.
The performance of the PC is low.
Make sure that your PC meets the operation requirements specified in the “Operating Environment”
section.
Or replace the video card in the PC with another with higher performance.
The LIVE video image is not clear.
1The camera focus has not been adjusted to the correct position.
Click [FOCUS ASSIST] on the CAMERA SETTINGS screen and readjust the camera focus using
the focus assist function.
2The object is too close to the camera.
Move away the object from the camera.
Q&A 7
/
10

3Dust, dirt, fingerprints, etc. are present on the lens cover. Or the lens is fogged.
Wipe away the dust, etc. with a dry cloth.
The live video display is entirely discolored (A white subject appears to be colored.)
Adjust the white balance.
Click [WHITE BALANCE] on the CAMERA SETTINGS screen and, in [WHITE BALANCE], select
“MWB”. Then, adjust the white balance so that a white subject appears to be white.
The LIVE video image is noisy.
1The background of the object is dark.
Increase the lighting to the monitored environment.
Or, on the CAMERA SETTINGS screen, select [AUTO] for [DAY/NIGHT] and enable the
[DAY/NIGHT] mode. (When using VCC-HD2300P/VCC-HD2300)
2The color quality for your PC monitor is configured to less than 16 bits.
On the [Display Properties] -[Settings] tab, configure the [Color quality] setting for your PC to 16 bits
or more.
The image contains white spots or colored light spots.
You are using the camera in a dark place. Or, you are recording a dark object.
White spots or colored light spots may appear on the screen when the camera is used in a dark
place or monitoring a dark subject. This is a characteristic of the image pickup device and is not a
malfunction. Use auxiliary lighting or some other means to illuminate the monitored environment.
Q&A 8
/
10

The e-mail transmission function does not work.
1On the E-MAIL SETTING screen, incorrect user ID/password information is specified in the
AUTHENTICATION section.
Set the correct login ID and password.
2The server address is wrong. Or connection to the server is down.
Check the server address settings.
3The SMTP server requires authentification.
If [AUTHENTICATION] is set to “NO USE”, the e-mail transmission function does not work when
the SMTP server requires authentification. Contact your network administrator and change the
authentication setting according to the SMTP server setting.
This camera supports the two authentication methods, “SMTP” and “POP3 (POP before SMTP)”.
4Transfer is blocked by the “Outbound Port 25 Blocking (OP25B)” implemented by your provider.
Select the SMTP authentication for the camera and change the destination e-mail server port from
25 to 587.
Use the destination e-mail server of your provider.
I cannot view the image data I received on my cell phone.
Some cell phones have a limit on the size of image data they can handle.
Check the resolution of your cell phone.
Q&A 9
/
10

Upgrade has been terminated.
Upgrade has been interrupted due to power off, network fault, or other problem during the process.
Redo the upgrade by proceeding as follows.
1Turn on the camera again.
2Access the camera again.
3Check the firmware version on [FIRMWARE UPDATE] in OPTION SETTINGS screen.
* If the version number is updated: Upgrade is complete.
* If the version number is not updated: Redo the upgrade.
The date and time is not adjusted automatically by the NTP server.
1The GATEWAY settings are not configured correctly.
Select NETWORK and configure the [GATEWAY] settings again.
2The NTP server address is not configured correctly.
Select CLOCK and configure the [NTP SERVER ADDRESS] settings again.
3Adjustment by NTP is not set as the method for automatic time adjustment.
Select CLOCK and set [CLOCK ADJUST] to [ON (NTP)].
The date and time information indicated on the live screen does not reflect the clock settings
configured on the [CLOCK SETTINGS] screen.
It is recommended that you delete temporary Internet files.
To do so, in Internet Explorer, click [Internet Options] in the [Tools] menu and then delete
temporary files, history, cookies, saved passwords, and web form information from the [General]
tab.
Q&A 10
/
10

VCC-HD2300/HD2300P
VCC-HD2100/HD2100P
NETWORK SETTINGS
CLOCK SETTINGS
USER SETTINGS
CODEC/STREAMING SETTINGS
CAMERA SETTINGS
ALARM SETTINGS
E-MAIL SETTINGS
FTP SETTINGS
SECURITY SETTINGS
OPTION SETTINGS
W
orkin
g
with Administrator Confi
g
uration Screens1
/
50
