Sanyo VCC-HD2300 - Full HD 1080p Network Camera User manual

VCC-HD2300/HD2300P
VCC-HD2100/HD2100P
Features of This Camera
Specifications
Name and Function of Each Component
Connections
Lens Installation
Lens Adjustment
Viewing Firmware Version
Introduction1
/
17

The camera supports network operation. By simply connecting a LAN cable to it, you can construct the most
advanced network monitoring system. From the Web browser (Internet Explorer) installed on your PC, you
can operate the camera via the network in an easy-to-use manner.
In addition, it is a PoE product that can be powered through a LAN cable, so you can install it in locations
where there is no power outlet nearby.
The camera has 4-megapixel CMOS sensor that produces clear images at ultra-high resolution.
The camera can deliver full HD H.264 video throughout the network. Connecting a high-definition monitor to
your PC enables full high-definition video monitoring.
The camera supports both H.264 video and JPEG image compression formats, which you can choose from
depending on the network environment.
The camera offers the focus assist function that supports focus adjustment at megapixel image resolution,
allowing you to fine-tune the focus in optimal conditions in an easy manner.
The camera's motion sensor function can work in conjunction with any external alarm device, facilitating the
construction of a high-level security system.
Installing associated software applications on your PC further extends the capabilities of your surveillance system.
Introduction 2
/
17

Image pickup device 1/3" CMOS sensor
Effective pixels 16:9 1920 (H) × 1080 (V), 4:3 2288 (H) × 1712 (V)
Lowest image
illumination
50IRE: 1.0 lx (at F1.2, color mode, high gain)
50IRE: 0.06 lx (at F1.2, black-and-white mode, high gain)
Video S/N ratio 50dB (when AGC is “OFF”)
Lens mount CS mount
Flange back adjustment 12.5±0.5 mm, electrical flange back adjustment (Focus assist function)
Day/Night function Auto, color, black-and-white, alarm input switching
( (VCC-HD2300P/VCC-HD2300 only))
White balance Auto (ATW), one push (AWC), manual (R/B gain adjustable), indoor, outdoor,
fluorescent
Backlight compensation Multi-spot evaluative metering, center-weighted average metering, masking
Electronic sensitivity
boosting
Auto (32× max) or Off
Electronic shutter VCC-HD2300P/VCC-HD2100P: 1/25, 1/50, 1/120, 1/250, 1/500, 1/1000, 1/2000,
1/4000, 1/10000
VCC-HD2300/VCC-2100: 1/30, 1/60, 1/100, 1/250, 1/500, 1/1000, 1/2000, 1/4000,
1/10000
Long exposure shutter (1×, 2×, 4×, 8×, 16×, 32×)
Electronic iris ON/OFF (Set [SHUTTER] to “EI”.)
Iris control DC iris lens supported
Camera settings Selectable between 2 camera setting patterns
AGC gain Normal/Middle/High (Manual gain setting possible at Off)
Gamma correction 0.45, 1, Mode 1, Mode 2
Aperture compensation On/Off (Correction level adjustable)
VIVID COLOR EFFECT ON/OFF
DNR ON/OFF
Mirror H/V/HV/OFF
Privacy mask On/Off, max. 8 mask patterns
Motion sensor On (masking/detection area setting)/Off
Language selection English, French, German, Spanish, Japanese
Video output Composite output
LAN 10BASE-T/100BASE-TX (RJ-45 connector)
Alarm input 2 (NO/NC), also serve as Day/Night switching signal (VCC-HD2300P/VCC-HD2300
only)
Alarm output 2 (NO/NC, 16V, 150 mA, open collector)
Introduction 3
/
17

Image/video
compression
H.264/JPEG
Video size (H.264) (16:9) 1920×1080, 1280×720, 640×360, 320×180
(4:3) 1600×1200, 1280×960, 1024×768, 640×480, 320×240
Video size (JPEG) (16:9)1920×1080, 1280×720, 1024×576, 640×360
(4:3) 2288×1712, 1600×1200, 1280×960, 1024×768, 800×600, 640×480, 320×240
Picture quality QUALITY mode: BASIC, NORMAL, ENHANCED, FINE, SUPER FINE
BITRATE mode: User-specified bit rate
Interface 10BASE-T/100BASE-TX
Protocol TCP/IP, UDP, HTTP, HTTPS, SMTP, NTP, DHCP, FTP, DDNS, RTP, RTSP, RTCP
Simultaneous access 20
Security BASIC authentication (ID/password), SSL, IP filtering
Operating ambient
temperature/humidity
–10 to +50°C, 90% RH or less (no condensation)
Power source 12 to 15 VDC/24 VAC±10%, 50/60 Hz, PoE
Power consumption 4,6 W
Weight 220 g
Dimensions
Accessories
1Video cable
2Cable holder for wiring
3CD-ROM
Introduction 4
/
17

This indicator lights up when the camera is powered on.
The indicator blinks while the firmware is being updated.
Use these terminals to connect a 24 VAC or 12 VDC power supply. The power indicator lights up when the camera
is powered on.
For details, refer to the “Basic Connections” section.
Use this socket to connect the camera to your PC to enable network operation.
For details, refer to the “Basic Connections” section.
Right: Link access indicator (Green)
This indicator lights up approx. 3 seconds after power on, if a connection has been established
between the camera and the network.
After that, it will blink when data are being transmitted via the network.
Left: Speed indicator (Orange)
The camera automatically detects the local network transmission speed (10BASE-T or 100BASE-
TX).
This indicator lights up when 100BASE-TX data transmission is in progress; it goes out when
10BASE-T data transmission is in progress.
For the detailed connection procedure, refer to the “Alarm Input/Output Terminal Connections” section.
1Alarm input or Day/Night switching terminals (ALARM IN1/2)
These input terminals can be used for either of the following purposes:
Alarm input
Introduction 5
/
17

Connecting an external switch, infrared sensor, or other device to these terminals enables the camera to
detect alarm conditions such as the entry of an intruder.
Day/Night switching
Normally, switching the camera between the color and black-and-white video modes is automatically
accomplished by the Day/Night function.
When used as Day/Night switching terminal, you can switch between color and black-and-white video modes
using an external control signal.
(This function is supported only by VCC-HD2300P/VCC-HD2300)
Using network operation, under [DAY/NIGHT], set [DAY/NIGHT] to “COLOR” and select the terminal
you want to use in [EXT ALARM].
Then, in [POLARITY] under [ALARM SETTINGS], select the signal polarity of the alarm input
terminal.
2Alarm output terminals (ALARM OUT1/2)
Connect a buzzer, lamp, or other alarm device to these terminals.
3COM terminal (Earth grounding terminal)
Connect the camera to your monitor via the supplied video cable.
You can perform focus and iris adjustments while monitoring live video on the monitor.
For details, refer to the “Basic Connections” section.
Use this socket to connect an optional auto iris lens.
For details, refer to the “Lens Installation” section.
Use the buttons provided on the left-side face of the camera to perform the following operations.
These operations may be performed with the Web browser installed on your PC. For details, refer to the linked
information.
Introduction 6
/
17

Operation Associated button and use Equivalent network operation
screen
Restarting camera Press the RESET button. OPTION SETTINGS (CAMERA
REBOOT)
Restoring factory default
settings
Press the NEAR and SET buttons
simultaneously. OPTION SETTINGS (FACTORY DEFAULT)
Restoring factory default
back focus position
Press the NEAR and FAR buttons
simultaneously. CAMERA SETTINGS (FOCUS ASSIST)
Resetting login password Press the FAR and SET buttons
simultaneously. USER SETTINGS
Adjusting focus For details, refer to the “Lens
Adjustment” section. CAMERA SETTINGS (FOCUS ASSIST/IRIS SETTINGS)
Adjusting iris
Viewing Firmware Version For details, refer to the “Viewing
Firmware Version” section. OPTION SETTINGS (FIRMWARE UPDATE)
This bracket may be attached to either the top or bottom face of the camera depending on the installation
environment.
For bracket installation, be sure to use the longer screws supplied.
Install the camera securely to a durable location, taking into account the total weight of the camera
mount (commercially available) and the camera.
Introduction 7
/
17

Perform the following connections according to the installation environment and application of your camera.
Basic Connections
Alarm Input/Output Terminal Connections
Before attempting the following connections, be sure to turn off all components of your system.
Improper connection may cause smoke or failures. Before attempting to connect each system
component, carefully read the instruction manual that comes with it to familiarize yourself with the
correct connection procedure.
Connect the power terminals (24 VAC/12 VDC) of the camera to a power supply.
AConnection to 24 VAC power supply
Although the power terminals have no polarity, the earth grounding wire must be connected to the GND (earth
grounding) terminal.
BConnection to 12 VDC power supply
Note the polarity (+/–) of the power terminals when connecting the camera to a 12 VDC power supply.
Incorrect polarity may cause damage to the camera.
Be sure to use an 18AWG or thicker wire power cable.
A voltage drop may occur depending on the thickness of the power cable. If you must use a long
power cable, determine the cable type by ensuring that the voltage at the 24-VAC/12-VDC terminals
is within the operating range of the camera.
When using PoE to power the camera, do not use the camera's power terminals.
This camera is designed so that you can use all of its functions via network operation.
By connecting the network (LAN) socket of the camera to your PC using a LAN cable, you can configure and
operate it from the Web browser installed on your PC.
Introduction 8
/
17

Use a LAN cable no longer than 100 m (109.4 yards) with the shield type CAT5 or higher.
The supported Web browser is Internet Explorer Ver.6.0 SP2 or higher, or Internet Explorer Ver.7.0.
About the internet connection
Port forwarding for the video port must be enabled on the broadband router.
For details on how to set port forwarding, please refer to your router's Instruction manual.
To connect two or more cameras, on the NETWORK SETTINGS screen, assign them with port
numbers that are different from that of the first camera.
Using PoE
This camera supports PoE (Power over Ethernet). This means that you can install the camera in locations where
there is no 24-VAC/12-VDC power outlet nearby.
When using PoE to power the camera, do not use the camera's power terminals.
Do not power the PoE hub or PoE power adapter until you finish connecting the camera.
AConnecting the PC and camera through a switching hub
You can use a PoE-compatible switching hub to extend the transmission distance.
For details on the extendable distance, please refer to the hub performance in the specifications, etc.
BConnecting the PC and camera through a switching hub and a power adapter
Introduction 9
/
17

To perform focus adjustment with the camera, connect the supplied cable to the MONITOR OUT socket of the
camera, and connect a monitor to the camera using a video cable.
After adjustment, be sure to remove the monitor cable.
To connect a cable, while pushing the protrusion of the terminal, insert the cable into the opening and then release
it.
Introduction 10
/
17

Connect a buzzer, lamp, or other alarm device to one of the alarm output terminals (ALARM OUT1 or 2).
After connecting an alarm device, configure the output conditions for the corresponding alarm output
terminal (ALARM OUT1 or 2) via network operation on the ALARM SETTINGS screen.
Alarm output terminal configuration is also possible via remote operation.
Connect an alarm switch, infrared sensor, or other external device to one of the alarm input terminals (ALARM IN1
or 2).
After connecting an alarm device, configure the input conditions for the corresponding alarm input
terminal (ALARM IN1 or 2) via network operation on the ALARM SETTINGS screen.
To use the alarm input terminals as Day/Night switching terminals, follow the steps below.
(This function is supported only by VCC-HD2300P/VCC-HD2300)
Under [DAY/NIGHT], set [DAY/NIGHT] to “COLOR” and select the terminal you want to use in
[EXT ALARM].
On the ALARM SETTINGS screen, in [POLARITY], select the signal polarity of the alarm input
terminal.
You can connect an external switch to the ALARM IN1 terminal and use that switch to adjust the camera's internal
clock.
To do so, via network operation, configure the [CLOCK IN] setting on the CLOCK SETTINGS screen.
Introduction 11
/
17

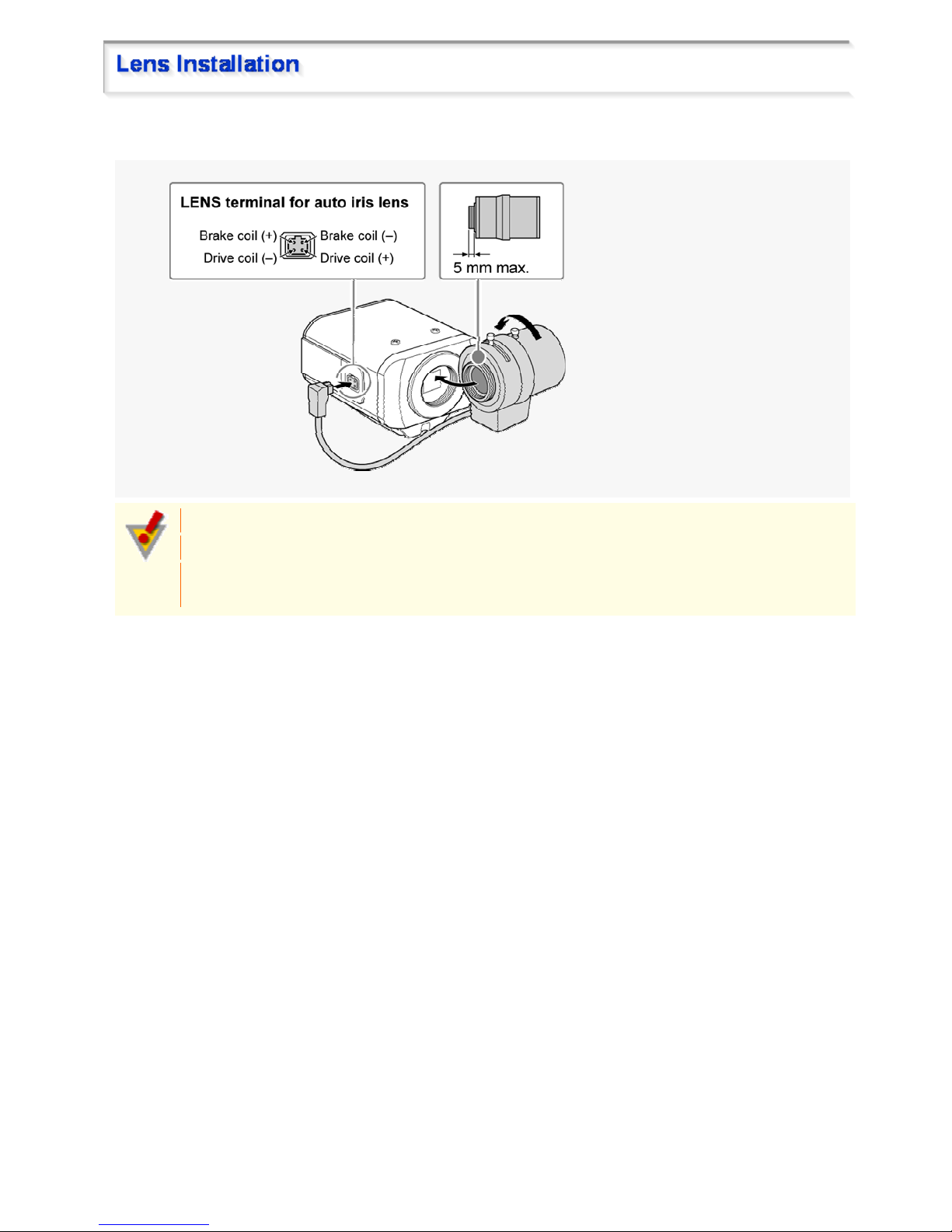

Connect the lens cable plug to the auto iris lens socket provided on the left-side face of the camera.
It is recommended that you use a CS-mount DC auto iris megapixel lens (optional).
Keep the lens clean at all times.
The conversion ring (optional) is required to use a C-mount lens.
The lens cable plug must be changed if it does not fit into the auto iris lens socket. If so, contact the
distributor from which you purchased the product (or the agent that provides the installation service).
Introduction 12
/
17

After installing the lens to the camera, you need to perform the following adjustments for the lens.
AFocus Adjustment (FOCUS ASSIST)
BFlange Back Adjustment
CIris Adjustment (IRIS)
Using network operation, you can use the focus assist function to adjust the focus.
You may also configure the back focus position switching mode to automatically adjust the back
focus position when switching between the color and black-and-white video modes.
(This function is supported only by VCC-HD2300P/VCC-HD2300)
Use the focus assist function to accurately focus on subject in high-resolution megapixel image because otherwise
doing so would be extremely difficult.
If you are using a varifocal lens, adjust the focus using the following procedure.
If the focus assist function does not work properly because the camera produces too dark or too
bright video images, perform iris adjustment Cin advance.
The focus must be readjusted if the camera has lost focus due to difference in the subject distance or
ambient temperature, the deterioration of the lens and installation environment, and the like that have
been caused over the years.
1Press the SET button for 2 seconds or more.
The monitor now shows the SELECT MENU screen.
On the SELECT MENU screen, all information is displayed in English.
2Select [FOCUS ASSIST] using the NEAR/FAR button and press the SET button.
The monitor now shows the focus adjustment screen.
3Use the zoom lever of the lens to adjust the angle of view and the focus lever of the lens
to set the FA bar ( A) to the maximum level.
When the subject comes into focus, the color of the status indicator ( B) “FOCUSING” turns from black to orange.
If the use of the focus lever does not provide precise focusing, follow the “Fine-adjusting focus” procedure
described below.
Introduction 13
/
17

PEAK HOLD: Shows the value of the maximum focus level.
INDICATOR: Shows the value of the current focus level.
Fine-adjusting focus (using buttons provided on side face)
1Use the zoom lever of the lens to adjust the angle of view and the focus lever of the lens to roughly
focus on the subject.
2Press the SET button.
The camera automatically focuses on the subject. Note that the color of the status indicator ( B)
“FOCUSING” turns from black to orange.
If the camera failes to focus on the subject, the FA bar ( A) will not operate normally with the status indicator
(B) showing “ERROR”. In this case, manually adjust the focus (in Step 3).
3Press the NEAR/FAR button to adjust the focus.
Pressing the button causes the back focus position to change, which is indicated in the FB bar gauge ( C).
The position changes step by step each time the button is pressed and continuously at a high speed when
the button is held down.
If you want to restore the default back focus position in re-adjustment, etc., press the NEAR and FAR
buttons simultaneously.
While the camera is initializing the back focus position, the status indicator ( B) shows
“INITIALIZING”.
4Press the SET button for 2 seconds or more.
The focus adjustment screen will close.
The focus adjustment screen will also close automatically if left idle for 5 minutes or more.
Introduction 14
/
17

If video is out of focus in either color or black-and-white mode, perform the following steps to adjust
the focus.
1Confirm that [COLOR/B/W] is set to “AUTO” under [FOCUS ASSIST] on the CAMERA SETTINGS
screen.
2Adjust the focus in color and black-and-white mode, respectively.
If you are using an optical zoom lens and zooming operation causes the camera to lose focus, adjust the flange
back distance as follows.
1Press the SET button for 2 seconds or more.
The monitor now shows the SELECT MENU screen.
On the SELECT MENU screen, all information is displayed in English.
2Select [FOCUS ASSIST] using the NEAR/FAR button and press the SET button.
The monitor now shows the focus adjustment screen.
3Use the zoom and focus levers of the lens to focus on the subject at the telephoto end
and press the NEAR/FAR button to adjust the focus.
Pressing the button causes the back focus position to change, which is indicated in the FB bar gauge ( C).
The position changes step by step each time the button is pressed and continuously at a high speed when the
button is held down.
4Use the zoom and focus levers of the lens to focus on the subject at the wide end and
press the NEAR/FAR button to adjust the focus.
Repeat the above steps until switching between the telephoto and wide ends does not cause the camera to lose
focus.
Introduction 15
/
17

5Press the SET button for 2 seconds or more.
The focus adjustment screen will close.
The focus adjustment screen will also close automatically if left idle for 5 minutes or more.
If the camera produces too dark, too bright, or other incorrect video images, adjust the lens iris.
1Press the SET button for 2 seconds or more.
The monitor now shows the SELECT MENU screen.
On the SELECT MENU screen, all information is displayed in English.
2Select [IRIS] using the NEAR/FAR button and press the SET button.
The monitor now shows the iris adjustment screen.
3Press the NEAR/FAR button to adjust the iris level.
The position changes step by step each time the button is pressed and continuously at a high speed when the
button is held down.
NEAR: Closes the iris to produce darker images.
FAR: Opens the iris to produce brighter images.
4Press the SET button for 2 seconds or more.
The iris adjustment screen will be closed.
The iris adjustment screen will also close automatically if left idle for 5 minutes or more.
Introduction 16
/
17

On the FIRMWARE VERSION screen, you can check the firmware version, IP address, and other information on
the camera.
The firmware version can also be checked via network operation on the OPTION SETTINGS screen.
1Press the SET button for 2 seconds or more.
The monitor now shows the SELECT MENU screen.
On the SELECT MENU screen, all information is displayed in English.
2Select [FIRMWARE VERSION] using the NEAR/FAR button and press the SET button.
The monitor now shows the FIRMWARE VERSION screen.
3Press the SET button for 2 seconds or more.
The FIRMWARE VERSION screen closes.
The FIRMWARE VERSION screen will close automatically if left idle for 5 minutes or more.
Introduction 17
/
17
