Introductio
n
1
/
23

The camera supports network operation. By simply connecting a LAN cable to it, you can construct the most
advanced network monitoring system. From the Web browser (Internet Explorer) installed on your PC, you
can operate the camera via the network in an easy-to-use manner.
The camera supports bidirectional audio communications, enabling you to communicate with people at the
camera from your PC while monitoring the surveillance video, instead of just hearing sounds from the
camera.
In addition, it is a PoE product that can be powered through a LAN cable, so you can install it in locations
where there is no power outlet nearby.
The camera has 4-megapixel CMOS sensor that produces clear images at ultra-high resolution.
When connected to a high-definition monitor, the camera allows you to monitor the video in the full high-
definition format.
Using multi-stream video transmission, it can simultaneously deliver up to four video/ima
g
e streams. Because
it allows video/image compression format, resolution, and other image conditions to be set as desired for
each stream, you can choose the optimal video/image for your application.
Equipped with a Variety of Functions
With a 10× built-in optical zoom lens, the camera offers a zoom magnification of up to 160× in conjunction
with the electronic zoom function.
The digital PTZ function lets you clip specific areas of the subject in VGA size and perform pan, tilt, and zoom
operations just as when using a PTZ camera.
The camera's motion sensor function can work in conjunction with any external alarm device, facilitating the
construction of a high-level security system.
A commercially available SD memory card or an external hard disk drive (optional dedicated hard disk case
required) can be used to record the video on the camera.
Installing associated software applications on your PC further extends the capabilities of your surveillance system.
Introductio
n
2
/
23

Image pickup device 1/2.5” CMOS sensor
Effective pixels 16:9 1920 (H) × 1080 (V), 4:3 2288 (H) × 1712 (V)
Lowest image
illumination
50IRE: 2.0 lx (F1.8, in color mode with high gain)
50IRE: 0.1 lx (F1.8 in black-and-white mode with high gain)
Video S/N ratio 50 dB or higher (when AGC is 'OFF')
Lens Focal Length: f=6.3 - 63 mm
F number: F1.8 - 2.5
Optical zoom 10x, electronic zoom 16x (up to 160x when used in combination with
the optical zoom)
Day/Night function Auto, color, black-and-white, alarm input switching
Focus AUTO, MANUAL, ONE PUSH
White balance Auto (ATW), one push (AWC), manual (R/B gain adjustable), indoor, outdoor,
fluorescent
Backlight compensation Multi-spot evaluative metering, center-weighted evaluative metering, masking, face
detection
Electronic sensitivity
boosting
Auto (32× max) or Off
Electronic shutter VCC-HD4600P: 1/25, 1/50, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000
VCC-HD4600: 1/30, 1/60, 1/100, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000
Long exposure shutter (1×, 2×, 4×, 8×, 16×, 32×)
Iris AUTO/MANUAL (electronic iris: ON/OFF)
Digital PTZ Enables electronic pan, tilt, and zoom operations on clipped subject areas in VGA
size, Zoom magnification: 2× max
Camera settings Up to 2 patterns of monitoring conditions are configurable.
AGC gain Normal/Middle/High (Manual gain setting possible at Off)
Gamma correction 0.45, 1, Mode 1, Mode 2
Aperture compensation On/Off (Correction level adjustable)
VIVID COLOR EFFECT ON/OFF
DNR (digital noise
reduction)
ON/OFF
Image inversion Horizontal/Vertical/Horizontal and vertical/Off
Privacy mask On/Off, max. 8 mask patterns
Motion sensor On (Motion masking/motion detection area setting, or video analytics)/Off, face
detection
Sway compensation ON/OFF
Language selection English, French, German, Spanish, Japanese
Introductio
n
3
/
23

Video output HD Output: HDMI terminal (TYPE C)
Monitor output for video adjustment: BNC terminal (MONITOR OUT)
LAN 10BASE-T/100BASE-TX (RJ-45 connector)
EX-HDD Connector For external hard disk case connection
SD Card Slot 1 (SDHC compliant, max. 32 GB supported)
Alarm input 2 (NO/NC), also serving as Day/Night switching function input <control terminals>
Alarm output 2 (NO/NC switching, 16 V, 150 mA, open collector) <control terminal>
Lens remote control Zoom, Focus, Common (Voltage control: ±(6 to 12 V)) <control terminal>
Audio input/output Audio input (3.5-mm Mini jack) <AUDIO IN>
Audio output (3.5-mm Mini jack) <AUDIO OUT>
SD memory card Normal recording, Alarm recording, Backup recording in event of a network failure,
Log information recording
External HDD Normal recording, Alarm recording, Backup recording in event of a network failure,
Log information recording
Image/video
compression
H.264/JPEG
Video size (H.264) (16:9) 1920×1080, 1280×720, 640×360, 320×180
(4:3) 1600×1200, 1280×960, 1024×768, 640×480, 320×240
Video size (JPEG) (16:9)1920×1080, 1280×720, 1024×576, 640×360
(4:3) 2288×1712, 1600×1200, 1280×960, 1024×768, 800×600, 640×480, 320×240
Picture quality QUALITY mode: BASIC, NORMAL, ENHANCED, FINE, SUPER FINE
BITRATE mode: User-specified bit rate
Interface 10BASE-T/100BASE-TX
Protocol TCP/IP, UDP, HTTP, HTTPS, SMTP, NTP, DHCP, FTP, DDNS, RTP, RTSP, RTCP
Audio G.711 (Bidirectional)
Simultaneous access 20
Security BASIC authentication (ID/password), SSL, IP filtering
Introductio
n
4
/
23

Operating ambient
temperature/humidity
–10 to +50°C/14 to 122°F
90% RH or less (no condensation)
Power source 12 to 15 VDC
24 VAC±10%, 50/60 Hz
PoE
Power consumption 15 W (PoE: 12.3 W)
Weight 420 g/14.8 oz.

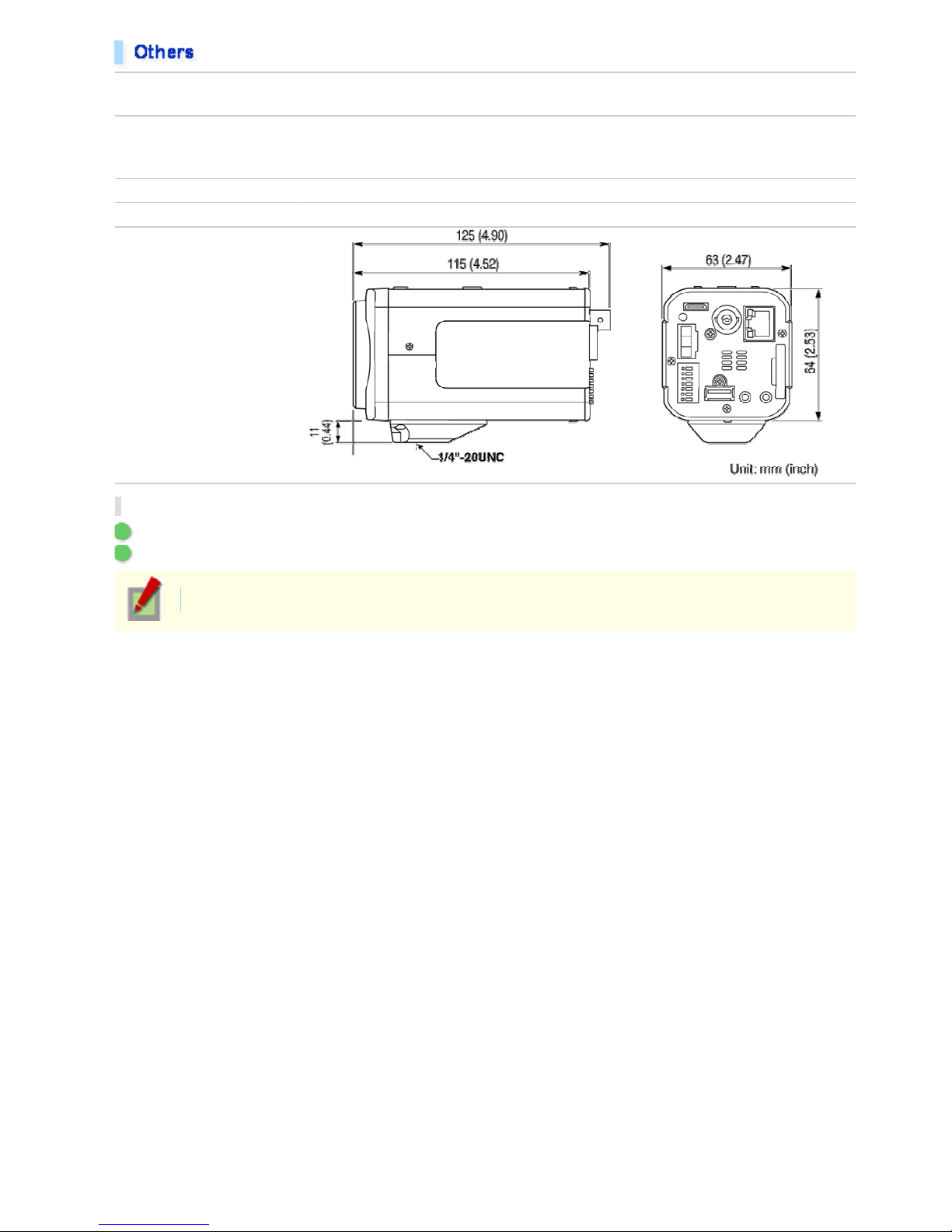

Dimensions
Accessories
1Power supply connector
2CD-ROM
Appearance and specifications are subject to change without prior notice or obligations.
Introductio
n
5
/
23

This table is displayed using a browser-specific function and therefore not displayed on the PDF
manual.
Refer to the table “Target size and recording time” in the electronic manual.
This table is displayed using a browser-specific function and therefore not displayed on the PDF
manual.
Refer to the table “Target size and recording time” in the electronic manual.
Introductio
n
6
/
23

This indicator lights up when the camera is powered on.
When the camera is on, this indicator blinks to indicate the following camera statuses:
Firmware update in progress
Deactivation of media recording is in progress.
Error occurring on SD memory card or external hard disk drive (faster blink)
Connecta24VAC or 12 VDC power supply to this terminal using the suppliedPowersupplyconnector.
For details, refer to the “Basic Connections” section.
For the detailed connection procedure, refer to the “Control Terminal Connections” section.

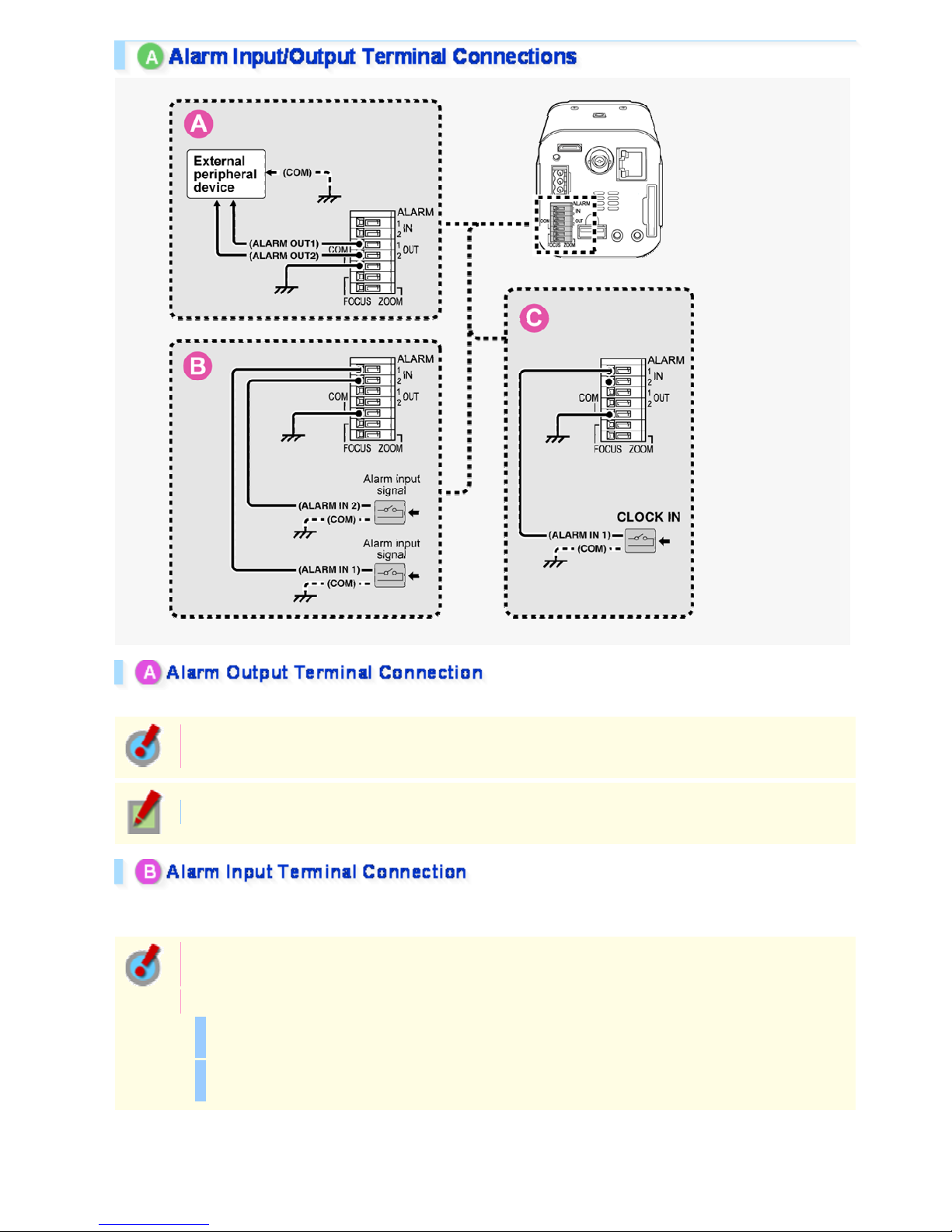

1Alarm input or Day/Night switching terminals (ALARM IN1/2)
These input terminals can be used for either of the following purposes:
Alarm input
Connecting an external switch, infrared sensor, or other device to these terminals enables the camera to
detect alarm conditions such as the entry of an intruder.
Day/Night switching
Normally, switching the camera between the color and black-and-white video modes is automatically
accomplished by the Day/Night function.
Using one of these alarm input terminals as the Day/Night switching terminal, however, enables the camera
to be switched between the color and black-and-white video modes when an external control signal is
received.
2Alarm output terminals (ALARM OUT1/2)
Connect a buzzer, lamp, or other alarm device to these terminals.
Introductio
n
7
/
23

3Zoom/Focus adjustment terminal (ZOOM/FOCUS)
Zoom and focus adjustment operations can be performed remotely by external voltage control.
4COM terminal (GND)
To record live video on a hard disk, put the hard disk in a dedicated hard disk case (VA-HDC4000) (sold
separately) and then connect the case to the camera.
For details, refer to “Formatting the recording media”.
Connect this jack via an audio cable to the audio input jack of an amplified speaker system or the monitor.
Use this jack to connect an external microphone to listen to the sound while monitoring the live video, or
simultaneously record the video and sound.
This jack supports 3.5-mm diameter monaural microphone plugs, or monaural line-level input plugs (the
left channel only for stereo plugs).
When recording live video onto an SD memory card, insert the card into the slot.
For details, refer to “Formatting the recording media”.

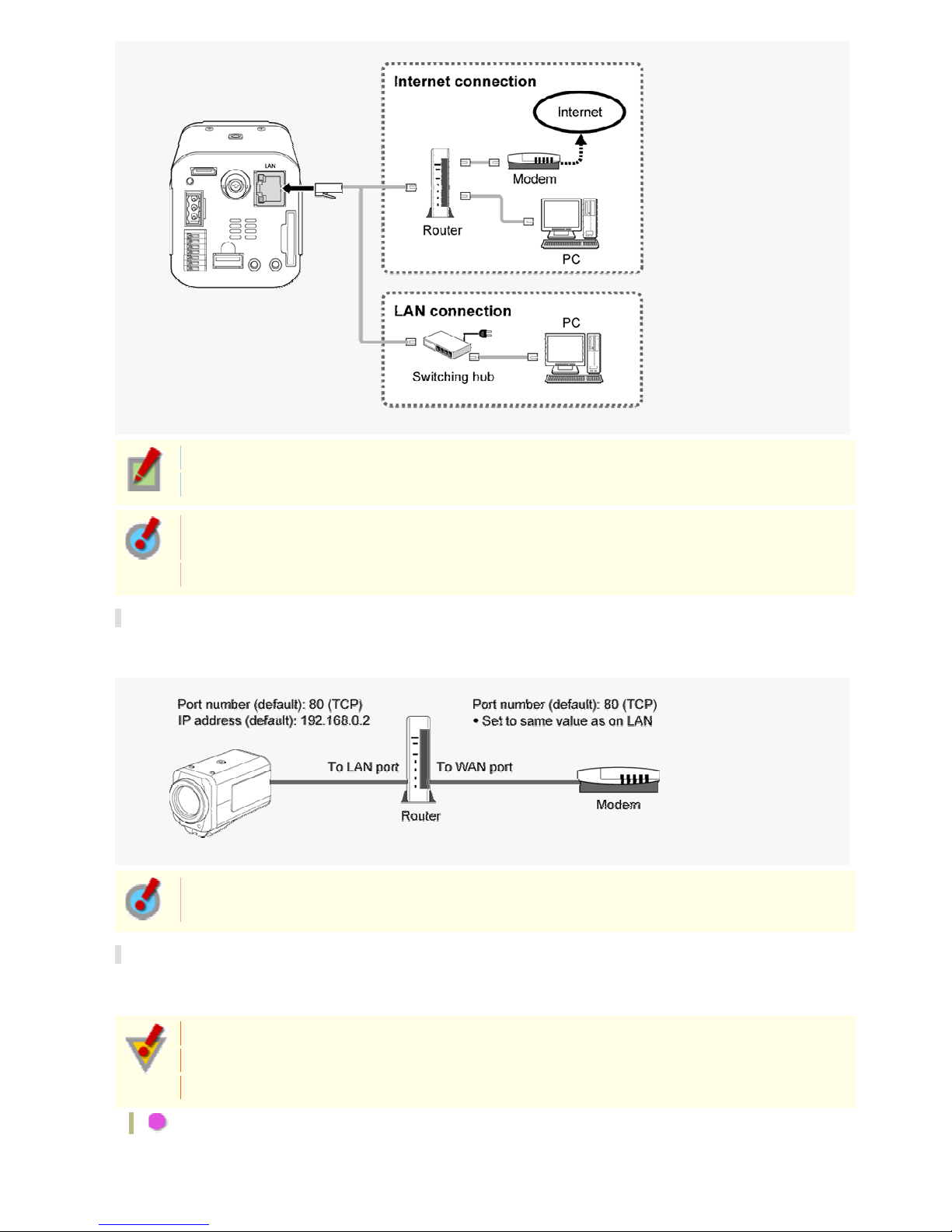

Use this socket to connect the camera to your PC to enable network operation.
For details, refer to the “Basic Connections” section.
Link access indicator (Green):
This indicator lights up approx. 3 seconds after power on, if a connection has been established
between the camera and the network.
After that, it will blink when data are being transmitted via the network.
Speed indicator (Orange)
The camera automatically detects the local network transmission speed (10BASE-T or 100BASE-
TX).
This indicator lights up when 100BASE-TX data transmission is in progress; it goes out when
10BASE-T data transmission is in progress.
Connect this terminal to a monitor, etc. A live video will be displayed on the monitor once the camera is turned on.
For details, refer to the “Basic Connections” section.
Introductio
n
8
/
23

While displaying live video, the current zoom magnification is displayed on the screen.
<Zoom magnification display>
Optical zoom area: ×1.0 to ×10.0
Electronic zoom area: ×11 to ×160
Zoom magnification settings (ex. enabling/disabling the magnification display, displaying position)
can be configured via network operation on the VIDEO & AUDIO SETTINGS(TV OUT) screen.
The terminal outputs super-fine HD (High Definition) video signal. Use the terminal to connect a high-definition
monitor with HDMI interface.
For details, refer to the “Basic Connections” section.
The indicator also works as an error indicator.
Power indicator: The indicator lights up when the camera is powered on.
Error indicator: The indicator blinks when an error occurs.
To activate the power or error indicator, via network operation on the OPTION SETTINGS screen,
change the setting for [POWER LED (FRONT)] or [ERROR LED (FRONT)] respectively.
This bracket may be attached to either the top or bottom face of the camera depending on the installation
environment.
For bracket installation, be sure to use the longer screws supplied.
Introductio
n
9
/
23

Install the camera securely to a durable location, taking into account the total weight of the camera
mount (commercially available) and the camera.
When using operation buttons on the camera, slide and open the side cover to access the buttons.
Some operations can be performed via network operation.
ABasic operations (focus adjustment, zoom, etc.)
Operation Associated button and use Equivalent network
operation screen
Adjusting
focus
Press the button to set the focus to a near target; press the button
to set the focus to a far target.
Live screen control panel
ZOOM Press the button to zoom out of the image; press the button to
zoom into the image.
Live screen control panel
BMenu screen operations
Press the SET button for 2 seconds or more to display the menu screen.
For details, refer to the “Settings with the Menu Screen”.
Operation Associated button and use

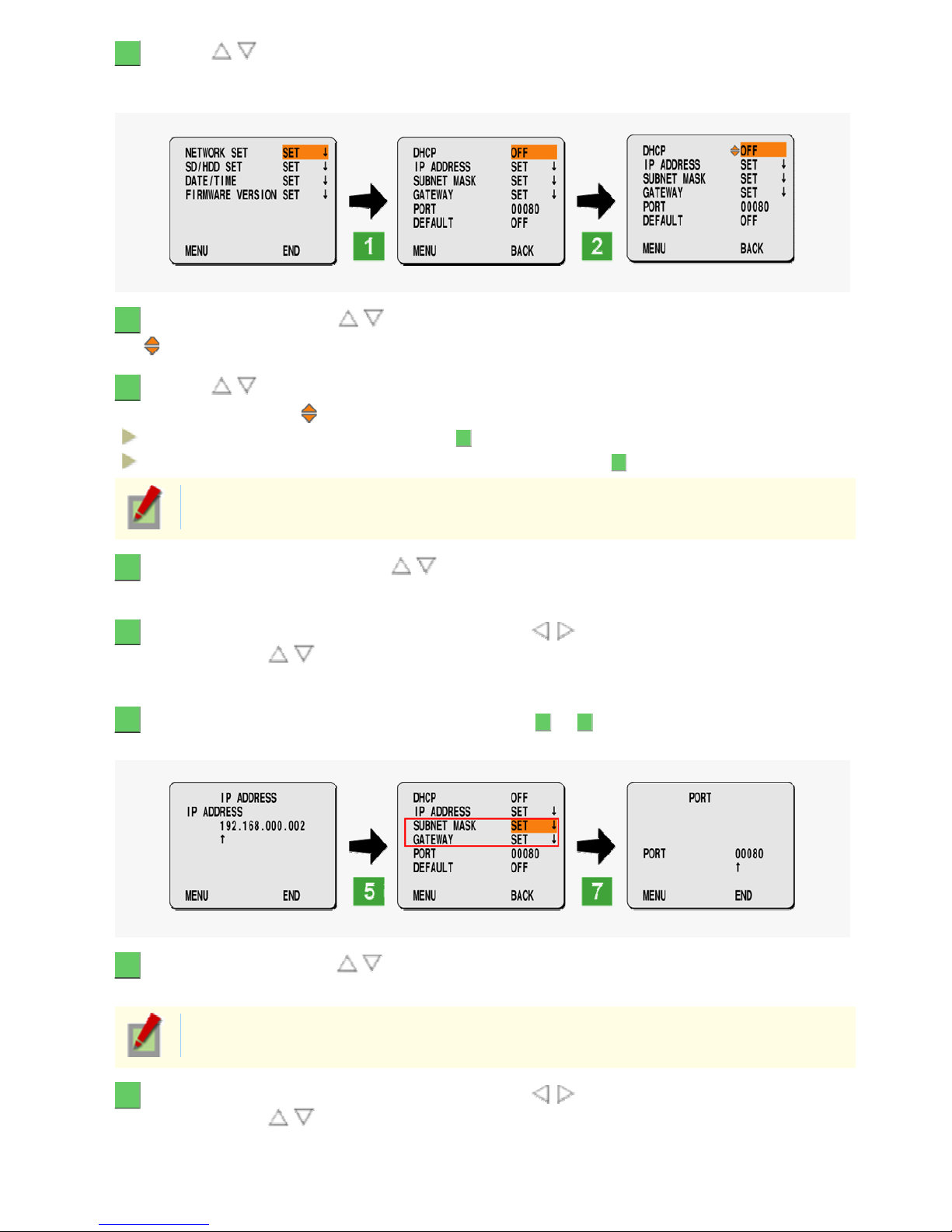

Moving the cursor up or
down
Press button to move the cursor upward, or press button to move the cursor
downward.
Selecting the setting value Press or button to change the setting value.
Set the selected value Press the SET button.
Introductio
n
10
/
23

CMiscellaneous operations (ex. restarting the camera)
Operation Associated button and use Equivalent network
operation screen
Restarting camera Press the RESET button. OPTION SETTINGS
(CAMERA REBOOT)
Restoring factory default settings Press the and buttons simultaneously. OPTION SETTINGS
(FACTORY DEFAULT)
Stopping recording/Removing the
recording medium
Press the and SET buttons simultaneously.
The power indicator starts blinking and then stay lit when
the camera is ready for you to remove the recording
media.
SD/HDD
Resuming recording/Recognizing
the recording medium
Press the and SET buttons simultaneously.
The power indicator starts blinking and then stay lit after
the camera recognizes the recording medium and is ready
for recording.
SD/HDD
Resetting the login password
(for default users only)
Press the and buttons simultaneously. Not supported via
network operation
Never press the RESET button while recording is in progress. The video may not be recorded
properly.
Introductio
n
11
/
23

Perform the following connections according to the installation environment and application of your camera.
Basic Connections
APower Connection
BHigh-Definition Monitor Connection
CMonitor connection for video adjustment
DNetwork Connection
Control Terminal Connections
AAlarm Input/Output Terminal Connections
BRemote Zoom/Focus Adjustment Operation
Before attempting the following connections, be sure to turn off all components of your system.
Improper connection may cause smoke or failures. Before attempting to connect each system
component, carefully read the instruction manual that comes with it to familiarize yourself with the
correct connection procedure.
Attach the supplied power connectorintothe power terminal.
Loosen the screws on thesideface of theconnector,connectthepower cables to it,and tightenthe screws.
Connection method depends on the power supply (24 VAC or 12 VDC).
AConnection to 24 VAC power supply
Although the power terminals have no polarity, the earth grounding wire must be connected to the COM (GND)
terminal.
Introductio
n
12
/
23

BConnection to 12 VDC power supply
Note the polarity (+/–) of the power terminals when connecting the camera to a 12 VDC power supply.
Incorrect polarity may cause damage to the camera.
To prevent a fire hazard use any UL listed wire rated VW-1.
Be sure to use an 18AWG or thicker wire power cable.
If you must use a long power cable, determine the cable type by ensuring that the voltage at the 24-
VAC/12-VDC terminal is within the operating range of the camera.
When the camera is powered on, the POWER indicator lights up and the live video is displayed on the connected
monitor.
Connect the HDMI cable to the HD video output terminal (HDMI).
You cannot output the video simultaneously from HD video output terminal (HDMI) and from monitor
output terminal (MONITOR OUT). When both terminals are used, the HD video output terminal takes
precedence.
Connect the coaxial cable to the SD video output terminal (MONITOR OUT).
This camera is designed so that you can use all of its functions via network operation.
By connecting the network (LAN) socket of the camera to your PC using a LAN cable, you can configure and
operate it from the Web browser installed on your PC.
Introductio
n
13
/
23

Use a LAN cable no longer than 100 m (109.4 yards) with the shield type CAT5 or higher.
The supported Web browser is Internet Explorer Ver.6.0 SP2 or higher, or Internet Explorer Ver.7.0.
Configure the network information using the camera's menu item [NETWORK SET].
For details, refer to “Configuring the network settings of the camera” section.
The same settings can be performed via network operation on the NETWORK SETTINGS screen.
About the internet connection
Port forwarding for the video port must be enabled on the broadband router.
For details on how to set port forwarding, please refer to your router's Instruction manual.
To connect two or more cameras, on the NETWORK SETTINGS screen, assign them with port
numbers that are different from that of the first camera.
Using PoE
This camera supports PoE (Power over Ethernet). This means that you can install the camera in locations where
there is no 24-VAC/12-VDC power outlet nearby.
When using PoE to power the camera, do not use the camera's power terminals.
Do not power the PoE hub or PoE power adapter until you finish connecting the camera.
When the PoE power supply is used, you cannot record video to an external hard disk drive.
AConnecting the PC and camera through a switching hub
You can use a PoE-compatible switching hub to extend the transmission distance.
For details on the extendable distance, please refer to the hub performance in the specifications, etc.
Introductio
n
14
/
23

BConnecting the PC and camera through a switching hub and a power adapter
To connect a cable, while pushing the protrusion of the terminal, insert the cable into the openin
g
and then release
it.
Use a thicker cable than 24AWG for connection. (Maximum length 600 m)
Introductio
n
15
/
23

Connect a buzzer, lamp, or other alarm device to one of the alarm output terminals (ALARM OUT1 or 2).
After connecting an alarm device, configure the output conditions for the corresponding alarm output
terminal (ALARM OUT1 or 2) via network operation on the ALARM SETTINGS screen.
Alarm output terminal configuration is also possible via remote operation.
Connect an alarm switch, infrared sensor, or other external device to one of the alarm input terminals (ALARM IN1
or 2).
After connecting an alarm device, configure the input conditions for the corresponding alarm input
terminal (ALARM IN1 or 2) via network operation on the ALARM SETTINGS screen.
To use the alarm input terminals as Day/Night switching terminals, follow the steps below.
Under [DAY/NIGHT], set [DAY/NIGHT] to “COLOR” and select the terminal you want to use in
[EXT ALARM].
On the ALARM SETTINGS screen, in [POLARITY], select the signal polarity of the alarm input
terminal.
Introductio
n
16
/
23

You can connect an external switch to the ALARM IN1 terminal and use that switch to adjust the camera's internal
clock.
To do so, via network operation, configure the [CLOCK IN] setting on the CLOCK SETTINGS screen.
Connect control equipment for the camera to the control connector's ZOOM and FOCUS terminals.
Introductio
n
17
/
23

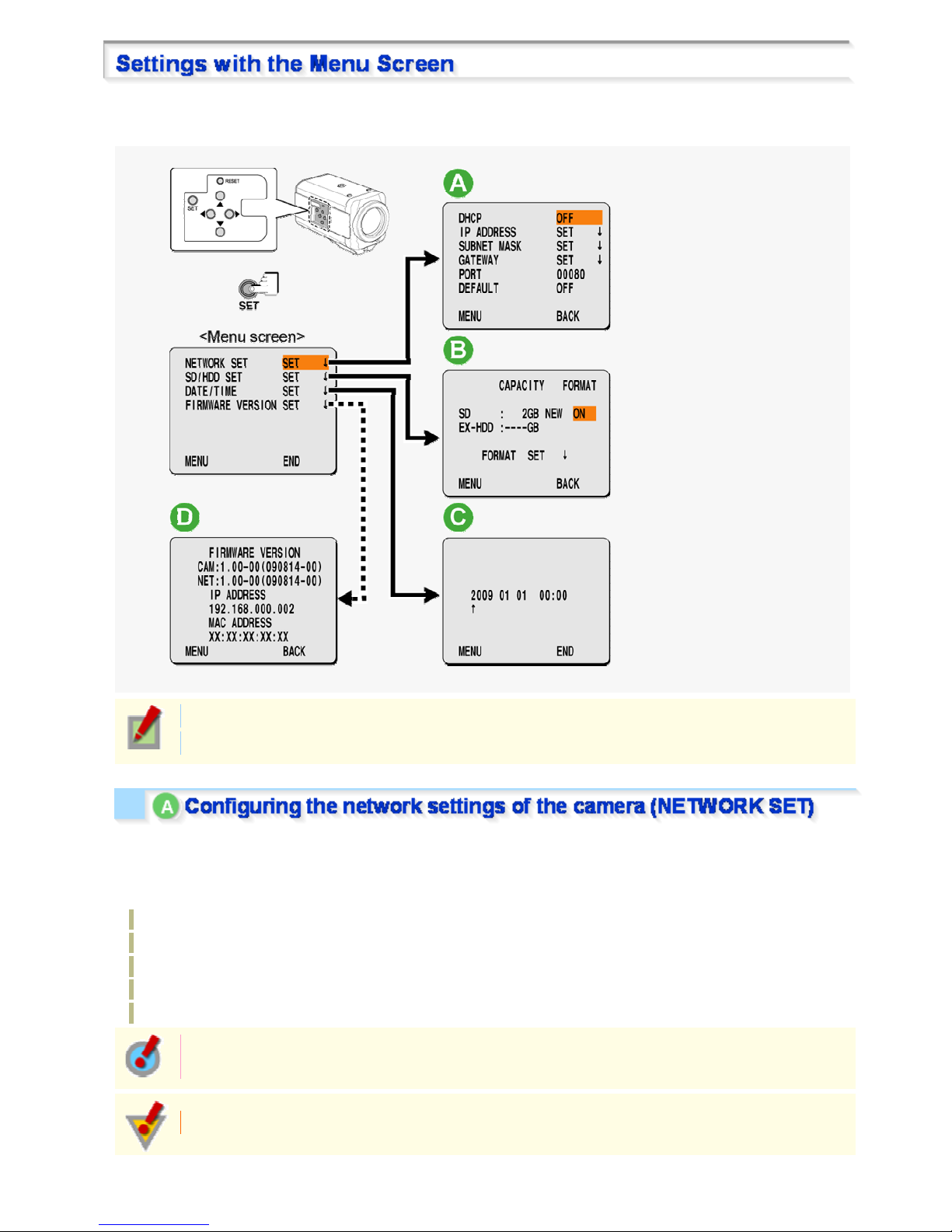

Opening the side cover and pressing the SET button for 2 seconds or more causes the menu screen to be
displayed on the monitor.
On the menu screen, all information is displayed in English.
Each setting can be configured via network operation on a configuration menu screen.
If you plan to operate the camera via the network, you need to configure the network information, such as the IP
address, on the camera.
You can skip this configuration if you choose to use the defaults.
<Default>
DHCP: OFF
IP ADDRESS: 192.168.000.002
SUBNET MASK: 255.255.255.000
GATEWAY: 192.168.000.001
PORT: 80
You can change the configured network settings via the network on the NETWORK SETTINGS
screen.
For the network configurations, contact your network administrator.
Introductio
n
18
/
23

1Use the /button to select [NETWORK SET] on the menu screen, and press the SET
button.
The network configuration screen appears.
2Select [DHCP] using the /button and press the SET button.
The symbol appears beside the available option, and you are ready to configure it.
3Use the /button to select “ON” or “OFF” for [DHCP], and press the SET button.
The setting is saved and the symbol disappears.
OFF: Sets the IP address manually (Go to step 4.)
ON: Enables automatic address configuration using DHCP. (Go to step 7.)
Setting [DHCP] to “ON” causes the menu items [IP ADDRESS], [SUBNET MASK], and [GATEWAY]
to disappear.
4Select [IP ADDRESS] using the /button and press the SET button.
The IP ADDRESS screen appears.
5Move the cursor to the desired position using the /button, select a number in each
digit using the /button, and then press the SET button.
The configured address setting is saved and you return to the network configuration screen.
6In the same way as you did in [IP ADDRESS] (step 4to 5), configure the settings in
[SUBNET MASK] and [GATEWAY].
7Select [PORT] using the /button and press the SET button.
The PORT screen appears.
When [SSL] is set to “ON” on the NETWORK SETTINGS screen, the screen title appears as [PORT
(SSL)].
8Move the cursor to the desired position using the /button, select a number in each
digit using the /button, and then press the SET button.
The configured port number is saved and you return to the network configuration screen.
Introductio
n
19
/
23

9Use the /button to select [MENU] and press the SET button. After this, use the /
button to select “END” and press the SET button.
This finishes the network settings and you return to the menu screen.

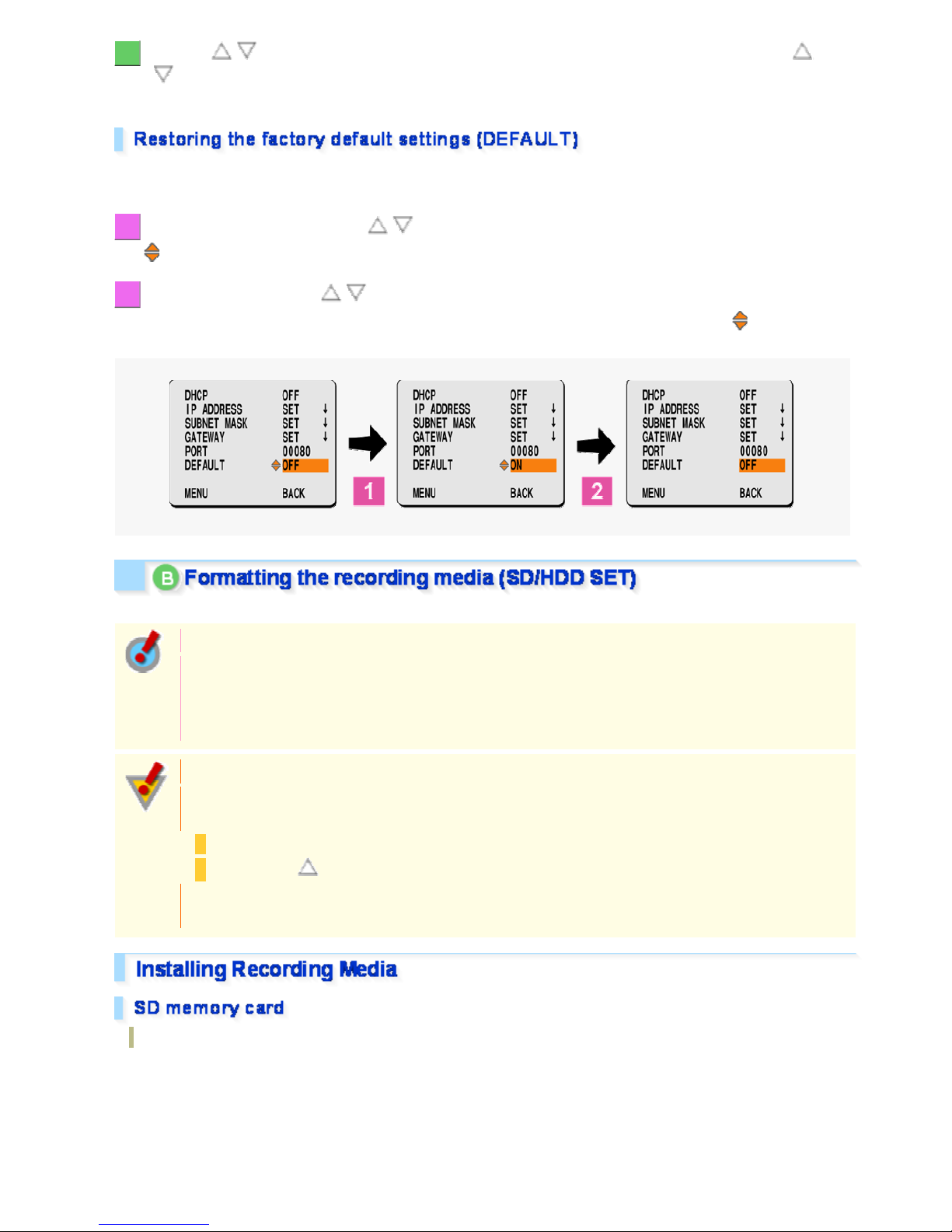

To reset all the settings configured on the network configuration screen to the defaults (factory settings), follow the
steps below.
1Select [DEFAULT] using the /button and press the SET button.
The symbol appears beside “OFF”, and you are ready to select “ON” or “OFF”.
2Select “ON” using the /button and press the SET button.
All the settings configured on the network configuration screen are reset to the defaults and the symbol
disappears.
You can format the SD memory card and external hard disk installed on the camera using the SD/HDD SET menu.
Formatting the recording media can also be done via network operation on the SD/HDD screen.
When formatting a medium via network operation, you can specify the storage area capacity ratio
between normal and alarm recording areas.
When formatting a medium using the menu on the camera, the default values for the SD/HDD screen
(Normal recording=80, Alarm recording=20) will be applied.
Be sure to turn off the camera before installing a recording medium.
When you want to remove the recording medium, be sure to perform the following procedure in
advance.
Set [SD MEMORY CARD]/[HDD] to “NO USE” on the SD/HDD screen via network operation.
Or press the and SET buttons on the side face of the camera simultaneously.
The power indicator starts blinking and then stay lit when the camera is ready for you to remove the
recording media.
How to insert the SD card
Insert an SD memory card into the SD card slot on the rear face of the camera.
Turn off the camera, remove the protection cap and, with the label side facing rightward, insert an SD card until
you hear a click.
Introductio
n
20
/
23
