Features of This Camera
Specifications
Target size and recording time
Power Unit Connection and Settings
Introductio
n
1
/
14

The camera supports network operation. By simply connecting a LAN cable to it, you can construct the most
advanced network monitoring system. From the Web browser (Internet Explorer) installed on your PC, you
can operate the camera via the network in an easy-to-use manner.
The camera supports bidirectional audio communications, enabling you to communicate with people at the
camera from your PC while monitoring the surveillance video, instead of just hearing sounds from the
camera.
The camera has 2-megapixel CMOS sensor that produces clear images at ultra-high resolution.
Using multi-stream video transmission, it can simultaneously deliver up to four video/ima
g
e streams. Because
it allows video/image compression format, resolution, and other image conditions to be set as desired for
each stream, you can choose the optimal video/image for your application.
Installation of the HDMI option board (sold separately) on the camera enables you to monitor surveillance
video in full hi-vision.
You can freely control camera lens orientation with your PC mouse.
With a 10× built-in optical zoom lens, the camera offers a zoom magnification of up to 160× in conjunction
with the electronic zoom function.
By installing an SD memory card or external hard disk (sold separately), surveillance video can be recorded
on the camera side.
The camera's motion sensor function can work in conjunction with any external alarm device, facilitating the
construction of a high-level security system.
Installing associated software applications on your PC further extends the capabilities of your surveillance system.
H.264 Plug-in (supplied):Surveillance video can be viewed in H.264 format.
Auto IP Setup (supplied):This searches your local network for cameras and allows IP
addresses to be set at once.
Downloader (supplied):This downloads image data recorded on the camera to your PC.
DLViewer (supplied):This plays back image data that has been downloaded to your PC.
VA-SW3050Lite (supplied):This allows you to simultaneously monitor multiple camera video
images on a multi-view screen.
VA-SW3050Server/Client (sold
separately):This allows you to record and play back video images from the
camera on your PC that are distributed over the network.
Introductio
n
2
/
14

This device is composed of a camera unit, power unit (VA-94S) and surface cover (supplied).
Image pickup device 1/2.5” CMOS sensor
Effective pixels 16:9 1920 (H) × 1080 (V), 4:3 1600 (H) × 1200 (V)
Lowest image
illumination
50IRE: 2.0 lx (F1.8, in color mode with high gain)
50IRE: 0.1 lx (F1.8 in black-and-white mode with high gain)
Video S/N ratio 50 dB or higher (when AGC is 'OFF')
Lens Focal Length: f=6.3 - 63 mm
F number: F1.8 - 2.5
Optical zoom 10x, electronic zoom 16x (up to 160x when used in combination with
the optical zoom)
Rotational scope Pan: 360° endless pan
Tilt: –20 to +200°
Rotation speed Pan: Max. 420°/sec.
Tilt: Max. 360°/sec. (0.1 to 120°/sec during manual operation)
Preset position Max. 255
Auto mode Sequential, auto pan, tour, automatic return
Day/Night function Auto, color, black-and-white, alarm input switching
White balance Auto (ATW), one push (AWC), manual (R/B gain adjustable), indoor, outdoor,
fluorescent
Backlight compensation Multi-spot evaluative metering, center-weighted evaluative metering, masking, face
detection
Electronic sensitivity
boosting
Auto (32× max) or Off
Electronic shutter VCC-HD5600P: 1/25, 1/50, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000
VCC-HD5600: 1/30, 1/60, 1/100, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000
Long exposure shutter (1×, 2×, 4×, 8×, 16×, 32×)
Iris AUTO/MANUAL (electronic iris: ON/OFF)
Camera settings Up to 8 patterns of monitoring conditions are configurable.
AGC gain Normal/Middle/High (Manual gain setting possible at Off)
Gamma correction 0.45, 1, Mode 1, Mode 2
Aperture compensation On/Off (Correction level adjustable)
VIVID COLOR EFFECT ON/OFF
DNR (digital noise
reduction)
ON/OFF
Image inversion Horizontal/Vertical/Horizontal and vertical/Off
Privacy mask ON/OFF, up to 32 positions
Motion sensor ON (detection area setting, video analytics)/OFF, face detection function
Auto pursuit ON/OFF
Sway compensation ON/OFF
Language selection English, French, German, Spanish, Japanese
Introductio
n
3
/
14

I/O
Video output Monitor output terminal (BNC)
LAN 10BASE-T/100BASE-TX (RJ-45 connector)
EX-HDD Connector For external hard disk (VA-HDC4000) connection
SD Card Slot 1 (SDHC compliant, max. 32 GB supported)
Alarm input 8 (NO/NC), also serving as Day/Night switching terminal <control terminal>
Alarm output 2 (NO/NC switching, 16 V, 150 mA, open collector) <control terminal>
Audio input/output Audio input (white: 3.5-mm mini jack)
Audio output (black: 3.5-mm mini jack)
Communication method RS-485
Protocol SSP, PELCO-D
Baud Rate 2400, 4800, 9600, 19200
Address 1 - 255 (sanyo SSP: 1 to 127)
HDMI output: Possible when an HDMI option board (VA-HDB90, sold separately) is attached
Recording media
SD memory card Normal recording, alarm recording, backup video recording in event of a network
failure, log information
External HDD Normal recording, alarm recording, backup video recording in event of a network
failure, log information
Network
Image/video
compression
H.264/JPEG
Video size (H.264) (16:9) 1920×1080, 1280×720, 640×360, 320×180
(4:3) 1600×1200, 1280×960, 1024×768, 640×480, 320×240
Video size (JPEG) (16:9)1920×1080, 1280×720, 1024×576, 640×360
(4:3) 1600×1200, 1280×960, 1024×768, 800×600, 640×480, 320×240
Picture quality QUALITY mode: BASIC, NORMAL, ENHANCED, FINE, SUPER FINE
BITRATE mode: User-specified bit rate
Interface 10BASE-T/100BASE-TX
Protocol TCP/IP, UDP, HTTP, HTTPS, SMTP, NTP, DHCP, FTP, DDNS, RTP, RTSP, RTCP
Audio G.711 (Bidirectional)
Simultaneous access 20
Security BASIC authentication (ID/password), SSL, IP filtering
Power source
Operating ambient
temperature/humidity
–10 to +50°C/14 to 122°F
90% RH or less (no condensation)
Power source 24 VAC±10%, 50/60 Hz
Power consumption 29 W
Introductio
n
4
/
14

Weight Approx. 1.9 kg/67.0 oz.

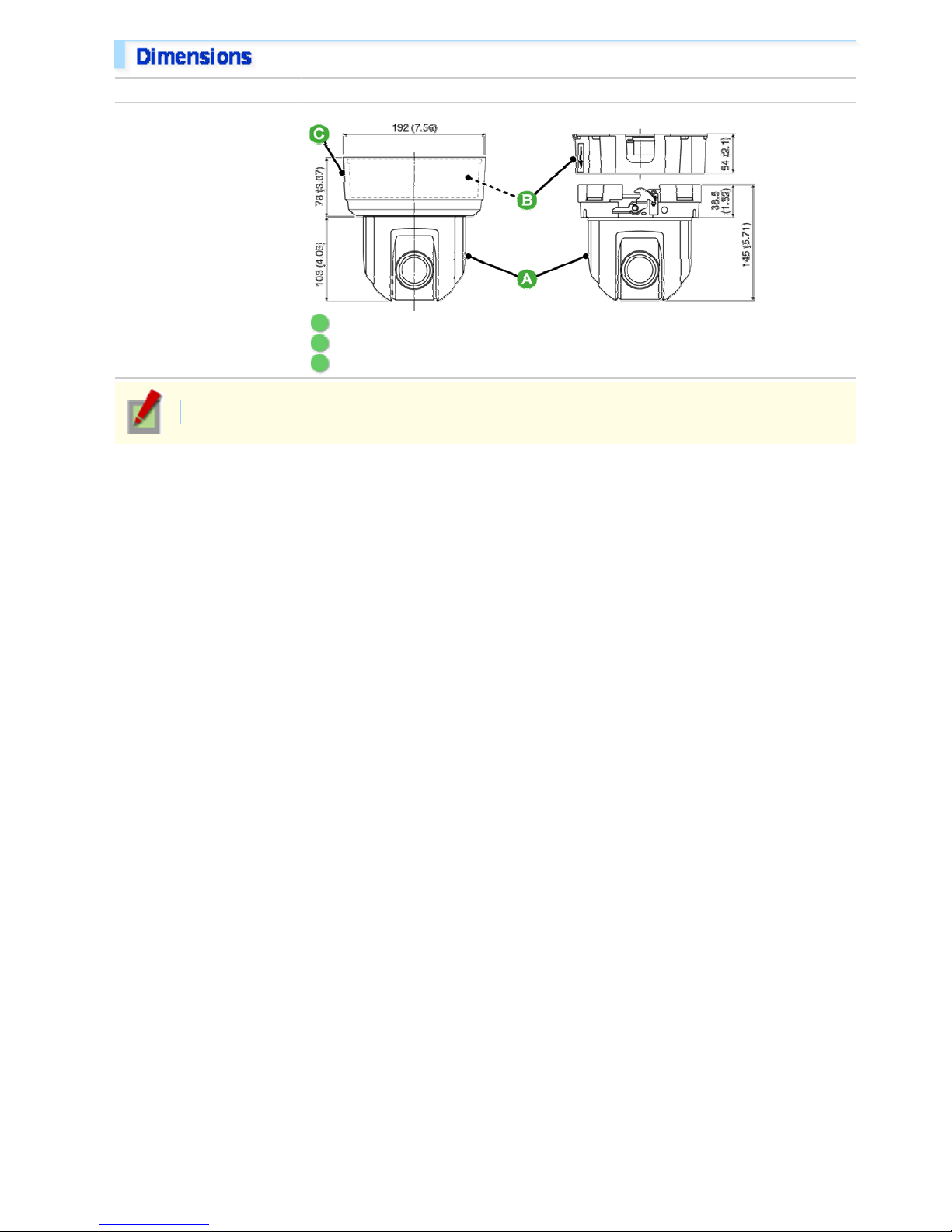

Dimensions Unit: mm (inch)
ACamera unit: approx. 1.3 kg/45.9 oz.
BPower unit: Approx. 450 g/15.9 oz.
CSurface cover: approx. 110 g/3.9 oz.
Appearance and specifications are subject to change without prior notice or obligations.
Introductio
n
5
/
14

This table is displayed using a browser-specific function and therefore not displayed on the PDF
manual.
Refer to the table “Target size and recording time” in the electronic manual.
This table is displayed using a browser-specific function and therefore not displayed on the PDF
manual.
Refer to the table “Target size and recording time” in the electronic manual.
Introductio
n
6
/
14

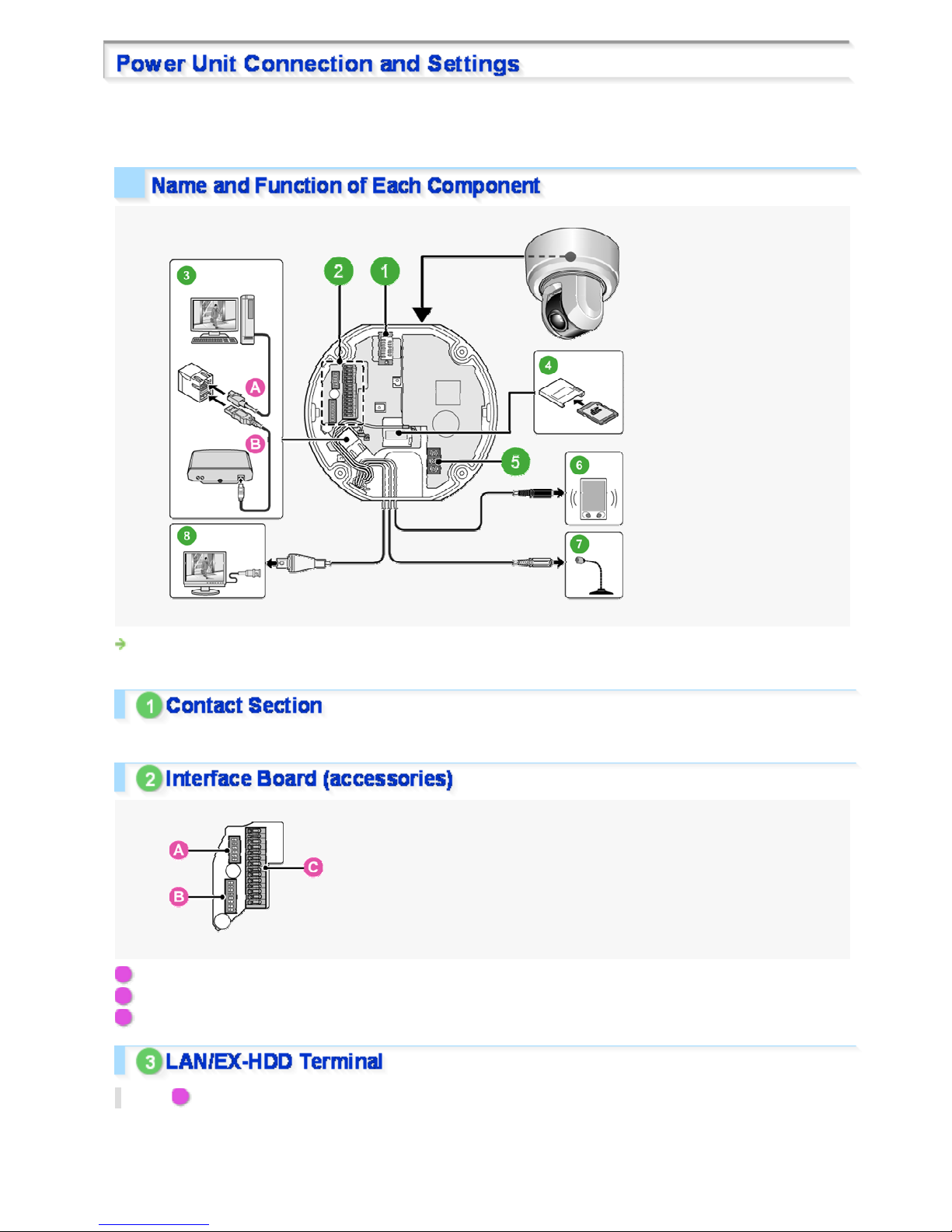

This device is composed of a camera unit, power unit (VA-94S) and surface cover (supplied).
When using this camera, connect and configure the power unit.
For details on terminal connections, recording media attachment and switch settings, etc., please refer to
“Connection” and “Control/Address Setting”.
This is the connection point between the camera unit and the power unit.
AControl switch (transmission rate and protocol setting, etc.)

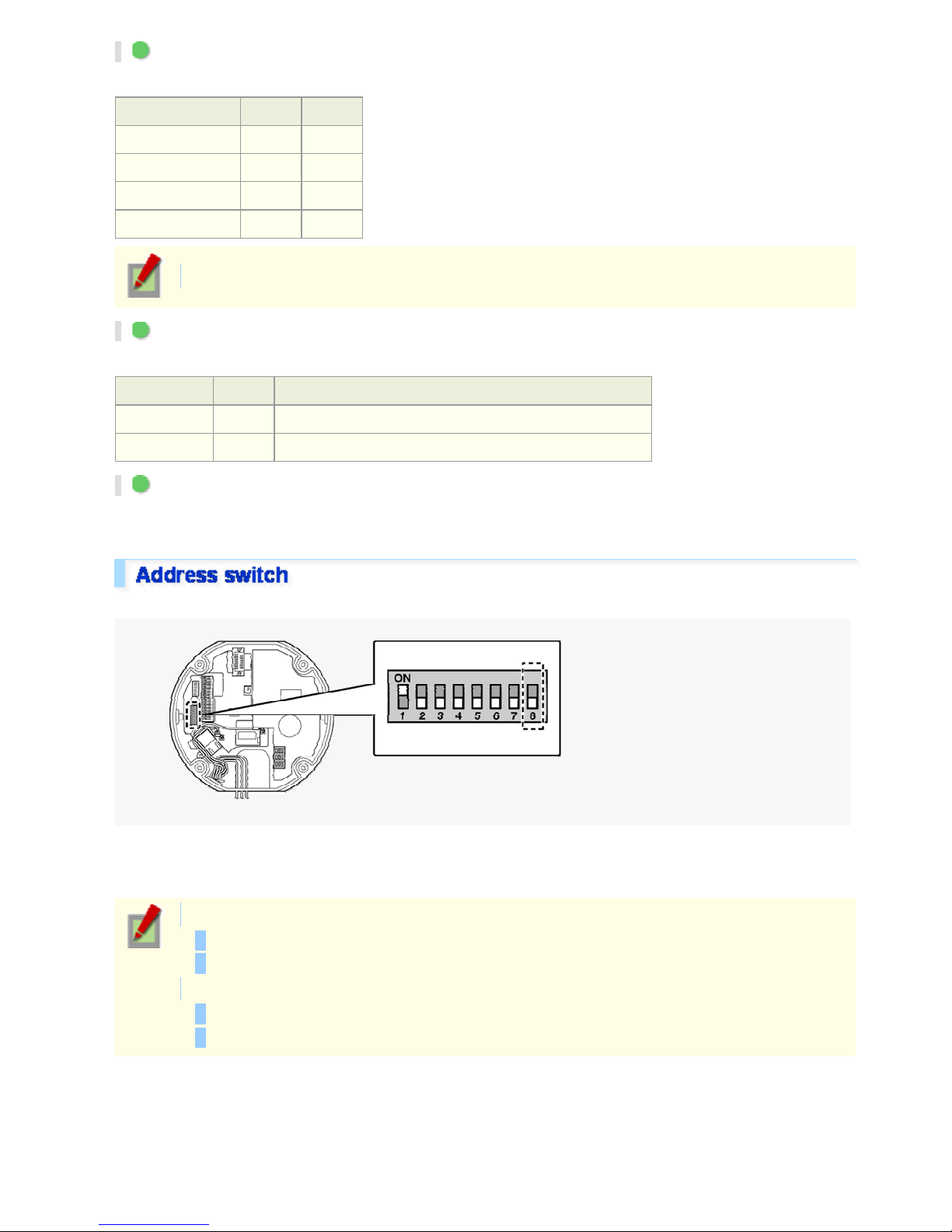

BAddress switch (camera control address setting)
CControl terminal (connection of controller and alarm input/output cable)
Top ( A): LAN terminal (RJ-45 type)
Use this socket to connect the camera to your PC to enable network operation.
Introductio
n
7
/
14

Bottom ( B): EX-HDD terminal (USB type)
When recording live video onto an external hard disk, put the hard disk in a dedicated hard disk case (VA-
HDC4000, sold separately) and then connect the case to the camera.
When recording live video onto an SD memory card, insert the card into the slot.
Connect this terminal to the power supply.
There is no power indicator on the camera.
Connect this jack via an audio cable to the audio input jack of an amplified speaker system or the monitor.
Use this jack to connect an external microphone to listen to the sound while monitoring the live video, or
simultaneously record the video and sound.
Connect this terminal to a monitor, etc. A live video will be displayed on the monitor once the camera is turned on.
By installing an HDMI option board (VA-HDB90, sold separately), the camera can be connected to a
high vision monitor.

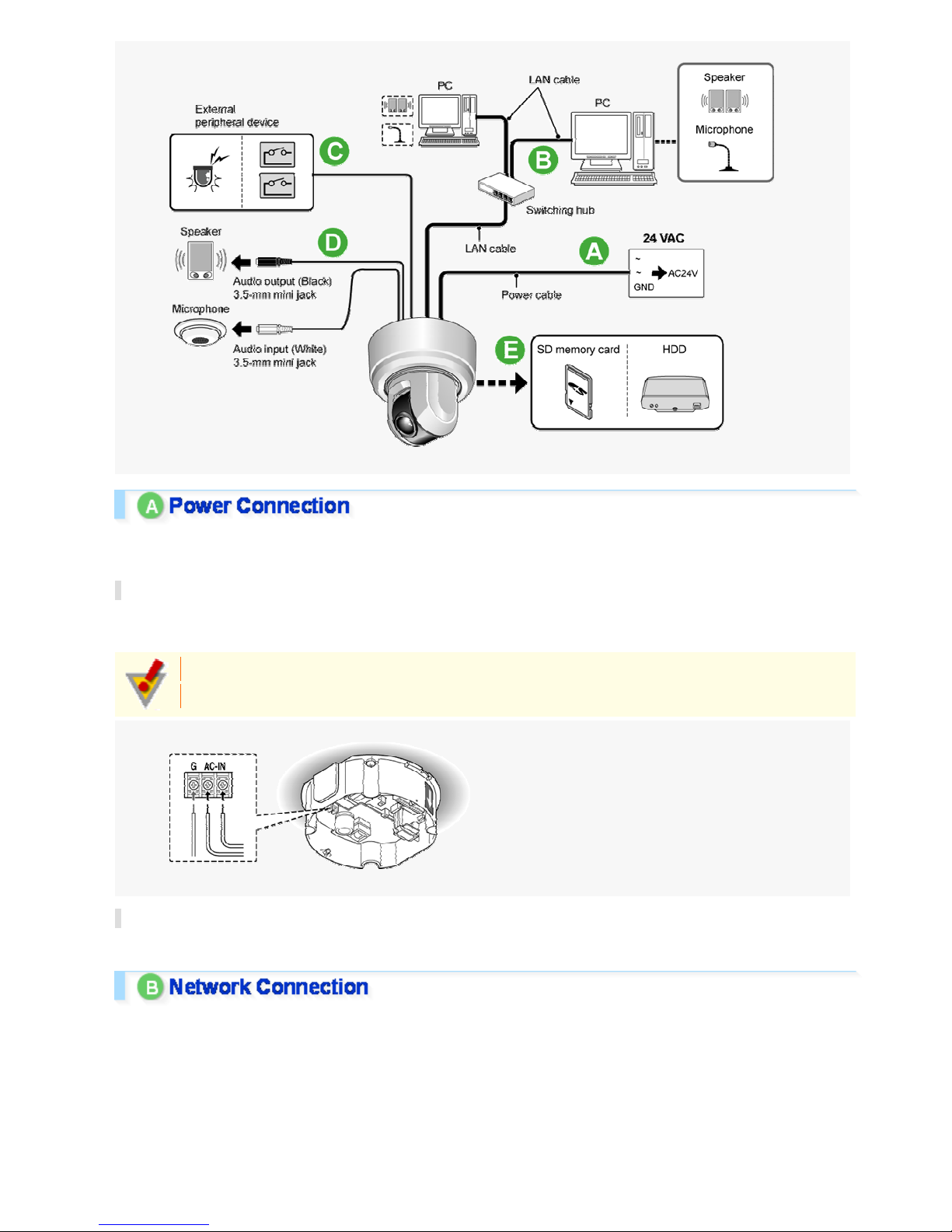

Perform the following connections according to the installation environment and application of your camera.
APower Connection
BNetwork Connection
CControl Terminal Connections
DAudio Jack Connection

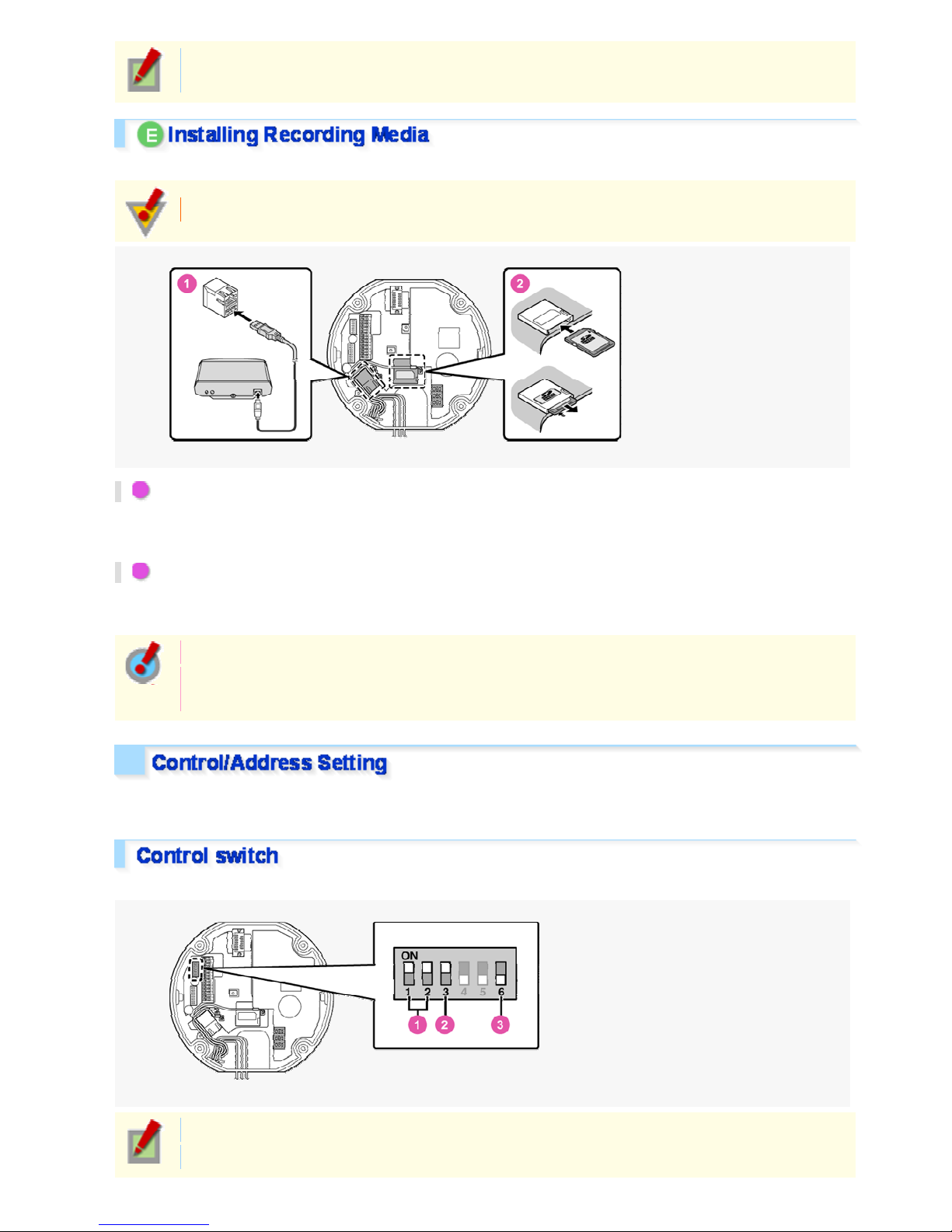

EInstalling Recording Media
Before attempting the following connections, be sure to turn off all components of your system.
Improper connection may cause smoke or failures. Before attempting to connect each system
component, carefully read the instruction manual that comes with it to familiarize yourself with the
correct connection procedure.
Introductio
n
8
/
14

There are two types of power unit, i.e. 24 VAC and 230 VAC. Before using, always make sure of the purchased
model number and arrange the wiring correctly.
24 VAC Type
Connect the power cable to the power terminal. Although the power terminals have no polarity, the earth
grounding wire must be connected to the GND (earth grounding) terminal.
To prevent a fire hazard use any UL listed wire rated VW-1.
Be sure to use an 18AWG or thicker wire power cable.
230 VAC Type
Please refer to the instruction manual that came with the product.

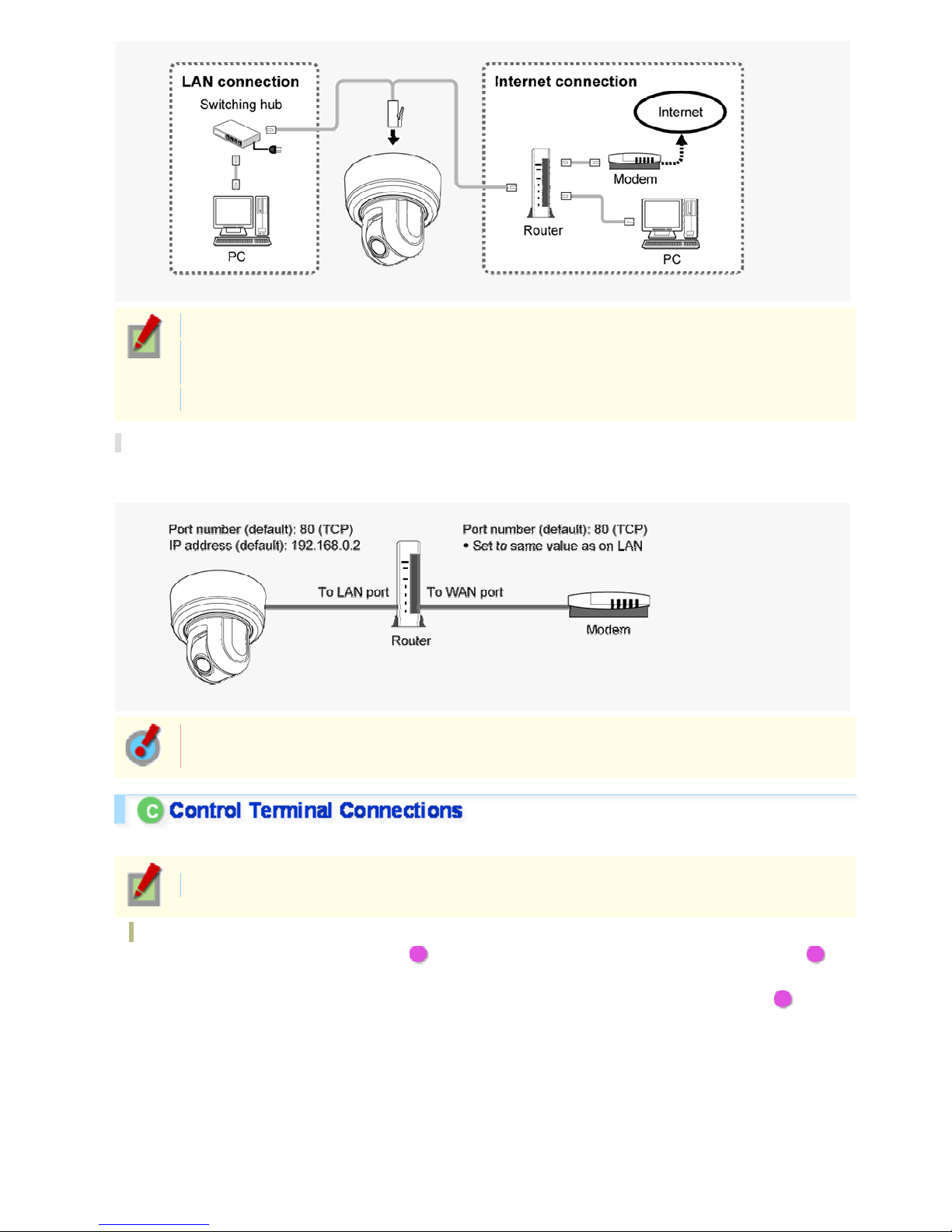

This camera is designed so that you can use all of its functions via network operation.
By connecting the network (LAN) socket of the camera to your PC using a LAN cable, you can configure and
operate it from the Web browser installed on your PC.
Introductio
n
9
/
14

Use a LAN cable no longer than 100 m (109.4 yards) with the shield type CAT5 or higher.
Use a straight-type cable if connecting to LAN, and use a cross-type cable if directly connecting the
camera to a PC.
The supported Web browser is Internet Explorer Ver.6.0 SP2 or higher, or Internet Explorer Ver.7.0.
About the internet connection
Port forwarding for the video port must be enabled on the broadband router.
For details on how to set port forwarding, please refer to your router's Instruction manual.
To connect two or more cameras, on the NETWORK SETTINGS screen, assign them with port
numbers that are different from that of the first camera.
Connect the alarm input/output cable and controller to the control terminal of the interface board.
Use a thicker cable than 24AWG for connection. (Maximum length 600 m)
Installing and removing the interface board
To place the board back, align the hole ( A) at the right corner of the board to the protruding portion ( B)
and securely fix the board by depressing it.
To connect alarm or other cables to the interface board, take out the board by pulling the portion C.
Introductio
n
10
/
14

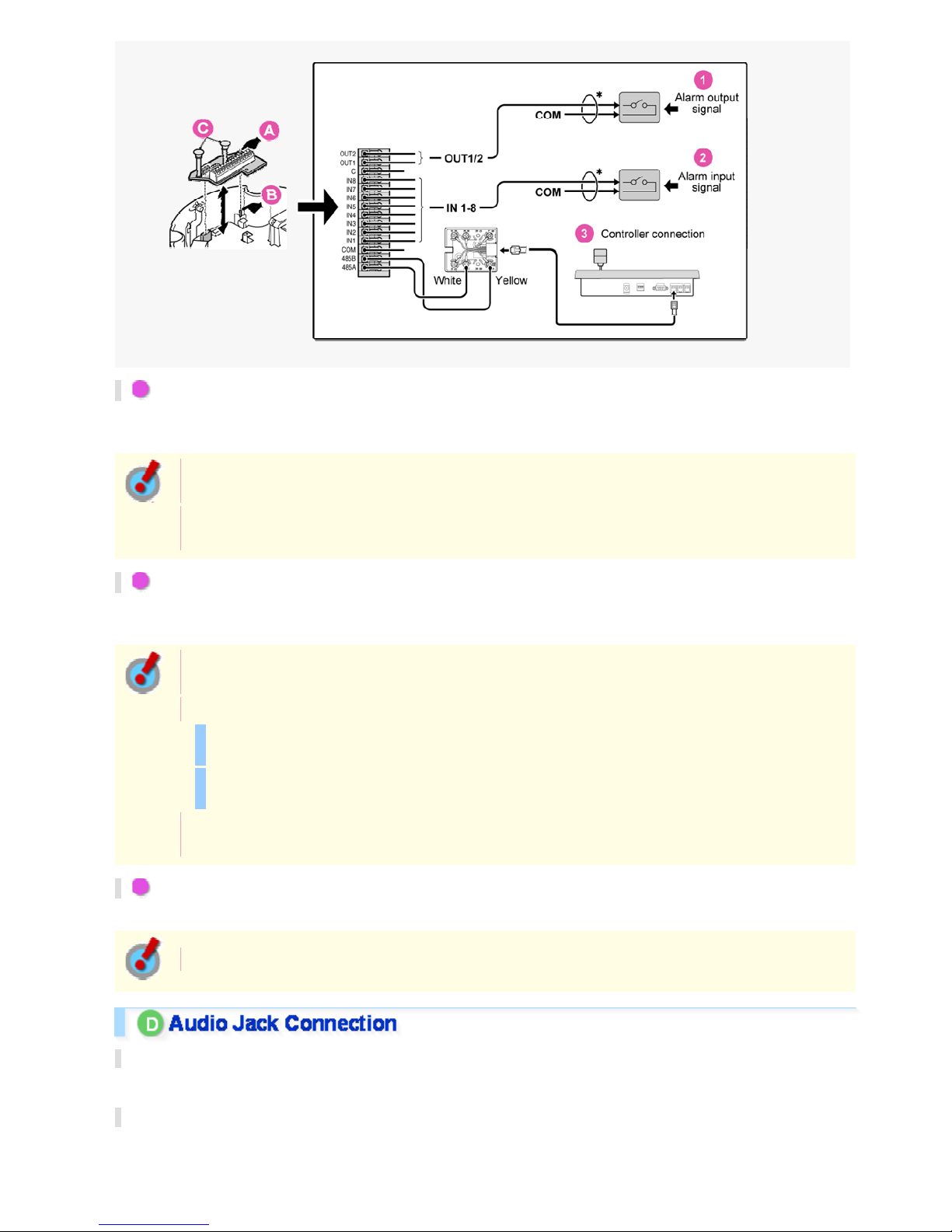

1Outputting Alarm Signals (OUT 1-2)
Connect a buzzer, lamp, or other alarm device to the alarm output cable.
Alarm can be output via two channels.
After connecting an alarm device, configure the output conditions for the corresponding alarm output
terminal (ALARM OUT1 or 2) via network operation on the ALARM SETTINGS screen.
Configuration of alarm output terminal is also possible via remote operation. For that, set [ALARM
OUT] to “REMOTE” on the ALARM SETTINGS screen.
2Inputting Alarm Signals (IN 1-8)
Connect an alarm switch, infrared sensor, or other device to detect alarm conditions to the alarm input cable.
Alarm can be input via eight channels.
After connecting an alarm device, configure the input conditions for the corresponding alarm input
terminal (ALARM IN1 or 2) via network operation on the ALARM SETTINGS screen.
When using the alarm input terminal for day/night switching, configure the following settings.
Under [DAY/NIGHT], set [DAY/NIGHT] to “COLOR” and select the terminal you want to use in
[EXT ALARM].
On the ALARM SETTINGS screen, in [POLARITY], select the signal polarity of the alarm input
terminal.
Connecting an external switch to ALARM IN1 allows you to set the system clock by operating the
switch. To set the system clock, configure the [CLOCK IN] setting on the CLOCK SETTINGS screen.
3Connecting the Controller (485A/485B)
By connecting a system controller (sold separately), the camera can be controlled remotely.
Configure the protocol, baud rate and address. (Refer to “Control/Address Settings”).
AUDIO OUT Jack (Black)
Connect this jack via an audio cable to the audio input jack of an amplified speaker system or the monitor.
AUDIO IN Jack (White)
Use this jack to connect an external microphone to listen to the sound while monitoring the live video, or
simultaneously record the video and sound.
Introductio
n
11
/
14

This jack supports 3.5-mm diameter monaural microphone plugs, or monaural line-level input plugs
(the left channel only for stereo plugs).
When recording live video on the camera, install an SD memory card or external hard disk on the camera.
Always turn the power off when installing a recording medium.
1Connecting an External Hard Disk
Put the hard disk in a dedicated hard disk case (VA-HDC4000, sold separately) and then connect the case to the
camera.
2Inserting an SD Memory Card
Insert the SD card into the slot until it is locked with a clicking sound.
Push the SD card a bit further into the slot to eject it.
When you insert a new recording medium, format it on the SD/HDD screen.
When you remove the recording medium, first set [SD MEMORY CARD]/[HDD] on the SD/HDD
screen to “NO USE”.
When you connect the camera to a controller, it is necessary to configure the interface board control switch and
address switch.
This is used to configure transmission rate and protocol, etc.
Switches 4 and 5 are not used.
Settings in bold typeface in the table below show the factory default configurations.
Introductio
n
12
/
14

1Baud Rate
Configure the transmission rate of connected devices to the transmission rate of the camera.
Transmission Rate Switch 1 Switch 2
2400 OFF OFF
4800 ON OFF
9600 OFF ON
19200 ON ON
When protocol is set to “PELCO”, set to 2400.
2Protocol
Select the protocol for controlling the camera.
Protocol Switch 3 Corresponding Protocol
SSP (SANYO) OFF Automatic switching between Sanyo SSP and high speed SSP
PELCO ON Automatic switching between PELCO-D and PELCO-P
3Terminator
When you connect multiple cameras, set the terminator setting (Switch 6) of the final device to “ON” and all other
devices to “OFF”.
When you connect multiple cameras, allocate a unique RS485 protocol address (camera number) to each camera.
Configure the address by setting the dip switches to “ON” and “OFF”.
Configure the switches according to the List of Address Configuration Switches shown below. Circles in the list
indicate “ON”.
When protocol is “SSP (SANYO)”:
Configurable addresses: 1 to 127
Switch 8 is configured to “OFF”.
When protocol is “PELCO”:
Configurable addresses: 1 to 255
To configure the address to a number between 128 and 255, set the switch 8 to “ON”.
Introductio
n
13
/
14

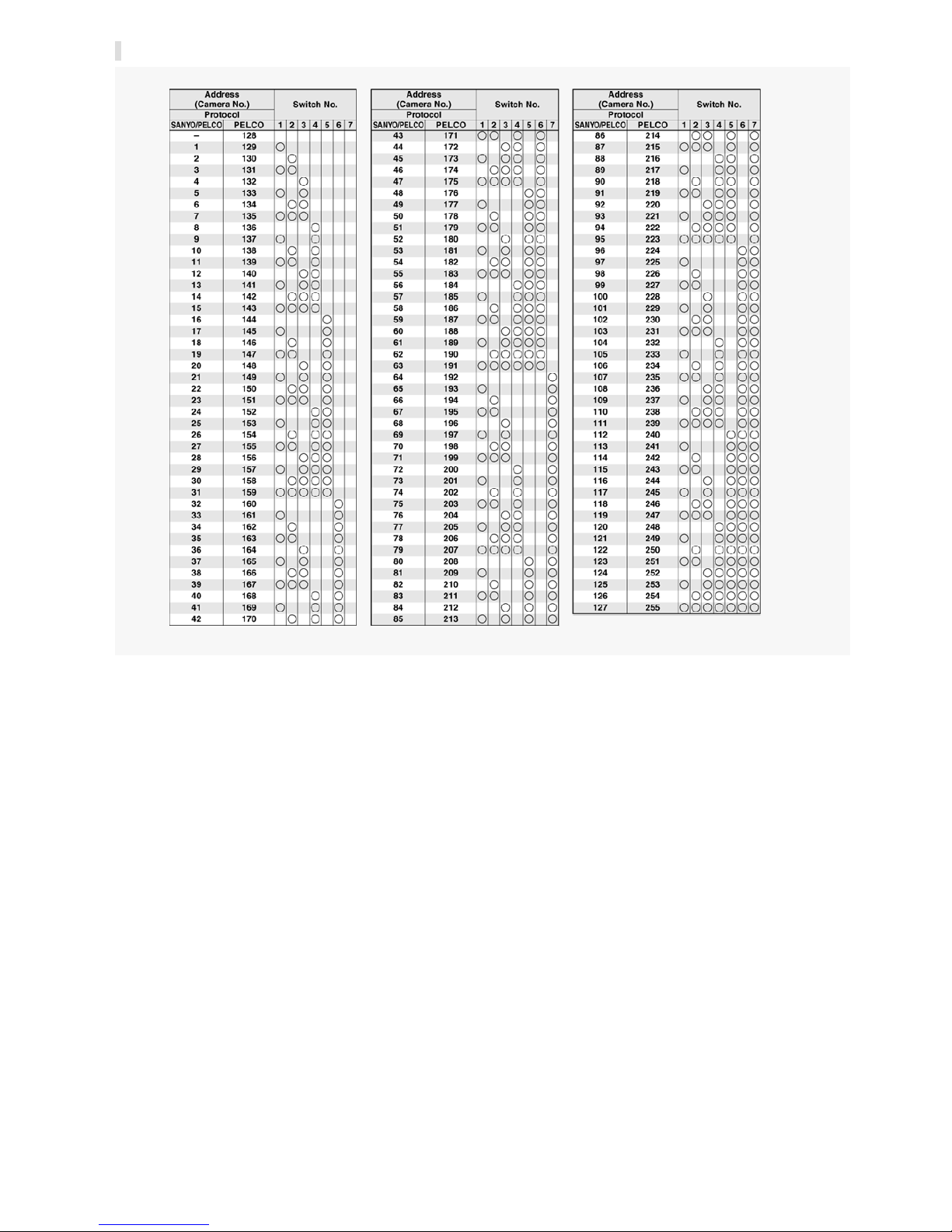

List of Address Configuration Switches
Introductio
n
14
/
14

VCC-HD5600/HD5600P series
Preparing Your Computer for Network Operation
Setting Up IP Addresses Automatically (Auto IP Setup)
Check your operating environment
Configue the network information on your PC
Operation Privileges and Login Users
B
efore You Be
g
in Network O
p
eratio
n
1
/
13

Follow the steps below to prepare your computer for network operation. For detailed procedure, refer to the linked
information.
1Connect and configure the power unit and then attach it to the camera unit.
2Assign a unique IP address to each camera.
If you have newly installed two or more cameras on your network, you can accomplish this by using the supplied
“Auto IP Setup” software.
3Check your operating environment
4Connect the camera to the network to which your PC is also connected.
5Configue the network information on your PC
You need to configure information such as the IP address of your PC.
6Install the “H.264 Plug-in” from the supplied CD-ROM onto your PC.
You are now ready to monitor the surveillance video in the H.264 format.
7Access the camera from your Web browser.
From your Web browser (Internet Explorer), access the camera and log into the system as an “admin” user
(administrator).
When you log in, you can select the display language on the network operation screens.
8Monitor live video.
When you access the camera and log into the system, live video from the camera appears on the live screen.
If the live screen displays no or distorted video, check your operating environment and connection
conditions.
9Configure the necessary settings on the administrator configuration screens.
Although the camera is already configured with the factory default settings so that you can monitor live video
immediately after you log into the system, you need to configure necessary settings according to your installation
environment and application of the camera.
If this is the first access to the camera, start by configuring the system clock on the CLOCK
SETTINGS screen.
10 Use associated software applications to extend the capabilities of your surveillance
system.
Install the following associated software applications on your PC, as required:
Downloader (supplied): Downloader application for downloading video data recorded with the camera to
your PC.
DLViewer (supplied): Player application for playing back downloaded video data.
VA-SW3050Lite (supplied): Monitor application for monitoring video images from more than one camera
simultaneously on a multi-view screen.
VA-SW3050Server/Client (optional): Recorder/player application for recording and playing back streaming
video data from the network.
B
efore You Be
g
in Network O
p
eratio
n
2
/
13

If you are installing two or more new cameras on the same local network, you need to change the factory default
IP address of each camera to prevent IP address overlap. The supplied “Auto IP Setup” software frees you from
this burden by automatically assigning a unique IP address to each camera on your network.

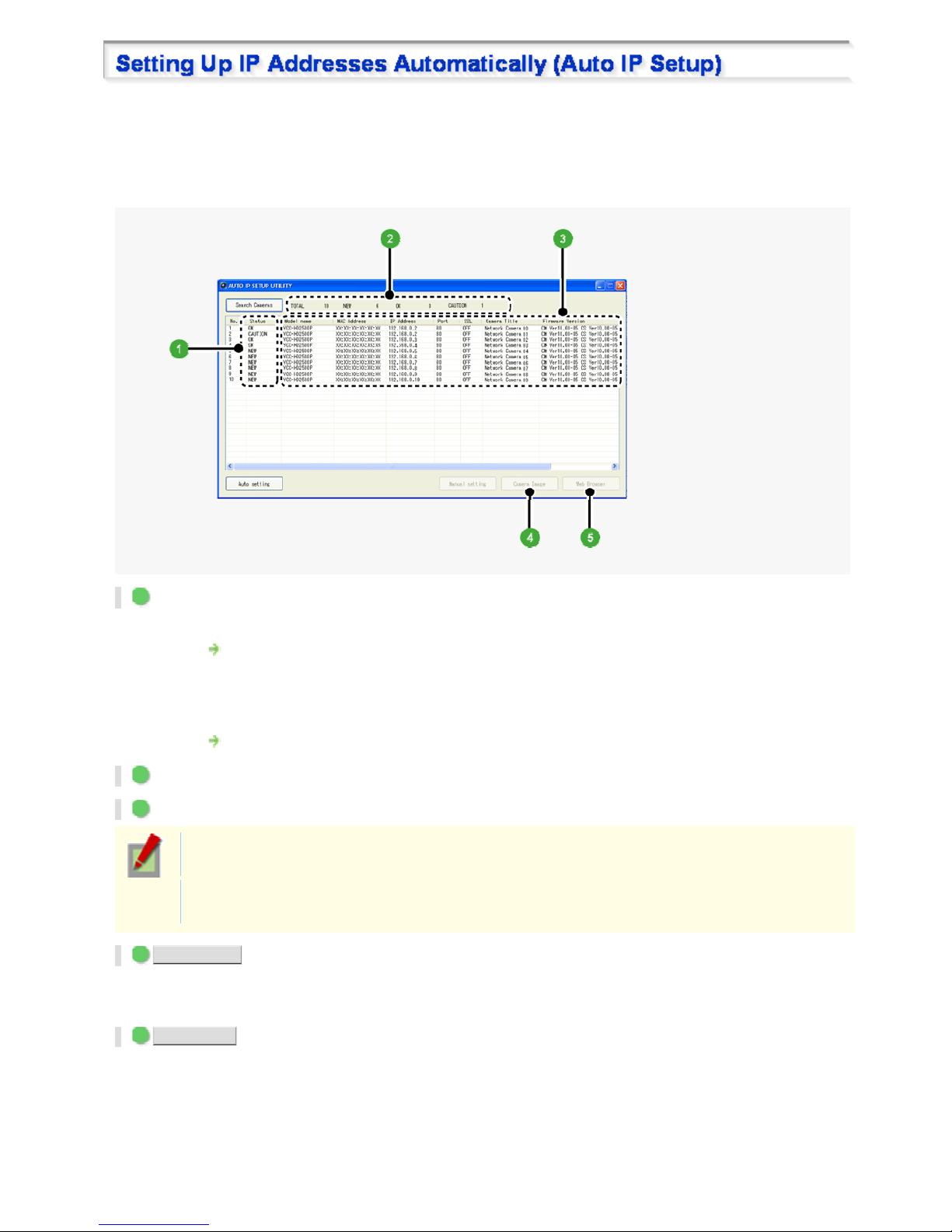

Before setting up the IP addresses automatically, click the [Search Cameras] button in the utility window to search
all cameras on the network and display the address settings and details of each camera.
1Status
NEW: The camera has the default IP address (“192.168.0.2”).
Assign a unique IP address.
OK: The camera has a unique IP address and can be connected successfully to network.
CAUTION: The camera cannot be connected successfully to the network because of IP address overlap or
other reason.
Change the IP address.
2Number of searched cameras (Total and by status)
3Camera details
“Model name”, “IP Address”, “Port”, “SSL”, “Camera Title”, and “Firmware Version” are not shown if
the network board or other hardware is not supported.
“IP Address”, “Port”, “SSL”, and “Camera Title” are editable. (Refer to the “Manually Setting Up IP
Addresses of Existing Cameras” section.)
4Camera Image button
Select the desired camera row and click this button. Then, video from the camera appears in a separate window.
Use it to check which camera is selected or when editing the camera title or other data.
5Web Browser button
Select the desired camera row and click this button. Then, the Web browser opens and connects to the camera
automatically.
B
efore You Be
g
in Network O
p
eratio
n
3
/
13

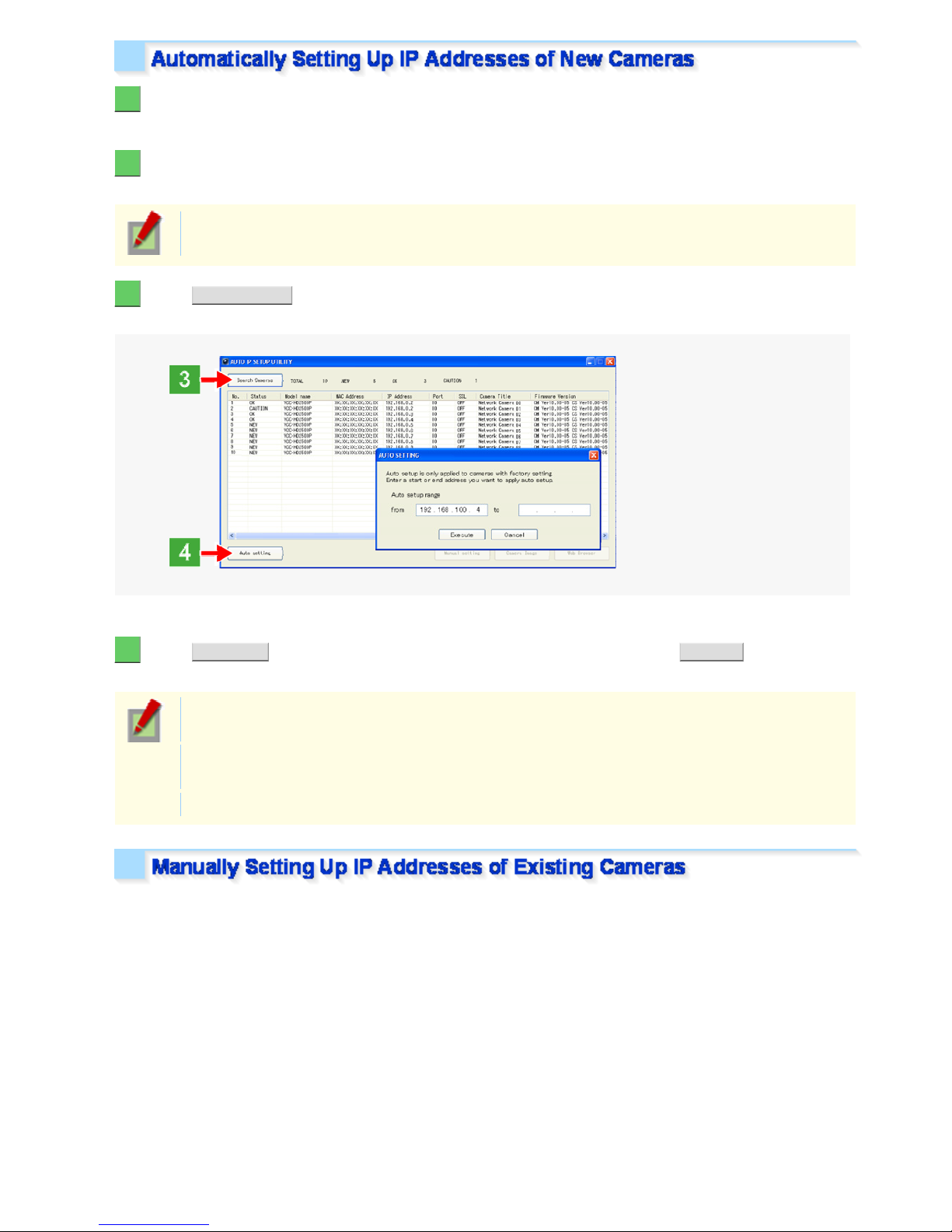

1Insert the supplied CD-ROM into the CD-ROM drive of your PC.
The opening menu appears.
2Click [Auto IP Setup].
The utility window opens so that you can search cameras.
If you encounter a firewall confirmation dialog box, disable the firewall so that your PC can
communicate with the camera.
3Click Search Cameras .
The utility searches all cameras on the local network and shows information on each camera one after another.
The above screenshot shows an example when your PC is connected to 10 cameras.
4Click Auto setting and, in the address range selection dialog box, click EXECUTE .
The utility automatically assigns a series of new IP addresses, starting from the start address.
The “default gateway address of PC + 1” is initially displayed as the start address.
To specify your own address range, type both the start and end IP addresses.
The utility automatically assigns an IP address to each camera located in the LAN, but not beyond
the router.
It skips any IP address that is already used.
If you find that the searched cameras have overlapping IP addresses (indicated by a status of “CAUTION”) or if
you need to change a camera title, you can edit the displayed camera data manually as described below.
B
efore You Be
g
in Network O
p
eratio
n
4
/
13

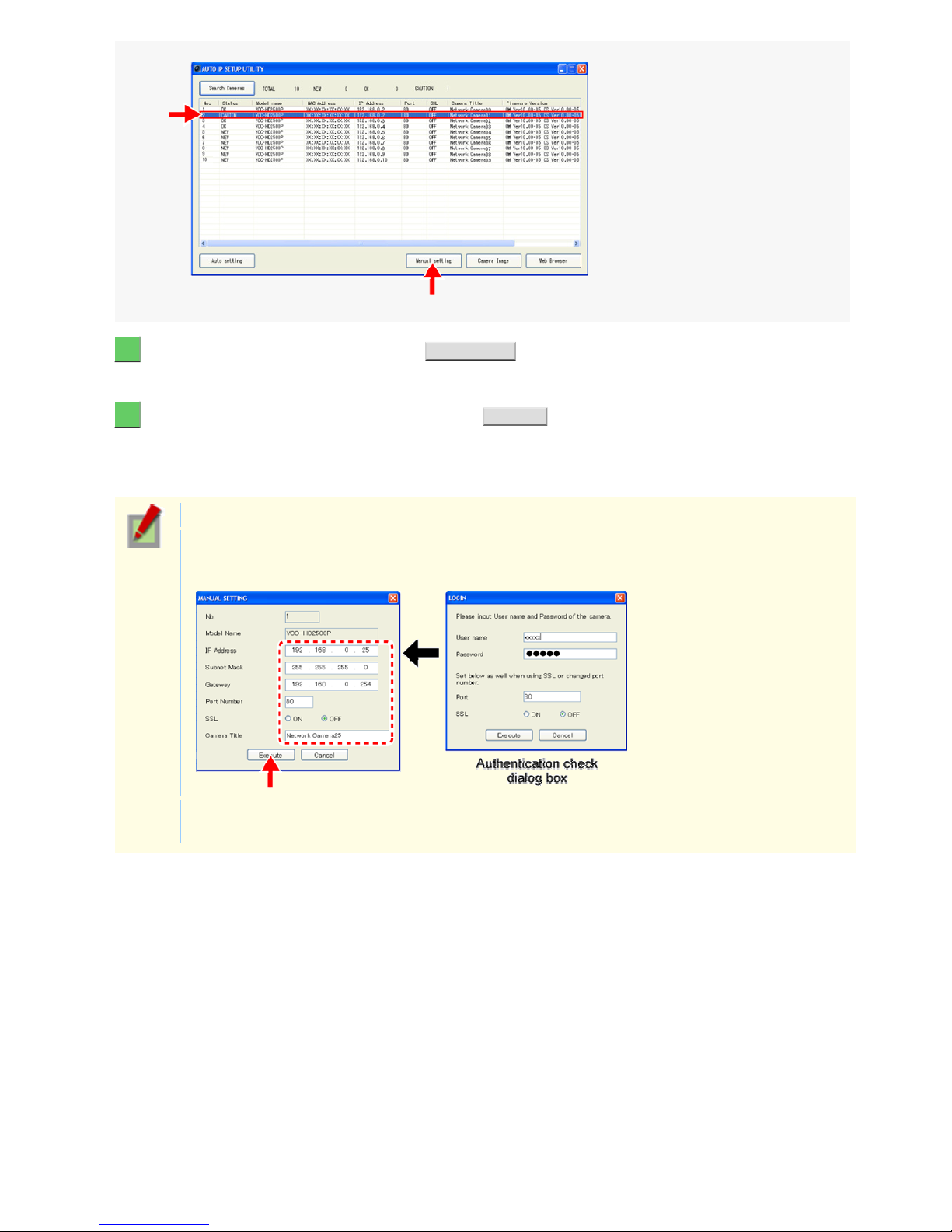

1Select the desired camera and click Manual setting .
The camera information dialog box opens.
2Make changes to the camera data and click EXECUTE .
This transmits your changes to the camera.
You can see the problem of IP address overlap has been resolved in the [Status] row of the list, which has been
changed from “CAUTION” to “OK”.
You cannot change the model name.
If your login user name and password has been changed from the factory default settings, you will be
presented with an authentication check dialog box. In this case, type the current user name and
password.
If SSL communication is enabled for the selected camera, you cannot edit the camera data. Change
the SSL and port number settings in the authentication check dialog box.
B
efore You Be
g
in Network O
p
eratio
n
5
/
13

To operate the camera via network operation, you must meet the following operating requirements.
PC: IBM PC/AT compatible
Operating system: Windows XP Professional/Windows Vista
CPU: Core2Duo E6700 2.66 GHz or higher
Memory: Windows XP: 1GB or more
Windows Vista: 2GB or more
Network interface: 10BASE-T/100BASE-TX (RJ-45 connector)
Display card: 1920×1200 pixels or higher
Graphics chip: ATI RADEON HD2600 series or higher
nVIDIA GeForce 8600 series or higher
nVIDIA Quadro FX550 series or higher
Web browser: Internet Explorer Ver. 6.0 SP2 or higher, or Internet Explorer Ver. 7.0
Use a LAN cable no longer than 100 m (109.4 yards) with the shield type CAT5 or higher.
The live video may be delayed depending on your system environment.
Use Windows Update to keep the operating system and browser up-to-date.
Note, however, that Internet Explorer 8 is not supported.
In the cases below, configure the Internet Explorer's settings by clicking [Tool] and then [Internet Options].
When accessing the camera using SSL encryption for video signal transmission
1Click the [Advanced] tab.
2Make sure that the [Use SSL 2.0] and [Use SSL 3.0] check boxes under [Security] are selected. If
deselected, select them.
When the video refresh is unstable
1Click the [General] tab.
2Under [Temporary Internet Files], click [Settings].
For Windows Vista, click [Settings] under [Browsing history].
3Set the slider under [Amount of disk space to use:] to a low value (the minimum value recommended by
Microsoft).
When a Java Script “Runtime Error” is displayed during operation
1Click the [Advanced] tab.
2Under [Browsing], deselect the [Display a notification about every script error] check box.
3Select the [Disable script debugging] check box.
B
efore You Be
g
in Network O
p
eratio
n
6
/
13
