Sanyo DC-DA1200M (XE-2); DC-DA1250M (SP-2) User manual
Service Manual
FILE NO.
Micro Component System
DC-DA1200M
(XE-2)
DC-DA1250M
(SP-2)
PRODUCT CODE No.
129 694 13 (XE-2)
129 694 16 (SP-2)
REFERENCE No. SM5810658
Laser beam safety precaution .......................................... 1
Tape adjustments ............................................................ 1
Tuner adjustments ........................................................... 2
CD pick-up maintenance .................................................. 2
Exploded view .................................................................. 3
Parts list ........................................................................... 4

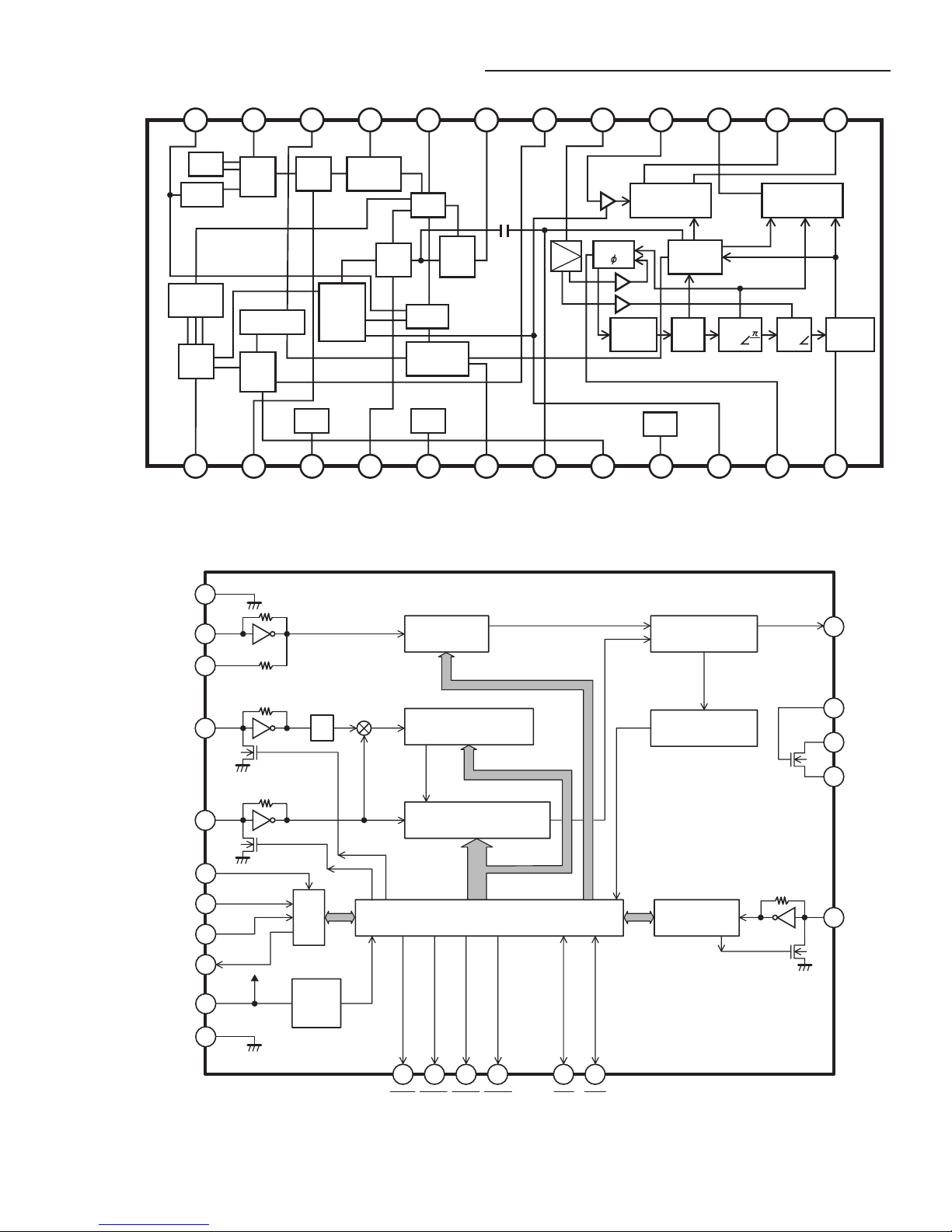

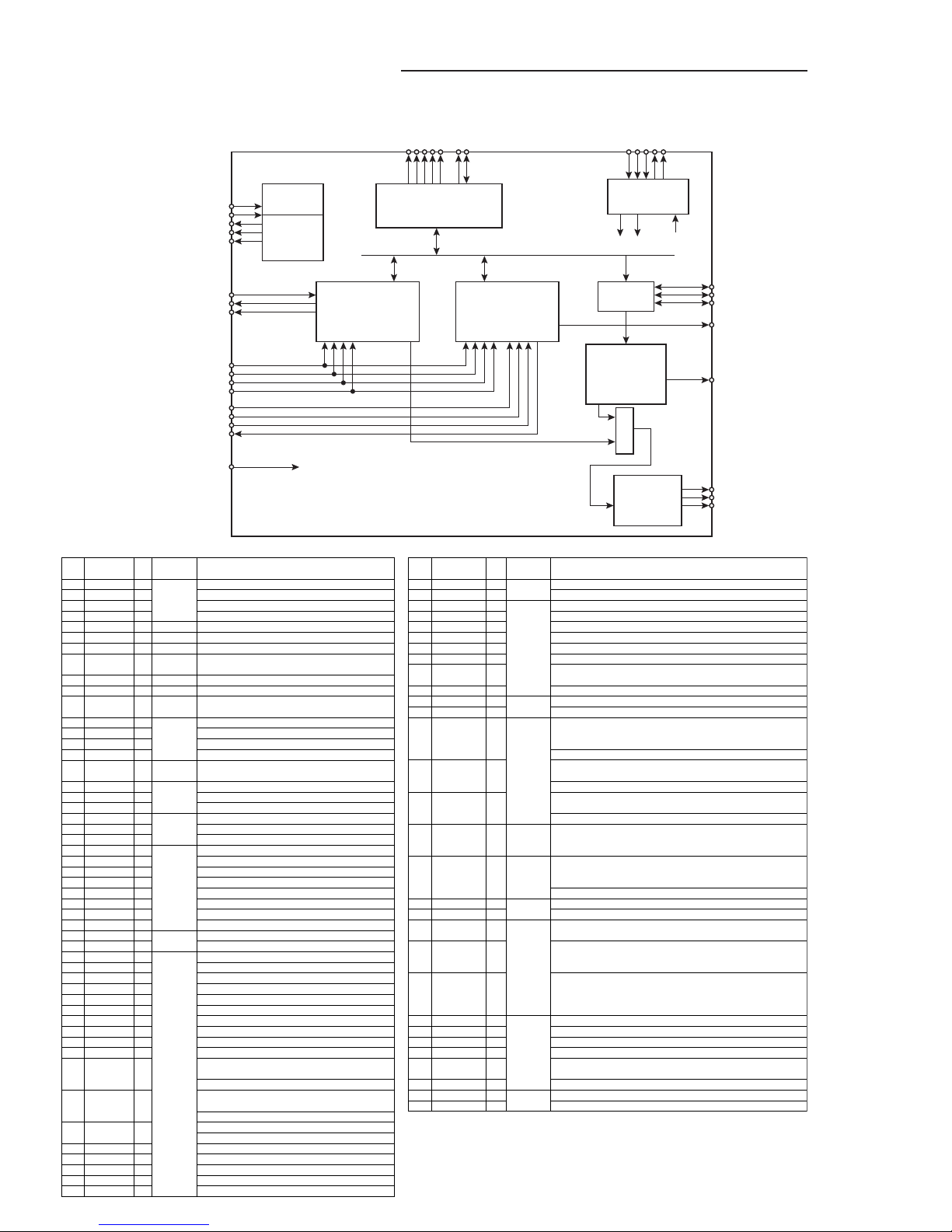

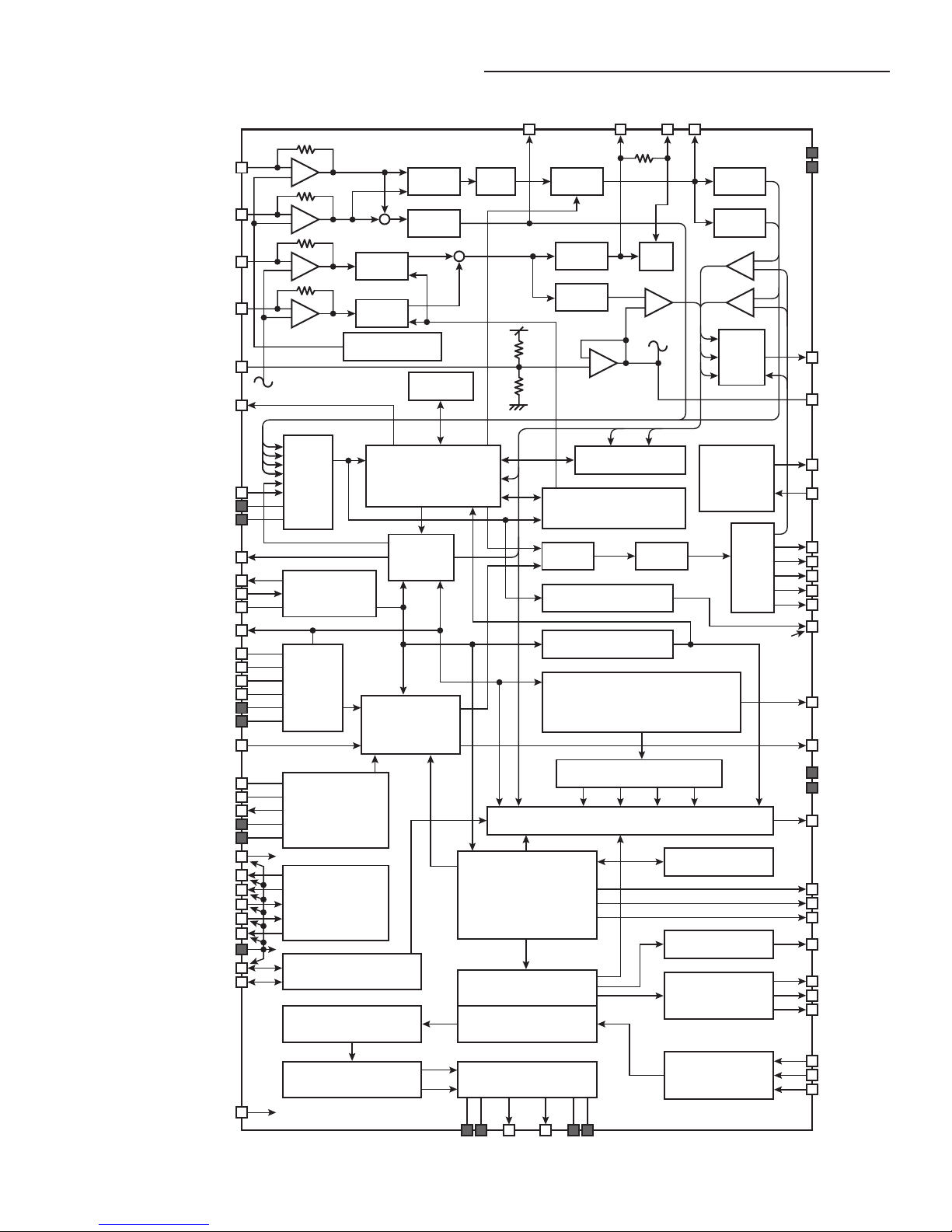

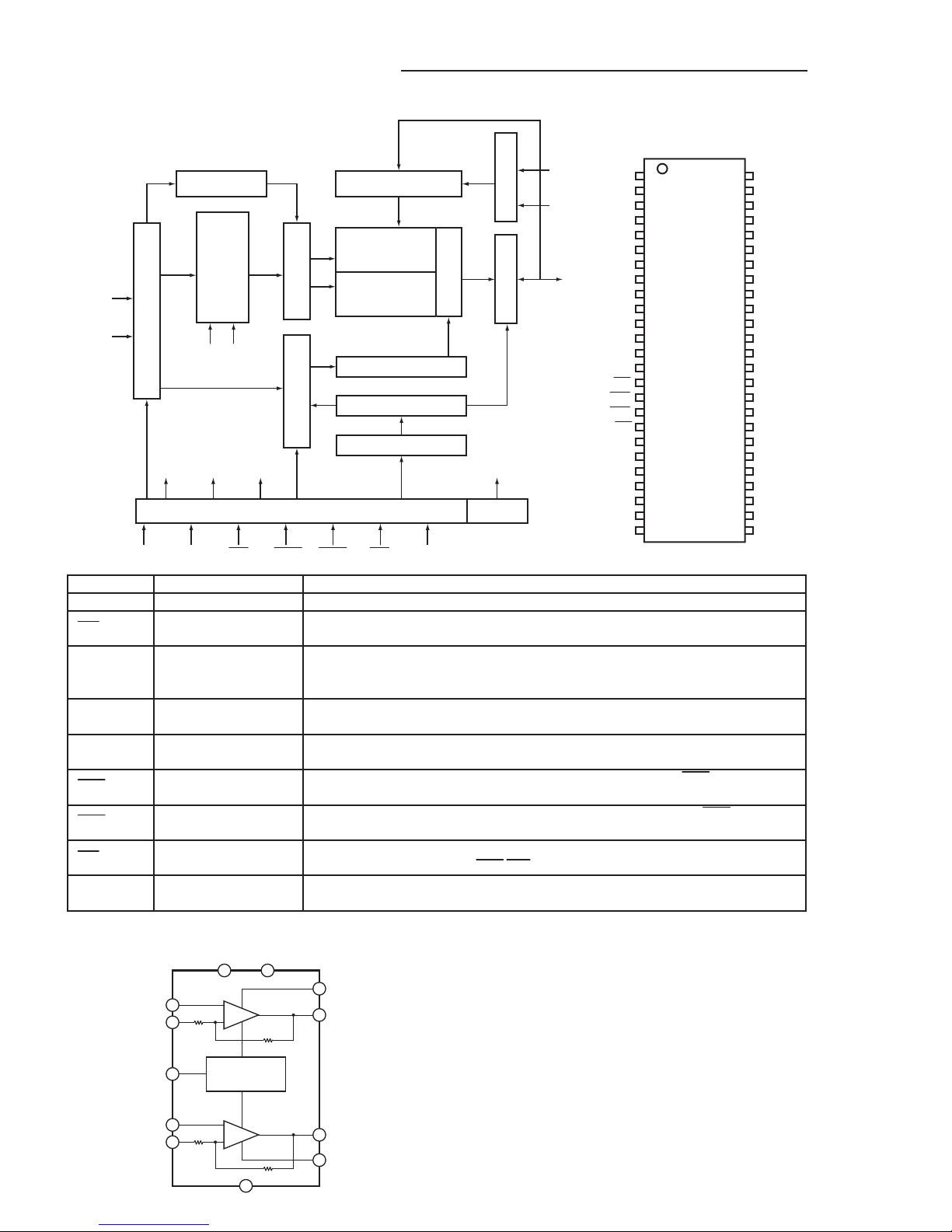

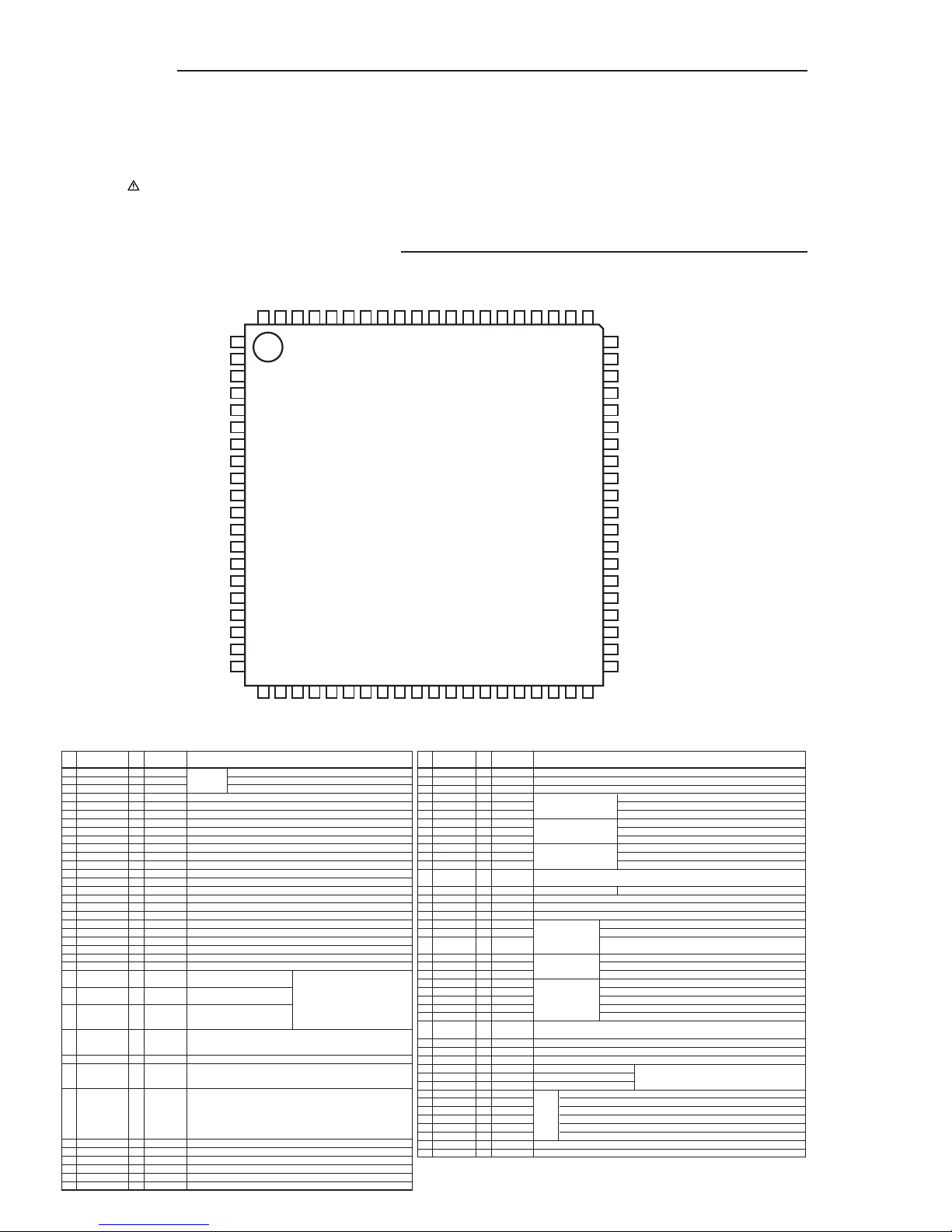

IC block diagram & description ........................................ 7

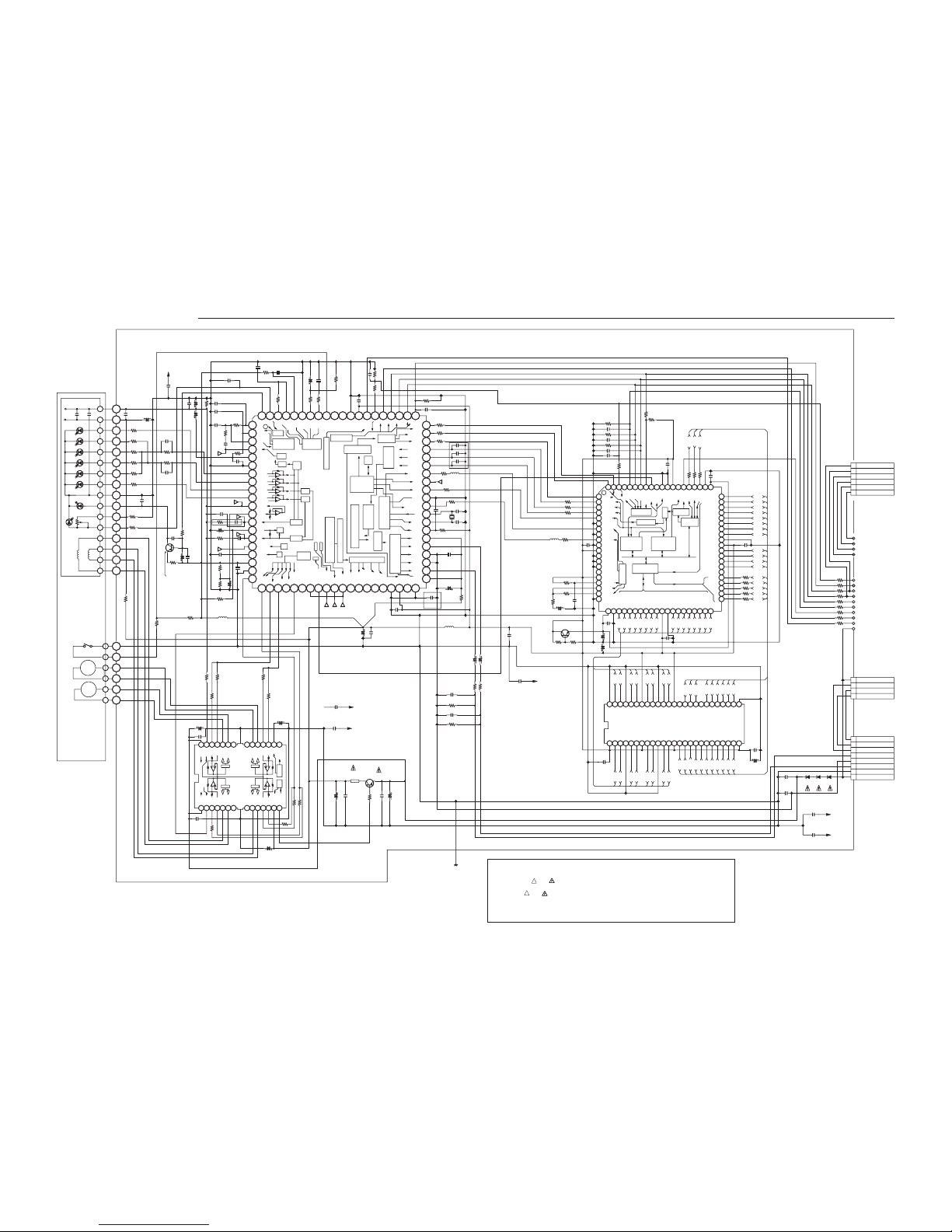

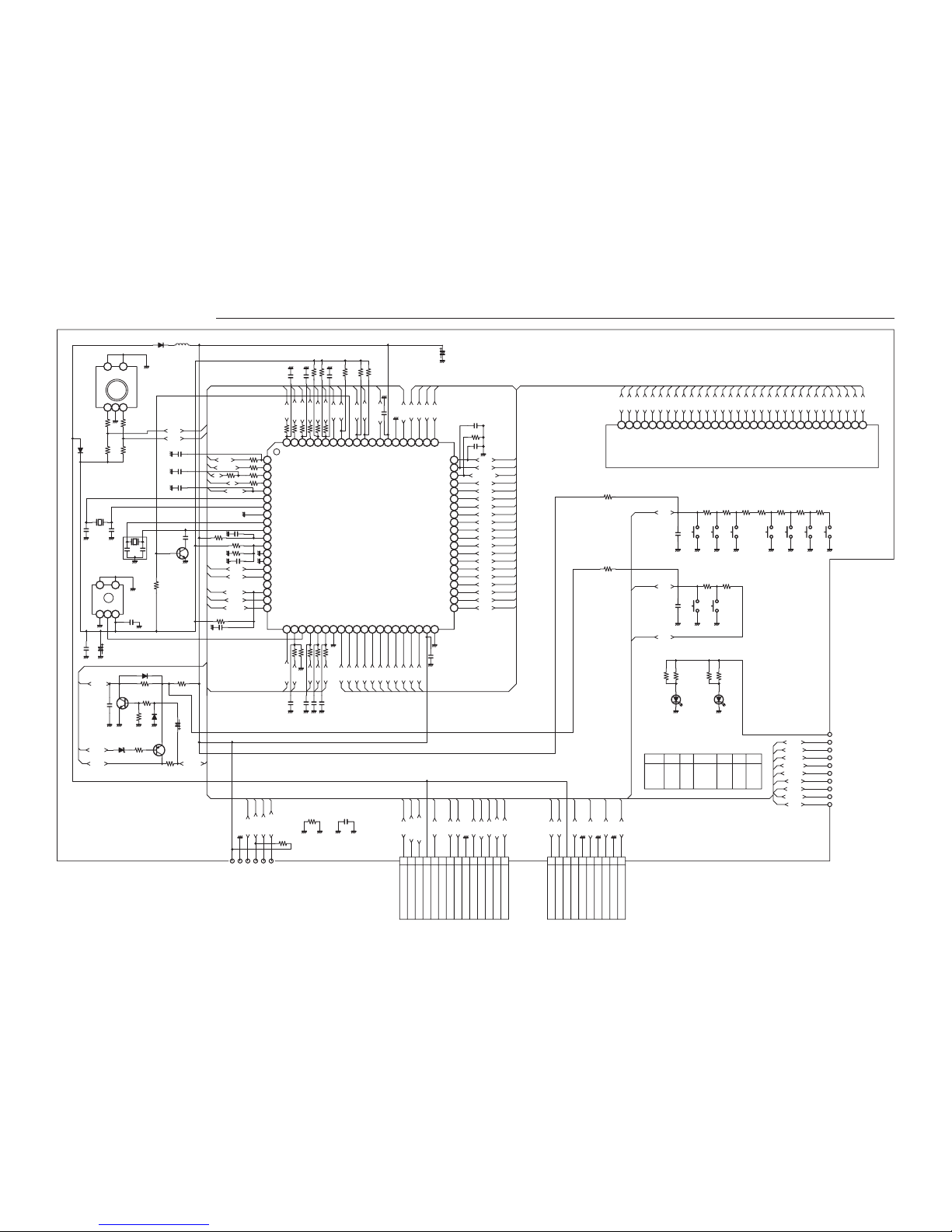

Schematic diagram
(FRONT) ...................................................................... 14
(CD) ............................................................................. 16
(TUNER) ...................................................................... 20
(AMPLIFIER) ............................................................... 24
Wiring diagram
(FRONT & CD) ............................................................ 18
(KEY) ........................................................................... 19
(TUNER) ...................................................................... 22
(AMPLIFIER) ............................................................... 26
(POWER TRANSFORMER) ........................................ 28
Wiring connection ............................................................ 29
Contents
This service manual consists of
For XE-2 ; "DC-DA1200MU/XE-2" (Main unit : 129 693 13) and " SX-DA1200M/XE" (Speaker system: 165 104 04)
For SP-2 ; "DC-DA1250MU/SP-2" (Main unit : 129 693 16) and " SX-DA1250M/SP" (Speaker system: 165 045 15)
(XE)
(SP)
- 1 -
LASER BEAM SAFETY PRECAUTION
• Pick-up that emits a laser beam is used in this CD player section.
CAUTION :
THIS PRODUCT CONTAINS A LOW POWER LASER DEVICE,
TO ENSURE CONTINUED SAFETY DO NOT REMOVE ANY
COVERS OR ATTEMPT TO GAIN ACCESS TO THE INSIDE
OF THE PRODUCT.
REFER ALL SERVICING TO QUALIFIED PERSONNEL.
LASER OUTPUT .............. 0.6 mW Max. (CW)
WAVELENGTH .................. 790 nm
TAPE ADJUSTMENTS
b. Adjusting head azimuth
1. Load a test tape (VTT-738, etc. :10kHz) for
azimuth adjustment.
2. Press the PLAY button.
3. Use a cross-tip screwdriver to turn the screw for
normal azimuth adjustment so that the left and right
outputs are maximized at the same phase during
normal playback.
4. Press the STOP button.
1
2
3
44
MOTOR SPEED
ADJUSTMENT
c. Adjusting motor speed
1. Insert the test tape (MTT-111 or etc. 3,000 Hz).
2. Press the PLAY button.
3. Use a flat-tip screwdriver to turn the SVR to adjust so
that the frequency counter becomes 3,000 Hz.
4. Press the STOP button.
d. Replacing the motor
e. Checking the mechanism torques
•Clean the head, capstan and pinch roller before making
any measurement.
Measurement Take-up torque Back tension Tape tension
Cassette for PLAY : TW-2111A PLAY : TW-2111A Drive-power cassette
measurement F.FWD/REW : TW-2231 TW-2412
PLAY 30 ~ 70gr.cm 1.0 ~ 6.0gr.cm 80 gr or more
F.FWD/REW 55 gr or more - -
a. Replacing the head
1. After replacement, demagnetize the heads by using
a degausser.
2. Be sure to clean the heads before attempting to make
any adjustments.
3. Be sure both channels (1 and 2) are the same level.
(Using a dual-channels oscilloscope).
4. All wiring should be returned to the original position
after work is completed.
CAUTION –INVISIBLE LASER RADIATION WHEN OPEN AND
INTERLOCKS DEFEATED. AVOID EXPOSURE TO BEAM.
ADVARSEL –USYNLIG LASER STRÅLING VED ÅBNING, NÅR
SIKKERHEDSAFBRYDERE ER UDE AF FUNKTION, UNDGÅUDS ÆTTELSE
FOR STRÅLING.
VARNING –OSYNLIG LASER STRÅLNING NÄR DENNA DEL ÄR ÖPPNAD
OCH SPÄRR ÄR URKOPPLAD. STRÅLEN ÄR FARLIG.
VORSICHT –UNSICHTBARE LASERSTRAHLUNG TRITT AUS, WENN
DECKEL GEÖFFNET UND WENN SICHERHEITSVERRIEGELUNG
ÜBERBRÜCKT IST. NICHT, DEM STRAHL AUSSETZEN.
VARO –AVATTAESSA JA SUOJALUKITUS OHITETTAESSA OLET ALTTIINA
NÄKYMÄTTÖMÄLLE LASERSÄTEILYLLE. ÄLÄKATSO SÄTEESEEN.
R / P HEAD
RED WHITE
YELLOW EARTH
- 2 -
1. FM
Connection
Input Output
1IF Adjustment FM Ant
SG=66dBuV IC231(3-22Pin)
TP24,25 98.0MHz XF233 Maximum
TP11 (H) 87.5MHz L2103 1.00±0.05V
TP12 (E) 108.0MHz --- 5.3±0.50V Check Only
2. AM
Connection
Input Output
1IF Adjustment Loop Ant -- - 450KHz
at 999kHz T2002 Maximum
---
603kHz
1404kHz
L2153
L2151
CT252
Remark
SG
Frequency
SG
Frequency
Adjustment
Adjustment
90.0MHz
Maximum
1
1611kHz
522kHzTP11 (H)
TP12 (E)
2Cover
Voltage(MW)
TP14 (R)
TP15 (E)
Step
TP13 (L)
Step
AdjustingCirc
uit
AdjustingCirc
uit
3 Tracking FM Ant
Cover
Tracking
(MW)
3 Loop Ant
TP13 (L)
1.00±0.05V
7.50±0.50V Check Only
---
Remark
MaximumTP14 (R)
106.0MHz
TP15 (E)
---
---

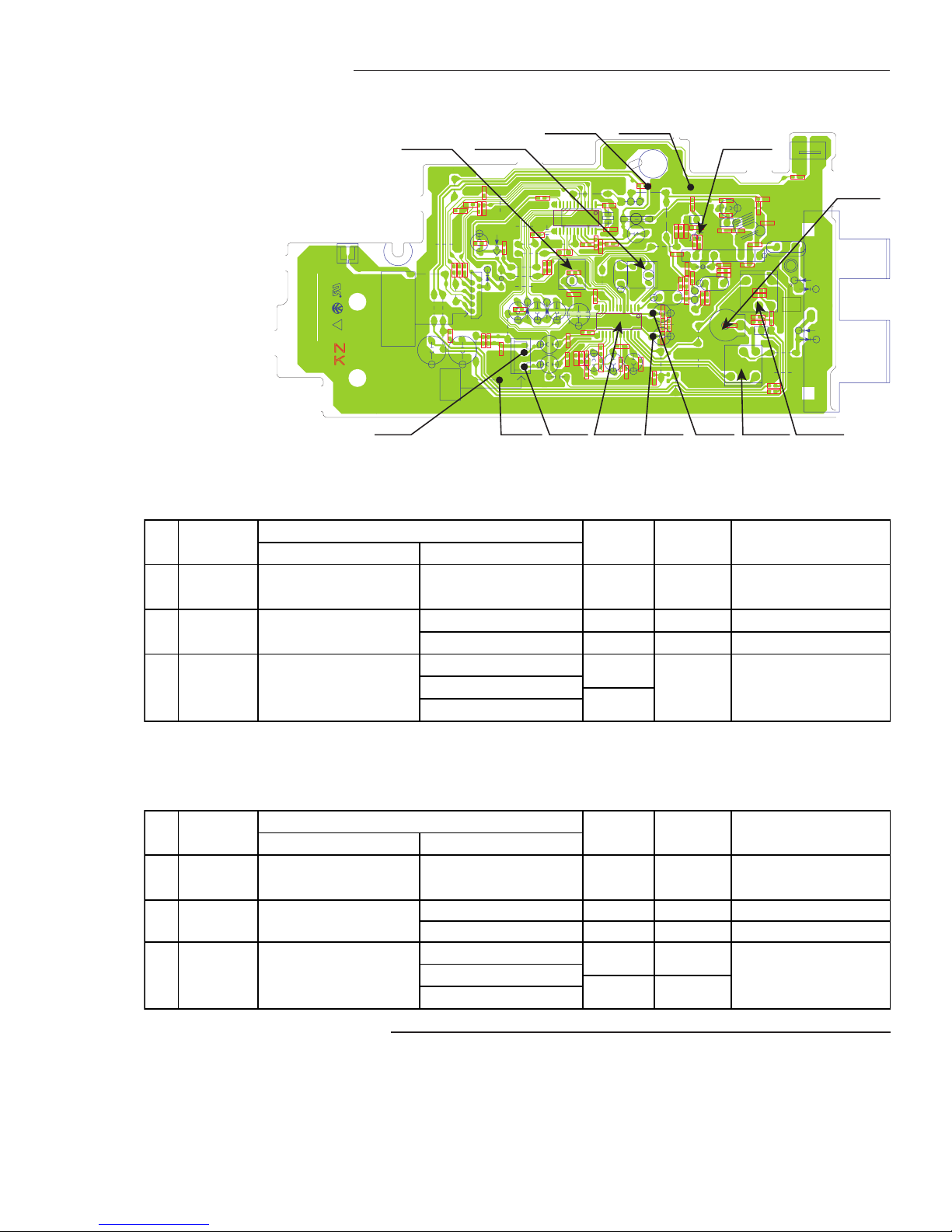

TUNER ADJUSTMENTS
Antenna : 75Ωunbalanced direct, Modulation : 1 kHz
Dev. : ±22.5kHz(MONO), ±22.5kHz(STEREO),±6.75kHz(PILOT)
RF Level : dBuV EMF
Output Level : about 30mV at TP13, TP14, TP15
Anntena : IRE Loop(SG), Moduration : 1kHz 30%
RF Level : dBuV EMF
Output Level : about 30mV at TP13, TP14, TP15
CD PICK-UP MAINTENANCE
About pick-up (Optical lens) Cleaning
Clean a lens with swab of the cotton which moistened it with alcohol, cleaning paper or cleaning disc appointed.
Specified cleaning disc : LC-1 (Part code : 645 026 1961 ..... manufactured by SANYO.)
Show a clean procedure in the following in reference by swab of cotton.
1. Cotton swab is wrapped with Cleaning paper.
2. Add the isopropyl alcohol.
3. Gently move the tip of cotton swab just like a draw a whirlpool from inside to outside on the surface of lens.
•Use a plastic screw driver for adjustments.
•Speaker impedance : 4 ohms
•MODE : ST (Stereo)
•TUNING FM : 87.5 - 108MHz
AM : 522 - 1611 kHz
(9 kHz steps)
520 - 1610 kHz
(10 kHz steps)
E
VT
T002A 94V-0
1AD4B10D3000C
IC211
L2153
L2151
CT252
S2001
D2102
L2103 XF211
L2104
XF221
Q2201
C2303
D2153
CN202
D2101
C2116
XF222
C2313
J2312
C2311
C2317
C2307
T2002
XF231
XF233
C2301
C2305
C2306
D2452
C2457
C2451
C2321
C2327
C2328
J2301
J2313
X2451
J2201
CN221
C2903
C2901
VT
J2107
D2451
L2451
D2466
D2456
D2151
J2319
J2304
CN222
CN201
D2103
TU_D0
TU_CLK
TU_DATA
+5.6V
GND
GND
GND
LID_SW
KEY2
TU_CE
+8.5V
TU_L
TU-R
GND
CN204
J2203
D2152
D2104
Q2451
J2202
J2101
J2315
J2316
J2106
J2109
J2318
J2105
J2108
J2307
J2314
J2306
J2103
J2102
J2308
C2314
J2100
J2104
J2305
J2302
J2300
J2311
J2310
C2346
J2317
C2345
J2309
IC231
J2303
J2200
L2001
IC241
C2151
R2201
R2151
R2131
C2154
C2152
C2152
C2107
C2107
R2103
R2103
R2107
R2107
C2110
C2110
C2141
C2141
C2323
C2323
C2310
C2310
C2318
C2318
C2308
C2308
R2312
R2312
R2308
R2308
R2309
R2309
C2309
C2309
C2115
C2115
R2302
R2302
C2304
C2304
C2312
C2312
R2306
R2306
R2455
R2455
C2152
C2101
C2107R2102
R2103
R2106
C2105
R2107
C2111
C2110
R2105
C2109
C2112
C2141
C2114
C2203
C2113
R2110
R2110
R2109
R2109
R2110
R2204
R2205
R2203R2202
C2323
C2310
C2318
C2308
R2312R2308
C2315
R2309R2307
C2309
C2316
R2304
C2322
R2452
C2456
R2453
C2324
R2101
C2104
C2103
C2115
C2453
C2454
R2454
C2455
R2458
R2459
R2460
R2910
C2319
C2320
C2461
R2311
R2301 C2464
C2452
R2148
R2302
C2304
C2312
C2302
R2306
R2149
R2901
C2902
R2109
R2108
R2461
R2462
R2463
R2464
C2462
C2463
R2305
R2900
R2455
R2320
L2153L2151
CT252
IC231 TP24TP25TP13TP15TP14
XF233 T2002 L2103
TP12
TP11
- 3 -
EXPLODED VIEW
20
33
19
10
9
12
25
26
27
28
30
31
N.S.P
32
29
6
87
11
22
2
13
14
15
17 18
16
3
4
5
1
23
51
21
21
21
54
55
24
Y03
Y01
Y02
Y05
Y05
Y04
Y04
Y05 Y06
Y07
53 56
52
Y11
Y11
Y12
Y14
Y13
Y15
Y16 Y16
Y17
Y17
Y20
Y20
Y22
Y22 Y21
Y19
Y19
Y18
Y13
Y08
Y09
Y10 Y10
Y10
Y09
72
71
73
74
75
76
58
59
57
This is a basic exploded view.
- 4 -
ELECTRICAL PARTS
REF.NO. PART NO. DESCRIPTION
51 423 016 7908 FUSE 250V 2.5A
52 614 327 0812 FLEXIBLE FLAT CABLE,
FRONT TO AMP
53 614 332 1880 FLEXIBLE FLAT CABLE,
TUNER TO FRONT
54 614 332 1873 ASSY,WIRE,CD CD MECHA
55 614 332 1866 ASSY,WIRE,CD TO TUNER
56 614 332 6656 FLEXIBLE FLAT CABLE,
CD PICK UP(For XE)
56 614 328 4376 FLEXIBLE FLAT CABLE,
CD PICK UP(For SP)
57 614 274 2013 CORD,ID CONNECTOR,FM ANT
58 645 066 5646 TRANS,POWER
59 645 016 9939 CORD,POWER-1.74MK
PARTS LIST
CAUTION :Regular type resistors and capacitors are not listed. To know those values, refer to the schematic diagram.
Regular type resistors are less than 1/4 W carbon type and 0 ohm chip resistors.
Regular type capacitors are less than 50 V and less than 1000 µF type of Ceramic type and Electrical type.
N.S.P : Not available as service parts.
PRODUCT SAFETY NOTICE
EACH PRECAUTION IN THIS MANUAL SHOULD BE FOLLOWED DURING SERVICING. COMPONENTS IDENTIFIED WITH THE
IEC SYMBOL !
!! IN THE PARTS LIST AND THE SCHEMATIC DIAGRAM DESIGNATED COMPONENTS IN WHICH SAFETY AND
PERFORMANCE CAN BE OF SPECIAL SIGNIFICANCE. WHEN REPLACING A COMPONENT IDENTIFIED BY !
!! , USE ONLY THE
REPLACEMENT PARTS DESIGNATED, OR PARTS WITH THE SAME RATINGS OF RESISTANCE, WATTAGE OR VOLTAGE THAT
ARE DESIGNATED IN THE PARTS LIST IN THIS MANUAL. LEAKAGE-CURRENT OR RESISTANCE MEASUREMENTS MUST BE
MADE TO DETERMINE THAT EXPOSED PARTS ARE ACCEPTABLY INSULATED FROM THE SUPPLY CIRCUIT BEFORE
RETURNING THE PRODUCT TO THE CUSTOMER.
PACKING & ACCESSORIES
REF.NO. PART NO. DESCRIPTION
614 332 1682 CARTON CASE(For XE)
614 332 2146 CARTON CASE(For SP)
614 329 2494 CUSHION,REAR
614 329 2487 CUSHION,FRONT
614 332 1699 INSTRUCTION MANUAL(For XE)
614 332 2153 INSTRUCTION MANUAL(For SP)
614 332 2160 INSTRUCTION SHEET,
GREECE(For XE)
614 332 2177 INSTRUCTION SHEET,
GREECE(For SP)
645 046 8322 ASSY,ANTENNA,LOOP
645 072 9904 REMOCON,RB-DA1200M2
614 330 8898 LID,BATTERY REMOCON,SERVICE
614 330 8270 ASSY,BOX,SPEAKER(For XE)
614 331 7036 ASSY,BOX,SPEAKER(For SP)
CABINET & CHASSIS
REF.NO. PART NO. DESCRIPTION
1 614 330 7648 ASSY,DOOR,DECK
2 614 329 2449 SPRING,DOOR DECK
3 614 329 2258 KNOB,VOLUME
4 614 330 7662 ASSY,PANEL FRONT
5 614 309 7969 ASSY,GEAR,CASSETTE
6 614 329 2210 DEC,WINDOW BUTTON
7 614 329 6690 DEC,WINDOW BUTTON
8 614 329 6706 DEC,WINDOW BUTTON
9 614 329 2142 BUTTON,TOP,4 KEYS
10 614 329 2159 BUTTON,LEFT,3 KEYS
11 614 329 2135 BUTTON,FUNC,4 KEYS
12 614 329 2166 BUTTON,RIGHT,2 KEYS
13 614 329 2265 KNOB,DECK MECHA,REC
14 614 329 2272 KNOB,DECK MECHA,PLAY
15 614 329 2289 KNOB,DECK MECHA,REW
16 614 329 2296 KNOB,DECK MECHA,FFWD
17 614 329 2302 KNOB,DECK MECHA,STOP/EJECT
18 614 329 2319 KNOB,DECK MECHA,PAUSE
19 614 329 2340 MOUNTING,DECK MECHA
20 614 308 0534 SPRING,PLATE,REC
21 614 310 3899 SPACER,MECHA,CD+DA11
22 614 325 6014 ASSY,MECHA,DA11T3CN-SASH
23 614 307 2072 COVER,PICK-UP
24 614 322 2132 ASSY,GEAR,LID,CD
25 614 329 2357 MOUNTING,CD
26 614 303 0263 LATCH,PUSH,CD DOOR LOCKING
27 614 307 8821 PULLEY
28 614 303 0256 LATCH,MAGNET
29 614 329 2456 SPRING,DOOR CD
30 614 329 2333 LID,CD
31 614 329 2234 DEC,WINDOW CD
32 614 332 1613 ASSY,CABINET,REAR(For XE)
32 614 332 2085 ASSY,CABINET,REAR(For SP)
33 614 309 7976 ASSY,MECHA,TM-DA70TN-SH
(For details to page 7)
FIXING PARTS
REF.NO. PART NO. DESCRIPTION
Y01 411 187 2709 SCR S-TPG BIN 2.3X6,
BUTTON TOP+PWB TOP
Y02 411 021 6405 SCR S-TPG BIN 3X8,
BUTTON TOP+PANEL FRONT
Y03 411 020 8905 SCR S-TPG BRZ+FLG 3X10,GEAR
Y04 411 021 3503 SCR S-TPG BIN 3X10,
PANEL+MTG DECK KNOB
Y05 411 021 3503 SCR S-TPG BIN 3X10,
PANEL+DECK MECHA
Y06 411 126 1404 SCR S-TPG BIN 2X4,
SPRING DECK REC
Y07 411 021 3503 SCR S-TPG BIN 3X10,
FRONT PWB+MOUNT
Y08 411 021 3503 SCR S-TPG BIN 3X10,
MTG CD+CD PCB
Y09 411 021 1806 SCR S-TPG BIN 2.6X10,
MTG CD+MECHA CD
Y10 411 092 0906 WASHER Z 2.6X10X0.5,
MECHA,CD+MOUNTING
Y11 411 021 6405 SCR S-TPG BIN 3X8,
MTG CD+TUNER PCB
Y12 411 021 3503 SCR S-TPG BIN 3X10,
MTG CD+ASSY,GEAR
Y13 411 021 4906 SCR S-TPG BIN 3X20,
PANEL+MOUNTING
Y14 411 021 3503 SCR S-TPG BIN 3X10,
MTG CD+AMP PCB
Y15 411 021 3503 SCR S-TPG BIN 3X10,
REAR+PWB POWER
Y16 411 020 9100 SCR S-TPG BRZ+FLG 3X12,
REAR+P-TRANS
Y17 614 130 0382 LUG,FOR PT
Y18 411 021 3503 SCR S-TPG BIN 3X10,
REAR+STOPPER
Y19 411 098 7800 SCR S-TPG FLT 3X12,
PANEL+REAR+MOUNTING
Y20 411 021 4500 SCR S-TPG BIN 3X16,PANEL+REAR
Y21 411 021 3503 SCR S-TPG BIN 3X10,
MTG CD+REAR
Y22 411 021 3503 SCR S-TPG BIN 3X10,
C-REAR(ANT TERMINAL)
- 5 -
CD P.W.BOARD ASSY
REF.NO. PART NO. DESCRIPTION
73 614 331 7135 ASSY,PWB,CD(Only initial)
CN111 645 059 0498 SOCKET,FPC 16P
CN112 645 005 8127 PLUG,6P
or 614 310 2472 PLUG,6P
CN122 645 005 8134 PLUG,8P
or 614 310 2496 PLUG,8P
CN123 645 005 8110 PLUG,4P
or 614 310 2458 PLUG,4P
CN164 645 005 8127 PLUG,6P
or 614 310 2472 PLUG,6P
D1501 407 098 3300 DIODE RL153-BF-S2
D1502 407 098 3300 DIODE RL153-BF-S2
D1503 407 098 3300 DIODE RL153-BF-S2
IC101 410 538 0401 IC LC78646E-UHK-E
IC102 410 538 0500 IC LC78684NE-UHK-E
IC103 410 530 7804 IC M12L16161A-7TG
IC104 409 582 6002 IC LA6548NH-E
L1301 645 002 1459 INDUCTOR,22U K
L1302 645 037 2858 CORE,PIPE
L1303 645 001 4581 INDUCTOR,100U K
L1401 645 037 2858 CORE,PIPE
PR151 645 066 9668 PROTECTOR,0.4A 125V
Q1301 405 008 7301 TR 2SB810-F
or 405 008 7202 TR 2SB810-E
or 405 008 6809 TR 2SB808-F-SPA
Q1401 405 017 9600 TR 2SC3330-T
or 405 011 8609 TR 2SC1740S-S
or 405 011 8500 TR 2SC1740S-R
or 405 143 8706 TR KTC3199-GR
or 405 017 9709 TR 2SC3330-U
Q1501 405 009 5306 TR 2SB927-T
or 405 009 5207 TR 2SB927-S
or 405 141 3604 TR KTA1273-Y
X1451 645 020 9024 OSC,CRYSTAL 16.9344MHZ
PARTS LIST
REF.NO. PART NO. DESCRIPTION
KEY P.W.BOARD ASSY
REF.NO. PART NO. DESCRIPTION
71 614 331 7111 ASSY,PWB,KEY(Only initial)
CN605 614 330 3367 ASSY,WIRE,KEY TO TUNER
S6512 614 220 5471 SWITCH,TACT
or 645 006 5958 SWITCH,PUSH 1P-1T
or 614 240 1002 SWITCH,TACT
S6513 645 006 5958 SWITCH,PUSH 1P-1T
or 614 240 1002 SWITCH,TACT
or 614 220 5471 SWITCH,TACT
S6514 614 220 5471 SWITCH,TACT
or 614 240 1002 SWITCH,TACT
or 645 006 5958 SWITCH,PUSH 1P-1T
S6515 614 220 5471 SWITCH,TACT
or 614 240 1002 SWITCH,TACT
or 645 006 5958 SWITCH,PUSH 1P-1T
FRONT P.W.BOARD ASSY
REF.NO. PART NO. DESCRIPTION
72 614 331 7128 ASSY,PWB,FRONT(Only initial)
AH601 614 331 7203 HOLDER,LCD
AH602 614 329 2180 COVER,LED
AR601 614 329 2395 REFLECTOR,LCD
BR602 614 328 4543 HOLDER,LED
CN601 645 059 0474 SOCKET,FPC 14P,FRONT-AMP
CN602 645 072 1946 SOCKET,FPC 10P,FRONT-TU
D6010 407 012 4406 DIODE 1SS133
D6110 407 012 4406 DIODE 1SS133
D6111 407 012 4406 DIODE 1SS133
D6112 407 012 4406 DIODE 1SS133
D6115 407 099 4603 ZENER DIODE MTZJ3.9B
D6201 407 241 2204 LED LT7V34-81-UR91
D6202 407 241 2204 LED LT7V34-81-UR91
DS601 407 217 1101 PHOTO DIODE SPS-442-1G
or 407 229 6101 PHOTO DIODE SPS-442-1-G1
IC601 410 545 7400 IC LC877148A-54K7-E,MICON
L6010 645 001 5441 INDUCTOR,2.2U K
LCD61 645 072 1960 LCD
LS601 614 329 6720 DEC,SHEET LCD,DEC-LCD-SHEET
Q6101 405 014 4509 TR 2SC2412K-R
or 405 011 1006 TR 2SC1623-L6
or 405 146 2206 TR KTC3875-GR
Q6107 405 005 5508 TR 2SA812-M6
or 405 002 0308 TR 2SA1037K-R
or 405 146 9700 TR KTA1504-GR
Q6108 405 011 1006 TR 2SC1623-L6
or 405 014 4509 TR 2SC2412K-R
or 405 146 2206 TR KTC3875-GR
S6001 645 057 4689 SWITCH,ROTARY(ENCODER)
S6500 614 220 5471 SWITCH,TACT
or 614 240 1002 SWITCH,TACT
or 645 006 5958 SWITCH,PUSH 1P-1T
S6501 614 220 5471 SWITCH,TACT
or 614 240 1002 SWITCH,TACT
or 645 006 5958 SWITCH,PUSH 1P-1T
S6502 614 220 5471 SWITCH,TACT
or 614 240 1002 SWITCH,TACT
or 645 006 5958 SWITCH,PUSH 1P-1T
S6503 614 220 5471 SWITCH,TACT
or 614 240 1002 SWITCH,TACT
or 645 006 5958 SWITCH,PUSH 1P-1T
S6504 614 240 1002 SWITCH,TACT
or 645 006 5958 SWITCH,PUSH 1P-1T
or 614 220 5471 SWITCH,TACT
S6505 614 220 5471 SWITCH,TACT
or 614 240 1002 SWITCH,TACT
or 645 006 5958 SWITCH,PUSH 1P-1T
S6506 614 220 5471 SWITCH,TACT
or 614 240 1002 SWITCH,TACT
or 645 006 5958 SWITCH,PUSH 1P-1T
S6510 614 220 5471 SWITCH,TACT
or 614 240 1002 SWITCH,TACT
or 645 006 5958 SWITCH,PUSH 1P-1T
TUNER P.W.BOARD ASSY
REF.NO. PART NO. DESCRIPTION
74 614 331 7104 ASSY,PWB,TUNER(Only initial)
C2457 403 259 0508 NP-ELECT 1U M 50V
CN201 614 221 8273 TERMINAL
CN202 645 025 4703 TERMINAL,ANTENNA
or 645 038 7715 TERMINAL
CN204 614 310 2434 PLUG,2P
or 645 005 7366 PLUG,2P
CN221 614 310 2458 PLUG,4P
or 645 005 8110 PLUG,4P
CN222 645 072 1946 SOCKET,FPC 10P
CT252 645 032 5663 TRIMMER,7PF
D2101 407 157 8109 VARACTOR DI SVC211-B
D2102 407 157 8109 VARACTOR DI SVC211-B
D2103 407 012 4406 DIODE 1SS133
D2104 407 012 4406 DIODE 1SS133
D2151 407 012 4406 DIODE 1SS133
D2152 407 012 4406 DIODE 1SS133
D2153 407 105 1305 VARACTOR DI SVC342L-V
or 407 105 1602 VARACTOR DI SVC342M-V
D2451 407 012 4406 DIODE 1SS133
D2452 407 153 7502 ZENER DIODE GZS3.0B
D2456 407 012 4406 DIODE 1SS133
D2466 407 012 4406 DIODE 1SS133
S6511 614 220 5471 SWITCH,TACT
or 614 240 1002 SWITCH,TACT
or 645 006 5958 SWITCH,PUSH 1P-1T
X6101 645 032 1627 OSC,CRYSTAL 32.768KHZ
X6102 645 057 1138 OSC,CERAMIC 6.0MHZ
or 645 018 6103 OSC,CERAMIC 6.000MHZ
- 6 -
IC412 409 612 2202 IC KIA6282K
IC446 409 039 9204 IC NJM78L05A
L4781 645 002 1459 INDUCTOR,22U K
L4881 645 002 1459 INDUCTOR,22U K
L4902 645 031 5893 TRANS,OSC,85KHZ,O.S.C
PR495 645 066 9743 PROTECTOR,1.5A 125V
PR496 645 066 9743 PROTECTOR,1.5A 125V
Q4104 405 109 9204 TR KRC102M-A
or 405 000 3103 TR DTC114ES
Q4106 405 000 3103 TR DTC114ES
or 405 109 9204 TR KRC102M-A
Q4320 405 143 8706 TR KTC3199-GR
or 405 017 9600 TR 2SC3330-T
or 405 017 9709 TR 2SC3330-U
or 405 011 8500 TR 2SC1740S-R
or 405 011 8609 TR 2SC1740S-S
Q4321 405 004 5004 TR 2SA608-G-NP
or 405 004 4502 TR 2SA608-F-NP
or 405 141 3505 TR KTA1266-Y
or 405 141 3406 TR KTA1266-GR
Q4740 405 109 9204 TR KRC102M-A
or 405 000 3103 TR DTC114ES
Q4751 405 151 4400 TR KTD1303
or 405 021 0204 TR 2SD1012-F-SPA
or 405 021 0600 TR 2SD1012-G-SPA
or 405 033 6706 TR 2SD1468S-R
or 405 033 6805 TR 2SD1468S-S
Q4840 405 000 3103 TR DTC114ES
or 405 109 9204 TR KRC102M-A
Q4851 405 151 4400 TR KTD1303
or 405 021 0204 TR 2SD1012-F-SPA
or 405 021 0600 TR 2SD1012-G-SPA
or 405 033 6706 TR 2SD1468S-R
or 405 033 6805 TR 2SD1468S-S
Q4902 405 017 9709 TR 2SC3330-U
or 405 017 9600 TR 2SC3330-T
or 405 011 8609 TR 2SC1740S-S
or 405 011 8500 TR 2SC1740S-R
or 405 143 8706 TR KTC3199-GR
Q4904 405 017 9709 TR 2SC3330-U
or 405 017 9600 TR 2SC3330-T
or 405 011 8609 TR 2SC1740S-S
or 405 011 8500 TR 2SC1740S-R
or 405 143 8706 TR KTC3199-GR
Q4951 405 095 1701 TR 2SD2061-F
or 405 095 1602 TR 2SD2061-E
or 405 138 6403 TR KTD2058Y
or 405 158 2102 TR KTC2026-Y
Q4992 405 008 2504 TR 2SB698-G
or 405 008 2405 TR 2SB698-F
or 405 141 3703 TR KTA1271-Y
Q4994 405 000 3806 TR DTC114YS
or 405 143 0007 TR KRC107M
Q4995 405 141 3703 TR KTA1271-Y
or 405 008 2405 TR 2SB698-F
or 405 008 2504 TR 2SB698-G
Q4996 405 143 8706 TR KTC3199-GR
or 405 017 9600 TR 2SC3330-T
or 405 017 9709 TR 2SC3330-U
or 405 011 8500 TR 2SC1740S-R
or 405 011 8609 TR 2SC1740S-S
Q4997 405 143 8706 TR KTC3199-GR
or 405 017 9600 TR 2SC3330-T
or 405 017 9709 TR 2SC3330-U
or 405 011 8500 TR 2SC1740S-R
or 405 011 8609 TR 2SC1740S-S
R4752 402 071 1304 FUSIBLE RES 2.2 JA 1/4W
R4852 402 071 1304 FUSIBLE RES 2.2 JA 1/4W
R4941 401 121 8607 MT-FILM 27 FD 1/4W
S4950 645 038 7586 SWITCH,PUSH,R/PSW
SA401 411 021 6405 SCR S-TPG BIN 3X8
SA402 411 021 6405 SCR S-TPG BIN 3X8
AMPLIFIER P.W.BOARD ASSY
REF.NO. PART NO. DESCRIPTION
75 614 331 7081 ASSY,PWB,AMP(Only initial)
C4714 403 058 4608 POLYESTER 0.15U J 50V
C4814 403 058 4608 POLYESTER 0.15U J 50V
C4913 403 329 6003 ELECT 4700U M 25V
C4918 403 377 6307 POLYESTER 1000P J 50V
or 403 056 7502 POLYESTER 1000P J 50V
CN401 645 006 1875 PLUG,2P,SPEAKER
CN402 645 006 1875 PLUG,2P,SPEAKER
CN405 645 004 2904 PLUG,4P
or 614 310 2755 PLUG,4P
CN406 645 005 8110 PLUG,4P
or 614 310 2458 PLUG,4P
CN411 645 004 2881 PLUG,2P,POWER
or 614 310 2731 PLUG,2P,POWER
CN421 645 055 1017 JACK,PHONE D3.6,HEADPHONE
or 645 011 6384 JACK,PHONE D3.6,HEADPHONE
CN491 645 059 0474 SOCKET,FPC 14P,FRONT-AMP
CN492 614 330 8720 ASSY,WIRE
D4102 407 012 4406 DIODE 1SS133
D4951 407 099 6003 ZENER DIODE MTZJ9.1B
D4953 407 012 4406 DIODE 1SS133
D4961 407 012 4406 DIODE 1SS133
D4962 407 012 4406 DIODE 1SS133
D4963 407 012 4406 DIODE 1SS133
D4980 407 098 3300 DIODE RL153-BF-S2
D4981 407 098 3300 DIODE RL153-BF-S2
D4982 407 098 3300 DIODE RL153-BF-S2
D4983 407 098 3300 DIODE RL153-BF-S2
D4984 407 098 3300 DIODE RL153-BF-S2
D4993 407 012 4406 DIODE 1SS133
FCL41 645 006 4760 HOLDER,FUSE
or 645 031 7903 HOLDER,FUSE
FCL42 645 006 4760 HOLDER,FUSE
or 645 031 7903 HOLDER,FUSE
HS401 614 332 1514 HEAT SINK
IC410 409 384 3506 IC BA3314F
IC411 409 614 0701 IC LC75348M-E
PARTS LIST
REF.NO. PART NO. DESCRIPTION REF.NO. PART NO. DESCRIPTION
IC211 409 016 0200 IC LA1186N-AUDIO
IC231 409 474 3201 IC LA1844ML
IC241 409 439 4502 IC LC72121M-D
L2001 645 040 2753 INDUCTOR,AIR —
L2103 645 040 2746 COIL,AIR —
L2104 645 002 1534 INDUCTOR,8.2U K
L2151 645 037 2377 TRANS,ANT,796KHZ
L2153 645 040 2739 TRANS,OSC,796KHZ
L2451 645 031 7842 INDUCTOR,100U K
or 645 001 4581 INDUCTOR,100U K
Q2201 405 151 4301 TR KTC3195-Y
or 405 151 4806 TR KTC3195-O
Q2451 405 036 3702 TR 2SA1564
or 405 151 5209 TR KRA107M
or 405 000 0904 TR DTA114YS
or 405 078 2404 TR BN1A4P
S2001 645 023 5795 SWITCH,LEVER
T2002 645 046 2023 FILTER,450KHZ
X2451 645 023 4965 OSC,CRYSTAL 7.2MHZ
XF211 614 252 1045 FILTER,LC
or 645 026 2975 FILTER,BP 108MHZ
or 645 059 0047 FILTER,BP
XF221 645 054 1223 CERAMIC FILTER 10.70MHZ
or 645 010 7665 CERAMIC FILTER 10.70MHZ
or 614 240 2917 FILTER,CERAM
XF222 645 054 1223 CERAMIC FILTER 10.70MHZ
or 645 010 7665 CERAMIC FILTER 10.70MHZ
or 614 240 2917 FILTER,CERAM
XF231 645 059 0054 CERAMIC FILTER 450KHZ
or 645 041 9324 CERAMIC FILTER 450KHZ
XF233 645 039 9923 TRANS,IF 10.7MHZ
or 645 040 9981 TRANS,IF 10.7MHZ
- 7 -
PARTS LIST
160
259
358
457
556
655
754
853
952
10 51
11 50
12 49
13 48
14 47
15 46
16 45
17 44
18 43
19 42
20 41
21 80
22 79
23 78
24 77
25 76
26 75
27 74
28 73
29 72
30 71
31 70
32 69
33 68
34 67
35 66
36 65
37 64
38 63
39 62
40 61
FIN1
FIN2
TIN1
TIN2
REFI
DEFECT
ADAVDD
ADAVSS
JITTC
SLCO
EFMIN
SLCIST
PDO1
PDO2
FR
PCKIST
VVDD
VVSS
SBCK/FG
XIN
XOUT
16MOUT
XVDD
XVSS
*RES
*WRQ
CL
CE
DI
DO
VDD5V
CONT1
CONT2
CONT3
CONT4
CONT5
SBCK/CONT6
TEST
LVDD
LVSS
LCHO
RCHO
RVDD
RVSS
FE
TE
TEC
RF
RFVDD
RFVSS
RFMON
VREF
LDD
LDS
FDO
TDO
SLDO
SPDO
GPDAC
DRF
FSEQ
V / *P
VDD
(3.3V)VSS
VSS
MONI 1
MONI 2
MONI 3
MONI 4
MONI 5
FSX/16MIN
C2F
EFLG
DOUT
LRSY
DATACK
DATA
ASLRCK
ASDACK
ASDFIN
Pin
No. Pin
No.
Pin Name I/O Reset
state Reset
state
Function description
1 SLCO O - Slice level
control
Control output.
2 SLCIST AI - SLCO output current adjustment resistor connection pin.
3 EFMIN I - RF signal input pin.
4 RF AO - RF monitor pin.
5 RFVDD - - RF power supply pin.
6 RFVSS - - RF ground pin. Must be connected to 0V.
7 FIN1 AI - A+C signal input pin.
8 FIN2 AI - B+D signal input pin.
9 TIN1 AI - E signal input pin.
10 TIN2 AI F signal input pin.
11 VREF AO RFVDD/2 VREF voltage output pin.
12 REFI AI - Reference voltage seting pin.
13 FE AO ZHI FE signal monitor pin.
14 TEC AO - TE signal LPF capacitor connection pin.
15 TE AO ZHI TE signal monitor pin.
16 RFMON AO ZHI RF internal signal monitor pin.
17 JITTC A - Jitter detection capasitor connection pin.
18 ADAVDD - - Servo A/D, D/A supply pin.
19 ADAVSS - - Servo A/D, D/A ground pin. Must be connected to 0V.
20 TDO AO ADAVDD/2 Tracking control output pin. D/A output.
21 FDO AO ADAVDD/2 Focus control output pin. D/A output.
22 SPDO AO ADAVDD/2 Spindle control output pin. D/A output.
23 SPDO AO ADAVDD/2 Thread control output pin. D/A output.
24 GPDAC AO ADAVDD/2 Servo D/A general-purpose output pin.
25 CONT4 I/O Input mode General-purpose
input / output pin 4. Controlled by commands
from the microprocessor.
Any of these that are unused
must be either set up as input
pin ports and connected to 0V,
or set up as output pin ports
and left open.
26 CONT5 I/O Input mode General-purpose
input / output pin 5.
27 SBCK/CONT6 I/O Input mode General-purpose
input / output pin 6,
or subcode read clock input pin.
28 SBCK/FG I -
Subcode read clock input pin / FG signal input pin /
external emphasis setting pin.
Set to command pin function. Must be connected to 0V.
29 DEFECT O L Defect pin.
30 V / *P O H
Rough servo / phase control automatic switching monitor
output pin.
"H" for rough servo and "L" for phase servo.
31 FSEQ O L
Synchronization signal detection output pin.
Outputs a high level when the synchronization signal
detected
from the EFM signal and the internally generated
synchronization
signal agree.
32 MONI 1 O L Internalsignal monitor pin 1.
33 MONI 2 O L Internalsignal monitor pin 2.
34 MONI 3 O L Internalsignal monitor pin 3.
35 MONI 4 O L Internalsignal monitor pin 4.
36 MONI 5 O L Internalsignal monitor pin 5.
37 (3.3V)VSS - - Digital ground pin. Must be connected to 0V.
Pin Name I/O Function description
38 VDD - - Digital power supply pin.
39 DOUT O L Digital OUT output pin.
40 TEST I L Test input pin. Must be connected to 0V.
41 LVDD - - L channel D/A converter L channel power supply pin.
42 LCHO AO LVDD/2 L channel output pin.
43 LVSS - - L channel ground pin. Must be connected to 0V.
44 RVSS - - R channel D/A converter R channel ground pin. Must be connected to 0V.
45 RCHO AO LVDD/2 R channel output pin.
46 RVDD - - R channel power supply pin.
47 XVDD - -
Crystal oscillator
Crystal oscillator power supply pin.
48 XOUT O Oscillator Connections for a 33.8688MHz or 16.9344MHz
49 XIN I Oscillator crystal oscillator pin.
50 FSX/16MIN I/O Input mode
7.35kHz synchronization signal output pin.
DF, DAC external clock input pin.
51 XVSS - - Crystal oscillator Crystal oscillator ground pin. Must be connected to 0V.
52 C2F O H C2 flag output pin.
53 EFLG O L C1, C2 error correction monitor pin.
54 16MOUT O CLK output 16.9344MHz output pin.
55 ASLRCK I
Antishock mode
L/R clock input pin. (Must be connected to 0V when unused)
56 ASDACK I Bit clock input pin. (Must be connected to 0V when unused)
57 ASDFIN I
L/R channel data input pin.
(Must be connected to 0V when unused)
58 LRSY O L
Digital data output
L/R clock output pin.
59 DATACK O L Bit clock output pin.
60 DATA O L L/R channel data output pin.
61 CE I - Micro
-processor
interface
Chip enable signal input pin.
62 CL I - Data transfer clock input pin.
63 DI I - Data input pin.
64 DO O (H) Data output pin. (Nch open drain output)
65 *WRQ O H Interruption signal output pin.
66 *RES I - Reset input pin.
This pin must be set low briefly after power is first applied.
67 DRF O L Focus ON detect pin.
68 VDD5V - - Microprocessor interface power supply pin.
69 VSS - - Digital ground pin. Must be connected to 0V.
70 CONT3 I/O Input mode General-purpose output pin 3. Controlled by commands from the microprocessor.
71 CONT2 I/O Input mode General-purpose output pin 2. Must be set as an input pin and connected to 0V
72 CONT1 I/O Input mode General-purpose output pin 1. or set as an output pin and left open when unused.
73 PDO1 O
PLL
Phase comparison output pin 1 to control built-in VCO.
74 PDO2 O Input mode Phase comparison output pin 2 to control built-in VCO.
75 VVSS - - Built-in VCO GND pin. Must always be connected to 0V.
76 PCKIST AI - Resistor connection pin to set current for PD01 and 02 outputs.
77 VVDD - - Built-in VCO power supply pin.
78 FR AI - Resistor connection pin to set the frequency range of built-in VCO.
79 LDS AI - Laser power detection signal input pin.
80 LDD AO - Laser power detection signal output pin.
Note) The same potential must be supplied to all power supply pins, i. e. , RFVDD, VVDD, ADAVDD, VDD, LVDD,
RVDD AND XVDD. Pins operated from the microprocessor interface power supply (VDD5V) pin :
CE(61 pin), CL(62pin), DI(63 pin), DO(64 pin), *WRQ(65 pin), RES(66 pin), DRF(67 pin), CONT1(72 pin),
CONT2(71 pin), CONT3(70 pin)
IC BLOCK DIAGRAM & DESCRIPTION
IC101 LC78646-UHK-E (CMOS LSI for CD Player)
POWER TRANSFORMER P.W.BOARD ASSY
REF.NO. PART NO. DESCRIPTION
76 614 331 7098 ASSY,PWB,DG(Only initial)
CN451 614 017 8203 TERMINAL BOARD
CN452 614 017 8203 TERMINAL BOARD
CN455 645 005 9315 PLUG,2P
L4591 645 038 6053 INDUCTOR,181U
TAPE MECHANISM
REF.NO. PART NO. DESCRIPTION
33 614 309 7976 ASSY,MECHA,TM-DA70TN-SH
614 312 0629 ASSY,MOTOR,FOR SERVICE
645 009 1612 PINCH ROLLER ARM ASSY
645 009 1766 RF BELT
645 033 3415 MAIN BELT
645 041 3025 R.P HEAD
645 033 8625 E HEAD 6PA
or 645 072 9775 E HEAD TC-238
- 8 -
IC BLOCK DIAGRAM & DESCRIPTION
IC101 LC78646-UHK-E (CMOS LSI for CD Player)
FIN1
FIN2
TIN1
TIN2
REFI
DEFECT
ADIN
ADAVDD
ADAVSS
JITTC
SLCO
EFMIN
SLCIST
PCK
PDO1
PDO2
FR
PCKIST
VVDD
VVSS
SBCK/FG
XIN
XOUT
16MOUT
XVDD
XVSS
*RES
*WRQ
CL
CE
DI
DO
VDD5V
CONT1,2,3
CONT4,5,
SBCK/CONT6
TEST
LVDD
LVSS
LCHO
RCHO
RVDD
RVSS
FE
TE
TEC
RF
RFVDD
RFVSS
RFMON
VREF
LDD
LDS
FDO
TDO
SLDO
SPDO
GPDAC
DRF
FSEQ
V / *P
VDD
VSS
MONI 1~5
FSX/16MIN
C2F
EFLG
DOUT
LRSY
DATACK
DATA
ASLRCK
ASDACK
ASDFIN
-
-
-
+
-
+
-
+
-
+
-
+
+
+
-
+
-
+
-
+
MIX EQ AGC
LPF
LPF
LPF
TBAL
TBAL
SW
SW
PH
BH
LEVEL SET
RAM
MONI
CONT
A/D SERVO
PROCESSEROR
TRACK JUMP APC
AUTO ADJUST
D/A
DRF
S/H
JITTER
DETECT
SLICE LEVEL
CONTROL
PLL
VCEC
CLV,CAV
CONTROL
RUPTURE DEFECT
FRAME SYNC
DETECT,PROTECT INSERT
EFM DECODE
SUBCODE DECODE CRC
MONITOR SIGNAL SELECTOR
RAM
CLOCK
GENERATOR
ERROR
CORRECTION
AUDIO CD
C1-2,C2-2
COMMAND
INTERFACE
GENERAL-PURPOSE
PORTS
8FS
DIGITAL FILTER
1bit DAC
INTERPOLATION
MUTE
ATTENUATION
DEEMPHASIS
LPF
AUDIO OUT
SERIAL
OUT
EXTERNAL
AUDIO
VDD5V
+
+
- 9 -
IC BLOCK DIAGRAM & DESCRIPTION
IC102 LC78684NE-UHK-E (MP3 Decoder for CD Player)
VCOC
VPDO
CKOUT
CKIN
VPRER VCO
+
PLL
WOK
CNTOK
OVF
LRSY
DATACK
DATAIN
C2FIN
SFSY
PW
SBSY
SBCK
RESB
M
U
X
ADLRCK
ADBCK
ADDATA
FSYNC
CRCF
STREQ
STCK
STDAT
INTB
CMDOUT
CMDIN
CE
CL
MDATA[15:0]
MADRS[12:0]
RASB
CASUB
CASLB
OEB
WEB
DRAM-I /F
System
Clock-gen
CDROM
Decoder
MP3
Decoder
CPU- I / F
Audio- I / F
Data- I / F
Anti-Shock
(compression·
incompressible)
Pin
No. Pin Name I/O Block Description
1 LRSY I CD L/R clock input.
2 ADDATA O Audio data output.
3 ADBCK O Audio bit clock output.
4 ADLRCK O Audio L/R clock output.
5 CF2IN I CD IF CD C2 error flag input.
6 TEST1 I TEST Test input 1(Must be connected to GND)
7 CKIN I CLOCK System clock(16.9344MHz) input.
8 VSS - Power
supply GND earth terminal.
9 CKOUT O CLOCK Clock(384Fs) output for external DF/DAC
10 TEST2 I TEST Test input 2(Must be connected to GND)
11 DVDD1 - Power
supply Digital power supply pin for I/O.
12 P W I CD subcode data serial input.
13 SBSY I CD subcode block synchronized signal input.
14 SFSY I CD subcode flame synchronized signal input.
15 SBCK O Serial clock output for CD subcode transfer.
16 AVDD - Power
supply Analog(PLL) Power supply.
17 VPRFR - Pin to set the oscillation range of VCO.
18 VCOC I VCO control voltage input.
19 VPDO O VCO charge pump output.
20 AVSS - Analog GND earth terminal.
21 DVDD2 - Power supply pin for internal logic.
22 V S S - GND earth terminal.
23 MDATA0 I/O DRAM data bass 0
24 MDATA1 I/O DRAM data bass 1
25 MDATA2 I/O DRAM data bass 2
26 MDATA3 I/O DRAM data bass 3
27 MDATA4 I/O DRAM data bass 4
28 MDATA5 I/O DRAM data bass 5
29 MDATA6 I/O DRAM data bass 6
30 MDATA7 I/O DRAM data bass 7
31 DVDD3 - Digital power supply pin for I/O.
32 V S S - GND earth terminal.
33 MDATA8 I/O DRAM data bass 8
34 MDATA9 I/O DRAM data bass 9
35 MDATA10 I/O DRAM data bass 10
36 MDATA11 I/O DRAM data bass 11
37 MDATA12 I/O DRAM data bass 12
38 MDATA13 I/O DRAM data bass 13
39 MDATA14 I/O DRAM data bass 14
40 MDATA15 I/O DRAM data bass 15
41 RASB O RAS output(L-active) for EDO-DRAM, SDRAM.
42 WEB O WE output(L-active) for EDO-DRAM, SDRAM.
CAS output(For lower byte, L-active)
when use EDO-DRAM.
Clock output for DRAM when use SDRAM.
CAS output(For upper byte, L-active)
when use EDO-DRAM.
CAS output for SDRAM.(L-active)
OE output(L-active) when use EDO-DRAM.
CS output (L-active) when use SDRAM.
46 MADRS12 O DRAM address output 12
47 MADRS11 O DRAM address output 11
48 MADRS10 O DRAM address output 10
49 MADRS9 O DRAM address output 9
50 MADRS8 O DRAM address output 8
OEB O
44
45
43 CASLB O
CASUB O
Audio IF
Subcode
IF
PLL
Power
supply
Memory
IF
Power
supply
Memory
IF
Pin
No. Pin Name I/O Block Description
51 DVDD4 - Digital power supply pin for I/O.
52 V S S - GND earth terminal.
53 MADRS7 O DRAM address output 7
54 MADRS6 O DRAM address output 6
55 MADRS5 O DRAM address output 5
56 MADRS4 O DRAM address output 4
57 MADRS3 O DRAM address output 3
58 MADRS2 O DRAM address output 2
59 MADRS1 O DRAM address output 1
60 MADRS0 O DRAM address output 0
61 DVDD5 - Power supply pin for internal logic.
62 V S S - GND earth terminal.
When EDO-DRAM use. MP3 data request flag
output.(H-active)
/ DRAM data request flag input(CD ROM : H-active)
When SDRAM use CKE output(L-active).
When EDO-DRAM use. MP3 data transfer clock input.
/ DRAM data transfer clock output.
When SDRAM use DQML output(L-active).
When EDO-DRAM use. MP3 data serial input
/ DRAM data serial output.
When SDRAM use DQMH output(L-active).
66 FSYNC O MP3-dec
MP3 flame synchronized signal(H-active)
/ Complete detection flag of data connecting
point request(CD-DA : H-active)
When EDO-DRAM use. CRC check (CDROM data / CDDA
subcode data) Result output(H-active)
/ DRAM data output enable flag(H-active)
When SDRAM use ADRS13 output.
68 DVDD6 - Digital power supply pin for I/O.
69 V S S - GND earth terminal.
70 WOK I DRAM light permission input(CD-DA : H-active)
DRAM data request flag input(Only when EDO-DRAM used.)
71 CNTOK O
Complete detection flag of data connecting point request
(CD-DA : H-active) SYNC error monitor flag (MP3 : H-active)
DRAM data serial output(Only when EDO-DRAM used.)
72 OVF O
DRAM light interrupt flag(CD-DA : H-active)
Emphasis output flag (MP3 : H-active)
DRAM data transfer clock output.
(Only when EDO-DRAM used.)
73 CMDOUT O Command serial data output. (Nch open drain output pin)
74 CMDIN I Command serial data input.
75 C L I Command serial clock input.
76 C E I Command enable input.(H-active)
77 INTB O Interrupt signal output (L-active)
DRAM light interrupt flag(CD-DA : H-active)
78 RESB I System reset (L-active)
79 DATAIN I CD serial data input.
80 DATACK I CD bit clock input.
CRCF
STDAT I/O
O
63 STREQ I/O
STCK I/O64
65
67
Memory
IF
Power
supply
Power
supply
Anti
shock
/MP3
input
&
output
Micon
I/F
CD I/F
MP3
Stream
Input /
output
CD
monitor
Power
supply
- 10 -
1
2
3
4
5
6
7
FR
FR
8
9
10
11
12
13
14
28
27
26
25
24
23
22
21
20
19
19
17
16
15
-
-
+
+
-
+
-
+
-
+
-
+
11k
11k 11k
11k
15.4k
15.4k 15.4k
15.4k
GNDGND
RESET
3.3VREG
MUTE
(Output ON/OFF)
Level shift
Level shift
Level shift
Level shift
External PNP transistor, Collector connect
External PNP transistor, Base connect
VCC1
MUTE
VIN1
VG1
VO1+
VO1-
(NC)
(NC)
VO2-
VO2+
VG2
VIN2
REG_C
REG_B
VCC2
VREF
VIN4
VG4
VO4+
VO4-
(NC)
(NC)
VO3-
VO3+
VG3
VIN3
CD
RESET
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
VCC1
MUTE
VIN1
VG1
VO1+
VO1-
(NC)
(NC)
VO2-
VO2+
VG2
VIN2
REG_C
REG_B
RESET
Power supply (VCC2, short-circuit 28pin)
Output ON/OFF terminal
CH1, Input terminal
CH1, Input terminal(Gain setting)
CH1, Output terminal(+)
CH1, Output terminal(-)
(Do not use)
(Do not use)
CH2, Output terminal(-)
CH2, Output terminal(+)
CH2, Input terminal(Gain setting)
CH2, Input terminal
External PNP Connect to transistor collector
External PNP Connect to transistor base
RESET output
PIN No. Pin Name Description (Function) PIN No. Pin Name Description (Function)
16
17
18
19
20
21
22
23
24
25
26
27
28
CD
VIN3
VG3
VO3+
VO3-
(NC)
(NC)
VO4-
VO4+
VG4
VIN4
VREF
VCC2
RESET Connect to condenser
of dalay time setting
CH3, Input terminal(Gain setting)
CH3, Input terminal(Gain setting)
CH3, Output terminal(+)
CH3, Output terminal(-)
(Do not use)
(Do not use)
CH4, Output terminal(-)
CH4, Output terminal(+)
CH4, Input terminal(Gain setting)
CH4, Input terminal(Gain setting)
Standard applied voltage terminal
Power supply
(VCC1, short-circuit 1pin)
IC211 LA1186N-AUDIO (Diode for RM AMP,MIX,
OSC&AFC)
IC BLOCK DIAGRAM & DESCRIPTION
Vref BUFFER
RF MIX REG OSC
RF IN GND IF OUT Vcc
1 2 3 4 5 6 7 8 9
14
13
12
11
10
1
2
3
4
5
6
7
NF1
IN1
GND (SUB)
GND
Vcc
IN2
FILTER
ALC
ALC
NC
NC
NC
OUT 1
OUT 2
NF2
150k
150k
+
+
-
-
9
8
IC410 BA3314F (Dual Pre Amplifier for Audio)
IC104 LA6548NH-E (CD Driver)
- 11 -
IC BLOCK DIAGRAM & DESCRIPTION
IC103 M12L16161A-7TG (Synchronous DRAM)
CLK
CLK
ADD
LCKE
CS RAS CAS WE L(U)DQM
LDQM
LWCBR
CKE
LCASLWELCBR
LCBR
LRAS
LRAS
DQi
LDQM
LWE
Bank select Data Input Register
I/O Control Output Buffer
Sense AMP
Row Decoder
Row Buffer
Refresh Counter
Col. Buffer
Address Register
512K
X
16
512K
X
16
Column Decoder
Latency & Burst Length
Programming Register
Timing Register
Active on the positive going edge to sample all inputs.
Disables or enables device operation by masking or enabling all inputs except CLK,CKE
and L(U)DQM.
Makes system clock to freeze operation from the next clock cycle.
CKE should be enabled at least one cycle prior to new command.
Disable input buffers for power down in standby.
Row / column addresses are multiplexed on the same pins.
Row address : RA0~RA10, column address : CA0~CA7
Selects bank to be activated during row address latch time.
Selects bank for read/write during column address latch time.
Latches row addresses on the positive going edge of the CLK with RAS low.
Enables row access & precharge.
Latches column addresses on the positive going edge of the CLK with CAS low.
Enables column access.
Enables write operation and row precharge.
Latches data in starting from CAS, WE active.
Makes data output Hi-Z tSHZ after the clock and masks the output.
Blocks data input when L(U)DQM active.
System Clock
Chip Enable
Clock Enable
Address
Bank Select Address
Row Address Strobe
Column Address Strobe
Write Enable
Data Input / Output Mask
CLK
CS
CKE
A0~A10/AP
BA
RAS
CAS
WE
L(U)DQM
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
50
49
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
V
DD
DQ0
DQ1
V
SSQ
DQ2
DQ3
V
DDQ
DQ4
DQ5
V
SSQ
DQ6
DQ7
V
DDQ
LDQM
WE
CAS
RAS
CS
BA
A10/AP
A0
A1
A2
A3
V
DD
V
SS
DQ15
DQ14
V
SSQ
DQ13
DQ12
V
DDQ
DQ11
DQ10
V
SSQ
DQ9
DQ5
V
DDQ
N.C/RFU
UDQM
CLK
CKL
N.C
A9
A8
A7
A6
A5
A4
V
SS
PIN NAME Input Function
IC412 KIA6282K (Dual Audio Power Amplifier)
2
1
312
9
6
5
4
VCC2VCC1
IN-1
IN-2
NF1
NF2
RIPPLE
TERMINAL
B.S.1
B.S.2
OUT-1
OUT-2
Ch-1
+
-
10
11
7
8Ch-2
+
-
GND
BIAS CIRCUIT
THERMAL SHUT DOWN
PROTECTION CIRCUIT
20KΩ
20KΩ
30Ω
30Ω
- 12 -
IC BLOCK DIAGRAM & DESCRIPTION
IC241 LC72121M-D (Pll Synthesizer)
FM
IF FM
DET
LEVEL
DET
S-CURVE
AM/FM
IF
BUFF
REG GND
COMP
TUNING
DRIVE
AM
IF
AM
DET
VCC
AGC PILOT
CANCEL
PILOT
DET
DECODER
ANTI-BIRDIE
STEREO
SW
FF
38k FF
19k
VCO
304kHz
AM
RF.AMP
AM
MIX
AM
OSC
ALC
BUFF
P-DET
FF
19k
2
12 3 4 5 6 7 8 9 10 11 12
24 23 22 21 20 19 18 17 16 15 14 13
IC231 LA1844ML (Audio Tuner IC)
2
1
24
17
16
3
4
5
6
18
15
78910 11 14
19
20
21
22
13
Vssx
XIN
XOUT
FMIN
AMIN
CE
DI
CL
DO
V
DD
Vssd
PD
AIN
AOUT
Vssa
IFIN
IO1 IO2
BO1BO2 BO3 BO4
PHASE DETECTOR
CHARGE PUMP
UNLOCK
DETECTOR
UNIVERSAL
COUNTER
REFERENCE
DIVIDER
SWALLOW COUNTER
1/16, 1/17 4bits
12bits PROGRAMMABLE
DIVIDER
DATA SHIFT REGISTER LATCH
1/2
CCB
I / F
POWER
ON
RESET
- 13 -
TEST
VSS
CE
DI
CL
VDD
Vref
TIM
L4
L3
L2
L1
NC
NC
R1
R2
R3
R4
LSELO LIN LTRE LBASS1 LBASS2 LOUT
RSELO RIN RTRE RBASS1 RBASS2 ROUT
14
15
16
13
12
11
10 9 8
-
+
-
+
76 5
4
3
2
1
-
+
-
+
-
+
-
+
17
18
19
20
21 22 23
-
+
-
+
24 25 26
27
28
29
30
-
+
-
+
ZERO CROSSDET
ZERO CROSSDET CCB
INTERFACE
NO SIGNAL
TIMER
ZERO CROSSDET
MULTIPLEXER
CONTROL
CIRCUIT
MULTIPLEXER
LVref
RVref
1
30
2
29
3
28
4
27
5
26
6
25
7
24
8
23
9
22
10
21
11
20
12
19
13
18
14
17
15
16
DI
CE
VSS
TEST
LOUT
LBASS2
LBASS1
LTRE
LIN
LSELO
L4
L3
L2
L1
NC
CL
VDD
VREF
TIN
ROUT
RBASS2
RBASS1
RTRE
RLIN
RSELO
R4
R3
R2
R1
NC
Pin Name Pin No. DESCRIPTION Pin Name Pin No. DESCRIPTION
VSS 3 Ground Terminal
VDD 29 Supply Voltage Terminal
TIN 27
Timer Terminal of Zero Cross Circuit when there is no
signal. When there is no Zero Cross Signal after
setting data until a timer is completed, data is set
compulsorily.
CE 2
Chip EnableTerminal
Data is written in an internal latch in time for set to "L"
from "H", and each Analog Switch operates.Data
transmission is set to Enable on "H" level.
DI
CL
1
30 Serial Data foe Control and Clock Input Terminal
TEST 4 Test Terminal of Electronic Volume.
Maintain a Vss potential.
NC 15
16 NO CONNECT Terminal. Open or Connect toVss.
L1
L2
L3
L4
R1
R2
R3
R4
14
13
12
11
17
18
19
20
Input Signal Terminal
LSELO
RSELO
10
21 Output Terminal Input Selector
LBASS1
LBASS2
RBASS1
RBASS2
7
6
24
25
Capacitor of Filter Component for Bass Band
and Resistance Connect Terminal
LIN
RIN
9
22 Volume+Equalizer Input Terminal
LOUT
ROUT
5
26 Volume+Equalizer Output Terminal
LTRE
RTRE
8
23
Capacitor Connect Terminal of
Filter Component for Treble Band
Vref 28
1/2VDD Voltage Generation for Analog Ground.
Connect about 10µF Capacitor to Vref ~ AVSS
(VSS)as a Measure to Power Supply Ripple.
IC BLOCK DIAGRAM & DESCRIPTION
IC411 LC75348M-E (Electronic Volume)
- 15 -- 14 - This is a basic schematic diagram.
TAPE_PLAY
V_CHECK
SYNC_REC
+5.6V
TU_DATA
NC
TU_CLK
POWER_RY
GND
BEAT
ST_BY
SURROUND
A_MUTE
VF_CE
TU_DO
TU_CLK
+5.6V
TU_DATA
D_GND
LID_SW
D_GND
KEY_2
D_GND
TU_CE
JP WIDE
R6121
US1EU1 EU2 JP2
OPEN 0 8.2K 8.2K
MODEL SS
10K
8.2K
10K
15K
8.2K
10K
15K
27K
C6215
Q6108
X6102
C6022
C6020
C6500
R6504 R6505
S6500
S6505
S6504
S6506
S6511
S6503
S6502
S6510
S6501
R6503R6502R6501
R6511R6510
R6500
R6520
R6521
R6114
R6113
D6110
D6010
C6013
C6012
L6010
R6112
C6210
X6101
R6111
S6001
C6015
C6211
R6130
D6111
C6213
R6131
R6132
D6112
R6146
D6115 R6145
Q6107
C6212
Q6101
R6148
DS601
CN601
IC601
R6118
R6119
C6112
C6113
C6511
R6320
R6321
R6322
R6323
C6320
C6321
C6322
C6323
C6111
C6110
R6401
R6402
R6403
R6404
R6405
R6406
R6409
R6408
R6407
R6123
R6120
C6216
R6121
R6122
R6117
C6014
C6016
C6218
C6010
C6017
R6301
D6201 R6302
LCD61
R6303
D6202
R6304
R6411
R6410
CN602
R6801
R6802
R6803
R6804
R6805
R6806
C6018
C6114
C6324
R6412
R6413
33P
KTC3875
6MHZ
0.01
100/6.3
100P
1K 1.2K
CD_PLAY
FUNCTION
POWER
MEMORY
PRESET/PROG
TU/UP
TU/DOWN
TU/BAND
CD_STOP
820680470
470390
390
4.7K
4.7K
10K
10K
1SS133
1SS133
0.01
0.01
2.2
1K
33P
32.7KHZ
1K
JOG
0.01
18P
10K
1SS133
1000P
100K
47K
1SS133
47K
MTZJ3.9B 3.3K
KTA1504
2.2/50
KTC3875
15K
LC877148A
1K
100
100P
100P
100P
100
100
100
100
100P
100P
100P
100P
100P
100P
100
1K
100
1K
1K
1K
10K
15K
15K
10K
47K
1000P
0
10K
100
0.01
100P
1000P
1000/6.3
100P
820
LCD LIGHT
820
820
FRONT LED
820
10K
10K
0
0
0
0
0
0
0.1
0.1
1000P
560K
560K
123
-1 -2
123
45
1234567891011121314
6162636465666768697071727374757677787980
60
59
58
57
56
55
54
53
52
51
50
49
48
47
46
45
44
43
42
41
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40
1234567891011121314151617181920212223242526272829303132
12345678910
25
55
56
SURR
50
49
48
44
43
42
41
35
34
33
32
31
30
29
28
26
24
VD_GND
FSYNC
15
16
53
54
63
P_CON
CD_RES
CD_CE
CD_CLK
WRQ
16
15
62
60
CD_DATA
74
25
26
3
24
LID_SW
KEY2
24
25
59
RESET
V_CHK
VD_GND
A_MUTE
P_CON
4
SYNC_REC
BEAT
VF_CE
57
59
60
DRF
MP3_CE
3
RESET
V_CHK
36
37
38
45
46
47
51
52
64
61
A_MUTE
SURR
28
29
30
31
32
33
34
35
36
37
64
63
62
55
56
57
61
53
52
51
50
54
49
45
46
47
48
44
43
42
41
38
CD_CMD
BEAT
SYNC_REC
KEY2
DRF
MP3_CE
FSYNC
WRQ
CD_CMD
CD_DATA
CD_CLK
CD_RES
CD_CE
LID_SW
4
VF_CE
RESET
WR_SEL
CD_CLK
CD_DATA
WR_SEL
74
V_CHECK
V_CHECK
TO CD SEC.
TO AMP SEC.
TUEV_DI
CD_WRQ
SYN_REC
XT1(I)
DATA_ENA
COM1
MP3_FSYNC
S1
KEY0
SEL_POW_RY
MP3_SEL
KEY1
LID_SW
TU_DIST
A_MUTE
VDD3
VD_GND
NC
TAPE_PLAY
TUEV_CL
TU_DO
TU_CE
RESET
VSS1
S12
IR
CF2(0)
CF1(I)
XT2(0)
VDD2
VSS2
VDD1
CD_DRF
S2
S3
S4
S5
S6
S7
S8
S9
S10
S11
S13
S14
S15
S17
S19
S20
S21
S22
S23
S24
S25
S26
S27
S28
S18
S16
JOG-
JOG+
COM2
COM3
COM4
VSS3
SURROUND
CLK_SHIFT
CD_RST
CD_CE
CD_CMD
CD_CLK
MP3_CE
CD_DATA
V_CHK
LIMIT_SW
P_CON
TO TU SEC.
DRF
CE_MP3DSP
FSYNC
WRQ
CD_CMD
CD_DATA
CD_CLK
CD_RESET
CE_CDDSP
+9V
NC
POWER_RY
BEAT
VF_CE
TO WRITER TOOL
I/F_DATA
I/F_CLK
WR_SEL
RESET
GND
+5V
(EMC)
SCHEMATIC DIAGRAM (FRONT)
- 17 -- 16 -
This is a basic schematic diagram.
TU_GND
TU_RCH
TU_LCH
CD_RCH
A_GND
CD_LCH
CD_GND
CD+B
+9V
TU_RCH
TU_GND
TU_LCH
+5V
GND
RESET
RW_SEL
I/F_CLK
I/F_DATA
TO SHIELD
(EMC)
(EMC)
TO MAIN GNDSHIELD
(EMC)
TO SHIELD
TO SHIELD
(EMC)
(EMC)
TO SHIELD
TO SHIELD
(EMC)
C1315
C1308
C1312
C1313
C1314
C1301
C1305
C1319
C1321
C1309
C1326
C1323
C1324
C1329
C1721
C1333
C1332
R1341
R1342
R1343
R1344
R1303
R1302
R1314
R1316
R1315
R1317
R1304
R1312
R1310
R1311
R1305
Q1301
C1307
C1310
C1311
C1322
C1318
C1302
IC102
C1316
L1301
R1308
R1508
R1511
R1509
R1505
C1510
C1508
R1307
C1509
R1301
R1319
R1318
R1320
R1328 C1325
C1328
R1321
R1322
R1323
R1324
R1325
R1327
L1303
R1330
C1722
R1356
R1357
R1358
R1359
R1360
R1409
C1404
R1408
R1407
R1433
R1434
R1435
R1436
R1437
R1404
R1405
C1406
R1403
C1405
R1401 R1402
Q1401
C1401 C1402
C1403
C1413
C1415
C1416
C1414
C1412
R1414
C1410
C1411
C1511
C1501
C1502
R1415
L1302
L1401
Q1501
C1504
C1505
C1507
C1506
R1502
C1335
C1801
C1701
R1802
R1702
R1803
R1703
C1803
C1703
R1412
R1411
R1410
R1352
R1353
R1355
C1306
C1334
R1406
D1502 D1501
PR151
R1345
TP7TP6TP5
TP3 TP2 TP1
TP4
TP9
CN111
TP8
R1340
R1503
R1346
C1320
IC101
R1351
IC103
R1438
R1439
R1440
CN122
CN123
D1503
R1354
CN164
R1306
C1317
IC104
R1361
R1362
C1336
C1417
CN112
C1418
C1419
C1420
C1552
C1337
C1338
R1421
R1422
C1421
C1422
C1340
C1341
X1451
R1413
R1363
C1423
C1424
C1425
C1426
C1427
C1428
C1429
2200P
0.1
0.047
0.1
10P
0.1
0.1
2200P
0.1
0.1
0.047
0.1
0.1
0.1
0.1
0.1
0.1
18K
18K
18K
18K
100
470
10K
27K
330
100K
0
0
1K
1K
3.3
2SB810
47/10
100/6.3
100/6.3
10/16
1/50
100/6.3
LC78684NE
0.1
22u
47K
100
8.2K
6.8K
10K
1/50
1/50
1K
1
33
1.2K
12K
680
680 1/50
0.1
1K
1K
1K
470
0
47
100u
33
470/6.3
2.2K
2.2K
1K
1K
1K
1K
1/50
1K
1K
220
47
220
220
220
47K
3.3K
0.1
150
33P
3.3K 10K
KTC3199
100/6.3 47/10
0.1
0.1
0.1
470/6.3
0.1
0.1
100
0.1
0.1
100/10
0.1
0.1
1.5K
000
000
KTA1273
100/10
0.1
470/6.3
0.1
150
100/6.3
4.7/50
4.7/50
1K
1K
100K
100K
1000P
1000P
6.8K
6.8K
6.8K
2.2K
2.2K
1K
0.01
0.1
0
1A3-I 1A3-I
400mA
0
TE FE VC
RF
TF
REM
100K
6.8K
100K
47P
LC78646
1K
220
220
220
1A3-I
27K
5.6M
3300P
LA6548NH
1.8M
27K
0.1
0.1
15P
15P
15P
0.01
68P
0.1
8.2K
8.2K
10P
10P
22P
22P
16.93
4.7K
4.7K
0.1
1500P
0.1
1500P
1500P
0.1
1000P
21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40
80 79 78 77 76 75 74 73 72 71 70 69 68 67 66 65 64 63 62 61
60
59
58
57
56
55
54
53
52
51
50
49
48
47
464544434241
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
6162636465666768697071727374757677787980
4039383736353433323130292827262524232221
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25
26272829303132333435363738394041424344454647484950
1
2
3
4
5
6
7
8
1
2
3
4
1
2
3
4
5
6
28 27 26 25 24 23 22
1234567
21 20 19 18 17 16 15
8 9 10 11 12 13 14
1
2
3
4
5
6
A0
A1
A2
A3
A4
A5
A6
A7
A8
A9
OE
CASUB
CAS
WE
RAS
A4
A5
A6
A7
A8
A9
STREQ
CAS
D8
D9
D10
D11
D12
D13
D14
D15
D6
D5
D4
D3
D2
D1
D0
D7
WE
RAS
A0
A1
A2
A3
D15
D14
D13
D12
D11
D10
D9
D8
D7
D6
D5
D4
D3
D2
D1
D0
STREQ
STCK
STDAT
STCK
CASUB
OE
A10
A11
A10
A11
STDAT
D
A
B
C
BASE
MECHANISM
DA11T3CN
LD
MD
VR
LD
PD
GND
T+
T-
F-
F+
F
E
LIMIT SW
SPINDLE MOTOR
SLED MOTOR
PICK UP
SF-P101NR
TRCKING
COIL
FOCUS
COIL
M
M
COM
SL-
SL+
LIMIT
GND
SP+
SP-
VC
3.3V
CD-7V
RESET
L-CH
R-CHP-GND
CD-7V
R-CH
L-CH
DAC-DATA
DAC-BCLK
DAC-LRCK
DRF
DSP-DATA
DSP-COND
DSP-CLK
WRQ
RESET
3.3V
SLCO
SLCIST
EFMIN
RF
RFVDD
RFVSS
FIN1
FIN2
TIN1
TIN2
VREF
REF1
FE
TEC
TE
RFMON
JITTC
ADAVDD
ADAVSS
TDO
FDO
SPDO
SLDO
GPDAC
CONT4
CONT5
SBCK/CONT6
SBCK/FG
DEFFCT
V/P
FSEQ
MONI1
MONI2
SFSY/MONI3
SBSY/MONI4
PW/MONI5
VSS
VDD
DOUT
TEST
LVDD
LCHO
LVSS
RVSS
RCHO
RVDD
XVDD
XOUT
XIN
FSX/16MIN
XVSS
C2F
EFLG
16MOUT
ASLRCK
ASDACK
ASDFIN
LRSY
DATACK
DATA
CE
CL
DI
DO
WRQ
RES
DRF
VDDS
VSS
CONT3
CONT2
CONT1
PD01
PD02
VVSS
PCKIST
VVDD
FR
LDS
LDD
LRSY
ADDATA
ADBCK
ADLRCK
C2FIN
VSS
CKIN
VSS
CKOUT
VSS
DVDD1
PW
SBSY
SESY
SBCK
AVDD
VPRFR
VCOC
VPDO
AVSS
DVDD2
VSS
MDATA0
MDATA1
MDATA2
MDATA3
MDATA4
MDATA5
MDATA6
MDATA7
DVDD3
VSS
MDATA8
MDATA9
MDATA10
MDATA11
MDATA12
MDATA13
MDATA14
MDATA15
RAS
WE
LCAS
UCAS
OE
MADRS12
MADRS11
MADRS10
MADRS9
MADRS8
DVDD4
VSS
MADRS7
MADRS6
MADRS5
MADRS4
MADRS3
MADRS2
MADRS1
MADRS0
VDD5
VSS
STREQ
STCK
STDAT
FSYNC
CRCF
DVDD6
VSS
WOK
CNTOK
OVF
CMDOUT
CL
CE
INTB
RES
DATAIN
DATACK
CMDIN
VCC1
MUTE
VIN1
VG1
VO1+
VO1-
VO2-
VO2+
VG2
VIN2
REG_G
REG_B RESET
CD
VIN3
VG3
VO3+
VO3-
VO4-
VO4+
VG4
VIN4
VREF
VCC2
D-GND
WRQ
FSYNC
DRF
VSS
VSS
DQ15
DQ14
DQ13
DQ12
DQ11
DQ10
DQ9
DQ8DQ7
DQ6
DQ5
DQ4
DQ3
DQ2
DQ1
DQ0
VCC
VCC
A0
A1
A2
A3 A4
A5
A6
A7
A8
A9
(2.2/50)
SERIAL
OUT
EVTERNAL
AUDIO_IN
LPF
CLOCK
GENERATOR
1BIT_DAC
8FS DIGITAL_FILTER
ATTENUATION
DEEMPHSIS
INTERPOLATION
MUTE
ERROR
CORRECTION
AUDIO_CD
S/H
RAM
VREF
AGC
EQ MIX
SLICE
LEVEL
CONTROL
APC
LPF
LPF
SW
TBAL
TBAL
(2SA608NF)
(OPEN)
(OPEN)
(OPEN)
(OPEN)
(OPEN)
OPEN
PLL
VCEC
COMMAND
INTERFACE
RUPTURE_DEFECT
MONITOR
SUBCODE_DECODE_CRC
FRAME_SYNC
DETECT_PROTECT_INSERT
EFM_DECODE
DRIVER_MUTE
EMPH
INSIDE_SW
FE-GND DSP-GND
DSP-VDD
FE-VDD
AUD-VDD
AUDIO_I/F
u-COM-I/F
ANTI-SHOCK CDROM
DATA-I/F
MP3-DEC
MUX
DRAM-I/F
ADDRESS
DATA
CONTROL
CLKG
3.3V
11K
15.4K
RESET
11K
15.4K
11K
15.4K
15.4K
11K
OPEN
DRF
MP3_CE
FSYNC
WRQ
CD-CMD
CD-DATA
CD-CLK
CD_RESET
CD_CE
VSSQ
VCCQ
VSSQ
VCCQ
LDQM
WE
CASB
RASB
CSB
A10
A11
NC
CKE
CLK
UDQM
NC
VCCQ
VSSQ
VCCQ
VSSQ
+9V
(TO TU)
(TO MAIN)
+5V
GND
RESET
RW_SEL
NC
NC
NC
NC
SCHEMATIC DIAGRAM (CD)
PRODUCT SAFETY NOTICE
Each precaution in this manual should be followed during servicing. Components identified with
the IEC symbol !
!! and mark in the parts list and the schematic diagram designated components
in which safety and performance can be of special significance. When replacing a component
identified by !
!! and , use only the replacement parts designated, or parts with the same ratings
of resistance, wattage or voltage that are designated in the parts list in this manual. Leakage-
current or resistance measurements must be made to determine that exposed parts are acceptably
insulated from the supply circuit before returning the product to the customer.
- 19 -- 18 -
S6512 S6513 S6514 S6515
SOUND PRESET
BASS
SURROUND
CLOCK/
TIMER
1AD4B10D3000D
T002A 94V-0
KEY0GND
CN605
R6514
R6513R6512
KEY P.W.BOARD
This is a basic wiring diagram.
CD P.W.BOARD
WIRING DIAGRAM (FRONT&CD, KEY)
E
400mA
E
E
151020 152530
32
1AD4B10D3010B
L1301
L1303
C1307
C1510
C1508
C1507
C1504
J1220
J1007
Q1501
PR151
C1322
C1318
C1302
Q1301
J1226
J1009
J1117
C1335
J1214
C1801
J1223
C1511
IC101
C1311
C1310
C1701
IC102
J1124
C1325
J1212
J1010
J1208
C1404
J1116
C1402
Q1401
C1401
J1211
J1231
J1008
J1118
J1227
IC103
J1210
J1209
J1107
J1106
J1105
J1104
J1103
J1102
J1004
J1005
J1202
J1205
J1003
J1204
C1416
J1203
J1109
J1108
J1112
J1110
D-GND
+8.5V
CD-L
A-GND
CD-R
TU-R
TU-G
TU-L
CN111
J1013
J1016
J1015
J1120
J1236
J1017
J1229
J1230
J1238
J1217
J1006
J1215
J1221
J1219
J1232
J1233
J1234
J1235
J1228
J1222
D1502
D1501
D1503
J1244
J1207
J1100
J1101
J1111
J1002
J1201
J1200
J1014
J1114
J1113
J1245
J1121
J1012
J1237
J1122
J1123
CN122
+9V
TU_RCH
TU_GND
TU_LCH
GND
LIM
SL-
SL+
SP-
SP+
T002A 94V-0
J1206
J1213
J1216
J1119
CN112
J1224
J1225
J1239
J1240
J1241
J1242
J1243
CN123
J1125
J1011
L1401
L1302
J1218
C1336
CLK
DATA
DA1200M-SANYO-CD-PWB
J1115
X1451
J1307
J1303
J1304
J1305
J1306
J1308
J1309
J1302
J1301
J1300
C1423
C1722
S6501 S6502
S6503
S6500
DS601
S6511
S6510
S6506S6505S6504
D6201
D6202
S6001
CN601
X6102
X6101
J6105
TU/BAND PRESET
POWER FUNCTION
MEMORY
TU/DOWN
CD STOP
CD PLAY
TU/UP
J6311
J6317
D6111
D6112
D6115
J6315
J6207
J6208
C6212
J6108
J6109
J6215
J6210
J6301
J6100
J6102
J6101
C6020
J6310
J6308 J6212
J6213
J6304
J6305
CN602
J6318
J6202
J6201
J6319
J6217
J6211
J6206
J6216
J6203
J6307
J6321
CD_CMD
CD_DATA
CD_CLK
WRQ
FSYNC
DRF
MP3_CE
J6312
L6010
D6010
D6110
J6313
J6316
J6322
J6112
J6309
J6214
J6205
J6209
J6306
J6103
J6303
J6323
J6320
J6113
J6300
J6302
J6104
C6010
TU_DI
TU_CLK
+5.6V
TU_DATA
GND
LID-SW
GND
KEY2
TU_CE
GND
T002A 94V-0
1AD4B10D3010A
J6204
J6200
J6106
J6107
J6110
J6111
J6314
CD_RES
+9V
CD_CE
C6018
C6324
LCD61
R1302
R1303
C1301
R1346
R1344
R1344
R1343
R1343
C1506
C1506
R1310
R1310
C1306
C1306
R1305
R1305
CAN
CAN
C1319
C1319
R1312
R1312
C1334
C1334
R1330
R1330
C1509
C1509
R1317
R1317
C1332
C1332
R1327
R1327
R1308
R1308
R1353
R1353
R1355
R1355
CAN
CAN
CAN
CAN
R1434
R1434
R1433
R1433
C1415
C1415
C1323
C1323
R1422
R1422
C6112
C6112
R6117
R6117
R6118
R6118
R6501
R6501
R6510
R6510
C6511
C6511
R6301
R6301
R1344
R1342
R1340
R1343
R1301
R1307
C1501
C1502
R1503
R1502
C1506
C1505
C1312
C1313
R1314
C1314
R1315
C1315
C1316
R1316
R1311
R1310
C1306
R1304
C1305
R1305
CAN
CAN
C1319
R1312
C1320
C1321
C1333
C1334
R1330
C1803
R1803
R1802
R1703
C1703
R1702
R1505
CAN
CAN
C1509
R1508
R1509
CAN
C1309
R1317
C1332
C1721
R1327
R1319
R1318
C1324
C1328
R1320
R1328
C1326
R1308
R1325
R1406
R1324
R1345
R1407
R1408
R1409
R1352
R1353
R1412
C1418
R1356
R1351
R1357
R1411
C1419
R1410
C1420
R1414
R1415
C1410
R1358
C1411
R1438
R1439
R1440
R1405
R1404 R1403
C1405
C1403
R1401
R1402
R1355
CAN
CAN CAN
CAN
R1511
C1413
C1412
R1437
R1436
R1435
R1434
R1433
C1414
R1360
R1359
C1415
R1321
R1322
R1323
C1406
R1354
C1552
C1323
R1306
C1317
R1362
R1361
C1417
IC104
C1340
C1341
C1338
R1422
C1422
R1421
C1421
C1329
C1337
R1341
R1363
R1413
C1308
C6112
R6117
R6118
C6210
C6210
C6215
C6215
R6504
R6504
R6131
R6131
R6321
R6321
C6321
C6321
C6022
C6022
R6806
R6806
C6500
C6500
C6114
C6114
R6123
R6123
C6210
C6211
C6215
R6120
R6121
C6216
R6520
R6500
R6501
R6504
R6505
R6510
C6511
Q6107 Q6101
R6403
R6405
R6404
R6402
R6401
R6145
R6146
R6130
R6131
R6132
C6213
R6119
C6113
C6218
R6122
R6803
Q6108
R6321
R6322
C6321
R6320
C6320
R6323
C6322
C6323
C6016
C6017
C6015
R6407
R6148
C6022
R6801
R6802
R6408
R6406
R6410
R6409
R6411
IC601
R6805
C6110C6111
R6111
R6113R6114
R6112
R6301
R6302
R6303
R6304
R6804
C6012
C6013
C6014
R6806
R6521
C6500
C6114
R6503
R6502
R6511
R6123
R6412
R6413
FRONT P.W.BOARD
- 21 -- 20 -
This is a basic schematic diagram.
+9V
TU_L
TU_GND
TU_R
KEY2
D_GND
TU_CE
GND
KEY2
GND
LID_SW
GND
TU_DO
+5.6V
TU_CLK
TU_D1
C2311
C2302
IC231
C2313
C2312
C2305
R2306
C2306
R2304
C2304
R2302
C2301
R2453
R2452
R2454
C2457
C2455
C2456
C2454C2453
C2452
C2451
C2901
C2902
C2319
C2320
C2303
R2305
C2461
R2459
R2458
R2460
T2002
C2115
IC241
R2455
Q2201
C2203 R2203
C2327
C2328
R2307
C2310
D2466
C2462
C2463
D2452
R2464
C2464
C2321
C2316
C2309
R2308
C2317
R2309C2308
C2307
Q2451
C2152
CT252
C2151
R2151
C2154
D2151
D2103
C2318
R2311
R2301
R2312
C2324
C2315
D2153
L2151
L2153
R2131
R2148
R2149
R2201
R2204
X2451
C2322
D2456
R2202
XF233
C2314
XF221
XF222
XF231
C2116
IC211XF211
C2103
C2105
R2101
L2001
C2107
R2107
D2101
R2103
C2109
L2104
C2111
R2108
L2103
D2102
R2106
C2101
C2104
R2102
C2110
C2112
R2109
R2110
C2113
C2114
R2105
C2141
C2323
R2205
R2463
R2462
R2461
R2901
C2903
L2451
D2451
CN221
CN204
S2001
R2910
CN222
CN202
CN201
R2320
D2152
D2104
C2345
C2346
R2900
10;50
0.022
LA1844ML
1;50
0.022
0.47;50
2.7K
1;50
10K
0.047
3.3K
220;16
1.5K
2.2K
10K
1;50-P
0.01
0.01
12P12P
0.01
10;50
220;16
0.01
0.022
0.022
22;16
10K
100P
10K
10K
10K
1000P
LC72121M
220
KTC3195
0.01 330
10;50
10;50
68K
0.047
1SS133
100P
100P
MTZJ3.0B
1K
100P
1;50
4700P
0.1
56K
4.7;50
47K0.018
10;50
KRA107M
560P
0.047
10K
18P
1SS133
1SS133
1000P
100
100
3.3K
100P
330P
SVC342 MWANT
MWOSC
56K
820K
27K
220
470K
7.2M
1000P
1SS133
330
0.01
0.47;50
0.01
LA1186N
0.01
100
0.022
18
SVC211
100K
100P
8.2U
1000P
100K
SVC211
100K
0.01
0.022
330K
22P
0.022
560
560
15P
5P
1.5K
6P
1000P
33
1K
1K
1K
100
220;16
100U
1SS133
1K
AM TERMINAL
FM TERMINAL
56K
1SS133
1SS133
0.1
0.1
000
123456789101112
24 23 22 21 20 19 18 17 16 15 14 13
123456789101112
24 23 22 21 20 19 18 17 16 15 14 13
123456789123
4
3
2
1
1
2
1
2
3
4
5
6
7
8
9
10
FM IF AM MIX AM IFREG GND SD ST FM DET VDD MUTE FM/AM MONO
LCHRCHMPX INPLL IN
FM
DET OUT
AM
DET OUTAGCAM RFAFCAM OSCOSC BU
XIN CE DI CLK DO
XOUT NC AOUT AIN PD VDD FMIN AMIN IFINSD
DISTIF_REQFM MONO AM
(TO CD)
NC
VSSDVSSA
VSSX
PILOT
CLL OUT
FM+B
(TO FRONT)
(TO SW)
2.1
4.7 6.3 2.1 2.1 0.6 0.5 2.6 2.6 2.1 1.3 1.3 5.3
5.0
0.7
5.0
2.306.3
4.0
5.15.04.7
02.12.1
6.2
6.6
0
0
AM 999KHZ
FM 98MHZ
VOLTAGE=
2.3 9.2
1.6
0
0
0
00.900.95.1
2.0
2.0
00
4.2
3.4 0.8 0.8 3.2
0
0.3 0.1
0.4
0.2
0
4.3 0.9
11.1
5.2
5.6
4.8
0.9
00
0.6
0.9
4.7 0
0
1.9
1.9
0
(UNIT:V)
8.5
0
SCHEMATIC DIAGRAM (TUNER)
- 23 -- 22 -
E
VT
T002A 94V-0
1AD4B10D3000C
IC211
L2153
L2151
CT252
S2001
D2102
L2103
XF211
L2104
XF221
Q2201
C2303
D2153
CN202
D2101
C2116
XF222
C2313
J2312
C2311
C2317
C2307
T2002
XF231
XF233
C2301
C2305
C2306
D2452
C2457
C2451
C2321
C2327
C2328
J2301
J2313
X2451
J2201
CN221
C2903
C2901
VT
J2107
D2451
L2451
D2466
D2456
D2151
J2319
J2304
CN222
CN201
D2103
TU_D0
TU_CLK
TU_DATA
+5.6V
GND
GND
GND
LID_SW
KEY2
TU_CE
+8.5V
TU_L
TU-R
GND
CN204
J2203
D2152
D2104
Q2451
J2202
J2101
J2315
J2316
J2106
J2109
J2318
J2105
J2108
J2307
J2314
J2306
J2103
J2102
J2308
C2314
J2100
J2104
J2305
J2302
J2300
J2311
J2310
C2346
J2317
C2345
J2309
IC231
J2303
J2200
L2001
IC241
C2151
R2201
R2151
R2131
C2154
C2152
C2152
C2107
C2107
R2103
R2103
R2107
R2107
C2110
C2110
C2141
C2141
C2323
C2323
C2310
C2310
C2318
C2318
C2308
C2308
R2312
R2312
R2308
R2308
R2309
R2309
C2309
C2309
C2115
C2115
R2302
R2302
C2304
C2304
C2312
C2312
R2306
R2306
R2455
R2455
C2152
C2101
C2107R2102
R2103
R2106
C2105
R2107
C2111
C2110
R2105
C2109
C2112
C2141
C2114
C2203
C2113
R2110
R2110
R2109
R2109
R2110
R2204
R2205
R2203R2202
C2323
C2310
C2318
C2308
R2312R2308
C2315
R2309
R2307
C2309
C2316
R2304
C2322
R2452
C2456
R2453
C2324
R2101
C2104
C2103
C2115
C2453
C2454
R2454
C2455
R2458
R2459
R2460
R2910
C2319
C2320
C2461
R2311
R2301 C2464
C2452
R2148
R2302
C2304
C2312
C2302
R2306
R2149
R2901
C2902
R2109
R2108
R2461
R2462
R2463
R2464
C2462
C2463
R2305
R2900
R2455
R2320
This is a basic wiring diagram.
WIRING DIAGRAM (TUNER)
- 25 -- 24 -
This is a basic schematic diagram.
TU_GND
TU_RCH
TU_LCH
CD_LCH
A_GND
CD_RCH
CD_GND
CD+B
VOL_CE
A_MUTE
SURROUND
ST_BY
BEAT
GND
POWER_RY
VOL_CLK
NC
VOL_DATA
+5.6V
SYNC_REC
V_CHECK
TAPE_PLAY
(TO CN411)
R4911
Q4902
C4920
R4910
C4919
R4912
C4921
C4918
R4718
C4713
C4911
R4818
C4813
C4815
C4714
C4715
C4814
C4716
C4913
R4781
C4912
C4816
R4881
C4712
C4812
C4905
C4909
R4905
CN406
L4902
R4941
CN405
Q4951
D4951
R4951
C4952
C4951
R4952
R4752
R4852
C4953
PR495
C4916
Q4751
Q4851
R4756
R4856
R4961
D4963
D4962
R4962
C4751
C4851
C4961
R4717
R4817
R4816
R4716
Q4904
C4906
CN421
R4938
C4811
C4711
C4726
C4826
Q4106
R4106
R4704
R4703
R4803
R4804
C4704
C4804
C4703
C4803
R4901
C4901
C4802
C4702
C4807
C4707
R4710
R4810
C4805
C4705
R4805
R4705
C4806
C4706
R4708
C4708
C4709
R4709
C4808
R4808
R4809
C4809
CN401
CN402
S4950
IC410
Q4104
R4107
PR496
D4953
C4962C4963
R4991
C4984
Q4840
Q4740
R4857
R4859
R4858
R4757
R4759
R4758
R4914
C4110
C4750
C4850
Q4992
Q4994
R4953
C4915
IC446
D4993
C4994
C4997
C4993
Q4995
R4955
R4954
L4781
L4881
R4860
R4760
C4801
C4701
R4761
R4861
C4731
C4923
C4922
R4923
R4922
C4924
R4924
IC411
C4730
R4963
R4825
R4731
R4725
R4722
R4721
R4728
R4727
R4822
R4821
R4831
R4828
R4827
R4820
R4826R4726
R4720
R4832
R4732
C4828
C4827
C4728
C4727
C4829
C4729
C4725 C4825
C4733
C4722
C4721
C4720
C4833
C4822
C4821
C4820
D4961
Q4321
R4323 R4324
D4102
CN490
R4762
R4862
S6514
R6514
S6513
S6515
S6512
R6513R6512
CN491
IC412
L4591
CN452
CN451
CN455
AC230V
50Hz
CN411
C4980 C4981
D4980 D4981
D4983
D4982
C4982 C4983
Q4996 Q4997
R4956
R4957
R4958
D4984
R4959
C4995
R4110
Q4320
R4325
R4321
R4320
R4942
C4930
12
2SC3330
0.01
10K
0.01
330
10/25
1000P
560
47/10
330/25
560
47/10
100/16
0.15
100/16
0.15
1000/16
4700/25
150
47/25
1000/16
150
3300P
3300P
10/25
220/10
100
27
KTD2058
MTZJ9.1B
470
0.022
47/25
470
2.2
2.2
470/16
1500mA
180P
2SD1012
2SD1012
4.7K
4.7K
10K
1SS133
1SS133
1K
1/50
1/50
1;50
15K
15K
1K
1K
2SC3330
1000P
10K
10/25
10/25
1/50
1/50
KRC102M
10K
3.9K
68
68
3.9K
47/10
47/10
0.022
0.022
390K
47/10
1000P
1000P
2200P
2200P
3.9K
3.9K
1000P
1000P
18K
18K
270P
270P
18K
2200P
560P
1K
2200P
18K
1K
560P
BA3314
KRC102M
47K
1500mA
1SS133
10/1610/16
10K
0.01
KRC102M
KRC102M
8.2K
1.5K
5.6K
8.2K
1.5K
5.6K
2.7K
100/10
0.01
0.01
KTA1271
KRC107M
4.7K
1/50
NJM78L05A
1SS133
47/10
0.01
220/25
KTA1271
47K
4.7K
22U
22U
1K
1K
10/25
10/25
1.2K
1.2K
22/16
100P
100P
1K
1K
100P
1K
LC75348
220/16
100
22K
100K
22K 56K
27K
100K
3.9K
56K
27K
100K
100K
3.9K
4.7K
10K10K
4.7K
6.8K
6.8K
0.1
0.1
0.1
0.1
2700P
2700P
1/50 1/50
1/50
1/50
1/50
1/50
1/50
1/50
1/50
1/50
1SS133
KTA1266
4.7K 1K
1SS133
1K
1K
BASS
1K
SURR
SOUND_PRESET
CLOCK/TIMER
820680
KIA6282K
KIA6282K
0.01 0.01
RL153 RL153
RL153
RL153
0.01 0.01
2SC3330 2SC3330
4.7K
10K
10K
RL153
470K
0.1
1K
2SC3330
10K
120K
10K
2.2K
0.1
8 9 10 11 12 13 14
1234567
123
123456789101112131415
302928272625242322212019181716
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
9
10
11
12
13
14
11
10
3
2
1
12
9
8
7
6
5
4
RIPPLE
NF1IN1IN2NF2GND
VCC1
B.S.1
B.S.2
OUT2
OUT1
VCC2
S4950-1~2 R/P SW
S4904: MECHA MOTOR SW
SP471
SP481
LEFT
RIGHT
HEAD PHONE
(1/2)
(2/2)
R
P
ALCNC OUT1NCOUT2NF2 NF3
NF1IN1GNDGNDVCCIN2FILTER
MAGNETIC
E HEAD
WOOFER
WOOFER
+
P
R
R/P
HEAD
-
(FUSE)
L-CH
R-CH
MOTOR
S4904
(FUSE)
(FUSE)
S4950-2
(AMP BLOCK)
(MYLAR)
TO FRONT
P
P
P
P
PPR
R
R
R
R
R
S4950-1
S4950-5
S4950-6
S4950-7
S4950-8
S4950-4
S4950-3
L
OUT
L
BASS2
L
BASS1
L
TRE
L
VRIN
L
SELO
AUTUCDTA
TA CD TU AU
R
SELO R
VRIN R
TRE R
BASS1 R
BASS2 R
OUT
Vref
VSS CE DI
VDD CL
TESTNC
TIMNC
RRRR
LLLL
KEY2
D_GND
CN603
TO_TUNER
T4981
T2.5A L 250V
+14V
FUSE(TH)
BW
BL
FU401
0
4.3
0
0.6
0
0.1
0
5.9
0.6 0.606.3
11.3
5.9 12.0 11.3
0
11.6
PLAY
REC
9.0
14.0
9.6
VOL_CLK
VOL_STB
VOL_DATA
CH-1
BIAS CIRCUIT
THERAMAL SHUT DOWN
PROTECTION CIRCUIT
20K
30
30
20K
CH-2
POWER SUPPLY
SCHEMATIC DIAGRAM (AMPLIFIER)
PRODUCT SAFETY NOTICE
Each precaution in this manual should be followed during servicing. Components identified with the IEC symbol !
!! and mark in the
parts list and the schematic diagram designated components in which safety and performance can be of special significance. When
replacing a component identified by !
!! and , use only the replacement parts designated, or parts with the same ratings of resistance,
wattage or voltage that are designated in the parts list in this manual. Leakage-current or resistance measurements must be made to
determine that exposed parts are acceptably insulated from the supply circuit before returning the product to the customer.
This manual suits for next models
1
Table of contents
Other Sanyo Stereo System manuals
Sanyo
Sanyo DC-MX42i User manual
Sanyo
Sanyo DTA-1800 User manual
Sanyo
Sanyo DC-DA170 User manual
Sanyo
Sanyo DC-LD5 User manual
Sanyo
Sanyo DC-DA3300M User manual
Sanyo
Sanyo DC-DA1000 User manual
Sanyo
Sanyo Dc-MS5 User manual
Sanyo
Sanyo DC-DA370 User manual
Sanyo
Sanyo DC-MP9500 User manual
Sanyo
Sanyo DTA-150 User manual
Sanyo
Sanyo DC-DA280 User manual
Sanyo
Sanyo DTA-300M User manual
Sanyo
Sanyo DC-DA900 User manual
Sanyo
Sanyo DC-DA1450M User manual
Sanyo
Sanyo DC-007C User manual
Sanyo
Sanyo DC-DA3000 User manual
Sanyo
Sanyo DC-MP4500(BK)/XE User manual
Sanyo
Sanyo DC-MCR350M User manual
Sanyo
Sanyo DC-BM300 User manual
Sanyo
Sanyo DC-DA1450M User manual
