Sanyo DC-SLIM1600 User manual

FILE .NO
DC-SLIM1600/AU
Service Manual CD Audio System
PRODUCT CODE No.
Specifications
1 129 666 00 DC-SLIM1600/AU
REFERENCE No. SM0913001
Specifications subject to change without notice.
AC Power :
 AC 240V, 50 Hz
 DC 3V (1.5V x 2 "AAA" batteries
 for tuner and clock memory)
Power Output :
 5 W / CH 10% THD
Dimensions of Main section :
 619 (W) x 133.7 (D) x 281.5 (H) mm
Radio section :
 Tuning : PLL with 20 presels (FM 10, AM 10)
 Frequency Range :
 FM: 87.5 - 108 MHz
 AM: 531 - 1602 kHz
CD section :
 Vertical Front Loading CD
Speaker system :
 Woofer 4" , 4 ohm
 Tweeter 2", 4 ohm
Remote control :
 32 keys, Battery size "CR2032"
 (Battery Included)

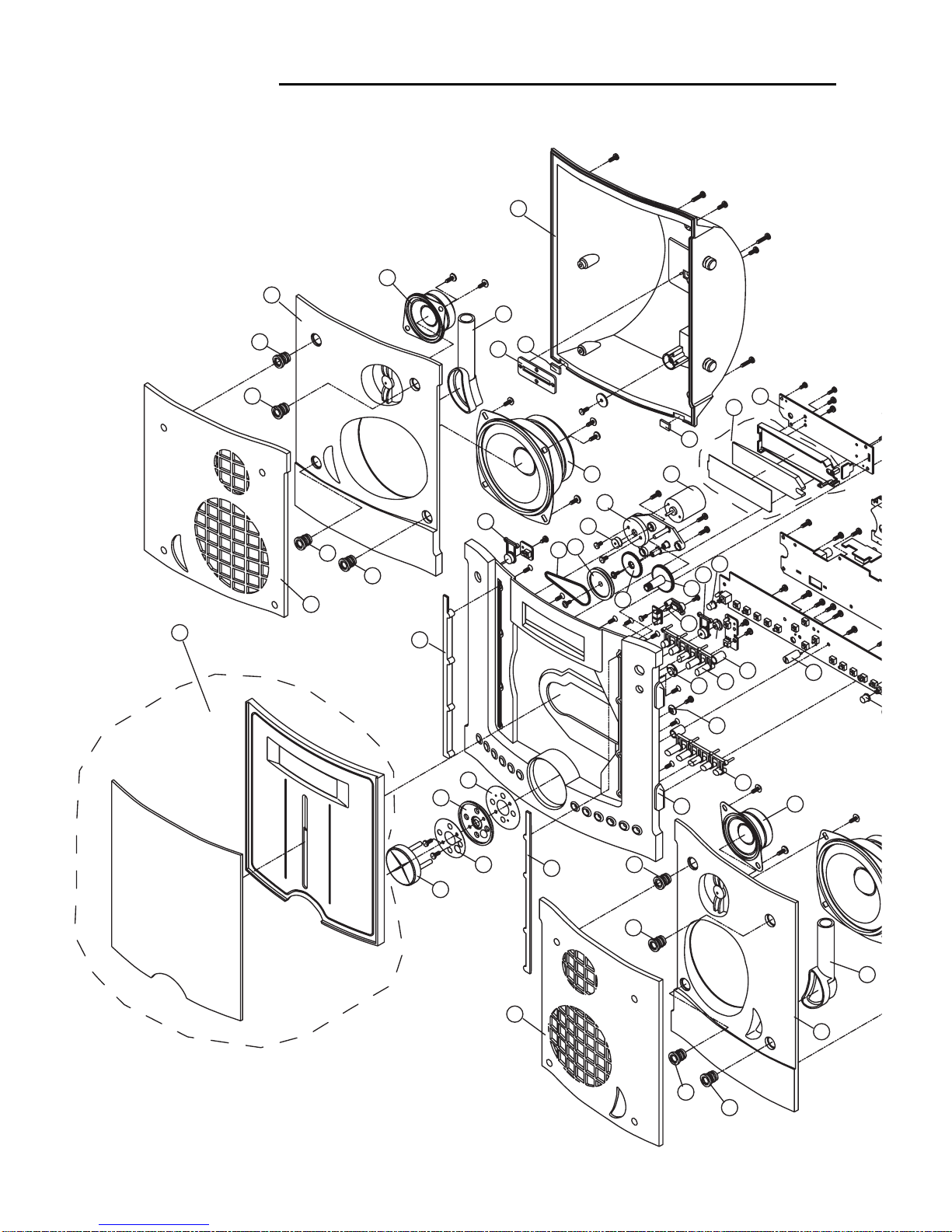

EXPLODED VIEW
2
1
10
11
13
14 15
16
17
18 19
20
21
22
23
24
25
27
29
30
31
32
33
34
36
37
38
39
2
5
6
7
8
9
50
51
65
66
70
77
31
31
31
50
31
31
31
31
66

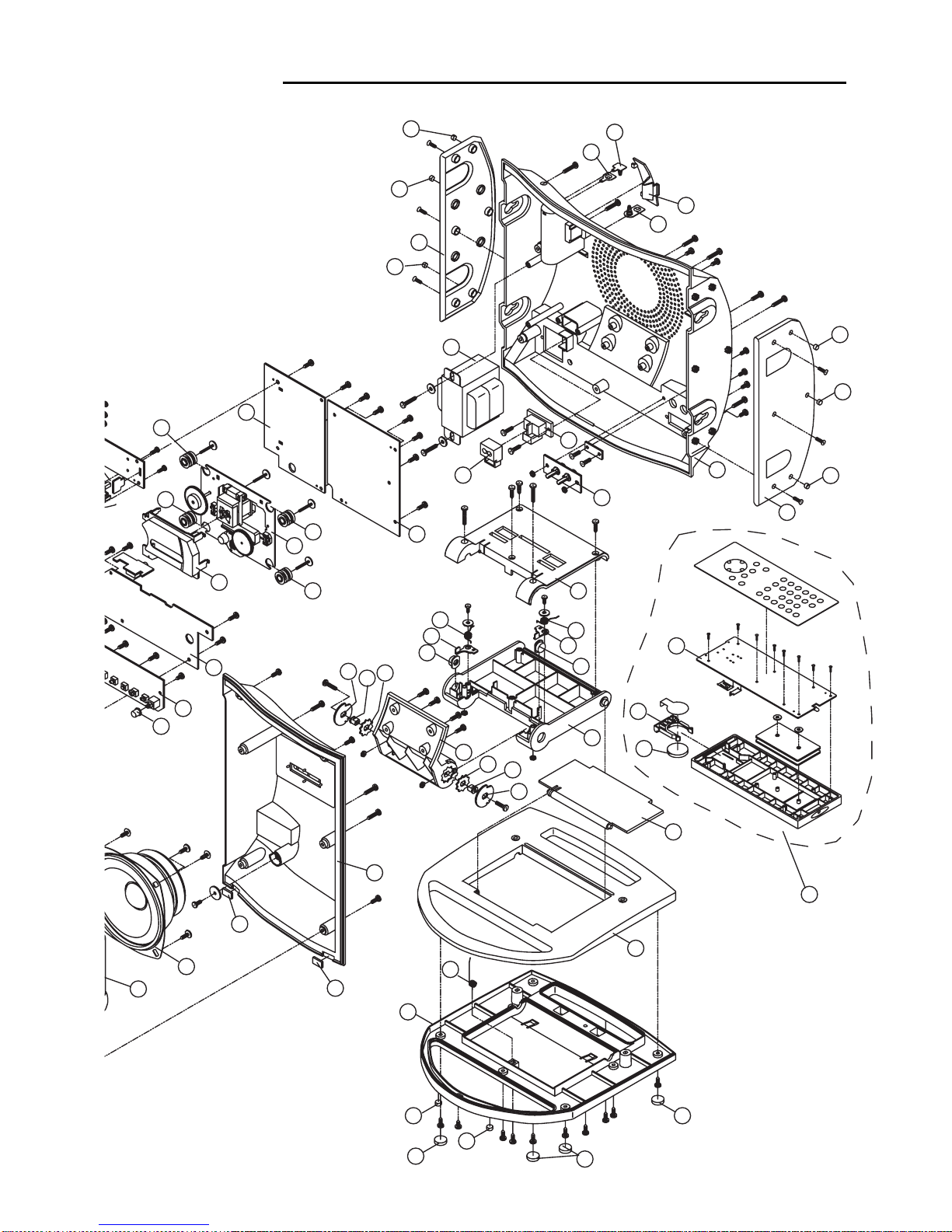

EXPLODED VIEW
3
12
26
28
35
39
3
4
40
41
42
43
44
45
46
47
47
48 49
52
53
54 55
56 57 58
59
60
61
62
63 64
67
68
69
71
72
73
74
75
76
78
79
80
19
65
53
52
47
47
58
56
57
48 49
49
50
50
26
47
47
43

PARTS LIST
4
PRODUCT SAFETY NOTICE
EACH PRECAUTION IN THIS MANUAL SHOULD BE FOLLOWED DURING SERVICING. COMPONENTS IDENTIFIED WITH THE IEC
SYMBOL IN THE PARTS LISTAND THE SCHEMATIC DIAGRAM DESIGNATED COMPONENTS IN WHICE SAFETY CAN BE OF
SPECIAL SIGNIFICANCE. WHEN REPLACINGA COMPONENT IDENTIFIED BY , USE ONLY THE REPLACEMENT PARTS DESIG-
NATED, OR PARTS WITH THE SAME RATINGS OF RESISTANCE, WATTAGE OR VOLTAGE THATARE DESIGNATED IN THE PARTS
LIST IN THIS MANUAL. LEAKAGE-CURRENT OR RESISTANCE MEASUREMENTS MUST BE MADE TO DETERMINE THAT EX-
POSED PARTS ARE ACCEPTABLY INSULATED FROM THE SUPPLY CIRCUIT BEFORE RETURNING THE PRODUCT TO THE CUS-
TOMER.
REF NO. PART NO. DESCRIPTION
PACKING & ACCESSORIES
76-01A160001120 GIFT BOX (SANYO)
77-20A160001620 INSTRUCTION MANUAL (E)
45-184300040020 SPK CORD (GREY) L=3M
02-32A200000000 AM LOOPANTASS'Y
44-316445052520 2P WIRE L=4500mm
FRONT PANEL & CABINET
1 56-01A160000000 VOLUME KNOBADAPTOR
2 56-04A16000A070 FRONT CAB(HIPS)
3 56-05A160068000 REAR CAB(HIPS)
4 56-06A160018000 REAR CAB BATTERY DOOR
5 AU-56A160000050 BACK LIGHT LENSASS'Y
6 56-07A16001A000 CD DOOR LEFT GUIDETRACK
7 56-07A16002A000 CD DOOR RIGHT GUIDETRACK
8 56-07A160038010 VOLUME KNOB LIGHT BKT
9 56-07A160048010 CD DOOR CONTROL PCB BKT
10 56-07A160058010 MOTOR BRACKET
11 AU-56A160000040 CD DOORASS'Y
12 56-15MS0661B000 LASER COVER (FOR CD)
13 56-37A16000B000 DRIVING GEAR
14 56-37A16001B000 DRIVEN GEAR
15 56-37A160020000 DRIVEN GEAR
16 56-54A16000G010 VOLUME KNOB
17 56-54A16001A000 CD DOOR OPEN/CLOSE KNOB
18 56-54A16002A000 POWER/STANDBY KNOB
19 56-54A16003C000 LINE IN/OUT KNOB
20 56-54A16004C000 RIGHT CD FUNCTION KNOB
21 56-54A16005C000 LEFT CD FUNCTION KNOB
22 57-26A160000120 VOLUME RING UP
23 57-26A160000220 VOLUME RING DOWN
24 56-57A160050000 POWER KNOB LIGHT LENS
25 56-57A160060010 OPTIC SENSER LENS
26 56-69A16000G000 DESCRIPTION PLATE
27 56-78A160000000 VOLUME KNOB RING
28 56-81000000B000 AC SOCKET COVER
29 56-76M620R00000 MOTOR PULLEY
30 56-69A160028000 SPEAKER COVER
31 56-80S16800B000 SPEAKER PANEL STUD BLK
32 56-85A16000A000 SPEAKER FRONT PANEL/L
33 56-85A16001A000 SPEAKER FRONT PANEL/R
34 56-85A160068000 SPEAKER REAR CAB/L
35 56-85A160078000 SPEAKER REAR CAB/R
36 56-86A16000B000 SPEAKER NET BRACKET/L
37 56-86A16001B000 SPEAKER NET BRACKET/R
38 56-87A160008000 LEFT SPAIR FILTER TUBE
39 56-87A160018000 RIGHT SPAIR FILTER TUBE
40 56-07A160068010 STAND SUPPORT BKT UPPER
REF NO. PART NO. DESCRIPTION
41 56-07A160078010 STAND SUPPORT BKT DOWN
42 56-07A160088010 REAR CAB CONTACT BKT
43 56-54A160068000 ADJUST KNOB(GREY 432C)
44 56-80A160028000 STAND UPPER(DARK GREY)
45 56-80A160038000 STAND DOWN(DARK GREY)
46 56-80A160048000 REAR CAB CON.BKTADAPTOR
47 58-262502300020 HARD RUBBER FOOT
48 58-262602600120 RUBBER FOOT(BLK)
49 58-263122300020 HARD RUBBER FOOT
50 58-263122680020 HARD RUBBER FOOT12x6.8x2
51 58-43A160000020 DRIVE BELT
52 58-61M520R02120 SHOCK ABSORBER (PINK)
53 58-61M620R00120 SHOCK ABSORBER (BLACK)
54 61-11A160000620 STAND SUPPORT BKT PLATE/L
55 61-11A160000720 STAND SUPPORT BKT PLATE/R
56 61-11A160000823 STAND METALPLATE(R3)
57 61-11A160000920 STAND METALPLATE SHAFT
58 61-11A160001020 STAND METALHOLDER
59 61-25A160000020 BATTERY PLATE (+)
60 61-26A160000020 BATTERY SPRING PLATE (-)
61 61-26A160000121 BATTERY SPRING PLATE (+/-)
62 61-97A160000020 STAND-ARM SPRING
63 61-97A160000120 BOTTOM BASE LEFT SPRING
64 61-97A160000220 BOTTOM BASE RIGHT SPRING
65 19-011112500820 SPEAKER 4” 5W 4 OHM
66 19-032052800220 TWEETER 2” 8W 4 OHM
67 43-451200005020 RCA JACK BD 2P (RD/WH)
68 43-520300000001 AC SOCKET (TAI CHUNG)
ELECTRICAL PARTS
69 18-206A16001120 H/TRANSFORMER 240V/50Hz
70 58-44A160000020 MOTOR 5V (RF-370CA-17205)
45-124200600060 AC CORD SET SAAAPP 2M
CD MECANISMASS'Y
71 20-70CMSB35BG60 CD MECHANISM CMS-B35BG6
REMOTE CONTROLASS'Y
72 02-17A160000031 REMOTEASS'Y SANYO
73 05-13A160000000 REMOTE BOARDASS'Y
74 51-021301000050 LITHIUM BATTERY CR2032
75 56-44A16000A000 REMOTE BATT.DOOR
RADIO PCBASS'Y
76 05-02A160000030 RADIO BOARDASS'Y
C210 26-014101051121 E.CAP 1UF 50V
C215 26-014101051121 E.CAP 1UF 50V
C217 26-014221051121 E.CAP 2.2UF 50V

PARTS LIST
5
REF NO. PART NO. DESCRIPTION
D79 12-1N4148000021 DIODE 1N4148
IC401 16-AS3053000021 ICAS3053-6AP
13-011509122020 LED LAMP 5mm (S.GR/RD/BLUE)
13-05A160000021 LCD DISPLAY 83x27.5mm
KEY PCBASS'Y
78 05-05A160000000 KEY BOARDASS'Y
CN7A 44-315322057620 7P WIRE L=220mm HSG(2)x1
CN401 43-022200140120 WAFER 2mm 4P 90C
CN402 43-022200120120 WAFER 2mm 2P 90C
CN403 43-022200140120 WAFER 2mm 4P 90C
CN405 43-022200160120 WAFER 2mm 6P 90C
CN406 43-022200130120 WAFER 2mm 3P 90C
CN407 43-022200160120 WAFER 2mm 6P 90C
D401 12-1N4148000021 DIODE 1N4148
D402 12-1N4148000021 DIODE 1N4148
D405 12-1N4148000021 DIODE 1N4148
L401 38-013100050220 AXIAL INDUCTOR 10UH 500mA
L402 38-013100050220 AXIAL INDUCTOR 10UH 500mA
L403 38-013100050220 AXIAL INDUCTOR 10UH 500mA
LED1 13-011509122020 LED LAMP(S.GR/RD/BLUE)
Q401 11-8050C0000021 TRANSISTORS 2W 8050C
Q403 11-9015C0000021 PNP TRANSISTORS 9015C
Q404 11-9014C0000021 NPN TRANSISTORS 9014C
Q405 11-9014C0000021 NPN TRANSISTORS 9014C
Q406 11-9014C0000021 NPN TRANSISTORS 9014C
Q407 11-9014C0000021 NPN TRANSISTORS 9014C
Q408 11-9015C0000021 PNP TRANSISTORS 9015C
Q410 11-9014C0000021 NPN TRANSISTORS 9014C
SW401 41-150010100020 TACT SWITCH 6x6mm 5mm
SW402 41-150010100020 TACT SWITCH 6x6mm 5mm
SW403 41-150010100020 TACT SWITCH 6x6mm 5mm
SW404 41-150010100020 TACT SWITCH 6x6mm 5mm
SW405 41-150010100020 TACT SWITCH 6x6mm 5mm
SW406 41-150010100020 TACT SWITCH 6x6mm 5mm
SW407 41-150010100020 TACT SWITCH 6x6mm 5mm
SW408 41-150010100020 TACT SWITCH 6x6mm 5mm
SW409 41-150010100020 TACT SWITCH 6x6mm 5mm
SW410 41-150010100020 TACT SWITCH 6x6mm 5mm
SW411 41-150010100020 TACT SWITCH 6x6mm 5mm
SW412 41-150010100020 TACT SWITCH 6x6mm 5mm
SW413 41-150010100020 TACT SWITCH 6x6mm 5mm
SW414 41-150010100020 TACT SWITCH 6x6mm 5mm
SW415 41-150010030020 TACT SWITCH 6x6mm 5mm
SW416 41-150010030020 TACT SWITCH 6x6mm 5mm
SW417 41-071100020020 MICRO SWITCH 1120B
SW418 41-071100020020 MICRO SWITCH 1120B
SW419 41-180010030020 PUSH SWITCH 7x7mm
SW420 41-180010030020 PUSH SWITCH 7x7mm
ZD401 12-011510320121 ZENER DIODE 5.1V 1/2W
ZD402 12-011560320121 ZENER DIODE 5.6V 1/2W
13-011292121020 LED LAMP (MICRO) (RED)
17-05FM60380011 OP SENSER FM-6038TM2-5A
44-315320054620 4P WIRE L=200mm HSG(2)x1
44-315318052621 2P WIRE L=180mm HSG(2)x1
44-565330056620 6P SHIELD WIRE L=300mm
44-365310053620 3P SHIELD WIRE L=100mm
44-315320056621 6P WIRE L=200mm HSG(2)x1
REF NO. PART NO. DESCRIPTION
C224 26-014101051121 E.CAP 1UF 50V
C227 26-014221051121 E.CAP 2.2UF 50V
C228 26-014221051121 E.CAP 2.2UF 50V
C235 26-014221051121 E.CAP 2.2UF 50V
C247 26-014221051121 E.CAP 2.2UF 50V
C248 26-014221051121 E.CAP 2.2UF 50V
C268 26-014221051121 E.CAP 2.2UF 50V
CF201 31-028107000120 CERAMIC FILTER 10.7MA5-A
CF203 31-026450010110 CERAMIC FILTER SFU450B
CF205 31-038107020120 DISCRIMINATOR FILTER 10.7M
CF206 31-046456000220 RESONATOR ZTB456F15
CN201 44-315318056620 6P WIRE L=180mm
CN202 43-022200140120 WAFER 2mm 4P 90C
CN204 43-012250120120 WAFER 2.5mm 2P 180C
CN205 43-012250120120 WAFER 2.5mm 2P 180C
CW6 44-160314000720 2C SHIELD WIRE L=140mm
D201 12-1N4148000021 DIODE 1N4148
D202 12-1N4148000021 DIODE 1N4148
IC201 16-TA8176SN0021 IC TA8176SN
IC202 16-LA1832000021 IC LA1832
IC203 16-LC7213100021 IC LC72131
JK1 43-451100004020 RCA JACK (BLK)
JK2 43-431360005020 PHONE JACK 3.6 ST-212SWD
L3 38-103100050320 CHOKE COIL 10UH 1A
L4 38-103100050320 CHOKE COIL 10UH 1A
L5 38-013100050220 AXIAL INDUCTOR 10UH 500mA
L6 38-013100050220 AXIAL INDUCTOR 10UH 500mA
L7 38-013100050220 AXIAL INDUCTOR 10UH 500mA
L201 40-351500135020 FM COIL 5x3.5T (0.8mm)
L202 40-351500125020 FM COIL 5x2.5T (0.8mm)
L203 40-351500135020 FM COIL 5x3.5T (0.8mm)
L204 38-014100050120 AXIAL INDUCTOR 100UH 275mA
Q201 11-9014C0000021 NPN TRANSISTORS 9014C
Q202 11-9014C0000021 NPN TRANSISTORS 9014C
Q203 11-9014C0000021 NPN TRANSISTORS 9014C
Q204 11-9015C0000021 PNP TRANSISTORS 9015C
SPK 43-441400014020 SPK JACK PST-419V-141
SVC201 27-501802201020 TRIMMER 20PF 8mm
SVC202 27-501802201020 TRIMMER 20PF 8mm
T203 40-02A049004020 I.F.T 7mm A049 (YELLOW)
T204 40-023120000020 I.F.T 7mm 312A (BLACK)
T205 40-027400003020 I.F.T 7mm #740 (ORANGE)
T206 40-02660R002020 I.F.T 7mm 660R (RED)
VD201 12-1SV101000021 VARICAP DIODE 1SV-101
VD202 12-1SV101000021 VARICAP DIODE 1SV-101
VD203 12-1SV149000021 VARICAP DIODE 1SV-149
VD204 12-1SV149000021 VARICAP DIODE 1SV-149
X201 31-017450002030 CRYSTAL4.500MHz HC-49/U
ZD201 12-011560320121 ZENER DIODE 5.6V 1/2W
DISPLAY PCB ASS'Y
77 05-04A160000000 DISPLAY BOARD ASS'Y
CN10A 43-012100229120 SMD FFC.WAFER 1mm 29P180C
D57 12-1N4148000021 DIODE 1N4148
D61 12-1N4148000021 DIODE 1N4148
D63 12-1N4148000021 DIODE 1N4148
D65 12-1N4148000021 DIODE 1N4148
D70 12-1N4148000021 DIODE 1N4148
D72 12-1N4148000021 DIODE 1N4148

PARTS LIST
6
REF NO. PART NO. DESCRIPTION
POWER PCB ASS'Y
79 05-07A160000020 POWER BOARD ASS'Y
C501 26-014101050121 E.CAP 1UF 50V
C502 26-014101050121 E.CAP 1UF 50V
C503 26-014101050121 E.CAP 1UF 50V
C504 26-014101050121 E.CAP 1UF 50V
C507 26-014101050121 E.CAP 1UF 50V
C508 26-014101050121 E.CAP 1UF 50V
C509 26-014101050121 E.CAP 1UF 50V
C510 26-014101050121 E.CAP 1UF 50V
C513 26-014101050121 E.CAP 1UF 50V
C514 26-014101050121 E.CAP 1UF 50V
C521 26-014101050121 E.CAP 1UF 50V
C522 26-014101050121 E.CAP 1UF 50V
C523 26-014101050121 E.CAP 1UF 50V
C525 26-014101050121 E.CAP 1UF 50V
C526 26-014101050121 E.CAP 1UF 50V
C701 26-017330850211 E.CAP 3300UF 25V
C702 26-017330850211 E.CAP 3300UF 25V
C708 26-015471050121 E.CAP 47UF 50V
C709 26-015471050121 E.CAP 47UF 50V
C712 26-013221050121 E.CAP 0.22UF 50V
C713 26-013221050121 E.CAP 0.22UF 50V
C715 26-015471050121 E.CAP 47UF 50V
C718 38-103100050320 CHOKE COIL 10UH
C719 38-103100050320 CHOKE COIL 10UH
C722 26-015471050121 E.CAP 47UF 50V
C730 26-015471050121 E.CAP 47UF 50V
C739 26-015471050121 E.CAP 47UF 50V
CN501 43-012200160120 WAFER 2mm 6P 180C
CN502 44-365322054620 4P SHIELD/WIRE L=220mm
CN503 44-365310055621 5P SHIELD/WIRE L=100mm
CN504 44-325250058520 8P FLAT CABLE WIRE L=50mm
CN505 44-315320052620 2P WIRE L=200mm
CN701 44-316316054420 4P WIRE L=160mm
CN702 44-315315054620 4P WIRE L=150mm
D8 12-1N5822000021 RECTIFIER DIODE 1N5822 3A
D701 12-RL2020000021 RECTIFIER DIODE RL-202
D702 12-RL2020000021 RECTIFIER DIODE RL-202
D703 12-RL2020000021 RECTIFIER DIODE RL-202
D704 12-RL2020000021 RECTIFIER DIODE RL-202
D705 12-1N4148000021 DIODE 1N4148
D706 12-1N4148000021 DIODE 1N4148
D708 12-1N4001000021 RECTIFIER DIODE 1N4001 1A
IC501 16-LC7534200021 IC LC75342
IC701 16-BA5417000021 IC BA5417
IC702 16-MC34063A0021 IC MC34063A
L701 38-104230050020 CHOKE COIL 230UH
L702 38-103200050020 CHOKE COIL 20UH
Q501 11-9014C0000021 NPN TRANSISTORS 9014C
Q502 11-9014C0000021 NPN TRANSISTORS 9014C
Q503 11-9014C0000021 NPN TRANSISTORS 9014C
Q504 11-9014C0000021 NPN TRANSISTORS 9014C
Q505 11-2SD1936T0021 TRANSISTORS 2SD1936T-SSH
Q506 11-2SD1936T0021 TRANSISTORS 2SD1936T-SSH
Q507 11-2SD1936T0021 TRANSISTORS 2SD1936T-SSH
Q701 11-9015C0000021 PNP TRANSISTORS 9015C
Q703 11-8050C0000021 TRANSISTORS 2W8050C
Q704 11-KSB772YS0021 TRANSISTORS KSB772YS
REF NO. PART NO. DESCRIPTION
Q706 11-9014C0000021 NPN TRANSISTORS 9014C
Q707 11-2SD1936T0021 TRANSISTORS 2SD1936T-SSH
Q708 11-2SD1936T0021 TRANSISTORS 2SD1936T-SSH
Q709 11-9014C0000021 NPN TRANSISTORS 9014C
Q710 11-9014C0000021 NPN TRANSISTORS 9014C
Q712 11-8550C0000021 TRANSISTORS 2W 8550C
Q713 11-8550C0000021 TRANSISTORS 2W 8550C
Q715 11-9014C0000021 NPN TRANSISTORS 9014C
Q716 11-8050C0000021 TRANSISTORS 2W 8050C
ZD701 12-012110320121 ZENER DIODE 11V 1/2W
ZD702 12-011910320121 ZENER DIODE 9.1V 1/2W
43-022200120120 WAFER 2mm 2P 90C
43-022250140120 WAFER 2.5mm 4P 90C
46-015350300010 AXIAL FUSE F3.5A/250V
CD PCBASS'Y
80 05-30A160000000 CD BOARDASS'Y
C1 26-014221051121 E.CAP 2.2UF 50V
C4 25-013220934221 CHIP CAPACITOR 22PF 50V
C9 25-015100944221 CHIP CAPACITOR 0.001UF 50V
C14 26-014221051121 E.CAP 2.2UF 50V
C15 25-014330934221 CHIP CAPACITOR 330PF 50V
C16 25-016100944221 CHIP CAPACITOR 0.01UF 50V
C17 25-016330944221 CHIP CAPACITOR 0.033UF 50V
C18 25-015220944221 CHIP CAPACITOR 0.0022UF 50V
C21 25-015330944221 CHIP CAPACITOR 0.0033UF 50V
C23 25-015100944221 CHIP CAPACITOR 0.001UF 50V
C24 25-015100944221 CHIP CAPACITOR 0.001UF 50V
C25 25-015100944221 CHIP CAPACITOR 0.001UF 50V
C26 25-016100944221 CHIP CAPACITOR 0.01UF 50V
C27 25-014820934221 CHIP CAP 820PF 50V
C29 25-016330944221 CHIP CAPACITOR 0.033UF 50V
C32 25-015680944221 CHIP CAPACITOR 0.0068UF 50V
C33 25-012300934221 CHIP CAP 3PF 50V
C34 25-016100944221 CHIP CAPACITOR 0.01UF 50V
C35 26-014471051121 E.CAP 4.7UF 50V
C38 25-015100944221 CHIP CAPACITOR 0.001UF 50V
C40 25-013330934221 CHIP CAPACITOR 33PF 50V
C42 25-013220934221 CHIP CAPACITOR 22PF 50V
C50 26-014471051121 E.CAP 4.7UF 50V
C53 25-016470944221 CHIP CAPACITOR 0.047UF 50V
C54 25-013220934221 CHIP CAPACITOR 22PF 50V
C55 25-013220934221 CHIP CAPACITOR 22PF 50V
C58 26-014101051121 E.CAP 1UF 50V
C59 25-013220934221 CHIP CAPACITOR 22PF 50V
C60 25-013220934221 CHIP CAPACITOR 22PF 50V
CN1 43-022200150120 WAFER 2mm 5P 90C
CN2 43-022100216120 F.F.C.WAFER 1mm 16P 90C
CN3 43-012200160120 WAFER 2mm 6P 180C
CN4 43-012200120120 WAFER 2mm 2P 180C
CN5 43-012200130120 WAFER 2mm 3P 180C
CN6 43-012200160120 WAFER 2mm 6P 180C
CN7 43-022200170120 WAFER 2mm 7P 90C
CN8 43-012200180120 WAFER 2mm 8P 180C
CN9 43-022200130120 WAFER 2mm 3P 90C
CN10 43-022100229120 F.F.C.WAFER 1mm 29P 90C
CN11 43-012200120120 WAFER 2mm 2P 180C
D1 12-1N5819000021 RECTIFIER DIODE 1N5819
D3 12-1N4148000021 DIODE 1N4148

PARTS LIST
7
REF NO. PART NO. DESCRIPTION
D9 12-1N4148000021 DIODE 1N4148
D10 12-1N4148000021 DIODE 1N4148
D11 12-1N4148000021 DIODE 1N4148
D12 12-011390320121 ZENER DIODE 3.9V 1/2W
D13 12-1N4148000021 DIODE 1N4148
D19 12-1N4148000021 DIODE 1N4148
D20 12-011390320121 ZENER DIODE 3.9V 1/2W
D24 12-011390320121 ZENER DIODE 3.9V 1/2W
IC1 16-S5L9290X0221 IC S5L9290X02-E0R0
IC2 16-S1L9226X0021 IC S1L9226X01-QORO
IC7 16-S3C825A00021 IC S3C825AX25-QWRA
IC9 16-KA9259HD0021 IC KA9259HD
L1 38-014100050120 AXIAL INDUCTOR 100UH 275mA
L2 38-014100050120 AXIAL INDUCTOR 100UH 275mA
L3 38-014100050120 AXIAL INDUCTOR 100UH 275mA
Q1 11-9015C0000021 PNP TRANSISTORS 9015C
Q2 11-9014C0000021 NPN TRANSISTORS 9014C
Q3 11-9014C0000021 NPN TRANSISTORS 9014C
Q4 11-9014C0000021 NPN TRANSISTORS 9014C
Q5 11-8550C0000021 TRANSISTORS 2W8550C
Q7 16-LM78L05A0021 IC LM78L05A
Q9 11-9014C0000021 NPN TRANSISTORS 9014C
R2 21-203547062225 CHIP RESISTORS 47K 1/16W
R3 21-203612062225 CHIP RESISTORS 120K 1/16W
R4 21-203547062225 CHIP RESISTORS 47K 1/16W
R5 21-203547062225 CHIP RESISTORS 47K 1/16W
R6 21-203622062225 CHIP RESISTORS 220K 1/16W
R7 21-203610062225 CHIP RESISTORS 100K 1/16W
R8 21-203410062225 CHIP RESISTORS 1K 1/16W
R9 21-203515062225 CHIP RESISTORS 15K 1/16W
R10 21-203547062225 CHIP RESISTORS 47K 1/16W
R11 21-203615062225 CHIP RESISTORS 150K 1/16W
R12 21-203568062225 CHIP RESISTORS 68K 1/16W
R13 21-203410062225 CHIP RESISTORS 1K 1/16W
R14 21-203210062225 CHIP RESISTORS 10 1/16W
R15 21-203568062225 CHIP RESISTORS 68K 1/16W
R16 21-203510062225 CHIP RESISTORS 10K 1/16W
R17 21-203510062225 CHIP RESISTORS 10K 1/16W
R18 21-203233062225 CHIP RESISTORS 33 1/16W
R20 21-203456062225 CHIP RESISTORS 5.6K 1/16W
R21 21-203510062225 CHIP RESISTORS 10K 1/16W
R22 21-203518062225 CHIP RESISTORS 18K 1/16W
R23 21-203522062225 CHIP RESISTORS 22K 1/16W
R24 21-203710062225 CHIP RESISTORS 1M 1/16W
R25 21-203610062225 CHIP RESISTORS 100K 1/16W
R26 21-203547062225 CHIP RESISTORS 47K 1/16W
R27 21-203547062225 CHIP RESISTORS 47K 1/16W
R28 21-203447062225 CHIP RESISTORS 4.7K 1/16W
R29 21-203482062225 CHIP RESISTORS 8.2K 1/16W
R30 21-203547062225 CHIP RESISTORS 47K 1/16W
R31 21-203568062225 CHIP RESISTORS 68K 1/16W
R32 21-203547062225 CHIP RESISTORS 47K 1/16W
R33 21-203610062225 CHIP RESISTORS 100K 1/16W
R34 21-203247062225 CHIP RESISTORS 47 1/16W
REF NO. PART NO. DESCRIPTION
R37 21-203510062225 CHIP RESISTORS 10K 1/16W
R41 21-203222062225 CHIP RESISTORS 22 1/16W
R42 21-203447062225 CHIP RESISTORS 4.7K 1/16W
R43 21-203210062225 CHIP RESISTORS 10 1/16W
R45 21-203510062225 CHIP RESISTORS 10K 1/16W
R48 21-203510062225 CHIP RESISTORS 10K 1/16W
R49 21-203547062225 CHIP RESISTORS 47K 1/16W
R50 21-203210062225 CHIP RESISTORS 10 1/16W
R56 21-203510062225 CHIP RESISTORS 10K 1/16W
R57 21-203510062225 CHIP RESISTORS 10K 1/16W
R72 21-203415062225 CHIP RESISTORS 1.5K 1/16W
R73 21-203522062225 CHIP RESISTORS 22K 1/16W
R74 21-203710062225 CHIP RESISTORS 1M 1/16W
R78 21-203312062225 CHIP RESISTORS 120 1/16W
X1 31-048169300120 RESONATOR ZTT16.93MX
X2 31-017800002010 CRYSTAL8.0MHZ HC-49/U
X3 31-015320003310 CRYSTAL 32.768KHZ
44-315316053620 3P WIRE L=160mm HSG(2)x1
44-315310053620 3P WIRE L=100mm HSG(2)x1
44-022280079020 29P FLATFLEX CABLE L=80
44-315322052621 2P WIRE L=220mm
44-515310056620 6P WIRE L=100mm
44-022315066020 16P FLAT FLEX CABLE L=150
44-315340052620 2P WIRE L=400mm
44-316317052520 2P WIRE L=170mm

SHEMATIC DIAGRAM
8

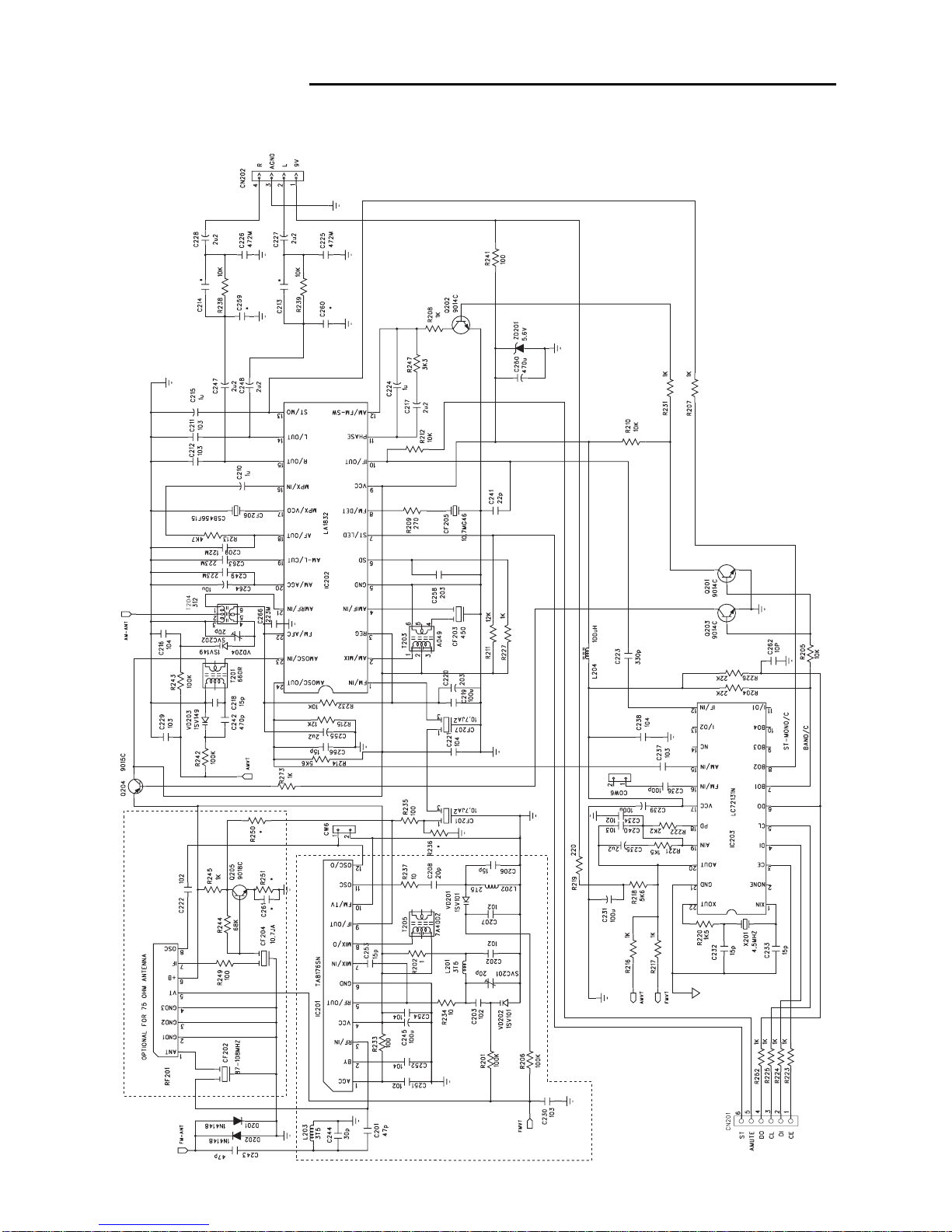

1. RADIO PCB

SCHEMATIC DIADRAM
9

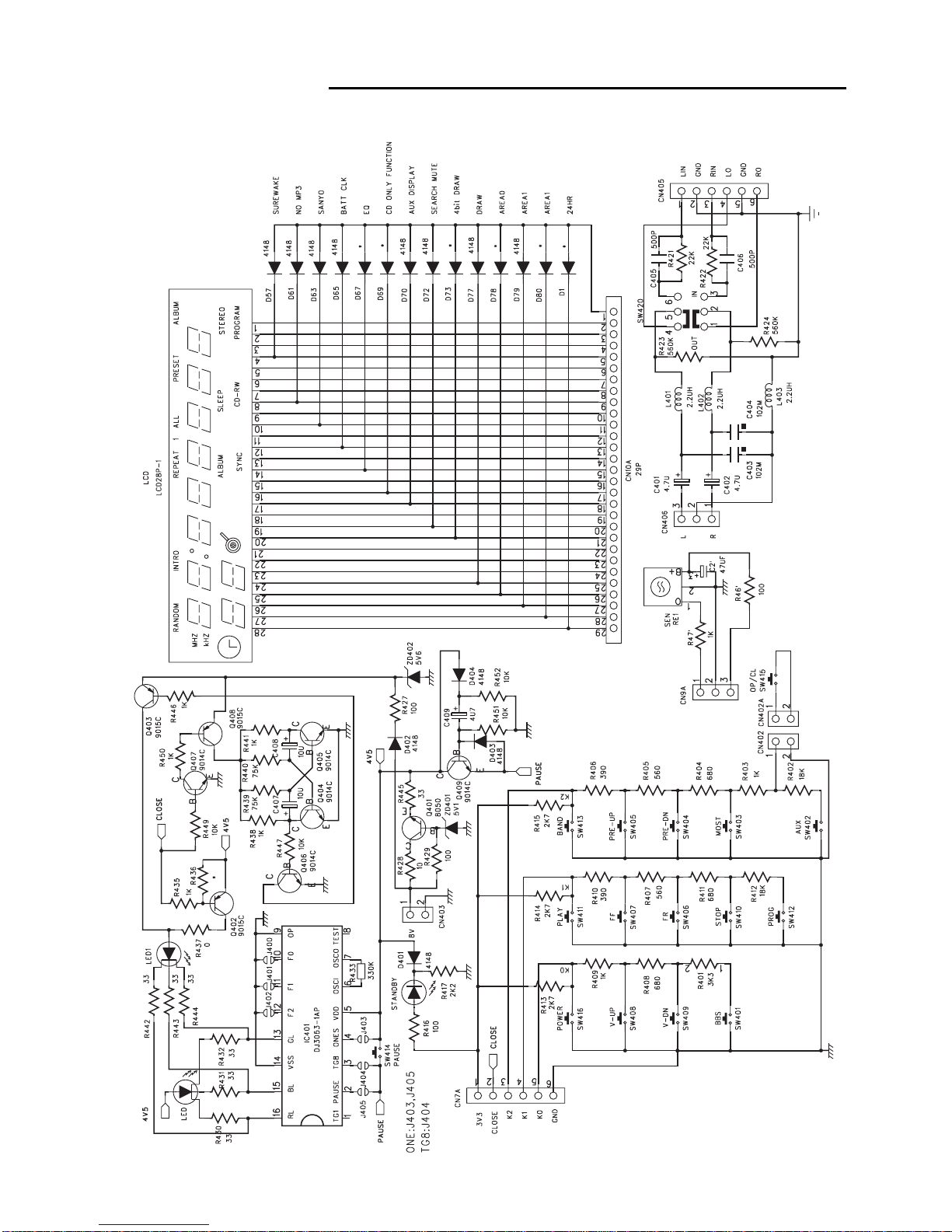

2. DISPLAY / KEY PCB

SHEMATIC DIAGRAM

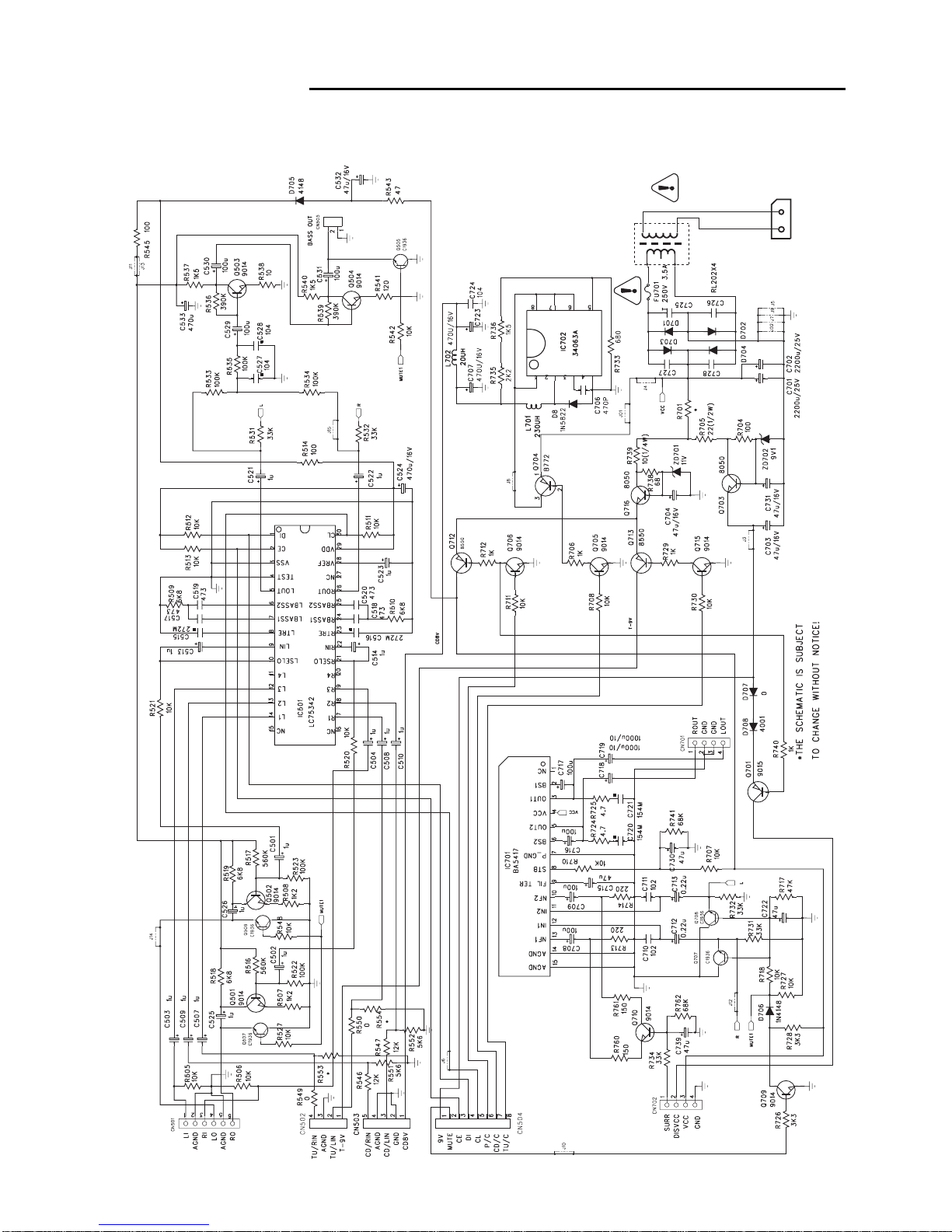

3. POWER PCB
10

SCHEMATIC DIADRAM

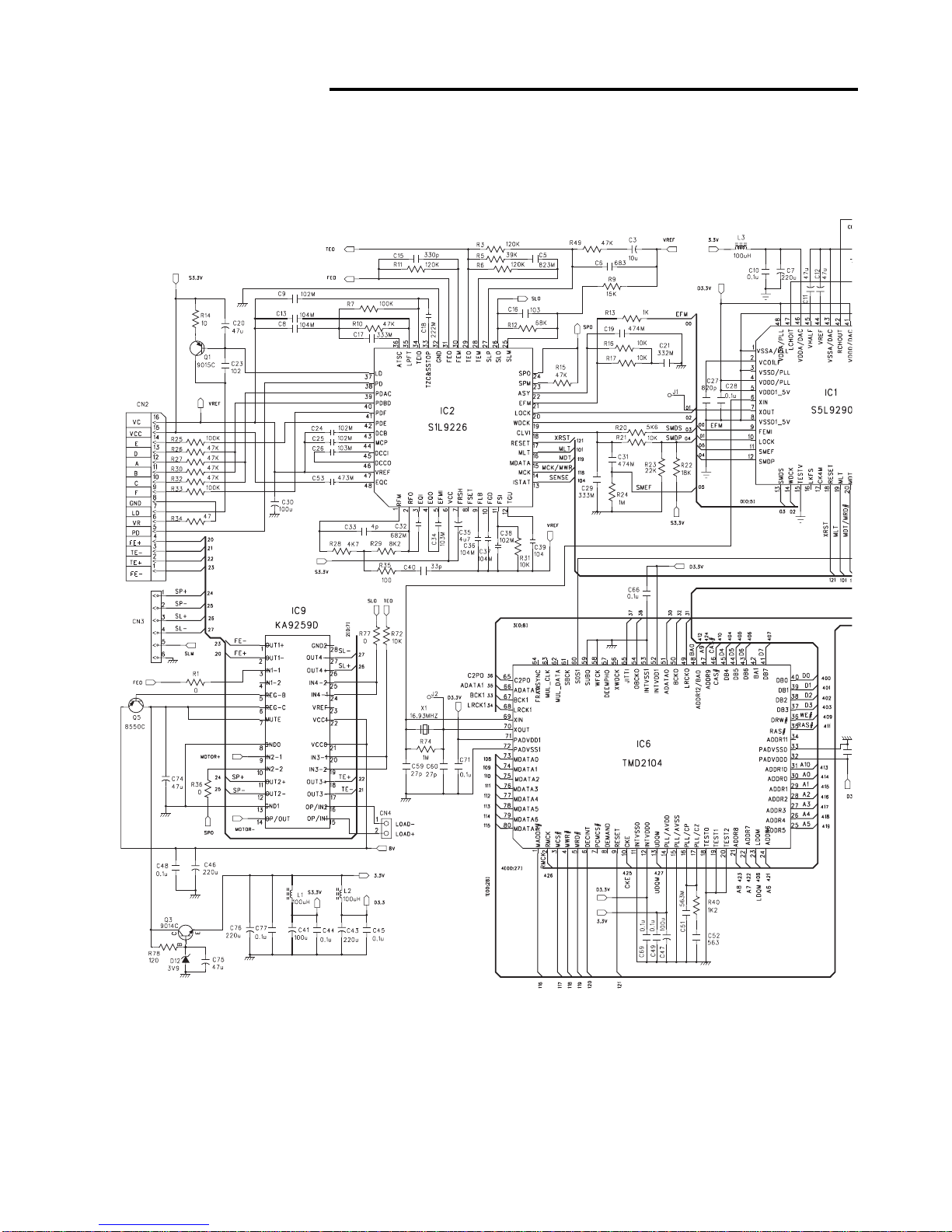

4. CD PCB (1/2)
11

SHEMATIC DIAGRAM
5. CD PCB (2/2)
12

WIRING DIAGRAM
13
1. RADIO PCB

WIRING DIADRAM
14
2. DISPLAY / KEY PCB

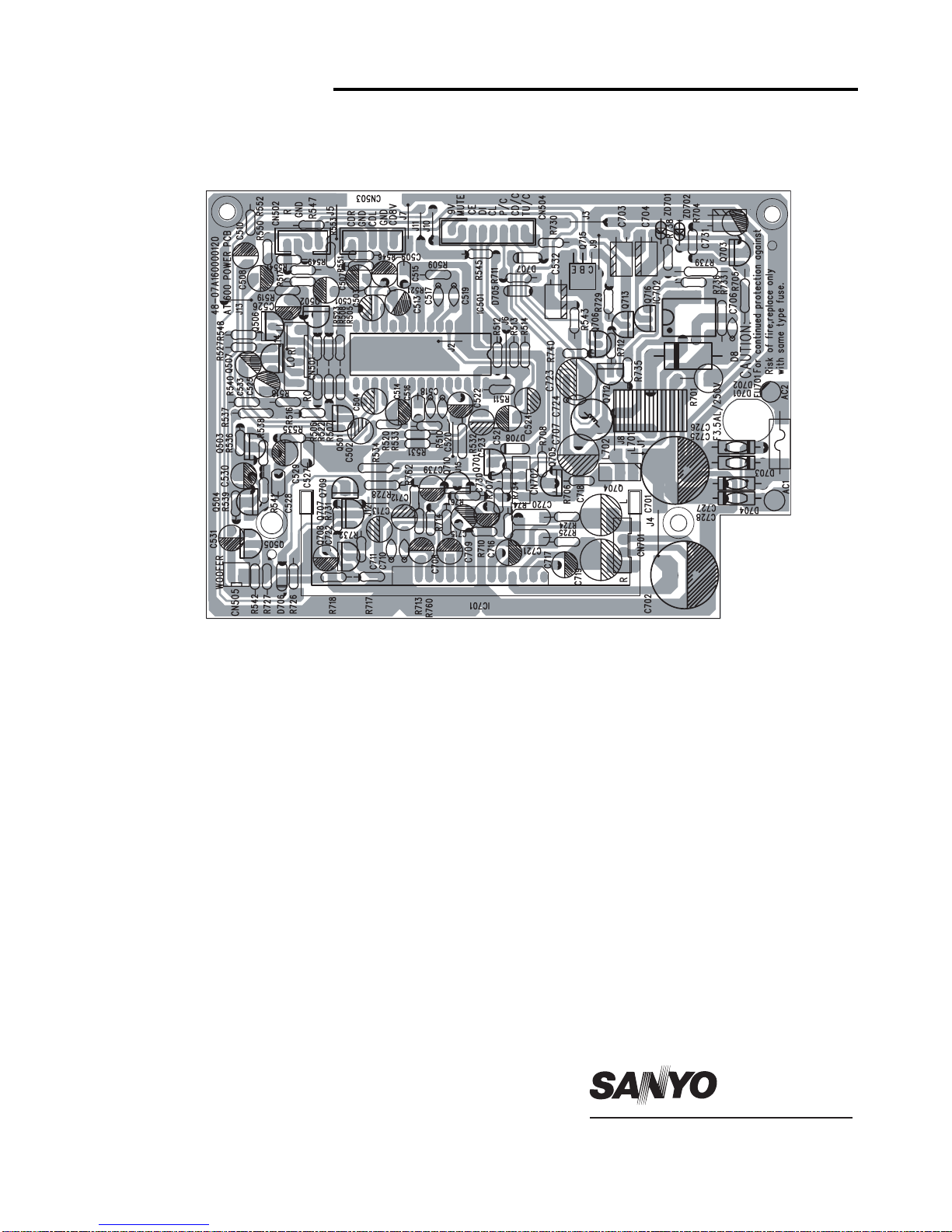

WIRING DIAGRAM
3. CD PCB
15

WIRING DIADRAM
4. POWER PCB
16
Jul./’05
SANYO Electric Co., Ltd.
Osaka, Japan
