Sanyo DC-MP7500(BK)/(XE) User manual
Service Manual
FILE NO.
Micro Component System
DC-MP7500(BK)
(XE)
DC-MP7500(SL)
(XE)
PRODUCT CODE No.
129 686 50 (BK)
129 686 55 (SL)
REFERENCE No. SM5810593
Laser beam safety precaution .......................................... 1
Tape adjustments ............................................................ 1
Tuner adjustments ........................................................... 2
CD pick-up maintenance .................................................. 2
Exploded view .................................................................. 3
Parts list ........................................................................... 4
Exploded view & Parts list

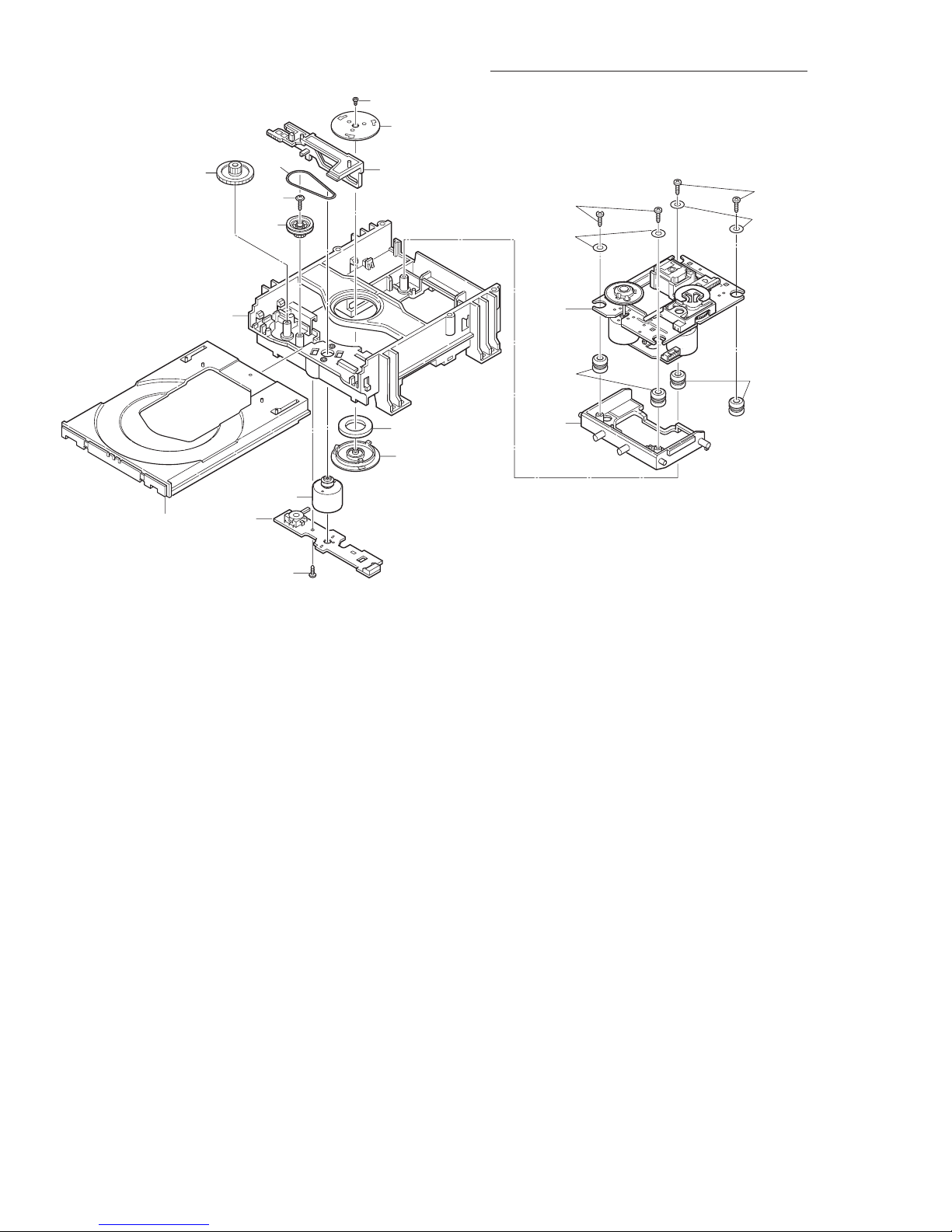

(CD mechanism) ........................................................... 9

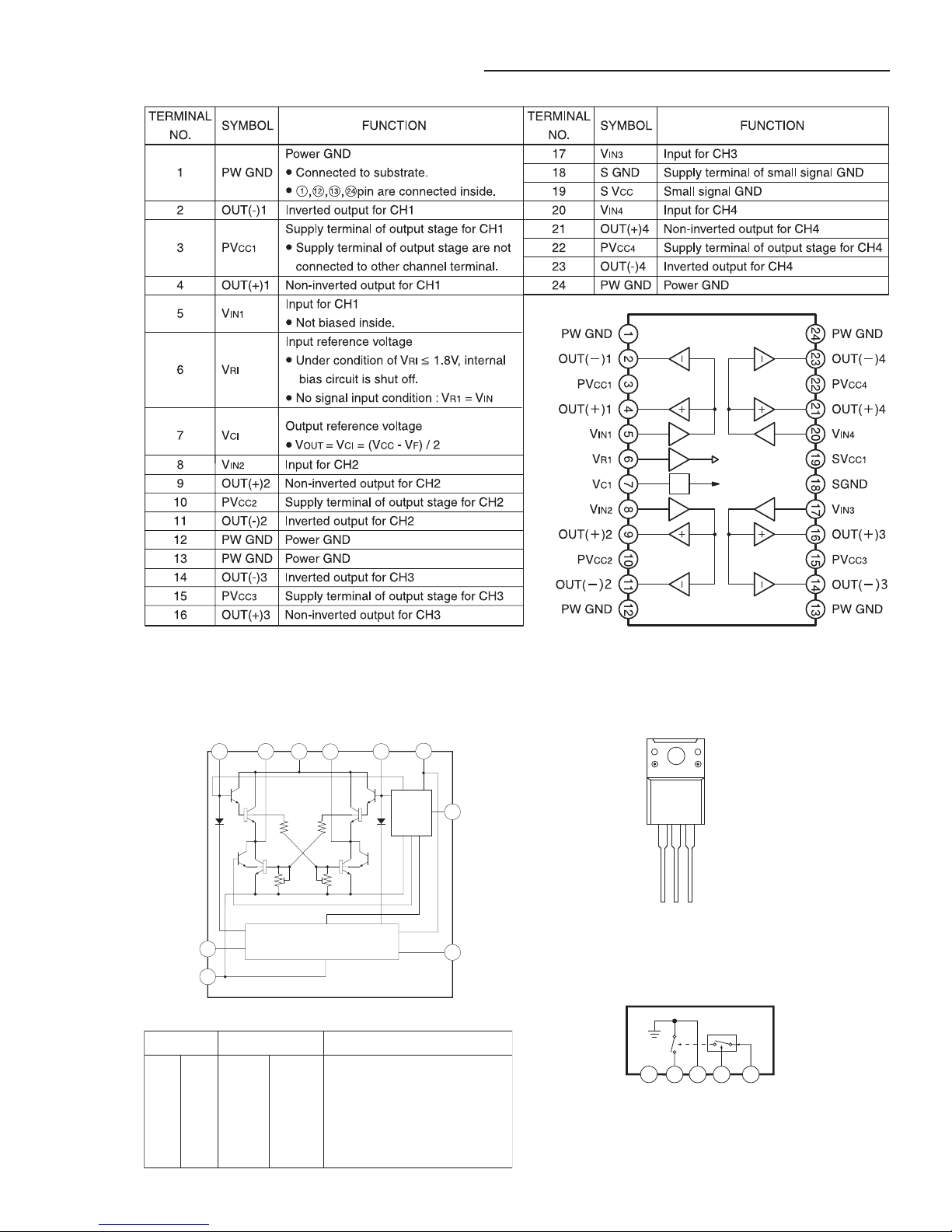

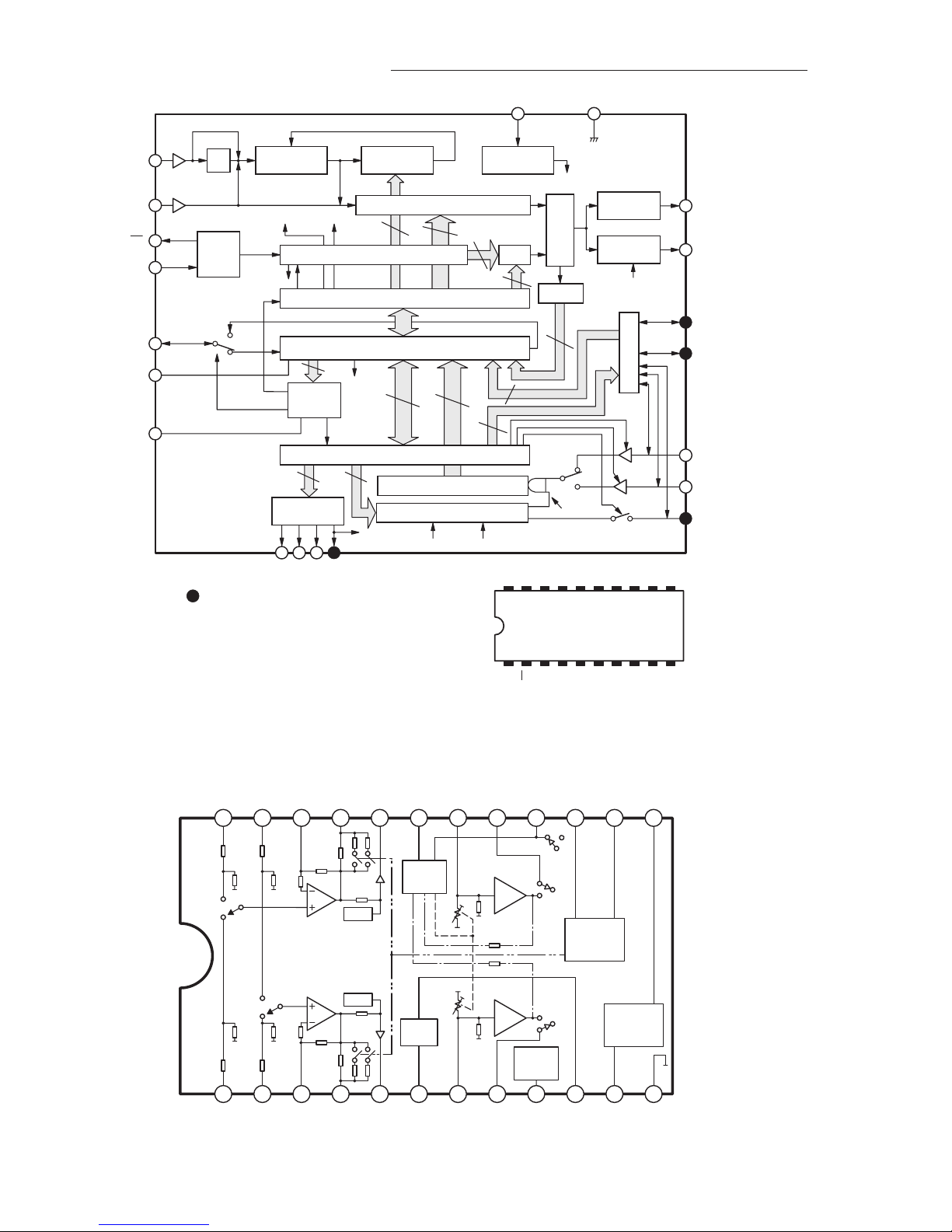

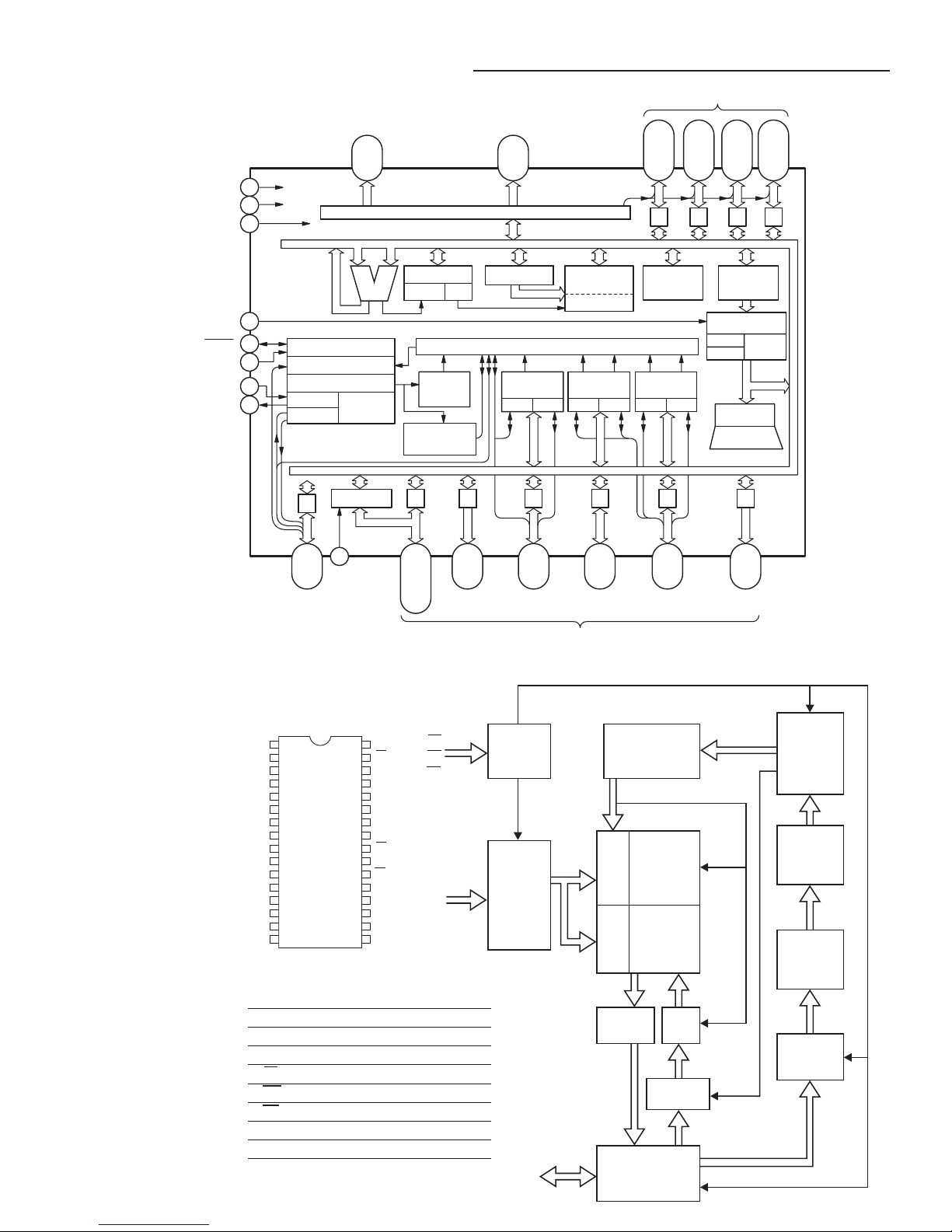

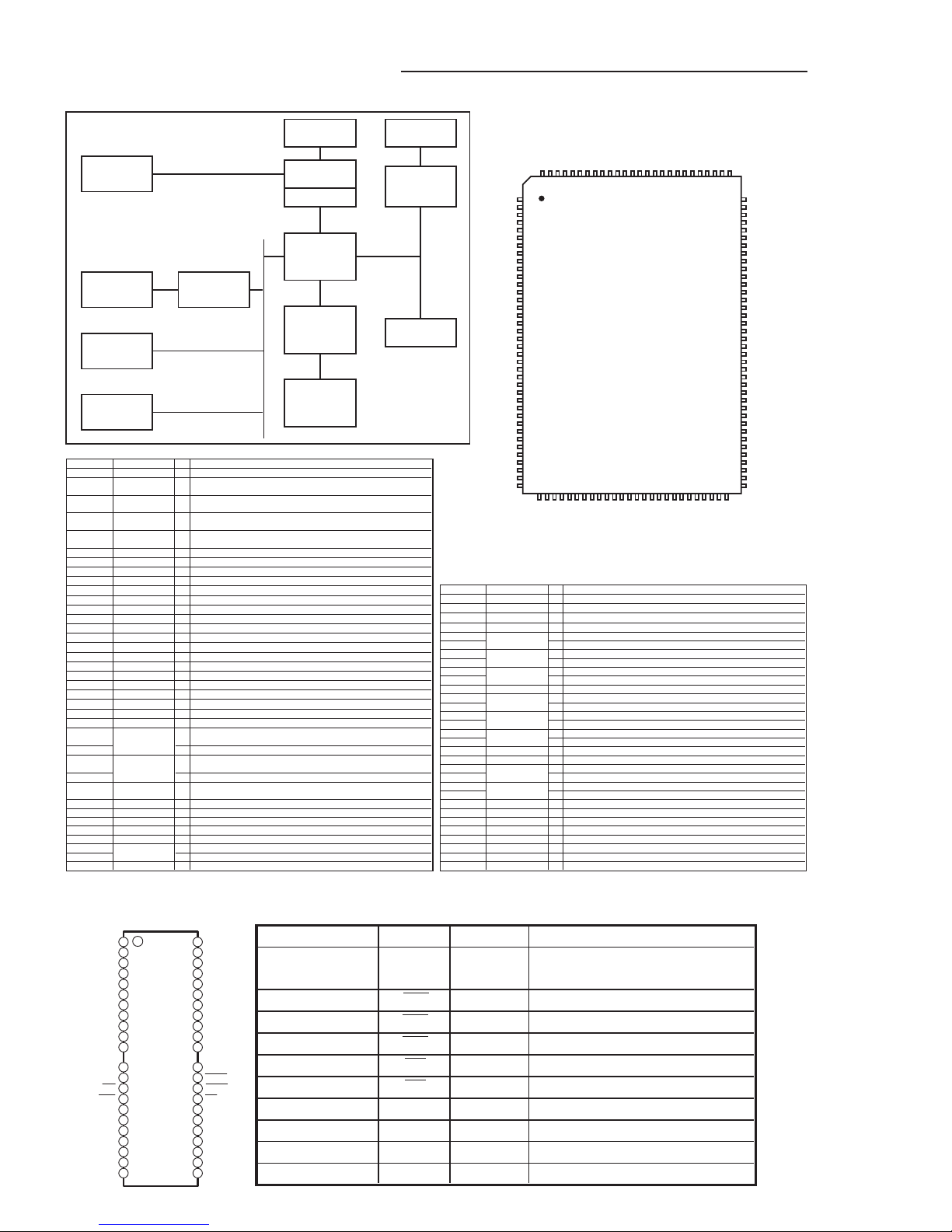

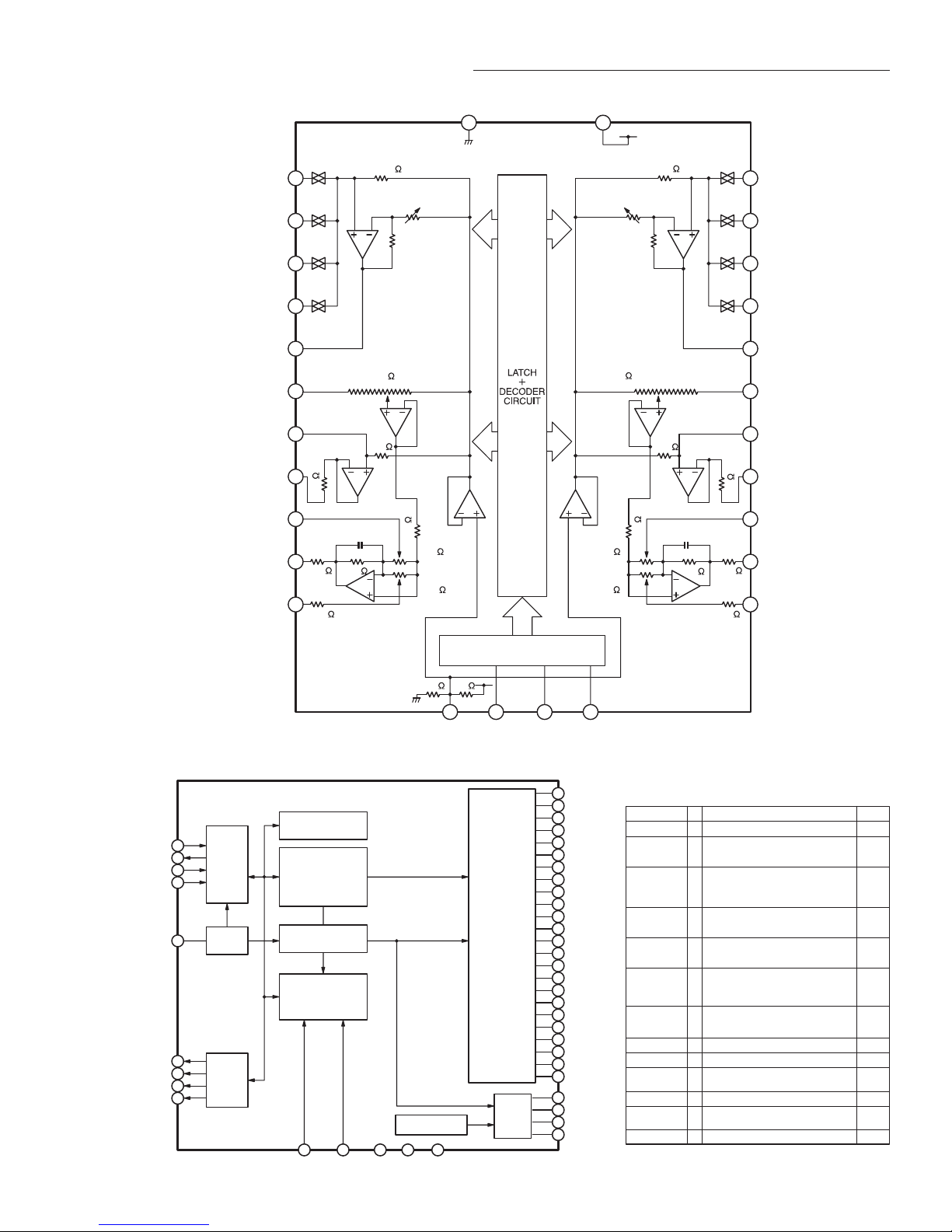

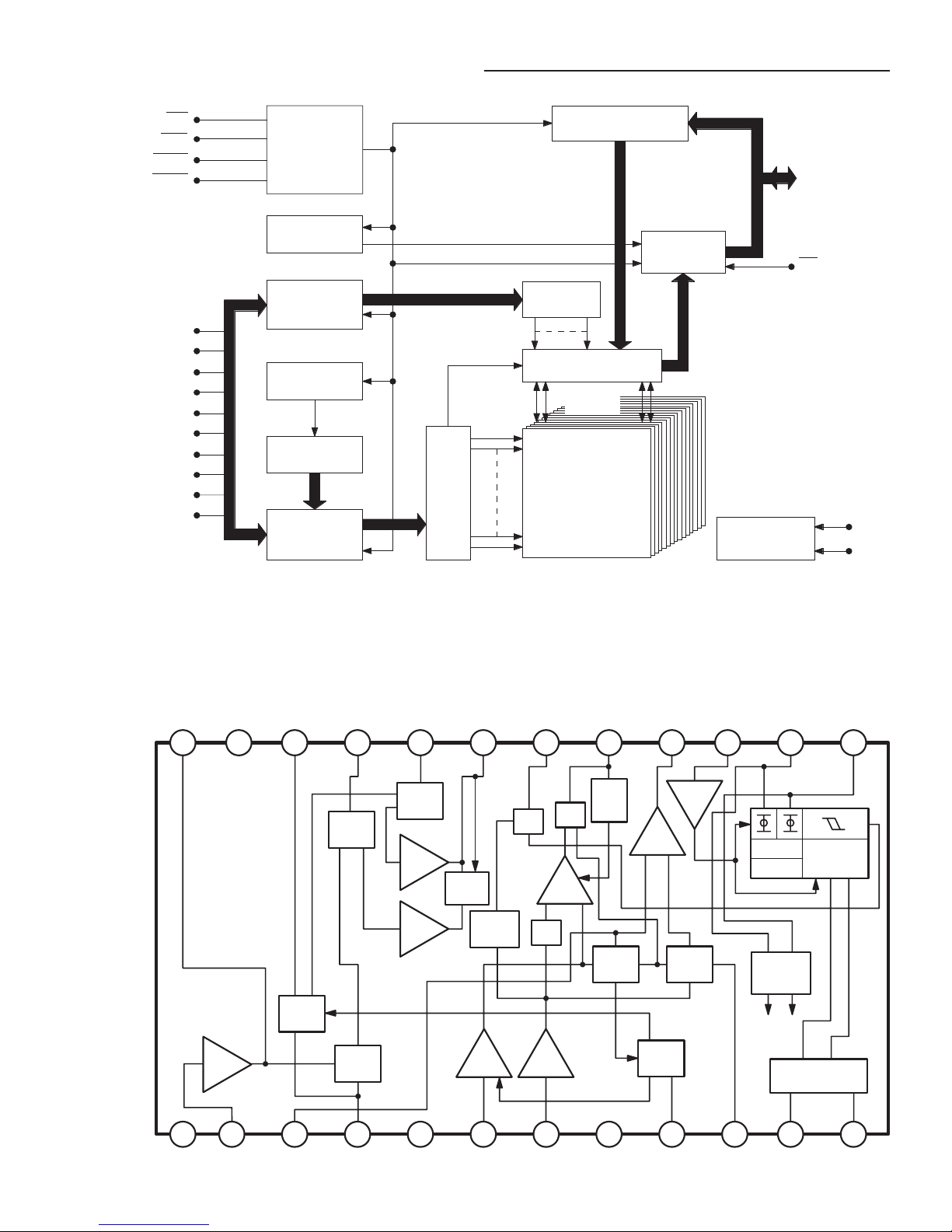

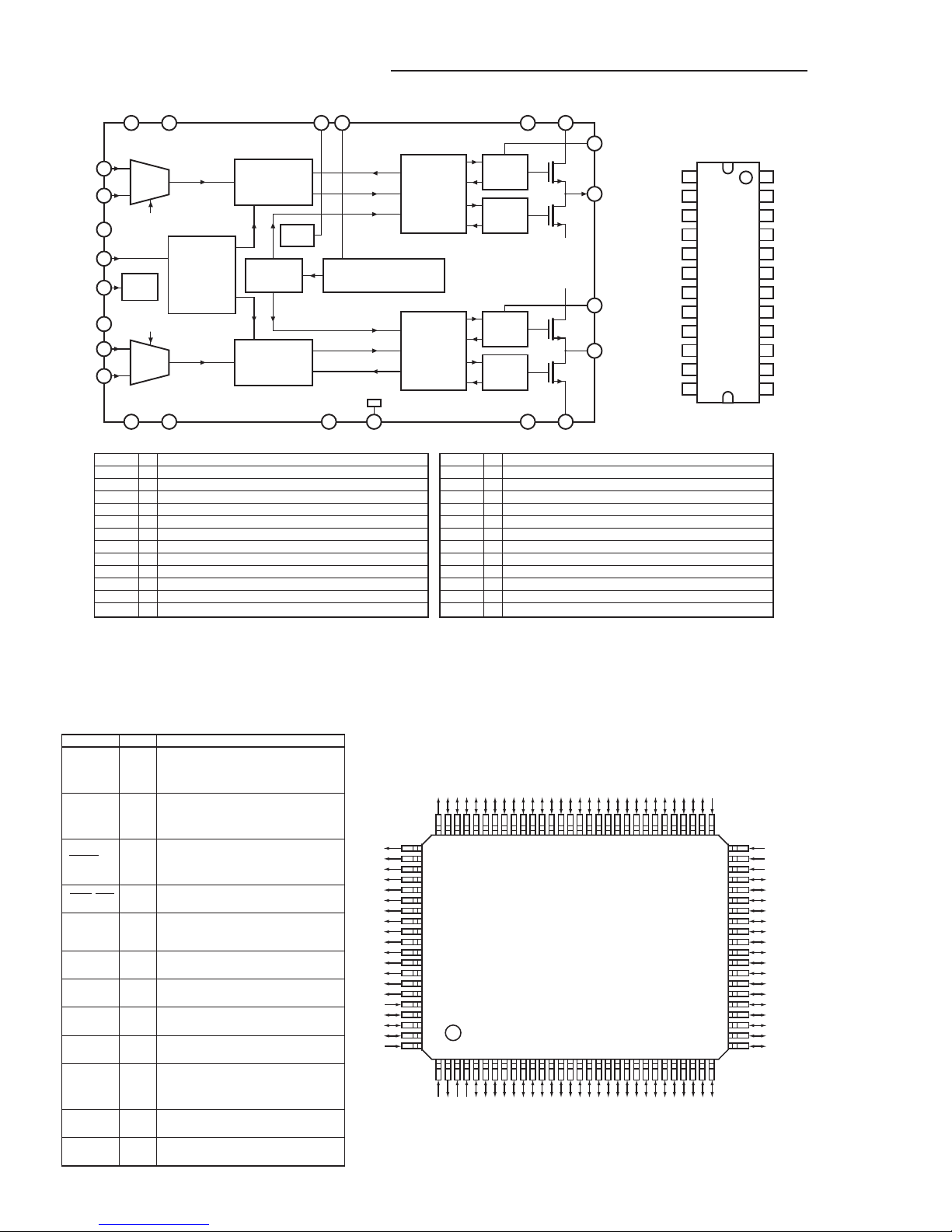

IC block diagram & description ........................................ 10

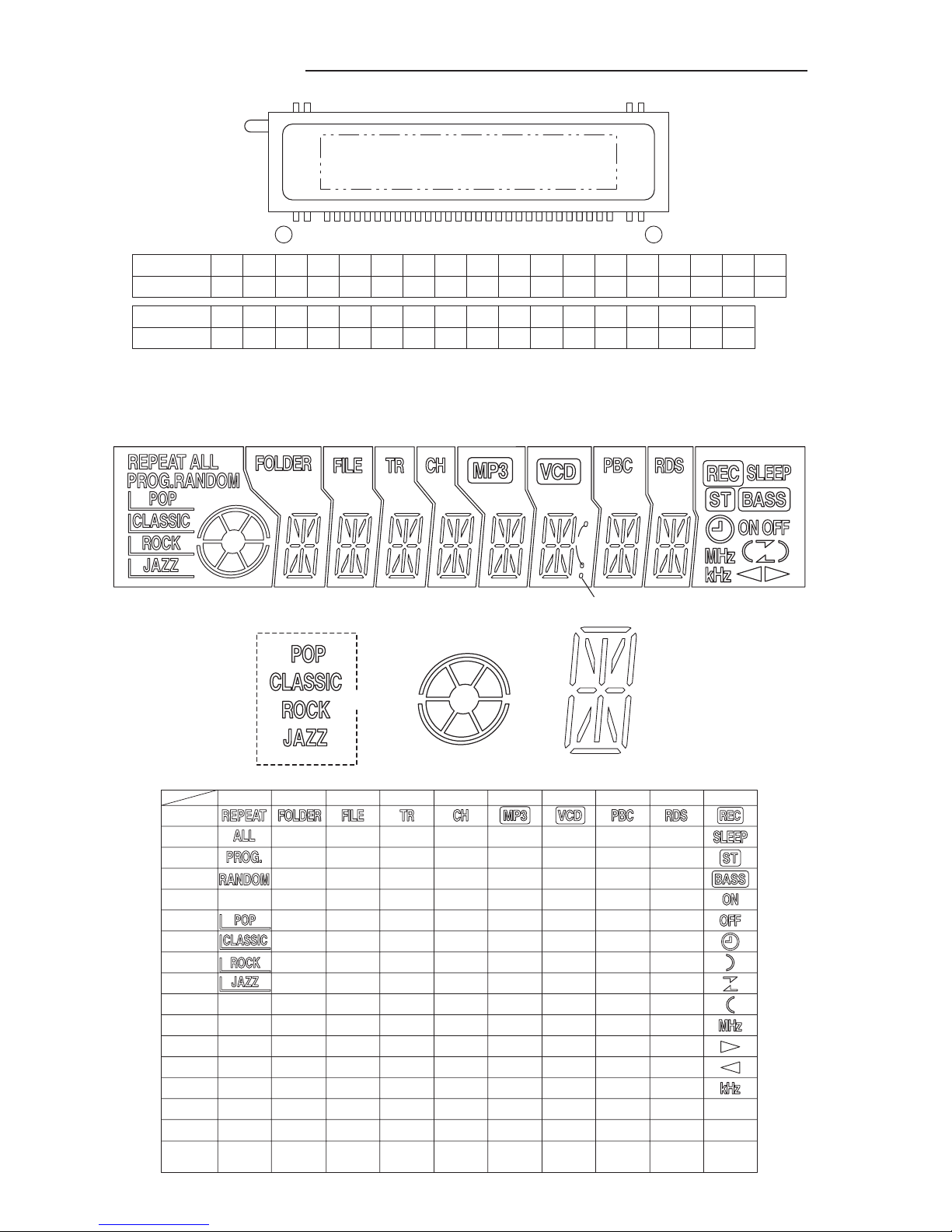

FL display description ...................................................... 19
Wiring connection ............................................................ 20
Schematic diagram
(FRONT) ....................................................................... 22
(CD) ............................................................................... 24
(AMPLIFIER & MCU) .................................................... 28
(TUNER) ....................................................................... 32
(D-AMP) ........................................................................ 36
Wiring diagram
(VOLUME)..................................................................... 21
(FRONT) ....................................................................... 21
(CD) Parts side view .................................................... 26
Pattern side view ................................................. 27
(AMPLIFIER & MCU) .................................................... 30
(TUNER) ....................................................................... 34
(POWER TRANSFORMER) ......................................... 35
(D-AMP) Parts side view ............................................. 37
Pattern side view .......................................... 38
(D-AMP POWER SUPPLY) .......................................... 39
This service manual consists of
For BK ; "DC-MP7500U(BK)/XE" (Main unit : 129 685 50), " SX-MP7500L(BK)/XE" (Speaker system(left):
165 098 03) & "SX-MP7500R(BK)/XE" (Speaker system(right) : 165 106 03)
For SL ; "DC-MP7500U(SL)/XE" (Main unit : 129 685 55), " SX-MM7000L/XE" (Speaker system(left) :
165 098 01) & "SX-MM7000R/XE" (Speaker system(right) : 165 106 01).
- 1 -

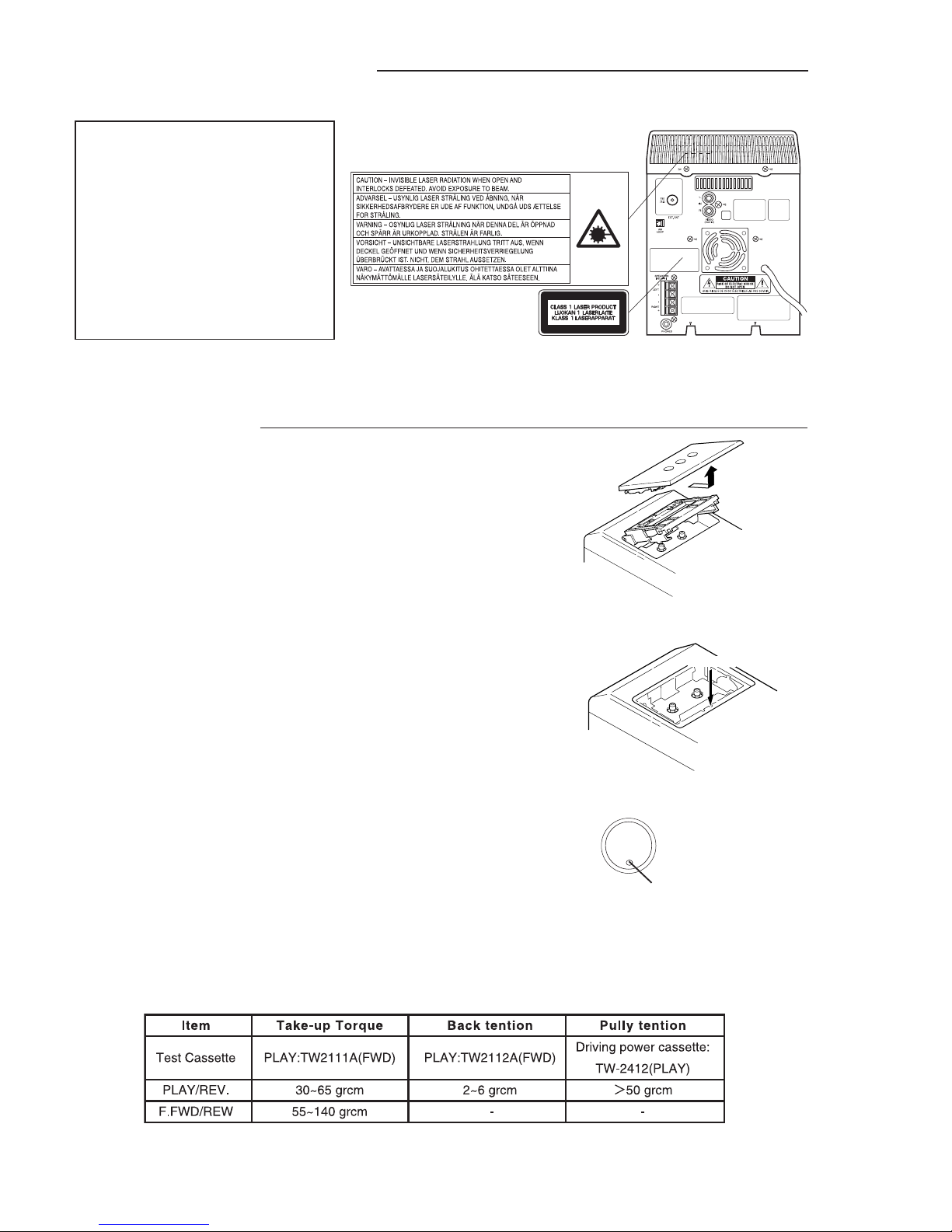

LASER BEAM SAFETY PRECAUTION
•Pick-up that emits a laser beam is used in this CD player section.
CAUTION :
THIS PRODUCT CONTAINS A LOW
POWER LASER DEVICE, TO
ENSURE CONTINUED SAFETY DO
NOT REMOVE ANY COVERS OR
ATTEMPT TO GAIN ACCESS TO THE
INSIDE OF THE PRODUCT. REFER
ALL SERVICING TO QUALIFIED
PERSONNEL.
LASER OUTPUT .............. 0.6 mW Max.
CW)
WAVELENGTH .................. 790 nm
TAPE ADJUSTMENTS
•Be sure to clean the heads before attempting to make any adjustment.
•Be sure both channels (1 and 2) are the same level.
(Using a dual-channel oscilloscope)
•Be sure both channel's waveform are same for the phase matching.
• After completion of the adjustment, use the threadlock (TB-1401B) to
secure the azimuth adjustment screws.
1. Remove the cover deck as Fig.1.
2. Load a test tape (VTT-738 etc. : 10kHz) in the Deck.
3. Press the PLAY button. (Normal playback)
4. Use a + tip screwdriver to turn the screw for normal azimuth
adjustment so that the left and right outputs are maximized at
the same phase during normal playback. See Fig.2.
5. Adjust so that the waveforms for the left and right channels are in alignment.
1. Azimuth Adjustment
3. Torque Measurement
2. Tape Speed Adjustment
NORMAL
• Connect the Frequency Counter to TAPE OUT.
1. Insert the test tape (MTT-111N, etc.; 3,000Hz) into the DECK.
2. Press the PLAY button. .
3. Adjust a hole on the motor bottom so that a frequency counter reading of 3,000 }5Hz is obtained.See Fig.3.
4. Press the STOP button, and eject the test tape.
Fig.1
Fig.2
Fig.3
hole for adjustment
MOTOR
- 2 -
1. FM
Connection
Input Output
--- TP5 (H) 87.5MHz --- 1.37±0.50V Check Only
--- TP6 (E) 108.0MHz --- 6.80±0.50V Check Only
2. AM
Connection
Input Output
TP5(H ) 522kHz L2353 1.00±0.05V
TP6(E) 1611kHz --- 7.20±0.50V Check Only
603kHz L2351
1404kHz CT252
---
Remark
Remark
SG
Frequency
SG
Frequency
Adjustment
Adjustment
Step Adjusting
Circuit
Adjusting
Circuit
2Cover
Voltage
Step
Maximum
1IF
Adjustment Loop Ant 450KHz
at 999kHz
---
Cover
Voltage
2
T2001 Maximum
TP9 (L),TP7 (R) ,TP8 (E)3Tracking Loop Ant
TUNER ADJUSTMENTS
C2327
J2201
E
E
E
E
E
E
E
E
E
E
E
1AD4B10D2520C
T002A 94V-0
TU_R
GND
TU_L
+8.5V
PLL_PRI
PLL_CLK
PLL_DA
+5.6V
GND
ST
RDS_CLK
RDS_DA
L2353
L2351
D2330
CT252
C2104
XF222
XF220
Q2101
XF221
T2001
C2106
C2402
J2102
J2101
J2014
Q2427
C2405
Q2413
Q2415
Q2418
Q2421
X2503
J2206
C2519
J2104
Q2510
Q2509
C2512
C2222
C2211
J2010
X2107
VT
D2102
J2106
J2105
J2201
J2005
J2006
J2001
J2203
J2009
J2107
J2012
J2103
J2008
C2518
J2202
J2108
Q2802
J2013
J2111
Q2803
Q2804
R2803
R2801
D2709
C2805
J2016
J2015
J2210
J2110
J2208
J2209
X2901
L2902
C2905
L2901
C2904
C2906
J2204
J2112
J2002
C2412
J2207
C2003
J2109
J2007
J2205
CN203
CN201
J2003
D2101
D2100
U2001
L2801
CN231
T2405
C2404
IC222
C2321
C2329
C2325
R2328
R2330
R2322
R2321
CAN
CAN
CAN
R2102
R2101
CAN
R2108
R2108
C2407
C2407
R2601
R2601
R2602
R2602
R2603
R2603
R2605
R2605
R2604
R2604
R2513
R2513
C2414
C2414
R2104
R2104
R2103
R2103
C2109
C2109
R2108
CAN CAN
C2425
R2401
R2430
R2426
C2406
R2403
C2407
R2431
R2416
R2417
R2420
R2422
C2423
C2419
C2502
C2501
R2601
R2602
R2603
R2608
R2609
R2610
R2607
R2606
R2606
C2802
C2802
C2903
C2903
C2902
C2902
R2606
R2605
R2604
R2408
R2408
C2409
C2409
R2408
CAN
C2409
C2317
R2521
R2513C2511
C2213
C2201
CAN
R2414
IC211
CAN
C2414
R2104
C2436
C2107
CAN
CAN
C2413
C2907
C2411
R2802 C2802
C2430
R2429
CAN
R2316
C2903C2902
C2908
C2801
R2002
C2002
R2003
C2410
CAN
C2004
R2001
R2709
R2103
R2053
C2109
CAN
CAN
CAN
D2103
D2901
C2320
IC223
CAN
CT252
T2001
TP8
L2353
L2351
TP7
TP9
TP5
TP6
Antenna : 75Ωunbalanced, Modulation : 1 kHz
Dev. : 22.5kHz(MONO), 22.5kHz(STEREO),6.75kHz(PILOT)
RF Level : dBuV EMF
Output Level : about 30mV at TP13, TP14, TP15
Anntena : IRE Loop(SG), Moduration : 1kHz 30%
RF Level : dBuV EMF
Output Level : about 30mV at TP13, TP14, TP15

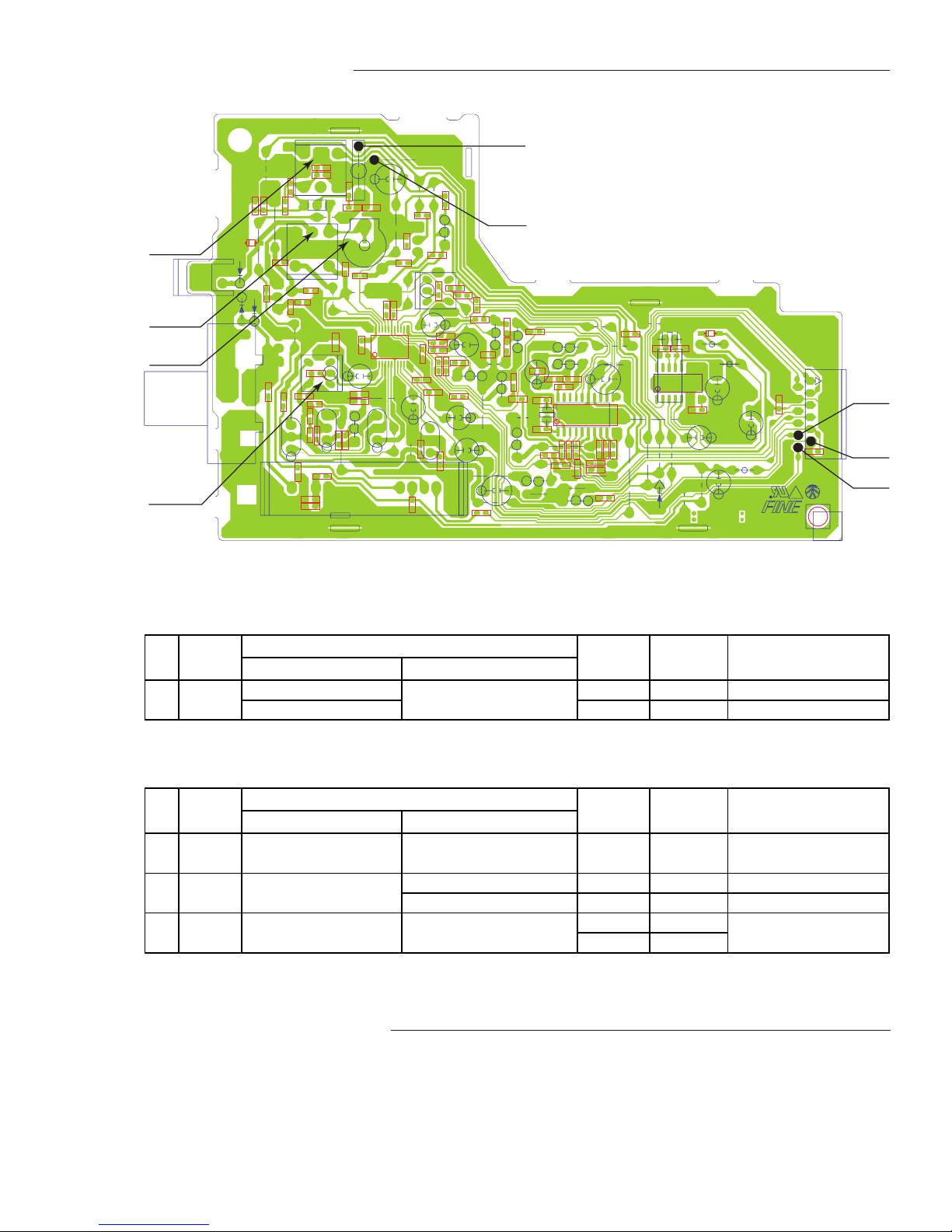

CD PICK-UP MAINTENANCE
About pick-up (Optical lens) Cleaning
Clean a lens with swab of the cotton which moistened it with alcohol, cleaning paper or cleaning disc appointed.
Specified cleaning disc : LC-1 (Part code : 645 026 1961 ..... manufactured by SANYO.)
Show a clean procedure in the following in reference by swab of cotton.
1. Cotton swab is wrapped with Cleaning paper.
2. Add the isopropyl alcohol.
3. Gently move the tip of cotton swab just like a draw a whirlpool from inside to outside on the surface of lens.
• Use a plastic screw driver for adjustments.
• MODE : ST (Stereo)
• Speaker impedance : 6 ohms
• TUNING
FM : 87.5 - 108MHz
AM : 522 - 1611kHz (9kHz steps)
520-1610kHz (10kHz steps)
- 3 -
EXPLODED VIEW
6
Y03
Y02 Y04 Y04
Y01
Y02
Y03
3
15
14
13
16
N.S.P
77
78
Y06
Y14
Y15
Y16
Y18
Y12
Y18
Y19
Y19
Y20
Y20
Y20
Y16
Y17
1
2
4
4
5
8
7
72
73
74
65
64
76
75
57
17
71
9
10
11
12
Y06
Y09
Y10 Y11
Y05 Y05
Y09
Y08
Y13
Y14
Y07
55 62
67
52
51
63
60
61
66
68 69
56
58
59
54
53
This is a basic exploded view.
- 4 -
PARTS LIST
CAUTION :Regular type resistors and capacitors are not listed. To know those values, refer to the schematic diagram.
Regular type resistors are less than 1/4 W carbon type and 0 ohm chip resistors.
Regular type capacitors are less than 50 V and less than 1000 µF type of Ceramic type and Electrical type.
N.S.P :Not available as service parts.
PRODUCT SAFETY NOTICE
EACH PRECAUTION IN THIS MANUAL SHOULD BE FOLLOWED DURING SERVICING. COMPONENTS IDENTIFIED WITH THE
IEC SYMBOL !
!! IN THE PARTS LIST AND THE SCHEMATIC DIAGRAM DESIGNATED COMPONENTS IN WHICH SAFETY AND
PERFORMANCE CAN BE OF SPECIAL SIGNIFICANCE. WHEN REPLACING A COMPONENT IDENTIFIED BY !
!! , USE ONLY THE
REPLACEMENT PARTS DESIGNATED, OR PARTS WITH THE SAME RATINGS OF RESISTANCE, WATTAGE OR VOLTAGE THAT
ARE DESIGNATED IN THE PARTS LIST IN THIS MANUAL. LEAKAGE-CURRENT OR RESISTANCE MEASUREMENTS MUST BE
MADE TO DETERMINE THAT EXPOSED PARTS ARE ACCEPTABLY INSULATED FROM THE SUPPLY CIRCUIT BEFORE
RETURNING THE PRODUCT TO THE CUSTOMER.
REF.NO. PART NO. DESCRIPTION
PACKING & ACCESSORIES
REF.NO. PART NO. DESCRIPTION
614 330 1905 CARTON CASE(For BK)
614 330 9413 CARTON CASE(For SL)
614 329 8342 CUSHION,FRONT
614 329 8359 CUSHION,REAR
614 330 1400 INSTRUCTION MANUAL(For BK)
614 330 9475 INSTRUCTION MANUAL(For SL)
614 330 7136 INSTRUCTION SHEET(For BK)
614 330 9505 INSTRUCTION SHEET(For SL)
614 229 4635 ANT
614 308 5515 ANT
645 063 7483 ASSY,ANTENA,LOOP
614 330 8874 LID,BATTERY REMOCON
645 067 1494 REMOCON,RB-MCR350MO
614 330 6009 ASSY,BOX,SPEAKER(For BK)
614 330 1462 ASSY,BOX,SPEAKER(For SL)
CABINET & CHASSIS
REF.NO. PART NO. DESCRIPTION
1614 330 9024 ASSY,KNOB,VOLUME
2614 330 9338 ASSY,COVER,CD,DOOR(For BK)
2614 330 9017 ASSY,COVER,CD,DOOR(For SL)
3614 330 1240 ASSY,PANEL FRONT(For BK)
3 614 331 0037 ASSY,PANEL FRONT(For SL)
4614 329 1855 BUTTON,OPERATION
5614 329 1848 BUTTON,OPERATION
6614 329 1930 DEC,BUTTON
7614 329 1985 MOUNTING,CD
8614 322 2132 ASSY,GEAR,LID,CASSETTE
9614 329 6737 LATCH,CAM
10 614 330 6283 PANEL,TOP(For BK)
10 614 329 2012 PANEL,TOP(For SL)
11 614 329 2067 SPRING,DOOR DEC
12 614 330 6221 LID,CASSETTE(For BK)
12 614 329 1978 LID,CASSETTE(For SL)
13 614 330 1509 PANEL,REAR
14 614 329 1862 CABINET,BOTTOM
15 614 330 1233 ASSY,CABINET,REAR(For BK)
15 614 331 0853 ASSY,CABINET,REAR(For SL)
FIXING PARTS
REF.NO. PART NO. DESCRIPTION
Y01 411 021 3503 SCR S-TPG BIN 3X10,
PANEL FRONT+VOL PWB
Y02 411 021 3503 SCR S-TPG BIN 3X10,
PANEL FRONT+FRONT PWB
Y03 411 020 9902 SCR S-TPG BRZ+FLG 3X8,CD-PWB
Y04 411 021 3503 SCR S-TPG BIN 3X10,
MOUNTING CD+CD MECHA
Y05 411 021 6405 SCR S-TPG BIN 3X8,
MOUNTING CD+MAIN PWB
Y06 614 129 9136 LUG(FOR C_MECHA,CABINETREAR,
MAIN PWB, ASSY MECHA)
Y07 412 032 6408 SPECIAL SCREW,
CABINET REAR+FAN
ELECTRICAL PARTS
REF.NO. PART NO. DESCRIPTION
51 614 330 9161 ASSY,WIRE,FRONT TO VOL
52 614 330 9253 FLEXIBLE FLAT CABLE,
MAIN TO FRONT
53 614 330 9239 FLEXIBLE FLAT CABLE,MAIN TO CD
54 614 330 9147 ASSY,WIRE,MAIN TO CD
55 614 326 3739 ASSY,WIRE,ASSY WIRE
56 614 326 3722 ASSY,WIRE,ASSY WIRE
57 614 327 0850 FLEXIBLE FLAT CABLE,FFC
or 614 326 3647 FLEXIBLE FLAT CABLE,FFC
58 614 330 9123 ASSY,WIRE,DAMP DG TO CD
59 614 330 9208 ASSY,WIRE,FRONT TO DAMP DG
60 614 330 9192 ASSY,WIRE,MAIN TO DAMP
Y08 412 032 6408 SPECIAL SCREW,
CABINET RAER+FAN
Y09 411 021 3503 SCR S-TPG BIN 3X10,
PANEL TOP+CASSETTE MECHA
Y10 411 021 3503 SCR S-TPG BIN 3X10,
PANEL TOP+ASSY GEAR
Y11 411 021 3503 SCR S-TPG BIN 3X10,
PANEL TOP+LATCH CAM
Y12 411 021 3701 SCR S-TPG BIN 3X10,(For BK)
CABINET REAR+PANEL TOP
Y12 411 021 3404 SCR S-TPG BIN 3X10,(For SL)
CABINET REAR+PANEL TOP
Y13 411 021 3503 SCR S-TPG BIN 3X10,
PANEL REAR+CABINET REAR
Y14 411 021 3503 SCR S-TPG BIN 3X10,
POWER AC CORD
Y15 411 021 3503 SCR S-TPG BIN 3X10,
CABINET REAR+FAN
Y16 411 022 2901 SCR S-TPG FLT 3X10,(For BK)
PANEL FRONT+PANET TOP+CA,
CABINETL RAER+PANEL FRONT,
CABINET RAER+PANEL TOP
Y16 411 098 7701 SCR S-TPG FLT 3X10,(For SL)
PANEL FRONT+PANET TOP+CA,
CABINETL RAER+PANEL FRONT,
CABINET RAER+PANEL TOP
Y17 411 021 4906 SCR S-TPG BIN 3X20,
PANEL FRONT+CABINET REAR
Y18 411 021 8300 SCR S-TPG BIN 4X16,
CABINET REAR+TRANS
Y19 411 021 3503 SCR S-TPG BIN 3X10,
CABINET REAR+D-AMP,TUNER
Y20 411 021 3701 SCR S-TPG BIN 3X10,(For BK)
CABINET REAR+(SPK SOCKET,
MOUNTING CD,VIDEO IN,
FM SOCKET)
Y20 411 021 3404 SCR S-TPG BIN 3X10,(For SL)
CABINET REAR+(SPK SOCKET,
MOUNTING CD,VIDEO IN,
FM SOCKET)
- 5 -
PARTS LIST
REF.NO. PART NO. DESCRIPTION
VOLUME P.W.BOARD ASSY
REF.NO. PART NO. DESCRIPTION
71 614 329 8663 ASSY,PWB,VOL(Only initial)
CN630 645 006 0939 PLUG,6P,FRONT-VOL
or 614 310 2625 PLUG,6P,FRONT-VOL
D6301 407 239 4104 LED LT5C31-81-UR91,VOL-LED
D6302 407 239 4104 LED LT5C31-81-UR91,VOL-LED
D6303 407 239 4203 LED LT5CB1-81-URE3,VOL-LED
D6304 407 239 4203 LED LT5CB1-81-URE3,VOL-LED
D6305 407 012 4406 DIODE 1SS133
Q6301 405 143 0007 TR KRC107M
or 405 000 3806 TR DTC114YS
Q6305 405 000 3806 TR DTC114YS
or 405 143 0007 TR KRC107M
S6301 645 068 3022 SWITCH,ROTARY(ENCODER)
CD P.W.BOARD ASSY
REF.NO. PART NO. DESCRIPTION
73 614 329 8731 ASSY,PWB,CD(Only initial)
CN111 645 042 5349 SOCKET,FPC 16P
CN113 645 006 0939 PLUG,6P
or 614 310 2625 PLUG,6P
CN114 614 310 2618 PLUG,5P
or 645 006 0922 PLUG,5P
CN130 645 012 5591 SOCKET,FPC 26P
or 645 059 6582 SOCKET,FFC 26P
CN140 614 310 2465 PLUG,5P
or 645 005 9292 PLUG,5P
CN142 614 310 2441 PLUG,3P
or 645 005 7373 PLUG,3P
CN180 645 060 2085 SOCKET,IC 32P(IC180)
D1011 407 177 5300 DIODE RL153-M13
D1012 407 177 5300 DIODE RL153-M13
D1530 407 099 5105 ZENER DIODE MTZJ4.7B
D1601 407 012 4406 DIODE 1SS133
or 407 012 5809 DIODE 1SS176
D1602 407 012 4406 DIODE 1SS133
or 407 012 5809 DIODE 1SS176
D1603 407 012 4406 DIODE 1SS133
or 407 012 5809 DIODE 1SS176
D1641 407 127 3806 ZENER DIODE MTZJ3.3B
D1642 407 148 6701 DIODE 1A3-I
D1643 407 148 6701 DIODE 1A3-I
D1651 407 127 3806 ZENER DIODE MTZJ3.3B
D1652 407 148 6701 DIODE 1A3-I
D1653 407 148 6701 DIODE 1A3-I
D1661 407 099 4603 ZENER DIODE MTZJ3.9B
IC110 410 468 0205 IC TA2153FN,RFAMP
IC120 410 468 0304 IC TC9462F,CDDSP
IC121 410 472 2509 IC TC74HC14AFN-EL,HEXINVERTER
IC122 409 051 2702 IC TC4052BF,ANALOGSW
IC130 410 468 0403 IC TA2092N,SERVODRIVER
FRONT P.W.BOARD ASSY
REF.NO. PART NO. DESCRIPTION
72 614 329 8625 ASSY,PWB,FRONT(Only initial)
BR601 614 325 4249 HOLDER,FL
CN602 645 011 9972 SOCKET,FPC 11P,FRONT-MAIN
or 645 009 4156 SOCKET,FFC 11P,FRONT-MAIN
CN603 614 310 2625 PLUG,6P,FRONT-VOL
or 645 006 0939 PLUG,6P,FRONT-VOL
D6001 407 012 4406 DIODE 1SS133
D6002 407 012 4406 DIODE 1SS133
D6003 407 012 4406 DIODE 1SS133
D6004 407 012 4406 DIODE 1SS133
D6005 407 099 5204 ZENER DIODE MTZJ5.1B
D6006 407 099 9509 ZENER DIODE MTZJ30B
D6101 407 012 4406 DIODE 1SS133
D6201 407 012 4406 DIODE 1SS133
D6202 407 231 3808 LED LT2P11-81,STAND-BY-LED
FL601 645 067 8295 FLOURESCENT TUBE,FL
IC601 409 519 6907 IC PT6315
L6201 645 001 5441 INDUCTOR,2.2U K
Q6201 405 000 3806 TR DTC114YS
or 405 143 0007 TR KRC107M
Q6202 405 000 3806 TR DTC114YS
or 405 143 0007 TR KRC107M
R6002 402 083 7707 RESISTOR 1K J- 1W
S6150 614 220 5471 SWITCH,TACT
or 614 240 1002 SWITCH,TACT
or 645 006 5958 SWITCH,PUSH 1P-1T
S6151 614 220 5471 SWITCH,TACT
or 614 240 1002 SWITCH,TACT
or 645 006 5958 SWITCH,PUSH 1P-1T
S6152 645 006 5958 SWITCH,PUSH 1P-1T
or 614 240 1002 SWITCH,TACT
or 614 220 5471 SWITCH,TACT
S6153 645 006 5958 SWITCH,PUSH 1P-1T
or 614 240 1002 SWITCH,TACT
or 614 220 5471 SWITCH,TACT
S6154 645 006 5958 SWITCH,PUSH 1P-1T
or 614 240 1002 SWITCH,TACT
or 614 220 5471 SWITCH,TACT
S6155 614 220 5471 SWITCH,TACT
or 614 240 1002 SWITCH,TACT
or 645 006 5958 SWITCH,PUSH 1P-1T
61 614 330 9130 ASSY,WIRE,DAMP DG TO DAMP
62 614 330 9246 FLEXIBLE FLAT CABLE,MAIN TO TU
63 614 330 9116 ASSY,WIRE,MAIN TO AC DG
64 423 016 9902 FUSE 250V 0.8A
65 423 016 8103 FUSE 250V 4A
or 423 016 8103 FUSE 250V 4A
66 614 330 9178 ASSY,WIRE,MAIN TO TAPE
67 645 068 8034 MOTOR,FAN DC 0.84W
68 645 067 1975 TRANS,POWER
69 645 016 9939 CORD,POWER-1.74MK
REF.NO. PART NO. DESCRIPTION
S6156 645 006 5958 SWITCH,PUSH 1P-1T
or 614 240 1002 SWITCH,TACT
or 614 220 5471 SWITCH,TACT
S6157 645 006 5958 SWITCH,PUSH 1P-1T
or 614 240 1002 SWITCH,TACT
or 614 220 5471 SWITCH,TACT
S6158 645 006 5958 SWITCH,PUSH 1P-1T
or 614 240 1002 SWITCH,TACT
or 614 220 5471 SWITCH,TACT
S6160 645 006 5958 SWITCH,PUSH 1P-1T
or 614 240 1002 SWITCH,TACT
or 614 220 5471 SWITCH,TACT
S6161 614 220 5471 SWITCH,TACT
or 614 240 1002 SWITCH,TACT
or 645 006 5958 SWITCH,PUSH 1P-1T
S6162 614 220 5471 SWITCH,TACT
or 614 240 1002 SWITCH,TACT
or 645 006 5958 SWITCH,PUSH 1P-1T
S6163 614 220 5471 SWITCH,TACT
or 614 240 1002 SWITCH,TACT
or 645 006 5958 SWITCH,PUSH 1P-1T
S6164 614 220 5471 SWITCH,TACT
or 645 006 5958 SWITCH,PUSH 1P-1T
or 614 240 1002 SWITCH,TACT
S6165 645 006 5958 SWITCH,PUSH 1P-1T
or 614 240 1002 SWITCH,TACT
or 614 220 5471 SWITCH,TACT
S6166 645 006 5958 SWITCH,PUSH 1P-1T
or 614 240 1002 SWITCH,TACT
or 614 220 5471 SWITCH,TACT
S6167 614 220 5471 SWITCH,TACT
or 614 240 1002 SWITCH,TACT
or 645 006 5958 SWITCH,PUSH 1P-1T
SE601 407 217 1101 PHOTO DIODE SPS-442-1G
or 407 229 6101 PHOTO DIODE SPS-442-1-G1
- 6 -
PARTS LIST
REF.NO. PART NO. DESCRIPTION REF.NO. PART NO. DESCRIPTION
AMPLIFIER & MCU P.W.BOARD ASSY
REF.NO. PART NO. DESCRIPTION
74 614 329 8618 ASSY,PWB,AMP-MCU(Only initial)
C4459 403 329 5907 ELECT 3300U M 25V
or 403 366 5601 ELECT 3300U M 25V
C4559 403 389 0805 ELECT 3300U R 16V
C4601 403 057 3503 POLYESTER 0.1U K 50V
C4605 403 061 3605 POLYESTER 0.039U J 50V
C4606 403 061 7702 POLYESTER 4700P J 50V
C4607 403 056 7502 POLYESTER 1000P J 50V
C4608 403 060 2807 POLYESTER 0.027U K 50V
C4727 403 259 0508 NP-ELECT 1U M 50V
C4827 403 259 0508 NP-ELECT 1U M 50V
CN432 614 310 2441 PLUG,3P
or 645 005 7373 PLUG,3P
CN435 614 310 2434 PLUG,2P
or 645 005 7366 PLUG,2P
CN439 614 319 3456 PLUG,3P
or 645 006 1806 PLUG,3P
CN440 614 310 2472 PLUG,6P
or 645 005 8127 PLUG,6P
CN455 614 310 2465 PLUG,5P
or 645 005 9292 PLUG,5P
CN461 614 310 2533 PLUG,12P
or 645 006 0878 PLUG,12P
CN470 614 253 9354 SOCKET,RCA TERMINAL
CN471 614 221 8273 TERMINAL
IC140 410 468 0502 IC TC74HCU04AFN-EL,
HEXINVERTER
IC150 409 408 1303 IC LB1641L
IC160 409 574 9509 IC ES3890F,VCDPROCESSOR
IC170 409 573 2808 IC PT8211S,DAC
IC180 410 497 9705 IC ASSY,EPROM4M
(IC MX29F004TPC-70)
IC190 410 499 1905 IC M11L16161SA-45T,DRAM16M
or 410 505 2100 IC MSM51V18165F-60TS-K,
DRAM16M
L1010 645 006 3886 INDUCTOR,1U K
L1131 645 001 5519 INDUCTOR,47U K
L1132 645 001 4550 INDUCTOR,10U K
L1280 645 001 4581 INDUCTOR,100U K
L1601 645 001 5465 INDUCTOR,3.3U K
L1602 645 037 2858 CORE,PIPE
L1603 645 037 2858 CORE,PIPE
L1605 645 034 7887 INDUCTOR,1000 OHM
or 645 045 7869 IMPEDANCE,1000 OHM P
or 645 020 1813 INDUCTOR,1000 OHM
L1606 645 020 1813 INDUCTOR,1000 OHM
or 645 034 7887 INDUCTOR,1000 OHM
or 645 045 7869 IMPEDANCE,1000 OHM P
L1607 645 037 2858 CORE,PIPE
L1701 645 001 4581 INDUCTOR,100U K
Q1131 405 008 6809 TR 2SB808-F-SPA
or 405 008 7202 TR 2SB810-E
or 405 008 7301 TR 2SB810-F
Q1601 405 141 3307 TR KTC3198-GR
or 405 141 3208 TR KTC3198-Y
or 405 019 2708 TR 2SC536-F-NP
or 405 019 3804 TR 2SC536-G-NP
Q1641 405 025 0200 TR 2SD734-G
or 405 141 3109 TR KTC3203-Y
or 405 024 9907 TR 2SD734-F
Q1651 405 141 3109 TR KTC3203-Y
or 405 024 9907 TR 2SD734-F
or 405 025 0200 TR 2SD734-G
Q1661 405 141 3109 TR KTC3203-Y
or 405 024 9907 TR 2SD734-F
or 405 025 0200 TR 2SD734-G
R1530 402 083 3600 RESISTOR 15 J- 2W
X1451 645 059 0948 OSC,CRYSTAL 16.9344MHZ
X1601 645 059 0955 OSC,CRYSTAL 27.000MHZ,27MHZ
CN651 645 009 4163 SOCKET,FFC 12P
or 645 012 5096 SOCKET,FPC 12P
CN652 645 005 8141 PLUG,9P
or 614 310 2502 PLUG,9P
CN653 645 009 4156 SOCKET,FFC 11P
or 645 011 9972 SOCKET,FPC 11P
CN654 645 009 8468 SOCKET,FFC 26P
or 645 012 5300 SOCKET,FPC 26P
CN655 614 310 2496 PLUG,8P
or 645 005 8134 PLUG,8P
D4320 407 099 6003 ZENER DIODE MTZJ9.1B
D4330 407 099 6805 ZENER DIODE MTZJ13B
D4331 407 012 4406 DIODE 1SS133
D4332 407 012 4406 DIODE 1SS133
D4340 407 148 6701 DIODE 1A3-I
D4341 407 012 4406 DIODE 1SS133
D4342 407 148 6701 DIODE 1A3-I
D4465 407 148 6701 DIODE 1A3-I
D4466 407 148 6701 DIODE 1A3-I
D4467 407 148 6701 DIODE 1A3-I
D4468 407 148 6701 DIODE 1A3-I
D6501 407 012 4406 DIODE 1SS133
D6502 407 012 4406 DIODE 1SS133
D6503 407 012 4406 DIODE 1SS133
D6504 407 012 4406 DIODE 1SS133
D6701 407 012 4406 DIODE 1SS133
D6702 407 012 4406 DIODE 1SS133
HS430 614 329 1947 HEAT SINK
HS431 614 329 9950 HEAT SINK
IC434 409 463 6701 IC KIA7805API
IC440 409 451 7406 IC AN7348K
IC441 410 468 0809 IC TC9422F
IC443 409 189 3404 IC BA7755A
IC651 410 497 8005 IC TMP87EP26F-4K76,MICON
L4600 645 006 1523 INDUCTOR,470U J
L4601 645 006 1523 INDUCTOR,470U J
L4602 645 037 2858 CORE,PIPE
L4603 645 006 1523 INDUCTOR,470U J
L4604 645 037 2858 CORE,PIPE
L6501 645 001 4581 INDUCTOR,100U K
or 645 031 7842 INDUCTOR,100U K
L6502 645 001 4581 INDUCTOR,100U K
or 645 031 7842 INDUCTOR,100U K
L6503 645 001 4581 INDUCTOR,100U K
or 645 031 7842 INDUCTOR,100U K
PR430 645 042 2676 PROTECTOR,2.5A 125V
PR431 645 027 4169 PROTECTOR,0.125A 125V
PR432 645 042 2614 PROTECTOR,1A 125V
PR433 645 042 2614 PROTECTOR,1A 125V
Q4300 405 146 2206 TR KTC3875-GR
or 405 146 2107 TR KTC3875-Y
or 405 011 1006 TR 2SC1623-L6
or 405 014 4509 TR 2SC2412K-R
Q4301 405 146 2206 TR KTC3875-GR
or 405 146 2107 TR KTC3875-Y
or 405 011 1006 TR 2SC1623-L6
or 405 014 4509 TR 2SC2412K-R
Q4302 405 146 2206 TR KTC3875-GR
or 405 146 2107 TR KTC3875-Y
or 405 011 1006 TR 2SC1623-L6
or 405 014 4509 TR 2SC2412K-R
Q4303 405 014 4509 TR 2SC2412K-R
or 405 011 1006 TR 2SC1623-L6
or 405 146 2107 TR KTC3875-Y
or 405 146 2206 TR KTC3875-GR
Q4320 405 004 5004 TR 2SA608-G-NP
or 405 004 4502 TR 2SA608-F-NP
or 405 141 3505 TR KTA1266-Y
or 405 141 3406 TR KTA1266-GR
Q4321 405 019 2708 TR 2SC536-F-NP
or 405 019 3804 TR 2SC536-G-NP
or 405 141 3208 TR KTC3198-Y
or 405 141 3307 TR KTC3198-GR
- 7 -
PARTS LIST
REF.NO. PART NO. DESCRIPTION REF.NO. PART NO. DESCRIPTION
D-AMP POWER SUPPLY P.W.BOARD ASSY
REF.NO. PART NO. DESCRIPTION
75 614 329 8656 ASSY,PWB,D-AMP(Only initial)
C4104 403 325 2306 ELECT 4700U M 35V
C4105 403 325 2306 ELECT 4700U M 35V
C4110 403 325 1705 ELECT 4700U M 16V
or 403 329 5709 ELECT 4700U M 16V
or 413 134 5604 ELECT 4700U M 16V
CN410 645 005 7373 PLUG,3P
or 614 310 2441 PLUG,3P
CN411 645 006 1806 PLUG,3P
CN412 645 006 1806 PLUG,3P
or 614 319 3456 PLUG,3P
CN413 645 031 7903 HOLDER,FUSE
or 645 006 4760 HOLDER,FUSE
CN414 645 031 7903 HOLDER,FUSE
or 645 006 4760 HOLDER,FUSE
CN415 645 031 7903 HOLDER,FUSE
or 645 006 4760 HOLDER,FUSE
CN416 645 031 7903 HOLDER,FUSE
or 645 006 4760 HOLDER,FUSE
CN417 645 006 1813 PLUG,4P
CN418 645 005 7373 PLUG,3P
or 614 310 2441 PLUG,3P
POWER TRANSFORMER P.W.BOARD ASSY
REF.NO. PART NO. DESCRIPTION
76 614 329 8649 ASSY,PWB,DG(Only initial)
C4008 403 349 3303 CERAMIC 0.01U M 250V
or 403 366 7803 CERAMIC 0.01U M 250V
CN400 645 005 9315 PLUG,2P
CN401 614 017 8203 TERMINAL BOARD
CN402 614 017 8203 TERMINAL BOARD
CN403 645 006 4760 HOLDER,FUSE
or 645 031 7903 HOLDER,FUSE
CN404 645 006 4760 HOLDER,FUSE
or 645 031 7903 HOLDER,FUSE
CN405 614 310 2441 PLUG,3P
or 645 005 7373 PLUG,3P
D4001 407 012 4406 DIODE 1SS133
D4002 407 099 5402 ZENER DIODE MTZJ6.2B
D4004 407 097 8009 DIODE MPG06G
D4005 407 097 8009 DIODE MPG06G
D4006 407 097 8009 DIODE MPG06G
D4007 407 097 8009 DIODE MPG06G
L4001 645 038 7364 INDUCTOR,70U
PT410 645 067 6178 TRANS,POWER
Q4001 405 141 3208 TR KTC3198-Y
or 405 141 3307 TR KTC3198-GR
or 405 019 2708 TR 2SC536-F-NP
or 405 019 3804 TR 2SC536-G-NP
Q4002 405 141 1402 TR KTD863-GR
or 405 023 5306 TR 2SD400-F-MP
or 405 023 5009 TR 2SD400-E-MP
RY407 645 030 5597 RELAY
TUNER P.W.BOARD ASSY
REF.NO. PART NO. DESCRIPTION
77 614 329 8632 ASSY,PWB,TUNER(Only initial)
CN201 645 057 1909 TUNER,FM-TERMINAL_XE
CN203 645 004 2683 PLUG,2P,AM-TERMARINL
CN231 645 067 2514 SOCKET,FFC 12P,TU-MAIN
or 645 012 5164 SOCKET,FPC 12P,TU-MAIN
CT252 645 032 5663 TRIMMER,7PF
D2100 407 012 4406 DIODE 1SS133
Q4322 405 138 6403 TR KTD2058Y
or 405 095 1602 TR 2SD2061-E
or 405 095 1701 TR 2SD2061-F
Q4330 405 141 3406 TR KTA1266-GR
or 405 141 3505 TR KTA1266-Y
or 405 004 4502 TR 2SA608-F-NP
or 405 004 5004 TR 2SA608-G-NP
Q4331 405 138 6403 TR KTD2058Y
or 405 095 1602 TR 2SD2061-E
or 405 095 1701 TR 2SD2061-F
Q4600 405 008 2504 TR 2SB698-G
or 405 008 2405 TR 2SB698-F
or 405 141 3703 TR KTA1271-Y
Q4601 405 143 0007 TR KRC107M
or 405 000 3806 TR DTC114YS
Q4602 405 141 3208 TR KTC3198-Y
or 405 019 3804 TR 2SC536-G-NP
or 405 019 2708 TR 2SC536-F-NP
or 405 141 3307 TR KTC3198-GR
Q4603 405 019 3804 TR 2SC536-G-NP
or 405 019 2708 TR 2SC536-F-NP
or 405 141 3307 TR KTC3198-GR
or 405 141 3208 TR KTC3198-Y
Q4604 405 143 0007 TR KRC107M
or 405 000 3806 TR DTC114YS
Q4700 405 075 8607 TR DTC143ZS
or 405 143 9000 TR KRC106M
Q4800 405 075 8607 TR DTC143ZS
or 405 143 9000 TR KRC106M
Q6502 405 141 3307 TR KTC3198-GR
or 405 141 3208 TR KTC3198-Y
or 405 019 2708 TR 2SC536-F-NP
or 405 019 3804 TR 2SC536-G-NP
Q6701 405 155 0002 TR MPSA56
Q6702 405 155 0002 TR MPSA56
Q6703 405 155 0002 TR MPSA56
Q6704 405 143 0007 TR KRC107M
or 405 000 3806 TR DTC114YS
Q6705 405 143 0007 TR KRC107M
or 405 000 3806 TR DTC114YS
SA430 411 021 6405 SCR S-TPG BIN 3X8
SA431 411 021 6405 SCR S-TPG BIN 3X8
SA432 411 021 6405 SCR S-TPG BIN 3X8
SA433 411 021 6405 SCR S-TPG BIN 3X8
SA434 411 021 6405 SCR S-TPG BIN 3X8
X6501 645 063 9791 OSC,CRYSTAL 7.372800MHZ
X6502 645 032 1627 OSC,CRYSTAL 32.768KHZ
D4100 407 196 5800 DIODE 1N5402BD82
D4101 407 196 5800 DIODE 1N5402BD82
D4102 407 196 5800 DIODE 1N5402BD82
D4103 407 196 5800 DIODE 1N5402BD82
D4104 407 098 3300 DIODE RL153-BF-S2
D4106 407 196 5800 DIODE 1N5402BD82
D4107 407 196 5800 DIODE 1N5402BD82
D4108 407 196 5800 DIODE 1N5402BD82
D4109 407 196 5800 DIODE 1N5402BD82
D4110 407 099 5204 ZENER DIODE MTZJ5.1B
D4111 407 012 4406 DIODE 1SS133
JW601 645 069 0143 CORD,SOCKET,ASSY WIRE
PR410 645 042 2614 PROTECTOR,1A 125V
PR411 645 042 2676 PROTECTOR,2.5A 125V
PR414 645 042 2560 PROTECTOR,0.75A 125V
Q4100 405 141 3406 TR KTA1266-GR
or 405 141 3505 TR KTA1266-Y
or 405 004 4502 TR 2SA608-F-NP
or 405 004 5004 TR 2SA608-G-NP
Q4101 405 138 6403 TR KTD2058Y
or 405 095 1701 TR 2SD2061-F
or 405 095 1602 TR 2SD2061-E
Q4102 405 141 3307 TR KTC3198-GR
or 405 019 2708 TR 2SC536-F-NP
or 405 019 3804 TR 2SC536-G-NP
or 405 141 3208 TR KTC3198-Y
R4130 401 120 1500 MT-FILM 10 FD 1/4W
SA410 411 021 6405 SCR S-TPG BIN 3X8
- 8 -
PARTS LIST
REF.NO. PART NO. DESCRIPTION REF.NO. PART NO. DESCRIPTION
D-AMP P.W.BOARD ASSY
REF.NO. PART NO. DESCRIPTION
78 614 329 6430 ASSY,PWB,D-AMP(Only initial)
C5779 403 392 4302 CERAMIC 560P K 100V
C5780 403 394 2603 CERAMIC 0.22U M 250V
C5783 403 393 6305 MT-POLYEST 0.47U J 63V
C5879 403 392 4302 CERAMIC 560P K 100V
C5880 403 394 2603 CERAMIC 0.22U M 250V
C5883 403 393 6305 MT-POLYEST 0.47U J 63V
C5978 403 394 2603 CERAMIC 0.22U M 250V
C5981 403 394 2603 CERAMIC 0.22U M 250V
C5985 403 394 2603 CERAMIC 0.22U M 250V
C5986 403 394 2603 CERAMIC 0.22U M 250V
C5990 403 394 2603 CERAMIC 0.22U M 250V
TAPE MECHANISM
REF.NO. PART NO. DESCRIPTION
16 614 329 8441 ASSY,MECHA,TM-PT70TN-SH
645 052 2888 RP HEAD C-9142-BD-1025
645 010 9447 PINCH ROLLER(F) ASSY
645 045 1959 RF BELT
645 052 4158 MAIN BELT
645 045 2048 DETECT SWITCH MXS01190
645 067 2934 ASSY,MOTOR
D2101 407 012 4406 DIODE 1SS133
D2102 407 012 4406 DIODE 1SS133
D2103 407 149 0807 DIODE 1SS355
D2330 407 105 1602 VARACTOR DI SVC342M-V
or 407 105 1305 VARACTOR DI SVC342L-V
D2709 407 099 4801 ZENER DIODE MTZJ4.3B
D2901 407 149 0807 DIODE 1SS355
IC211 410 468 0601 IC TA2149BFN
IC222 410 468 0700 IC TC9257F
IC223 409 486 0007 IC BU1924F,RDS
L2351 645 037 2377 TRANS,ANT,796KHZ
L2353 645 040 2739 TRANS,OSC,796KHZ
L2801 645 001 4581 INDUCTOR,100U K
or 645 031 7842 INDUCTOR,100U K
L2901 645 031 7835 INDUCTOR,10U K
or 645 001 4550 INDUCTOR,10U K
L2902 645 031 7835 INDUCTOR,10U K
or 645 001 4550 INDUCTOR,10U K
Q2101 405 151 4806 TR KTC3195-O
or 405 151 4301 TR KTC3195-Y
Q2413 405 151 4301 TR KTC3195-Y
or 405 151 4806 TR KTC3195-O
Q2415 405 151 4301 TR KTC3195-Y
or 405 151 4806 TR KTC3195-O
Q2418 405 151 4301 TR KTC3195-Y
or 405 151 4806 TR KTC3195-O
Q2421 405 151 4301 TR KTC3195-Y
or 405 151 4806 TR KTC3195-O
Q2427 405 151 4806 TR KTC3195-O
or 405 151 4301 TR KTC3195-Y
Q2509 405 151 4301 TR KTC3195-Y
or 405 151 4806 TR KTC3195-O
Q2510 405 151 4301 TR KTC3195-Y
or 405 151 4806 TR KTC3195-O
Q2802 405 143 0007 TR KRC107M
or 405 000 3806 TR DTC114YS
Q2803 405 019 3804 TR 2SC536-G-NP
or 405 019 2708 TR 2SC536-F-NP
or 405 141 3208 TR KTC3198-Y
or 405 141 3307 TR KTC3198-GR
Q2804 405 019 3804 TR 2SC536-G-NP
or 405 019 2708 TR 2SC536-F-NP
or 405 141 3208 TR KTC3198-Y
or 405 141 3307 TR KTC3198-GR
T2001 645 043 0213 FILTER,450KHZ
U2001 645 043 6697 TUNER,FM
X2107 645 061 3449 CERAMIC FILTER 10.7MHZ
X2503 645 023 4965 OSC,CRYSTAL 7.2MHZ
X2901 645 035 8326 OSC,CRYSTAL 4.332MHZ
XF220 645 054 1223 CERAMIC FILTER 10.70MHZ
or 645 010 7665 CERAMIC FILTER 10.70MHZ
or 614 240 2917 FILTER,CERAM
XF221 645 059 0054 CERAMIC FILTER 450KHZ
or 645 041 9324 CERAMIC FILTER 450KHZ
XF222 645 054 1223 CERAMIC FILTER 10.70MHZ
or 645 010 7665 CERAMIC FILTER 10.70MHZ
or 614 240 2917 FILTER,CERAM
CN567 645 031 4308 JACK,PHONE D3.6,HEADPHONE
CN587 645 008 5314 TERMINAL,SPEAKER
or 645 064 8519 TERMINAL,SPEAKER 4P
CN597 614 310 2687 PLUG,12P
or 645 006 0991 PLUG,12P
CN599 645 006 1882 PLUG,3P
D5970 407 012 4406 DIODE 1SS133
D5971 407 012 4406 DIODE 1SS133
D5972 407 012 4406 DIODE 1SS133
D5973 407 012 4406 DIODE 1SS133
HS501 614 328 2662 HEAT SINK,D-AMP
IC597 409 568 1502 IC TDA8921TH
L5775 645 063 4017 INDUCTOR,33U K
L5776 645 001 4550 INDUCTOR,10U K
or 645 031 7835 INDUCTOR,10U K
L5875 645 063 4017 INDUCTOR,33U K
L5876 645 001 4550 INDUCTOR,10U K
or 645 031 7835 INDUCTOR,10U K
L5970 645 037 2858 CORE,PIPE
L5971 645 037 2858 CORE,PIPE
L5973 645 037 2858 CORE,PIPE
L5974 645 037 2858 CORE,PIPE
Q5972 405 019 3804 TR 2SC536-G-NP
or 405 019 2708 TR 2SC536-F-NP
or 405 141 3208 TR KTC3198-Y
or 405 141 3307 TR KTC3198-GR
Q5974 405 141 3307 TR KTC3198-GR
or 405 141 3208 TR KTC3198-Y
or 405 019 2708 TR 2SC536-F-NP
or 405 019 3804 TR 2SC536-G-NP
Q5975 405 141 3208 TR KTC3198-Y
or 405 141 3307 TR KTC3198-GR
or 405 019 2708 TR 2SC536-F-NP
or 405 019 3804 TR 2SC536-G-NP
Q5977 405 141 3307 TR KTC3198-GR
or 405 141 3208 TR KTC3198-Y
Q5978 405 141 3307 TR KTC3198-GR
or 405 141 3208 TR KTC3198-Y
or 405 019 2708 TR 2SC536-F-NP
or 405 019 3804 TR 2SC536-G-NP
R5777 402 082 1102 FUSIBLE RES 22 JA 1/2W
R5779 401 009 5605 CARBON 330 JA 1/2W
or 401 009 5803 CARBON 330 JA 1/2W
R5780 401 314 1309 MT-FILM 4.7 FD 1/4W
R5877 402 082 1102 FUSIBLE RES 22 JA 1/2W
R5879 401 009 5605 CARBON 330 JA 1/2W
or 401 009 5803 CARBON 330 JA 1/2W
R5880 401 314 1309 MT-FILM 4.7 FD 1/4W
S5970 614 224 4531 RELAY
S5971 645 059 0306 RELAY
or 645 030 5597 RELAY
SA511 411 021 6405 SCR S-TPG BIN 3X8,FOR SH401
SA512 411 021 6405 SCR S-TPG BIN 3X8,FOR SH401
SA513 411 021 6405 SCR S-TPG BIN 3X8,FOR SH401
SA514 411 021 4005 SCR S-TPG BIN 3X12,FOR SH501
SA515 411 021 4005 SCR S-TPG BIN 3X12,FOR SH501
- 9 -
REF.NO. PART NO. DESCRIPTION
EXPLODED VIEW & PARTS LIST (CD MECHANISM)
CM01
CM14
CM02
CM12
CM13
CM08
CM05
CM03
CM06
CM04
CM11
CM07
CM09
CM10
CM15 CM15
CM16
CM16
CM20
CM17
CM18 CM19
CD MECHANISM
REF.NO. PART NO. DESCRIPTION
17 614 325 7462 ASSY,MECHA,CD-MM5000-SH,
CD MECHA
CM01 614 233 0227 PLATE,BACK YOKE
CM02 614 320 2356 SLIDE,BASE UP/DOWN
CM03 614 323 3923 BELT,SQUARE,LOADING
CM04 614 324 5230 GEAR,LOADING
or 614 320 2271 GEAR,LOADING
CM05 412 061 7803 SPECIAL SCREW,PULLEY FIX
CM06 614 320 2349 LOADING RETARD PULLY
CM07 614 326 4811 CHASSIS,MECHA
CM08 614 320 2363 TRAY
CM10 411 021 2704 SCR S-TPG BIN 2.6X6,
PWB PWB MECHA IF FIX
CM11 645 032 4352 ASSY,MOTOR LOADING
CM12 645 057 8618 MAGNET,CHUCK
or 614 262 8928 MAGNET,CHUCK
CM13 614 318 9398 HOLDER,CHUCK
CM14 411 162 1901 SCR S-TPG PAN PCS 2X3,
CHUCK HOLDER FIX
MECHA SWITCH P.W.BOARD ASSY
REF.NO. PART NO. DESCRIPTION
CM09 614 320 2219 ASSY,PWB MECHA SW,
MOTOR & SW PWB(Only initial)
CN001 614 310 2618 PLUG,5P,
MOTOR & SW PWB CONNE
or 645 006 0922 PLUG,5P,
MOTOR & SW PWB CONNE
S0001 645 057 5785 SWITCH,LEVER,MECHA SW
CM15 411 021 1806 SCR S-TPG BIN 2.6X10,BASE FIX
CM16 411 092 0906 WASHER Z 2.6X10X0.5,BASE FIX
CM17 614 325 6014 ASSY,MECHA,DA11T3CN-SASH,
BASE MECHA
CM18 614 310 6128 SPACER,MECHA(FRONT)
or 614 324 3113 SPACER,MECHA(FRONT)
CM19 614 322 9070 SPACER,MECHA(REAR)
or 614 323 6498 SPACER,MECHA(REAR)
CM20 614 325 8391 MOUNTING,BASE MECHA
- 10 -
IC BLOCK DIAGRAM & DESCRIPTION
IC110 TA2153FN (RF Amp)
16
17
18
FEO
FEN
SEB
19VRO
20RFRP
21BTC
22RFCT
23PKC
24RFRPIN
25RFGO
26GVSW
27AGCIN
28RFO
29GND
30RFN2
15
14
13
SBAD
TEO
TEN
12 2VRO
11 TEB
10 SEL
9 LDO
8 MDI
7 TNI
6 TPI
5 FPI
4 FNI
3 GMAD
2 RFGC
1 Vcc
AGC Amp.
BOTTOM
PEAK
3 STATE
DET.
I-I
I-I
10pF
15pF
40pF
15pF
3pF
10pF
3pF
36pF
40pF
SW1
SW3
SW2
1
2
3
4
5
6
7 8
9
10
11
12
13
14
1A
1Y
2A
2Y
3A
3Y
GND
Vcc
6A
6Y
5A
5Y
4A
4Y
IC121 TC74HC14AFN-EL (HEX Schmitt Inverter) IC140 TC74CU04AFN-EL (HEX Inverter)
14
13
12
11
10
9
8
1
2
3
4
5
6
7
1A
1Y
2A
2Y
3A
3Y
GND
Vcc
6A
5A
6Y
5Y
4A
4Y
(TOP VIEW)
PIN CONNECTOR LOGICAL CIRCUIT
TRUTH VALUE
(2)
(4)
(6)
(8)
(10)
(12)
1Y
2Y
3Y
4Y
5Y
6Y
1A
2A
3A
4A
5A
6A
(1)
(3)
(5)
(9)
(11)
(13)
1
AY
LH
HL
- 11 -
IC BLOCK DIAGRAM & DESCRIPTION
DVSR
RO
DVDD
DVR
LO
DVSL
TEST1
TEST2
TEST3
BUS0
BUS1
BUS2
BUS3
VDD
VSS
BUCK
CCE
TEST4
TSMOD
RST
TEST0
HSO
UHSO
EMPH
LRCK
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
12345
55 54 53 52 51
50
49
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
32
31
DMO
FVO
FMO
TEBC
RFGC
VREF
TRO
FDO
TEZI
TEI
TSIN
SBAD
FEI
56575859606162636465666768697071727374757677787980
3029282726252423222120191817161514131211109876
RFRP
RFZI
RFCT
AVDD
RFI
SLCO
AVSS
VCOF
VCOREF
PVREF
LPFO
LPFN
XVDD
XO
XI
XVSS
VDD
PXO
PXI
VSS
TESIO1
TESIN
DACT
CKSE
DMOUT
IO3
IO2
IO1
IOO
VSS
VDD
FLGD
FLGC
FLGB
FLGA
SEL
2VREF
VSS
BCK
AOUT
DOUT
MBOV
IPF
SBOK
CLCK
VDD
VSS
DATA
SFSY
SBSY
SPCK
SPDA
COFS
MONIT
VDD
TES:O0
P2VREF
HSSW
ZDET
PD0
TMAXS
TMAX
+
-
+
-
+
-
+
-
LPF 1 BIT
DAC CLOCK
GENERATOR
SERVO
CONTROL
PWM
D/A
ROM
A/D
RAM
DIGITAL
EQUALIZER
ADDRESS
CIRCUIT
CLV SERVO
MICON
INTERFACE
16k RAM
CORRECTION
CIRCUIT
DIGITAL OUT
AUDIO OUT
CIRCUIT
SUB CODE
DECODER
STATUS
PLL TMAX
VCO
DATA
SLICER
SYNCHRONOUS
GUARANTEE
EFM DECODE
AUTOMATIC
ADJUSTMENT
CIRCUIT
IC120 TC9462F (Digital Servo Processor)
OUT c IN
OUT c IN
OUT c IN
OUT c IN
OUT c IN
OUT c IN
OUT c IN
OUT c IN
12
14
15
11
1
5
2
4
3
0X
1X
2X
3X
0Y
1Y
2Y
3Y
Y-COMMON
13 X-COMMON
6
9
10
INH
B
A
16
V
DD
87
V
SS
V
EE
LOGIC LEVEL CONVERTER
IC122 TC4052BF (Analog Switch)
BCK
WS
DIN
GND
RCH
NC
LCH
VDD
1
2
3
4
8
7
6
5
Pin Name
BCK
WS
DIN
GND
VDD
LCH
NC
RCH
I/O
I
I
I
-
Power
O
-
O
Description
Bit Serial Clock Input Pin
Word Select Input Pin
Date Input Pin
Ground
Positive Power Supply
Left Channel Output Pin
No Connection
Right Channel Output Pin
Pin No.
1
2
3
4
5
6
7
8
1
2
3
45
6
7
8
BCK
WS
DIN
GND
RCH
NC
LCH
VDD
OUT
OUT
OUT
DAC
DAC
Vcc
Data Latch
Floating
Conversion
Floating
Conversion
op
+
-
op
+
-
op
+
-
IC170 PT8211S (Digital to Analog Converter)
- 12 -
IC BLOCK DIAGRAM & DESCRIPTION
IC150 LB1641L (Bidirectional Motor Driver
1
PRE-
DRIVE
INPUT LOGIC CIRCUIT
5
4
6
10 97
2
8
3
GND
IN1
OUT1P1 VCC2 OUT2 P2
VZ
VCC
IN2
Input Output Action
Brake
Normal(Reverse)Rotary
Reverse(Normal)Rotary
Brake
IN1
0
1
0
1
IN2
0
0
1
1
OUT1
0
1
0
0
OUT2
0
0
1
0
IC130 TA2092N (Servo Driver)
IC443 BA7755A (Rec / Play Switch)
1 4 52 3
IC434 KIA7805API (Regulator)
1. INPUT
2. COMMON
3. OUTPUT
123
- 13 -
SRAM/ROM
Interface
GPIO
Interface
Gateway
DMA Controller
Huffman
Decoder
Video
Processor
32-bit
RISC Processor
TV-Encoder
DRAM
Interface
OSD
Display
Controller
TDM
Interface
Transport
Parser
Serial Audio
Interface
Audio
ADC
8kB cache
1
3839 6465
102
103
128
AUX2[3]/IRQ
AUX2[4]/C2P0
AUX2[5]/SP
AUX2[6]/S0S1
AUX2[7]
AUX1[0]
AUX1[1]
AUX1[2]
AUX1[3]
AUX1[4]
AUX1[5]
AUX1[6]/VFD_DO
AUX1[7]/VFD_DI
VCC
VSS
AUX0[0]
AUX0[1]
AUX0[2]
AUX0[3]
AUX0[4]
VSSV
VSSV
VDAC
YDAC
VCCV
VCCV
VPP
DRAS1#
CAS#
MCLK
SEL_PLL0/TSD
SEL_PLL1/TWS
TBCK
TDMCLK
TDMDR
TDMFS
LA19
LA18
LA17
LA16
LA15
LA14
LA13
LA12
LA11
LA10
LA9
LA8
VCC
VSS
LA7
LA6
VSSA
RSEVT
VREF
COMP
VCM
MIC2
MIC1
VDDA
VSSA
AUX0[5]
AUX0[6]
AUX0[7]
AUX3[0]
AUX3[1]
AUX3[2]
LWR#
LOE#
CS0#
CS1#
CS3#
LD0
LD1
LD2
LD3
LD4
LD5
LD6
LD7
VCC
XIN
XOUT
VSS
LA0
LA1
LA2
LA3
LA4
LA5
AUX2[2]/SQCK
AUX2[1]/SQSO
AUX2[0]/VFD_CL
K
VCC_P
VSS_P
VSS
RESET#
VCC
DBUS15
DBUS11
DBUS13
DBUS12
DBUS11
DBUS10
DBUS9
DBUS8
DBUS7
DBUS6
DBUS5
DBUS4
DBUS3
DBUS2
DBUS1
DBUS0
MA8
MA7
MA6
MA5
MA4
MA3
MA2
MA1
MA0
DOE#/MA9
DWE#
DRAS0#
VCC
VSS
Names Pin No. I/O Descriptions
VSSA 1.9 G Ground for analog circuits.
RSET 2 O Reset. Internal current source generator. Connect this pin to
a 510Ωresistor to ground.
VREF 3 O Output reference voltage. Connect to a 0.01-µF high -frequency
bypass capacitor to VSSA.
COMP 4 O Compensation capacitance for low-pass filter on VDAC. Connect
to a 0.01-µF high-frequency bypass capacitor to VSSA.
VCM 5 O ADC analog voltage reference. Connect to a 0.01-µF filter
capacitor to VSSA.
MIC1.MIC.2 6,7 I Microphone inputs.
VDDA 8 P 5.0V power supply for analog circuits.
AUX0[7:5] 10:12 I/O General-purpose programmable I/O.
AUX3[2:0] 13:15 I/O General-purpose programmable I/O.
LWR# 16 O RISC interface Write Enable (active-low).
LOE# 17 O RISC SRAM Output Enable (active-low).
CS0# 18 O Chip select 0 for SRAM (active-low).
CS1# 19 O Chip select 1 for SRAM (active-low).
CS3# 20 O Chip select 3 for SRAM (active-low).
LD[7:0] 21:28 I/O Data bus.
VCC 29.42.66.95.116 P Core power supply (2.5V).
XIN 30 I Crystal connection or input source of 27MHz. Must be 50% duty cycle.
XOUT 31 O Crystal connection or output drive of an input clock source.
VSS 32,41,65,97,117 G Ground for core.
LA[19:0] 33:40,43:54 O Address bus.
TDMFS 55 I Frame signal from CDROM.
TDMDR 56 I Data signal from CDROM.
TDMCLK 57 I Clock signal from CDROM.
TBCK 58 O Transmit clock when sending audio IIS data to external DAC.
SEL_PLL1 I PLL mode select 1. Pulldown to ground to bypass PLL. Pullup to
VCC for optimal performance.
TWS O Audio strobe signal of IIS signals to external DAC.
SEL_PLL0 I PLL mode select 0. Pulldown to GND to bypass PLL. Pullup to VCC
for optimal performance.
TSD O Audio data of IIS signals to external DAC.
MCLK 61 I/O Media clock input to drive external audio devices or media clock
output when driven by external source into the ES 3890.
CAS# 62 O Column Address Strobe to DRAM (active-low).
DRAS1# 63 O Row Address Strobe 1 to DRAM (active-low).
VPP 64 P 5V power supply.
DRAS0# 67 O Row Address Strobe 0 to DRAM (active-low).
DWE# 68 O Write Enable to DRAM (active-low).
DOE# O Data Out Enable to DRAM (active-low).
MA9 O Multiplexed memory row and column address.
MA[8:0] 70:78 O Multiplexed memory row and column address.
59
60
69
Names Pin No. I/O Descriptions
DBUS[15:0] 79:94 I/O Input when DRAM is being read. Output when DRAM is being written.
REST# 96 I External system reset forces ES3890 to do a reset (active-low).
VSS_P 98 G Ground for system PLL.
VCC_P 99 P 2.5V power supply for system PLL.
AUX2[0] I/O General-purpose programmable I/O.
VFD_CLK I VFD clock
AUX2[1] I/O General-purpose programmable I/O.
SQSO I Subcode-Q data.
AUX2[2] I/O General-purpose programmable I/O.
SQCK I Subcode-Q clock.
AUX2[3] 103 I/O General-purpose programmable I/O.
AUX2[4] I/O General-purpose programmable I/O.
C2PO I C2PO error correction flag from CDROM.
AUX2[5] I/O General-purpose programmable I/O.
SP I Serial port from 16550 UART.
AUX2[6] I/O General-purpose programmable I/O.
S0S1 I Subcode-Q sync.
AUX2[7] 107 I/O General-purpose programmable I/O.
AUX1[5:0] 108:113 I/O General-purpose programmable I/O.
AUX1[6] I/O General-purpose programmable I/O.
VFD_DO O VFD data output.
AUX1[7] I/O General-purpose programmable I/O.
VFD_DI I VFD data input.
AUX0[1:0] 118,119 I/O General-purpose programmable I/O.
AUX0[2] 120 I General-purpose programmable input.
AUX0[3] 121 I/O General-purpose programmable I/O.
AUX0[4] 122 I/O General-purpose programmable input.
VSSV 123,124 G Ground for VDAC circuit.
VDAC 125 O Video DAC V output.
YDAC 126 O Video DAC Y output.
VCCV 127,128 P 2.5V power supply for video DAC circuit.
106
114
115
101
102
104
105
100
IC BLOCK DIAGRAM & DESCRIPTION
IC160 ES3890F (VCD Processor)
150
V
SS
V
CC
15 36
NC NC
NC
20 31
A8
32
NC
19
A9
21 30
A7A0
22 29
A6A1
23 28
A5A2
2724
A4A3
26
25
V
SS
V
CC
35
NC
16
LCAS
34
17
WE UCAS
3318
RAS OE
6 45
V
CC
V
SS
2 49
I/O1 I/O16
3 48
I/O2 I/O15
4 47
I/O3 I/O14
5 46
I/O4 I/O13
744
I/O5 I/O12
8 43
I/O6 I/O11
9 42
I/O7 I/O10
10 41
I/O8 I/O9
11 40
NC NC
PIN NO. PIN NAME TYPE DESCRIPTION
21-24, 27-32 A0-A9 Input
Address Input
Row Address : A0 - A9
Column Address : A0 - A9
18 RAS Input Row Address Strobe
34 UCAS Input Column Address Strobe / Upper Byte Control
35 LCAS Input Column Address Strobe / Lower Byte Control
17 WE Input Write Enable
33 OE Input Output Enable
2-5, 7-10, 41-44, 46-49 I/O1 - I/O16 Input / Output Data Input / Output
1, 6, 25 VCC Supply Power (3.3V)
26, 45, 50 VSS Ground Ground
11, 15, 16, 36, 40 NC - - - No Connect
IC190 M11L16161SA-45T (DRAM)
- 14 -
IC BLOCK DIAGRAM & DESCRIPTION
RF
GND
FM
RF OUT
FM
RF IN
RF
Vcc
AM
LOW
CUT
MIX
OUT
FM
OSC
AM
RF IN
AM
OSC
ST
LED
OSC
OUT
Vcc AM
IF IN
FM
IF IN
GND
IF
REQ
DET
OUT LPF1 LPF2
AGCQUAD R-OUT L-OUT
24 21 20 19 18 17 16 15 14 132223
145678910111232
AM
OSC
FM
OSC
AM
MIX
LEVEL
DET
AM
DET
FM
DET
FM
MIX AGC
BUFF
FMRF
BUFF
ST
1/8
1/1 or
1/16
SW
IF
BUFF
AF
BUFF
FMIFAMIF
AF
IF
REQ
ST/MO
FM/AM
MJTE
VCO
DIVIDE DECODE
MPX
IN
IC211 TA2149BFN (AM/FM 1 Chip Tuner IC)
IC190 M11L16161SA-45T (DRAM)
Vss
Vss
GENERATOR
Vcc
1024 x 1024 x 16
MEMORY
ARRAY
SENSE AMPLIFIERS
I/O GATING
ROW
DECODER
COLUMN
DECODER
1024
1024
1024
x
16
CLOCK
GENERATOR
COLUMN
ADDRESS
BUFFER
REFRESH
CONTROLER
REFRESH
COUNTER
ROW
ADDRESS
BUFFER(10)
CONTROL
LOGIC
DATA-IN BUFFER
WE
RAS
CASL
CASH
A0
A1
A2
A3
A4
A5
A6
A7
A8
A9
OE
IO0
:
:
IO15
16
16
16
10
10
10
10
9
10
DATA-OUT
BUFFER
- 15 -
IC BLOCK DIAGRAM & DESCRIPTION
2 MODULUS
PRESCALER
4bit SWALLOW
COUNTER
POWER ON
RESET
TRI-STATE
BUFFER
TRI-STATE
BUFFER
OUTPUT PORT
ADDRESS
DECODER
OSC
CIRCUIT
PHASE
COMPARATOR
12bit PROGRAMMABLE COUNTER
20bit BINARY COUNTER
UNIVERSAL COUNTER CONTROL
REFERENCE COUNTER
24bit REGISTER
24bit SHIFT REGISTER
24bit REGISTER
MAX
1/ 2
UNLOCK
I/O PORT
XT
20
DO2
1
XT
19
DO1
2
PERIOD
18
I/O-7/
SCIN
3
CLOCK
17
I/O-8/
IFIN1
4
DATA
16
I/O-9/
IFIN2
5
OT-1
15
GND
6
OT-2
14
FM
IN
7
OT-3
13
AM
IN
8
12
9
11
10
OT-4 V
DD
I/O-5/
CLK I/O-6
TEST
GATE
AMP
AMP
AMP
OT-4
OT-4
OT-1 OT-3
OT-2 OT-4
RESET
PSC
MODE LFFM
HFFM
H
FM
L
XT
1ms
1ms
OSC
4
8
24 22
10
5
5
4
4
15
12
4
DO1
I / O-5 / CLK
I / O-6
I / O-7 / SC
IN
DO2
(DO2 / OT-4)
I / O-9 / IF
IN2
(I / O-6 / IF
IN2
)
I / O-8 / IF
IN1
(I / O-5 / IF
IN1
)
GNDV
DD
FM
IN
AM
IN
XT
XT
DATA
CLOCK
PERIOD
(Note) Mark terminals are not existence in TC9256P, TC9256F.
Terminal name of TC9256P, TC9256F is shown in parentheses.
Others are common terminals.
IC222 TC9257F (Tuner PLL IC)
IC440 AN7348K (Play / REC Preamprifier)
Nor/Cro
& Hi/Lo
Logic
R
R
P
R
P
P
ALC
Mute
Mute
Logic
A/B
Logic
Rec/PB
Ripple
Rejection
Rec
Amp(L)
Rec
Amp(R)
PB Amp(L)
PB Amp(R)
A/Rec
A/Rec
B
B
123457
68910 1211
1314
15
16
17
1819
20
21222324
L-PB AMP
R-PB AMP
R-PB NF
R-PB EO
R-PB OUT
AB SW
R-REC OUT
R-REC IN
REC/PB SW
A/B SW
FILTER
GND VCC
CRO/NOR
HI/LO
ALC
L-REC OUT
L-REC IN
ALC
L-PB
AMP OUT
L-PB EO
L-PB NF
R-PB AMP
L-PB AMP
- 16 -
GND
2
1
V
DD
28
3
4
5
6
7
8
9
10
11
12
13 14 15 16
27
26
25
24
23
22
21
20
19
18
17
Vref CK DATA STB
32BIT SR
50k
500
750
50k
100k
MAIN VR
50k / 64STEP
13k
13k
1k
BASS VR
50k /
16STEP
TREBLE VR
50k /
16STEP
50k
CAPACITOR FOR
OSCILLATION
GAIN CONTROL
0, 6, 12, 18dB
INPUT
SELECTOR
500
750
50k
100k
MAIN VR
50k / 64STEP
13k
13k
1k
BASS VR
50k /
16STEP
TREBLE VR
50k /
16STEP
CAPACITOR FOR
OSCILLATION
GAIN CONTROL
0, 6, 12, 18dB
INPUT
SELECTOR
L-IN1
L-IN2
L-IN3
L-IN4
L-SW-OUT
L-VR-IN
L-B1
L-B2
L-B3
L-Tone-OUT
L-T1
R-IN1
R-IN2
R-IN3
R-IN4
R-SW-OUT
R-VR-IN
R-B1
R-B2
R-B3
R-Tone-OU
T
R-T1
IC441 TC9422F (Volume Control)
IC BLOCK DIAGRAM & DESCRIPTION
IC601 PT6315 (VFD Driver / Controller IC)
OSC
Serial
Data
Interface
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
30
31
32
33
34
35
36
37
38
42
41
40
39
1
2
3
4
7
6
8
9
5
30131110
Control
Display Memory
(24 bits x 17 Words)
Key Moter Memory
LED
Driver
Grid
Driver
Segment
Driver
Grid
Driver
Key Scan
Output
Driving Circuit
TI~inc Generator
SG1/KS1
SG2/KS2
SG3/KS3
SG4/KS4
SG5/KS5
SG6/KS6
SG7/KS7
SG8/KS8
SG9/KS9
SG10/KS10
SG11/KS11
SG12/KS12
SG13/KS13
SG14/KS14
SG15/KS15
SG16/KS16
SG17/GR12
SG18/GR11
SG19/GR10
SG20/GR9
SG21/GR8
SG22/GR7
SG23/GR6
SG24/GR5
GR1
GR2
GR3
GR4
LED1
LED2
LED3
LED4
DIN
DOUT
CLK
STB
OSC
VEEGNDVDDK2
K1
Description
LED Output Pin
Oscillator Input Pin
A resistor is connected to this pin to
determinc the oscillation frequency
Data Output Pin (N-Channel, Open-Drain)
This pin outputs scrial data at the falling
edge of the shift clock
(starting from the lower bit)
Data Input Pin
This pin inputs serial data at the rising edge
of the shift clock (starting from the lower bit)
Clock Input Pin
This pin reads serial data at the rising edge
and outputs data at the falling edge.
Serial Interface Strobe Pin
The data input after the STB has fallen is
processed as a command.
When this pin "HIGH",CLK is ignored,
Key Data Input Pins
The data inputted to these pins are fatched
at the end of the display cycle.
Logic Ground Pin
Logic Power Supply
High-Voltage Segment Output Pins
Also acts as the Key Source
Pull-Down Level
High Voltage Segment/Grid Output Pins
High-Voltage Grid Output Pins
Pin No.
1 to 4
5
6
7
8
9
10, 11
12, 44
13, 43
14 to 29
30
31 to 38
39 to 42
I/O
O
I
O
I
I
I
I
-
-
O
-
O
O
Pin Name
LED1 to LED4
OSC
DOUT
DIN
(Schmitt Trigger)
CLK
(Schmitt Trigger)
STB
(Schmitt Trigger)
K1 to K2
VSS
VDD
SG1/KS1 to
SG16/KS16
VEE
SG17/GR12 to
SG24/GR5
GR4 to GR1
- 17 -
IC BLOCK DIAGRAM & DESCRIPTION
Control Pin I/O Remarks
XIN
XOUT
XTIN
XTOUT
RESET
STOP/INTS
TEST
BOOT
P0
P5
P1
P3
P2
P6
P7
P8
P9
P4
PD
Input
Output
Input
Output
I/O
Input
Input
I/O
I/O
I/O
I/O
I/O
I/O
I/O
Resonator connecting pins (high-frequency)
Rf=1.2MΩ(typ.)
Ro=1.5kΩ(typ.)
R=1kΩ(typ.)
Resonator connecting pins (low-frequency)
Rf=6MΩ(typ.)
Ro=220kΩ(typ.)
R=1kΩ(typ.)
Sink open drain output. Hysteresis input.
Pull-up resistor.
R
IN=220kΩ(typ.)
R=1kΩ(typ.)
Hysteresis input.
R=1kΩ(typ.)
Pull-down resistor.
R
IN=70kΩ(typ.)
R=1kΩ(typ.)
Tr i-state I/O.
R=1kΩ(typ.)
Tr i-state I/O. Hysteresis input.
R=1kΩ(typ.)
Sink open drain output. Hysteresis input.
R=1kΩ(typ.)
Sink open drain output.
R=1kΩ(typ.)
Sink open drain
or
Segment output.
R=1kΩ(typ.)
Sink open drain or push-pull output.
P41 High current output. Hysteresis input.
Sink open drain output.
R=1kΩ(typ.)
SEG10
SEG9
SEG8
SEG7
SEG6
SEG5
SEG4
SEG3
SEG2
SEG1
SEG0
COM3
COM2
COM1
COM0
VLC
PD0
PD1
PD2
VDD
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
50
49
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
32
31
VSS
BOOT
VAREF
P57(AIN7)
P56(AIN6)
P55(AIN5)
P54(AIN4)
P53(AIN3)
P52(AIN2)
P51(AIN1)
P50(AIN0)
P36
P35
P34
P33
P32
P31
P30
P17
P16
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
VSS
XOUT
XIN
RESET
(XOUT)P22
(XIN)P21
TEST
(INTS/STOP)P20
(INT3/TC3)P40
(PMW/PDO)P41
(SCK1)P42
(SI1)P43
(SO1)P44
(SCK2)P45
(SI2)P46
(SO2)P47
P00
P01
P02
P03
P04
P05
P06
P07
(INT0)P10
(INT1)P11
(INT2/TC1)P12
(DVO)P13
(PPG)P14
(TC2)P15
80
79
78
77
76
75
74
73
72
71
70
69
68
67
66
65
64
63
62
61
60
59
58
57
56
55
54
53
52
51
SEG11
SEG12/P93
SEG13/P92
SEG14/P91
SEG15/P90
SEG16/P67
SEG17/P66
SEG18/P65
SEG19/P64
SEG20/P63
SEG21/P62
SEG22/P61
SEG23/P60
SEG24/P77
SEG25/P76
SEG26/P75
SEG27/P74
SEG28/P73
SEG29/P72
SEG30/P71
SEG31/P70
SEG32/P87
SEG33/P86
SEG34/P85
SEG35/P84
SEG36/P83
SEG37/P82
SEG38/P81
SEG39/P80
VDD
IC651 TMP87EP26F-4K76 (Micro Controller)
IC597 TDA8921TH (Class-D Power Amplifier)
9
3
10
1
12
18
23
14
17
19
24
20
13
15
16
8
11
2
7
6
4
22
21
5
VSSP1
VSSP2
mute
mute
INPUT
STAGE
PWM
MODULATOR CONTROL
AND
HANDSHAKE
DRIVER
HIGH
DRIVER
LOW
RELEASE1
SWITCH1
ENABLE1
INPUT
STAGE
PWM
MODULATOR
CONTROL
AND
HANDSHAKE DRIVER
LOW
DRIVER
HIGH
RELEASE2
SWITCH2
ENABLE2
MODE
OSCILLATOR MANAGER TEMPERATURE SENSOR
CURRENT PROTECTION
STABI
VSSP1VSSA1VSSA2VSSD HW VSSP2
BOOT1
BOOT2
OUT1
OUT2
IN1-
IN1+
SGND1
SGND2
IN2+
IN2-
OSC
MODE
124
2
23
3
22
4
21
520
6
19
7
18
8
17
9
16
10
15
11
14
1213
V
DDA
2
V
DDA
1
V
DDP
1
V
DDP
2
PROT
STABI
V
SSP
1
V
SSA
1
V
SSA
2V
SSD
HW
V
SSP
2
BOOT1
BOOT2
OUT1
OUT2
IN1-
IN1+
SGND1
SGND2
IN2+
IN2-
OSC
MODE
TDA8921TH
VSSA2
SGND2
VDDA2
IN2-
IN2+
MODE
OSC
IN1+
IN1-
VDDA1
SGND1
VSSA1
1
2
3
4
5
6
7
8
9
10
11
12
negative analog supply voltage for channel 2
signal ground for channel 2
positive analog supply voltage for channel 2
negative audio channel 2 input
positive audio channel 2 input
mode select input : (standby, mute or operationg)
oscillator frequency adjustment or tracking input
positive audio channel 1 input
negative audio channel 1 input
positive analog supply voltage for channel 1
signal ground for channel 1
negative analog supply voltage for channel 1
SYMBOL PIN DESCRIPTION
PROT
VDDP1
BOOT1
OUT1
VSSP1
STABI
HW
VSSP2
OUT2
BOOT2
VDDP2
VSSD
13
14
15
16
17
18
19
20
21
22
23
24
time constant capacitor for protection delay
positive power supply voltage for channel 1
bootstrap capacitor for channel 1
channel 1 PWM output
negative power supply voltage for channel 1
decouping capacitor of internal stabilizer for logic supply
handle wafer ; must be connected to VSSD
negative power supply voltage for channel 2
channel 2 PWM output
bootstrap capacitor for channel 2
positive power supply voltage for channel 2
negative digital supply voltage
SYMBOL PIN DESCRIPTION
- 18 -
IC BLOCK DIAGRAM & DESCRIPTION
16-bit
Timer/Counter
Time Base
Timer
Watchdog
Timer
TC1
System Controller
Standby Controller
Timing Generator
High frequ.
Low frequ.
Clock
Generator TC2
Interrupt Controller
8-bit
Timer/Counter
Data Memory
(RAM) Data Memory
(EEPROM)
Program
Counter
8bit
AD converter P5 P0 P4
I/O ports
VAREF
I/O ports (Segment output)
Segment outputCommon output
P3 P4 PD
P2
Program Memory
TC3 TC5
Serial
Interfaces
SIO1 SIO2
Register banks
Stack Pointer
Flags RBS
PSW
LOD Driver
ALU
VDD
VSS
VLC
RESET
BOOT
TEST
XIN
XOUT
MROM
BOOT
Inst. Register
Inst. Decoder
EEPROM
P9P6
P93/SEG12
to
P90/SEG15
COM3
to
COM0
P22
to
P20
P57 to P50
(AIN7) to (AIN0)
P07
to
P00
P17
to
P10
P36
to
P30
P47
to
P40
PD2
to
PD0
SEG11
to
SEG0
P87/SEG32
to
P80/SEG39
P77/SEG24
to
P70/SEG31
P67/SEG16
to
P60/SEG23
P7 P8
IC651 TMP87EP26F-4K76 (Micro Controller)
CE
OE
WE
CONTROL
INPUT
LOGIC
PRPGRA/ERASE
HIGH VOLTAGE
WRITE
STATE
MACHINE
(WSM)
A0~A18
ADDRESS
LATCH
AND
BUFFER
MX29F004T/B
FLASH
ARRAY
Y- PASS GATE
X-DECODER Y-DECODER
ARRAY
SOURCE
HV
STATE
REGISTER
COMMAND
DATA
DECODER
SENSE
AMPLIFIER
PGM
DATA
HV
PROGRAM
DATA LATCH
COMMAND
DATA LATCH
Q0~Q7 I/O BUFFER
PIN CONFIGURATIONS
32PDIP
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
32
31
30
29
28
27
26
25
24
23
22
21
20
19
18
17
VCC
WE
A17
A14
A13
A8
A9
A11
OE
A10
CE
Q7
Q6
Q5
Q4
Q3
A18
A16
A15
A12
A7
A6
A5
A4
A3
A2
A1
A0
Q0
Q1
Q2
GND
MX29F004T/B
PIN DESCRIPTION
SYMBOL PIN NAME
A0~A18 Address Input
Q0~Q7 Data Input/Output
CE Chip Enable Input
WE Write Enable Input
OE Output Enable Input
VCC Single Power Supply Pin (+5V)
GND Ground Pin
IC180 MX29F004TPC-70 (4M-Bit CMOS Flash Memory)
- 19 -
2G 3G 4G 5G 6G 7G 8G 9G 10G1G
Dp
col
(2G~9G)
a
bf hjk
rn
d
p
ce
gm
B1
B8
B2
B3
B4
B5
B6
B7
S1
PIN No.
CONNECTION
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18
F1 F1 NP 1G 2G 3G 4G 5G 6G 7G 8G 9G 10G NX NX P1 P2 P3
19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35
P4 P5 P6 P7 P8 P9 P10 P11 P12 P13 P14 P15 P16 P17 NP F2 F2
PIN No.
CONNECTION
*NOTES*
1) F1,F2 : Filament Pin 3) Pn : Anode Pin 5) NX : No Extended Pin
2) G : Grid PIn 4) NP : No Pin
351
P1
P2
P3
P4
P5
P6
P7
P8
P9
P10
P11
P12
P13
P14
P15
P16
P17
a
b
f
h
j
k
g
m
-
c
e
r
p
n
d
-
a
b
f
h
j
k
g
m
-
c
e
r
p
n
d
-
a
b
f
h
j
k
g
m
-
c
e
r
p
n
d
-
a
b
f
h
j
k
g
m
-
c
e
r
p
n
d
-
a
b
f
h
j
k
g
m
-
c
e
r
p
n
d
-
a
b
f
h
j
k
g
m
col
c
e
r
p
n
d
Dp
a
b
f
h
j
k
g
m
-
c
e
r
p
n
d
-
a
b
f
h
j
k
g
m
-
c
e
r
p
n
d
-
1G 2G 3G 4G 5G 6G 7G 8G 9G 10G
S1
B1
B2
B3
B4
B5
B6
B7
B8
-
-
-
( )
( )
( )
( )
PATTERN AREA
FL DISPLAY DESCRIPTION
FL601
This manual suits for next models
1
Table of contents
Other Sanyo Stereo System manuals
Sanyo
Sanyo DC-MX30 User manual
Sanyo
Sanyo DC-S800 User manual
Sanyo
Sanyo DC-DA180 User manual
Sanyo
Sanyo DC-M3 User manual
Sanyo
Sanyo DC-F430AV User manual
Sanyo
Sanyo DC-MX41i/AU User manual
Sanyo
Sanyo DC-MCR60 User manual
Sanyo
Sanyo MCD-S935F User manual
Sanyo
Sanyo DC-F320 User manual
Sanyo
Sanyo DC-F430AV User manual
Sanyo
Sanyo MCD-S735F User manual
Sanyo
Sanyo DC-X1000MD User manual
Sanyo
Sanyo DXT 5004 User manual
Sanyo
Sanyo DTA-1800 User manual
Sanyo
Sanyo DC-MCR60 User manual
Sanyo
Sanyo DC-C10 User manual
Sanyo
Sanyo DC-MP4500(BK)/XE User manual
Sanyo
Sanyo DC-DA3300M User manual
Sanyo
Sanyo DC-E200/AU User manual
Sanyo
Sanyo DC-MX42i/AU User manual
