Sanyo Dc-da90 User manual

Service Manual

FILE NO.

Micro Component System DC-DA90 (SP)

PRODUCT CODE No.

129 620 02

REFERENCE No. SM5810260

SP: This service manual consists of "DC-DA90U/SP" (Main unit : 129 619 02) and

"SX-DA90/SP" (Speaker system : 165 045 00).

Contents

Specifications ................................................................... 1

System connections ......................................................... 1

What to do if ..................................................................... 1

Laser beam safety precaution .......................................... 2

CD pick-up maintenance .................................................. 2

CD player adjustments ..................................................... 2

Tape adjustments ............................................................ 3

Tuner adjustments ........................................................... 4

Exploded view

(Cabinet & Chassis) ...................................................... 5

Parts list

(Cabinet & Chassis) ...................................................... 6

(Tape mechanism) ........................................................ 9

(CD mechanism) ........................................................... 9

IC block diagram & description ........................................ 10

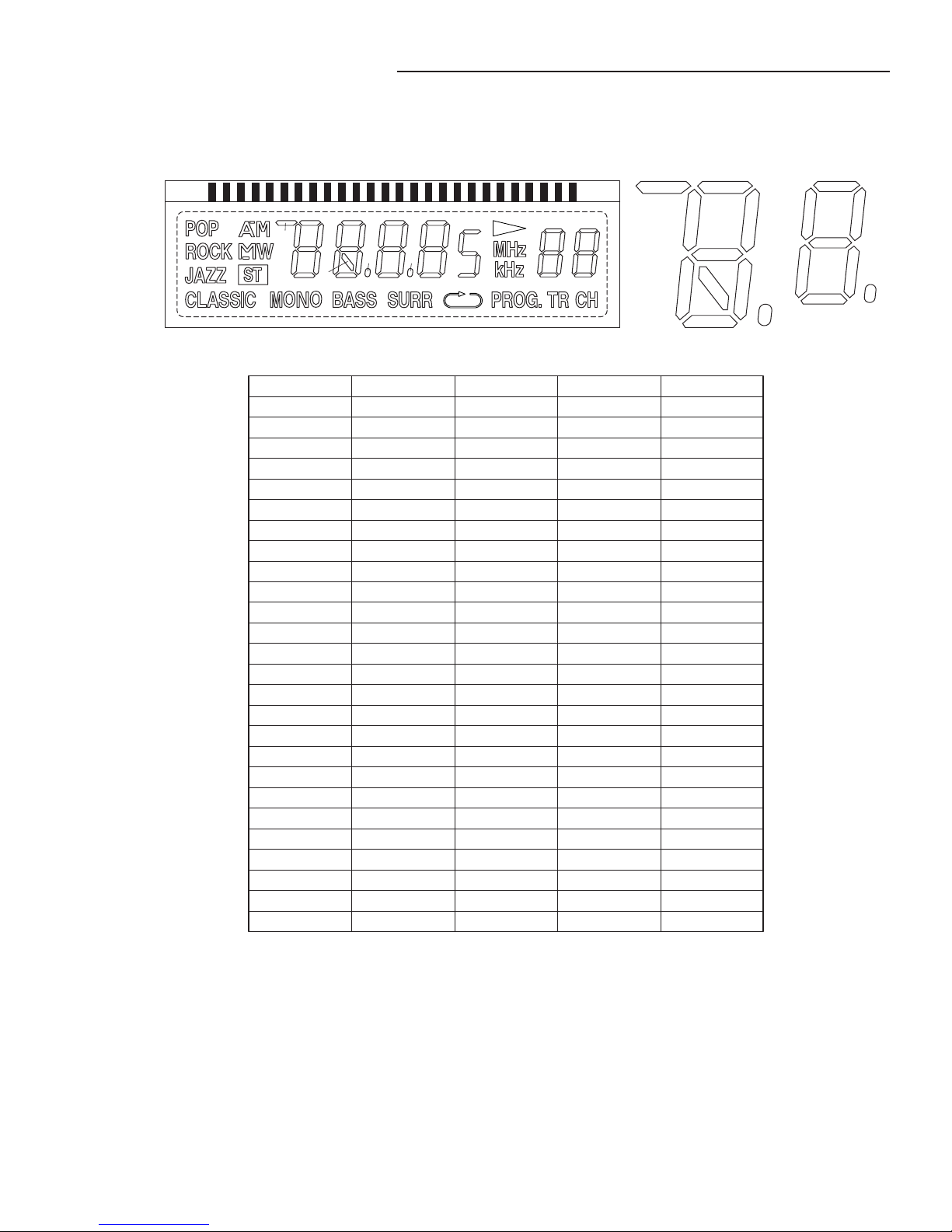

LCD display description ................................................... 14

Wiring connection ............................................................ 15

Schematic diagram

(FRONT) ....................................................................... 16

(CD)............................................................................... 18

(TUNER) ....................................................................... 22

(AMPLIFIER ) ................................................................ 26

Wiring diagram

(FRONT & CD) .............................................................. 20

(TUNER) ....................................................................... 24

(AMPLIFIER) ................................................................. 28

(POWER TRANSFORMER & LED) .............................. 30

- 1 -

SPECIFICATIONS

Tuner

Reception frequency .............. FM : 87.5 - 108.0 MHz

AM : 522 - 1611kHz

CD player

Channels................................ 2-channel stereo

Sampling frequency ............... 44.1 kHz

Pick-up ................................... Optical 3-beam

semiconductor laser

Laser output ........................... 0.6mW(Continuous wave max.)

Wave length ........................... 790 nm

Wow and Flutter..................... Below measurable limits

Cassette deck section

Track system ......................... 4-track, 2-channel stereo

Frequency response .............. 80 Hz - 15 kHz

Signal to noise ratio ............... 40 dB

Wow and Flutter..................... 0.15% (WRMS)

Fast forward / Rewind time .... Approx. 110 sec. (C-60)

SYSTEM CONNECTIONS

ANT

LOOP

EXT. ANT

SPEAKERS

4 MIN.

FM aerial

R ch speaker

L ch speaker

AM loop aerial

To an AC outlet

WHAT TO DO IF

If the operation of the unit or display is not normal,

1. Disconnect the mains lead.

2. Press the BAND button (main unit) for at least 30 seconds.

3. Connect the mains lead.

4. Operate the unit.

General

Output power ......................... 4 W x 2

(at 4 ohms, 10% distortion)

Outputs .................................. SPEAKERS : 4 ohms

PHONES : 8 - 32 ohms

Power requirements............... AC 230V, 50Hz

Power consumption ............... 17 W

Dimensions (W x H x D) ........ Approx. 140 x 213 x 210 mm

Weight.................................... Approx. 2.1 kg

Speaker system

Type ....................................... Full range bass reflex

Unit used................................ 8 cm cone type

Maximum

power-handling capacity ..... 6 Watts (peak)

Nominal impedance ............... 4 ohms

Dimensions (W x H x D) ........ Approx. 140 x 210 x 170 mm

Weight.................................... Approx. 1.1 kg (per speaker)

Specifications subject to change without notice.

- 2 -

LASER BEAM SAFETY PRECAUTION

•Pick-up that emits a laser beam is used in this CD player section.

CAUTION :

USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE

OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN

MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

THIS PRODUCT SHOULD NOT BE ADJUSTED OR REPAIRED BY

ANYONE EXCEPT PROPERLY QUALIFIED PERSONNEL.

LASER OUTPUT .............. 0.6 mW Max. (CW)

WAVELENGTH .................. 790 nm

CD PICK-UP MAINTENANCE

About pick-up (Optical lens) Cleaning

Clean a lens with swab of the cotton which moistened it with alcohol, cleaning paper or cleaning disc appointed.

Specified cleaning disc : LC-1 (Part code : 645 026 1961 ..... manufactured by SANYO.)

Show a clean procedure in the following in reference by swab of cotton.

1. Cotton swab is wrapped with Cleaning paper.

2. Add the isopropyl alcohol.

3. Gently move the tip of cotton swab just like a draw a whirlpool from inside to outside on the surface of lens.

CD PLAYER ADJUSTMENTS

1. ADJUSTMENTS

(1) Confirm the tracking balance

1. Turn on the POWER switch.

2. Connect an Oscilloscope to TP2 (TE) and TP4 (VC).

3. Set the test disc.

4. Press "PLAY" button to turn into the "PLAY" mode.

5. Keep holding "SKIP" button down so as to be "SERCH"

mode, then confirm that the oscilloscope waveform is

symmetrical on the top and bottom in relation to 0V (VC).

200mV/div.

5ms/div.

ANT

LOOP

EXT. ANT

SPEAKERS

4 MIN.

CAUTION – INVISIBLE LASER RADIATION WHEN OPEN AND

INTERLOCKS DEFEATED. AVOID EXPOSURE TO BEAM.

ADVARSEL – USYNLIG LASER STRÅLING VED ÅBNING, NÅR

SIKKERHEDSAFBRYDERE ER UDE AF FUNKTION, UNDGÅ UDS ÆTTELSE

FOR STRÅLING.

VARNING – OSYNLIG LASER STRÅLNING NÄR DENNA DEL ÄR ÖPPNAD

OCH SPÄRR ÄR URKOPPLAD. STRÅLEN ÄR FARLIG.

VORSICHT – UNSICHTBARE LASERSTRAHLUNG TRITT AUS, WENN

DECKEL GEÖFFNET UND WENN SICHERHEITSVERRIEGELUNG

ÜBERBRÜCKT IST. NICHT, DEM STRAHL AUSSETZEN.

VARO – AVATTAESSA JA SUOJALUKITUS OHITETTAESSA OLET ALTTIINA

NÄKYMÄTTÖMÄLLE LASERSÄTEILYLLE. ÄLÄ KATSO SÄTEESEEN.

- 3 -

TAPE ADJUSTMENTS

R / P HEAD

RED WHITE

YELLOW EARTH

a. Replacing the head

1. After replacement, demagnetize the heads by using

a degausser.

2. Be sure to clean the heads before attempting to make

any adjustments.

3. Be sure both channels (1 and 2) are the same level.

(Using a dual-channels oscilloscope).

4. All wiring should be returned to the original position

after work is completed.

b. Adjusting head azimuth

1. Load a test tape (VTT-738, etc. :10kHz) for

azimuth adjustment.

2. Press the PLAY button.

3. Use a cross-tip screwdriver to turn the screw for

normal azimuth adjustment so that the left and right

outputs are maximized at the same phase during

normal playback.

4. Press the STOP button.

MOTOR SPEED

ADJUSTMENT

d. Replacing the moto

c. Adjusting motor speed

1. Insert the test tape (MTT-111 or etc. 3,000 Hz).

2. Press the PLAY button.

3. Use a flat-tip screwdriver to turn the SVR to adjust so

that the frequency counter becomes 3,000 Hz.

4. Press the STOP button.

e. Checking the mechanism torques

• Clean the head, capstan and pinch roller before making

any measurement.

Measurement Take-up torque Back tension Tape tension

Cassette for PLAY : TW-2111A PLAY : TW-2111A Drive-power cassette

measurement F.FWD/REW : TW-2231 TW-2412

PLAY 30 ~ 70gr.cm 1.0 ~ 6.0gr.cm 80 gr or more

F.FWD/REW 55 gr or more - -

OPENING EXPANDED

(2) Checking the "eye" pattern

1. Switch "ON" the POWER.

2. Connect an oscilloscope to TP1 (RF) and TP4 (VC).

3. Load the test disc.

4. Press the PLAY button.

5. Check to be sure that the "eye" pattern is at

the center of waveform and that the diamond

shape is clearly defined.

6. Press the STOP button.

7. Turn off the POWER switch.

OSCILLOSCOPE

TP1

(RF)

TP4

(VC)

CD PLAYER ADJUSTMENTS

- 4 -

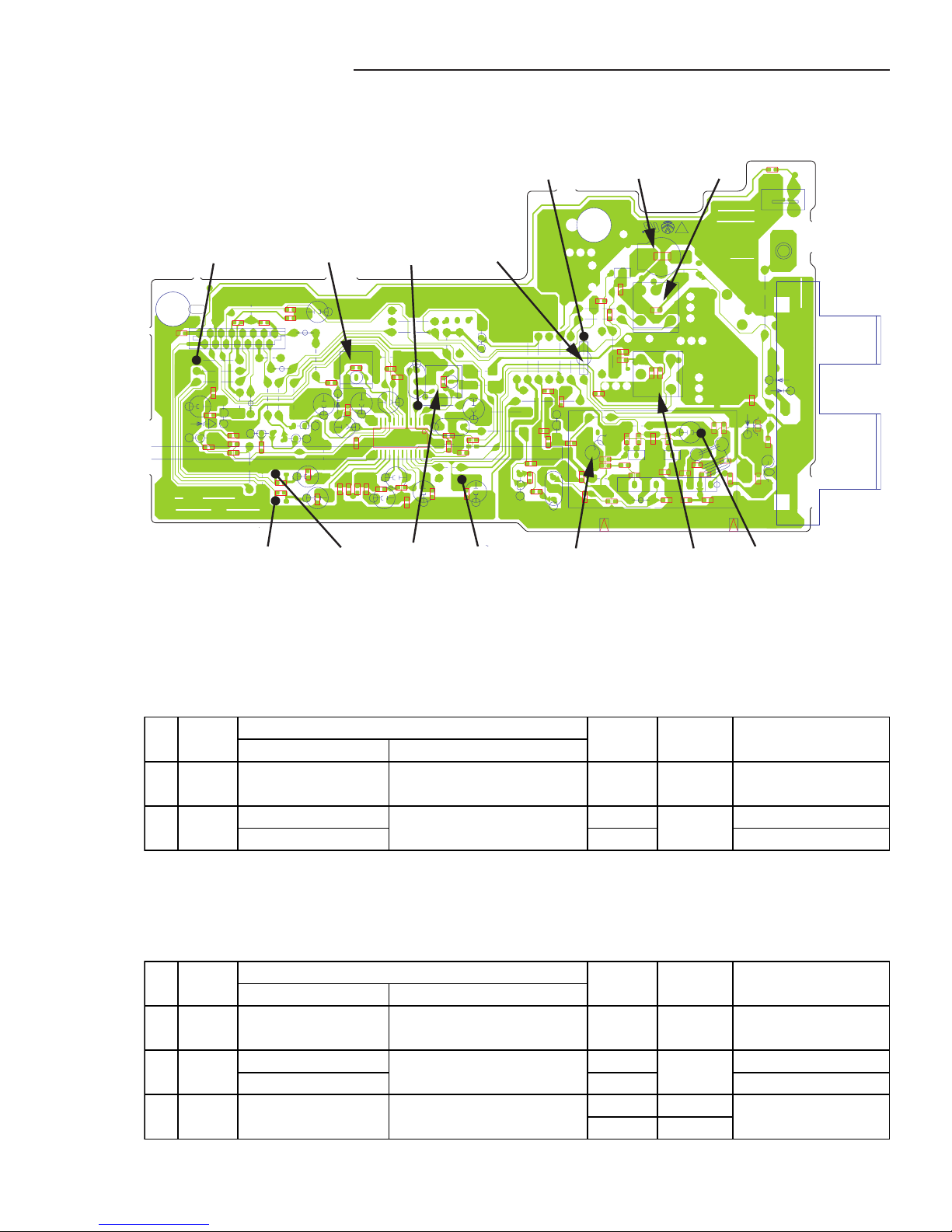

TUNER ADJUSTMENTS

DEF

MW ANT

MW OSC

+9V

BAND2

BAND1

LID_SW

FRONTGND

AM OSC

VT +B 9V

AMPGND

TU_L

TU_RST

MONO

MUTE

BAND1

BAND2

1AD4B10D0972D

T002 94V-0

L2103

L2205

XF212

IC201

XF211

CT211

Q2001

L2010

D2005

D2004

D2102

SH201

J2802

D2002

D2003

C2009

J2114

L2003

J2113

J2815

J2809

C2104

J2813

C2111

C2119

C2121

C2701

C2801

C2107

C2113

C2106

D2101

L2005

Q2101

Q2003

L2006

J2103

J2806

Q2002

J2703

J2808

J2108

C2312

D2104

C2108

Q2111

Q2110

Q2102

J2704

L2007

J2112

J2705

C2218

J2803

Q2201

J2102

J2807

S2001

J2115

J2811

J2804

J2816 J2107

J2805

J2812

CN201

J2110

L2002

J2814

J2105

J2106

CN203

J2700

C2112

T2002

IC211

L2011

T2001

XF215

D2006

CN202

J2104

J2701

J2101

J2111

J2100

J2800

J2801

J2810

J2702

L2204

J2109

L2001

C2402

C2400

C2403

C2131

C2142

R2131

C2024C2005

C2002

R2001 C2001

R2002

C2014

R2005

C2013

R2004

R2003

C2011

C2012

C2008

C2015

R2014

C2017

C2003

R2006

R2008

R2007

R2009

C2021

R2101

C2101

C2118

C2117

C2120

C2122

C2802

C2702

R2701

R2801

C2103

C2102

R2104

R2106

C2110

C2126

R2113

R2117

R2119

C2209

R2011

R2010

C2020

C2019

R2210

C2311

C2207

R2128

R2127

R2206

R2201

C2027

C2140

C2025

R2129

R2126

C2026

C2115

R2301

C2114

R2303

R2302

R2105

C2010

R2205

C2022

C2401

C2029

R2900

C2141

R2107

R2901

L2002 L2205

T2001

T2002 VT

CT211 L2204

TP11

CT211

TP14

TP13

TP15

TP24

TP25

TP12

• Use a plastic screw driver for adjustments.

• MODE : ST (Stereo)

• Speaker impedance : 4 ohm

• TUNING

FM : 87.5 - 108MHz

AM: 522 - 1611kHz

Antenna : 75Ωunbalanced, Modulation : 1 KHz

Dev. : 22.5kHz(MONO), 22.5kHz(STEREO),6.75kHz(PILOT)

RF Level : dBuV EMF, Output Level : about 30mV at TP13, TP14, TP15

Anntena : IRE Loop(SG), Moduration : 1kHz, 30%

RF Level : dBuV EMF, Output Level : about 30mV at TP13, TP14, TP15

1. FM

Connection

Input Output

Alignment voltage IC211 Alignment voltage IC211

3-22pin(TP24,25) is 0.0±0.05V 3-22pin is 0.0±0.05V

--- Connect Digital DC voltmeter to 90.0MHz 1.00±0.05V

--- TP11(H), TP12(E). 108.0MHz 5.50±0.20V Check Only

2. AM

Connection

Input Output

Connect Sweep generator to test

point TP13, TP14 and TP15.

--- Connect Digital DC voltmeter to 522kHz 1.00±0.05V

--- TP11(H )and TP12(E). 1611kHz 7.10±0.20V Check Only

Connect to VTVM 603kHz L2204

point TP13 or TP14 and TP15. 1404kHz CT211

Maximum

98.0MHz

Cover

Voltage

450KHz

at 999kHz T2001 MaximumLoop Ant

Frequency

Cover

Voltage L2205

FM Antenna SG=66dBuV

Adjustment

Loop Ant

Tracking

IF(0V)

Adjustment

Step

Adjusting

Circuit

Adjusting

Circuit

Remark

Frequency Adjustment

Adjustment

L2002

T2002

- 5 -

EXPLODED VIEW (CABINET & CHASSIS)

910111213 14

Y04

Y05 Y05

Y06

Y03 Y08

Y09

Y09 Y10

Y10

Y07

Y11

Y12

Y13 29

Y14

Y15

Y16

Y17

Y18

Y15

Y06

Y03

Y01 Y02

73 52

- 6 -

PARTS LIST

PRODUCT SAFETY NOTICE

EACH PRECAUTION IN THIS MANUAL SHOULD BE FOLLOWED DURING SERVICING. COMPONENTS IDENTIFIED WITH THE

IEC SYMBOL !

!! IN THE PARTS LIST AND THE SCHEMATIC DIAGRAM DESIGNATED COMPONENTS IN WHICH SAFETY CAN

BE OF SPECIAL SIGNIFICANCE. WHEN REPLACING A COMPONENT IDENTIFIED BY !

!! , USE ONLY THE REPLACEMENT

PARTS DESIGNATED, OR PARTS WITH THE SAME RATINGS OF RESISTANCE, WATTAGE OR VOLTAGE THAT ARE

DESIGNATED IN THE PARTS LIST IN THIS MANUAL. LEAKAGE-CURRENT OR RESISTANCE MEASUREMENTS MUST BE MADE

TO DETERMINE THAT EXPOSED PARTS ARE ACCEPTABLY INSULATED FROM THE SUPPLY CIRCUIT BEFORE RETURNING

THE PRODUCT TO THE CUSTOMER.

CAUTION :Regular type resistors and capacitors are not listed. To know those values, refer to the schematic diagram.

Regular type resistors are less than 1/4 W Carbon type and Chip type resistors.

Regular type capacitors are less than 50 V and less than 1000 µF type of Ceramic type, Electrical type and

Chip type.

PACKING & ACCESSORIES

REF.NO. PART NO. DESCRIPTION

614 322 8554 CARTON CASE,

614 319 8932 CUSHION,REAR

614 319 8949 CUSHION,FRONT

614 322 8806 INSTRUCTION MANUAL

614 231 6832 LABEL,SAFETY,CLASS1

645 041 1571 POLY SHEET-0340X0280*NC,SET

645 005 1227 ASSY,ANTENA,LOOP

or 645 046 8322 ASSY,ANTENA,LOOP

645 040 3217 REMOCON,RB-DA70

or 645 042 3604 REMOCON,RB-DA70

or 645 042 3611 REMOCON,RB-DA70

614 312 2432 LID,BATTERY,SERVICE

614 320 8723 ASSY,BOX,SPEAKER(L,R)

CABINET & CHASSIS

REF.NO. PART NO. DESCRIPTION

1614 319 8772 COVER,DECK

2614 319 8819 DEC,WINDOW,DECK

3614 319 8840 LID,CASSETTE

4614 319 8901 SPRING,DOOR DECK

5614 319 8833 KNOB,VOLUME

6614 319 8765 CAP,DECORATION

7614 320 8808 ASSY,PANEL,FRONT

8614 309 7969 ASSY,GEAR,LID,CASSETTE

9614 322 5591 KNOB,DECK,MECHA,REC

10 614 322 5607 KNOB,DECK,MECHA,PLAY

11 614 322 5614 KNOB,DECK,MECHA,REW

12 614 322 5621 KNOB,DECK,MECHA,FFWD

13 614 322 5638 KNOB,DECK,MECHA,STOP/EJECT

14 614 322 5645 KNOB,DECK,MECHA,PAUSE

15 614 307 2270 MOUNTING,DECK,KNOB

16 614 319 8758 BUTTON,FUNCTION,12 KEYS

17 614 310 3899 SPACER,MECHA,

MTG CD+CD MECHA

18 614 307 2072 COVER,PICK-UP

19 614 322 2132 ASSY,GEAR,LID,CD

20 614 319 8864 MOUNTING,CD

21 614 303 0263 LATCH,PUSH,CD,DOOR,LOCKING

22 614 307 8821 PULLEY

23 614 303 0256 LATCH,MAGNET

24 614 319 8918 SPRING,DOOR CD

25 614 319 8826 DEC,WINDOW,CD

26 614 319 8857 LID,CD

27 614 319 8741 BUTTON,POWER,1 KEY

28 614 308 0534 SPRING,REC

29 614 316 1172 STOPPER

30 614 322 8387 ASSY,CABINET,REAR

31 614 317 3090 LABEL,SAFETY,LASER,PICK-UP

FIXING PARTS

REF.NO. PART NO. DESCRIPTION

Y01 411 020 8905 SCR S-TPG BRZ+FLG 3X10,

F-PANEL+ASSY,GEAR

Y02 411 021 3503 SCR S-TPG BIN 3X10,

F-PANEL+MTG DECK KNOB

FRONT P.W.BOARD ASSY

REF.NO. PART NO. DESCRIPTION

71 614 321 5196 ASSY,PWB,FRONT (Only initial)

BR601 614 321 2508 HOLDER,LCD,HOLDER_LCD

C6200 403 259 0508 NP-ELECT 1U M 50V

or 403 373 7001 NP-ELECT 1U M 50V

CN601 645 012 5096 SOCKET,FPC 12P,FRONT-AMP

CN602 614 016 8464 PLUG,FRONT-LED

ELECTRICAL PARTS

REF.NO. PART NO. DESCRIPTION

51 614 314 4779 ASSY,WIRE

or 614 309 8454 ASSY,WIRE

52 614 310 5459 FLEXIBLE FLAT CABLE

or 614 313 7023 FLEXIBLE FLAT CABLE

53 614 316 3619 FLEXIBLE FLAT CABLE,

FRONT TO TUNER

54 614 313 7047 FLEXIBLE FLAT CABLE,

FRONT TO MAIN

or 614 310 6210 FLEXIBLE FLAT CABLE,

FRONT TO MAIN

55 423 016 7908 FUSE 250V 2.5A

56 645 051 8775 TRANS,POWER

57 645 016 9939 CORD,POWER-1.74MK

REF.NO. PART NO. DESCRIPTION

Y03 411 021 3503 SCR S-TPG BIN 3X10,

MTG CD+FRONT PCB

Y04 411 021 3503 SCR S-TPG BIN 3X10,

MTG CD+CD PCB

Y05 411 021 1806 SCR S-TPG BIN 2.6X10,

MTG CD+CD MECHA

Y06 411 092 0906 WASHER Z 2.6X10X0.5,

MTG CD+CD MECHA

Y07 411 021 3503 SCR S-TPG BIN 3X10,

MTG CD+TUNER PCB

Y08 411 021 3503 SCR S-TPG BIN 3X10,

MTG CD+ASSY,GEAR

Y09 411 021 3107 SCR S-TPG BIN2.6X8,

LID,CD+DEC,CD(SIDE

Y10 411 184 0906 SCR S-TPG BIN 2.3X10,

LID,CD+DEC,CD(BACK

Y11 411 021 3503 SCR S-TPG BIN 3X10,

REAR+DECK MECHA

Y12 411 126 1404 SCR S-TPG BIN 2X4,

SPRING DECK REC

Y13 411 021 4005 SCR S-TPG BIN 3X12,

REAR+STOPPER

Y14 411 020 9100 SCR S-TPG BRZ+FLG 3X12,

REAR+P-TRANS

Y15 411 098 7800 SCR S-TPG FLT 3X12,

C-REAR+MTG(L/R)

Y16 411 021 4500 SCR S-TPG BIN 3X16,

C-REAR+F-PANEL

Y17 411 021 3503 SCR S-TPG BIN 3X10,

C-REAR(ANT TERMINAL)

Y18 411 021 3404 SCR S-TPG BIN 3X10,

C-REAR+MTG CD

- 7 -

LED P.W.BOARD ASSY

REF.NO. PART NO. DESCRIPTION

72 614 321 3185 ASSY,PWB,LED (Only initial)

D6951 408 037 0503 LED SLP-3118C-51HAB-T1,LED

D6952 408 037 0503 LED SLP-3118C-51HAB-T1,LED

D6953 408 037 0503 LED SLP-3118C-51HAB-T1,LED

D6954 408 037 0503 LED SLP-3118C-51HAB-T1,LED

D6955 408 037 0503 LED SLP-3118C-51HAB-T1,LED

CD P.W.BOARD ASSY

REF.NO. PART NO. DESCRIPTION

73 614 320 0482 ASSY,PWB,CD (Only initial)

CN111 645 040 0513 SOCKET,FPC 15P

or 645 026 2463 SOCKET,FFC 15P

CN113 645 005 8127 PLUG,6P,BASE MECHA

or 614 310 2472 PLUG,6P,BASE MECHA

CN122 645 005 8134 PLUG,8P

or 614 310 2496 PLUG,8P

D1402 407 099 5204 ZENER DIODE MTZJ5.1B

D1403 407 004 9709 DIODE DSK10C

D1404 407 012 4406 DIODE 1SS133

D1410 407 098 3300 DIODE RL153-BF-S2

IC101 409 396 8100 IC LA9241ML

IC102 409 435 2106 IC LC78622NE

IC103 409 486 8706 IC MM1469XH

L1451 645 001 4550 INDUCTOR,10U K

PR140 645 014 2499 PROTECTOR,0.4A 125V

Q1301 405 008 7103 TR 2SB808-G-SPA

or 405 008 6809 TR 2SB808-F-SPA

or 405 151 4509 TR KTA1270-Y

or 405 151 4608 TR KTA1270-O

Q1401 405 009 5207 TR 2SB927-S

or 405 001 9302 TR 2SA1020-Y

or 405 158 2201 TR KTA1282

or 405 141 3604 TR KTA1273-Y

X1451 614 231 2667 RESONATOR

TUNER P.W.BOARD ASSY

REF.NO. PART NO. DESCRIPTION

74 614 321 5202 ASSY,PWB,TUNER (Only initial)

C2900 614 130 4298 TUBE

CN201 645 038 7715 TERMINAL

or 645 025 4703 TERMINAL,ANTENNA

CN202 645 012 5195 SOCKET,FPC 15P

CN203 614 221 8273 TERMINAL

CT211 645 032 5663 TRIMMER,7PF

D2002 407 157 8109 VARACTOR DI SVC211-B

D2003 407 157 8109 VARACTOR DI SVC211-B

D2004 407 012 4406 DIODE 1SS133

D2005 407 012 4406 DIODE 1SS133

D2006 407 012 4406 DIODE 1SS133

D2101 407 012 4406 DIODE 1SS133

D2102 407 105 1305 VARACTOR DI SVC342L-V

or 407 105 1602 VARACTOR DI SVC342M-V

D2104 407 099 5303 ZENER DIODE MTZJ5.6B

IC201 409 016 0200 IC LA1186N-AUDIO

IC211 409 474 3201 IC LA1844ML

L2001 645 040 2753 INDUCTOR,AIR —

L2002 645 040 2746 COIL,AIR —

L2003 645 002 1534 INDUCTOR,8.2U K

L2005 645 002 1459 INDUCTOR,22U K

L2006 645 002 1459 INDUCTOR,22U K

L2007 645 002 1459 INDUCTOR,22U K

L2010 645 040 2760 INDUCTOR,AIR —

L2011 645 041 1328 INDUCTOR,AIR —

L2204 645 037 2377 TRANS,ANT,796KHZ

L2205 645 040 2739 TRANS,OSC,796KHZ

Q2001 405 151 4806 TR KTC3195-O

or 405 151 4301 TR KTC3195-Y

Q2002 405 151 4301 TR KTC3195-Y

or 405 151 4806 TR KTC3195-O

REF.NO. PART NO. DESCRIPTION

CN603 645 012 5485 SOCKET,FPC 15P,FRONT-TU

D6901 407 012 4406 DIODE 1SS133

D6902 407 012 4406 DIODE 1SS133

IC601 409 504 4802 IC LC72336-9A38,MICON

L6900 645 001 4550 INDUCTOR,10U K

L6901 645 002 1459 INDUCTOR,22U K

LCD60 645 043 6260 LCD

LS601 614 309 4180 DEC,SHEET,LCD,DEC_LCD_SHEET

Q6200 405 017 9709 TR 2SC3330-U

or 405 017 9600 TR 2SC3330-T

or 405 011 8609 TR 2SC1740S-S

or 405 011 8500 TR 2SC1740S-R

or 405 143 8706 TR KTC3199-GR

Q6201 405 143 8706 TR KTC3199-GR

or 405 011 8500 TR 2SC1740S-R

or 405 017 9709 TR 2SC3330-U

or 405 017 9600 TR 2SC3330-T

or 405 011 8609 TR 2SC1740S-S

S6001 645 048 3820 SWITCH,PUSH

or 645 006 5958 SWITCH,PUSH 1P-1T

or 614 240 1002 SWITCH,TACT

or 614 220 5471 SWITCH,TACT

S6002 645 048 3820 SWITCH,PUSH

or 645 006 5958 SWITCH,PUSH 1P-1T

or 614 240 1002 SWITCH,TACT

or 614 220 5471 SWITCH,TACT

S6003 614 220 5471 SWITCH,TACT

or 614 240 1002 SWITCH,TACT

or 645 006 5958 SWITCH,PUSH 1P-1T

or 645 048 3820 SWITCH,PUSH

S6004 645 048 3820 SWITCH,PUSH

or 645 006 5958 SWITCH,PUSH 1P-1T

or 614 240 1002 SWITCH,TACT

or 614 220 5471 SWITCH,TACT

S6005 645 048 3820 SWITCH,PUSH

or 645 006 5958 SWITCH,PUSH 1P-1T

or 614 240 1002 SWITCH,TACT

or 614 220 5471 SWITCH,TACT

S6006 645 048 3820 SWITCH,PUSH

or 614 240 1002 SWITCH,TACT

or 614 220 5471 SWITCH,TACT

or 645 006 5958 SWITCH,PUSH 1P-1T

S6007 645 048 3820 SWITCH,PUSH

or 645 006 5958 SWITCH,PUSH 1P-1T

or 614 240 1002 SWITCH,TACT

or 614 220 5471 SWITCH,TACT

S6008 645 048 3820 SWITCH,PUSH

or 645 006 5958 SWITCH,PUSH 1P-1T

or 614 240 1002 SWITCH,TACT

or 614 220 5471 SWITCH,TACT

S6009 645 006 5958 SWITCH,PUSH 1P-1T

or 614 240 1002 SWITCH,TACT

or 614 220 5471 SWITCH,TACT

or 645 048 3820 SWITCH,PUSH

S6010 614 220 5471 SWITCH,TACT

or 645 048 3820 SWITCH,PUSH

or 645 006 5958 SWITCH,PUSH 1P-1T

or 614 240 1002 SWITCH,TACT

S6011 645 048 3820 SWITCH,PUSH

or 645 006 5958 SWITCH,PUSH 1P-1T

or 614 240 1002 SWITCH,TACT

or 614 220 5471 SWITCH,TACT

S6012 645 048 3820 SWITCH,PUSH

or 645 006 5958 SWITCH,PUSH 1P-1T

or 614 240 1002 SWITCH,TACT

or 614 220 5471 SWITCH,TACT

S6500 645 043 6253 SWITCH,ROTARY(ENCODER),

SWITCH_ROTARY

SE601 407 217 1101 PHOTO DIODE SPS-442-1G

X6001 645 052 6206 OSC,CRYSTAL 4.5MHZ

- 8 -

PARTS LIST

AMPLIFIER P.W.BOARD ASSY

REF.NO. PART NO. DESCRIPTION

75 614 320 0468 ASSY,PWB,AMP (Only initial)

C4714 403 058 4608 POLYESTER 0.15U J 50V

C4814 403 058 4608 POLYESTER 0.15U J 50V

C4913 403 329 5907 ELECT 3300U M 25V

or 403 350 9301 ELECT 3300U M 25V

C4918 403 056 7502 POLYESTER 1000P J 50V

CN401 645 006 1875 PLUG,2P,SPEAKER

CN402 645 006 1875 PLUG,2P,SPEAKER

CN405 614 310 2755 PLUG,4P

or 645 004 2904 PLUG,4P

CN406 614 310 2458 PLUG,4P

or 645 005 8110 PLUG,4P

CN421 645 011 6384 JACK,PHONE D3.6,HEADPHONE

CN441 614 310 2731 PLUG,2P,POWER

or 645 004 2881 PLUG,2P,POWER

CN490 645 012 2736 SOCKET,DIP 8P

CN491 645 012 5096 SOCKET,FPC 12P

CN492 614 309 8812 ASSY,WIRE

or 614 314 4809 ASSY,WIRE

D4102 407 012 4406 DIODE 1SS133

D4951 407 099 6003 ZENER DIODE MTZJ9.1B

D4953 407 012 4406 DIODE 1SS133

D4961 407 012 4406 DIODE 1SS133

D4962 407 012 4406 DIODE 1SS133

D4963 407 012 4406 DIODE 1SS133

D4964 407 012 4406 DIODE 1SS133

D4980 407 098 3300 DIODE RL153-BF-S2

D4981 407 098 3300 DIODE RL153-BF-S2

D4982 407 098 3300 DIODE RL153-BF-S2

D4983 407 098 3300 DIODE RL153-BF-S2

FCL41 645 006 4760 HOLDER,FUSE

or 645 031 7903 HOLDER,FUSE

FCL42 645 006 4760 HOLDER,FUSE

or 645 031 7903 HOLDER,FUSE

HS401 614 307 9866 HEAT SINK

IC410 409 384 3506 IC BA3314F

IC411 409 390 1107 IC LC75392

IC412 409 295 7402 IC TA8229K

L4781 645 051 8263 INDUCTOR,80U

or 645 041 3094 INDUCTOR,80U

or 645 006 9864 INDUCTOR,80U

L4881 645 006 9864 INDUCTOR,80U

or 645 041 3094 INDUCTOR,80U

or 645 051 8263 INDUCTOR,80U

POWER TRANSFORMER P.W.BOARD ASSY

REF.NO. PART NO. DESCRIPTION

76 614 320 0505 ASSY,PWB,PT (Only initial)

CN450 614 020 1215 SOCKET,2P

CN451 614 017 8203 TERMINAL BOARD

CN452 614 017 8203 TERMINAL BOARD

CN453 614 309 8447 ASSY,WIRE

or 614 314 4762 ASSY,WIRE

L4591 645 038 6053 INDUCTOR,181U

or 645 017 8061 INDUCTOR,181M

or 645 041 3087 INDUCTOR,180U

REF.NO. PART NO. DESCRIPTION

Q2003 405 017 9709 TR 2SC3330-U

or 405 017 9600 TR 2SC3330-T

or 405 011 8609 TR 2SC1740S-S

or 405 011 8500 TR 2SC1740S-R

or 405 143 8706 TR KTC3199-GR

Q2101 405 151 5209 TR KRA107M

or 405 000 0904 TR DTA114YS

Q2102 405 143 0007 TR KRC107M

or 405 000 3806 TR DTC114YS

Q2110 405 000 3806 TR DTC114YS

or 405 143 0007 TR KRC107M

Q2111 405 151 4806 TR KTC3195-O

or 405 151 4301 TR KTC3195-Y

Q2201 405 151 5209 TR KRA107M

or 405 000 0904 TR DTA114YS

S2001 645 023 5795 SWITCH,LEVER

SH201 614 256 3052 SHIELD

T2001 645 043 0213 FILTER,450KHZ

T2002 645 040 9981 TRANS,IF 10.7MHZ

or 645 039 9923 TRANS,IF 10.7MHZ

XF211 645 010 7665 CERAMIC FILTER 10.70MHZ

or 645 010 0079 CERAMIC FILTER 10.70MHZ

XF212 645 010 0079 CERAMIC FILTER 10.70MHZ

or 645 010 7665 CERAMIC FILTER 10.70MHZ

XF215 645 041 9324 CERAMIC FILTER 450KHZ

REF.NO. PART NO. DESCRIPTION

L4902 645 031 5893 TRANS,OSC,85KHZ,O.S.C

LG401 645 006 4432 FIXER

PR495 645 014 2529 PROTECTOR,1.25A 125V

PR496 645 014 2536 PROTECTOR,1.5A 125V

Q4103 405 000 0508 TR DTA114ES

or 405 110 5400 TR KRA102M-A

Q4104 405 000 3103 TR DTC114ES

or 405 109 9204 TR KRC102M-A

Q4106 405 000 3103 TR DTC114ES

or 405 109 9204 TR KRC102M-A

Q4108 405 143 0007 TR KRC107M

or 405 000 3806 TR DTC114YS

Q4109 405 000 3806 TR DTC114YS

or 405 143 0007 TR KRC107M

Q4730 405 143 6504 TR KTA1267-GR

or 405 004 4601 TR 2SA608-F-SPA

or 405 004 5103 TR 2SA608-G-SPA

or 405 006 1806 TR 2SA933S-R

or 405 006 1905 TR 2SA933S-S

Q4740 405 000 3103 TR DTC114ES

or 405 109 9204 TR KRC102M-A

Q4751 405 151 4400 TR KTD1303

or 405 021 0204 TR 2SD1012-F-SPA

or 405 021 0600 TR 2SD1012-G-SPA

or 405 033 6706 TR 2SD1468S-R

or 405 033 6805 TR 2SD1468S-S

Q4830 405 004 4601 TR 2SA608-F-SPA

or 405 143 6504 TR KTA1267-GR

or 405 004 5103 TR 2SA608-G-SPA

or 405 006 1806 TR 2SA933S-R

or 405 006 1905 TR 2SA933S-S

Q4840 405 000 3103 TR DTC114ES

or 405 109 9204 TR KRC102M-A

Q4851 405 151 4400 TR KTD1303

or 405 021 0204 TR 2SD1012-F-SPA

or 405 021 0600 TR 2SD1012-G-SPA

or 405 033 6706 TR 2SD1468S-R

or 405 033 6805 TR 2SD1468S-S

Q4902 405 143 8706 TR KTC3199-GR

or 405 011 8500 TR 2SC1740S-R

or 405 011 8609 TR 2SC1740S-S

or 405 017 9600 TR 2SC3330-T

or 405 017 9709 TR 2SC3330-U

Q4903 405 017 9600 TR 2SC3330-T

or 405 017 9709 TR 2SC3330-U

or 405 011 8609 TR 2SC1740S-S

or 405 011 8500 TR 2SC1740S-R

or 405 143 8706 TR KTC3199-GR

Q4904 405 143 8706 TR KTC3199-GR

or 405 011 8500 TR 2SC1740S-R

or 405 011 8609 TR 2SC1740S-S

or 405 017 9600 TR 2SC3330-T

or 405 017 9709 TR 2SC3330-U

Q4951 405 095 1701 TR 2SD2061-F

or 405 138 6403 TR KTD2058Y

or 405 095 1602 TR 2SD2061-E

R4752 402 071 1304 FUSIBLE RES 2.2 JA 1/4W

R4852 402 071 1304 FUSIBLE RES 2.2 JA 1/4W

R4941 402 081 0205 FUSIBLE RES 27 JA 1/4W

S4950 645 038 7586 SWITCH,PUSH,R/PSW

SA401 411 021 6405 SCR S-TPG BIN 3X8

SA402 411 021 6405 SCR S-TPG BIN 3X8

- 9 -

TM06

TM05

TM04

TM03

TM02

TM01

PM03

PM04

PM05

PM09

PM08

PM01

PM10

PM07

PM06

PM08

PM02

EXPLODED VIEW & PARTS LIST(CD MECHANISM)

EXPLODED VIEW & PARTS LIST(TAPE MECHANISM)

TAPE MECHANISM

REF.NO. PART NO. DESCRIPTION

614 309 7976 ASSY,MECHA,TM-DA70TN-SH

TM01 645 033 8625 E HEAD 6PA

TM02 645 041 3025 R.P HEAD

TM03 645 009 1612 PINCH ROLLER ARM ASSY

TM04 645 009 1766 RF BELT

TM05 645 033 3415 MAIN BELT

TM06 614 312 0629 ASSY,MOTOR,FOR SERVICE

CD MECHANISM

REF.NO. PART NO. DESCRIPTION

614 307 9804 ASSY,MECHA,CDDA11N-SASH

PM01 620 021 8436 PLUG 6P

PM02 620 233 0853 ASSY MOTOR,

BASE CHASSIS ASSY

PM03 620 236 3776 COVER,GEAR

PM04 620 230 8753 GEAR MIDDLE,RELAY GEAR

PM05 620 230 8760 GEAR DRIVE

PM06 620 231 0596 SHAFT SLIDE,PICK RAIL

PM07 620 233 0860 SWITCH LEAG,LIMIT SWITCH

PM08 411 104 8401 SCR PAN PCS 2X3

PM09 411 027 5402 SCR S-TPG FLT 2.6X6

PM10 620 236 0836 PWB,MOTOR

* N.S.P : Not supplied as service parts.

- 10 -

IC BLOCK DIAGRAM & DESCRIPTION

IC101 LA9241ML (Servo Signal Processor)

FSS

64 63 62 61 60 59 58 57 56 55 54 53 52 51 50 49

32313029282726252423222120191817

Vcc1 LDS LDD BH1 PH1 LF2 VR REF1 Vcc2

DRF CE

DAT CL CLK DEF

TBC

FSC

DGND

SLI

SLC

RFS-

RFSM

CV+

CV-

SLOF

HFL

TES

TOFF

TGL

JP+

JP-SL+SL-SLDSLEQSPDSP-SPGSP

AGND

FE-FE

FA-FAFD-

TD-

SCI

TESI

TE-

FIN1

FIN2

APC

RF DET

REF

VCA

I/V

BAL VCA

INTER FACE

É -com

SLC

RF Amp

T.SERVO & T.LOGICK

F.SERVO & F.LOGICK

SPINDLE SERVO

SLED SERVO

28 27 26 25 24 23 22 21 20 19 18 17 16 15

1234567 891011121314

Vcc

DRIVER MUTE

D.BUFD.BUFD.BUFD.BUF

Level shift

T.S.D

IC103 MM1469XH (CD Driver) IC201 LA1186N-AUDIO (FM Front End)

(R1)

LT1

(RT1)

LT2

(RT2)

LT3

(RT3)

LT4

(RT4)

LTOUT

(RTOUT)

LVROU T

(RVROUT)

LTCOM

(RTCOM)

LVRIN

(RVRIN)

(R2)

(R3)

(R4)

Vref

CONTROL SHIFT REGISTER

DECODER

LATCH

13 17

1.30

2.29

3.28

4.27

5.26

6.25

7.24

8.23

IC410 BA3314F (Dula Preamplifier with ALC Detector)

IC411 LC75932 (Function & Electric Volume)

IC412 TA8229K (Power Amplifier)

- 11 -

No. Pin Name I/O Function

1FIN2IConnection Pin for Photo Diode of Pickup.

2FIN1IFIN2 + FIN1 = RF, FIN2 - FIN1 = FE

3EIConnection Pin for Photo Diode of Pickup.

4FIE- F = TE

5TBIInput Pin for DC ingredient of TE Signal.

6TE- I Connection Pin for Gain Setting Resistor of TE

Signal to TE Signal Pin.

7TEOOutput Pin for Tracking Error Signal.

8TESI I Input Pin for Track Error Sense Comparator.

TE Signal through Band Pass, and Inputted.

9SCI I Input Pin for Shock Detection.

10 TH IConnection Pin for Time Constant Setting of

Tracking Gain.

11 TA O Output Pin for TA Amplifier.

12 TD- IConnection Pin for Constant Tracking Phase

Compensation, Consist of between TD and VR.

13 TD I Connection Pin for Constant of Tracking Phase

Compensation.

14 JP I Connection Pin for Amplitude Setting of Tracking

Jump (Kick Pulse) Signal.

15 TO O Output Pin for Tracking Control Signal.

16 FD O Output Pin for Focusing Control Signal.

17 FD- I Connection Pin for Constant of Focusing Phase

Compensation, Consist of between FD and FA.

18 FA+IConnection Pin for Constant of Focusing Phase

Compensation, Consist of between FD- and FA-.

19 FA- I Connection Pin for Constant of Focusing Phase

Compensation, Consist of between FA and FE.

20 FE O Output Pin for Focusing Error Signal.

21 FE- I Connection Pin for Gain Setting Resistor of FE

Signal to FE Signal Pin.

22 AGND - Ground for Analog Signal.

23 NC - No Connect

24 SP O Output Pin for Single End of Input Signal of the

CV+, CV- Pin.

25 SPG IConnection Pin for Gain Setting Resistor, when

Spindle 12 cm Mode.

26 SP- I Connection Pin for Constant of Spindle Phase

Compensation with SPD Pin.

27 SPD O Output Pin for Spindle Control Signal.

28 SLEQ IConnection Pin for Constant of Sled Phase

Compensation.

29 SLDOOutput Pin for Sled Control Signal.

30 SL-IInput Pin for Sled Signal from Micro Processor.

31 SL+ I

No. Pin Name I/O Function

32 JP-IInput Pin for Tracking Jump Signal from Digital

33 JP+ISignal Processor.

Digital Signal Processor. TGL = H : Gain Low

35 TOFF I Input Pin for Tracking Off Control Signal from Digital

Signal Processor. TOFF = H : OFF

36 TES O Output Pin for Track Error Sense Signal to Digital

Signal Processor.

37 HFL IHigh Frequency Level Signal Use Detection

Main-Beam Position is on the pit or mirror.

38 SLOF I Input Pin for Sled Servo Off Control.

39 CV- I Input Pin for Constant Linear Velocity Error

40 CV+ ISignal from Digital Signal Processor.

41 RFSM O Output Pin for RF Signal.

42 RFS- I Connection Pin for Gain Setting of RF and

Constant Setting of 3T Compensation of the

EFM Signal with RFSM Pin.

43 SLC OSlice Level Control Signal is Output Pin.

It Control Level of Data-Slice by Digital Signal

Processor of the RF Waveform.

44 SLI I Input Pin for Level Control of Data-Slice by

Digital Signal Processor.

45 DGND - Ground for Digital Signal.

46 FSC O Output Pin for Focus Search Smooth Condenser

47 TBC OConnection Pin for Variable Range Setting of

EF Balance.

48 N_ - No Connect

49 DEF O Output Pin for Defect Detection of Disc.

50 CLK I Input Pin for Reference Clock Pulse.

(4.23 MHz of Digital Signal Processor)

51 CL I Input Pin of Clock Pulse for Command from

Micro Processor.

52 DAT IInput Pin of Data for Command from Micro

Processor.

53 CE IInput Pin of Chip Enable for Command from Micro

Processor.

54 DRF O Output Pin for Detect of RF Level.

55 FSS I Select Pin for Focus Search Mode

56 VCC2 - VCC for Servo and Digital Root.

57 REFI I Bus Control Connection Pin for Reference Voltage.

58 VR O Output Pin for Reference Voltage.

59 LF2 I Connection Pin for Time Constant Setting of

Detect Detection of the Disc.

60 PH1 I Capacitor Connection Pin for Peak-hold of RF Signal.

61 BH1 I Capacitor Connection Pin for Bottom-hold of

RF Signal.

62 LDDOOutput Pin of APC (Automatic Power Control) Circuit.

63 LDS I Input Pin of APC (Automatic Power Control) Circuit.

IC101 LA9241ML (Servo Signal Processor)

- 12 -

IC BLOCK DIAGRAM & DESCRIPTION

IC102 LC78622NE (Digital Signal Processor)

No. Pin Name I/O Function

32 TEST3 I Test pin.

33 TEST4 I Test pin.

34 NC -Non connection.

35 MUTEL OMute output terminal for L-ch

36 LVDD -Power supply for L-ch

37 LCHO O Output terminal for L-ch

38 LVSS - GND for L-ch

39 RVSS - GND for R-ch

40 RCHO O Output terminal for R-ch

41 RVDD - Power supply for R-ch

42 MUTER O Mute output terminal for R-ch

43 XVDD - Power supply of crystal oscillation

44 XOUT O Connection terminal of crystal oscillation (16.9344MHz)

45 XIN I Connection terminal of crystal oscillation (16.9344MHz)

46 XVSS - GND of crystal oscillation

47 SBSY O Output terminal for synchronizing signal of

sub-cord block

48 EFLG O Output terminal for correction monitor of C1, C2,

Single and Double

49 PW O Output terminal for sub-cord of P, Q, R, S, T, U and W

50 SFSY O Output terminal for synchronizing signal of

sub-cord frame

51 SBCK I Input terminal for readout clock of sub-cord

52 FSX OOutput terminal of Synchronizing signal (7.35kHz)

53 WRQOOutput terminal for standby of sub-cord Q output

54 RWC I Input terminal of read / write control

55 SQOUT O Output terminal of sub-cord Q

56 COINIInput terminal of command from micro processor

57 CQCK I Clock input for reading sub-cord from SQOUT

58 RES I Reset (turn on : L)

59 TST11 OTest pin

60 16M O 16.9344MHz

61 4.2M O 4.2336MHz

62 TEST5 I Test pin

63 CS I Chip select terminal

64 TEST1 I Test pin

EFMO VVDD VVSS PDO ISET FR PCK TAI

TST11

TEST1 TEST3 TEST5

TEST2 TEST4

VDD VSS

C2F

DOUT

(NC)

LVDD

LVSS

MUTELLCHO

MUTER

RVDD

RVSS

RCHO

XVDD

XOUT

XINFSX

XVSS

4.2M16MEFLGEMPHCONT5

CONT4

CONT3

CONT2

CONT1

TGL

RESJP+JP-TOFFTESHFL

RWC

COIN

CQCK

SQOUT

WRQ

SFSY

SBSY

SBCK

V/P

CLV-

CLV+

FSEQ

EFMIN

DEFI

15 16 17 20 19 58 18 24 25 26 27 28 29 48 60 61 46 52 45 44 43 39 41 42 40 37 35 38 36

64357 2

59 64 11 32 33 62

Slice level

Control

Subcode Dxract

QCRC

Syncrnous Detect

EFM Demodulation

VCO Clock Oscillator

& Clock Control

X'tal Root

Timing Generator

RAM Address

Generatorl

2KÅ~8bit

RAM

Billingual

Digital Out

General Ports

Digital Attenuator

Quadruple Over Sampling

Digital Filter

Interpolalation Mute

C1 C2 Error Detect &

Correct Control Flag

1bit DAC

L.P.F

CLV

Digital Servo

µCOM

Inter Fase

Servo Commander

No. Pin Name I/O Function

1DEFI I Input terminal for detect signal of defect

2TAI I Input terminal for test.

3PDO O The phase comparison output terminal for

external VCO control.

4VVSS - Ground terminal for built-in VCO

5ISET I Resistance connection terminal for

electric current adjustment of PDO output.

6VVDD - Built-in VCO power supply terminal.

7FRIVCO frequency range adjustment.

8VSS - Ground for Digital

9EFMO O EFM signal output terminal for slice level control.

10 EFMIN I EFM signal input terminal for slice level control.

11 TEST2 I TEST pin. Normal time is non connection.

12 CLV+ O Output terminal for Disc motor control.

13 CLV- O Output terminal for Disc motor control.

14 V/P O Change of rough servo / phase control

Rough servo : "H", Phase control : "L"

15 HFL I Input terminal of track search signal.

16 TES I Input terminal of tracking error signal.

17 TOFF O Output terminal of tracking off.

18 TGL O Output terminal for change of tracking gain.

19 JP+OOutput terminal for tracking jump control.

20 JP-OOutput terminal for tracking jump control.

21 PCK O Clock monitor output terminal for EFM data

playback. (4.3218 MHz)

22 FSEQ O Output terminal for detect of SYNC signal.

23 DVDD - +5V

24 CONT1 I/O

25 CONT2 I/O This output can control at serial control from

26 CONT3 I/O micro processor.

27 CONT4 I/O

28 CONT5 I/O

29 EMPH O Output terminal of de-emphasis monitor .

"H" : de-emphasis

30 C2F O Output terminal of C2 flag

31 DOUT O Output terminal of digital out

- 13 -

IC BLOCK DIAGRAM & DESCRIPTION

PIN NO.

32~35

40~55

I/O

FUNCTION

Connection terminal of crystal oscillation (4.5MHz)

GND.

CD MECA Communcation Line

DSP,ASP Control

RWC Output

CD DSP RESET Output

BASS BOOST Control Output

TRNSISTOR/DIODE SW SOURCE Input

WRQ Input

DRF Input(H-DL CHATTERING TIME 50MS)

JOG VR Input(CHATTERING TIME 3MS)

Phase Input

PICK-INSIDE Input

REMOCON Input

BAND Output

AUDIO MUTE Output

Compalsion MONO Output

FUNCTION Input/Output(CHATTERING TIME 40MS)

STEREO Input(CHATTERING TIME 40MS)

SYNC REC Input(CHATTERING TIME 40MS)

Power supply

SD Input

Display SEGMENT Output

VOL IC Control Output

Operating KEY Input

Destination Input

BASS-X LID SW Input(CHATTERING TIME 40MS)

BACK UP MODE Control Outpu

Power supply

Ground

Connection terminal of crystal oscillation (4.5MHz)

NAME

CD IDATA

CD ODATA

CD CLOCK

RWC

CD RESET

Non Connection

BASS BOOST

Non Connection

KEY IN

WRQ

DRF

JOG VR2

JOG VR1

PICK-INSIDE

REMOCON Input

MUTE

MONO

STIN

SYNC REC

POWER

Non Connection

SEGMENT Output

Non Connection

VOL CE

VOL DATA

VOL CLOCK

AD KEY:AD0

AD KEY:AD1

AD KEY:AD2

AD KEY:AD3

HOLD

FMIF

AMIF

Non Connection

POWER

Non Connection

MICOM NAME

XIN

TEST2

PG3(S10)

PG2(SO0)

PG1(SCLK0)

PG0

PC3

PC2

PC1

PC0

PB3

PB2

PB1

PB0

PA3

PA2

PA1

PA0

PK3

PK2

PK1

PK0(INT0)

PN3

PN2

PN1

PN0

PM3

PM2

PM1

PM0

VDD

PE3

PE2

PE1(S18)

PE0(S17)

S21~S24

S1~S16

COM3

COM2

COM1

Vdd2

Vdd1

PJ3

PJ2

PJ1

PJ0

AD0

AD1

AD2

AD3

HOLD

RCTR

LCTR

SNS

VDD

FMOSC

AMOSC

VSS

EO1

EO2

TEST1

XOUT

IC601 LC72336-9A38 ( Micro Processor)

IC211 LA1844ML ( Tuner System)

- 14 -

LCD DISPLAY DESCRIPTION

PAD NO.

IC NO.

S10

S11

S12

S13

S14

S15

S16

S17

S18

S19

S21

S22

S23

S24

COM1

ROCK

JAZZ

POP

COM2

MHZ

PROG.

COM3

kHZ

BASS

SURR

MONO

CLASSIC

26 1

CE 2h

3h 4h

LCD60

- 15 -

This is a basic wiring diagram.

WIRING CONNECTION

MOTOR

SWITCH R/P HEAD

RED

ORANGE

YELLOW

BROWN

TAPE MECHANISM

L-CH

SPEAKER

BOX

R-CH

SPEAKER

BOX

CD MECHANISM

CD P.W.B

FRONT P.W.B

LED P.W.B

BOARD TO BOARD

LCD60

CN441

(2P)

CN406

(4P)

CN491

(12P)

CN421

PHONES CN490

(8P)

CN402

(2P)

CN401

(2P)

CN450

(2P)

CN601

(12P)

CN603

(15P)

CN602

(2P)

CN122

(8P)

CN111

(15P)

CN113

(6P)

CN201

CN203

(1P)

CN202

(15P)

CN405

(4P) FU401

T2.5A L 250V

BK RE

P. T

POWER TRANSFORMER P.W.B

AMP P.W.B

TUNER P.W.B

AM LOOP

ANT.

AC IN

CN452 CN451

JW601

- 17 -- 16 -

SCHEMATIC DIAGRAM (FRONT)

This is a basic schematic diagram.

LID_SW

GND

AMOSC

TU_+B

TU_GND

TU_L

TU_R

STEREO

MONO

TU_MUTE

BAND1

BAND2

BEAT

TA_MUTE

SYNC REC

VOL CK

A_MUTE

BASS BOOST

+5.6V

VOL STB

VOL DATA

GND

AC_SNS

QSOUND

+B_8.5V

GND

+B_8.5V SE601

IC601

R6106

R6105

C6103

C6101

C6100

R6201

C6201

Q6201

Q6200

R6109

R6108

R6107

D6901

C6903

C6900

C6901

R6100

R6104

R6111

R6112

R6113

C6200

X6001

C6104

C6105

L6900

C6102

C6205

C6204

C6906

C6206

C6207

S6500

R6501

R6502

C6501

C6502

R6002R6004 R6003

S6003

S6002

R6001

S6001

S6004

D6902

R6905C6905

CN603

CN601

R6012

R6011

R6010

C6012

C6011

C6010

C6202

C6203

C6208

R6110

R6103

C6912

C6911

C6910

C6916

C6913

C6915

C6914

R6906

C6918

R6907

S6010

S6011

R6013R6014

C6908

R6200

LCD60

L6901

C6106

S6012

C6904

R6006R6008 R6007

S6009

S6008

R6005

S6007

S6006

S6005

CN602

D6951

D6952D6953

D6954D6955

R6952

R6951

C6951

LC72336-***

10K

330P

2.7K

0.01

2SC1740

47K

4.7K

1SS133

1000P

10/16

0.01

100K

10K

47K

10K

1/50

4.5MHz

33P

100P

JOG

0.01

6801.2K 820

STOP

PLAY

560

MEMO

1SS133

100470/6.3

000

10K

100P

1000P

100P

2200P

100K

0.01

1000P

100P

470

2200P

47K

BASS

SURR

1.5K2.2K

0.01

2.2K

000

22UH

0.01

FM MODEL/CD REP.

47/10

6801.2K 820

FUNC

TU-DN

560

TU-UP

PSCAN

BAND

000

000000000

000000

150

270

0.01

25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40

80 79 78 77 76 75 74 73 72 71 70 69 68 67 66 65

123

26 1234567891011121314151617181920212223242526

TU_+B

TU_GND

TU_L

TU_R

CD_RST

TU_R

TU_GND

TU_+B

TU_L

CD_RST

TA_MUT

TEST2

CQCK

RWC

DMUTE

BAND1

LED2

BEAT

REMIN

BAND2

S19

S21

S17

S23

S24

VDD

SYNC

STEREO

FUNC_2

FUNC_1

MUTE

S18

S11

S10

COM3

COM2

COM1

(VDD2)

(VDD1)

DATA

CLOCK

AD1

AD2

AD3

VDD

AMOSC

FMOSC

VSS

EO2

TEST1

XIN

S15

MONO

S22

SQOUT

S14

S13

S12

COIN

PUIN

LED1

JOG2

WRQ

KEY2

JPN BAND

SURR

DRF

S16

ACSENS

FMIF

AMIF

SNS

EO1

XOUT

(POWER)

JOG1

AD0

EU-1 US JP SS EU-2 PL

OPEN 0 8.2K

R6009

TO TUNER SEC.

DRF

SQOUT

COIN

CQCK

WRQ

RWC

LIMIT

TO CD SEC.

TO AMP SEC.

8.2K

10K 10K

8.2K 8.2K

10K

15K 15K 27K

CD RESET

TU_+B

TU_GND

TU_L

TU_R

+5.6V

TO FMOSC

- 19 -- 18 -

-HIST.COMP

SHOCK:WCOMP

TES

REF

AND

TGLI

THLDI

TGL

DEF

THLD

WCOMP

GEN

TGHI

TGLI

THLDI

TGLI

TGHI

REF

TOFF2

REF

FSERCH

FSTA

REF

FOFF

REF

FE1

REF

CV-

CV+

JP-

JP+

REF

SPOF

REF

SLOF

SLOF SLOF

S.Q.R

VCC

VCA

BPL

REF BAL

BAL

VCA

REF

VCA

REF

FE1

RFVCC

VPPC LASER

BH1

PH1

BH2

PH4

VCA

GAIN DEF

VHFL

VDRF

HFL

DRF

REF

VCC

S.DVCC

DRF

DAT

DEF

THLD

FOCS

REF

CV+

CV-

SLOF

HFL

TES

TOFF

TGL

JP+

JP-

EFBAL

FOSTA

TOSTA

2FREQ

LASER

FSTA

8/12CM

SLOF

DAT

PONRST

LATCH

TBC

GEN

TOADJ

TOSTA

STOP

REF

TOFF

FSC

FSS

REF

VR+0.3V

FSTA

GEN

REF STOP FSTA

FOADJ

12CM

8CM

REF

CLK

FSC

TBC

CLK

FSS

REF

CD_R

CD_GND

CD_L

GND

TU_GND

TU_L

TU_R

R1771

R1781

R1773R1783

C1782 C1772

C1773

R1327

C1494

C1340

C1402

C1783

C1324

Q1401

R1330

R1331

C1321

C1334

R1334R1333

C1323

R1303

C1304

R1305

C1302

R1309

C1309

R1302

R1301

C1301

C1325

C1332

IC102

R1312

C1401

Q1301

C1330

R1308

C1471

R1462

R1463

R1465

R1464

C1469

C1467

C1468

L1451

R1335

X1451

C1331

R1453

R1336

C1303

R1304

C1305

C1308

R1311

R1310

C1310

R1314

C1312

R1313

R1315

R1317

R1320

R1318

C1315

C1316

R1324

C1318

R1325R1326

C1317

R1328

C1320

R1329

C1319

C1336

C1338

C1337

C1339

IC101

R1343

C1475

R1475

C1341

R1454C1451

R1455

C1452

C1456

R1456

C1493

C1492

C1346

C1322

C1403

R1332

C1472

C1335

C1457

C1491

C1481

C1470

CN113

R1472

R1473

C1333

R1501

R1502

R1503

C1404

R1480

C1480

C1313

D1402

CN122

R1499

R1498

CN111

C1350

D1404

D1403

PR140

C1329

R1337

D1410

C1495

C1485

C1455

C1415

IC103

R1476

C1405

100K100K

1000P 1000P

10;25

56K

0.01

10;25

0.033

KTA1273

220K

3300P

0.01

1K12K

12P

100K

0.033

2.2K

1000P

330

0.047

47;10

2200P

0.047

LC78622NE

6.8K

470;6.3

KTA1270

10;25

27K

68P

560

100P

68P

10;K

10K

16.93M

0.01

2.7K

330

0.22

6.8K

330P;B

0.22

100K

15K

0.15

22K

1000P

22K

15K

68K

8.2K

1.5K

0.018

3300P

33K

100P

56K1K

0.22;50

6.8K22;25

10K

4.7;50

0.01

10;25

0.01

10;25

LA9241M

100K

68P

560

3300P

6800.1

68K

0.1

0.01

1.2K

0.01

47;10

33P

470;10

15K

0.01

10;25

0.01

100P

68P

4.7K

100K

0.33;50

1.5K

3.3K

1.5K

0.01

560

22000P

0.1

MTZ5.1B

000

100

000

0.015

000

400mA

4.7;50

6.8K

RL153

0.01

0.1

220P

MM1469XH

000

0.01

17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32

64 63 62 61 60 59 58 57 56 55 54 53 52 51 50 49

12345678910111213141516

33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48

49505152535455565758596061626364

48474645444342414039383736353433

17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32

123456

1234567 891011121314

1516171819202122232425262728

WRQ

CQCK

DRF

SQOUT

COIN

RWC

A.GND

CQCK

COIN

SQOUT

RWC

WRQ

DRF

A.GND

REST

TU_+B

TU_GND

TU_L

TU_R

TU_L

TU_GND

TU_+B

PICK UP

SF-P101N

SLED MOTOR

SPINDLE MOTOR

CD MECHA

LIMIT SW

F+

F-

T-

T+

GND

SVR

MECHANISM

+5V

TO AMP PWB

TO FRONT PWB

SP-

GND

SL-

SP+

SL+

F+

T+

T-

F-

GND

LIMIT

VVDD

EFMO

EFMIN

CLV+

CLV-

V/P

HFL

TES

PCK

FSEQ

TOFF

TGL

CONT3

DVDD

JP+

JP-

CONT4

CONT5

EMPH

C2F

DOUT

TEST3

TEST4

MUTEL

LVDD

LCHO

LVSS

RVSS

RCHO

RVDD

MUTER

XVDD

SBSY

EFLG

XVSS

SFSY

SBCK

WRQ

RWC

SQOUT

COIN

CQCK

TEST1

16M

4.2M

TST11

TEST5

XIN

XOUT

REST

DEFI

TAI

ISET

PDO

VVSS

TE-

TESI

SCH

TD-

FD-

FA-

FE-

AGND

SPI

SPG

SP-

SPD

SLEQ

SLD

SL-

SL+

JP-

JP+

TGL

TOFF

HFL

TES

SLOF

CV-

CV+

RFSM

RFS-

SLC

SLI

DGND

FSC

TBC

DEF

CLK

DAT

DRF

VCC2

REFI

LF2

PH1

BH1

LDD

LDS

VCC1

FSS

FIN2

FIN1

DVSS

TEST2

CONT1

CONT2

FSX

(D-MUTE)

(SLED -)

(SLED +)

<+9V>

ININ

MUTE

VDD

REG

WRQ

LIM_SW

CQCK

COIN

SQOUTSQOUT

RWC

DRF

REST

TU_+B

TU_GND

TU_L

TU_R

5.6V

00 00 00

5.00 00 4.50

2.302.302.5000

2.502.502.50

00 5.00

SCHEMATIC DIAGRAM (CD)

This is a basic schematic diagram.

PRODUCT SAFETY NOTICE

Each precaution in this manual should be followed during servicing. Components identified with the IEC symbol !

!! in the parts list and the schematic diagram designated components in which safety can be of

special significance. When replacing a component identified by !

!! , use only the replacement parts designated, or parts with the same ratings of resistance, wattage or voltage that are designated in the parts list

in this manual. Leakage-current or resistance measurements must be made to determine that exposed parts are acceptably insulated from the supply circuit before returning the product to the customer.

- 21 -- 20 -

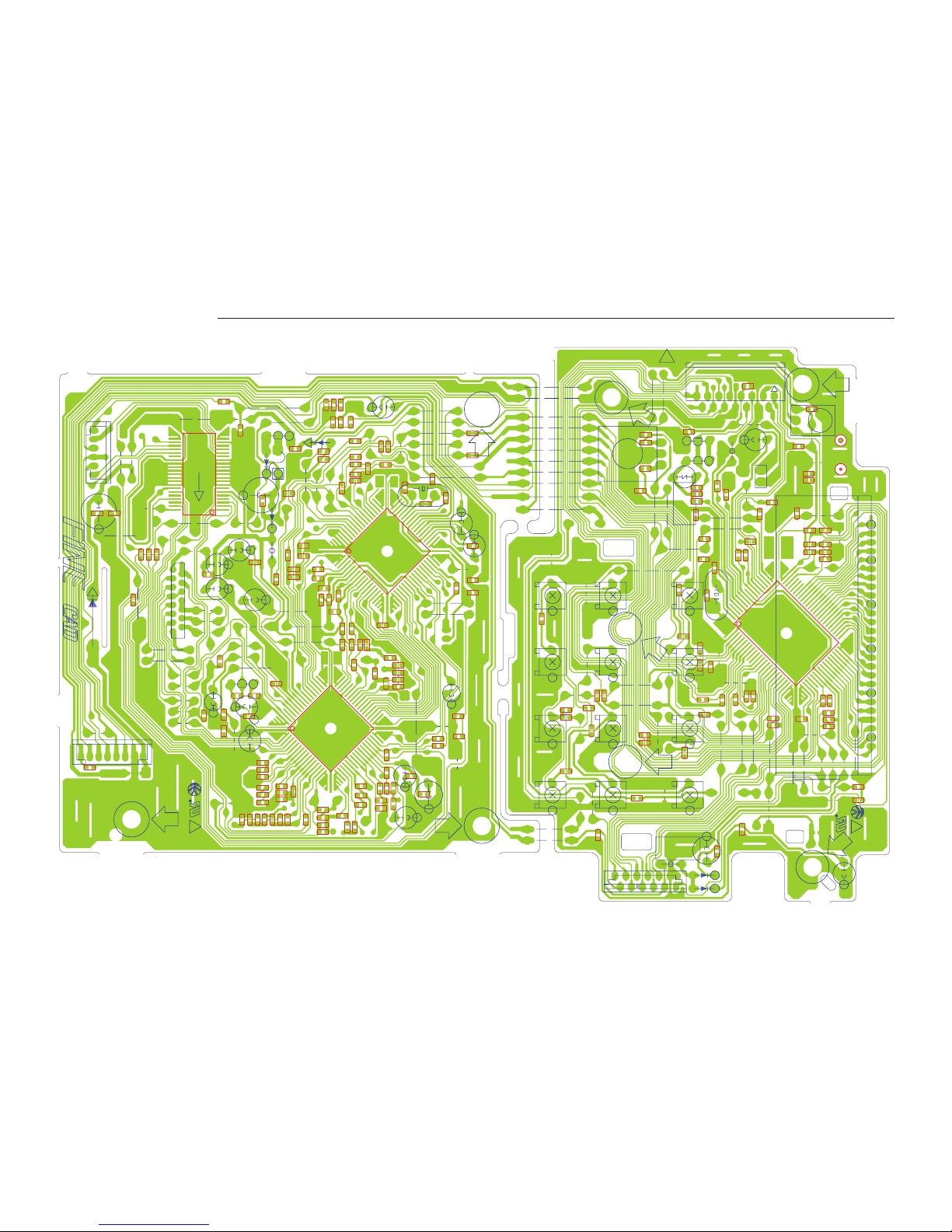

WIRING DIAGRAM ( FRONT & CD )

15 10 15 20 25

T002 94V-0

1AD4B10D0972B

NIP CUT

1AD4B10D0970C

LCD60

S6005

S6012

S6006 S6001

S6003

S6008

S6002

S6007

S6010 S6011 S6004 S6009

FUNC

MEMORY

Q/SUR

BASS

TU-UP PLAY TU-DN

STOP

BAND

PRESET

PRE-EQ

FM-MOD/REP

J6400

J6401

J6402

J6403

J6404

J6405

J6406

J6407

J6408

J6409

J6410

SE601

C6200

Q6200

J6200

J6201

J6202

J6204

J6206

J6208

J6212

J6110

J6209

J6215

J6304

J6203

S6500

J6102

J6100

J6305

J6307

J6214

J6308

J6103

J6301

J6104

J6105

CN601

L6900

D6901

J6107

J6101

Q6201

L6901

LC72336-9A38

J6106

J6211

J6300

J6210

J6303

J6207

J6108

SQOUT

COIN

CQCK

RWC

CD-RST

BEAT

QSOUND

BASS

TA-MUTE

WRQ

DRF

LIMIT

TU-+B

TU-R

TU-GND

TU-L

+5.6V

BAND2

BAND1

A-MUTE

MONO

TU-MUTE

STEREO

SYNC

VOL-STB

VOL-DATA

VOL-CK

J6109

J6114

J6115

J6216

J6217

AC-SNS

LID-SW

AMOSC

GND

TU-+B

TU-GND

TU-L

TU-R

GND

+5.6V

CN603

IC601

C6904

CN602

C6900

J6302

J6117

J6311 J6310

J6213

D6902

J6205

J6112

J6309

J6116

C6905

GND +B

JW601

J6113

X6001

C1401

SVR

GND

T-

T+

F+

F-

T002 94V-0

C1330

C1317

C1319

C1320

J1404

C1335

IC102

IC101

CQCK

COIN

SQOUT

RWC

WRQ

DRF

C1783

C1492

L1451

+5V

GND

LIMIT

SL+

SL-

SP+

SP-

C1457

J1608

J1406

Q1301

J1412

J1800

J1601

J1600

J1617

C1403

J1402

J1400

J1616

J1422

C1338

J1806

J1410

J1805

J1609

J1803

J1407

C1339

J1409

J1419

Q1401

C1301

C1333

J1618

J1612

J1411

J1801

J1802

J1606

J1605

J1604

J1603

REST

J1613

J1804

D1402

TU+B

TUGND

TULCH

TURCH

J1426

J1418

J1417

J1420

J1421

J1614

J1615

J1415

J1416

J1414

J1413

J1602

CN113

D1404

D1403

J1610

J1619

5.6V

PR140

C1329

CN122

D1410

J1425

R-CH

L-CH

A_GND

GND

TUGND

TURCH

TULCH

J1401

J1607

400

CN111

J1424

TULCH

J1408

J1405

J1403

J1611

J1423

C1773

CN123

NIP CUT

X1451

R6001

R6003

R6014

R6005

R6007

R6008

C6104

C6105

R6006

C6913 C6914

C6915

R6906

C6918

R6110

R6100

R6106

R6105

R6103

C6916

C6207

C6206

R6112

C6205

R6907

C6208

R6113

C6910

R6111

C6010

R6012

R6905

C6012

R6010

R6011 C6011

C6202

R6501

R6502

C6502

C6501

R6201

R6200

C6201

C6103

C6102

C6911

R6108

C6100

C6101

R6109

C6908

C6903

C6106

C6203

C6906

R6107

R6104

C6901

CAN

R6004

R6002

R6013

CAN

C6912

CAN

C6204

CAN

R1343

C1325

R1332

R1333

C1323

R1334

R1336

R1335

C1303

R1305

R1304

R1303

C1309

CAN3

C1308

C1305

C1304

CAN2

R1308

R1309

R1310

R1311

C1310

R1312

R1313

C1312

R1315

R1318

R1320

CAN1

R1324

C1318

R1328

R1325

R1327 R1326

R1329

R1453

R1301

C1315

C1316

R1314

C1302 R1302

CAN4

C1341

C1322

C1324

R1456

C1452

C1456

R1455

C1451

C1471

C1772

C1782

R1781 C1346

C1493

C1472

R1783

C1481

R1331

R1330

R1472

C1334

CAN

R1337

C1336

R1463

C1475

C1470

R1464

C1469

CAN

C1468

CAN

C1467

R1475

R1503

R1502

R1501

C1494

R1473

C1340

C1337

CAN

C1402

C1480

C1313

C1332

R1480

C1404

R1499

R1498

CAN

C1455

C1485

C1495

C1415

CAN

IC103

R1454

C1350

R1317

C1321

R1773

R1771

R1462

CAN

C1331

R1476

C1405

R1465

CAN

C1491

CAN

This is a basic wiring diagram.

- 23 -- 22 -

000

TO CN490 CD GND

LID_SW

FRONT GND

AMOSC

+B(+9V)

AMP GND

TU_L

TU_R

BAND2

MUTE

BAND1

MONO

IC201

C2005

C2002

C2008

R2003

R2014

C2017

C2003

L2002

L2003

R2001

C2001

R2005

R2002

C2015

C2011

C2012

C2014 C2013

C2009

XF211

XF212

Q2002

R2011

R2010

R2113

CT211

C2102

C2103

Q2101

R2101

C2101

C2104

R2104R2106

C2108

C2106

C2107

C2110

IC211

R2117 C2131

Q2201

R2119

R2201

C2209

R2107

C2122

C2120

C2118

C2117

C2802

C2702

C2121

C2119

C2111

D2101

C2801

C2701

C2113

R2205

Q2102

R2206

C2218

R2701

C2019

C2140

C2141

Q2110

R2004

R2801

C2311

C2126

Q2111

R2128

C2207

R2210

D2003

D2002

D2102

C2024

C2142

C2025

C2027

L2005

L2007

CN201

D2004

D2005

R2006

R2131

D2104

C2312

L2006

C2400

C2402

R2105

XF215

T2001

Q2003

C2403

S2001

R2127

R2129

L2204

L2205

R2126

CN203

Q2001

R2007

R2008

R2009

C2020

C2026

T2002

C2112

R2302

R2303

C2115

C2114 R2301

C2021

C2010

R2900

C2022

L2011

C2401

L2010

C2029

D2006

L2001

CN202

R2901

LA1186N

0.01

0.022

15P

100K

1000P

8.2UH

330K

0.01

10K

0.022

15P

0.01 0.022

0.47/50

KTC3195

120K

100

10K

0.01

KRA107M

3.9K

0.01

10/25

10K2.7K

100/10

0.47/50

1/50

0.047

LA1844ML

820K 560P(CH)

KRA107M

22K

100

1000P

33K

0.022

0.033

680P

0.022

4.7/50

22/25

10/25

1SS133

2.2/50

1/50

68K

KRC107M

2.2K

100/10

15K

0.022

0.1

KRC107M

10K

15K

0.022

0.047

KTC3195

330K

0.022

1.0K

SVC211-B--C

SVC342

0.1

22P(CH)

1000P

100P

22UH

AM ANT TERMANL

1SS133

560

56K

MTZJ5.6B

10/25

22UH

39P

56P

10K

450KHz

KTC3199-GR

33P

4.7K

22K

000

120K

000

KTC3195-O

560K

220

330

0.022

1000P

000

4.7/50

22K

18K

4700P

0.1 68K

1000P

100P

1,1/8Z

3.5D

22P

5.25D

0.01

1SS133

FRONT GND

FM OSC

15P

123456789

121110987654321

24 23 22 21 20 19 18 17 16 15 14 13

(H)

(E)

(CH)

(MW)

TP202

TP201

(CH)

TP203

FM 75 OHM

AM LOOP

-1

S2001-2

TO FRONT CN603

2P-9P

0.95 1.63 4.66 0 0 4.66 0 3.98 4.66

0.7

0.8

3.56

4.82

2.11

2.11 4.75

4.9 2.11

2.11 2.09

2.10 0

04.84

4.84 4.83

4.84 2.70

3.38 4.75

4.90 0

03.57

1.55 3.57

3.71

3.55

1.12

1.13

1.16

1.17

2.1

2.16

0.18

2.75

1.53

2.26

1.26

1.53

2.06

2.09

2.07

2.10

4.75

4.90

3.30

3.45

4.70

4.87

4.74

4.90

00.0

4.90 9.0

5.60

4.5

0.7

R OUT L OUT

SCHEMATIC DIAGRAM (TUNER)

This is a basic schematic diagram.

PRODUCT SAFETY NOTICE

Each precaution in this manual should be followed during servicing. Components identified with the IEC symbol !

!! in the parts list and the schematic diagram designated components in which safety can be of

special significance. When replacing a component identified by !

!! , use only the replacement parts designated, or parts with the same ratings of resistance, wattage or voltage that are designated in the parts list

in this manual. Leakage-current or resistance measurements must be made to determine that exposed parts are acceptably insulated from the supply circuit before returning the product to the customer.

Table of contents
