Sanyo CP21AF2X User manual

SERVICE MANUAL Colour Television
Specifications
Power Source . . . . . . . . . AC220-240V, 50Hz/60Hz.
Colour System . . . . . . . . PAL (AV Input: PAL/NTSC4.43/NTSC/PAL-60Hz)
Television System . . . . . . B/G
Channel Coverage . . . . . VHF: E2-E12
UHF: 21-69
CATV: S1-S41, X, Y, Z, Z+1, Z+2
Video IF . . . . . . . . . . . . . . 38.0MHz
Aerial Input Impedance . . 75Ω
Ext. Terminals
Video inputs: Phono jack x 2 (1Vp - p, 75Ω)
S-Video inputs: Din 4 pin x 1 (Separate Y/C signal input)
Audio inputs: Phono jack (L/R) x 2 (436mVrms, more than 40KΩ)
Video monitor outputs: Phono jack x 1 (1Vp - p, 75Ω)
Audio monitor outputs: Phono jack (L/R) x 1 (436mVrms, less than 600Ω)
Headphone jack: Mini stereo jack x 1
Speaker . . . . . . . . . . . . . . 5 cm x 12 cm x 2 pcs.
Sound Output (RMS) . . . . 5W + 5W
Dimensions . . . . . . . . . . . 587.5 (W) x 596.5 (H) x 488.5 (D)mm
Weight . . . . . . . . . . . . . . . approx. 21.3 Kg
Specifications subject to change without notice.
Product Code: 111351417
Original Version
Chassis Series: FC3-A
C2GW
FILE NO.
Model No. CP21AF2X
Service Ref. No. CP21AF2X-00
(Australia)
Give complete “SERVICE REF. NO.” for
parts order or servicing. It is shown on the
rating plate at the cabinet back of the unit.
This T.V. receiver will not work properly in
foreign countries where the television
transmission system and power source dif-
fer from the design specifications. Refer to
the specification table.
0
7
14
85
23
6
9
P▲
P▼
JXMYA
-/--
PP
TV/AV
A B
CH SCAN
TIMER
MENU PIC MODE
SWAP
BASS SURROUND
REFERENCE NO. SM5110420
-
+
P
MENU
TV/AV

Contents
-2-
Safety Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Chassis Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4
IC Block Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-8
Mechanical Disassemblies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Service Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Service Adjustments with replacing Memory IC (IC802) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-13
Service Mode Adjustments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14-15
Service Adjustments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Special Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Purity and Convergence Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Cabinet Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Chassis Electrical Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20-28
Safety Notice
SAFETY PRECAUTIONS
1: An isolation transformer should be connected in the
power line between the receiver and the AC line
when a service is performed on the primary of the
converter transformer of the set.
2: Comply with all caution and safety-related notes pro-
vided on the cabinet back, inside the cabinet, on the
chassis or the picture tube.
3: When replacing a chassis in the cabinet, always be
certain that all the protective devices are installed
properly, such as, control knobs, adjustment covers
or shields, barriers, isolation resistor-capacitor net-
works etc.. Before returning any television to the
customer, the service technician must be sure that
it is completely safe to operate without danger of
electrical shock.
X-RADIATION PRECAUTION
The primary source of X-RADIATION in television receiver is the picture tube. The picture tube is specially con-
structed to limit X-RADIATION emissions. For continued X-RADIATION protection, the replacement tube must be
the same type as the original including suffix letter. Excessive high voltage may produce potentially hazardous X
- RADIATION. To avoid such hazards, the high voltage must be maintained within specified limit. Refer to this ser-
vice manual, high voltage adjustment for specific high voltage limit. If high voltage exceeds specified limits, take
necessary corrective action. Carefully follow the instructions for + B1 volt power supply adjustment, and high volt-
age check to maintain the high voltage within the specified limits.
PRODUCT SAFETY NOTICE
Product safety should be considered when a component replacement is made in any area of a receiver.
Components indicated by mark in the parts list and the schematic diagram designate components in which
safety can be of special significance. It is particularly recommended that only parts designated on the parts list
in this manual be used for component replacement designated by mark . No deviations from resistance
wattage or voltage ratings may be made for replacement items designated by mark .

-3-

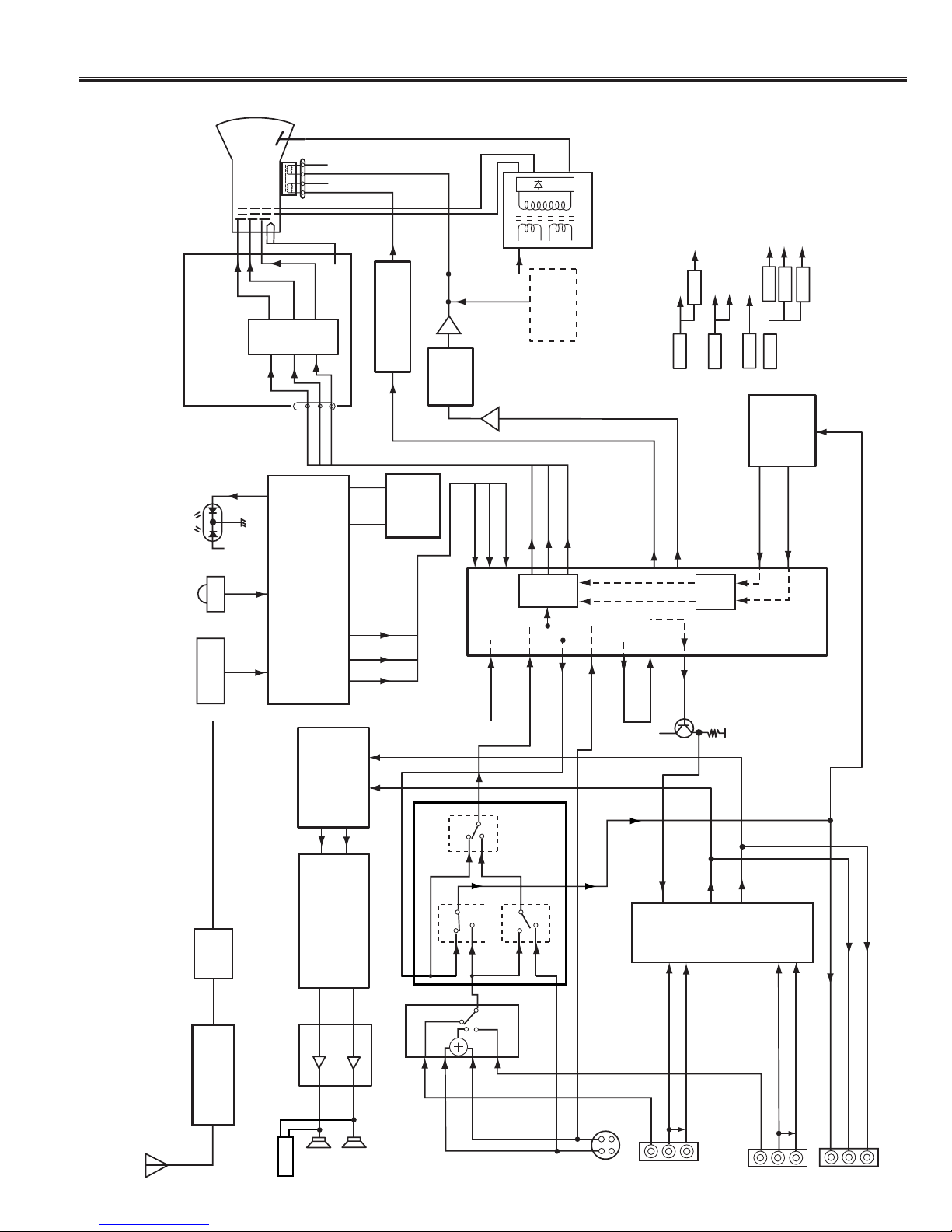

Chassis Block Diagrams
130V
24V
28V
13V 9V
9V
5V
36V
FBT
TUNER
HORIZ. DEF.
VERT. DEF.
MAIN SOUND AMP.
SURROUND. AV SW AUDIO CTL / 1 CHIP IC
CPU / EEPROM
POWER SUPPLY CIRCUIT
A101
TUNER
SAW
FILTER
X161A
IF IN 5/6
IC201
IF/VIDEO/CHROMA
VIDEO/
(S-Y) IN 19
20
21
R-OUT
B-OUT
G-OUT
IC281
SECAM
6
7
R-Y OUT
B-Y OUT
35
34
IC501
VERT. /DEF.
23
27
VERT. OUT
HORIZ. OUT
15
IC801
CPU
T471
FBT
HEATER
PCC
CIRCUIT
Q461-Q462
Q431
H-DRIVE
Q432
H-OUT
HV
L902
DY
CRT UNIT
CRT
T431
H-DRIVE
TRANS.
HV
FOCUS
SCREEN
IC701
TRIPLE VIDEO
OUTPUT AMP.
R
B
G
1
2
3
9 8
7
R
B
G
D1910
LED
A1901A
RC RECEIVER
FRONT
CONTROL
KEYS
SW1901~ SW1906
IC802
EEPROM
4
3
6
5
SDA
SCL
32
12 28
ON-TIMER
RC-IN
KEY-IN
REAR AV1
INPUT TERMINAL
FRONT
AV2
INPUT TERMINAL
VIDEO MONITOR OUT
AUDIO MONITOR OUT(LEFT)
AUDIO MONITOR OUT(RIGHT)
46
44
VIDEO OUT
S-C IN
42
AV1
AV2
VIDEO IN
AUDIO IN (LEFT)
AUDIO IN (RIGHT)
VIDEO IN
AUDIO IN (LEFT)
AUDIO IN (RIGHT)
SP901
SP902
IC001
AUDIO AMP.
7
12
4
2
IC3701
AUDIO CONTROL /
SURROUND
23
8
R
L
2
FM OUT
(TV OUT)
2/5
1/3
L/R, L/L,R/R SW
15
1
30 4
L
R
L-OUT
R-OUT
IC3702
52
54
SIF OUT
SIF IN
K001
HEADPHONE
JACK
IC1201
AUDIO-SW
11
13
15
2
3
4
1/5
L-OUT
R-OUT
IC1501
VIDEO SW
IC1401
VIDEO-SW
9
6
4
1
7
215
1
13
12
14
5
4
3
INT. VIDEO
EXT. VIDEO
VIDEO
MONITOR
OUT
Y
EXT. VIDEO
AV1 VIDEO IN
Y-IN
C-IN
AV2 VIDEO IN
12/14
AV1
AV2
S-TERMINAL
Y- I N C-IN
14
VIDEO IN
1H DL
RGB
MATRIX
19 20 21
OSD R-OUT
OSD B-OUT
OSD G-OUT
OSD R-IN
OSD B-IN
OSD G-IN
14
15
16
MAIN SIGNAL PROCESSING CIRCUIT
(Not equipped)
* Not equipped

-4-
Chassis Block Diagrams

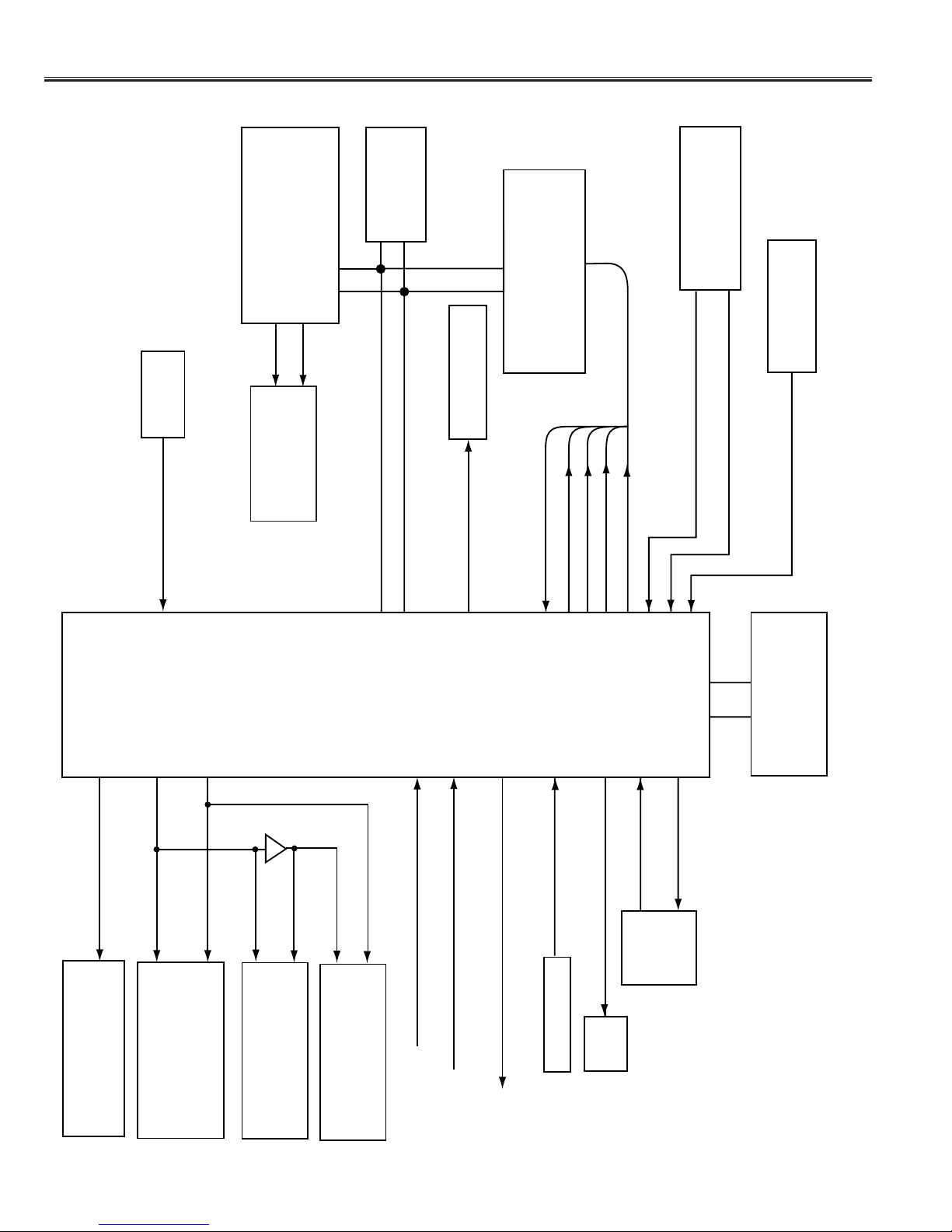

SYSTEM CONTROL
12 KEY SWITCH IN KEY
SWITCH
TV/AV SWITCH (TV=LOW, AV=HIGH)
SCL
2
1
31
SDA
POWER ON/OFF
PHOTO COUPLE
(ON=HIGH, OFF=LOW)
IC201
IF/VIDEO / CHROMA/DEF.
IC801
CPU
QXXAVC044P
22
19 20
21
18
17
27
34
7 6
32
28
23
33
OSD BLK OUT(Active=High)
OSD RED OUT(Active=High)
OSD GREEN OUT(Active=High)
OSD BLUE OUT(Active=High)
DEFLECTION
CIRCUIT
HORIZ. SYNC IN (ACTIVE=LOW)
VERT. SYNC IN (ACTIVE=LOW)
POWER PROTECT IN
(POWER ERROR=LOW)
POWER CIRCUIT
etc.
SCL
SDA
IC802
MEMORY
OSC
X801
32.768KHz CPU OSC OUT
CPU OSC IN
LED
ON-TIMER LED OUT (ON TIMER ON=Low)
RC SIGNAL IN (ACTIVE=HIGH)
RC PRE-AMP.
24
26
IC001
AUDIO AMP.
VIF-M OUTPUT (HIGH=NTSC3.58, LOW=OTHER)
A101
F/S TUNER
AFT SIGNAL INPUT
10
RESET INPUT (ACTIVE=LOW)
13
MUTE OUTPUT (MUTE ON=HIGH) 29
AV1/AV2 SWITCH (AV1=LOW, AV2=HIGH)
IC1201
AUDIO SWITCH
56
SECAM KILLER INPUT (HIGH=SECAM)
IC3701
AUDIO CONTROL
&
SURROUND
13 14
11
10
IC1401
VIDEO SWITCH
8
11 12
IC3702
L/R, L/L, R/R
SWITCH 9
17
10
18
9
IC1501
VIDEO SWITCH
11
3
(AV1=LOW, AV2=HIGH)
(Y =LOW, AV VIDEO=HIGH)
(Y =LOW, AV VIDEO=HIGH)
10
(INT. VIDEO =LOW, EXT. VIDEO=HIGH)

-5-
IC Block Diagrams

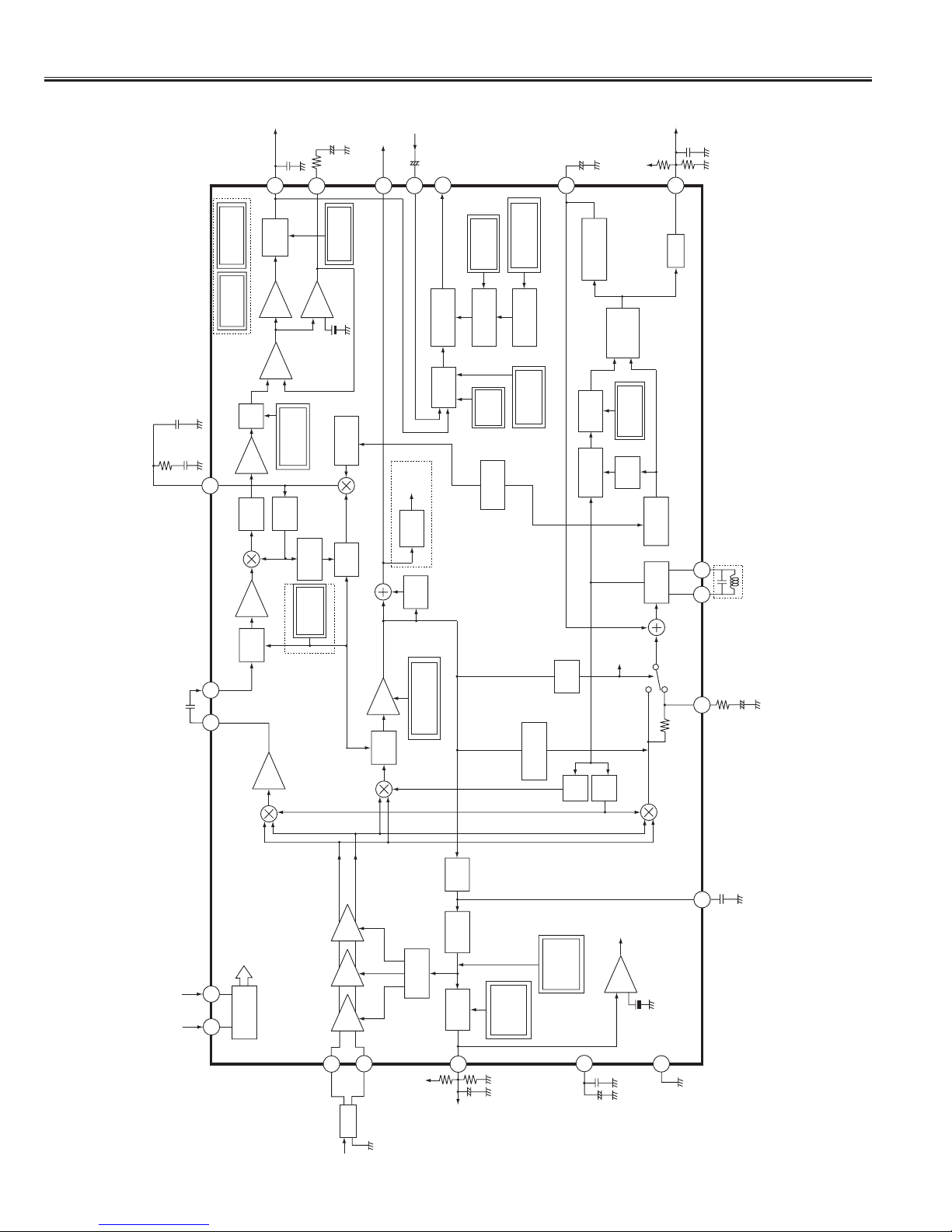

IC201 < IF/Video/Chroma/Def. > LA76818
1
DC
VOL
SW
FM
DET
23456
IF
AGC
RF
AGC
VIF
7
8910
IF
VCC 5V
11 12 13
BUS
PEAKING
CORING
BLACK
STRETCH
SYNC
SEP
14 15
ABL
DC
REST
CLAMP
OSD
CONTRAST
BRIGHT
16 17 18 19 20
CONTRAST
BRIGHT
RGB
MATRIX
OSD
SW
DRIVE/OUT-OFF
VCC
21 22 23
FSC/
SYNC SW
24 25 26 27
VER
RAMP HOR
VCC
H
VCC
VER
C/D
HOR
OUT
PHASE
SHIFTER
AFC2
AFC1
VER
SEP
HOR
C/D
1/256
COLOR
CLAMP
LPF
ALC
+
SW
CLAMP
DEMO
PAL
SW
ACC
BPF
ON/OFF
DELAY
LINE
SW
TRAP
AFT
VIDEO
DET
TRAP
LIM
AMP
BPF
SPLL
BPF
VIDEO
AMP
IF
IDENT VIDEO
SW APC1 TINT
VXO DDS APC2
DC ADS.
CLAMP
VCO
1H DELAY
HOR
VCO
FBP
2829
30
31
32
1H
VCC
33
34
353637
38
39
40
41
42
CLMP
43
4445
CLMP
V/C VCC
5V
46
47
48
4950
A2C
PLL
51
525354
Audio Output
FM Output/Selected
Audio Output
PIF AGC
RF AGC Output
PIF Input1
PIF Input 2
IF Ground
IF Vcc
FM Filter
AFT Output
Bus Data
Bus Clock
ABL
Red Input
Green Input
Blue Input
Fast Blanking Input
RGB Vcc
Red Output
Green Output
Blue Output
fsc output or C
Sync output
Vertical Output
Ramp ALC Filter
Horizontal/BUS Vcc
Horizontal Output
Horizontal AFC Filter
Flyback Pulse Input
VCO IREF
Clock (4MHz) Outupt
CCD Vcc
CCD Filter
CCD/Horizontal Ground
SECAM B-Y Input
(Cb Input)
SECAM R-Y Input
(Cr Input)
Chroma APC2 Filter
Clamp Filter
4.43 MHz Crystal
Chroma APC1 Filter
Selected Video Output
Video/Vertical/BUS Ground
External Video Input(Y-IN)
Video/Vertical Vcc
Internal Video Input (S-C IN)
Black Level Detector
Video Output
VCO Filter
VCO Coil 2
VCO Coil 1
APC Filter
Ext. Audio Input
SIF Output
SIF APC Filter
SIF Input

IC Block Diagrams
-6-

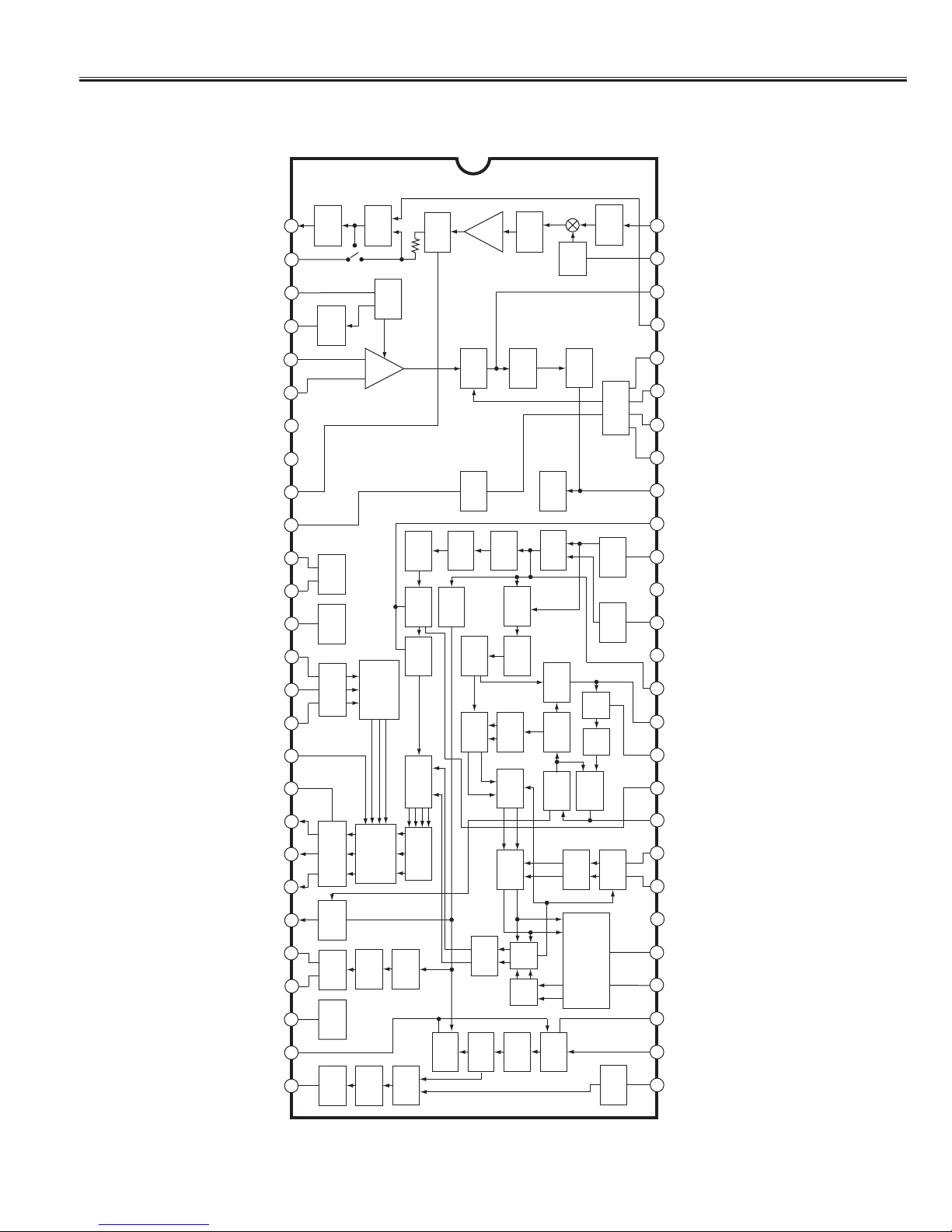

IC201 <IF System Block Diagram> LA76818
11 12
BUS
Interface
SAW
5
6
4
8 7
PIF
In1
PIF
In2
IF In
9V
30K
RF AGC
Out
120K
IF VCC
IF
GND
VIF AMP
VIF 1 VIF 2 VIF 3
IF AGC
Drive
RF
AGC
2ndIF
AGC
RF AGC
Delay
6bit
IF AGC
Def
1bit
+
-
(6 Vcc)/7
To
BUS
3
0.022u PIF
AGC
IF
AGC
Data Clock
APC
Det
+π/4
-π/4
Snd
Det
Amp
52
SIF.Out
Sound
Tra p
Video
Det
Buzz
Canceller
50
APC
Filter
330
0.47u +
PLL Pull-in SW
To
BUS
Lock
Det
Video.Level
3bit
Amp
54
10p
SIF.In
Sound
BPF
VCO.Coil
VCO
COIL1
VCO
COIL2
48 49
VIF
VCO
Chroma
Counter
B/N INV
IF
Ident
OSC
C/D
Amp
SIF. Sys
2bit
pre-
scaller
SIF
VCO
500K
BPF
SIF
APC
Filter
1K
0.01u 1000p
53
LIM
AMP
FM
Det
FM.Level
5bit
Chroma
C/D
APC
Det
500K
Det
To
BUS
Chroma
VCO
VIF
Counter
Reset
Pulse
VCO
Ident
VIF.Sys
2bit
Phase
Detector
A.MUTE
1bit
VOLUME
D/A
VOLUME
Filter
A.SW
1bit
Input
Select VOLUME
(ATT)
-
+
-
+
2.5V
Amp
FM Gain
1bit Deem-TC
1bit
De-
emph
FM Mute
1 bit
2
9
46
51
1
A.Fil.Def
1bit
VOLUME
7bit
47
VCO
Alignment
AFT 10 AFT
Vcc
100K
100K
0.1u
VCO
Filter
+
0.47u
Audio.out
+
Audio in
10u
Video
Out
FM
Filter
+
1u
FM
Out
0.01u
+
to BUS Line
+

-7-
IC Block Diagrams
Thermal
Protection
-
+
AMP
Pump
Up
1
INVERTING INPUT
2
Vcc
3
PUMP UP OUT
4
GND
5
Ver. OUTPUT
6
OUTPUT STAGE Vcc
7
NON INV. INPUT
IC001 < Audio AMP.> TA8200AH
4
5
3
1
2
69
7
10
12
11
8
+
Ripple Filter
AMP.1
IN 1 +
+
+
+
++
IN 1
Pre-GND
400Ω
400Ω20KΩ
20KΩ
+
AMP.2
IN 2 IN 2
+
Vcc
Vcc
OUT 1
PW-GND
OUT 2
+
+
RL
RL
1
IN 3
2
Vcc
3
SW1
4
OUT
5
GND
6
IN1-Y
7
IN1-C
8
SW2
9
IN 2
SW
6dB
(-6dB)
CLAMP
CLAMP
CLAMP
BIAS
6dB
SW
15K
SW1 SW2 OUT
L
H
-
L IN 1
L
H
IN 2
IN 3
IC1401 < VIDEO Switch > MM1188XS
IC501 < Vertical Output > LA78040N

IC Block Diagrams
-8-
VDD VDD VDD
VDD
MIRROR 2
VDD
FLASH-
DIODE
1x
VOC
Inverting
Input
(3x)
1,2,3
9,8,7
3x
VDD
6
5
4
Non-inverting
Input
Vip
MIRROR 1
Vbias
MIRROR 3
LEVEL-
SHIFTER 1 LEVEL-
SHIFTER 2
DIFFERENTIAL
STAGE
CURRENT
SOURCES
GND
THERMAL
PROTECTION
Note: One amplifier shown.
Cathode
Output
(3x)
Vi
IC701 < Triple Video Output Amplifier. > TDA6103Q
IC3701 < Audio Control & Surround > NJW1138MP
10 7
1
6
98
20
22
5
4
NJRC
ORIGINAL
SURROUND
&
SIMULATED
SURROUND
IIC BUS
INTERFACE
AGC
BIAS
TONE
VOL 1
TONE
27
VOL 1
VOL 2
VOL 2
19
18
17
14
13
16
15
21
30
23
24
25
26
12
11
IN 1a
AGC SS-FIL OUT 1a IN 2a TONE
Ha TONE
La OUT 2a
CVA
CVB
CTH
CTL
AUX0
AUX1
SCL
SDA
V+
GND
VREF
OUT 2b
SR-FIL OUT 1b IN 2b TONE
Hb
TONE
Lb
IN 1b

Service Information
-9-
This TV set has a built-in power supply protection circuit.
It is provided to protect the TV set in case of a power supply circuit malfunctions. When something abnormality occurs
during TV reception, the TV set goes to the stand-by mode.
When an abnormality occurs during TV reception, it causes pin 27 of the CPU to go continually Low (less than
0.75V) for about one second. The CPU detects that this has occurred and outputs the signal from pin 31 to switch
off the power supply lines.
Releasing the protective circuit and restoring power supply
To release the protective circuit and restore power supply, turn the power to the TV set OFF and then ON again via
either the main power switch or the ON-OFF button on the remote control. This will work only if the power supply
trouble was temporary. If there is permanent trouble such as a damaged circuit, power cannot be restored and the
circuit will have to be repaired.
■Protection Circuit
L
R
AUDIO
AV1 INPUT
VIDEO
(MONO)
S-VIDEO
MONITOR
OUT
ANT. 75Ω
Mechanical Disassemblies
CABINET BACK REMOVAL
1. Refer to Figure 1, remove 8 screws.
2. Pull off cabinet back and remove.
Figure 1. Cabinet Back Removal
CHASSIS REMOVAL
1. Remove cabinet back.
2. Discharge the picture tube anode (2nd anode lead) to the dag
coating (picture tube grounding lead).
3. Disconnect Degaussing coil socket (KE), Picture tube socket,
Deflection yoke connector (KDY), Speaker connectors (K002
and K003), and 2nd anode lead.
4. Remove chassis completely by sliding it straight back.
PICTURE TUBE REMOVAL
CAUTION: Do not disturb the deflection yoke or magnet
assembly on the picture tube neck. Care must be taken
to keep these assemblies intact, unless picture tube is
being replaced . Discharge the picture tube to the coat-
ing before handling the tube.
1. Remove chassis, referring to Chassis Removal instructions.
2. Place cabinet’s front face down on the soft surface.
3. Remove the screw on each corner of the picture tube and
GENTLY lift the picture tube out of the cabinet.
4. Install a replacement picture tube in reverse order.
Properly install the degaussing coil and picture tube ground
ing lead on the picture tube. See Figure 2.
Note: If the Picture Tube is being replaced, mount the
Degaussing Coil on the picture tube. See Figure 2.
DEGAUSSING
COIL DEGAUSSING
COIL HOLDER
DEGAUSSING
COIL SOCKET To CRT
unit ground
PICTURE TUBE
GROUND LEAD
Figure 2.
Picture Tube Removal

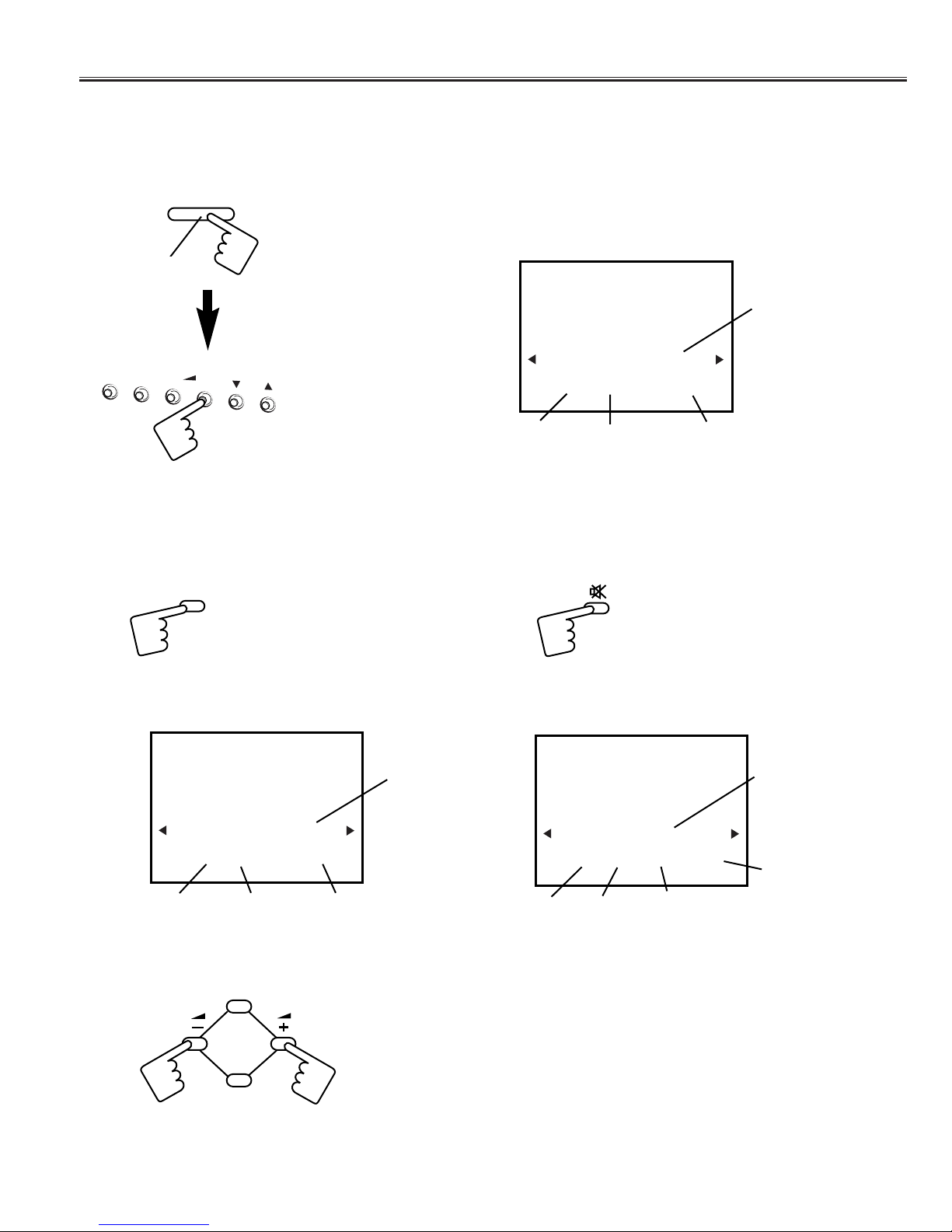

[1] Initializing Procedure
1. Put a new memory IC.
2. Tu rn on the TV set.
3. Press and hold the TV/AV Selector on the TV set for more than 2 seconds. The following picture appears on the
screen.
4. Press the PROGRAMME UP on the TV set while the above On-Screen Display is still on the screen. The following
picture appears on the screen.
This completes the initialization of memory IC.
Following shows the initialized contents of memory data by this procedure.
- Plug & play : No executed
- Inhibit data : Cancelled
- Ch skip data : Cancelled
- Sound volume data : 10/63 steps.
- Volume Lock : OFF
- Tuning Lock : OFF
- Colour system : AUTO
1
CLR
-
+
P
MENU
TV/AV
-10-
Service Adjustments with Replacing Memory IC (IC802)
Note: The CPU (IC801) and memory IC (IC802) store the service adjustments data and controls data for each
circuit. When the Memory IC(IC802) is replaced, some of the service adjustments should be readjusted to
obtain the best performance. The necessary service adjustments are carried out by using the RC handset.
Please set up the TV set with following steps [1] to [2].
Press and hold for more than 2 seconds
-
+
P
MENU
TV/AV

-11-
Service Adjustments with Replacing Memory IC(IC802)
[2] Required Service Adjustments
Readjust the following service adjustments.

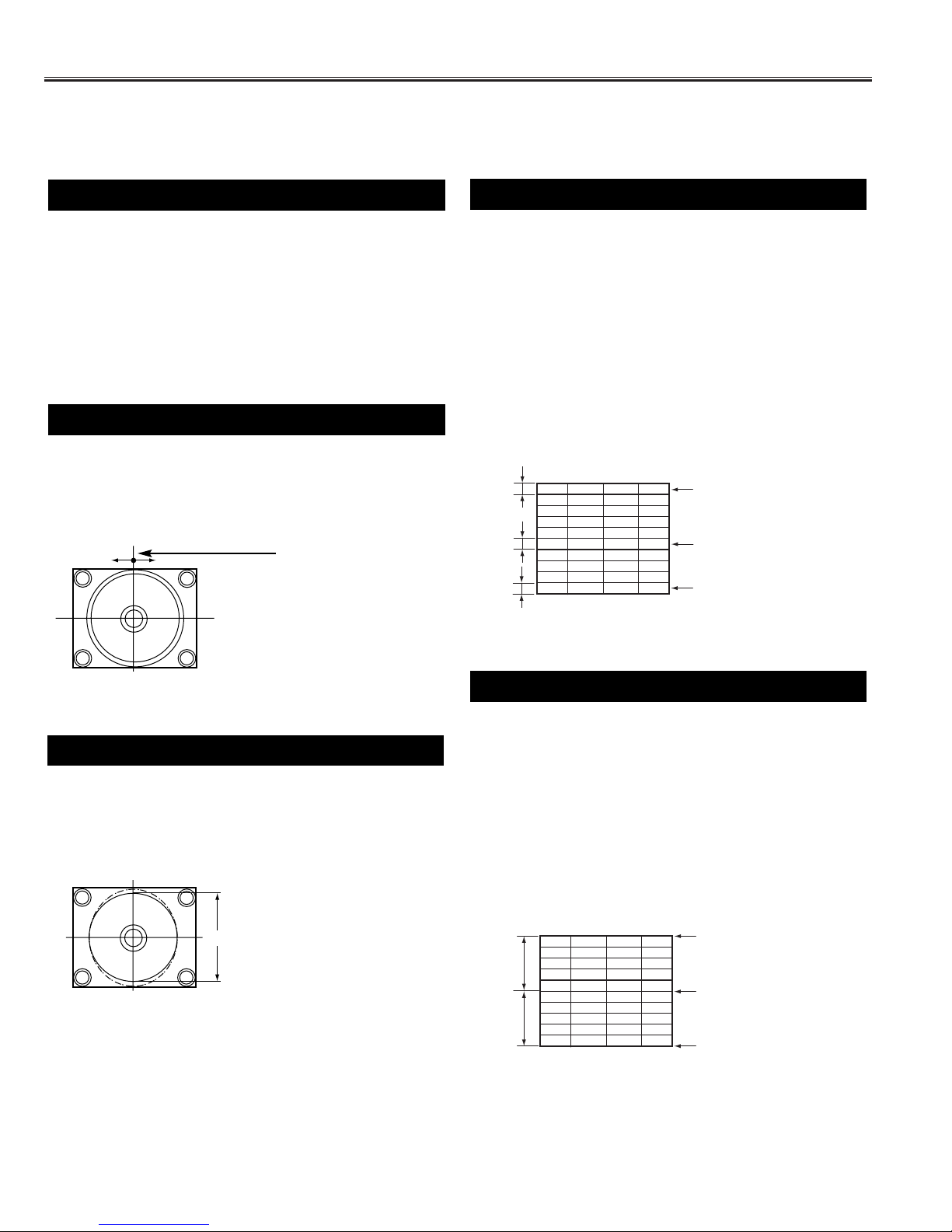

Adjustments Service Mode No. & Item
RF AGC Item 01, RF AGC
Horizontal centre Item 02, H-PHA
Ver tical size Item 04, V-SIZ
Ver tical-S correction Item 05, V-SCO
Ver tical linearity Item 06, V-LIN
Gray scale Item 14-17, 19-21
Further adjustment please refer to page 14 and 15.
Following table shows the initial values which have been stored in the CPU ROM, and items for the service adjustments.
Service mode adjustments table in CPU ROM
NO. ITEM DATA
RANGE INITIAL
DATA DESCRIPTION
01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
19
20
RF AGC Adj.RF AGC 00~63 21
H-Phase (H-Centering) Adj. (50Hz)H-PHA 00~31 9
V-Position (V-Centering) Adj. (50Hz) Fixed.V-POS 00~63 40
V-Size Adj. (50Hz)V-SIZ 00~127 47
V-S Correction (50Hz). Strech or shrink at center of screen
V-SCO 00~31 13
V-Linearity Adj. (50Hz)
V-LIN 00~31 18
H-Centering Adj. (60Hz)H-P60 -16~+15 +4
V-Size Adj. (60Hz)
V-S60 -64~+32 -1
OSD H-Position Adj.
OSDHP 00~255 26
OSD Contrast Adj.OSDC 00~127 40
Correction of the V-size accompanying brightness change. V-SCP 00~07 7
Correction of the H-size accompanying brightness change.H-SCP 00~07 7
Sub Bias Adj.SBIAS 00~127 105
Red Bias Adj.RBIAS 00~255 0
Green Bias Adj.GBIAS 00~255 0
Blue Bias Adj.BBIAS 00~255 0
Red Drive Adj.RDRIV 00~127 64
Green Drive Adj.GDRIV 00~15 8
Blue Drive Adj.BDRIV 00~127 64
1-LINE APPEAR
21 DRV White Balance Adj.
22 B-YD 00~15 9B-Y DC level Adj.. Colour compensation (PAL)
23 R-YD 00~15 9R-Y DC level Adj.. Colour compensation (PAL)
24 B-YDN -16~+15 0NTSC B-Y DC level Adj. (Difference value from PAL.)
25 R-YDN -16~+15 0NTSC R-Y DC level Adj. (Difference value from PAL.)
26 SBDC -16~+15 - 8 SECAM B-Y DC level Adj. (Difference value from PAL.)
27 SRDC -16~+15 - 5 SECAM R-Y DC level Adj. (Difference value from PAL.)
28 G-YA 0,1 0G-Y angle Adj. (Colour Phase G-Y Demodulation 0=240 degree, 1=253 degree)
29 RBGB 00~15 8 R-Y, B-Y Gain Blance Adj. (Do not change.)
30 RBAG 00~15 8R-Y, B-Y Angle Adj. (Do not change.)
31 G-YAN 0,1 0NTSC G-Y Angle Adj. (Difference value from PAL.)
32 RBGBN -16~+15 0NTSC R-Y, B-Y Gain Balance Adj. (Difference value from PAL.)
33 RBAGN -16~+15 0NTSC G-Y, B-Y Angle Adj. (Difference value from PAL)
34 COGV 00~03 0Coring Adj. (Base colour)
35 BLKS 00~03 3 Black stretch effective point selection, 0=OFF, 1-3=FREE
36 BLKG 00~03 3Setting of Black stretch gain. 0=OFF, 1-3=FREE
37 BRTA 0,1 0 On and off of ABL. 0=ON, 1=OFF
38 BRST 0,1 0ABL Effect Limit SW. 0=With Limitter, 1=Without Limitter
39 BRTH 00~07 0ABL Threshold Pint.
(Do not change)
40
41
42
43
44
White peak limitter. 0=OFF, 1-3=With LimitterWPL 00~03 2
Y Gamma setting. 0=OFF, 3=Max (Do not change)YGAM 00~03 0
Switching of Pre-shoot and Over shoot in AV mode. 0=Pre, 1=Over
PORW 0,1 0
Pre-shoot/Over shoot Adj. in AV mode.PORS 00~03 2
RF Coring Gain Adj.
RFCO 00~03 0
OBJECT
IC201
IC201
IC201
IC201
IC201
IC201
IC201
IC201
IC201
IC201
IC201
IC201
IC201
IC201
IC201
IC201
IC201
IC201
IC201
IC201
IC201
IC201
IC201
IC201
IC201
IC201
IC201
IC201
IC201
IC201
IC201
IC201
IC201
IC201
IC201
IC201
IC201
IC201
IC201
IC201
IC201
IC801

-12-
Service Adjustments with Replacing Memory IC (IC802)
NO. ITEM DATA
RANGE
INITIAL
DATA DESCRIPTION
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
Switching of RF Pre-shoot and Over shoot. 0=Pre, 1=Over
PORWN 0,1 0
RF Pre-shoot/Over shoot Gain Adj.
PORSN 00~03 0
RF Tint Adj.
TINT -16~+15 0
NTSC 4.43 Tint Adj.
TINT 443 -16~+15 -12
RF Sharpness Adj.SHRF -32~+31 0
OSD TEXT Contrast.TEXTC -128~+127 0
Volume Control Adj.VOLUM 00~255 127
De emphasis TC. 0=50µs (PAL), 1=75µs (NTSC)DEEM 00~01 0
VIF System Switch. 00=38MH, 01=38.9MH, 02=45.75MH, 03=58.75MHVIFSW 00~03 0
SIF System Switch.SIFSW 00~03 1
Video Level Adj. (36-pin Detect Out) (Fixed)V-LVL 00~07 4
FM Level Adj.FMLVL 00~31 16
Over Modulation Switch. 0=OFF, 1=ON (With Limitter)IFOM-S 0,1 0
FM Out or Monitor Out Switch. 2-pin Out, 0=FM OUT, 1=MONITOR OUTIFMN-S 0,1 0
IFTRPS
60 IFMLVL Modulation Level
61
H-FRQ 00~63 34 Correction of Horizontal Frequency. (Fixed)
62
FBTS 0,1 0Switching of H-blanking and Flyback Pulse. 0=INT. H-BLK,1=INT. & EXT.H-BLK
63
COOP 00~07 2Setting of Colour Killer Level. 0= -30db, 7= -40db
64
HBLKL 00~07 7H-Blanking Control. (Left)
65
HBLKR 00~07 3H-Blanking Control. (Right)
66
AFCRF 0,1 0RF AFC Gain & Gate Adj. 0=AUTO, 1=COMPULSION
67
VSURF 0,1 0RF V-Sync. Separation Sensibirity. 0=NORMAL, 1=HIGH
68
CDMRF 00~07 0
RF V-Countdown Circuit Adj. 50/60Hz Jage, Sync. Trigger 0=AUTO, 1=Ext. Trigger
69
AFCAV 0,1 0AV AFC Gain & Gate Adj. (AV for item 67)
70
VSUAV 0,1 0AV V-Sync. Separation Adj. (AV for item 68)
71
CDMAV 00~07 0AV V-Countdown Circuit Adj. (AV for item 69)
72
HLVDRF 0,1 1
Incorrect operation prevention at the time of a special signal (RF mode), 0=Fix, 1=Variable
73
HLVDAV 0,1 1
Incorrecr operation prevention at the time of a special signal (AV mode), 0=Fix, 1=Variable
74
VCO-SW 0,1 04.43Mhz Coring Adj. 0=for +, 1=for Minu
75
VCO-ADJ 00~03 3C-VCO Adj.
76
CROSS-BW 00~03 0Pattern Output. 00=Normal, 01=Black, 02=White, 03=Cross hatch
77
AVNCON 00~127 64 Contrast Adj. of the blue back in AV mode.
78
AVNBRI 00~127 64 Brightness Adj. of the blue back in AV mode.
0,1 1SIF Trap Switch. 0=OFF, 1=ON
00~255 136
79
POMT 00~127 25 Picture Mute at the time of power ON.
80
CHMT 00~31 10 Picture Mute at the time of channel change.
81
SYST 00~15 5Selection of the number of times of a Colour system judgment.
82
S-STE 0,1 1AV Stereo/Mono Option. 0=Mono, 1=AV Stereo
83
VOLTBL 0~1 0Volume Curve Table. 0=B-Curve, 1=C-Curve
84
MPP
BASS
0,1
0,1
1Multi P-P Option. 0=Without Multi P-P 1=With Multi P-P
A-AGC 0~2
CPU Debug Date.
371 R71 0~255 0CPU Debug Date.
372 R72 0~255 0CPU Debug Date.
304 R04 0~255
CPU Debug Date.
303 R03 0~255
CPU Debug Date.
SUB-BT 0~2
0AGC Setting of AUDIO IC. 0=OFF, 1=ON(540mV), 2=ON(300mV)
ASTAT E 0,1
Sub Bass Treble Setting of AUDIO IC. 0= -3db, 1=0db, 2=+3db
SURROUND 0,1
Audio Status Option. 0=Without , 1=With Audio Status
Surround Option. 0=Without Surround, 1=With Surround
300 R00 0~255
301 R01 0~255
CPU Debug Date.
302 R02 0~255
CPU Debug Date.
1
0
0
0
0
0
0
85
86
87
88
89
90
TRAPT Trap Frequency Adj.
00~07 4
OBJECT
IC201
IC201
IC201
IC201
IC201
IC201
IC201
IC201
IC201
IC201
IC201
IC201
IC201
IC201
IC201
IC201
IC201
IC201
IC201
IC201
IC201
IC201
IC201
IC201
IC201
IC201
IC201
IC201
IC201
IC201
IC201
IC201
IC201
IC201
IC201
CPU
CPU
CPU
CPU
CPU
CPU
CPU
IC3701
IC3701
CPU
CPU
CPU
CPU
CPU
CPU
CPU
CPU
CPU
CPU
CPU
1Bass Expander Option. 0=Without Bass Expander, 1=With Bass Expander
1
Notes: The initial value that the CPU writes down the CPU ROM data to the memory when replaced the memory IC.
TV set may not operate correctly with this initial value. It is required to set up the fine adjustment for service
adjustments described in the above.
0

-13-
Service Adjustments with Replacing Memory IC(IC802)
TIMER
P▲
P▼
ADDRESS
DRV
SI. 00100101S2.11111000
DATA
B 64
21 R 64
ADDRESS
V-SCO
SI. 00100101S2.11111000
DATA
9
05
ADDRESS
RF AGC
SI. 00100101S2.11111000
DATA
30
01
[Entering to Service Mode]
1. Press and hold the MENU button on the Remote Control and press the VOLUME (+) button on the TV set.
Following setting items appears on the screen.
Display for [V-SCO] V-S Correction adjustment
Read Status
Item No. Item Data value
Display for [RF AGC] RF AGC adjustment
Read Status
Item No. Item Data value
Data value for Red
Display for [DRV] White balance adjustment
Read Status
Item No. Item
Data value for Blue
To return to normal TV mode, press the MENU button on the TV set or the remote control handset.
2. Select item by pressing the TIMER (Item No. UP) or SOUND MUTE (Item No. DOWN) button on the remote control
handset.
3. Adjust data value by pressing the VOLUME + or VOLUME - button on the remote control handset.
Example
MENU
MENU
01➔02➔03➔04➔05......90... ...90➔89➔88➔87➔86......01
-
+
P
MENU
TV/AV

-14-
Service Mode Adjustments
Vertical size
Following adjustments should be carried out when the memory IC is replaced. How to enter the service mode and
adjust values, please refer to “ Entering to Service mode” on page 13.
NOTE: Do not attempt this adjustment with weak signal.
(1) Tune the receiver to most clearest (or strongest) VHF
station in your area. Set the brightness and contrast
controls to maximum. Set the colour control to
minimum.
(2) Select [RF AGC] in the service mode.
(3) Change value until the snow noise just disappears.
(4) Exit from service mode.
Item 01 [RF AGC] AGC
(1) Receive a monochrome circular pattern.
(2) Set the brightness and contrast to normal.
(3) Select [H-PHA] in the service mode.
(4) Change value to be optimum horizontal centre position.
(5) Exit from service mode.
Item 02 [H-PHA] HORIZONTAL CENTRE
Horizontal centre
(1) Receive a monochrome circular pattern.
(2) Set the brightness and contrast to maximum.
(3) Select [V-SIZ] in the service mode.
(4) Change value to be optimum vertical size.
(5) Exit from service mode.
Item 04 [V-SIZ] VERTICAL SIZE
(1) Receive a crosshatch pattern.
(2) Set the lever of SW501 (Vertical Center SW) as the
position of a center.
(3) Select a picture mode of NATURAL by pressing the
PICTURE MODE button.
(4) Select [V-SCO] in the service mode.
(5) Adjust Vertical S-letter Correction so that the difference
of “c”, “d” and “e” becomes less than 2 mm by pressing
the VOLUME + or - button.
(6) Confirm Vertical Linearity and adjust Vertical Center
then Vertical Size.
(7) Exit from service mode.
Item 05 [V-SCO] V-S CORRECTION
cUpper
Center
Bottom
d
e
(1) Receive a crosshatch pattern.
(2) Set the lever of SW501 (Vertical Center SW) as the
position of a center.
(3) Select a picture mode of NATURAL by pressing the
PICTURE MODE button.
(4) Select [V-LIN] in the service mode.
(5) Adjust Vertical Linearity so that the difference of “a” and
“b” becomes less than 3mm by pressing VOLUME + or
- button.
(6) Exit from service mode.
Item 06 [V-LIN] VERTICAL LINEARITY
a
b
Upper
Center
Bottom

-15-
1
C515
R487
KQ
T471-H5
T471-H1
KDY-1
JP409
JP407
JP403
JP405
C527
C514
R488
J410
R477A
C486
R492
C491
D485
R475
R485
D
4
R484
C420
C420
-
H3
D438
KDY
R441
JP411
R477
JP408
JP404
T471-H2
J216
C471
JW24
R483
R481
R481A
T471-H7
T471-H11
T471-H6
T471-H4
T471-H8
T471-H10
T471
FBT.
T471A
JP483
L442
R442
FC3A CHASSIS
(1) Receive the monochrome circular pattern.
(2) Set the brightness and colour to normal, contrast to maximum.
(3) Enter to the service mode.
(4) Set each value of Item-14 RBIAS, 15 GBIAS, 16 BBIAS, 17 RDRIV and 19 BDRIV mode to 64.
(5) Select Item-20 mode to be one horizontal scanning line and turn the screen volume on the FBT to obtain just visible
one coloured line.
(6) Press the 1 (Red Bias
- ), 2 (Red Bias +), 5 (Green Bias - ), 6 (Green Bias +), 9 (Blue Bias - )or 0 (Blue Bias +)
button to adjust the brightness of each colour until a dim white line produced. Please see the control button alloca-
tions in this mode.
(7) Select Item-21 DRV mode to enter the white balance adjusting mode.
(8) Press the 3 (Red Drive
- ), 4 (Red Drive +), -/-- (Blue Drive - )or RECALL (Blue Drive +) button alternately to
produce normal black and white picture.
(9) Exit from the service mode.
(10) Check for proper grey scale tracking at all brightness levels.
NOTE: If the grey scale adjustment is made after picture tube replacement, check the high voltage.
Items 14-17, 19-21 GREY SCALE
Service Mode Adjustments
MAIN BOARD
SCREEN VR
(Under side)
0
7
14
85
23
6
9
P▲
P▼
JXMYA
-/--
PP
TV/AV
A B
CH SCAN
TIMER
MENU PIC MODE
SWAP
BASS SURROUND
Red Bias -
Red Bias +
Green Bias
-
Blue Bias +
Red Drive +
Blue Drive
-
Blue Drive +
Green Bias +
Blue Bias -
Red Drive -
Press the MENU
button to exit
from service
mode.

JP463
Q461
Q461A
Q461-H2
C524
C521
C515
C437
C487
JP412
IC5
0
IC501-H2
T471-
H
T471-H1
KDY-6
KDY-3KDY-1
R355
R540
C540
J503
JW1
R473
D4
6
R467
D462 C467
R469
D466
R464
C470
C52
7
R525
R516
C468
C464
R465
R462
D469
R488
D485
C423-H2 C423-H3
C423
C423-H1 C420-H1
C420
C420-H3
C420-H2
C437A
R422
R424
D438
C
441-H2
C
441-H3
C
R435
R423
KDY
C441-H1
R441
D461
R466
R461
C463
JP410
JP411
T471-H2
T471-H4
T471
FBT.
L442-H1
L442-H2
L442
L441-H2
L441-H1
L441-H3
L441
D441
R442
JP436
C423A
J540
R514
1
JW15
4
R518
5
R487
KQ
IC501-H3
0
1-H2 IC501-H1
T471-H5
JP409
JP407
JP403
JP405
D512
J501
J502
R512
C518
C527
R519
C520
R515
R522
C510
C517
R516
C514
R511
R510
J028
J029
D476
R488
J410
R477A
C486
R492
C491
D485
R475
R485
R474
C449
D468
D467
D448
C469
D486
R486
R484
R477
JP408
JP404
J216
C471
JW24
R483
R481
R481A
T471-H7
T471-H11
T471-H6
T471-H8
T471-H10
T471A
IC501
IC501A
JP483
J504
FC3A CHASSIS
VERT.OUT
E
E
E
E
9
10
9
10
E
JW17
JW16
C425A
C424A
Q613-H4
C651-H1 C651-H2
C655
D651
T611-H16
C465
R672
D671
R671
J607
Q
J605
VR651
R662
R661
D661
R663
R664
J611
R657
Q681
R655
R652
6
65
J604
J413
R434
C432
T4
3
C434
R431
Q431
R433
C425
C424
L432
D439
T4
3
L652
L651
C651
D652
C652
R644
R
643
R631
R628
R624
R623
R622
Q612
Q611
L615
D617
D616
C644
C613
L616 L613
C615
D611
C618A
C617
C616
L611
L612
R629
T611
CONVERTER TRANS.
T611-H8
T611-H7
T611-H6
T611-H5
T611-H3
T611-H17
T611-H13
T611-H12
T611-H11
C629
J8
2
J8
2
J8
2
Q613-H2
OUT
Q613A
R445
L462-H
3
L462
L462-H2
Q652
J612
C618
+B
TP-B
!
-16-
Service Adjustments
(1) Connect a DC meter to TP-B (L631) and the ground.
(2) Tune the receiver to an active channel and synchro-
nized picture. Select NATURAL picture mode by press-
ing the PICTURE MODE button on the remote control.
(3) Adjust B-voltage to become 130 ± 1V DC by using
VR651.
B-VOLTAGE SUPPLY CHECKING
Note: +B (+130V) Voltage Check and Grayscale Adjustment
must be completed before attempting High Voltage Check.
(1) Connect high voltage voltmeter negative lead to
ground, and connect + lead to anode of picture tube.
(2) Tune receiver to an active channel and confirm TV is
operating properly.
(3) Maximize the beam current by adjusting the contrast
and brightness controls to maximum. Confirm high
volt age is within 24 KV and 26 KV at maximum
beam current.
(4) Eliminate the beam current by adjusting the contrast
and brightness controls to minimum. Confirm high
voltage does not exceed 26.5 KV at zero beam current.
If reading is not within range, check horizontal circuit.
No high-voltage adjustment is provided on this chassis.
HIGH VOLTAGE CHECK
(1) Receive a monochrome circular pattern.
(2) Set the brightness to normal and contrast to maximum.
(3) Adjust the focus control on the F.B.T. for the best focus
on the screen centre.
FOCUS ADJUSTMENT
TP-B
Focus VR (Upper size)
MAIN BOARD
(1) Receive a monochrome circular pattern.
(2) Set the brightness and contrast to maximum.
(3) Adjust the vertical centre of the picture with SW501.
VERTICAL CENTRE
Ver tical centre
SW501
VR651
(1) Receive a monochrome circular pattern.
(2) Set the brightness and contrast to maximum.
(3) If the picture is too wide, or narrow, cut or short “JP436”
on the main unit. When “JP436”is shorted, the horizon-
tal width increase. When “JP436”is cut, the horizontal
width decrease.
Important note:
When “JP436”is cut, in order to prevent a spark, leave the
opening between cutting portions 5mm or more.
HORIZ. WIDTH ADJUSTMENT
JP436
1
E
E
JW15
C524
C521
R518
C515
R487
KQ
J024
J515
J516
IC501-H3
IC501-H2 IC501-H1
-
H1
KDY-6
KDY-3KDY-1
L1501
J018
D1032
JP409
JP407
JP405
J1504
J409
J1205
J1206
J1204
J1207
J1208
Q540
R540
J1501
D512
J501
J502
R512
C518
C527
R519
C520
R515
R522
SW501
R501
C510
C517
D501
R525
R516
C514
R511
R510
J028
J029
D476
R488
J410
R477A
C486
R492
C491
D485
R475
R485
R474
C449
D468
D467
D448
C469
D486
R486
R484
JP408
JP404
C471
JW24
R483
R481
R481A
T471-H10
1
.
1
230
J1203
30
J021
D1402 D1401
C1082
Q1402
J025
IC1401
VIDEO SW
J026
J209
C1401
JP1502
K1004
IC501
IC501A
JP483
J504
JP501 JW31
FC3A CHASSIS
JW36
VERT.OUT
(SOLDER
SIDE)
IC1501
VIDEO SW
V-CENTER
more than 5mm
JP436

-17-
Special Function
Once TUNING LOCK is switched on, further channel tuning
(Pre-set) is not possible. The Channel Swapping function also
is not possible.
(2) Tuning Lock setting
The following special functions can be set up on this TV
set.
With this function, a maximum sound volume limit can be set at
any level.
(3) Music Mode setting
When Music Mode is ON, Programme position from “91” to “99”
and “0” are set Music Mode. Only sound is provided and any
picture is not on the screen under Music Mode.
Set AV-START to ON and every time the TV set is switched on,
AV position will be the initial programme position.
(4) AV Start setting
TUNING LOCKED
AV
MUSIC Tu r ns black
screen
SOUND BASS ON
18
(1) Volume Lock setting
(5) Language selection for the on screen display
Either Thai or English can be selected as the language of the
screen display.
1To enter into the special function setting mode, press and
hold the MENU button of the remote control, then press the
PROGRAMME DOWN button on the TV set.
2Select an item of the special functions by pressing the PROGRAMME UP or DOWN button on the remote control
or the TV set.
3Set the selected special function “ ON “ by pressing the VOLUME + or - button. To cancel, set to “ OFF”.
How to set the special function:
Note: When making the VOLUME LOCK setting, set the
desired maximum sound volume by pressing the VOLUME + or
- button before entering Special Function setting mode.
4Press the MENU button of the remote control to return to
the normal TV mode.
P▲
P▼
P▲
P▼
MENU
OFF
OFF
OFF
OFF
TUNING LOCK
AV START
VOLUME LOCK
MUSIC MODE
SELECT ADJUST
M
EXIT
OFF
ON
OFF
OFF
TUNING LOCK
AV START
VOLUME LOCK
MUSIC MODE
SELECT ADJUST
M
EXIT
LANG / ENGLISH
To select language:
1) Select LANG/ by pressing the PRGRAMME UP or
DOWN button.
2) Select either Thai or English by pressing the VOLUME + or
- button.
LANG / ENGLISH
TUNING LOCK
AV START
VOLUME LOCK
MUSIC MODE
OFF
OFF
OFF
OFF
SELECT ADJUST
M
EXIT
LANG / ENGLISH
MENU
-
+
P

-18-
Purity and Convergence Adjustment
RED
BLUE
Adjust tabs together to
superimpose red and
blue horizontal line.
Figure- 2 BLUE AND RED LINE MOVEMENT Figure- 3 BLUE/RED AND GREEN MOVEMENT
Adjust tabs together to
superimpose red/blue
and green horizontal
line.
Adjust tabs angle to superimpose
blue and red vertical line.
Adjust tabs angle to superimpose
red/blue and green vertical line.
GREEN
BLUE / RED
CAUTION: The Convergence and Purity adjustments have been made at the factory. Readjustment
should be made only after picture tube or deflection yoke replacement, following the steps below:
PURITY ADJUSTMENT
1. Demagnetize the picture tube and receiver using an external
degaussing coil. When replacing picture tube or deflection
yoke, mount deflection yoke and purity-convergence magnets
assembly properly, see figures 1 and 4.
2. Turn Red and Blue guns off and provide only Green raster.
Rotate Screen control to fully counterclockwise. Rotate Red
and Blue Bias controls fully counterclockwise. Slowly rotate
Green Bias control clockwise to produce Green raster.
3. Loosen the screw holding the Deflection Yoke and remove the
3 Rubber Wedges, and slide the Deflection Yoke fully forward.
4. Rotate and spread the Tabs of the two Purity Magnets to cen-
tre the vertical green belt in the picture screen. The Purity
Magnets are also adjusted to obtain vertical centring of the
raster.
5. Slowly slide the Deflection Yoke backward until a uniform
green screen is obtained.
6. Check the purity of the red and blue screens for uniformity,
turn off other colours to check this (use bias controls).
Readjust the yoke position if necessary until all screens are
pure.
7. Adjust each Bias control and screen control to obtain white
raster. Refer to Gray Scale Adjustment. If part of the picture
screen is coloured, adjust the Deflection Yoke position forward
or backward slightly.
8. Tighten the mounting screw of the Deflection Yoke. Adjust
Convergence next.
CENTRE CONVERGENCE ADJUSTMENT
1. Use a dot crosshatch pattern signal.
2. Turn Red and Blue guns on and turn off Green gun. Adjust the
angle between the Tabs of the Four Pole Magnet 1 and 2, and
superimpose the Red and Blue vertical lines in the centre area
of the picture screen. Refer to figure 2.
3. Keeping the mutual angle of the Tabs of the Four Pole Magnet
turn them together to superimpose the Blue and Red horizon-
tal lines in the centre area of the picture screen. Refer to fig-
ure 2.
4. Turn Green gun on and adjust Six Pole Magnet 3 and 4 that
the Green line superimposed on the Red/Blue lines.
This is the same procedure used in steps 2 and 3.
Refer to figure 3.
OUTER AREA CONVERGENCE ADJUSTMENT
Slightly loosen the screw holding the Deflection Yoke. Adjust the
Deflection Yoke to converge the detail in the outer area (left side
and right side) of the picture screen by orbital movement of the
front of the Yoke, then secure the Deflection Yoke in appropriate
position by putting the wedges as illustrated. Tighten screw hold-
ing the Deflection Yoke.
RUBBER
WEDGE
DEFLECTION YOKE
DEFLECTION YOKE
MOUNTING SCREW
Figure 4. Deflection Yoke Movement
SIX-POLE
MAGNET TABS FOUR-POLE
MAGNET TABS
ANGLE
OF TABS
PURITY
MAGNET
TABS
4
3
2
1
FOCUS GAP
(G3-G4)
Figure 1. Purity and Convergence Magnets
MAGNET TABS
ANGLE OF MAGNET TABS
Figure 5. Adjusting Magnet
Note: The form of deflection yoke changes with models.

-19-
Cabinet Parts List C2GW
Note: Parts order must contain Service Ref. No., Part No., and descriptions.
0
7
14
85
23
6
9
P▲
P▼
JXMYA
-/--
PP
TV/AV
A B
CH SCAN
TIMER
MENU PIC MODE
SWAP
BASS SURROUND
11
12
Key No. Part No. Description
9
-
+
P
MENU
TV/AV
4-a 532
1 610 286 4977 ASSY,BUTTON POWER-C2GA
610 286 7770 SPRING COIL-C2GA
2 610 286 5097 DEC IND-C2GA
3 610 286 4984 ASSY,BUTTON UNITED-C2GA
4 610 292 3056 ASSY,CABINET FRONT-C2GS
4-a 610 292 3117 CABINET FRONT-C2GS
4-b 610 286 5080 DOOR-C2GA
5 610 284 7741 DOOR COVER-C2SA
6 610 288 4791 DEC SHEET DOOR-C2GA
7 645 041 7269 BADGE,SANYO
8 610 301 9031 CABINET BACK-C2GW
9 610 302 0730 LABEL RATING-C2GW
10 610 256 7670 HOLDER AC CORD-SGP-D4VA
11 645 054 3579 ASSY,REMOCON JXMYA
12 610 300 5102 RC-BATTERY LID-JXMYA
610 302 2826 INSTRUCTION MANUAL-C2GW
Key No. Part No. Description
1
L
R
AUDIO
AV1 INPUT
VIDEO
(MONO)
S-VIDEO
MONITOR
OUT
ANT. 75Ω
7
8
10
4-b
6
L - AUDIO - R
VIDEO
AV2 INPUT

-20-
C2GW
OUT OF CIRCUIT BOARD
PICTURE TUBE
Q901 414 011 8403 CRT A51LVG896X
Q901A 645 008 8674 MAGNET,CG.PR
610 003 1739 CG PURITY MAGNET
Q901B1 610 233 7891 DY SPACER E2HA
610 290 4154 DY SPACER-F8LZ
Q901B2 610 233 7891 DY SPACER E2HA
610 290 4154 DY SPACER-F8LZ
Q901B3 610 233 7891 DY SPACER E2HA
610 290 4154 DY SPACER-F8LZ
COIL
L901 645 040 0247 COIL,DEGAUSSING
645 046 1729 COIL,DEGAUSSING
L902 645 057 2401 YOKE,DEFLECTION
MISCELLANEOUS
SP901 645 032 2037 SPEAKER,8
652 001 0871 SPEAKER,8
SP902 645 032 2037 SPEAKER,8
652 001 0871 SPEAKER,8
W901 645 009 9991 CORD,POWER
645 048 2106 CORD,POWER
W902 610 283 5335 ASSY,WIRE GND CONNECTOR C
610 283 7179 ASSY,WIRE GND CONNECTOR C
610 305 0157 ASSY,PWB,MAIN C2GW
1AA0B10S1000A
TRANSISTOR
Q001 405 014 4509 TR 2SC2412K T146 R
405 014 4608 TR 2SC2412K T146 S
405 015 8704 TR 2SC2812-L6-TB
405 015 8902 TR 2SC2812-L7-TB
405 163 1602 TR 2SC2812N-L6-TB0
405 163 1701 TR 2SC2812N-L7-TB0
Q111 405 015 9701 TR 2SC2814-F4-TB
Q1230 405 014 4509 TR 2SC2412K T146 R
405 014 4608 TR 2SC2412K T146 S
405 015 8704 TR 2SC2812-L6-TB
405 015 8902 TR 2SC2812-L7-TB
405 163 1602 TR 2SC2812N-L6-TB0
405 163 1701 TR 2SC2812N-L7-TB0
Q1231 405 011 8401 TR 2SC1740S-Q
405 011 8500 TR 2SC1740S-R
405 011 8609 TR 2SC1740S-S
405 012 2002 TR 2SC1815-GR
405 012 2101 TR 2SC1815-O
405 012 2309 TR 2SC1815-Y
405 020 7501 TR 2SC945A-PA
405 020 7709 TR 2SC945A-QA
405 020 7907 TR 2SC945A-RA
Q1401 405 134 5905 TR 2SA1037AK-T146-R
405 147 2205 TR 2SA1037AK-S-T146
!
!
!
!
Chassis Electrical Parts List
Ref. No. Part No. Description Ref. No. Part No. Description
Product safety should be considered when a component replacement is made in any area of a receiver.
Components indicated by a mark in this parts list and the circuit diagram show components whose value have
special significance to product safety. It is particularly recommended that only parts specified on the following parts
list be used for components replacement pointed out by the mark.
!
Note: Parts order must contain Service Ref. No., Part No., and descriptions. The main PCB unit will be supplied without tuner and
flyback transformer. They should be ordered separately.
Read description in the Capacitor and Resistor as follows:
CAPACITOR
CERAMIC 100P K 50V
Rated Voltage
Tolerance Symbols:
Less than 10pF
A : Not specified B : ±0.1pF C : ±0.25pF
D : ±0.5pF F : ±1PF G : ±2pF
R : ±0.25-0pF S : ±0-0.25pF E : +0-1pF
More than 10pF
A : Not specified B : ±0.1% C : ±0.25%
D : ±0.5% F : ±1% G : ±2%
H : ±3% J : ±5% K : ±10%
L : ±15% M : ±20% N : ±30%
P : +100-0% Q : +30-10% T : +50-10%
U : +75-10% V : +20-10% W : +100-10%
X : +40-20% Y : +150-10% Z : +80-20%
Rated value: P=pico farad, U=micro farad
Material:
CERAMIC........... Ceramic
MT-PAPER......... Metallized Paper
POLYESTER...... Polyester
MT-POLYEST.....Metallized Polyester
POLYPRO.......... Polypropylene
MT-POLYPRO....Metallized Polypropylene
COMPO FILM.....Composite film
MT-COMPO........Metallized Composite
STYRENE...........Styrene
TA-SOLID........... Tantalum Solid
AL-SOLID........... Aluminium Solid
ELECT................ Electrolytic
NP-ELECT..........Non-polarised Electrolytic
OS-SOLID.......... Aluminium Solid with Organic Semiconductive Electrolytic
DL-ELECT.......... Double Layered Electrolytic
RESISTOR
CARBON 4.7K J A 1/4W
Rated Wattage
Performance Symbols:
A: General B: Non flammable Z: Low noise
Other: Temperature coefficient
Tolerance Symbols:
A: ±0.05% B: ±0.1% C: ±0.25% D: ±0.5%
F: ±1% G: ±2% J: ±5% K: ±10%
M: ±20% P: +5-15%
Rated value, ohms:
K: 1,000, M: 1,000,000
Material:
CARBON........... Carbon
MT-FILM............ Metal Film
OXIDE-MT......... Oxide Metal Film
SOLID................ Composition
MT-GLAZE......... Metal Glaze
WIRE WOUND...Wire Wound
CERAMIC RES.. Ceramic
FUSIBLE RES....Fusible
NOTES:
