Sanyo CE14A2-C User manual

Indice
1. Safety instructions............................................................................................................................................ 1
2. WARNING........................................................................................................................................................ 1
3. Precaution against X-Rays............................................................................................................................... 1
4. Recommendations to protect our environment................................................................................................ 1
5. TECHNICAL CHARATERISTICS.................................................................................................................... 2
6. Safety............................................................................................................................................................... 2
7. EMC (Electromagnetic Compatibility) .............................................................................................................. 2
8. CONNECTED DOCUMENTS.......................................................................................................................... 3
9. MOUNTED CIRCUITS CODES....................................................................................................................... 3
10. ABBREVIATIONS USED IN THE PARTS LIST AND CABINET PARTS LIST............................................ 3
11. CABINET PARTS LIST ................................................................................................................................ 4
11.1. CABINET PARTS LIST OF CHASSIS CE14A2-C Y CE14A2-E........................................................... 4
11.2. CABINET PARTS LIST OF CHASSIS CE14AS2-F.............................................................................. 5
11.3. CABINET PARTS LIST......................................................................................................................... 6
12. PARTS LIST................................................................................................................................................. 7
CE14A2-C
CE14A2-E
CE14AS2-F
Service Manual Models:
CRT 14” Philips A34EAC01X06

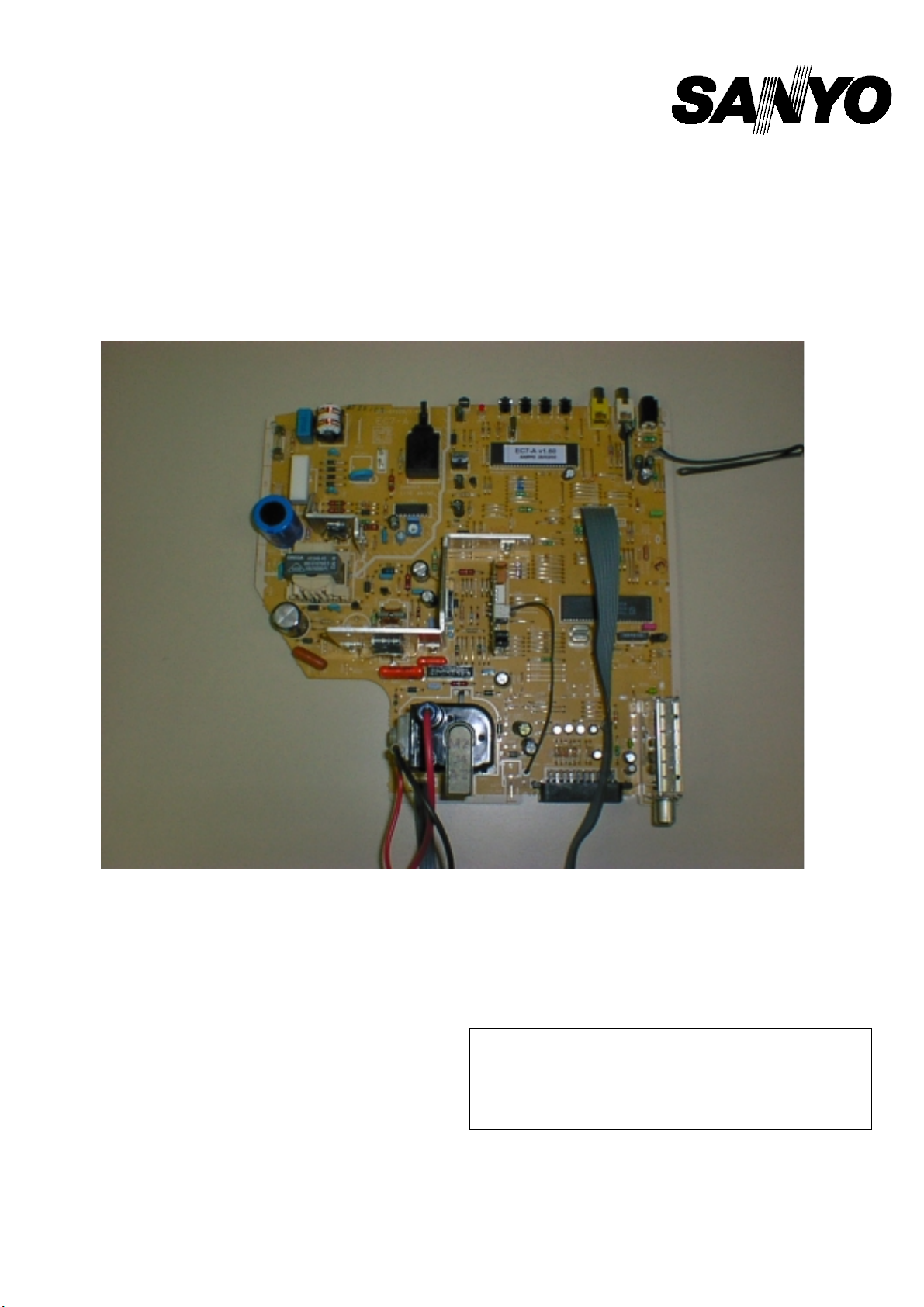

CHASSIS 2112
EC7-A
Colour Television
Give complete “SERVICE PART No” for parts order or
servicing, it is shown on the rating sheet on the cabinet
back of the TV set.
Note
This TV receiver will not work properly in foreign countries
where the television transmission system and power
source differ from the design specifications. Refer to the
specifications for the design specifications.
Ref. Nº MS CE14A2-C
17
-
07
-
2000

Service Manual SM CE14A2-C
1
1. Safety instructions
Read this page before doing any operation of adjustment, maintenance or repair the TV set described.
Only skilled personnel of Sanyo Technical Service should do the adjustment, maintenance or repair of TV set.
2. WARNING
For the correct and safe use of the TV set, it is essential that the service personnel follow the process of safety
generally accepted and the safety precautions specified in this manual.
An isolation transformer should be connected in the power line between the receiver and the AC line when a service
is performed on the primary side of the converter transformer of the set.
3. Precaution against X-Rays
The primary source of X-RADIATION in the television receiver is the picture tube. The picture tube is specially
constructed to limit X-RADIATION emissions. For continued X-RADIATION protection, the replacement tube must
be the same type as the original including suffix letter. Excessive high voltage may produce potentially hazardous X-
RADIATION. To avoid such hazards, the high voltage must be maintained within specified limit. If high voltage
exceeds specified limits, take necessary corrective action. Follow the instructions carefully for +B1 volt power supply
adjustment, and high voltage adjustment to maintain the high voltage within the specified limits.
COMPLIANCE TO STANDARDS
All of those marked with !or must be
replaced with original parts
WARNING! This TV set contains components which
are particularly sensitive to static electricity (ESD).
It is recommended that all due precaution be taken
handling integrated circuits and semiconductors.
4. Recommendations to protect our environment
Stand-by mode: In order to save energy and to maintain an optimum picture quality, it is advisable to switch off the
TV using the ON/OFF button located at the front of TV set.
Used batteries: The batteries in the remote control of these models do not contain mercury. However, SANYO
recommends that you do not dispose of used batteries in domestic refuse. Please, contact your dealer or your local
authorities for information regarding the disposal of used batteries or your nearest collection point.
Recommendation about the end-of-life: These SANYO TV sets have been designed and manufactured using high
quality materials which can be recycled and reused. In the future, when the life cycle of these sets come to an end,
specialised companies can disassemble it and reuse certain materials. This reduces the impact of waste in our
environment. Please, contact with your local authorities for information regarding the disposal of your set when the
time arrives. Help us to conserve the environment we live in!

Service Manual SM CE14A2-C
2
5. TECHNICAL CHARATERISTICS.
Cathode-ray tubes In-Line, Hi-bipotential gun. 14” (34 cm)
Tuning-system Voltage synthesis, 100 programs in non-volatile memory, AFT, Fine-tuning (10 first
programs), automatic, semiautomatic and manual channel-search.
Band I, channels 2-4 (VHF)=E2-E4
Cable channels S1-S20
Hyperband channels S21-S41
Band III, channels 5-12 (VHF)=E5-E12
Band IV-V, channels 21-69 (UHF)=E21-E69
Reception system B/G Model CE14A2-C
B/G-D/K Model CE14A2-E
B/G-L-L’ Model CE14AS2-F
Colour system PAL, NTSC 4.43, N.A.P. (NTSC Amusement by PAL)Models CE14A2-C, CE14A2-E
PAL/SECAM ntsc 4,43, N.A.P. Model CE14AS2-F
Program selection Sequential selection from the controls on the set. Direct selection to any program
from the remote-control device.
Audio Power-rating 1W rms. (10% distortion)
Speakers 1 of 8 Ω.
Aerial External aerial sockets 75 ΩIEC
Jack for headphones Mono jack 3,5mm.
Clock and alarm Function
Timer Function Switch on and off of CTV programmable in real time.
AV connectors 1 Scart connector 21 pin CENELEC standard AV, RGB and S_Video.
1 RCA Video input (frontal)
1 RCA Audio input (frontal)
Power supply 220 – 240 VAC 50Hz
Consumption 47W (maximum consumption).
29W (IEC 107-1)
3,1 W (Stand-by )
Radio 87.5 – 108MHz. 40 memories. Manual and semiautomatic search
Hotel mode Hotel mode and Hotel Rental
Options by means of Technical Service:
NTSC-M
6. Safety
It fulfils the safety requirements established in the regulation:
•EN 60065:93
7. EMC (Electromagnetic Compatibility)
It fulfils the EMC requirements established in the regulation:
•EN 55013:1990/A12:1994
•EN 55020:1994
•EN 60555-2:1987

Service Manual SM CE14A2-C
3
8. CONNECTED DOCUMENTS.
This Service Manual provides the particular information of the models CE14AT2-C, CE14AT2-E and CE14AX2-F
and it is complemented with:
1. Service Manual of the CHASIS 2112 (EC7-A).
2. Service Electrical scheme of the model CE14A2-C.
3. Instruction manual.
9. MOUNTED CIRCUITS CODES.
CE14A2-C CE14A2-E CE14AS2-F
6110372809 6110375802 6110375604 Main + Socket TRC PCB’s
7110017204 7110018707 7110018608 Main PCB
7040003506 7040003506 7040003506 Socket TRC PCB
10.ABBREVIATIONS USED IN THE PARTS LIST AND CABINET PARTS LIST.
Note : The following abbreviations indicate:
A2-C Exclusive parts for CE14A2-C
A2-E Exclusive parts for CE14A2-E
AS2-F Exclusive parts for CE14AS2-F

Service Manual SM CE14A2-C
4
11.CABINET PARTS LIST

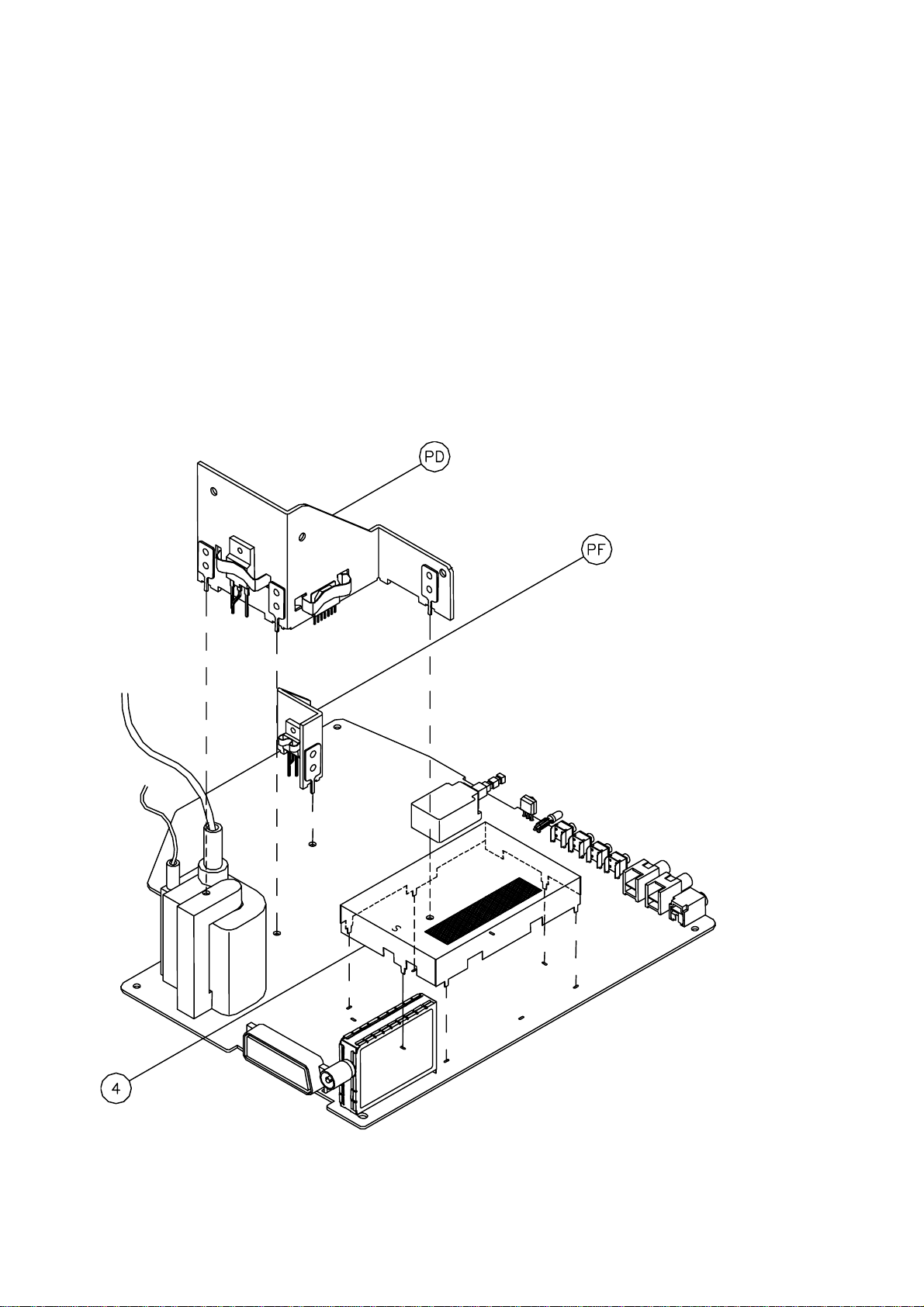

11.1. CABINET PARTS LIST OF CHASSIS CE14A2-C Y CE14A2-E
Ref. No. Part No. Description
YG4 !0080112907 Comp. side IF shield EC7-A
Assy PD (Deflection)
IC701 0360516207 LA7840L
Q650 0360308902 2SD2599
YR701 0200225407 Heatsink Deflection EC7-A
YR702 0010106300 Spring CLIP 56379
YR703 0010106300 Spring CLIP 56379
Assy PF(Power supply)
Q800 0360311005 MOS 2SK3067 600V/2A
YR800 0200225506 Heatsink SOURCE EC7-A
YR801 0010110401 Spring CLIP 56363

Service Manual SM CE14A2-C
5

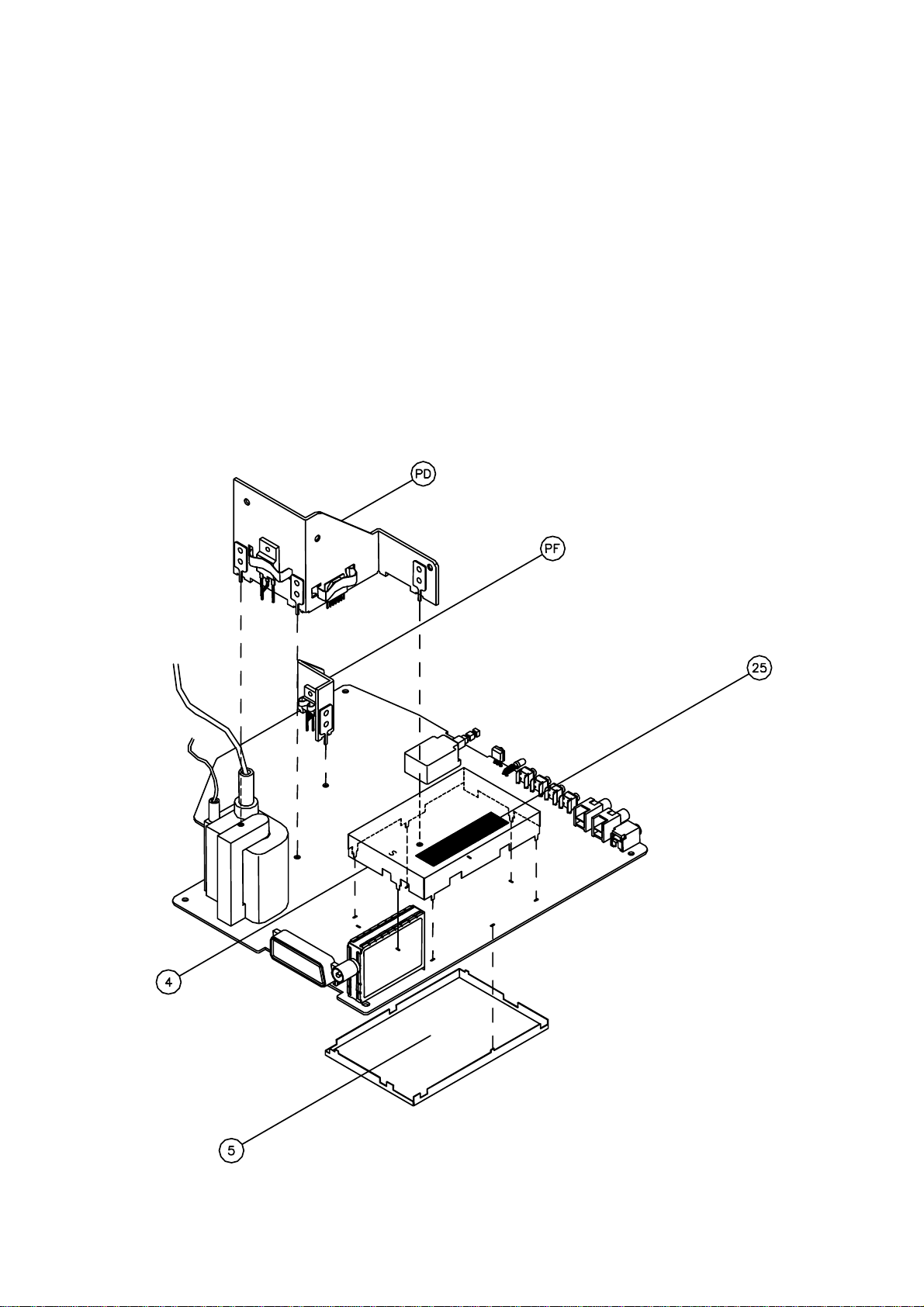

11.2. CABINET PARTS LIST OF CHASSIS CE14AS2-F.
Ref. No. Part No. Description
YG4 !0080112907 Comp. side IF shield EC7-A
YG5 !0080113004 Cooper side IF shield EC7-A
Assy PD (Deflection)
IC701 0360516207 LA7840L
Q650 0360308902 2SD2599
YR701 0200225407 Heatsink deflection EC7-A
YR702 0010106300 Spring Clip 56379
YR703 0010106300 Spring Clip 56379
Assy PF(Power supply)
Q800 0360311005 MOS 2SK3067 600V/2A
YR800 0200225506 Heatsink source EC7-A
YR801 0010110401 Spring Clip 56363

Service Manual SM CE14A2-C
6

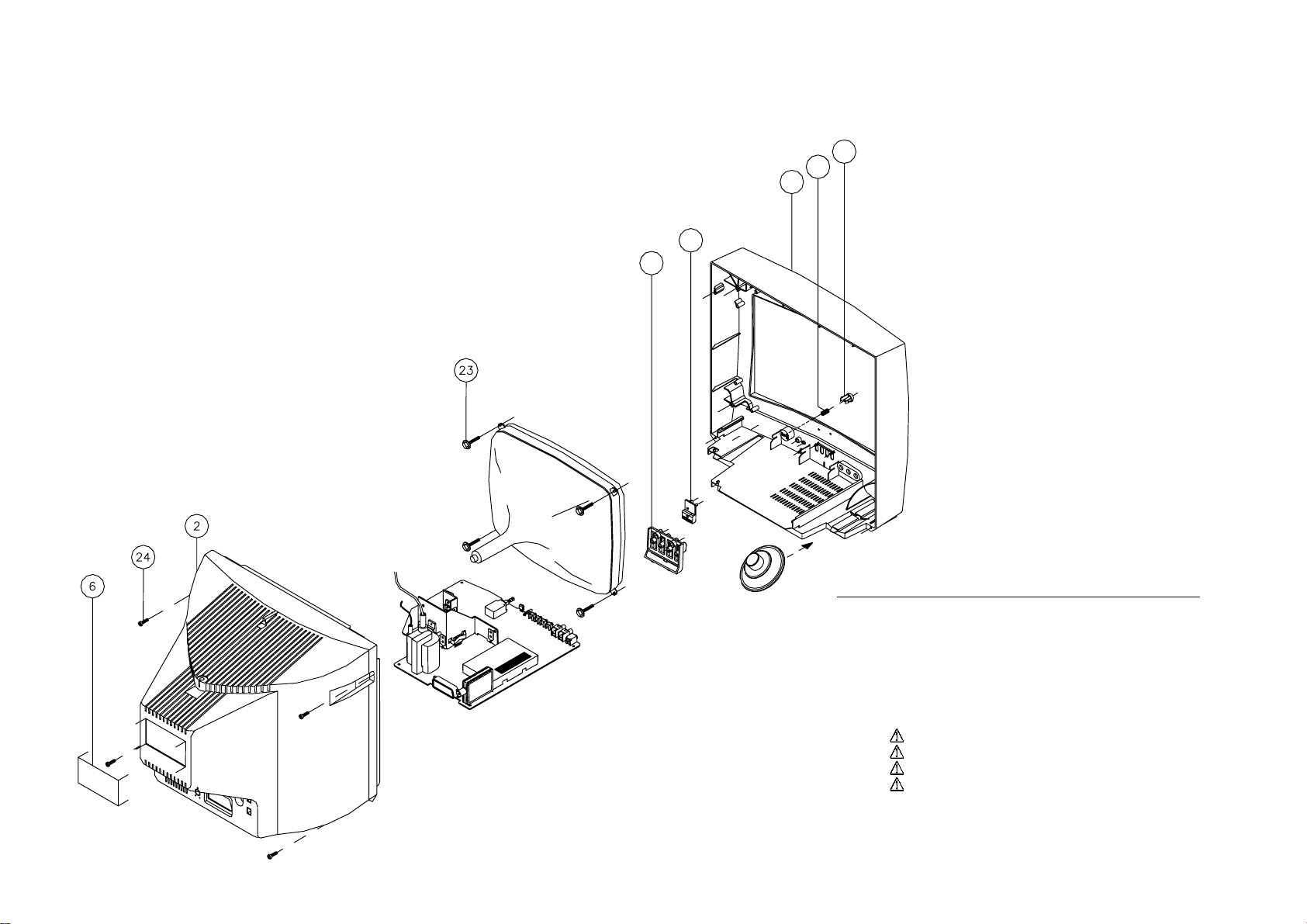

11.3. CABINET PARTS LIST
13
12
1
5
14
Ref. No. Part. No. Description
YP 4 0020130605 Badge SANYO Columnas Silver
YP 5 0340207711 Trans. Del. Board 14”
YP12 0010106607 KeySpring
YP13 0130214109 Button Power 17" E7E5
YP14 0130214604 PUSHKeyAssy 14" E8R8
YP15 0090257700 Degaussing Coil 14"
YF 1 2700049014 Front Cabinet Assy 14" E8R8
YF 2 0590269411 Back Cover 14" E8R8 AENOR
YF 6 A2-C 0390246817 Rating Plate CE14A2-C
YF 6 AS2-F 0390247005 Rating Plate CE14AS2-F
YF 6 A2-E 0390247203 Rating Plate CE14A2-E
YF23 0890161326 Screw HI-LO 5,8X27 W/Washer
YF24 0890191315 Screw AR 4X15

Service Manual SM CE14A2-C
Ref. No. Part No. Description Ref. No. Part No. Description
7
12.PARTS LIST
PCB SOCKET TRC
CON.FG 0160221107 Polarized Band Gray 4P. 260/6/6
CON.FI 0160260303 Polarized Band Gray 8P. 330/6/6
CON.FK 0640202610 Earth Wire 270 mm.
CAPACITORS
C501 0230280307 Ceramic SMD 220 pF. 5% 50V. 0805
C502 0230280307 Ceramic SMD 220 pF. 5% 50V. 0805
C503 0230280307 Ceramic SMD 220 pF. 5% 50V. 0805
C504 0270341324 Polyester 100 nF. 10% 250V.
C511 0230320301 Ceramic SMD 470 pF. 10% 50V. 0805
C512 0230320301 Ceramic SMD 470 pF. 10% 50V. 0805
C513 0230320301 Ceramic SMD 470 pF. 10% 50V. 0805
C561 0230600603 Ceramic SMD 100 nF. +80-20% 25V.
C571 0230320301 Ceramic SMD 470 pF. 10% 50V. 0805
C573 0240590901 Ceramic 2200pF +80-20% 2KV.
DIODES
D501 0360601512 SMD LS4148
D502 0360601512 SMD LS4148
D503 0360601512 SMD LS4148
D504 0360601512 SMD LS4148
D505 0360104202 Zener BZX79C6V2
D561 0360605414 Zener SMD BZT55C9V1
D562 0360605604 SMD BAV103 200V 0,25A
D570 0360601512 SMD LS4148
FG1 0330144205 Ribbon Wire Holder 4 P.
FI1 0330163304 Ribbon Wire Holder 8 P.
J500 0470040007 Jumper Lead 0,6 mm.
PCB04 0750152415 Socket PCB EC7-A
TRANSISTORS
Q501 0360161319 BF 422 TPE2
Q502 0360161319 BF 422 TPE2
Q503 0360161319 BF 422 TPE2
Q511 0360160709 BF 423
Q512 0360160709 BF 423
Q513 0360160709 BF 423
Q570 0360321301 SMD BC 857 B
RESISTORS
R501 0790578140 Metal Oxide 15 KΩ5% 2W.
R502 0790578116 Metal Film 15 KΩ5% 2W.
R503 0790578116 Metal Film 15 KΩ5% 2W.
R504 0790036909 Carbon 1,5 KΩ5% 1/2W.
R505 0790255004 R.M.G. SMD 22 KΩT<=5% 0805
R511 0790227003 R.M.G. SMD 100 ΩT<=5% 0805
R512 0790227003 R.M.G. SMD 100 ΩT<=5% 0805
R513 0790227003 R.M.G. SMD 100 ΩT<=5% 0805
R521 0790735203 R.M.G. SMD 510 ΩT<=5% 0805
R522 0790735203 R.M.G. SMD 510 ΩT<=5% 0805
R523 0790735203 R.M.G. SMD 510 ΩT<=5% 0805
R531 0790223002 R.M.G. SMD 47 ΩT<=5% 0805
R532 0790223002 R.M.G. SMD 47 ΩT<=5% 0805
R533 0790223002 R.M.G. SMD 47 ΩT<=5% 0805
R541 0790036909 Carbon 1,5 KΩ5% 1/2W.
R542 0790036909 Carbon 1,5 KΩ5% 1/2W.
R543 0790036909 Carbon 1,5 KΩ5% 1/2W.
R551 0790037709 Carbon 3,3 KΩ5% 1/4W.
R552 0790037709 Carbon 3,3 KΩ5% 1/4W.
R553 0790037709 Carbon 3,3 KΩ5% 1/4W.
R561 0790251003 R.M.G. SMD 10 KΩT<=5% 0805
R562 0790127104 Carbon 100 Ω5% 1/4W.
R571 0790741805 R.M.G. SMD 1,5 KΩT<=5% 0805
R572 0790234702 R.M.G. SMD 430 ΩT<=5% 0805
R573 0790529614 Metal Film 2,7 Ω5% 2W.
R574 0790036909 Carbon 1,5 KΩ5% 1/2W.
ZOCALO 0330163205 CRT Socket MININECK ONE Ground

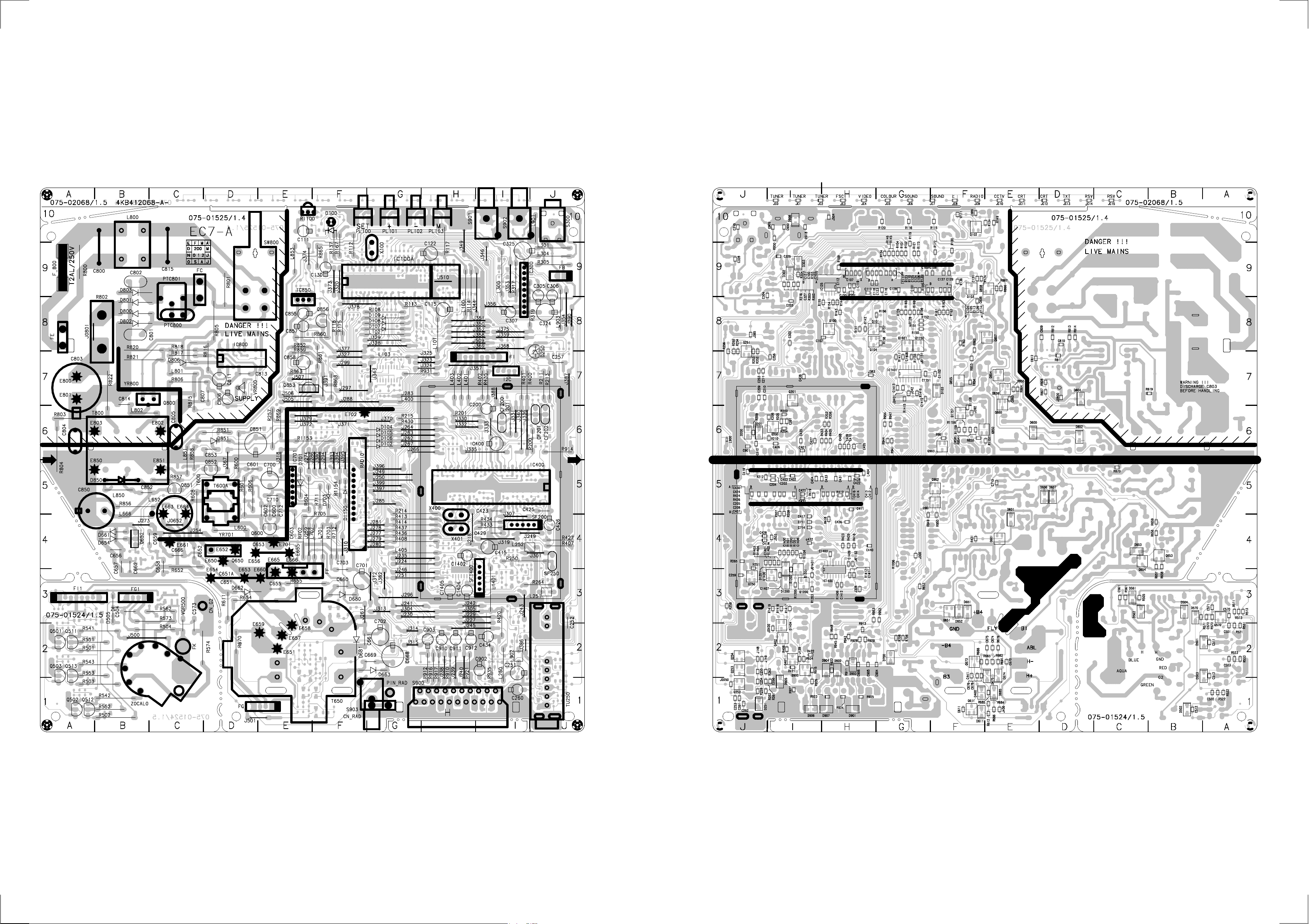

MAIN PCB
CF200 A2-C 0090411109 Ceramic Filter 5,5 MH.
CF200 A2-E 0090412701 Ceramic Trap Filter5,5/6,5 MHZ
CF200 AS2-F 0090412701 Ceramic Trap Filter5,5/6,5 MHZ
CF201 A2-E 0090412800 Ceramic Filter 6,5 MHZ.
CF202 0090412503 Ceramic Filter 5.5 MHz.
CN.FB 0160202305 Polarized Band Gray 2P. 280/6/6
CAPACITORS
C108 0230170318 Ceramic SMD 27 pF. 5% 50V. 0805
C109 0230170318 Ceramic SMD 27 pF. 5% 50V. 0805
C110 0230600603 Ceramic SMD 100 nF. +80-20% 25V.
C111 0250320769 Electrolytic 10 µF. 16V.
C112 0230600603 Ceramic SMD 100 nF. +80-20% 25V.
C114 0230360406 Ceramic SMD 1000 pF. 10% 50V. 0805
C115 0250461266 Electrolytic 100 µF. 16V.
C116 0230240327 Ceramic SMD 100 pF. 5% 50V. 0805
C117 0230160327 Ceramic SMD 22 pF. 1% 50V. 0805
C118 0230440125 Ceramic SMD 4700 pF. 10% 50V. 0805
C123 0230440125 Ceramic SMD 4700 pF. 10% 50V. 0805
C124 0230600603 Ceramic SMD 100 nF. +80-20% 25V.
C125 0230160327 Ceramic SMD 22 pF. 1% 50V. 0805
C126 0230360406 Ceramic SMD 1000 pF. 10% 50V. 0805
C127 0230280307 Ceramic SMD 220 pF. 5% 50V. 0805
C128 0230480600 Ceramic SMD 10 nF. +80-20% 50V 0805
C129 0230480600 Ceramic SMD 10 nF. +80-20% 50V 0805
C200 0250320769 Electrolytic 10 µF. 16V.
C201 0230190308 Ceramic SMD 39 pF. 5% 50V. 0805
C202 0230360406 Ceramic SMD 1000 pF. 10% 50V. 0805
C203 A2-E 0230480600 Ceramic SMD 10 nF.+80-20% 50V 0805
C204 0230600504 Ceramic SMD 100 nF. 10% 25V. 0805
C205 0230740003 Ceramic SMD 2,2 µF.10V. +80-20%
C206 0230740003 Ceramic SMD 2,2 µF.10V. +80-20%
C208 AS2-F 0230740003 Ceramic SMD 2,2 µF. 10V. +80-20%
C209 0230220204 Ceramic SMD 68 pF. 5% 50V. 0805
C210 A2-E 0230220204 Ceramic SMD 68 pF. 5% 50V. 0805
C211 A2-E 0230480600 Ceramic SMD 10 nF.+80-20% 50V 0805
C212 A2-C 0790701106 R.M.G. SMD 0 Ω1/10W. 0805
C212 A2-E 0230360406 Ceramic SMD 1000 pF.10% 50V. 0805
C212 AS2-F 0790701106 R.M.G. SMD 0 Ω1/10W. 0805
C250 0230600603 Ceramic SMD 100 nF. +80-20% 25V.
C251 0250461266 Electrolytic 100 µF. 16V.
C252 0270370588 Polyester 180 nF. 10% 63V.
C256 0230480600 Ceramic SMD 10 nF. +80-20% 50V 0805
C257 0270370588 Polyester 180 nF. 10% 63V.
C260 0250410867 Electrolytic 47 µF. 16V.
C302 0230720203 Ceramic SMD 1 µF. 16V.+80-20% 0805
C304 !0230360406 Ceramic SMD 1000 pF. 10% 50V. 0805
C305 0250410867 Electrolytic 47 µF. 16V.
C306 0250360468 Electrolytic 22 µF. 16V.
C310 0230520405 Ceramic SMD 22 nF. 10% 50V. 0805
C323 0230480600 Ceramic SMD 10 nF. +80-20% 50V 0805
C324 0250500667 Electrolytic 220 µF. 16V.
C325 0250141462 Electrolytic 470 µF. 16V. 8X11,5
C326 0230600504 Ceramic SMD 100 nF. 10% 25V. 0805
C400 0250461266 Electrolytic 100 µF. 16V.
C401 0230600603 Ceramic SMD 100 nF. +80-20% 25V.
C402 0230680308 Ceramic SMD 470 nF. 10% 16V. 0805
C403 0230520405 Ceramic SMD 22 nF. 10% 50V. 0805
C404 AS2-F 0230640401 Ceramic SMD 220 nF.10% 16V.0805
C405 0230360406 Ceramic SMD 1000 pF. 10% 50V. 0805
C406 0230600504 Ceramic SMD 100 nF. 10% 25V. 0805
C408 0230520405 Ceramic SMD 22 nF. 10% 50V. 0805
C409 0230520405 Ceramic SMD 22 nF. 10% 50V. 0805
C410 0230520405 Ceramic SMD 22 nF. 10% 50V. 0805
C411 0230150229 Ceramic SMD 18 pF. 1% 50V. 0805
C412 0230600504 Ceramic SMD 100 nF. 10% 25V. 0805
C413 0230420119 Ceramic SMD 3300 pF.10% 63V.0805
C414 0230520405 Ceramic SMD 22 nF. 10% 50V. 0805
C415 0250461266 Electrolytic 100 µF. 16V.
C416 0230600504 Ceramic SMD 100 nF. 10% 25V. 0805
C417 0230400103 Ceramic SMD 2200 pF. 10% 50V. 0805
C418 0230420119 Ceramic SMD 3300 pF.10% 63V.0805
C419 0230740003 Ceramic SMD 2,2 µF.10V. +80-20%
C420 0230720203 Ceramic SMD 1 µF. 16V.+80-20% 0805
C421 0230440125 Ceramic SMD 4700 pF. 10% 50V. 0805
C422 0230180226 Ceramic SMD 33 pF. 1% 50V. 0805

Service Manual SM CE14A2-C
Ref. No. Part No. Description Ref. No. Part No. Description
8
C423 0240136010 Ceramic 1000 pF. 10% 100V.
C424 0230600504 Ceramic SMD 100 nF. 10% 25V. 0805
C425 0270342603 Policarbonate 100 nF. 5% 63V.
C426 0250320769 Electrolytic 10 µF. 16V.
C427 0230600504 Ceramic SMD 100 nF. 10% 25V. 0805
C428 0230480600 Ceramic SMD 10 nF. +80-20% 50V 0805
C429 0240136010 Ceramic 1000 pF. 10% 100V.
C430 0230740003 Ceramic SMD 2,2 µF. 10V. +80-20%
C431 0230440125 Ceramic SMD 4700 pF. 10% 50V. 0805
C433 0230240327 Ceramic SMD 100 pF. 5% 50V. 0805
C434 0250320769 Electrolytic 10 µF. 16V.
C435 0230600504 Ceramic SMD 100 nF. 10% 25V. 0805
C438 !0230360406 Ceramic SMD 1000 pF. 10% 50V. 0805
C440 !0230480600 Ceramic SMD 10 nF. +80-20% 50V 0805
C441 !0230360406 Ceramic SMD 1000 pF. 10% 50V. 0805
C600 0270220726 Polyester 10 nF. 10% 250V.
C601 0270301039 Polyester 47 nF. 5% 63V.
C603 0270381080 Polyester 220 nF. 10% 63V.
C611 0230600603 Ceramic SMD 100 nF. +80-20% 25V.
C651 0260210604 Polypropylene 8200 pF 3,5% 1600V
C653 0270410004 Polyester 390 nF. 5% 250V.
C655 0270100522 Polyester 1000 pF. 10% 400V.
C656 0270290802 Polyester 39 nF. 5% 400V.
C657 0270210628 Polyester 8200 pF. 10% 250V.
C668 0250323201 Electrolytic 10µF 160V
C670 !0230240327 Ceramic SMD 100 pF. 5% 50V. 0805
C674 0230520405 Ceramic SMD 22 nF. 10% 50V. 0805
C675 0230600504 Ceramic SMD 100 nF. 10% 25V. 0805
C676 0230680308 Ceramic SMD 470 nF. 10% 16V. 0805
C678 0230680308 Ceramic SMD 470 nF. 10% 16V. 0805
C700 0250461464 Electrolytic 100 µF. 35V.
C701 0250461464 Electrolytic 100 µF. 35V.
C702 0250461464 Electrolytic 100 µF. 35V.
C703 0270381080 Polyester 220 nF. 10% 63V.
C711 !0230360406 Ceramic SMD 1000 pF. 10% 50V. 0805
C713 !0230360406 Ceramic SMD 1000 pF. 10% 50V. 0805
C714 !0230360406 Ceramic SMD 1000 pF. 10% 50V. 0805
C800 !0270342702 Polyester 100 nF. 20% 275V.AC
C801 0240134767 Ceramic 1000 pF. +-20% 1KV.
C802 0240134767 Ceramic 1000 pF. +-20% 1KV.
C803 0250464369 Electrolytic. 100 µF. 385V. 22X35
C804 !0240136135 Ceramic 1000 pF. 20% 4KV
C806 0250210861 Electrolytic 0,47 µF. 50V.
C807 0270140338 Polyester 2200 pF. 10% 63V.
C809 0230300204 Ceramic SMD 330 pF. 10% 50V. 0805
C810 0230360406 Ceramic SMD 1000 pF. 10% 50V. 0805
C811 0250412962 Electrolytic 47 µF. 50V.
C812 0230240327 Ceramic SMD 100 pF. 5% 50V. 0805
C813 0270100431 Polyester 1000 pF. 10% 63V.
C850 0250465002 Electrolytic. 100µF. 160V. 16X25
C851 0250572468 Electrolytic 1000 µF. 16V.
C852 0240470708 Ceramic 220 pF. 5% 1KV. PULSE SL
C853 0270140338 Polyester 2200 pF. 10% 63V.
C854 0230360406 Ceramic SMD 1000 pF. 10% 50V. 0805
C856 0230600603 Ceramic SMD 100 nF. +80-20% 25V.
C857 0250320769 Electrolytic 10 µF. 16V.
C858 0250461266 Electrolytic 100 µF. 16V.
C859 0230640401 Ceramic SMD 220 nF. 10% 16V. 0805
C860 0230480600 Ceramic SMD 10 nF. +80-20% 50V 0805
C900 0230320301 Ceramic SMD 470 pF. 10% 50V. 0805
C901 !0230240327 Ceramic SMD 100 pF. 5% 50V. 0805
C902 0250320769 Electrolytic 10 µF. 16V.
C903 0250410867 Electrolytic 47 µF. 16V.
C904 0230320301 Ceramic SMD 470 pF. 10% 50V. 0805
C905 0230320301 Ceramic SMD 470 pF. 10% 50V. 0805
C906 0230320301 Ceramic SMD 470 pF. 10% 50V. 0805
C909 !0230320301 Ceramic SMD 470 pF. 10% 50V. 0805
C910 0250414307 Electrolytic N.P.47 µF 20% 10V
C911 0250414307 Electrolytic N.P.47 µF 20% 10V
C912 0250414307 Electrolytic N.P.47 µF 20% 10V
C1400 AS2-F 0230360406 Ceramic SMD 1000 PF.10% 50V.
C1401 AS2-F 0230600603 Ceramic SMD 100 NF.+80-20% 25V.
C1402 AS2-F 0250320769 Electrolytic 10 µF. 16V.
C1403 AS2-F 0230480600 Ceramic SMD 10 NF.+80-20% 50V.
C1404 AS2-F 0250280864 Electrolytic 4,7 µF. 25V.
C1405 AS2-F 0250280864 Electrolytic 4,7 µF. 25V.
C1406 AS2-F 0230600603 Ceramic SMD 100 nF.+80-20% 25V.
C1407 AS2-F 0230360406 Ceramic SMD 1000 pF.10% 50V.
C1408 AS2-F 0230740003 Ceramic SMD 2,2 µF. 10V. +80-20%
C1409 AS2-F 0230740003 Ceramic SMD 2,2 µF. 10V. +80-20%
C1410 AS2-F 0230740003 Ceramic SMD 2,2 µF. 10V. +80-20%
C1411 AS2-F 0230360406 Ceramic SMD 1000 pF.10% 50V.
C1412 AS2-F 0230740003 Ceramic SMD 2,2 µF. 10V. +80-20%
C1413 AS2-F 0230740003 Ceramic SMD 2,2 µF. 10V. +80-20%
DIODES
D100 0360126304 Red 3mm.
D102 0360130819 1N 4148
D103 0790701106 R.M.G. SMD 0 Ω1/10W. 0805
D104 0360130819 1N 4148
D105 0360130819 1N 4148
D106 0360130819 1N 4148
D107 0360111009 BAT 42 DO 35
D108 0360111009 BAT 42 DO 35
D109 0360111009 BAT 42 DO 35
D200 A2-C 0790701106 R.M.G. SMD 0 Ω1/10W. 0805
D200 AS2-F 0790701106 R.M.G. SMD 0 Ω1/10W. 0805
D200 A2-E 0360601512 SMD LS4148
D201 A2-E 0360601512 SMD LS4148
D250 0360706014 HZT33-02 RE
D251 AS2-F 0360601512 SMD LS4148
D302 0360601512 SMD LS4148
D303 0360601512 SMD LS4148
D400 0360601512 SMD LS4148
D600 0360601512 SMD LS4148
D601 0360601512 SMD LS4148
D606 0360601512 SMD LS4148
D607 0360601512 SMD LS4148
D611 0360601512 SMD LS4148
D651 0360601512 SMD LS4148
D652 0360601512 SMD LS4148
D661 0360377006 ERB44-04
D662 0360378400 ERB06-13
D663 0360377006 ERB44-04
D674 0360602411 Zener SMD BZT55C6V2
D675 0360601512 SMD LS4148
D680 0360377006 ERB44-04
D681 0360377006 ERB44-04
D685 0360601512 SMD LS4148
D700 0360601512 SMD LS4148
D701 0360130629 1N 4007 RL
D703 0360005409 Zener BZX79C24
D800 0360130629 1N 4007 RL
D801 0360130629 1N 4007 RL
D802 0360130629 1N 4007 RL
D803 0360130629 1N 4007 RL
D804 0360601512 SMD LS4148
D806 0360376909 ERB44-02
D850 0360376404 ERB44-06
D851 0360377303 Schottky ERB84-009 90V 2A
D852 0360601512 SMD LS4148
D901 0360602213 Zener SMD BZT55C5V1
D902 0360602213 Zener SMD BZT55C5V1
D904 0360602213 Zener SMD BZT55C5V1
D905 0360602213 Zener SMD BZT55C5V1
D906 0360602213 Zener SMD BZT55C5V1
D907 0360602213 Zener SMD BZT55C5V1
D908 0360602213 Zener SMD BZT55C5V1
D1200 AS2-F 0360601512 SMD LS4148
D1201 AS2-F 0360601512 SMD LS4148
FUSES
F-800 0760100701 Fuse Terminal Taped
F800 0330110503 Fuse T 2 A./250V. TIME-LAG
CONNECTORS
FB 0330144007 Ribbon Wire Holder 2 P.
FC 0330270307 2P. Socket
FE 0330115106 2P. Socket X RTM 1/6/8
FF 0330129701 4 P. Socket
FG 0330144205 Ribbon Wire Holder 4 P.
FI 0330163304 Ribbon Wire Holder 8 P.
INTEGRATED CIRCUITS
IC100A 0360516702 ST92185B1B1

Service Manual SM CE14A2-C
Ref. No. Part No. Description Ref. No. Part No. Description
9
IC125 0360711501 M24C04-MN6T
IC300 0360512305 TDA 7233 S
IC400 A2-C 0360514509 TDA 8841 N2
IC400 A2-E 0360514509 TDA 8841 N2
IC400 AS2-F 0360515001 TDA 8842 N2
IC701 0360516207 LA7840L
IC800 0360467203 MC44603P
IC850 0360472906 KA7805TU
IC1400 AS2-F 0360514806 SMD TDA9830T V1
IC1401 AS2-F 0360148209 SMD HEF 4052BT
JO400 A2-C 0790701106 R.M.G. SMD 0 Ω1/10W. 0805
JO400 A2-E 0790701106 R.M.G. SMD 0 Ω1/10W. 0805
JO401 A2-C 0790701106 R.M.G. SMD 0 Ω1/10W. 0805
JO401 A2-E 0790701106 R.M.G. SMD 0 Ω1/10W. 0805
JO652 0470040007 Jumper Lead 0,6 mm.
J139 0790701106 R.M.G. SMD 0 Ω1/10W. 0805
J148 0790701106 R.M.G. SMD 0 Ω1/10W. 0805
J149 0790701106 R.M.G. SMD 0 Ω1/10W. 0805
J224 AS2-F 0470040007 Puente
J235 AS2-F 0470040007 Puente
J241 AS2-F 0470040007 Puente
J242 AS2-F 0470040007 Puente
J243 AS2-F 0470040007 Puente
J246 AS2-F 0470040007 Puente
J251 AS2-F 0470040007 Puente
J297 AS2-F 0470040007 Puente
J300 AS2-F 0790701106 R.M.G. SMD 0 OHM 1/10W.
J306 AS2-F 0790701106 R.M.G. SMD 0 OHM 1/10W.
J343 AS2-F 0470040007 Puente
J301 A2-C 0470040007 Jumper Lead 0,6 mm.
J301 AS2-F 0470040007 Jumper Lead 0,6 mm.
J342 0790701106 R.M.G. SMD 0 Ω1/10W. 0805
J383 0790701106 R.M.G. SMD 0 Ω1/10W. 0805
J385 0790701106 R.M.G. SMD 0 Ω1/10W. 0805
J389 0790701106 R.M.G. SMD 0 Ω1/10W. 0805
J392 0790701106 R.M.G. SMD 0 Ω1/10W. 0805
J400 0790701106 R.M.G. SMD 0 Ω1/10W. 0805
J503 0790701106 R.M.G. SMD 0 Ω1/10W. 0805
JC0 AS2-F 0790701106 R.M.G. SMD 0 OHM 1/10W.
JC4 AS2-F 0790701106 R.M.G. SMD 0 OHM 1/10W.
JC5 AS2-F 0790701106 R.M.G. SMD 0 OHM 1/10W.
JC6 A2-E 0790701106 R.M.G. SMD 0 OHM 1/10W.
JC8 AS2-F 0790701106 R.M.G. SMD 0 OHM 1/10W.
JO1151 AS2-F 0790701106 R.M.G. SMD 0 OHM 1/10W.
COILS
L100 0470040007 Jumper Lead 0,6 mm.
L101 0470040007 Jumper Lead 0,6 mm.
L102 0090317223 Peaking Coil 100 µH.10%
L103 0090305525 Choke R.F. 33 µH. 10%
L201 A2-C 0090319328 Peaking Coil15 µH. 10%
L201 A2-E 0090315029 Choque R.F. 10 µH. 10%
L201 AS2-F 0090315029 Choque R.F. 10 µH. 10%
L250 A2-C 0090319229 Peaking Coil4,7 µH. 10%
L251 A2-C 0090316845 Peaking Coil1µH 10% RADIAL
L251 AS2-F 0090317140 Choque R.F. 0,39 µH. 20% Radial
L252 AS2-F 0090316845 Choque R.F. 1µH 10% Radial
L300 0790528814 Fuse 2,2 Ω5% 0,33W.
L301 0470040007 Jumper Lead 0,6 mm.
L304 0090305327 Peaking Coil 10 µH.10%
L400 0090319229 Peaking Coil 4,7 µH. 10%
L401 0090319229 Peaking Coil 4,7 µH. 10%
L402 0090319229 Peaking Coil 4,7 µH. 10%
L403 0090319229 Peaking Coil 4,7 µH. 10%
L404 0790701106 R.M.G. SMD 0 Ω1/10W. 0805
L405 0090319229 Peaking Coil 4,7 µH. 10%
L600 0470040007 Jumper Lead 0,6 mm.
L666 0470040007 Jumper Lead 0,6 mm.
L701 0470040007 Jumper Lead 0,6 mm.
L702 0470040007 Jumper Lead 0,6 mm.
L800 !0090413709 Mains Filter 2X19 MH. 250 VAC. 0,5A
L801 0090318668 Peaking Coil 1 µH. 20% I MAX=270MA
L802 0470040007 Jumper Lead 0,6 mm.
L850 0620005504 Ferritebead 3,5X6 80 Ω/100 MHz
L851 0620005504 Ferritebead 3,5X6 80 Ω/100 MHz
L853 0620005504 Ferritebead 3,5X6 80 Ω/100 MHz
L900 0620011502 Ferrite SMD 0603 600 Ω/20 MHz
L901 !0090315029 Peaking Coil 10 µH.10%
L902 !0090316845 Peaking Coil 1µH 10% RADIAL
L903 !0090318668 Peaking Coil 1 µH. 20% I MAX=270MA
L1401 AS2-F 0090319229 Choque R.F. 4,7 µH.10%
PCB11 0750152514 MAIN PCB EC7-A
BUTTON
PL100 0130214703 PUSH Switch Insertable 160GR.
PL101 0130214703 PUSH Switch Insertable 160GR.
PL102 0130214703 PUSH Switch Insertable 160GR.
PL103 0130214703 PUSH Switch Insertable 160GR.
PTC800 0810101907 P.T.C. 18 Ω
TRANSISTORS
Q101 0360308803 SMD PMBT2369
Q102 0360320501 BRT SMD PDTA124ET
Q104 0360321301 SMD BC 857 B
Q200 0360320303 SMD BC 847 B
Q201 0360321301 SMD BC 857 B
Q250 AS2-F 0360320303 SMD BC 847 B
Q251 0360308803 SMD PMBT2369
Q252 0360320501 BRT SMD PDTA124ET
Q253 0360320501 BRT SMD PDTA124ET
Q254 0360320501 BRT SMD PDTA124ET
Q401 0360321301 SMD BC 857 B
Q402 0360320303 SMD BC 847 B
Q600 0360308704 KSP 44 TO-92
Q601 0360321301 SMD BC 857 B
Q611 0360320600 BRT SMD PDTC124ET
Q650 0360308902 2SD2599
Q651 0360320303 SMD BC 847 B
Q673 0360320303 SMD BC 847 B
Q800 0360311005 MOS 2SK3067 600V/2A
Q850 0360320303 SMD BC 847 B
Q851 0360308605 KSP 92 TO-92
Q852 0360308506 KSP 42 TO-92
Q853 0360306104 2SB 764 E
Q853 AS2-F 0360173504 TIP 32 C
Q854 0360320303 SMD BC 847 B
Q855 0360320303 SMD BC 847 B
Q856 0360169718 BC 639
Q857 0360321301 SMD BC 857 B
Q858 0360321301 SMD BC 857 B
Q859 0360321301 SMD BC 857 B
Q860 0360321301 SMD BC 857 B
Q900 0360320303 SMD BC 847 B
Q1200 AS2-F 0360320303 SMD BC 847 B
Q1201 AS2-F 0360320303 SMD BC 847 B
Q1400 AS2-F 0360320410 SMD BF 570
Q1401 AS2-F 0360320600 BRT SMD PDTC124ET
Q1404 AS2-F 0360320303 SMD BC 847 B
RI100 0600123004 Infrared Receiver TSOP1838
RESISTORS
R100 0790242002 R.M.G. SMD 1,8 KΩ5% 1/10W. 0805
R101 0790251003 R.M.G. SMD 10 KΩT<=5% 0805
R102 0790251003 R.M.G. SMD 10 KΩT<=5% 0805
R104 0790245005 R.M.G. SMD 3,3 KΩT<=5% 0805
R105 0790752208 R.M.G. SMD 12 KΩT<=5% 0805
R106 0790753909 R.M.G. SMD 15 KΩT<=5% 0805
R108 0790138804 Carbon 1 KΩ5% 1/6W.
R110 0790248009 R.M.G. SMD 5,6 KΩT<=5% 0805
R111 0790235006 R.M.G. SMD 470 ΩT<=5% 0805
R112 0790126700 Carbon 100 Ω5% 1/6W.
R113 0790159503 Carbon 47 KΩ5% 1/6W
R115 0790251409 R.M.G. SMD 12 KΩ1% 1/10W.
R116 0790255103 R.M.G. SMD 22 KΩ1% 1/10W.
R117 0790368922 Metal Film 4,70 KΩ1% 0,4W.
R118 0790126700 Carbon 100 Ω5% 1/6W.
R119 0790251003 R.M.G. SMD 10 KΩT<=5% 0805
R120 0790248108 R.M.G. SMD 5,6 KΩ1% 1/10W.
R121 0790251003 R.M.G. SMD 10 KΩT<=5% 0805
R123 0790248009 R.M.G. SMD 5,6 KΩT<=5% 0805

Service Manual SM CE14A2-C
Ref. No. Part No. Description Ref. No. Part No. Description
10
R124 0790243000 R.M.G. SMD 2,2 KΩT<=5% 0805
R126 AS2-F 0790239008 R.M.G. SMD 1 KOHM T<=5%
R128 AS2-F 0790239008 R.M.G. SMD 1 KOHM T<=5%
R134 0790251003 R.M.G. SMD 10 KΩT<=5% 0805
R135 0790251003 R.M.G. SMD 10 KΩT<=5% 0805
R136 0790239008 R.M.G. SMD 1 KΩT<=5% 0805
R137 0790138804 Carbon 1 KΩ5% 1/6W.
R141 0790227003 R.M.G. SMD 100 ΩT<=5% 0805
R1416 0790256002 R.M.G. SMD 27 KΩT<=5% 0805
R142 0790227003 R.M.G. SMD 100 ΩT<=5% 0805
R143 0790247001 R.M.G. SMD 4,7 KΩT<=5% 0805
R144 0790247001 R.M.G. SMD 4,7 KΩT<=5% 0805
R145 A2-E 0790239008 R.M.G. SMD 1 KOHM T<=5%
R146 A2-E 0790239008 R.M.G. SMD 1 KOHM T<=5%
R149 0790233001 R.M.G. SMD 330 ΩT<=5% 0805
R150 0790248009 R.M.G. SMD 5,6 KΩT<=5% 0805
R151 0790248009 R.M.G. SMD 5,6 KΩT<=5% 0805
R152 0790248009 R.M.G. SMD 5,6 KΩT<=5% 0805
R154 0790227003 R.M.G. SMD 100 ΩT<=5% 0805
R155 0790227003 R.M.G. SMD 100 ΩT<=5% 0805
R156 0790247001 R.M.G. SMD 4,7 KΩT<=5% 0805
R157 0790246003 R.M.G. SMD 3,9 KΩT<=5% 0805
R158 0790239008 R.M.G. SMD 1 KΩT<=5% 0805
R160 0790263008 R.M.G. SMD 100 KΩT<=5% 0805
R161 0790239008 R.M.G. SMD 1 KΩT<=5% 0805
R162 0790239008 R.M.G. SMD 1 KΩT<=5% 0805
R163 0790239008 R.M.G. SMD 1 KΩT<=5% 0805
R165 AS2-F 0790227003 R.M.G. SMD 100 OHM T<=5%
R167 0790138804 Carbon 1 KΩ5% 1/6W.
R172 0790239008 R.M.G. SMD 1 KΩT<=5% 0805
R175 0790126700 Carbon 100 Ω5% 1/6W.
R200 0790138804 Carbon 1 KΩ5% 1/6W.
R201 0790131106 Carbon 220 Ω5% 1/4W.
R202 0790235006 R.M.G. SMD 470 ΩT<=5% 0805
R203 0790846109 R.M.G. SMD 220 ΩT<=5% 0805
R204 0790233001 R.M.G. SMD 330 ΩT<=5% 0805
R204 A2-E 0790846109 R.M.G. SMD 220 OHM T<=5%
R204 AS2-F 0790846109 R.M.G. SMD 220 OHM T<=5%
R205 0790749402 R.M.G. SMD 6,8 KΩT<=5% 0805
R205 A2-E 0790247001 R.M.G. SMD 4,7 KOHM T<=5%
R205 AS2-F 0790247001 R.M.G. SMD 4,7 KOHM T<=5%
R206 0790846109 R.M.G. SMD 220 ΩT<=5% 0805
R207 0790223002 R.M.G. SMD 47 ΩT<=5% 0805
R208 0790223002 R.M.G. SMD 47 ΩT<=5% 0805
R209 0790237002 R.M.G. SMD 680 ΩT<=5% 0805
R209 A2-E 0790242002 R.M.G. SMD 1,8 KΩ5% 1/10W.
R210 A2-E 0790239008 R.M.G. SMD 1 KΩ5% 1/10W.
R211 A2-E 0790144505 R.M.G. SMD 2,7 KΩ5% 1/6W.
R212 0790234009 R.M.G. SMD 390 ΩT<=5% 0805
R213 A2-E 0790144505 R.M.G. SMD 2,7 KΩ5% 1/6W.
R215 !0790131908 Carbon 220 Ω5% 1/6W.
R250 AS2-F 0790151500 Carbón 10 KOHM 5% 1/6W.
R252 0790235006 R.M.G. SMD 470 ΩT<=5% 0805
R253 0790263008 R.M.G. SMD 100 KΩT<=5% 0805
R254 0790227003 R.M.G. SMD 100 ΩT<=5% 0805
R255 0790252001 Metal GL. RES. 15 KΩ1% 1/10W.
R256 0790753909 R.M.G. SMD 15 KΩT<=5% 0805
R257 0790577142 Metal Oxide 12 KΩ5% 2W.
R258 0790259006 R.M.G. SMD 47 KΩT<=5% 0805
R259 0790701106 R.M.G. SMD 0 Ω1/10W. 0805
R261 0790753909 R.M.G. SMD 15 KΩT<=5% 0805
R262 0790701106 R.M.G. SMD 0 Ω1/10W. 0805
R262 AS2-F 0790251003 R.M.G. SMD 10 KOHM T<=5%
R263 0790246003 R.M.G. SMD 3,9 KΩT<=5% 0805
R264 AS2-F 0790145106 Carbón 3,3 KOHM 5% 1/6W.
R265 AS2-F 0790247001 R.M.G. SMD 4,7 KOHM T<=5%
R302 0790757603 R.M.G. SMD 33 KΩT<=5% 0805
R303 0790251003 R.M.G. SMD 10 KΩT<=5% 0805
R304 0790275002 R.M.G. SMD 1 MΩT<=5% 0805
R305 0790128409 Carbon 120 Ω5% 1/2W.
R316 0790248009 R.M.G. SMD 5,6 KΩT<=5% 0805
R317 0790111207 Carbon 4,7 Ω5% 1/4W.
R319 0790160501 Carbon 56 KΩ5% 1/6W.
R400 0790126700 Carbon 100 Ω5% 1/6W.
R401 0790126700 Carbon 100 Ω5% 1/6W.
R402 0790151500 Carbon 10 KΩ5% 1/6W.
R403 0790227003 R.M.G. SMD 100 ΩT<=5% 0805
R404 0790227003 R.M.G. SMD 100 ΩT<=5% 0805
R405 0790227003 R.M.G. SMD 100 ΩT<=5% 0805
R406 0790234702 R.M.G. SMD 430 ΩT<=5% 0805
R407 !0790138804 Carbon 1 KΩ5% 1/6W.
R408 !0790138804 Carbon 1 KΩ5% 1/6W.
R412 0790263008 R.M.G. SMD 100 KΩT<=5% 0805
R413 0790126700 Carbon 100 Ω5% 1/6W.
R414 0790756308 Carbon 27 KΩ5% 1/6W.
R416 0790288005 R.M.G. SMD 10 MΩ5% 1/10W. 0805
R418 0790753909 R.M.G. SMD 15 KΩT<=5% 0805
R419 0790753909 R.M.G. SMD 15 KΩT<=5% 0805
R420 0790133102 Carbon 330 Ω5% 1/4W.
R421 0790232003 R.M.G. SMD 270 ΩT<=5% 0805
R422 0790235006 R.M.G. SMD 470 ΩT<=5% 0805
R423 0790263008 R.M.G. SMD 100 KΩT<=5% 0805
R424 0790256002 R.M.G. SMD 27 KΩT<=5% 0805
R425 0790268007 R.M.G. SMD 330 KΩT<=5% 0805
R426 0790758304 R.M.G. SMD 39 KΩ1% 1/8W. 0805
R427 0790137707 Carbon 680 Ω5% 1/6W
R428 0790237002 R.M.G. SMD 680 ΩT<=5% 0805
R430 0790135701 Carbon 470 Ω5% 1/6W.
R431 0790251003 R.M.G. SMD 10 KΩT<=5% 0805
R433 0790126700 Carbon 100 Ω5% 1/6W.
R434 0790126700 Carbon 100 Ω5% 1/6W.
R435 0790126700 Carbon 100 Ω5% 1/6W.
R436 0790126700 Carbon 100 Ω5% 1/6W.
R437 0790126700 Carbon 100 Ω5% 1/6W.
R600 0790329015 Metal Film 82 Ω5% 2W
R601 0790142905 Carbon 2 KΩ5% 1/4W.
R604 0790131601 Carbon 220 Ω5% 1/2W.
R606 0790539001 Metal Film 18 Ω5% 1W.
R608 0790512313 Metal Film 0,33 Ω5% 1W.
R611 0790600001 Metal Film 1 MΩ1% 0,6W.
R612 0790251003 R.M.G. SMD 10 KΩT<=5% 0805
R653 0790247001 R.M.G. SMD 4,7 KΩT<=5% 0805
R655 0790594006 Metal Film 270KΩ5% 2W.
R670 0470040007 Jumper Lead 0,6 mm.
R676 0790749402 R.M.G. SMD 6,8 KΩT<=5% 0805
R682 0790259006 R.M.G. SMD 47 KΩT<=5% 0805
R683 0790259006 R.M.G. SMD 47 KΩT<=5% 0805
R684 0790247001 R.M.G. SMD 4,7 KΩT<=5% 0805
R685 0790363105 R.M.G. SMD 18 KΩT<=5% 0805
R686 0790251003 R.M.G. SMD 10 KΩT<=5% 0805
R688 0790767503 R.M.G. SMD 220 KΩT<=5% 0805
R691 0790227003 R.M.G. SMD 100 ΩT<=5% 0805
R702 0790526701 Metal Film 1,5 Ω1% 0,6W.
R703 0790526701 Metal Film 1,5 Ω1% 0,6W.
R705 0790136402 Carbon 560 Ω5% 1/2W.
R706 0790251003 R.M.G. SMD 10 KΩT<=5% 0805
R708 0790247001 R.M.G. SMD 4,7 KΩT<=5% 0805
R711 0790343529 Metal Film 1,18 KΩ1% 0,4W.
R712 0790343529 Metal Film 1,18 KΩ1% 0,4W.
R800 0790180111 Carbon 2,2 MΩ5% 1/2W.
R801 0790184113 Carbon 4,7 MΩ5% 1/2W.
R802 0780147906 Wirewound 3,9 Ω10% 5W.
R805 0790590111 Metal Film 150 KΩ5% 2W.
R806 0790330518 Metal Film 100 Ω5% 2W.
R807 0790161202 R.M.G. SMD 73,2 KΩ1% 1/8W 0805
R808 0790252001 R.M.G. SMD 15 KΩ1% 1/10W.
R811 0790275002 R.M.G. SMD 1 MΩT<=5% 0805
R812 0790245005 R.M.G. SMD 3,3 KΩT<=5% 0805
R813 0790764005 R.M.G. SMD 120 KΩT<=5% 0805
R814 0790888101 R.M.G. SMD 9,1 KΩT<=5% 0805
R815 0790154405 Carbon 18 KΩ5% 1/6W.
R816 0790027502 Carbon 1 KΩ5% 1/4W.
R817 0790131106 Carbon 220 Ω5% 1/4W.
R818 0790027502 Carbon 1 KΩ5% 1/4W.
R819 0790247001 R.M.G. SMD 4,7 KΩT<=5% 0805
R820 0790526818 Metal Film 1,5 Ω5% 2W.
R821 0790526818 Metal Film 1,5 Ω5% 2W.
R822 0790513014 Fuse 0,33 Ω5% 0,5W.
R850 0790239008 R.M.G. SMD 1 KΩT<=5% 0805
R851 0790127104 Carbon 100 Ω5% 1/4W.

Service Manual SM CE14A2-C
Ref. No. Part No. Description Ref. No. Part No. Description
11
R852 0790774103 Carbon 820 KΩ5% 1/6W.
R853 0790767503 R.M.G. SMD 220 KΩT<=5% 0805
R854 0790258008 R.M.G. SMD 39 KΩT<=5% 0805
R855 0790767503 R.M.G. SMD 220 KΩT<=5% 0805
R856 0790167100 Carbon 220 KΩ5% 1/4W.
R857 0790167100 Carbon 220 KΩ5% 1/4W.
R858 0790151500 Carbon 10 KΩ5% 1/6W.
R859 0790135701 Carbon 470 Ω5% 1/6W.
R860 0790118202 Carbon 18 Ω5% 1/2W.
R861 0790135909 Carbon 560 Ω5% 1/6W.
R862 0790239008 R.M.G. SMD 1 KΩT<=5% 0805
R863 0790343123 Metal Film 1,00 KΩ1% 0,4W.
R864 0790347009 M.G.R. SMD 1,78 KΩ1% 1/8W 0805
R865 0790735807 Carbon 510 Ω5% 1/6W.
R866 0790242002 R.M.G. SMD 1,8 KΩ5% 1/10W. 0805
R867 0790259006 R.M.G. SMD 47 KΩT<=5% 0805
R868 0790151500 Carbon 10 KΩ5% 1/6W.
R869 0790771208 Carbon 470 KΩ5% 1/6W.
R870 0790247001 R.M.G. SMD 4,7 KΩT<=5% 0805
R910 0790046403 Carbon 12 KΩ5% 1/4W.
R911 0790888101 R.M.G. SMD 9,1 KΩT<=5% 0805
R912 0790026207 Carbon 560 Ω5% 1/4W.
R913 0790227003 R.M.G. SMD 100 ΩT<=5% 0805
R914 0790129803 Carbon 150 Ω5% 1/6W.
R915 0790239008 R.M.G. SMD 1 KΩT<=5% 0805
R916 0790036305 Carbon 2,2 KΩ5% 1/4W.
R917 0790036305 Carbon 2,2 KΩ5% 1/4W.
R918 0790229009 R.M.G. SMD 150 ΩT<=5% 0805
R921 0790027502 Carbon 1 KΩ5% 1/4W.
R922 0790225502 R.M.G. SMD 75 ΩT<=5% 0805
R923 0790225502 R.M.G. SMD 75 ΩT<=5% 0805
R924 0790225502 R.M.G. SMD 75 ΩT<=5% 0805
R925 0790225502 R.M.G. SMD 75 ΩT<=5% 0805
R926 0790225502 R.M.G. SMD 75 ΩT<=5% 0805
R927 0790229009 R.M.G. SMD 150 ΩT<=5% 0805
R928 0790251003 R.M.G. SMD 10 KΩT<=5% 0805
R929 0790251003 R.M.G. SMD 10 KΩT<=5% 0805
R930 0790243000 R.M.G. SMD 2,2 KΩT<=5% 0805
R931 0790151500 Carbon 10 KΩ5% 1/6W.
R934 0790235006 R.M.G. SMD 470 ΩT<=5% 0805
R935 0790551113 Metal Film 180 Ω5% 1W.
R941 0790236004 R.M.G. SMD 560 Ω5% 1/10W. 0805
R942 0790237002 R.M.G. SMD 680 ΩT<=5% 0805
R944 0790236004 R.M.G. SMD 560 Ω5% 1/10W. 0805
R945 0790237002 R.M.G. SMD 680 ΩT<=5% 0805
R947 0790236004 R.M.G. SMD 560 Ω5% 1/10W. 0805
R948 0790237002 R.M.G. SMD 680 ΩT<=5% 0805
R952 0790701106 R.M.G. SMD 0 Ω1/10W. 0805
R953 0790701106 R.M.G. SMD 0 Ω1/10W. 0805
R954 0790701106 R.M.G. SMD 0 Ω1/10W. 0805
R1200 AS2-F 0790251003 R.M.G. SMD 10 KOHM T<=5%
R1201 AS2-F 0790243000 R.M.G. SMD 2,2 KOHM T<=5%
R1202 AS2-F 0790245005 R.M.G. SMD 3,3 KOHM T<=5%
R1203 AS2-F 0790251003 R.M.G. SMD 10 KOHM T<=5%
R1204 AS2-F 0790245005 R.M.G. SMD 3,3 KOHM T<=5%
R1205 AS2-F 0790259006 R.M.G. SMD 47 KOHM T<=5%
R1206 AS2-F 0790245005 R.M.G. SMD 3,3 KOHM T<=5%
R1401 AS2-F 0790229009 R.M.G. SMD 150 OHM T<=5%
R1402 AS2-F 0790243000 R.M.G. SMD 2,2 KOHM T<=5%
R1403 AS2-F 0790741805 R.M.G. SMD 1,5 KOHM T<=5%
R1404 AS2-F 0790846109 R.M.G. SMD 220 OHM T<=5%
R1406 AS2-F 0790243000 R.M.G. SMD 2,2 KOHM T<=5%
R1411 AS2-F 0790247001 R.M.G. SMD 4,7 KOHM T<=5%
R1412 AS2-F 0790245005 R.M.G. SMD 3,3 KOHM T<=5%
R1415 AS2-F 0790259006 R.M.G. SMD 47 KOHM T<=5%
R1417 AS2-F 0790259006 R.M.G. SMD 47 KOHM T<=5%
R1418 AS2-F 0790256002 R.M.G. SMD 27 KOHM T<=5%
R1419 AS2-F 0790239008 R.M.G. SMD 1 KOHM T<=5%
R928 AS2-F 0790749402 R.M.G. SMD 6,8 KOHM T<=5%
R929 AS2-F 0790749402 R.M.G. SMD 6,8 KOHM T<=5%
R931 AS2-F 0790149405 Carbón 6,8 KOHM 5% 1/6W.
SF200 !A2-C 0090411208 SAW Filter G1968M
SF200 !A2-E 0090403510 SAW Filter K2950M
SF200 !AS2-F 0090413402 Filtro Onda Superficial K2962M
SF250 AS2-F 0090413600 Filtro Cerámico MKT40.4MA110P
SF1400 AS2-F 0090413501 Filtro Onda Superficial L9453M
SW800 0140204108 Power Switch S-95 WITHOUT WIPER
S300 0330143009 Headphone Jack EK1052
S900 0330161415 Scart Connector 21 PIN BLACK
S901 0330133109 VIDEO RCA Connector EK105Y
S902 0330133208 AUDIO RCA Connector EK105W
TUNER
TU250 !0850102617 Tuner UV1315/AI-2
TU250 !AS2-F 0850103201 Tuner UV1315/S I-2
TRANSFORMERS
T600 0940200702 Driver Transformer 360T/40T
T650 0940109200 Split Transformer 14" 10678360
T800 !0930107511 Switch MODE TransformerEC7A 10679390
VR800 0770511368 VR 2,2 KΩ
X100 0090122300 Quartz Crystal 8MHz
X400 0090121104 Quartz Crystal, 4,4336190 MHz.
ELECTRICAL ASSY
BRDEFL 0010203503 Wire Band 98/2.5 Natural
BRDY 0200099406 Wire HOLDING HOOK G
BRFG 0010203503 Wire Band 98/2.5 Natural
BRRED 0010203503 Wire Band 98/2.5 Natural
CN.FE 0330208216 Power Cord Assy 17-212 L=2000 MM
CN.FF 0330211822 4P Connector W/LEADS 330+25 MM DESF
SC001 0170200406 Shield Mesh 2 mm.
SC1001 0010001311 Spring Ground CRT
SPK1 0030118202 Speaker 8 Ω2W. 3"
TRC 1000102127 Picture Tube 14"
PACKING
ANT 0330730417 Bipolar Telescopic Antenna W/BALUN
BAT 0660100603 Dry Battery 1,5V. SUM-3F
EM 1 0190203422 Packing Cartoon 14" EXP-C
EM 2 0190160606 Upper Cushion Assy 14" E8R8
EM 3 0190160705 Bottom Cushion Assy 14" E8R8
EM 7 A2-C 0420244006 Instruction Book 14" EC7-A
EM 7 A2-E 0420244105 Instruction Book 14" EC7-A
EM 7 AS2-F 0420244014 Instruction Book 14" EC7-A
EM10 0600123301 Remote Control EC7-A N/TXT SANYO
Note: All the information of this manual is correct in the beginning of
the series; SANYO reserves the right to modify components and
procedures to maintain its policy of continuous improvement.

P.C.B. CARA COMPONENTES
P.C.B. COMPONENTS SIDE
P.C.B. LATO COMPONENTI P.C.B. LATO SOLDATURE
P.C.B. SOLDER SIDE
P.C.B. CARA SOLDADURAS

FUSE
RESISTOR CERAMIC POLYESTER POLYPROPYLENE
G3
KG
G2
KR
GND HH
KB
A34EAC01X06
A34JLL80X23Z
A34LEX10XD
COMPLIANCE TO STANDARDS
When any TV receptor component is substituted, it is necessary
to check the list of components in the Service Manual and all
of those marked with * or ! must be replaced with original
spare SANYO parts.
WARNING! This TV set contains components that are
particularly sensitive to static electricity (ESD).
It is recommended that all due precaution be taken
handling integrated circuits and semiconductors.
NOTES:
1.- Resistor values are expressed in Ohm
K=1000, M=1000000.
2.- Capacitor values lower than 1 are expressed in uF and values
higher than 1 are expressed in pF.
3.- The information in this scheme is correct at the beginning of
the series; SANYO reserves the right to modify this in
accordance with on-going product improvement policy.
4.- The measurements of voltages and oscillograms were carried
out with a TV set tuned to channel-21, normal adjustments
and colour bar pattern.
TP803 5us/div 10V/div
0.00V 37.8Vpp
TP900 20us/div 500mV/div
2.00V 2.2Vpp
TP100 5ms/div 1.0V/div
2.00V 6.3Vpp
TP101 20us/div 1.0V/div
2.00V 5.8Vpp
TP102 20us/div 500mV/div
1.00V 1.77Vpp
TP200 20us/div 5.0V/div
9.90V 21.7Vpp
TP400 5ms/div 200mV/div
3.19V 1.4Vpp
TP401 5ms/div 500mV/div
3.70V 3.0Vpp
TP402 20us/div 500mV/div
1.54V 3.5Vpp
TP403 20us/div 500mV/div
4.00V 2.9Vpp
TP404 20us/div 500mV/div
4.00V 2.9Vpp
TP405 20us/div 500mV/div
4.00V 2.7Vpp
TP500 20us/div 5.0V/div
-0.00V 21.4Vpp
TP501 20us/div 10V/div
85.00V 49.4Vpp
TP502 20us/div 10V/div
85.00V 51.3Vpp
TP503 20us/div 10V/div
85.00V 52.2Vpp
AVVERTENZA !!!
ISOLARE LA MASA
DELL’OSCILLOSCOPIO
PRECAUCIÓN !!!
AISLAR MASA DEL
OSCILOSCOPIO
WARNING !!!
DO NOT JOIN THE
INPUT POWER LINE
TO GROUND THROUGH
THE OSCILLOSCOPE
TP600 20us/div 10V/div
0.00V 36.2Vpp
TP601 20us/div 200V/div
200.00V 806.0Vpp
TP602 20us/div 10V/div
20.00V 51.2Vpp
TP700 5ms/div 200mV/div
0.00V 1.3Vpp
TP701 5ms/div 10V/div
0.00V 46.8Vpp
TP800 5us/div 200mV/div
0.00V 1.2Vpp
TP801 5us/div 100mV/div
0.24V 0.6Vpp
TP802 5us/div 100V/div
250.50V 600.0Vpp
NOTA DE CUMPLIMIENTO DE NORMAS
Cuando se sustituye cualquier componente del receptor TV hay
que consultar la lista de componentes del Manual de Servicio,
y todos los componentes que estén indicados con * o ! deben
ser sustituidos por recambios originales SANYO.
ATENCIÓN este televisor contiene elementos especialmente
sensibles a la electricidad estática (ESD).
Recomendamos que se realice la manipulación de circuitos
integrados y semiconductores con las debidas precauciones.
NOTAS:
1.- Los valores de las resistencias están expresados en Ohm
K=1.000, M=1.000.000.
2.- Los valores de los condensadores menores de 1 están expresados
en uF, los valores mayores de 1 están expresados en pF.
3.- Toda la información de este esquema es correcta en el inicio de
la serie; SANYO se reserva el derecho de modificarlo para
mantener su política de mejora continua.
4.- Las medidas de tensiones y oscilogramas se han efectuado con
el TV sintonizado en el canal-21, ajustes normalizados e imagen
con carta de barras de color.
NOTA SUL RISPETO DELLE NORME
Quando si sosttituisce qualsiasi componente del recevitore TV si
deve consultare l'elenco dei componenti nel Manuale per la
Manutenzione. Tutti i componenti contrassengati con * o !
devono essere sostituiti con ricambi originali SANYO.
ATTENZIONE! Questo televisore contiene elementi
specialmente sensibili all'elettricità statica (ESD).
Consigliamo di realizzare gli interventi sui circuiti
integrati e sui semiconduttori con le dovute precauzione.
NOTE:
1.- Tutti i valori delle resistenze sono in Ohm,
K=1.000, M=1.000.000.
2.- I valori de capacità indicati con un numero minori di 1 sono
in uF maggiori di 1 sono in pF.
3.- Tutte le informacioni di questo schema sono corrette
all'inizio della serie. Seguendo la propria politica di
continuo miglioramento dei propri prodotti, la SANYO si
riserva el diritto di apportare modifiche senza preavviso.
4.- Le miure di tensione e gli oscillogrami sono stati
effettuati con la TV sintonizzata sul canale 21, regolazioni
normalizzate e immagine del monoscopio.
COLOUR TELEVISION 14" TXT
Chassis: 2112 (Series EC7-A)
Models: CE14AT2
CE14AX2
CE14ATR2
CE14AT2-C
CE14AT2-E
0.1 0.1
C103 0.47 0.47 0.47 0.47 0.47
C107 0.1 0.1 0.1 0.1 0.1
C1151 2.2u
C1152 2.2u
C117 0 0
C120 22 22 22 22 22
C121 2200 2200 2200 2200 2200
C1400 1000
C1401 0.1
C1402 10u
C1403 0.01
C1404 4.7u
C1405
000-03729/0CE14AT2
000-03731/0CE14AX2
000-03733/0CE14ATR2
000-03755/0CE14AT2-C
000-03759/0CE14AT2-E
C100 0.1 0.1 0.1
2.2u
C1410 2.2u
C1411 1000
C1412 2.2u
C1413 2.2u 2.2u
C203 0.01
C208 2.2u
C209 68 68 68 68 68
C210 68
C211
0 0 0
C119 4700 4700 4700 4700 4700
C430 2.2u 2.2u 2.2u 2.2u 2.2u
C436
CF200 TPS5.5MB TPS5.5MB TPS5.5MB TPS5.5MB TRAP 5.5/6.5
CF201 SFSH6.5MCB
CF202 SFSH5.5MCB SFSH5.5MCB SFSH5.5MCB SFSH5.5MCB SFSH5.5MCB
D103 2V7
4.7u
C1406 0.1
C1407 1000
C1408 2.2u 2.2u
C1409
0 0 LS4148
D201 LS4148
D251 LS4148
IC100 ST92T195B7B1/EBL ST92195 ST92195 ST92195 ST92195
IC125 M24C04-MN6T M24C04-MN6T KS24C081-CSTF M24C04-MN6T M24C04-MN6T
IC1400 TDA9830T
IC1401 HEF4052
0.01
C212 0 0 0 0 1000
C404 0.22
JO1152 0
JO1401 0
JO400 0 0 0
JO401 0 0 0
L1401 4.7uH
L201 15uH 15uH 15uH 15uH 10uH
L251 1uH 0.39uH
0 0 0 0
D1200 0
D200 0 0
Q1150 PDTC124ET
Q1151 BC848B
Q1400 BF570
Q1401 PDTC124ET PDTC124ET
Q1404 BC848B BC848B
Q252 PDTA124ET PDTA124ET PDTA124ET PDTA124ET PDTA124ET
Q253 PDTA124ET PDTA124ET PDTA124ET PDTA124ET
HEF4052
IC400 TDA8841 N2 TDA8442 TDA8841 N2 TDA8841 N2 TDA8841 N2
JO1151 0
TIP32C 2SB764 2SB764 2SB764
R101 10K 10K 10K 10K 10K
R102 10K 10K 10K 10K 10K
R103 820 820 820 820 820
R107
1uH 1uH 1uH
Q100 BC848B BC848B BC848B BC848B BC848B
15K 15K
R114 100 100 100 100 100
R1154 10K
R1155 4.7K
R1156 33K
R1157 22K
R1158 820
R1159 470
R121 10K 10K
PDTA124ET
Q254 PDTA124ET PDTA124ET PDTA124ET PDTA124ET PDTA124ET
Q853 2SB764
150
R1402 2.2K
R1403 1.5K
R1404 220
R1406 2.2K
R1411 4.7K 4.7K
R1412 3.3K
R1415 47K 47K
R1417 47K 47K
R1418 27K 27K
5.6K 5.6K 5.6K 5.6K 5.6K
R109 15K 15K 15K
R204 330 330 330 330 220
R205 6.8K 6.8K 6.8K 6.8K 4.7K
R209 680 680 680 680 1.8K
R210 1K
R211 2.7K
R213
10K 10K 10K
R126 1K
R128 1K 1K
R1401
R262 0 10K 0 0 0
R928 10K 6.8K 6.8K 10K 10K
R929 10K 6.8K 6.8K 10K 10K
R931 10K 6.8K 6.8K 10K
R1419 1K 1K
R145 1K
R146 1K
R169 1K
LOCATION
PROJECTMODEL
10K
SF1400 L9360M
SF200 G1968M G1968M G1968M G1968M K2950M
SF250 MKT40.4MA110P
TU250 UV1315/AI-2 UV1315/S I-2 UV1315/AI-2 UV1315/AI-2 UV1315/AI-2
POSICION
PROYECTOMODELO
2.7K
R214 0 0 0 0 0
R251 0
G D S
Q800 B C E Q650
E
C
B
Q856
C
B
E
Q853
E
B
C
Q102 Q851
Q103
Q511
Q512
Q513
Q501
Q502
Q503
Q100
Q101 Q600
Q852
Q903
Q104
Q1150
Q1151
Q1200
Q1201
Q1400
Q1401
Q1404
Q200
Q201
Q250
Q251
Q252
Q253
Q254
Q401
Q402
Q570
Q601
Q611
Q651
Q673
Q850
Q854
Q855
Q857
Q858
Q859
Q860
Q900
Q901
Q902
1 28
2952
1 8
916
1 8
916
1
8
4
5
1 9
IC300 1 7 IC701
IC850
IC100 IC800 IC1400
IC1401
IC400 IC125
L'area racchiusa dal tratteggio è collegata
direttamente alla rete di alimentazione,
NOTIZIE SULLA SICUREZZA DI FUNZIONAMENTO
DEFLECTION YOKE
220V
ZONA NO AISLADA DE RED LIVE PARTS AREA ZONA NON ISOLATA DALLA RETE
inserie un trasformatore separatore prima
di procedere all riparazione.
DEGAUSSING COIL
CODE: ES CE14AT2
C108
27
SMD
PTC800
E653
MODELS WITH RADIO
SMD
D675
LS4148
SMD
330
C809
SMD
10K
R134
0
L600
E851
C806
KSP44
Q600
Q201
BC858B
SMD
680
R948
SMD
330
R149
0.47u
SF1400
XXX
C408
IC125
XXX
1/4W
C127
220
SMD
SMD 0.022
0.18
C257
R201
220
TP701
TP800
L100
0
TP401
TP402
1/6W
560
R861
1/6W
100
R433
ERB84
D851
MODELS WITH SECAM L’
MODELS WITH SECAM L
SMD
0.022
C674
D108
BAT42
SMD
1000
C854
BF422
Q502
SMD
73.2K
R807
1N4007
D800
R821
1.5
2W
R200
1K 1/6W
R252
470
SMD
R684
4.7K
SMD
Q1201
XXX
XXX
Q1400
LS4148
D503
C433
100
SMD
SMD
1000
C441
MC44603P
IC800
R316
5.6K
SMD
1/2W
2.2M
R800
SMD
15K
R255
SMD
LS4148
D804
R250
XXX
1/6W
L903
1uH
R913
100 SMD
SMD
R110
5.6K
SMD
SMD
100
C901
L404
0
0.6W
1M
R611
5V1
D904
SMD
SMD
100
R404
SMD
75
R925
R915
1K
SMD
SMD
XXX
R1159
LINE_FILTER
L800
D680
ERB44-04
C670
100
SMD
R816
1K
1/4W
0
L101
SMD
XXX
R1403
R712
1.18K 0.4W
XXX
C1405
SMD
430
R572
0.4W
1.18K
R711
D106
1N4148
SMD
4.7K
R870
C676
0.47
SMD
SMD
3.3K
R812
BC858B
Q570
0.1
C425
SMD
680
R942
XXX
IC100
SMD
47
R533
100u
C400
SMD
100K
R423
BC848B
Q651
SMD
XXX
R1156
220u
C324
400V
LS4148
D303
SMD
24V
D703
C713
1000SMD
C657
0.01
R117
3.7K
1/6W
SMD
1000
C438
D806
ERB44-02
R434
100 1/6W
SMD
XXX
R1411
SMD
0
R952
SMD 0.1
C406
R1201
XXX
SMD
XXX
Q1401
C420
1u SMD
RADIO
1/4W
L403
4.7uH
SMD
LS4148
D600
R857
220K
Q852
KSP42
C800
0.1
275V
C700 100u
2W
1.5
R820
D570
LS4148
SMD
510
R521
D803
1N4007
2W
15K
R502
100u
C702
R921
1K
1/4W
C812
100
100V-SMD
1/6W
470
R430
XXX
D251
SMD
C430
XXX SMD
SMD
XXX
C210
C415
100u
C107
XXX
SMD
D200
SMD
R400
100 1/6W
1/6W
XXX
R213
SMD
0.01
C323
1/2W
1.5K
R541
S900
SMD
0.1
C126
X400
4.4336190_MHz
R1206
XXX
SMD
XXX
CF201
C1401
XXX
SMD
SMD
47K
R682
SMD
XXX
C100
Q1151
XXX
R511
100
SMD
XXX
R1419
1/6W
100
R435
SMD
D651
LS4148
SMD
SMD
XXX
R1200
SMD
D201
R142
100 SMD
2SK3067
Q800
R251
XXX
SMD
SMD
390
R212
R169
XXX SMD
L103
33uH
SMD
XXX
C120
SMD
0
R259
1/6W
XXX
R931
Q856 BC639
TP801
XXX
IC400
E658
1/4W
470K
R869
C714
1000
SMD
R403
100 SMD
C503
220
SMD
C857
10u
C850
C1413
XXXSMD
XXX
Q1404
100K
SMD
SMD
470 C900
100u
R424
27K
SMD
SMD
JO1151
R412
C422
SMD
470
R422
D663
ERB44-04
LS4148
D302
SMD
33
R1404
XXX
SMD
C803
100u
033_0_6200_05
ZOCALO
SMD
220K
R853
SMD
D905
5V1
D100
LED-3MM
SMD
XXX
R103
SMD
XXX
R1401
BC858B
Q857
C856
0.1
SMD
R912
560
1/4W
R114
XXX
1/6W
SMD
5.6k
R152
R532
47
SMD
C252
0.18
SMD
XXX
R145
R683
47K
SMD
R1202
XXX
SMD
L702
0
TP101
TP102
TP802
TP400
SMD
SMD
0.47
C402
L853
XXX
SMD
SMD
0.01
C256
R808
15K
LS4148
D501
R1157
R608
0.33
1W
C414
0.022
SMD
CF202
XXX
L301
0
RI100
SMD
XXX
R109
Q1150
XXX
1/6W
510
R865
FG1
R421
270
SMD
10uH
L304
PL103
2W
100
R806
SMD
0.01
C860
Q511
BF423
SMD
2.2K
R124
R852
1M
1/6W
SMD
BAV103
D562
SMD
680
R428
R1402
XXX
SMD
SMD XXX
C212
R175
100
1/6W
R120
5.6K SMD
R552
1/4W
3.3K
C124
0.1
SMD
R1154
XXX
1/6W
E803
SMD1K
R158
10uH
L901
TP200
C119
XXX
SMD
R551
3.3K
1/4W
SMD
220K
R688
R1406
XXX
SMD
R819
4.7K
SMD
SMD
510
R522
C801
1000
1KV
TP900
D250
L5631
1/4W
2.2K
R916
C911
47u
SMD
6V2
D505
SMD
470
C571
R419
15K SMD
E652
47u
C260
SMD
0.47
C678
ERB44-04
D681
BC848B
Q854
LS4148
D400
SMD
470
R934
BC858B
Q104
C703
0.22
R542
1.5K
1/2W
R204
SMD
0
R954
E655
SMD
1.8K
R866
R118
100
1/6W
SMD
XXX
1K SMD
Q859
BC858B
E650
1/6W
10K
R858
R136
XXX
SMD
R208
47 SMD
1W
BC858B
Q601
C117
1.5K
SMD
C431
4700
SMD
R604
220
C501
220
SMD
S901
XXX
R571
SMD
FF
1M SMD
R261
15K
75
R923
D701
1N4007
R304
SMD
2.2K
R930
SMD
SMD
0.1
C561
47u
C912
R945
680
SMD
1/6W
10K
R868
5.6k
R150
22u
C306
JO1401
XXX
SMD
SMD
SMD 0.1
C427
R115
12K SMD
C513
470
SMD
BAT42
D107
Q851
KSP92
XXX
Q252
E656
SMD
XXX
R209
50V_SMD
E657
R941
560 SMD
SMD
1000
C810
C304
1000
R702
1.5
0.6W
Q513
BF423
R803
5.6M
1/2W
C701
100u
R203
220
SMD
R691
100
SMD
R501
SMD
220K
R855
1K
R862
PMBT2369
Q101
15K
2W
SMD 1K
R162
SMD
BF423
Q512
TP403
SMD
10K
R706
1/6W
18K
R815
LS4148
D685
SMD
BC848B
Q200
SMD0.1
C412
R523
510
SMD
1/6W
100
R437
JO1152
XXX
SMD
SMD
470
C512
SMD
C403
0.022
SMD
SMD
XXX
C1408
C409
0.022
SMD
3.9K
R263
XXX
C1402
SMD
4700
C421
SMD
75
R926
XXX
T600
E659
XXX
Q1200
XXX
T650
C206
2.2u
SMD
R402
10K 1/6W
10u
C426
TP600
Q900
BC848B
R425
330K
SMD
C211
XXX
SMD
TP700
R918
150
SMD
1/4W
1K
R818
SMD
XXX
C1406
5V1
R258
47K
SMD
1/2W
R504
1.5K
SMD
PL101
SMD
D906
XXX
JO250
R1205
XXX
2W
22K
R1153
4.7K
R144
1/6W
1K
R167
1/2W
560
R705
D502
LS4148
SMD
C202
1000SMD
SMD
D901
5V1
1/2W
120
R305
E654
D1201
XXX
SMD
39
C201
X100
8MHz
C858
100u
C804
2200
4KV
SMD
C811
47u
R108
1K
1/6W
1/6W
XXX
R214
R262
XXX
1/4W
100
R851
TP503
R802
3.9
5W
47
SMD
E666
R406
430 SMD
R531
C600
0.01
63V
R416
10M SMD
R854
39K
SMD
D661
ERB44-04
1/4W
220
R817
SMD
1000
C429
D606
LS4148
R863
1K
1/6W
SMD
47
R207
R676
6.8K
SMD
R860
18 1/2W
SMD
XXX
R265
XXX
Q254
R126
XXX SMD
SMD
39K
R426
L300
2.2
SMD
R928
XXX SMD
100u
C115
SMD
100
C116
R101
XXX
1K
R408
R606
18 1W
C404
XXX
SMD
1/6W
L851
C111
10u
1/6W
XXX
R264
10u
C668
R146
XXX SMD
C250
0.1
SMD
1/4W
100
R562
R100
1.8K SMD
C423
1000
SMD
C859
0.22
SMD
XXX
Q100
Q673
BC848B
400V
1000
C655
IC300
TDA7233S
L402
E800
C310
0.022
SMD
4.7uH
SMD 1000
C405
10u
C902
SMD
1.78K
R864
10u
C434
SMD
D907
5V1
SMD
9.1K
R911
XXX
SF200
100uH
L102
5V1
D902
SMD
PL100
C251
100u
C1404
XXX
PL102 R154
100 SMD
D662
IC850
L7805
C909
470 SMD
SMD
XXX
R102
ERB06-13
SMD
1u
C302
BC858B
Q860
Q858
BC858B
C656
0.039
400V
R601
2K
2W
R112
100
1/6W
L401
4.7uH
C906
470 SMD
IC1400
XXX
SMD
2.2u
C205
SMD
470u
C325
R924
75
SMD
R418
15K
2200
C417
E651
XXX
L201
SMD
SMD
10K
R119
LS4148
D607
SMD
22K
R116
R708
4.7K
SMD
L900
FERRITE
10K
SMD
SMD
XXX
R165
C852
SMD
100K
R253
R867
1/2W
C813
1000
63V
1KV
220
1/6W
XXX
L252
R801
4.7M
D700
LS4148
R407
1K
R917
2.2K
1/4W
1KV
1000
C802
SMD
220
C502
R121
XXX SMD
11V
D1150
LS4148
R513
100
SMD
1/2W
R574
1.5K
R561
10K
SMD
L666
0
SMD
D601
220
R206
2KV
2200
C573
SMD
27
C109
SMD
1000
C114
SMD
4700
SMD
SMD
27K
R1416
1/4W
SMD
XXX
R107
C123
SMD
3.3K
R104
250V
0.39
C653
R553
3.3K
R105
12K
SMD
R157
3.9 K SMD
Q402
BC848B
R503
15K
2W
SMD
XXX
R929
47u
C903
63V
2200
C807
D109
BAT42
15K
R256
C904
470 SMD
R135
10K SMD
SMD
8200
1600V
BC858B
Q401
VR800
2.2K
C651
SMD
D852
LS4148
Q253
XXX
SMD
XXX
C203
D104
1N4148
R859
470
1/6W
R805
150K
2W
R953
0SMD
C129
0.01
SMD
D850
ERB44-06
SMD
6V2
D674
R111
470
SMD
2W
82
R600
SMD
XXX
C436
C305
47u
R431
L405
4.7uH
JO652
0
SMD
10K
C511
C440
0.01
SMD
L801
1uH
SMD
470
4.7uH
L400
L250
4.7uH
250V
XXX
F_800
Q250
XXX
R151
5.6k
SMD
0.1
C611
SMD
18K
R685
0
L701
SMD
560
R944
SMD
1/4W
330
R420
R811
1M
SMD
100K
1/2W
1/2W
1.5K
R543
SMD
JO400
SMD
R856
SMD
XXX
R210
C112
0.1
E665
R254
100
SMD
SMD 1K
R161
C601
0.047
63V
SMD
9.1K
R814
SMD
100
R512
R655
270K2W
D561
9V1SMD
SW800
1N4007
D802
R850
1K SMD
R922
75
SMD
C424
0.1
SMD
C326
0.1
SMD
C1410
XXX
SMD
C121
XXX
SMD
R1158
XXX
SMD
C853
Q855
BC848B
1000
C711
63V
2200
L902
1uH
SMD
27K
R414
SMD XXX
C1407
R436
1001/6W
1/6W
C1403
XXX
SMD
SMD
0.1
C416
1/6W
1K
R137
SMD
FI
R302
33K
SMD
JO401
1/6W
56K
R319
R163
1K
SMD
22K
R505
MODELOS CON RADIO
E802
FK
1N4148
D105
R947
560 SMD
SMD
R202
470
SMD
Q102
PDTA124ET
10K
SMD
C410
XXX
CF200
R612
L251
XXX
SMD 0.022
R686
10K
SMD
SMD
150
R927
C209
XXX
SMD
Q251
PMBT2369
R653
4.7K
SMD
E801
1/6W
220
R215
CN_G2
R405
100 SMD
2W
2.7
R573
C418
3300
SMD
Q650
2SD2599
XXX
X401
SMD
470 C905
0.6W
1.5
R703
1/2W
5.6M
R804
SMD
0.01
C428
R211
XXX
1/6w
18
SMD
C411
XXX
T800
C103
XXX
SMD
D801
1N4007
C413
3300
SMD
0.5W
0.33
R822
R106
C435
0.1
SMD
SF250
XXX
R813
120K
SMD
SMD
15K
C1411
SMD
XXX
FC
FI1
L850
SMD
C1409
XXX
R670
0
1/6W
Q611
PDTC124ET
C1400
XXX SMD
C110
0.1
SMD
10u
SMD4.7k
R156
MODELOS CON SECAM L
MODELOS CON SECAM L’
C200
SMD
XXX
R205
Q503
BF422
XXX
R1204
SMD
C401
0.1
SMD
C851
LS4148
D652
C128
0.01
SMD
1000u
47u
C910
S300
2W
12K
R257
TP501
TP502
IC1401
XXX
0.22
C603
Q501
BF422
0
L802
XXX
S902
63V
E850
TP100
SMD
100
R155
100K
R160
C1151
XXX
SMD
XXX
D1200
R935
180
1W
SMD
SMD 0.1
C204
1/4W
12K
R910
SMD
XXX
C1152
R143
4.7K
SMD
XXX
SMD
R1415
TP405
C675
0.1
SMD
IC701
LA7840
1/6W 47K
R113
R317
4.7
1/4W
SMD
100
R141
D504
LS4148
R413
1001/6W
1/6W
150
R914
SMD
22
C125
5V1
D908
SMD
TP404
1/6W
100
R401
SMD
XXX
R128
TP500
TP803
R1155
XXX
SMD
TP601
2.2u
SMD
SMD
10K
R303
BC848B
Q850
R1412
XXX
SMD
C419
FB
SMD
XXX
D103
C208
XXX
SMD
LS4148
D611
Q853
XXX
0.1
C504
TP602
FE
SMD
C1412
XXX
SMD
250V
FG
R1418
XXX
TU250 L1401
XXX
R1203
XXX
SMD
SMD 1K
R172
R1417
SMD
XXX
680
R427
1N4148
D102
SAW2
MUTE
1/6W
-AM;FM
SAW1
-AM;SCART-RADIO
CVBS_SC_OUT
SDA
SCL
SC
-DEFL_FAIL
-AM;FM
-RADIO
ON
R_CLK
R_DATA
-R_READ;WRITE
-AM;SCART
-RESET
-PD
-DEFL_FAIL
MUTE
BEEP
AUD_OUT
SC
CVBS_SC_OUT
CVBS_SC
+V_DRIVE -V_DRIVE
H_OUT
H_FLY&SYNC
-PD
ON
CHROMA
V_GUARD
BCI
IR
KEY
FBu
-AGC_LS
VTUNE
-LB
BEEP
CF2
CF1
TUN_AGC
-MB
LED
-LP;L
-SUP_FAIL
H_OUT
H_FLY&SYNC
+V_DRIVE
BCI
V_GUARD
BCL
SAW2
AUD_OUT
SAW1
CVBS_TXT
TUN_AGC
-HB
-MB
-LB
-HB
R
R
CHROMA
CVBS_TXT
H_FLY&SYNC
KEY
-V_DRIVE
R_DATA
-R_READ;WRITE
R_CLK
TUN_AGC
CF1
FB
SDA
SCL
BCL
AKB
SCL
SDA
CVBS_SC
B
G
R
CF2
-RESET
B
G
R0
G0
B0
AKB
FB
FB
B
G
R0
G0
B0

Service manual Chassis 2112
Chassis description Series EC7-A
Colour television
Note
This TV receiver will not work properly in foreign countries
where the television transmission system and power
source differ from the design specifications. Refer to the
specifications for the design specifications.
Ref. Nº MS CHASSIS2112-I
16/06/2000

Service manual CHASSIS 2112-Series EC7-A
1
INDEX
1. SAFETY INSTRUCTIONS..................................................................................................................................... 3
1.1 WARNING. ........................................................................................................................................................ 3
1.2 PRECAUTIONS AGAINST X-RAYS. ....................................................................................................................... 3
1.3 RECOMMENDATIONS TO PROTECT OUR ENVIRONMENT......................................................................................... 3
1.4 SAFETY AND EMC (ELECTROMAGNETIC COMPATIBILITY).................................................................................... 3
2. TECHNICAL CHARATERISTICS. ........................................................................................................................ 4
3. BLOCK DIAGRAM................................................................................................................................................ 5
3.1 INTEGRATED CIRCUITS....................................................................................................................................... 6
4. DETAILED DESCRIPTION IN BLOCKS .............................................................................................................. 6
4.1 POWER SUPPLY. ............................................................................................................................................... 6
4.1.1 Switched Mode Power Supply (SMPS)..................................................................................................... 6
4.1.1.1 IC800 controller start-up..................................................................................................................... 6
4.1.2 Normal functioning ("on").......................................................................................................................... 6
4.1.2.1 Duty cycle........................................................................................................................................... 6
4.1.2.2 Regulation.......................................................................................................................................... 6
4.1.3 "Stand-by"................................................................................................................................................. 7
4.1.4 “+8v” and “+5v” regulators ........................................................................................................................ 7
4.1.4.1 Configuration...................................................................................................................................... 7
4.1.4.2 “stand-by” / ”ON” control .................................................................................................................... 7
4.1.4.3 Regulator output short circuit protection. ........................................................................................... 7
4.1.4.4 Mains switch off detection.................................................................................................................. 7
4.1.4.5 Power supply signals and micro signals interrelation......................................................................... 8
4.2 TELETEXT AND MICROPROCESSOR..................................................................................................................... 8
4.2.1 Ports description....................................................................................................................................... 8
4.2.2 Supply....................................................................................................................................................... 9
4.2.3 Oscillator................................................................................................................................................... 9
4.2.4 Reset. ....................................................................................................................................................... 9
4.2.5 RGB output, character generator.............................................................................................................. 9
4.2.5.1 Character generator synchronism...................................................................................................... 9
4.2.5.2 RGB output voltage............................................................................................................................ 9
4.2.6 Teletext (only for ST92195 version).......................................................................................................... 9
4.2.6.1 Non-interlaced.................................................................................................................................. 10
4.2.7 –PD signal. ............................................................................................................................................. 10
4.2.8 ON signal................................................................................................................................................ 10
4.2.9 Radio control signals. ............................................................................................................................. 10
4.2.10 SC signal............................................................................................................................................. 10
4.2.11 –SUP_FAIL signal............................................................................................................................... 10
4.2.12 –AM/SCART signal.............................................................................................................................. 10
4.2.13 –LP/L signal......................................................................................................................................... 10
4.2.14 –AM/FM signal..................................................................................................................................... 10
4.2.15 –DEFL_FAIL signal. ............................................................................................................................ 10
4.2.16 I2C bus and peripherics connected to (SDA y SCL)........................................................................... 10
4.2.17 CF1 and CF2 signals........................................................................................................................... 10
4.2.18 Tuning control signals (-AGC_LS, -LB, -MB, -HB, VTUNE)................................................................ 10
4.2.19 BEEP signal......................................................................................................................................... 11
4.2.20 WIDTH signal. ..................................................................................................................................... 11
4.2.21 MUTE signal........................................................................................................................................ 11
4.2.22 LED signal........................................................................................................................................... 11
4.2.23 Customer instructions reception (IR and KEY signals). ...................................................................... 11
4.3 HORIZONTAL DEFLECTION................................................................................................................................11
4.3.1 Driver stage. ........................................................................................................................................... 11
4.3.1.1 Driver stage power........................................................................................................................... 11
4.3.1.2 Driver stage start-up......................................................................................................................... 11
4.3.2 Line stage............................................................................................................................................... 11
4.3.3 Width adjustment.................................................................................................................................... 12
4.3.4 H_FLY&SYNC signal generation............................................................................................................ 12
4.3.5 Recovered line voltages. ........................................................................................................................ 12

Service manual CHASSIS 2112-Series EC7-A
2
4.3.5.1 Heater supply................................................................................................................................... 12
4.3.6 EHT discharge........................................................................................................................................ 12
4.3.7 Protections.............................................................................................................................................. 12
4.3.7.1 Low Flyback protection..................................................................................................................... 12
4.3.7.2 Heater short-circuit protection.......................................................................................................... 12
4.3.7.3 Beam current overconsumption protection. ..................................................................................... 13
4.3.7.4 C656 open-circuit protection. ........................................................................................................... 13
4.4 VERTICAL DEFLECTION. ................................................................................................................................... 13
4.4.1 Vertical deflection suppliers.................................................................................................................... 13
4.4.2 Vertical deflection protection................................................................................................................... 13
4.5 BEAM CURRENT LIMITER AND GEOMETRY COMPENSATIONS................................................................................ 13
4.5.1 BCl signal generation.............................................................................................................................. 13
4.5.2 Geometry compensations....................................................................................................................... 13
4.5.2.1 Width and height compensation....................................................................................................... 13
4.5.2.2 Phase compensation........................................................................................................................ 13
4.5.3 ABL description....................................................................................................................................... 14
4.5.3.1 BCL signal generation...................................................................................................................... 14
4.5.3.2 Contrast and brightness reduction................................................................................................... 14
4.6 TUNER AND TUNING CIRCUIT. ........................................................................................................................... 14
4.7 VIDEO SIGNAL PROCESSING............................................................................................................................. 14
4.7.1 Video processor...................................................................................................................................... 14
4.7.1.1 Video processor versions................................................................................................................. 14
4.7.1.2 IF video............................................................................................................................................. 14
4.7.1.3 Horizontal and vertical synchronisation............................................................................................ 15
4.7.1.4 Geometry processor......................................................................................................................... 15
4.7.1.5 Video filter and switches................................................................................................................... 16
4.7.1.6 Colour decoder................................................................................................................................. 16
4.7.1.7 RGB processing............................................................................................................................... 16
4.7.1.8 RGB control...................................................................................................................................... 16
4.7.1.9 Supply and Bandgap........................................................................................................................ 17
4.7.2 Block diagrams of video paths................................................................................................................ 17
4.8 AUDIO SIGNAL PROCESSING............................................................................................................................. 17
4.8.1 Audio processor...................................................................................................................................... 17
4.8.2 AM sound................................................................................................................................................ 17
4.8.3 L’ system................................................................................................................................................. 18
4.8.4 Audio switching....................................................................................................................................... 18
4.8.5 Speaker amplifier.................................................................................................................................... 19
4.9 RGB AMPLIFIER.............................................................................................................................................. 19
4.10 CRT SOCKET CONNECTOR........................................................................................................................... 19
4.11 PERIPHERAL CONNECTIONS TO TV SET......................................................................................................... 19
5. CONFIGURATION AND ADJUSTMENTS.......................................................................................................... 19
5.1 SERVICE MENU................................................................................................................................................ 19
5.1.1 Service menu navigation. ....................................................................................................................... 20
5.1.2 Meaning of each adjustment................................................................................................................... 21
5.2 ADJUSTMENTS. ............................................................................................................................................... 22
6. SPECIAL MODES AND PROCEDURES............................................................................................................ 23
6.1 SECAM B/G – L ADAPTATION........................................................................................................................... 23
6.2 NTSC M (NTSC 3, 579545) ADAPTATION....................................................................................................... 24
6.3 PROCEDURE OF SUBSTITUTION OF MICROPROCESSOR IC100............................................................................ 24
6.3.1 TV sets without TXT: OTP replacement with a mask............................................................................. 24
6.3.2 TV sets with TXT: OTP replacement with a mask.................................................................................. 25
6.4 INITIAL AUTO TUNING SETTING.......................................................................................................................... 25
6.5 PROCEDURE OF NON-VOLATILE MEMORY SUBSTITUTION.................................................................................... 25
6.6 “FACTORY” MODE DESCRIPTION. ...................................................................................................................... 25
6.7 DESCRIPTION OF “HOTEL” AND “RENTAL” MODES.............................................................................................. 25
7. FAILURE LOCATION.......................................................................................................................................... 26
7.1 INTRODUCTION................................................................................................................................................ 26
7.2 THE START-UP PROCEDURE............................................................................................................................. 26
7.3 PROTECTIONS................................................................................................................................................. 26
7.4 INDICATION OF ERRORS (LED BLINKING). ......................................................................................................... 26

Service manual CHASSIS 2112-Series EC7-A
3
7.5 POSSIBLE CAUSES OF ENTERING IN PROTECTION MODE..................................................................................... 27
7.6 PROTECTION INHIBITION. ................................................................................................................................. 27
7.7 FAILURE LOCATION FLOW-CHARTS. .................................................................................................................. 28
7.7.1 Errors 1, 2 and 6..................................................................................................................................... 28
7.7.2 Error 3..................................................................................................................................................... 29
7.7.3 Error 4..................................................................................................................................................... 30
7.7.4 Error 11................................................................................................................................................... 30
No error indication. .............................................................................................................................................. 31
8. GLOSSARY OF TERMS..................................................................................................................................... 32
1. SAFETY INSTRUCTIONS.
In order to understand correctly this service manual, it should be read along with schematic diagram of model under
study.
All circuits from this chassis, with exception of primary side of power supply, are isolated from mains.
1.1 Warning.
An isolation transformer should be connected in the power line between the receiver and mains when a service is
performed on the primary side of power supply. The deflection heat sink is connected to 12v.
1.2 Precautions against X-Rays.
The primary source of X-RADIATION in the television receiver is the picture tube. The picture tube is specially
constructed to limit X-RADIATION emissions. For continued X-RADIATION protection, the replacement tube must
be the same type as the original including suffix letter. Excessive high voltage may produce potentially hazardous X-
RADIATION. To avoid such hazards, the high voltage must be maintained within specified limit. If high voltage
exceeds specified limits, take necessary corrective action. Carefully, follow the instructions for +B1 volt power
supply adjustment and high voltage adjustment to maintain the high voltage within the specified limits.
1.3 Recommendations to protect our environment.
STAND-BY MODE: In order to save energy and to maintain an optimum picture quality, it is advisable to switch off
the TV using the ON/OFF button located at the front of TV set.
USED BATTERIES: The batteries in the remote control of your TV set do not contain mercury. However, SANYO
recommends that you do not dispose of used batteries in domestic refuse. Please, contact your dealer or your local
authorities for information regarding the disposal of used batteries or your nearest collection point.
RECOMMENDATION ABOUT THE END-OF-LIFE: Your SANYO TV set has been designed and manufactured
using high quality materials which can be recycled and reused. In the future, when the life cycle of this set comes to
an end, specialised companies can disassemble it and reuse certain materials. This reduces the impact of waste in
our environment. Please, contact with your local authorities for information regarding the disposal of your set when
the time arrives. Help us to conserve the environment we live in!.
1.4 Safety and EMC (Electromagnetic Compatibility).
It fulfils the safety requirements established in the regulation: EN 60065:1993.
It fulfils the EMC requirements established in the regulation:
EN 55013:1990/A12:1994
EN 55020:1994
EN 60555-2:1987

Service manual CHASSIS 2112-Series EC7-A
4
2. TECHNICAL CHARATERISTICS.
Cathode-ray tubes In-Line, Hi-bipotential gun. 14” (34 cm)
Tuning-system Voltage synthesis, 100 programs in non-volatile memory, AFT, Fine-tuning
(10 first programs), automatic, semiautomatic and manual channel-search.
Band I, channels 2-4 (VHF)=E2-E4
Cable channels S1-S20
Hyperband channels S21-S41
Band III, channels 5-12 (VHF)=E5-E12
Band IV-V, channels 21-69 (UHF)=E21-E69
Reception system B/G
D/K, I, L, L’ (depending on models)
Colour system PAL, NTSC 4.43, N.A.P. (NTSC Amusement by PAL)
PAL/SECAM (depending on models)
Program selection Sequential selection from the controls on the set. Direct selection to any
program from the remote-control device.
Audio Power-rating 1W rms. (10% distortion)
Speakers 1 of 8 Ω.
Aerial External aerial sockets 75 ohms. IEC
Jack for headphones Mono jack 3,5mm.
Clock and alarm Function
Timer Function Switch on and off of CTV programmable in real time.
AV connectors 1 Scart connector 21 pin CENELEC standard AV, RGB and S_Video.
1 RCA Video input (frontal)
1 RCA Audio input (frontal)
Power supply 220 – 240 VAC 50Hz
Consumption 47W (maximum consumption).
29W (IEC 107-1)
3,1 W (Stand-by )
Text 1.5 FLOF and LIST level. 1 page memory.
Radio 87.5 - 108MHz. 40 memories. Manual and semiautomatic search
Hotel mode Hotel mode and Hotel Rental
Options by means of Technical Service:
Secam BG/L (depending on models), NTSC-M

Service manual CHASSIS 2112-Series EC7-A
5

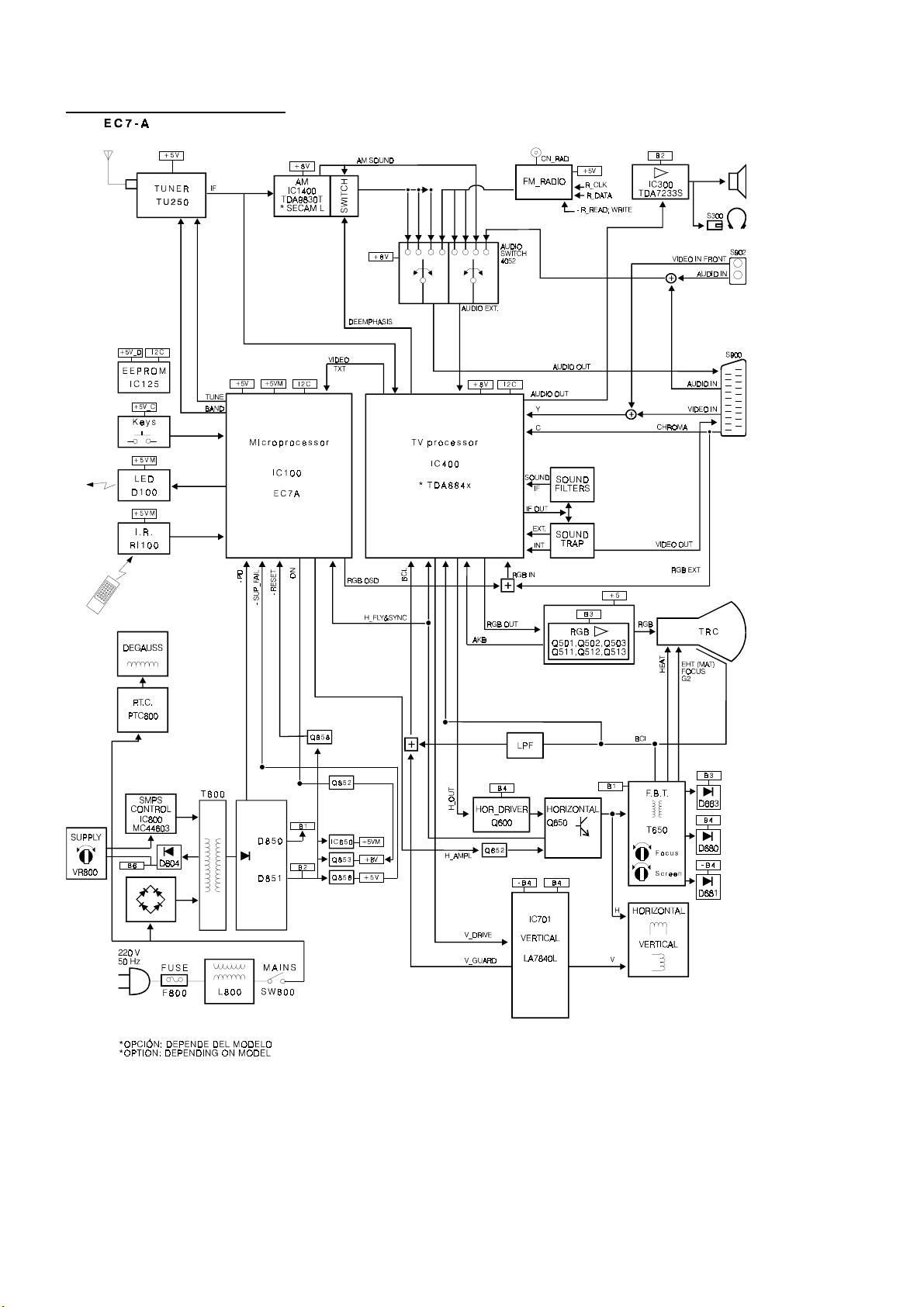

3. BLOCK DIAGRAM
