CE29FFV1-F
Service Manual Model:
CRT 29” Philips A68ERF001X013
CHASSIS 2114
EB5-C 21"/25"/28"/29"
Colour Television True Flat
Give complete “SERVICE PART No” for parts order or
servicing, it is shown on the rating sheet on the cabinet
back of the TV set.
Note
This TV receiver will not work properly in foreign countries
where the television transmission system and power
source differ from the design specifications. Refer to the
specifications for the design specifications.
Ref. Nº MS CE29FFV1-F
03-07-2002

Service Manual SM CE29FFV1-F
1
1. Safety instructions
Read this page before doing any operation of adjustment, maintenance or repair the TV set described.
Only skilled personnel of Sanyo Technical Service should do the adjustment, maintenance or repair of TV set.
2. WARNING
For the correct and safe use of the TV set, it is essential that the service personnel follow the process of safety
generally accepted and the safety precautions specified in this manual.
An isolation transformer should be connected in the power line between the receiver and the AC line when a service
is performed on the primary side of the converter transformer of the set.
The deflection heat sink is connected to -12V.
3. Precaution against X-Rays
The primary source of X-RADIATION in the television receiver is the picture tube. The picture tube is specially
constructed to limit X-RADIATION emissions. For continued X-RADIATION protection, the replacement tube must
be the same type as the original including suffix letter. Excessive high voltage may produce potentially hazardous X-
RADIATION. To avoid such hazards, the high voltage must be maintained within specified limit. If high voltage
exceeds specified limits, take necessary corrective action. Follow the instructions carefully for +B1 volt power supply
adjustment, and high voltage adjustment to maintain the high voltage within the specified limits.
COMPLIANCE TO STANDARDS
All of those marked with !or must be
Replaced with original parts
WARNING! This TV set contains components which
are particularly sensitive to static electricity (ESD).
It is recommended that all due precaution be taken
handling integrated circuits and semiconductors.
4. Recommendations to protect our environment
Stand-by mode: In order to save energy and to maintain an optimum picture quality, it is advisable to switch off the
TV using the ON/OFF button located at the front of TV set.
Used batteries: The batteries in the remote control of these models do not contain mercury. However, SANYO
recommends that you do not dispose of used batteries in domestic refuse. Please, contact your dealer or your local
authorities for information regarding the disposal of used batteries or your nearest collection point.
Recommendation about the end-of-life: These SANYO TV sets have been designed and manufactured using high
quality materials which can be recycled and reused. In the future, when the life cycle of these sets come to an end,
specialised companies can disassemble it and reuse certain materials. This reduces the impact of waste in our
environment. Please, contact with your local authorities for information regarding the disposal of your set when the
time arrives. Help us to conserve the environment we live in!

Service Manual SM CE29FFV1-F
2
5. TECHNICAL CHARATERISTICS.
Cathode-ray tubes In-Line, gun Type. Black Matrix. 29” (68 cm) True Flat, Invar Plus mask.
Tuning-system Voltage synthesis, 100 programs in non-volatile memory, AFT, automatic,
semiautomatic and manual channel-search.
Reception channels Band I, channels 2-4 (VHF)=E2-E4
Cable channels S1-S10
Hyperband channels S21-S41
Band III, channels 5-12 (VHF)=E5-E12
Band IV-V, channels 21-69 (UHF)=E21-E69
Reception system B/G, D/K, I, L, L' system
Colour system PAL, SECAM, (NTSC 4.43, NTSC 3,58) ONLY AV
Program selection Sequential selection from the controls on the set. Direct selection to any program
from the remote-control device.
Audio Power-rating 2x8,9 W rms. (10% distortion)
Speakers 2 of 8 Ω.
Aerial External aerial sockets 75 Ωs. IEC
Jack for headphones Stereo jack 3,5mm. (with independent control)
Clock and alarm Function
Timer Function Switch on and off of CTV programmable in real time.
AV connectors 1 Scart connector 21 pin CENELEC standard AV, RGB and S_Video.
1 Scart connector 21 pin CENELEC standard AV, RGB
1 RCA Video input (frontal)
2 RCA Audio input (frontal)
Power supply 220 – 240 VAC 50Hz
Consumption 83 W (IEC 107-1)
2,1 W (Stand-by )
CTI Improves color transitions
Comb Filter Improves video bandwith and reduces crosscolor effect.
Stereo/Dual Systems NICAM and Stereo/Dual (A2)
Sound Effects Pseudo Stereo. Bass boost. Actv. 3D sorround, BBE, spatial stereo
Auto volume
Clock function
Alarm function Programmable over 24 hours
Timer function Switch on and off are programmable aver 24 hours.
TXT 1,5 Flot and list. 10 Teletext pages memory
Hotel Mode It can be programmed in Hotel Mode and Rental Hotel Mode
Remore ON/OFF Tis TV can be switched ON/OFF Through the blue scart connector.
Options by means of Technical Service:
SECAM, NTSC-M
6. Safety
It fulfils the safety requirements established in the regulation:
EN 60065:98
7. EMC (Electromagnetic Compatibility)
It fulfils the EMC requirements established in the regulation:
EN 55013:1990/A12:1993/A13:1996/A14:1999
EN 55020:1994/A11:1996/A13:1999/A14:1999
EN 61000-3-2:1995+A1:19998+A2:98/A14:2000
EN 61000-3-3:1995
8. Factory special mode
The factory mode is a special TV working mode intended to help in the manufacturing process and it is identified on
the screen with the message “FAC”. This mode is never suited for customer use.
The main differences respect to normal mode are:
1- The standby mode is always disabled.
2- The Blue-back (no sync. signal present) is disabled.
3- The customer adjustments ( volume, contrast …) work faster.
4- The timer off works but it does not change to Stand-by mode.
5- Change of programs and TV/AV swithing faster. Cancelled mute.
In case of finding the TV set in Factory mode, it must be taken out of this state. To do so, enter the clock setting
menu on the customer OSD and then exit.

Service Manual SM CE29FFV1-F
3
9. Automatic channel search reactivating
In order to reset the initial automatic channel search function, start a channel search in AUTO mode from the user
tuning menu and switch-off the TV set before any station is found. The next time the TV set is switched on, it will
start an automatic channel-search.
10.Service Menu
The service menu allows to acces to de relationel parameters with the TV setting.
The service menu is accessed by holding down the front key (vol-) and simultaneously pressing the teletext green
key from the remote control. An very detaill explication is in the Service Manual of chassis 2114 (EB5-C).
11.CONNECTED DOCUMENTS.
This Service Manual provides the particular information of the model CE29FFV1-F and it is complemented with:
1. Service Manual of the CHASIS 2114 (EB5-C).
2. Service Electrical scheme of the model CE29FFV1.
3. Instruction manual.
12.MOUNTED CIRCUITS CODES.CE29FFV1-F
A68ERF001X013
Assy 6110385702 Main + Socket TRC +Audio + Mandos
Subassy 7040004207 Socket TRC PCB
Subassy 7110024408 Main PCB
Subassy 7140002135 Audio PCB
Subassy 7200002108 PCB Mandos

Service Manual SM CE29FFV1-F
4
13.CABINET PARTS LIST
13.1. CABINET PARTS LIST OF CHASSIS CE29FFV1-F
Ref. No. Part No. Description
YG25 0390320307 Bar Code Label -Chassis
YG4 "0080113103 COMP. Side IF Shield EB5-C
YG5 0080113202 Copper Side IF Shield EB5-C
YG1800 0200826402 LED Holder
Assy PA (Audio)
IC300 0360517304 TDA 8946 J N1
YR300 0200226108 HeatsinkAUDIO EB5-C 25-28-29
YR301 0970200804 Silicon Grease YG6260
YR302 0010106300 Spring CLIP 56379
Assy PD (Deflexión)
IC701 "0360517007 LA7846N
Q650 0360306708 S 2055 N
Q750 0360309009 BD242BFP
YR650 0200225902 HeatsinkDeflection EB5-C 29
YR651 0970200804 Silicon Grease YG6260
YR652 0010106300 Spring CLIP 56379
YR653 0010106300 Spring CLIP 56379
YR654 0010110401 Spring CLIP 56363
Assy PB
D851 0360378905 SchottkyFMB-G19L 90V 4ATO220
YR851 0200224905 Heatsink TO-220-F
Localiz. Código Descripción
Assy PF(Fuente alimentación)
Q800 "0360311302 MOS 2SK2545 600V/6A
YR800 0200225811 Heatsink Power Supply EB5-C
YR801 0010110401 Spring CLIP 56363
Assy PT
S901 0330162702 Scart Connector 21 PIN BLUE
YR901 0200420602 Mounting-BRKT F2WV
YR902 0890115603 Selftapping ScrewsDIN 7981F 2,9X8
Assy PS
S900 0330162603 Scart Connector 21 PIN BLACK
YR900 0200420602 Mounting-BRKT F2WV
YR903 0890115603 Selftapping ScrewsDIN 7981F 2,9X8
Assy PC (Zocalo TRC)
IC500 0360514210 TDA 6107 Q/N2
YR500 0200224806 HeatsinkRGB EB5-A
YR501 0970200804 Silicon Grease YG6260
YR502 0050709104 Washer
YR503 0890121106 Screw M3X6 FE/ZN DIN 7985

Service Manual SM CE29FFV1-F
5
13.2. CABINET PARTS LIST OF CE29FFV1-F
Ref. No. Part. No. Description
(2700054006)
YP 1 0590275806 CabinetFront 29" FLAT ATS
YP 4 0020125225 SANYO Badge 46,2X13,5/SILVER
YP 5 0340208404 TRANS.DEC.BOARD 29" FLAT
YP 6 0970304002 Rubber Band 600X2800 MM
YP12 0010111003 Key Spring 21" C2GA
YP13 2130010800 Button Power Assy 29" FLAT
YP13-1 0130216500 Button United BASE 29" FLAT
YP13-2 0130216609 Button Power 29" FLAT
YP14 2130010701 Button Base Assy 29"FLAT
YP14-1 0130216401 Button Unit 29" FLAT
YP14-2 0130216302 Button United BASE 29" FLAT
YP16 0200628402 Rail Lateral PCB 29" FLAT
YP19 0590275103 Door 29" FLAT
Ref. No. Part. No. Description
YF 1 2700054006 Front Cabinet Assy 29" FLAT ATS
YF 2 0590274809 BackCover 29" FLAT
YF 6 0390255305 Rating Place CE29FFV1-F
YF14 0200819910 AC Cord Holder
YF15 0050709005 Spacer Cushion D8RZ
YF18 0010111102 SteelStrapping 21" C2GA
YF23 0890161508 Screw CL 6,1X27
YF24 0890191315 Screw AR 4X15
YF25 0890190903 Screw 4X13
YF27 0890560709 Screw AR. 4,2X13 CINCADO NEGRO
YF37 0890036304 Screw 3,9X9,5
YF44 0200628204 Front RAIL 29" FLAT

Service Manual SM CE29FFV1-F
Ref. No. Part No. Description Ref. No. Part No. Description
6
14.PARTS LIST
PCB SOCKET TRC
CON_FD 0160220729 Polarized Band 4P 520+6+6
CON_FH 0160230819 Polarized Band Gray5P. 450+6+6
CAPACITORS
C500 0270341324 Polyester 100 nF. 10% 250V.
C501 0250322815 Electrolytic 10 µF. 250V.
C503 0240590901 Ceramic 2200 pF +80-20% 2KV.
DIODES
D500 0360007215 BAV21 DIODE
D501 0360007215 BAV21 DIODE
D502 0360007215 BAV21 DIODE
E500 0640705117 Eyelet 2,5-3
FD1 0330144205 Ribbon Wire Holder4 P.
FH1 0330144304 Ribbon Wire Holder5 P.
FK 0640300604 Earth Wire 340 mm.
INTEGRATED CIRCUITS
IC500 0360514210 TDA 6107 Q/N2
J117 0470040007 Jumper Lead 0,6 mm.
L502 0090304924 Choke R.F. 470 µH. 10%
L506 0090208307 Coil 75 µH. 10% 1,5 A. R-7,5
PCB04 0750153520 Socket PCB 5-C
RESISTORS
R500 0790741409 Solid 1,5 KΩ10% 1/2W.
R501 0790741409 Solid 1,5 KΩ10% 1/2W.
R502 0790741409 Solid 1,5 KΩ10% 1/2W.
R503 0790741409 Solid 1,5 KΩ10% 1/2W.
R504 0790741409 Solid 1,5 KΩ10% 1/2W.
R505 0790239008 R.M.G.SMD 1 KΩT<=5% 0805
R506 0790535702 Fuse 10 Ω5% 0,33W.
R507 0790227003 R.M.G. SMD 100 ΩT<=5% 0805
R508 0790227003 R.M.G. SMD 100 ΩT<=5% 0805
R509 0790227003 R.M.G. SMD 100 ΩT<=5% 0805
R510 0790242002 R.M.G.SMD 1,8 KΩ5% 1/10W.
R511 0790242002 R.M.G.SMD 1,8 KΩ5% 1/10W.
R512 0790242002 R.M.G.SMD 1,8 KΩ5% 1/10W.
ZOCALO 0330162108 Socket TRC Diameter 22,5 mm.
MAIN PCB
CN_FR 0330192402 3P. Connector
CN_G2 0640706503 Blue G2 Wire with two terminals
CN_KV 0330272204 2P. Connector Shield cable 400MM
CN_NA 0330193608 4P. Connector
CN_NB 0330198706 10 P. Connector
CN_NC 0330196601 7P. Connector
CAPACITORS
C100 0230600702 CeramicSMD 100 nF. 10% 25V.
C102 0230600702 CeramicSMD 100 nF. 10% 25V.
C103 0230360604 CeramicSMD 1000 pF. 10% 50V.
C104 0250321072 Electrolytic 10 µF. 63V.
C105 0230480808 CeramicSMD 10 nF. 10% 50V.
C1051 0250321072 Electrolytic 10 µF. 63V.
C1052 0230600801 Ceramic SMD 100 nF.+80-20% 25V.
C1053 0230480808 Ceramic SMD 10 nF.10% 50V.
C1054 0230480808 Ceramic SMD 10 nF.10% 50V.
C1055 0230600702 Ceramic SMD 100 nF.10% 25V.
C1056 0230600801 Ceramic SMD 100 nF.+80-20% 25V.
C1057 0230600801 Ceramic SMD 100 nF.+80-20% 25V.
C106 0270101322 Polyester 1000 pF. 5% 400V.
C107 0230480808 CeramicSMD 10 nF. 10% 50V.
C108 0230180309 CeramicSMD 33 pF. 1% 50V.
C109 0230180309 CeramicSMD 33 pF. 1% 50V.
C112 0230600801 CeramicSMD 100 nF. +80-20% 25V.
C113 0230360604 CeramicSMD 1000 pF. 10% 50V.
C114 0230360604 CeramicSMD 1000 pF. 10% 50V.
C115 "0230360604 Ceramic SMD 1000 pF.10% 50V.
C116 "0230360604 Ceramic SMD 1000 pF.10% 50V.
C118 0230360604 CeramicSMD 1000 pF. 10% 50V.
C120 0230480808 CeramicSMD 10 nF. 10% 50V.
C1251 0230720203 Ceramic SMD 1 µF. 16V. +80-20% 0805
C1252 0230600702 Ceramic SMD 100 nF.10% 25V.
C190 0230600702 CeramicSMD 100 nF. 10% 25V.
C191 0230640401 CeramicSMD 220 nF. 10% 16V.
C200 0250321072 Electrolytic 10 µF. 63V.
C201 0230360604 CeramicSMD 1000 pF. 10% 50V.
C202 0230360604 CeramicSMD 1000 pF. 10% 50V.
C203 0230600702 CeramicSMD 100 nF. 10% 25V.
C204 0230600702 CeramicSMD 100 nF. 10% 25V.
C207 0250321072 Electrolytic 10 µF. 63V.
C209 0230480808 CeramicSMD 10 nF. 10% 50V.
C210 0230600801 CeramicSMD 100 nF. +80-20% 25V.
C250 0230600801 CeramicSMD 100 nF. +80-20% 25V.
C251 0250461217 Electrolytic 100 µF. 25V.
C252 0270341480 Polyester 100 nF. 10% 63V.
C256 0230480808 CeramicSMD 10 nF. 10% 50V.
C257 0270341480 Polyester 100 nF. 10% 63V.
C258 0230480808 CeramicSMD 10 nF. 10% 50V.
C259 0230600801 CeramicSMD 100 nF. +80-20% 25V.
C260 0250410859 Electrolytic 47 µF. 25V.
C261 0230600801 CeramicSMD 100 nF. +80-20% 25V.
C300 0250572310 Electrolytic 1000 µF. 25V.
C301 0230600702 CeramicSMD 100 nF. 10% 25V.
C302 0230360604 CeramicSMD 1000 pF. 10% 50V.
C303 0230360604 CeramicSMD 1000 pF. 10% 50V.
C304 0230640401 CeramicSMD 220 nF. 10% 16V.
C305 0230640401 CeramicSMD 220 nF. 10% 16V.
C306 0230640401 CeramicSMD 220 nF. 10% 16V.
C307 0230640401 CeramicSMD 220 nF. 10% 16V.
C308 0250321072 Electrolytic 10 µF. 63V.
C309 0250321072 Electrolytic 10 µF. 63V.
C310 0240551309 Ceramic 1000 pF. 10% 50V.
C311 0270341324 Polyester 100 nF. 10% 250V.
C312 0270341324 Polyester 100 nF. 10% 250V.
C352 0250410859 Electrolytic 47 µF. 25V.
C353 0250410859 Electrolytic 47 µF. 25V.
C354 0230600801 CeramicSMD 100 nF. +80-20% 25V.
C355 0230600801 CeramicSMD 100 nF. +80-20% 25V.
C356 0250500618 Electrolytic 220 µF. 16V.
C357 0250461217 Electrolytic 100 µF. 25V.
C359 0230480808 CeramicSMD 10 nF. 10% 50V.
C361 0250461217 Electrolytic 100 µF. 25V.
C362 "0230160400 Ceramic SMD 22 pF.1% 50V.
C363 "0230160400 Ceramic SMD 22 pF.1% 50V.
C364 "0230240400 Ceramic SMD 100 pF.5% 50V.
C365 "0230240400 Ceramic SMD 100 pF.5% 50V.
C400 0250461217 Electrolytic 100 µF. 25V.
C401 0230600801 CeramicSMD 100 nF. +80-20% 25V.
C402 0230740003 CeramicSMD 2,2 µF. 10V. +80-20%
C403 0230520504 CeramicSMD 22 nF. 10% 50V.
C404 0230640401 CeramicSMD 220 nF. 10% 16V.
C405 0230360604 CeramicSMD 1000 pF. 10% 50V.
C406 0230600702 CeramicSMD 100 nF. 10% 25V.
C407 0230740003 CeramicSMD 2,2 µF. 10V. +80-20%
C408 0230600702 CeramicSMD 100 nF. 10% 25V.
C409 0230600702 CeramicSMD 100 nF. 10% 25V.
C410 0230600702 CeramicSMD 100 nF. 10% 25V.
C411 0230180309 CeramicSMD 33 pF. 1% 50V.
C412 0230180309 CeramicSMD 33 pF. 1% 50V.
C413 0230740003 CeramicSMD 2,2 µF. 10V. +80-20%
C414 0230520504 CeramicSMD 22 nF. 10% 50V.
C415 0250461217 Electrolytic 100 µF. 25V.
C416 0230520504 CeramicSMD 22 nF. 10% 50V.
C417 0230400202 CeramicSMD 2200 pF. 10% 50V.
C418 "0230240400 Ceramic SMD 100 pF.5% 50V.
C419 "0230200503 Ceramic SMD 47 pF.5% 50V.
C420 0230680308 CeramicSMD 470 nF. 10% 16V.
C421 0230440406 CeramicSMD 4700 pF. 10% 50V.
C422 "0230240400 Ceramic SMD 100 pF.5% 50V.
C423 "0230360604 Ceramic SMD 1000 pF.10% 50V.
C424 "0230520504 Ceramic SMD 22 nF.10% 50V.

Service Manual SM CE29FFV1-F
Ref. No. Part No. Description Ref. No. Part No. Description
7
C425 0260340906 Polypropylene 100 nF. 5% 100V.
C426 "0230360604 Ceramic SMD 1000 pF.10% 50V.
C427 0230600702 CeramicSMD 100 nF. 10% 25V.
C428 "0230240400 Ceramic SMD 100 pF.5% 50V.
C429 0230240400 CeramicSMD 100 pF. 5% 50V.
C430 0230240400 CeramicSMD 100 pF. 5% 50V.
C431 0230240400 CeramicSMD 100 pF. 5% 50V.
C432 0230360604 CeramicSMD 1000 pF. 10% 50V.
C433 0230240400 CeramicSMD 100 pF. 5% 50V.
C434 0230680308 CeramicSMD 470 nF. 10% 16V.
C435 0250280856 Electrolytic 4,7 µF. 100V.
C436 0230600801 CeramicSMD 100 nF. +80-20% 25V.
C437 "0230360604 Ceramic SMD 1000 pF.10% 50V.
C438 0230360604 CeramicSMD 1000 pF. 10% 50V.
C439 "0230480808 Ceramic SMD 10 nF.10% 50V.
C442 0250321072 Electrolytic 10 µF. 63V.
C443 0230440406 CeramicSMD 4700 pF. 10% 50V.
C450 "0230240400 Ceramic SMD 100 pF.5% 50V.
C451 "0230240400 Ceramic SMD 100 pF.5% 50V.
C452 "0230240400 Ceramic SMD 100 pF.5% 50V.
C453 0230520504 CeramicSMD 22 nF. 10% 50V.
C454 0230520504 CeramicSMD 22 nF. 10% 50V.
C455 0230520504 CeramicSMD 22 nF. 10% 50V.
C600A 0270341324 Polyester 100 nF. 10% 250V.
C601 0270140122 Polyester 2200 pF. 10% 400V.
C603 0230520504 CeramicSMD 22 nF. 10% 50V.
C604 0230720203 Ceramic SMD 1 µF. 16V. +80-20% 0805
C650B 0260260500 Polypropylene 22 nF. 3,5% 630V R-15
C651 0260223003 Polypropylene 15 nF. 3,5% 1600V.
C652B 0260393004 Polypropylene 300 nF. 5% 250V. R-15
C653 0260433065 Polypropylene 820nF. 5% 250V
C654C 0260150008 Polypropylene 2,7 nF. 1,6KV 3,5%R-15
C655B 0260268008 Polypropylene 47 nF. 5% 100V.
C656 0250115318 Electrolytic 2,2 µF. 160V. 6,3X11
C657 0240132035 Ceramic 470 pF. 10% 1KV.
C658 0230260705 Ceramic SMD 150 pF. 10% 630V. 1206
C659A 0250504107 Electrolytic 220 µF. 200V. 18x40
C660 0230340408 Ceramic SMD 680 pF. 10% 630V. 1206
C661 0250283835 Electrolytic 4,7 µF. 250V.
C663 0230600702 CeramicSMD 100 nF. 10% 25V.
C668 0250283835 Electrolytic 4,7 µF. 250V.
C669 0230340408 Ceramic SMD 680 pF. 10% 630V. 1206
C670 0270341324 Polyester 100 nF. 10% 250V.
C674 0230520504 CeramicSMD 22 nF. 10% 50V.
C675 0230600702 CeramicSMD 100 nF. 10% 25V.
C680 0250220472 Electrolytic 1 µF. 100V.
C700 0250463718 Electrolytic 100 µF. 50V. 8X11,5
C701 0250463718 Electrolytic 100 µF. 50V. 8X11,5
C703 0270370588 Polyester 180 nF. 10% 63V.
C704 0250463718 Electrolytic 100 µF. 50V. 8X11,5
C710 0270341480 Polyester 100 nF. 10% 63V.
C711 "0230360604 Ceramic SMD 1000 pF.10% 50V.
C712 0270220726 Polyester 10 nF. 10% 250V.
C750 0230360604 CeramicSMD 1000 pF. 10% 50V.
C751 "0230480808 Ceramic SMD 10 nF.10% 50V.
C753 0250284023 Electrolytic 4,7 µF. 160V.
C802 0240134767 Ceramic 1000 pF. +-20% 1KV.
C803 0240134767 Ceramic 1000 pF. +-20% 1KV.
C806 0230240400 CeramicSMD 100 pF. 5% 50V.
C807 0230200503 CeramicSMD 47 pF. 5% 50V.
C809 0230300709 CeramicSMD 330 pF. 5% 50V.
C810 0250503661 Electrolytic. 220 µF. 385V. 30X35
C811 0250412970 Electrolytic 47 µF. 50V.
C812 "0240136135 Ceramic Capacitor 1000 pF. 20% 4KV.
C813 0230360505 CeramicSMD 1000 pF 5% 100V.0805
C814 0230260309 Ceramic SMD 150 pF. 10% 1KV. 1206
C816 "0240136135 Ceramic Capacitor 1000 pF. 20% 4KV.
C817 0230300303 Ceramic SMD 330 pF. 10% 630V. 1206
C818 0230300303 Ceramic SMD 330 pF. 10% 630V. 1206
C850 0230280505 Ceramic SMD 220 pF. 10% 1KV. 1206
C851 0230360604 CeramicSMD 1000 pF. 10% 50V.
C852 0230360604 CeramicSMD 1000 pF. 10% 50V.
C855 0230600801 CeramicSMD 100 nF. +80-20% 25V.
C856 0250465218 Electrolytic 100 µF. 200V.
C857 0250601515 Electrolytic 2200 µF. 25V. R-7,5
C858 0250531910 Electrolytic 470µF. 25V. 10X12,5
C859 0250531910 Electrolytic 470µF. 25V. 10X12,5
C860 0250572419 Electrolytic 1000 µF. 16V.
C861 0250572419 Electrolytic 1000 µF. 16V.
C862 0230640401 CeramicSMD 220 nF. 10% 16V.
C863 0230360604 CeramicSMD 1000 pF. 10% 50V.
C866 0230360604 CeramicSMD 1000 pF. 10% 50V.
C868 0250321072 Electrolytic 10 µF. 63V.
C870 0250321072 Electrolytic 10 µF. 63V.
C871 "0230360604 Ceramic SMD 1000 pF.10% 50V.
C874 0250461217 Electrolytic 100 µF. 25V.
C875 0230400202 CeramicSMD 2200 pF. 10% 50V.
C876 0230360604 CeramicSMD 1000 pF. 10% 50V.
C900 "0230320608 Ceramic SMD 470 pF.5% 50V.
C901 "0230320608 Ceramic SMD 470 pF.5% 50V.
C902 "0230320608 Ceramic SMD 470 pF.5% 50V.
C903 "0230320608 Ceramic SMD 470 pF.5% 50V.
C904 "0230320608 Ceramic SMD 470 pF.5% 50V.
C905 "0230320608 Ceramic SMD 470 pF.5% 50V.
C906 "0230320608 Ceramic SMD 470 pF.5% 50V.
C907 0250321072 Electrolytic 10 µF. 63V.
C913 "0230240400 Ceramic SMD 100 pF.5% 50V.
C914 "0230240400 Ceramic SMD 100 pF.5% 50V.
C917 "0230240400 Ceramic SMD 100 pF.5% 50V.
C918 0230600801 CeramicSMD 100 nF. +80-20% 25V.
C920 0250321072 Electrolytic 10 µF. 63V.
C921 0250321072 Electrolytic 10 µF. 63V.
C923 0250321072 Electrolytic 10 µF. 63V.
C925 "0230320608 Ceramic SMD 470 pF.5% 50V.
C926 0250410859 Electrolytic 47 µF. 25V.
C928 0250410859 Electrolytic 47 µF. 25V.
C930 0250410859 Electrolytic 47 µF. 25V.
C931 0250410859 Electrolytic 47 µF. 25V.
C934 0250410859 Electrolytic 47 µF. 25V.
C935 0250410859 Electrolytic 47 µF. 25V.
C936 0250410859 Electrolytic 47 µF. 25V.
C938 0250321072 Electrolytic 10 µF. 63V.
C939 0230720203 Ceramic SMD 1 µF. 16V. +80-20% 0805
C940 0230720203 Ceramic SMD 1 µF. 16V. +80-20% 0805
DIODES
D102 0360601512 SMD LS4148
D105 0360130819 1N 4148
D106 0360601512 SMD LS4148
D107 0360130819 1N 4148
D108 0360102602 Zener BZX79C3V3
D190 0360130819 1N 4148
D200 0360601512 SMD LS4148
D201 0360601512 SMD LS4148
D250 0360706014 HZT33-02 RE
D251 0360601512 SMD LS4148
D300 0360103204 Zener BZX79C5V1
D301 0360103204 Zener BZX79C5V1
D350 0360601512 SMD LS4148
D351 0360601512 SMD LS4148
D401 0360602411 Zener SMD BZT55C6V2
D402 0360601512 SMD LS4148
D600 0360605604 SMD BAV103 200V 0,25A
D650 0360118608 ERD07-15L
D651 0360007215 BAV21 DIODE
D652A 0360380109 RU3AM
D653 0360377006 ERB44-04
D654 0360601512 SMD LS4148
D655 0360603914 Zener SMD BZT55C33
D658 0360601512 SMD LS4148
D659 0360130819 1N 4148
D660 0360601512 SMD LS4148
D661 0360603914 Zener SMD BZT55C33
D663 0360377006 ERB44-04
D672 0360601512 SMD LS4148
D674 0360603310 Zener SMD BZT55C15
D675 0360601512 SMD LS4148
D683 0360601512 SMD LS4148
D700 0360601512 SMD LS4148
D701 0360130629 1N 4007 RL
D702 0360130819 1N 4148
D703 0360603914 Zener SMD BZT55C33
D704 0360130819 1N 4148
D705 0360135107 Zener BZX79C8V2
D750 0360601512 SMD LS4148
D751 0360105100 Zener BZX79C11

Service Manual SM CE29FFV1-F
Ref. No. Part No. Description Ref. No. Part No. Description
8
D752 0360130819 1N 4148
D753 0360130819 1N 4148
D754 0360607006 Zener SMD MMSZ56T1
D800 0360372411 ERC05-10B V1
D801 0360372411 ERC05-10B V1
D802 0360372411 ERC05-10B V1
D803 0360372411 ERC05-10B V1
D804 0360602411 Zener SMD BZT55C6V2
D806 0360376909 ERB44-02
D850 0360374409 RU4B LF-T3
D851 0360378905 SchottkyFMB-G19L 90V 4ATO220
D852A 0360379606 1R5GH45 400V 1.5A
D853A 0360379606 1R5GH45 400V 1.5A
D854 0360376909 ERB44-02
D855A 0360376701 Schottky RK 19 V1 90V 1,5A
D857 0360606115 Zener SMD BZT55C4V3
D859 0360606115 Zener SMD BZT55C4V3
D860 0360602213 Zener SMD BZT55C5V1
D861 0360603914 Zener SMD BZT55C33
D862 0360130819 1N 4148
D863 0360104202 Zener BZX79C6V2
D866 0360601512 SMD LS4148
D867 0360130819 1N 4148
D870 0360130819 1N 4148
D871 0360130819 1N 4148
D900 0360602213 Zener SMD BZT55C5V1
D901 0360602213 Zener SMD BZT55C5V1
D902 0360602213 Zener SMD BZT55C5V1
D903 0360602213 Zener SMD BZT55C5V1
D904 0360602213 Zener SMD BZT55C5V1
D905 0360602213 Zener SMD BZT55C5V1
D906 0360602213 Zener SMD BZT55C5V1
D908 0360602213 Zener SMD BZT55C5V1
D909 0360602213 Zener SMD BZT55C5V1
D910 0360602213 Zener SMD BZT55C5V1
D911 0360602213 Zener SMD BZT55C5V1
D912 0360602213 Zener SMD BZT55C5V1
D914 0360602213 Zener SMD BZT55C5V1
D917 0360602213 Zener SMD BZT55C5V1
D918 0360601512 SMD LS4148
D919 0360601512 SMD LS4148
D920 0360601512 SMD LS4148
D921 0360130819 1N 4148
FA 0330270307 2P. Socket
FB1 0330191701 2P. Socket
FB2 0330270109 2 P. Socket
FD 0330144205 Ribbon Wire Holder4 P.
FF1 0330190000 2P. Connector
FF2 0330270109 2 P. Socket
FH 0330144304 Ribbon Wire Holder5 P.
INTEGRATED CIRCUITS
IC100 "0360519003 SAA 5564PS
IC1050 "0360515605 SMD TDA9181T/N1
IC125 0360712012 SMD M24C08-WMN6T
IC1250 0360517601 SMD TS922IDT
IC300 0360517304 TDA 8946 J N1
IC350 "0360472609 KA2209B
IC400 "0360517106 TDA 8879PS N1
IC701 "0360517007 LA7846N
IC800 0360517205 MC44603ADW SMD
IC801 0360491203 OPTO TCET1101G
IC850 0360378764 KA431LZTA TO-92
IC852 0360473409 LD1117V33C TO220
IC853 0360472708 KA78R08TU
IC854 0360472807 KA78R05-STU
IC900 "0360708804 LA 7221
JO104 0790701106 R.M.G. SMD 0 Ω1/10W.
JO202 0790701106 R.M.G. SMD 0 Ω1/10W.
JO252 0790701106 R.M.G. SMD 0 Ω1/10W.
JO253 0790701106 R.M.G. SMD 0 Ω1/10W.
JO701 "0790701106 R.M.G. SMD 0 Ω1/10W.
JO702 "0790701106 R.M.G. SMD 0 Ω1/10W.
J129 0790701106 R.M.G. SMD 0 Ω1/10W.
J198 0790701106 R.M.G. SMD 0 Ω1/10W.
J235 0790701106 R.M.G. SMD 0 Ω1/10W.
J236 0790701106 R.M.G. SMD 0 Ω1/10W.
J237 0790701106 R.M.G. SMD 0 Ω1/10W.
J242 0790701106 R.M.G. SMD 0 Ω1/10W.
J248 0790701106 R.M.G. SMD 0 Ω1/10W.
J250 0790701106 R.M.G. SMD 0 Ω1/10W.
J251 0790701106 R.M.G. SMD 0 Ω1/10W.
J255 0790701106 R.M.G. SMD 0 Ω1/10W.
J256 0790701106 R.M.G. SMD 0 Ω1/10W.
J264 0790701106 R.M.G. SMD 0 Ω1/10W.
J267 0790701106 R.M.G. SMD 0 Ω1/10W.
KVBM 0330191701 2P. Socket
K300 0330330002 8P. Connector
K301 0330330002 8P. Connector
K302 0330490301 Connector Assy 10P W/Wires 260 MM
COILS
L100 0090305327 Peaking Coil10 µH. 10%
L101 0620005801 Ferrite SMD 0805 1K/100MHz 0,2A
L102 0620005801 Ferrite SMD 0805 1K/100MHz 0,2A
L104 0620005801 Ferrite SMD 0805 1K/100MHz 0,2A
L1050 0090319229 Peaking Coil 4,7 µH. 10%
L1051 0620005801 Ferrite SMD 0805 1K/100MHz 0,2A
L1052 0620005801 Ferrite SMD 0805 1K/100MHz 0,2A
L1054 "0620011502 Ferrite SMD 0603 600 Ω/100MHz
L1055 "0620011502 Ferrite SMD 0603 600 Ω/100MHz
L250 0090305665 Peaking Coil4,7 µH 10% I MAX=930MA
L251 0090317140 Peaking Coil0,39 µH. 20% RADIAL
L252 0090319229 Peaking Coil4,7 µH. 10%
L300 0090817305 Axial Inductor 12 µH. 10% 1,8A.
L301 "0620005900 Ferrite SMD 1206 600 Ω/100MH 1,5A
L302 "0620005900 Ferrite SMD 1206 600 Ω/100MH 1,5A
L303 "0620005900 Ferrite SMD 1206 600 Ω/100MH 1,5A
L304 "0620005900 Ferrite SMD 1206 600 Ω/100MH 1,5A
L305 0090817305 Axial Inductor 12 µH. 10% 1,8A.
L350 "0470040007 Jumper Lead 0,6 mm.
L351 "0470040007 Jumper Lead 0,6 mm.
L400 0090319229 Peaking Coil4,7 µH. 10%
L401 0470040007 Jumper Lead 0,6 mm.
L404 "0620011502 Ferrite SMD 0603 600 Ω/100MHz
L405 0090319229 Peaking Coil4,7 µH. 10%
L410 0470040007 Jumper Lead 0,6 mm.
L600 0090817206 Axial Inductor 3,3 µH. 10% 2,6A.
L651A 0090804105 Coil 1,3 MH. +-10% 2A. CU20
L652 0090209206 Fixed LinealityCoil DC-15 29" TF
L654 0090817305 Axial Inductor 12 µH. 10% 1,8A.
L656 0090207200 Coil 3,3 MH.10% 0,175 A.
L661 "0620005900 Ferrite SMD 1206 600 Ω/100MH 1,5A
L668 "0620005900 Ferrite SMD 1206 600 Ω/100MH 1,5A
L700 0090305327 Peaking Coil10 µH. 10%
L703 0090305327 Peaking Coil10 µH. 10%
L750A 0090502907 E/W Correction Coil5,5MH. 14X15
L802 "0620005702 Ferrite Bead 3, 180 Ω/100MHz
L803 0790109300 Carbon 3,3 Ω5% 1/4W.
L850 0620005116 Pipe Core 3,5X4,5
L851 0620005116 Pipe Core 3,5X4,5
L852 0620005116 Pipe Core 3,5X4,5
L853 0620005116 Pipe Core 3,5X4,5
L854 0620005116 Pipe Core 3,5X4,5
L855 0620005116 Pipe Core 3,5X4,5
L856 0620005702 Ferrite Bead 3, 180 Ω/100MHz
L857 0620005900 Ferrite SMD 1206 600 Ω/100MH 1,5A
L858 0620005900 Ferrite SMD 1206 600 Ω/100MH 1,5A
L859 0620005900 Ferrite SMD 1206 600 Ω/100MH 1,5A
L860 0620005900 Ferrite SMD 1206 600 Ω/100MH 1,5A
L861 0620005702 Ferrite Bead 3, 180 Ω/100MHz
L862 0620005900 Ferrite SMD 1206 600 Ω/100MH 1,5A
L863 0620005900 Ferrite SMD 1206 600 Ω/100MH 1,5A
L864 0090817305 Axial Inductor 12 µH. 10% 1,8A.
L865 0090817305 Axial Inductor 12 µH. 10% 1,8A.
L866 0090319765 Peaking Coil 22 µH. 10% I MAX=130MA
L900 "0470040007 Jumper Lead 0,6 mm.
L901 "0470040007 Jumper Lead 0,6 mm.
L902 "0470040007 Jumper Lead 0,6 mm.
L903 0090319229 Peaking Coil4,7 µH. 10%

Service Manual SM CE29FFV1-F
Ref. No. Part No. Description Ref. No. Part No. Description
9
L905 "0620011502 Ferrite SMD 0603 600 Ω/100MHz
PCB11 0750153629 MAIN PCB EB5-C
TRANSISTORS
Q100 0360320501 BRT SMD PDTA124ET
Q101 0360320501 BRT SMD PDTA124ET
Q102 0360320303 SMD BC 847 B
Q104 0360320303 SMD BC 847 B
Q105 0360320303 SMD BC 847 B
Q1050 0360320600 BRT SMD PDTC124ET
Q1051 0360320303 SMD BC 847 B
Q106 0360320600 BRT SMD PDTC124ET
Q107 0360321301 SMD BC 857 B
Q1250 0360308803 SMD PMBT2369
Q190 0360320303 SMD BC 847 B
Q200 0360320303 SMD BC 847 B
Q201 0360320600 BRT SMD PDTC124ET
Q202 0360321301 SMD BC 857 B
Q203 0360320303 SMD BC 847 B
Q204 0360320303 SMD BC 847 B
Q207 0360320600 BRT SMD PDTC124ET
Q250 0360320303 SMD BC 847 B
Q251 0360308803 SMD PMBT2369
Q252 0360320501 BRT SMD PDTA124ET
Q253 0360320501 BRT SMD PDTA124ET
Q254 0360320501 BRT SMD PDTA124ET
Q255 0360320410 SMD BF 570
Q257 0360320600 BRT SMD PDTC124ET
Q300 0360320600 BRT SMD PDTC124ET
Q301 0360320600 BRT SMD PDTC124ET
Q350 0360320600 BRT SMD PDTC124ET
Q351 0360320600 BRT SMD PDTC124ET
Q352 0360320600 BRT SMD PDTC124ET
Q400 0360320303 SMD BC 847 B
Q401 0360320303 SMD BC 847 B
Q600 0360309108 2SC2271D-CTV-AE
Q604 0360321301 SMD BC 857 B
Q650 0360306708 S 2055 N
Q651 0360320303 SMD BC 847 B
Q652 0360320303 SMD BC 847 B
Q653 0360308605 KSP 92 TO-92
Q672 0360308506 KSP 42 TO-92
Q673 0360320303 SMD BC 847 B
Q674 0360321301 SMD BC 857 B
Q750 0360309009 BD242BFP
Q751 0360320600 BRT SMD PDTC124ET
Q752 0360308605 KSP 92 TO-92
Q753 0360308605 KSP 92 TO-92
Q754 0360308506 KSP 42 TO-92
Q800 "0360311302 MOS 2SK2545 600V/6A
Q850 0360311203 MOS 2SK2964 30V/2A SMD
Q851 0360320600 BRT SMD PDTC124ET
Q852 0360311203 MOS 2SK2964 30V/2A SMD
Q853 0360320303 SMD BC 847 B
Q854 0360320303 SMD BC 847 B
Q855 0360320303 SMD BC 847 B
Q856 0360320303 SMD BC 847 B
Q857 0360320600 BRT SMD PDTC124ET
Q858 0360320501 BRT SMD PDTA124ET
Q859 0360320303 SMD BC 847 B
Q861 0360320600 BRT SMD PDTC124ET
Q862 0360308605 KSP 92 TO-92
Q863 0360308506 KSP 42 TO-92
Q900 0360320303 SMD BC 847 B
Q901 0360320303 SMD BC 847 B
Q904 0360308803 SMD PMBT2369
Q905 0360308803 SMD PMBT2369
Q906 0360308803 SMD PMBT2369
Q907 0360321301 SMD BC 857 B
Q908 0360320303 SMD BC 847 B
RESISTORS
R100 0790239008 R.M.G.SMD 1 KΩT<=5% 0805
R101 0790239008 R.M.G.SMD 1 KΩT<=5% 0805
R102 0790239008 R.M.G.SMD 1 KΩT<=5% 0805
R103 0790239008 R.M.G.SMD 1 KΩT<=5% 0805
R105 0790580203 Metal Film 22 KΩ1% 0,4W.
R1050 0790752208 R.M.G. SMD 12 KΩT<=5% 0805
R1051 0790235006 R.M.G. SMD 470 ΩT<=5% 0805
R106 0790138804 Carbon 1 KΩ5% 1/6W.
R107 0790138804 Carbon 1 KΩ5% 1/6W.
R108 0790239008 R.M.G.SMD 1 KΩT<=5% 0805
R109 0790239008 R.M.G.SMD 1 KΩT<=5% 0805
R110 0790138804 Carbon 1 KΩ5% 1/6W.
R112 0790141600 Carbon 1,5 KΩ5% 1/6W.
R113 0790146401 Carbon 3,9 KΩ5% 1/6W.
R114 0790756001 R.M.G.SMD 24 KΩ1% 1/8W.
R118 0790239008 R.M.G.SMD 1 KΩT<=5% 0805
R119 0790239008 R.M.G.SMD 1 KΩT<=5% 0805
R120 0470040007 JumperLead 0,6 mm.
R121 0470040007 JumperLead 0,6 mm.
R122 0790237002 R.M.G. SMD 680 ΩT<=5% 0805
R123 0790239008 R.M.G.SMD 1 KΩT<=5% 0805
R125 0790723506 R.M.G. SMD 47 Ω1% 1/10W.
R1251 0790131106 Carbon 220 Ω5% 1/4W.
R1252 0790247001 R.M.G. SMD 4,7 KΩT<=5% 0805
R1253 0790255004 R.M.G. SMD 22 KΩT<=5% 0805
R1254 0790767503 R.M.G. SMD 220 KΩT<=5% 0805
R1255 0790268007 R.M.G. SMD 330 KΩT<=5% 0805
R1256 0790258503 R.M.G. SMD 43 KΩT<=5% 0805
R1257 0790256002 R.M.G. SMD 27 KΩT<=5% 0805
R1258 0790701106 R.M.G. SMD 0 Ω1/10W.
R126 0790723506 R.M.G. SMD 47 Ω1% 1/10W.
R1262 0790757603 R.M.G. SMD 33 KΩT<=5% 0805
R127 0790723506 R.M.G. SMD 47 Ω1% 1/10W.
R128 0790247001 R.M.G.SMD 4,7 KΩT<=5% 0805
R129 0790155600 Carbon 22 KΩ5% 1/6W.
R130 0790741805 R.M.G.SMD 1,5 KΩT<=5% 0805
R131 0790755706 R.M.G.SMD 23,7 KΩ1% 1/8W.
R132 0790758304 R.M.G.SMD 39 KΩ1% 1/8W.
R133 0790255004 R.M.G.SMD 22 KΩT<=5% 0805
R134 0790255004 R.M.G.SMD 22 KΩT<=5% 0805
R135 0790239008 R.M.G.SMD 1 KΩT<=5% 0805
R136 0790138804 Carbon 1 KΩ5% 1/6W.
R137 0790138804 Carbon 1 KΩ5% 1/6W.
R138 0790138804 Carbon 1 KΩ5% 1/6W.
R139 0790255004 R.M.G.SMD 22 KΩT<=5% 0805
R140 0790239008 R.M.G.SMD 1 KΩT<=5% 0805
R141 0790126700 Carbon 100 Ω5% 1/6W.
R142 0790126700 Carbon 100 Ω5% 1/6W.
R143 0790247001 R.M.G.SMD 4,7 KΩT<=5% 0805
R144 0790247001 R.M.G.SMD 4,7 KΩT<=5% 0805
R145 0790138804 Carbon 1 KΩ5% 1/6W.
R146 0790138804 Carbon 1 KΩ5% 1/6W.
R148 0790251003 R.M.G.SMD 10 KΩT<=5% 0805
R149 0790247001 R.M.G.SMD 4,7 KΩT<=5% 0805
R150 0790130504 Carbon 180 Ω5% 1/6W
R152 0790749808 R.M.G.SMD 7,5 KΩT<=5% 0805
R153 0790749808 R.M.G.SMD 7,5 KΩT<=5% 0805
R156 0790138804 Carbon 1 KΩ5% 1/6W.
R157 0790143606 Carbon 2,2 KΩ5% 1/6W.
R158 0790243000 R.M.G.SMD 2,2 KΩT<=5% 0805
R160 0790263008 R.M.G.SMD 100 KΩT<=5% 0805
R162 0790255004 R.M.G.SMD 22 KΩT<=5% 0805
R163 0790255004 R.M.G.SMD 22 KΩT<=5% 0805
R165 0790239008 R.M.G.SMD 1 KΩT<=5% 0805
R167 0790239008 R.M.G.SMD 1 KΩT<=5% 0805
R168 0790251003 R.M.G.SMD 10 KΩT<=5% 0805
R169 0790251003 R.M.G.SMD 10 KΩT<=5% 0805
R170 0790251003 R.M.G.SMD 10 KΩT<=5% 0805
R174 0790126700 Carbon 100 Ω5% 1/6W.
R179 0470040007 JumperLead 0,6 mm.
R182 0790126700 Carbon 100 Ω5% 1/6W.
R190 0790251003 R.M.G.SMD 10 KΩT<=5% 0805
R191 0790263008 R.M.G.SMD 100 KΩT<=5% 0805
R192 0790235006 R.M.G. SMD 470 ΩT<=5% 0805
R193 0790239008 R.M.G.SMD 1 KΩT<=5% 0805
R194 0790328603 Metal Film 75 Ω1% 0,6W.
R195 0790239008 R.M.G.SMD 1 KΩT<=5% 0805
R196 0790328603 Metal Film 75 Ω1% 0,6W.
R197 0790239008 R.M.G.SMD 1 KΩT<=5% 0805

Service Manual SM CE29FFV1-F
Ref. No. Part No. Description Ref. No. Part No. Description
10
R198 0790328603 Metal Film 75 Ω1% 0,6W.
R200 0790239008 R.M.G.SMD 1 KΩT<=5% 0805
R201 0790131106 Carbon 220 Ω5% 1/4W.
R202 0790239008 R.M.G.SMD 1 KΩT<=5% 0805
R203 0470040007 JumperLead 0,6 mm.
R204 0790864102 R.M.G.SMD 1,2 KΩT<=5% 0805
R205 0790239008 R.M.G.SMD 1 KΩT<=5% 0805
R207 "0790223002 R.M.G. SMD 47 ΩT<=5% 0805
R208 "0790223002 R.M.G. SMD 47 ΩT<=5% 0805
R209 0790239008 R.M.G.SMD 1 KΩT<=5% 0805
R210 0790239008 R.M.G.SMD 1 KΩT<=5% 0805
R211 0790239008 R.M.G.SMD 1 KΩT<=5% 0805
R212 0790234009 R.M.G. SMD 390 ΩT<=5% 0805
R213 0790235006 R.M.G. SMD 470 ΩT<=5% 0805
R214 0790234009 R.M.G. SMD 390 ΩT<=5% 0805
R215 0790846109 R.M.G. SMD 220 ΩT<=5% 0805
R216 0790239008 R.M.G.SMD 1 KΩT<=5% 0805
R217 0790235006 R.M.G. SMD 470 ΩT<=5% 0805
R218 0790133607 Carbon 330 Ω5% 1/6W.
R219 0790133607 Carbon 330 Ω5% 1/6W.
R220 0790131908 Carbon 220 Ω5% 1/6W.
R250 0790579437 Metal Film 18 KΩ5% 2W.
R251 0790138804 Carbon 1 KΩ5% 1/6W.
R252 0790235006 R.M.G. SMD 470 ΩT<=5% 0805
R253 0790263008 R.M.G.SMD 100 KΩT<=5% 0805
R254 0790126700 Carbon 100 Ω5% 1/6W.
R255 0790153605 Carbon 15 KΩ5% 1/6W
R256 0790753909 R.M.G.SMD 15 KΩT<=5% 0805
R258 0790259006 R.M.G.SMD 47 KΩT<=5% 0805
R259 0790874101 R.M.G.SMD 2,7 KΩT<=5% 0805
R260 0790239008 R.M.G.SMD 1 KΩT<=5% 0805
R261 0790251003 R.M.G.SMD 10 KΩT<=5% 0805
R262 0790251003 R.M.G.SMD 10 KΩT<=5% 0805
R263 0790246003 R.M.G.SMD 3,9 KΩT<=5% 0805
R264 0790753909 R.M.G.SMD 15 KΩT<=5% 0805
R265 0790701106 R.M.G. SMD 0 Ω1/10W.
R266 0790242002 R.M.G.SMD 1,8 KΩ5% 1/10W.
R267 0790874101 R.M.G.SMD 2,7 KΩT<=5% 0805
R268 0790223002 R.M.G. SMD 47 ΩT<=5% 0805
R269 0790229009 R.M.G. SMD 150 ΩT<=5% 0805
R300 0790750004 Carbon 7,5 KΩ5% 1/6W.
R301 0790245005 R.M.G.SMD 3,3 KΩT<=5% 0805
R302 0790750004 Carbon 7,5 KΩ5% 1/6W.
R303 0790245005 R.M.G.SMD 3,3 KΩT<=5% 0805
R304 0790251003 R.M.G.SMD 10 KΩT<=5% 0805
R305 0790251003 R.M.G.SMD 10 KΩT<=5% 0805
R309 0790239008 R.M.G.SMD 1 KΩT<=5% 0805
R310 0790200000 Fuse 0,1 Ω10% 0,5W
R311 0790111207 Carbon 4,7 Ω5% 1/4W.
R312 0790111207 Carbon 4,7 Ω5% 1/4W.
R350 0790123103 Carbon 47 Ω5% 1/4W.
R351 0790123103 Carbon 47 Ω5% 1/4W.
R352 0790711204 R.M.G. SMD 4,7 ΩT<=5% 0805
R353 0790711204 R.M.G. SMD 4,7 ΩT<=5% 0805
R354 0790318000 R.M.G. SMD 10 ΩT<=5% 0805
R355 0790247001 R.M.G.SMD 4,7 KΩT<=5% 0805
R356 0790247001 R.M.G.SMD 4,7 KΩT<=5% 0805
R357 0790255004 R.M.G.SMD 22 KΩT<=5% 0805
R359 0790741805 R.M.G.SMD 1,5 KΩT<=5% 0805
R360 0790159503 Carbon 47 KΩ5% 1/6W
R361 0790741805 R.M.G.SMD 1,5 KΩT<=5% 0805
R362 0790259006 R.M.G.SMD 47 KΩT<=5% 0805
R363 0790239008 R.M.G.SMD 1 KΩT<=5% 0805
R364 0790239008 R.M.G.SMD 1 KΩT<=5% 0805
R400 0790126700 Carbon 100 Ω5% 1/6W.
R401 0790126700 Carbon 100 Ω5% 1/6W.
R402 0790151500 Carbon 10 KΩ5% 1/6W.
R403 0790227003 R.M.G. SMD 100 ΩT<=5% 0805
R404 0790227003 R.M.G. SMD 100 ΩT<=5% 0805
R405 0790227003 R.M.G. SMD 100 ΩT<=5% 0805
R408 0790126700 Carbon 100 Ω5% 1/6W.
R409 0790126700 Carbon 100 Ω5% 1/6W.
R410 0790126700 Carbon 100 Ω5% 1/6W.
R411 0790126700 Carbon 100 Ω5% 1/6W.
R412 0790243000 R.M.G.SMD 2,2 KΩT<=5% 0805
R413 0790227003 R.M.G. SMD 100 ΩT<=5% 0805
R414 0790756308 Carbon 27 KΩ5% 1/6W.
R415 0790239008 R.M.G.SMD 1 KΩT<=5% 0805
R416 0790288005 R.M.G.SMD 10 MΩ5% 1/10W.
R417 0790288005 R.M.G.SMD 10 MΩ5% 1/10W.
R418 0790753909 R.M.G.SMD 15 KΩT<=5% 0805
R419 0790753909 R.M.G.SMD 15 KΩT<=5% 0805
R420 0790251003 R.M.G.SMD 10 KΩT<=5% 0805
R423 0790263008 R.M.G.SMD 100 KΩT<=5% 0805
R424 0790757603 R.M.G.SMD 33 KΩT<=5% 0805
R425 0790180707 R.M.G.SMD 2,2 MΩT<=5% 0805
R426 0790758304 R.M.G.SMD 39 KΩ1% 1/8W.
R427 0790137707 Carbon 680 Ω5% 1/6W
R428 0790123400 Carbon 47 Ω5% 1/6W.
R429 0790227003 R.M.G. SMD 100 ΩT<=5% 0805
R431 0790126700 Carbon 100 Ω5% 1/6W.
R432 0790126700 Carbon 100 Ω5% 1/6W.
R433 0790126700 Carbon 100 Ω5% 1/6W.
R440 0790184402 Carbon 4,7 MΩ5% 1/4W.
R442 0790239008 R.M.G.SMD 1 KΩT<=5% 0805
R443 0790239008 R.M.G.SMD 1 KΩT<=5% 0805
R444 0790227003 R.M.G. SMD 100 ΩT<=5% 0805
R450 "0790126700 Carbon 100 Ω5% 1/6W.
R451 "0790126700 Carbon 100 Ω5% 1/6W.
R452 "0790126700 Carbon 100 Ω5% 1/6W.
R453 0790126700 Carbon 100 Ω5% 1/6W.
R454 0790126700 Carbon 100 Ω5% 1/6W.
R455 0790126700 Carbon 100 Ω5% 1/6W.
R456 0790126700 Carbon 100 Ω5% 1/6W.
R457 0790227003 R.M.G. SMD 100 ΩT<=5% 0805
R458 0790126700 Carbon 100 Ω5% 1/6W.
R459 0790126700 Carbon 100 Ω5% 1/6W.
R601A 0790147300 Carbon 4,7 KΩ5% 1/2W.
R602 0790248009 R.M.G.SMD 5,6 KΩT<=5% 0805
R603 0790344030 Metal Film 1,2 KΩ5% 2W.
R604 0790239008 R.M.G.SMD 1 KΩT<=5% 0805
R605 0790243000 R.M.G.SMD 2,2 KΩT<=5% 0805
R606 0470040007 JumperLead 0,6 mm.
R607 0790223002 R.M.G. SMD 47 ΩT<=5% 0805
R608 0790578132 Metal Film 15 KΩ5% 2W.
R612 0790518807 Metal Film 0,56 Ω5% 1,2W.__
R651 0790331201 Metal Film 120 Ω5% 2W.
R652 0790559223 Metal Film 820 Ω5% 1W.
R653 0470040007 JumperLead 0,6 mm.
R654 0790701106 R.M.G. SMD 0 Ω1/10W.
R655 0790527014 Metal Film 1,8 Ω5% 2W.
R656 0790260004 R.M.G.SMD 56 KΩT<=5% 0805
R657 0790259006 R.M.G.SMD 47 KΩT<=5% 0805
R658 0790259006 R.M.G.SMD 47 KΩT<=5% 0805
R660 0790251003 R.M.G.SMD 10 KΩT<=5% 0805
R661 0790251003 R.M.G.SMD 10 KΩT<=5% 0805
R662 0790131908 Carbon 220 Ω5% 1/6W.
R663 0790151500 Carbon 10 KΩ5% 1/6W.
R666A 0790512313 Metal Film 0,33 Ω5% 1W.
R667 0790239008 R.M.G.SMD 1 KΩT<=5% 0805
R668 0790163000 Carbon 100 KΩ5% 1/6W
R669 0790255004 R.M.G.SMD 22 KΩT<=5% 0805
R670 0790701106 R.M.G. SMD 0 Ω1/10W.
R675 0470040007 JumperLead 0,6 mm.
R676 0790263008 R.M.G.SMD 100 KΩT<=5% 0805
R677 0790159503 Carbon 47 KΩ5% 1/6W
R678 0790888101 R.M.G.SMD 9,1 KΩT<=5% 0805
R679 0790156103 Carbon 27 KΩ5% 1/4W.
R680 0790263008 R.M.G.SMD 100 KΩT<=5% 0805
R681 0790255103 Metal GL. RES. 22 KΩ1% 1/10W.
R682 0790259006 R.M.G.SMD 47 KΩT<=5% 0805
R683 0790259006 R.M.G.SMD 47 KΩT<=5% 0805
R684 0790143606 Carbon 2,2 KΩ5% 1/6W.
R685 0790260004 R.M.G.SMD 56 KΩT<=5% 0805
R688 0790767503 R.M.G.SMD 220 KΩT<=5% 0805
R689 0790151500 Carbon 10 KΩ5% 1/6W.
R690 0790255004 R.M.G.SMD 22 KΩT<=5% 0805
R691 0790127104 Carbon 100 Ω5% 1/4W.

Service Manual SM CE29FFV1-F
Ref. No. Part No. Description Ref. No. Part No. Description
11
R694 0790247001 R.M.G.SMD 4,7 KΩT<=5% 0805
R696 0790261002 R.M.G.SMD 68 KΩT<=5% 0805
R698 0790145106 Carbon 3,3 KΩ5% 1/6W
R700 0790151500 Carbon 10 KΩ5% 1/6W.
R702 0790522601 Metal Film 0,82 Ω5% 0,6W.
R703 0790526701 Metal Film 1,5 Ω1% 0,6W.
R705A 0790139315 Carbon 1 KΩ5% 1/2W.
R706 0790251003 R.M.G.SMD 10 KΩT<=5% 0805
R708 0790251003 R.M.G.SMD 10 KΩT<=5% 0805
R711 0790349203 Metal Film 1,82 KΩ1% 0,4W.
R712 0790349203 Metal Film 1,82 KΩ1% 0,4W.
R750A 0790539662 Metal Film 22 Ω5% 2W.
R751 0790251003 R.M.G.SMD 10 KΩT<=5% 0805
R752 0790248009 R.M.G.SMD 5,6 KΩT<=5% 0805
R753 0790163000 Carbon 100 KΩ5% 1/6W
R754 0790586309 Metal Film 68 KΩ1% 0,6W
R755 0790239008 R.M.G.SMD 1 KΩT<=5% 0805
R756 0790127104 Carbon 100 Ω5% 1/4W.
R757 0790255004 R.M.G.SMD 22 KΩT<=5% 0805
R758 0790255004 R.M.G.SMD 22 KΩT<=5% 0805
R759 0790155600 Carbon 22 KΩ5% 1/6W.
R760A 0790536437 Metal Film 10 Ω5% 2W.
R761 0790138804 Carbon 1 KΩ5% 1/6W.
R762 0790251003 R.M.G.SMD 10 KΩT<=5% 0805
R763 0790126700 Carbon 100 Ω5% 1/6W.
R803 0790255004 R.M.G.SMD 22 KΩT<=5% 0805
R804 0790741805 R.M.G.SMD 1,5 KΩT<=5% 0805
R805 0790590111 Metal Film 150 KΩ5% 2W.
R806 0790255004 R.M.G.SMD 22 KΩT<=5% 0805
R808 0790243000 R.M.G.SMD 2,2 KΩT<=5% 0805
R810 0790513014 Fuse 0,33 Ω5% 0,5W.
R811 0790609002 Metal GLAZE RES. 8,2 MΩ5% 1W.
R812 0470040007 Jumper Lead 0,6 mm.
R813 0790764005 R.M.G.SMD 120 KΩT<=5% 0805
R814 0790151203 R.M.G.SMD 11 KΩ5% 1/10W 0805
R815 0790153605 Carbon 15 KΩ5% 1/6W
R816 0790138002 Carbon 750 Ω5% 1/4W.
R817 0790121206 Carbon 33 Ω5% 1/4W.
R818 0790135206 Carbon 470 Ω5% 1/4W.
R819 0790247001 R.M.G.SMD 4,7 KΩT<=5% 0805
R820 0790206502 Metal Film 0,36 Ω5% 1,2W.
R821 0790206502 Metal Film 0,36 Ω5% 1,2W.
R851 0790239008 R.M.G.SMD 1 KΩT<=5% 0805
R852 0790247001 R.M.G.SMD 4,7 KΩT<=5% 0805
R853 0790237002 R.M.G. SMD 680 ΩT<=5% 0805
R854 0790239008 R.M.G.SMD 1 KΩT<=5% 0805
R855 0790594204 Metal Film 280 KΩ1% 0,6W
R856 0790353007 M.G.R.SMD 4,87 KΩ1% 1/8W 0805
R857 0790592307 Metal Film 220 KΩ1% 0,6W.
R858 0790239008 R.M.G.SMD 1 KΩT<=5% 0805
R859 0790256002 R.M.G.SMD 27 KΩT<=5% 0805
R860 0790363105 R.M.G.SMD 18 KΩT<=5% 0805
R861 0790255004 R.M.G.SMD 22 KΩT<=5% 0805
R862 0790255004 R.M.G.SMD 22 KΩT<=5% 0805
R863 0790251003 R.M.G.SMD 10 KΩT<=5% 0805
R864 0790251003 R.M.G.SMD 10 KΩT<=5% 0805
R865 0790251003 R.M.G.SMD 10 KΩT<=5% 0805
R866 0790239008 R.M.G.SMD 1 KΩT<=5% 0805
R867 0790741805 R.M.G.SMD 1,5 KΩT<=5% 0805
R869 0790363105 R.M.G.SMD 18 KΩT<=5% 0805
R870 0790127104 Carbon 100 Ω5% 1/4W.
R871 0790767008 Carbon 220 KΩ5% 1/6W.
R872 0790178602 Carbon 1,6 MΩ5% 1/6W.
R873 0790251003 R.M.G.SMD 10 KΩT<=5% 0805
R874 0790255004 R.M.G.SMD 22 KΩT<=5% 0805
R876 0790259006 R.M.G.SMD 47 KΩT<=5% 0805
R877 0790239008 R.M.G.SMD 1 KΩT<=5% 0805
R878 0790000103 SMD 0,33 Ω5% 0,25W.
R879 0790000103 SMD 0,33 Ω5% 0,25W.
R880 0790597108 Metal Film 470 KΩ5% 0,6W
R881 0790155600 Carbon 22 KΩ5% 1/6W.
R885 0790239008 R.M.G.SMD 1 KΩT<=5% 0805
R886 0790255004 R.M.G.SMD 22 KΩT<=5% 0805
R900 0790026207 Carbon 560 Ω5% 1/4W.
R901 0790126700 Carbon 100 Ω5% 1/6W.
R902 0790036305 Carbon 2,2 KΩ5% 1/4W.
R903 0790026207 Carbon 560 Ω5% 1/4W.
R904 0790126700 Carbon 100 Ω5% 1/6W.
R905 0790036305 Carbon 2,2 KΩ5% 1/4W.
R906 0790155105 Carbon 22 KΩ5% 1/4W.
R907 0790749402 R.M.G.SMD 6,8 KΩT<=5% 0805
R908 0790225502 R.M.G. SMD 75 ΩT<=5% 0805
R909 0790725907 SMD 75 Ω5% 0,25W. 1206
R910 0790155105 Carbon 22 KΩ5% 1/4W.
R911 0790749402 R.M.G.SMD 6,8 KΩT<=5% 0805
R912 0790026207 Carbon 560 Ω5% 1/4W.
R913 0790227003 R.M.G. SMD 100 ΩT<=5% 0805
R914 0790026207 Carbon 560 Ω5% 1/4W.
R915 0790227003 R.M.G. SMD 100 ΩT<=5% 0805
R916 0790036305 Carbon 2,2 KΩ5% 1/4W.
R917 0790036305 Carbon 2,2 KΩ5% 1/4W.
R918 0790141600 Carbon 1,5 KΩ5% 1/6W.
R919 0790141600 Carbon 1,5 KΩ5% 1/6W.
R920 0790141600 Carbon 1,5 KΩ5% 1/6W.
R921 0790134001 Carbon 390 Ω5% 1/6W
R922 0790225502 R.M.G. SMD 75 ΩT<=5% 0805
R923 0790225502 R.M.G. SMD 75 ΩT<=5% 0805
R924 0790225502 R.M.G. SMD 75 ΩT<=5% 0805
R925 0790225502 R.M.G. SMD 75 ΩT<=5% 0805
R926 0790125900 Carbon 75 Ω5% 1/6W.
R927 0790725907 SMD 75 Ω5% 0,25W. 1206
R928 0790146401 Carbon 3,9 KΩ5% 1/6W.
R929 0790246003 R.M.G.SMD 3,9 KΩT<=5% 0805
R930 0790246003 R.M.G.SMD 3,9 KΩT<=5% 0805
R931 0790227003 R.M.G. SMD 100 ΩT<=5% 0805
R932 0790227003 R.M.G. SMD 100 ΩT<=5% 0805
R933 0790227003 R.M.G. SMD 100 ΩT<=5% 0805
R934 0790135701 Carbon 470 Ω5% 1/6W.
R935 0790550701 Metal Film 150 Ω1% 0,6W.
R936 0790135701 Carbon 470 Ω5% 1/6W.
R938 0470040007 JumperLead 0,6 mm.
R939 0470040007 JumperLead 0,6 mm.
R940 0790225502 R.M.G. SMD 75 ΩT<=5% 0805
R941 0790328603 Metal Film 75 Ω1% 0,6W.
R942 0790239008 R.M.G.SMD 1 KΩT<=5% 0805
R943 0790239008 R.M.G.SMD 1 KΩT<=5% 0805
R945 0790225502 R.M.G. SMD 75 ΩT<=5% 0805
R946 0790225502 R.M.G. SMD 75 ΩT<=5% 0805
R947 0790225502 R.M.G. SMD 75 ΩT<=5% 0805
R948 0790251003 R.M.G.SMD 10 KΩT<=5% 0805
R949 0790239008 R.M.G.SMD 1 KΩT<=5% 0805
R950 0790255004 R.M.G.SMD 22 KΩT<=5% 0805
SF200 "0090413204 SAW Filter K3953M
SF201 "0090414806 SAW Filter K9456M
SF250 "0090413600 Ceramic Filter MKT40.4MA110P
S900 0330162603 Scart Connector 21 PIN BLACK
S901 0330162702 Scart Connector 21 PIN BLUE
TUNER
TU250 "0850102617 Tuner UV1315/AI-2
TRANSFORMERS
T600 0940200801 Driver Transformer 800T/20T
T650C 0940109903 FBT 29" MBO EB5-C HFT2307
T650CF 0330160508 Focus Wire FBT SANYO
T800 "0930108105 Switch Mode Transf.EB5-C 29" 10770080
VR850 0770512408 VR 470 Ω
X100 0090122706 Quartz Crystal 12 MHz 20pF
X400 0090122706 Quartz Crystal 12 MHz 20pF

Service Manual SM CE29FFV1-F
Ref. No. Part No. Description Ref. No. Part No. Description
12
AUDIO PCB
CAPACITORS
C1301 0230720203 Ceramic SMD 1 µF. 16V. +80-20% 0805
C1302 0230480808 Ceramic SMD 10 nF.10% 50V.
C1303 0230600702 Ceramic SMD 100 nF.10% 25V.
C1304 0230480808 Ceramic SMD 10 nF.10% 50V.
C1305 0230720203 Ceramic SMD 1 µF. 16V. +80-20% 0805
C1306 0230480808 Ceramic SMD 10 nF.10% 50V.
C1307 0230720203 Ceramic SMD 1 µF. 16V. +80-20% 0805
C1308 0230720203 Ceramic SMD 1 µF. 16V. +80-20% 0805
C1309 0230720203 Ceramic SMD 1 µF. 16V. +80-20% 0805
C1310 0230720203 Ceramic SMD 1 µF. 16V. +80-20% 0805
C1311 0230720203 Ceramic SMD 1 µF. 16V. +80-20% 0805
C1312 0230720203 Ceramic SMD 1 µF. 16V. +80-20% 0805
C1313 "0230240400 Ceramic SMD 100 pF.5% 50V.
C1314 "0230240400 Ceramic SMD 100 pF.5% 50V.
C1319 0230720203 Ceramic SMD 1 µF. 16V. +80-20% 0805
C1320 0250410859 Electrolytic 47 µF. 25V.
C1323 0250410859 Electrolytic 47 µF. 25V.
C1324 0230320707 Ceramic SMD 470 pF.10% 50V.
C1326 0230320707 Ceramic SMD 470 pF.10% 50V.
C1328 0230320707 Ceramic SMD 470 pF.10% 50V.
C1330 0230320707 Ceramic SMD 470 pF.10% 50V.
C1332 0250410859 Electrolytic 47 µF. 25V.
C1333 0230480808 Ceramic SMD 10 nF.10% 50V.
C1334 0230480808 Ceramic SMD 10 nF.10% 50V.
C1335 0230480808 Ceramic SMD 10 nF.10% 50V.
C1336 0230480808 Ceramic SMD 10 nF.10% 50V.
C1338 0230480808 Ceramic SMD 10 nF.10% 50V.
C1339 0230480808 Ceramic SMD 10 nF.10% 50V.
C1340 0230480808 Ceramic SMD 10 nF.10% 50V.
C1341 0250321072 Electrolytic 10 µF. 63V.
C1342 0230480808 Ceramic SMD 10 nF.10% 50V.
C1343 0230720203 Ceramic SMD 1 µF. 16V. +80-20% 0805
C1344 0230720203 Ceramic SMD 1 µF. 16V. +80-20% 0805
C1380 0230600702 Ceramic SMD 100 nF.10% 25V.
C1381 0250410859 Electrolytic 47 µF. 25V.
C1382 0250280856 Electrolytic 4,7 µF. 100V.
C1383 0250220472 Electrolytic 1 µF. 100V.
C1384 0270241136 Polyester 15 nF. 5% 63V.
C1385 0230320608 Ceramic SMD 470 pF.5% 50V.
C1386 0250280856 Electrolytic 4,7 µF. 100V.
C1387 0250280856 Electrolytic 4,7 µF. 100V.
C1388 0270222037 Polyester 10 nF. 5% 63V.
C1389 0270311137 Polyester 56 nF. 5% 63V.
C1390 0250410859 Electrolytic 47 µF. 25V.
C1391 0270311137 Polyester 56 nF. 5% 63V.
C1392 0270222037 Polyester 10 nF. 5% 63V.
C1393 0250280856 Electrolytic 4,7 µF. 100V.
C1394 0250280856 Electrolytic 4,7 µF. 100V.
C1395 0230320608 Ceramic SMD 470 pF.5% 50V.
C1396 0270241136 Polyester 15 nF. 5% 63V.
C1397 0250220472 Electrolytic 1 µF. 100V.
C1398 0250280856 Electrolytic 4,7 µF. 100V.
C1399 0230600702 Ceramic SMD 100 nF.10% 25V.
DIODES
D1301 0360602213 Zener SMD BZT55C5V1
D1302 0360602213 Zener SMD BZT55C5V1
D1303 0360602213 Zener SMD BZT55C5V1
D1304 0360602213 Zener SMD BZT55C5V1
INTEGRATED CIRCUITS
IC1300 0360517700 TDA 9875AH V2
IC1380 0360517403 BA3880AFS
K1300 0330330101 8P. Connector
K1301 0330330101 8P. Connector
K1302 0330198706 10 P. Connector
COILS
L1300 0620011502 Ferrite SMD 0603 600 Ω/100MHz
L1301 0620011502 Ferrite SMD 0603 600 Ω/100MHz
L1302 0620011502 Ferrite SMD 0603 600 Ω/100MHz
L1303 0620011502 Ferrite SMD 0603 600 Ω/100MHz
L1304 0620005801 Ferrite SMD 0805 1K/100MHz 0,2A
L1305 0090316506 Peaking Coil 2,2 µH.10% RADIAL
L1306 0620005801 Ferrite SMD 0805 1K/100MHz 0,2A
L1307 0620005801 Ferrite SMD 0805 1K/100MHz 0,2A
L1308 0090316506 Peaking Coil 2,2 µH.10% RADIAL
L1309 0620011502 Ferrite SMD 0603 600 Ω/100MHz
L1310 0620005801 Ferrite SMD 0805 1K/100MHz 0,2A
PCB14 0750153926 AUDIO PCB EB5-C
TRANSISTORS
Q1300 0360320600 BRT SMD PDTC124ET
Q1301 0360320600 BRT SMD PDTC124ET
RESISTORS
R1300 0790227003 R.M.G. SMD 100 ΩT<=5% 0805
R1301 0790227003 R.M.G. SMD 100 ΩT<=5% 0805
R1302 0790251003 R.M.G. SMD 10 KΩT<=5% 0805
R1303 0790255004 R.M.G. SMD 22 KΩT<=5% 0805
R1304 0790701106 R.M.G. SMD 0 Ω1/10W.
R1305 0790701106 R.M.G. SMD 0 Ω1/10W.
R1306 0790247001 R.M.G. SMD 4,7 KΩT<=5% 0805
R1309 0790239008 R.M.G. SMD 1 KΩT<=5% 0805
R1310 0790752208 R.M.G. SMD 12 KΩT<=5% 0805
R1311 0790752208 R.M.G. SMD 12 KΩT<=5% 0805
R1312 0790752208 R.M.G. SMD 12 KΩT<=5% 0805
R1313 0790752208 R.M.G. SMD 12 KΩT<=5% 0805
R1314 0790752208 R.M.G. SMD 12 KΩT<=5% 0805
R1315 0790752208 R.M.G. SMD 12 KΩT<=5% 0805
R1316 0790232003 R.M.G. SMD 270 ΩT<=5% 0805
R1321 0790247001 R.M.G. SMD 4,7 KΩT<=5% 0805
X1300 0090121906 Quartz Crystal 24.576 MHz
PWB ASSY FRONT
CN_NAF 0330430000 Connector Assy 4P W/WireS 90 mm.
CN_NBF 0330490103 Connector Assy 10P W/WireS 90 mm.
CN_NCF 0330460007 Connector Assy 7P W/WireS 90 mm.
CAPACITORS
C1800 "0260380324 Polypropilene 220 nF 10% 275V.
C1801 "0260341003 Polypropylene 100 nF. 20% 275V
C1810 0250321072 Electrolytic 10 µF. 63V.
C1830 "0240143214 Ceramic 10 nF. +80-20% 63V.
C1831 "0240143214 Ceramic 10 nF. +80-20% 63V.
C1832 0270341480 Polyester 100 nF. 10% 63V.
C1840 "0240131417 Ceramic 470 pF. 10% 100V.
C1841 0240131417 Ceramic 470 pF. 10% 100V.
C1843 "0240131417 Ceramic 470 pF. 10% 100V.
C1844 0240131417 Ceramic 470 pF. 10% 100V.
C1847 0250321072 Electrolytic 10 µF. 63V.
C1849 "0240131417 Ceramic 470 pF. 10% 100V.
DIODES
D1800 0360126205 Red/Green 3 mm.
D1801 0360130819 1N 4148
D1840 0360103204 Zener BZX79C5V1
D1841 0360103204 Zener BZX79C5V1
E1800 0640705117 Eyelet 2,5-3
E1801 0640705117 Eyelet 2,5-3
E1802 0640705117 Eyelet 2,5-3
E1803 0640705117 Eyelet 2,5-3
E1804 0640705117 Eyelet 2,5-3
E1805 0640705117 Eyelet 2,5-3
E1806 0640705117 Eyelet 2,5-3
E1807 0640705117 Eyelet 2,5-3
E1808 0640705117 Eyelet 2,5-3
E1809 0640705117 Eyelet 2,5-3
FAF 0330271305 2P. Socket W/ CLIP
FCF 0330270307 2P. Socket
FEF 0330271305 2P. Socket W/ CLIP
F1800 0330110503 Fuse T 2 A./250V. TIME-LAG

Service Manual SM CE29FFV1-F
Ref. No. Part No. Description Ref. No. Part No. Description
13
KVAF 0330191701 2P. Socket
COILS
L1800 "0090412206 Mains Filter 2X27 MH 250VAC 1A
L1801 0090413808 pFC Coil 65 MH 1,05A 47X44X39
L1830 "0090319765 Peaking Coil 22 µH. 10% I MAX=130MA
L1831 "0090319765 Peaking Coil 22 µH. 10% I MAX=130MA
L1840 "0090315029 Peaking Coil10 µH. 10%
L1841 "0090315029 Peaking Coil10 µH. 10%
L1842 "0090315029 Peaking Coil10 µH. 10%
PCB20 0750154015 PWB Front EB5-C
PF1800 0760100701 Fuse Terminal Taped
PL1802 0130209414 Push Switch L-3,85MM
PL1803 0130209414 Push Switch L-3,85MM
PL1804 0130209414 Push Switch L-3,85MM
PL1805 0130209414 Push Switch L-3,85MM
PT1801 0810101907 P.T.C. 18 Ω
RE1800 0090117003 Degaussing RELE 250V/5A 5V/100_Ω
RI1800 0600123509 Infrared Receiver SPS-443-1-E
RESISTORS
R1800 0790180111 Carbon 2,2 MΩ5% 1/2W.
R1801 0790184113 Carbon 4,7 MΩ5% 1/2W.
R1802 0790135206 Carbon 470 Ω5% 1/4W.
R1812 0790357024 Metal Film 7,50 KΩ1% 0,4W.
R1813 0790360705 Metal Film 12,0 KΩ1% 0,4W.
R1814 0790581201 Thin Film Res. 33,2 KΩ1% 0,6W
R1815 0790583306 Metal Film 51,1 KΩ1% 0,4W.
R1840 0790036305 Carbon 2,2 KΩ5% 1/4W.
R1841 0790036305 Carbon 2,2 KΩ5% 1/4W.
R1842 0790125702 Carbon 75 Ω5% 1/4W.
SW1800 0140204306 Main AC Switch WITHOUT WIPER
S1800 0330729807 Phone JackStereo W/Disconnection
S1801 0330159708 3 RCA'S Assembly
ELECTRICAL ASSY
AM1 0010203909 Insulating Ring HV Cable
BRDEFL 0010203503 Wire Band 98/2.5 Natural
BRDGA 0010204105 DC Holder-S4LF-C
BRDGB 0010204105 DC Holder-S4LF-C
BRDGC 0010204105 DC Holder-S4LF-C
BRDGI 0010203313 Holder DC GBR-HBZ
BRDGS 0010203313 Holder DC GBR-HBZ
BRDG1 0010204006 Wire Band 370/3,6 Natural
BRDG2 0010203503 Wire Band 98/2.5 Natural
BRFH 0200099406 Wire HOLDING HOOK G
BRSPK1 0010203503 Wire Band 98/2.5 Natural
BRSPK2 0010203503 Wire Band 98/2.5 Natural
CN_FAF 0330272303 Connector Assy W/LEAD 110+5+5
CN_FB1 0330271701 2P Connector W/LEADS 630+33 MM
CN_FB2 0330270901 2P Connector W/LEADS 770+33 MM
CN_FE 0330162918 Power Cord Assy L=2500 MM
CN_FF1 0330272402 Connector Assy W/LEAD 500mm.
CN_FF2 0330272501 Connector Assy W/LEAD 500mm.
CN_FT1 0160202404 Wire Red + BLACK 210/4/33
CN_FT2 0160202503 Wire Yellow +BLACK 210/4/33
CSPK3 0250248317 Electrolytic N.P. 2,2µF 50V
CSPK4 0250248317 Electrolytic N.P. 2,2µF 50V
LDG 0090257908 Degausing Coil 28"
L1250 0090259003 CancellorCoil 192 MM Diameter
PMAT 0970806907 Silicon Grease KS-650N
SC001 0170200406 Shield Mesh 2 mm.
SC1001 0010110708 Grounding Spring
SPK1 0030118418 Speaker 8 Ω12W. 120X60
SPK2 0030118418 Speaker 8 Ω12W. 120X60
SPK3 0030118608 Speaker Dome Tweeter 8 Ω10W
SPK4 0030118608 Speaker Dome Tweeter 8 Ω10W
TRC 1000109700 C.R.T. 29" A68ERF001X013 PHILIPS
PACKING
BAT 0660100611 2 Dry Battery PACK 1,5V. SUM-3F/2S
EM 1 0190206409 Packing Cartoon 29" FLAT
EM 2 0190162008 UpperCushion Assy 29" FLAT
EM 3 0190162107 Bottom Cushion Assy 29" FLAT
EM 7 0420246118 Instruction Manual21"/29" FLAT (GB, F,D)
EM 7-1 0420246316 Instruction Manual 21" FLAT (GR, HL, I)
EM 7-2 0420246415 Instruction Manual 21"/29" FLAT (SF, S, DK)
EM 8 0010101905 Staple 7/8 21 mm.
EM10 0600123707 Remote Control EC7-B EB5-C-B
EM11 0010716116 Holder RC GBR-BLFAF
Note: All the information of this manual is correct in the beginning of
the series; SANYO España, S.A. reserves the right to modify
components and procedures to maintain its policy of continuous
improvement.

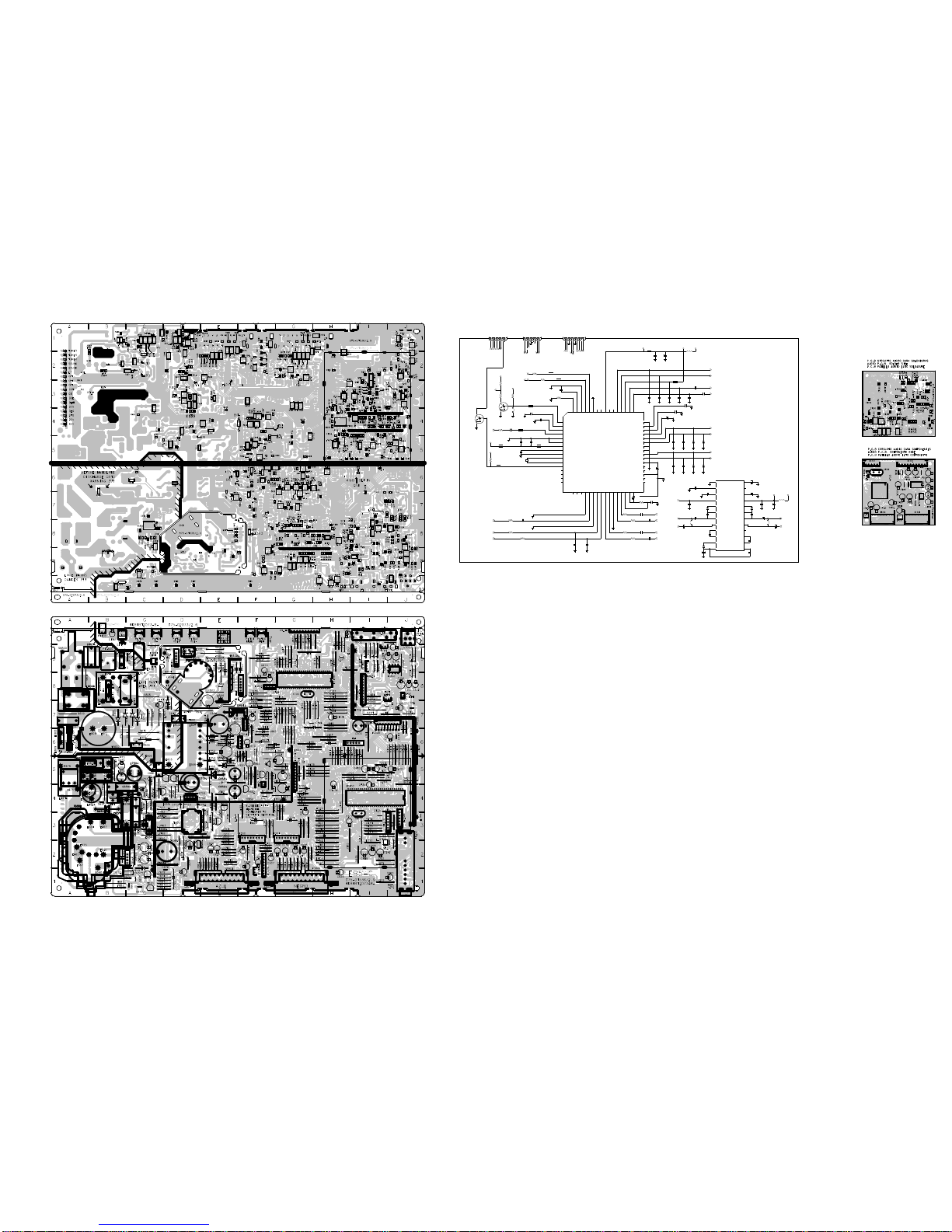

PCB 075−01539
L1305
XXX
470
C1328
SMD_50V
SMD_50V
C1395
XXX MIXR
OUTR
7
8INR
APFR
9
SMD_50V
C1330
470
MIXL 19
2DETR
20
VCAL
VCC 21
22
DEFR
NC 23
24
DETL
DEFR
3
4CTL
VCAR
5
6
GND
1
10 HPFR
LAFR
11
12 BIASC LAFL 13
14
HPFL
APFL 15
16
NC
INL 17
18
OUTL
C1333
0.01
SMD_50V
+8V
IC1380
XXX
JO1381
XXX
47uF
C1323
16V
4.7uF
C1393
25V
R1306
XXX
SMD
XXX
+5V
XXX
C1396
63V
R1302
10K
SMD
470
C1326
SMD_50V
100V
C1383
R1300
100
SMD
SMD_50V
C1342
0.01
1u
SMD_16V
C1319
1u
R1316
270
SMD
SMD_16V
C1311
XXX
C1389
63V
BLM21A102
L1304
XXX
C1381
16V
SMD_16V
C1301
1u
SMD
12K
R1315
SMD_50V
C1399
XXX
D1301
5V1
+8V
SMD_50V
C1324
470
C1382
25V
C1334
SMD_50V
0.01
XXX
0.01
C1340
SMD_50V
16V
C1390
XXX
C1386
25V
24.576MHz
X1300
5V1
D1302
XXX
SMD
12K
R1310
R1311
12K
SMD 63V
C1388
XXX
16V
C1320
47uF
61
SDA
V_SSA1 62
63
VDEC1
I_REF 64
7V_DDD1
CRESET
8
9V_SSD4
51
V_DDA
MOR 52
53
MOL
LOL 54
55
LOR
V_DDD2 56
57
PCLK
NICAM 58
59
ADDR1
V_SSD1
6
SCL 60
V_SSA4
43
SCOR2
SCOL2 44
45
V_REF3
PCAPR 46
47
PCAPL
V_SSA3 48
49
AUXOR
5ADDR2
AUXOL 50
NC 33
NC 34
35
V_SSA2
NC 36
37
NC
V_REF2 38
39
SCOR1
SIF1
4
SCOL1 40
41
V_SSD2
42
EXTIR EXTIL
24 25 SCIR1
SCIL1
26 27 V_SSD3
SCIR2
28 29 SCIL2
3V_REF1
V_DEC2
30 31 V_REF(P)
V_REF(N)
32
14
15 WS
SDO2
16
17 SDO1
SDI2
18
SDI1
19
SIF2
2
TEST1
20 21 MONOIN
TEST2
22 23
IC1300
TDA9875AHV 2
1P1
XTALI
10
11 XTALO
12 P2
13 SYSCLK
SCK
+5V_A
47uF
16V
C1332
XXX
C1385
SMD_50V
C1302
0.01
1u
C1305
SMD_16V
+8V_A
SMD_50V
1u
C1307
SMD_16V
+8V
XXX
C1380
SMD_50V
+5V_AA
SMD
0
R1304
R1313
12K
SMD
L1303
FERRITE
5V1
D1303
L1307
BLM21A102
XXX
L1302
1u
C1310
SMD_16V
25V
C1387
4.7uF
1u
C1308
SMD_16V
D1304
5V1
SMD_50V
C1304
0.01
C1303
SMD_50V
2.2uH
L1308
FERRITE
L1301
SMD_50V
C1336
0.01
0.1
XXX
C1397
100V
SMD_50V
C1306
0.01
+5V_AA
SMD_16V
C1344
1u
63V
C1392
XXX
1u
C1343
SMD_16V
25V
C1394
XXX
63V
C1384
XXX
+5V
R1314
12K
SMD
2 3 4 5 6 7 8 9
100
C1313
SMD_50V
7 8
FERRITE
L1309
B10B−EH
K1302
1 10
8JL−F−E
K1300
1 2 3 4 5 6
0.01
C1338
SMD_50V
SMD
12K
R1312
63V
C1341
10uF
L1310
BLM21A102
+5V_A
XXX
Q1300
SMD_16V
C1309
1u
JO1300
XXX
C1391
63V
SMD
XXX
R1305
SMD_50V
C1339
0.01
XXX
L1300
FERRITE
Q1301
PDTC124ET
R1303
XXX
SMD SMD
100
R1301
25V
C1398
XXX
1u
C1312
SMD_16V
R1309
1K
SMD XXX
JO1380
8
4.7K
SMD
R1321
+5V_A
0.01
C1335
SMD_50V
K1301
8JL−F−E
1 2 3 4 5 6 7
SMD_50V
C1314
100
BLM21A102
L1306
SCB_LIN
SCB_RIN
LSQ_L
LSQ_R
FRONT_LIN
FRONT_RIN
SIF
SCA_ROUT
SCA_LOUT
SCB_ROUT
SCB_LOUT
AF_MONO
LSQ_L
LSAF_L
AF_MONO
FRONT_R IN
FRONT_L IN
SCL
SDA
LSQ_R
LSAF_R
SCL
SDA HPAF_L
HPAF_R
BBE
BBE
SCB_RIN
SCB_LIN
SCA_RIN
SCA_LIN
SCB_LOU T
SCB_ROUT
SCA_ROUT
SCA_LOU T
HPAF_R
HPAF_L
LSAF_R
LSAF_L
SIF
SCA_LIN
SCA_RIN
C1301
C1302
C1303
C1304
C1305
C1306
C1307
C1308 C1309
C1310
C1311 C1312
C1313
C1314
C1319
C1320 C1323
C1324
C1326
C1328 C1330
C1332
C1333
C1334
C1335
C1336
C1338
C1339
C1340
C1341
C1342
C1343 C1344
C1378
C1379
C1380
C1381
C1382C1383
C1384
C1385
C1386C1387
C1388
C1389
C1390
C1391 C1392
C1393C1394
C1395
C1396
C1397
C1398
C1399
D1301D1302
D1303
D1304
IC1300
IC1380
IC1390
JO1300
JO1380
JO1381
K1300 K1301
K1302 K1303
L1300
L1301
L1302
L1303
L1304
L1305
L1306
L1307
L1308
L1309
L1310
L1311
Q1300
Q1301
R1300 R1301
R1302
R1303
R1304
R1305
R1306
R1309
R1310
R1311 R1312
R1313
R1314 R1315
R1316
R1321
X1300
C100
C101
C102
C103
C104
C105
C1051
C1052 C1053
C1054
C1055
C1056
C1057
C106
C107
C108
C109
C110
C112
C113
C114
C115
C116
C118
C119
C120
C123
C1251
C1252
C190
C191
C200
C201
C202
C203
C204
C206
C207
C209
C210
C250
C251
C252
C256
C257
C258
C259
C260
C261
C262
C263
C300
C301
C302
C303
C304
C305
C306 C307
C308
C309 C310
C311
C312
C350 C351
C352C353
C354
C355
C356
C357
C359
C360
C361
C362 C363
C364
C365
C366
C400
C401
C402
C403
C404
C405
C406
C407
C408 C409
C410
C411 C412 C413
C414
C415
C416
C417
C419
C420
C421
C422
C423
C424
C425
C426
C427
C428
C429
C430
C431
C432
C433
C434
C435
C436
C437 C438
C439
C442
C443
C450
C451
C452
C453
C454
C455
C500
C501
C503
C600C600A
C601
C602
C603
C604
C650C650A
C651C651AC651BC651CC651E
C652C652AC652B
C652C
C653C653AC653B
C654C654AC654B
C655C655A
C656
C657
C658
C659C659A
C660
C661
C662
C663
C667
C668
C669
C670
C671
C672
C673
C674
C675
C676
C677
C679
C680
C681
C700
C701
C702
C703
C704
C710
C711
C712
C750
C751
C753
C800
C801C801A
C802
C803
C806
C807
C808
C809
C810
C811
C812
C813
C814
C816
C817
C818
C850
C851
C852
C853
C855
C856C856A
C857
C858C858A
C859C859A
C860
C861
C862
C863
C865
C866
C868
C870
C871
C872
C874
C875
C876
C900
C901
C902 C903
C904C905
C906
C907
C908
C909
C910
C911
C913
C914C917
C918
C920
C921
C923
C925
C926
C928
C930C931
C934
C935C936
C937
C938
C939
C940
C942
CN_FR
CN_G2
CN_NA CN_NB
CN_NC
D100
D101
D102
D104
D105
D106
D107
D108
D190
D200
D250
D251
D350
D351
D401
D402
D500
D501
D502
D600
D650D650AD650B
D651
D652D652AD652B
D653
D654
D655
D656
D657
D658
D659
D660
D661
D663
D671
D672
D673
D674
D675
D676
D677
D678
D680
D681
D682
D683
D700
D701
D702
D703
D704
D705
D750
D751
D752D753
D754
D800 D801
D802 D803
D804
D806
D850D850A
D851
D851A
D852D852A
D853D853A
D854
D855D855A D856
D857
D858
D859
D860
D861
D862
D863
D865
D866
D867
D870
D871
D900
D901
D902
D903
D904
D905
D906
D907
D908
D909 D910
D911
D912
D914
D917
D918
D919D920
D921
E300
E301
E302
E303
E500
E650
E651
E652
E653
E654
E655
E656
E657
E658
E659
E660
E661
E662
E663
E664
E665 E666
E667
E668
E669
E670
E671
E673
E674
E675
E676
E800
E801 E802
E803
E804
E805
E806
E807
E808E809
E810 E811
E812
E813
E814
E815
FA
FB1
FB2
FC
FD
FD1
FE
FF1
FF2
FH
FH1
FK
G2
G2A
IC100
IC1050
IC125
IC1250
IC300
IC350
IC400
IC500
IC701
IC800
IC801
IC850
IC852
IC853
IC854
IC900
J102 J103
J105
J111
J112 J113
J115 J116
J117
J118
J119
J121
J122
J123
J124
J125
J126
J128
J129
J131
J133
J135
J136
J137
J138
J140
J141
J142
J144 J149
J150
J151
J152 J153
J155
J156 J157
J158
J159
J160
J163 J165
J166 J167 J168 J169
J170
J172
J174
J175
J177
J179
J180
J181
J182
J183
J184
J186
J188
J190
J191
J192
J193
J194
J195
J196
J197
J198
J199 J200 J201
J202
J203
J204 J205 J206 J207
J208
J210
J211
J212
J213
J215
J216
J217
J218
J219
J220
J223
J224
J225
J226
J227 J228
J229 J230 J231
J232
J233
J235
J236
J237
J238
J239
J240
J242
J243
J244
J245
J246
J247
J248
J249
J250
J251
J252
J253
J255
J256
J257 J258
J259
J261
J262
J263
J264
J265
J266
JC0
JC1
JC10
JC11
JC12
JC13
JC14
JC15
JC16
JC17
JC2
JC3
JC4
JC5
JC6
JC7
JC8
JC9
JO104
JO1050 JO1051
JO1052
JO106 JO107
JO200
JO201
JO252
JO253
JO300
JO301
JO302
JO303
JO350
JO351
JO506
JO655
JO661
JO668
JO701
JO702
JO800
JO801
K300 K301
K302K302A
KVAM
KVBM
L100
L101
L102
L104
L1050
L1051
L1052
L1054
L1055
L250
L251
L252
L300
L301
L302
L303
L304
L305
L350 L351
L400 L401
L404
L405
L410
L502
L506
L600L600A
L651
L651A
L652 L652A
L654
L655
L656
L661
L668
L700
L701
L702
L703
L750L750A
L800
L800AL800B
L801
L802
L803
L850
L851
L852
L853
L854
L855
L856
L857
L858
L859
L860
L861
L862
L863
L864
L865
L866
L900 L901 L902
L903
L905
PF800
PL100PL101PL102 PL103PL104PL105
PTC800
Q100 Q101
Q102
Q104
Q105
Q1050
Q1051
Q106
Q107
Q1250
Q190
Q200
Q201
Q202
Q203
Q204
Q251
Q252Q253Q254
Q255
Q256
Q300Q301
Q350
Q351
Q352
Q400
Q401
Q600
Q600A
Q604
Q650
Q651
Q652
Q653
Q670
Q671
Q672
Q673
Q674
Q750
Q751
Q752
Q753 Q754
Q800
Q850
Q851
Q852
Q853
Q854
Q855
Q856
Q857
Q858
Q859
Q861
Q862
Q863
Q900
Q901
Q904
Q905
Q906
Q907
Q908
R100
R101 R102 R103
R104
R105
R1050
R1051
R106
R107
R108 R109 R110
R112
R113
R114
R115 R116R117
R118
R119
R120 R121
R122
R123
R125
R1250
R1251
R1252
R1253
R1254
R1255
R1256
R1257
R1258
R126
R1262
R127
R128
R129
R130
R131R132
R133
R134
R135
R136
R137
R138
R139
R140
R141
R142
R143
R144
R145 R146
R147
R148
R149
R150
R151
R152
R153
R156
R157
R158
R160
R162 R163
R165
R167
R168
R169
R170
R174
R179
R182
R190
R191
R192 R193
R194
R195
R196
R197
R198
R200
R201
R202
R203
R204
R205
R207 R208
R209
R210
R211
R212
R213 R214
R215
R216
R217
R218
R219
R220
R250
R251
R252
R253
R254
R255
R256
R258
R262
R263
R264
R265
R266
R267
R268
R269
R271
R300
R301
R302
R303
R304
R305
R309
R310
R311
R312
R350 R351
R352
R353
R354
R355
R356
R357
R359
R360
R361
R362
R363
R364
R400 R401
R402
R403
R404
R405
R408 R409 R410 R411
R412
R413
R414
R415
R416
R417
R418
R419
R420
R421
R423
R424
R425
R426
R427
R428
R429
R431
R432
R433
R438
R440
R442
R443R444
R450
R451
R452
R453 R454 R455
R456
R457
R458
R459
R500
R501
R502
R503
R504
R505
R506
R507
R508
R509
R510
R511
R512
R513
R601R601AR601BR601C
R602
R603R603AR603B
R604
R605
R606
R607
R607A
R608
R612R612A
R651
R652
R653
R654
R655
R656
R657
R658
R659
R660
R661
R662
R663
R666R666AR666B
R667
R668
R669
R670
R671
R672
R673
R674
R675
R676
R677
R678
R679
R680
R681
R682
R683
R684
R685
R686
R687
R688
R689
R690
R691
R693
R694
R696
R697
R698
R699
R700
R702
R703
R705R705A
R706
R708
R711
R712
R750R750A
R751
R752
R753
R754
R755
R756
R757
R758
R759
R760R760A
R761
R762
R763
R800
R801
R802
R803
R804
R805
R806
R808
R810
R811 R812
R813
R814
R815
R816
R817 R818
R819
R820 R821
R850
R851
R852
R853
R854
R855
R856
R857
R858
R859
R860
R861
R862
R863
R864
R865
R866
R867
R869
R870
R871 R872
R873
R874
R875R875A R876
R877
R878
R879
R880
R881
R882
R883
R884
R885
R886
R900
R901
R902 R903
R904
R905 R906
R907
R908
R909
R910
R911
R912
R913
R914
R915
R916 R917
R918 R919 R920
R921
R922
R923
R924
R925
R926
R927
R928
R929
R930
R931
R932
R933
R934
R935
R936
R938 R939
R940
R941
R942
R943
R944
R945
R946
R947
R948
R949
R950
RE800
RI100
S300
S900 S901
S902
SF200
SF201
SF250
SW800
T600
T650T650AT650BT650CT650DT650E
T800
TU250
VDR670
VR850
X100
X400
YR300
YR500YR500A
YR650
YR800
YR900
YR901
ZOCALO

140.0V
1K
R205 1K
R206 0
R209 1K
R210 1K
R259 2.7K
R260 1K
R261 10K
R271 3.3K
SF201 K9356M K9456M
SF250 MKT40.4MA110P
B1 140.0V
TRCPHILIPS-A68ERF001X013
00-03846/0CE29FFV1
TRCPHILIPS-A68ERF001X013
R104 PDTC124ET
POSICION
R165
00-03857/0CE29FFV1-F
D200 0 LS4148
D201 LS4148
IC100 SAA5563 SAA5564
JO200 0
JO201 0
L251 1uH 0.39uH
Q201 PDTC124ET
Q207 PDTC124ET
Q250 BC847B
Q256 PDTC124ET
Q257 1K
NOTA SUL RISPETO DELLE NORME
Quando si sosttituisce qualsiasi componente del recevitore TV si deve consultare
l’elenco dei componenti nel Manuale per la Manutenzione. Tutti i componenti
contrassengati con * o ! devono essere sostituiti con ricambi originali SANYO.
normalizzate e immagine del monoscopio.
ATTENZIONE! Questo televisore contiene elementi specialmente sensibili all'elettricità
statica (ESD). Consigliamo di realizzare gli interventi sui circuiti integrati e sui
effettuati con la TV sintonizzata sul canale 21, regolazioni
semiconduttori con le dovute precauzione.
NOTE:
1.- Tutti i valori delle resistenze sono in OHM, K=1.000, M=1.000.000.
4.- Le miure di tensione e gli oscillogrami sono stati
2.- I valori de capacità indicati con un numero minori di 1 sono
in uF maggiori di 1 sono in pF.
3.- Tutte le informacioni di questo schema sono corrette all'inizio della serie.
Seguendo la propria politica di continuo miglioramento dei propri prodotti,
la SANYO si riserva el diritto di apportare modifiche senza preavviso.
GND
VC
OUTPUT
VCCR_REF
RF_STND_BY
V_FEEDBACK
E_A_OUT
FOLD_BACK_IN
O_V_PROTECT
CUR_SENSE_I
DEMAG.DETE
RP_STND_BY
SOFT_START
CT
SYNC.I
NOTIZIE SULLA SICUREZZA DI FUNZIONAMENTO
L'area racchiusa dal tratteggio è collegata
direttamente alla rete di alimentazione,
inserie un trasformatore separatore prima
di procedere all riparazione.
COMPLIANCE TO STANDARDS
When any TV receptor component is substituted, it is necessary to check
the list of components in the Service Manual and all of those marked
with * or ! must be replaced with original spare SANYO parts.
and colour bar pattern.
WARNING! This TV set contains components that are particularly sensitive
to static electricity (ESD). It is recommended that all due precaution be taken
out with a TV set tuned to channel-21, normal adjustments
particularly sensitive handling integrated circuits and semiconductors.
NOTES:
1.- Resistor values are expressed in Ohm K=1000, M=1000000.
4.- The measurements of voltages and oscillograms were carried
2.- Capacitor values lower than 1 are expressed in uF and values
higher than 1 are expressed in pF.
3.- The information in this scheme is correct at the beginning of
the series; SANYO reserves the right to modify this in
accordance with on-going product improvement policy.
ICcontrol
VCC
GND
L
R
P1.6/SCL0
P1.7/SDA0
P1.5/SDA1
P1.4/SCL1
P2.4/PWM3
P2.5/PWM4
P2.6/PWM5
P2.7/PWM6
P1.3/T1
P1.2/INT0
P1.1/T0
P1.0/INT1
P2.0/TPWM
P2.1/PWM0
P2.2/PWM1
P2.3/PWM2
P0.6
P0.7
VDS
R
VSSC
P0.0
P0.1
P0.2
OSCGND
VDDC
VSSP
VSYNC
P0.3 HSYNC
P0.4
P0.5
FRAME
G
B
VSSA
CVBS0
CVBS1
SYNC_FILTER
VDDA
P3.4/PWM7
CORB
VPE
IREF
XTALIN
P3.0/ADC0
P3.1/ADC1
P3.2/ADC2
P3.3/ADC3
VDDP
RESET
XTALOUT
ICcontrol
CVBS_INT
GND1
AMOUT
SECPLL
GND2
PH1LF
PH2LF
FBISO
CVBS/Y2 HOUT
BLKIN
BO
LUMOUT
UI
VO
UO
SIFIN2
SIFIN1
AGCOUT
GND
GI
BI
XTAL1
DECDIG
REFO/A
VI
RGBIN
LUMIN
VHSTR
C3
CVBS_Y3
VP1
IFIN1
VDRA
VDRB
EWD
PLLIF
IFVO
SCL
SDA
IREF
VCS
EHT0
IFIN2
SIFAGC
QSSO/A
HALFT
LPST-UP
GO
RO
DECBG
CVBS1O
VP2
XTAL2
BCLIN
RI
DGND
COUT
OUTSEL
CVBSOUT
AGND
VDD
VCC
SC
FSCSEL
Y/CVBS1
SYS1
SYS2
FSC
CIN
INPSEL
CVBS2
VI1 VI2 VI3 GND IOM VDD VO3 VO2 VO1
N.C.
N.C.
N.C.
STANDBY /
MUTELO GIC
OUT2-
GND1
GND2
MODE
VCC1
VCC2
OUT1-
IN1-
IN1+
IN2-
IN2+
SVR
OUT2+
OUT1+
IN1 CTL1 IN2 CTL2 GND IN3 MUTE OUT VCC
EHT
FOCUS
VCC
GND
+5V IF_GND IF GND GND GND GND AGC LB TU HB MB
FL2
KG KR SPF G1 G2
KB SP
FL1
N.C.
N.C.
N.C.
PUMP_UP
THERMAL PROTECTION
V_OUTPUT
GND
*INPUT
PUMP_UP_OUT
O_S_VCC
INPUT
VCC
NOTA DE CUMPLIMIENTO DE NORMAS
Cuando se sustituye cualquier componente del receptor TV hay que consultar la
indicados con * o ! deben ser sustituidos por recambios originales SANYO.
ATENCIÓN este televisor contiene elementos especialmente sensibles a la
electricidad estática (ESD).Recomendamos que se realice la manipulación de
circuitos integrados y semiconductores con las debidas precauciones.
NOTAS:
1.- Los valores de las resistencias están expresados en ohms
K=1.000, M=1.000.000.
2.- Los valores de los condensadores menores de 1 están expresados
en uF, los valores mayores de 1 están expresados en pF.
3.- Toda la información de este esquema es correcta en el inicio de
la serie; SANYO se reserva el derecho de modificarlo para
mantener su política de mejora continua.
4.- Las medidas de tensiones y oscilogramas se han efectuado con
el TV sintonizado en el canal-21, ajustes normalizados e imagen
con carta de barras de color.
lista de componentes del Manual de Servicio, y todos los componentes que estén
Q653 Q754
C
B
E
Q252
Q251
Q203
Q204
E
Q600
K
A
R
B
C
1
IC701 IC300
1
IC853
IC500 91
SMD SMD
SMD
SMD
26
2752
I
IC852
IC400 IC800 IC100
28
C
B
1
C
Q674
Q751
Q1050
Q1250
Q1051 G SD
29
E
Q753
Q752
Q650
B EC
Q671
Q672
Q670 D
D851
K A
IC900
IC854
CI O D
1
9
17
Q101
Q104
Q102
Q105
Q106
Q107
Q190
Q200
10
TOP VIEW
TOP VIEW TOP VIEW
Q851
Q853
Q855
Q854
IC850
56
1
Q859
Q861
Q900
Q202
Q350
Q351
Q352
Q401
Q400
Q604
Q651
Q652
Q673
Q862
IC1050 IC125
8
916
14
Q850
Q852
Q863
O
Q750
B EC
Q800
G S
IC1250
8 5
1
4
58
IC350
1 2
34
IC801 1
Q253
Q254
Q255
Q256
Q300
Q301
Q906
Q908
Q907
Q100
Q201
Q901
Q905
Q904
Q856
Q857
Q858
18.0V 66.1Vpp
TP0449 5ms/div 10V/div
25.0V 69.7Vpp
TO0286 20us/div 10V/div
THE OSCILLOSCOPE
PRECAUCIÓN !!!
ISOLARE LA MASA
DELL'OSCILLOSCOPIO
TO0587 20us/div 50V/div
70.0V 168.7Vpp
INPUT POWER LINE
AVVERTENZA !!!
TO0613 5ms/div 500mV/div
5.0V 2.7Vpp
TP0639 5ms/div 2.0V/div
15.50V 12.9Vpp
0.0V 425.0Vpp
TO0695 2us/div 100Vı /div
TO GROUND THROUGH
DO NOT JOIN THE
WARNING !!!
AISLAR MASA DEL
OSCILOSCOPIO
-8.0V 30.2Vpp
TO0555 2us/div 5.0V/div
0.0V 1.90Vpp
TP0450 5ms/div 500mV/div

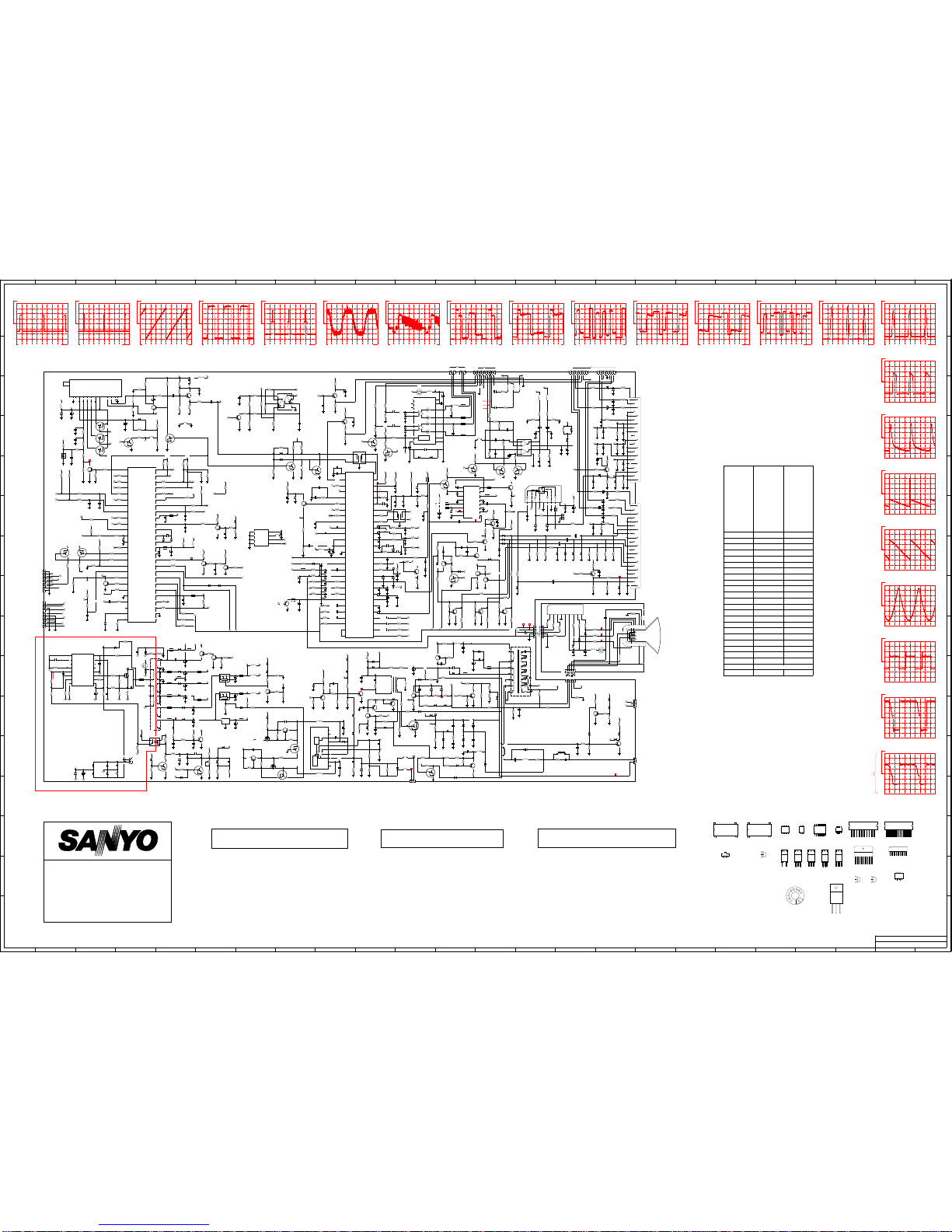

CE29FFV1-F
COLOUR TELEVISION 29" TXT
Models:
CE29FFV1
Chassis: 2114 (Series EB5-C)
N.C.
G1
B
G3
H
N.C.
G
A68ERF001X013
H
R
G2
TO0208 10us/div 500mV/div
3.30V 3.1Vpp
TP0574 10us/div 20V/div
100.0V 84.3Vpp
TO0578 20us/div 500mV/div
1.50V 3.2Vpp 600.0V 1250Vpp
TP0718 20us/div 200V/divTP0596 10us/div 20V/div
100.0V 93.7Vpp
TP0604 10us/div 20V/div
100.0V 93.8Vpp 25.0V 69.7Vpp
TO0694 20us/div 10V/divTO0334 5ms/div 1.0V/div
1.50V 3.5Vpp 1.50V 1.8Vpp
TO0237 10us/div 5.0V/div
7.50V 16.6Vpp
TP0268 10us/div 500mV/divTO0067 5ms/div 500mV/div
3.80V 3.0Vpp
TO0189 10us/div 500mV/div
3.30V 2.8Vpp
TO0190 10us/div 500mV/div
3.30V 3.0Vpp
TO0197 20us/div 1.0V/div
2.0V 4.8Vpp
TO0203 50ns/div 50mV/div
0.71V 285mVpp
9
B
-SUP_FAIL
2
15
DATE :
9 22
20
11 12
23
F
7 181
16
D
1411
NC
16.77V ON
-1.15V ST-BY
SF250
XXX
16.77V ON
-1.15V ST-BY
0.1 C410
SMD_50V
-16.77V ON
22
I
D
4 135
21 243
6
H
B
4
I
L
N
J
14
O
AUDIO PCB
L
13
J
F
2010 21
H
10
7
O
1
AUDIO PCB
M
K
P
19
K
E
M
5
LED_I
173
6
ZONA NO AISLADA DE RED
G
N
23 24
CODE :
E
C
15
LIVE PARTS AREA
12
C
G
16
LED_G
ES_CE29FFV1
8 19
18
SPEAKERS
Monday, October 29, 2001
172
NC
V_SINT
8
ZONA NON ISOLATA DALLA RETE
A A
LED_R
P
1.37V 1.64V 4.94V 0.15V
BC847B
Q204
EY
E683
Q1051
BC847B
0V ST-BY
3.87V ON
147V ST-BY
2.49V
SMD_50V
C1052
0.1
0V ST-BY
3.03V ON
0V ON
0V ST-BY
1/4W
2.2K
R917
ERC05-10B
D801
C650B
630V
0.022
1000
C803
1KV
7.15V ON
5.79V ST-BY
17.13V ON
18.2V ST-BY
BC857B
Q907
SMD
R657
47K
C931
25V
47uF
3 4
1/6W
R928
3.9K
-2.0V ST-BY
-17.44V ST-BY
-17.13V ON
98.5V ON
0V ST-BY
FD
51052
1 2
IC850
KA431LZ
1.6KV
2700
C654C
0V
8.04V ON
0.55V ST-BY
100uF
25V
C415
0.34V ST-BY
1.34V ST-BY
1.94V ON
3.20V ON
0V ST-BY
7.82V ST-BY
9.35V ON
2.01V ON
0V ST-BY
4.7K
SMD
R143
C306
SMD_16V
0.22
3.71V ON
3.08V ST-BY
0.136V ON
3.27V ON
3.27V ST-BY
2.02V ON
0V ST-BY
22K
R910
1/4W
JO252
0
0.36
R821
2W
22
C363
SMD_50V
SMD
R162
22K
1/6W100
R409
R204
SMD
1.2K
220uF
C810
385V
GND_FR_A
C601
400V
2200
100
SMD_50V
C913
100
R457
SMD
1K
R136
1/6W
1/6W
R218
330
22K
R690
SMD
8.2M
R811
1W
SMD_50V
C401
0.1
SMD_50V
C113
1000
C312
B8
EY
E657
0.1
250V
B6
E667
EY
SMD
R148
10K
SMD
10K
R864
SMD_50V C4090.1
4.7uH
L250
R706
10K
SMD
SMD_50V
C100
0.1
L668
BLM31P601
EY
E675
L350
0
0.022 C454
SMD_50V
B6
50V
C701
100uF
1K
SMD
R755
JO202
0
755B02V
FA
1
2
2.2K
R684
1/6W
R268
SMD
47
1K
SMD
R949
22K
R163
SMD
Q861
PDTC124ET
B1
1/6W
R402
10K
TO0067
Q652
BC847B
C935 25V47uF
22K
1/6W
R881
SMD
R932
100
BAV21
D501
C356
220uF
16V
TO0203
Q250
XXX
R879
0.25W
0.33
1K
R103
SMD
SMD
1.8K
R512
R101
47uF
C811
50V 2W
R820
0.36
SMD1K
+5V_C
+5V
R927
0.25W
75
2
20
21
3
4
5
6
7
8
9
SMD
R940
75
S901
--
1
10
11
12
13
14
15
16
17
18
19
63V
10uF
1/6W
7.5K
R302
SMD
75
R922
C309
D911
BAV103
D600
SMD
+5V_C
3.9K
R113
1/6W
5V1
0
R265
Q650
S2055N
BLM31P601
L661
22K
R759
1/6W
1.5
R703
0.6W_1%
R212
390
SMD
C406
SMD_50V
0.1
Q752
KSP92
D704
1N4148
100 1/6W
R450
47uF
C928
25V
10uF
PDTC124ET
Q350
SMD
4.7K
R144
63V
C868
R654
0
SMD
Q859
BC847B
SMD
R213
470
SMD
R419 15K
C190
0.33
R666A
1W
220
R220
1/6W
0.1
SMD_50V
C423
SMD_50V
1/4W
750
R816
E663
EY
1000
6V2
D401
R205
XXX
SMD
D650
ERD07
1/6W
R901
100
0.022
C414
SMD_50V
+5VF1
22K
R803
SMD
SMD_50V
C417
2200
B4+
Q1050
PDTC124ET
TO0208
SMD
R412
2.2K
XXX
+5VF1
L102
BLM21A102
XXX
D201
Q257
0.047
100V
C655B
75
R909
0.25W
K3953M
SF200
1
2
3
4
5
R127
47 SMD_1%
C656
160V
75
0.6W
R196
470
R192
SMD
2.2uF
16
2
3
4
5
6
7
89
3.9K
R929
SMD
MC44603ADWIC800
1
10
11
12
13
14
15
SMD
R361
1.5K
C902
SMD_50V
470
SMD
R208
47
L401
0
1/2W1.5K
R501
BC857B
Q202
TP0639
1000
C852
SMD_50V
0
L901
SMD_50V
C851
1000
5045
FF2
B4-
R312
4.7
1/4W
1/4W
33
R817
0.1
C261
SMD_50V
100
R763
1/6W
2.7K
R267
SMD
--
R675
0
0.22
C862
SMD_16V
B1
470
R934
1/6W
1W
820
R652
0.47
C434
SMD_16V
SMD
33K
R424
1N4148
D107
B10
25V
C934
47uF
D200
XXX
+3V3_F
1000
C432
SMD_50V
SMD_50V
C904
470
GND_AS
SMD
R165
XXX
TP0574
SMD
R191
100K
+8VF1
800T/20T
T600
LP
1/6W
1.5K
R918
FK
--
+8V
SMD_50V
C426
1000
R1262
SMD
33K
+5V_C
BC847B
Q190
PDTC124ET
Q106
Q352
PDTC124ET
470uF
C858
25V
SMD_50V
100
C353
25V
47uF
C451
SMD
R425
2.2M
7.5K
SMD
R152
47
R607
SMD
47uF 25V
C936
FB1
B2B-EH
1 2
1/6W100
R400
R261
SMD
XXX
SMD
XXX
R260
XXX
SMD
R259
SMD
4.7K
R355
1/6W
R458
100
0.6W_1%
2W
18K
R250
R857
220K
KA78R05TU
IC854
C
D
I O
10K
SMD
R170
L1054
FERRITE
1000
SMD_50V
C303
1K
SMD_50V
C443
4700
R503
1.5K 1/2W
1/6W
R146
R174
1/6W
1000
C116
SMD_50V
100
R427
1/6W
1R5GH45
D852A
GND_AS
12K
R1050
SMD
1000
C106
400V
680
+8V_F
C925
SMD_50V
470
SMD
220K
R688
BD242BFP
Q750
+5V_S
GND_AS
SMD
120K
R813
+3V3
SMD
R420
10K
SMD
R216
1K
47 1/6W
R428
R426
39K
SMD_1%
1N4148
D921
FMB-G19L
D851
D500
BAV21
BLM31P601
L858
B2
B12
SMD
R685
56K
SMD
R354
10
Q901
BC847B
+3V3_F
R309
1K
SMD
XXX
Q201
R1256
SMD
43K
GND_AS
5281-NA
FF1
1
2
D918
LS4148
SMD_100V
C813
1000
6V2
D863
1/6W
330
R219
+8VP2
390
R214
SMD
TP0604
SMD_50V
TP0596
SMD
150
R269
1000
SMD_50V
33
C109
15K
C307
SMD_16V
0.22
C750
470
R936
1/6W
SMD
R264
1/6W
1.5K
R920
SMD
R217
470
+8V
33
C108
SMD_50V
SMD
R413
100
Q855
BC847B
R948
SMD
10K
D802
ERC05-10B
EY
E676
--
0
R120
SMD_50V
C900
470
D917
5V1
12uH
L305
SMD
R200
1K
R433
EY
E806
E804
EY
0.22
SMD_50V
C436
0.1
1/6W
100
SMD_630V
5V1
D910
SMD_16V
C404 +8VP2
C669
680
FERRITE
L1055
SMD
XXX
R271
Q862
KSP92
100K
R680
SMD
200V
100uF
C856
1/6W
R926
75
+5VF1
C1252
SMD_50V
0.1
4700
C421
SMD_50V
SMD_50V
C114
1000
Q674
BC857B
25V
100uF
C400
L1052
BLM21A102
R856
4.87K
SMD
470
R1051
SMD
1N4148
D702
1000uF
C860
16V
FERRITE
L905
R304
10K
SMD
33V
D703
C1051
10uF
63V
1.8
R655
2W
SMD_50V
C259
0.1
D871
1N4148
R300
7.5K
1/6W
B1_F
SMD_50V
C210
0.1
45
6
7
8
0.1
C1057
SMD_50V
R915
SMD
100
IC350
KA2209B
1
2
3
4V3
L301
BLM31P601
B5
D859
C357
25V
100uF
BC847B
Q908
150K
R805
2W
SMD
R930
3.9K
SMD
R851
1K
0.1
C102
SMD_50V
+8VP2
B2
51052
FH1
SMD
75
R947
0
10K
R873
SMD
L902
SMD_50V
C437
1000
--
R939
0
R863
10K
SMD
1K
1/2W
R705A
D905
5V1
BLM31P601
L302
+5V
100V
C425
0.1
+3V3
SMD
R860
18K
L802
FERRITE
+8V
D901
5V1
Q107
BC857B
D909
5V1
E669
EY
SMD_50V
C863
1000
0.1 C408
SMD_50V
B4+
B4+S
1000uF
16V
C861
SMD_1%
22K
R681
1/6W1K
R106
0.022
C403
SMD_50V
SMD_50V
C112
0.1
R756
1/4W
100
B6
1/6W
R251
1K
+8VF1
XXX
D652B
100
R403
SMD
SMD
R660
10K
SMD _1K V
D855A
RK19
0.01
C256
SMD_50V
150
C81 4
+8VF1
C80 6
22K
R139
SMD
+8VP2
SMD _50 V
100
SMD
R925
75
D653
ERB44-04
4.7uH
L903
R869
SMD
18K
LS4148
D866
SMD_50V
C429
100 R211
1K
SMD
SMD_50V
C428
100
63V
C907
10uF
1K
SMD
R942
46
47
48
49
5
50
51
52
6
7
8
9
1K
R195
SMD
31
32
33
34
35
36
37
38
39
4
40
41
42
43
44
45
18
19
2
20
21
22
23
24
25
26 27
28
29
3
30
XXX
IC100
1
10
11
12
13
14
15
16
17
1u
C939
SMD_16V
L252
4.7uH
SMD_630V
C660
680
0.6W_1%
R935
150
L300
12uH
4.7uH
L400
B1_S
1/6W
R408
100
63V
C870
10uF
SMD_50V
C603
0.022
+8V
SMD
R667
1K
63V
C921
10uF
1N4148
D753
1/6W
R453
100
D867
1N4148
SMD
R415
1K
47K
SMD
R362
SMD
R252
470
EY
E661
R414
27K 1/6W
470
C901
SMD_50V
JO350
0.1
250V
C600A
SMD
1.5K
R359
R303
3.3K
SMD
2KV
C503
2200
D402
LS4148
PDTA124ET
Q254
SMD
1.5K
R867
1/6W
R921
390
D920
LS4148
R938
--
SMD
R877
1K
100
R904
1/6W
7.5K
R153
SMD
0
0.1
C1055
SMD_50V
O
SMD1.5 K
R80 4
KA78R08TU
IC853
C
D
I
PDTC124ET
Q857
0.33W
R506
10
R880
470K
0.6W
+3V3
R363
1K
SMD
R505
SMD
1K
C431
SMD_50V
100
3
4
SMD
R356
4.7K
1/6W
R138
1K
B4B-EH
CN_NA
1
2
D102
LS4148
BC847B
Q102
Q854
BC847B
50V
100uF
C70 0
R661
10K
SMD
SMD
1K
R854
250V
10uF
C501
R603
1.2K
2W
50V
C704
100uF
SMD
R262
10K
SMD
R751
10K
B2_F
C80 7
SMD _50 V
47
L654
12uH
D350
LS4148
R198
0.6W
75
2W
R608
15K
5.5mH
L750A
1u
C940
SMD_16V
+5V_TU
SMD_50V
C438
1000
5
50
51
52
53
54
55
56
6
7
8
9
R945
75
SMD
36
37
38
39
4
40
41
42
43
44
45
46
47
48
49
22
23
24
25
26
27
28 29
3
30
31
32
33
34
35
1
10
11
12
13
14
15
16
17
18
19
2
20
21
B2B-EH
KVBM
1
2
TDA8879
IC400
8 9
SMD_50V
C1053
0.01
K302
10P-SCN
1 102 3 4 5 6 7
SMD
R417
10M
4.7
0
R606
--
EY
E660
1/6W
R410
100
R861
22K
SMD
SMD
R352
0.1
SMD_50V
C663
SMD_50V
C209
0.01
E815
EY
GND_FR_A
0
JO701
TO0237
KSP92
Q653
R670
0 SMD
SMD_50V
C365
100
+5VF1
PDTC124ET
Q351
FERRITE
L850
C260
25V
47uF
0.01
C120
SMD_50V
+5V_C
B2_F
R194
0.6W
75
10K
SMD
R168
0.25W
R878
0.33
B4+S
D750
LS4148
C305
0.22
SMD_16V
FERRITE
L404
R691
100 1/4W
+8VF2
SMD
5.6K
R602
BC847B
SMD_1%
R132
39K
8
9
1/6W
R150
180
Q203
12
13
14
15
16
17
18
19
2
20
21
3
4
5
6
7
1K
SMD
R197
S900
--
1
10
11
22K
R1253
D660
LS4148
+8VF1
TP0718
SMD
R167
1K SMD
LS4148
D919
100uF
25V
C251
TO0555
LS4148
22K
R105
0.4W_1%
EY
E664
BP
D683
33V
D655
ERC05-10B
D800
680
SMD
R122
SMD
68K
R696
1/6W1K
R107
R452
100 1/6W
SMD
1K
R604
+8VP1
0.022
SMD_50V
C424
R683
47K
SMD
C419
SMD_50V
47
L101
BLM21A102
1/4W22K
R906
L700
10uH
EY
E805
L865
12uH
+8VP2
15K
1/6W
R255
TO0334
L1050
4.7uH
SMD_50V
C871
1000
SMD
6.8K
R911
13
14
15
16
2
3
4
5
6
7
8 9
1N4148
D105
IC1050
TDA9181T/N1
1
10
11
12
Q301
PDTC124ET
15K
R418
SMD
1/6W
22K
SMD
R357
1.82K
R71 2
0.4W_1%
R677
47K
560
R914
1/4W
D754
56V
C257
63V
0.1
R263
SMD
3.9K
Q856
BC847B
C918
SMD_50V
0.1
KSP92
Q753
0
L351
B4-V
22
SMD_50V
C362
5V1
D903
EY
E668
PMBT2369
Q1250
10K
1/6W1K
R156
+3V3_F
1.8K
R510
SMD
R700
1/6W
6
7
8
9
LS4148
D658
+5V
B1_A
B10B-EH
CN_NB
1
10
2
3
4
5
R128
SMD
4.7K
SMD
R119
1K
C753
160V
4.7uF
1/6W
R182
100
D803
ERC05-10B
C
I O
Q101
IC852
LD1117V33C
SMD
47K
R682
PDTA124ET
EY
E807
1/6W 100
R456
+8VF1
100
C430
SMD_50V
SMD _50 V
330
C80 9
D752
1N4148
SMD_50V
C359
0.01
BLM31P601
L862
47
R350
1/4W
SMD
R149
4.7K
100
R142
1/6W
10K
+5VF1
Q672
KSP42
R190
SMD
1/6W
R141
100
24K
R114
SMD_1%
100
C422
SMD_50V
0.01
C751
SMD_50V
12
13
14
15
16
17
2
3
4
5
6
7
8
9
IC300
TDA8946J
1
10
11
63V
10uF
C207
33V
D861
7 8 9
1/6W
R110
1K
IC500
TDA6107QN2
123456
L410
0
47K
R658
SMD
FERRITE
L855
100
SMD_50V
C450
LA7221
IC900
123456789
0.022
D675
LS4148
PDTA124ET
R859
SMD
27K
SMD_50V
C416
+5VF1
Q858
0.1
C203
SMD_50V
1/6W
R137
1K
+8V
0.1
C1056
SMD_50V
Q673
BC847B
0.5W
51052
FH
SMD
R865
10K
6
7
8
9
R310
0.1
T650C
HFTXXXXSANYO
1
10
11
2
4
5
D650B
XXX
E673
EY
12uH
L864
+3V3_F
+5VF1
B10
ERB 44-0 2
D80 6
BAV21
D651
BLM21A102
L1051
B4+V
1/4W
4.7
R311
2.2K
R158
SMD
C71 2
250V
0.01
4.7K
R80 6
SMD
22K
R852
SMD
0.6W
75
R941
FERRITE
L856
100
R454
1/6W
63V
10uF
C938
1000
50V
C310
R810
0.33
0.5W
1KV
C657
Q850
2SK2964
470
L853
SMD_50V
C433
100
1/6W
R401
100
FERRITE
Q251
PMBT2369
SMD47
R207
R916
2.2K
1000
C201
SMD_50V
R760A
10 2W
1/4W
+3V3_F
EY
E655
1/4W
R905
2.2K
B4-
ERB44-04
D663
D502
BAV21
B12
R209
XXX
SMD
SMD
L860
BLM31P601
EY
E654
EY
E666
15K
R256
2SK2964
Q852
R100
1K
SMD
27K
SMD
R1257
100
SMD
R507
R946
75
SMD
SMD
1K
R943
C104
63V
10uF
TO0695
1K
R885
SMD
+8V
TO0694
C361
100uF
25V
D106
LS4148
0
L900
--
R812
0
B1_B
SMD
3.3K
R301
22K
R758
SMD
1
2
3
4
5
6
7
R169
SMD
10K
4.7uF
C661
250V
SMD
100
R931
B7B-EH
CN_NC
1/6W100
R411
PMBT2369
Q904
SMD
R193
1K
E659
BC847B
Q853
1/4W
R912
560
EY
SMD
R923
75
100K
R676
SMD
+8VF2
+8VP2
10K
R689
1/6W
0.22
C304
SMD_16V
SMD
R1252
BC847B
Q651
+8VP1
4.7K
FERRITE
L861
SMD
R102
1K
SMD_16V
0.22
+8VP1
XXX
Q256
C191
SMD100
R429
10uH
L100
2.2u
+8VF1
SMD_50V C4550.022
C402
SMD_10V
1K
R442
SMD
SMD
R1258
0
TO0578
Q863
KSP42
BLM31P601
L303
C412
SMD_50V
SMD
R511
1.8K
B1_S
33
BLM31P601
L863
B1_B
R353
SMD
4.7
D705
8V2
22K
R129
1/6W
HZT33-02RE
D250
0.1
SMD_50V
C427
SMD
2.2K
R605
GND_AS
BP
0.022
1/6W
220
R662
4.7K
R694
SMD
C674
SMD_50V
L652
58811
SMD
75
R924
4KV
0.1
63V
C252
1/4W
R900
560
C816
1000
TS922IDT
IC1250
1
2
3
45
6
7
8
25V
C859
470uF
3.3mH
L656
10uF
C200
63V
+5V_TU
FERRITE
L851
B5
+8VF1
SMD_1KV
C850
220
C652B
250V
0.30
1/6W
R455
100
SMD_630V
C658
TO0197
BC847B
Q104
150
D674
15V
1/6W100
R432
R872
1.6M
1/6W
75
1/2W
R601A
4.7K
SMD
R908
+5VF1
75uH
L506
D190
1N4148
C659A
200V
220u
SMD
R123
1K
+3V3
SMD
22K
R886
1N4148
D659
D853A
1R5GH45
C107
0.01
E674
EY
SMD_50V
SMD
R762
10K
Q401
BC847B
D672
LS4148
R443
1K
SMD
100
R870
SMD
47K
R876
R126
K300
8JL-BT-E
1 2 3 4 5 6 7 8
1/4W
+8VP2
SMD_1%47
220
1/4W
R1251
1K
R858
SMD
D854
ERB44-02
1000
SMD_50V
C302
TO0587
1.3MH
L651A
SMD1K
R108
0.1
SMD_50V
C250
1000
C118
SMD_50V
RU3AM
D652A
13 14 152 3 4 5 6
TU250
UV1215/AI-2
1 10 1112
1.82 K
0.4W_1%
R71 1
SMD_630V
C818
330
+3V3_F
10uF
63V
C308
C115
SMD_50V
1000
E803
+8VF1
1/4W
R201
220
100K
SMD
R253
E671
EY
B3
1/6W
47K
R360
100K
R753
1/6W
1/6W
3.3K
R698
BF570
Q255
100V
C680
1uF
4.7uH
L405
B11
R125
47 SMD_1%
RU4B
D850
SMD_50V
C411
33
470
SMD_50V
C903
1/6W
220K
R871
C1054
SMD_50V0.01
560
R903
R919
1.5K
1/6W
D914
5V1
1/4W
FB2
5045
12
SMD
R866
1K
1K
R145
1/6W
L304
BLM31P601
+3V3
SMD
R423
100K
PDTC124ET
Q300
1K
R109
SMD
R81 9
SMD
4.7K
D860
5V1
L852
FERRITE
25V
C926
47uF
--
C311
250V
0.1
LS4148
D251
+3V3_F
0
R653
+3V3
LS4148
D351
0.1
C204
SMD_50V
C670
250V
0.1
BLM21A102
L104
1/6W100
R451
SMD_50V
C876
1000
0.82
R70 2
0.6W
+3V3
L857
BLM31P601
B4-S
0.022
SMD_50V C453
3.3uH
L600
C817
SMD_630V
C675
0.1
SMD_50V
330
2
3
4
5
6
7
8
9
IC701
LA7846N
1
10
1000
C103
SMD_50V
Q604
BC857B
B1_A
SMD_16V
1u
C604
B1_S
SMD
R80 8
2.2K
0
JO104
ZOCALO
HPS-1521-014401
R663
1/6W
10K
JO702
0
TP0449
SMD_50V
C906
470
Q105
BC847B
E813
EY
BLM31P601
L859
SMD
R130
1.5K
25V
1000uF
C300
220
R215
SMD
1/6W100K
R668
SMD
56K
R656
+8V
C354
SMD_50V
0.1
0.01
SMD_50V
C258
2SK 254 5
Q80 0
63V
C70 3
0.18
TO0189
B3
TO0286
C435
100V
4.7uF
SMD
100
R508
E658
EY
+8VP1
PMBT2369
Q906
PDTC124ET
Q751
TO0190
L854
FERRITE
0
R179
--
E662
EY
+8VF1
1/2W
R502
1.5K
CN_FR
B3B-EH
1
2
3
+8V
2.2u
SMD_10V
C413
D108
3V3
C651
1.6KV
0.015
PDTA124ET
Q252
TO0613
SMD
10K
R305
R210
C857
2200uF
25V
SMD
XXX
22uH
L866
X100
12MHz
B6
SMD
R258
47K
+8V_FI
+8V
+3V3_F
B5
2.2uC407
SMD_10V
47uF
B4+
R874
22K
SMD
D908
25V
C352
SMD_50V
100
10uH
L703
5V1
SMD
R669
22K
C364
1K
SMD
R202
5V1
D904
Q900
BC847B
SMD
R678
9.1K
1/6W
1K
R761
SMD1K
R118
B6
SMD
R853
680
SMD
R266
1.8K
Q754
KSP42
1N4 007
D70 1
Q851
PDTC124ET
1N4148
D870
1/2W
1.5K
R504
10uF
SMD_50V
C355
0.1
63V
C442
Q253
PDTA124ET
E670
EY
SMD
R913
100
11V
D751
Q400
BC847B
SMD
100
R933
D900
5V1
SMD
R431
100 1/6W
R862
22K
SMD
R203
0
--
100
R405
+8VP2
LS4148
D700
B6
C920
2.2K
R902
1/4W
C930
47uF
25V
63V
10uF
0.1
SMD_50V
C301
D857
4V3
B10B-EH
K302A
SMD22K
R134
Q200
4.7uF
C668
250V
11K
10K
R708
SMD
BC847B
1/6W
R81 5
15K
SMD
R81 4
SMD_50V
C452
100
5
8
+8VF1
0.1
C855
SMD_50V
CN_G2
--
XXX
T800
1
11
12
13
14
15
16
17
18
2
3
1/4W
R679
27K
1/4W
R81 8
470
SMD_16V
C1251
1u
1N4148
D862
6V2
D804
R1254
SMD
220K
GND_AS
T2SC2271
Q600
E802
SMD
100K
R160
8JL-BT-E
K301
1 2 3 4 5 6 7 8
1000
23.7K
R131
SMD_1%
GND_A
JO200
XXX
SMD_50V
C202
2W
22
R750A
22K
SMD
R950
1K
D661
33V
SMD
R135
SMD_50V
C866
1000
B4-
TCET1101G
IC801
1
23
4
SMD
R404
100
SMD
SMD
R509
100
D654
LS4148
R764
470
C418
SMD_50V
100
0.6W_1%
R754
68K
D601
BAV103
100
R444
SMD
0
JO253
+8VF2
E665
EY
1/2W
R500
1.5K
1000
C812
4KV
SMD_16V
C420
0.47
C923
10uF
63V
0.1
C710
63V
R907
SMD
6.8K
SMD
5.6K
R752
D301
5V1
R459
1001/6W
+8V_FI
5V1
D906
1.5K
R112
1/6W
0.82
250V
C653
VR850
470
5V1
D912
5V1
D902
12MHz
X400
SMD_50V
C917
100
C105
SMD_50V
0.01
1KV
C802
1000
1/4W
--
R121
0
EY
E681
XXX
R206
SMD
3.3
R80 7
E1
2
E2
3
VSS
4SDA 5
SCL 6
-WC 7
VCC 8
SMD_50V
2200
C875
5V1
D300
IC125
M24C08
E0
1
0.01
C439
SMD_50V
47
1/4W
R351
L251
XXX
R440
0.6W_1%
280K
R855
1/4W
4.7M
C905
SMD_50V
470
SMD _50 V
1000
C71 1
22K
SMD
R757
+3V3_F
E680
EY
1K
R140
SMD
TP0450
B8
L502
470UH
Q905
PMBT2369
2 3 4
330K
SMD
R1255
EY
E656
Q207
XXX
51052
FD1
1
TP0268
E682
EY
Q100
PDTA124ET
SMD
R104
XXX
B2_F
SMD
R416
10M
100uF
C874
25V
+8V
14. 5V ON
10. 42V ST -BY
3.1 5V ON
0V ST -BY
1.2 2V ST-B Y
1.2 6V ON
R254
SF201
XXX
1
2
3
4
5
3.3 V ON
3.3 V ST-B Y
16. 78V ST -BY
15. 19V ON
140 V ON
0V ST -BY
15. 68V ON
16. 7V ST-B Y
0V ST -BY
185 .3V ON
139 .8V ON
151 .2V ST -BY
1/6W
100
+5VF1
SMD_50V
C405
1000
120
2W
R651
1K
R364
SMD
R133
R612
2W
0.56
SMD
22K
0.1
250V
C500
GND_A
100
C914
SMD_50V
70. 2V ON
0V ST -BY
76. 4V ON
147 .5V ST -BY
2.2K
1/6W
R157
DEGAUS_COL
-FAIL
ON
FBC FB C FB
V_GUARD
S900_1
S900_4
LSQ_L FRONT_RIN
LSQ_R SCL
SDA
HPAF_L
HPAF_R
FRONT_LIN
SAW1_1
SAW1_0
H_FLY
-PDandFAIL
CTL2
+V_DRIVE
-V_DRIVE
AM_SOUND
AM_SOUND
FB
HVI
16_9
H_OUT
ROTATION_2
ROTATION_1
BCI
EW -PDandFAIL
CTL1
BGO
G_SCB BO
CTL2
BLKIN
FB_SCB
ROTATION
BCI
CVBS_TXT
-PDandFAIL
B
GR
BCLS300_4
S300_5 RHALFT
HP_SW
GFRONT_SW RRandC_SCBS900_4 B
GB_SCB
ROTATION_2
ROTATION_1
S900_1 FBS900_3 RO
CVBS_EXT
LED_G CVBS_SCA_OUT
H_OUT
DEGAUS_COL
B_IR
SANDCASTLE
BLKINH_FLYIR
LED_I
LED_G
LED_I BO
KEY
GO
16_9 RO
ON
SCASCB
CVBS_EXT
+V_DRIVEC_COMB
Y_COMB
PBL -V_DRIVE
KEY
CVBS_MONITOR
KEY
EW
FRENO_CAG
H_FLY
V_GUARD
SANDCASTLE
RGBIN_OVERRIDE
C_COMBY_COMB
IR
ROTATION
FRONT_SW
B_IR
CTL2
CTL2CTL1
SCL CVBS_TXT
SANDCASTLE
SAW1_0CTL1
SDA
SCA SAW1_1 CVBS_SCA_OUT
G_SCB
MB RandC_SCB
HB
FB_SCB
SOUND_EN CVBS_MONITORSDA_E HVITUN_AGC
SCL_E
LB
SDA
MB
HALFT
RandC_SCB
SCL
HB
SOUND_ENHP_SW
RGBIN_OVERRIDE
S900_3
S300_5
S300_4
SCB
B_SCB
TUN_AGC
LB
SCL_E
SIF
SDA_E
SOUND_ENFRENO_CAG
