Sanyo CM29FS2 User manual

CM29FS2
CM29FS2A
CA29FS2
CP29FS2
INSTRUCTION MANUAL
Colour Television
■ Slim Flat Screen
■ A2 & Digital NICAM Stereo
■ Surround Sound System
■ Video Component Input Terminal
Inst. Manual C8ZRL-A (ME) 12/7/05 3:48 PM Page 1

2
2

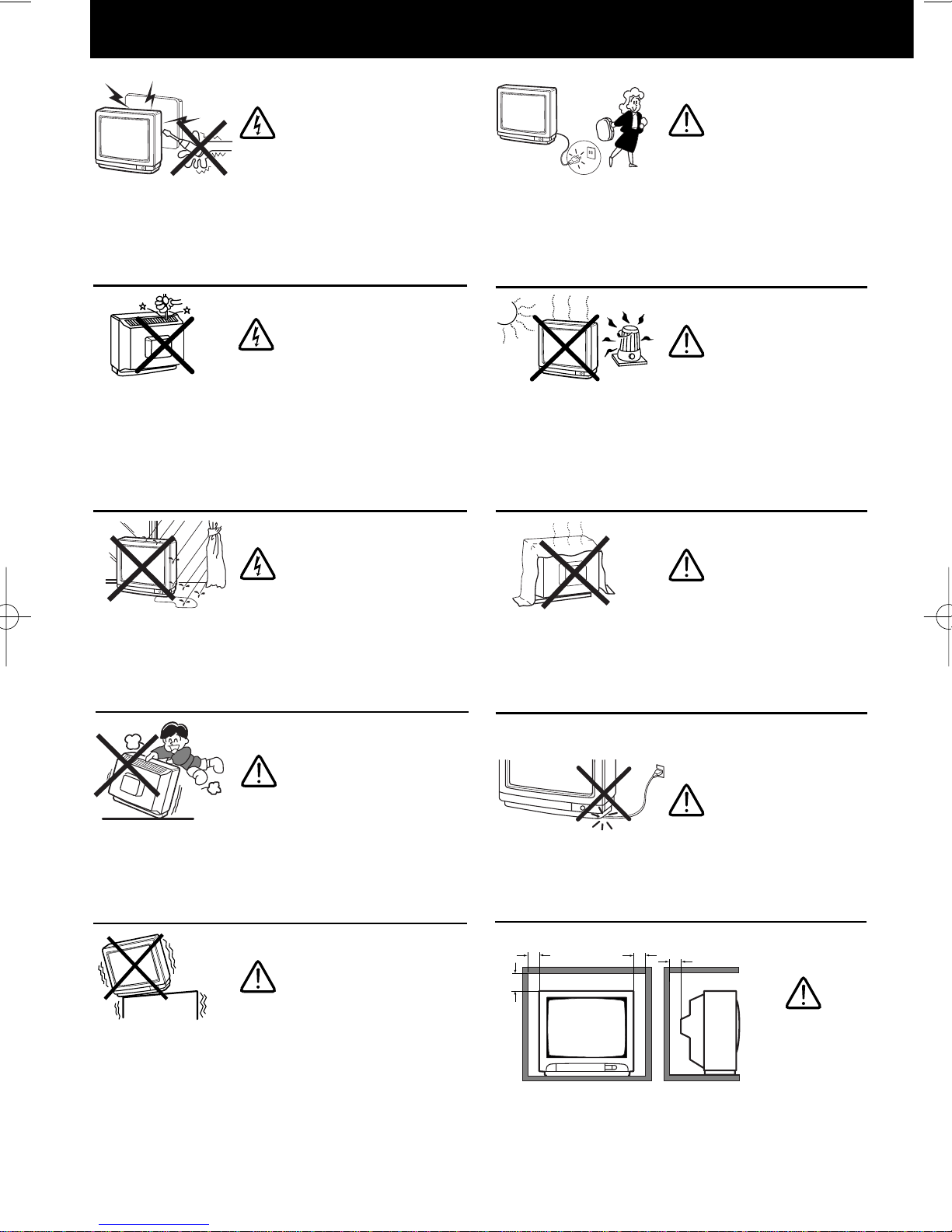

Warnings and Cautions
If the television is to be built into a compartment or
similarly enclosed, the minimum distances must
be maintained. Heat build-up can reduce the ser-
vice life of your television, and can also be dan-
gerous.
Never stand on, lean on or push suddenly the tele-
vision or its stand.
You should pay special attention to children.
Serious injury may result if it should fall.
Do not place your television on an unstable cart,
stand, shelf or table. Serious injury to an individual,
and damage to the television, may result if it
should fall.
When the television receiver is not used for an
extended period of time, it is advisable to discon-
nect the AC power cord from the AC outlet.
Avoid exposing the television receiver to direct
sunlight and other source of the heat.
Do not stand the television receiver directly on
other products which give off heat. E.g. video cas-
sette players, audio amplifiers.
Do not block the ventilation holes in the back
cover.
Adequate ventilation is essential to prevent failure
of electrical components.
Do not squash power supply cord under the televi-
sion receiver.
Warning
High voltages are used in the operation of this
television receiver. Do not remove the cabinet
back from your set. Refer servicing to qualified
service personnel.
To prevent fire or electrical shock hazard, do
not expose the television receiver to rain or
moisture.
Do not drop or push objects into the television
cabinet slots or openings. Never spill any kind
of liquid on the television receiver.
Caution
Warning
Warning
Caution
Caution
Caution
Caution
Caution
5cm
10cm
10cm
20cm
Minimum distances
Caution
Inst. Manual C8ZRL-A (ME) 12/7/05 3:48 PM Page 2

Installation
■Plug & Play

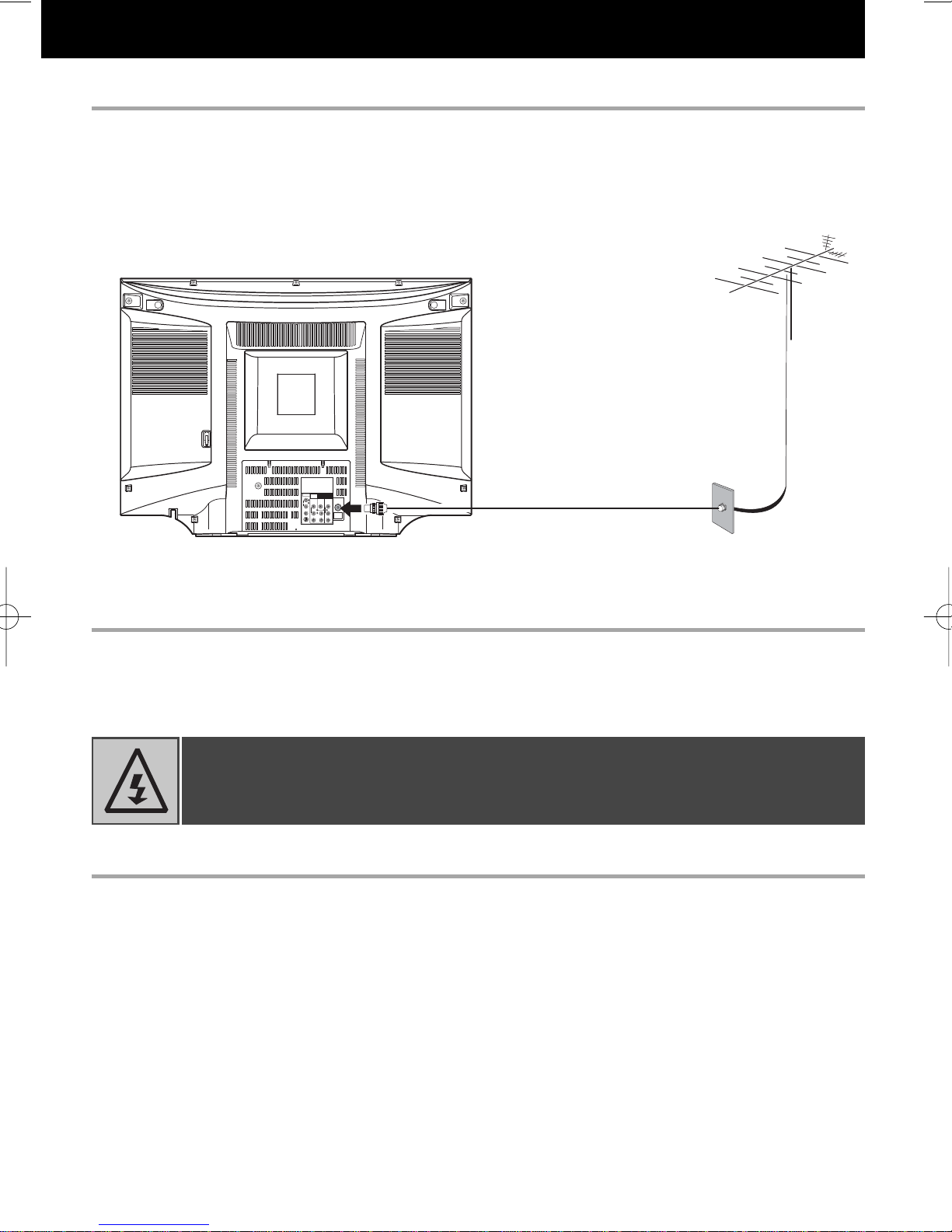

■Connecting the aerial
Use one of these methods to connect a signal to your TV.
Following connection examples are our recommended standard connection. For further information please
consult your local dealer.
✐For all aerial circuit problems please consult your local dealer.
■Connecting AC cord
Connect the power cord of the TV set to a wall outlet.
✐The TV set is prepared for a mains voltage AC110~240V 50/60Hz. When the TV set is not to be used
for an extended period of time, it is advisable to disconnect the power cord from the power outlet.
WARNING!
High voltages are used in the operation of this set. Refer service to qualified service
personnel.
V
I
D
E
0
R
L
YCB
CR
MONITOR
OUT
S-WOOFER
OUT
AV1 INPUT
AUDIO
AUDIO
S-VIDEO
(MONO)
R
L
(MONO)
AUDIO
S-WOOFER
R
L
VIDEO
AV3 / DVD
INPUT
3
3
Let’s start !
2
2Press the MENU button after completing Plug & Play to return to the normal TV mode.
This TV set provides a self-automatic tuning system function called “Plug & Play”. It automatically begins
searching and storing of all available channels when switching-on the TV set for the first time.
1
1Press the Power ON/OFF button to turn the TV on, and the TV set will search and store of all
available TV channels automatically.
✐ This procedure only appears at the first switch-on time.
Now the installation is completed !
STEP 1
STEP 2
STEP 3
Inst. Manual C8ZRL-A (ME) 12/7/05 3:48 PM Page 3

4
4
Control Panel Each button on the control panel has the same function
with its counterpart on the remote control
L - AUDIO - R
VIDEO
TV/AV MENU CH
Mains ON/OFF button
Remote Control Detector
Stand-by and Power Indicator
Audio Input Jack-Right (AV2)
Audio Input Jack-Left (AV2)
Video Input Jack (AV2)
Headphone Jack (Mini
Stereo Jack)
VOLUME
TV/AV Selector
MENU
Programme UP/DOWN
Press to open
Inst. Manual C8ZRL-A (ME) 12/7/05 3:48 PM Page 4

5
5

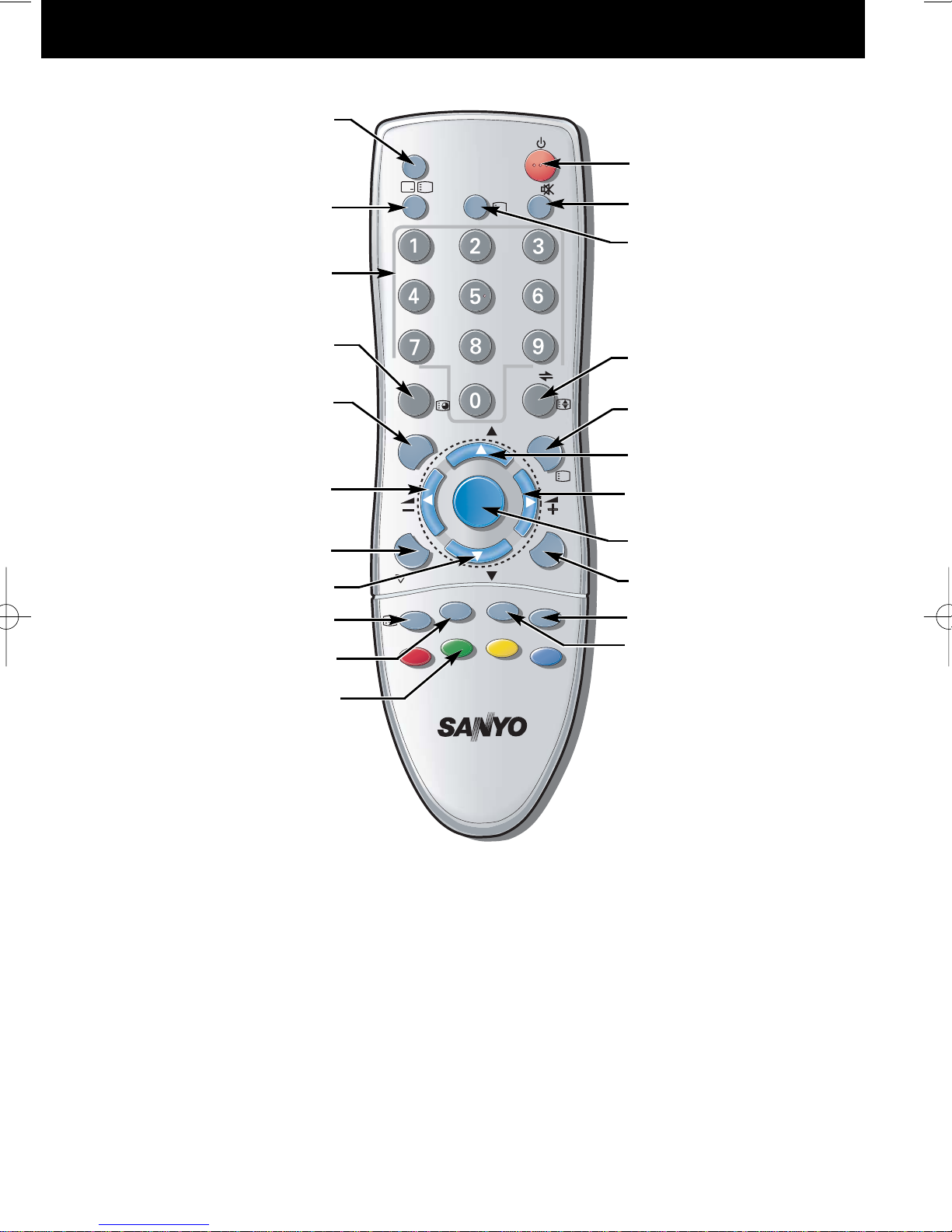

Remote Control
-/- -
-/- -
PP
BASS TXT/TV S. SYS
SURROUND
A•B
SWAP SOUND
TIMER
JXPSB
TV / AV
MENU
X
i
?
CH
CH
TV/AV Selector Button
RECALL/Colour System button
NUMERIC buttons
DIGIT button
SWAP button
VOLUME (-) button
STEREO/MONO button
PROGRAMME DOWN button
POWER ON/OFF button
Sound MUTE button
TIMER button
ALTERNATE button
SOUND Mode button
PROGRAMME UP button
VOLUME (+) button
MENU button
SURROUND button
To Install Batteries Into the Remote Control
1. Remove the battery compartment cover.
2. Insert two size AA batteries (1.5 V) according to "+" and "-" polarity markings inside the battery
compartment.
3. Close the battery compartment cover.
NOTE:
When remote control doesn't work in normal or stable condition, or it can't control operation of the
TV set, replace the batteries. (exhausted batteries may leak substance detrimental to the remote
control, replace them immediately when they are weak.)
BASS button
PICTURE Mode button
SOUND System button
TEXT/TV button
GREEN button
Inst. Manual C8ZRL-A (ME) 12/7/05 3:48 PM Page 5

6
6
General Operation
Press the Alternate button, and the pro-
gramme position will alternately select
the previous position and the present
position.
Should you wish to mute the sound, (e.g.
While talking on the telephone) press the
Sound Mute button. To switch the sound
back on, press this button again (or press the
Volume + or
- button).
-/- -
Direct Programme Selection
Example:
■Press 6button to select programme position 6.
■ To select programme position 27, press the
Digit button, press 0, 2then 7button.
■ To select programme position 215, press the
DIGIT button, press 2,1then 5button.
-/- -
-/- -
-/- -
-/- -
-/- -
-/- -
-/- -
-/- -
-/- -
-/- -
-/- -
Auto Shut Off Function
This TV set changes to the standby mode within
10 minutes after all broadcasts have ended.
Volume Control
-/- -
CH
-/- -
CH
-/- -
-/- -
Sound Mute
-/- -
Alternate
-/- -
PP
Press the Power ON/OFF button to turn on
or off (Stand-by) the TV set.
Power ON/OFF(Stand by)
You can turn on the TV in the standby mode by
pressing the following button in addition to the
Power ON/OFF button.
●Programme Up/Down button of the remote
control transmitter or the TV set.
●1to 9,0 button on the remote control transmitter.
Lighting of the Stand-by and Power Indicator shows
that there is a power supply. For shutting off a
power supply completely, press Mains POWER
ON/OFF button on the front control of TV set.
To increase or decrease the sound
volume Level.
To select the next or previous programme
position.
Programme Up and Down
-/- -
TV / AV
TV/AV Selector
Press repeatedly to switch to TV, AV1, AV2
or DVD/AV3(VIDEO) mode.
-/- -
BASS
Bass Expander On/Off
Press the BASS button to get an
emphasised bass sound.
Press the Picture Mode button repeat-
edly to select the following picture
modes;
PERSONAL : Your personal preference mode.
DYNAMIC: Suitable for brightly lit room.
NATURAL: Normal viewing mode.
ECO:Suitable for dimly lit room and gives a
cinema-like effect.
GAME:Picture mode that is gantle on the eyes,
suitable for TV game.
Picture Mode Selection
-/- -
Press the Sound Mode button repeat-
edly to select the following sound
modes;
PERSONAL : Your personal preference mode.
MUSIC: Suitable for music programme.
TALK: Suitable for news programme.
NORMAL: Normal listening mode.
Sound Mode Selection
-/- -
SOUND
i
Inst. Manual C8ZRL-A (ME) 12/7/05 3:48 PM Page 6

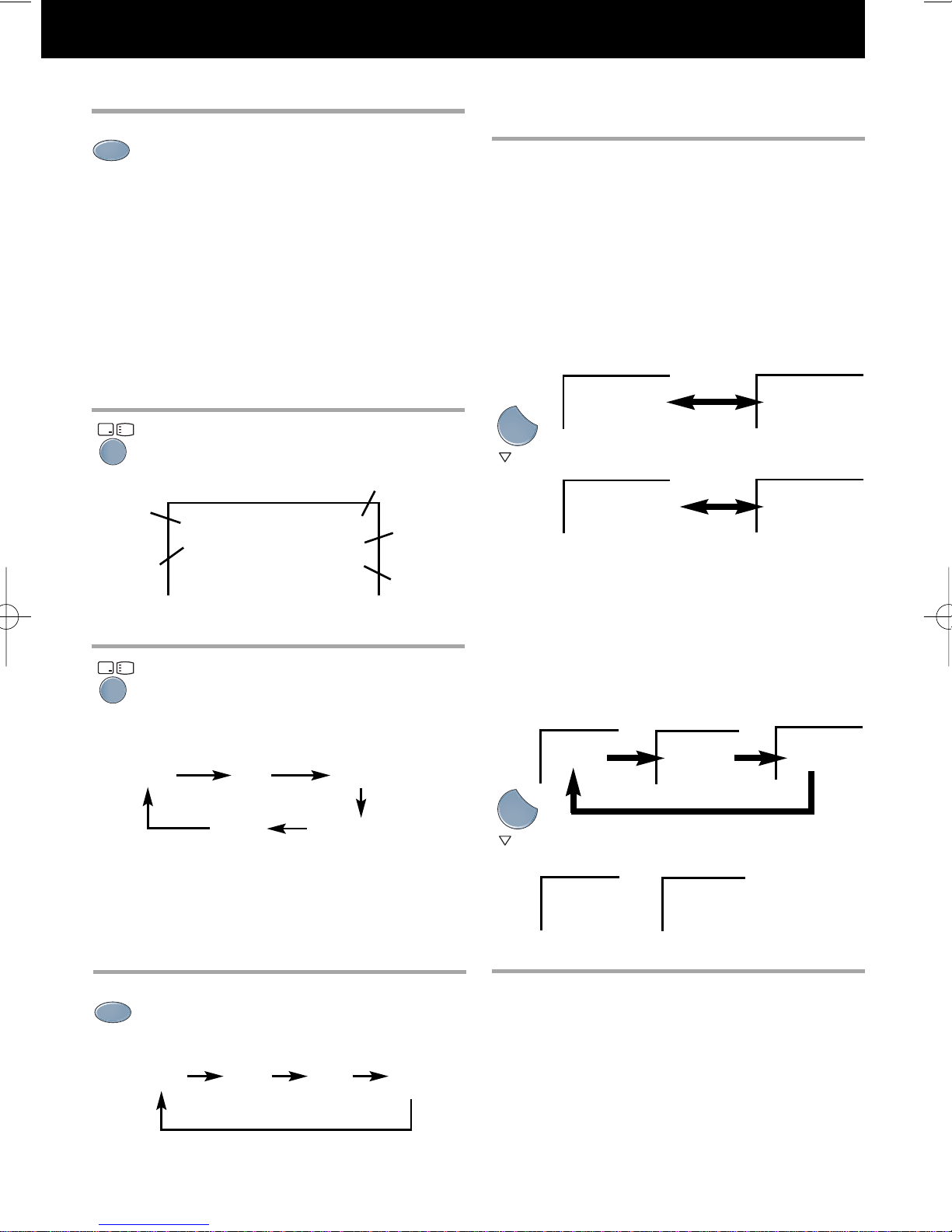

General Operation
This TV provides an incredible
3 Dimensional Surround sound effect.
Active 3D Surround
-/- -
SURROUND
Press the SURROUND button to select the fol-
lowing modes.
SURROUND OFF:
To cut off 3D surround effect.
SURROUND 1:
Gives the middle 3D surround effect.
SURROUND 2:
Gives the deep 3D surround effect.
To display the on screen indication, press
the Recall/Colour System button.
If the clear sound cannot be obtained,
press the Sound System button repeated-
ly until optimum sound can be produced.
Colour System Selection
-/- -
?
If the clear picture cannot be obtained,
press the Recall/Colour System button
repeatedly until optimum image can be
produced.
Sound System Selection
Programme Information Call
BG D/K I M
Asound system setting is automatically stored in
the memory.
NICAM
Sound
Status
Off-timer
Programme Position
Sound
System
OFF 5 3
BG
SECAM
NTSC4.43
Acolour system entry to the memory cannot be
made during TV mode, make it during manual tun-
ing mode.
NTSC
PAL
AUTO
AUTO Colour
System
-/- -
?
-/- -
S. SYS
A2 Stereo, NICAM Stereo and
Bilingual Broadcast Receiving
■A2 Stereo and NICAM Stereo sound
reception
NICAM
■ Bilingual reception
If the TV receives bilingual programs, the TV ini-
tially selects language A and displays “A” on the
screen briefly. If you want to switch to language B
or MONO (only available in NICAM reception),
press the Stereo/Mono button.
When receiving NICAM stereo broadcast, NICAM
will be displayed on the screen. For A2 (German)
stereo broadcasts, STEREO will be displayed.
When a clear stereo sound can not be obtained
during NICAM or A2 (German) stereo broadcast
due to poor signal reception, press the
Stereo/Mono button to select mono mode.
MONO
STEREO MONO
ABMONO
AB
NICAM Stereo
A2 Stereo
NICAM Bilingual
-/- -
A•B
-/- -
A•B
A2 Bilingual
Note: The Multi Personal Preference Level
Function equip for model CA29FS2 only.
For position 1 through to position 30, the picture
settings (Colour, Brightness and Contrast) and the
volume level that you choose can be stored sepa-
rately in memory for each position. Thus you can
enjoy watching TV channels with optimum picture
and volume settings, even if you change from one
channel to another. 7
7
Multi Personal Preference Level Function
Inst. Manual C8ZRL-A (ME) 12/7/05 3:48 PM Page 7

-/- -
-/- -
MENU
-/- - -/- -
-/- - -/- - -/- -
CH
CH
8
8

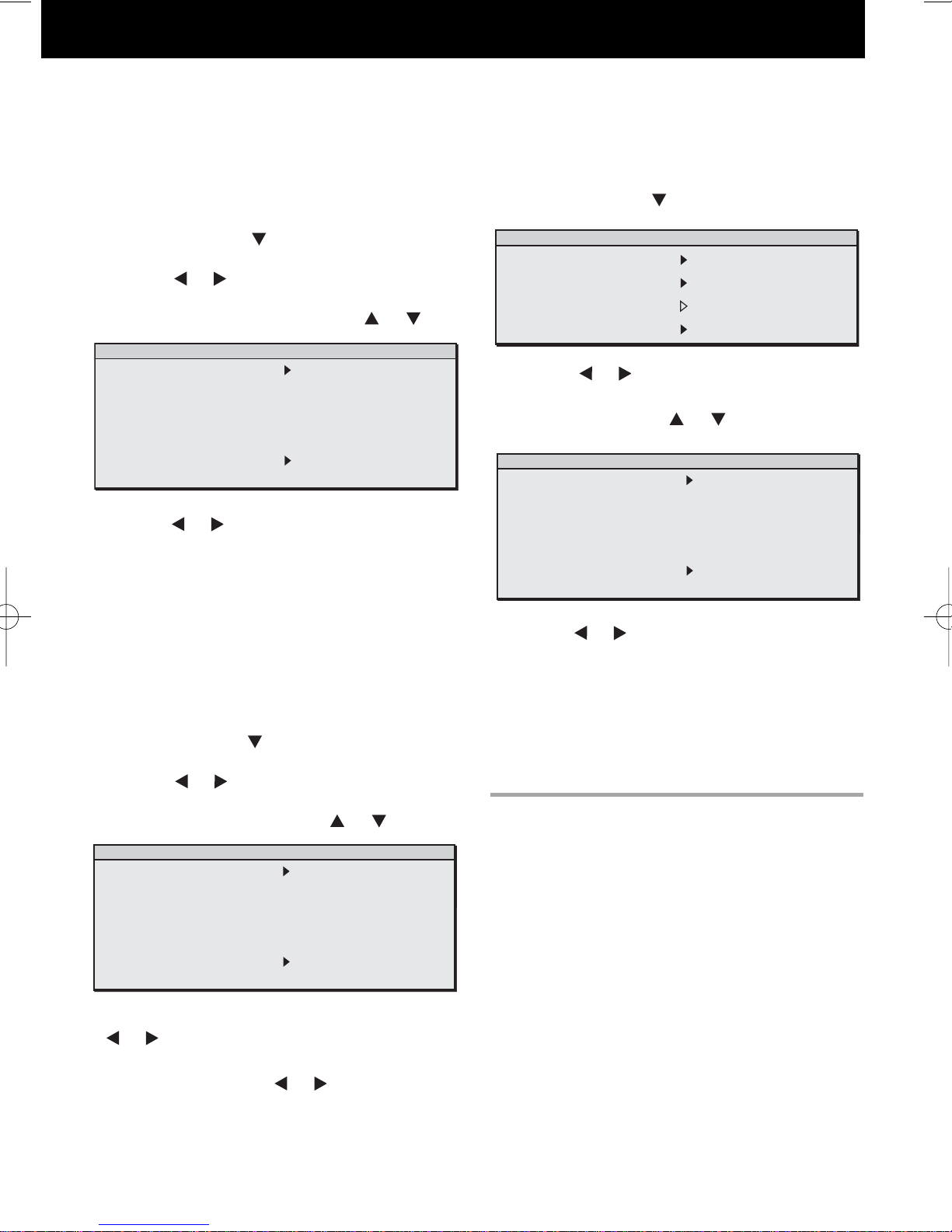

Menu Operation
MAIN MENU
SETTING
PRESET
SOUND
Sound Adjustments
SOUND
EQUALIZER
SOUND PRESET
BALANCE 0
PERSONAL
VOLUME
SURROUND 2
BASS EXPANDER ON
AUTO VOLUME ON
5
5Press the MENU button repeatedly to exit.
The on-screen menu provides the viewer with easy
access to adjustments and settings.
■During the menu operation, the following
buttons are used.
MENU
To call up the menu.
To go back and to exit the menu.
,
To move around the
menus.
,
To move around the menus.
To make adjustments.
2
2Press or to display “SOUND” menu.
1
1Press the MENU button to display main menu,
and “SOUND” will be selected first.
3
3Select an item with or .
•
BALANCE :
Left and Right speaker volume balance
adjustment.
•SOUND PRESET (Sound Mode Selection):
Enable to select the suitable sound adjustment
(PERSONAL, MUSIC, TALK, NORMAL). Also
possible to select directly with the Sound
Mode button.
Note: Your sound adjustment will be memorized
to “PERSONAL” of the Sound preset
automatically.
•
SURROUND :
Enable to select active 3D surround modes
(SURROUND OFF, 1or 2). Also possible to
select directly by pressing the SURROUND
button of the remote control.
•
AUTO VOLUME (ON/OFF) :
This function automatically equates the sound
volume of each position. It is used to prevent the
sharp volume change when you change the
channel.
4
4Press or to adjust.
■ Equalizer Adjustment
There are 5 types EQUALIZER adjustment:
•
100 Hz Adjustment
Adjustable from -32 == 0 == 31
•300 Hz Adjustment
Adjustable from -32 == 0 == 31
•
1 KHz Adjustment
Adjustable from -32 == 0 == 31
•
3 KHz Adjustment
Adjustable from -32 == 0 == 31
•
8 KHz Adjustment
Adjustable from -32 == 0 == 31
Follow the steps below to adjust EQUALIZER.
1
1Press the MENU button to display main menu,
and “SOUND” will be selected first.
2
2Press or to display “SOUND” menu.
3
3Select EQUALIZER with or .
4
4Press or to display “EQUALIZER”.
Inst. Manual C8ZRL-A (ME) 12/7/05 3:48 PM Page 8

9
9
Menu Operation
EQUALIZER
1 KHz
3 KHz
300 Hz -9
100 Hz
8 KHz
-25
-3
20
6
6Press or to adjust.
5
5Select an item with or .
✐Your equalizer adjustment will be memorized
to “PERSONAL” of the Sound Preset automat-
ically.
7
7Press the MENU button repeatedly to exit.
Picture Adjustments
•
TINT :
Adjust colour tints. (Displayed only on NTSC
signal reception.)
•
PICTURE PRESET
(Picture Mode Selection) :Enable to select the
suitable picture adjustment (PERSONAL,
DYNAMIC, NATURAL, ECO, GAME). Also
possible to select directly with the Picture Mode
button.
•
SKIN TONE (ON/OFF):
The Skin Tone correction locally changes the hue
of colours that match skin tones to the correct
hue.
•
TEXT BRIGHTNESS :
Brightness of teletext screen.
:Minimum :Center :Maximum
1
1Press the MENU button, then select
“PICTURE” with .
2
2Press or to display “PICTURE” menu.
3
3Select an item with or .
5
5Press the MENU button repeatedly to exit.
COLOUR
SHARPNESS
CONTRAST 42
BRIGHTNESS
TINT
SKIN TONE ON
PICTURE PRESET PERSONAL
TEXT BRIGHTNESS
27
30
0
✐Your picture adjustment will be memorized to
“PERSONAL” of the Picture preset automati-
cally.
Setting Menu
■ Off Timer
1
1Press the MENU button, then select
“SETTING” with .
2
2Press or to display “SETTING” menu,
and “TIMER” will be selected first.
SETTING
TIMER
OSD LANGUAGE ENGLISH
TEXT LANGUAGE ENGLISH
OFF
AV3 DVD
SVM 1
CHILD LOCK
PROGRAM SWAP
4
4Press or to adjust.
3
3Press or to display “TIMER” menu,
and “OFF TIMER” will be selected first.
Select a desired time by pressing or .
TIMER
ON PROGRAM
ON TIMER
OFF TIMER
00:00
27
OFF
The off-timer will increase or decrease in 5 min-
utes steps when or is pressed. The
maximum time is 120 minutes (2 hours).
To cancel the OFF TIMER, select OFF position by
pressing the or .
4
4Press the MENU button repeatedly to exit.
✐ To check the remaining time whilst the TV is
operating, press the RECALL/COLOUR SYS-
TEM button.
✐ The OFF TIMER cancels when the TV set is
turn off or if a power failure occurs.
■ On Timer
The ON TIMER will switch-on from the standby
mode or change programme position when the
selected time has elapsed.
Inst. Manual C8ZRL-A (ME) 12/7/05 3:48 PM Page 9

10
10
Menu Operation
1
1Follow step 1~2 of the setting OFF-TIMER
above.
2
2Press or to select ON TIMER.
Enter numbers of desired time period directly
by pressing NUMERIC button, with maximum
time period are 24:00 hours.
The desired time period also could be entered by
pressing or . The on-timer will increase or
decrease in 10 minutes steps when or is
pressed. The maximum time is 24 hours.
3
3Select ON PROGRAM by pressing
or . Press the or or
NUMERIC button to enter ON PROGRAMME
position number.
TIMER
ON PROGRAM
ON TIMER
OFF TIMER
00:00
27
OFF
4
4Press the MENU button repeatedly to exit.
✐ To cancel the ON TIMER, set to 00:00 position
by pressing the NUMERIC button or
or .
✐ If the TV is already switched on when the time
set for the ON TIMER has been reached, only
the programme position will be changed to the
set programme position.
Quick Tips
To display TIMER menu directly, press TIMER but-
ton on the remote control.
TIMER menu adjustment (OFF TIMER, ON
TIMER, ON PROGRAM), read OFF TIMER and
ON TIMER explanation above.
TIMER
ON PROGRAM
ON TIMER
OFF TIMER
00:00
27
OFF
Use the channel swapping feature to swap the
channels between two stored programme posi-
tions. this feature is particularly useful after auto-
matic tuning.
1
1Press the MENU button, then select
“SETTING” with .
2
2Press or to display “SETTING” menu.
3
3Select “PROGRAM SWAP” with or .
4
4Press or to display PROGRAM SWAP.
For example, to swap the channel between pro-
gramme position “7” and “12”.
5
5Select programme position “7” by pressing
,,or . Then press the Green
button on the remote control.
6
6Select programme position “12” using
,,or . And press the Green button
on the remote control.
7
7Press the MENU button to return to the
normal TV mode.
PROGRAM SWAP
2
4
1
SWAP
9
8
3
7
5
6
10
11
12
13
14
15
16
17
18
PROGRAM SWAP
2
4
1
SWAP 7 AND . . .
9
8
3
7
5
6
10
11
12
13
14
15
16
17
18
Quick Tips
To display PROGRAM SWAP directly, press
SWAP button on the remote control.
For PROGRAM SWAP Usage read explanation
above.
■ Channel Swapping
PROGRAM SWAP
2
4
1
SWAP
9
8
3
7
5
6
10
11
12
13
14
15
16
17
18
Inst. Manual C8ZRL-A (ME) 12/7/05 3:48 PM Page 10
