SAR MR User manual

Specialist Access & Rescue Products Ltd.
Sarena House, Vulcan Street, Oldham, OL1 4LQ
T: [phone] E: [email protected] W: www.sar-products.com
Declaration of Conformity No. SAR/ST003
This declaration of conformity is issued by Specialist Access & Rescue Products Ltd.
Of Sarena House, Vulcan Street, Oldham, OL1 4LQ
We hereby declare that the above product named above has been designed and manufactured to
comply with the relevant sections of the above referenced standards. The unit complies with all
applicable Essential Requirement of the Directives. Is manufactured In accordance with SAR’s ISO
9001:2015 Quality management systems
Signed by:
Name: Lee Allport
Position: Operations Director
Done At: SAR Products - Sarena House, Vulcan Street, Oldham, OL1 4LQ
On: 17/10/18
We herby declare that:
Equipment: Alpine Stretcher
Models: ST001 & ST002
We certify that the Alpine Stretcher conforms to the EC Declaration of Conformity with the provisions
of Council Directive 93/42/EEC covering Medical Devices. Article 11(5) and annex VII Class 1
Devices.
The Alpine has been accepted for winching by RAF SAR helicopters and the UK Coastguard,
also conforms to the requirments of EASA/CAA
Specialist Access & Rescue
Products Ltd.

User Guide:
Alpine MR
Stretcher
Conforms to:
93/42/EEC
T: [phone]
E: [email protected]
W: www.sar-products.com
Specialist Access & Rescue
Products Ltd.
Signature …………………………………………………… For SAR Products Ltd
User’s Name:
Inspection Record
Date Reason for entry:
Periodic examination or repair
Date Of Manufacture: Date Of Purchase:
Date First Used: Product Serial No.:
Name of
Inspector
Next date of
Inspection
Specialist Access & Rescue Products Ltd.
Sarena House, Vulcan Street, Oldham, OL1 4LQ
T: [phone] E: [email protected] W: www.sar-products.com
Declaration Of Conformity
The EU Declaration of conformity is available by scanning the QR
code or visiting - www.sar-products.com/eu-doc/
Product Record
This documentation should be issued with and kept for each item or system.
Please see the product label for the details required below.
Consult this guide for advice on inspection, maintenance, lifespan, etc.
Certificate Of Conformity
We certify that the Alpine MR Stretcher conforms to the EC Declaration of Conformity with
the provisions of Council Directive 93/42/EEC covering Medical Devices. Article 11(5)
and annex VII Class 1 Devices.
The Alpine has been accepted for winching by RAF SAR helicopters and the UK Coastguard,
also conforms to the requirments of EASA/CAA
Serial No.:

The stretcher can be split so it is easier to carry
over long periods of time. To split stretcher
remove central axel shaft pin while the stretcher
is in a folded position, seperate the stretcher
halfs, insert the pin back into the head end of the
stretcher for carrying.
Each half of the stretcher
can then be fastened to a
rescuers back pack.
Specifications:
Stretcher comp with Cas straps: 15.70kg
Lifting straps 2m: 1.75kg
Length open: 2.1m
Length closed: 1.05m
Max width: 60cm
Runner depth : 9cm
Stretcher depth from bed 12cm
Strengths:
Lifting eye longitudinal pull 10kN worst case test.
4 Eyes Horizontal mode: 40kN
2 Eyes Vertical mode: 20kN
Based on 100kg load gives a min 20-1 safety
factor. Each body 44mm strap has a 20kN break
strength
Note:
The stretcher folds ski to ski on the central axle,
when in a horizontal lift the weight of the
casualty holds the stretcher flat and does not
rely on the locks for strength.
Cleaning
Rinse in clean cold water. If badly soiled remove all
webbing wash with hot water and detergent Power jet
if possible dry thoroughly and wax oil or spray WD40
into tube sections (max.40°C) For webbing wash using
pure soap or a mild detergent (within pH range of 5.5
to 8.5) You can use a washing machine but first place
the product in a suitable bag to protect against
mechanical damage. Rinse properly in clean cold
water, connector light oil.
Chemicals
Avoid contact with any chemicals which could affect
the performance of the product. If contact occurs or is
suspected then discard the product immediately. If
used in a marine environment thoroughly rinse in clean
cold water and dry after each use.
Storage
After cleaning, store unpacked in a cool, dry, dark
place away from excessive heat sources or other
possible causes of damage. Do not store wet.
Maintenance
Always keep the product clean and dry. Any excess
moisture should be removed with a clean cloth and
then allowed to dry naturally in a warm room away
from direct heat. Oil and grease to reduce corrosion
and keep moving part free to move.
Warning
Working at height is hazardous. It is the user’s
responsibility to ensure understanding of the correct
and safe use of this equipment, to use it only for the
purposes for which it is designed and to practise all
proper safety procedures.
Meanings of markings
1. The name, trademark or any other means of
identification provided by the manufacturer or
supplier.
2. The batch or serial number
3. The year of manufacture
4. CE… EC logo
5. EC Directive covering Medical Devices
6. Product description and/or reference
/
Strengths quoted are when the product is tested new
and are in accordance with the manufacturer’s test
methods or to the appropriate standard. Any weights
and measurements are approximate.
Nothing in this document affects the consumer’s
statutory rights.
Manufactures Check list as for all SAR Stretchers
& Lifting Slings -As required by EASA/CAA
1. Stretcher frame and bed: overall general condition
and is it clean
2. Frame: any corrosion/integrity of welds on
joints/fixing eyes, check for impact damage and
cracks
3. Damage and wear on lifting eyes
4. Damage to paintwork
5. Handles: metal checks as above, grips are intact
and undamaged
6. Fitting points for handles: check handles fit correctly
and are free from debris/corrosion/distortion/wear,
handle screw attachments, do they fit correctly, are
they free from corrosion/damage/distortion
Screws/fixings: are they all there and secure, no
damage or corrosion Hinge mechanism: do they
open/close without undue force – lubricate as
required condition of locking catches and spring
clips
7. Check split axle, press button spring, check
stretcher separates and re- as Casualty straps: are
they all present, check condition of buckles, check
for damage and wear (esp. where strapped to
stretcher)
8. Do not load test any stretcher in use as part of this
check list. Over loading will produce undue stress
and could cause hidden damage
9. Lifting straps: are they present, check condition.
Check maillons for wear/corrosion/ cracks. All
threaded components should screw/unscrew freely.
Check threads are free from debris and lubricate
Check condition of four lifting straps
10. Check all components are correctly colour coded
and have ID/commission date present
11. Once the stretcher and lifting slings have been
inspected it is advisable to fix a plastic tab/label
showing last date checked and by whom. This
should be easily accessible/visible to any winch
operator for their check.
2

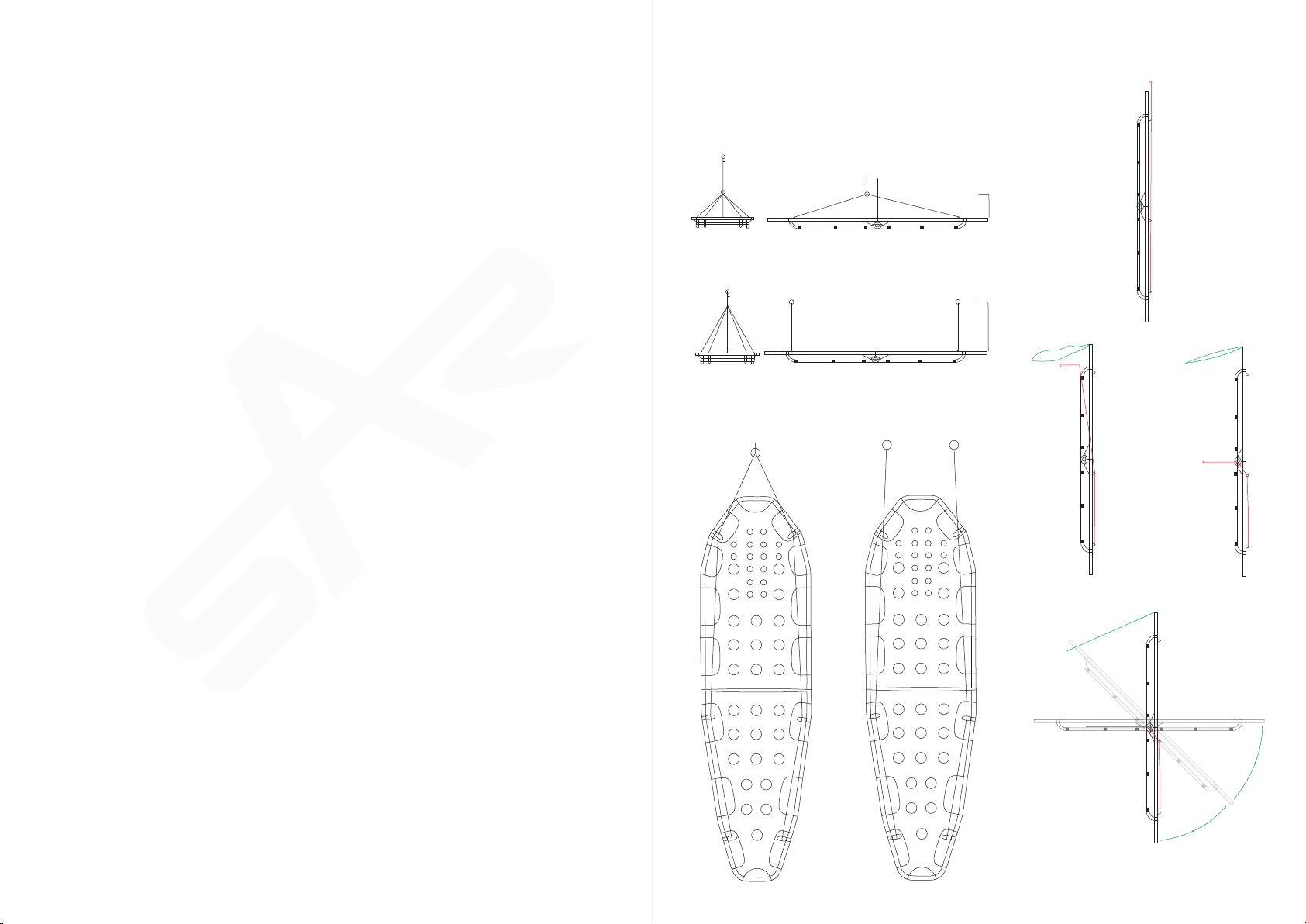

Central lifting maillon
Backpack carrying
& casulty securing strap
Lifting eye
Head restraint strap
Lifting eye
Lifting eye
Adjustable lifting straps,
4 per stretcher, max length of 2m
Use foot strap to
secure stretcher
in fold position
Central Axel Shaft Pin
Hinge Lock
Handle Fitting:
Ski’s to keep stretcher
clear from ground
5 Casualty
securing straps
Lock & removable
axle on each side

Use
The Alpine MR Stretcher is designed for rescue,
not (ppe) personal protective equipment. Each
stretcher comes complete with adjustable slings
for lifting, lowering or carrying stretchers in
mountaineering, or industrial rescues and
helicopter winching, casualty securing straps,
detachable handles and storage bag. Use only
as instructed and with compatible items of
equipment. Check that the safe function of any
one component within a system will not interfere
with the safe function of another. Twists in
webbing can cause problems and weakness in
other components such as karabiners.
Users should be trained, competent or under the
supervision of such a person.
Note: the information in this guide meets the
requirements of the E.C. Directive 89/686/EEC.
It is not comprehensive and cannot be
substituted for the correct training, which can be
provided if required. If in any doubt please don’t
hesitate to contact us.
Safety
The safety provided by the stretcher depends on
its strength, how it is used and the skill of the
user. The strength will be reduced through age,
wear and tear, the webbing and buckles on the
stretcher straps will also suffer from abrasion,
cuts, high impact loads, tight/sharp edges,
knots, some chemical (Eg. Alkalis, etc.), UV or
failure to store and maintain as recommended.
This list is not exhaustive. Do not alter the
product in any way. Any part of the stretcher
frame, webbing, maillons and buckles subjected
to a minor impact should be examined and
discarded if there is any sign of defect or any
doubts about its safety.
Lifespan
This is difficult to estimate but we advise as
follows:
Do not use more than ten years after the date of
purchase and webbing five years after its first
use. Assuming you have used the correct
storage. The working life can vary between a
single use in extreme circumstances (e.G.
Highly chemical environment, serious fall) to the
maximum of five/ten years, depending on how
the product is used. The working life will be
reduced through age, general wear and tear,
abrasion, cuts, damage to component parts,
inappropriate ancillary equipment, high impact
load, prolonged exposure to uv light including
sunlight, elevated temperature (50° c max)
exposure to some chemicals (e.G. Alkalis, etc.)
or failure to store and maintain as
recommended. This list is not exhaustive. This
use can increase to more than ten years if used
infrequently. It can be visually inspected by the
manufacturer for a further five years (this will not
be a load test as this could cause unseen
damage)
Inspection
Before each use visually inspect to ensure the
product is in serviceable condition and operates
correctly. An examination should be carried out
at least every 6 months by a competent person
authorised by the manufacturer. These
inspections should be recorded paying particular
attention to areas of potentially high wear such
as attachment points, buckles, connectors and
sewn joints.
Inspect as follows:
Textiles: Check for cuts, tears, and abrasions,
damage due to deterioration, contact
with heat, alkalis or other corrosives.
Sewing: Check for broken, cut or worn threads.
Metals: Check for cracks, distortion, corrosion,
wear by abrasion, burrs, worn or loose
rivets or screws, discolouration caused
by extreme heat (greater than 100° c)
broken springs, frays or cuts, seizure of
moving parts, broken or missing
components.
Immediately withdraw from service any items
showing defects. The user’s life depends on it.
All repair work should be carried out by the
manufacturer or with their authorisation.
Anchorage
Anchor points should always be strong enough
to hold the user, particularly in the event of a fall.
They should be at least 15kN for a single person
use. A webbing lanyard or rope should be
effectively sleeved to protect against damage if
structural members with sharp edges cannot be
avoided as anchorage points.
Anchor points, wherever possible, should be
above the user to limit any fall. In rescue any
possibility of a fall or impact loads should be
eliminated from the systems.
645cm
20cm
20cm
C
L
Rope
Rope
Keep sling/rope
secure
Rope
Attach saftey sling/rope
Rope
Pull sling/rope
The following drawings and dimensions should
be used as a guide only as different techniques
may cause them to change.
Horizontal Single Point
Horizontal Double Point
Vertical Lifting:
Single Double
Typical vertical lift over sharp edge using
double line system.
1.
2. 3.
4.

With all the carrying illustrations, the use of
carrying straps helps with stability and reduces
effort. The stretcher lifting straps can be used for
this purpose and also for pulling when sledging.
If required extra carrying straps can be
purchased, these come in sets of four and are
made from 44mm wide x 2M long webbing with
a loop at one end.
Other extra items of equipment can also be
purchased if required. There is a wheel for easy
moving of the stretcher along narrow tracks,
there is also a head guard for those people
using moving rope rescue methods around
loose ground or rocks.
If you have any queries about the use of this
stretcher or the techniques used please don’t
hesitate to contact SAR.
Head Guard
Wheel

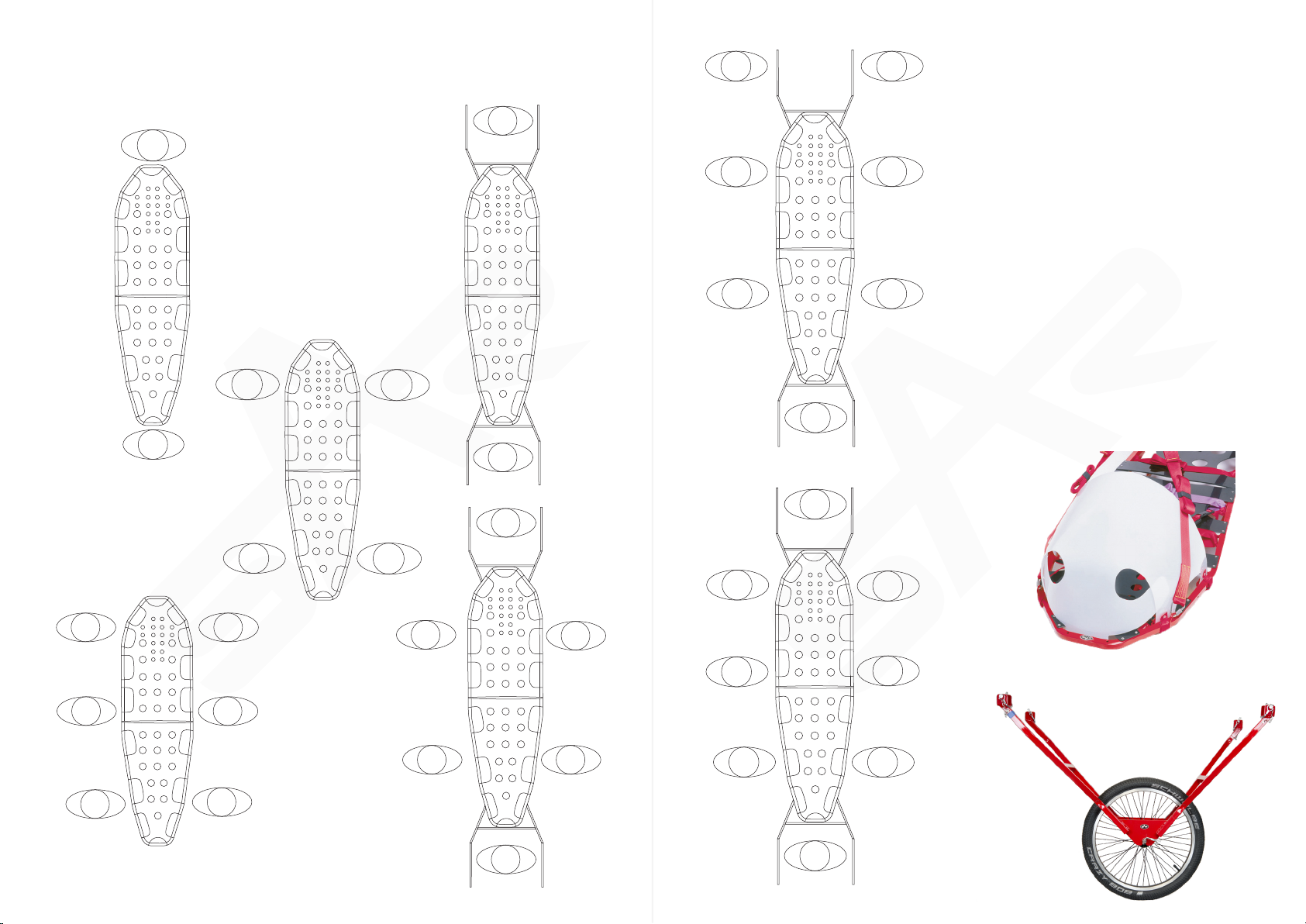

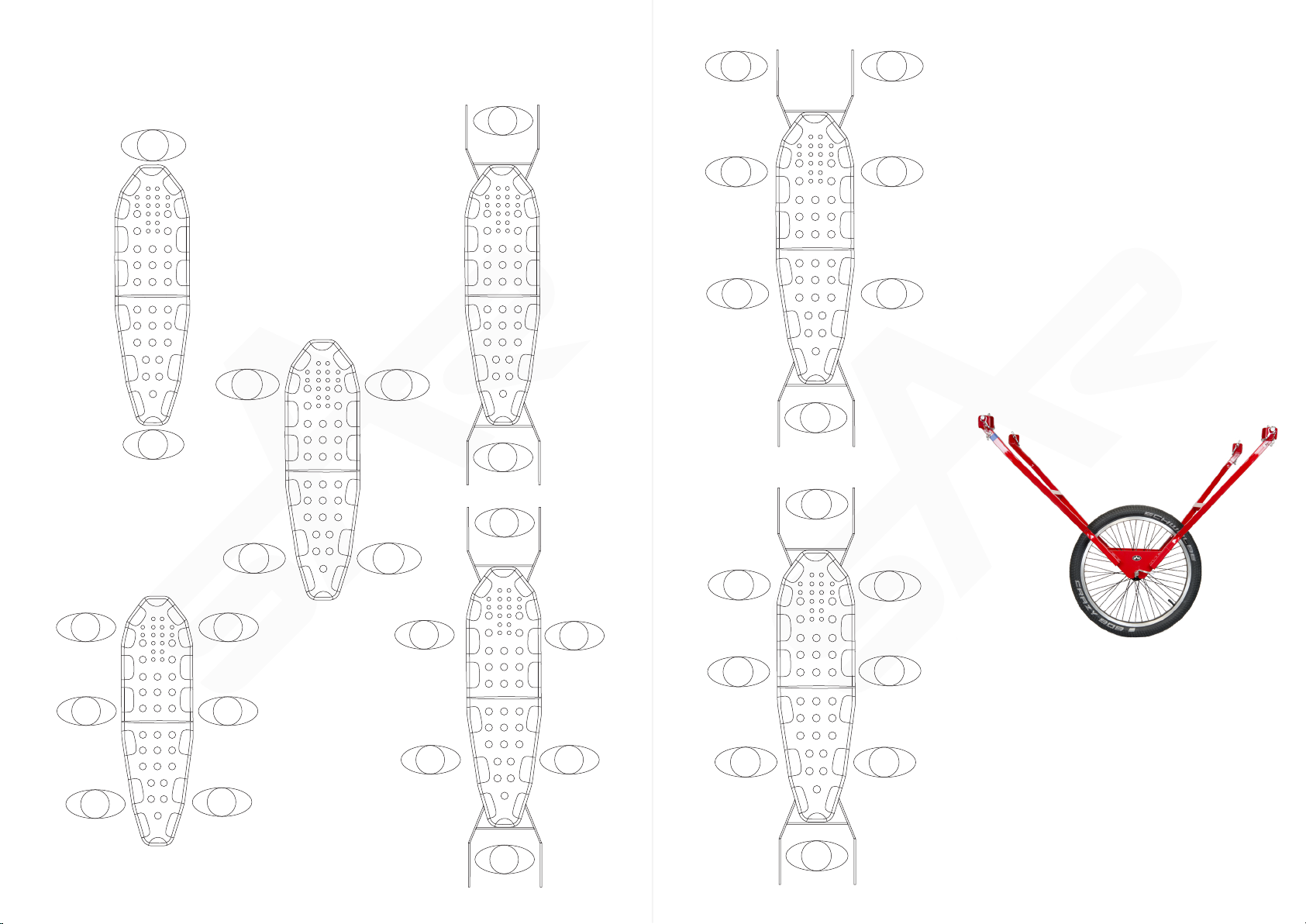

The stretcher comes with end carrying handles
and the illustrations below give some proposed
carrying positions.
4

User Guide:
Alpine CR
Stretcher
Conforms to:
93/42/EEC
T: [phone]
E: [email protected]
W: www.sar-products.com
Specialist Access & Rescue
Products Ltd.
Signature …………………………………………………… For SAR Products Ltd
User’s Name:
Inspection Record
Date Reason for entry:
Periodic examination or repair
Date Of Manufacture: Date Of Purchase:
Date First Used: Product Serial No.:
Name of
Inspector
Next date of
Inspection
Specialist Access & Rescue Products Ltd.
Sarena House, Vulcan Street, Oldham, OL1 4LQ
T: [phone] E: [email protected] W: www.sar-products.com
Declaration Of Conformity
The EU Declaration of conformity is available by scanning the QR
code or visiting - www.sar-products.com/eu-doc/
Product Record
This documentation should be issued with and kept for each item or system.
Please see the product label for the details required below.
Consult this guide for advice on inspection, maintenance, lifespan, etc.
Certificate Of Conformity
We certify that the Alpine CR Stretcher conforms to the EC Declaration of Conformity with
the provisions of Council Directive 93/42/EEC covering Medical Devices. Article 11(5)
and annex VII Class 1 Devices.
The Alpine has been accepted for winching by RAF SAR helicopters and the UK Coastguard,
also conforms to the requirments of EASA/CAA
Serial No.:

Specifications:
Stretcher comp with Cas straps: 13.40kg
Lifting straps 1.2m: 1.60kg
Length open: 2.1m
Length closed: 1.05m
Max width: 60cm
Stretcher depth from bed 12cm
Strengths:
Lifting eye longitudinal pull 10kN worst case test.
4 Eyes Horizontal mode: 40kN
2 Eyes Vertical mode: 20kN
Safe Working Load of the Alpine CR & MR
Stretcher is 300kg.
Based on 100kg load gives a min 20-1 safety
factor. Each body 44mm strap has a 20kN break
strength
Note:
The stretcher folds ski to ski on the central axle,
when in a horizontal lift the weight of the
casualty holds the stretcher flat and does not
rely on the locks for strength.
Cleaning
Rinse in clean cold water. If badly soiled remove all
webbing wash with hot water and detergent Power jet
if possible dry thoroughly and wax oil or spray WD40
into tube sections (max.40°C) For webbing wash using
pure soap or a mild detergent (within pH range of 5.5
to 8.5) You can use a washing machine but first place
the product in a suitable bag to protect against
mechanical damage. Rinse properly in clean cold
water, connector light oil.
Chemicals
Avoid contact with any chemicals which could affect
the performance of the product. If contact occurs or is
suspected then discard the product immediately. If
used in a marine environment thoroughly rinse in clean
cold water and dry after each use.
Storage
After cleaning, store unpacked in a cool, dry, dark
place away from excessive heat sources or other
possible causes of damage. Do not store wet.
Maintenance
Always keep the product clean and dry. Any excess
moisture should be removed with a clean cloth and
then allowed to dry naturally in a warm room away
from direct heat. Oil and grease to reduce corrosion
and keep moving part free to move.
Warning
Working at height is hazardous. It is the user’s
responsibility to ensure understanding of the correct
and safe use of this equipment, to use it only for the
purposes for which it is designed and to practise all
proper safety procedures.
Meanings of markings
1. The name, trademark or any other means of
identification provided by the manufacturer or
supplier.
2. The batch or serial number
3. The year of manufacture
4. CE… EC logo
5. EC Directive covering Medical Devices
6. Product description and/or reference
/
Strengths quoted are when the product is tested new
and are in accordance with the manufacturer’s test
methods or to the appropriate standard. Any weights
and measurements are approximate.
Nothing in this document affects the consumer’s
statutory rights.
Manufactures Check list as for all SAR Stretchers
& Lifting Slings -As required by EASA/CAA
1. Stretcher frame and bed: overall general condition
and is it clean
2. Frame: any corrosion/integrity of welds on
joints/fixing eyes, check for impact damage and
cracks
3. Damage and wear on lifting eyes
4. Damage to paintwork
5. Handles: metal checks as above, grips are intact
and undamaged
6. Fitting points for handles: check handles fit correctly
and are free from debris/corrosion/distortion/wear,
handle screw attachments, do they fit correctly, are
they free from corrosion/damage/distortion
Screws/fixings: are they all there and secure, no
damage or corrosion Hinge mechanism: do they
open/close without undue force – lubricate as
required condition of locking catches and spring
clips
7. Check split axle, press button spring, check
stretcher separates and re- as Casualty straps: are
they all present, check condition of buckles, check
for damage and wear (esp. where strapped to
stretcher)
8. Do not load test any stretcher in use as part of this
check list. Over loading will produce undue stress
and could cause hidden damage
9. Lifting straps: are they present, check condition.
Check maillons for wear/corrosion/ cracks. All
threaded components should screw/unscrew freely.
Check threads are free from debris and lubricate
Check condition of four lifting straps
10. Check all components are correctly colour coded
and have ID/commission date present
11. Once the stretcher and lifting slings have been
inspected it is advisable to fix a plastic tab/label
showing last date checked and by whom. This
should be easily accessible/visible to any winch
operator for their check.
2
Central lifting maillon
Backpack carrying
& casualty securing strap
Lifting eye
Head restraint strap
Lifting eye
Lifting eye
Adjustable lifting straps,
4 per stretcher, max length of 2m
Ski’s to keep stretcher
clear from ground
5 Casualty
securing straps
Lock & removable
axle on each side
The stretcher can be split so it is easier to carry
over long periods of time. To split stretcher
remove central axel shaft pin while the stretcher
is in a folded position, seperate the stretcher
halfs, insert the pin back into the head end of the
stretcher for carrying.
Each half of the stretcher
can then be fastened to a
rescuers back pack.
Use foot strap to
secure stretcher
in fold position
Central Axel Shaft Pin
Hinge Lock

Important:
Please read, study and understand these
instructions before use.
Use
The Alpine Stretcher is designed for rescue, not
(ppe) personal protective equipment. Each
stretcher comes complete with adjustable slings
for lifting, lowering or carrying stretchers in
mountaineering, or industrial rescues and
helicopter winching, casualty securing straps,
detachable handles and storage bag. Use only as
instructed and with compatible items of
equipment. Check that the safe function of any
one component within a system will not interfere
with the safe function of another. Twists in
webbing can cause problems and weakness in
other components such as karabiners.
Users should be trained, competent or under the
supervision of such a person.
Note: the information in this guide meets the
requirements of the E.C. Directive 89/686/EEC. It
is not comprehensive and cannot be
substituted for the correct training, which can be
provided if required. If in any doubt please don’t
hesitate to contact us.
Safety
The safety provided by the stretcher depends on
its strength, how it is used and the skill of the
user. The strength will be reduced through age,
wear and tear, the webbing and buckles on the
stretcher straps will also suffer from abrasion,
cuts, high impact loads, tight/sharp edges, knots,
some chemical (Eg. Alkalis, etc.), UV or failure to
store and maintain as recommended. This list is
not exhaustive. Do not alter the product in any
way. Any part of the stretcher frame, webbing,
maillons and buckles subjected to a minor impact
should be examined and discarded if there is any
sign of defect or any doubts about its safety.
Lifespan
This is difficult to estimate but we advise as
follows:
Do not use more than ten years after the date of
purchase and webbing five years after its first
use. Assuming you have used the correct
storage. The working life can vary between a
single use in extreme circumstances (e.G. Highly
chemical environment, serious fall) to the
maximum of five/ten years, depending on how the
product is used. The working life will be reduced
through age, general wear and tear, abrasion,
cuts, damage to component parts,
inappropriate ancillary equipment, high impact
load, prolonged exposure to UV light including
sunlight, elevated temperature (50° c max)
exposure to some chemicals (e.g. Alkalis, etc.) or
failure to store and maintain as recommended.
This list is not exhaustive. This use can increase
to more than ten years if used infrequently. It can
be visually inspected by the manufacturer for a
further five years (this will not be a load test as
this could cause unseen damage)
Inspection
Before each use visually inspect to ensure the
product is in serviceable condition and operates
correctly. An examination should be carried out at
least every 6 months by a competent person
authorised by the manufacturer. These
inspections should be recorded paying particular
attention to areas of potentially high wear such as
attachment points, buckles, connectors and sewn
joints.
Inspect as follows:
Textiles: Check for cuts, tears, and abrasions,
damage due to deterioration, contact
with heat, alkalis or other corrosives.
Sewing: Check for broken, cut or worn threads.
Metals: Check for cracks, distortion, corrosion,
wear by abrasion, burrs, worn or loose
rivets or screws, discolouration caused
by extreme heat (greater than 100° c)
broken springs, frays or cuts, seizure of
moving parts, broken or missing
components.
Immediately withdraw from service any items
showing defects. The user’s life depends on it.
All repair work should be carried out by the
manufacturer or with their authorisation.
Anchorage
Anchor points should always be strong enough to
hold the user, particularly in the event of a fall.
They should be at least 15kN for a single person
use. A webbing lanyard or rope should be
effectively sleeved to protect against damage if
structural members with sharp edges cannot be
avoided as anchorage points.
Anchor points, wherever possible, should be
above the user to limit any fall. In rescue any
possibility of a fall or impact loads should be
eliminated from the systems.
645cm
20cm
20cm
C
L
Rope
Rope
Keep sling/rope
secure
Rope
Attach safety sling/rope
Rope
Pull sling/rope
The following drawings and dimensions should
be used as a guide only as different techniques
may cause them to change.
Horizontal Single Point
Horizontal Double Point
Vertical Lifting:
Single Double
Typical vertical lift over sharp edge using
double line system.
1.
2. 3.
4.

With all the carrying illustrations, the use of
carrying straps helps with stability and reduces
effort. The stretcher lifting straps can be used for
this purpose and also for pulling when sledging.
If required extra carrying straps can be
purchased, these come in sets of four and are
made from 44mm wide x 2m long webbing with
a loop at one end.
Other extra items of equipment can also be
purchased if required. There is a wheel for easy
moving of the stretcher along narrow tracks.
If you have any queries about the use of this
stretcher or the techniques used please don’t
hesitate to contact SAR.
Wheel
The stretcher comes without end carrying
handles, but can be purchased separate for the
Alpine CR. The illustrations below give some
proposed carrying positions with and without
handles.
4
