SARIV SAR001 User manual

Instruction manual
Ed. December 2019
Hydro-Pneumatic tool for rivet nuts from M3-M12
SAR 001
1
INSTRUCTION MANUAL SAR001
SAR001
H Y DRO - P NE U MA T IC T O OL
F O R R IV E T N U T S
F R OM M 3 T O M 1 2
DISTRIBUTOR’S STAMP
SARIV S.R.L.
Via del Progresso, 2 - 35014 FONTANIVA PD - ITALY
Tel. [phone] - Fax. [phone]
www.sariv.it- [email protected]

Instruction manual
Ed. December 2019
Hydro-Pneumatic tool for rivet nuts from M3-M12
SAR 001
2
Contents
1 - GENERAL INFORMATION.................................................................................................................4
1.1 - MANUFACTURER ..............................................................................................................4
1.2 - ASSISTANCE .....................................................................................................................4
1.3 - CERTIFICATION AND EC MARKING ...................................................................................4
1.4 - WARRANTY .......................................................................................................................4
1.5 - MANUAL STRUCTURE .......................................................................................................4
1.5.1 - PURPOSE AND CONTENTS .............................................................................................5
1.5.2 –MANUAL DESTINEE.......................................................................................................5
1.5.3 –PLACING OF THE MANUAL............................................................................................5
1.5.4 –SYMBOLS USED .............................................................................................................5
2 –TOOL DESCRIPTION.........................................................................................................................6
2.1 –OPERATING SYSTEM ........................................................................................................6
2.2 - VIBRATION ........................................................................................................................6
2.3 –NOISE LEVEL.....................................................................................................................6
2.4 –TECHNICAL DATA .............................................................................................................6
2.5 - EQUIPMENT......................................................................................................................6
2.5.1 –STANDARD ACCESSORIES..............................................................................................7
2.5.2 –ACCESSORIES UPON REQUEST......................................................................................7
2.6 –ELECTRO- MAGNETIC ENVIRONMENT .............................................................................7
3 - SAFETY.............................................................................................................................................8
3.1 –GENERAL WARNINGS.......................................................................................................8
3.2 –INTENDED USE .................................................................................................................8
3.3 –OPERATING CONTROINDICATIONS ..................................................................................8
3.4 –RESIDUAL RISKS................................................................................................................8
3.5 - IDENTIFICATION NUMBER ...............................................................................................9
4 - INSTALLATION ...............................................................................................................................10
4.1 –TRANSPORT AND HANDLING .........................................................................................10
4.2 - STORAGE.........................................................................................................................10
4.3 –CONNECTIONS ...............................................................................................................10
4.3.1 –PNEUMATIC CONNECTION .........................................................................................10
4.4 –AIR SUPPLY.....................................................................................................................10
4.5 –PRELIMINARY CHECKS....................................................................................................10
5 - OPERATION....................................................................................................................................11
5.1 - OPERATORS ....................................................................................................................11
5.2 –TOOL PREPARATION ......................................................................................................11
5.3 - PUTTING INTO SERVICE……………………………………………………………………………………………….12
5.4 –STROKE ADJUSTMENT....................................................................................................12
5.5 –TIE ROD CHANGE ...........................................................................................................13
6 - MAINTENANCE ..............................................................................................................................14
6.1 –MAINTENANCE STATUS .................................................................................................14
6.2 - CLEANING .......................................................................................................................14
6.3 –ORDINARY MAINTENANCE.............................................................................................14

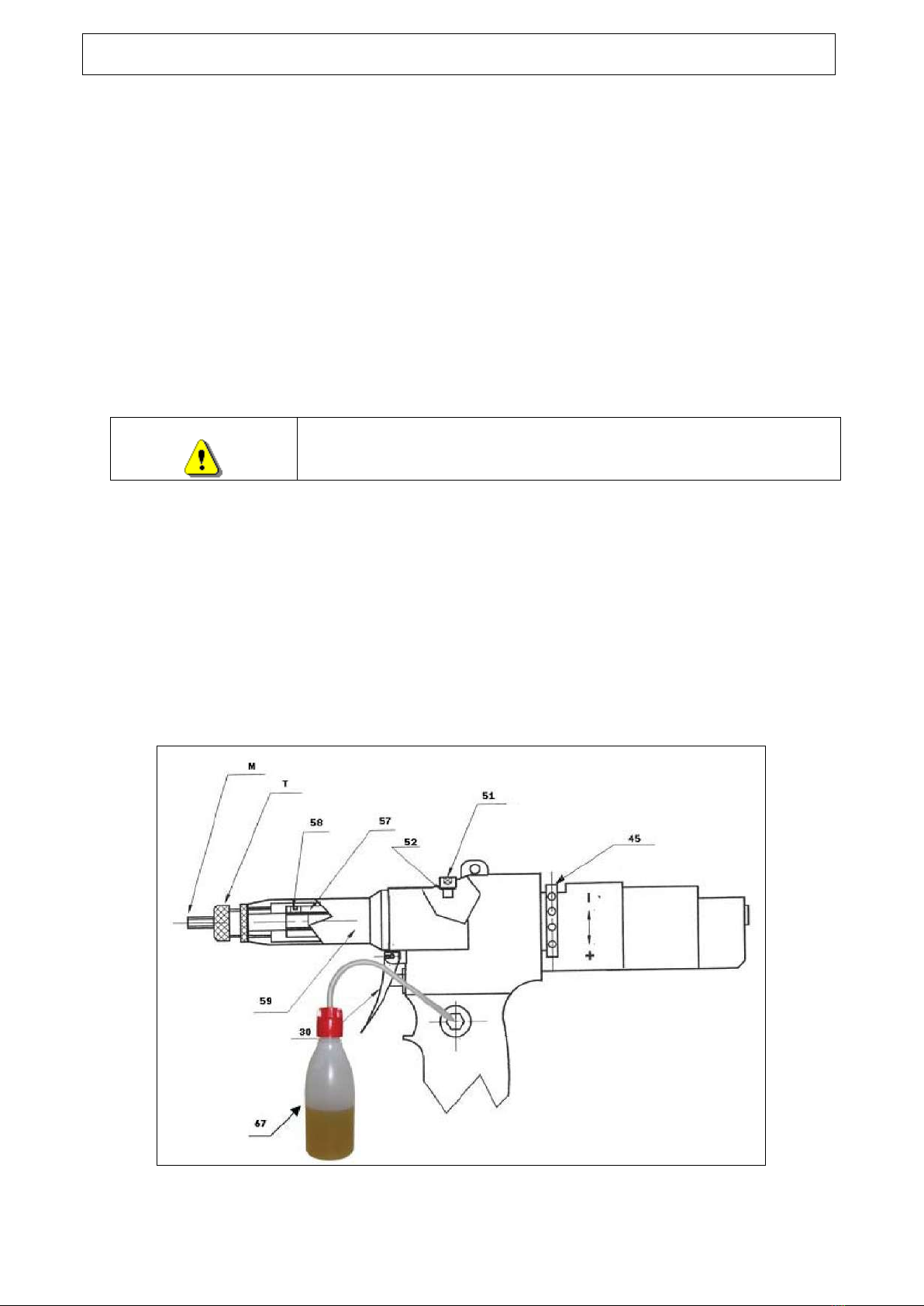

6.3.1 - REFILLING THE HYDRAULIC CIRCUIT WITH OIL ............................................................14
6.3.2 –PARTS SUBJECT TO WEAR ...........................................................................................15
7 –FAULT DIAGNOSIS AND REPAIR ....................................................................................................16
7.1 - REPAIRS ..........................................................................................................................16
7.2 –REQUESTING ASSISTANCE..............................................................................................16
8 –SPARE PARTS.................................................................................................................................17

Instruction manual
Ed. December 2019
Hydro-Pneumatic tool for rivet nuts from M3-M12
SAR 001
3
8.1 –SPARE PARTS..................................................................................................................17
8.2 –ORDERING SPARE PARTS................................................................................................20
9 - DISMANTLING................................................................................................................................21
9.1 –DISMANTLING INSTRUCTIONS .......................................................................................21
10 –ENCLOSED DOCUMENTS ............................................................................................................21
10.1 - DECLARATION...............................................................................................................21
DECLARATION OF CONFORMITY ........................................................................................................22

Instruction manual
Ed. December 2019
Hydro-Pneumatic tool for rivet nuts from M3-M12
SAR 001
4
1 - GENERAL INFORMATION
1.1 - MANUFACTURER
Sariv S.r.l. has been operating on the fasteners market for years. The Company boasts much technical
experience and offers a wide range of products related to fastening systems.
Phone: [phone]
E-mail: in[email protected]
1.2 - ASSISTANCE
In case you need any assistance concerning the use and the maintenance of the tool, or in case you need to
order any spare parts, please contact your local authorised dealer (or Sariv S.r.l. directly) specifying the
identification/serial numbers of the tool, written on its outer casing.
C1
See section 3.5
1.3 - CERTIFICATION AND EC MARKING
The tool is manufactured in compliance with the European Directives, which are in force when the tool itself
is put on the market.
As the tool is not included in ENCLOSURE IV of DIRECTIVE 89/392/EEC, Sariv S.r.l. issues a self-certification to
apply the EC marking.
1.4 - WARRANTY
The warranty has a validity of 12 months, starting from the date indicated in the invoice.
The warranty only covers replaced parts; labour is not included.
The following points are not covered by warranty: standard accessories (see section 2.5.1, page 6) and tool
damages caused by:
•transport and/or handling,
•user’s mistakes,
•failed servicing/maintenance, as indicated in section 6 of this manual (page 13),
•faults and/or breakages that are not attributable to tool anomalies,
•normal consumption of consumables.
The warranty is invalidated both in case of unauthorized tampering/replacements of tool components and in
case of use of accessories, tools or consumables different to those recommended by the manufacturer,
which could even cause injuries to the tool’s user.
Sariv S.r.l. assumes responsibilities only if the tool is originally defective, but declines all forms of
responsibility if the user fails to follow the instructions given.
1.5 - MANUAL STRUCTURE
This instruction manual must be read with particular attention by the Customer, as the correct pre-
arrangement, installation and use of the tool, are the correct basis for a good relationship between
Manufacturer and Customer.

Instruction manual
Ed. December 2019
Hydro-Pneumatic tool for rivet nuts from M3-M12
SAR 001
5
1.5.1 - PURPOSE AND CONTENTS
The manual herein has the purpose of providing the Customer with all the information needed not only to
use the tool correctly, but also to manage it self-sufficiently and safely. It includes information concerning
technical aspects, operation, maintenance, spare parts and safety.
Users and Qualified Technicians must read the instructions given herein thoroughly before starting to use
the tool.
If you have any doubts on the meaning of the instructions given, please do not hesitate to contact Sariv S.r.l.
for further explanations.
1.5.2 –MANUAL DESTINEE
The manual herein has been written for both the operators and the technicians enabled to service the tool.
Operators must not carry out jobs reserved to service and/or qualified technicians.
Sariv S.r.l. is not liable for any damage deriving from the failed observance of this rule.
1.5.3 –PLACING OF THE MANUAL
This instruction manual must be kept near the tool, inside a dedicated container and, above all, away from
liquids or anything else that may compromise its legibility.
1.5.4 –SYMBOLS USED
SYMBOL
MEANING
COMMENT
H ...
HAZARD
This highlights a hazard with risk for the user.
W ...
WARNING
This points out a warning/note on key functions
or useful information.
Read the texts indicated by this symbol with
utmost attention.
C…
CONSULT
Consult the instruction manual before carrying
out a specific procedure.

Instruction manual
Ed. December 2019
Hydro-Pneumatic tool for rivet nuts from M3-M12
SAR 001
6
2 –TOOL DESCRIPTION
2.1 –OPERATING SYSTEM
The hydro-pneumatic SAR001 is designed to place female threaded rivet nuts (from M3 to M12) or male
threaded rivet nuts (from M4 to M8).
The hydro-pneumatic system and the mechanical components used in the inside structure of the SAR001,
when compared with other riveting tools, result to be much more reliable. A tool feature is a reduction of
the problems caused by the wear and tear of the components, and consequently the tool will last much
longer and work better. The technical solutions adopted make the SAR 001 more compact and lighter: the
result is a very handy tool.
2.2 - VIBRATION
When used correctly, i.e. in compliance with the instructions given, the tool does not produce any dangerous
vibration.
2.3 –NOISE LEVEL
The tool is designed and manufactured in such a way that the noise level results to be very low. The weighed
equivalent continuous acoustic pressure level A in the operator position is indeed below 80 dB (A).
The information given can, in any event, allow the tool user to better evaluate the possible and eventual
risks of danger.
2.4 –TECHNICAL DATA
The following table provides the technical data and features of the tool.
TABLE 2.9 A -Technical Data and Features
AIR WORKING PRESSURE
6 bar
MIN –MAX AIR PRESSURE
5 –7 bar
AIR CONSUMPTION PER CYCLE at 6 bar
7,5 litres
STROKE
0 - 6,5 mm
DRIVING FORCE at 6 bar
2050 Kg
WEIGHT (w/o equipment)
2,4 Kg
VIBRATIONS
< 2,5 m/s2
NOISE LEVEL
< 80 dB (A)
2.5 - EQUIPMENT
The equipment stated hereafter refers to standard tools.
Any special tool could consequently require special parts, different to those listed.

Instruction manual
Ed. December 2019
Hydro-Pneumatic tool for rivet nuts from M3-M12
SAR 001
7
2.5.1 –STANDARD ACCESSORIES
The tool is supplied with the following standard accessories:
Sariv Code
Q.ty
Description
SAR001-63
1
SUPPLE AIR CONNECTION THREAD 1/4” GAS
SAR001-M3
1
TIE ROD FOR FEMALE BLIND RIVET NUTS M3
SAR001-M4
1
TIE ROD FOR FEMALE BLIND RIVET NUTS M4
SAR001-M4L
1
TIE ROD FOR FEMALE BLIND RIVET NUTS M4L (68mm)
SAR001-M5
1
TIE ROD FOR FEMALE BLIND RIVET NUTS M5
SAR001-M5L
1
TIE ROD FOR FEMALE BLIND RIVET NUTS M5L (68mm)
SAR001-M6
1
TIE ROD FOR FEMALE BLIND RIVET NUTS M6
SAR001-M6L
1
TIE ROD FOR FEMALE BLIND RIVET NUTS M6L (75mm)
SAR001-M8
1
TIE ROD FOR FEMALE BLIND RIVET NUTS M8
SAR001-M8L
1
TIE ROD FOR FEMALE BLIND RIVET NUTS M8L (75mm)
SAR001-M10
1
TIE ROD FOR FEMALE BLIND RIVET NUTS M10
SAR001-T3
1
HEAD WITH RING NUT FOR FEMALE BLIND RIVENT NUTS M3
SAR001-T4
1
HEAD WITH RING NUT FOR FEMALE BLIND RIVENT NUTS M4
SAR001-T5
1
HEAD WITH RING NUT FOR FEMALE BLIND RIVENT NUTS M5
SAR001-T6
1
HEAD WITH RING NUT FOR FEMALE BLIND RIVENT NUTS M6
SAR001-T8
1
HEAD WITH RING NUT FOR FEMALE BLIND RIVENT NUTS M8
SAR001-T10
1
HEAD WITH RING NUT FOR FEMALE BLIND RIVENT NUTS M10
SAR001-65
1
UNIVERSAL KEY
SAR001-66
1
2.5mm ALLEN KEY
-
1
PLASTIC CASE
-
1
INSTRUCTION MANUAL
2.5.2 –ACCESSORIES UPON REQUEST
The following parts can be supplied upon request:
Sariv Code
Q.ty
Description
SAR001-M12
1
TIE ROD FOR FEMALE BLIND RIVET NUTS M12
SAR001-T12
1
HEAD WITH RING NUT FOR FEMALE BLIND RIVENT NUTS M12
SAR001-IMM4
1
TIE ROD FOR MALE BLIND RIVET NUTS M4
SAR001-IMM5
1
TIE ROD FOR MALE BLIND RIVET NUTS M5
SAR001-IMM6
1
TIE ROD FOR MALE BLIND RIVET NUTS M6
SAR001-IMM8
1
TIE ROD FOR MALE BLIND RIVET NUTS M8
SAR001-IMT4
1
HEAD WITH RING NUT FOR MALE BLIND RIVENT NUTS M4
SAR001-IMT5
1
HEAD WITH RING NUT FOR MALE BLIND RIVENT NUTS M5
SAR001-IMT6
1
HEAD WITH RING NUT FOR MALE BLIND RIVENT NUTS M6
SAR001-IMT8
1
HEAD WITH RING NUT FOR MALE BLIND RIVENT NUTS M8
Any modification and / or addition of accessories must be explicitly approved and carried out by the
Manufacturer.
2.6 –ELECTRO- MAGNETIC ENVIRONMENT
The tool is manufactured so that it works correctly in an industrial electromagnetic environment, within the
Emission and Immunity limits envisaged by the following standards:
EN 50081-2 Electro-magnetic compatibility –General emission standard - Part 2 –Industrial environment -
(1993)
EN 50082-2 Electro-magnetic compatibility –General immunity standard - Part 2 –Industrial environment -
(1995)

Instruction manual
Ed. December 2019
Hydro-Pneumatic tool for rivet nuts from M3-M12
SAR 001
8
3 - SAFETY
3.1 –GENERAL WARNINGS
The operator must read carefully the information given in the present manual, especially with regard to the
safety precautions listed in this chapter.
The operator must also observe the warnings listed below:
•The tool shall be used exclusively by trained personnel.
•The tool and the work area shall be kept clean and tidy.
•The tool shall be rested upright on the rubber base on a flat surface to prevent it from dropping.
•The tool shall only be used in normal psychophysical conditions.
•The user shall wear suitable clothing taking care to avoid entanglement of loose parts, ties, long hair,
cleaning rags etc. in the tool itself.
•When using the tool, the wearing of safety glasses is required both by the operator and others in the
vicinity to protect against fastener ejection. Besides we recommend wearing gloves when using the tool.
•The user shall use the accessories supplied and indicated in the ‘servicing’ chapter (see chapter 6) when
servicing and/or adjusting the tool.
•The plates applied on the tool by Sariv S.r.l. shall not be removed or altered.
•Unauthorized personnel shall not be allowed to touch the tool.
•Make sure that the air supply hoses are correctly sized for the use envisaged.
•Do not drag the tool holding it by the hose when it is connected to the power supply. Keep the hose away
from sources of heat and from sharp objects.
•Remember to remove service or adjustment keys after having carried out repair and/or adjustment jobs.
•Before disconnecting the compressed air hose from the tool, ensure it is not pressurized.
•Tool repairs and cleaning jobs must be carried out with the tool disconnected from the power supply.
•When filling with oil, only use fluids with the characteristics indicated herein.
•If you should accidentally spill oil on your skin, rinse and wash thoroughly with water and alkaline soap.
•Where possible, you are recommended to use a safety balance to support the tool.
•Pay attention to possible risk of whiplash with the air supply hoses.
•Do not operate the tool when it is directed towards any person(s) or the operator.
3.2 –INTENDED USE
The tool is designed exclusively to be used with rivet nuts. You can find the detailed list indicating the proper
rivet nuts to be used in section 2.5: female threaded type with thread between M3 and M12, male threaded
rivet nuts with thread between M4 and M8.
3.3 –OPERATING CONTROINDICATIONS
The tool shall not be used:
•for purposes different to those listed in previous par. 3.2;
•in explosive or aggressive atmosphere or when there is an excessive amount of dust or oil in the air;
•in atmosphere subject to the risk of fire;
•when it is exposed to weather conditions.
3.4 –RESIDUAL RISKS
During the normal working cycle and when servicing the tool, the operators are exposed to some residue
risks which, due to the nature of the operations to be carried out, cannot be totally eliminated.

Instruction manual
Ed. December 2019
Hydro-Pneumatic tool for rivet nuts from M3-M12
SAR 001
9
•Risk of breakage of the supply hose due to the fact that it contains compressed air. It is therefore
absolutely crucial not to exceed the maximum pressure indicated in the technical data (see section
2.4, page 5).
3.5 - IDENTIFICATION NUMBER
On the riveter it is applied a label indicating the tool model, the name of manufacturer and the EC marking.

Instruction manual
Ed. December 2019
Hydro-Pneumatic tool for rivet nuts from M3-M12
SAR 001
10
4 - INSTALLATION
4.1 –TRANSPORT AND HANDLING
The tool can be hand carried. You are recommended to store the tool in its case after using it.
The tool can be transported safely if it is has been correctly put away in it its case.
W
Damages to the tool caused during transport and/or handling are
not covered by WARRANTY.
Repairs or replacements of damaged parts are at Customer’s charge.
4.2 - STORAGE
If you are not going to use the tool for a long time, you must put it away according to the following
suggestions:
•store the tool indoors.
•protect the tool from impacts and stresses by keeping it in its case;
•protect the tool from damp and excessive thermal excursions;
•keep the tool away from corrosive substances.
4.3 –CONNECTIONS
To avoid all sorts of problems when using the tool you are recommended to observe the following points:
4.3.1 –PNEUMATIC CONNECTION
The pneumatic line is connected by mean of a quick-release coupling hose to be attached to the supple air
connection, thread 1/4” gas, supplied with the tool.
The air supply hose must be flexible and must meet the following safety requirements:
•Operating pressure: 6 bar
•Maximum pressure: 7 bar
•Minimum pressure: 5 bar
•Nominal consumption
4.4 –AIR SUPPLY
The air supply line must be free from dirt and damp to protect the tool from early wear of the moving
components. You are therefore recommended to use a lubricating unit for compressed air.
4.5 –PRELIMINARY CHECKS
Before putting the tool into service you need to make a few inspections and checks in order to prevent
errors or accidents while starting it.
•Check if the tool has been damaged during transport.
•Check if the compressed air hose is perfectly connected to the air
supply line.
•Check if the tool turns freely and if the motor runs freely.

Instruction manual
Ed. December 2019
Hydro-Pneumatic tool for rivet nuts from M3-M12
SAR 001
11
5 - OPERATION
5.1 - OPERATORS
The tool is designed to be used by one operator only.
Tool operators must satisfy the requirements stated hereafter (or they must be informed and trained
accordingly).
•They must be aware of the manual herein and of all information relevant to safety:
•They must have some general and technical education, to a sufficient level to be able to understand the
manual and to interpret the drawings and the diagrams correctly.
•They must be acquainted with the main hygienical rules, and with the industrial-safety and technological
instructions.
•They must have an overall knowledge of the line and of the factory in which the tool is installed.
•They must know how to act in case of emergency, where to find the individual protection means and
how to use them correctly.
Together with the above-mentioned requirements, the service technicians must also have an appropriate
technical training.
5.2 –TOOL PREPARATION
Picture 5.2 –A
When you are setting the tool it must not be connected to the airline inlet.
The choice of the tie-rod (M) and of the head (T) must be according to the size of the rivet nut to be used.

Instruction manual
Ed. December 2019
Hydro-Pneumatic tool for rivet nuts from M3-M12
SAR 001
12
5.3 –PUTTING INTO SERVICE
See Picture 5.2-A
Before you start using the tool and after every size change, you need to execute the following procedure
according to the size and the thickness of the material to be riveted:
•You have to take sleeve 59 off and to tighten the tie-rod on tie-rod holder 57 and ensure nut 58 does
not prevent it from turning.
•Than you have to screw nut 58, blocking it on the milled part of the tie-rod using the dedicated allen key
(66), screw the head (T) on it with the relative ring nut until a portion of tie-rod (M) protrudes by no less
than the length of the rivet to be used.
•You have now to disconnect the tool from the pneumatic line by removing the quick-release coupling
(see section 4.3.1, page 9).
5.4 –STROKE ADJUSTMENT
See Picture 5.2-A
How to adjust the stroke:
•Connect the air supply to the tool (the pressure must be between 5 and 7 bar).
•Turn the ring nut 45, using the dedicated pin, in the direction of the “-“ mark (minus) until the tie-rod
has a stroke of roughly 2 mm when operating the tool.
•Screw in the rivet nut, pressing it lightly on the end of the tie-rod; keep it pressed until the rivet nut
actually touches the head.
•Insert the rivet nut into the application hole, holding the tool so that the axis of the tie-rod is
perpendicular to the surface to be fixed.
•Operate lever 30 until it starts getting harder (traction and fixing phases).
•Continue to press the lever as far as it will go (unscrewing phase) and stay in this position until the rivet
nut is unscrewed from the tie-rod.
•Check the position of the rivet nut. If it is not correct, turn the ring nut 45, bearing in mind that:
•If you turn it towards the "+" mark (plus) you increase the stroke, consequently the rivet nut will result
more deformed; on the contrary if you turn it towards the "-" mark (minus) you reduce the stroke with a
consequently less deformation of the rivet nut.
Warning: If the tool stroke is not correctly adjusted, the rivet nuts will not be securely fixed, and the tie-rods
could easily break.
It is essential to adjust the stroke correctly to obtain a perfect fixing of the rivet nut.
You must always consider that, an excessive stroke could cause the breaking of the tie-rod; on the contrary
an insufficient stroke will not guarantee the stability of the rivet nut.

Instruction manual
Ed. December 2019
Hydro-Pneumatic tool for rivet nuts from M3-M12
SAR 001
13
5.5 –TIE ROD CHANGE
Picture 5.5 –B
When the thread of the rivet nuts to be used changes, you need to replace both the tie-rod (M) and the
head (T), therefore proceed as follows:
•Loosen the counter-ring nut that blocks the head (T) using the universal key and remove it by
unscrewing it.
•Unscrew nut 58 using the allen key (66), remove the tie-rod (M) and replace it with the new required
one (M). Once the tie-rod has been replaced, turn it as far as it will go.
•Unscrew tie-rod (M) again by half a turn, until the flat part of the tie-rod (M) is by the hole where the
nut is lodged. This is to be done in order to avoid deforming the thread of the tie-rod (M) itself.
•Then tighten sleeve 59 and fit the relative head (T).
Each time you change the tie-rod (M) you need to repeat carefully all above operations.
Warning: The above operations must be carried out with the tool disconnected from the power supply.
B

Instruction manual
Ed. December 2019
Hydro-Pneumatic tool for rivet nuts from M3-M12
SAR 001
14
6 - MAINTENANCE
6.1 –MAINTENANCE STATUS
Maintenance operations must be carried out with the tool stopped and disconnected from the pneumatic
supply line.
Warnings:
•The tool maintenance instructions must be followed carefully.
•To ensure safety and perfect tool efficiency, you are recommended to use exclusively ORIGINAL parts.
6.2 - CLEANING
It is a good rule to completely clean the tool externally on a periodic basis (depending on the type and
frequency of use).
Shut-off all power sources to the tool
The operator must wear and use suitable personal protections before
starting to clean the tool.
6.3 –ORDINARY MAINTENANCE
In order to prevent stoppages and faults of the tool, an ordinary maintenance (including inspections, checks
and operations) must be scheduled to keep the following under systematic control:
•state of lubrication of the tool.
•state of wear of consumables.
6.3.1 - REFILLING THE HYDRAULIC CIRCUIT WITH OIL

Instruction manual
Ed. December 2019
Hydro-Pneumatic tool for rivet nuts from M3-M12
SAR 001
15
The hydraulic circuit needs to be refilled with oil after a continuous use, and when you notice a reduction in
the tool stroke.
Proceed as follows:
•Disconnect the airline from the tool inlet.
•Unscrew screw 51 by roughly 3 turns.
•Remove KIT-OLIO.
•Put the tool in a horizontal position and slowly pour in the hydraulic oil (ISO VG 32 type) until the circuit
is full: you will realise this when the oil spills out of screw 51.
•Block now the screw 51.
•Screw KIT-OLIO, being careful not to ruin the gasket.
Wear gloves when managing the oil.
Do not throw the old oil outdoors but hand it over to an authorized waste disposal center.
Warning: if you should accidentally spill oil on your skin, wash and rinse thoroughly with water and alkaline
soap.
6.3.2 –PARTS SUBJECT TO WEAR
On a periodic basis check the state of wear of the rubber base, as this is what ensures the stability of the
tool.

Instruction manual
Ed. December 2019
Hydro-Pneumatic tool for rivet nuts from M3-M12
SAR 001
16
7 –FAULT DIAGNOSIS AND REPAIR
7.1 - REPAIRS
To ensure the operational efficiency and safety of the tool, all repair jobs shall be carried out exclusively by
the local authorized dealer or by the Technical Assistance Service of Sariv S.r.l.
7.2 –REQUESTING ASSISTANCE
For any information concerning Use, Maintenance, Installation, Repair and so on, Sariv S.r.l is at the
Customer’s full disposal for all enquiries.
When making enquiries the customer is requested to be absolutely clear and to make always reference to
this Manual and, in particular, to the instructions given in section 1.2.

Instruction manual
Ed. December 2019
Hydro-Pneumatic tool for rivet nuts from M3-M12
SAR 001
17
8 –SPARE PARTS
8.1 –SPARE PARTS
Picture 8.1-A –Spare Parts

Instruction manual
Ed. December 2019
Hydro-Pneumatic tool for rivet nuts from M3-M12
SAR 001
18
See Picture 8.1-A
TABLE 8.1
COD.
Q.TY
DESCRIPTION
KIT
COD.
Q.TY
DESCRIPTION
KIT
SAR001-01
1
PNEUMATIC CASING
SAR001-34
2
MANDREL
SAR001-02
1
HANDLE CASING
SAR001-35
1
SCREW
SAR001-03
1
SCREWING UNIT
B
SAR001-36
1
WASHER
SAR001-04
1
RUBBER BASE
SAR001-37
2
PIPE GUIDE
B
SAR001-05
1
SNAP RING
SAR001-38
2
MOTOR AIR PIPE
B
SAR001-06
1
BOTTOM
SAR001-39
1
ROD
B
SAR001-07
1
O-RING
SAR001-40
1
BALL
B
SAR001-08
1
O-RING
E
SAR001-41
1
CAP
B
SAR001-09
1
GASKET
E
SAR001-42A
1
RIGID PROTECTION
SAR001-10
1
GUIDE
E
SAR001-43
1
SLEEVE
B
SAR001-11
1
PNEUMATIC PISTON
E
SAR001-44
1
JOINT
A
SAR001-12
1
STEM
E
SAR001-45
1
RING NUT
SAR001-13
1
SPRING
SAR001-46
1
SPRING
SAR001-14
1
DRIVING AIR PIPE
SAR001-47
1
PIN
A
SAR001-15
1
RING NUT
D
SAR001-48
1
HYDRAULIC PISTON
SAR001-16
1
GASKET
D
SAR001-49
1
SKIMMER
SAR001-17
2
O-RING
SAR001-50
1
GASKET
SAR001-18
1
STEM GUIDE
D
SAR001-51
1
DISCHARGE SCREW
SAR001-19
1
PIN
SAR001-52
1
OIL SEAL
SAR001-20
1
O-RING
D
SAR001-53
1
GASKET
SAR001-23
1
VALVE
C
SAR001-54
1
RING NUT
SAR001-24
3
GASKET
C
SAR001-55
1
DRIVE PIN
A
SAR001-25
1
BOTTOM VALVE
C
SAR001-56
1
RING NUT
SAR001-26
5
NUT
B-C
SAR001-57
1
TIE ROD HOLDER SLEEVE
SAR001-27
2
O-RING
C
SAR001-58
1
TIE ROD BLOCKINGSTEI
SCREW
SAR001-28
1
RING-NUT
SAR001-59
1
OUTER CONE
SAR001-29
1
PIN
C
SAR001-60
1
MOTOR UNIT
B
SAR001-30
1
TRIGGER
SAR001-60-01
1
PLANET WHEEL HOLDER
SAR001-31
1
SILENCER
SAR001-61
2
BUTTON SCREWS M3X8
SAR001-32
1
PIN
SAR001-62
1
SPRING
B
SAR001-33
4
O-RING
B
SAR001-63
1
BRASS SUPPLE AIR
CONNECTION THREAD 1/4”
GAS
GRUPPI
COD.
Q.TY
DESCRIPTION
COD.
Q.TY
DESCRIPTION
Kit A
ROTATION PIN
Kit C
TAP
SAR001-55
1
DRIVE PIN
SAR001-29
1
PIN
SAR001-44
1
JOINT
SAR001-27
2
O-RING
SAR001-47
1
PIN
SAR001-23
1
VAKVE
SAR001-24
3
GASKET
Kit B
MOTOR
SAR001-25
1
BOTTOM VALVE
SAR001-60
1
MOTOR UNIT
SAR001-26
1
NUT
SAR001-39
1
ROD
SAR001-40
1
BALL
Kit D
STEM GUIDE
SAR001-41
1
CAP
SAR001-15
1
RING NUT
SAR001-03
1
SCREWING UNIT
SAR001-20
1
O-RING
SAR001-43
1
SLEEVE
SAR001-16
1
GASKET
SAR001-38
2
MOTOR AIR PIPE
SAR001-18
1
STEM GUIDE
SAR001-33
1
O-RING
SAR001-37
2
PIPE GUIDE
Kit E
PNEUMATIC PISTON
SAR001-26
2
NUT
SAR001-12
1
STEM
SAR001-62
1
SPRING
SAR001-11
1
PISTON
SAR001-8
1
O-RING
SAR001-9
1
GASKET
SAR001-10
1
GUIDE

Instruction manual
Ed. December 2019
Hydro-Pneumatic tool for rivet nuts from M3-M12
SAR 001
19
Figura 8.1-B –Spare Parts
COD.
Q.TY
DESCRIPTION
SAR001-64
1
PIN REGULATOR FOR STROKE RING NUT
SAR001-65
1
UNIVERSAL KEY
SAR001-66
1
2,5mm ALLEN KEY
SAR001-67
1
HYDRAULIC OIL TYPE ISO VG 32 100cc FOR
PNEUMATIC TOOLS
SAR001-68
1
PLASTIC CASE
SAR001-69
1
OPEN-END SPANNER 9
SPARE PARTS OF THE MOTOR UNIT (SAR001-60)
Picture 8.1-B –Motor unit spare parts

Instruction manual
Ed. December 2019
Hydro-Pneumatic tool for rivet nuts from M3-M12
SAR 001
20
1
TABELLA 8.1- B
RIF.
COD.
Q.TA’
DESCRIZIONE
RIF.
COD.
Q.TA’
DESCRIZIONE
1.
SAR001-60-01
1
PLANET WHEEL HOLDER
9.
SAR001-60-09
1
BEARING
2.
SAR001-60-02
1
PLANET WHEEL
10
SAR001-60-10
1
REAR PLATE
3.
SAR001-60-03
3
SPACER
11
SAR001-60-11
1
ROTOR
4.
SAR001-60-04
1
FRONT PLATE
12.
SAR001-60-12
1
BEARING
5.
SAR001-60-05
1
STATOR
13.
SAR001-60-13
1
CROWN WHEEL
6.
SAR001-60-06
5
FIN
14.
SAR001-60-14
1
BEARING
7.
SAR001-60-07
1
ROLLER
15.
SAR001-60-15
1
SNAP RING
NOTE: When placing an order, please indicate always the REF. number and the DESCRIPTION.
8.2 –ORDERING SPARE PARTS
Please kindly remember that only local authorized dealers are allowed to repair the tool. Failing this, you are
requested to contact the Technical Assistance Service of Sariv S.r.l., where qualified operators avail of the
correct tools and original spare parts to solve any problems.
