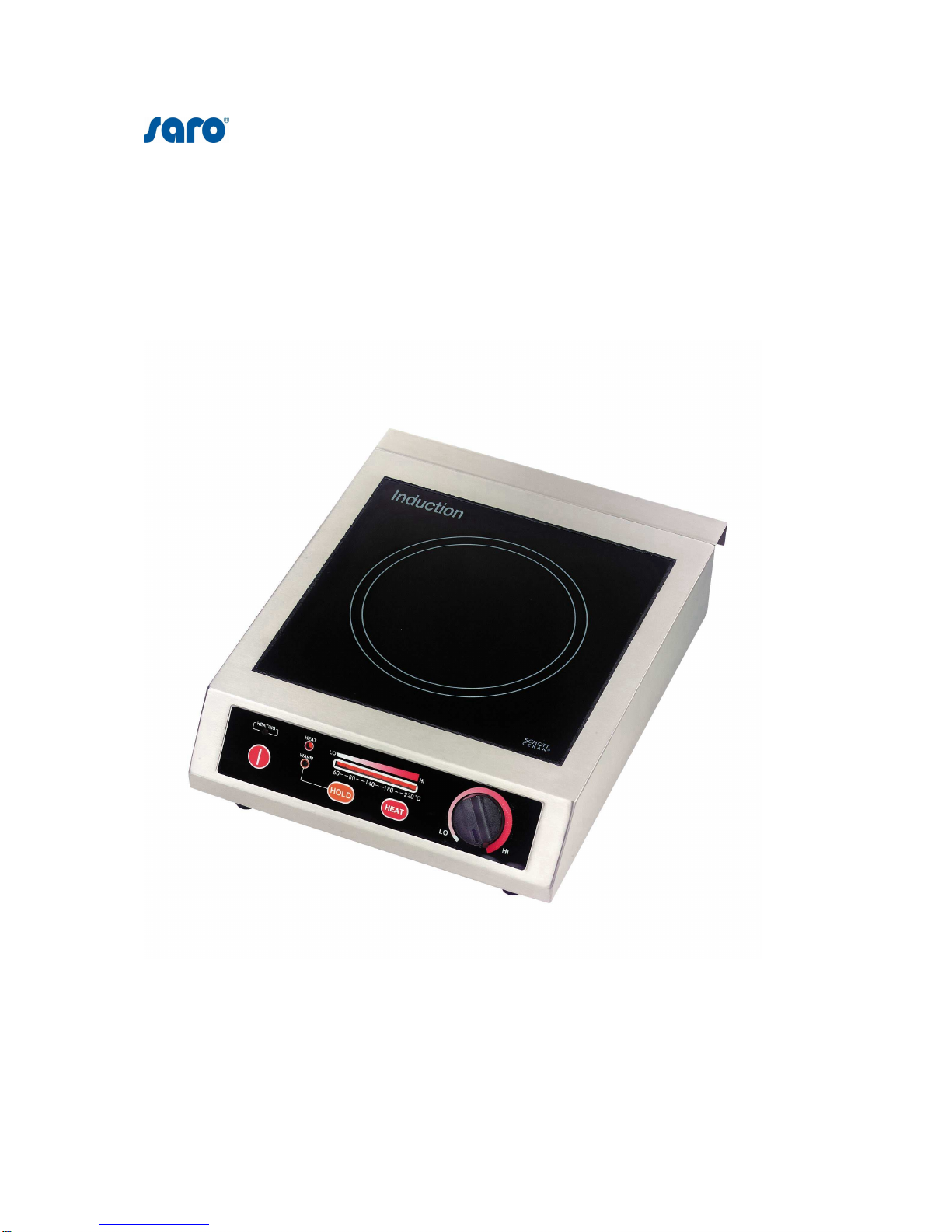

saro CT 25-A User manual

Instruction Manual
Induction Cooking Plate
Model CT 25-A
Order no. 301-1000

Instruction Manual
Induction Cooking Plate
Model CT 25-A
Order no. 301-1000
General notes
• Carefully read these instruction manual through as they contain important information.
• It is advisable to keep the instruction manual in a place where you have them always
ready to hand. Should you pass the induction cooker on to a third party, this instruction
manual must be handed on.
• As soon as you have unpacked the induction cooker, check whether everything is in a
faultless condition. Should anything be damaged, do not connect the appliance as such,
but inform your dealer.
• The induction cooker must only be used for the intended purpose. Improper use can
cause damages and lead to the loss of the warranty.
• Before you connect the induction cooker, make sure that the type of current stated on the
identification plate corresponds with your mains supply.
• In the case of fault and/or malfunction, pull the plug out of the socket and inform your
dealer. He will carry out the repair with original spare parts.
• Please observe the local regulations concerning accident prevention and disposal.
• The manufacturer/dealer cannot be made responsible for damages which arise through
not observing these operating instructions. Apart from this, if these instructions are not
observed, induction cooking plate safety is no longer guaranteed.
Safety notes
1. Place the induction cooker on a stable and level surface (never on a flammable surface,
e.g. carpet, table cloth etc.). Keep a minimum distance of 10 cm to walls or other items.
Note: Do not block the ventilation slots of the device. This may overheat the device.
2. Use only compatible induction cookware with diameter of 12 to 26 cm.
3. Don’t touch the hot surface of the glass field. Please note: the induction cooker does not
heat up itself during cooking, but the temperature of the cookware heats up the hotplate.
4. Do not place any empty containers on the induction cooker.
5. Cable and plug must not be touched with water.
6. Do not plug into a socket where several other appliances are plugged in.
7. Do not pull the plug out of the socket by the cable.
8. The cable must not hang over table edges and/or sharp edges. It also must not come into
contact with the hot appliance surface or with water.
9. Check regularly the cable. If it is damaged, it must be exchanged by a qualified specialist.
10. Do not put the induction cooker near to gas or electric ovens and/or other sources of
warmth. Take care that no curtains or other flammable materials come into contact with
the oven when it is in use.
page 1

Instruction Manual Induction Cooking Plate Model CT-25 A
Continuation “Safety notes”
11. Do not place the induction cooker next to devices or objects, which react sensitively to
magnetic fields (e.g. radios, TV, cassette recorders, etc.)
12. Do not leave the oven unattended while it is in use. Children are not able to realise
dangers when handling electronic appliances.
13. Do not place any metal objects on the induction cooker.
14. Do not move the induction cooker while cooking or with hot cookware on top of it.
15. The glass top is of strong, hard, and non-porous properties. But, in case of breakage,
even it’s only slight cracking, disconnect the appliance from the mains immediately and
contact your dealer.
16. Do not use the oven outdoors.
17. Before each cleaning session, allow the cooker to cool down and pull the plug out of the
socket.
18. Unplug when not in use.
19. Do not operate the induction cooker if it has been damaged in any manner. Disconnect
the cooker from the power supply immediately and contact the customer service.
20. Repairs may only be undertaken by a qualified specialist using original spare parts.
Safety precautions
• If the pan is left on the induction cooker for more than 2 hours, or if the user does not
operate any functions for more than 2 hours, the induction cooker will automatically shut
off.
• If the induction cooker is left on for more than 60 seconds without a pan or with an
incompatible pan, the unit will automatically shut off.
• If the pan’s material or it’s dimension are not suitable for this induction cooker, the pan
indicator will not light.
• If the pan’s temperature becomes too high, the over-heating device is activated. The unit
will automatically shut off.
Operating
• Plug the power plug into a suitable outlet.
• Place a suitable pan with the food to be cooked on the hotplate. Do not place the pan
without food on the cooker.
• Now press the ON/OFF switch (1) to turn the induction cooker on.
• Turn the rotary knob (8) on the desired heating stage ( 1 = minimum to 9 = maximum)
• Note: The control lamp (2) lights only up if you place a suitable pot with the correct
diameter on the heating plate.
• This unit is equipped with “over protection device”, which will stop power temporally when
top plate temperature reaches 230°C (+/-10°C). The power will start again automatically
when the temperature of top plate reduced under 230°C.
• If you want to keep the food warm, push “Warm” function key (5). The temperature
holding function will start working.
• After the cook procedure switch the equipment off (1) and pull the plug from the plug
socket.
• Allow the equipment to cool. Then wipe the heating plate and the housing with a warm
damp cloth and dry everything. If necessary, use a mild cleaning agent. Before each
cleaning pull the plug from the plug socket.
page 2

Instruction Manual Induction Cooking Plate Model CT-25 A
Technical data
Model CT-25 A
Connection 230V / 50Hz / 1 Ph.
Power 2,5 kW
Electric Power Range 300 watt to 2,5 kW
Safety Device a) Over Time Protector (2 hours)
b) Automatic Safety Shut-Off
c) Material Compatibility Detector
d) Small Object Detector
e) Overheating Protection Device
Dimensions 422 x 328 x h 110 (included feed)
Diagram
1. ON/OFF
2. Induction heating indicator light
3. Heat function indicator light
4. “Warm” function indicator light
5. “Warm” holding temperature key
6. Power level / holding temperature display LED lights
7. “Heat” function key
8. Power regulator rotary knob
9. Foot stand
10. 2500 watt induction heating zone
11. Ceramic top plate
12. Air-outlet
13. Bottom chassis
14. Air-intake
page 3
14
10
11
12
13

Instruction Manual Induction Cooking Plate Model CT-25 A
Cleaning
• Clean after each use.
• Allow the cooker to cool down.
• Switch off the device and disconnect the power plug from the socket.
• Wipe off the glass field with a damp cloth or use a mild, non-abrasive soap solution.
• Make sure that the bottom of the cookware does not scrape across the surface.
• Do not use benzine, thinner, scrubbing brush or polishing powder to clean the cooker.
Trouble Shooting
No indication light when power „on“ Cable/teminal block is loosed.
Broken circuit of fuse; or automatic switch in your
house
Power cupply stopped.
Heating indicator does not light-in. Unsuitable cooking utensil.
Appliance fails to heat up. Utensil doesn’t located at the centre properly.
Over-heating protection is activated.
Appliance suddenly stops heating High ambient temperature
during operation Air entrance or outlet blocked.
Over-heating protection activated.
.
page 4
