Sartorius Stedim Biotech QuickSeal Cutter User manual

85037-551-17
Operating Manual
QuickSeal®Cutter
Large Diameter Cutter

2
Read and understand all of the instructions and safety information
in this manual before operating or servicing this tool.

QuickSeal®Cutter 3
Contents
Contents
1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
1.1 Description.....................................................................4
1.2 Safety ..........................................................................4
1.3 Purpose of this Manual ........................................................4
1.4 Symbols Used ..................................................................5
2 General Safety Rules...............................................................6
3 Important Safety Information ....................................................8
4 Overview.......................................................................... 11
5 Operation......................................................................... 12
5.1 Charging the Battery ........................................................ 12
5.2 LED Indicator (Red) .......................................................... 12
5.3 Cutting the Collar............................................................ 13
6 Maintenance ..................................................................... 14
6.1 Each Operating Day.......................................................... 14
6.2 Monthly...................................................................... 14
6.3 Annually (or after 10,000 cuts) .............................................. 14
6.4 Preventative Maintenance................................................... 15
6.5 LCD Display .................................................................. 15
7 Correction of defects ............................................................ 16
7.1 Before You Begin ............................................................ 16
8 Technical Data.................................................................... 17
8.1 Cutting Capacities ........................................................... 17
8.2 Cutting Tool.................................................................. 17
8.3 Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
9 Risk Assessment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
10 Appendix.......................................................................... 28
10.1 Service ....................................................................... 28
10.2 Decontamination Declaration ............................................... 28
10.3 CE Declaration of Conformity ............................................... 29
10.4 Service and Maintenance Request Form..................................... 30

4 QuickSeal®Cutter
Introduction
1 Introduction
1.1 Description
The QUICKSEAL® Large Diameter Cutter is a hand-held, self-contained cutting tool
intended to cut the QUICKSEAL® collars.
1.2 Safety
Safety is essential in the use and maintenance of all tools and equipment. This
manual and any markings on the tool provide information for avoiding hazards
and unsafe practices related to the use of this tool. Observe all of the safety
information provided.
1.3 Purpose of this Manual
This manual is intended to familiarize all personnel with the safe operation and
maintenance procedures for the following tool:
QUICKSEAL® Large Diameter Cutter
Keep this manual available to all personnel.
Replacement manuals are available upon request. Please contact your sales represen-
tative for replacement.
This tool is protected by US Patent Nos:
− 6,276,186
− 6,401,515
− 6,718,870
− 7,086,979
− 7,254,982
All specifications are nominal and may change as design improvements occur.
Sartorius Stedim Biotech and Sartorius AG shall not be liable for damages from
misapplication or misuse.
Declaration of Conformity see page 29.

QuickSeal®Cutter 5
Introduction
1.4 Symbols Used
As a means of instruction and direct warning of hazards, all important text
statements in these installation instructions will be marked as follows:
This instruction denotes a possible danger with medium risk of death or severe injury
if not avoided.
This symbol denotes a possible danger with moderate or minor risk of injury if not
avoided.
This symbol denotes a danger with low risk of damage to property if not avoided.
This symbol:
− is an indication of a function or setting on the device,
− is an indication that caution should be exercised while working,
− identifies useful information.
The following presentations will also be used:
− Texts that use this mark are lists
t Texts that use this mark describe activities that must be carried out in the
specified order
y Texts that use this mark describe the result of an action

6 QuickSeal®Cutter
General Safety Rules
2 General Safety Rules
Read all instructions. Failure to follow all instructions listed below may result
in electric shock, fire and|or serious injury. The term “power tool” in all of the
warnings listed below refers to your mains operated (corded) power tool or
battery operated (cordless) power tool, also machines and electric units.
Save these instructions.
Work Environment
− Keep work area clean and organized. Cluttered and dark areas might trigger
accidents.
− Do not operate power tools in explosive atmospheres, such as in the presence
of flammable liquids, gases or dust. Power tools create sparks which may ignite
the dust or fumes.
− Keep persons away while operating a power tool.
Distractions can cause you to lose control.
Electrical Safety
− Power tool plugs must match the outlet. Never modify the plug in any way.
Do not use any adapter plugs with earthed power tools. Unmodified plugs and
matching outlets will reduce risk of electric shock.
− Avoid body contact with earthed surfaces such as pipes, radiators, ranges
and refrigerators. There is an increased risk of electric shock if your body is
earthed or grounded.
− Do not expose power tools to rain or humidity. Water penetrating a power tool
will increase the risk of electric shock.
− Do not abuse the cord. Never use the cord for carrying, pulling or unplugging
the power tool. Keep cord away from heat, oil, sharp edges or moving parts.
Damaged or entangled cords increase the risk of electric shock.
− When operating a power tool outdoors, use an extension cord suitable for
outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric
shock.
Personal Safety
− Stay alert, be aware what you are doing and use common sense when operating
a power tool. Do not use a power tool while you are tired or under the influence
of drugs, alcohol or medication. A moment of inattention while operating power
tools may result in serious personal injury.
− Use safety gear and always wear eye protection. Safety equipment such as dust
mask, anti-skid safety shoes, hard hat, or hearing protection used for appropriate
conditions will reduce personal injuries.
− Avoid unintended starts. Make sure the switch is in the off position before
plugging in.
Carrying power tools with your finger on the switch or plugging in power tools
that have the switch on invites accidents. Do not manipulate the switch.
− Remove any adjusting key or wrench before turning the power tool on. A wrench
or a key left attached to a rotating part of the power tool may result in personal
injury.
− Keep proper footing and balance at all times.
This enables better control of the power tool in unexpected situations.

QuickSeal®Cutter 7
General Safety Rules
− If devices are provided for the connection of dust extraction and collection
facilities, ensure these are connected and properly used. Use of these devices can
reduce dust related hazards.
Care and Usage of Power Tools
− Do not overload the power tool. Use the correct power tool for your application.
The correct power tool will do the job better and safer at the rate for which it
was designed.
− Do not use a power tool with a defective switch. Any power tool that cannot be
controlled with the switch is dangerous and must be repaired.
− Disconnect the plug from the power source before making any adjustments,
changing accessories, or storing power tools. Such preventive safety measures
reduce the risk of starting the power tool accidentally.
− Do not allow persons unfamiliar with the power tool or these instructions to
operate the power tool. Power tools are dangerous in the hands of untrained
users.
− Maintain power tools thoroughly. Check for functionality or jamming of moving
parts, breakage of parts and any other condition that may affect the power tools’
operation. Many accidents are caused by poorly maintained power tools.
− Keep cutting tools clean and free from debris or defects. Properly maintained
cutting tools are less likely to jam and are easier to control.
− Use the power tool, accessories, dies and jaws etc., in accordance with these
instructions and in the manner intended for the particular type of power tool,
taking into account the working conditions and the work to be performed.
Use of the power tool for operations different from those intended could result
in a hazardous situation. All unauthorized modifications to the power tool are
prohibited for safety reasons.
Service
− Have the power tool repaired by Sartorius Stedim Biotech before use.

8 QuickSeal®Cutter
Important Safety Information
3 Important Safety Information
Read and understand all of the instructions and safety information in this
manual before operating or servicing this tool. Failure to observe this warning
could result in severe injury or death.
This tool shall be used by qualified personnel who have read and understand
this manual in its entirety.
Failure to observe this warning could result in severe injury or death.
Electric shock hazard.
This tool is not insulated. When using this unit near energized electrical lines,
use proper personal protective equipment.
Failure to obey this warning could result in severe injury or death.
Wear eye protection when operating or servicing this tool.
Failure to wear eye protection could result in serious eye injury from flying debris
or hydraulic oil.
Skin injection hazard: Do not use hands to check for oil leaks.
High pressure oil easily punctures skin causing serious injury, gangrene, or death.
If injured, seek medical help immediately to remove oil.
Do not use solvents or flammable liquids to clean the cutting tool.
Solvents or flammable liquids could ignite and cause serious injury or property
damage
Cutting Hazard: Keep hands away from the cutting head when cutting.
Failure to observe this warning could result in severe injury or death.
Do not dispose of batteries in a fire. They will vent fumes and may explode.
Failure to observe this warning could result in severe injury from harmful fumes or
burns from flying debris.
Inspect tool and blades before use. A damaged or improperly assembled tool
can break and strike nearby personnel. Contact Sartorius Stedim Biotech for
necessary repairs.
Failure to observe this warning could result in severe injury or death.
This tool shall be used by only one person at a time. This tool shall not be used
if more than one operator is required to operate the tool, support the tubing
or otherwise be in close proximity (<12”) to the tool.
Failure to observe this warning could result in severe injury or death.
Keep work area clean, organized and well lit. Cluttered, dark areas might
trigger accidents.
Failure to observe this warning could result in severe injury or death.

QuickSeal®Cutter 9
Important Safety Information
Do not operate in explosive atmospheres, such as in the presence of
flammable liquids, gases or dusts. Power tools create sparks which may ignite
the dust or fumes.
Stay alert, be aware of what you are doing and use common sense when
operating a power tool. Do not use a power tool while you are tired or under
the influence of drugs, alcohol or medication. A moment of inattention while
operating power tools may result in serious personal injury.
Dress properly. Use safety gear and always wear eye protection.
Do not wear loose clothing or jewelry. Keep your hair, clothing and loose
fitting gloves away from moving parts. Loose clothing, jewelry or long hair
can be caught in moving parts.
Avoid unintended starts. Remove the battery when the tool is not in use.
Carrying power tools with your finger on the switch or plugging in power tools
that have the switch on invites accidents. Do not manipulate the switch.
Keep proper footing and balance at all times.
This enables better control of the power tool in unexpected situations.
Disconnect the battery before making any adjustments or cleaning of the tool,
and when the tool is in storage or not in use.
Store the tool out of the untrained persons.
Maintain the condition of the cutting tool and do not use if the tool is
damaged or appears unfit for use.
Do not use the tool if the switch does not turn on or off.
Do not use the tool if it is not working properly.
− Do not operate the tool without cutting blades. Damage to the ram or cutting
head can result.
− Do not twist work piece or tool during cutting operation. Blade failure could
result.
− This tool is not designed for continuous use. After 100 cutting cycles, allow
the cutting tool to cool for 15 minutes.
− Do not secure this tool in a vise. This tool is designed for hand-held operation.
− This tool may be used in damp or wet environments; however, air-drying is
recommended before use if the tool becomes soaked. Damage may result when
the tool is operated prior to thorough drying when electrical components are
soaked.
− Use this tool for manufacturer’s intended purpose only.
− Do not store the tool when wet or damp.
− This tool should be used only to cut the metallic collar of the QUICKSEAL® tubing
assembly supplied by Sartorius Stedim. Cutting any other item is
prohibited and can result in injury or damage to the cutting tool.
Failure to observe these precautions may result in injury or property damage.
Do not allow anything to contact the battery terminals.

10 QuickSeal®Cutter
Important Safety Information
− Do not immerse the batteries in liquid. Liquid may create a short circuit and
damage the battery. If batteries are immersed, contact your service center for
proper handling.
− Do not place battery into a pocket, tool pouch, or tool box with conductive
objects. Conductive objects may create a short circuit and damage the battery.
− Do not place a battery on moist ground or grass. Moisture may create a short
circuit and damage the battery.
Failure to observe these precautions may result in injury or property damage.
− Do not store the battery at more than 122°F (50°C) or less than –4°F (–20°C).
Damage to the battery can result.
− Do not use another manufacturer’s charger. Other manufacturers’ chargers may
overcharge and damage the battery.
− Do not attempt to open the battery. It contains no userserviceable parts.
Failure to observe these precautions may result in injury or property damage.
− Do not perform any service or maintenance other than as described in this
manual. Injury or damage to the tool may result. Failure to observe these
precautions may result in injury or property damage.
Keep all decals clean and legible, and replace when necessary.

QuickSeal®Cutter 11
Overview

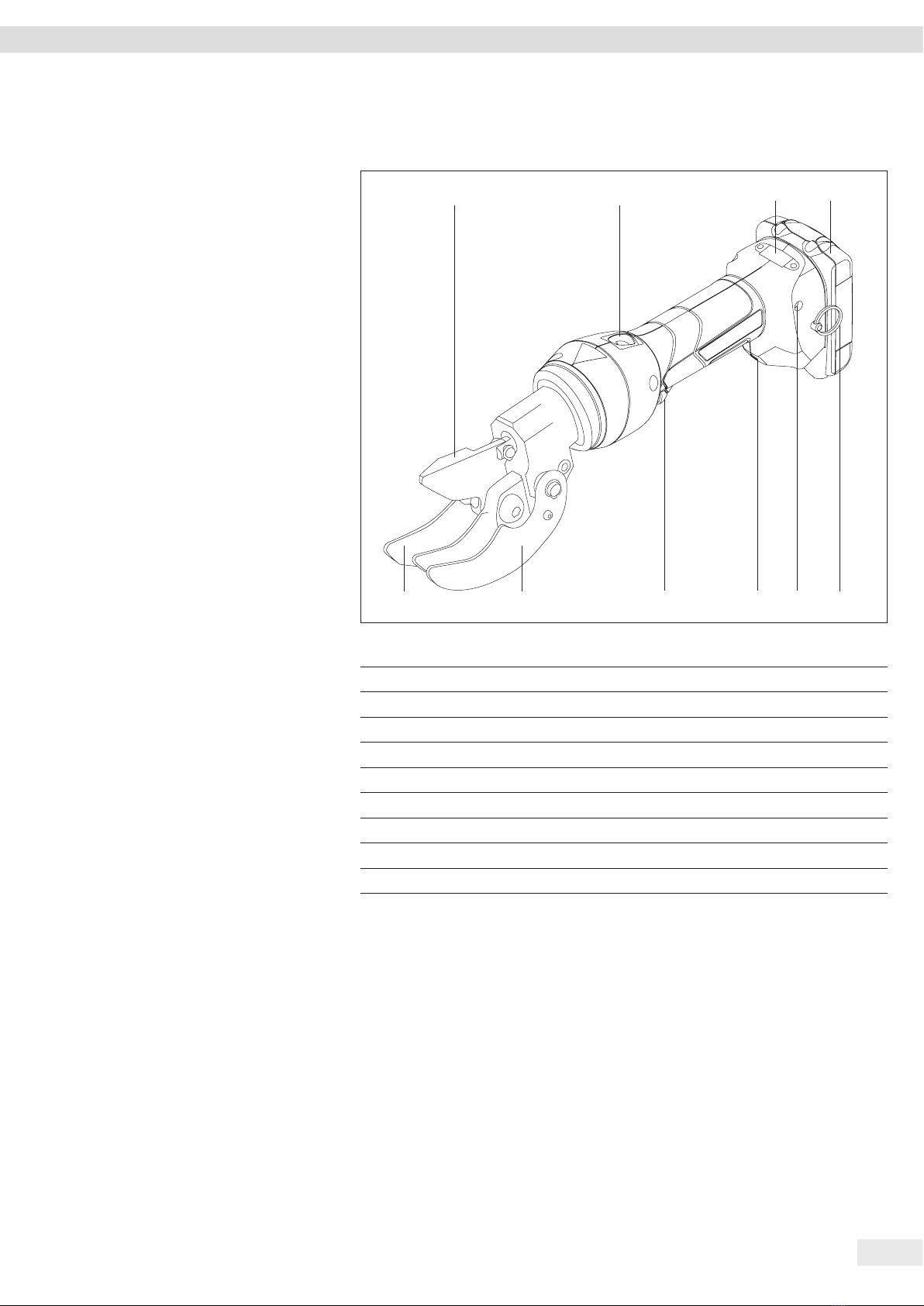

4 Overview
1 2 3 4
78 6 599
Pos. Description
1 Cutting Head
2 Retract Button
3 LCD Screen
4 Battery Cartridge
5 Lanyard Ring
6 LED Worklight (white)
7 Tube Guides
8 Trigger
9 Tube Guides

12 QuickSeal®Cutter
Operation
5 Operation
Inspect tool and blades before use. A damaged or improperly assembled tool
can break and strike nearby personnel. Contact Sartorius Stedim Biotech for
necessary repairs.
Failure to observe this warning could result in severe injury or death.
Electric shock hazard.
This tool is not insulated. When using this unit near energized electrical lines,
use proper personal protective equipment.
Failure to obey this warning could result in severe injury or death.
Wear eye protection when operating or servicing this tool.
Failure to wear eye protection could result in serious eye injury from flying debris
or hydraulic oil.
Cutting Hazard:
Keep hands away from the cutting head when cutting.
Failure to observe this warning could result in severe injury or death.
− This tool is not designed for continuous use. After 100 cutting cycles,
allow the cutter to cool for 15 minutes.
− Do not secure this tool in a vise. The cutting tool is designed for hand-held
operation.
− This tool may be used in damp or wet environments; however,
air-drying is recommended before use if the tool becomes soaked.
− Use this tool for manufacturer’s intended purpose only.
Failure to observe these precautions may result in injury or property damage.
5.1 Charging the Battery
Read the instructions supplied with the battery charger.
IMPORTANT: Running the battery below 16 V can damage the battery.
5.2 LED Indicator (Red)
This tool is equipped with a special circuit board incorporating several important
features to inform the user about the current status of the unit.
What happens Signal What it means
Flashing light for 2 seconds Battery is inserted in tool
Constant light for 20 seconds at
end of cycle
Battery charge is below 17 V
at beginning of cycle
Tool will not start, and constant
light for 20 seconds when trigger
released
Battery charge is below 16 V
at beginning of cycle
Tool will stop, and constant light
for 20 seconds after trigger is
released
Battery charge below 13 V
during cycle
Tool will stop, and flashing light
for 20 seconds when trigger is
released
– Motor current exceeds 20 A
during cycle
– Circuit has become too hot
Flashing light for 20 seconds at
end of cycle – Send tool in for service

QuickSeal®Cutter 13
Operation
5.3 Cutting the Collar

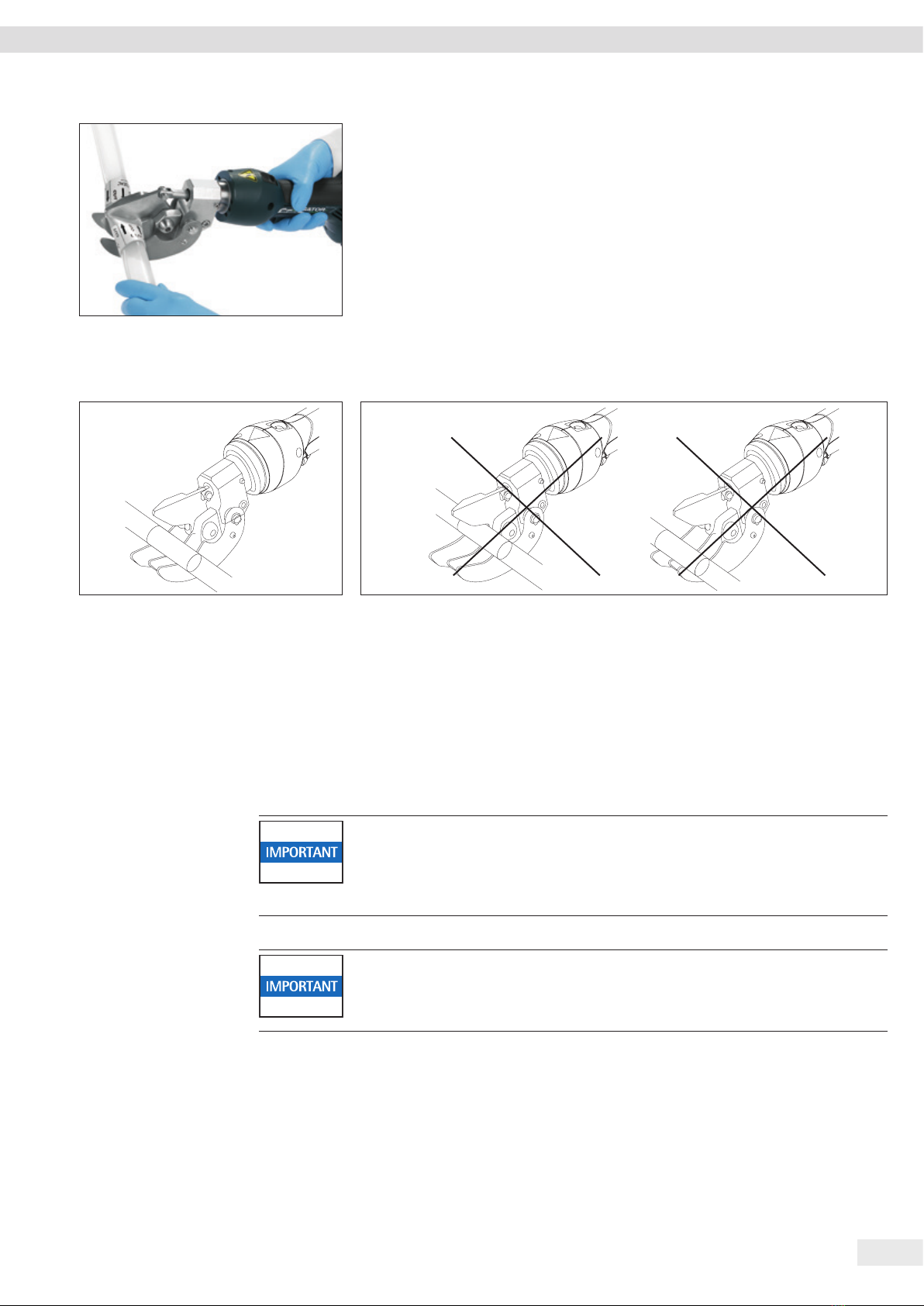

t Install the battery into the base of the QUICKSEAL® cutting tool. Be sure the
trigger is not depressed during battery installation.
t The cutting head should be fully open. Push and hold the retract button until
cutting head is fully open.
t Lay the metallic collar of QUICKSEAL® into the cutting head so that the
tubing|collar is resting on the tube guides.
− It is not necessary, and may result in malformed seal, to push the collar into
the pivot point between the upper and lower blades of the cutting head
− The guides present the collar to the cutting edge at a slight angle.
t Pull the trigger and make the cut between the 2 arrows on the collar.
t Hold the trigger down until the cutting tool achieves pressure relief which is
accompanied by an audible “pop”.
t The cutting tool returns automatically after the audible “pop”. Use the retract
button, if necessary to return the cutting head to the fully open position.
t Remove battery from cutting tool; clean and store properly.
The cutting process can be interrupted at any moment by releasing the trigger.
If it is necessary to retract the ram before a cutting cycle is completed,
push the retract button. Pushing the retract button will result in the complete
retraction of the ram.
Lay QUICKSEAL®Collar in the trough of the cutting guides.
Correct Incorrect

14 QuickSeal®Cutter
Maintenance
6 Maintenance
6.1 Each Operating Day
Before Use:
t Inspect blades for wear or damage such as cracks, gouges or chips.
t Inspect the tool for damage or leaks. If damage is detected, return the tool
to Sartorius Stedim Biotech for inspection.
Skin injection hazard:
Do not use hands to check for oil leaks.
High pressure oil easily punctures skin causing serious injury, gangrene, or death.
If injured, seek medical help immediately to remove oil.
After Use:
t Wipe all tool surfaces clean with a damp cloth and mild detergent.
Do not use solvents or flammable liquids to clean the cutting tool. Solvents or
flammable liquids could ignite and cause serious injury or property damage.
t Retract the ram putting the blades into the fully open position.
Place the tool into the carrying case. Store in a cool, dry place.
t Charge the battery.
6.2 Monthly
Thoroughly clean all surfaces.
6.3 Annually (or after 10,000 cuts)
Return the tool to Sartorius Stedim Biotech for inspection
(see also Chapter “10 Appendix”, page 28).

QuickSeal®Cutter 15
Maintenance
6.4 Preventative Maintenance
Generate cutting tool data reports including number of cuts since last maintenance
and more with i-press®App or software.

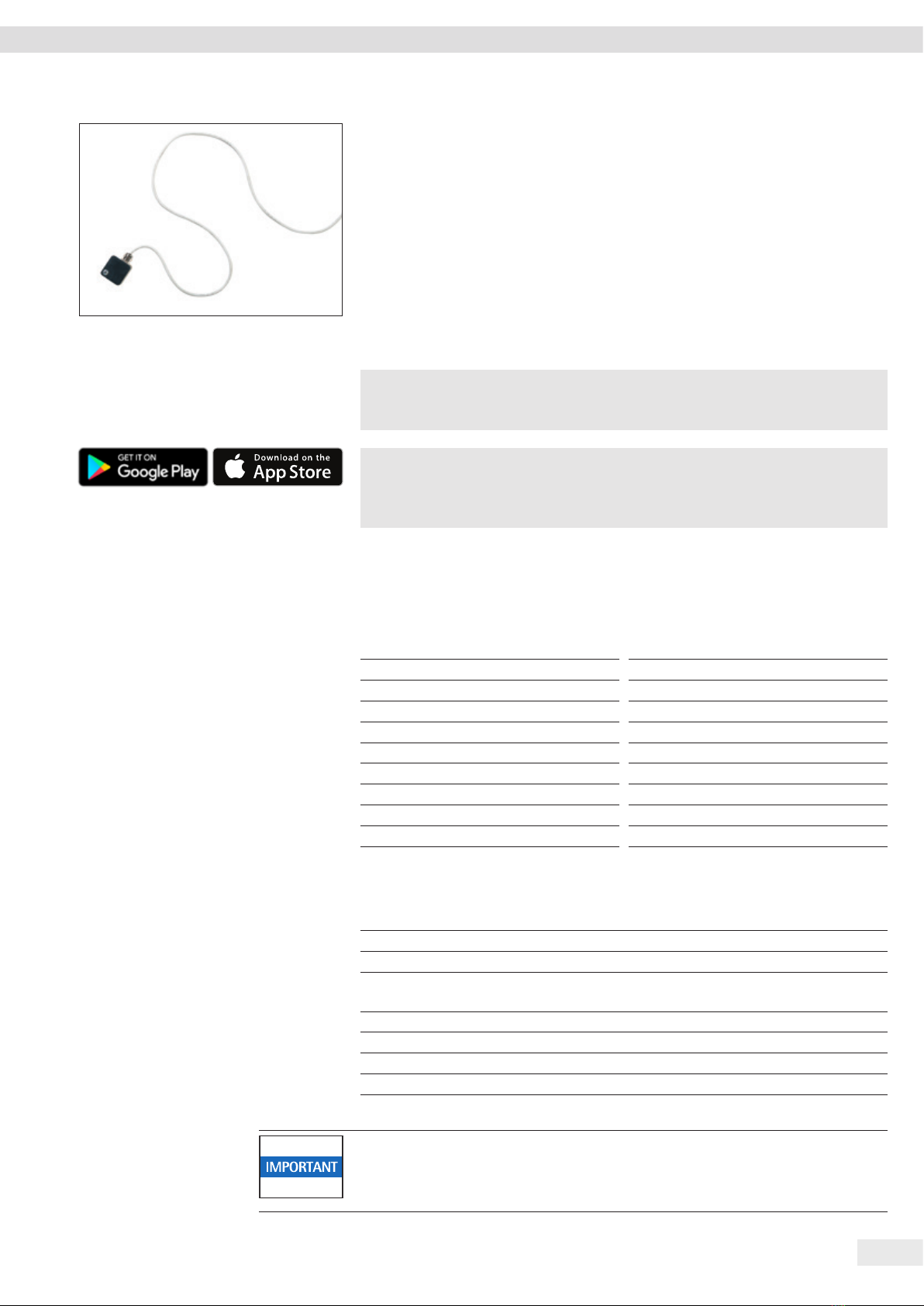

i-press®App
Connect the tool to a smartphone by Bluetooth®. Added features include project
logs, adjust tool settings
QSCUTTERREADER
Fit adaptor over the light diode on the QUICKSEAL ®cutter and depress the trigger
to read data on the i-press®software.
6.5 LCD Display
The LCD screen displays important information about the machine. Install battery,
depress trigger and identify and error codes.
Code Description Code Description
1 Overcurrent fuse 10 Real-time clock battery low
2 Overcurrent comparator 11 Tool deactivated
3 Overheated circuit board 12 Service necessary
4 Overheated battery 13 Real-time clock not found
5 Battery empty; operation stops 14 Bluetooth®unit not found
6 Faulty cut; complete cycle 15
7 Faulty cut; incomplete cycle 16 Pressure sensor not found
8 Low battery 17 Burst pressure exceeded
9 Battery empty; tool won’t run 18 Battery temperature too low
Adjust to preferences on LDC screen by pressing the buttons on either side of the
LCD screen
Code Description
1 Bluetooth®status, battery charge, current pressure, max. pressure
2 Firmware, available firmware update, serial number
3 Current user. Press & hold both buttons to change user,
select with right button, and confirm by jogging the tool.
4
5
6 Cycles until next service
7 Since manufacturing: operating hours, capacity, number of cycles
Maintenance and Service must be performed by qualified personnel only.
Return the tool to Sartorius Stedim Biotech for maintenance.
Consult Sartorius Stedim Biotech for a maintenance schedule on high-frequency
cutting.
tDownload for i-press®free software:
http://www.klauke.com/en/support/download/connectivity-software/
tDownload for i-press®app:
https://itunes.apple.com/de/app/i-press/
https://play.google.com/store/apps/details?id=com.textron.klauke.iPress.Droid
i-press®is a registered trademark
of Gustav Klauke GmbH
Bluetooth®is a registered trademark
of Bluetooth Sig, Inc.
Google Play®is a registered trademark of Google, LLC
App Store®is a registered trademark of Apple, Inc.

16 QuickSeal®Cutter
Correction of defects
7 Correction of defects
7.1 Before You Begin
t Make sure that the battery is charged. Re-check after several minutes to make
sure the battery is holding its charge.
t Use a non-flammable contact cleaner or pencil eraser to clean electrical contacts
on the battery and cutting tool.
t Reinstall the battery and check the tool again.
Problem Probable Cause Probable Remedy
Tool is inoperative Dirt, contaminants, etc.
in ram area of tool.
Clean tool
Cutting tool battery
contacts damaged
Reform contacts
Tool components worn or
damaged.
Return tool to Sartorius
Stedim Biotech (see
Chapter “10 Appendix”,
page 28 )
Blades stop during
operation
Oil level is low Return tool to Sartorius
Stedim Biotech (see
Chapter “10 Appendix”,
page 28)
Air in hydraulic system Pull trigger and hold
retract button
simultaneously. Hold for
approximately 10 seconds.
LED light glows
for 20 seconds
Battery charge low Charge or replace battery
Tool loses oil Damaged internal seal Return tool to Sartorius
Stedim Biotech (see
Chapter “10 Appendix”,
page 28)

QuickSeal®Cutter 17
Technical Data
8 Technical Data
8.1 Cutting Capacities
QUICKSEAL® QUICKSEAL®
Tube Size
(o.d.) Collar Size (o.d.) Collar Length
4” QUICKSEAL® 4”0.281” 1.500”
a” QUICKSEAL® a”0.435” 2.000”
e” QUICKSEAL® e”0.498” 2.125”
1” QUICKSEAL® 1”0.573” 2.250”
b” QUICKSEAL® b”0.700” 2.500”
3” QUICKSEAL® 3”0.835” 3.000”
1” QUICKSEAL® 1” 1.091” 3.500”
18” QUICKSEAL® 18”1.220” 4.000”
8.2 Cutting Tool
Length 375 mm (14–3”)
Width 60 mm (2–a”)
Depth 108 mm (44”)
Mass|Weight (with battery) 2.0 kg (4.4 lb)
Sound Level <80 dB at 1 m
Vibration < 2.5 m/s2
Hydraulic Oil 52057878 biodegradable
Average Cutting Time 4 seconds
Average cuts per charge approx. 300
Closing Speed 6 mm/sec
Cutting Force 1.5 Tons
Operating Temperature Range –15°C to 50°C
8.3 Battery
Charging Voltage 18 V
Charging Time 20 min

18 QuickSeal®Cutter
Risk Assessment
9 Risk Assessment
As referred in the CE Certificate the risk assessment considers the possible hazards when using the tool,
the potential of the risk and safety measures to mitigate the risk.
Position Possible Risk according to
EN 14121-1 Risk Operational Step or
Procedure
Body Part|
Place Persons
and Property
Possible Cause according to
EN 12100, Annex A Possible Consequences
of Risk
Occurrence Importance Perception Risk-factor Safety Measures Info to
Y N O I P RF
1 Mechanical hazards x 0
Machine parts x 0
– shape x Cutting Fingers Closing of the blades Cuts and bruises 2 3 1 21 Decal on tool.
Warning in IM
R&D2
– relative location x 0
– mass and stability x 0
– mass and velocity x 0 Closing speed
< 10 mm/s
– mechanical strength x 0
Accumulation of energy x 0
– elastic elements x 0
– liquids under pressure x 0
– effect of vacuum x 0
1,1 Crushing hazard x 0
1,2 Shearing hazard x 0
1,3 Cutting or severing hazard x Cutting Fingers Closing of the jaws Cuts and bruises 2 3 1 21 Decal on tool.
Warning in IM
R&D2
1,4 Entanglement hazard x 0
1,5 Drawing-in or trapping hazard x 0
1,6 Impact hazard x 0
1,7 Stabbing or puncture hazard x 0
1,8 Friction or abrasion hazard x 0
1,9 High pressure fluid injection or
ejection hazard
x 0
2 Electrical hazard due to: x 0
2,1 Contact of person with live parts,
low voltage
x 0
2,2 Contact of person with parts
which have become live under faulty
conditions
x 0
2,3 Approach to live parts under high
voltage
x 0
2,4 Electrostatic phenomena x 0

QuickSeal®Cutter 19
Risk Assessment
9 Risk Assessment
As referred in the CE Certificate the risk assessment considers the possible hazards when using the tool,
the potential of the risk and safety measures to mitigate the risk.
Position Possible Risk according to
EN 14121-1 Risk Operational Step or
Procedure
Body Part|
Place Persons
and Property
Possible Cause according to
EN 12100, Annex A Possible Consequences
of Risk
Occurrence Importance Perception Risk-factor Safety Measures Info to
Y N O I P RF
1 Mechanical hazards x 0
Machine parts x 0
– shape x Cutting Fingers Closing of the blades Cuts and bruises 2 3 1 21 Decal on tool.
Warning in IM
R&D2
– relative location x 0
– mass and stability x 0
– mass and velocity x 0 Closing speed
< 10 mm/s
– mechanical strength x 0
Accumulation of energy x 0
– elastic elements x 0
– liquids under pressure x 0
– effect of vacuum x 0
1,1 Crushing hazard x 0
1,2 Shearing hazard x 0
1,3 Cutting or severing hazard x Cutting Fingers Closing of the jaws Cuts and bruises 2 3 1 21 Decal on tool.
Warning in IM
R&D2
1,4 Entanglement hazard x 0
1,5 Drawing-in or trapping hazard x 0
1,6 Impact hazard x 0
1,7 Stabbing or puncture hazard x 0
1,8 Friction or abrasion hazard x 0
1,9 High pressure fluid injection or
ejection hazard
x 0
2 Electrical hazard due to: x 0
2,1 Contact of person with live parts,
low voltage
x 0
2,2 Contact of person with parts
which have become live under faulty
conditions
x 0
2,3 Approach to live parts under high
voltage
x 0
2,4 Electrostatic phenomena x 0

20 QuickSeal®Cutter
Risk Assessment
Position Possible Risk according to
EN 14121-1 Risk Operational Step or
Procedure
Body Part|
Place Persons
and Property
Possible Cause according to
EN 12100, Annex A Possible Consequences
of Risk
Occurrence Importance Perception Risk-factor Safety Measures Info to
Y N O I P RF
2,5 Thermal radiation or other phenomena
such as the projection of molten
particles and chemical effects from
short circuits, overloads, etc.
x 0
3 Thermal hazards, resulting in: x 0
3,1 Burns and scalds x 0
3,2 Hot|Cold working environment x 0
4 Hazards generated by noise,
resulting in: x 0
4,1 Hearing loss or other physiological
disorders
x 0
4,2 Interference with speech x 0
5 Hazard generated by vibration x 0
5,1 Use of hand-held machines x 0
5,2 Whole body vibration x 0
6 Hazards generated by radiation x 0
6,1 Radio frequency radiation x 0
6,2 Infrared, visible and ultraviolet x 0
6,3 X and gamma rays x 0
6,4 Alpha, beta rays, electron to ion
beams, neutrons
x 0
6,5 Lasers x 0
7 Materials and Substances x 0
7,1 Hazards from contact or inhalation of
harmful fluids,gases, mist,fumes and
dust
x 0
7,2 Fire and Explosion x 0
7,3 Biological|Microbiological x 0
8 Hazards generated by neglecting
ergonomic principles in machinery
design as:
x 0
8,1 Unhealthy posture or excessive effort x 0
8,2 Inadequate consideration of hand-arm
or foot-leg anatomy
x 0
8,3 Neglected use of personal protection
equipment
x 0
8,4 Inadequate local lighting x 0
8,5 Metal overhead and underload, stress x 0
8,6 Human error, human behavior x 0
8,7 Inadequate design or location or
identification of manual controls
x 0
