Service Manual
Sartorius Signum®1 | Signum®2 | Signum®3
Models SIWR | SIWA | SIWS
Signum Series Complete Scales

2Service Manual Signum
Contents
Introductory Remarks 4
Notes on Using this Manual 4
Printing the Manual 4
Symbols 5
Safety Instructions 6
Model Designation 6
Model Codes: 7
Resolutions: 7
Models with Special Weighing Systems 8
Design 1 - 3 8
Design 4 - 6 9
Additional Tools / Programs, etc. 10
Accompanying Literature 10
Description of the Equipment 11
Display Units 11
Flat Screen Display Unit 11
Tall Display Unit 11
Position Description 12
Overview of the Signum Series Scale Featuring
Strain Gauge Technology 13
Overview of the Signum Series Scale Featuring
Electromagnetic Force Compensation 14
Activating the Service Mode 15
Activating the Service Mode 15
Additional Menus in the Service Mode 17
In the Text Menu (Setup) 17
Calibration/Adjustment Functions 19
1-9-1External Calibration/Adjustment with
Default Weights 19
1-9-3External Calibration/Adjustment with
User-Defined Weights 20
1-9-4Calibration/Adjustment with an
Internal Weight 2) 22
1-9-6External Linearization with Default
Weights 23
1-9-7External Linearization with
User-Defined Weights 26
1-9-8Setting the Preload 29
1-9-9Clearing the Preload 30
1-18 Entering Calibration/Linearization
Weights 32
1-18-1 External User-Defined Calibration Weight (ser-
vice mode not required) 32
1-18-2 Entering the 1st Linearization
Weight 33

3
Service Manual Signum
Replacing the Display Unit 34
Opening the Display Unit 34
Closing the Display Unit 34
Replacing the Front Panel 35
Replacing the Cable 35
Replacing the Display PCB 36
Replacing Components 37
Repairing the Scale 37
Opening a Scale Featuring Strain Gauge
Technology 37
Opening a Scale Featuring Electromagnetic
Force Compensation 38
Closing the Scale 39
Replacing the Power PCB 40
Replacing the Data Output PCB 41
Replacing the Main PCB 42
Replacing the System PCB 43
Replacing Comonents of SIWAEDG 44
Optional Data Output Ports/Interfaces 46
Installation of the Profibus Module 46
Data Output Plate with IP44 Protection 47
Data Output Plate with IP65 Protection 48
COM 1 Port SIWAEDG 49
Error Codes 50
Additional Tools / Programs, etc. 52
Block Diagram 53
Working with the Service Software 54
Service Switches 54
Function of the Service Switches 54
Menu Access Switch 55
Boot Switch (Flash Switch) 57
SBI/XBPI 57
Close Function 57
Setting the XBPI-232 Protocol 57
Calibration/Adjustment Data for the SIWR 58
Calibration/Adjustment Data for the SIWR 59
Calibration/Adjustment Data for the SIWA 60
Calibration/Adjustment Data for the SIWS 61

4Service Manual Signum
Introductory Remarks
Introductory Remarks
Notes on Using this Manual
This manual contains information on maintenance, calibration and adjustment of
Signum series scales, as well as on error messages.
If you have any comments or require more detailed information, please write to us
at: [email protected].
Printing the Manual
To save paper, we recommend configuring the printer settings in the Adobe Acrobat
program as follows:
File | Print | Properties | Layout: Pages per Sheet: 2

5
Service Manual Signum
Introductory Remark
!
Symbols
The following symbols are used in this manual:
Warning
Indicates safety instructions. Please make sure to observe these
instructions; otherwise, physical injury or material damage may
result.
Note
The light bulb symbol indicates important information that will help
prevent errors, as well as other useful tips.

6Service Manual Signum
Introductory Remarks
Safety Instructions
The Signum series scale is in conformance with the applicable directives and
standards. Use of the scale for other than its intended purpose, however, can result
in physical injury or material damage.
Repairs must be performed by service technicians who have been trained at the
factory.
Warning
Electric shocks can cause serious burns and life-threatening injuries.
To avoid electric shock, always disconnect the power cord from
the wall outlet (mains supply) before beginning repair work or
replacement of components. When the scale housing is open, always
use an isolating transformer or a ground fault circuit interrupter.
Make sure no voltage is present in the scale before connecting or disconnecting any
cables to or from it. Otherwise, assemblies or other components may be destroyed.
1 Press eto switch off the scale.
2 Unplug the power cord.
3 Carry out maintenance/repair work.
For further information, please refer to the operating instructions
(WSI6007-e07074.)
!

7
Service Manual Signum
Introductory Remarks
Model Designation
Model Codes:
SIW – Series name
R / A / S – Featured technology (R=Regular; A=Advanced with strain
gauge technology;S=Supreme with electromagnetic force compensation)
1,2,3 – Application level (display unit); later a 4th display unit will be available in addition
X – Indicates explosion-protected (N/A at the initial stage, since it is not available in an explosion-
protected version at this stage)
P – Material (at the initial stage only painted, but will also be available in stainless steel at a later time)
Resolutions:
-R 6,000d< 15,000d
-L 15,.000d
-I 30,.000d
-N multirange n*3,000d
-M multiintervall n*3,000d
-S 50,000d <S<100,000 d
-H >100,000d
-D Dual range high resolution >50,000
-P Polyrange high resolution >50,000
-K Dual range low resolution <= 50,000
-T Polyrange low resolution <=50,000
It is possible to select from various groups of options
(e.g., interfaces, rechargeable battery pack, 2nd A/D converter, other IP versions, etc.)

8Service Manual Signum
Introductory Remarks
Models with Special Weighing Systems

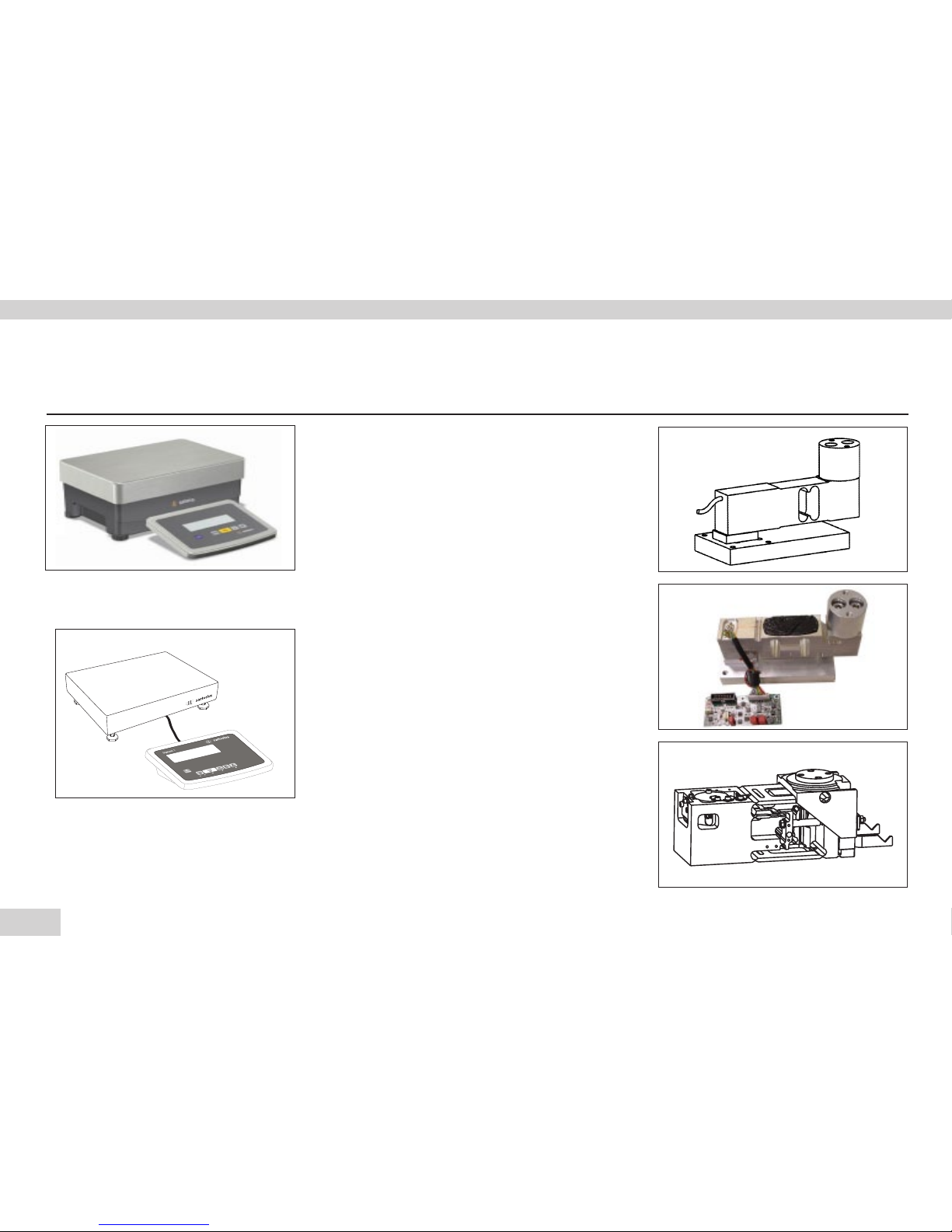

Model Design 1 System
Regular weighing system:
Strain gauge technology (to the right)
Without built-in motorized calibration
weight Nominal load 20kg | 50kg | 100kg
Design 2
Advanced weighing system:
Strain gauge technology (to the right)
Without built-in motorized calibration
weight Nominal load 20kg | 50kg | 100kg
SIWAEDG
weight Nominal load 16kg | 35kg | 65kg
Design 3
Supreme weighing system:
Narrow forked-lever system (to the right)
With built-in motorized calibration weight
Nominal load 20kg
AUT22923a.JPG PW_Sys_DMS_01.eps
PW_Sys_GHS_03.eps

9
Service Manual Signum
Introductory Remarks
PW_Sys_GHS_04.eps
PW_Sys_DMS_05.eps
PW_Sys_DMS_06.eps
Model Design 4 System
Supreme weighing system:
Narrow forked-lever system (to the right)
With built-in motorized calibration weight
Nominal load 40kg
Design 5
Regular weighing system:
Strain gauge technology (to the right)
Without built-in motorized calibration
weight PW15-EX | Nominal load up to 30kg
Design 6
Regular weighing system:
Strain gauge technology (to the right)
Without built-in motorized calibration weight
PW10-EX | Nominal load up to 100kg

10 Service Manual Signum
Introductory Remarks
Additional Tools / Programs, etc.
Designation Order No.
- Isolating transformer
- RS232 connection cable (25-pin / 25-pin) 7357312
- RS232 connection cable (25-pin / 9-pin) 7357314
- Torx screwdriver set 10/15/20
Accompanying Literature
Designation Order No.
Operating instructions WSI6007-e07074
Service manuals, spare parts lists, etc. can be downloaded from the Internet at
http://iss.sartoserver.de. Registration is required: please contact Malte.Pramann@
Sartorius.com for details.http://iss.sartoserver.de hinterlegt.

11
Service Manual Signum
Description of the Equipment
PW_Bal01.cdr
TitSig.cdr
Description of the Equipment
Display Units
Flat Screen Display Unit
These are available with various screen types.
The display unit can be hung on the load cell
or secured to the scale using a stand or
column.
Tall Display Unit
This is available as an option with an A/D
converter or a rechargeable battery pack. Position Description

12 Service Manual Signum
Description of the Equipment
PW_Folie01.epsPW_Folie02.epsPW_Folie03.eps

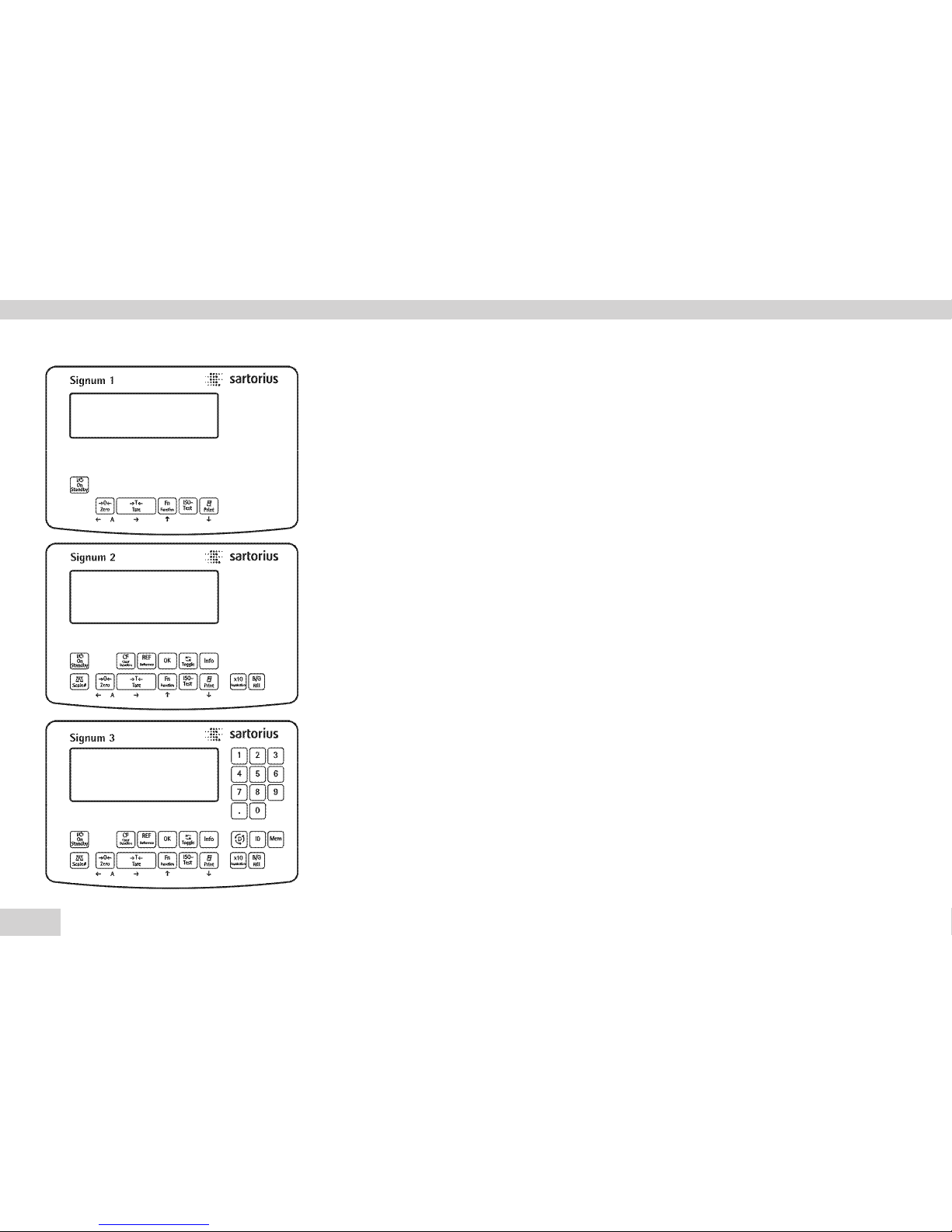

cClear Function
eOn/off
(in standby mode, Off is displayed).
Signum 2 and 3 only:
nIf a second weighing platform is connec-
ted, this key toggles the display between
the two readouts.
(– Zero the scale
– Cancel calibration/adjustment
)– Tare the scale
kToggle between 1st and 2nd weight unit,
or gross and net values, or normal and
10-fold higher resolution, depending on
operating menu settings (depends on
model)
JStart calibration or adjustment
p– To print: press briefly.
– To print GMP footer:
Press and hold (> 2 seconds)
Signum 3 only:
ITo toggle the scale to Info mode
Signum 3 only:
dIdentifiertaste zur Eingabe von Bediener-
kennungen
Signum 2 and 3 only:
KToggle unit between normal and
10-fold higher resolution
Signum 2 and 3 only:
LNetto-Bruttowert-Taste
Nur Signum 2 und 3
wToggle between display modes within an
application program
Signum 2 and 3 only:
rLets you modify reference values
Signum 2 and 3 only:
OSaves a value or starts an application
program.
Signum 3 only:
R Saves a value in product data memory
Signum 3 only:
DToggle applications
Signum 2 and 3 only:
IPress to view either application data or
manual tare values, depending on the
key pressed subsequently (e.g., ))
Signum 2 and 3 only:
c–Quit an application or delete an input
character

13
Service Manual Signum
Description of the Equipment

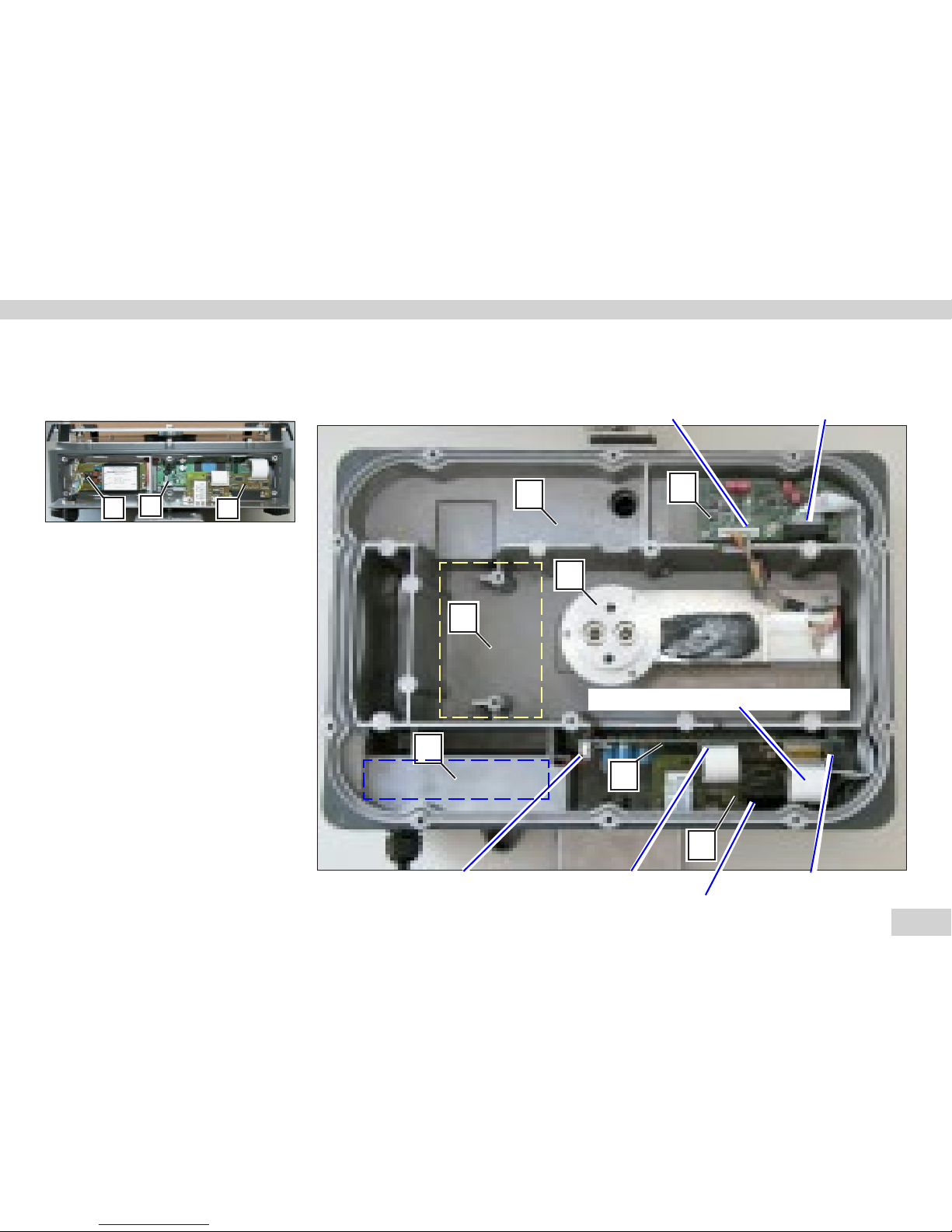

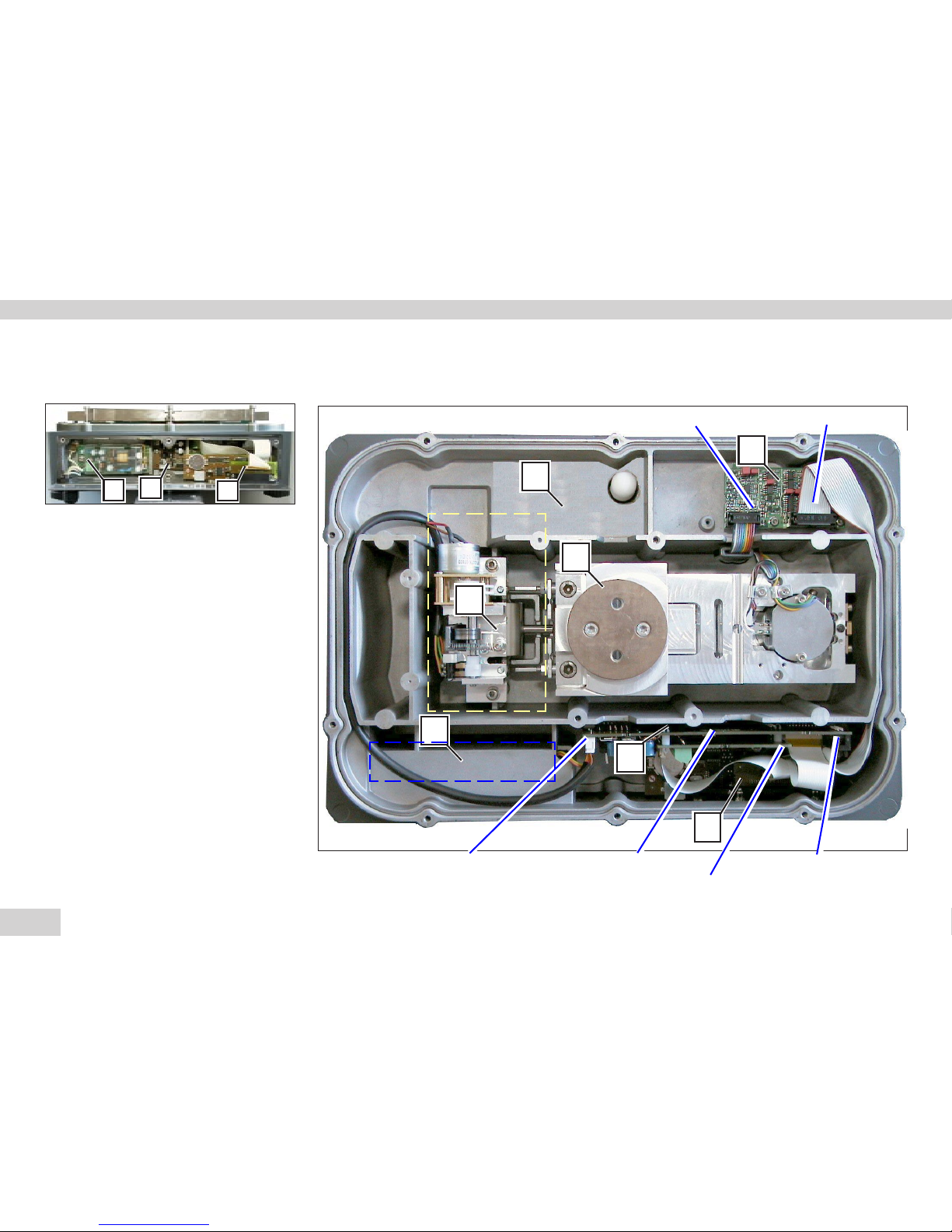

The Sartorius Signum series advanced scale (SIWA) with a mechatronic weighing system
Overview of the Signum Series Scale Featuring Strain Gauge Technology
A Power supply
B Data output (various interfaces
can be installed as optional
equipment)
C Main PCB
D Strain gauge technology
– system PCB
E Various versions of the strain
gauge system
F Standard housing
G Without built-in motorized
internal calibration weight
* This cable is suitable only for the
Ethernet and Profibus options
AB
C
System cable Cable to main PCB
D
Cable to power supply Data output cable * Cable to the system PCB
Standard data output PCB
G
E
F
A
C
B
Cable to Standard data output PCB

14 Service Manual Signum
Description of the Equipment
The Sartorius Signum Series Supreme Scale (SIWS) with a Monolithic Weighing System
Overview of the Signum Series Scale (Featuring Electromagnetic Force Compensation)
A Power supply
B Data output (various interfaces
can be installed as optional
equipment)
C Main PCB
D Electromagnetic force
compensation system PCB
E Various versions of the
electromagnetic force
compensation system
F Standard housing
G Built-in motorized internal
calibration weight
AB
C
D
G
E
F
A
C
B
Cable to power supply Data output cable Cable to system PCB
Optional RS232 or RS485/422 data interfaces; 4-20mA/0-10V or digital I/O
System cable Cable to main PCB

15
Service Manual Signum
Description of the Equipment
Activating the Service Mode
Important note: When performing maintenance on an existing system,
you must access the service mode for linearization, to set or clear a
preload, or to enter the date of service.
– Switch the Signum scale off (press the e).
– Switch the Signum scale back on (press the e). While all segments are
displayed, briefly press the )key.
APPL is displayed.
– Using the kkey, scroll to SETUP.
– Press the )key. WP-1 is displayed.
– Using the kkey, scroll to CODE.
disp_wp-1_d.eps
disp_8888_d.eps
disp_appl_d.eps
disp_setup_d.eps
disp_wp-1_d.eps

16 Service Manual Signum
Working with the Service Mode
– Press the )key. A blinking cursor is displayed.
– Using the kkey, select 2 and press the )key to confirm. When the cursor
jumps to the second field, enter the next number. Follow these steps to enter
the service code 202122.
Important note:
If you enter a number incorrectly, use the (key to select the field
you wish to change. Next, press the )key repeatedly until the cursor
scrolls to the 6th place (line 2 blinks).
– Once you have entered the last number, press the )and (keys (in this
order) to activate the service mode.
An „S“ in the upper right-hand corner indicates that the service mode is active.
If you wish to exit the service code entry mode, continue pressing the ( key until
CODE reappears on the display.
Please note: The only way to deactivate the service mode is to switch the scale
off and then on again.
Important note: Once service code 202122 has been input, any customer codes that have already
been entered can only be viewed. You can delete or change a customer code
only after entering the general access code 40414243.
disp_202122_d.eps
disp_blin_d.eps
disp_code_s_d.eps
!

17
Service Manual Signum
Working with the Service Mode
Additional Menus in the Service Mode
In the Text Menu (Setup)
In consecutive order following the menu items » DATE « and Code » 202122 «
– Service date » S-DATE «
– Memory number » MEM-NO «
– Service technician can enter a minimum load here » SQMIN-S «
– This displays or prints the minimum load » SQMIN «
In the number menu: The setup menu is model-dependent for WP1 (WP-1) and the interfaces COM1 (COM1)
and UniCOM (UNICOM). It has been expanded to allow the following possible settings
for configuring weighing platforms WP-1(WP-1) and WP2(WP-2):
1-9 Calibration/adjustment functions:
1-9-1: Ext. calibration/adjustment with a default weight (service mode not
required)
1-9-3: Ext. calibration/adjustment with a user-defined weight (service mode not
required)
1-9-4: Int. calibration/adjustment (service mode not required)
1-9-6:1) Internal linearization (only for WP-2 on COM1 and UniCOM)
1-9-7:1) External linearization with user-defined weights
1-9-8: Set preload (service mode not required)
1-9-9: Delete preload (service mode not required)
1-9-10: Key blocked (service mode not required)
1-9-18:1) Determine internal weight
1) Only accessible in the service mode

18 Service Manual Signum
Working with the Service Mode
Important note:
Once the necessary settings have been configured, set the menu to the
particular calibration/adjustment function that the customer wishes to
perform.
1-10 Calibration/adjustment sequence
1-10-1: Calibration with automatic adjustment
1-10-2:3) Calibration with manual adjustment
1-18 Entry of calibration and linearization weights
1-18-1: Ext. calibration weight of the user ((special value) entry, e.g.:10,000kg)
1-18-2:1) Entry of linearization weight 1
1-18-3:1) Entry of linearization weight 2
1-18-4:1) Entry of linearization weight 3
1-18-5:1) Entry of linearization weight 4
1) Only accessible in the service mode
9-1 Factory settings / menu reset
9-1-1: Restore
9-1-2: Do not restore

19
Service Manual Signum
Working with the Service Mode
Calibration/Adjustment Functions
Important note:
When using a verified weighing platform, open the cover on the back,
left-hand side of the indicator housing. Then slide the menu access
switch to the right (»free« setting).
– Activate the service mode (see page 15).
1-9-1 External Calibration/Adjustment with Default Weights
– Select weighing platform »WP-1«.
– Press the )key to access the number menu.
– Select menu »1-9-1« (External calibration/adjustment with default weight) by
pressing the ) k ) key repeatedly and then pressing the )key briefly
to confirm.
If this menu has already been selected, switch the indicator off and then on
again to exit the service mode.
display_wps1_serv.eps
display_serv_01.eps
menu_191.eps

20 Service Manual Signum
Working with the Service Mode

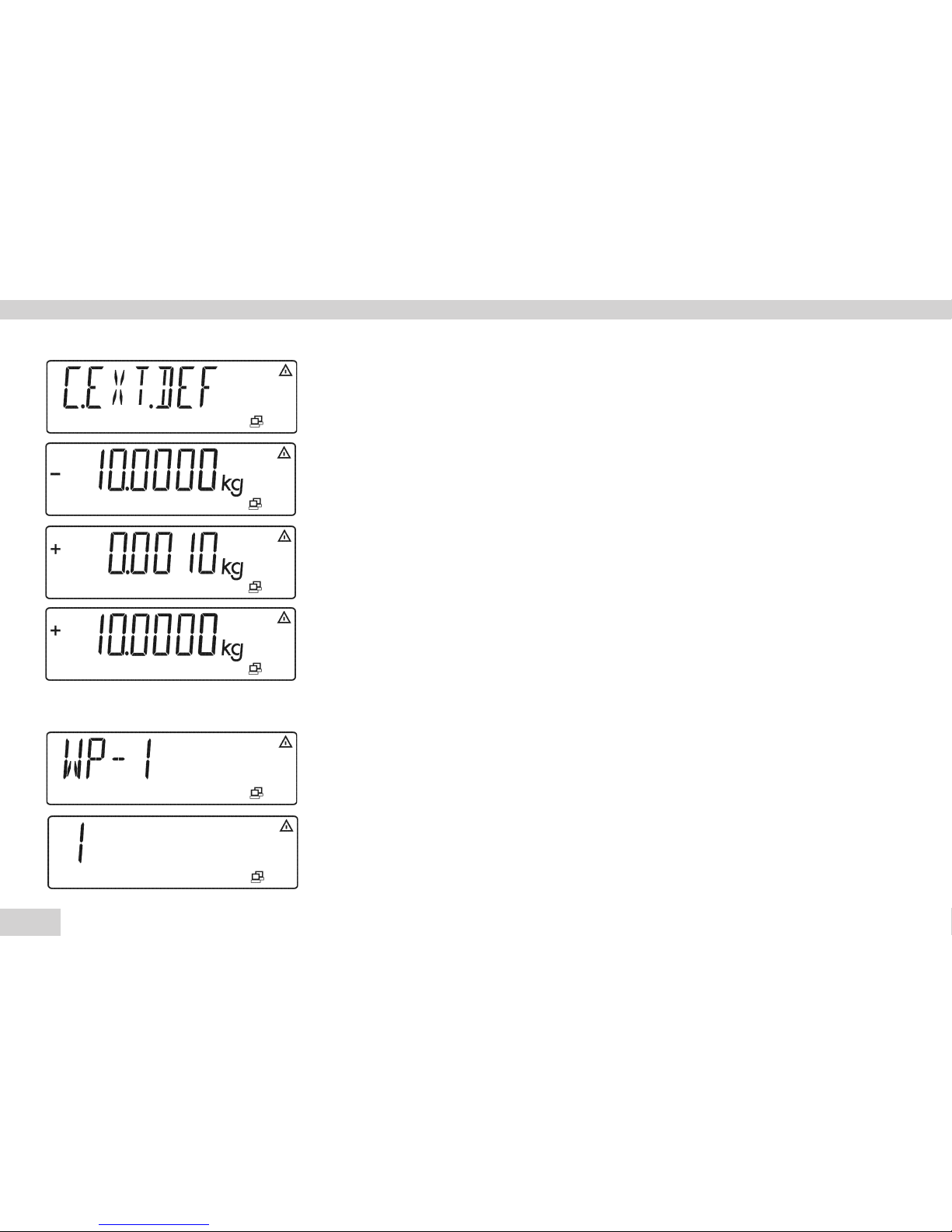

– After taring or zeroing the display of the scale, press and hold the Jkey until
»C.EXT.DEF« is displayed.
Press the Jkey to continue the calibration/adjustment routine.
– After approx. 2 seconds, the required calibration weight is shown in the display.
– Place the required weight on the scale. After a brief pause, the difference
between the current value and the value from the last adjustment (calibration
procedure) is displayed.
– To interrupt the calibration/adjustment procedure, press the (key.
– Press the Jkey to calibrate/adjust the scale and display the value if menu »1-
10-2« has been selected.
1-9-3 External Calibration/Adjustment with User-Defined Weights
– Select weighing platform »WP-1«.
– Press the )key to access the number menu.
3) Only displayed if menu code »1-10-2 (Calibration with manual adjustment)has been selected
cal_def.eps
Display_WP1_Serv.eps
Display_Serv_01.eps
-100000kg.eps
+0.0010.eps
+100000kg.eps
3)
