Satel GFU30 User manual

GFU30 User Guide
Version 1.0
1
GFU30
Radio Modem
Transceiver
User Guide

GFU30 User Guide
Version 1.0
2
TABLE OF CONTENTS
TABLE OF CONTENTS ............................................................................................ 2
1IMPORTANT NOTICE.................................................................................... 3
2RESTRICTIONS ON USE................................................................................ 4
3PRODUCT CONFORMITY .............................................................................. 6
4WARRANTY AND SAFETY INSTRUCTIONS.................................................... 7
5INTRODUCTION........................................................................................... 8
5.1 Description of the product ......................................................................... 8
6TECHNICAL SPECIFICATIONS..................................................................... 10
7USER INTERFACE........................................................................................ 12
7.1 Data/Power interface............................................................................... 12
7.2 LED indicators........................................................................................... 13
7.3 RF interface .............................................................................................. 14
8MODEM SETTINGS..................................................................................... 15
8.1 Default settings ........................................................................................ 15
8.2 Configuration ........................................................................................... 16
8.3 Programming ........................................................................................... 16

GFU30 User Guide
Version 1.0
3
1IMPORTANT NOTICE
All rights to this manual are owned solely by Satel Oy (referred to in this user guide as Satel). All
rights reserved. The copying of this manual (without the written permission from the owner) by
printing, copying, recording or by any other means, or the full or partial translation of the manual
to any other language, including all programming languages, using any electrical, mechanical,
magnetic, optical, manual or other methods or devices is forbidden.
Satel reserves the right to change the technical specifications or functions of its products, or to
discontinue the manufacture of any of its products or to discontinue the support of any of its
products, without any written announcement and urges its customers to ensure, that the
information at their disposal is valid.
Satel software and programs are delivered ”as is”. The manufacturer does not grant any kind of
warranty including guarantees on suitability and applicability to a certain application. Under no
circumstances is the manufacturer or the developer of a program responsible for any possible
damages caused by the use of a program. The names of the programs as well as all copyrights
relating to the programs are the sole property of Satel. Any transfer, licensing to a third party,
leasing, renting, transportation, copying, editing, translating, modifying into another programming
language or reverse engineering for any intent is forbidden without the written consent of Satel.
SATEL PRODUCTS HAVE NOT BEEN DESIGNED, INTENDED NOR INSPECTED TO BE
USED IN ANY LIFE SUPPORT RELATED DEVICE OR SYSTEM RELATED FUNCTION NOR AS
A PART OF ANY OTHER CRITICAL SYSTEM AND ARE GRANTED NO FUNCTIONAL
WARRANTY IF THEY ARE USED IN ANY OF THE APPLICATIONS MENTIONED.
Salo, FINLAND 2016
Copyright: 2016 Satel Oy
No part of this document may be reproduced, transmitted or stored in a retrieval system in any form or by any means without the
prior written permission of Satel Oy. This document is provided in confidence and must not be distributed to third parties without
the express permission of Satel Oy.

GFU30 User Guide
Version 1.0
4
2RESTRICTIONS ON USE
GFU30 radio modem has been designed to operate on frequency ranges, the exact use of which
differs from one region and/or country to another. The user of a radio modem must take care that
the said device is not operated without the permission of the local authorities on frequencies other
than those specifically reserved and intended for use without a specific permit.
GFU30 (403…473 MHz) is allowed to be used in the following countries, either on licence free
channels or on channels where the operation requires a licence. More detailed information is
available at the local frequency management authority.
Countries*: AU, AT, BE, BG, HR, CA, CY, CZ, DK, EE, FI, FR, DE, GR, HU, IS, IE, IT, KR, LT,
LU, MT, NL, NO, PL, PT, RO, RU, SG, SI, SK, ES, SE, CH, AE, GB and US.
* codes of the countries follow the ISO 3166-1-Alpha-2 standard
WARNING! Users of GFU30 radio modems in North America should be aware, that due to the
allocation of the frequency band 406.0 –406.1 MHz for government use only, the use of radio
modem on this frequency band without a proper permit is strictly forbidden.
WARNING! Users of GFU30 radio modems in Canada should be aware, that operation is subject
to the following two conditions: (1) this device may not cause interference, and (2) this device must
accept any interference, including interference that may cause undesired operation of the device.
(RSS Gen section 7.1.5)
WARNING - RF Exposure
To comply with FCC and IC RF exposure compliance requirements, maximum antenna gain
is 14 dBi and separation distance of at least 1 meter must be maintained between the
antenna of this device and all persons. This device must not be co-located or operating in
conjunction with any other antenna or transmitter.
Modification warning statement
Changes or modifications not expressly approved by the party responsible for compliance could
void the user's authority to operate the equipment.

GFU30 User Guide
Version 1.0
5
Class B digital device statement
Note: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates uses
and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of
the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
- Consult the dealer or an experienced radio / TV technician for help.

GFU30 User Guide
Version 1.0
6
3PRODUCT CONFORMITY
Hereby, Satel Oy declares that GFU30 radio modem is in compliance with the essential
requirements (radio performance, electromagnetic compatibility and electrical safety) and other
relevant provisions of Directive 1999/5/EC. Therefore the equipment is labelled with the following
CE-marking. The notification sign informs user that the operating frequency range of the device is
not harmonised throughout the market area, and the local spectrum authority should be contacted
in prior of use.

GFU30 User Guide
Version 1.0
7
4WARRANTY AND SAFETY INSTRUCTIONS
Read these safety instructions carefully before using the product:
oWarranty will be void, if the product is used in any way that is in contradiction with the
instructions given in this manual, or if the radio modem housing has been opened or
tampered with.
oThe radio modem is only to be operated at frequencies allocated by local authorities, and
without exceeding the given maximum allowed output power ratings. Satel and its
distributors are not responsible, if any products manufactured by it are used in unlawful
ways.
oThe devices mentioned in this manual are to be used only according to the instructions
described in this manual. Faultless and safe operation of the devices can be guaranteed
only if the transport, storage, operation and handling of the devices is appropriate. This
also applies to the maintenance of the products.

GFU30 User Guide
Version 1.0
8
5INTRODUCTION
Satel Oy is a Finnish electronics and Telecommunications Company specialising in the design and
manufacture of wireless data communication products. Satel designs, manufactures and markets
radio modems intended for use in applications ranging from data transfer to alarm relay systems.
End users of Satel products include both public organisations and private individuals.
Satel is the leading European manufacturer of radio modems. Satel radio modems have been
certified in most European countries and also in many non-European countries.
GFU30 is a variant of the standard SATELLINE-M3-TR4 (YM7410) radio modem.
5.1 Description of the product
GFU30 is a UHF radio transceiver modem. It provides a transparent data link with other GFU or
SATELLINE-3AS and -EASy family modems.

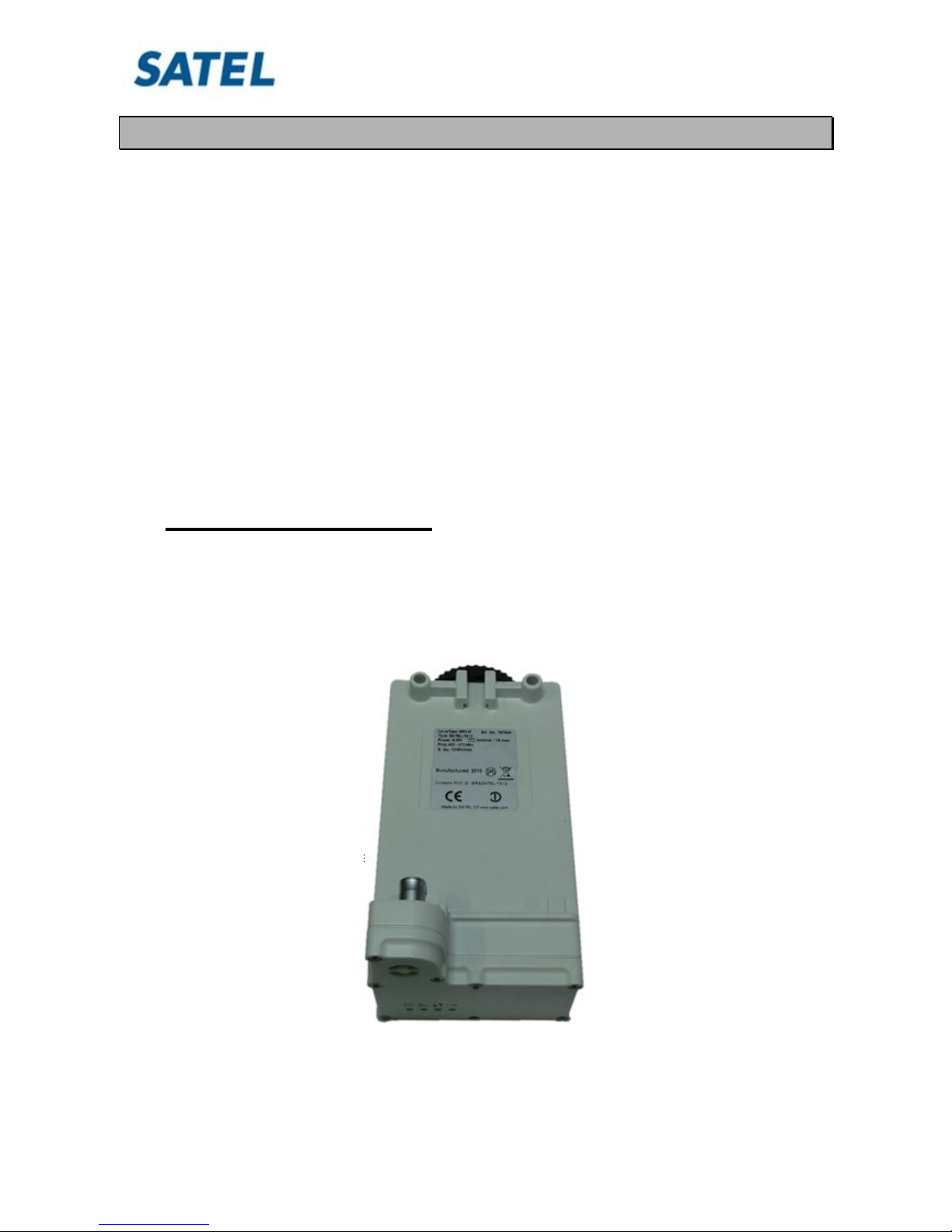

Figure 1.1 GFU30 radio data modem

GFU30 User Guide
Version 1.0
9
GFU30 consists of a radio modem module (SATELLINE-M3-TR4) and a radio interface adapter
board, both enclosed into a plastics housing. It acts as a plug-in unit for Leica Geosystems GPS
devices.

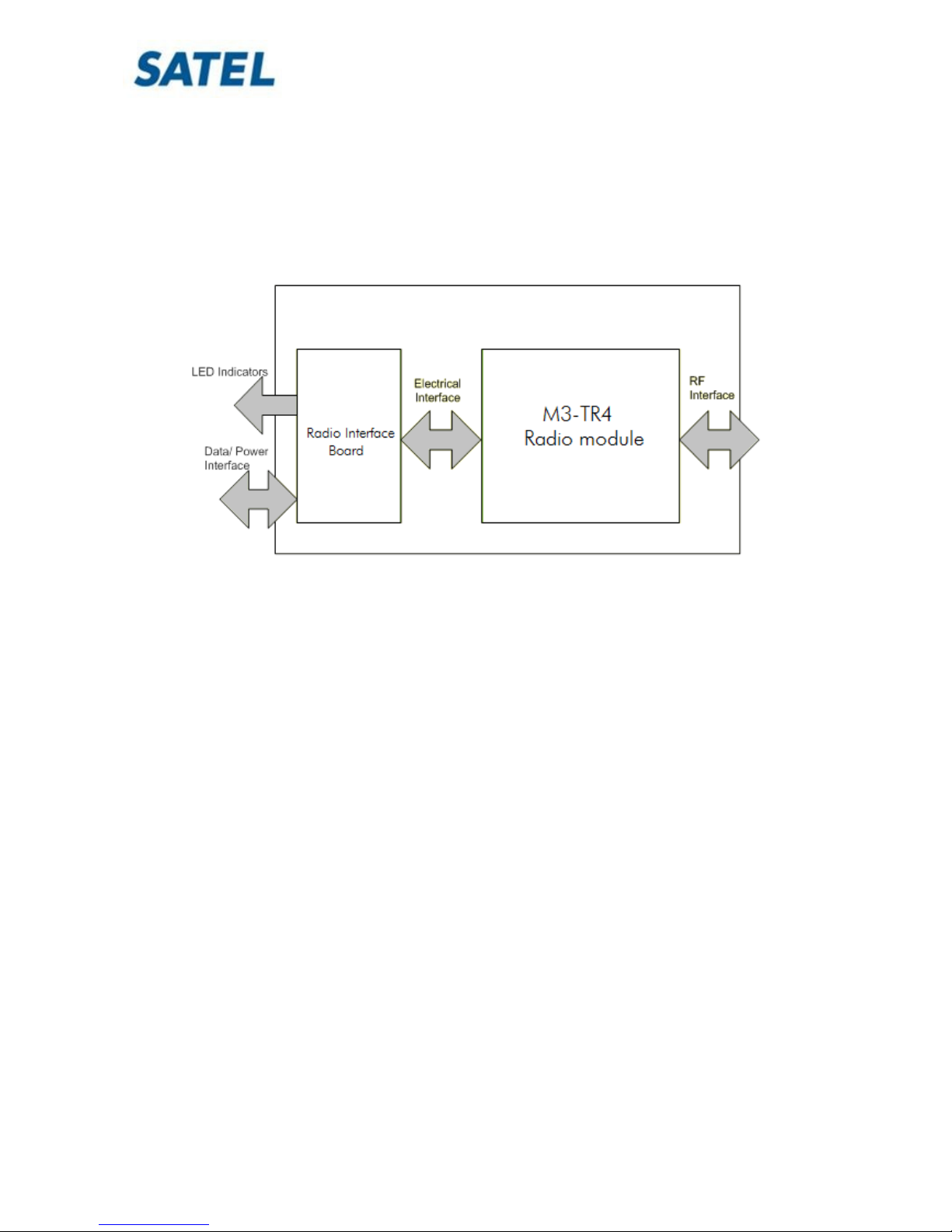

Figure 1.2 Block diagram of GFU30 radio data modem

GFU30 User Guide
Version 1.0
10
6Technical specifications
GFU30 complies with the following international standards:
oEN 300 113-1 V1.7.1 and EN 300 113-2 V.1.5.1
oEN 301 489-1 V1.9.2 and EN 301 489-5 V1.3.1 (EMC-requirements)
oEN 60950-1:2006 (safety standard)
oISO 9022-36-05-2 (vibration)
oCFR47 part90
RECEIVER
TRANSMITTER
Note!
Frequency range
403...473 MHz
Tuning range
70 MHz
Minimum RF frequency
step
6.25 kHz
Channel bandwidth
12.5 kHz / 25 kHz
Programmable
Frequency stability
<1 kHz
Maximum receiver input
power without damage
+14 dBm
Maximum receiver input
power without transmission
errors
-10 dBm
FEC ON
Sensitivity
-112 dBm @ 25 kHz
-116 dBm@ 12.5 kHz
FEC ON
Blocking
> 86 dB @ 25 kHz
> 88 dB @ 12.5 kHz
FEC ON
Intermodulation
attenuation
> 61 dB @ 25 kHz
> 61 @ 12.5 kHz
FEC ON
CO-channel rejection
> -11 dB @ 25 kHz
> -10 dB @ 12.5 kHz
FEC ON
Adjacent channel selectivity
> 56 dB @ 25 kHz
> 51 dB @ 12.5 kHz
FEC ON
Spurious rejection
> 67 dB
FEC ON
Typical power
consumption @ 12 V
1.1 W
RX-mode
4.4 W @ 1 W RF out
TX-mode,
Continuous, 50Ω
3.8 W @ 0.5 W RF out
3.1 W @ 0.2 W RF out
2.8 W @ 0.1 W RF out
Transmitter power
(programmable)
0.1, 0.2, 0.5, 1 W
TX-mode, 50Ω
load
Communication mode
Half-Duplex
Adjacent channel power
acc. to EN 300 113-
1v.1.7.1
TX-mode
Transient adjacent channel
power
acc. to EN 300 113-
1v.1.7.1
TX-mode
Carrier power stability
< ±1.5 dB

GFU30 User Guide
Version 1.0
11
DATA MODULE
Timing
UART
Electrical interface
RS-232
Interface connector
Lemo
Data speed of serial
interface
1200 –115200 bps
Data speed of radio air
interface
4FSK FEC OFF:
19200 bps (25 kHz)
9600 bps (12.5 kHz)
4FSK FEC ON:
14400 bps (25 kHz)
7200 bps (12.5 kHz)
8FSK FEC OFF:
28800 bps (25 kHz)
14400 bps (12.5 kHz)
8FSK FEC ON:
19200 bps (25 kHz)
9600 bps (12.5 kHz)
16FSK FEC ON:
28800 bps (25 kHz)
14400 bps (12.5 kHz)
Data format
Asynchronous data
Modulation
4FSK, 8FSK, 16FSK, GMSK
GENERAL
Operating voltage
+6.0 Vdc … +30 Vdc +/- 5% Vdc
Temperature range
See Note 1.
Type approval condition: -20 °C...+55 °C
-30 °C ... +70 °C
Functional
-25 °C ... +55 °C
Complies with
standards
-40 °C … +85 C
Storage
Antenna connector
50 ohm, TNC female
Housing
Plastic housing
Size L x W x T
145 mm x 70 mm x 50 mm
Weight
240 g
Note 1. Automatic Switch OFF when internal temperature during transmission exceeds +96 °C.
OTHER MEASURES
ESD-failure
threshold
8 kV contact, 15 kV air discharge
Antenna ESD
±10 kV
Antenna connector. Acc.
to EN61000-4-2;
150pF/330Ω
Immunity test
10V/m

GFU30 User Guide
Version 1.0
12
7USER INTERFACE
7.1 Data/Power interface
Figure 2.1 Lemo connector and its pin configuration
PIN
SIGNAL NAME
DIRECTION
DESCRIPTION
1
RTS
IN
HW handshake
2
CTS
OUT
HW handshake
3
GND
-
Power and Signal ground
4
RXD
OUT
Receive data (V24 level)
5
TXD
IN
Transmit data (V24 level)
6
ID
IN/OUT
One wire bus terminal to Dallas DS2433
7
MODE
IN
Switch:
Data mode (0 V)<> Prog. mode (+12 V)
8
+V
IN
**Supply voltage, +6…+30 Vdc (+/- 5%)
** Power input must be used with 2A fuse for protection.
1
2
3
4
5
67
8

GFU30 User Guide
Version 1.0
13

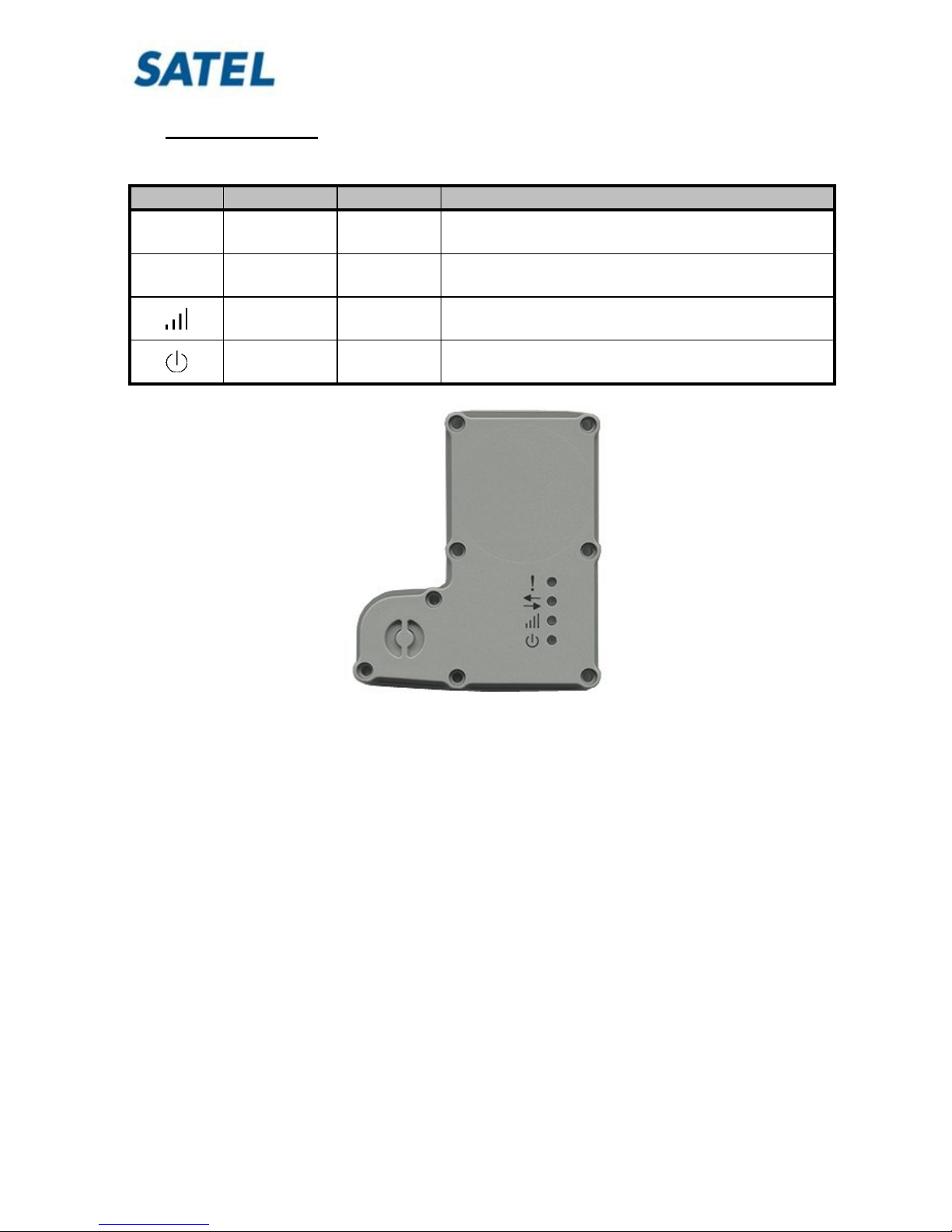

7.2 LED indicators
SYMBOL
LED NAME
COLOR
DESCRIPTION

Mode
Red
Active if modem switched to Programming mode

Rx/Tx
Green
Active if modem receives or transmits data over the
serial interface (min. light on 200 ms)
Link
Red
Active whenever an identifiable data message exists
on the radio channel. (min. light on 200 ms)
Power
Green
Active if Power connected to modem
Figure 2.2 Led indicators

GFU30 User Guide
Version 1.0
14
7.3 RF interface
The GFU30 has a single TNC female connector with impedance of 50 Ohm.
The output power of the transmitter is adjustable between 0.1, 0.2, 0.5 and 1.0 W. The greatest
allowable power depends on limits set by local authorities, which should not be exceeded under
any circumstances. The output power of the transmitter should be set to the smallest possible level,
which still ensures error free connections under variable conditions. Large output power levels
using short connection distances can, in the worst case, cause disturbances to the overall
operation of the system.
NOTE!
Setting the radio data modem output power level to that which exceeds the regulations set
forth by local authorities is strictly forbidden. The setting and/or using of non-approved power
levels may lead to prosecution. Satel and its distributors are not responsible for any illegal use
of its radio equipment, and are not responsible in any way of any claims or penalties arising
from the operation of its radio equipment in ways contradictory to local regulations and/or
requirements and/or laws.

GFU30 User Guide
Version 1.0
15
8MODEM SETTINGS
8.1 Default settings
The radio modem is delivered with the following default settings (unless otherwise specifically
ordered):
DEFAULT VALUES OF THE ADJUSTABLE SETTINGS ( the user can change these settings later on )
Setting
Default value
Range
Radio frequency
Operating TX frequency
438.000 MHz
403 … 473 MHz
Operating RX frequency
438.000 MHz
403 … 473 MHz
Reference frequency
438.000 MHz
403 … 473 MHz
Channel spacing
25 kHz
12.5 kHz or 25 kHz
Radio settings
TX power
1 W
0.1, 0.2, 0.5 or 1 W
Signal threshold
-115 dBm
-80 … -118 dBm
FCS
OFF
ON / OFF
TX-start delay
0 ms
0 … 65535 ms
Radio compatibility
SATEL 8FSK-2
SATELLINE 3AS
PacCrest-4FSK
PacCrest-GMSK
TrimTalk450s(P)
TrimTalk450s(T)
PacCrest-FST
SATELLINE 2ASx
SATELLINE 3AS-1
SOUTH
SATEL 8FSK-1
SATEL 8FSK-2
SATEL 16FSK-1
Addressing
RX address
OFF
ON / OFF
TX address
OFF
ON / OFF
Serial port
Data speed
115200 bps
1200 …115200 bps
Data bits
8
8
Parity bits
None
None, Even, Odd
Stop bits
1
1

GFU30 User Guide
Version 1.0
16
Handshaking
Handshaking lines apply to the DATA-
port
CTS
TX buffer state
Clear to send, TX buffer state
CD
not supported
RSSI- threshold, Data on channel,
Always ON
RTS
Ignored
Ignored, Flow Control, Reception Control
Pause length
3 bytes
3 … 255 bytes
Additional setup
Error correction, FEC
OFF
ON / OFF
Error check
OFF
OFF, CRC8Partial, CRC8Full, CRC16Full
Repeater mode
OFF
ON / OFF
SL-commands
ON
ON / OFF
TX delay
0
0 ... 65535 ms
Use channel list
OFF
ON / OFF
Power save mode
OFF
ON / OFF
Add RSSI to data
OFF
ON / OFF
8.2 Configuration
The configuration of GFU30 modems is made by using the SATEL Configuration
Manager. Please use GEV171 programming cable to connect the GFU30 modem to the serial
interface of the PC.
SATEL Configuration Manager software and user guide are available on the CD for GFU30
radio modem or from www.satel.com
8.3 Programming
The settings of GFU30 are fully configurable. The most recommendable set-up is GEV171
programming cable, a power supply and the SATEL Configuration Manager software.
Programming can be done in any data speed as long as terminal speed and GFU30 data speed
match.
In Service Mode it is simple to create a connection with a matching data speed. Once the
GFU30 is set to Service Mode GFU30 uses fixed settings 38400 bps, N, 8,1 (data transfer
speed 38400 bps, no parity, 8 data bits and 1 stop bit).
GFU30 will shift into the Service Mode by setting the Lemo connector pin 7 to +12 V. When
using the GEV171 cable this can be accomplished by setting the Prog mode switch to ON
position.
