saunalife BP031085 User manual

W h i t e L E D L i g h t b a r

2

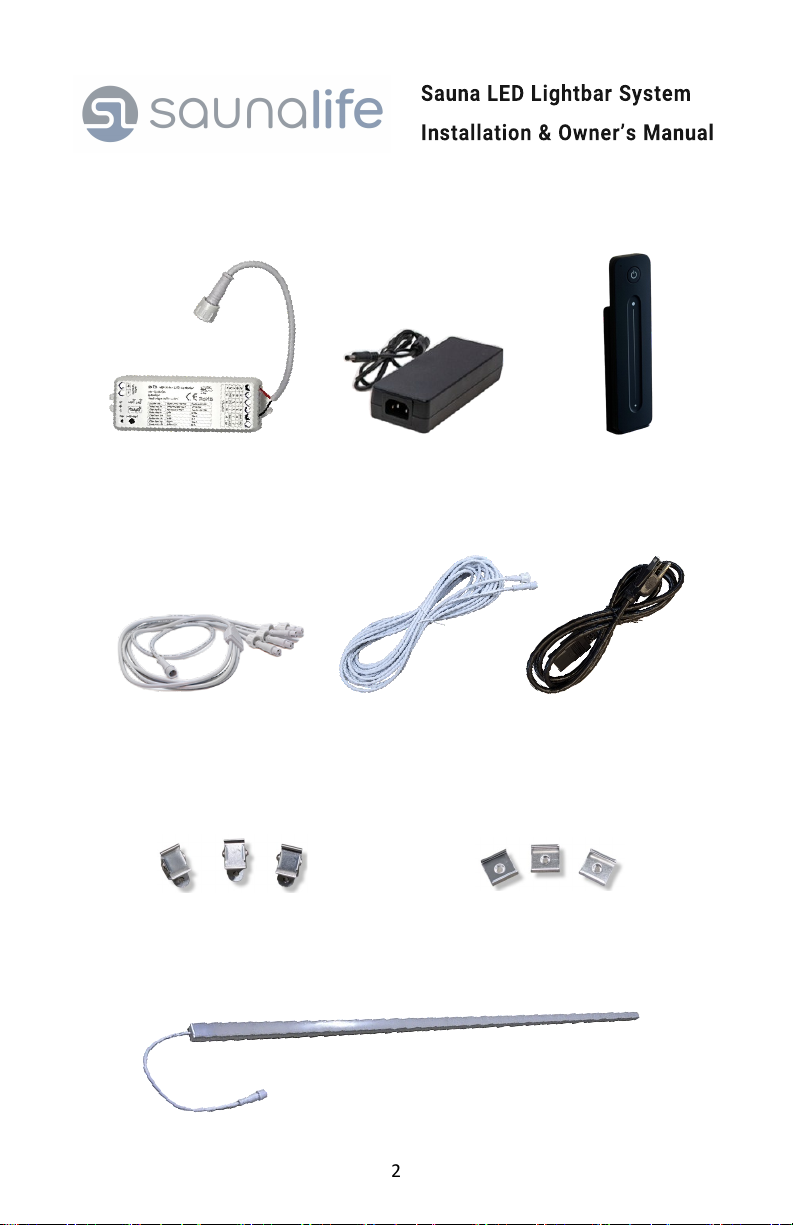

LED Lightbar Package Contents:
RF Driver / Receiver
(qty. 1)
Power Supply
(qty. 1)
Dimming Remote
(qty. 1)
2-Pin 4-Way Cable
(qty. 1)
2-Pin 30’ Cable
(qty. 1)
AC Power Cable
(qty. 1)
Adjustable Mounng Clips
(qty. 3)
Staonary Mounng Clips
(qty. 3)
White Led Light Bar
(qty. 1)

3
Installaon Recommendaons
Please read this manual in its enrety prior to installaon.
The RF Driver and Power Supply may be installed outdoors but must be pro-
tected from rain and snow. RF Driver and Power Supply should be installed in
a waterproof electrical enclosure.
When installing the RF Driver and Power Supply inside the sauna, maintain a
minimum distance of 20” from heat source and a maximum height of 20” o
oor or in path of fan.
If installed inside the sauna, the RF Control must be mounted no higher than
3’ o the nished oor and a minimum of 2’ away from heat source.
Consider light placement carefully. Each xture should be placed to avoid
direct contact with the bathers eyes.
Electrical Requirements
• A 120V AC electrical outlet is needed to power the lighng
system.
• Your electrician will determine the type of electrical outlet,
box, and piping to be used.
• All wiring must be done in accordance with naonal elec-
tric code and local building codes by a cered electrician.
• Improper voltage or connecons will damage the compo-
nents and void warranty.
IMPORTANT
IMPORTANT
IMPORTANT
IMPORTANT

4
STEP 1.
Mount RF Driver / Receiver
Using 2 screws mount RF driver to desired surface. Driver should be mounted
in a dry accessible location for service.
Note: Do not install within 20” of sauna heater and a maximum of 20” off oor.

5
STEP 2.
Connect 2-Pin 4-Way Cable
Locate 2-Pin 4-way cable and connect single end to 2-Pin Pigtail of Driver.

6
STEP 3.
Run 2-Pin 30’ Cable
Run 2-Pin 30’ light cable from Driver to LED light bar. At Driver connect to
one of the 4 leads on 2-Pin 4-Way cable
Note: Repeat this step if installing more than one light.

7

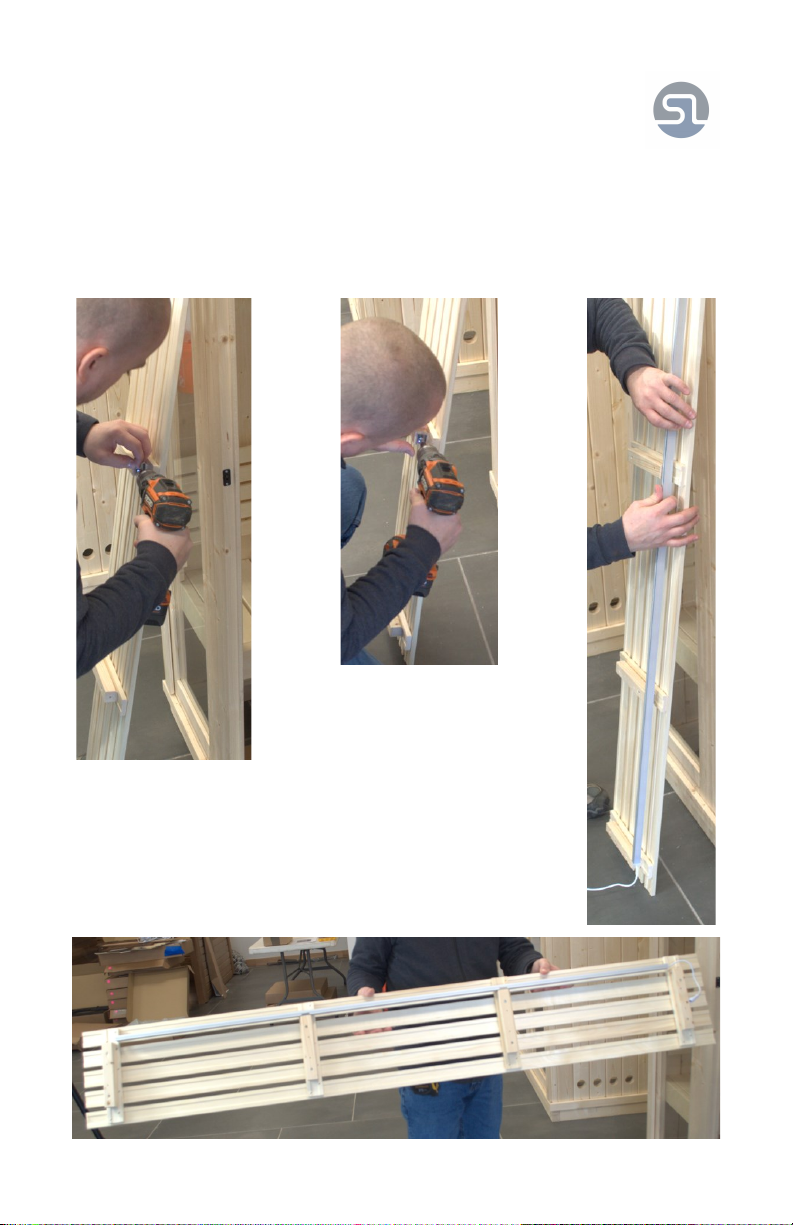

STEP 4.
Install Mounting Brackets & LED Light Bar
Determine the location where LED light will be installed. Screw Mounting
Clips to surface ensuring even coverage of light xture. Carefully snap
LED light bar into each clip.
Backrest installation shown in images below using stationary clips.

8

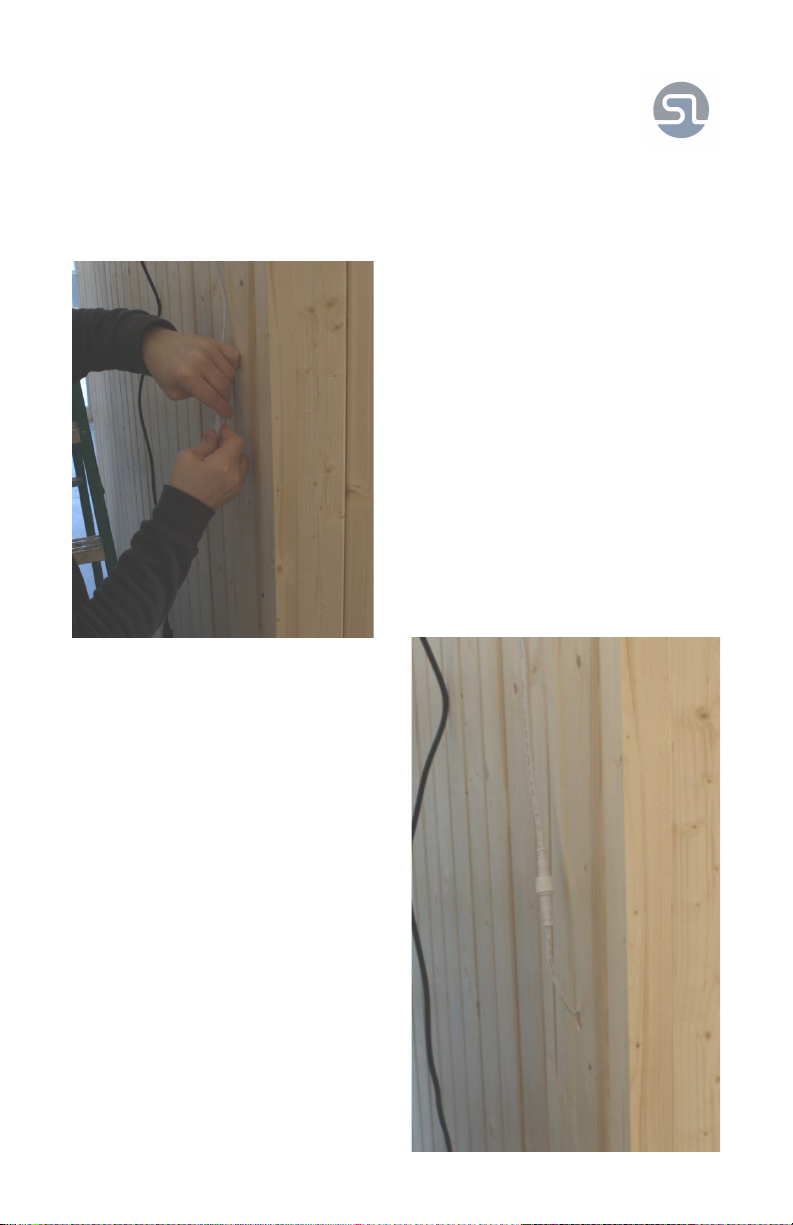

STEP 5.
Connect 2-Pin 30’ Cable to Light Bar
Connect light cable end to lead off light bar.
Note: Repeat this step if installing more than one light.

9
STEP 6.

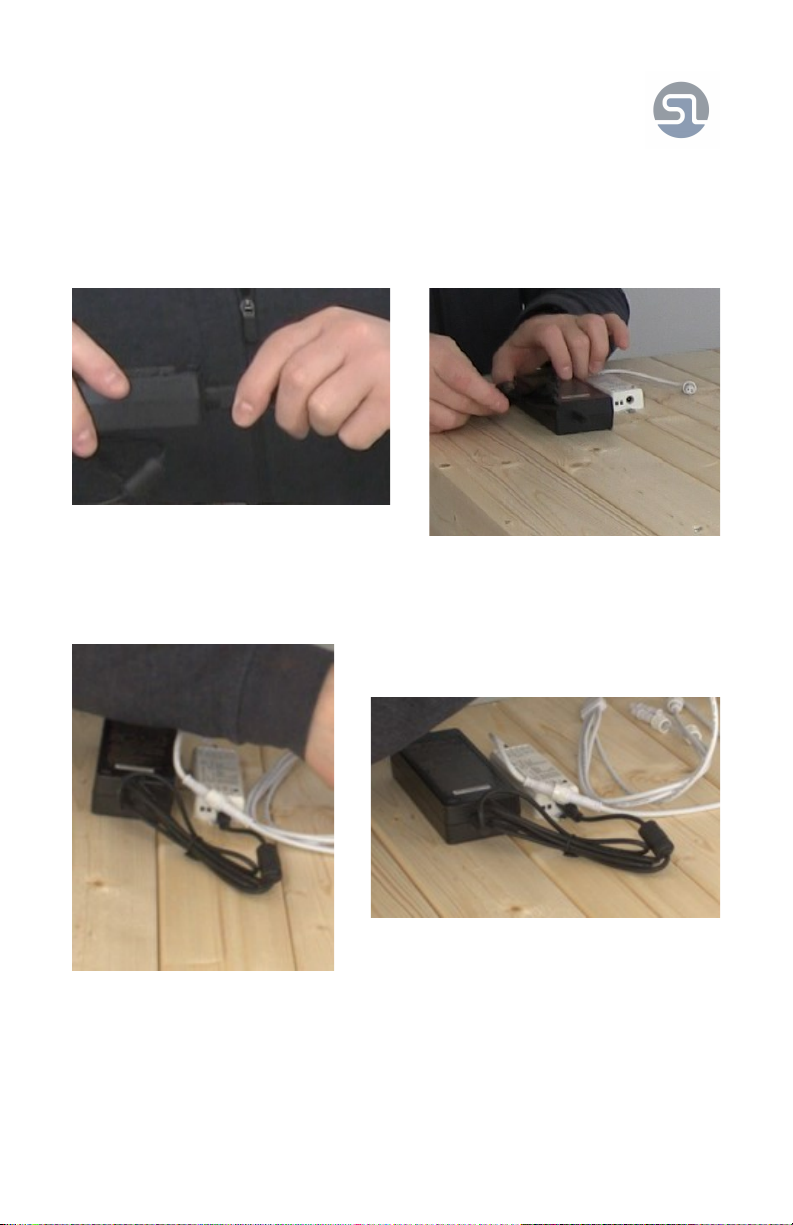

Install Power Supply
Connect AC power cord cable to power supply block. Place power supply
near RF driver. Connect DC cable end from power supply and connect
into RF driver DC IN port.

10
STEP 7.
Dimming Control Installation
RF Remote includes a wall mount holder for storing. Take holder and
separate back mounting plate from holder. At mounting location screw
mounting plate to surface. Slide holder from top down onto mounting the
plate.

11
Control Operation
Follow the steps below for control operation. After 30 seconds of inactivity the remote will
enter sleep mode. To wake up the control, press any button.
LED Indicator On / O
100%
50%
1%
Brightness Control
• Verify that all connections are secure and complete before proceeding.
• Ensure DC-out end of Power Supply is plugged into DC-in of the Driver.
• Plug AC power cable from the Power Supply into a 120V AC electrical outlet.
• Verify that the Driver powers on. The indicator light will ash purple rapidly for
approximately 20 seconds.
STEP 8.
Startup & Testing
STEP 9.
RF Driver & Dimming Remote Programming
Note: RF Driver is preprogrammed. Follow steps below if programming is needed.
1) Press and hold the Match button until the Run Indicator light changes to white.
Note: The Run indicator will turn off, then rapidly ash purple. White run indicator
will be after Blue.
2) Release the Match button, then short press once to save programming.
3) Grab remote then on Driver press match button once then quickly press the power
button on remote.
Note: If you encounter any issues during startup and testing proceed to trouble-
shooting steps.

12

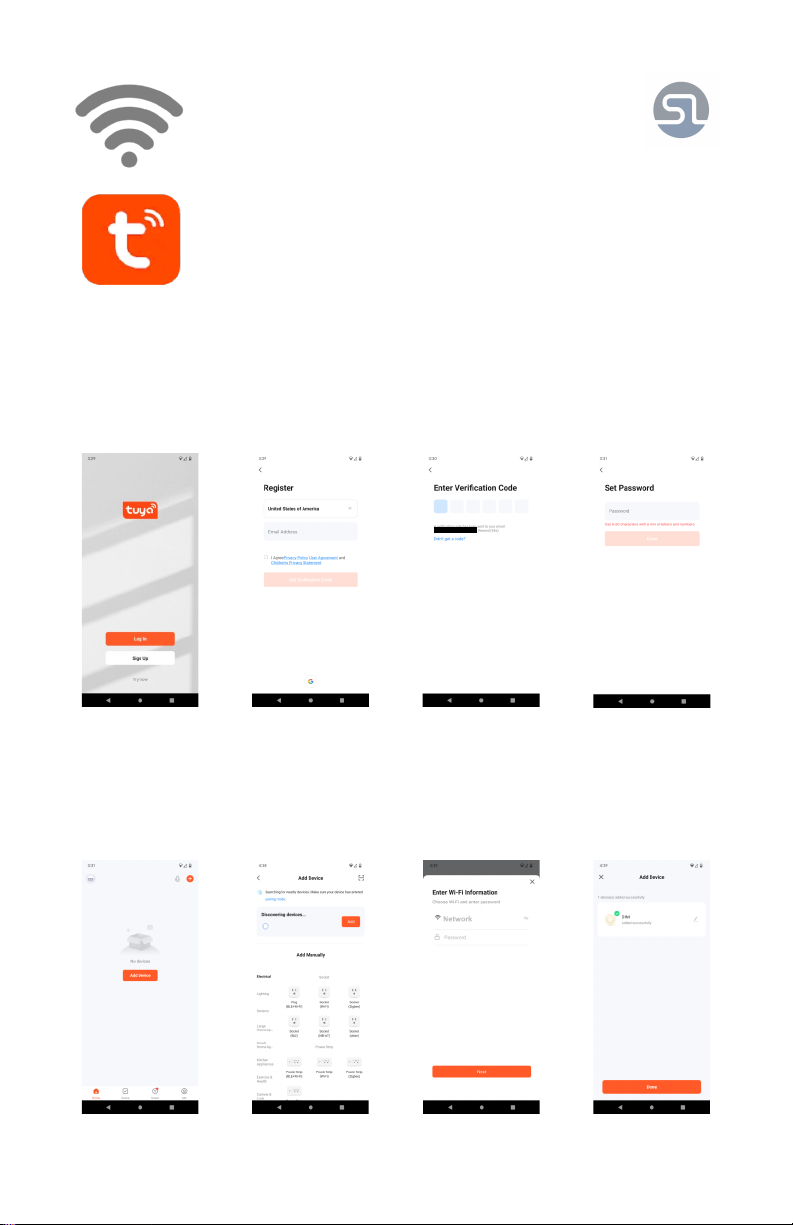

On IOS or Android down-
load the Tuya Smart App
Step 1
Open Tuya app
and press Sign
Up to create an
account.
Step 2
Enter an email
address to
register an
account
Step 3
Check email
and enter veri-
cation code
Step 4
Create a
password
Step 5
Main screen
press Add De-
vice
Step 6
Press Add next
to Discovering
Devices
Step 7
Select your
Wi-Fi network
Wi-Fi Setup
Step 9
Device added suc-
cessfully, press done
to complete setup
To set up Wi-Fi operation follow the steps
below
Note: Wi-Fi Driver supports 802.11 b / g / n
2.4 GHz Wi-Fi standard. The Wi-Fi Driver
will not connect with 5 GHz network

13
RF Driver/Receiver
Operang Voltage: 24V DC
Rated Out Current: 5CH, 3A/CH
Output Voltage: 12-24V DC
Max Output Power: 5Ch X 72W
Operang Temp: -22°F - 131°F
Dimensions: 4.48”L x 1.49”W x .78”H
Light Capacity: 4 Lights / 20’ (per Driver)
IP Rang: IP20
Cercaons: CE. EMC, LVD, RED
RF Remote Single-Zone Dimming
Output Signal: RF (2.4GHz)
Operang Voltage: 3V DC (CR2032)
Power Consumpon: 5mA
Dimming Range: 1% - 100%
Signal Distance: 98FT
Dimensions: 5.47”L x 1.41”W x .43”H
Operang Temp: -22°F - 131°F
Zones: 1 Zone Single Color
IP Rang: IP20
Cercaons: CE, EMC, LVD, RED
PART NUM-
BER
Operang
Voltage (VDC)
Max Wa-
age Lumens Dimensions (with ush clips)
Dimensions
(with adjusta-
ble clips)
BP031085
LED White 24V DC 11.32W 1,246 3/4W x 9/16H x 48L
3/4W x 1-1/4H x
48L
BP031086
LED White 24V DC 14.27W 1,571 3/4W x 9/16H x 60L
3/4W x 1-1/4H x
60L
LED Light Bar Specicaons
Kelvin: 3500k Operang Temp:
-10°F to 194°F
Max Run: 4 Light
Bars / 20 Linear Feet IP Rang: IP67
Power Supply
Input Voltage: 120VA C
Output Voltage: 24V DC
Rated Power: 120W
AC Current: 1.4A
DC Current: 5A
Operang Temp: -22°F - 158°F
IP Rang: IP20
Cercaons: UL, CE, FCC
Specications

14
No Power
• Verify that the electrical outlet has voltage.
• Check that connections on Power Supply are securely connected.
• Check that the DC barrel plug on the Power Supply is securely connected.
Power but lights not turning on
• Check that the Pigtail cable from the Driver is securely connected and that
wiring is correct (see step #1).
• Check that 4-way light cable is secure and connected.
• Check that all 30’ cables to lights are securely connected.
• Verify each light functions by testing them directly to the Driver inde-
pendently.
Note: To test individual light, disconnect 4-way light cable and connect 30’ cable
directly to Pigtail lead off Driver, or connect light directly Pigtail.
• Verify that RF Remote is paired with Driver, see page #7.
Lights on no function from Control
• Verify battery is inserted correctly.
• Low battery, replace with new battery.
• Check DC power cable from Driver to Control is securely connected.
• Ensure that the distance from the Remote to the Driver is not more than 98
feet. If so, relocate Driver closer to room.
Resetting Driver
The Driver should not need to be reset in normal conditions. If a reset is needed, follow the
steps below.
• Verify power to Driver
• Press and hold the Match button for 10-15 seconds until the blue LED indi-
cator ashes rapidly.
Note: Resetting Driver will clear any paired remotes and require repairing.
Replacement Parts
Description Part Number
Driver BP031108
Power Supply/90W BP031137
RF Control Single-Zone BP031111
4-Way IP67 2-PIN Splitter BP031075
2-PIN IP67 Pigtail BP031073
48” White Light Bar BP031085
60” White Light Bar BP031086
Troubleshooting

15
Notes:

16
T e c h n i c a l S u p p o r t
(224) 253-5 9 0 9
© 2023 Bathing Brands, Inc. REV: 03272023
