Savaria Track Bridge M92940 Series User manual

To Be Retained by Owner After Installation by Authorized Savaria Dealer
Part No. 001-EN    Rev.00-m-20
Savaria
5SBDL#SJEHF.Y
5SBDL#SJEHF#BSJBUSJD.Y
OWNER’S
MANUAL

2
Track Bridge /Track Bridge Bariatric Owner’s Manual Part No. 001300-EN, 14-m02-2023
IMPORTANT
Be sure to read this entire manual before using the Ceiling Lift Track Bridge. The
information in this manual is important for the safety of the person being
transferred and the operator, and for the proper use and maintenance of the
Track Bridge. Transfer always presents a potential risk and this manual provides
important safety information that must be read and understood to help
prevent injuries.
Unauthorized modifications to the Track Bridge may affect its safety. Savaria
Concord Lifts, Inc. will NOT be held responsible for any accidents, incidents or
performance deficiencies that occur due to any unauthorized modification to
the Track Bridge. To avoid potential injury due to the use of inadequate parts,
always use only Savaria replacement parts.
Regularly scheduled maintenance must be performed on your Track Bridge by
an Authorized Savaria Dealer to ensure safety and proper operation of the Track
Bridge. Refer to the Maintenance section in this manual.
If a serious incident occurs in relation to the device should
be reported to the manufacturer or distributor of the
device. In the European community, the incident shall be
reported as well to the competent authority of the Member
State in which the user and/or patient is established.
Legal Manufacturer:
Savaria Concord Lifts, Inc.
2 Walker Drive
Brampton, Ontario L6T 5E1
Canada
European Representative:
Advena Ltd.
Tower Business Centre,
2nd Flr., Tower Street, Swatar,
BKR 4013 Malta
UK Authorized Representative:
Advena Ltd, Pure Offices, Plato Close,
Warwick. CV34 6WE UK
Copyright  2023
Savaria Concord Lifts, Inc.
All rights reserved.
NOTE

3
Part No. 001300-EN, 14-m02-2023 Track Bridge /Track Bridge Bariatric Owner’s Manual
STANDARD NOTATIONS
The following notations may be used throughout this manual to emphasize
important safety information, mechanical concerns, and other important
information. Please review and follow all of these messages.
Danger messages indicate an imminently hazardous
situation, which, if not avoided, results in death or serious
injury. All danger messages feature a standard ISO safety
alert symbol followed by the signal word DANGER in
capitalized black lettering on a red background.
Warning messages indicate a potentially hazardous
situation, which, if not avoided, could result in death or
serious injury. All warning messages feature a standard
ISO safety alert symbol followed by the signal word
WARNING in capitalized black lettering on a dark yellow
background.
Caution messages indicate a potentially hazardous
situation, which, if not avoided, could result in minor
injuries. All caution messages feature a standard ISO
safety alert symbol followed by the signal word CAUTION
in capitalized black lettering on a yellow background.
Note messages provide information, such as reminders,
general information about a previous statement, or
additional guidelines that do not fit into the flow of the
preceding text. All note messages include the signal
word NOTE in capitalized white lettering on a blue
background.
DANGER
WARNING
CAUTION
NOTE

4
Track Bridge /Track Bridge Bariatric Owner’s Manual Part No. 001300-EN, 14-m02-2023
CONTENTS
STANDARD NOTATION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1. OVERVIEW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Intended Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Product Life . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Using This Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2. SAFETY INSTRUCIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
To Ensure Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Environmental Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Battery and Charger Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Shock Prevention . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
3. DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Exterior View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Device Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Chargers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
4. SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
5. USING THE TRACK BRIDGE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Before Transfer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Using the Track Bridge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Manual Operation (electrical) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Manual Operation (mechanical) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
6. MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Recommended Operator Maintenance Schedule . . . . . . . . . . . . . . 25
Recommended Dealer Maintenance Schedule . . . . . . . . . . . . . . . . 26
Inspection and Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
7. TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
6. ELECTROMAGNETIC COMPATIBILITY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Electromagnetic Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Electromagnetic Immunity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

5
Part No. 001300-EN, 14-m02-2023 Track Bridge /Track Bridge Bariatric Owner’s Manual
1. OVERVIEW
This document is meant for both the Track Bridge (M92940x) and
Track Bridge Bariatric (M92942x). Unless specified, the manual
will only be referring to the Track Bridge (M92940x)
Intended Use
The Track Bridge is designed for use by caregivers and health care professionals
to connect a mobile X-Y rail to a fixed rail together, thus allowing the portable,
fixed or bariatric ceiling lift to move freely between both track routes in a
homecare, assisted-living or hospital environment. Transfer must be performed
by a qualified operator.
The Track Bridge is not compatible with CCR devices (fixed and bariatric ceiling
lift).
Product Life
The Track Bridge is designed for a useful life of 10 years after which time it must
be replaced. To ensure this life span, you must perform the preventive
maintenance as specified in the Maintenance section in this manual.
Savaria Concord Lifts, Inc. cannot ensure complete safety
for a Track Bridge that has exceeded its useful life. Wear
may cause failure of a part and lead to a patient fall.
The expected life for other parts such as batteries, fuses, and cords are
dependent upon the proper care and use of the individual items. The items
must be maintained as described in their accompanying documentation and in
the Maintenance section in this manual.
Using This Manual
To ensure safe operation of the Track Bridge, read this entire manual carefully,
especially the Safety Instructions, before installing, using or maintaining the
Track Bridge. Failure to comply with all WARNINGS in this manual may result in
injury. If there is anything you don’t understand, contact your Authorized
Savaria Dealer for further details.
Keep this manual with the Track Bridge and ensure all operators are fully
trained in the use of the Track Bridge as described in this manual.
NOTE
WARNING

6
Track Bridge /Track Bridge Bariatric Owner’s Manual Part No. 001300-EN, 14-m02-2023
2. SAFETY INSTRUCTIONS
Keep these Safety Instructions with the Track Bridge at all times. Read this entire
manual before installing, using or maintaining the Track Bridge.
Do NOT use the Track Bridge for any purpose other than
to transfer a person. To ensure safety of the person being
transferred and the operator, follow all Safety
Instructions.
To Ensure Safety
• The Track Bridge has a safe working load of 272 kg (600 lb). The Track
Bridge Bariatric has a safe working load of 544kg (1200 lb). If the
maximum load differs between the Track Bridge, the ceiling lift or a
ceiling lift accessory, then the lowest maximum load shall always be
used. Refer to the nameplate tags for the Maximum Load allowed.
• Ensure the Track Bridge is installed only with a Savaria ceiling track
system and used only with Savaria ceiling lifts.
• The Track Bridge and track system must be installed by a trained and
Authorized Savaria Dealer.
• Operators must be fully trained before using the lift and Track Bridge.
• Take care to avoid impact during transfer.
• Keep all components of the device clean and dry.
• Perform the “Before each use” checks and actions specified in the
Operator Maintenance Schedule before using the device.
• Ensure all checks and actions are performed at the frequency indicated
in the Maintenance section in this manual.
Environmental Notice
For disposal of any components associated with the product, have them
separated and recycled according to the WEEE directive. Contact appropriate
local authorities for more information.
WARNING

7
Part No. 001300-EN, 14-m02-2023 Track Bridge /Track Bridge Bariatric Owner’s Manual
Battery and Charger Safety
Contact your Authorized Savaria Dealer if you are unsure
of any of the safety instructions provided below.
• Do NOT expose the battery or charger to water or any other liquid.
• To avoid injury, do NOT alter the battery in any way. Stop using the
battery if any damage is noted.
• Do NOT charge the battery in an unventilated area and do not cover
the charger.
• If the battery case cracks and the contents of the battery contact your
skin or clothing, rinse immediately with plenty of water.
• If the contents of the battery contact your eyes, rinse immediately with
plenty of water and seek medical attention.
• Inhalation of the contents of the battery can cause respiratory
irritation. Provide fresh air and seek medical attention.
• For recycling or disposal of batteries, follow the rules according to the
WEEE directive (Waste of Electronic and Electrical Equipment) as well
as all local laws and regulations. If you do not follow these rules, the
battery may explode, leak and cause personal injury.
Shock Prevention
• Do NOT touch or use the device if you notice any exposed or damaged
wires.
• Do NOT expose electrical parts of the device to water or moisture.
• Do NOT attempt to use the charger in an area that has a different
voltage and frequency requirement other than that specified on the
nameplate.
• Do NOT attempt any repairs to the Track Bridge or power supply.
Always contact your Authorized Savaria Dealer for service.
WARNING

8
Track Bridge /Track Bridge Bariatric Owner’s Manual Part No. 001300-EN, 14-m02-2023
3. DESCRIPTION
Exterior View
The image below shows the Track Bridge uninstalled, viewed from below.
The ON/OFF switch brings the Track Bridge into operation and safely
terminates operation.
Figure 1
Note that the Track Bridge will only work with devices equipped with a
magnetic block as shown in Figure 2. For magnetic block installation and kit
assembly, refer to the Track Installation section in the Track Installation Guide
(001076).
ON/OFF switch

9
Part No. 001300-EN, 14-m02-2023 Track Bridge /Track Bridge Bariatric Owner’s Manual
Figure 2
Magnetic block installed
on portable trolley
Magnetic block installed on the
Fixed Lift.
Magnetic block installed on the
Bariatric lift. Provided with the
Magnetic block kit provided
with the Track Bridge
Track Bridge Bariatric.

10
Track Bridge /Track Bridge Bariatric Owner’s Manual Part No. 001300-EN, 14-m02-2023
Device Controls
Symbols Indicator Meaning
Charge Light- OFF Device not connected to the charger (battery
powered unit only), power failure, device in
use.
Charge Light- Amber
(Solid)
Device is connected to charging system.
Power Light- OFF Device is OFF.
Power Light - Green
(Solid)
Device is powered ON and ready.
Power Light - Green
(Flashing)
Device battery is low. Still can be used, but
will require charging
Note: An audible beep is emitted
approximately every minute in addition to the
flashing indicator.
Power Light - Red
(Flashing)
Device battery is low. Not sufficient power
available to complete one full cycle. Requires
charging.
Power Light - Red (3
flashes sequence)
Battery overheat
Power Light - Red
(Solid)
Device malfunction (incomplete lock/unlock
action, jammed, time-out, etc.).
Maintenance Light -
OFF
Device is ready for use.
Maintenance Light -
Amber (Solid)
Inspection required. Call Authorized Savaria
Dealer.

11
Part No. 001300-EN, 14-m02-2023 Track Bridge /Track Bridge Bariatric Owner’s Manual
Charger (M920001)
The Track Bridge is supplied with a battery charger as shown below. The Track
Bridge is connected to the constant charging system (CCR system) in the track.
The battery charger is external to the track system and it is intended to stay
connected to CCR at all times. The Track Bridge manages the battery charging
automatically as needed.
Figure 3
LED Description
1. When ON, fully charged or disconnected = led is solid
green
2. When charging, led turns yellow, amber or red
(depending on the charger version)
3. Blinking/fading green = erroneous plugging sequence
a. When this happens, user has to make sure that the
charger is powered (plugged to the wall) prior to
connect it to the Track Bridge.

12
Track Bridge /Track Bridge Bariatric Owner’s Manual Part No. 001300-EN, 14-m02-2023
Symbols
The following chart illustrates the symbols that may be used on the nameplate,
the packaging and the device.
Symbols on nameplate
Indicates the medical device manufacturer. This
symbol is accompanied by the address of the
manufacturer and the date of manufacture.
YYYY: Represents the year
MM: Represents the month
DD: Represents the day
Indicates the authorized representative in the
European Community.
This symbol is accompanied by the address of the
authorized representative.
Indicates the manufacturer's catalogue number
Indicates the manufacturer's serial number
Keep dry
Indicates the product complies with the medical
device directive
Indicates the product was certified by third-party
“QPS”
Indicates the product complies with the directive
(RoHS)
Indicates “separate collection” for all batteries and
accumulators per the WEEE directive

13
Part No. 001300-EN, 14-m02-2023 Track Bridge /Track Bridge Bariatric Owner’s Manual
Caution
Refer to instruction manual/booklet
Consult instructions for use
Type BF protection against electrical shocks
MAX.LOAD:
Refers to the greatest permissible load that can be
applied to the product.
IPX1X2
Ingress Protection:
X1: Protection level against ingress of solid particles
X2: Protection level against ingress of liquids
Unique Device Identification (UDI) symbol required
by the FDA
Indicates the product is a medical device according
to EU Medical Device Regulation 2017/745

14
Track Bridge /Track Bridge Bariatric Owner’s Manual Part No. 001300-EN, 14-m02-2023

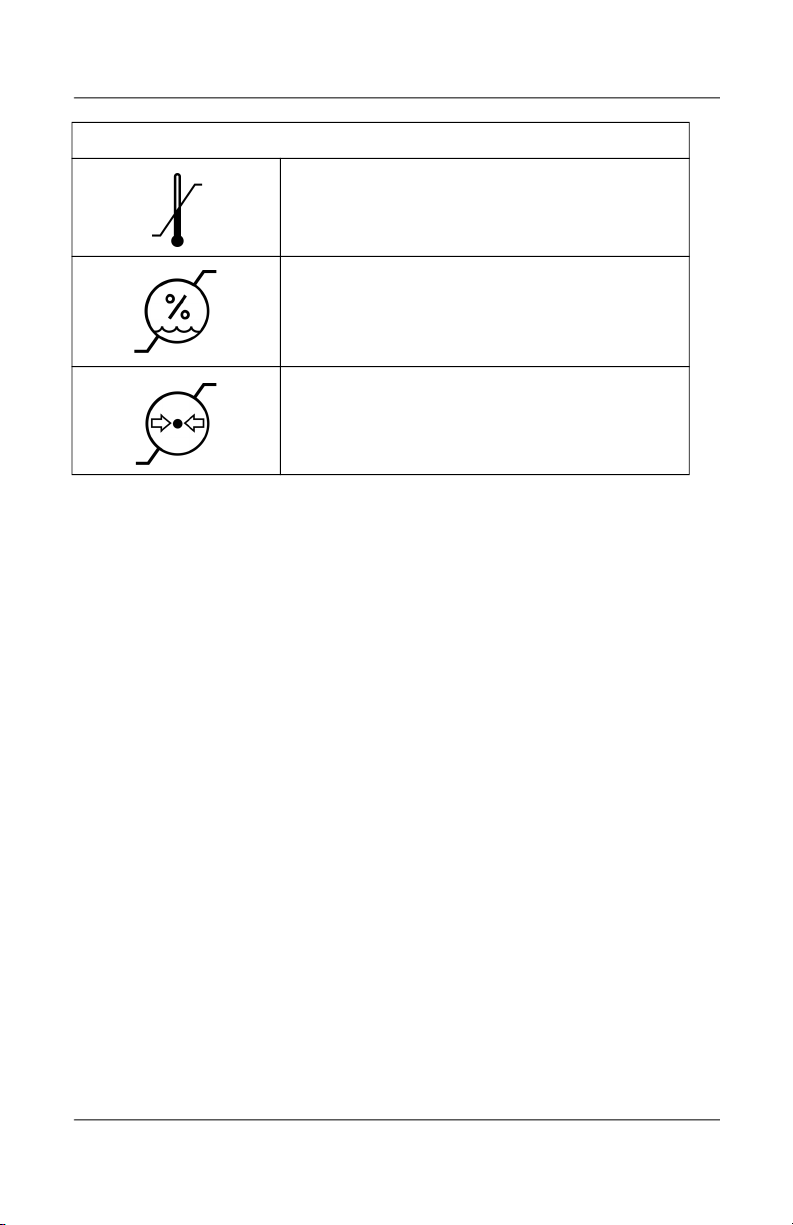

Symbols on box label
Indicates the temperature limits to which the
medical device can be safely exposed
Indicates the range of humidity to which the
medical device can be safely exposed
Indicates the range of atmospheric pressure to
which the medical device can be safely exposed

15
Part No. 001300-EN, 14-m02-2023 Track Bridge /Track Bridge Bariatric Owner’s Manual
Symbols on device
Charge Light. Indicates that the device is on charge
or charged
Power Light. Indicates the power status
Maintenance Light. Indicates that maintenance is
recommended on the device
When activated will lock Track Bridges sections
together
When activated will unlock Track Bridges sections
Clockwise rotation will lock Track Bridges sections
together
Counter-clockwise rotation will unlock Track
Bridges sections
Stop

16
Track Bridge /Track Bridge Bariatric Owner’s Manual Part No. 001300-EN, 14-m02-2023
4. SPECIFICATIONS
This equipment is not suitable in the presence of flammable anesthetic
mixtures with air or oxygen, or with nitrous oxide.
Product
Product Weight 9.8 kg (21.6 lb)
Product Life 10 years
Safe Working Load (SWL) -
Track Bridge
272 kg (600 lb)
Safe Working Load (SWL) -
Track Bridge Bariatric
544 kg (1200 lb)
Water Ingress Protection
Rating of Device
IP20
Noise Level Maximum 54 dBA
Duty Cycle Max 10%, 1 min continuous use
Medical Equipment Class Class 1
Protection Class Type BF
Power Source
Battery Battery type: Lithium Ion, 25.2V, 2500mAh
(replaceable)
Charger
Input 100-240 VAC, 50-60Hz
Output 29.4 VDC, max 1A
Environmental Conditions: Operation
Temperature 5 °C to 40 °C (41 °F to 104 °F)
Battery Charging
Temperature
10 °C to 40 °C (50 °F to 104 °F)
Humidity 15 to 93%, non-condensing
Atmospheric Pressure 700 hPA to 1060 hPA
WARNING

17
Part No. 001300-EN, 14-m02-2023 Track Bridge /Track Bridge Bariatric Owner’s Manual
Environmental Conditions: Transport/Storage
Temperature -25 °C to 70 °C (-13 °F to 158 °F)
Humidity 0 to 93%, non-condensing
Atmospheric Pressure 500 hPa to 1060 hPA
Controls
Control Lift presence detected by magnetic sensor
Operating Force < 5 N
Compliance
IEC 60601-1:2005 A1:2012+A2:2020 (Medical Electrical Equipment)
IEC 60601-1-11:2015 (Homecare)
ISO 10535:2021
CAN/CSA Z10535.1:15 (Patient Lift)
Compliance
CE Marking per MDR (EU) 2017/745 (Medical Device)
2006/42/EC (Machinery Directive)
2015/863/EU (ROHS - 100% of components)
2012/19/EU (WEEE)

18
Track Bridge /Track Bridge Bariatric Owner’s Manual Part No. 001300-EN, 14-m02-2023
Dimensions












19
Part No. 001300-EN, 14-m02-2023 Track Bridge /Track Bridge Bariatric Owner’s Manual
5. USING THE TRACK BRIDGE
Before Transfer
• The Track Bridge has built-in stoppers that automatically close when
the device is disengaged. Ensure these stoppers are in correct position.
• Any track extremities other than the extremities blocked by the Track
Bridge shall have end stops securely in place as shown below.
• Inform the person to be transferred what you are about to do. The
beep and the locking process can cause stress if the process is
unknown.
The arrows in figure 4 indicate the built-in stoppers on the Track
Bridge
Figure 4
NOTE
TRACK END STOP

20
Track Bridge /Track Bridge Bariatric Owner’s Manual Part No. 001300-EN, 14-m02-2023
Using the Track Bridge
1Move the ceiling lift inside the Track Bridge.
Figure 5
2Move the mobile Track Bridge (Primary) in front of the fixed Track Bridge
(Secondary). You will hear a beep confirming that the Track Bridge is
positioned correctly.
Figure 6
