>PLAIN PAPER FAX SYSTEM

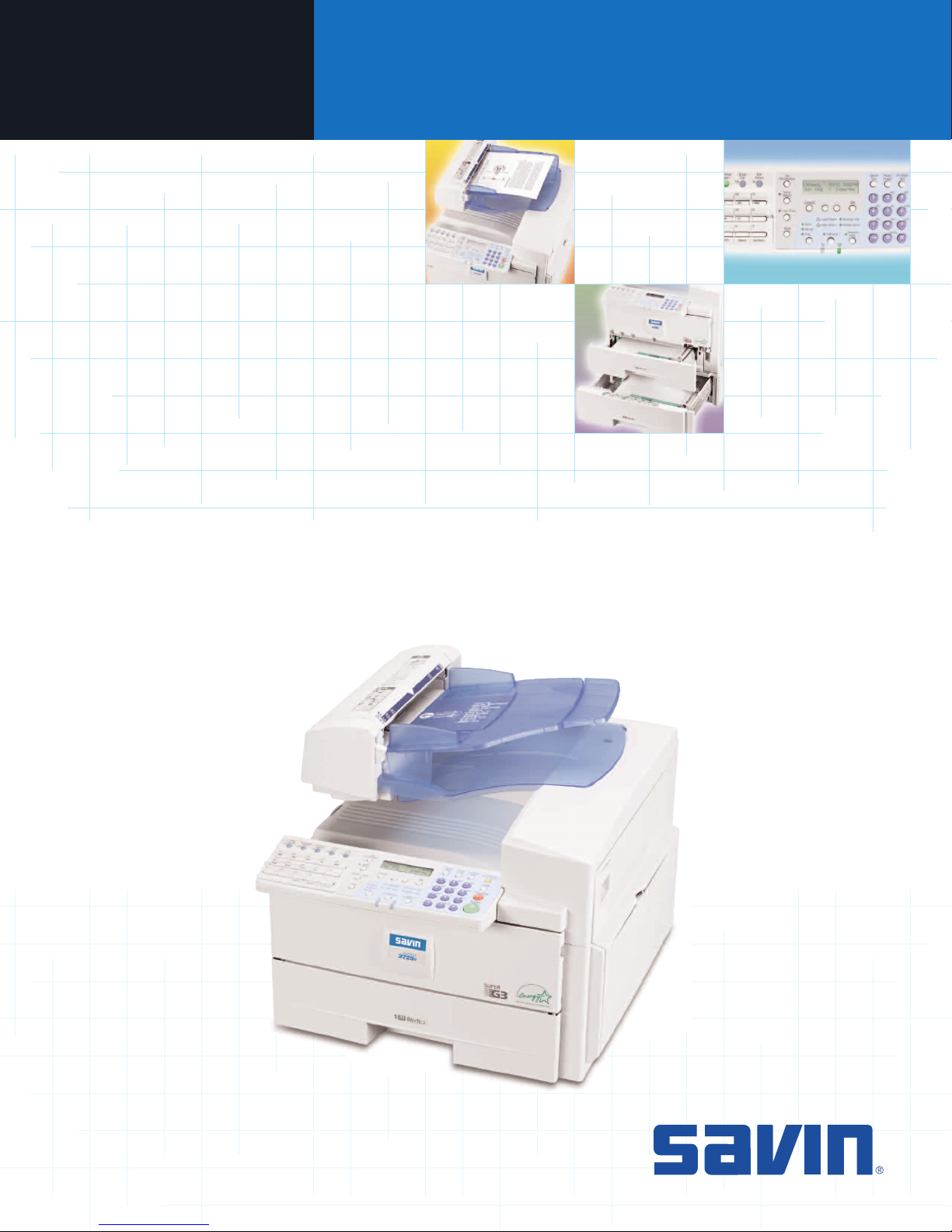

Savinfax 3725e
Compact,
Versatile,
Reliable
Savinfax 3725e

With the Savinfax 3725e,the
competitive edge belongs to you.
The 3725e streamlines workflow and
communications with many advanced,
highly productive features. Ultra-fast
transmission speed, sophisticated fax
functions, versatile paper-handling
capabilities and optional network
printing combine to meet the needs
of even the most demanding work-
groups – including yours.
Business Performance That Fits On T
Smarter and Faster? You Bet!
With the Savinfax 3725e, you’ll be off
to a running start…right out of the box.
•Notime to read a lengthy Operator’s
Manual? No problem! Just turn the
3725e on, and easy-to-follow instruc-
tions instantly appear on the Control
Panel – making installation and config-
uration a breeze.
•Don’t worry about tight deadlines!
Astandard 33.6 Kbps Super G3
modem combines with super-
efficient JBIG Compression,
which enables your 3725e to
speed critical documents to their desti-
nations in just 3 seconds per page.
•Never lose an important fax. The
3725e has a standard 6 MB (480 pages)
memory capacity, and with the optional
40 MB MemoryCard you can storeup
to 1,500 pages. And, if there’s ever an
interruption to the power supply, the
3725e’s Memory Battery Backup
protects stored documents from
being lost.
•With Memory Transmission, docu-
ments do not haveto be left on the
3725e when the unit is busy. Just scan
documents into memoryand transmis-
sion will occur once the phone line is
available. Parallel Memory Transmission
also speeds your documents on their
way by dialing and beginning trans-
mission right after the first page has
been scanned.
•Manage two jobs simultaneously using
the 3725e’s Dual Access function.
Scan outgoing messages into memory
while printing received documents –
it’s almost like having two fax
machines in one.
•Auto Document stores frequently
transmitted documents into memory
for use whenever needed. This elimi-
nates searching for documents and
ensures that the document being sent
is clean.
•Stack and go! The 3725e automatically
processes – and scans – up to 50
original sheets, which means you get
back to morepressing jobs faster.
•Load up to 850 sheets* of paper –
including 8.5" x 14" – at a given time
and reduce paper replenishment tasks…
a real plus during peak operating times.
•Energy Saver Mode will save you money
when the 3725e is idle, consuming
only 1.2 watts** or less of
electricity. The 3725e is fully
Energy Star-compliant.
*With optional Paper Feed Unit.
**Without options.

he Desktop.
Need Another Printer?
No Problem!
Just add the optional Print Controller
and Network Interface Board and your
3725e doubles as a 15 ppm network
printer. Standard PCL5e/6 and optional
PostScript 2 emulation provide compati-
bility for PC and Macintosh users, while
600 dpi laser quality resolution ensures
that every document looks its best.
SmartNetMonitor
Management Utility
Manage your networked 3725e with
SmartNetMonitor. Comprehensive soft-
ware provides real-time information –
system configuration, system status and
paper supplies – to users and network
administrators.
Security PIN Code Protection
Toprevent exposure of a PIN Code or
Personal ID, any character after a cer-
tain position in the destination’sdial
number will be concealed both in the
display and Communications Report.
Looking for a Sure Thing?
You Just Found It!
The Savinfax 3725e can handle any-
thing your busy workgroup can throw
its way. If you’renot convinced, just
contact your authorized Savin sales
location to see the 3725e in action…
we'll change your mind.
Savinfax 3725e

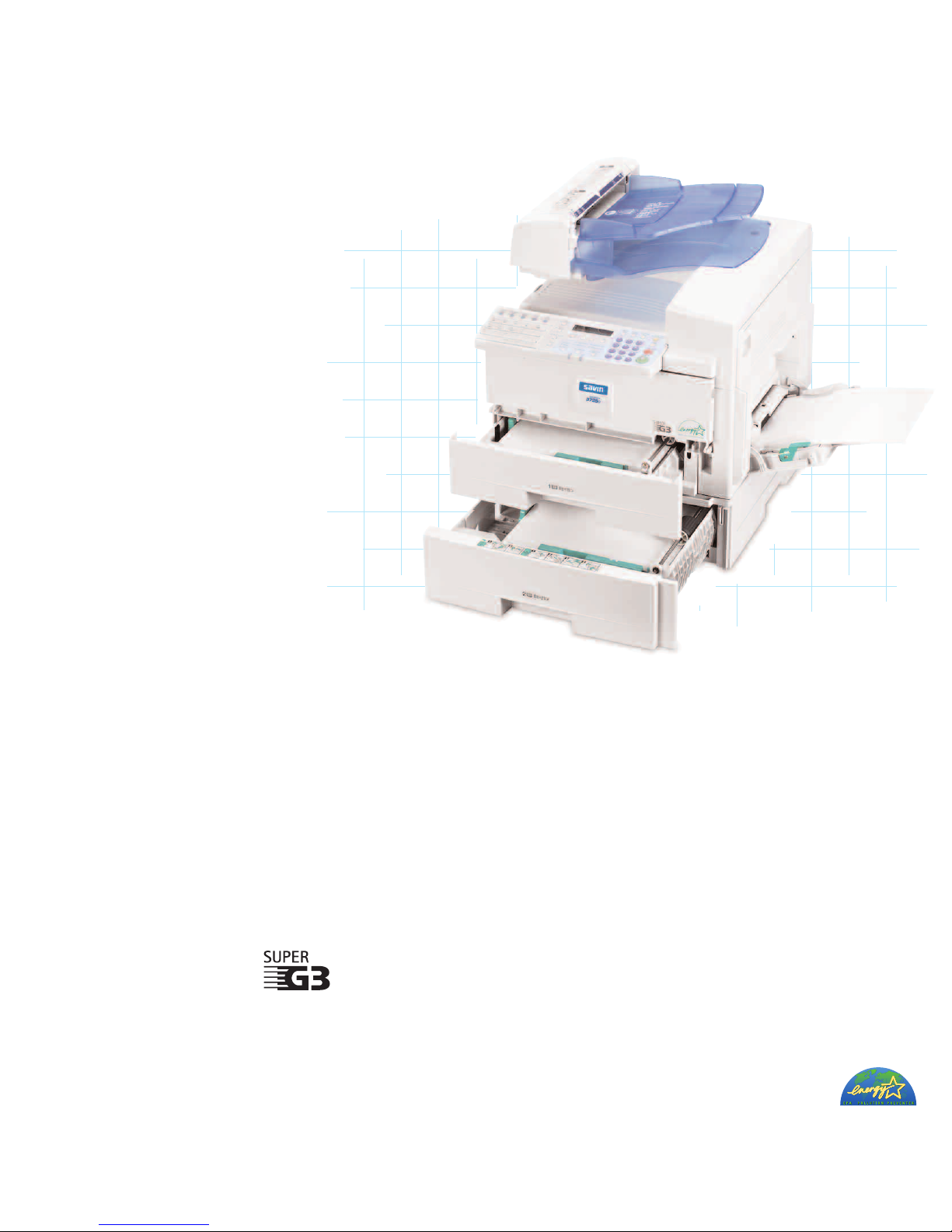

The standard 250-sheet frontloading paper tray
and 100-sheet Bypass Tray can be supplemented
with an optional 500-sheet tray for a total capacity
of 850 sheets.
Quickly scan documents with the 50-page
Automatic Document Feeder.
Print on labels, transparencies, postcards and
special stocks through the built-in bypass feed.
@
For more information contact
your authorized Savin dealer.
www.savin.com
Easy to use Control Panel clearly guides you through any function.
Five Programmable User Function Keys –
Quickly and easily access the features you use
most with one touch of a button.
Status Indicator Lights provide easy-to-see
operational information on the system that can be
viewed from a distance. A green light means a
transmission or reception is in progress. A red
light means that toner or paper is needed, or
there is a communication error.
Quick Dial Keys –Up to 30 fax numbers
can be stored in the the Savinfax 3725e,
then instantly transmitted to in one step.

Savin Corporation Stamford, Connecticut 06904 ©2005 Savin Corporation.
SAVIN®is a registered trademark of Savin Corporation. All other trademarks are the property of their respective owners.
Product specifications subject to change without notice.
Printed in U.S.A. on recycled paper. (S2048) 35M 2/05
Savinfax 3725e
>Super G3 Fax
>Large Memory Capacity
>Huge Paper Supply
>Optional Network Printing
Type Desktop Facsimile
Recording Method Laser
ITU-T Compatibility Group 3 (V.34); ECM
Modem Speed 33.6 Kbps with Auto Fallback
Maximum Transmit Speed 3seconds1
Data Compression MH/MR/MMR/JBIG
Scan Speed 2.8 seconds2
(standard resolution)
Dual Access Standard
Standard Document Memory 6MB (480 pages2)
Optional Document Memory 40MB (1,500 pages2)
AutoDialer 30 Quick Dials,
100 Speed Dials, 5 Groups
User Function Keys 5Dedicated Keys
Document Memory Backup 12Hour (standard memory)
Auto Document Feed Capacity 50 Sheets
Maximum Document Width/ 8.5"/8.4"
Scan Width
Document Length 23.7"
Scan Resolution Standard: 200 x 100 dpi
Detail: 200 x 200 dpi
Fine: 200 x 400 dpi
Halftone 64Shades of gray with
Error Diffusion
Maximum Print Speed 15pages per minute
Maximum Print Resolution 600 dpi
Resolution Enhancement Super Smoothing HQ™
Maximum Recording Width 8.4"
Maximum Recording 8.5" x 14"
Paper Size
StandardPaper Capacity 250-Sheet Cassette tray
100-Sheet Bypass tray
Optional Paper Capacity 500-Sheet
LCD Display Size 2Lines (22 Characters)
Power Consumption
Energy Saver Mode 1.2W and lower
(without options)
Power Requirements 115 VAC, 60Hz
Environment 59˚ to 77˚F, 30 to 70% RH
Dimensions (WxDxH) 17.6" x 19.5" x 16.2"
(without options)
Weight 40.8 lbs. (without options)
Optional PFU
Dimensions (WxDxH) 17.0" x 16.1" x 5.5"
Weight 10.6 lbs.
Auto Collation
Auto Document
Auto Document Feeder
Auto Start Initial Setup
Clock with Auto Daylight Savings Time
Direct Fax Number Entry
Dual Access
Energy Saver Mode
Fax Number Entry Before Loading Document
File List
Group Dial
Group Dial List Report
Halftone with Error Diffusion
Help On Demand
Keystroke Programs
Label Registration for Quick/Speed Dials
LCD Prompts
Answering Machine Interface
Automatic Fax/Tel Change
AIRedial
Busy Tone Detection
Chain Dialing
Communication Failure Report
Distinctive Ring Detection
Error Correction Mode
Error Report
Monitor Speaker
On Hook Dialing
Power FailureReport
Pulse/Tone Selection
Redial (Auto/Manual)
Shortened Protocol
Batch Transmission
Blank Document Detection
Closed Network
Confidential Transmission with ID
Fax Header (TTI)
Forwarding
Immediate or Memory Transmission
Label Insertion
Memory Transmission Immediate Stop
Memory Transmission Result Report
Page Count
Page Retransmission
Quick (Parallel) Memory Transmission
Send Later
Serial Broadcasting (Immediate and Later)
Transmission Confirmation Report
Transmission Result Report
Authorized Reception
Auto or Manual Reception
Closed Network
Confidential Reception with ID
Confidential Reception Report
Copy up to 99 copies
Copy at 15 pages per minute
Feature (Memory) Expander Card Type 300 (40MB)
(non volatile)
Printer Interface Type 1013 (see Printer Features)
Telephone Handset Type 1018
Type 1018 PS2 Compatible Kit
10/100 Base-T Network Interface Board Type 1018
32 MB/64 MB/128 MB Printer Memory
500-Sheet Paper Cassette
15ppm at 600 dpi With Edge Smoothing
Bi-Directional Parallel Port
Collated Printing
Font Download
Network Connectable (requiresopt. NIB) (Ethernet)
Network OS
-Novell NetWare 3.x, 4.x, and 5.x
-MS Windows NT 4.0/2000
-MS Windows 95/98/Me/XP
-Mac OS 8.x, 9.x, and X
(Mac OS X (Classic) is supported)
PCL5e/6 Compatibility
-MS Windows 95/98/Me/XP
-MS Windows NT 4.0/2000
PostScript 2 Compatibility (optional)
-MS Windows 95/98/Me/XP
-MS Windows NT 4.0/2000
-Macintosh Driver
Printer Driver Features
-Custom Paper Size
-Layout
-Page Protect
-Page Order3
-Paper Selection
-Slip Sheet3
- Toner Saver
-User ID
-User Code
-Watermarks
Resident Fonts
-PCL Fonts = 10 TrueType / 35 Intellifonts
-PS Fonts = 80 (Only available with PS2 option)
10/100 Base-T Network Interface Board (optional)
Memory Storage Report
Ozone Emission-Free
Personal Codes and Code List Report
PIN Code Security
Print Quick Dial Labels
Program List Report
Quick Dial Keys and Quick Dial List Report
Remaining Memory Indicator
Resolution Control
Restricted Access
Scanner Cleaning Notification
Specified Cassette Selection List Report
Speed Dial Codes and Speed Dial List Report
Telephone Connection
Telephone Directory
Usage Counter
User Function List Report
User Parameter List Report
Wild Cards
SPECIFICATIONS
GENERAL FEATURES
GENERAL FEATURES (Cont.)
COMMUNICATION FEATURES
TRANSMISSION FEATURES
RECEPTION FEATURES
COPY FEATURES
Continuous Polling
Document Separation Mark (Checkered)
Memory Lock (All or By Address)
Multi-Polling Reception
Page Separation & Length Reduction
Poll Later
Polling Reception (With and Without ID)
Reception Mode Selection (Auto/Manual)
Reception Time Printing
Specified Cassette Selection
Substitute Reception
RECEPTION FEATURES (Cont.)
PRINTER FEATURES
OPTIONS
1Approximately 3 seconds per page at 33.6 Kbps is dependent on optimal line quality, and customer performance may vary by location.
Current systems used by the Public Switched Telephone Network (PSTN) generally support 28.8 Kbps modem speeds or lower.
2Based on ITU-T Test Chart#1 in standard resolution.
3Not available for PS2/Macintosh
