Savoy House 52-625-5AS-242 User manual

READ AND SAVE THESE INSTRUCTIONS
FAN RATING AC 120V. 60Hz
CUL LISTED MODEL: AC-552OD
MODELS: 52-625-5AS-242
52-625-5CN-13
CEILING FAN
OWNER'S MANUAL

2. PACKAGE CONTENTS
Unpack your fan and check the contents. You
should have the following items:
a. Blade set (5)
b. Hanger bracket assembly
c. Downrod
d. Coupling cover
e. Fan motor assembly
f. Set of blades bracket (5)
g. Light kit
h. Glass shade
i. Glass frame
j. 9W LED bulbs (2)
k. Receiver+6 wire nuts
l. Transmitter+holder+2 mounting
screws+3 volt battery (CR2032)
m. Package hardware
1) Mounting hardware :
screws (2), lock washers (2),
star washers (2), wire nuts (3),
wood screws (2)
2) Blade attachment hardware:
screws (16), rubber washers (16)
3) Blade arm hardware:
screws with lock washers (11)
4) Safety cable hardware:
wood screw, lock washer,
metal washer
5) Balance Kit
Philips screw driver
Blade screw driver
11 mm wrench
Step ladder
Wire cutters
1
1. TOOLS AND MATERIALS
REQUIRED
a
b
c
d
e
f
g
h
i
j
k
l
m

2
3. SAFETY RULES
1. To reduce the risk of electric shock, insure
electricity has been turned off at the circuit
breaker or fuse box before beginning.
2. All wiring must be in accordance with the
National Electrical Code and local electrical
codes. Electrical installation should be
performed by a qualified licensed
electrician.
3. WARNING: To reduce the risk of electrical
shock and fire, do not use this fan with any
solid-state fan speed control device.
4. WARNING: To reduce the risk of fire, electric
shock, or personal injury, mount to outlet
box marked "acceptable for fan support of
15.8 kg (35 lbs.) or less" and use mounting
screws provided with the outlet box. Most
outlet boxes commonly used for the
support of light fixtures are not acceptable
for fan support and may need to be
replaced. Due to the complexity of the
installation of this fan, a qualified licensed
electrician is strongly recommended.
5. The outlet box and support structure must
be securely mounted and capable of
reliably supporting a minimum of 50
pounds. Use only CUL Listed outlet boxes
marked "FOR FAN SUPPORT".
6. The fan must be mounted with a minimum
of 7 feet clearance from the trailing edge
of the blades to the floor.
7. Wait for fan to stop before changing the
setting of the slide switch.
8. Avoid placing objects in the path of the
blades.
9. To avoid personal injury or damage to the
fan and other items, be cautious when
working around or cleaning the fan.
10. Do not use water or detergents when
cleaning the fan or fan blades. A dry dust
cloth or lightly dampened cloth will be
suitable for most cleaning.
11. After marking electrical connections,
spliced conductors should be turned
upward and pushed carefully up into
outlet box. The wires should be spread
apart with the grounded conductor and
the equipment-grounding conductor on
one side of the outlet box.
12. Electrical diagrams are reference only.
Light kit that are not packed with the fan
must be CUL Listed and marked suitable
for use with the model fan you are
installing. Switches must be CUL General
Use Switches. Refer to the Instructions
packaged with the light kits and switches
for proper assembly.
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC
SHOCK OR PERSONAL INJURY, MOUNT FAN
TO OUTLET BOX MARKED "ACCEPTABLE
FOR FAN SUPPORT".
WARNING
TO REDUCE THE RISK OF PERSONAL
INJURY, DO NOT BEND THE BLADE
BRACKETS (ALSO REFERRED TO AS
FLANGES) DURING ASSEMBLY OR AFTER
INSTALLATION. DO NOT INSERT OBJECTS

4. MOUNTING OPTIONS
If there isn't an existing cUL listed mounting box,
then read the following instructions.
Disconnect the power by removing fuses or
turning off circuit breakers.
Secure the outlet box directly to the building
structure. Use appropriate fasteners and
building materials. The outlet box and its
support must be able to fully support the
moving weight of the fan (at least 50 lbs). Do
not use plastic outlet boxes.
Figures 1, 2 and 3 are examples of different
ways to mount the outlet box.
Note: You may need a longer downrod to
maintain proper blade clearance when
installing on a steep, sloped ceiling. (Fig. 3)
To hang your fan where there is an existing
fixture but no ceiling joist, you may need an
installation hanger bar as shown in Figure 4.
Outlet box
Provide strong
support
Recessed
outlet box Ceiling
mounting
plate
Outlet box
Figure 1
Figure 3
Figure 4
Outlet box
Figure 2
3
ANGLED CEILING
MAXIMUM 20° ANGLE

REMEMBER to turn off the power. Follow the
steps below to hang your fan properly:

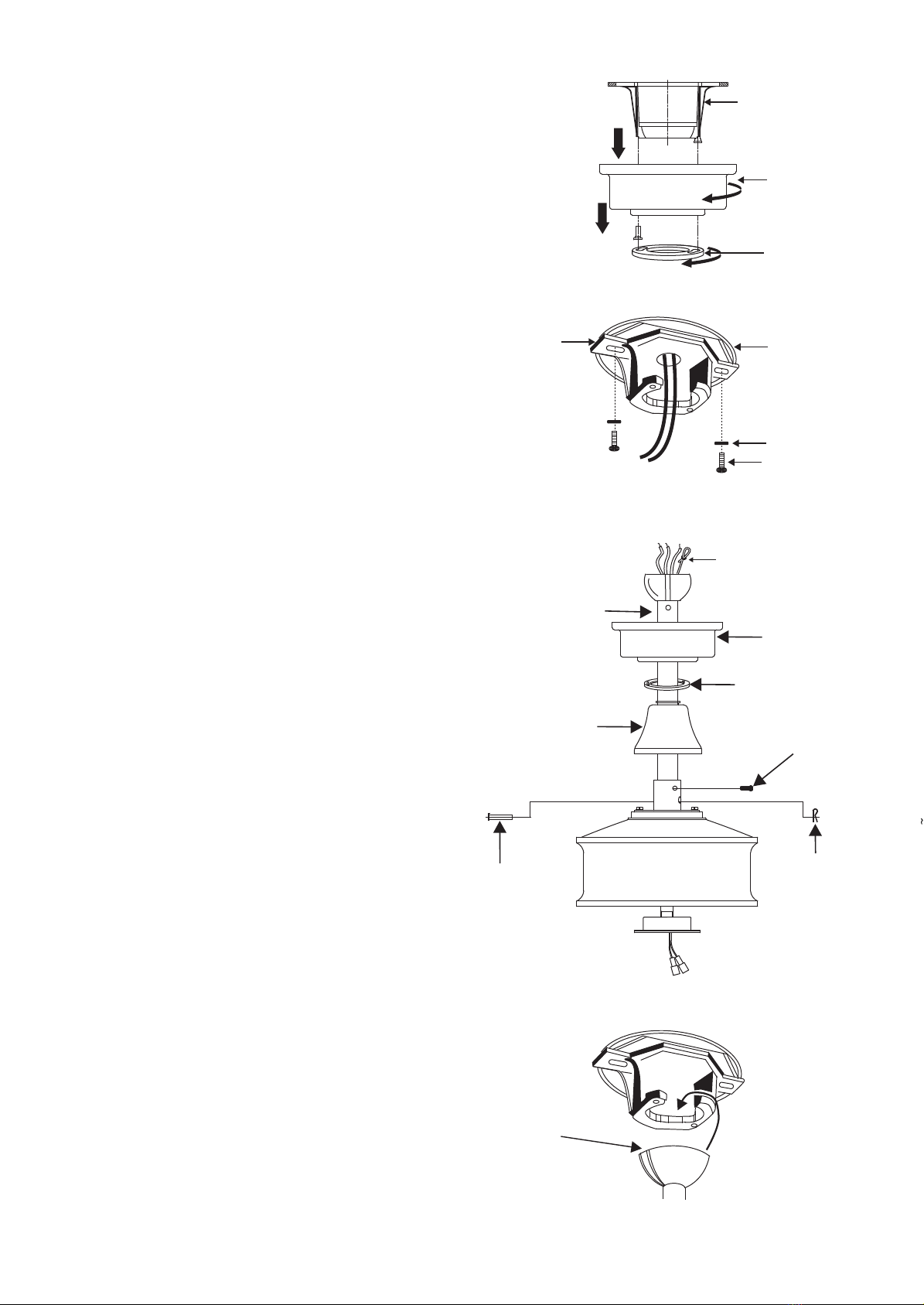

Step 1. Remove the decorative canopy
bottom cover from the canopy by turning the
cover counter clockwise. (Fig. 5)
Step 2. Remove the hanger bracket from the
canopy by removing the 1 of 2 screws from
the bottom of the hanger bracket and
loosening the other one a half turn from the
screw head. Next, turn the canopy counter
clockwise to removing the hanger bracket
from the canopy. (Fig. 5)
Step 3. Pass the 120-volt supply wires
through the center hole in the ceiling hanger
bracket as shown in Fig. 6.
Step 4. Secure the hanger bracket to the
ceiling outlet box with the screws and
washers provided with your outlet box.
Step 5. Remove the hanger pin, lock pin and
set screws from the top of the motor
assembly.
Step 6. Route the safety cable and wires
exiting from the top of the fan motor through
the collar cover, canopy cover, canopy and
then through the ball / downrod. (Fig. 7)
Step 7. Align the holes at the bottom of the
downrod with the holes in the collar on top
of the motor housing (Fig.7). Carefully insert
the hanger pin through the holes in the collar
and downrod. Be careful not to jam the pin
against the wiring inside the downrod. Insert
the locking pin through the hole near the end
of the hanger pin until it snaps into its locked
position, as noted in the circle inset of Fig. 7.
Step 8. Tighten two set screws on top of the
fan motor firmly. (Fig. 7)
Step 9. Place the downrod ball into the
hanger bracket socket. (Fig. 8)
5. HANGING THE FAN
4
Figure 5
Figure 6
Figure 8
Registration slot
CUL Listed
electrial
box
Ceiling
hanger
bracket
Mounting screws
(supplied with
electrical box)
120V Wires
Washers
Hanger
bracket
Ceiling
canopy
Canopy
cover
Figure 7
Downrod
Canopy
Set screws
Hitch pin
Lock pin
Canopy cover
Coupling cover
Safety cable

5
6. INSTALLATION OF
SAFETY SUPPORT
An additional safety support is provided to
prevent the fan from falling. Secure the safety
cable to the ceiling joist with screw and
washer, as illustrated in Figure 9.
7. MAKE THE ELECTRIC
CONNECTIONS
WARNING: To avoid possible electrical shock,
be sure electricity is turned off at the main
fuse box before wiring.
NOTE: This remote control unit is equipped
with 16 code combinations to prevent
possible interference from or to other remote
units. The frequency switches on your
receiver and transmitter have been preset at
the factory. Please recheck to make sure the
switches on transmitter and receiver are set
to the same position, any combination of
settings will operate the fan as long as the
transmitter and receiver are set to the same
position. (Figure 10)
Step 1. (Figure 11) Insert the receiver into the
mounting bracket with the flat side of the
receiver facing the ceiling.
Figure 9
Figure 10
Figure 11
Receiver
Hanger
bracket
Hanger bracket Safety cable
Code switch
ON
ON
ON ECE
1234

6
Step 2. (Figure 12) Motor to Receiver Electrical
Connections: Connect the black wire from the
fan to black wire marked "TO MOTOR L".
Connect the white wire from the fan to the
white wire marked "TO MOTOR N" from the
receiver. Connect the blue wire from the fan to
the blue wire marked "For Light" from the
receiver. Secure the wire connections with the
plastic wire nuts provided.
Step 3. (Figure 12) Receiver to House Supply
Wires Electrical Connections: Connect the
black (hot) wire from the ceiling to the black
wire marked "AC in L" from the receiver.
Connect the white (neutral) wire from the
ceiling to the white wire marked "AC in N"
from the Receiver. Secure the wire connections
with the plastic wire nuts provided.
Step 4. (Figure 12) If your outlet box has a
ground wire (green or bare copper) connect it
to the fan ground wires; otherwise connect the
hanging bracket ground wire to the mounting
bracket. Secure the wire connection with a
plastic nut provided. After connecting the
wires, spread them apart so that the green and
white wires are on one side of the outlet box
and black and blue wires are on the other side.
Carefully tuck the wire connections up into the
outlet box.
Note: Fan must be installed at a maximum
distance of 30 feet from the transmitting unit
for proper signal transmission between the
transmitting unit and the fan's receiving unit.
Figure 12
White (neutral)
White (neutral)
Green or bare
copper (ground)
White ("AC IN N")
White ("to motor N")
Ground
(green)
(Connect to
ground wire on
hanger bracket
if no house
ground wire
exists.)
Outlet box
Black (hot)
Black ("AC IN L")
Black ("to motor L")
Receiver
Blue (for light)
Blue (for light)
Black (motor)

7
Figure 13
Figure 14
8. FINISHING THE
INSTALLATION
Step 1. Tuck connections neatly into ceiling
outlet box.
Step 2. Slide the canopy up to hanger
bracket and place the key hole on the canopy
over the screw on the hanger bracket, turn
canopy until it locks in place at the narrow
section of the key holes.
Step 3. Align the circular hole on canopy with
the remaining hole on the hanger bracket,
secure by tightening the two set screws.
Note: Adjust the canopy screws as necessary
until the canopy and canopy cover are snug.
(Fig. 13)
Warning: Make sure tab at bottom of hanger
bracket is properly seated in groove of
hanger ball before attaching canopy to
bracket. Failure to properly seat tab in groove
could cause damage to electrical wiring.
Outlet box
Hanger
bracket
Canopy
Canopy cover
Screws
9. ATTACHING THE FAN
BLADES
Caution: Remove 5 rubber packing mounts
and discard before installation.
Step 1. Attach blades to blade brackets using
three screws and rubber washers. (Fig. 13)
Start a screw into the blade bracket, do not
tighten. Repeat for the 2 remaining screws
and washers.
Step 2. Tighten each screw securely starting
with the center screw. Make sure the blade is
straight.
Step 3. Fasten blade assembly to motor using
the screws supplied. (Fig. 14)
Screws
Blade
Blades bracket
Screws
Rubber
washers

8
Figure 15
Figure 16
10. INSTALLING THE
LIGHT KIT
NOTE: Before starting installation, disconnect
the power by turning off the circuit breaker
or removing the fuse at fuse box. Turning
power off using the fan switch is not suffi-
cient to prevent electric shock.
Step 1. Remove the 1 of 3 screws from the
mounting ring and keep it for future use.
Loosen the other 2 screws (Do not remove)
(Fig. 15)
Step 2. While holding the light kit under the
fan motor assembly, make the wire connec-
tions:
- White to white
- Black to blue
Step 3. Tuck connections neatly into mount-
ing ring, Place the light kit key holes over the
2 screws previously loosened from the
mounting ring, turn light kit until it locks in
place at the narrow section of the key holes.
Secure by tightening the 2 screws previously
loosened and the one previously removed.
Light kit
Glass
shade
Bulbs
Mounting ring
Connection plugs
Light kit
Screws
Glass frame
Screws
11. INSTALLING THE
GLASS SHADE AND
GLASS FRAME
1. Install 2 x 9W LED bulbs (included).
2. Raise glass shade up against the light kit
and secure it to fan by turning glass clockwise
until snug. Do not overtighten. (Fig. 16)
3. Install the glass frame to the light kit with 4
screws provided. (Fig. 16)
4. Restore power and your light kit is ready for
operation.

9
Figure 18
Figure 17
13. OPERATING
INSTRUCTIONS
Restore power to ceiling fan and test for
proper operation.
A. , , and buttons:
These three buttons are used to set the
fan speed as follows:
= high speed
= medium speed
= low speed
B. button:
This button turns the fan off.
C. The " " button is used to set the fan
forward or reverse. (This button are NO
function on this fan, please use reverse
switch to reverse fan).
D. button:
This button controls the light. Press and
release the button to turn the light ON
or OFF. Press and hold the button to set
the desired brightness. The light key
has an auto-resume, it will stay at the
same brightness as the last time it was
turned off.
12. INSTALLING THE
BATTERY

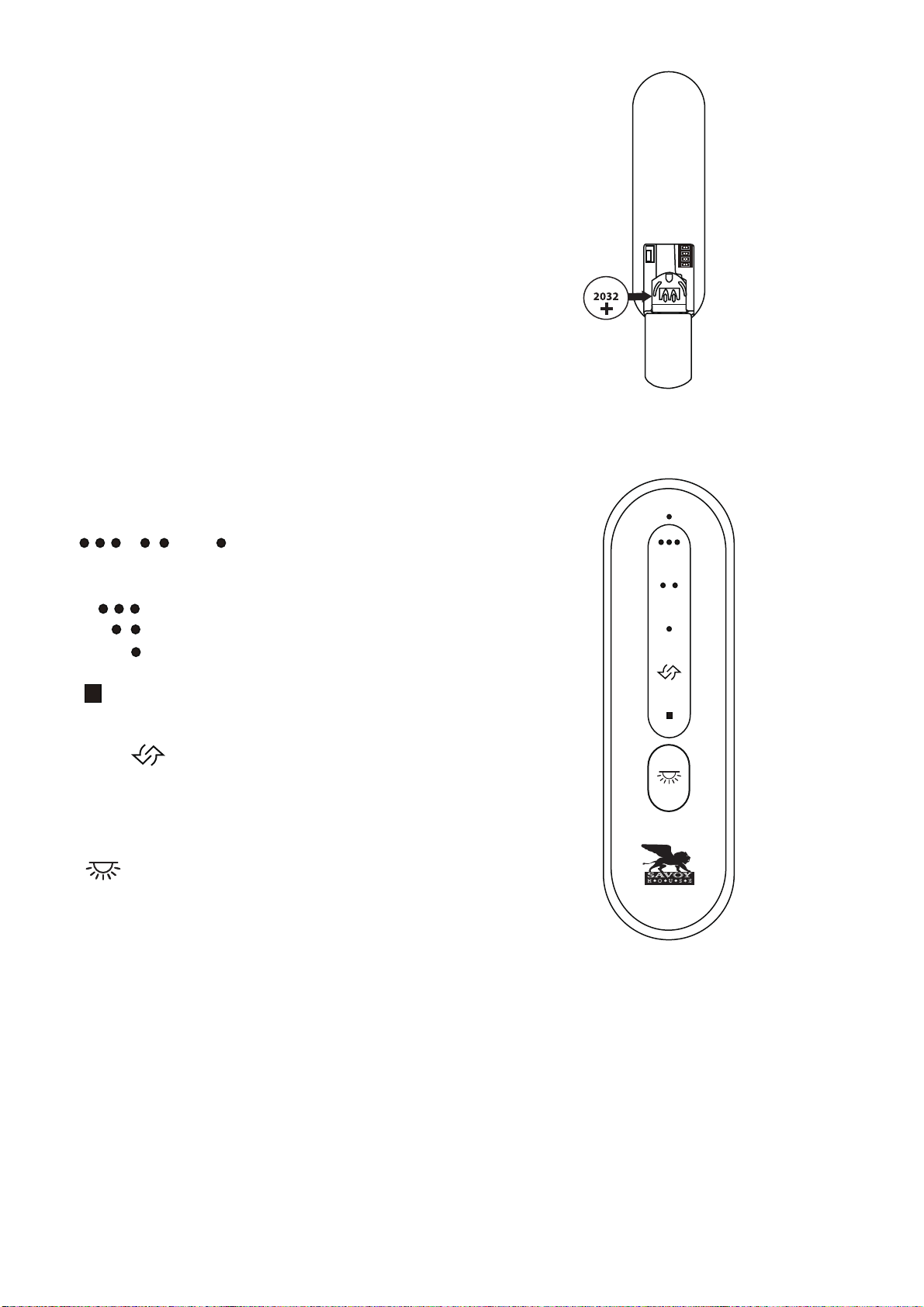

Insert the 3 volt battery (included) and make
sure they are seated correctly in each recess
with the Positive + sign facing up. (Fig. 17)
ON ECE
1234

10
Here are some suggestions to help you maintain your fan
1. Because of the fan's natural movement, some connections may become loose. Check the
support connections, brackets, and blade attachments twice a year. Make sure they are
secure. (It is not necessary to remove fan from ceiling.)
2. Clean your fan periodically to help maintain its new appearance over the years. Use only a soft
brush or lint-free cloth to avoid scratching the finish. The plating is sealed with a lacquer to
minimize discoloration or tarnishing. Do not use water when cleaning. This could damage the
motor, or the wood, or possibly cause an electrical shock.
3. You can apply a light coat of furniture polish to the wood blades for additional protection and
enhanced beauty. Cover small scratches with a light application of shoe polish.
4. There is no need to oil your fan. The motor has permanently lubricated bearings.
14. CARE OF YOUR FAN
IMPORTANT
MAKE SURE THE POWER IS OFF AT THE ELECTRICAL PANEL BOX BEFORE YOU ATTEMPT ANY
REPAIRS. REFER TO THE SECTION "MAKING ELECTRICAL CONNECTIONS".
Figure 19
Figure 20
The Reverse switch is located on the motor
housing. Slide the switch to the Left for
warm weather operation. Slide the switch
to the Right for cool weather operation.
Speed settings for warm or cool weather
depend on factors such as the room size.
Ceiling height, number of fans and so on.
NOTE: Wait for fan to stop before changing
the setting of the slide switch.

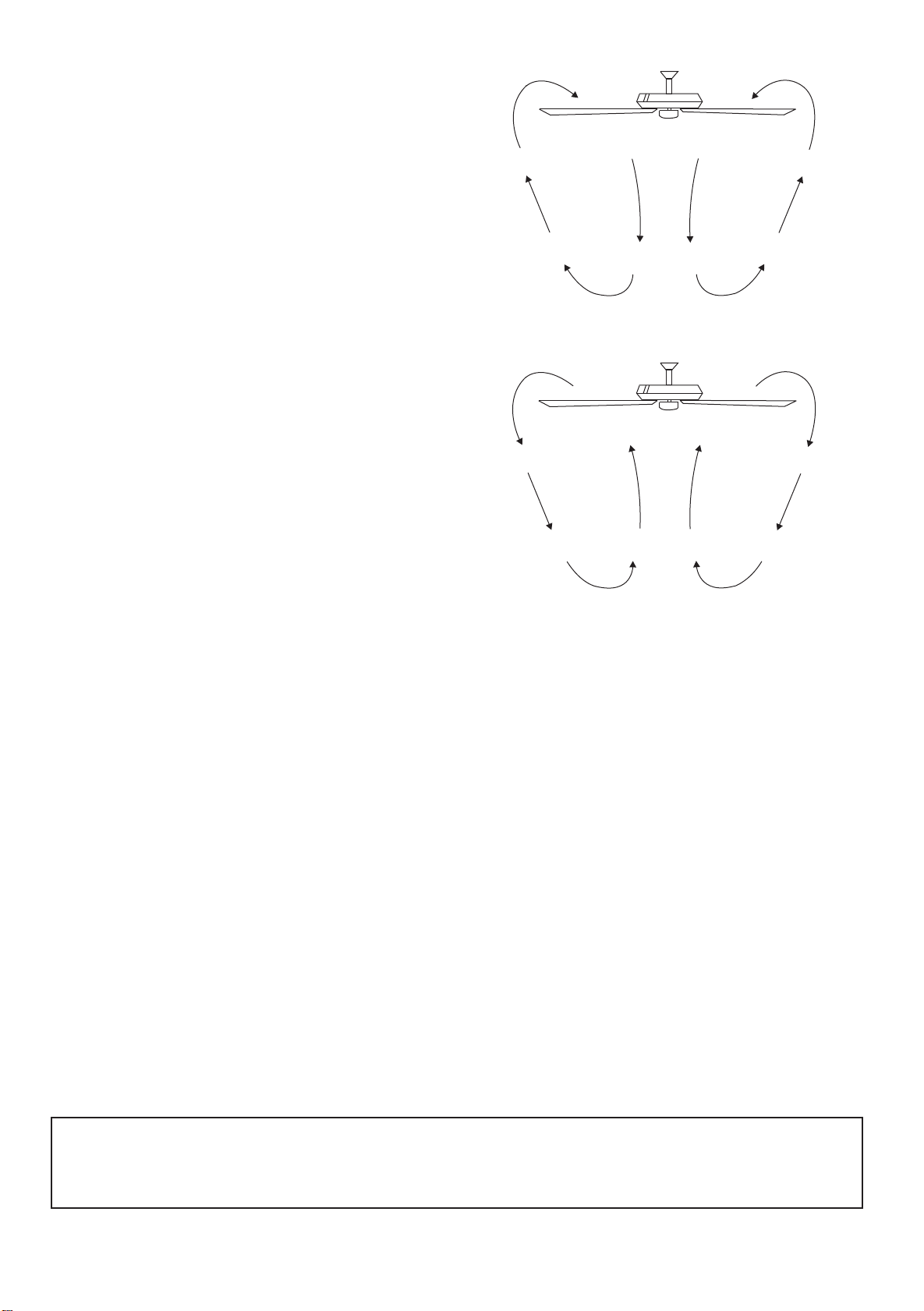

Warm weather - (Forward) A downward air-
flow creates a cooling effect as shown in Fig.
19. This allows you to set your air conditioner
on a warmer setting without affecting your
comfort.
Cool weather - (Reverse) An upward airflow
moves warm air off the ceiling area as shown
in Fig. 20. This allows you to set your heating
unit on a cooler setting without affecting
your comfort.

11
15. TROUBLESHOOTING
Problem
Fan will not start.
Fan sounds noisy.
Remote control
malfunction.
Fan wobble.
Solution
1. Check circuit fuses or breakers.
2. Check line wire connections to the fan and switch wire connections in the
switch housing. CAUTION: Make sure main power is off.
3. Check to make sure the dip switches from the transmitter and receiver are
set to the same frequency.
1. Make sure all motor housing screws are snug.
2. Make sure the screws that attach the fan blade bracket to the motor hub is
tight.
3. Make sure wire nut connections are not rubbing against each other or the
interior wall of the switch housing. CAUTION: Make sure main power is
off.
4. Allow a 24-hour "breaking-in" period. Most noise associated with a new
fan disappear during this time.
5. If using an optional light kit, make sure the screws securing the glassware
are tight. Check that light bulb is also secure.
6. Do not connect the fan with wall mounted variable speed control (s).
7. Make sure the upper canopy is a short distance from the ceiling. It should
not touch the ceiling.
1. Do not connect the fan with wall mounted variable speed control (s).
2. Make sure the dip switches are set correctly.
1. Check that all blade and blade arm screws are secure.
2. Most fan wobbling problems are caused when blade levels are unequal.
Check this level by selecting a point on the ceiling above the tip of one of
the blades. Measure this distance. Rotate the fan until the next blade is
positioned for measurement. Repeat for each blade. The distance deviation
should be equal within 1/8".
3. Use the enclosed Blade Balancing Kit if the blade wobble is still noticeable.
4. If the blade wobble is still noticeable, interchanging two adjacent (side by
side) blades can redistribute the weight and possibly result in smoother
operation.
WARNING: To reduce the risk of personal injury, do not bend the blade arm
while installing, balancing the blades, or cleaning the fan. Do not insert
foreign objects between rotating fan blades.
