Savoy House 52-840-5CN-196 User manual

READ AND SAVE THESE INSTRUCTIONS
FAN RATING AC 120V. 60Hz
CUL LISTED MODEL: AC-552DL
MODEL: 52-840-5CN-196
CEILING FAN
OWNER'S MANUAL

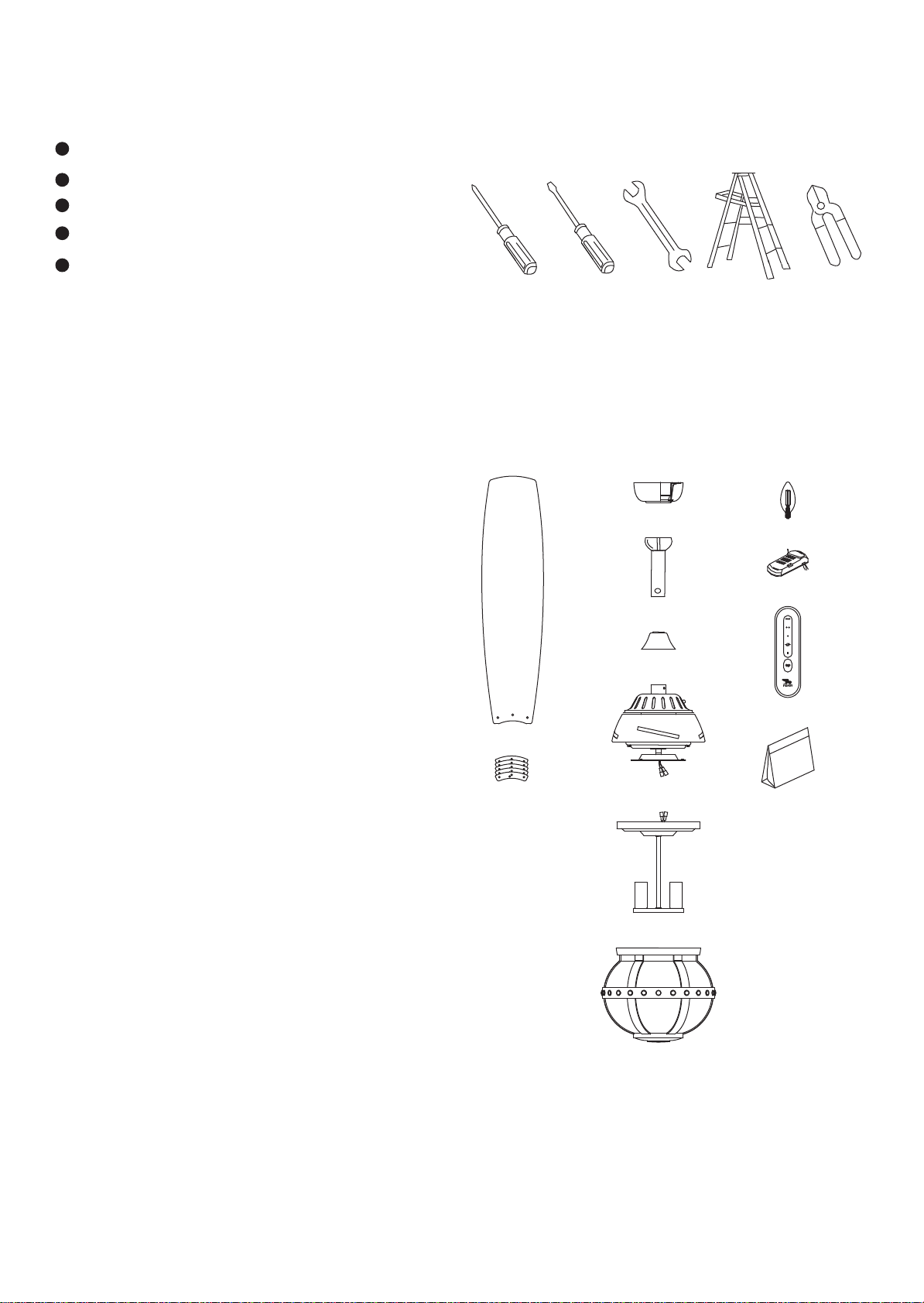

2. PACKAGE CONTENTS
Unpack your fan and check the contents. You
should have the following items;
a. Blade set (5)
b. Blade support plates (5)
c. Hanger bracket assembly
d. Downrod
e. Coupling cover
f. Fan motor assembly
g. Light kit assembly
h. Glass shade / frame assembly
i. 4W LED bulbs (3)
j. Receiver+6 wire nuts
k. Transmitter+holder+2 mounting
screws+23A/12V battery
l. Package hardware
1) Mounting hardware :
screws (2), lock washers (2),
star washers (2), wire nuts (3),
wood screws (2)
2) Blade attachment hardware:
screws with lock washers (16)
3) Safety cable hardware:
wood screws (2), lock washers (2),
metal washers (2)
4) Balance Kit
Philips screw driver
Blade screw driver
11 mm wrench
Step ladder
Wire cutters
1
a
b
c
d
e
f
g
h
i
j
l
k
1. TOOLS AND MATERIALS
REQUIRED
1
1
1
1
1

2
3. SAFETY RULES
1. To reduce the risk of electric shock, ensure
electricity has been turned off at the circuit
breaker or fuse box before beginning.
2. All wiring must be in accordance with the
National Electrical Code and local electrical
codes. Electrical installation should be
performed by a qualified licensed
electrician.
3. WARNING: To reduce the risk of electrical
shock and fire, do not use this fan with any
solid-state fan speed control device.
4. WARNING: To reduce the risk of fire, electric
shock, or personal injury, mount to outlet
box marked "acceptable for fan support of
15.8 kg (35 lbs.) or less" and use mounting
screws provided with the outlet box. Most
outlet boxes commonly used for the
support of light fixtures are not acceptable
for fan support and may need to be
replaced. Due to the complexity of the
installation of this fan, a qualified licensed
electricianisstronglyrecommended.
5. The outlet box and support structure must
be securely mounted and capable of
reliably supporting a minimum of 50
pounds. Use only cUL Listed outlet boxes
marked"FOR FAN SUPPORT".
6. The fan must be mounted with a minimum
of 7 feet clearance from the trailing edge
of the blades to the floor.
7. Do not operate reversing switch while fan
blades are in motion. Fan must be turned
off and blades stopped before reversing
blade direction.
8. Avoid placing objects in the path of the
blades.
9. To avoid personal injury or damage to the
fan and other items, be cautious when
working around or cleaning the fan.
10. Do not use water or detergents when
cleaning the fan or fan blades. A dry dust
cloth or lightly dampened cloth will be
suitable for most cleaning.
11. After marking electrical connections,
spliced conductors should be turned
upward and pushed carefully up into
outlet box. The wires should be spread
apart with the grounded conductor and
the equipment-grounding conductor on
one side of the outlet box.
12. Electrical diagrams are only for reference.
Light kit that are not packed with the fan
must be cUL Listed and marked suitable
for use with the model fan you are
installing. Switches must be cUL General
Use Switches. Refer to the instructions
packaged with the light kits and switches
for proper assembly.
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC
SHOCK OR PERSONAL INJURY, MOUNT FAN
TO OUTLET BOX MARKED "ACCEPTABLE
FOR FAN SUPPORT".
WARNING
TO REDUCE THE RISK OF PERSONAL INJURY,
DO NOT BEND THE BLADE BRACKETS (ALSO
REFERRED TO AS FLANGES) DURING
ASSEMBLY OR AFTER INSTALLATION. DO NOT
INSERT OBJECTS IN THE PATH OF THE BLADES.

4. MOUNTING OPTIONS
If there isn't an existing cUL listed mounting
box, then read the following instructions.
Disconnect the power by removing fuses or
turning off circuit breakers.
Secure the outlet box directly to the building
structure. Use appropriate fasteners and
building materials. The outlet box and its
support must be able to fully support the
moving weight of the fan (at least 50 lbs). Do
not use plastic outlet boxes.
Figures 1, 2 and 3 are examples of different
ways to mount the outlet box.
Note: You may need a longer downrod to
maintain proper blade clearance when
installing on a steep, sloped ceiling. (Fig. 3)
To hang your fan where there is an existing
fixture but no ceiling joist, you may need an
installation hanger bar as shown in Figure 4.
Outlet box
Provide strong
support
Recessed
outlet box Ceiling
mounting
plate
Outlet box
Figure 1
Figure 3
Figure 4
Outlet box
Figure 2
3
ANGLED CEILING
MAXIMUM 20° ANGLE

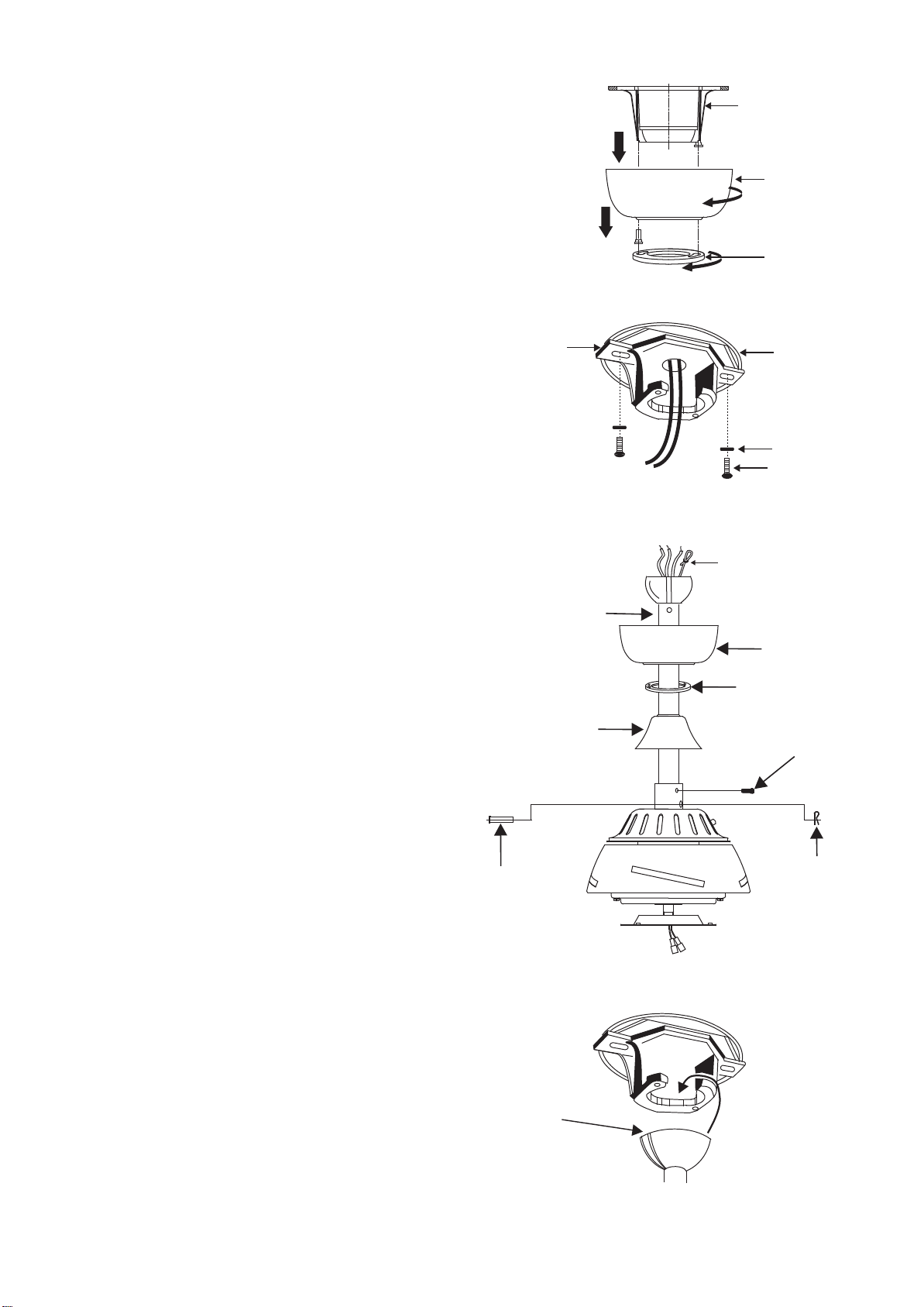

REMEMBER to turn off the power. Follow the
steps below to hang your fan properly:
Step 1. Remove the decorative canopy
bottom cover from the canopy by turning the
cover counter clockwise. (Fig. 5)
Step 2. Remove the hanger bracket from the
canopy by removing the 1 of 2 screws from
the bottom of the hanger bracket and
loosening the other one a half turn from the
screw head. Next, turn the canopy counter
clockwise to removing the hanger bracket
from the canopy. (Fig. 5)
Step 3. Pass the 120-volt supply wires
through the center hole in the ceiling hanger
bracket as shown in Fig. 6.
Step 4. Secure the hanger bracket to the
ceiling outlet box with the screws and
washers provided with your outlet box.
Step 5. Remove the hanger pin, lock pin and
set screws from the top of the motor
assembly.
Step 6. Route the safety cable and wires
exiting from the top of the fan motor through
the collar cover, canopy cover, canopy and
then through the ball / downrod. (Fig. 7)
Step 7. Align the holes at the bottom of the
downrod with the holes in the collar on top
of the motor housing (Fig.7). Carefully insert
the hanger pin through the holes in the collar
and downrod. Be careful not to jam the pin
against the wiring inside the downrod. Insert
the locking pin through the hole near the end
of the hanger pin until it snaps into its locked
position, as noted in the circle inset of Fig. 7.
Step 8. Tighten two set screws on top of the
fan motor firmly. (Fig. 7)
Step 9. Place the downrod ball into the
hanger bracket socket. (Fig. 8)
5. HANGING THE FAN
4
Figure 5
Figure 6
Figure 7
Figure 8
Registration slot
Downrod
Canopy
Set screws
Hitch pin
Lock pin
Canopy cover
Coupling cover
Hanger
bracket
Ceiling
canopy
Canopy
cover
CUL Listed
electrial
box
Ceiling
hanger
bracket
Mounting screws
(supplied with
electrical box)
120V Wires
Washers
Safety cable

ON ECE
1234
12V
+
5
6. INSTALLATION OF
SAFETY SUPPORT

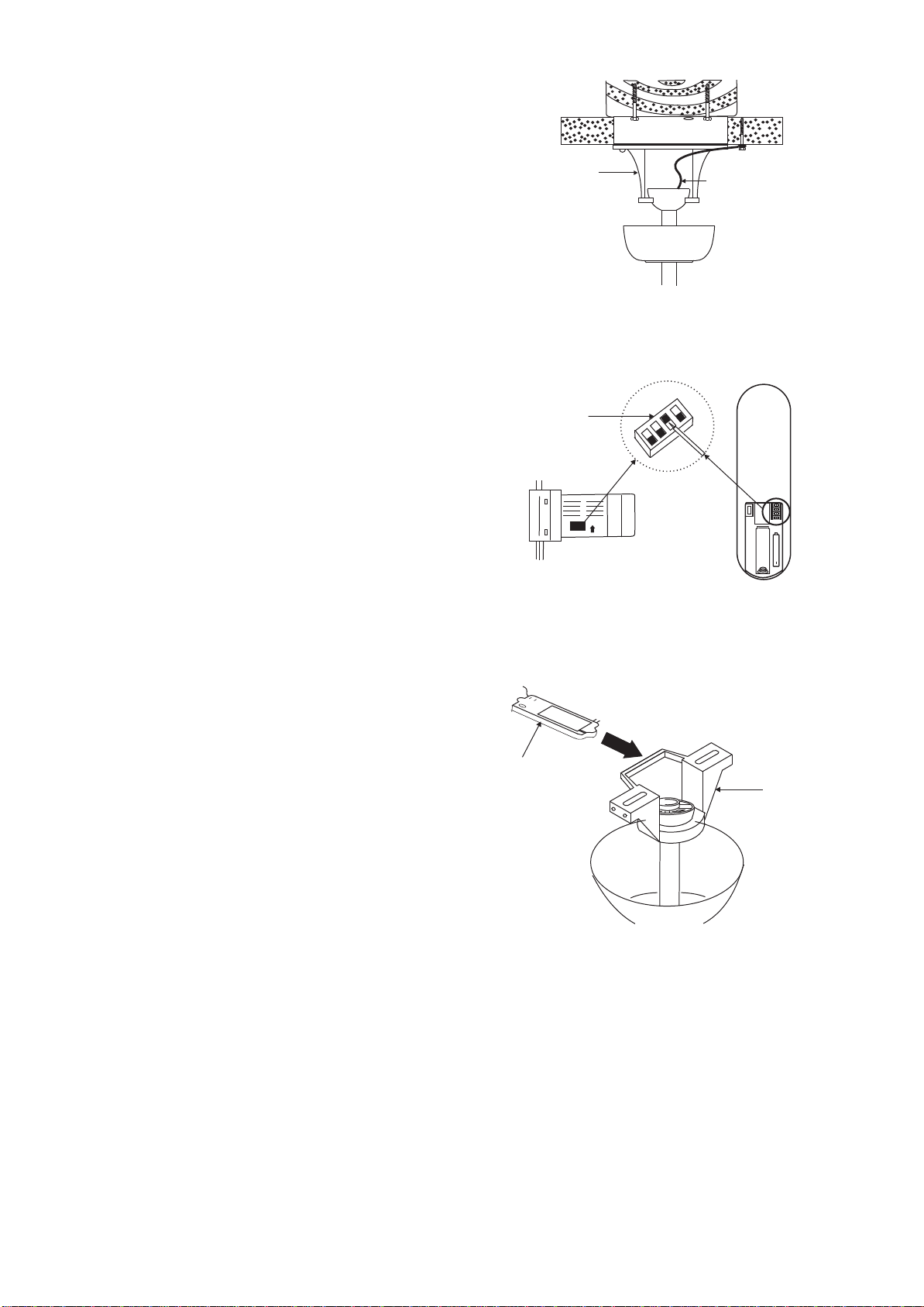

An additional safety support is provided to
prevent the fan from falling. Secure the safety
cable to the ceiling joist with screw and
washer, as illustrated in Figure 9.
7. MAKE THE ELECTRIC
CONNECTIONS
WARNING: To avoid possible electrical shock,
be sure electricity is turned off at the main
fuse box before wiring.
NOTE: This remote control unit is equipped
with 16 code combinations to prevent
possible interference from or to other remote
units. The frequency switches on your
receiver and transmitter have been preset at
the factory. Please recheck to make sure the
switches on transmitter and receiver are set
to the same position, any combination of
settings will operate the fan as long as the
transmitter and receiver are set to the same
position. (Figure 10)
Step 1. (Figure 11) Insert the receiver into the
mounting bracket with the flat side of the
receiver facing the ceiling.
Step 2. (Figure 12) Motor to Receiver
Electrical Connections: Connect the black
wire from the fan to black wire marked "TO
MOTOR L". Connect the white wire from the
fan to the white wire marked "TO MOTOR N"
from the receiver. Connect the blue wire from
the fan to the blue wire marked "For Light"
from the receiver. Secure the wire connections
withtheplasticwirenutsprovided.
Figure 9
Figure 10
Figure 11
Receiver
Hanger
bracket
Code switch
ON
ON
Hanger bracket Safety cable

6

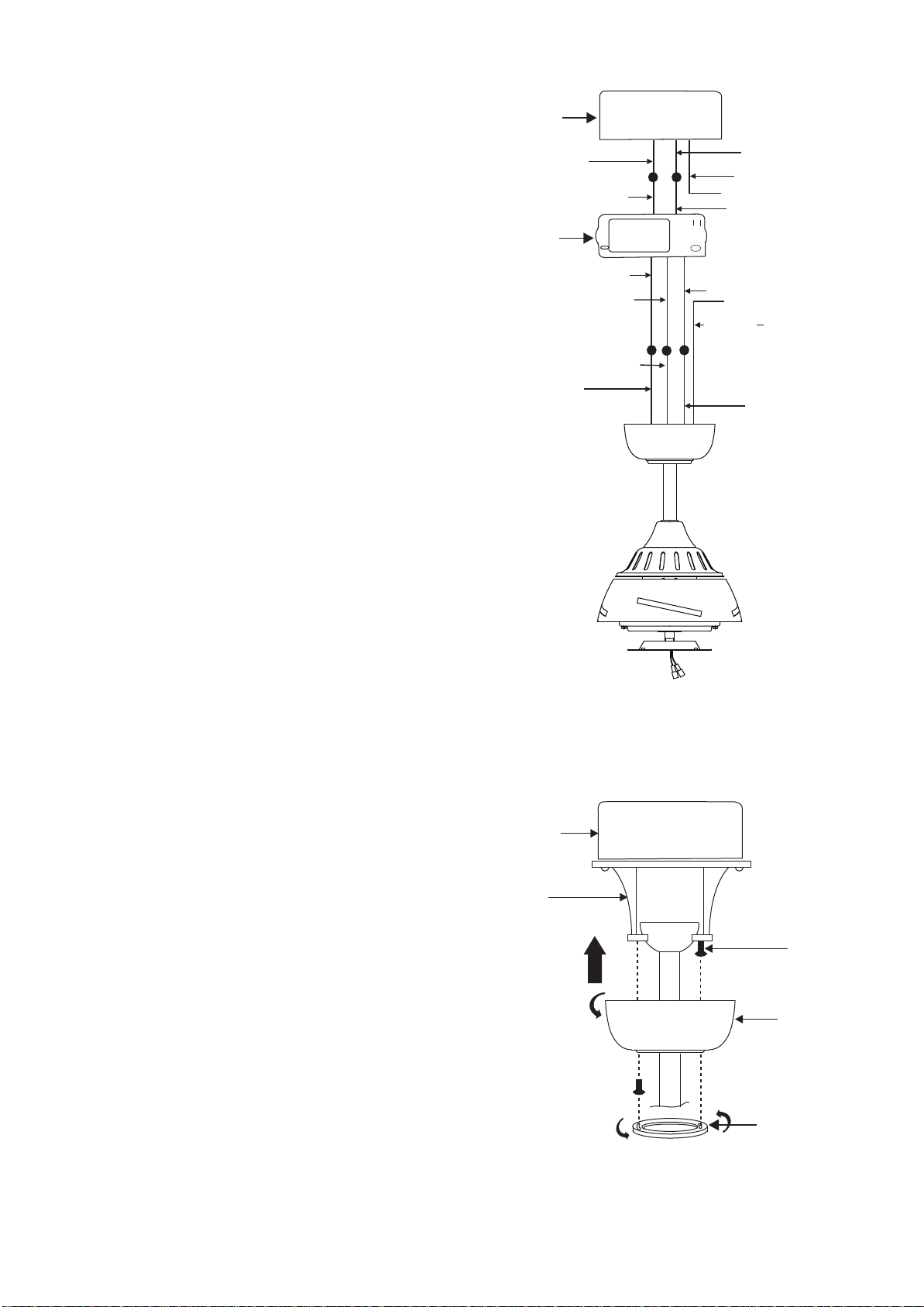

Step 3. (Figure 12) Receiver to House Supply
Wires Electrical Connections: Connect the
black (hot) wire from the ceiling to the black
wire marked "AC in L" from the receiver.
Connect the white (neutral) wire from the
ceiling to the white wire marked "AC in N"
from the Receiver. Secure the wire connections
with the plastic wire nuts provided.
Step 4. (Figure 12) If your outlet box has a
ground wire (green or bare copper) connect it
to the fan ground wires; otherwise connect the
hanging bracket ground wire to the mounting
bracket. Secure the wire connection with a
plastic nut provided. After connecting the
wires, spread them apart so that the green and
white wires are on one side of the outlet box
and black and blue wires are on the other side.
Carefully tuck the wire connections up into the
outlet box.
Note: Fan must be installed at a maximum
distance of 30 feet from the transmitting unit
for proper signal transmission between the
transmitting unit and the fan's receiving unit.
8. FINISHING THE
INSTALLATION
Step 1. Tuck connections neatly into ceiling
outlet box.
Step 2. Slide the canopy up to hanger
bracket and place the key hole on the canopy
over the screw on the hanger bracket, turn
canopy until it locks in place at the narrow
section of the key holes.
Step 3. Align the circular hole on canopy with
the remaining hole on the hanger bracket,
secure by tightening the two set screws.
Note: Adjust the canopy screws as necessary
until the canopy and canopy cover are snug.
(Fig. 13)
Warning: Make sure tab at bottom of hanger
bracket is properly seated in groove of
hanger ball before attaching canopy to
bracket. Failure to properly seat tab in groove
could cause damage to electrical wiring.
Figure 12
Figure 13
White (neutral)
White (neutral)
Green or bare
copper (ground)
White ("AC IN N")
White ("to motor N")
Ground
(green)
(Connect to
ground wire on
hanger bracket
if no house
ground wire
exists.)
Outlet box
Black (hot)
Black ("AC IN L")
Black ("to motor L")
Receiver
Blue (for light)
Blue (for light)
Black (motor)
Outlet box
Hanger
bracket
Canopy
Canopy cover
Screws

7
Figure 14
Figure 15
10. INSTALLATING THE
LIGHT KIT
NOTE: Before starting installation, disconnect
the power by turning off the circuit breaker or
removing the fuse at fuse box. Turning power
off using the fan switch is not sufficient to
prevent electric shock.
Step 1. Remove the 1 of 3 screws from the
mounting ring and keep it for future use.
Loosen the other 2 screws (Do not remove)
Step 2. Raise and hold the light kit close to the
mounting ring and proceed to do the wire
connections. Connect the white wire
connectors from the light kit and fan, follow
the same procedure with the black wire
connectors. (Fig. 15)
Step 3. Tuck connections neatly into
mounting ring, Place the light plate key holes
over the 2 screws previously loosened from
the mounting ring, turn light kit until it locks
in place at the narrow section of the key holes.
Secure by tightening the 2 screws previously
loosened and the one previously removed.
(Fig. 16).
9. ATTACHING THE FAN
BLADES
Caution: Remove 5 rubber packing mounts
and discard before installation.
Step 1 Insert the blade through the slot on
the motor housing. Align holes and fasten
the blade to the motor with provided
screws and blade support plates washers.
(Fig. 14)
Step 2 Repeat this procedure for remaining
blades.
WARNING: Make sure all screws are
tightened securely.
Screws with
lock washers
Blade
Blade support
plate
Mounting
ring
Connection plugs
Light kit
Screws

8
Figure 16
11. INSTALLING THE
LIGHT BULBS & GLASS
SHADE / FRAME
ASSEMBLY
NOTE: Before starting installation, disconnect
the power by turning off the circuit breaker
or removing the fuse at fuse box. Turning
power off using the fan switch is not
sufficient to prevent electric shock.
Step 1. Install 3 x 4W LED bulbs (included).
Step 2. Raise the glass shade / frame
assembly up to the light kit and secure with
the 3 screws provided. (Fig. 16)
Step 3. Restore power and your light kit is
ready for operation.
Glass shade /
frame assembly
Bulbs
Light kit
Screws

9
Figure 18
Figure 17

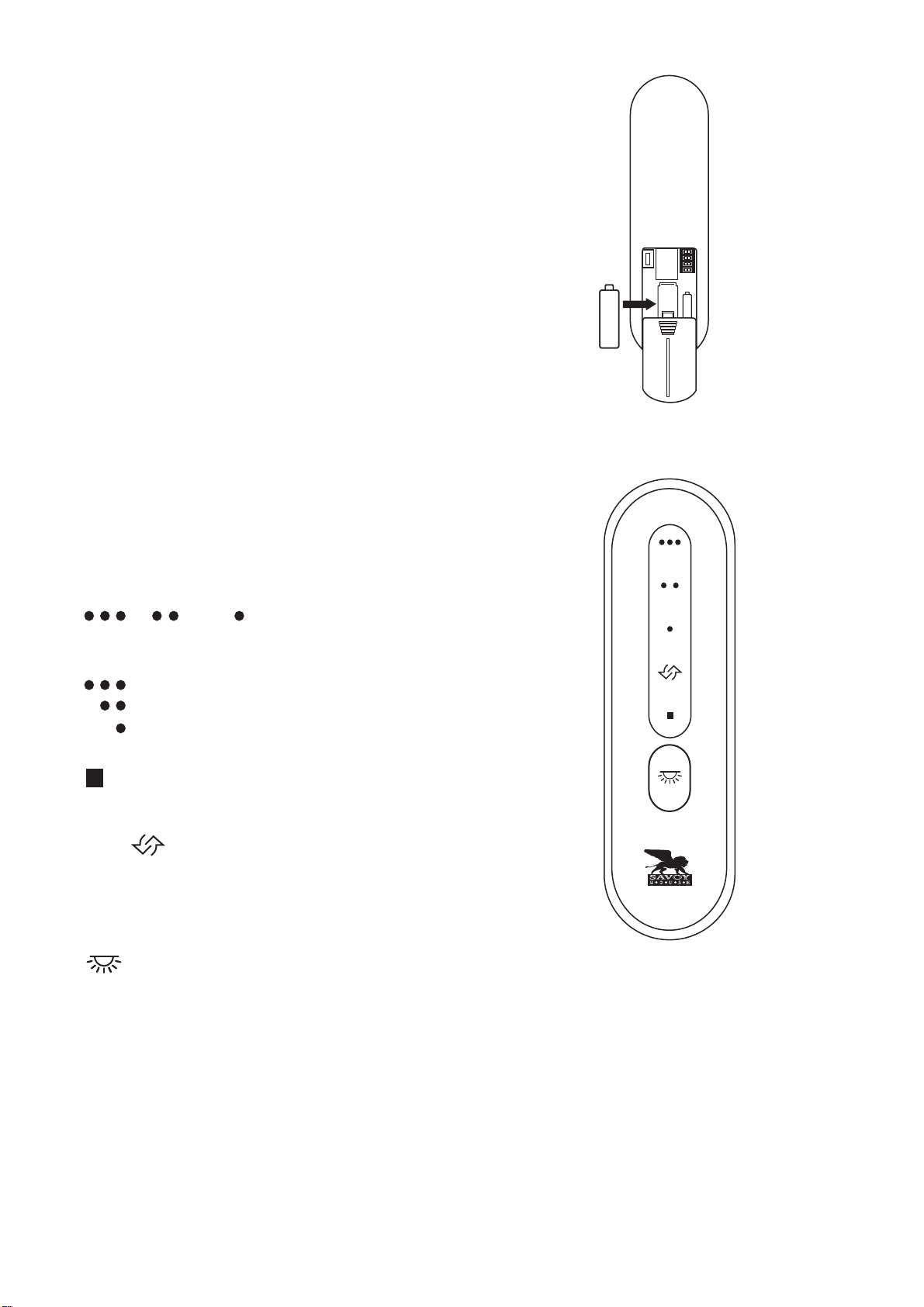

13. OPERATING
INSTRUCTIONS
Restore power to ceiling fan and test for
properoperation.
A. , , and buttons:
These three buttons are used to set the
fanspeedasfollows:
=highspeed
=mediumspeed
=lowspeed
B. button:
Thisbuttonturnsthefanoff.
C. The " " button is used to set the fan
forward or reverse. (This button are NO
function on this fan, please use reverse
switchtoreversefan).
D. button:
Thisbuttoncontrolsthelight.Press and
release the button to turn the light ON
or OFF. Press and hold the button to set
the desired brightnes s. The light key
has an auto-resume, it will stay at the
same brightness as the last time it was
turnedoff.
12. INSTALLING THE
BATTERY
Insert the 23A/12V battery (included) and
make sure they are seated correctly in
recess.(Fig. 17)
ON ECE
1234
12V
+
23A 12V

10
Here are some suggestions to help you maintain your fan
1. Because of the fan's natural movement, some connections may become loose. Check the
support connections, brackets, and blade attachments twice a year. Make sure they are
secure. (It is not necessary to remove fan from ceiling.)
2. Clean your fan periodically to help maintain its new appearance over the years. Use only a soft
brush or lint-free cloth to avoid scratching the finish. The plating is sealed with a lacquer to
minimize discoloration or tarnishing. Do not use water when cleaning. This could damage the
motor, or the wood, or possibly cause an electrical shock.
3. You can apply a light coat of furniture polish to the wood blades for additional protection and
enhanced beauty. Cover small scratches with a light application of shoe polish.
4. There is no need to oil your fan. The motor has permanently lubricated bearings.
14. CARE OF YOUR FAN
IMPORTANT
MAKE SURE THE POWER IS OFF AT THE ELECTRICAL PANEL BOX BEFORE YOU ATTEMPT ANY
REPAIRS. REFER TO THE SECTION "MAKING ELECTRICAL CONNECTIONS".
Figure 19
Figure 20
TheReverseswitchislocatedonthemotor
housing.SlidetheswitchtotheLeftforwarm
weather operation. Slide the switch to the
Rightforcoolweatheroperation.
Speed settings for warm or cool weather
depend on factors such as the room size,
ceilingheightandnumberoffans.
NOTE: Wait for fan to stop before changing
thesettingoftheslideswitch.

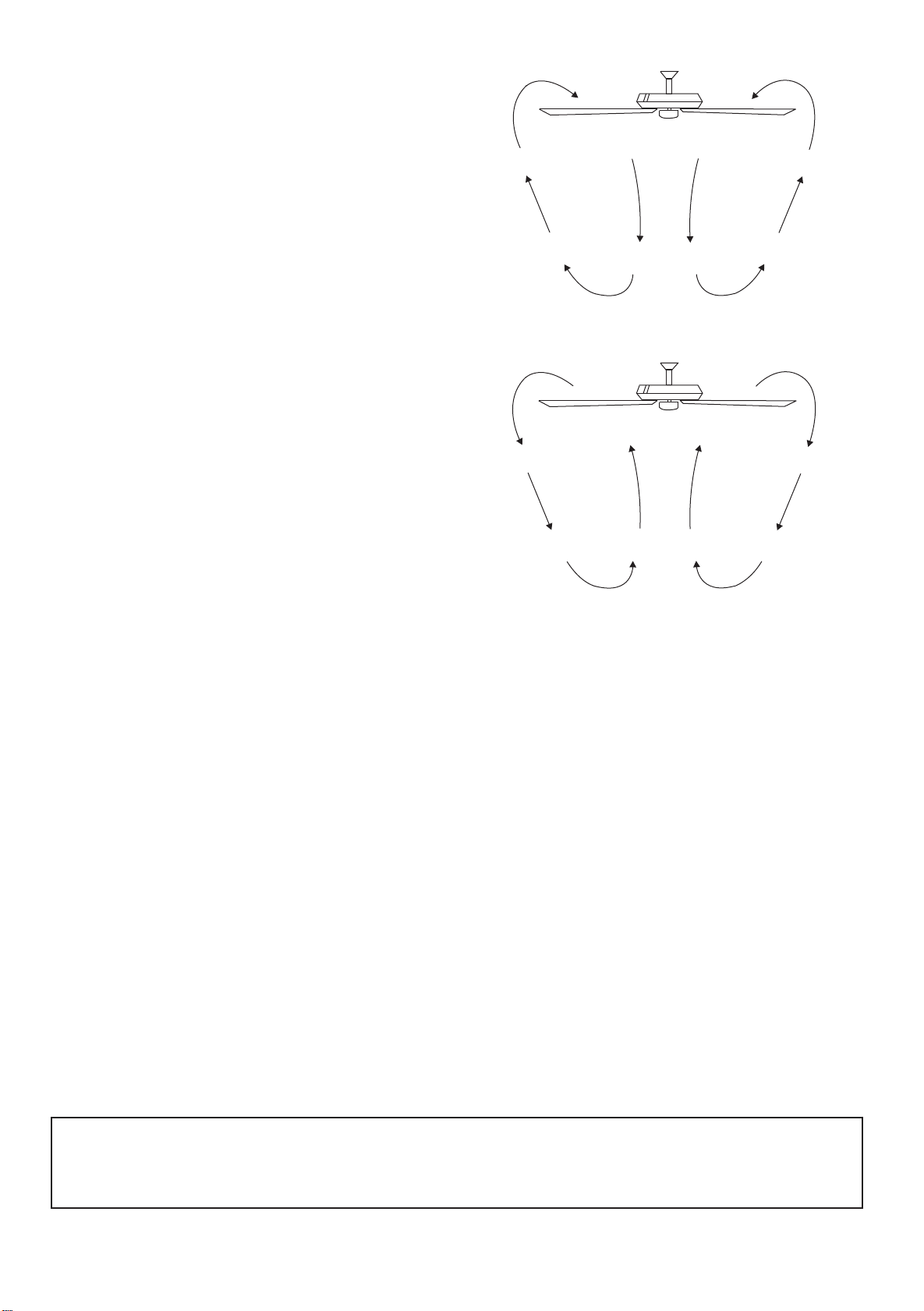

Warmweather-(Forward)Adownwardairflow
createsacoolingeffectasshowninFig.19.
This allows you to set your air conditioner
on
awarmersettingwithout effecting your
comfort.
Cool weather - (Reverse) An upward airflow
moveswarmairofftheceilingareaasshownin
Fig.20.Thisallowsyoutosetyourheatingunit
on a cooler setting without effecting your
comfort.

11
15. TROUBLESHOOTING
Problem
Fan will not start.
Fan sounds noisy.
Remote control
malfunction.
Fan wobble.
Solution
1. Check circuit fuses or breakers.
2. Check line wire connections to the fan and switch wire connections in the
switch housing. CAUTION: Make sure main power is off.
3. Check to make sure the dip switches from the transmitter and receiver are
set to the same frequency.
1. Make sure all motor housing screws are snug.
2. Make sure the screws that attach the fan blade bracket to the motor hub is
tight.
3. Make sure wire nut connections are not rubbing against each other or the
interior wall of the switch housing. CAUTION: Make sure main power is
off.
4. Allow a 24-hour "breaking-in" period. Most noise associated with a new
fan disappear during this time.
5. If using an optional light kit, make sure the screws securing the glassware
are tight. Check that light bulb is also secure.
6. Do not connect the fan with wall mounted variable speed control(s).
7. Make sure the upper canopy is a short distance from the ceiling. It should
not touch the ceiling.
1. Do not connect the fan with wall mounted variable speed control(s).
2. Make sure the dip switches are set correctly.
1. Check that all blade and blade arm screws are secure.
2. Most fan wobbling problems are caused when blade levels are unequal.
Check this level by selecting a point on the ceiling above the tip of one of
the blades. Measure this distance. Rotate the fan until the next blade is
positioned for measurement. Repeat for each blade. The distance deviation
should be equal within 1/8".
3. Use the enclosed Blade Balancing Kit if the blade wobble is still noticeable.
4. If the blade wobble is still noticeable, interchanging two adjacent (side by
side) blades can redistribute the weight and possibly result in smoother
operation.
WARNING: To reduce the risk of personal injury, do not bend the blade arm
while installing, balancing the blades, or cleaning the fan. Do not insert
foreign objects between rotating fan blades.
