Sawyer 273-15 User manual

E
B
A
C
Sawyer Manufacturing Company
7799 S. Regency Dr., Tulsa, OK 74131 USA
F918.834.0318
[e-mail]
We appreciate your business!
Congratulaons on your new SAWYER product. We are proud to
have you as our customer and will strive to provide you with the best
service and reliability in the industry. This product is backed by our
extensive warranty and world-wide service network. To locate your
nearest distributor or service agency, please contact us at the phone
number and address listed on the boom of each page.
You are in good company!
Sawyer Manufacturing Company is the world leader in the design
and manufacture of pipeline and welding equipment and has been
since 1948. Sawyer equipment has become a standard in the industry
and connues to set the benchmark for quality and durability.
This user operaon manual has been made to instruct you for the best
use and operaon of your Sawyer product. Your sasfacon with our
products is our main goal. Please read this enre manual carefully,
nong all ps, notes and warnings. Safety always comes rst.
About Us
Warranty
All products manufactured by or for Sawyer Manufacturing Company are
guaranteed against defects due to faulty workmanship or materials for twelve
months from the date of purchase.
This guarantee is limited to the repair or replacement of any parts found to be
defecve, and no other liability–expressed, implied, or conngent–is assumed.
Record the following informaon for warranty purposes:
Where purchased:________________________________________________
Purchase date:___________________________________________________
Equipment Serial #:_______________________________________________
P918.834.2550
sawyermfg.com
V1.2
CAUTION: Sawyer Manufacturing
Company oers a precise weld qualicaon
test for guided bend operaons. The buildup
of high pressure inside the hydraulic guided
bend machine can cause injury to personnel
and damage to equipment. To avoid a rapid
discharge, ensure that all pressure hoses are
connected and secure. When the hydraulic
pressure does not increase enough to bend
the sample, check the hydraulic uid levels
and add hydraulic uid as necessary. Please
refer to ENERPAC manual for maintenance of
ENERPAC pump.
! !
CAUTION

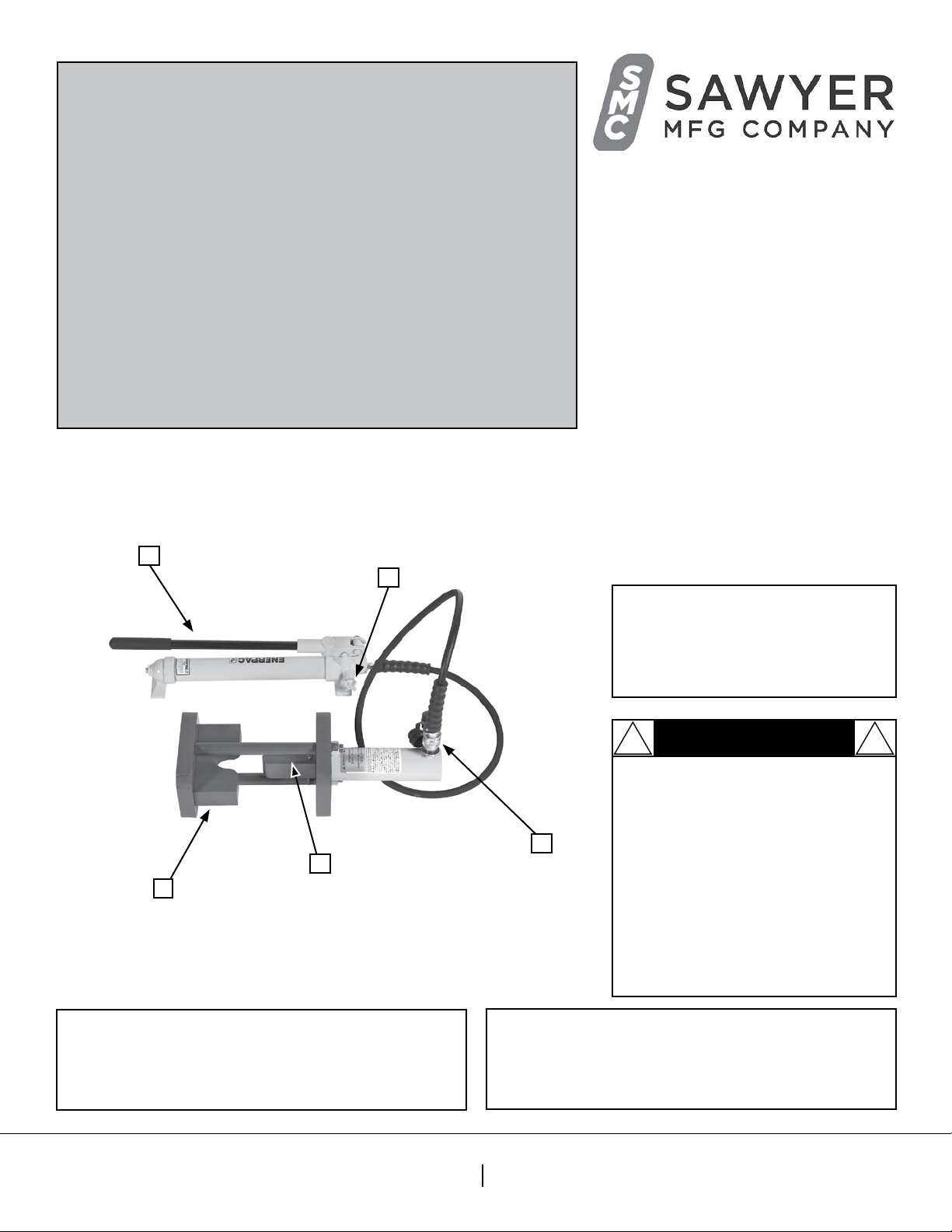

A. Hydraulic Relief Valve
B. ENERPAC Hydraulic Pump (526-4)
C. Hydraulic Hose Fing (526-8M)
D. Plunger (C4FF-7)
E. Die (C4FF-8)
D
Guided Bend
Tester Manual
Model 273-15
For 15 Ton Applicaons
Parts Diagram

Sawyer Manufacturing Company
7799 S. Regency Dr., Tulsa, OK 74131 USA
F918.834.0318
[e-mail]
P918.834.2550
sawyermfg.com
V1.2
Tools Needed For Assembly*
9/16” Nut Drive 5/16” Allen Wrench Large Crescent Wrench
Large Crescent Wrench
Fig. 1
Fig. 4
Installation
1. Install die (E, Fig. 2) and plunger (D, Fig. 3) set for
appropriate coupon size thickness and specicaon
(ASME, API, AWS).
Note: Use 5/16” Allen head wrench.
Tip: Depress unit for easier access.
2. Install hose ng (C) from ENERPAC pump (B) to
bend test machine. (Fig. 4)
Note: Check for leaks.
Tip: Thread hose ends with Teon tape to avoid leaks.
Cauon: Use a at surface with ample space.
Tip: Unit can be mounted vercally or horizontally.
Tip: Unscrew plasc caps before installing hoses.
Note: Loosen oil ng for proper pump venlaon.
C
B
*Not Included
Fig. 3
D
E
Fig. 2

Sawyer Manufacturing Company
7799 S. Regency Dr., Tulsa, OK 74131 USA
F918.834.0318
[e-mail]
P918.834.2550
sawyermfg.com
V1.2
Operation
1. Place coupon across supports of die. (E, Fig. 5)
2. Depress the ENERPAC pump. (B, Fig. 6)
3. Plunge (D, Fig. 7) the sample into the die. (E, Fig. 7)
Note: A complete 180 degrees is recommended to complete the test.
4. Release pressure via Hydraulic Relief Valve (A, Fig. 8) and
remove sample from die. (E, Fig. 9)
Fig. 5
Fig. 6
Fig. 7
Fig. 8
E
E
D
A
Note: Refer to AWS, ASME and API specicaons for bended coupon samples.
Tip: Mount hydraulic hand pump down to stable environment.
Tip: Hydraulic hand pump can be mounted vercally or horizontally.
Bend
This Bend test is designed to evaluate the quality of welds as a funcon of duclity in ferrous and nonferrous
products as evidenced by their ability to resist cracking during bending.
Reference:
3 Types of Bends:
A. Transverse side bend. The weld is transverse to the longitudinal axis of the specimen
which is bent so that either one of the side surface becomes the convex surface of the bent specimen.
B. Transverse face bend. The weld is transverse to the longitudinal axis of the specimen which is
bent so that the weld face becomes the convex surface of the bent specimen.
C. Transverse root bend. The weld is transverse to the longitudinal axis of the specimen
which is bent so that the weld root becomes the convex surface of the bent specimen.
Note: For more informaon please refer to the following publicaons:
AWS D1.2–D1.2M: 2003; API 5LC (R2006); API 1104 (R2010).
