Saxon 311008 User manual

high quality optics

saxon Researcher Compact Biological Microscope 40x-1600x Instruction Manual Page 2
DIN Objective Lens
Eyepieces
Spring Loaded
Microscope Head
Coarse Focus
Knob
Interpupillary
Arm
Tri-nocular for CCD/Camera
Mechanical Stage
Specimen Holder
LED Illumination
Focus Travel
Safety Screw
Fine Focus
Knob
Base
Objectives Revolving
Nosepiece
Beam Splitter

saxon Researcher Compact Biological Microscope 40x-1600x Instruction Manual Page 3
WARNING!
Do not use the mirror on the microscope to focus the sunlight through your microscope.
Looking directly at the sunlight can result in irreversible eye damage.
Your microscope is a precision optical instrument and should be handled with care at all times.
Do not drop your microscope as such impacts may damage or misalign the optics in your instrument.
Do not power down your microscope within five minutes of switching it on as this may reduce the
effective lifetime of the lamp.
Avoid using your microscope in direct sunlight, high temperature and humidity, dust and vibration.

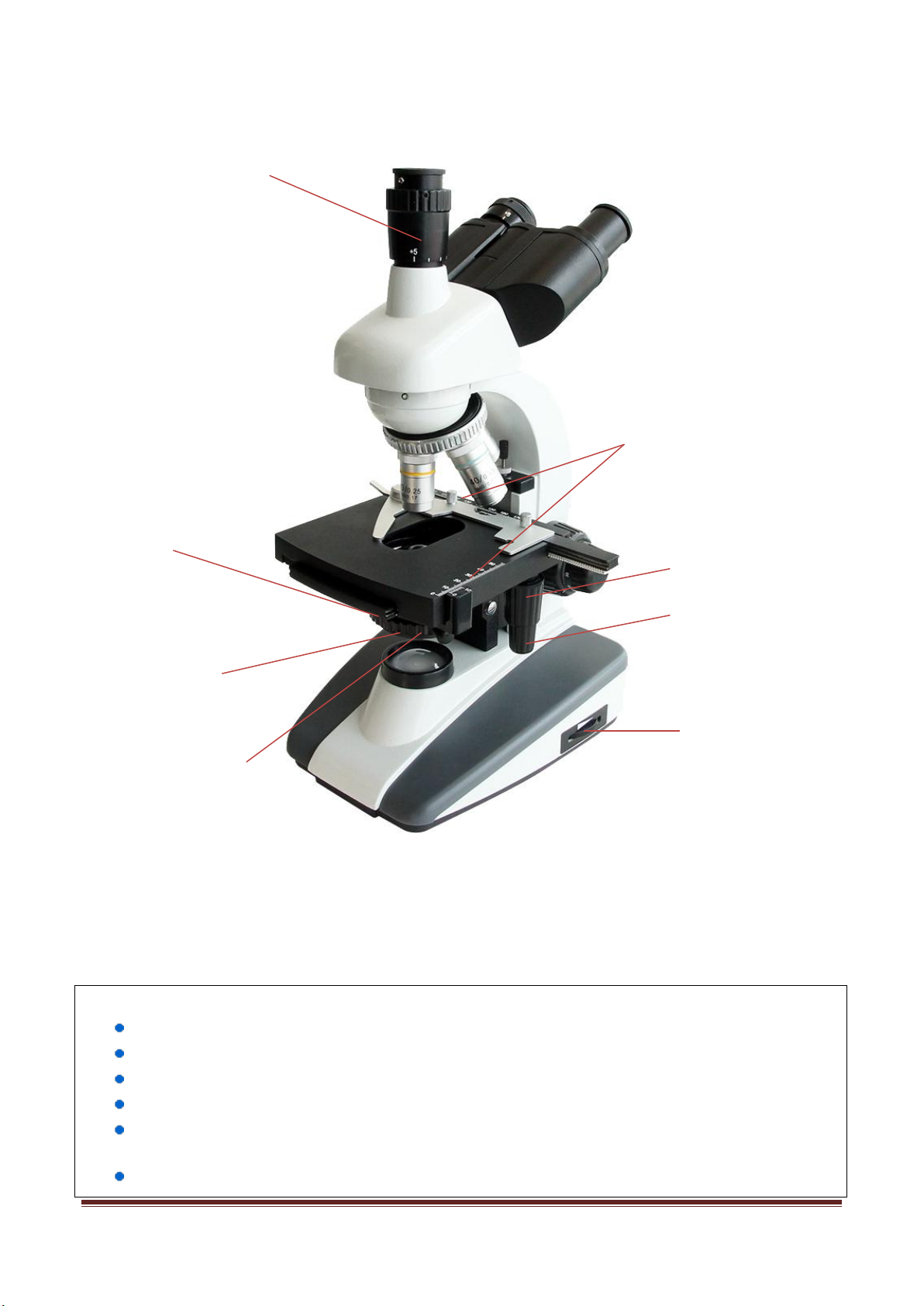

Tri-nocular Diopter
Condenser
Adjustment
Adjustment Ring
Of Field Diaphragm
Colour Filter
Holder
Locater Markings
Y-Stage
Adjustment
X-Stage
Adjustment
Light Adjustment
Dial

saxon Researcher Compact Biological Microscope 40x-1600x Instruction Manual Page 4
Product Disclaimer
This product is designed and intended for use only as a biological microscope. Modifying this
product in any way for use in any situation other than the original and intended product design will
automatically void the warranty
Setting up your microscope
Remove the microscope and accessories from the box and identify all parts before assembling.
When ready to begin, set the microscope on a stable surface. Your objective lenses should be pre-
installed
If your microscope requires manual installation, please take the following steps:
1. Remove the eyepiece(s) from the packaging.
2. Slide the narrow end of the eyepiece(s) into the eyepiece holder
3. Plug the power cord into a power outlet.
4. Your microscope is powered by an AC power. It is important to ensure the voltage coincides
with that of the microscope.
5. This microscope can also be battery powered and comes with rechargeable batteries.

saxon Researcher Compact Biological Microscope 40x-1600x Instruction Manual Page 5
Operating the microscope
Getting started
1. Switch on the power and the light(s) on your microscope should be illuminated. If your
microscope has a light intensity adjustment dial, ensure it is turned up to the brightest.
2. Place and align the specimen/object to the centre of the working stage and where possible,
hold it down with the stage clips.
Focusing
1. Rotate the nosepiece and place the objective lens with the lowest power (4x) in the optical
path. Make sure you hear a click that confirms it is in place.
2. If needed, loosen the locking screw located in between the stage and the arm to regulate
the range of movement of the stage.
3. Ensure the iris diaphragm is opened fully.
4. Push the spring loaded specimen holder to insert a specimen slide.
5. Adjust the slide with X and Y stage adjustment until the specimen is directly over the
condenser lens.
6. Looking through the eyepiece(s), adjust the interpupillary and turn the coarse focuser knob
to focus on the specimen until it comes into focus.
7. Re-adjust the focus with the fine focus knob until the image appears sharp and defined.
Changing magnification
Slowly turn the nosepiece clockwise or anticlockwise to the desired magnification until you hear a
click confirming the selected magnification is secured.
1. Ensure your specimen is sitting directly under the objective lens.
2. Rotate the coarse focuser knob, and then adjust the fine focus knob until the image comes
to focus.
Using 1000X magnification with immersion oil
To obtain maximum resolution with 100X objective lens, applying immersion oil between the slide
and the front lens is necessary.
1. Place one small drop of immersion oil on top of the cover slip, directly over where light
comes up from the condenser.
2. Slowly rotate the 100X objective lens into place. You should see the oil filling the space
between the lens and the slide. If bubbles appear, they can be removed by slightly rotating
the revolving nosepiece back and forth.
3. Adjust the focus with the fine focus knob only.
4. Always wipe and clean all parts that have come into contact with the immersion oil after use.
This is because oil could dry up on the lens surface and damage the microscope. Always
wipe with lens paper or a soft cotton cloth with the appropriate cleaning solution.
Note: The immersion oil should only be used for the 100X objective lens. Do not use the
immersion oil for any other objective lens as this may cause spherical and chromatic aberrations.

saxon Researcher Compact Biological Microscope 40x-1600x Instruction Manual Page 6
Adjusting diaphragm diameter
The diameter of the diaphragm can be adjusted by turning the adjustment ring of field diaphragm.
Condenser
The 1.25 condenser lens can be removed by loosening the condenser locking screw. The condenser
can be adjusted to desired position by adjusting two of the condenser adjustment thumb screws.
Changing colour filter lens
There are 3 colour filter lens that would help to bring out the contrast of the specimen depending
on its colour and light condition. You can change the colour filter by removing the colour filter ring
and replacing with a desired colour filter lens. The filter can be found just below the iris diaphragm.
Place the coloured filter onto the holder and swing it back to place. You may now observe the
specimen through the eyepiece.
Adjusting the tri-nocular head
You can adjust the tri-nocular head by loosening the head securing thumb screw and adjust the
tri-nocular to the desired position.
Viewing through an eyepiece through tri-nocular head and beam splitter
You can view through the eyepiece with the tri-nocular head by attaching the supplied eyepiece
linker and insert a desired eyepiece on it. Pull the beam splitter outwards so light can enter.
Attaching a CCD through tri-nocular head
You can attach the CCD to the tri-nocular microscope by attaching the supplied CCD link. Pull the
beam splitter outwards so light can enter to the camera.

saxon Researcher Compact Biological Microscope 40x-1600x Instruction Manual Page 7

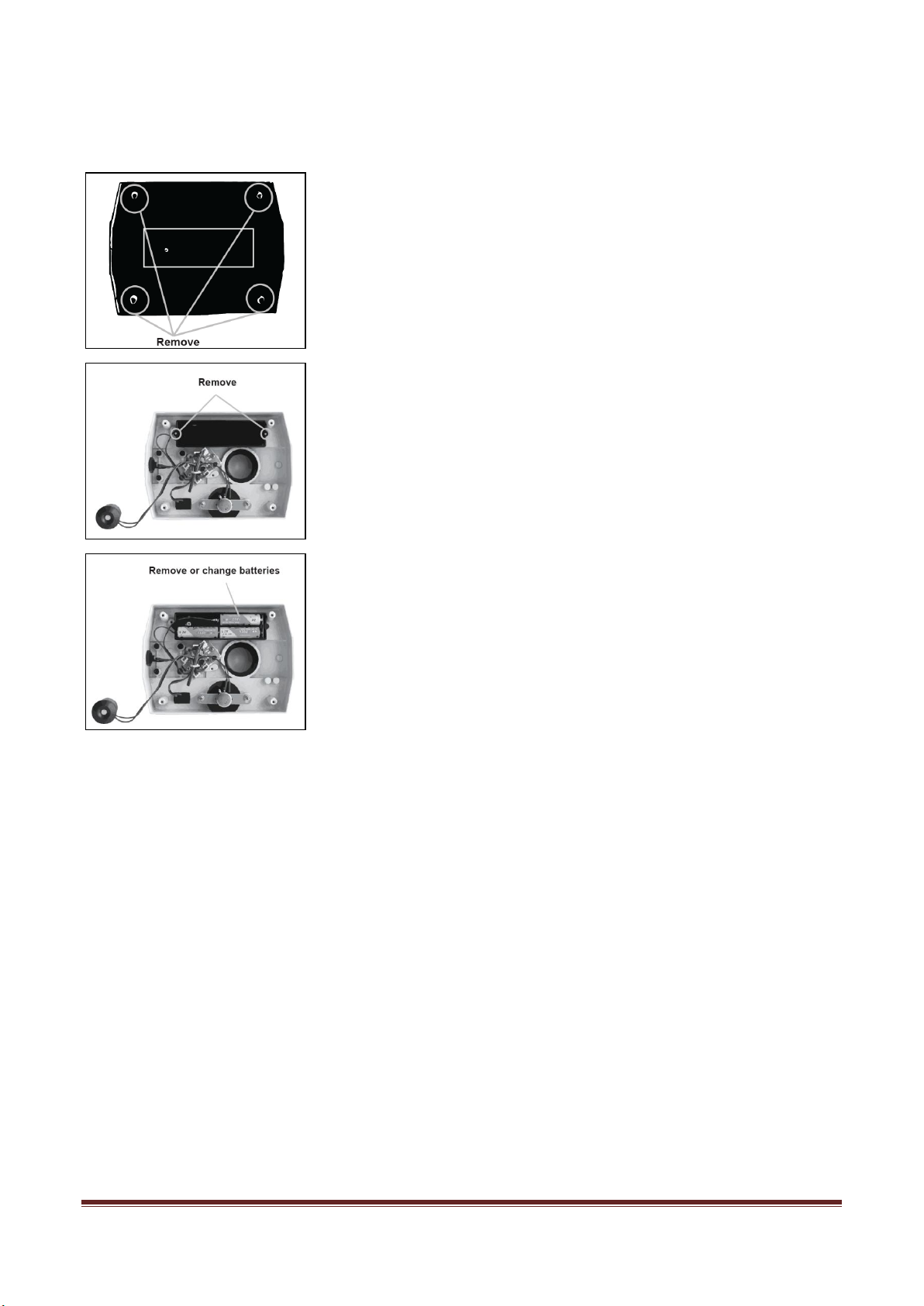

Changing the batteries
Remove base cover
Carefully tilt the microscope to the side and remove 4 screws
(as highlighted) with a screw driver
Remove battery casing
Once the base cover is removed, unscrew another 2 screws
(as highlighted) that are attached to the battery case.
Remove or change batteries
You can now remove the batteries or change them (not
supplied). Once that is completed, simply put the battery case
back on and screw tight, followed by the base cover

saxon Researcher Compact Biological Microscope 40x-1600x Instruction Manual Page 8
saxon Researcher Compact Biological Microscope 40x-1600x
Specifications
Eyepieces
Wide field 10x & Wide field 16x
Objectives
Plan Achromatic objective 4X
Plan Achromatic objective 10X
Plan Achromatic objective 40XR (Retractable)
Plan Achromatic objective 100XR (Retractable)
Condenser
Abbe N.A 1.25
Head Type
360 degree rotatable Tri-noculars
Focus
Fine and coarse focusing mechanism
Stage Type
Large 130mm x 120mm rectangular mechanical stage with
spring loaded specimen holder
Nosepiece
Quadruple nosepiece with click stop
Interpupillary distance
55mm to 75mm
Illumination Type
LED
Powered by
Supplied AC Adapter or battery powered
Dimensions
250 x 250 x 400 mm
Weight
± 3.7kgs
What’s included in the box
1x saxon biological microscope
2x Wide field 10X eyepieces
2x Wide field 16X eyepieces
1x Eyepiece linker
1x Immersion oil
1x Dust cover
1x AC adapter
3x Colour filters
3x Rechargeable batteries (pre-installed)
1x Instruction manual
You can also obtain the e-Manual from our website at
www.saxon.com.au

saxon Researcher Compact Biological Microscope 40x-1600x Instruction Manual Page 9
Caring for and cleaning your microscope
To ensure your microscope performs at its best, regular maintenance of your microscope is
recommended.
Cover the microscope with the dust cover whenever it is not in use. This will prevent dust from
settling on the mirror or lens surface.
When moving your microscope, carry it with two hands –one holding the arm and the other
supporting the base. Never pick it up by the focusing knobs.
Do not dismantle or modify any parts of the microscope as either of this will void the warranty.
(Unless noted on instruction manual)
Do not store microscope in direct sunlight or under direct indoor light.
Use only appropriate cleaning tools when cleaning your microscope. We recommend using a
combination of the follow:
A soft brush made from camel hair
Optical cleaning solution and soft lint-free cloth
Special lens paper
Clean the lens surface using an appropriate optical cleaning solution and always remember to dry
the lens after. Do not wipe the lenses when they are dry as they can easily be scratched.
For the condenser and illuminator lens, only clean the top lens surface.

saxon Researcher Compact Biological Microscope 40x-1600x Instruction Manual Page 10
We recommend the following accessories for your microscope
saxon ScopePix Smartphone Adapter
SKU# 615001
Taking pictures through your optical instruments has never been
easier with the saxon ScopePix Smartphone Adapter!
With its simple twist-lock adjustment you will be snapping pictures in
no time.
Fits telescopes, binoculars, spotting scopes, and microscopes.
Compatible with all smartphone models.
saxon Pre-Cleaned Blank Slides Kit
You too can immerse yourself in the world of biology! Discover the
wonders of biology around you. Simply gather, prepare, and observe
your specimen with the saxon Pre-Cleaned Blank Slides Kit.
Available in:
50pcs
SKU# 310050
100pcs
SKU# 310100
saxon Biological Microscope Prepared Slides
Our microscope slides are great for students of all ages, from
home-schoolers to college students looking for an excellent
introduction to microscopy. The prepared slides give you the
most diverse possible biological selection. These slides are
premium and machine cleaned giving a sharp image.
Available in:
50pcs Animals Slides
SKU# 310005
50pcs Plants Slides
SKU# 310100
100pcs Prepared Slides
SKU# 310010
