Assembly Instructions - the Phoenix page: 1
Assembly instructions
Version: February 2022
User manual / Assembly instructions
Deponti Louvered Pergola
Type Pinela
Version: EN –Februari 2022
www.deponti.com
www.sbpuk.info

Assembly Instructions - the Phoenix page: 2
Contents
1. Introduction 3
2. Safety precautions and warnings 3
3. Product description 5
4. Parts overview 6
4.1 Terminology 6
4.2 Delivery Inspection 7
5. Preparation for assembly 8
5.1 Conditions for assembly 8
6. Assembly 9
 6.1 Mountingthewallprole(incaseofwallinstallation) 9
6.2 Post and integrated gutter connection 11
6.3 Panel installation 13
 6.4 Perimeterlightninginstallation(optional) 16
7. Programming instructions 18
7.1 Remote control 18
7.2 Programming 19
8. FAQ 21
9. Maintenance 21
10. Warranty conditions 21
KEEP THIS MANUAL IN A SAFE PLACE FOR FUTURE USE!
We also refer you to our General Terms and Conditions of Sale and Delivery which are available on request.
We accept no liability for any damage or injury resulting from a failure to carefully follow the instructions in this
manual or exercise due caution during transport, assembly, use and maintenance of the canopy. As a result of
our policy of continuous product improvement, certain product details may differ from what is described in this
manual. For this reason the instructions provided only serve as a guideline for installation of the product this
manual describes. This manual has been compiled with the utmost care, but we cannot be held responsible for
any errors in this manual or the consequences thereof. Furthermore, all rights are reserved and no part of this
manual may be reproduced in any way whatsoever.
Contents

Assembly Instructions - the Phoenix page: 3
Congratulations on the purchase of your canopy!
Before you can start enjoying your canopy it must be assembled properly. This manual provides clear instructions
for all the steps you must complete for correct assembly of your canopy. We recommend that you take the time
to read the entire manual before you begin assembly. Check whether you have received all the necessary parts
before you begin assembly. For your safety, follow all the applicable instructions. This also guarantees the safety
of the installed roof. If you should have any questions, please feel free to contact us.
This manual should be kept in a safe, dry and shady place. In the event of damage or loss, the user should obtain
another copy.
Important:
Please read the safety precautions and warnings before assembling the canopy.
• During assembly, carefully follow the instructions and guidelines as described in this
manual. Never change the order of the steps to be performed. If any aspect of the
assembly procedure is unclear, please contact us. We reserve the right to make technical
changes without written notice.
• We normally recommend that the canopy must be assembled by at least two people
(qualiedtechnicians/authorizedinstallers)workingtogether.
• Check the delivery immediately upon receipt. In the event of damage or an incomplete
delivery please contact us immediately.
• The materials must be stored in a dry, ventilated area, not exposed to direct sunlight.
• Open the packaging carefully. Make sure that you do not damage the product.
• To prevent damage to your canopy, place the parts on a smooth, clean surface. Place the
prolesonaatsurface,protectedfromsunandrain.
• Adding or removing parts, the use or installation of materials other than described in
this manual, may adversely affect the safety of the canopy and is therefore strongly
discouraged!
• Cordon off the assembly location so that others are kept at a safe distance.
 • Alwaysplacealadderonarm,stablesurface.
 • Alwayswearthecorrectprotectiveclothing(workgloves,dustmask,safetyglasses,shoes
withnon-slipsoles,etc.)duringinstallationorservicing.
 • Mountthesystemagainstarm,atwallandonaatandstablefoundation.Ensurethat
the wall and the ground are clean and dry.
1 Introduction
2. Safety precautions and warnings
!
!

Assembly Instructions - the Phoenix page: 4
• Mountthesystemagainstarm,atwallandonaatandstablefoundation.Ensurethat
the wall and the ground are clean and dry.
• Ensurethatyouconsultasuitablyqualiedgasengineerifyouareplacingthecanopynear
oraboveaboileruepoint.
• Never step or walk on the panel system.
• You must maintain and clean your canopy at least once a year. During this yearly
maintenance make sure all fasteners are properly tightened.
• When safety regulations and instructions are not followed correctly,we will not accept
responsibilityfordamage(s)andinjuries.
2. Safety precautions and warnings
!

Assembly Instructions - the Phoenix page: 5
ThePhoenixisapergola/gazebosystemwhichfeaturesrotatableroofpanelswhichcanrotate120degrees
protecting from sun and rain.
The panels are connected to a linear actuator and are operated by the motor controlled via a remote control.
The Phoenix is available in the following dimensions:
• Width(mm):3000/3500
• Projection(mm):3011/3539*/4067/4947*onlyby3500mmwidth!
NOTE: Allpostscomeatastandardlength/heightof3500mm.Themaximumrecommendedheightfromoorto
underside of the gutter is 2500mm so posts will need to be cut down accordingly.
Optional additions:
• Perimeter lighting system
Wind resistance:
No of Panel Projection (cm) Projection (cm) Width (cm)
(Freestanding) (Wall installation) 300 350
16 301.1 303.9 7 7
19 353.9 356.7 7 7
22 406.7 409.5 7 7
27 494.7 497.5 7 7
• ThevaluesgivenareaccordingtotheBeaufortscale(7Beaufort=13.9–17.1m/s≤0.18kN/m2).
• Calculated for the Phoenix with a front height of 250 cm according to Eurocode EN 1991-1-4 Terrain Category 4.
Snow load (kg/m2):
No of Panel Projection (cm) Projection (cm) Width (cm)
(Freestanding) (Wall installation) 300 350
16 301.1 303.9 125.3 119.0
19 353.9 356.7 103.3 98.0
22 406.7 409.5 81.4 77.0
27 494.7 497.5 44.8 42.0
3. Product description

Assembly Instructions - the Phoenix page: 6
Linear Actuator
linear actuator provides the movement of the roof panels and works with 24V power provided by a control box.
The actuator is located on the lateral integrated gutter with the control box located in the rear integrated gutter
and needs to be powered from a 230V source.
The linear actuator has to be adjusted to provide exact movement and this must be done during installation.
4. Parts Overview
4.1 Terminology
www.deponti.com Assembly Manual –Pinela Pergola page
6
4. Parts Overview
4.1 Terminology
Linear Actuator
Linear Actuator provides the movement of the bioclimatic pergola pannels. The linear actuator is
located on the lateral Integrated gutter. The linear actuator has to be adjust to exact movement. This
must be done during to installation.
The linear actuators works with 24V power. The control box provids power for the linear actuator.
The control box works with 230V. The control box is located on rear Integrated gutter. (see below)
www.deponti.com Assembly Manual –Pinela Pergola page
6
4. Parts Overview
4.1 Terminology
Linear Actuator
Linear Actuator provides the movement of the bioclimatic pergola pannels. The linear actuator is
located on the lateral Integrated gutter. The linear actuator has to be adjust to exact movement. This
must be done during to installation.
The linear actuators works with 24V power. The control box provids power for the linear actuator.
The control box works with 230V. The control box is located on rear Integrated gutter. (see below)
Panels
Post
Integrated
Gutter

Assembly Instructions - the Phoenix page: 7
The canopy shown is an example. The type and number of components supplied depends on your order.
Note:
• Boxes with red label: Electronic parts like Control Unit Box. Remote Controls.
• Boxes with blue label: Metal parts like U Brackets. Mounting brackets. Pillar caps.
4.2 Delivery Inspection

Assembly Instructions - the Phoenix page: 8
5.1 Conditions for assembly
5. Preparation for assembly
Ground & wall
 • Agoodatstablesurfaceisrequiredforconstructionofthecanopy.
 • Thelocationwherethesystemisplacedmustbeconstruction-readyandfreeofobstacles(garden
furniture,owerboxes.etc.)soinstallerscanperformtheirworkwithouthindrance.
 • Anyobstaclesincludingutilitylines(suchaspowercables.etc.).rootsanddebrismusthavebeen
removed from the ground.
• The façade must be free of sun shades. etc.
 • Theareawherethewallprolewillbeplacedmustbermevenandat.
Attachments at walls
• Due to expansion of the materials the pergola may not be placed tightly between two walls; there must
be a gap of 1.5 mm per metre of width of the pergola.
Rubber seals
• The Phoenix is equipped with pre-assembled rubber seals.
• If the rubber seals are deformed they can be straightened with a little heat from a hot air heater or hair
dryer for example.
Warranty is void if the Phoenix is not assembled and installed in accordance with the instructions.

Assembly Instructions - the Phoenix page: 9
Determine which post will be used as the rainwater discharge post. An rainwater discharge hole has to be
drilled in this post.

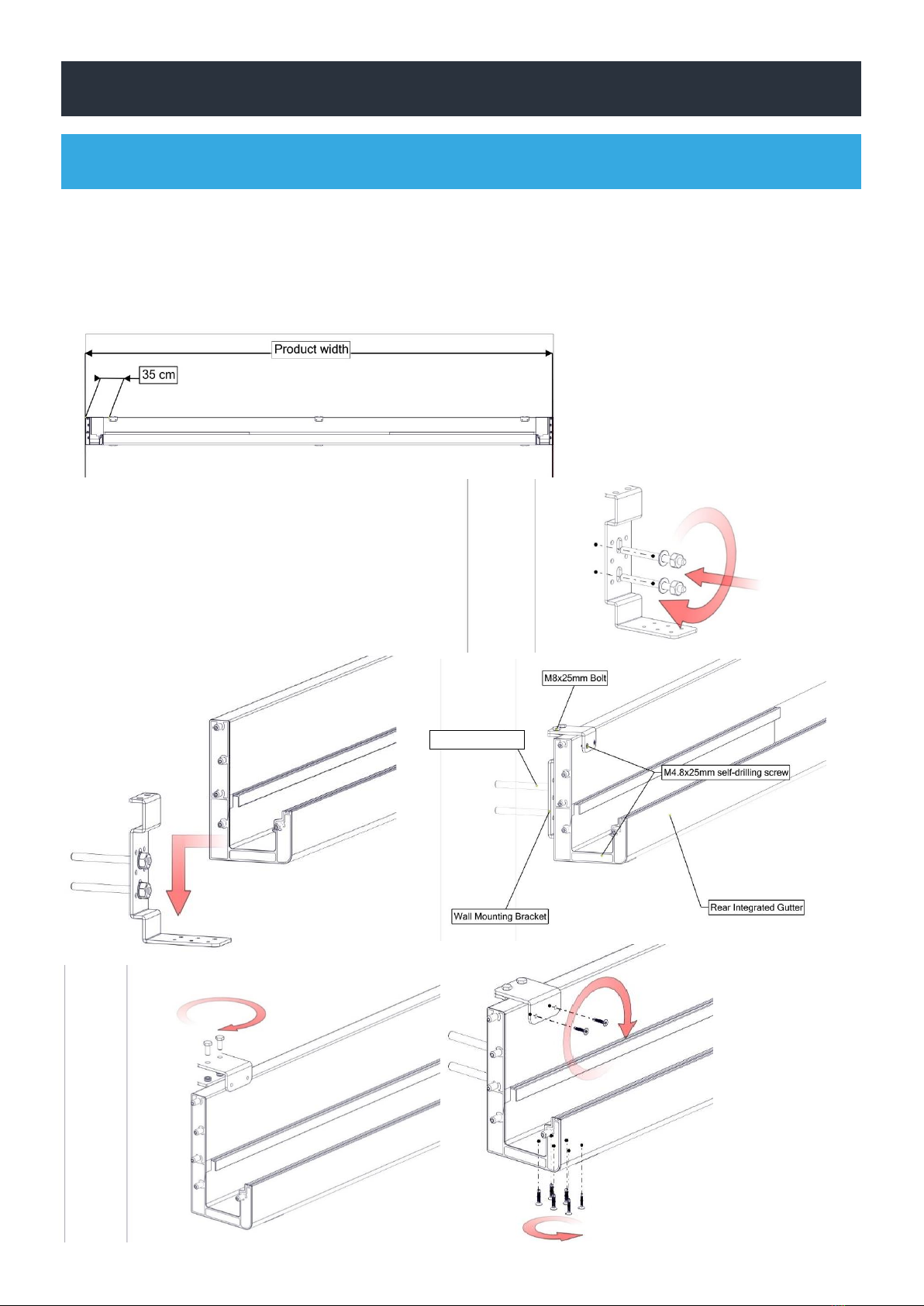

1. Determinethemountingbracketpositiononthewallandxusingsuitablexingsforyourwall.Wesuggesta
minimumsizeofM12xingsbutthesearenotsuppliedasneedtobechosendependinguponyourwall.
2. Mount the back length of integrated gutter on the
wallmountbrackets&xinplace(thereargutter
will house the control box and manual override
buttons)
www.deponti.com Assembly Manual –Pinela Pergola page
13
6. Assembly
6.1 Mounting the wall profile (in case of wall installation)
Determine which post will be used as the rainwater discharge post. An rainwater discharge hole
has to be drilled in this post.
1. Define the mounting bracket position on the wall. Decide which way the panels will open, they
only open one way.
2. Fasten the brackets to the wall with the correct hardware for your situation. We suggest a
minimum size of M12.
3. Place the integrated gutter on the wall mounting bracket
www.deponti.com Assembly Manual –Pinela Pergola page
13
6. Assembly
6.1 Mounting the wall profile (in case of wall installation)
Determine which post will be used as the rainwater discharge post. An rainwater discharge hole
has to be drilled in this post.
1. Define the mounting bracket position on the wall. Decide which way the panels will open, they
only open one way.
2. Fasten the brackets to the wall with the correct hardware for your situation. We suggest a
minimum size of M12.
3. Place the integrated gutter on the wall mounting bracket
www.deponti.com Assembly Manual –Pinela Deluxe Pergola page
8
4.2 Hardware details
Integrated gutter –Pillar connection (Freestanding)
a. M10 nut Stainless Steel
b. M10 washer Stainless Steel
Integrated gutter –Wall bracket (Wall mounting)
a. M8x25mm Bolt
b. M4,8x25mm self-drilling screw
www.deponti.com Assembly Manual –Pinela Pergola page
13
6. Assembly
6.1 Mounting the wall profile (in case of wall installation)
Determine which post will be used as the rainwater discharge post. An rainwater discharge hole
has to be drilled in this post.
1. Define the mounting bracket position on the wall. Decide which way the panels will open, they
only open one way.
2. Fasten the brackets to the wall with the correct hardware for your situation. We suggest a
minimum size of M12.
3. Place the integrated gutter on the wall mounting bracket
6.1 Mounting the wall prole (in case of wall installation)
6. Assembly
www.deponti.com Assembly Manual –Pinela Pergola page
14
4. Fasten the wall mounting bracket cover on top and tighten it with a M8x25mm bolt.
5. Fix the (M4) self-drilling screw in the integrated gutter and wall mounting bracket.
www.deponti.com Assembly Manual –Pinela Pergola page
14
4. Fasten the wall mounting bracket cover on top and tighten it with a M8x25mm bolt.
5. Fix the (M4) self-drilling screw in the integrated gutter and wall mounting bracket.
Suitable Fixings

Assembly Instructions - the Phoenix page: 10
3. Fix the 2 wall-corner pieces in place:
4. Now continue to section 6.2
Sealed Nut M8 Stainless Steel
Nut M6
Washer M8 Stainless Steel
Washer M6
Add silicone sealant to
edge face before pressing
to corner piece to ensure a
watertight seal

Assembly Instructions - the Phoenix page: 11
1. Determine how rainwater will be discharged from the gutter. A post can be used for simple discharge by
drilling in a hole in the gutter above a post and at the bottom of the post so the water can drain out. A 60mm
hole is recommended.
For more effective rainwater discharge a downpipe can be attached
usingadownpipeoutletrunningthroughthegutter(aholewillneedto
bedrilledinthegutter)andrainwaterthenfedintoadownpipewhich
can be run to a suitable location.
 Ifttingusingadownpipeoutletthenitshouldbeplacedthrougha
hole cut for it in the gutter and it should be sealed to the inside of the
gutter. Note the top will need to be trimmed off as the available height
in the gutter below the panels is very limited:
 Theoutletshouldthenbepushedthroughtheholesotheangesits
atagainstthebottomofthegutterandissealedtoit
2. Measure and trim the posts to the required length by cutting off at
thebottom.Themaximumoortoundersidegutterheightshouldbe
2500mmsotrimaccordinglydependinguponwhetherxingintothe
groundusingasuitablecement-basedfoundationmixorxingtoasolidsurfaceusingtheoormounting
brackets.AlsoconsiderwhetherthegroundisatasthePhoenixmustbettedwithnogreaterthana5mm
difference in height across the full width or height to enable proper drainage.
3. **Ifyouhaveawallmountedoptionthengotostep5***
 Laythebackintegratedreargutterproleonthegroundandxthetwopoststoitaddingsiliconesealant
where indicated to ensure a watertight seal.
www.deponti.com Assembly Manual –Pinela Pergola page
15
6.2 Pillar and integrated gutter connection
1. Determine which post will be used as the rainwater discharge post. An rainwater discharge hole
has to be drilled in this post. Place this upright on a flat, solid surface and determine the location for
the hole. Now drill a hole in the post. Although the diameter of the hole is flexible, we recommend a
diameter of 60mm.
2. Fix the aluminium pillar on both sides of the rear integrated gutter (the one with the black
controlbox inside) with a M8 and M6 sealed nut . (check below image)
NOTE:
•Lift up the rear frame.
•Don’t work alone. You may need an extra hand.
•Rear frame should be lifted up and fixed to the ground.
6.2 Post and integrated gutter connection

Assembly Instructions - the Phoenix page: 12
www.deponti.com Assembly Manual –Pinela Pergola page
15
6.2 Pillar and integrated gutter connection
1. Determine which post will be used as the rainwater discharge post. An rainwater discharge hole
has to be drilled in this post. Place this upright on a flat, solid surface and determine the location for
the hole. Now drill a hole in the post. Although the diameter of the hole is flexible, we recommend a
diameter of 60mm.
2. Fix the aluminium pillar on both sides of the rear integrated gutter (the one with the black
controlbox inside) with a M8 and M6 sealed nut . (check below image)
NOTE:
•Lift up the rear frame.
•Don’t work alone. You may need an extra hand.
•Rear frame should be lifted up and fixed to the ground.
4. Liftuptherearframeandxinplaceensuringitislevel.
5. Lay the front gutter on the ground and attach the posts as shown in point 3.
6. Liftupthefrontframeandxinplaceensuringitisbothlevelandalignswiththereargutterandatthe
requireddistancesothatthesidegutterswilltproperlybetweenthefrontandrearframes.
7. Install the side gutters ensuring that the linear actuator is located to the rear where the control box will be
placedinsidethegutter.Makesuretosealthemtotheposts/cornerconnectorsusingsiliconesealantatthe
joins to ensure a watertight seal.
8. Fixthesideandfront/rearguttersusingtheM8andM6sealednuts:
9. Check if the structure is level on all sides. 5mm difference in the full
length(forwater)isallowed
10. Ifyouhaveconnectedadownpipeoutletfordrainagethenxthedownpiperunatthispointensuringthat
abracketisplacedwithintherst300mmofthedownpipeoutlet.Ifthisisnotpossibletheeithergluethe
downpipetothespigotatthebottomoftheoutletorxwithascrewthroughthedownpipeintotheoutlet
spigot.
www.deponti.com Assembly Manual –Pinela Pergola page
16

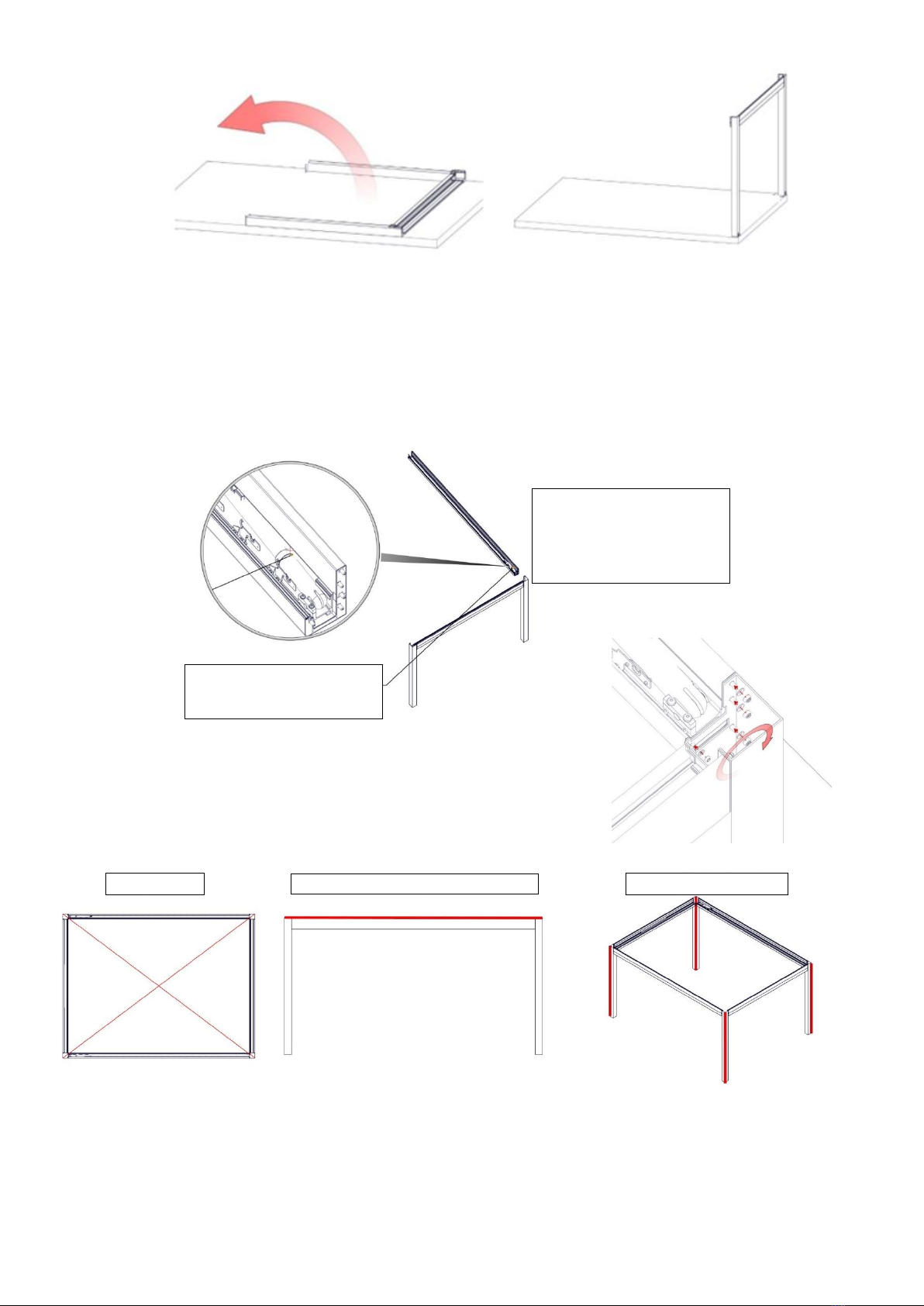

3. Connect the rear integrated gutter and lateral integrated gutter (with the spindle motor inside)
into the position as shown in below image.
4. The linear actuator should be placed on the back side of the lateral integrated gutter which (check
below image)
5. Fix the lateral side integrated gutter to the rear integrated gutter with M8 and M6 Sealed Nuts.
The linear actuator should
be at the rear near the
control box
Add silicone sealant to
edge face before pressing
to corner piece/post to
ensure a watertight seal
www.deponti.com Assembly Manual –Pinela Pergola page
16
3. Connect the rear integrated gutter and lateral integrated gutter (with the spindle motor inside)
into the position as shown in below image.
4. The linear actuator should be placed on the back side of the lateral integrated gutter which (check
below image)
5. Fix the lateral side integrated gutter to the rear integrated gutter with M8 and M6 Sealed Nuts.
www.deponti.com Assembly Manual –Pinela Pergola page
17
6. Check if the structure is level on all sides. 5mm difference in the full length (for water) is allowed
6.3 Panel installation
1. When you start placing the panels. always start with the first front panel. This first panel has a
gasket (big rubber flap) for perfect insulation and has a clamp. The first panel should connect to the
clamp. The clamp is already installed to the lateral side integrated gutter.
2. Place the middle panels in to the integrated lateral side gutter which is shown in the figure below.
Check the cross Check the lateral gutter is level Check the Posts are level

Assembly Instructions - the Phoenix page: 13

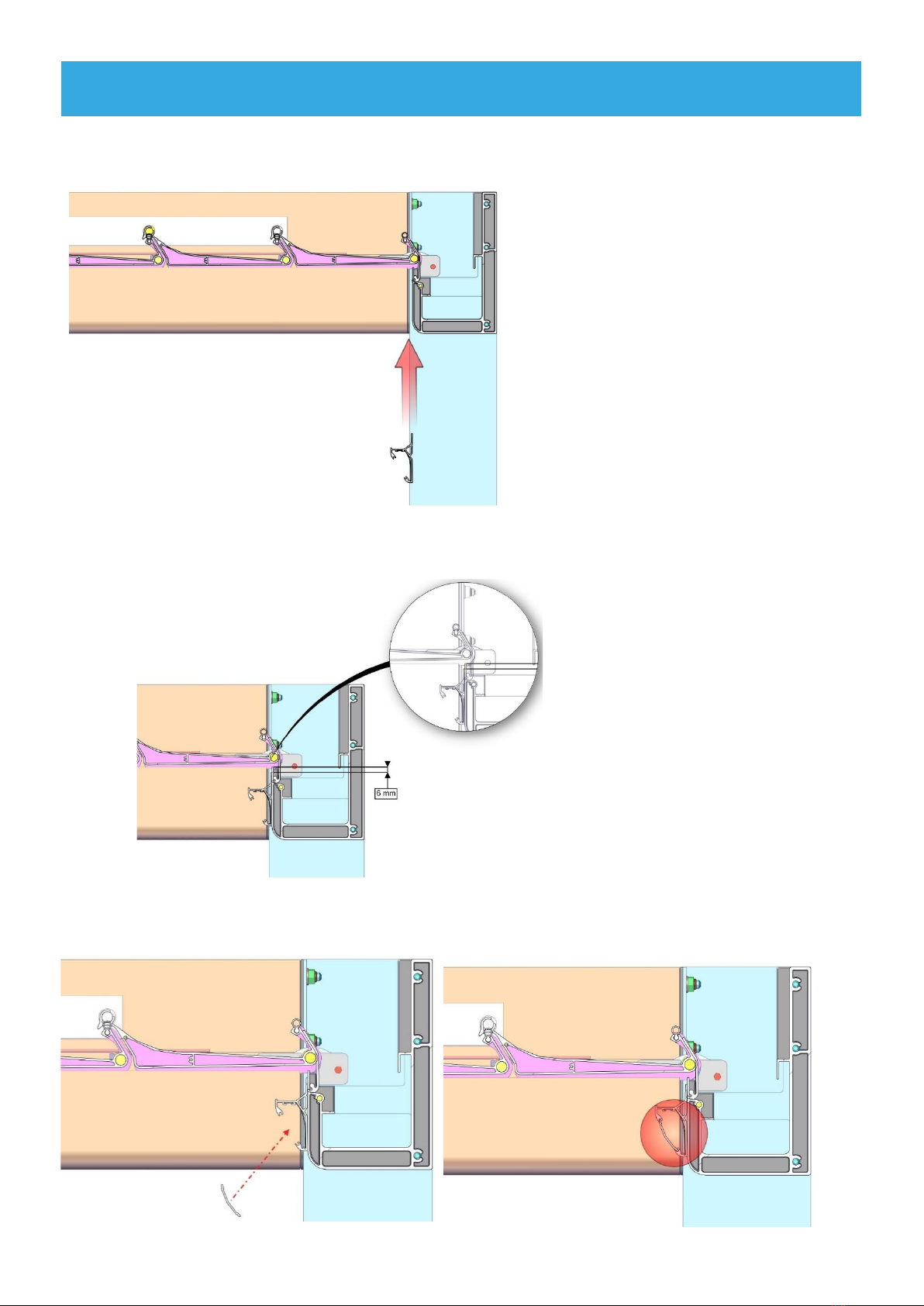

1. Start by placing the panel closest to the rear gutter in place. There should be a rubber gasket at the rear
gutterwhichwillsitovertheedgeoftherstpanelwhenclosed.Ifthisisnotinplacetheninsertnow.
 Thebottompinsoftherstthreepanelsareshorterthantheresttoleavespaceforthelinearactuator.
These three panels also have brackets to hold the lower pins in
place to stop them being lifted. The housing for these brackets
isxedtothegutterandthetoppiecesneedtobeplacedover
the pins and secured with the machine screws provided.
2. Placethemiddlepanelsintotheintegratedlateralsidegutterwhichisshowninthegurebelow.
Thepinsoftherst3panelsareshorterthanthepinsofthemiddlepanels.Thisistopreventthepinsfrom
hitting the linear actuator.
www.deponti.com Assembly Manual –Pinela Pergola page
17
6. Check if the structure is level on all sides. 5mm difference in the full length (for water) is allowed
6.3 Panel installation
1. When you start placing the panels. always start with the first front panel. This first panel has a
gasket (big rubber flap) for perfect insulation and has a clamp. The first panel should connect to the
clamp. The clamp is already installed to the lateral side integrated gutter.
2. Place the middle panels in to the integrated lateral side gutter which is shown in the figure below.
www.deponti.com Assembly Manual –Pinela Pergola page
17
6. Check if the structure is level on all sides. 5mm difference in the full length (for water) is allowed
6.3 Panel installation
1. When you start placing the panels. always start with the first front panel. This first panel has a
gasket (big rubber flap) for perfect insulation and has a clamp. The first panel should connect to the
clamp. The clamp is already installed to the lateral side integrated gutter.
2. Place the middle panels in to the integrated lateral side gutter which is shown in the figure below.
6.3 Panel installation
www.deponti.com Assembly Manual –Pinela Pergola page
18

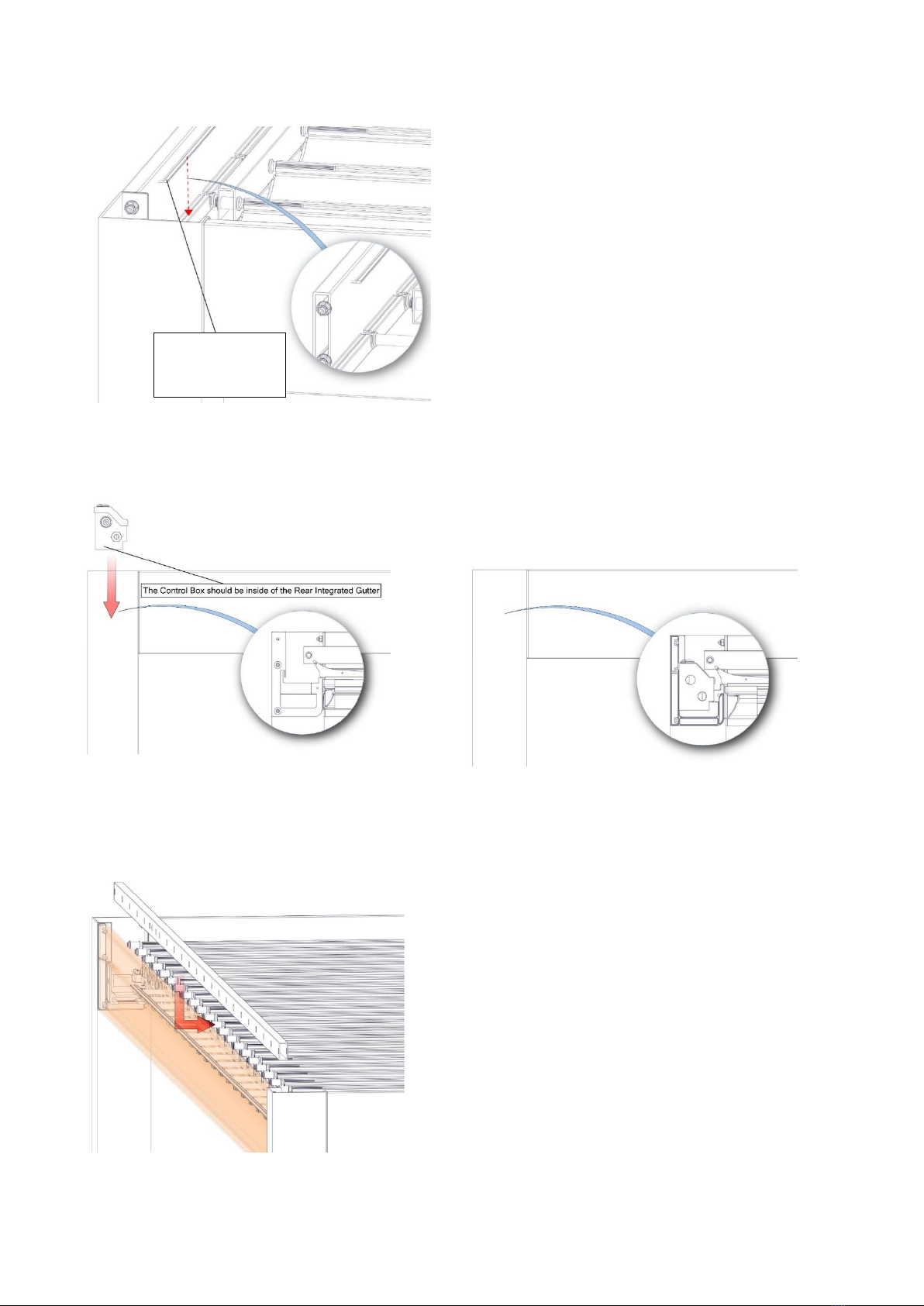

3. To secure the panels in place install the 1.5x1.5mm sheet (strip profile).
4. The pins of the last 3 panel are shorter than the pins of the middle panels. This is to prevent the
pins from hitting the linear actuator.
5. The control box should be placed in the rear integrated gutter.
www.deponti.com Assembly Manual –Pinela Deluxe Pergola page
18
6.3 Panel installation
1. When placing the panels, start at rear(motor side). The rear panel has a short pin.
2. Place the short pin into the housing and fix it with the clamp and the a M5 countersunk
head bolt.
www.deponti.com Assembly Manual –Pinela Deluxe Pergola page
18
6.3 Panel installation
1. When placing the panels, start at rear(motor side). The rear panel has a short pin.
2. Place the short pin into the housing and fix it with the clamp and the a M5 countersunk
head bolt.

Assembly Instructions - the Phoenix page: 14
3.  Tosecurethepanelsinplaceinstallthe1.5x1.5mm(stripprole).Screwingthroughbeforeandaftereachpin
with a short self tapping screw.
5. The control box should be placed in the rear integrated gutter.
6.  Connectthe20x40mmaluminiumproletothesideofthepanels.Thisiswhatcreatesthemovementfrom
the actuator.
www.deponti.com Assembly Manual –Pinela Pergola page
18
3. To secure the panels in place install the 1.5x1.5mm sheet (strip profile).
4. The pins of the last 3 panel are shorter than the pins of the middle panels. This is to prevent the
pins from hitting the linear actuator.
5. The control box should be placed in the rear integrated gutter.
www.deponti.com Assembly Manual –Pinela Pergola page
18
3. To secure the panels in place install the 1.5x1.5mm sheet (strip profile).
4. The pins of the last 3 panel are shorter than the pins of the middle panels. This is to prevent the
pins from hitting the linear actuator.
5. The control box should be placed in the rear integrated gutter.
Place the strip
prole over the
pins
www.deponti.com Assembly Manual –Pinela Pergola page
19

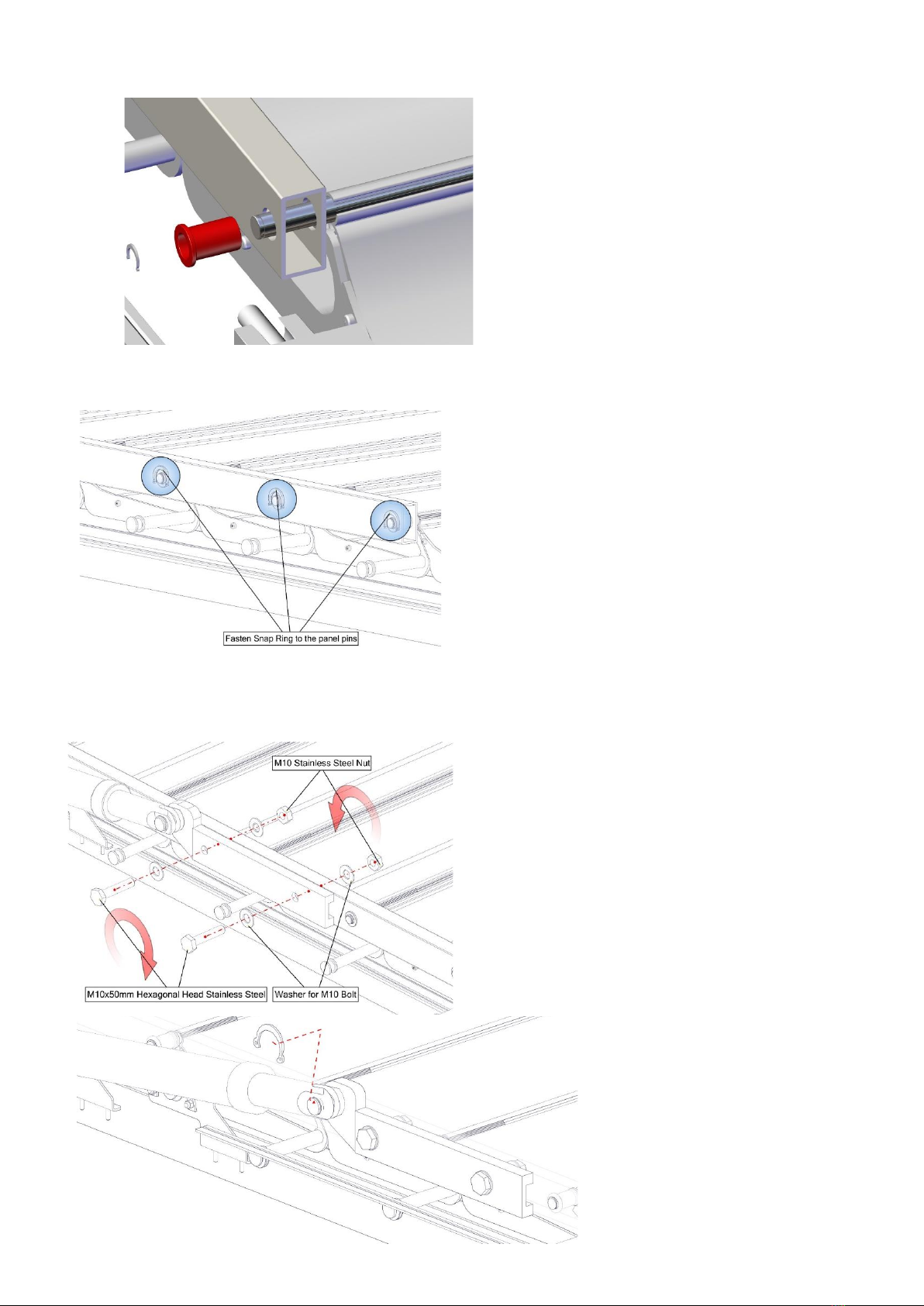

6. The aluminium profile (20x40mm) must be connect to the panels. This profile allows movement of
the actuator to the panels.
7. The housing of the panel pin should be from outside in as in image below.
8. In order to secure the 40x20mm aluminium profile. install the snap ring. The snap ring has to be
placed on the groove of the panel pin. Place and fasten the clamp for the last 3 panels.

Assembly Instructions - the Phoenix page: 15
7. The housing of the panel pin should be from outside in as in image below.
8. Attachedthepincoversfromtheoutsideoftheproletoholditinplace.
9. Attachthecrankpiecetothe20x40prolewithtwoboltsandthenattachtheactuatortoitbyinsertingthe
 pinthroughandxingwiththesnapring.Insertingthepinfromthecrankthroughtheholeintheactuatorand
securing with the snap ring.
www.deponti.com Assembly Manual –Pinela Pergola page
19
6. The aluminium profile (20x40mm) must be connect to the panels. This profile allows movement of
the actuator to the panels.
7. The housing of the panel pin should be from outside in as in image below.
8. In order to secure the 40x20mm aluminium profile. install the snap ring. The snap ring has to be
placed on the groove of the panel pin. Place and fasten the clamp for the last 3 panels.
www.deponti.com Assembly Manual –Pinela Pergola page
19
6. The aluminium profile (20x40mm) must be connect to the panels. This profile allows movement of
the actuator to the panels.
7. The housing of the panel pin should be from outside in as in image below.
8. In order to secure the 40x20mm aluminium profile. install the snap ring. The snap ring has to be
placed on the groove of the panel pin. Place and fasten the clamp for the last 3 panels.
www.deponti.com Assembly Manual –Pinela Pergola page
8
Linear Actuator –Linear Actuator Connector:
a. 16mm Segment
Linear Actuator Connector–40x20mm Profile connection:
a. M10x50 hexagonal bolt stainless steel
b. M10 washer stainless steel
c. M10 nut stainless steel
40x20mm Profile –Panel Connection:
a. 8mm Segment
www.deponti.com Assembly Manual –Pinela Pergola page
20
9. Secure the actuator to the 40x20mm aluminium profile with the snap ring.
6.4 Perimeter lighting installation
1. Place the perimeter lighting profile on the inside of the integrated gutter. (optional)

Assembly Instructions - the Phoenix page: 16
1. Placetheperimeterlightingproleontheinsideoftheintegratedgutter.(optional)
2. Theperimeterlightingproleshouldbeinstalled6mmdownfrominsidetoplipoftheintegratedgutterand
 securedusingshortselftappingscrewsttedthroughthegroovefoundtowardstothetopoftheprole.
3. Placetheperimeterlightingprolecaptothehousingontheperimeterlightingprole.
6.4 Perimeter lighting installation
www.deponti.com Assembly Manual –Pinela Pergola page
20
9. Secure the actuator to the 40x20mm aluminium profile with the snap ring.
6.4 Perimeter lighting installation
1. Place the perimeter lighting profile on the inside of the integrated gutter. (optional)
www.deponti.com Assembly Manual –Pinela Pergola page
21
2. The perimeter lighting profile should be installed 6mm down from the top of the integrated gutter.
3. Place the perimeter lighting profile cap to the housing on the perimeter lighting profile.
4. Place the corner piece between the perimeter lighting profile in the corners.
www.deponti.com Assembly Manual –Pinela Pergola page
21
2. The perimeter lighting profile should be installed 6mm down from the top of the integrated gutter.
3. Place the perimeter lighting profile cap to the housing on the perimeter lighting profile.
4. Place the corner piece between the perimeter lighting profile in the corners.

Assembly Instructions - the Phoenix page: 17
4. Placethecornerpiecebetweentheperimeterlightingproleinthecorners.
www.deponti.com Assembly Manual –Pinela Pergola page
21
2. The perimeter lighting profile should be installed 6mm down from the top of the integrated gutter.
3. Place the perimeter lighting profile cap to the housing on the perimeter lighting profile.
4. Place the corner piece between the perimeter lighting profile in the corners.
www.deponti.com Assembly Manual –Pinela Pergola page
22

Assembly Instructions - the Phoenix page: 18
1. Place the special designed gasket into corners.
The canopy is equipped with remote control. For opening, closing or stopping the panels and activating the
lights(ifincluded).
(seeimagebelow).
Remote control Details
Channels: 5
Battery type: 2430 Lithium
Battery voltage: 3V
Thickness: 22mm
Width: 49mm
Height: 145mm
Colour: White
Radiofrequency: 433,42MHz
Radio Range: 20m through walls
Protection index: IP30
Details:  Shockproof/Forindooruse
Replacing the battery
Using a small screwdriver loosen the screws on the reverse side of the remote control and remove the back cover.
Replace the battery with one 2430 Lithium 3V Battery.
www.deponti.com Assembly Manual –Pinela Deluxe Pergola page
29
7. Programming instructions
7.1 Remote Control
The Pinela Deluxe is equipped with an integrated tubular motor operated by remote control. For
opening, closing or stopping the panels you can use the respective buttons of the remote control.
(see image below).
Remote control Details
Channels: 5
Battery type: 2430 Lithium
Battert voltage: 3V
Thickness: 22mm
Width: 49mm
Height: 145mm
Colour: Wit
Radio frequence: 433,42 MHz
Radio Range: 20m through walls
Protection index: IP30
Details: Shockproof / For indoor use
Replacing the battery
Using a small screwdriver loosen the screws on the reverse side of the remote control and remove
the back cover.
Replace the battery with one 2430 Lithium 3V Battery.
www.deponti.com Assembly Manual –Pinela Deluxe Pergola page
29
7. Programming instructions
7.1 Remote Control
The Pinela Deluxe is equipped with an integrated tubular motor operated by remote control. For
opening, closing or stopping the panels you can use the respective buttons of the remote control.
(see image below).
Remote control Details
Channels: 5
Battery type: 2430 Lithium
Battert voltage: 3V
Thickness: 22mm
Width: 49mm
Height: 145mm
Colour: Wit
Radio frequence: 433,42 MHz
Radio Range: 20m through walls
Protection index: IP30
Details: Shockproof / For indoor use
Replacing the battery
Using a small screwdriver loosen the screws on the reverse side of the remote control and remove
the back cover.
Replace the battery with one 2430 Lithium 3V Battery.
7.1 Remote Control
7. Programming instructions

Assembly Instructions - the Phoenix page: 19
Theinstallationandinitialsetupproceduresaretheresponsibilityofaspecializedtechnician.
When the canopy is installed check the connection of the drive system with its control box - actuator and also
actuatortothe40x20mmaluminiumprole.
Power Supply (230 V AC / 50~60 Hz)
• All wiring must conform to local electrical code.
• The control unit boxes can be wired in PARALLEL.
• There should be a way to disconnect the power at each motor independently.
• Only the control unit needs to be powered. The receiver is completely housed inside of the control unit box.
• Garden Space reserves her right to void the motor warranty if wiring recommendations are not followed.
• Thecontrolboxonlyworkswith230VAC/50~60Hz.
Installation Requirements
• If the installation is with more that one RTS system make sure only one RTS system is powered on during
programming. All other RTS systems must be disconnected. This will avoid interferences during the initial
programming of each motor.
• UseonlySOMFYRTSradiocontrols.Thereceiver(433.42MHz)mustbeprogrammedwiththetransmitters.
Button congurations
www.deponti.com Assembly Manual –Pinela Pergola page
24
7.2 Programming
Using a small screwdriver loosen the screws on the reverse side of the remote control and remove
the back cover. Replace the battery with one 2430 Lithium 3V Battery.
The installation and initial setup procedures are the responsibility of a specialized technician.
When the Pinela is installed. check the connection of the drive system with its control box - actuator
and also actuator to the 40x20mm aluminium profile.
Power Supply (230 V AC / 50~60 Hz)
•All wiring must conform to local electrical code.
•The control unit boxes can be wired in PARALLEL.
•There should be a way to disconnect the power at each motor independently.
•Only the control unit needs to be powered. The receiver is completely housed inside of the
control unit box.
•Deponti reserves her right to void the motor warranty if wiring recommendations are not
followed.
•The control box only works with 230 V AC / 50~60 Hz.
Installation Requirements
•If the installation is with more that one RTS system. make sure only one RTS system is
powered on during programming. All other RTS systems must be disconnected. This will
avoid interferences during the initial programming of each motor.
•Use only SOMFY RTS radio controls. The receiver (433.42 MHz) must be programmed with
the transmitters.
Button configurations
•Outside button: Programming of
actuators/panels
•Middle button: Programming of
lights.
•Inside button: Resetting of units
7.2 Programming
• Outsidebutton:Programmingofactuators/panels
• Middle button: Programming of lights.
• Inside button: Resetting of units

Assembly Instructions - the Phoenix page: 20
Programming of Actuators / panels
• Step 1: Theactuatorhastobeconnecteddirectlytotheelectricpowerunit(230VAC/50~60Hz).Noticethat
the control unit box will not respond to any transmitter until a transmitter is assigned to communicate
with the control unit box receiver.
• Step 2: Choosethechannelonyourtransmitterthatyouwanttosetfortheactuators/panels.
• Step 3: Presstheoutsidebuttonuntilthemotorwilljogbrieyonce.
• Step 4: Pressandholdtheprogrammingbuttonofthetransmitteruntiltheactuators/panelswilljogagain.
 Theactuators/panelshavebeenstoredtothedesiredchannelonyourtransmitter.
Deleting of Actuators / Panels
Keeptheoutsidebuttonpresseduntiltheactuators/panelsjogtwotimes.(Allstoredremoteswillbedeleted).
Theactuators/panelshasdeletedonyourtransmitter.
Programming of LED perimeter lighting - optional
• Step 1: Choosethechannelonyourtransmitterthatyouwanttosetforthelights(LEDPerimeter)
• Step 2: Press the middle button once.
• Step 3: Press and hold the UP and DOWN button on your transmitter until the lights will jog.
• Step 4: Press and hold the programming button of the transmitter until the lights jog again.
The lights have been stored to desired channel on your transmitter.
Deleting of the LED perimeter lighting
• Step 1: Turn off the power for 2 sec.
• Step 2: Turn on the power for 10 sec.
• Step 3: Turn off the power for 2 sec.
• Step 4: Turn on the power after that the lights will go on
• Step 5: Press the programming button on your transmitter.
The lights have been deleted from your transmitter.


