Scag Power Equipment SW36-14KA User manual

®
\OL
31ii}Bw,.........
......._iiiiil¸
THIS MANUAL CONTAINS THE OPERATING
INSTRUCTIONS AND SAFETY INFORMA-
TION FOR YOUR SCAG MOWER READING }{{
THIS MANUAL CAN PROVIDE YOU WITH {_
ASSISTANCE IN MAINTENANCE AND AD-
JUSTMENT PROCEDURES TO KEEP YOUR
MOWER PERFORMING TO MAXIMUM EFFI-
CIENCY. THE SPECIFIC MODELS THAT THIS
BOOK COVERS ARE CONTAINED ON THE
INSIDE COVER. BEFORE OPERATING YOUR
MACHINE, PLEASE READ ALL THE INFOR-
MATION ENCLOSED.
J
PARTNUMBER03072

FAILURE TO FOLLOW SAFE OPERATING PRACTICES
MAY RESULT iN SERIOUS iNJURY.
* Keep all shields in place, especially the grass discharge chute.
* Before performing any maintenance or service, stop the machine and
remove the spark plug wire and ignition key.
* if a mechanism becomes clogged, stop the engine before cleaning.
* Keep hands, feet and clothing away from power-driven parts.
* Read this manual completely as well as other manuals that came
with your mower.
* Keep others off the tractor (only one person at a time)
REMEMBER -YOUR MOWER IS ONLY AS SAFE AS THE OPERATOR!
Hazard control and accident prevention are dependent upon the awareness,
concern, prudence, and proper training of the personnel involved in the
operation, transport, maintenance, and storage of the equipment.
This manual covers the operating instructions
and illustrated parts list for:
SW32-13KA
SW36-13KA
SW36-13KH
SW36-14KA
SW48-14KA
SW48-15KH
SW48-17KA
SW48A-17KA
SW52-17KA
with a serial
with a serial
with a serial
with a serial
with a serial
with a serial
with a serial
with a serial
with a serial
number of 5010001 to 5019999
number of 5020001 to 5029999
number of 5030001 to 5039999
number of 5800001 to 5809999
number of 5040001 to 5049999
number of 5050001 to 5059999
number of 5060001 to 5069999
number of 5070001 to 5079999
number of 5080001 to 5089999
Always use the entire serial number listed on the serial number
tag when referring to this product.

P6WEBEOUIPMEHT

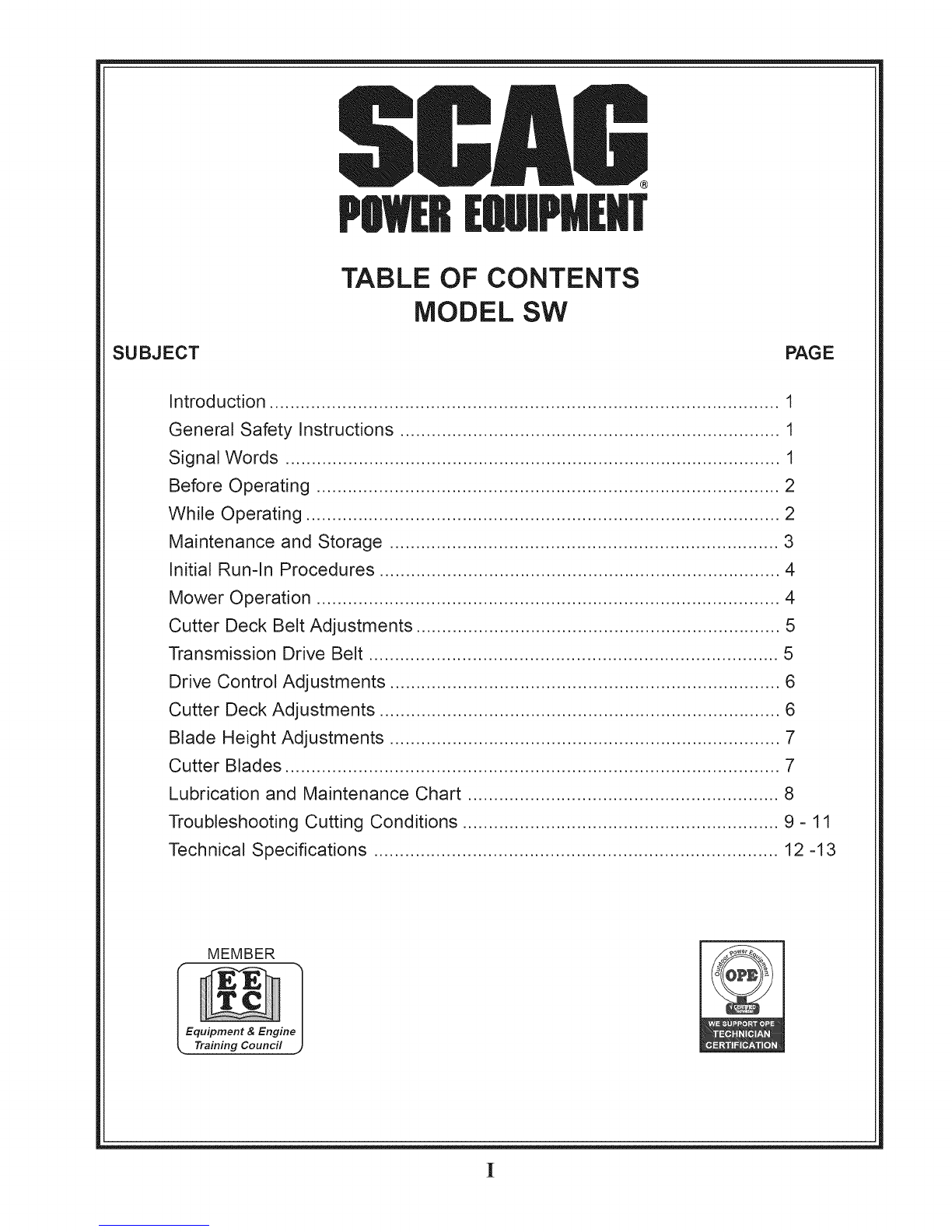

TABLE OF CONTENTS
MODEL SW
SU BJECT PAGE
Introduction .................................................................................................. 1
General Safety Instructions ......................................................................... 1
Signal Words ............................................................................................... 1
Before Operating ......................................................................................... 2
While Operating ........................................................................................... 2
Maintenance and Storage ........................................................................... 3
Initial Run-In Procedures ............................................................................. 4
Mower Operation ......................................................................................... 4
Cutter Deck Belt Adjustments ...................................................................... 5
Transmission Drive Belt ............................................................................... 5
Drive Control Adjustments ........................................................................... 6
Cutter Deck Adjustments ............................................................................. 6
Blade Height Adjustments ........................................................................... 7
Cutter Blades ............................................................................................... 7

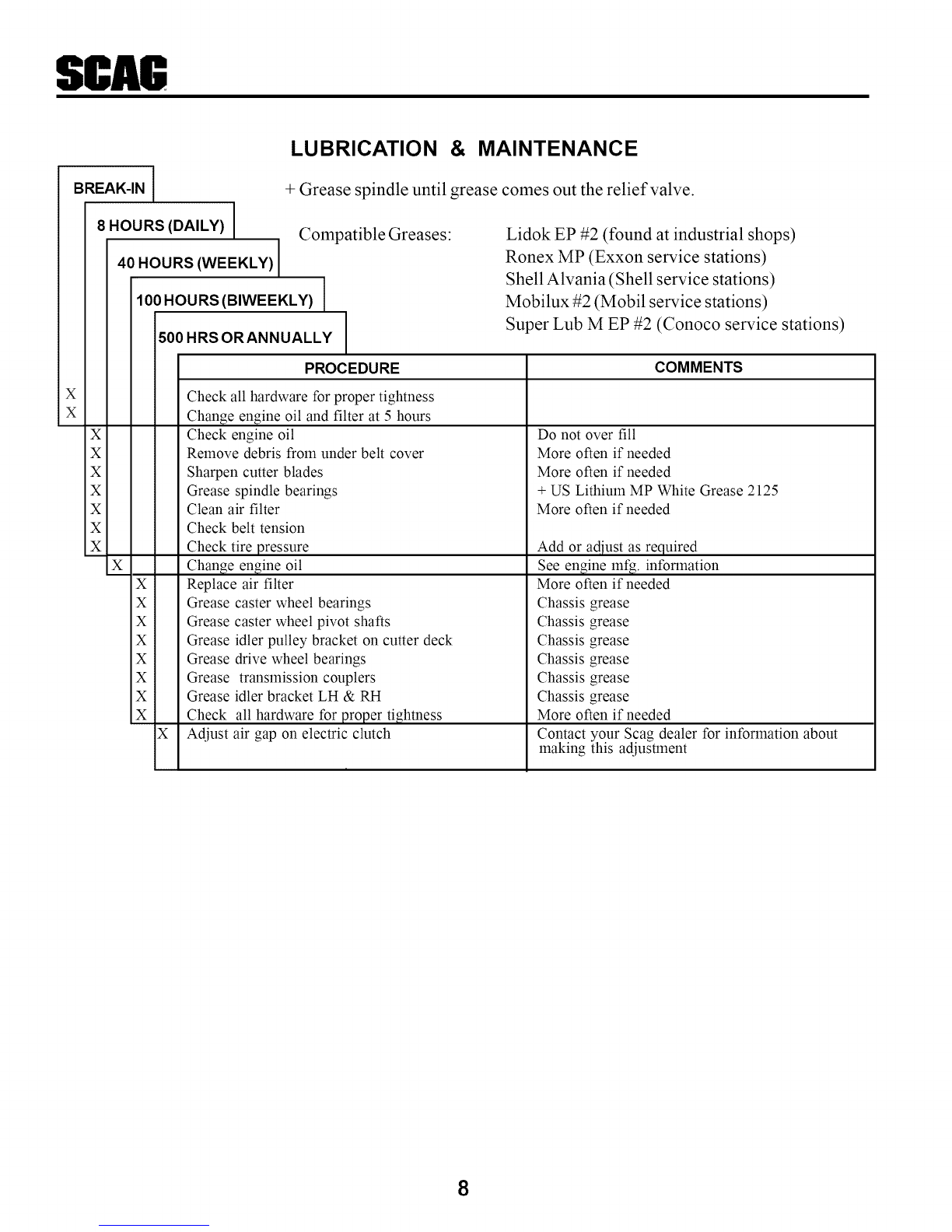

Lubrication and Maintenance Chart ............................................................ 8

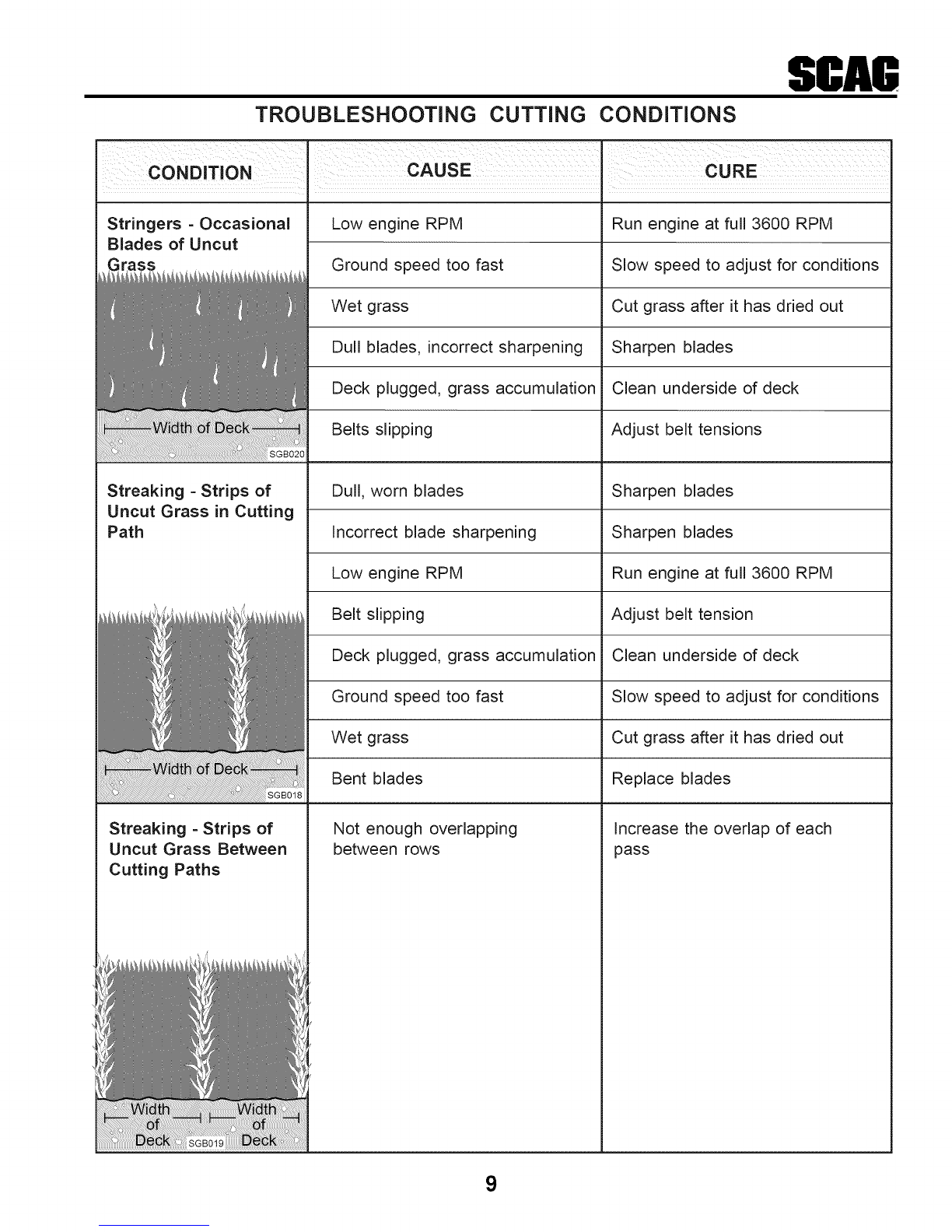

Troubleshooting Cutting Conditions ............................................................. 9 = 11
Technical Specifications .............................................................................. 12 =13
MEMBER
I

TABLE OF CONTENTS
(CONTINUED)
SU BJECT PAGE
illustrated Parts List
SWM-32", 36"Cutter Decks ................................................................ 14-15

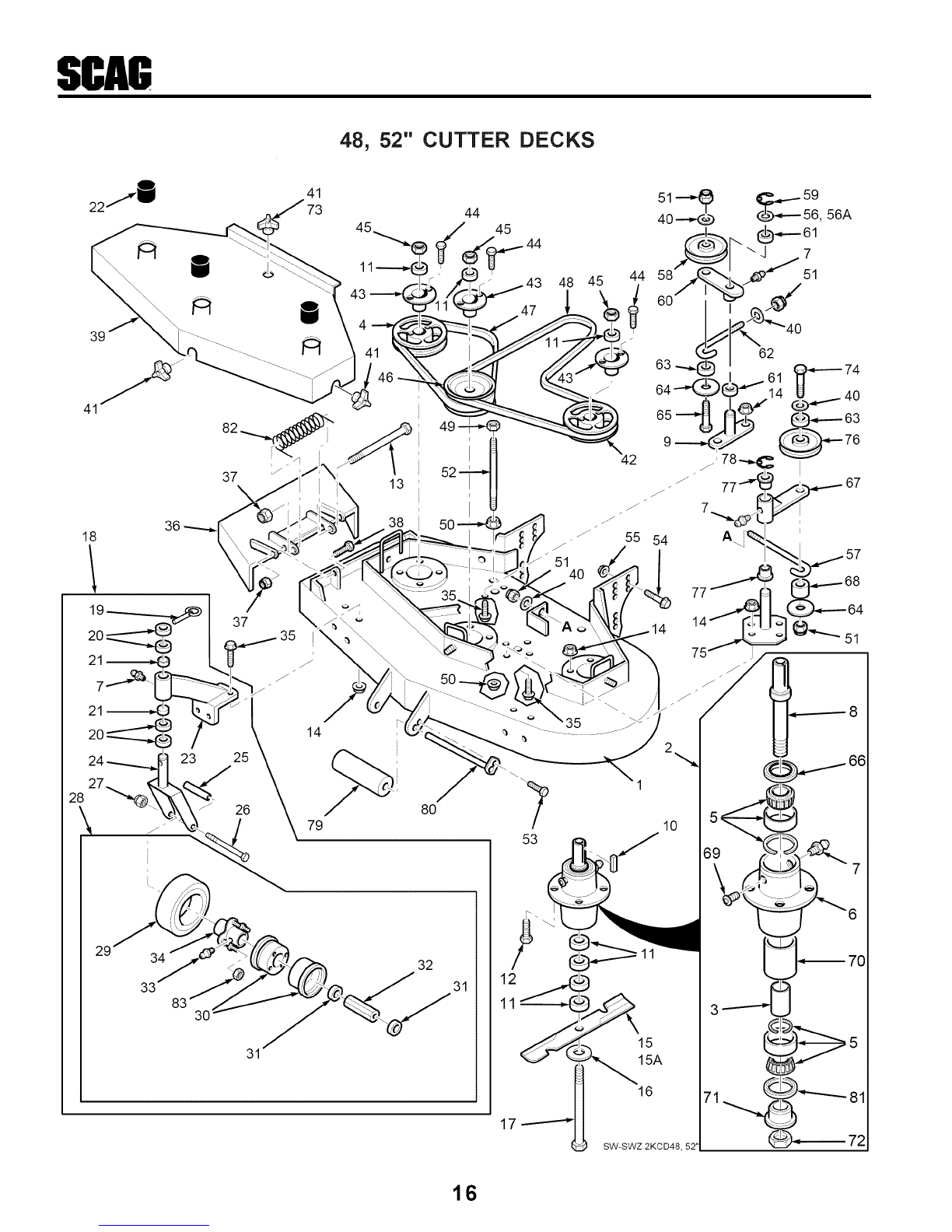

SWM-48", 52", 61", 72" Cutter Decks ................................................ 16-17
Engine Deck ....................................................................................... 18-19
Handle Assembly ................................................................................ 20-21
instrument Panel ................................................................................ 22
Peerless Transmission ........................................................................ 23
Engine Deck Wire Harness- 14 Kawasaki ......................................... 24
Wire Harness W/Relay. ...................................................................... 24
Handle Wire Harness-Manual Start ................................................... 25
Engine Deck Wire Harness-Kohler (Single Cyl.)& 17 KA .................. 26
Replacement Decals .......................................................................... 27-29
Warranty Statement ............................................................... Inside Back Cover
II

INTRODUCTION SIGNAL WORDS
SCA6
Your mower was built to the highest standards in the
industry. However, the prolonged life andmaximum
efficiency ofyour mower depends onyou following the
operating, maintenance and adjustment instructions in
this manual.
We encourage you to contact your dealer for repairs.
All Scag dealers are informed of the latest methods to
service this equipment and provide prompt and efficient
service in the field or at their service shop. They carry a
full line of Scag service parts.
A replacement Operator's Manual is available from your
Scag Servicing Dealer or by contacting Scag Power
Equipment, Service Department at P.O. Box 152,
Mayville, WI 53050. Please indicate the complete
model and serial number of your Scag product.
USE OF OTHER THAN ORIGINAL SCAG
REPLACEMENT PARTS WILL VOID THE
WARRANTY.
The "Right" and "Left", "Front" and "Rear" of the
machine are referenced from the operator's perspec-
tive when in the normal operating position and facing
the forward travel direction.
GENERAL SAFETY iNSTRUCTiONS
READ THIS OPERATOR'S MANUAL and
instructions furnishedwith attachments.
This symbol means "Attention! Become Alert! Your
Safety is Involved!". The symbol is used with the
following signal words to attract your attention to safety
messages found on the decals and throughout this
manual. The message that follows the symbol contains
important information about safety. To avoid injury and
possible death, carefully read the message! Be sure to
fully understandthe causes of possible injury or death.
SignalWord:
It is a distinctive word on safety decals and throughout
this manual that alerts the viewer to the existence and
relative degree of the hazard.
The signal word "DANGER" denotes that an extremely
hazardous situation exists on or near the machine that
could result in high probability ofdeath or irrepairable
injury if proper precautions are not taken.
kWARNING: i
Perform only those maintenance procedures described
in this manual. If major repairs are ever needed or
assistance is desired, contact an Authorized Scag
Dealer. To ensure optimum performance and safety,
always purchase genuine SCAG replacement parts
and accessories.
Your safety and the safety of others depends
significantly upon your knowledge and understanding
of all correct operating practices and procedures of
this machine.
The signal word"WARNING" denotes that ahazard
exists on or near the machine that can result in injury or
death if proper precautions are not taken.
The signal word"CAUTION" is areminder ofsafety
practices on or near the machine that could result in
personal injury if proper precautions are not taken.

SCA6

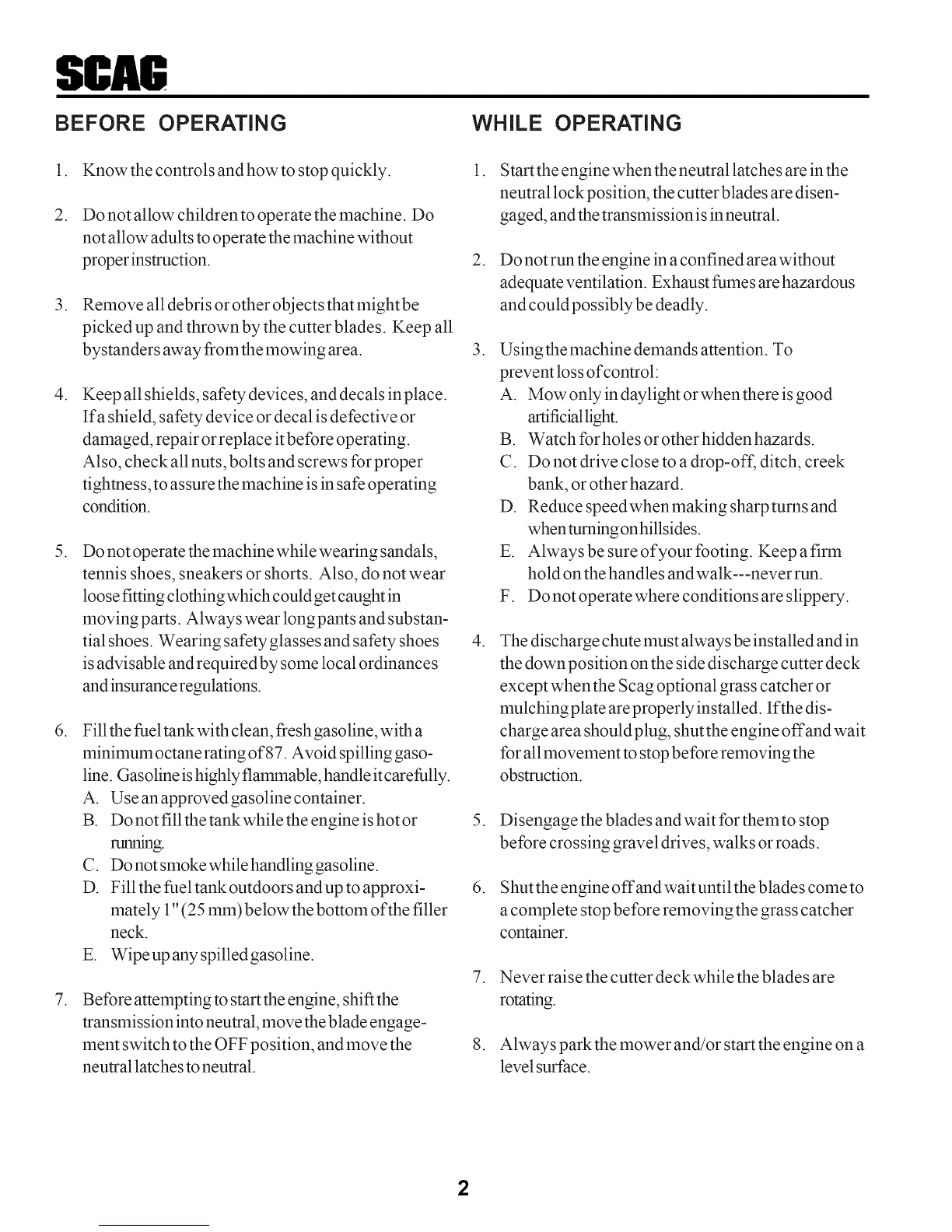

BEFORE OPERATING WHILE OPERATING
.
2.
.
.
.
.
.
Know the controls and how to stop quickly.
Do not allow children to operate the machine. Do
not allow adults to operate the machine without
properinstruction.
Remove all debris or other obj ects that might be
picked up and thrown by the cutter blades. Keep all
bystanders away from the mowing area.
Keep all shields, safety devices, and decals in place.
Ifa shield, safety device or decal is defective or
damaged, repair or replace it before operating.
Also, check all nuts, bolts and screws for proper
tightness, to assure the machine is in safe operating
condition.
Do not operate the machine while wearing sandals,
tennis shoes, sneakers or shorts. Also, do notwear
loose fitting clothing which could get caught in
movingparts. Always wear longpants andsubstan-
tial shoes. Wearing safety glasses and safety shoes
is advisable andrequiredby some local ordinances
and insurance regulations.
Fill the fuel tank with clean, fresh gasoline, with a
minimum octanerating of 87. Avoid spilling gaso-
line. Gasoline is highly flammable, handle itcarefully.
A. Use an approved gasoline container.
B. Do not fill the tankwhile the engine is hot or
runtfing.
C. Do not smoke while handling gasoline.
D. Fill the fuel tank outdoors andup to approxi-
mately 1" (25 mm) below the bottom of the filler
neck.
E. Wipeup any spilled gasoline.
Before attempting to start the engine, shift the
transmission into neutral, move the blade engage-
ment switch to the OFF position, and move the
neutral latches to neutral.
.
.
.
.
.
.
.
.
Start the engine when the neutral latches are in the
neutral lock position, the cutter blades are disen-
gaged, and the transmission is in neutral.
Do not run the engine in a confined area without
adequate ventilation. Exhaust fumes are hazardous
and could possibly be deadly.
Using the machine demands attention. To
prevent loss of control:
A. Mow only in daylight orwhen there is good
artificiallight.
B. Watch for holes or other hidden hazards.
C. Do not drive close to a drop-off, ditch, creek
bank, or other hazard.
D. Reduce speedwhen making sharp turns and
when turning on hillsides.
E. Always be sure of your footing. Keep a firm
hold on the handles and walk---never run.
F. Do not operatewhere conditions are slippery.
The discharge chute must always be installed and in
the down position on the side discharge cutter deck
except when the Scag optional grass catcher or
mulchingplate areproperly installed. If the dis-
charge area shouldplug, shut the engine off and wait
for all movement to stop before removing the
obstruction.
Disengage the blades and wait for them to stop
before crossing gravel drives, walks or roads.
Shut the engine off and wait until the blades come to
a complete stop before removing the grass catcher
container.
Never raise the cutter deck while the blades are
rotating.
Always park the mower and!or start the engine on a
level surface.
2

.
SCA6
If the cutting blades should strike asolid object or
the equipment should start to vibrate abnormally,
stop the engine, disconnect the spark plug wire, and
check immediately for the cause. Vibration is
generally awarning of trouble. Check the machine
for damaged or defective parts. Repair any damage
before starting the engine or operating the cutter
deck. Be sure the blades are in good condition and
the blade bolts are tight.
14. Use only Scag approved riding attachments.
Scag Approved Riding Attachments:
RS-2
RS-ZT
Using unapproved attachments, (especially "stand-
up" riding attachments) may be hazardous.
MAINTENANCE AND STORAGE
10. Reduce speed and exercise extreme caution on
slopes and in sharp turns to prevent tipping or loss
of control. Be especially cautious when changing
directions on slopes.
,WARNING:
DO NOT operate on steep slopes. To check a
slope, attempt to back up it (with the cutter deck
down), if the machine can back up the slope
without the wheels slipping, reduce speed and use
extreme caution. ALWAYS FOLLOW OSHA
APPROVED OPERATION.
11. Do not touch the engine or muffler while the engine
is running or soon after it is stopped. These areas
could be hot enough to cause aburn.
12. Before leaving the operator's position or leaving the
mower unattended, shift thetransmission into
neutral, place the neutral latches in the neutral lock
position, andmove the blade engagement switch to
OFF. Shut the engine OFF and remove the key.
13. Do not pass or stand on the grass discharge side
of any mower with the engine running. Stop
operation when another person approaches.
.
.
.
.
.
.
.
.
3
Disconnect the spark plug wire from the spark
plug to prevent accidental starting of the engine
when servicing, adjusting or storing the machine.
If the mower must be tipped to perform mainte-
nance or adjustment, remove the battery, drain
the gasoline from the fuel tank and the oil from
the crankcase.
To reduce potential fire hazard, keep the engine
free of excessive grease, grass, leaves and accu-
mulations of dirt.
Be sure the machine is in safe operating condition
by keeping nuts, bolts, and screws tight. Check
the blade mounting bolts and nuts frequently to
be sure they are tightened.
If the engine must be running to perform a
maintenance adjustment, keep hands, feet, cloth-
ing and other parts of the body away from the
cutter deck blades and other moving parts.
Do not overspeed the engine by changing gover-
nor settings. To be sure of safety and accuracy,
have an authorized dealer check maximum engine
speed with a tachometer.
The engine must be shut off before checking the
oil or adding oil to the crankcase.
Allow the engine to cool before storing the
mower in any enclosure such as a garage or
storage shed. Make sure the fuel tank is empty if
the machine is to be stored in excess of 30 days.
Do not store the mower near any open flame or
where gasoline fumes may be ignited by a spark.

SCA6

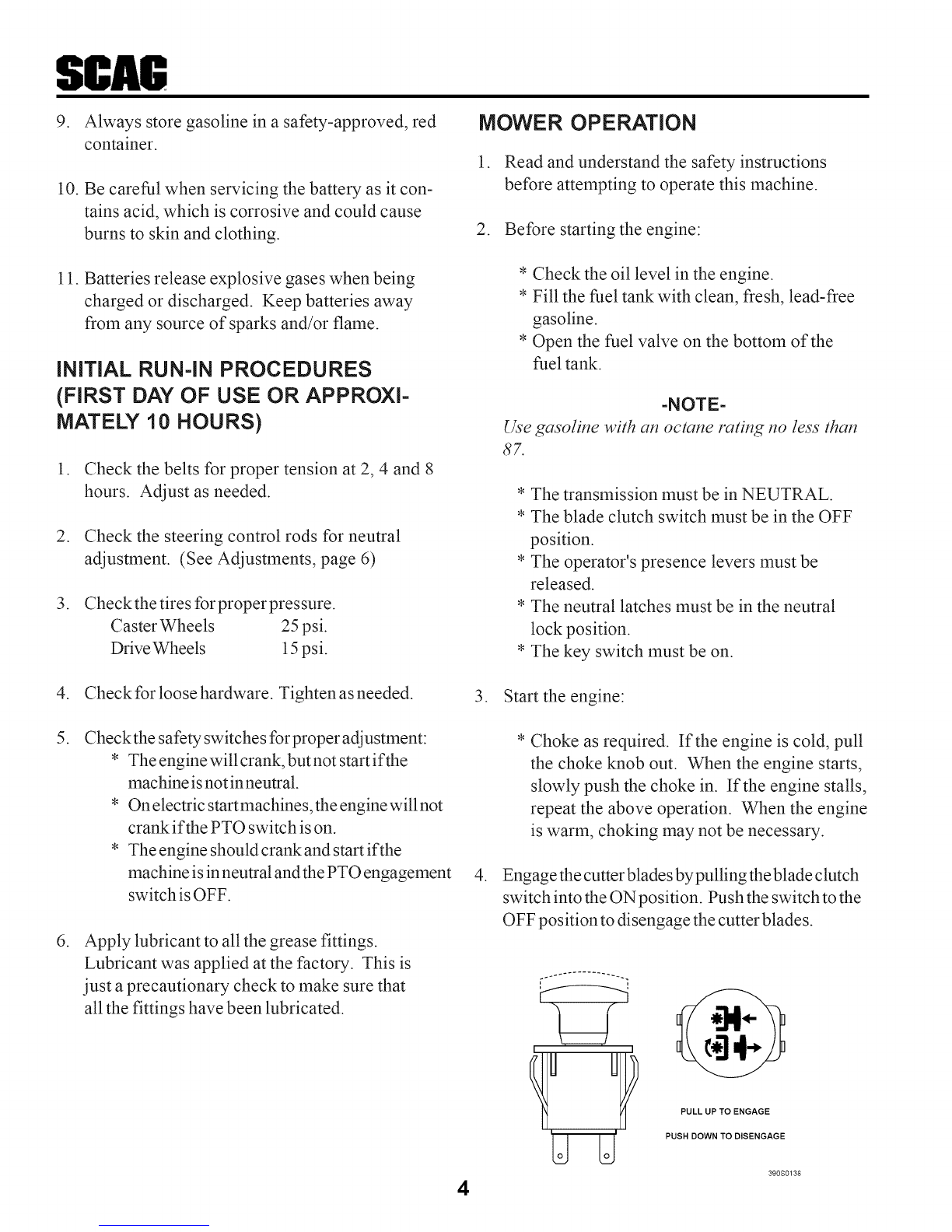

9. Always store gasoline in a safety-approved, red
container.
10. Be careful when servicing the battery as it con-
tains acid, which is corrosive and could cause
burns to skin and clothing.
MOWER OPERATION
1. Read and understand the safety instructions
before attempting to operate this machine.
2. Before starting the engine:
11. Batteries release explosive gases when being
charged or discharged. Keep batteries away
from any source of sparks and/or flame.
INITIAL RUN-IN PROCEDURES
(FIRST DAY OF USE OR APPROXI-
MATELY 10 HOURS)
1. Check the belts for proper tension at 2, 4 and 8
hours. Adjust as needed.
2. Check the steering control rods for neutral
adjustment. (See Adjustments, page 6)
.Check the tires for proper pressure.
Caster Wheels 25 psi.
Drive Wheels 15 psi.
* Check the oil level in the engine.
* Fill the fuel tank with clean, fresh, lead-free
gasoline.
* Open the fuel valve on the bottom of the
fuel tank.
=NOTE=
Uxe gaxo/ine with an octane rating no/exx than
87.
* The transmission must be in NEUTRAL.
* The blade clutch switch must be in the OFF
position.
* The operator's presence levers must be
released.
* The neutral latches must be in the neutral
lock position.
* The key switch must be on.
4. Check for loose hardware. Tighten as needed. 3. Start the engine:
.
.
Check the safety switches for proper adjustment:
* The engine will crank, but not start if the
machine is not in neutral.
* On electric startmachines, the enginewill not
crank if the PTO switch is on.
* The engine should crank and start if the
machine is in neutral andthe PTO engagement
switch is OFF.
Apply lubricant to all the grease fittings.
Lubricant was applied at the factory. This is
just a precautionary check to make sure that
all the fittings have been lubricated.
.
4
* Choke as required. If the engine is cold, pull
the choke knob out. When the engine starts,
slowly push the choke in. If the engine stalls,
repeat the above operation. When the engine
is warm, choking may not be necessary.
Engage the cutter blades by pulling the blade clutch
switch into the ON position. Push the switch to the
OFF position to disengage the cutter blades.
i i
U U PUSH DOWN TO DISENGAGE
390S0138

5.
-NOTE-
When PTO is engaged or (possibly) disengaged,
a squealing sound from the underside of the
machine is normal. B is caused by the electric
clutch plates meshing as the cutter blades come
up m speed. For best equipment/ijO, engage the
clutch with the engine at 1/2 throttle, not under
.full load.
,WARNING:
To avoid serious bodily injury and damage to the
transmission, the machine must be at a full stop
before shifting between gears or shifting between
forward and reverse.
J
Shift the transmission into gear for the desired
mowing speed.
=NOTE=
Top speed is suggested only.for transport/
SCA6
END OF L-SHAPED
BRACKET I
NUT \ "J" BOLT I A_f'BELT
CUTTER DECK DRIVE BELT TENSION
ALIGNMENT IDLER - E.H. SC400G
Figure 1
3. Adjust the RH blade drive belt using abelt tension
gauge. Adjust the belt so that the belt moves 1/2"
with 10 pounds of pressure. Adjust the tension by
tightening or loosening the J-bolt nut. (See figure 2
&3) BELT
.
.
While squeezing the steering brake levers with
both hands, release both neutral latches.
When the steering brake levers are released, the
machine will travel straight. To make aright turn,
squeeze the RH lever. To turn left, squeeze the LH
lever.
WASHER
NUT
8. TO STOP, squeeze both levers, lock the neutral
latches, and shift the transmission into neutral.
CUTTER DECK BELT ADJUSTMENTS
1. Removethebelt cover.
.Adjust the cutter deck drive belt using abelt tension
gauge. Adjust the belt so that the belt moves 1/2"
with 10 pounds of pressure. Adjust the tension by
tightening or loosening the J-bolt nut. (See figure 1)
Figure 2.
BELT TENSION
ADJUSTMENT IDLER
S
DISCHARGE
AREA
RH Blade Belt Adjustment
CUTTER DECK
ADJUSTMENT
IDLER
I
=NOTE=
Due to initial belt stretch and to prevent the belt
._'om slipping, check this" adjustment after the
first 2 hours, 4hours and 8 hours of operation. 5
CHECK BLADE DRIVE
BELT TENSION HERE
Figure 3. Cutter Deck Belts SC402G

SCA6
TRANSMiSSiON DRIVE BELT
Adjust the transmission drive belt so that there is about a
3/16" deflection with 10 lbs. of pressure. Adjustby
loosening idler pulley mounting bolt and sliding the idler
left or right to change belt tension.
DRIVE CONTROL ADJUSTMENTS
.Adjust the steering control rods so that there is
approximately 3/4" clearance from the bottom of
the rod to the bottom of the neutral latch slot when
in the drive position. (See figure 4)
NEUTRAL
LATCH
NEUTRAL LOCK
POSITION
DRIVE POSITION
3/4"-
STEERING
BRAKE LEVER SC404GB
Figure 4. Steering Control Rod Adjustment
.Adjust the steering brake rods so that the brakes
do not apply until the steering levers are pulled tight
to the handles. When the steering levers are
locked in the neutral position the machine should
move freely.
CUTTER DECK ADJUSTMENTS
Due to the many cutting conditions that exist, itis difficult
to suggest a cutter deck setting that will work for every
lawn. There are two adjustments that can be made on
these decks, pitch andheight.
PITCH is the angle of the blades (comparing front to
rear). A 1/4" downward pitch (front of deck down) is
recommended for best cutting performance.
HEIGHT is the nominal distance the blade is offofthe
ground. This measurement is made with the blades
pointed side to side and distance is measured between
cuttingtip andground. (Also seeBladeHeightAdjust-
merit, nextpage)
Changes to the cutting height can be achieved by reposi-
tioning the cutter deck (This adjustment will also effect
the pitch of the deck). There are three available posi-
tions (see figure 5).
LOW CUT (1 3/4" to 3")
MID RANGE
1/2" to 3 3/4")
HIGH CUT
(3 1/4" to 4 1/2")
CUTTER DECK HEIGHT ADJUSTMENT SC405G
Figure 5. Cutting Height Adjustment
6

SCA6

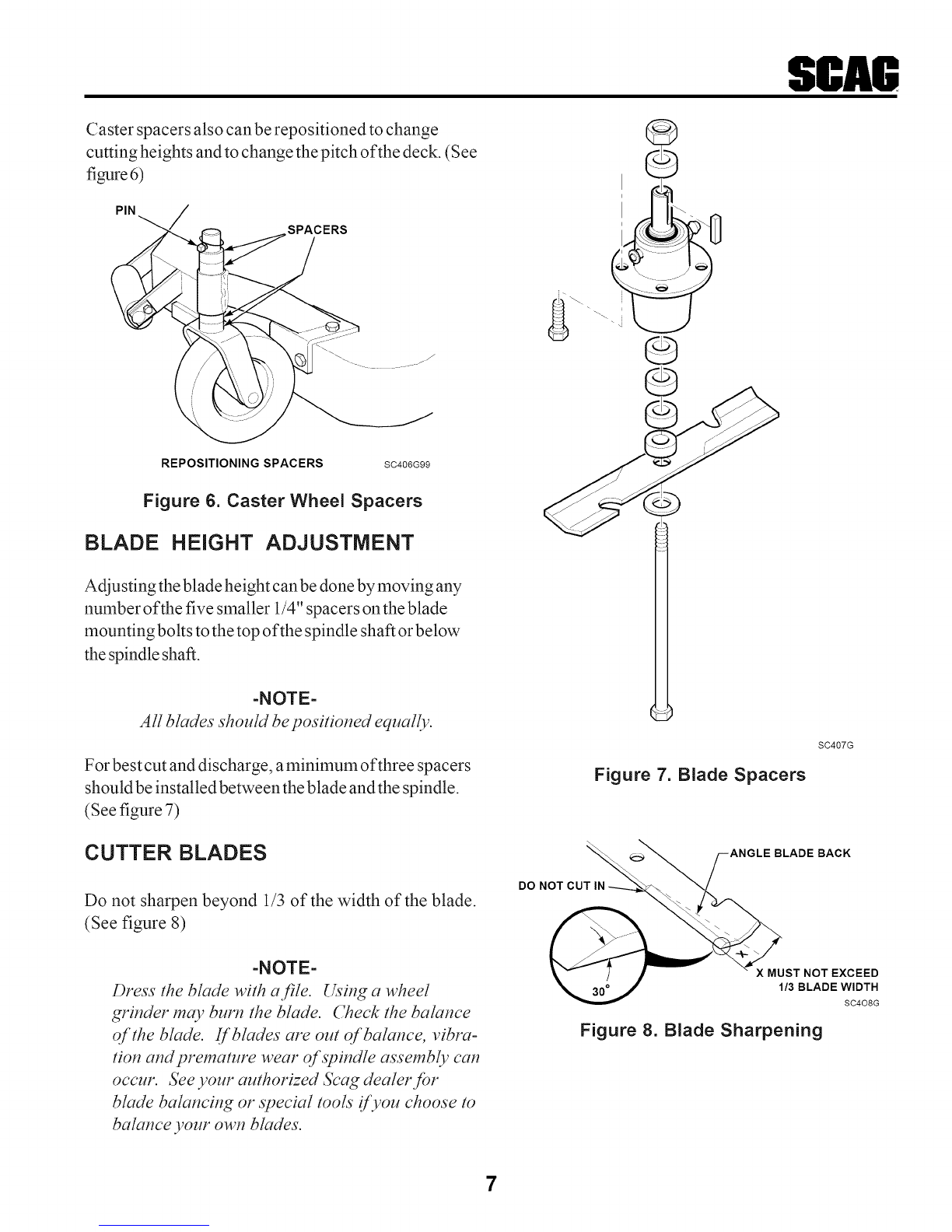

Caster spacers also can be repositioned to change
cutting heights and to change the pitch of the deck. (See
figure6)
PIN
SPACERS
G
REPOSITIONING SPACERS SC406G99
Figure 6. Caster Wheel Spacers
BLADE HEIGHT ADJUSTMENT
Adjusting the blade height can be done by moving any
number of the five smaller 1/4" spacers on the blade
mounting bolts to the top of the spindle shaft or below
the spindle shaft.
=NOTE=
All blades should be positioned equally.
For best cut and discharge, aminimum of three spacers
should be installed between the blade and the spindle.
(See figure 7)
CUTTER BLADES
Do not sharpen beyond 1/3 of the width of the blade.
(See figure 8)
=NOTE=
Dress the blade with afile. Using a wheel
grinder may burn the blade. Check the balance
(?f the blade. If blades are out (?/balance, vibra-
tion and premature wear (?/spindle assembly can
occur. See your authorized Stag dealer for
blade balancing or special tools" if you choose to
balance your own blades.
DO
SC407G
Figure 7. Blade Spacers
BLADE BACK
XMUST NOT EXCEED
1/3 BLADE WIDTH
SC408G
Figure 8. Blade Sharpening
7

SCA6
BREAK-IN I
LUBRICATION & MAINTENANCE
8 HOURS (DALLY) I
+Grease spindle until grease comes out the relief valve.
40 HOURS (WEEKLY) I
Compatible Greases:
100 HOURS (BIWEEKLY) I
500 HRS OR ANNUALLY
PROCEDURE COMMENTS
X
Xx
x
x
x
x
x
x
Xx
x
x
x
x
x
x
x
X
Check all hardware for proper tightness
Change engine oil and filter at 5 hours
Check engine oil
Remove debris from under belt cover
Sharpen cutter blades
Grease spindle bearings
Clean air filter
Check belt tension
Check tire pressure
Change engine oil
Replace air filter
Grease caster wheel bearings
Grease caster wheel pivot shafts
Grease idler pulley bracket on cutter deck
Grease
Grease
Grease
Check
Adjust
drive wheel bearings
transmission couplers
idler bracket LH & RH
all hardware for proper tighmess
air gap on electric clutch
Lidok EP #2 (found at industrial shops)
Ronex MP (Exxon service stations)
Shell Alvania (Shell service stations)
Mobilux #2 (Mobil service stations)
Super Lub M EP #2 (Conoco service stations)
Do not over fill
More often if needed
More often if needed
+ US Lithium MP White Grease 2125
More often if needed
Add or adjust as required
See engine lnfg. information
More often if needed
Chassis grease
Chassis grease
Chassis grease
Chassis grease
Chassis grease
Chassis grease
More often if needed
Contact your Scag dealer for information about
making this adjustlnent
8

TROUBLESHOOTING CUTTING CONDITIONS SCA6
CONDITION CAUSE' CURE
Stringers - Occasional Low engine RPM Run engine at full 3600 RPM
Blades of Uncut Ground speed too fast Slow speed to adjust for conditions
Wet grass Cut grass after it has dried out
Dull blades, incorrect sharpening Sharpen blades
Deck plugged, grass accumulation Clean underside of deck
Belts slipping Adjust belt tensions
Streaking - Strips of
Uncut Grass in Cutting
Path
Dull, worn blades
incorrect blade sharpening
Low engine RPM
Belt slipping
Deck plugged, grass accumulation
Ground speed too fast
Wet grass
Bent blades
Streaking - Strips of
Uncut Grass Between
Cutting Paths
Not enough overlapping
between rows
Sharpen blades
Sharpen blades
Run engine at full 3600 RPM
Adjust belt tension
Clean underside of deck
Slow speed to adjust for conditions
Cut grass after it has dried out
Replace blades
increase the overlap of each
pass
9

SCA6
TROUBLESHOOTING CUTTING CONDITIONS
CONDITION CAUSE CURE
.=
Uneven Cut on Fiat
Ground - Wavy
High-Low
Appearance,
Scalloped Cut, or
Rough Contour
Uneven Cut on
Uneven Ground -
Wavy Appearance,
High-Low Scalloped
Cut, or Rough Contour
f
i_i_i_i_ii_!!ii!i!i_i!iiiiliiiii_i_!i!i!i
..............................._.........................................................................................::_:_:_!i_!i_!i_!i_!i_!i_!i_!_!!i!!_!!i_!i_!i_!i_!i_!i_!i_!i_!i_!i_!i_!i_!i_!i_!i_!i_!i_!i_!i_!i_!i_!i_!i_!i_!i_!i_!i_!i_!i_!i_!i_!i_!i!!_!:_!!!i!!!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i_¸¸¸,,
Sloping Ridge Across
Width of Cutting Path
Lift worn off of blade
Blade upside down
Deck plugged, grass accumulation
Too much blade angle (deck pitch)
J Deck mounted improperly
Bent spindle area
Dull blade
Uneven ground
Tire pressures not equal
Wheels uneven
. Deck mounted incorrectly
y
ij
Y
Replace blade
Mount with cutting edge toward
ground
Clean underside of deck
Adjust pitch and level
See your authorized SCAG dealer
See your authorized SCAG dealer
Sharpen blade
May need to reduce ground speed,
raise cutting height, and/or change
direction of cut
Check and adjust tire pressure
Check and adjust tire pressure
See your authorized SCAG dealer
10

TROUBLESHOOTING CUTTING CONDITIONS SCA6
_calping - Blades Low tire pressures Check and adjust pressures
_itting Dirt or
Jutting Very Close to Ground speed too fast Slow speed to adjust for conditions
he Ground Cutting too low
SGB022
_tep Cut
_,idge in Center of
Jutting Path
¸ : i! iiiii'i,liiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii! i!:i
)lope Cut - Sloping
{idges Across Width
)f Cutting Path
Rough terrain
Ground speed too fast
Wet grass
Blades not mounted evenly
Bent blade
internal spindle failure
Mounting of spindle incorrect
May need to reduce ground speed,
raise cutting height, change direction
of cut, and/or change pitch and level
May need to reduce ground speed,
raise cutting height, and/or change
direction of cut
Slow speed to adjust for conditions
Cut grass after it has dried out
Adjust pitch and level
Replace blade
See your authorized SCAG dealer
See your authorized SCAG dealer
Bent spindle mounting area See your authorized SCAG dealer
internal spindle failure See your authorized SCAG dealer
Bent deck housing See your authorized SCAG dealer
11

SCA6
TECHNICAL SPECiFiCATiONS
MODELS
ENGINE
General Type:
Brand /Model:
Horsepower:
Type:
Displacement:
Governor:
Air Cleaner:
Exhaust:
Starter/Electrical:
Fuel Pump Group:
Oil Pump Group:
Valve Group:
ENGINE DECK
Thickness:
Fuel Tank:
Drive Wheels/Tires:
Handle Bars:
SW32-13KA, SW36-13KA, SW36-13KH, SW36-14KA, SW48-14KA,
SW48-15KH, SW48-17KA, SW48A- 17KA, SW52-17KA
Heavy duty industrial/commercial
Kawasaki FB460V, FC420V, & FH500V:
Kohler CV13, CV15T
Kawasaki FB460V=13 HP, FC420V=14HP, FH500V=17HP
Kohler CVl 3T=13HP, CVl 5T=15 HP
Kawasaki 13 HP, 14 HP, 4 cycle gasoline engine, air cooled,
single cylinder, vertical shaft engine. 17HP 4 cycle, air cooled, V twin
cylinder, verticl shaft engine.
Kohler 13 HP & 15 HP = 4 cycle gasoline engine, air cooled,
single cylinder, vertical shaft engine.
Kaw. 13 HP=460cc, 14 HP=423cc: 17HP=494cc
Kohler 13 HP=398cc, 15 HP=426cc:
Mechanical type governor with variable speed control. Settings:
Kawasaki 13 HP= 3350 rpm (+/- 75 rpm), 14 HP=3600 rpm (+/-
75rpm), idle set at 1200 rpm (+/- 75 rpm), 17HP=3600 rpm, idle set
at1550 rpm (÷/- 75 rpm)
Kohler 13 HP & 15 HP=3600 rpm (+/- 50 rpm), idle set at 1200 rpm
(+/- 75 rpm)
Large capacity duel element with cyclonic-type air filter.
Single & dual exhaust canister muffler.
Electronic ignition with recoil starter.
Varied - See manufacturer's specification.
Varied - See manufacturer's specification.
Varied - See manufacturer's specification.
7 gauge steel.
5 gallon (19.0 liters)seamless polyethylene.
13.0 x 6.50-6 two-ply pneumatic tubeless.
1-1/4" diameter.
DRIVE SYSTEM
Type:
Transmissions:
Steering/Travel Control:
Brakes:
Axles:
Wire Harness:
Safety Group:
Forward Speed Range:
Reverse Speed Range:
Date of issue: June 15, 1999
Specifications Subject to Change Without Notice
Belt drive with twin power belts for increased friction to pulley surface.
Peerless 5-speed transmission, Model #700-070A.
Clutch/brake fingertip steering, key lock switch. (EZ Grip
design allows minimum hand force to operate controls.)
6" drum, band brake, one on each wheel.
1"
14 gauge wire.
Hand actuated operator presence system with blade clutch and
transmission interlock to engine kill.
0 to 6.0 mph
0 to 2.0 mph
12

TECHNICAL SPECIFICATIONS (CON'T)
SCA6
CUTTER DECK
Type:
Construction:
True Cutting Width:
Blade Engagement:
Cutting Height Adjustment:
Cutter Blades:
Discharge Opening:
SWM 32, SWM 36, SWM 48, SWM48A, SWM 52
Out-front design with anti-scalp rollers.
SWM32-48: 7-gauge steel with 7-gauge (3/16") steel skirt
SWM52:10-gauge steel with 7-gauge (3/16") steel skirt
SWM32=32.0" (81.3cm), SWM36=36.0" (90.2cm), SWM48=48.0"
(122.0cm), SWM48A=(122.0cm), SWM52=52.0" (132.0cm)
Electric blade engagement clutch with control panel switch
Manual adjustment 1-3/4" to 4-1/2" in 1/4" increments.
.204" thick, milled edge, 5150 alloy steel
SWM32 = Two (2) 16.5" blades, SWM36 = Two (2) 18" blades,
SWM48 = Three (3) 16.5" blades, SWM52 =Three (3) 18" blades
SWM32, 36, 52 Extra wide 11.5", SWM48 Extra wide 13.5",
CasterWheels: 9.4 x 3.5 smooth-tread flotation, inner tubes, split rims, roller bearings,
with quick pin removal.
Spindles: Cast housing, taper roller bearing, low maintenance with top access
grease fitting and grease overfill relief poppet.
Spindle Pulleys: Cast-iron with easily removed taper hubs
Cutter Deck Belts: B-section with Kevlar® cord.
ADDITIONAL SPECIFICATIONS
OPTIONAL ITEMS/ATTACHMENTS
Fabric Grass Catcher: GC-F4 Grass Catcher with 4 cubic ft. capacity
Metal Grass Catcher: GC-4D Grass Catcher with 4 cubic ft. capacity and rope pull dump or
pick-up and dump.
Sulky: RS-2 Two-Wheel Sulky with padded seat.
RS-ZT Two-Wheel Zero Turn Sulky with padded seat.
Mulching Plate: Steel plate fits over discharge opening. No blade change or removal
required. Installs and removes in the field.
EZ-GRIP-SW Provides reduced hand force at operator steering controls.
APPROXIMATE DIMENSIONS SWM32 SWM36 SWM48 SWM48A SWM52
Length: 70.0" 72.0" 76.0" 76.0" 76.0"
Length with grass catcher: 70.0" 72.0" 76.0" 76.0" 76.0"
Tracking Width: 32.0" 37.0" 37.0" 37.0" 37.0"
Width: 43.0" 48.0" 60.0" 60.0" 60.0"
Width (with discharge chute up): 33.0" 38.0" 50.0" 50.0" 53.0"
Width with grass catcher: 51.0" 56.0" 68.0" 68.0" 71.0"
Height: 40.5" 40.5" 40.5" 40.5" 40.5"
Height with grass catcher: 40.5" 40.5" 40.5" 40.5" 40.5"
Weight: 440 Ibs. 465 Ibs. 515 Ibs. 515 Ibs. 525 Ibs.
Weight with GC-F4 grass catcher: 480 Ibs. 505 Ibs. 555 Ibs. 555 Ibs. 565 Ibs.
Weight with GC-4D grass catcher: 490 Ibs. 515 Ibs. 565 Ibs. 565 Ibs. 575 Ibs.
Date of issue: June 15, 1999
Specifications Subject To Change Without Notice
13

SCA6
32" & 36" CUTTER DECKS
41
69
13
37
33 4
3O 31
29
45
_44
46
14
59
22
58
51
14
32
IA
35_ -. \ 10
,..,,,
12
11
15
15A
16
61
56
14

SCA6
32" & 36" CUTTER DECKS
Ref. Part Ref. Part
No. Number Description 32 36 No. Number Description 32 36
x 42 489241 461130
1A 461131
2 46631
3 43312
4 48307-08
5 481022
6 43294
7 04001-108
8 43298
9 04001-77
10 04063-08
11 43278
12 04001-10
13 481050
14 04019-03
15 481706
15 481707
15A 481710
15A 481711
16 04040-10
17 04001-41
18 46079
19 04066-01
20 43037-01
21 48100-01
22 48114-04
23 46082
24 45006
25 43022
26 04001-37
27 04021-07
28 48307
29 48307-02
NS 48006-03
30 48307-04
31 48006-07
32 48006-06
33 48114-03
34 48006-05
35 04017-16
36 461054
37 04021-10
38 04001-09
39 46853
39A 46797
40 04041-07
41 04029-03
Cutter Deck (includes Decals)
Cutter Deck (includes Decals)
Cutter Spindle Assy.
Spacer, Outside
Tapered Nut, 5/16-24
Tapered Bearing (Two)
Spindle Housing
Bolt, 5/16-18 x 4-1/4" Hex Head
Spindle Shaft
Bolt, 3/8-16 x 3-1/2" Hex Head
Key, 1/4 x 1/4 x 2"
Spacer, Cutter Blade - Small
Bolt,5/16-18 x 1-1/4" Hex Head
Spring, Chutte Return
Nut 5/16-18 Serrated Flange
Cutter Blade, 16-1/2" Marbain
Cutter Blade, 18" Marbain
Cutter Blade 16-1/2 Hi Lift Marbain
Cutter Blade, 18 Hi Lift Marbain
Flatwasher, 5/8 W
Hex Hd. Bolt, 5/8-11 x 9-1/2"
Caster Assembly (Inc.19-28)
Quick Pin
Spacer, Caster Yoke, 1/2" long
Bronze Bearing
Grease Fitting
Support Assembly (inc. 21-23)
Caster Yoke
Sleeve, Caster Wheel Bearing
Hex Hd. Bolt, 1/2-13 x 5-1/2"
Elastic Stop Nut, 1/2-13
Wheel Assy. (Inc.4, 29-34)
Tire only, Caster Wheel
inner Tube only
Rim Pair, Caster Wheel
Retainer, Bearing, Caster Wheel
Roller Bearing, Caster Wheel
Grease Fitting, 45 degree 1/4-28
Hub Assembly
Cpscrw,5/16-18 x 3/4" Ser.FIg. Hex Head
Discharge Chute
Hex Nut, 5/16-18 Elastic Stop
Hex Hd Bolt, 5/16-18 x 1"
Belt Cover Assy (includes Decal)
Belt Cover Assy (includes Decal)
Flat Washer, 3/8" Special
Wing Nut, 3/8-16
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
x 43 48926
x 44 04001-01
x 45 04020-09
x 46 48278
x 46A 48204
x 47 43077
x 48 04021-05
x 49 04019-04
x 50 04004-02
x 51 04017-42
x 52 04019-05
x 53 43277
x 54 04041-12
x 55 04021-09
56 45423
x 57 46748
58 48100-02
x 59 04050-05
x 60 44078
x 61 48269
x 62 481024
x 63 43297
x 64 43296
x 65 481035
x 66 48677
x 67 481025
x 68 48098
x 69 04029-04
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
Pulley x x
Tapered Hub x x
Hex Hd. Bolt, 1/4-20 x 3/4" x x
Hex Nut, 5/8-11 x x
Belt, Blade Drive x
Belt, Blade Drive x
Spacer x x
Hex Nut, 3/8-16 Center Locknut x x
Nut, 3/8-16 Serrated Flange x x
Support, Belt Cover x x
Cpscrw, 7/16-14 x l"Ser.FIg. HH x x
Nut, 7/16-14 Serrated Flange x x
Spacer, J-Hook x x
Washer, 3/8 x 1-1/2 x 16 GA x x
Elastic Stop Nut, 3/8-16 x x
idler Pivot x x
idler Arm Assy. (inc. 22 & 58) x x
Bronze Bearing x x
Retaining Ring, 1-1/8" Ext. "E" x x
J-Hook x x
idler Pulley, Belt Clutch x x
Seal, Cutter Spindle x x
Spindle Bushing x x
Spacer, inside x x
Nut, x x
Relief Fitting, Cutter Spindle x x
SeN, Cutter Spindle x x
Spindle Shield x x
Wing Nut, 3/8-16 (Small) RH side x x
* Common hardware which should be purchased locally. All bolts are Grade 5 plated, all other fasteners zinc plated.
15

SCA6
48, 52" CUTTER DECKS
I
41
I
44
45 45 44
1
37
37
23 25
79 80
29
30
31
32
31
43
12
11
17
48 45
1
10
15
15A
16
SW-SWZ 2KCD48, 52'
66
7
6
70
81
72
16
