SCALEO infinity User manual

Operating Manual
SCALEO innity
Please read the following manual carefully before using your product.Please do not discard.
5°/120°
63000cd
200m 500m
6000lm

2
• Make sure that the battery you are using cor-
responds with the specications (see technical
specications) and functions properly.
• In case of smoke or steam, immediately turn
of the lamp and disconnect it from the power
source.
• The lamp should be disconnected from its pow-
er source when transported or stored.
• Keep away the lamp from high heat and open
ames. It can cause overheating, brands, explo-
sions, destruction, electric shocks and injuries.
• Store the diving torch away from direct sunlight
and high heat as this could cause overheating
or damage.
• In case of damage to the dome port, o-rings or
cable, operation must be stopped immediately.
Do not use the lamp again until it has been
repaired by qualied experts.
• The instructions in the following operating
manual must be strictly followed. Otherwise
it can lead to damages, personal injuries or
even death!
• During operation always maintain an ade-
quate distance to ammable materials. Do
not cover the lamp with any items during
operation. Warning! Risk of re!
• Dismantling or modifying the lamp can aect
the safety of the product. Modications of the
lamp that are not approved by this operating
manual must be carried out by qualied
experts.
• Keep the diving torch out of the reach of
children and animals.
This operating manual covers operating, maintenance and safety instructions. Please read the entire operating
manual carefully before using the SCALEO infinity and keep the operating manual in a safe place for future
reference at all times.
CAUTION! The lamp can get very hot. Warning!
Risk of burning!
CAUTION! Do not direct the lamp while using
it at your eyes or the eyes of other people or
animals. There is a danger of damaging or
destroying the retina.
CAUTION! This product contains magnets. The
function of pacemakers can be aected.
CAUTION. IMPORTANT SAFETY INFORMATION - Read all information before operation.

3
PRODUCT DETAILS
4
2
1
5
3
a
e
bc
f
d
USAGE, PERFORMANCE CHARACTERISTICS & TECHNICAL SPECIFICATIONS
The lamp is designed for operation under water, in particular for diving under water. The lamp is designed and
tested for depths up to 200 meters. The operation on shore is not intended.
Dimensions: 99 x 52 x 62 mm
Weight: under water133 g
above water 323 g
Permissible water temperature: -4°C to 30° C
Power supply: External battery tank
Driver architecture: Buck / Boost driver circuit
Dimming: Analog dimming
Continuous 0-100 %
Input voltage range: 8 - 17 V DC
Max. power: 9 Ampere
Eciency: 96 %
Spot Wide angle
Light sources 1 x Cree XHP35
LED
10 x Cree XP-G3
LEDs
Light angle 5° 120°
Light output 13 Watt (24 Watt*) 60 Watt
Color temperature
(in Kelvin)
5000 K 5000 K
Luminous ux 1 100 Lumen
(1 650 Lumen*)
6 000 Lumen
Illuminance
@1m
42 000 Lux
(63 000 Lux*)
2 700 Lux

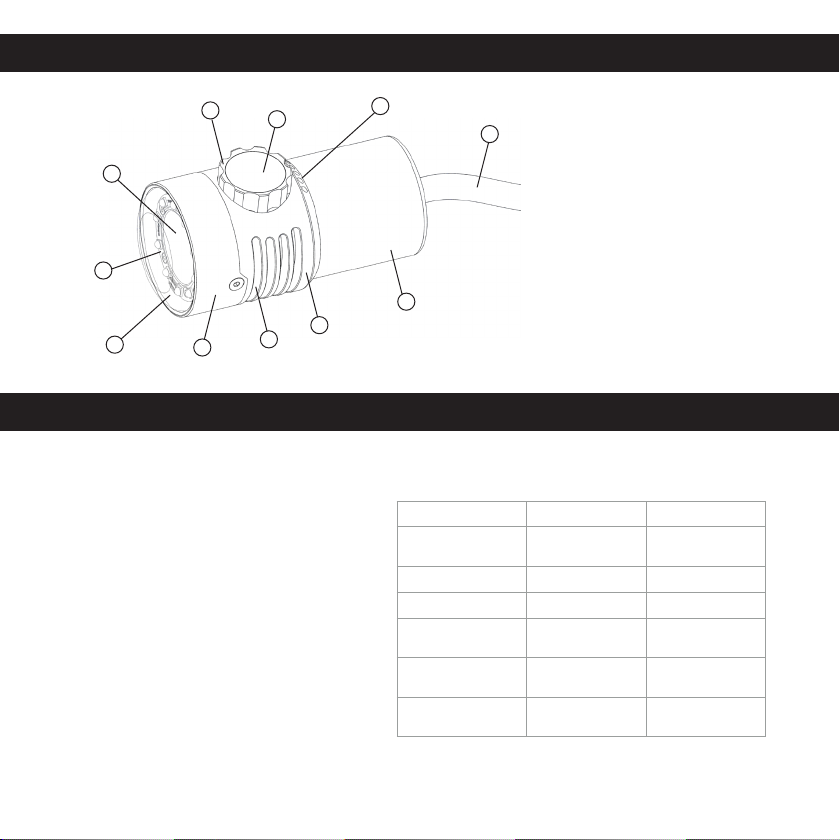

1. Dome port
2. Retaining ring
3. Lamp head
a. Cooling ns
b. IFC rotary knob
c. IFC button
d. Control lights
e. LED ring
f. Reflector & LED spot
4. Cable cover
5. Cable or E/O-Cord
*Spot selected

4
COMMISSIONING
OPERATION
You will already nd the lamp completely assembled. To put the lamp into operation it is necessary to install
a battery that corresponds to the technical specications in terms of current and voltage. Depending on the
conguration, you can connect the SCALEO infinity with the E/O-Cord or permanently with a battery pack.
Alternatively, the Scaleo can also be operated with the compact slip battery pack. More information can be
found in the separate operating manual.
All common battery tanks are allowed to use if:
• they have an output voltage range between 8 V and 17V DC
• that have a battery management system
• their discharge current is rated for at least 9 ampere.
We recommend battery tanks from UwaVis.
1. ADAPTING THE LIGHT INTENSITY
You can regulate the light intensity of the spot and wide angle by using the rotary-switch Infinite Flux Control
(IFC). Both light cones can be infinitely dimmed continuously from 0 - 100 % of the intensity and are indepen-
dently combinable depending on the software variant.
There are two software variants for controlling the lamp: standard and cave software. If you press the button
for 8 seconds during on state the lamp switches between standard- and cave-software.
A: Standard-software:
Spot Click one time on the IFC button to release the key lock and activate the spot mode. Then
turn the IFC knob clockwise to increase the light intensity of the spotlight or coun-
terclockwise to decrease it.
Wide angle Click two times quickly on the IFC button to release the key lock and to activate the wide
angle mode. Then turn the IFC knob clockwise or counterclockwise to regulate the light
intensity of the wide angle.
Key lock After 3 seconds of inactivity the key lock will be activated automatically. If you turn the IFC
knob without clicking the IFC button before, the key lock mode will remain activated. In this
mode the light intensity can not be regulated and the control lights will show the battery
status.

5
B: Cave-software:
In contrast to the standard software, the cave software can not operate both light sources at the same time.
For this purpose, a faster change between spot and wide angle setting is possible by clicking. There is no key
lock on the cave software.
2. CONTROL LIGHTS
Depending on the mode, the control lights either show the battery status (after 3 seconds inactivity or key lock
mode) or the light intensity of the spot or wide angle (while adjusting).
Spot The light intensity of the spotlight is displayed with red LED control lights.
Wide angle The light intensity of the wide angle is displayed with green LED control lights.
Battery status After 3 seconds or rather the lamp is in key lock mode, the current status is indicated by flas
hing. CAUTION: This will only provide a rough orientation and show how many percent of the
battery capacity still remain. The actual operation time until the lamp turns off depends on
the capacity of the battery (Wh) that is being used and on the light intensity that is regulated
while using the SCALEO infinity.
At full power of spot and wide angle the SCALEO infinity consumes 73 Watt.
C [Wh] Battery
P [W] SCALEO infinity = t [h] (max. diving time)
Spot mode
Red LED display
0%
100%
O
Wide angle mode
Green LED display
> 25%
> 85%
Key lock mode
Flashing LED display
CAUTION!
The display of the battery
status decreases every 15
percent. If there is less than
one quarter of the battery
capacity available, the color
will change to red. Below 10
percent two LEDs will start
ashing fast and the emer-
gency lighting mode will be
activated.
0%
100%
O < 10%
> 10% Red
Green

6
CARE INSTRUCTIONS
2. TURNING ON AND OFF
To turn o the lamp, there are several options that will have the following outcomes:
Turning on and o via IFC
To turn o the lamp by using the IFC, you need to push the IFC button for at least 3 seconds. The lamp will
turn o and save the current setting. To turn on the lamp, you need to push the IFC button again for at least 3
seconds.
• The light-settings are being saved during switching on and o (3 seconds pressing the button). After
reboot for example through switching o at battery canister or loose connection this settings (including
on/o state) are loaded again.
• When the lamp is turned o by using the IFC it will still consume a small amount of energy. In standby
mode the lamp consumes about 3 mA.
Turning on and o via power source
If the lamp is turned off by using the power source, e.g. by using the battery switch, the lamp will completely
shut down and the last settings will not be saved. When switched on again via the power source, the lamp will
restore the settings that where saved by switching on or off with the IFC.
To ensure that you will continue to take pleasure in your SCALEO innity, we recommend to read the following
care instructions.
• Rinse o the lamp thoroughly after every dive with clean freshwater and dry it o afterwards. Do not use
any further cleaning agents.
• Make sure to protect the dome port from shocks, sand and sharp items in order to avoid scratches.
• Before every dive make sure to check if the retaining ring and the lamp head are tightly screwed to-
gether, the cable cover sits rmly and the pressure piece of the cable cover is locked properly.
• In the event that the o-rings are visibly damaged or assumed damaged, they must be replaced by the
service of the RP-Engineering GmbH or a qualied dealer.

CS: Na následujícím odkazu najdete návod k použití v češtině.
DE: Unter folgendem Link nden Sie die Bedienungsanleitung auf Deutsch.
EL: Μπορείτε να βρείτε εγχειρίδιο στην ελληνική γλώσσα, στον επόμενο σύνδεσμο.
EN: You will nd the manual in English in the following link.
ES: En el siguiente enlace se puede encontrar el manual de instrucciones en español.
FI: Löydät ohjekirjan suomenkielisenä seuraavan linkin alta.
HR: Sljedeći link odvest će Vas do upute za upotrebu na hrvatskom jeziku.
HU: Az alábbi linkre kattintva találja a használati útmutatót.
IT: Al seguente link trovate le istruzioni per l’uso in italiano.
LT: Šios nuorodos pagalba rasite vartojimo instrukciją lietuvių.
NO: Betjeningsanvisningen nner du under følgende lenke på norsk.
PL: Pod poniższym linkiem znajduje się instrukcja obsługi w języku polski.
SL: Na spodnji povezavi so navodila za uporabo v slovėnų.
SV: Under följande länk nns bruksanvisningen på svenska.:
