Schaerer 7300 User manual

Installation and Operation
Manual
Model 7300 Modular
Surgery Table
OMI
7300
CA802000
Description
Page 7
Components
Overview
Page 8
Controls &
Indicators
Page 9
Calling For
Service
Page 26
Operation
Page 12
Specifications &
Accessories
Page 26
Operator
Maintenance
Page 25
Installation
Page 4
Important
Information
Page 2
Limited
Warranty
Page 31
Schaerer Medical USA, Inc.

OMI 7100
MODEL
NUMBER
SERIAL
NUMBER
OMI
7100-001
115 VAC
2 AMP 60 HZ
TDWXXXXX
MODEL
INPUT
RATING
SERIAL NO.
CA7681
Owner’s Product Identification
(information that you will need to provide for servicing - key information is highlighted)
Date of Purchase Serial Number
Name of Owner / Facility / Department
Model Number
Nameof Authorized SM-USA Dealer Telephone #of Authorized SM-USA Dealer
AddressofAuthorized SM-USA Dealer

CONTENTS
IMPORTANT INFORMATION.................................................................................................2
Scope and Purpose of This Manual ...............................................................................2
Intended Use of Product.................................................................................................2
Safety Instructions..........................................................................................................2
Explanation of Safety Symbols and Notes......................................................................2
Transportation and Storage Conditions ..........................................................................3
INSTALLATION ......................................................................................................................4
Unpacking.......................................................................................................................4
DESCRIPTION........................................................................................................................7
Introduction.....................................................................................................................7
Features..........................................................................................................................7
COMPONENTS OVERVIEW..................................................................................................8
CONTROLS & INDICATORS .................................................................................................9
OPERATION .........................................................................................................................12

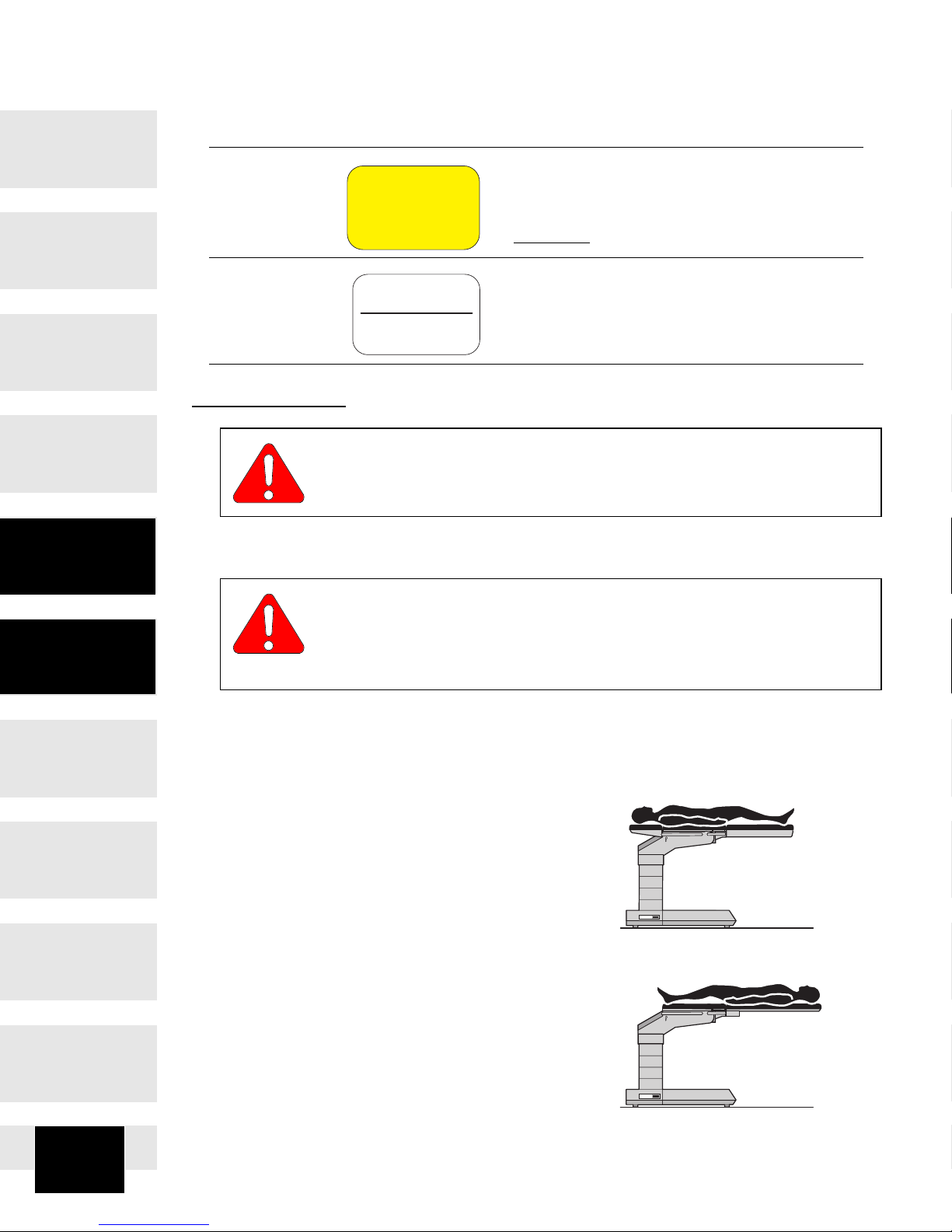

Patient Positions & Weight Capacities..........................................................................12
Head Section, Installation & Operation.........................................................................13
Installing Table Top Sections ........................................................................................13
Possible Pinch Points....................................................................................................14
Pendant Hand Control ..................................................................................................16
Foot Control..................................................................................................................18
Emergency Override Panel...........................................................................................20
Hand Control Display Messages ..................................................................................22
OPERATOR MAINTENANCE ..............................................................................................25
Preventive Maintenance Schedule ...............................................................................25
Cleaning .......................................................................................................................25
CALLING FOR SERVICE.....................................................................................................26
SPECIFICATIONS & ACCESSORIES .................................................................................26
Options and Accessories..............................................................................................27
LIMITED WARRANTY..........................................................................................................31

2
RETURN TO TABLE
OF CONTENTS
IMPORTANT INFORMATION
Scope and Purpose of This Manual
This manual covers complete instructions for the installation, operation, and nor-
mal care of the Model 7300 Surgery Table. It is intended that this manual be
used by any medical personnel responsible for operating the surgery table dur-
ing a medical procedure or performing operator level maintenance.
Intended Use of Product
The intended use of the Model 7300 Surgery Table is to perform general surgi-
cal procedures.
Safety Instructions
The primaryconcern of SM-USA isthat thisequipment isoperated and main-
tained with the safety of the patient and staff in mind. To assure safer and more
reliable operation:
• Read and understand this manual before attempting to install or operate the
table.
• Assure that appropriate personnel are informed on the contents of this man-
ual; this is the responsibility of the purchaser.
• Assure that this manual is located near the table, or if possible, permanently
affixed to the table.
Explanation of Safety Symbols and Notes
DANGER
Indicates an imminently hazardous situation which, if not
avoided, will result in death or serious injury. The DANGER
symbol is limited to the most extreme situations.
WARNING
Indicates a potentially hazardous situation which, if not avoid-
ed, could result in death or serious injury.
CAUTION
Indicates a potentially hazardous situation which, if not avoided,
may result in minor or moderate injury. It may also be used to alert
against unsafe practices.
Important
Information

3
RETURN TO TABLE
OF CONTENTS
Important
Information
Transportation and Storage Conditions
• Ambient Temperature Range:..... -20°C to +40°C (-4°F to 104°F)
• Relative Humidity........................ 10% to 90% (non-condensing)
• Atmospheric Pressure ................ 500hPa to 1060hPa (0.49atm to 1.05atm)
EQUIPMENT ALERT
Indicates an imminently or potentially hazardous situation which, if
not avoided, will or may result in serious, moderate, or minor
equipment damage.
NOTE
Amplifies an operating procedure, practice, or condition.

4
RETURN TO TABLE
OF CONTENTS
INSTALLATION
Unpacking
1. Carefully cut the banding, remove the washer head nails, and lift off the
cardboard shipping box.
2. Remove the plastic bag from around the table and inspect the table for any
shipping damage.
3. Remove the box with accessories, etc. located on the table base and inspect
for shipping damage.
EQUIPMENT ALERT
To avoid damaging the table do not use a knife or other sharp ob-
ject to open the table’s packaging.
NOTE
You must report any shipping damage to the transit company within 15 days
of receiving the table from the transit company and ask them for an inspec-
tion.
7
1
6
1
5
5
2
4
3
FIGURE 1
CA799300
Installation

5
RETURN TO TABLE
OF CONTENTS
4. Unbolt and remove the two metal straps (1) from around the table base.
5. Remove the shipping plug (2) from the table’s hydraulic fluid reservoir and
install the vent plug (3) in it’s place; then install the hole plug (4).
6. Locate the hand control that
has been packaged with the
table and plug the cord of the
hand control into the port
labeled HAND CONTROL
located on the bottom, patient’s
right side of the table top.
7. Press the ENABLE/LOCK button. The display should read,
“NORMAL POSITION...LOCKING FLOOR”. The floor locks
and outriggers will function, locking the table to the skid.
8. Remove the two wood slats (5, Figure 1) from beneath
the table base.
9. Unbolt and remove the wood block (6) at the foot end base of the table.
EQUIPMENT ALERT
Do not operate the table until the shipping plug has been removed
from the hydraulic reservoir and the vent plug has been installed in
its place.
NOTE
If the hand control does not re-
spond when turned on, it may
mean the table’s battery system
needs to be charged. Using the
table’s power cord, connect the
cord to the table and then plug
the cord into a 115 VAC, 60 Hz,
hospital grade power recepta-
cle. Allow the batteries to
charge for 1/2 hour; then re-
move the power cord and con-
tinue with unpacking
procedures.
7100
LEVEL
UNLOCK
ENABLE
LOCK
DISABLE
7100
MIDOMIARK
HAND CONTROL
FOOT CONTROL
CA799400
ENABLE
LOCK
Installation

6
RETURN TO TABLE
OF CONTENTS
10.Unbolt and remove the wood block (7) located at the foot end base beneath
the wood skid.
11.Using an assistant, take hold of
each side of the table; then press
the ENABLE/LOCK and UNLOCK but-
tons and
hold for 3 seconds . The
floor locks will disengage.
12.Carefully roll the table to the foot end of the skid. The skid tilts, allowing the
table to be rolled off.
13.Plug the table into a 115 VAC, 60 Hz, hospital grade, grounded outlet from 8
to 12 hours to fully recharge the batteries before actual use.
WARNING
The table w/ Pelvic Base (73001) weighs approximately 660
lbs. (299.4 kg). Get an assistant to help remove the table from
the shipping skid. Also, use proper lifting techniques when lifting table.
Failure to do so could result in serious back injury.
EQUIPMENT ALERT
Assure the brake cylinders have retracted all the way before at-
tempting to roll the table from the skid. Failure to comply may
cause damage to the brake cylinders.
EQUIPMENT ALERT
Use only 115 volt, alternating current (VAC), 60 cycle (Hz) to oper-
ate or recharge the batteries in the table. Failure to comply could
result in damage to the table.
EQUIPMENT ALERT
To prevent damage to the table, allow the table to reach room tem-
perature before operating. This is especially important when the
table has been exposed to below freezing temperature during transit.
ENABLE
LOCK
UNLOCK
Installation

7
RETURN TO TABLE
OF CONTENTS
DESCRIPTION
Introduction
The 7300 Modular Surgical Table is primarily used for general surgery but can
be easily adapted with various accessories to accomodate many different pro-
cedures such as cardio vascular, neurosurgical, urology, obstetrics, gynecolog-
ic, and orthopaedic.
Features
The Model 7300 General Surgical Table has . . .
• excellent image amplification with superior C-arm access.
• excellent access for anesthetist for short patients in lithotomy or other posi-
tions.
• a variety of accessories for almost any surgical procedure.
• various accessories constructed of light-weight carbon fiber yet retaining the
strength and durability for optimum life plus providing excellent radio-translu-
cency.
• stainless steel and carbon fiber construction for strength and cleanability.
• five powered functions that include powered floor locking, height adjustment,
lateral tilt, trendelenburg, and seat positioning.
• a “Return to Level” feature that, when enabled, automatically stops each
function at the level or “neutral setting.
• ability to flex and reflex table position with a single button.
• three sources for table positioning commands, pendant hand control,
optional foot control, or the emergency override control.
• back up hydraulic motor/pump in case the primary motor/pump becomes
disabled.
• ability to power the table directly from a 115 VAC power source for limited
periods should the batteries become fully discharged.
• ideal position for lithotomy without compromising other forms of surgery.
• state-of-the-art factory and field, trained, technical service organizations
plus easy- to-follow technical literature,
in paper or CD format , to assure your
equipment is maintained at peak operating performance.
Description

8
RETURN TO TABLE
OF CONTENTS
COMPONENTS OVERVIEW
The illustration below shows the location of the table’s major components and
the chart below provides their descriptive name.
DESCRIPTION OF COMPONENTS (Basic Table)
1. Hand Control 5. Line Power Pilot Lamp
2. Foot Control (Optional) 6. Plug Receptacle
3. Emergency Override Panel 7. Power Cord
4. Floor Lock Cylinders 8. Latch Handle(s)
CA800300
OMI
7300
OMI
7300
1
2
3
4
5
6
7
8
LEVEL UNLOCK
ENABLE
LOCK DISABLE
7100
OMI
Component
Overview
