Schenker XMG P505 User manual

Preface
V
Preface
Instructions for Care and Operation
The notebook computer is quite rugged, but it can be damaged. To prevent this, follow these suggestions:
1. Don’t drop it, or expose it to shock. If the computer falls, the case and the components could be damaged.
2. Keep it dry, and don’t overheat it. Keep the computer and power supply away from any kind of heating element. This
is an electrical appliance. If water or any other liquid gets into it, the computer could be badly damaged.
3. Follow the proper working procedures for the computer. Shut the computer down properly and don’t forget to save
your work. Remember to periodically save your data as data may be lost if the battery is depleted.
Do not expose the computer
to any shock or vibration.
Do not place it on an unstable
surface.
Do not place anything heavy
on the computer.
Do not expose it to excessive
heat or direct sunlight.
Do not leave it in a place
where foreign matter or mois-
ture may affect the system.
Don’t use or store the com-
puter in a humid environment.
Do not place the computer on
any surface which will block
the vents.
Do not turn off the power
until you properly shut down
all programs.
Do not turn off any peripheral
devices when the computer is
on.
Do not disassemble the com-
puter by yourself.
Perform routine maintenance
on your computer.

Preface
VI
Preface
4. Avoid interference. Keep the computer away from high capacity transformers, electric motors, and other strong mag-
netic fields. These can hinder proper performance and damage your data.
5. Take care when using peripheral devices.
Power Safety
The computer has specific power requirements:
• Only use a power adapter approved for use with this computer.
• Your AC adapter may be designed for international travel but it still requires a steady, uninterrupted power supply. If you are
unsure of your local power specifications, consult your service representative or local power company.
• The power adapter may have either a 2-prong or a 3-prong grounded plug. The third prong is an important safety feature; do
not defeat its purpose. If you do not have access to a compatible outlet, have a qualified electrician install one.
• When you want to unplug the power cord, be sure to disconnect it by the plug head, not by its wire.
• Make sure the socket and any extension cord(s) you use can support the total current load of all the connected devices.
• Before cleaning the computer, make sure it is disconnected from any external power supplies.
Use only approved brands of
peripherals.
Unplug the power cord before
attaching peripheral devices.
Do not plug in the power
cord if you are wet.
Do not use the power cord if
it is broken.
Do not place heavy objects
on the power cord.

Power Safety
Warning
Before you undertake
any upgrade proce-
dures, make sure that
you have turned off the
power, and discon-
nected all peripherals
and cables (including
telephone lines and
power cord). It is advis-
able to also remove
your battery in order to
prevent accidentally
turning the machine
on.

Preface
VII
Preface
Battery Precautions
• Only use batteries designed for this computer. The wrong battery type may explode, leak or damage the computer.
• Do not continue to use a battery that has been dropped, or that appears damaged (e.g. bent or twisted) in any way. Even if the
computer continues to work with a damaged battery in place, it may cause circuit damage, which may possibly result in fire.
• Recharge the batteries using the notebook’s system. Incorrect recharging may make the battery explode.
• Do not try to repair a battery pack. Refer any battery pack repair or replacement to your service representative or qualified service
personnel.
• Keep children away from, and promptly dispose of a damaged battery. Always dispose of batteries carefully. Batteries may explode
or leak if exposed to fire, or improperly handled or discarded.
• Keep the battery away from metal appliances.
• Affix tape to the battery contacts before disposing of the battery.
• Do not touch the battery contacts with your hands or metal objects.
Battery Guidelines
The following can also apply to any backup batteries you may have.
• If you do not use the battery for an extended period, then remove the battery from the computer for storage.
• Before removing the battery for storage charge it to 60% - 70%.
• Check stored batteries at least every 3 months and charge them to 60% - 70%.

Battery Disposal
The product that you have purchased contains a rechargeable battery. The battery is recyclable. At the end of its useful life, under var-
ious state and local laws, it may be illegal to dispose of this battery into the municipal waste stream. Check with your local solid waste
officials for details in your area for recycling options or proper disposal.
Caution
Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer.
Discard used battery according to the manufacturer’s instructions.
Battery Level
Click the battery icon in the taskbar to see the current battery level and charge status. A battery that drops below a level of 10%
will not allow the computer to boot up. Make sure that any battery that drops below 10% is recharged within one week.

Preface
VIII
Preface
Related Documents
You may also need to consult the following manual for additional information:
User’s Manual on CD/DVD
This describes the notebook PC’s features and the procedures for operating the computer and its ROM-based setup pro-
gram. It also describes the installation and operation of the utility programs provided with the notebook PC.
System Startup
1. Remove all packing materials.
2. Place the computer on a stable surface.
3. Insert the battery and make sure it is locked in position.
4. Securely attach any peripherals you want to use with the
computer (e.g. keyboard and mouse) to their ports.
5. Attach the AC/DC adapter to the DC-In jack at the rear of the
computer, then plug the AC power cord into an outlet, and
connect the AC power cord to the AC/DC adapter.
6. Use one hand to raise the
lid/LCD to a comfortable viewing angle
(do not exceed 135 degrees) ; use the other hand (as illustrated in
Figure 1) to support the base of the computer (Note: Never lift the
computer by the lid/LCD).
7. Press the power button to turn the computer “on”.
Figure 1
Opening the Lid/LCD/
Computer with AC/DC
Adapter Plugged-In
135°

Shut Down
Note that you should always shut your computer down by
choosing the Shut down command in Windows (see be-
low). This will help prevent hard disk or system problems.
Click the icon in the Start Screen and
choose Shut down from the menu.
Or
Right-click the Start button at the bottom of the Start
Screen or the Desktop and choose Shut down or sign out
> Shut down from the context menu.

Introduction
1 - 2 Specifications
1.Introduction
Specifications

Latest Specification Information
The specifications listed here are correct at the
time of sending them to the press. Certain items
(particularly processor types/speeds) may be
changed, delayed or updated due to the manu-
facturer's release schedule. Check with your
service center for more details.

CPU
The CPU is not a user serviceable part. Ac-
cessing the CPU in any way may violate your
warranty.
Processor Options
Intel® Core™ i7 Processor
i7-4980HQ (2.80GHz), i7-4870HQ (2.50GHz), i7-4710HQ
(2.50GHz)
6MB L3 Cache, 22nm, DDR3L-1600MHz, TDP 47W
Core Logic
Intel® HM87 Chipset
BIOS
AMI BIOS (48Mb SPI Flash-ROM)
LCD
15.6" (39.62cm), 16:9, QFHD (3840x2160)/ WQHD+
(2880x1620)/FHD (1920x1080)
Video Adapter
Intel® Integrated GPU and NVIDIA® Discrete GPU
Supports Microsoft Hybrid Graphics
Intel Integrated GPU
Intel® HD Graphics 5200 (Core i7-4980HQ/i7-4870HQ
CPU Integrated)
Dynamic Frequency (Intel Dynamic Video Memory Technol-
ogy for up to 1.7GB)
Microsoft DirectX®11.1 Compatible
Intel® HD Graphics 4600 (Core i7-4710HQ CPU
Integrated)
Dynamic Frequency (Intel Dynamic Video Memory Technol-
ogy for up to 1.7GB)
Microsoft DirectX®11.1 Compatible
NVIDIA Discrete GPU
NVIDIA® GeForce GTX 980M
4GB GDDR5 Video RAM
Microsoft DirectX®12 Compatible
Memory
Four 204 Pin SO-DIMM Sockets Supporting DDR3L
1600MHz Memory
(The real memory operating frequency depends on the FSB
of the processor.)
Memory Expandable from 4GB (minimum) up to 32GB
(maximum)
Storage
(Factory Option) Two SATA M.2 2280 SSDs supporting
RAID level 0/1
Or
(Factory Option) One PCIe M.2 2280 SSD
Two Changeable 2.5" (h) SATA (Serial) Hard Disk Drives
(HDDs)/SSDs (1st: 7.0mm (h) & 2nd: 7.0mm/9.5mm (h))
supporting RAID Level 0/1
Security
Security (Kensington® Type) Lock Slot
BIOS Password
(Factory Option) Fingerprint Reader Module
Trusted Platform Module 2.0
Pointing Device
Built-in Touchpad (scrolling key functionality integrated)
Keyboard
Full-size Winkey Illuminated White-LED Keyboard (with
numeric keypad)

Introduction
Specifications 1 - 3
1.Introduction
Audio
High Definition Audio Compliant Interface
S/PDIF Digital Output
Two Speakers
Sound Blaster Audio
ANSP™3D sound technology on headphone output
Built-In Array Microphone
Note: External 5.1CH Audio Output Supported by Head-
phone, Microphone and S/PDIF Out Jacks
Interface
Three USB 3.0 Ports (Including one AC/DC Powered USB
port)
One eSATA Port (USB 3.0 Port Combined)
One HDMI-Out Port
Two Mini DisplayPorts (1.2)
One S/PDIF Out Jack
One Headphone/Speaker-Out Jack
One Microphone-In Jack
One RJ-45 LAN Jack
One DC-In Jack
Card Reader
Embedded Multi-In-1 Push-Push Card Reader
MMC (MultiMedia Card) / RS MMC
SD (Secure Digital) / Mini SD / SDHC/ SDXC
M.2 Slots
Slot 1 for Combo WLAN and Bluetooth Module
Slot 2 for SATA or PCIe SSD
(Factory Option) Slot 3 for SATA SSD or 3G/4G Module
Communication
Built-In Gigabit Ethernet LAN
2.0M FHD PC Camera Module
(Factory Option) M.2 3G/4G Module
WLAN/ Bluetooth M.2 Modules:
(Factory Option) Intel® Wireless-AC 7265 Wireless LAN
(802.11ac) + Bluetooth 4.0
(Factory Option) Intel® Wireless-N 7265 Wireless LAN
(802.11b/g/n) + Bluetooth 4.0
(Factory Option) Intel® Wireless-AC 3160 Wireless LAN
(802.11ac) + Bluetooth 4.0
(Factory Option) Third-Party Wireless LAN 802.11b/g/n +
Bluetooth 4.0
(Factory Option) Qualcomm® Atheros Killer Wireless-AC
1525 Wireless LAN (802.11ac) + Bluetooth 4.0
Environmental Spec
Temperature
Operating: 5°C - 35°C
Non-Operating: -20°C - 60°C
Relative Humidity
Operating: 20% - 80%
Non-Operating: 10% - 90%
Power
Embeded 4-Cell Polymer Battery Pack, 60WH
Full Range AC/DC Adapter
AC Input: 100 - 240V, 50 - 60Hz
DC Output: 19.5V, 9.23A or 19V, 9.5A (180W)
Dimensions & Weight
385mm (w) * 271mm (d) * 28.8mm (h)
2.5kg (Barebone with 60WH Battery)

Introduction
1 - 4 External Locator - Top View with LCD Panel Open
1.Introduction
External Locator - Top View with LCD Panel Open
Figure 1
Top View
1. PC Camera
2. *PC Camera LED
*When the PC
camera is in use,
the LED will be
illuminated.
3. Built-In Array
Microphone
4. LCD
5. Speakers
6. Power Button
7. Keyboard
8. Touchpad &
Buttons
9. Fingerprint
Reader (Optional)
2 1
8
7
6
5
4
5
3
9
3

Introduction
External Locator - Front & Right Side Views 1 - 5
1.Introduction
External Locator - Front & Right Side Views
Figure 2
Front View
1. LED Indicator
Figure 3
Right Side View
1. S/PDIF-Out Jack
2. Microphone-In
Jack
3. Headphone-Out
Jack
4. Multi-in-1 Card
Reader
5. USIM Card
Reader (for 3G/
4G USIM Cards)
6. USB 3.0 Ports
7. RJ-45 LAN Jack
8. Security Lock
Slot
FRONT VIEW
1
RIGHT SIDE VIEW
123
7
5
6
48

Introduction
1 - 6 External Locator - Left Side & Rear View
1.Introduction

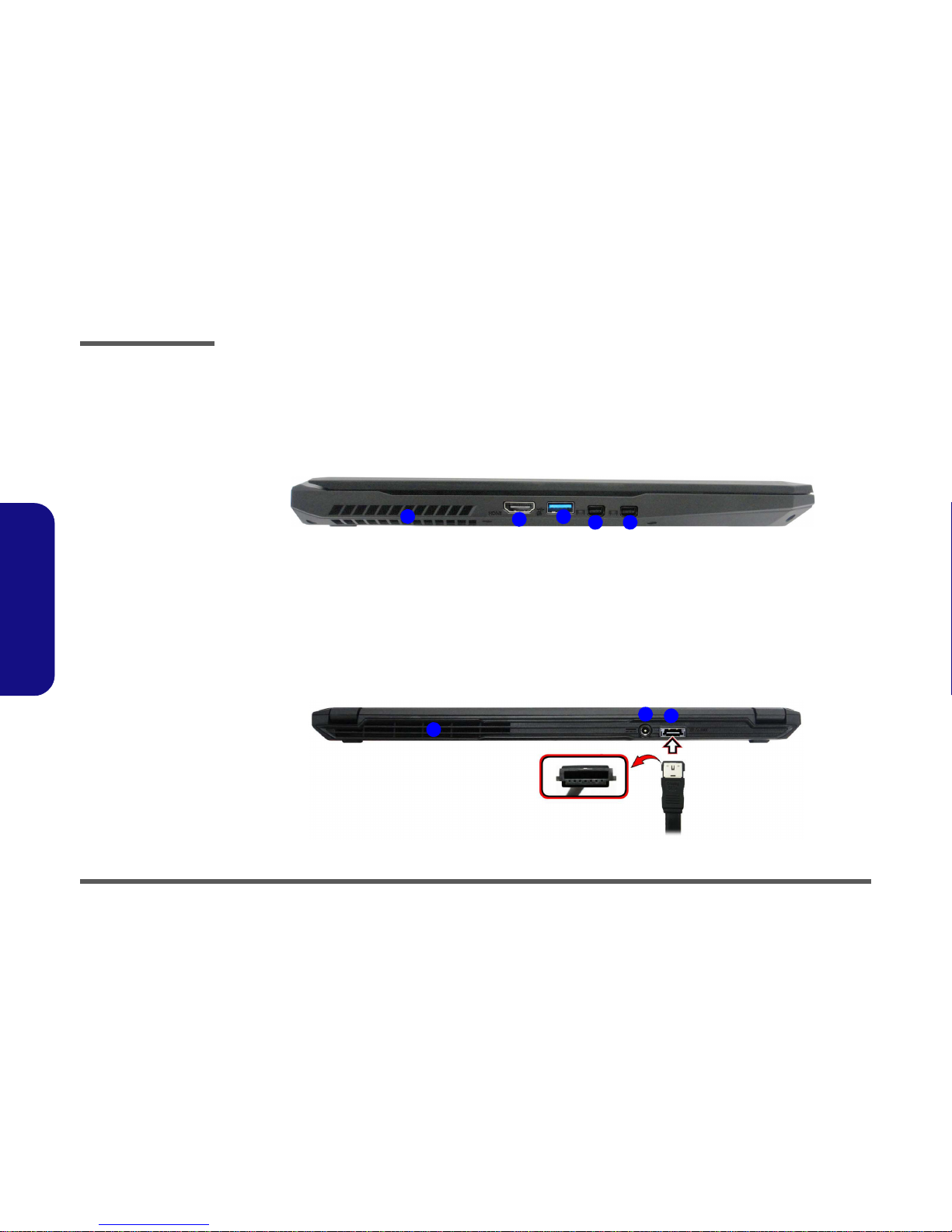

External Locator - Left Side & Rear View
/
Figure 4
Left Side View
1. Vent
2. HDMI-Out Port
3. Powered USB 3.0
Port
4. Mini DisplayPorts
LEFT SIDE VIEW
1234 4
Figure 5
Rear View
1. Vent
2. DC-In Jack
3. Combined eSATA/
USB 3.0 Port
REAR VIEW
1
23

Introduction
External Locator - Bottom View 1 - 7
1.Introduction

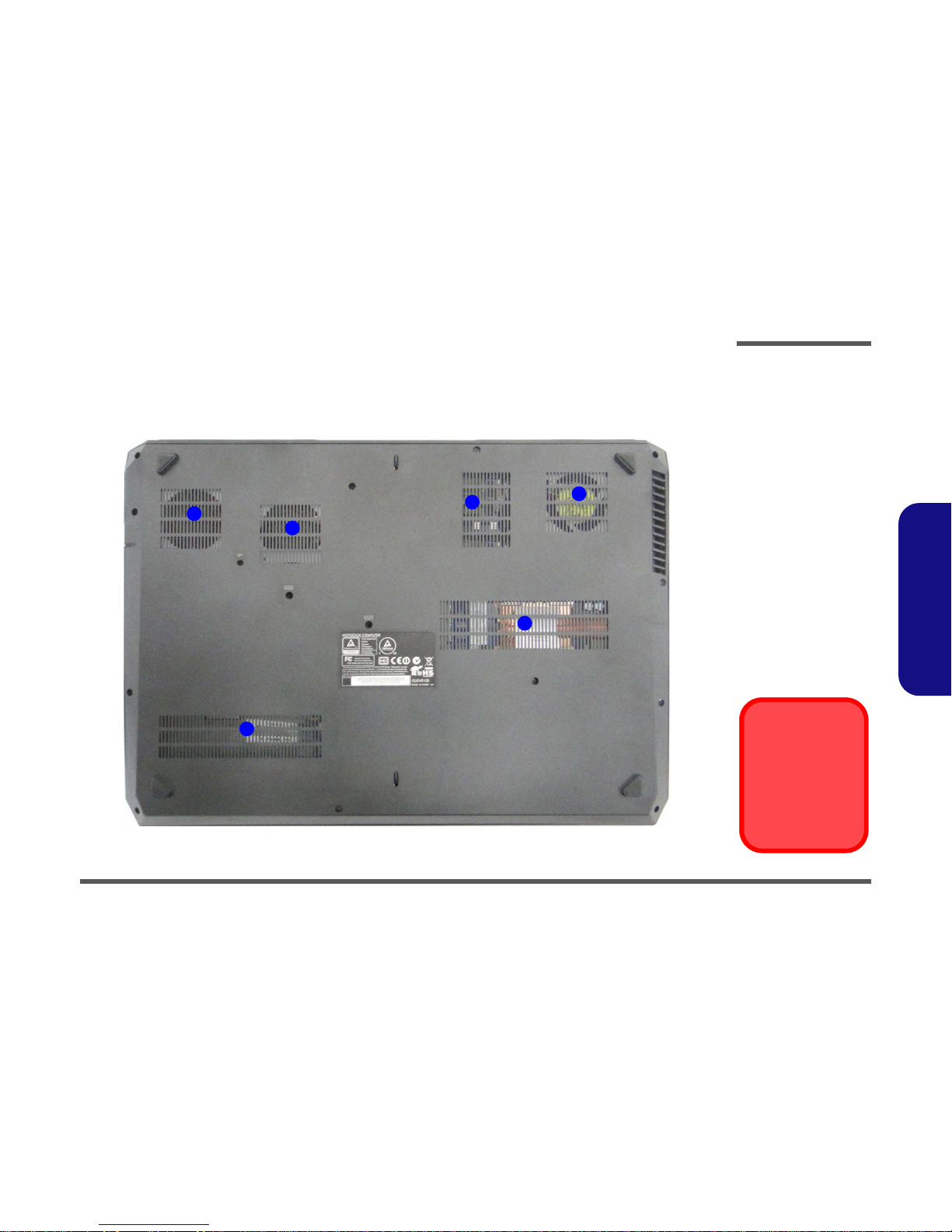

External Locator - Bottom View
Figure 6
Bottom View
1. Vent

Overheating
To prevent your com-
puter from overhea-
ting, make sure no-
thing blocks any vent
while the computer is
in use.
11
1
1
1
1

Disassembly
2 - 2 Overview
2.Disassembly
NOTE: All disassembly procedures assume that the system is turned OFF, and disconnected from any power supply (the
battery is removed too).
Maintenance Tools
The following tools are recommended when working on the notebook PC:
• M3 Philips-head screwdriver
• M2.5 Philips-head screwdriver (magnetized)
• M2 Philips-head screwdriver
• Small flat-head screwdriver
• Pair of needle-nose pliers
• Anti-static wrist-strap
Connections
Connections within the computer are one of four types:
Locking collar sockets for ribbon connectors To release these connectors, use a small flat-head screwdriver to
gently pry the locking collar away from its base. When replac-
ing the connection, make sure the connector is oriented in the
same way. The pin1 side is usually not indicated.
Pressure sockets for multi-wire connectors To release this connector type, grasp it at its head and gently
rock it from side to side as you pull it out. Do not pull on the
wires themselves. When replacing the connection, do not try to
force it. The socket only fits one way.
Pressure sockets for ribbon connectors To release these connectors, use a small pair of needle-nose pli-
ers to gently lift the connector away from its socket. When re-
placing the connection, make sure the connector is oriented in
the same way. The pin1 side is usually not indicated.
Board-to-board or multi-pin sockets To separate the boards, gently rock them from side to side as
you pull them apart. If the connection is very tight, use a small
flat-head screwdriver - use just enough force to start.

Disassembly
Overview 2 - 3
2.Disassembly
Maintenance Precautions
The following precautions are a reminder. To avoid personal injury or damage to the computer while performing a re-
moval and/or replacement job, take the following precautions:
1. Don't drop it. Perform your repairs and/or upgrades on a stable surface. If the computer falls, the case and other
components could be damaged.
2. Don't overheat it. Note the proximity of any heating elements. Keep the computer out of direct sunlight.
3. Avoid interference. Note the proximity of any high capacity transformers, electric motors, and other strong mag-
netic fields. These can hinder proper performance and damage components and/or data. You should also monitor
the position of magnetized tools (i.e. screwdrivers).
4. Keep it dry. This is an electrical appliance. If water or any other liquid gets into it, the computer could be badly
damaged.
5. Be careful with power. Avoid accidental shocks, discharges or explosions.
•Before removing or servicing any part from the computer, turn the computer off and detach any power supplies.
•When you want to unplug the power cord or any cable/wire, be sure to disconnect it by the plug head. Do not pull on the wire.
6. Peripherals – Turn off and detach any peripherals.
7. Beware of static discharge. ICs, such as the CPU and main support chips, are vulnerable to static electricity.
Before handling any part in the computer, discharge any static electricity inside the computer. When handling a
printed circuit board, do not use gloves or other materials which allow static electricity buildup. We suggest that
you use an anti-static wrist strap instead.
8. Beware of corrosion. As you perform your job, avoid touching any connector leads. Even the cleanest hands pro-
duce oils which can attract corrosive elements.
9. Keep your work environment clean. Tobacco smoke, dust or other air-born particulate matter is often attracted
to charged surfaces, reducing performance.
10. Keep track of the components. When removing or replacing any part, be careful not to leave small parts, such as
screws, loose inside the computer.
Cleaning

Power Safety
Warning
Before you undertake
any upgrade proce-
dures, make sure that
you have turned off the
power, and discon-
nected all peripherals
and cables (including
telephone lines and
power cord). It is advis-
able to also remove
your battery in order to
prevent accidentally
turning the machine
on.
Do not apply cleaner directly to the computer, use a soft clean cloth.
Do not use volatile (petroleum distillates) or abrasive cleaners on any part of the computer.

Disassembly
Removing the Keyboard 2 - 5
2.Disassembly
Removing the Keyboard
1. Turn off the computer, turn it over.
2. Remove screws - from the bottom of the computer.
3. Open it up with the LCD on a flat surface before pressing at point to release the keyboard module (use the spe-
cial eject stick to do this) while releasing the keyboard in the direction of the arrow as shown (Figure 1a).
4. Carefully lift the keyboard up, being careful not to bend the keyboard ribbon cable . Disconnect the key-
board ribbon cable from the locking collar socket by using a flat-head screwdriver to pry the locking collar pins
away from the base (Figure 1b).
5. Carefully lift the keyboard off the computer (Figure 1c).
1
2
3
4
5
6
7
7
8
6
a.
b.
1
3
2
c.
6
7
7
8
6
3
4
8
5
8

4. Eject Stick
6. Keyboard
•2Screws

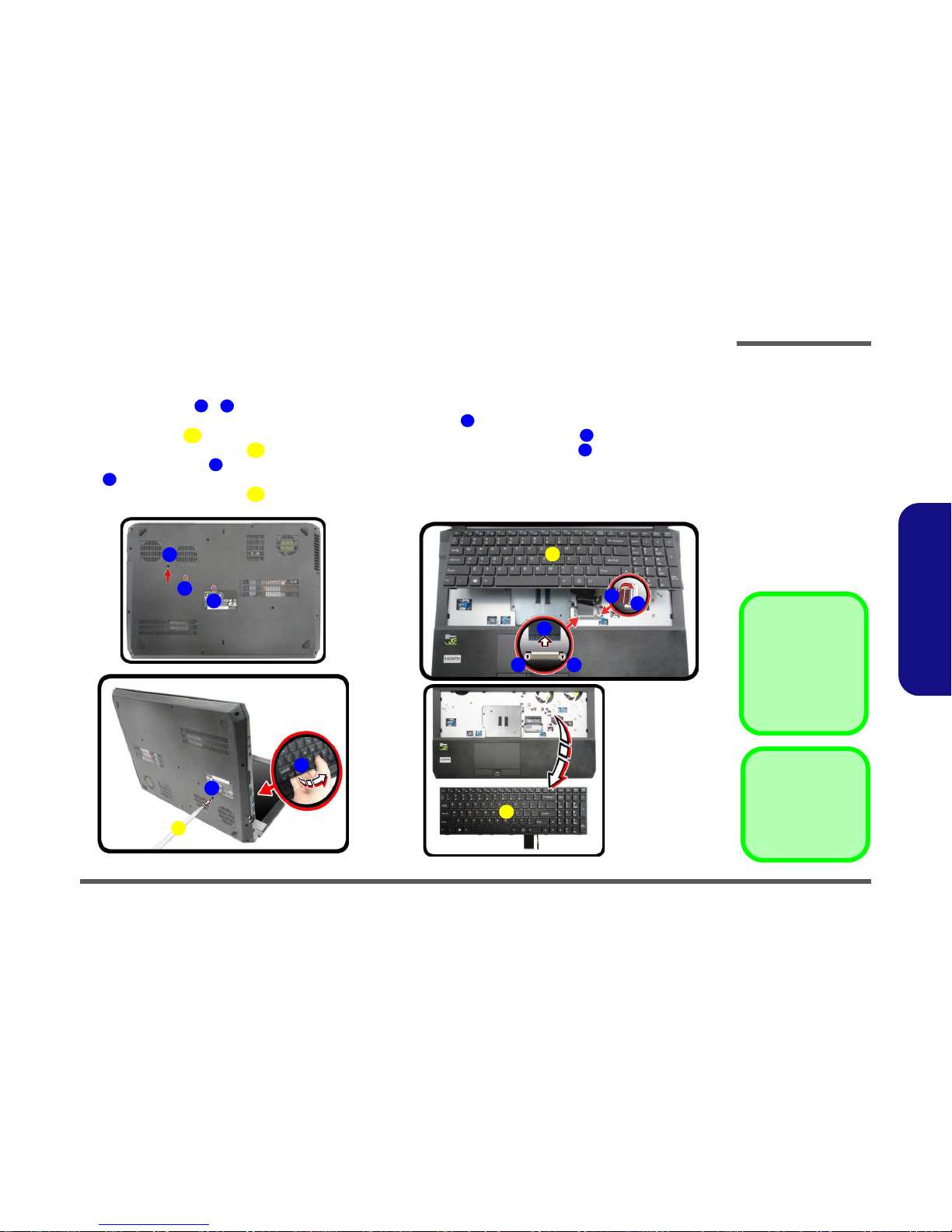

Figure 1
Keyboard Removal
a. Remove the screws from
the bottom of the compu-
ter and then eject the
keyboard using a special
eject stick to push the
keyboard out while re-
leasing the keyboard as
shown.
b. Lift the keyboard up and
disconnect the keyboard
ribbon cable from the
locking collar socket.
c. Remove the keyboard.

Re-inserting the Key-
board
When re-inserting the
keyboard firstly, align the
keyboard tabs at the bot-
tom of the keyboard with
the slots in the case.

Disassembly
2 - 6 Removing the Battery
2.Disassembly
Removing the Battery
1. Turn the computer off, and turn it over.
2. Remove the SD card cover and screws - (Figure 2a).
3. Carefully lift the bottom case up in the direction of the arrow and remove it (Figure 2b).
4. The battery will be visible at point on the computer (Figure 2c).
6
1
2
15
16
17
18
Figure 2
Battery Removal
a. Remove the SD cover
and screws.
b. Remove the bottom case.
c. Locate the battery.

Screw Size
Note that the size of
screw & is M2.5
x 8L.
2
5
2
a. b.
1
3
45
16
13
18
6
7
17
89
11
12
14
15
10
c.
16

1. SD Card Cover
16. Bottom Case
•14Screws

Disassembly
Removing the Battery 2 - 7
2.Disassembly
5. Carefully disconnect the cable , then remove screws - (Figure 3b).
6. Lift the battery off the computer (Figure 3e).
7. Reinsert the bottom case starting from point as shown (Figure 3f) to avoid damaging the rear eSATA/USB 3.0
port. Tighten the screws to secure the bottom case in place.
19
20
22
23
24
Figure 3
Battery Removal
(cont’d.)
d. Disconnect the cable and
remove the screws.
e. Lift the battery off the
computer.
f. Reinsert the bottom case
and tighten the screws.
d. e.
23
22 19
21
20
24
f.

24. Battery
•3Screws

Disassembly
2 - 8 Removing the Hard Disk Drive
2.Disassembly
Removing the Hard Disk Drive
The hard disk drive can be taken out to accommodate other 2.5" serial (SATA) hard disk drives with a height of 9.5mm
or 7mm (h). Follow your operating system’s installation instructions, and install all necessary drivers and utilities (as
outlined in Chapter 4 of the User’s Manual) when setting up a new hard disk.
Hard Disk Disassembly Process
Figure 4
HDD Assembly
Removal
a. Locate the HDD.
b. Remove the screws.

6. Hard Disk
•3Screws
1. Turn off the computer, and remove the battery (page 2 - 6).
2. The HDD will be visible at point on the mainboard (Figure 4a).
3. Remove screws - from the HDD assembly (Figure 4b).
1
2
4
1
a.
2
4
b.

HDD System Warning
New HDD’s are blank. Before you
begin make sure:
You have backed up any data you
want to keep from your old HDD.
You have all the CD-ROMs and
FDDs required to install your oper-
ating system and programs.
If you have access to the internet,
download the latest application and
hardware driver updates for the op-
erating system you plan to install.
Copy these to a removable medi-
um.
3

Disassembly
Removing the Hard Disk Drive 2 - 9
2.Disassembly
4. Slightly lift and pull the hard disk in the direction of arrow (Figure 5c).
5. Lift the hard disk assembly out of the bay (Figure 5d).
6. Remove screws - and bracket from the hard disk (Figure 5e).
7. Reverse the process to install a new hard disk (do not forget to replace the screws).
5
6
7
8
15
16
17
c.
6
5
e.
d.
7
8
16
15
12
14
13
9
17
17

Installing 9.5mm or 7mm HDD
Note that the hard disks pictured on the following pages are all
7mm(h) hard disk drive.
In some cases 9.5mm(h) hard disk drives will be installed. It can only
be installed on the upper slot.
There are two hard disk drive options:
Two changeable 2.5" (6cm) 7.0mm (h) SATA (Serial) Hard Disk
Drives/Solid State Drives (SSD) supporting RAID level 0/1
Or
One changeable 2.5" (6cm) 9.5mm (h) SATA (Serial) Hard Disk
Drive/Solid State Drive (SSD)
For more information, contact your distributor/supplier, and bear in
mind your warranty terms.
10
11

6. HDD Assembly
16. HDD Bracket
17. HDD
•8Screws

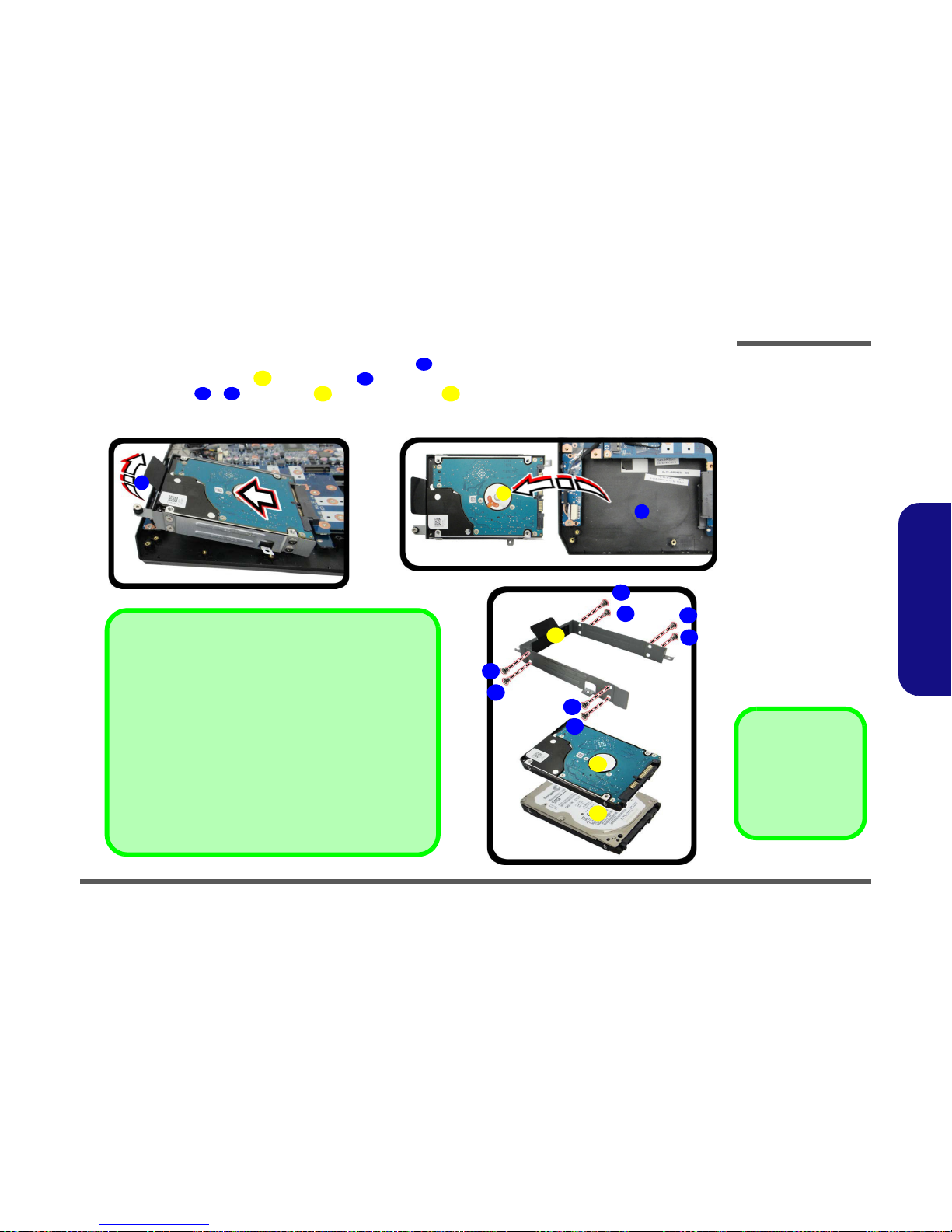

Figure 5
HDD Assembly
Removal (cont’d.)
c. Slightly lift and pull the
HDD in the direction of
the arrow.
d. Lift the HDD assembly
out of the bay.
e. Remove the screws and
bracket from the HDD.

Disassembly
2 - 10 Removing the System Memory (RAM)
2.Disassembly
Removing the System Memory (RAM)
Figure 6
RAM-1 Module
Removal
a. The RAM modules will
be visible at point .
b. Remove the screws
and lift the shielding
plate out.

Contact Warning
Be careful not to touch
the metal pins on the
module’s connecting
edge. Even the cleanest
hands have oils which
can attract particles, and
degrade the module’s
performance.
1
The computer has two memory sockets for 204 pin Small Outline Dual In-line Memory Modules (SO-DIMM) supporting
DDR3L Up to 1600 MHz. The main memory can be expanded up to 16GB. The SO-DIMM modules supported are
1024MB and 2048MB DDR3L Modules. The total memory size is automatically detected by the POST routine once you
turn on your computer.
Memory-1 Upgrade Process
1. Turn off the computer, turn it over, remove the keyboard (page 2 - 5).
2. The RAM modules will be visible at point after removing the shielding plate (Figure 6a).
3. Remove screws - and lift the shielding plate off the computer (Figure 6b).
1
2
5
6
a.
1
6
2
3
5
4
b.

6. RAM Shielding Plate
•4Screws

Disassembly
Removing the System Memory (RAM) 2 - 11
2.Disassembly
4. Gently pull the two release latches ( & ) on the sides of the memory socket in the direction indicated by the
arrows (Figure 8c). The RAM module will pop-up (Figure 8d), and you can then remove it.
5. Pull the latches to release the second module if necessary.
6. Insert a new module holding it at about a 30° angle and fit the connectors firmly into the memory slot.
7. The module will only fit one way as defined by its pin alignment. Make sure the module is seated as far into the slot
as it will go. DO NOT FORCE IT; it should fit without much pressure.
8. Press the module in and down towards the mainboard until the slot levers click into place to secure the module.
7
8
9
d.
88
9
77
c.

9. RAM Module
Figure 7
RAM-1 Module
Removal (cont’d)
c. Pull the release lat-
ches.
d. Remove the module.

Contact Warning
Be careful not to touch
the metal pins on the
module’s connecting
edge. Even the clean-
est hands have oils
which can attract parti-
cles, and degrade the
module’s performance.
