schmersal AZM 200 AS User manual

AZM 200 AS
Operating instructions
Solenoid interlock
EN 1
1. About this document
1.1 Function
This operating instructions manual provides all the information you
need for the mounting, set-up and commissioning to ensure the safe
operation and disassembly of the safety switchgear. The operating
instructions must be available in a legible condition and a complete
version in the vicinity of the device.
1.2 Target group: authorised qualified personnel
All operations described in this operating instructions manual must
be carried out by trained specialist personnel, authorised by the plant
operator only.
Please make sure that you have read and understood these operating
instructions and that you know all applicable legislations regarding
occupational safety and accident prevention prior to installation and
putting the component into operation.
The machine builder must carefully select the harmonised standards
to be complied with as well as other technical specifications for the
selection, mounting and integration of the components.
1.3 Explanation of the symbols used
Information, hint, note:
This symbol is used for identifying useful additional information.
Caution: Failure to comply with this warning notice could
lead to failures or malfunctions.
Warning: Failure to comply with this warning notice could
lead to physical injury and/or damage to the machine.
1.4 Appropriate use
The products described in these operating instructions are developed
to execute safety-related functions as part of an entire plant or machine.
It is the responsibility of the manufacturer of a machine or plant to
ensure the correct functionality of the entire machine or plant.
The safety switchgear must be exclusively used in accordance with
the versions listed below or for the applications authorised by the
manufacturer. Detailed information regarding the range of applications
can be found in the chapter "Product description".
1.5 General safety instructions
The user must observe the safety instructions in this operating
instructions manual, the country specific installation standards as well
as all prevailing safety regulations and accident prevention rules.
Further technical information can be found in the Schmersal
catalogues or in the online catalogue on the Internet:
www.schmersal.net.
The information contained in this operating instructions manual is
provided without liability and is subject to technical modifications.
There are no residual risks, provided that the safety instructions as well
as the instructions regarding mounting, commissioning, operation and
maintenance are observed.
Content
1 About this document
1.1 Function ..............................................1
1.2 Target group: authorised qualied personnel..................1
1.3 Explanation of the symbols used ...........................1
1.4 Appropriate use ........................................1
1.5 General safety instructions ...............................1
1.6 Warning about misuse ...................................2
1.7 Exclusion of liability .....................................2
2 Product description
2.1 Ordering code .........................................2
2.2 Special versions........................................2
2.3 Purpose ..............................................2
2.4 Technical data .........................................2
2.5 Safety classication of the interlocking function................3
2.6 Safety classication of the guard locking function ..............3
3 Mounting
3.1 General mounting instructions .............................3
3.2 Manual release ........................................4
3.3 Dimensions ...........................................4
4 Electrical connection
4.1 General information for electrical connection..................4
5 Functions and conguration
5.1 Mode of operation of the safety outputs......................4
5.2 Magnet control .........................................4
5.3 Programming the slave address ...........................4
5.4 Conguration of the safety monitor .........................4
5.5 Status signal "safety release" .............................5
6 Diagnostic
6.1 LED display ...........................................5
6.2 Diagnostic information ...................................5
6.3 Read-out of the parameter port ............................6
7 Set-up and maintenance
7.1 Functional testing.......................................6
7.2 Maintenance ..........................................6
8 Disassembly and disposal
8.1 Disassembly...........................................6
8.2 Disposal ..............................................6
9 EU Declaration of conformity
x.000 / 03.2019 / v.A. - 101192759-EN / G / 2019-03-29 / AE-Nr. 10103
EN Operating instructions. . . . . . . . . . . . .pages 1 to 8
Original

2
Operating instructions
Solenoid interlock AZM 200 AS
EN
1.6 Warning about misuse
In case of improper use or manipulation of the safety
switchgear, personal hazards or damages to machinery
or plant components cannot be excluded. The relevant
requirements of the standard ISO 14119 must be observed.
1.7 Exclusion of liability
We shall accept no liability for damages and malfunctions resulting from
defective mounting or failure to comply with this operating instructions
manual. The manufacturer shall accept no liability for damages
resulting from the use of unauthorised spare parts or accessories.
For safety reasons, invasive work on the device as well as arbitrary
repairs, conversions and modifications to the device are strictly
forbidden; the manufacturer shall accept no liability for damages
resulting from such invasive work, arbitrary repairs, conversions and/or
modifications to the device.
2. Product description
2.1 Ordering code
This operating instructions manual applies to the following types:
AZM 200 ➀ST-T-AS-➁P
No. Option Description
➀
Solenoid interlock monitored
B Actuator monitored
BZ Combined actuator/solenoid interlock monitoring
➁
Power to unlock
A Power to lock
P Magnet supply 24 VDC (AUX)
Only if the information described in this operating instructions
manual are realised correctly, the safety function and therefore
the compliance with the Machinery Directive is maintained.
2.2 Special versions
For special versions, which are not listed in the order code below 2.1,
these specifications apply accordingly, provided that they correspond to
the standard version.
2.3 Purpose
The AZM 200 AS with non-contact electronic safety sensors is designed
for application in the AS interface Safety at Work and is used for
monitoring the position and blocking movable protective equipment.
The safety switchgears are classified according to
ISO 14119 as type 4 interlocking devices.
The different variants can be used as safety switch with interlocking
function either as solenoid interlock for the position monitoring and
locking of movable safety guards.
If the risk analysis indicates the use of a monitored interlock
then a variant with the monitored interlock is to be used,
labelled with the symbol.
The actuator monitoring variant (B) is a safety switch with an
interlock function for process protection.
The safety function consists of safely switching off the code transfer
when the guard system is unlocked or opened and maintaining the safe
switched off condition of the safety outputs for as long as the guard
system is unlocked or open.
Interlocks with power to lock principle may only be used in
special cases after a thorough evaluation of the accident risk,
since the safety guard can be opened immediately on failure
of the power supply or upon activation of the main switch.
An AS-Interface Safety at Work component functions on the basis of
an individual code generator (8 x 4 bit). This safety code is cyclically
transmitted over the AS-i network and monitored by the safety monitor.
The component status can be evaluated through a PLC with
AS-Interface master. The safety-related functions are enabled by
means of the AS-i safety monitor.
The user must evaluate and design the safety chain in
accordance with the relevant standards and the required
safety level.
The entire concept of the control system, in which the safety
component is integrated, must be validated to the relevant
standards.
2.4 Technical data
Standards: IEC 60947-5-1, IEC 60947-5-3, ISO 14119,
EN 62026-2, ISO 13849-1, IEC 61508
Enclosure: glass-fibre reinforced thermoplastic,
self-extinguishing
Working principle: inductive
Coding level according to ISO 14119: low
Response time: < 60 ms
Duration of risk: < 120 ms
Time to readiness: < 4.000 ms
Recommended actuator: AZ/AZM 200-B1,
AZ/AZM 200-B30,
AZ/AZM 200-B40
Mechanical data
Connection: Connector plug M12, 4-pole,
Mechanical life: > 1,000,000 operations
(for safety guards ≤ 5 kg;
actuating speed: ≤ 0.5 m/s)
Holding force Fmax: 2,600 N (1,300 N when used with the
AZ/AZM 200-B30 actuator, for indoor use)
Holding force FZh: 2.000 N (1.000 N when used with the
AZ/AZM 200-B30 actuator, for indoor use)
Latching force: 30 N
Actuating speed: ≤ 2 m/s
Tightening torque:
- Device fixing: max. 8 Nm
- Cover screws: 0.7 ... 1 Nm (Torx T10)
Manual release (Y/N): Yes
Ambient conditions
Ambient temperature: −25 °C ... +60 °C
Storage and transport temperature: −25 °C ... +85 °C
Relative humidity: 30% ... 95%, no condensation, no icing
Resistance to shock: 30 g / 11 ms
Resistance to vibration: 10 Hz ... 150 Hz,
amplitude 0.35 mm
Protection type: IP67 to IEC 60529
Protection class: II, X
Insulation values to IEC 60664-1:
- Rated impulse withstand voltage Uimp:0.8 kV
- Rated insulation voltage Ui:32 VDC
- Overvoltage category: III
- Degree of pollution: 3

3
AZM 200 AS
Operating instructions
Solenoid interlock
EN

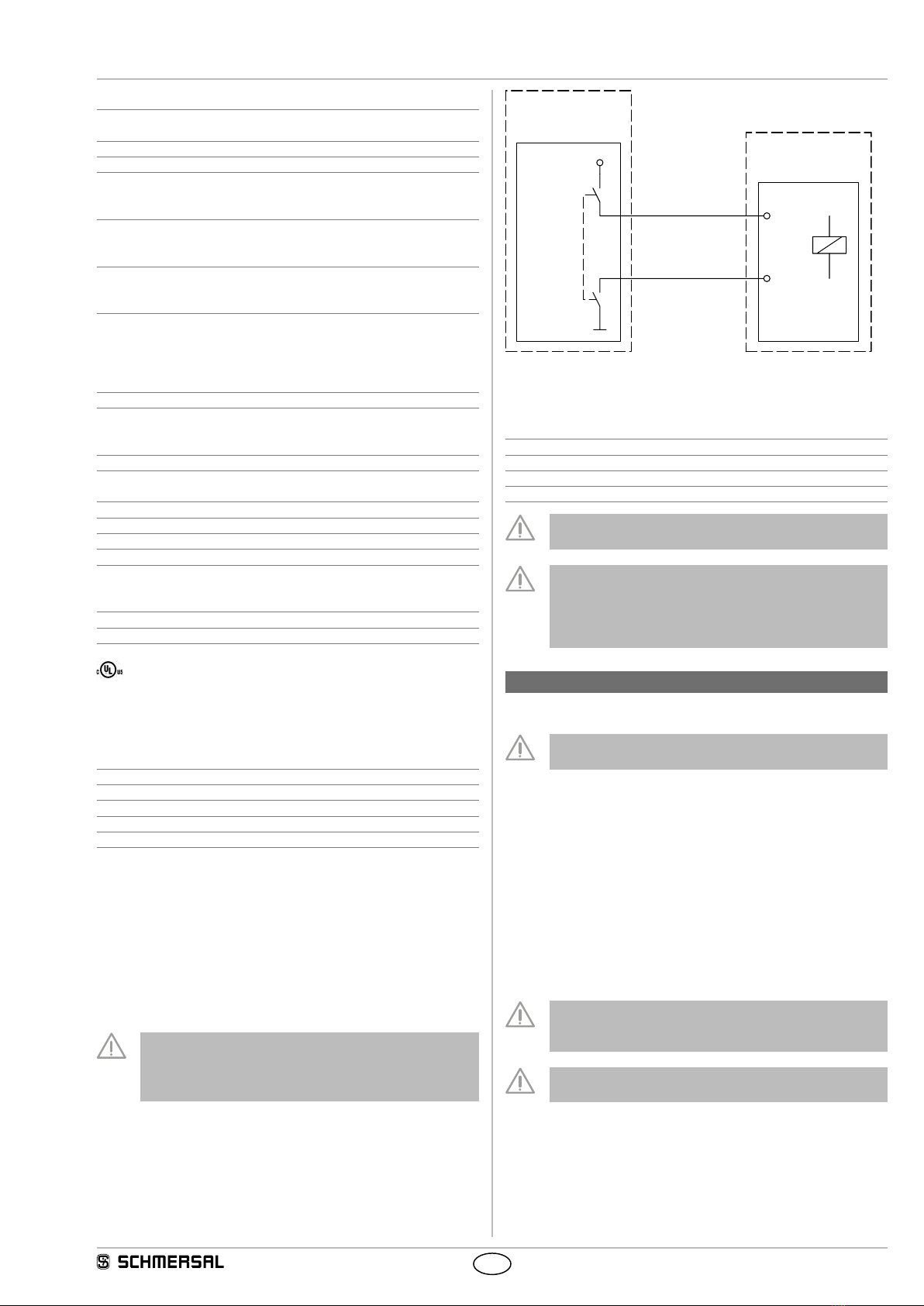

Electrical data - AS-Interface
AS-i supply voltage: 26.5 ... 31.6 VDC,
protection against polarity reversal
AS-i power consumption: ≤ 100 mA
AS-i device insulation: internal short-circuit proof
AS-i specification:
- Version: V 2.1
- Profile: S-7.B.F.E
AS-i inputs:
- Channel 1: Data bits DI 0/DI 1 = dynamic code transmission
- Channel 2: Data bits DI 2/DI 3 = dynamic code transmission
AS-i outputs:
- DO 0: magnet control
- DO 1 ... DO 3: no Function
AS-i Parameter bits:
- P0: Safety guard and actuator detected
- P1: Solenoid interlock locked
- P2: Magnet voltage in tolerance range
- P3: Internal device error
Parameter request: default value parameter request "1111" (0xF)
AS-i Input module address: 0
- preset to address 0, can be changed through
AS-interface bus master or hand-held programming device
Electrical data - auxiliary voltage AUX
Supply voltage UB: 24 VDC (−15 % / +10 %)
stabilised PELV mains unit
Power consumption: ≤ 500 mA
Magnet switch-on time: 100 %
Device fuse rating: ≤ 4 A (when used to UL 508)

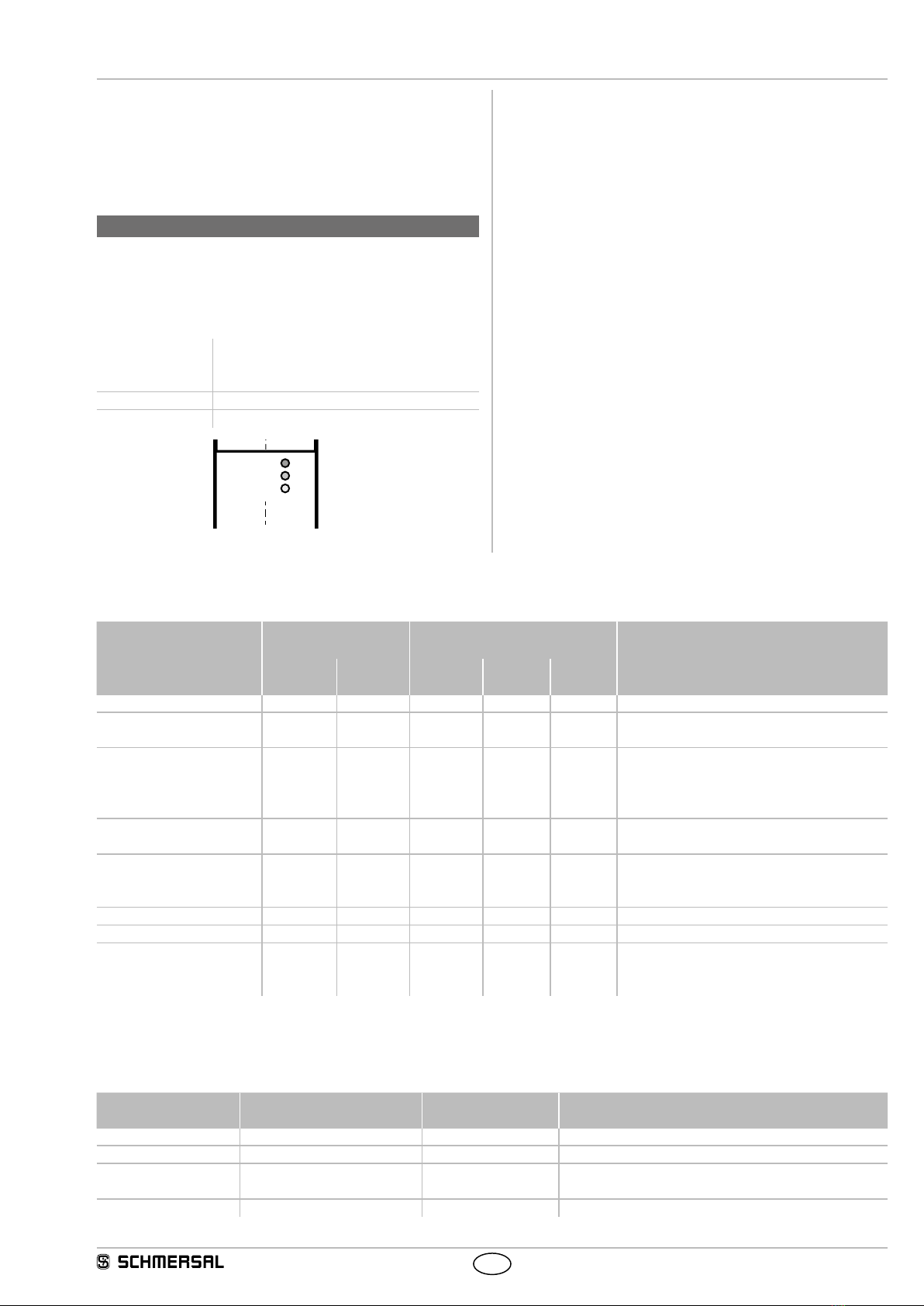

LED switching conditions display
(1) LED green-red (AS-i Duo LED): Supply voltage /
Communication error /
Slave address = 0
(2) LED red: Internal device error
(3) LED yellow: Device condition (Enabling status)
Use isolated power supply only.
For use in NFPA 79 applications only.
Adapters providing field wiring means are available from
the manufacturer. Refer to manufacturers information.
2.5 Safety classification of the interlocking function
Standards: ISO 13849-1, IEC 61508
PL: e
Control Category: 4
PFH: 4 x 10-9 / h
SIL: suitable for SIL 3 applications
Mission time: 20 years
2.6 Safety classification of the guard locking function
If the device is used as an interlock for personal safety, a safety
classification of the guard locking function is required.
When classifying the guard locking function, a distinction must be
made between monitoring of the interlocking function and control of the
release function.
The following classification of the release function is based on the prin-
ciple of isolating the supply of power to the solenoid.
The safety classification for the release function only applies
to devices with monitored interlock function, in power to
unlock version and with solenoid supply from 24 VDC (AUX)
(see ordering code).
By reliably isolating the power externally, it can be assumed that no
errors can occur with regard to actuation of the release function. In that
case, the device does not contribute towards the failure probability of
the release function.
The level of safety of the release function relies, therefore, exclusively
on reliable external deactivation of the power.
AUX +
AUX -
+24 VDC
0 VDC
PL?
PFH
D ?
Safety power
shutdown
Solenoid
interlock
Guard locking
function
To simplify classification of the release function, the following
parameters can be assumed for the device:
PL: e
Control Category: 4
PFH: ≤ 1.00 x 10-9 / h
SIL: suitable for SIL 3 applications
Mission time: 20 years
Fault exclusion with regard to wiring routing must
be observed.
If for a certain application the power to unlock version of
a solenoid interlock cannot be used, for this exception
an interlock with power to lock can be used if additional
safety measure need to be realised that have an
equivalent safety level.
3. Mounting
3.1 General mounting instructions
The installation may only be carried out by authorised
personnel.
For fitting the AZM 200 AS solenoid interlock, two mounting holes for
M6 screws with washers (washers included in delivery) are provided.
The solenoid interlock must not be used as an end stop. Any mounting
position. The mounting position however must be chosen so that the
ingress of dirt and soiling in the used opening is avoided. The unused
actuator opening must be sealed by means of the dust-proof flap
(included in delivery).
Minimum distance between two devices: 100 mm
Fitting of the actuator
Refer to the mounting instructions manual for the corresponding
actuator.
The actuator must be permanently fitted to the safety guards
and protected against displacement by suitable measures
(tamperproof screws, gluing, drilling of the screw heads).
Please observe the relevant requirements of the standards
ISO 12100, ISO 14119 and ISO 14120.

4
Operating instructions
Solenoid interlock AZM 200 AS
EN

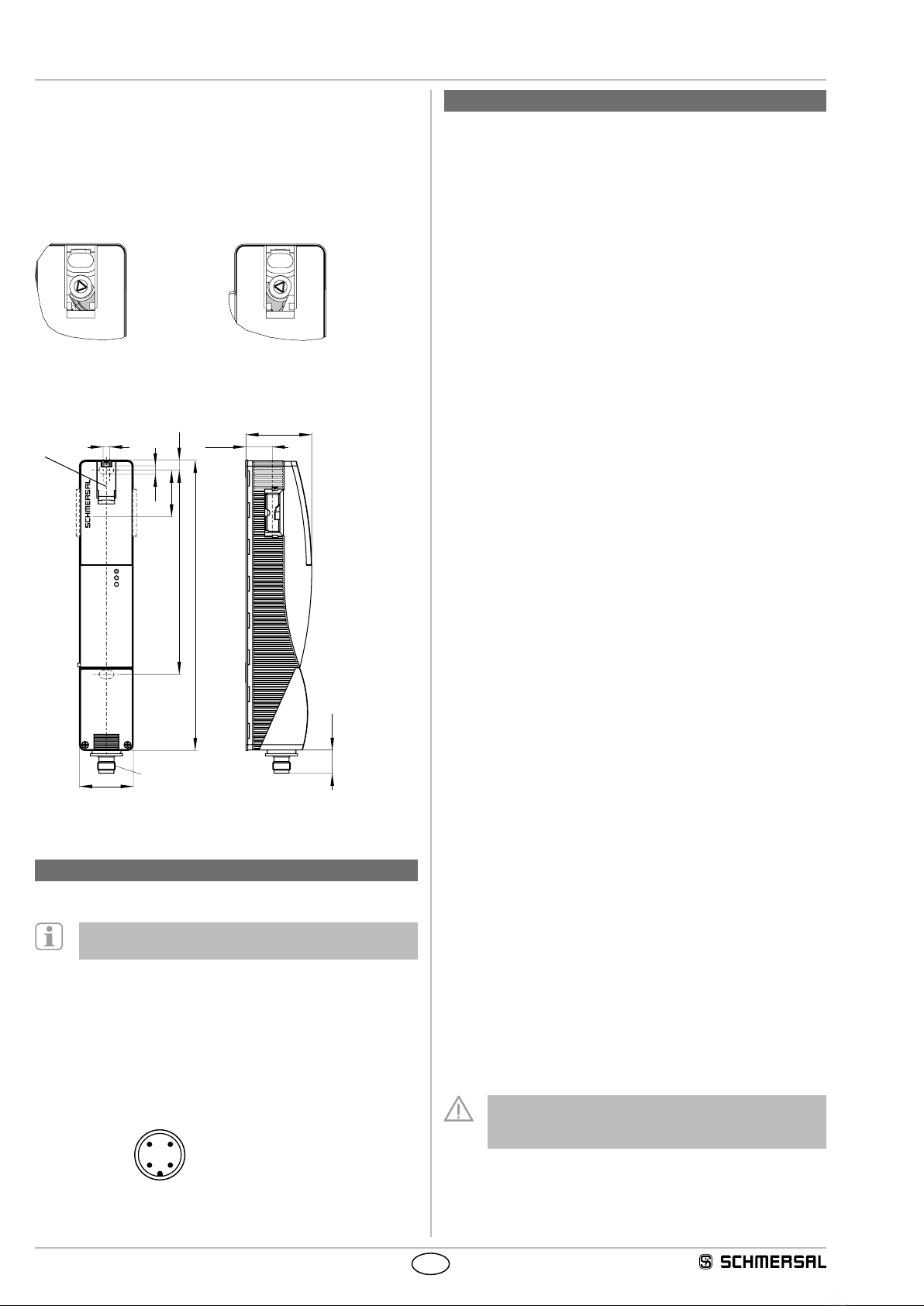

3.2 Manual release
For the machine set-up, the solenoid interlock can be unlocked in a de-
energised condition. After opening of the plastic flap "A" (refer to image
"Dimensions"), the triangular key must be turned clockwise to bring
the blocking bolt in unlocking condition. The normal locking function is
only restored after the triangular key has been returned to its original
position. Caution: do not turn beyond the latching point! After being
put into operation, the manual release must be secured by closing the
plastic flap "A" and affixing the seal, which is included in delivery.
Component ready for operation Component not ready for operation
3.3 Dimensions
All measurements in mm.
40
220
155,5
5
6,5
32,5 7,5
20 1
±
50
24,4
M12
A
Key
A: Manual release under plastic cover
4. Electrical connection
4.1 General information for electrical connection
The electrical connection may only be carried out by
authorised personnel in a de-energised condition.
The AZM 200 AS solenoid interlock is supplied through the AS-
Interface system. The energy for the locking magnet is individually
supplied (AUX). Both voltage supplies of the solenoid interlock must
be equipped with a protection against permanent overvoltage. To that
effect, stabilised PELV supply units must be used. The connection to
the AS-Interface system is realised through an M12 connector. The M12
x 1 connector has an A-coding. The wiring configuration of the M12
connector is defined as follows (to EN 62026-2):
AUX +(P)
3
2
1
4
AS-Interface -
AS-Interface + AUX -(P)
5. Functions and configuration
5.1 Mode of operation of the safety outputs
AZM 200 ST-T-AS
The safety outputs of the AS-i safety monitor are enabled,
when the following conditions are met:
• guard door detected
• the actuator is inserted
• the solenoid interlock is locked
AZM 200 B ST-T-AS
The safety outputs of the AS-i safety monitor are enabled,
when the following conditions are met:
• guard door detected
• the actuator is inserted
AZM 200 BZ ST-T-AS
The safety outputs of the AS-i safety monitor are only activated,
when both AS-i half-codes are enabled.
Half-code 1 (AS-i SaW bit 0,1) is enabled, when:
• guard door detected
• the actuator is inserted
The solenoid interlock now can be locked!
Half-code 2 (AS-i SaW bit 2,3) is enabled, when:
• the solenoid interlock is additionally locked.
5.2 Magnet control
The control system with the AS-Interface Master can lock and unlock
the solenoid interlock through the output bit 0 of the addressed AS-i
slave AZM 200 AS. In the power to lock variant of the AZM 200 AS,
the functional set of output bit 0 will cause the solenoid interlock to be
locked. In the power to unlock variant of the AZM 200 AS, the functional
set of output bit 0 will cause the solenoid interlock to be unlocked.
5.3 Programming the slave address
The slave address is programmed through the M12 connector.
Any address from 1 to 31 can be set by means of the AS-i bus master
or a hand-held programming device.
5.4 Configuration of the safety monitor
The AZM 200 AS can be configured in the ASIMON configuration
software with the following monitoring devices (also refer to the
ASIMON manual).
Double channel dependent
Suitable for: AZM 200 ST-T-AS, AZM 200 B ST-T-AS,
AZM 200 BZ ST-T-AS
• Synchronisation time typically: 0.1 s;
for AZM 200 BZ ST-T-AS infinite (∞)
• Optionally with startup test
• Optional with local acknowledge
When the AZM 200 BZ ST-T-AS is used together with this monitoring
device for conducting the start-up test prior to every restart, the safety
guard must be opened.
Double channel conditionally dependent
Suitable for: AZM 200 BZ ST-T-AS
• Independent: In-1
As long as the actuator remains inserted, the safety guard can be
relocked at any time, in which case the safety outputs are reactivated.
The safety guard must not be opened.
The configuration of the safety monitor must be tested and
confirmed by a qualified and authorised safety expert/safety
engineer.

5
AZM 200 AS
Operating instructions
Solenoid interlock
EN
6.2 Diagnostic information
Table 1: the diagnostic function of the AZM 200 AS solenoid interlock
System condition Solenoid control (DO 0) LED Condition
Power to
unlock
Power to
lock
green-red3) red yellow AS-i SaW-Code
(DI 0 ... DI 3)
Door open 1 (0) 0 (1) green Off Off static 0
Door closed,
actuator not inserted
1 (0) 0 (1) green Off Off static 0
Door closed,
actuator inserted
(not locked)
1 0 green Off Flashes AZM 200 ST-T-AS
AZM 200 B ST-T-AS
AZM 200 BZ ST-T-AS
static 0
dynamically
DI 0, DI 1: dynamic
DI 2, DI 3: static 0
Door closed, actuator
inserted and locked
0 1 green Off On dynamically
Error warning1),
actuator inserted and locked.
Shutdown approaching
0 1 green flashes2)
/ on
On dynamically
Error 0 (1) 1 (0) green Flashes 2) Off static 0
Internal error 0 (1) 1 (0) green On Off static 0
AS-i error: slave address = 0
or communication error
1 (0) 0 (1) red depending
on the
condition
depending
on the
condition
static 0
1) after 30 min -> fault
2) refer to flash code
3) AS-i Duo-LED green/red
Table 2: Error messages / flash codes red LED
Flash codes (red) Designation Autonomous
switch-off after
Error cause
4 flash pulses Excess device temperature max. 30 min Internal excess temperature
5 flash pulses Actuator fault 0 min incorrect or defective actuator
6 flash pulses Error actuator combination 0 min An invalid combination of actuators was detected
(blocking bolt detection or tamper attempt)
Continuous red signal Internal error 0 min Device defective
5.5 Status signal "safety release"
The "safety release" status signal from a Safety at Work slave can be
cyclically queried by the control system through the AS-i master. To that
effect, the 4 input bits with the varying SaW code of a Safety at Work
slave are evaluated through an OR operation with 4 inputs in the control
system.
6. Diagnostic
6.1 LED display
The solenoid interlock signals the operational state as well as errors
through three coloured LED’s installed on the front side of the device.
The LED's have the following meaning (to EN 62026-2):
LED red/green
(AS-i duo LED):
AS-Interface supply voltage /
AS-Interface communication error
or slave address = 0
Red LED: Internal device error
Yellow LED: Device status
40
220
155,5
5
6,5
32,5 7,5
20 1
±
50
15,5
M12
38
3,3
AS-i
Fault
Status
Error
Errors, which no longer guarantee the function of the AZM 200 AS
solenoid interlock (internal error)s cause the safety outputs to be
disabled within the risk time. Any error that does not immediately affect
the safe functionality of the AZM 200 AS (e.g. the ambient temperature
too high) will lead to a delayed shut-down (refer to table 2). After fault
rectification, the error message can be reset by opening and closing
the relevant guard door. The safety outputs of the safety monitor can be
switched back on, thus enabling the machine.
Error warning
If a fault has occured, which still guarantees the function of the
AZM 200 AS solenoid interlock, the system is safely switched off after
30 minutes. The safety outputs of the safety monitor initially remain
enabled. The error message can be read out through the parameter
port (refer to Table 1). Depending on the type of fault, the machine is
not immediately shut down. The control system obtains a preliminary
message, which can be used to shutdown the process in a controlled
manner. An error warning is deleted/reset as soon as the error cause
is eliminated.

6
Operating instructions
Solenoid interlock AZM 200 AS
EN
6.3 Read-out of the parameter port
The parameter port P0 to P3 of a solenoid interlock can be read
out through the control interface of the AS-i master (see component
description) by means of the "Write parameter" instruction (with
hexadecimal value F). This (non-safe) diagnostic information from the
reflected parameters or the answer to a "Write parameter instruction"
can be used by the user for diagnostic purposes or for the control
programme.
Table 3: diagnostic information (P0...P3)
Parameter
bit
Condition = 1 Condition = 0
0Door closed and actuator
inserted. The actuator
can now be locked.
Safety guard and actuator
not detected
1 Door closed, actuator
inserted and locked
Actuator not locked
2 Magnet voltage in
tolerance range
(18 V ≤ Um ≤ 28 V)
Magnet voltage not in
tolerance range
3 Error* detected No error detected
*To be observed: refer to error warning (switch-off after 30 min.)
7. Set-up and maintenance
7.1 Functional testing
The safety function of the safety components must be tested.
The following conditions must be previously checked and met:
1. Check max. axial misalignment of actuator and safety switchgear
2. Check the switch enclosure for damage
3. Remove particles of dust and soiling
7.2 Maintenance
We recommend a regular maintenance, including the following steps:
• Check the fixing of the safety switch and the actuator
• Check max. axial misalignment of actuator and safety switch
• Check the switch enclosure for damages
• Remove soiling
Measures must be taken to protect against manipulation or
against the bypassing of safety device, for example, using an
extra actuator.
Damaged or defective components must be replaced.
8. Disassembly and disposal
8.1 Disassembly
The safety switchgear must be disassembled in a de-energised
condition only.
8.2 Disposal
The safety switchgear must be disposed of in an appropriate manner in
accordance with the national prescriptions and legislations.

7
EN
AZM200AS-C-EN
AZM 200 AS
Operating instructions
Solenoid interlock
9. EU Declaration of conformity
Name of the component: AZM 200 AS
Type: See ordering code
Description of the component: Interlocking device with electromagnetic
interlock for safety functions with
integrated AS-i Safety at Work
Relevant Directives: Machinery Directive
EMC-Directive
RoHS-Directive
2006/42/EC
2014/30/EU
2011/65/EU
Applied standards: EN 60947-5-1:2004 + AC:2005 + A1:2009,
EN 60947-5-3:2013,
ISO 14119:2013,
EN ISO 13849-1:2008 + AC:2009,
EN 61508 parts 1-7:2010,
EN 62061: 2005 + AC:2010 + A1:2013
Notied body for the prototype test: TÜV Rheinland Industrie Service GmbH
Alboinstr. 56, 12103 Berlin
ID n°: 0035
EC-prototype test certicate: 01/205/5122.01/15
Person authorised for the compilation
of the technical documentation:
Oliver Wacker
Möddinghofe 30
42279 Wuppertal
The currently valid declaration of conformity can be
downloaded from the internet at www.schmersal.net.
Place and date of issue: Wuppertal, May 25, 2016
Authorised signature
Philip Schmersal
Managing Director
EU Declaration of conformity
Original K.A. Schmersal GmbH & Co. KG
Möddinghofe 30
42279 Wuppertal
Germany
Internet: www.schmersal.com
We hereby certify that the hereafter described components both in their basic design and construction conform
to the applicable European Directives.

K.A. Schmersal GmbH & Co. KG
Möddinghofe 30, 42279 Wuppertal
Germany
Phone: [phone]
Telefax: [phone]
E-Mail: [email protected]
Internet: www.schmersal.com
