INSTALLATION & OPERATING
INSTRUCTIONS
BMW MINI (2001-2006)
Quick Fit & Quick Fit Pro
Harnessbelts
Safety Edition 03/2007
through
Technology
Patents granted in
Patente wurden erteilt in
DE 3 735 077
GB 2 211 070
I 1 207 344
USA 4 854 608
Installation Operating Instructions 2–12
Questions about Installation 3
Package Contents 4
Installation 5-6
Operating 7-10
Care and Maintenance 10-11
Accessories and Spare Parts 11-12
GEPRÜFT
UND
ÜBERWACHT
TESTED
AND
INSPECTED

2
This manual contains important information as well
as DANGERs, WARNINGs and SAFETY INSTRUC-
TIONs regarding the proper installation, effective
use and maintenance of the SCHROTH harnessbelt.
Please be sure to read and thoroughly understand
its contents before beginning installation and before
using the system. Follow all instructions and Safety
Instructions carefully and be especially sure to heed
all Dangers and Warnings.
Always keep this manual in your car for reference
and be sure to leave it with the car if you sell it with
the harness belt system installed.
Important information and instructions in this
manual are shown:
DANGER deals with important points about the
installation of the SCHROTH harnessbelt. Ignoring
these warnings will create serious danger that can
lead to serious personal injury or death.
WARNINGS deal with important issues about installation,
use, misuse or modification of the
SCHROTH harnessbelt.
Ignoring these Warnings will significantly reduce the
performance of the harness belt system. This can result
in serious personal injury or death during an accident.
•Safety Instructions contain important hints to help you
effectively install, use and maintain the SCHROTH
harnessbelt.
Always carefully read and follow the information in
this manual, especially those highlighted as above.
INSTALLATION & OPERATING
INSTRUCTIONS
Approvals:
BMW MINI Rallye 4 Harnessbelts
USA:
Tested in accordance with
applicable provisions of
FMVSS 209
®
i
Made in Germany by:
SCHROTH Safety Products GmbH
Postfach 24 40
59714 ARNSBERG
GERMANY
Phone + 49 -29 32 -97 42-0
Fax + 49 -29 32 -97 42-42
Imported by:
USA: MDI/Schroth Other Countries: see
3 First Avenue www.schroth.com
Peabody, MA 01960
Toll Free [phone] Phone [phone]
FAX [phone]
Congratulations!
With the purchase of this SCHROTH asm harnessbelt, you
have chosen a sophisticated restraint system, which
represents a further advance in harness restraint technology.
Extensive research, testing and field experience has shown it
to offer, when properly installed and worn, high levels of
protection in head-on collisions.
SCHROTH MINI specific asm-Rallye 4 Series harnessbelts are
only intended for installation at the left and right outboard front
seating positions of designated MINI model passenger cars
which have been specifically evaluated by SCHROTH
engineers for anchor point locations and suitability of available
front seats.
Before attempting installation, please first answer the following
questions and carefully follow the instructions which
accompany them.
Restraint systems can only offer protection if they are
properly installed and used.
To assure proper function, your car must meet special
technical requirements.
Before installation of SCHROTH harnessbelt, please
answer a few very important questions to make sure the
SCHROTH harnessbelt system can be properly installed
and effectively used in your car..

3
1. Is your vehicle a “BMW” MINI manufactured from 2001 to
2006? YESNO 
Proper harness belt geometry requires that seat belt
anchor points be located within narrowly defined areas.
Therefore SCHROTH harnessbelts may only be installed
in SCHROTH approved vehicles for which proper
anchorage location and belt geometry has been
determined to exist.
2. Have you maintained your original equipment factory
provided seats and factory harness mounting points?
YES NO 
These belts are only approved for use in the designated
MINI models in conjunction with the factory provided seat
and factory provided DOT mounting points. This belt must
not be used if either the seat and/or the factory mounting
locations or mounting hardware have been changed or
modified in any way.
4. Do you have a left belt for the driver’s side and/or a right
belt for the passenger’s side? (See illustrations on page 5.)
YES NO 
Left and right belts are not interchangeable! Installation of
harness belts on wrong side of vehicle can cause severe
head injury or death during rebound phase of frontal
collision! Make sure black asm-cartridge is on the
inboard shoulder strap, see illustration on page 6.
If your answer to any of these 4 questions is [NO], do not
install the SCHROTH harnessbelt system.
If you have answered ALL questions with [YES], you may
install the SCHROTH harnessbelt system in your MINI.
Please remember that installation procedures will require
you to perform a variety of operations requiring familiarity
with tools and mechanical procedures. If you have any
doubt about your ability to properly install the SCHROTH
asm harnessbelt system, take this manual and all parts
supplied to a competent mechanic for installation.
Please follow these instructions carefully while installing
and before using the belt! Failure to follow instructions
can not only damage and reduce the performance of the
system, but may also result in the denial of warranty
claims.
•SCHROTH asm harnessbelts are designed to be installed
in addition to the stock restraint systems. Always heed
Country/State laws governing the use of seat belts.
Be sure that the tail strap of the harness belt is not inter-
fered with or misdirected by cargo or by folding rear seat.
Folding rear seat must be in the upright position when the
Schroth harnessbelt is in use.
This SCHROTH asm harnessbelt is only suitable for adults on
front outboard seating positions.
SCHROTH asm harnessbelts are not intended or suited for
use by children under 12 years of age, or persons who weigh
less than 88 lbs (40 kg) or those who are less than 4'11" tall
(1.50 meters), regardless of age. Such persons will not be
adequately protected by the harness system and may receive
more severe injury than would otherwise be expected.
SCHROTH U.S. model harnessbelts have been tested in
accordance with performance parameters of Federal Motor
Vehicle Safety Standard 209 with the exception of
Paragraph S 4.6 (full scale impact testing as described in
FMVSS 208). FMVSS 209 deals with lap and three point
restraints and does not expressly refer to harness belts.
SCHROTH has nevertheless applied the performance criteria
specified in FMVSS 209 to the system to the extent applicable.
These belts, when properly installed and used according to
applicable instructions can mitigate injury. The ability of any
restraint system to mitigate or prevent injury is directly related
to the type and severity of the accident. SCHROTH asm
harnessbelts have been tested in dynamic sled tests utilizing a
75 kg (165 lbs) Hybrid II anthropometric dummy to simulate
head-on collisions at 50 km/h (31 mph). They also have been
dynamically tested utilizing a 75 kg mass dummy in
accordance with European Safety Standard ECE-R 16.04.

4
PACKAGE CONTENTS
The contents of each package is as detailed in the table
below for each belt.
BMW MINI Rallye 4 Left
BMW MINI Left Belt 1x
Left side lap belt connector 1x
Left side tail strap connector 1x
7/16“ Bolt 1x
Washer 1x
Spacer 1x
SCHROTH asm sticker 1x
SCHROTH Racing sticker 1x
BMW MINI Rallye 4 Right
BMW MINI Right Belt 1x
Right side lap belt connector 1x
Right side tail strap connector1x
7/16“ Bolt 1x
Washer 1x
Spacer 1x
SCHROTH asm sticker 1x
SCHROTH Racing sticker 1x
All MINI Rallye 4 belts re-use factory mounting
bolts for the outside lap belt mounting points
and Schroth provided replacement bolts for the
outside rear mounting points

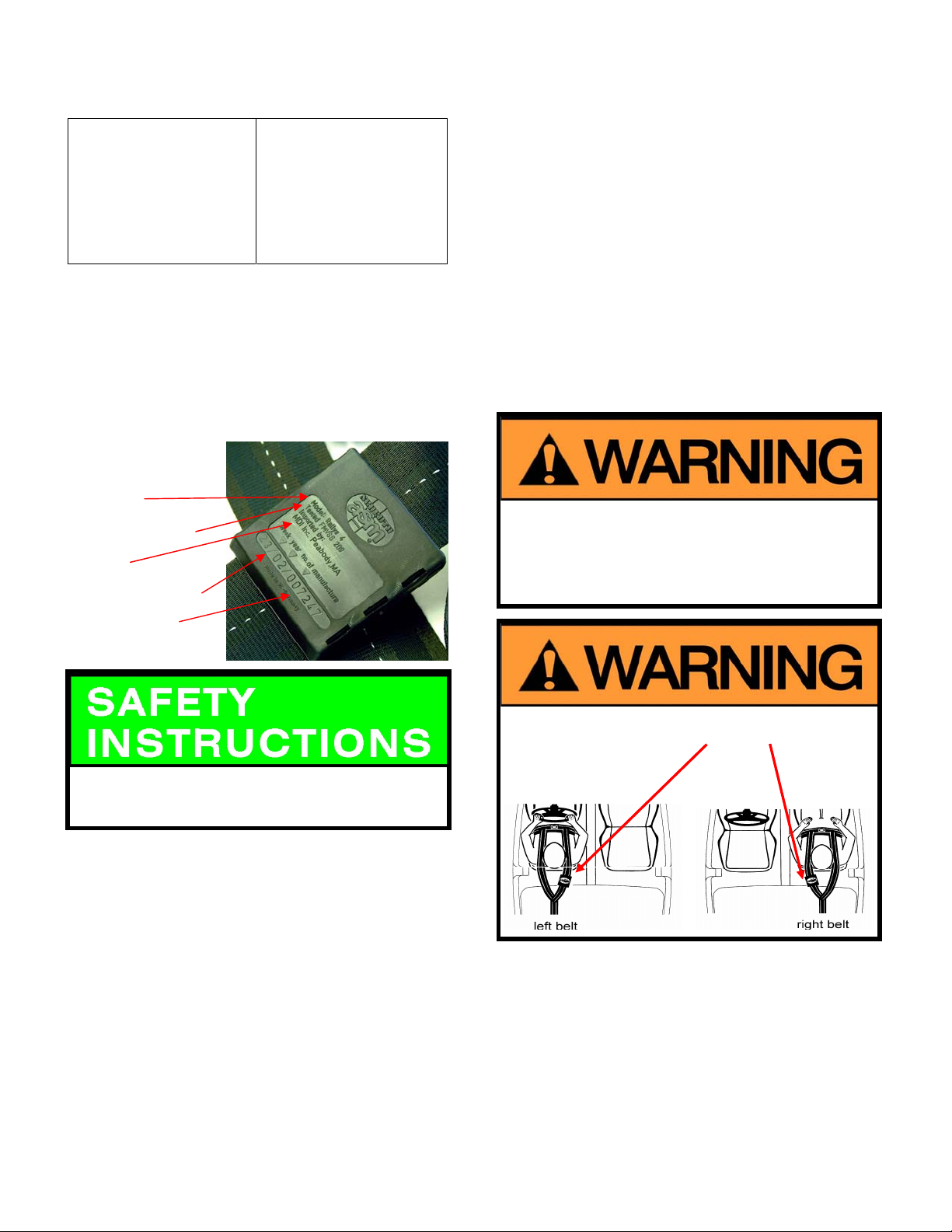

MANUFACTURING INFORMATION
Each SCHROTH belt is manufactured to exacting standards.
Specific manufacturing information of each belt is printed on
the back side of the plastic asm cartridge cover.
US Version asm cover
Type of belt
FMVSS Certification
Importer
Date of manufacture
Product number
Always keep this manual in the vehicle so that others can
thoroughly familiarize themselves with the proper use of
the system.
INSTALLATION INSTRUCTIONS
1 General Instructions
Always leave original equipment seat belts in place and
available for use.
We strongly recommend that you leave in place all MINI
factory provided 3-point restraint systems originally supplied for
the front and rear seating positions of your vehicle when you
install the SCHROTH asm harnessbelt. Removal of original
equipment restraint systems may also violate applicable State
or Federal law.
To carry rear seat passengers, you must use your standard 3-
point factory provided front seat belts. To use the factory
installed seat belts after a SCHROTH MINI Rallye 4 belt has
been installed you must first release (un-clip) all four points of
the SCHROTH belt and remove it.
Leaving original equipment restraint systems in place and fully
functional will enable you to choose either the SCHROTH
Rallye 4 OR the vehicle’s standard seat belts when it is
necessary to transport passengers in any of the rear seats or
when either harness belt is not suited for use by the driver or
front seat passenger.
When using the SCHROTH harnessbelts, folding front seat
backrests will be restricted in their range of motion.
Evacuation or rescue of rear seat passengers can be
restricted or even impossible after an accident and severe
injuries or death may occur. DO NOT CARRY REAR SEAT
PASSENGERS WHEN USING SCHROTH RALLYE BELTS.
Separate SCHROTH asm harnessbelts are supplied for the
left and right sides. The black “asm cartridge” must be on
the inboard shoulder strap when system is installed (see
illustration). Never install a belt on wrong side of vehicle.
System will not function properly in an accident and
serious injury or death may occur.

5

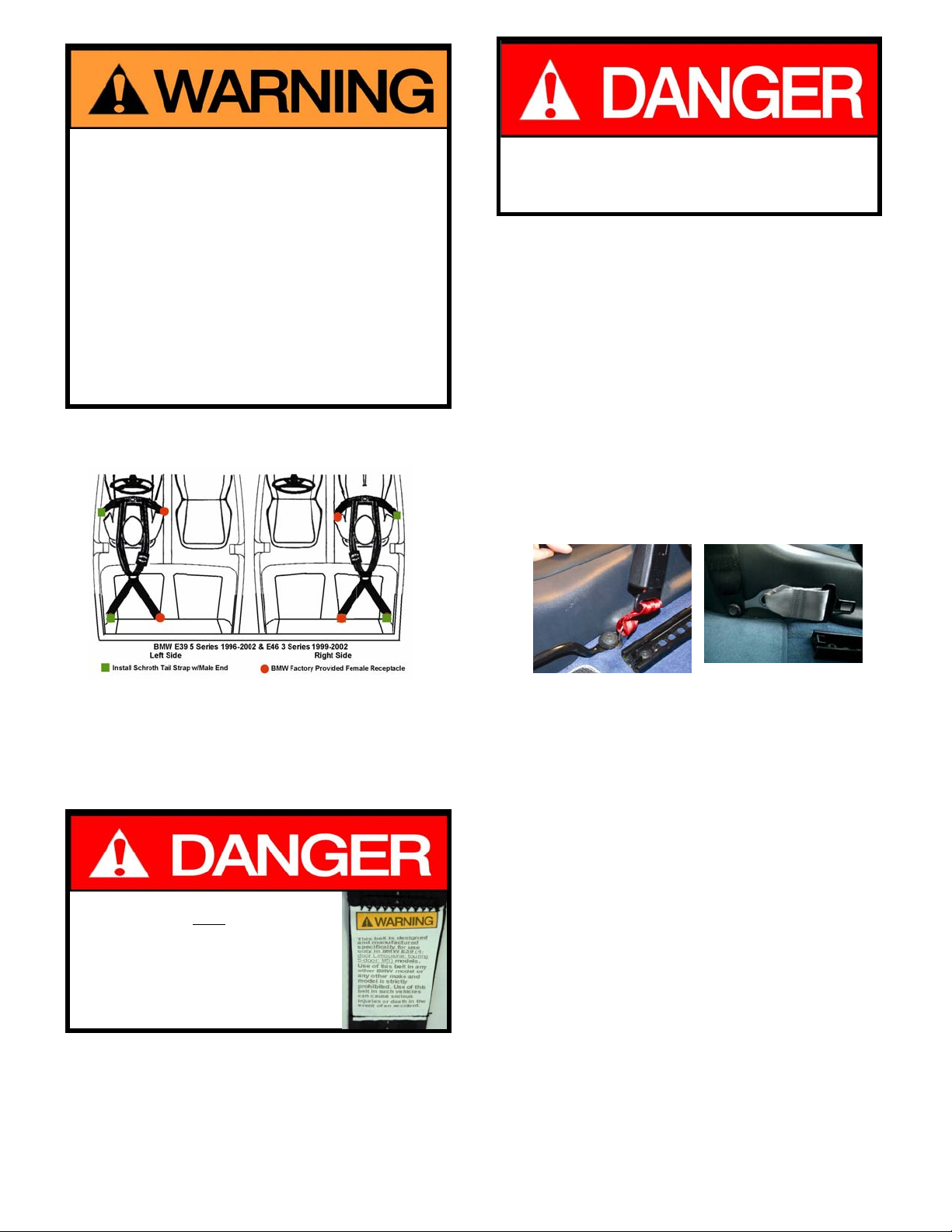

Use of improper attachment points will impair system
performance.
Weak tail strap anchor points will not withstand the forces in an
accident and increase the risk of personal injury.
Never attach the tail strap to anchorages intended for the tether
straps of child seats that are found on the filler panels behind the
rear seats of some passenger cars or the luggage area of some
hatchbacks or station wagons. These anchor points are not strong
enough to withstand the forces of an accident and are not
intended for adult belts.
Harness belt systems may only be installed at suitable anchor
points for seat belt systems as originally installed by the vehicle
manufacturer.
For suitable anchor points for make, model and model year of
your vehicle, see Certified Vehicle List (Vehicle Reference List). If
in doubt, ask your dealer to show you where these anchor points
are located.
These figures show the general location and suitability of seat
belt anchor points installed as standard equipment in specific
E46, E39, and MINI model passenger cars.
(The E39/E46 Diagram also applies to the BMW MINI)
▀Green Squares represent points where SCHROTH provided
male connecting tail straps are to be installed at factory
mounting points along with factory provided harnessbelts.
●Red Circles represent points where the SCHROTH BMW
MINI Rallye 4 belts are designed to plug into BMW MINI
factory provided seatbelt female receptacles.
THIS SCHROTH MINI RALLYE 4
HARNESSBELT IS ONLY DESIGNED FOR
BMW MINI MODELS AS INDICATED ON THE
SEWN IN LABEL ON THE HARNESSBELT
TAILSTRAP. USE IN ANY OTHER BMW
MODEL OR IN ANY OTHER AUTO OF A
DIFFERENT MANUFACTURER COULD
RESULT IN THE FAILURE OF THE HARNESS
SYSTEM AND SERIOUS INJURY.
Never drill or tap or make a new attachment point in the body or
chassis in order to mount a SCHROTH Quick Fit harness at that
location. Such attachment points are inadequate, may be
improperly located and can seriously impair the function and
effectiveness of the system.
Please compare the mounting locations on your car with the
illustration on page 6 and verify the “Model Tag” as pictured
above (sewn into the tail strap) matches the model of your
vehicle.
Original equipment belts with swivel attachments must never
be bent, modified, impeded or restricted in their range of
motion.
2 Anchorage bolts & SCHROTH Rallye Bolt on bracket
Where additional SCHROTH connecting tails are to be
installed (referenced by the Green Boxes on the diagrams on
page 6), the SCHROTH connector will be bolted to the a
factory mounting point along with the factory belt using the
factory provided bolts. You should be able to tighten each bolt
a minimum of nine (9) full 360 degree turns. Tighten all
anchorage bolts to a torque of 30 ft.lbs. (40 Nm)
3 Installation of the outside lap belt connectors
Early Mini Models Late Model Minis
The front outboard lap belt mounting points are located at the
front of the metal rail that holds the factory seatbelt.
Using a T50 Torx head socket, back out the bolt.
Bend the SCHROTH bracket as shown in the picture
above and place the SCHROTH bracket just under
the bolt head. (on later models there will be minimal
bending)
Reinstall the bolt.
Before tightening the bolt, align the SCHROTH
connector so that the webbing is pulling in the same
direction that the belt will pass over your lap when
connected.
Torque the bolt to 30 ft.lbs.
4 Installation of inside lap belt and tail strap
connectors
Simply plug the SCHROTH MINI “male” buckles (both front
and rear) into the factory provided female receptacle next to
the transmission tunnel.

6
5 Installation of SCHROTH rear outside tail strap
buckles – Left & Right belts.
Remove the rear seat bottom cushion.
oRemove the four plastic covers that hide the
child seat mounting points. Lift up each cover
at the front edge – pull up and out towards the
front of the vehicle.
oUnclip the front edge of the seat bottom
cushion by lifting the front edge about 8” in
from each of the outside edges.
oHolding up the forward edge of the cushion
while pressing down on the back center
rearmost portion of the cushion just behind
the seat belt receptacles. (See picture above).
oLift out the cushion while maintaining
pressure on the rear to clear the retaining clip
on the back of the seat cushion.
Locate and remove the outermost MINI lap belt
anchor bolts at the outside corners just below the rear
seatback bolsters.
Bend and mount the SCHROTH tail strap connector
as shown in the picture above left. Be sure to replace
the MINI bolt with the SCHROTH bolt, washer, and
spacer as pictured above.
Replace the rear seat bottom cushion being sure that
it is “snapped” in place at the two front edge
attachment points and under the rear retaining clip.
The SCHROTH tail strap connector should stick out
slightly between the bottom and top cushions.
6 Flexible range of the seat belt mounting brackets
Repeated bending could weaken the bracket and cause it to fail
when loaded in an accident.
Never bend the bracket back and forth several times.
Any pivoting brackets of the stock 3-point belts must not be
limited in their range of motion.

7
OPERATING INSTRUCTIONS
1 General instructions
Most states require that all passengers wear seat belts when a
car is in motion. Please check with your local authorities for
further information! Regardless of the law in your State, it only
makes sense to buckle up, so before you start your car, make
sure that you and all of your passengers are properly
restrained.
The SCHROTH asm harnessbelt system when properly
installed and used according to applicable instructions can
mitigate injury. Of course, the ability of any restraint system to
mitigate or prevent injury is directly related to the type and
severity of the accident.
Only the Quick Fit Pro is designed to be used with a
HANS device. Standard Quick Fit Harnesses are not
designed and tested to be used with HANS®or other head
and neck restraints e.g. Hutchens device.
Shoulder belts may slip off the HANS®and crotch straps
e.g. of a Hutchens device cannot be properly attached to
the lap belt. Malfunction can result in serious personal
injuries or death.
Improper use of any seatbelt can cause serious personal
injury or death.
To help reduce the risk of serious injury in an accident:
Never strap more than one person in place, with each
harness system.
Never wear the harness system at the same time as the
original equipment seat belts.
Never use the lap belt portion of the harness system
without the shoulder belts.
Always make sure that lap belt and shoulder belts are not
twisted when worn.
Never use the harness belt system for children under the
age of 12 years or to install an infant seat or child seat.
Never use the harness belt system for persons who weigh
less than 88 lbs or those who are less than 4`11" tall,
regardless of age.
Always wear the lap belt portion of the harness system
low and tight across the pelvis. This is also recommended
for the stock 3-point beltwhenever it is worn.
Never wear the belts over heavy clothing as it can
interfere with proper positioning and adjustment of the
belts, reducing the overall effectiveness of the system.
Never wear the belts over rigid or breakable objects in or
on your clothing, such as eye glasses, pens, jewelry
keys etc. as these may cause injury.
Never allow lap or shoulder belts to rub against sharp
objects.
Never allow the belts to be damaged by becoming caught
in door or seat hardware.
The following pictures show the correct
installation and use of SCHROTH asm
harnessbelts:
2 Routing of the shoulder belts
It is important to be sure to route the
SCHROTH shoulder belts between the two
posts of the headrest as pictured to the right.
3 QUICK FIT – ClipIn/ClipOut attachment points
Front Inside Lap Belt Mount Points
Clip the SCHROTH Lap Belt harness end with the MINI male
latch into the factory female receptacle as pictured above left.
Front Outside Lap Belt Mounting Points
Plug in the SCHROTH female receptacle on the outer end of
the lap belt to the male end of the connecting strap that you
bolted to the factory mounting point as pictured above right.
Inside Rear Tail Strap Mount Points
Clip the SCHROTH Tail Strap end with the MINI male latch into
the factory female receptacle as pictured above left.
Outside Rear Tail Strap Mount Points
Plug the outside (far right or far left) tail strap with the of the
SCHROTH belt with SCHROTH male buckle into the
SCHROTH “separation buckle” that you bolted into chassis.

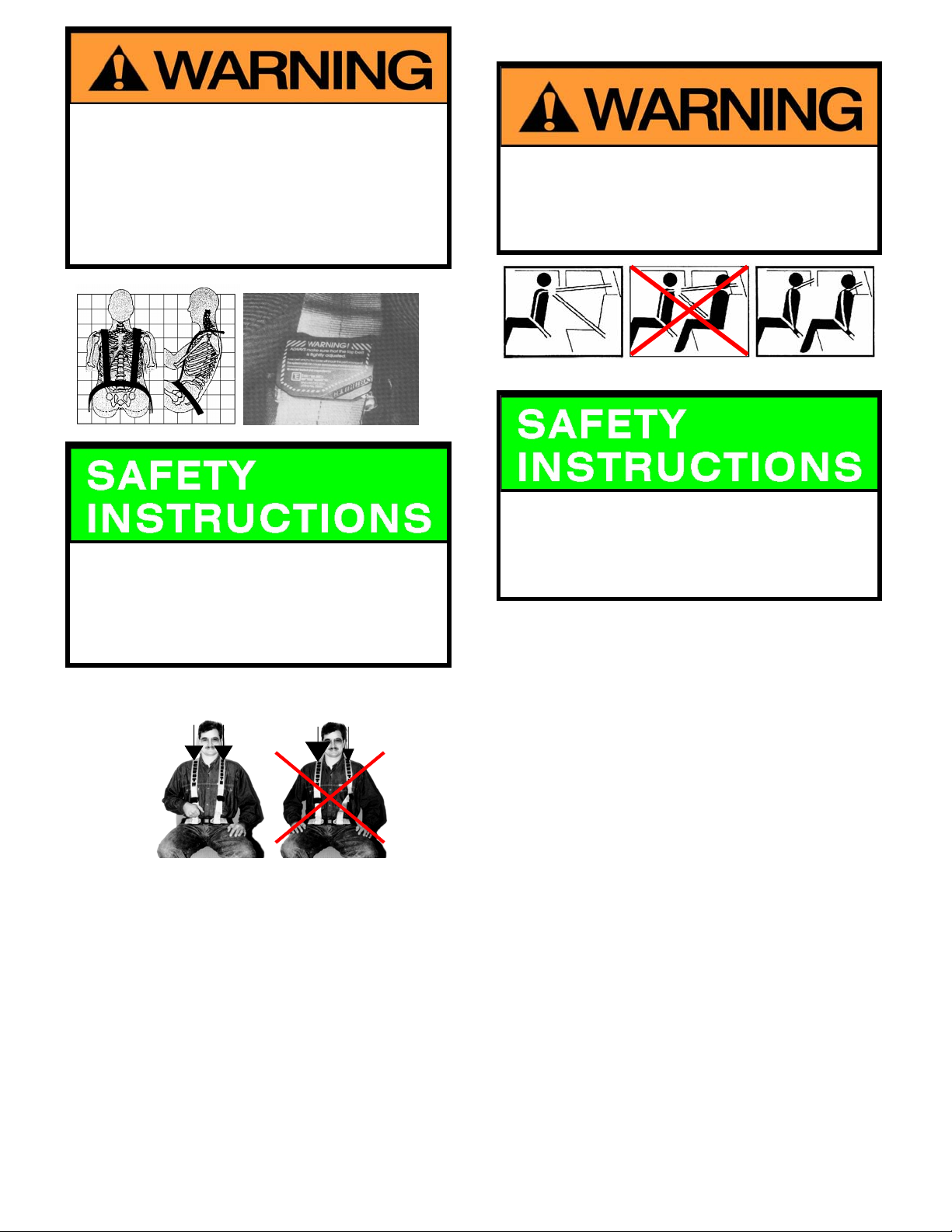

4Adjustment of the seating position
Choose your most comfortable seating position for safe driving.
Driving and Safety Instructors recommend:
"Select your seating position in the vehicle so that you can fully
grip the upper edge of the steering wheel with your elbow still
slightly bent and without moving your upper body from the
seatback. With the clutch (automatic transmission-brake) fully
depressed your knee should still be slightly bent."
Remember: A "laid back" seating position might look 'cool', but
does not contribute in any way to better or safer handling of
your vehicle! No racing or rally driver is "laid back" in his
vehicle!

8
5 How to close and release the buckles
5.1 Lap belt buckle and all “Click-In” points where the
standard BMW Female Receptacle is used.
To close: Insert the latch into the buckle until you can hear a
distinct clicking sound.
To open: Depressing the red button marked "PRESS" will
open the buckle.
5.2 Buckle between tail strap and the outer most rear
tail strap of the shoulder belts (separation buckle).
To close: Insert the latch underneath the plastic cover until it
locks in (1) and the plastic cover slides back into
its normal position (2).
To open: Slide the plastic cover in the direction of the arrow
to the stop (1). Tilt the latch downwards and
remove it from the buckle (2).
6How to adjust the belt
6.1 Lengthen the belt
Hold the adjuster at right angles
- 90° - to the belt and pull in
direction of the arrow (see
illustration beside).
6.2 Shorten the belt
Pull the end of the strap in
direction of the arrow (see
illustration beside).
SCHROTH offers accessory adjusting grips which can make
the adjustment even more convenient (see page 18,
Accessories).
7 Adjustment of the headrest and initial adjustment
of the tail strap
wrong way wrong way right way
Belts must not have
any sag. The tail strap must not be misdirected
by upholsteries or
the rear seat
cushions.
The headrest is
properly adjusted
and the shoulder
belts can move
freely without
slack.
a) After choosing the correct seating position, put the belt on
and adjust the lap belt so it fits tightly in the bend between
the pelvic crest and the upper thigh. The release buckle
should be located in the center in front of your body. If
necessary, lengthen the tail strap first.
b) Next adjust the shoulder belts: Make sure there is approx. 4
inches (10 cm) of loose belt protruding from each shoulder
belt adjuster.
c) One of the two shoulder belts should now be tight against
the shoulder; the other shoulder belt should be looser.
d) Tighten the looser shoulder belt until both shoulder belts
have the same pressure over the shoulders and in the
chest area.
Make sure the shoulder straps are properly adjusted whenever
the SCHROTH harnessbelt is worn.
For lap belt adjustment see following paragraph.
8 Putting on the belt
a) After choosing the correct seating position, put on the belt
and adjust the lap belt so it fits tightly in the bend
between the pelvic crest and the upper thigh. The release
buckle should be located in the center in front of your
body. (HINT- slide the seat back - tighten the lap belt –
move the seat forward to maximize lap belt tightness.)
close buckle tighten lap belt W R O N G

9
Improper fit of any lap belt can cause serious personal
injury or death.
•ALWAYS make sure that the lap belt is tightly adjusted.
A lap belt in a harness or 3-point system that is too
loose will impair the performance of the system.
•The lap belt must fit tightly in the bend between the
pelvic crest and the upper thigh!
•Make sure belt is properly adjusted when a different
person uses the belt or each time the seat is readjusted.
(Heed WARNING on adjuster.)
•In order to get an even tighter fit of the lap belt, we
recommend that you move your seat back a little, adjust
the length of your belt as described above and move the
seat forward to its normal position. This will help to tighten
the lap belt even more. This recommendation applies only
to two door coupe models where one lap belt mounting
point s is attached directly to the chassis.
b) Adjust the length of the inboard shoulder belt until both
belts exert equal pressure against the upper torso.
equal pressure W R O N G
R I G H T
9 Use of the rear seats
Never wear the SCHROTH harnessbelt if any rear seating
position is occupied. Both front seat occupants must then
use original equipment 3-point belts. The rear seat
occupant could interact with the tail strap of the SCHROTH
harnessbelt during an accident and cause serious injury to
himself or to the wearer of the harness belt.
right way wrong way right way
•As a constant reminder, the enclosed transparent sticker
must be attached to the rear side window in a prominent
place. The sticker cannot be removed without damage to
chromate tinted glass. On such vehicles, you may affix the
transparent sticker at a different, prominent location so that
it will serve as a constant reminder.
10 Stowing the belts when not in use
If you use the stock 3-point belt instead of the SCHROTH
harnessbelt, be sure to properly stow the SCHROTH harness
belt so that it is not exposed to seat tracks, liquids, sun light, or
any other area where the belt could possibly be damaged.
When not in use we recommend that you unhook all four points
are remove the entire belt for proper storage.
11 Using the Quick Fit Pro with a HANS® Device
The geometry of the Quick Fit Pro creates optimum capture of
the HANS® device and provides for the occupant the highest
level of Head and Neck restraint possible.
Always be sure your HANS® attachment points are installed
correctly in the helmet and that your device is in good working
order before using.

10
To use the Quick Fit Pro with a HANS® Device, be sure to
make note of the following points:
•Install the belt as you would normally
•Place the HANS® device on your shoulders
•Carefully place the shoulder belts of the Quick Fit Pro
over the yoke of the HANS®
•Be sure that the shoulder belt adjusters fall either
entirely on or entirely off the yoke of the HANS®. If
necessary, adjust the length of the tail strap to the
correct length.
•Tighten lap belts and shoulder belts as you normally
would, making sure that the shoulder belts stay on the
yoke of the HANS® while doing so.
•Once the belts are tight, they will stay on the HANS®
device without any further adjustments.
The following picture depicts correct use of the Quick Fit Pro
with a HANS® Device:
CARE and MAINTENANCE
1 Inspection
Check the safety belt once a month for any damage. Cuts,
tears and other damage to the belt will greatly reduce its
effectiveness. Replace the belt or damaged parts immediately
with original Spare Parts (see page 18, Spare Parts). Never
use a damaged harness belt, use the standard 3-point belts
which remain available for use.
Make sure the buckles are free of any obstruction and lock
securely.
Modified belts or such belts that have been resewn are not strong
enough and are dangerous in an accident.
Never modify, disassemble or repair the belts yourself.
For parts that can be replaced, use only original SCHROTH Spare
Parts.
Only original SCHROTH Accessories may be used with the
harness belt system.
Use of non-authorized parts and Accessories can reduce the
effectiveness of the harness belt system.
•Any changes made to the belt will automatically void the
warranty.
Never use any restraint system that does not function
properly. If questions arise, immediately contact your
importer or the manufacturer!
Figure A:
Fold the strap to a loop and insert it
upwards throughout the metal frame and
turn the loop as indicated.
Note:
The strap part protruding from the
adjuster for further adjustment [1] must
be located above the stress taking strap
[2].
Figure B:
Position the plastic cover on top of the
loop and insert the metal retainer [3]
through the guides of the plastic cover
and the strap loop.
Figure C:
Keep the metal retainer positioned
between your thumb and forefinger.
Slide the plastic cover backwards onto
the metal frame as indicated until both
ratchets [4] locks with a distinct clicking
sound into the detentions in the metal
frame.
Figure D:
Check by pulling both stress taking
straps [2] and [2`] the adjustment device
will lock safely.

11
2 Accident
A safety belt which was in use during an accident has
been weakened and is unfit for further use and must be
replaced! One indication that the belt was exposed to
excess strain and therefore requires replacement is when
the stitches of the asm-system are ripped open and are
protruding from underneath the asm-plastic cover.
A restitched asm seam is dangerous.
The asm energy conversion device may not be restitched
under any circumstances.
After an accident, in addition to replacing seat belt which were
in use, also be sure to ask your car dealer for carefully check
all seatbelt attachment points for deformation or cracks.
Always make sure that the guidelines of the car manufacturer
are followed if a repair is necessary.
3 Re-assembling the length adjuster
We do not recommend to disassemble the length adjuster
during installation process. Even to run the harness belt
through the openings at racing seats disassembling is
not necessary.
If for any reason the length adjuster is disassembled, strictly
follow the procedure step by step as described below to re-
assemble the adjuster.
4 Cleaning
To clean the belt, use soap and warm water. Do not use any
solvents! Do not dry the belt in the sun or near a radiator.
Improper cleaning or drying of the harness belts can
weaken them, reduce their effectiveness and can result in
serious personal injury or death.
5 Installation Accessories
Color key:
black=0, blue=1, red=2, yellow=3, purple=5, green=8
The Xin PINs must be substituted by the color key of the color you want to order!
Shoulder belt pads, pair of black with yellow flock printing 00109
Shoulder belt pads, pair of blue with black flock printing 01109
red, yellow, purple, green with black flock printing 0X109
Shoulder belt pads, pair of black with gray flock printing 09109
Shoulder belt pads, pair of silver-gray w. black flock printing 09209
Shoulder belt pads, pair of black with black flock printing 09309
Adjusting grips for length adjuster, 4 pcs./package 00092
6 Spare Parts
If any part of your harness needs replacement, please contact
your nearest dealer. USE ONLY GENUINE SCHROTH
PARTS.
Cover for adjuster inclusive retainer 01084
7 MINI Quick-Fit Part Numbers
Verify you have the correct belt for your MINI. The following
part numbers apply only to MINI Quick-Fit Rallye 4 Belts.
MINI Quick Fit Rallye 4 Black Left 16150
MINI Quick Fit Rallye 4 Black Right 16650
MINI Quick Fit Rallye 4 Blue Left 16151
MINI Quick Fit Rallye 4 Blue Right 16651
MINI Quick Fit Rallye 4 Red Left 16152
MINI Quick Fit Rallye 4 Red Right 16652
8 MINI Quick-Fit Pro Part Numbers
MINI Quick Fit Pro Black Left 18150
MINI Quick Fit Pro Black Right 18650
MINI Quick Fit Pro Blue Left 18151
MINI Quick Fit Pro Blue Right 18651
MINI Quick Fit Pro Red Left 18152
MINI Quick Fit Pro Red Right 18652

12
We reserve the right to incorporate any technical
changes or further development in this product
without notice.
If you need additional information or have any comments
or questions about the SCHROTH asm harnessbelts,
please contact your dealer or the importer.
[see www.schrothracing.com]
In North America please contact:
MDI/Schroth
A DIVISION OF HMS MOTORSPORT, LTD.
3 First Avenue
Peabody, MA 01960
Toll Free [phone]
Phone [phone]
Fax [phone]
To locate you nearest dealer call:
(800) 884-BELT
REMEMBER:
For safety’s sake, always buckle up.
SCHROTH and SCHROTH-asm®are registered trademarks of
SCHROTH Safety Products GmbH, Germany.
The SCHROTH-asm®safety system is patented in several European
countries, the United States and Japan.
The copyrights of this Installation and Operating manual are
property of SCHROTH Safety Products GmbH, Germany.
Copyright of this part or in hole, on paper, on film or
electronically is allowed only after written permission by
SCHROTH Safety Products GmbH, Germany.
© 2003, SCHROTH Safety Products GmbH, Arnsberg, Germany.
Printed in Germany
