Schumacher Electric PIF-410 User manual

00-99-001073/0710
Models / Modelos / Modèles:
PID-410, PIF-410, PID-760 & PIF-760
Power Inverter
Convertidor de Energía
Onduleurs
Converts 12V DC Battery Power
to 120V AC Household Power
Convierte la Energía de Baterías de 12V de CC
a 120V de CA de Energía Doméstica
Convertit la tension d’une batterie 12 V CC
en 120 V CA domestique
READ THE ENTIRE MANUAL BEFORE USING THIS PRODUCT.•
FAILURE TO DO SO CAN RESULT IN SERIOUS INJURY OR
DEATH.
LEA EL MANUAL COMPLETO ANTES DE UTILIZAR ESTE•
PRODUCTO. CUALQUIER FALLA PODRÍA RESULTAR EN SERIAS
LESIONES O PODRÍA SER MORTAL.
LIRE ENTIÈREMENT LE GUIDE AVANTD’UTILISER CE PRODUIT.•
L’ÉCHEC DE FAIRE AINSI PEUT S’ENSUIVRE DANS LA
BLESSURE SÉRIEUSE OU LA MORT.
OWNER’S MANUAL • MANUAL DEL USUARIO •GUIDED’UTILISATION
ADVERTENCIA
All manuals and user guides at all-guides.com
all-guides.com

All manuals and user guides at all-guides.com

TABLE OF CONTENTS
SECTION PAGE
IMPORTANT SAFETY INSTRUCTIONS 7
INVERTER FEATURES 8
BEFORE USING YOUR POWER INVERTER 8
CONNECTING INVERTER CABLES 10
OPERATING INSTRUCTIONS 10
POWER SOURCE 12
LED DISPLAY 12
IF THE INVERTER FUSE BLOWS 13
TROUBLESHOOTING 14
SPECIFICATIONS 15
REPLACEMENT PARTS 16
LIMITED WARRANTY 16
All manuals and user guides at all-guides.com

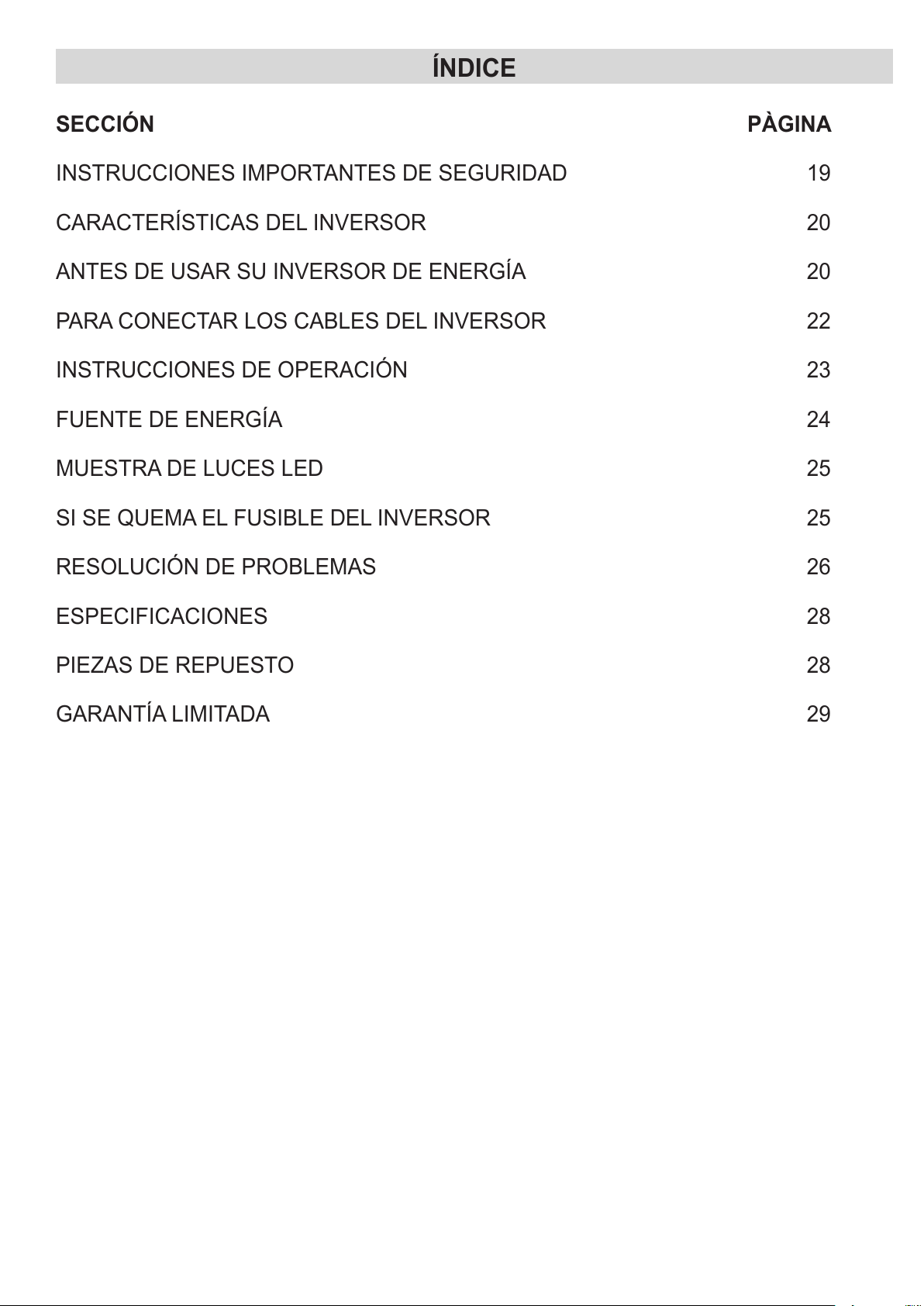

ÍNDICE
SECCIÓN PÀGINA
INSTRUCCIONES IMPORTANTES DE SEGURIDAD 19
CARACTERÍSTICAS DEL INVERSOR 20
ANTES DE USAR SU INVERSOR DE ENERGÍA 20
PARA CONECTAR LOS CABLES DEL INVERSOR 22
INSTRUCCIONES DE OPERACIÓN 23
FUENTE DE ENERGÍA 24
MUESTRA DE LUCES LED 25
SI SE QUEMA EL FUSIBLE DEL INVERSOR 25
RESOLUCIÓN DE PROBLEMAS 26
ESPECIFICACIONES 28
PIEZAS DE REPUESTO 28
GARANTÍA LIMITADA 29
All manuals and user guides at all-guides.com

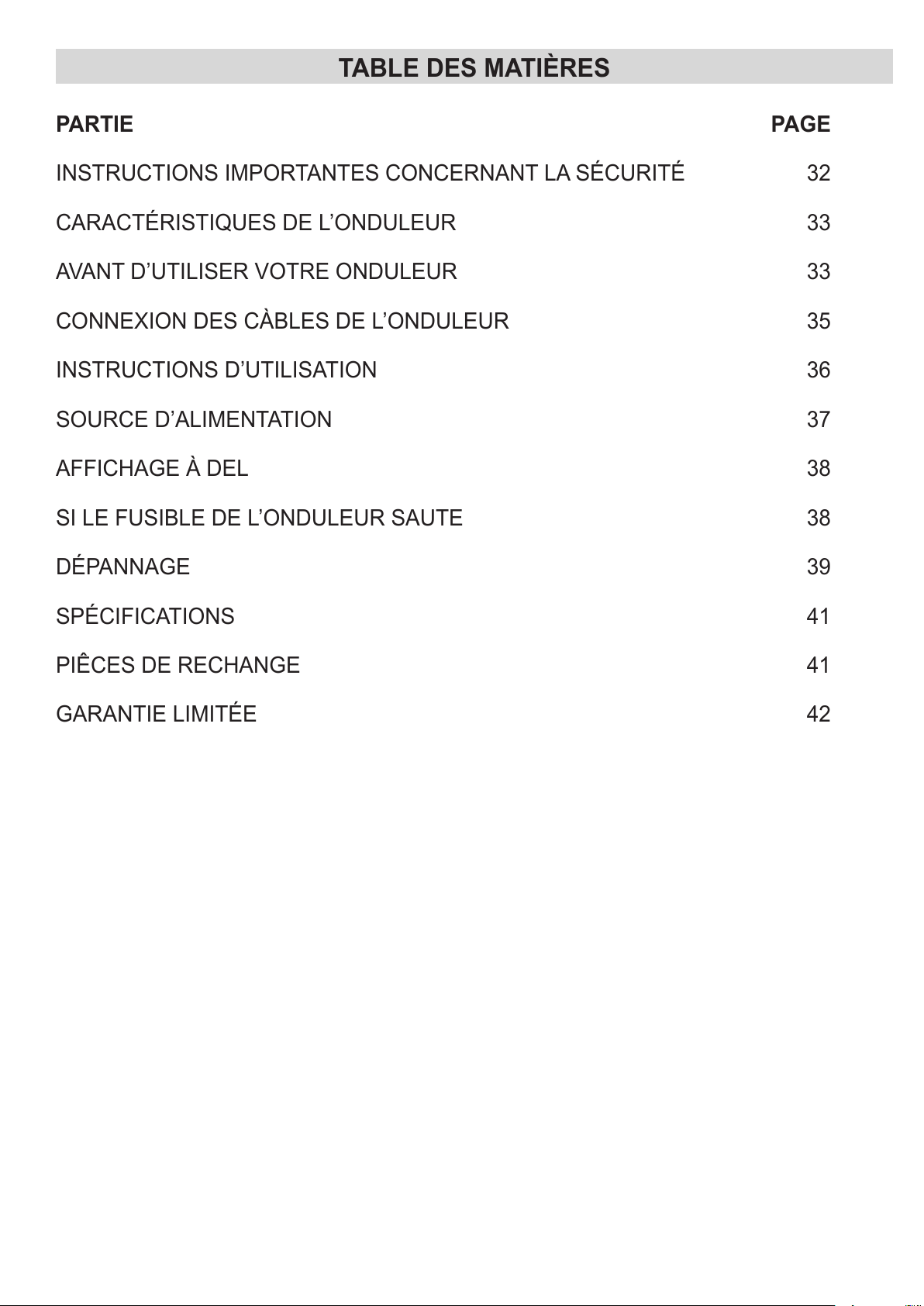

TABLE DES MATIÈRES
PARTIE PAGE
INSTRUCTIONS IMPORTANTES CONCERNANT LA SÉCURITÉ 32
CARACTÉRISTIQUES DE L’ONDULEUR 33
AVANT D’UTILISER VOTRE ONDULEUR 33
CONNEXION DES CÀBLES DE L’ONDULEUR 35
INSTRUCTIONS D’UTILISATION 36
SOURCE D’ALIMENTATION 37
AFFICHAGE À DEL 38
SI LE FUSIBLE DE L’ONDULEUR SAUTE 38
DÉPANNAGE 39
SPÉCIFICATIONS 41
PIÊCES DE RECHANGE 41
GARANTIE LIMITÉE 42
All manuals and user guides at all-guides.com

• 6 •

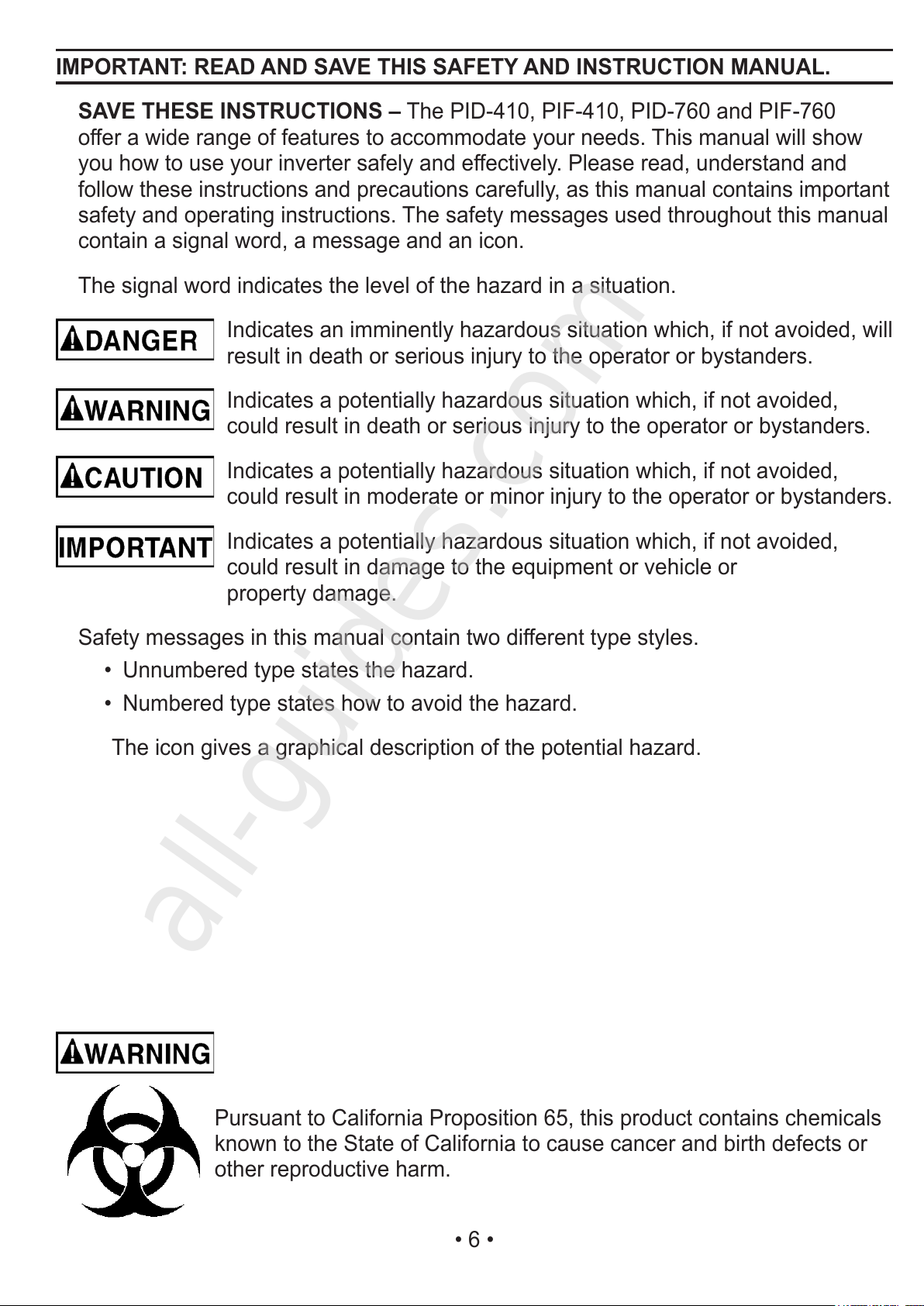

IMPORTANT: READ AND SAVE THIS SAFETY AND INSTRUCTION MANUAL.
SAVE THESE INSTRUCTIONS – The PID-410, PIF-410, PID-760 and PIF-760
offer a wide range of features to accommodate your needs. This manual will show
you how to use your inverter safely and effectively. Please read, understand and
follow these instructions and precautions carefully, as this manual contains important
safety and operating instructions. The safety messages used throughout this manual
contain a signal word, a message and an icon.
The signal word indicates the level of the hazard in a situation.
Indicates an imminently hazardous situation which, if not avoided, will
result in death or serious injury to the operator or bystanders.
Indicates a potentially hazardous situation which, if not avoided,
could result in death or serious injury to the operator or bystanders.
Indicates a potentially hazardous situation which, if not avoided,
could result in moderate or minor injury to the operator or bystanders.
Indicates a potentially hazardous situation which, if not avoided,
could result in damage to the equipment or vehicle or
property damage.
Safety messages in this manual contain two different type styles.
Unnumbered type states the hazard.•
Numbered type states how to avoid the hazard.•
The icon gives a graphical description of the potential hazard.
Pursuant to California Proposition 65, this product contains chemicals
known to the State of California to cause cancer and birth defects or
other reproductive harm.
All manuals and user guides at all-guides.com
all-guides.com

• 7 •

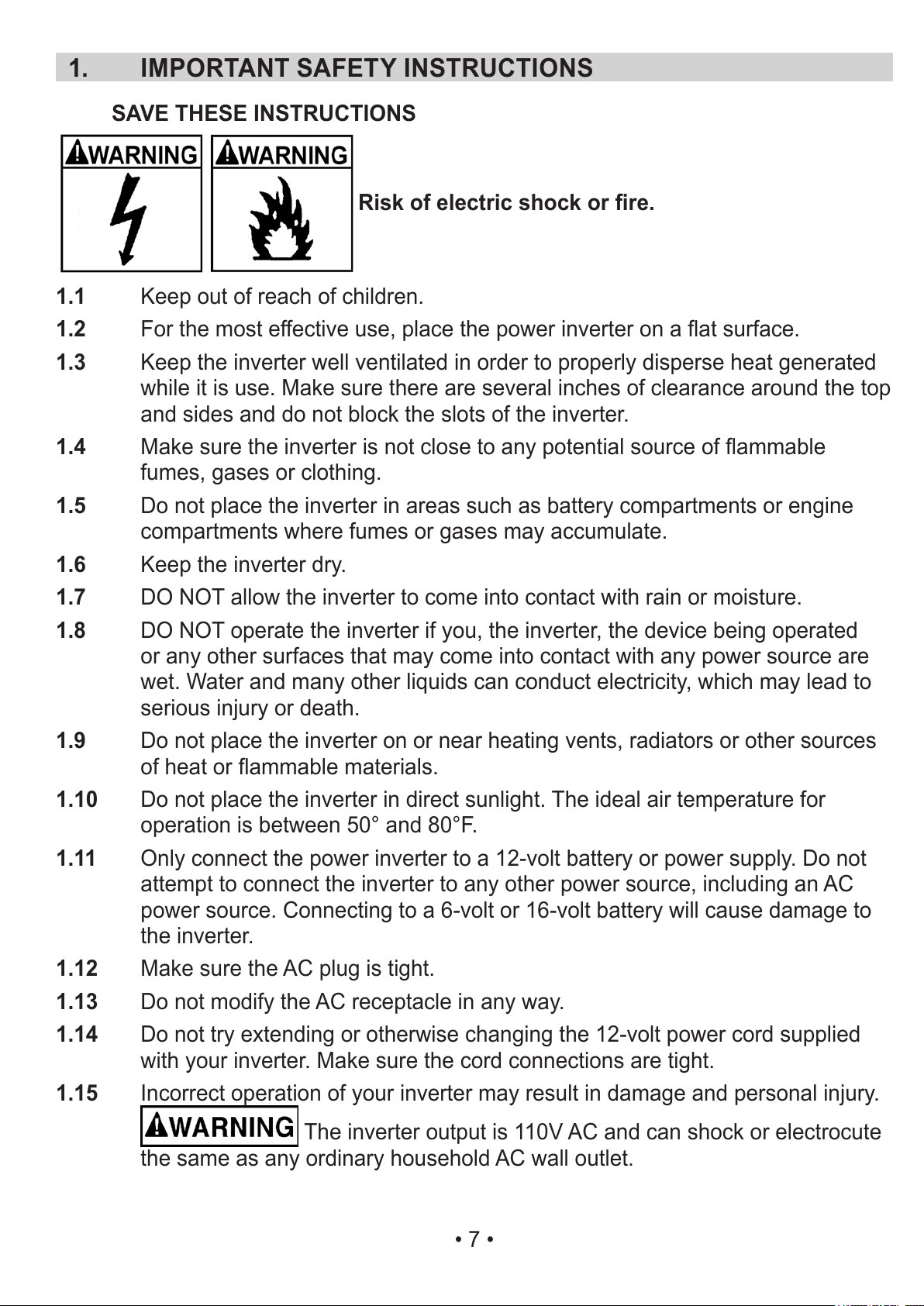

IMPORTANT SAFETY INSTRUCTIONS1.
SAVE THESE INSTRUCTIONS
Riskofelectricshockorre.
Keep out of reach of children.1.1
For the most effective use, place the power inverter on a at surface.1.2
Keep the inverter well ventilated in order to properly disperse heat generated1.3
while it is use. Make sure there are several inches of clearance around the top
and sides and do not block the slots of the inverter.
Make sure the inverter is not close to any potential source of ammable 1.4
fumes, gases or clothing.
Do not place the inverter in areas such as battery compartments or engine1.5
compartments where fumes or gases may accumulate.
Keep the inverter dry.1.6
DO NOT allow the inverter to come into contact with rain or moisture.1.7
DO NOT operate the inverter if you, the inverter, the device being operated1.8
or any other surfaces that may come into contact with any power source are
wet. Water and many other liquids can conduct electricity, which may lead to
serious injury or death.
Do not place the inverter on or near heating vents, radiators or other sources1.9
of heat or ammable materials.
Do not place the inverter in direct sunlight. The ideal air temperature for1.10
operation is between 50° and 80°F.
Only connect the power inverter to a 12-volt battery or power supply. Do not1.11
attempt to connect the inverter to any other power source, including an AC
power source. Connecting to a 6-volt or 16-volt battery will cause damage to
the inverter.
Make sure the AC plug is tight.1.12
Do not modify the AC receptacle in any way.1.13
Do not try extending or otherwise changing the 12-volt power cord supplied1.14
with your inverter. Make sure the cord connections are tight.
Incorrect operation of your inverter may result in damage and personal injury.1.15
The inverter output is 110V AC and can shock or electrocute
the same as any ordinary household AC wall outlet.
All manuals and user guides at all-guides.com

• 8 •

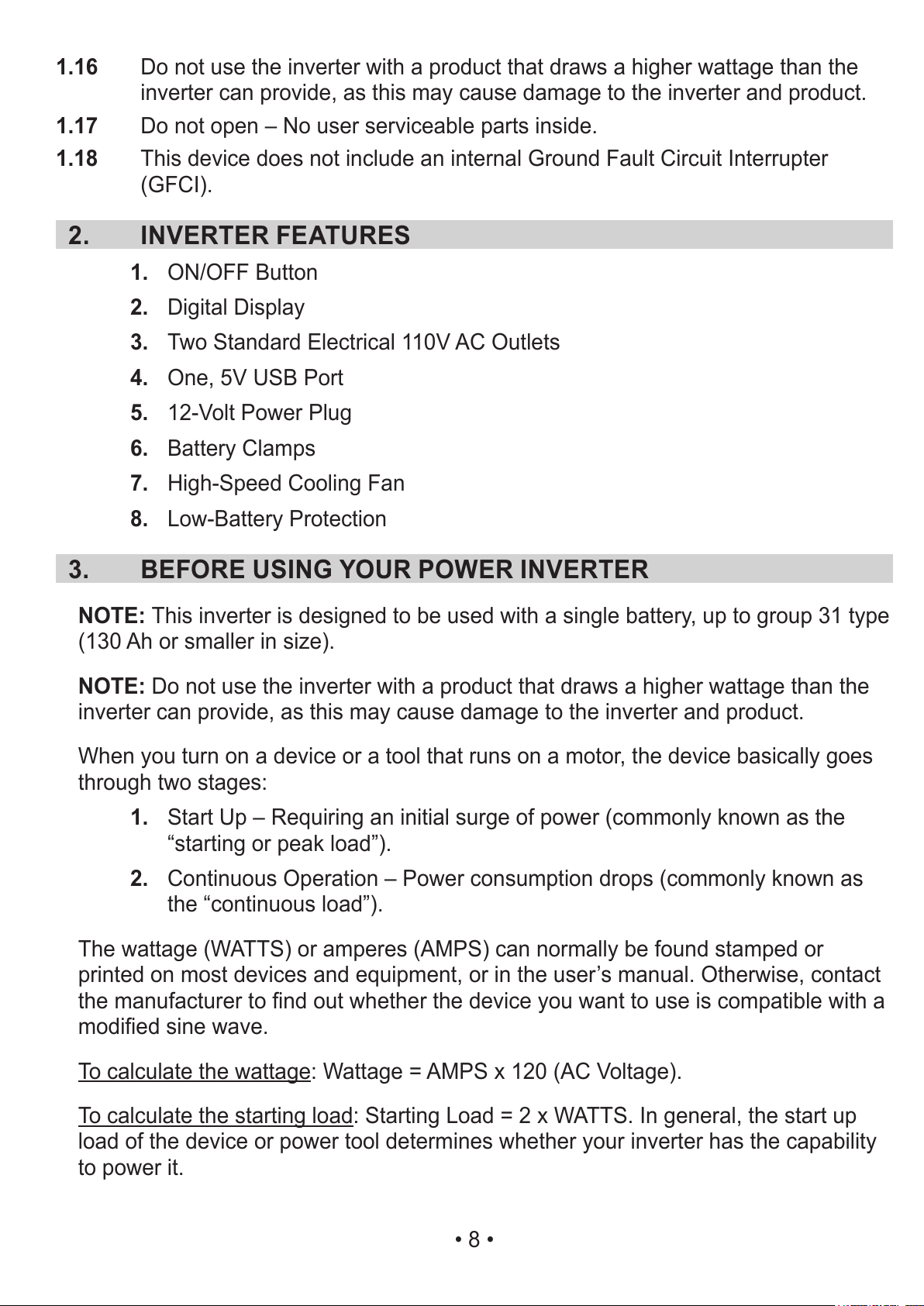

Do not use the inverter with a product that draws a higher wattage than the1.16
inverter can provide, as this may cause damage to the inverter and product.
Do not open – No user serviceable parts inside.1.17
This device does not include an internal Ground Fault Circuit Interrupter1.18
(GFCI).
INVERTER FEATURES2.
ON/OFF Button1.
Digital Display2.
Two3. Standard Electrical 110V AC Outlets
One, 5V USB Port4.
12-Volt Power Plug5.
Battery Clamps6.
High-Speed Cooling Fan7.
Low-Battery Protection8.
BEFORE USING YOUR POWER INVERTER3.
NOTE: This inverter is designed to be used with a single battery, up to group 31 type
(130 Ah or smaller in size).
NOTE: Do not use the inverter with a product that draws a higher wattage than the
inverter can provide, as this may cause damage to the inverter and product.
When you turn on a device or a tool that runs on a motor, the device basically goes
through two stages:
Start Up – Requiring an initial surge of power (commonly known as the1.
“starting or peak load”).
Continuous Operation – Power consumption drops (commonly known as2.
the “continuous load”).
The wattage (WATTS) or amperes (AMPS) can normally be found stamped or
printed on most devices and equipment, or in the user’s manual. Otherwise, contact
the manufacturer to nd out whether the device you want to use is compatible with a
modied sine wave.
To calculate the wattage: Wattage = AMPS x 120 (AC Voltage).
To calculate the starting load: Starting Load = 2 x WATTS. In general, the start up
load of the device or power tool determines whether your inverter has the capability
to power it.
All manuals and user guides at all-guides.com

• 9 •
To calculate the continuous load: Continuous Load = AMPS x 120 (AC Voltage).
Always run a test to establish whether the inverter will operate a
particular piece of equipment or device. In the event of a power overload, the inverter
is designed to automatically shut down. This safety feature prevents damaging the
inverter while testing devices and equipment within the wattage range of the inverter.
If a device does not operate properly when rst connected to the inverter, turn the
inverter ON (I), OFF (O), and ON (I) again in quick succession. If this procedure is
not successful, it is likely that the inverter does not have the required capacity to
operate the device in question.
This inverter is designed to power 100 watt devices or less when
used with the vehicle 12 volt accessory port. To use the full output you must use the
battery clips adapter and connect the inverter directly to the battery.
NOTE: The 100 watt limit is to accommodate the fuse ratings for all vehicles. Some
vehicles may allow the full output. If the fuse blows when you switch on the device
you are trying to use, you have to either use a smaller device or you must purchase
the 12 volt accessory outlet to battery clips adapter (Schumacher Model SAC-103)
and connect the inverter directly to the battery.
This inverter uses a nonsinusoidal waveform. Therefore we do not
recommend you use it to power the following devices:
Switch Mode Power Supplies;1.
Linear Power Supplies;2.
Class 2 Transformers;3.
Line Filter Capacitors;4.
Shaded Pole Motors;5.
Fan Motors;6.
Microwave Ovens;7.
Fluorescent and High Intensity Lamps (with a Ballast); and8.
Transformerless Battery Chargers.9.
Doing so, may cause the device to run warmer or overheat.
All manuals and user guides at all-guides.com

• 10 •

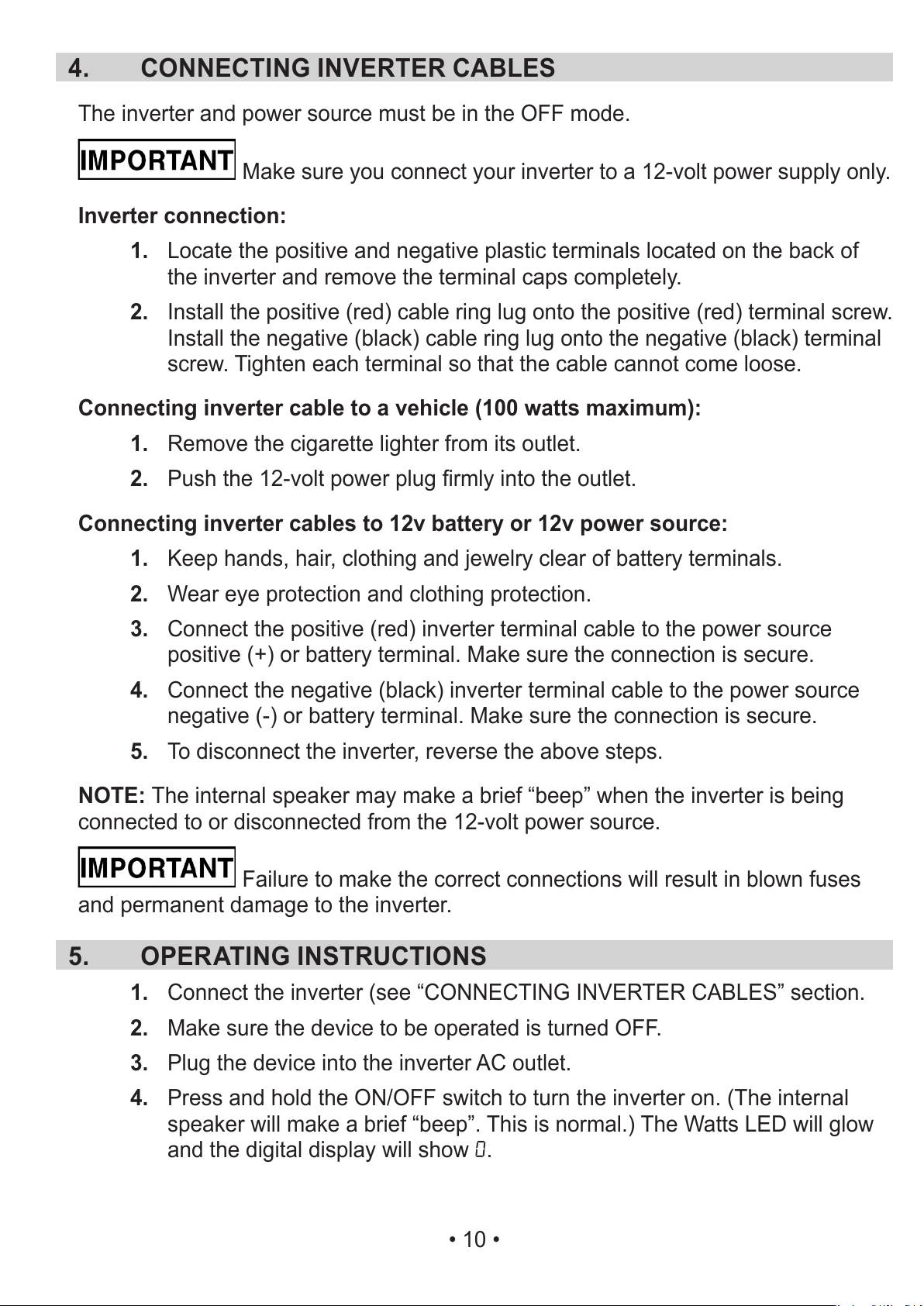

CONNECTING INVERTER CABLES4.
The inverter and power source must be in the OFF mode.
Make sure you connect your inverter to a 12-volt power supply only.
Inverter connection:
Locate the positive and negative plastic terminals located on the back of1.
the inverter and remove the terminal caps completely.
Install the positive (red) cable ring lug onto the positive (red) terminal screw.2.
Install the negative (black) cable ring lug onto the negative (black) terminal
screw. Tighten each terminal so that the cable cannot come loose.
Connecting inverter cable to a vehicle (100 watts maximum):
Remove the cigarette lighter from its outlet.1.
Push the 12-volt power plug rmly into the outlet.2.
Connecting inverter cables to 12v battery or 12v power source:
Keep hands, hair, clothing and jewelry clear of battery terminals.1.
Wear eye protection and clothing protection.2.
Connect the positive (red) inverter terminal cable to the power source3.
positive (+) or battery terminal. Make sure the connection is secure.
Connect the negative (black) inverter terminal cable to the power source4.
negative (-) or battery terminal. Make sure the connection is secure.
To disconnect the inverter, reverse the above steps.5.
NOTE: The internal speaker may make a brief “beep” when the inverter is being
connected to or disconnected from the 12-volt power source.
Failure to make the correct connections will result in blown fuses
and permanent damage to the inverter.
OPERATING INSTRUCTIONS5.
Connect the inverter (see “CONNECTING INVERTER CABLES” section.1.
Make sure the device to be operated is turned OFF.2.
Plug the device into the inverter AC outlet.3.
Press and hold the ON/OFF switch to turn the inverter on. (The internal4.
speaker will make a brief “beep”. This is normal.) The Watts LED will glow
and the digital display will show .
All manuals and user guides at all-guides.com

• 11 •

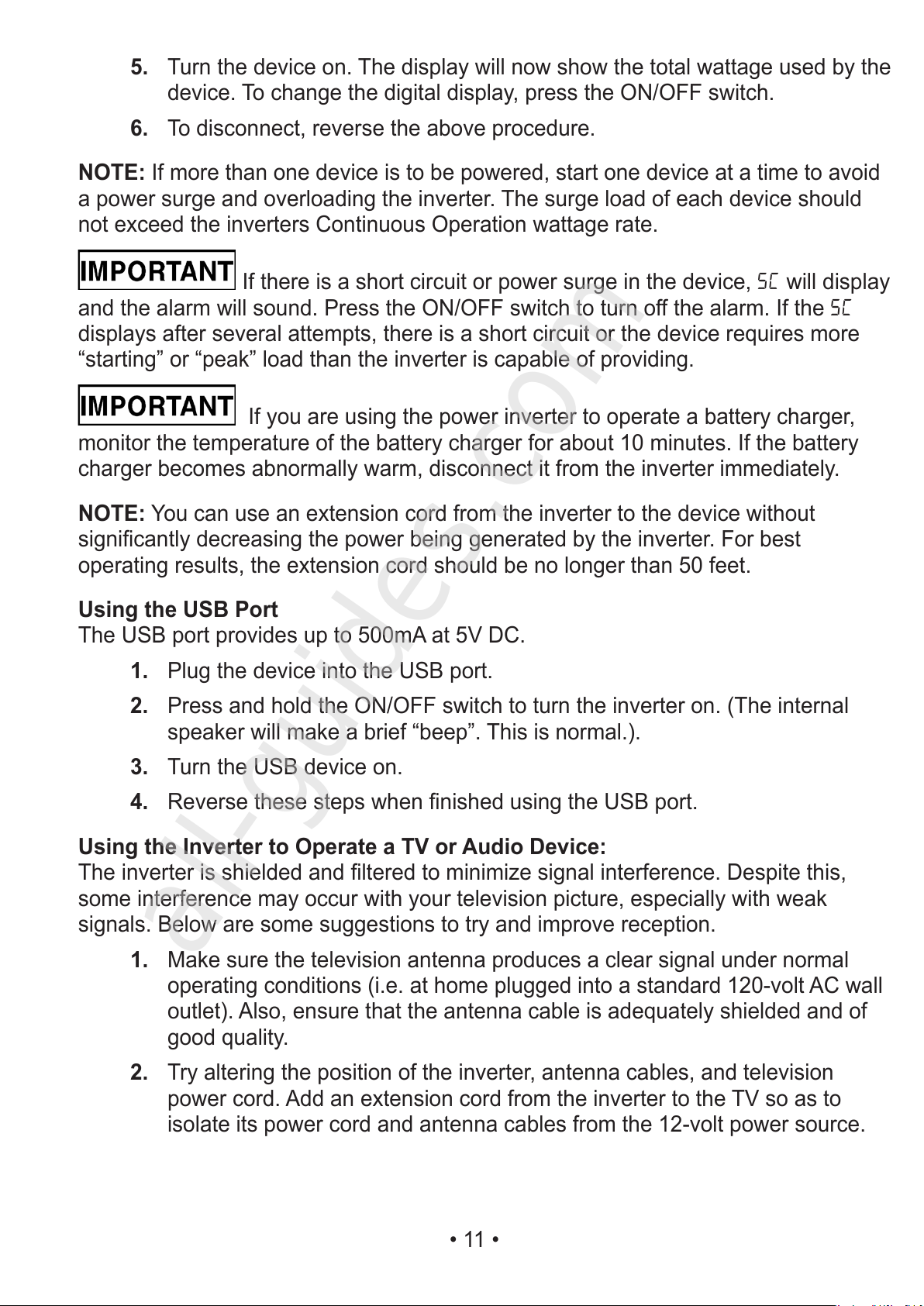

Turn the device on. The display will now show the total wattage used by the5.
device. To change the digital display, press the ON/OFF switch.
To disconnect, reverse the above procedure.6.
NOTE: If more than one device is to be powered, start one device at a time to avoid
a power surge and overloading the inverter. The surge load of each device should
not exceed the inverters Continuous Operation wattage rate.
If there is a short circuit or power surge in the device,  will display
and the alarm will sound. Press the ON/OFF switch to turn off the alarm. If the 
displays after several attempts, there is a short circuit or the device requires more
“starting” or “peak” load than the inverter is capable of providing.
If you are using the power inverter to operate a battery charger,
monitor the temperature of the battery charger for about 10 minutes. If the battery
charger becomes abnormally warm, disconnect it from the inverter immediately.
NOTE: You can use an extension cord from the inverter to the device without
signicantly decreasing the power being generated by the inverter. For best
operating results, the extension cord should be no longer than 50 feet.
Using the USB Port
The USB port provides up to 500mA at 5V DC.
Plug the device into the USB port.1.
Press and hold the ON/OFF switch to turn the inverter on. (The internal2.
speaker will make a brief “beep”. This is normal.).
Turn the USB device on.3.
Reverse these steps when nished using the USB port.4.
Using the Inverter to Operate a TV or Audio Device:
The inverter is shielded and ltered to minimize signal interference. Despite this,
some interference may occur with your television picture, especially with weak
signals. Below are some suggestions to try and improve reception.
Make sure the television antenna produces a clear signal under normal1.
operating conditions (i.e. at home plugged into a standard 120-volt AC wall
outlet). Also, ensure that the antenna cable is adequately shielded and of
good quality.
Try altering the position of the inverter, antenna cables, and television2.
power cord. Add an extension cord from the inverter to the TV so as to
isolate its power cord and antenna cables from the 12-volt power source.
All manuals and user guides at all-guides.com
all-guides.com

• 12 •
Try coiling the television power cord and the input cables running from the3.
12-volt power source to the inverter.
Afx one or several “Ferrite Data Line Filters” to the television power cord. 4.
Ferrite Data Line Filters can be purchased at most electronic supply stores.
NOTE: You may hear a “buzzing” sound being emitted from inexpensive sound
systems when operated with the inverter. This is due to ineffective lters in the
sound system’s power supply. Unfortunately, this problem can only be resolved by
purchasing a sound system with a higher quality power supply or higher quality lter.
POWER SOURCE6.
Your average automobile or marine battery at full charge will provide an ample power
supply to the inverter for approximately 3 hours when the engine is off. The actual
length of time the inverter will function depends on the age and condition of the
battery and the power demand being placed by the device being operated with the
inverter.
If you decide to use the inverter while the engine is off, we recommend you turn OFF
the device plugged into the inverter before starting the engine. To maintain battery
power, start the engine every 2 to 3 hours and let it run for approximately 10 minutes
to recharge the battery.
Although it is not necessary to disconnect the inverter when turning over the engine,
it may briey cease to operate as the battery voltage decreases. While the inverter
draws very low amperage when not in use, it should be unplugged to avoid battery
drain.
LED DISPLAY7.
The LED display identies the current status of the inverter.
VOLTS DC: The voltage of the vehicle’s battery, Portable Power jump starter or DC
power source.
VOLTS AC: The voltage supplied to the device through the AC receptacle.
WATTS: The power or wattage supplied to the device plugged into the inverter.
An audio alarm will sound when any of the following codes display. To stop the
alarm, press the ON/OFF switch:
• – The inverter is not functional. See warranty and call Customer Service
1-800-621-5485 (Hours: 7:00 am to 5:00 pm CST).
• – The vehicle’s battery voltage is more than 15.5-volts. The inverter will
automatically restart after the voltage drops below 15.0-volts.
All manuals and user guides at all-guides.com

• 13 •
• – The continuous load demand from the device exceeds the inverter’s
wattage output.
• – The inverter is overheated and automatically turns off for a period
of 1 to 3 minutes to cool. Make sure the inverter is well ventilated. It will
automatically restart after it cools.
• – The vehicle’s battery voltage is less than 10.5-volts.
• – Short circuit, power surge or overload in the device.
IF THE INVERTER FUSE BLOWS8.
Your power inverter is tted with a fuse, which should not have to be replaced under
normal operating conditions. A blown fuse is usually caused by reverse polarity or a
short circuit within the device or equipment being operated.
If the fuse does blow, take the inverter to a qualied technician for repair.
All manuals and user guides at all-guides.com

• 14 •

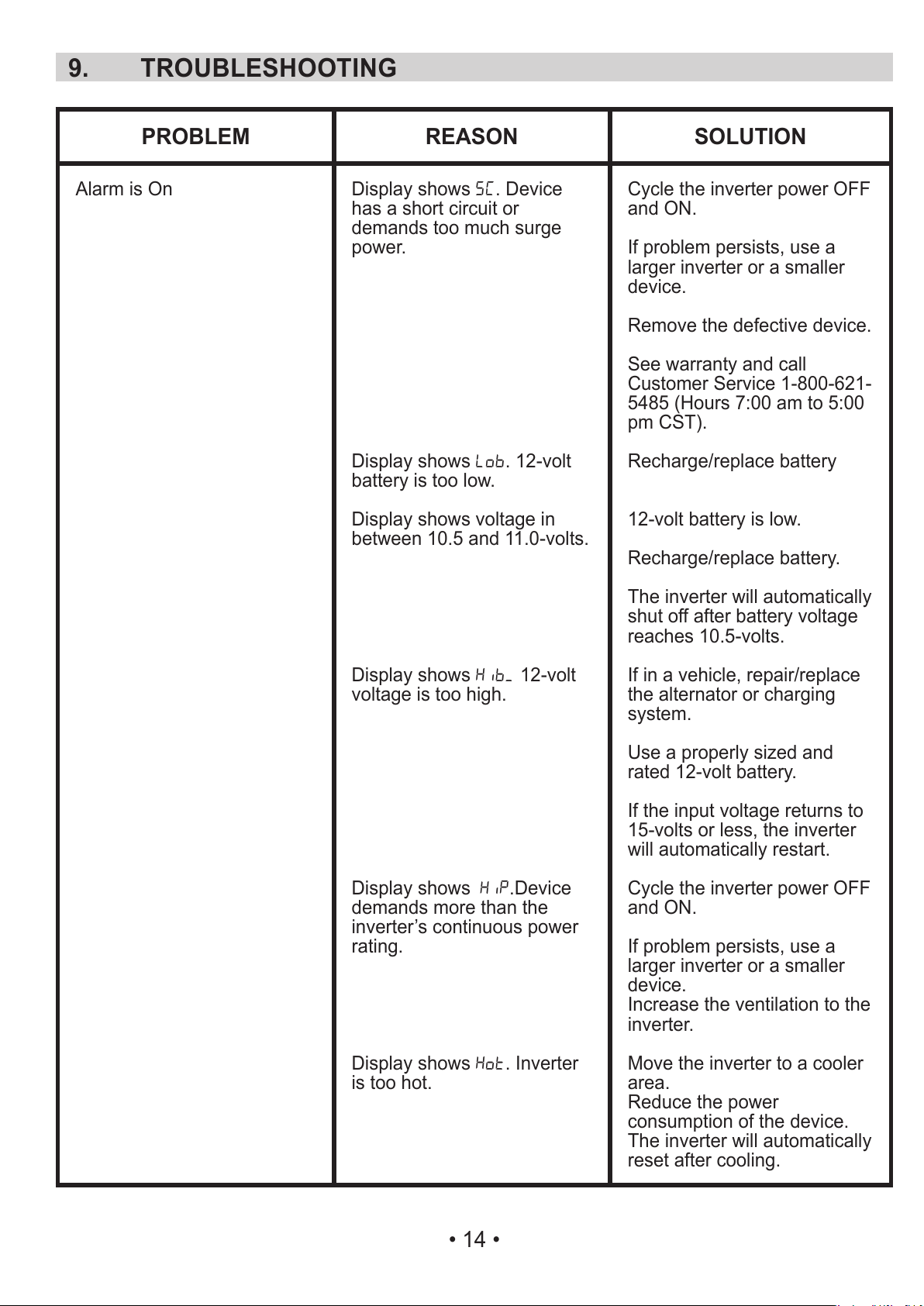

TROUBLESHOOTING9.
PROBLEM REASON SOLUTION
Alarm is On Display shows . Device
has a short circuit or
demands too much surge
power.
Display shows . 12-volt
battery is too low.
Display shows voltage in
between 10.5 and 11.0-volts.
Display shows . 12-volt
voltage is too high.
Display shows.Device
demands more than the
inverter’s continuous power
rating.
Display shows . Inverter
is too hot.
Cycle the inverter power OFF
and ON.
If problem persists, use a
larger inverter or a smaller
device.
Remove the defective device.
See warranty and call
Customer Service 1-800-621-
5485 (Hours 7:00 am to 5:00
pm CST).
Recharge/replace battery
12-volt battery is low.
Recharge/replace battery.
The inverter will automatically
shut off after battery voltage
reaches 10.5-volts.
If in a vehicle, repair/replace
the alternator or charging
system.
Use a properly sized and
rated 12-volt battery.
If the input voltage returns to
15-volts or less, the inverter
will automatically restart.
Cycle the inverter power OFF
and ON.
If problem persists, use a
larger inverter or a smaller
device.
Increase the ventilation to the
inverter.
Move the inverter to a cooler
area.
Reduce the power
consumption of the device.
The inverter will automatically
reset after cooling.
All manuals and user guides at all-guides.com

• 15 •
PROBLEM REASON SOLUTION

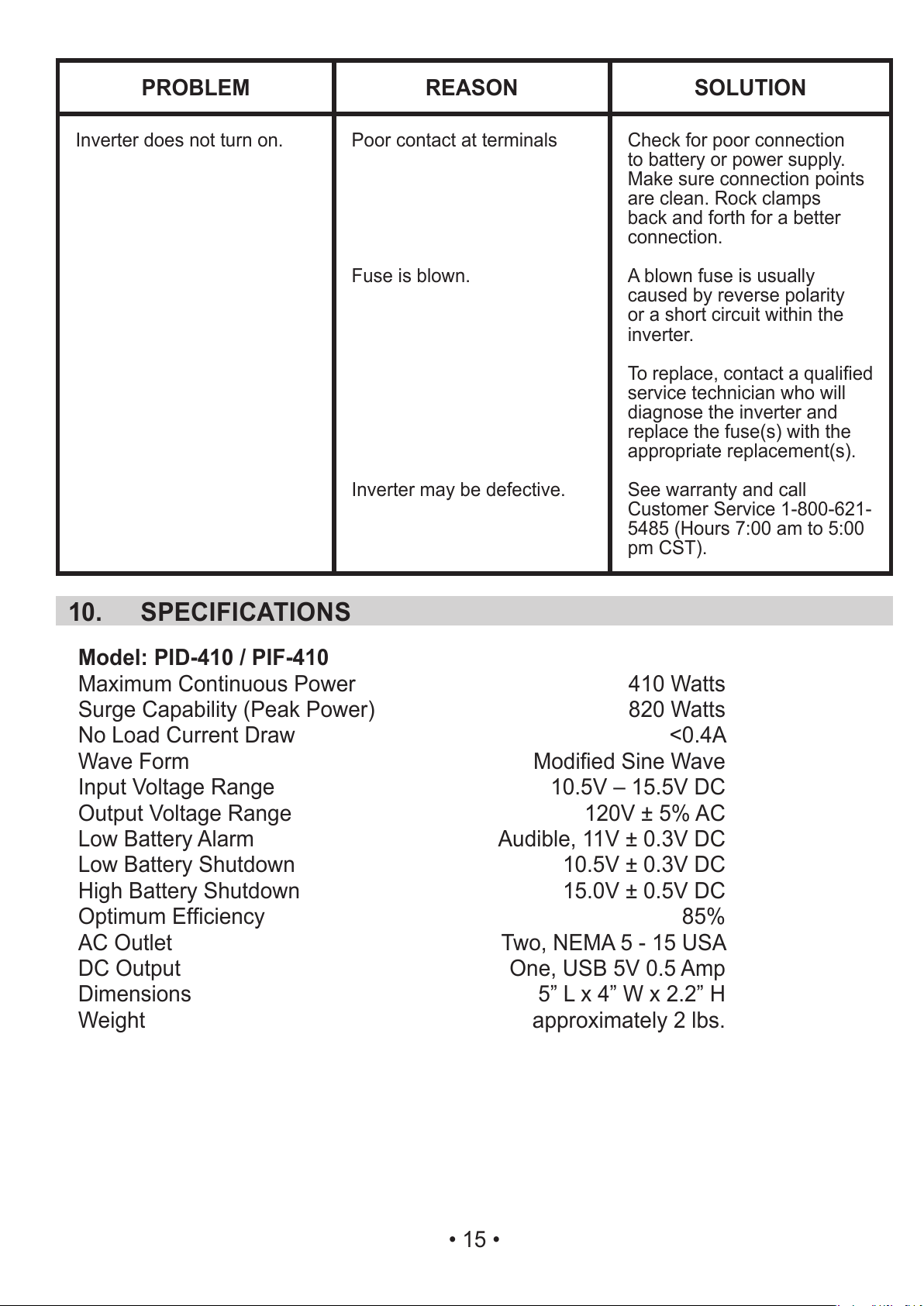

Inverter does not turn on. Poor contact at terminals
Fuse is blown.
Inverter may be defective.
Check for poor connection
to battery or power supply.
Make sure connection points
are clean. Rock clamps
back and forth for a better
connection.
A blown fuse is usually
caused by reverse polarity
or a short circuit within the
inverter.
To replace, contact a qualied
service technician who will
diagnose the inverter and
replace the fuse(s) with the
appropriate replacement(s).
See warranty and call
Customer Service 1-800-621-
5485 (Hours 7:00 am to 5:00
pm CST).
SPECIFICATIONS10.
Model: PID-410 / PIF-410
Maximum Continuous Power 410 Watts
Surge Capability (Peak Power) 820 Watts
No Load Current Draw <0.4A
Wave Form Modied Sine Wave
Input Voltage Range 10.5V – 15.5V DC
Output Voltage Range 120V ± 5% AC
Low Battery Alarm Audible, 11V ± 0.3V DC
Low Battery Shutdown 10.5V ± 0.3V DC
High Battery Shutdown 15.0V ± 0.5V DC
Optimum Efciency 85%
AC Outlet Two, NEMA 5 - 15 USA
DC Output One, USB 5V 0.5 Amp
Dimensions 5” L x 4” W x 2.2” H
Weight approximately 2 lbs.
All manuals and user guides at all-guides.com

• 16 •
Model: PID-760 / PIF-760
Maximum Continuous Power 760 Watts
Surge Capability (Peak Power) 1520 Watts
No Load Current Draw <0.6A
Wave Form Modied Sine Wave
Input Voltage Range 10.5V – 15.5V DC
Output Voltage Range 120V ± 5% AC
Low Battery Alarm Audible, 11V ± 0.3V DC
Low Battery Shutdown 10.5V ± 0.3V DC
High Battery Shutdown 15.0V – ± 0.5V DC
Optimum Efciency 85%
AC Outlet Two, NEMA 5 - 15 USA
DC Output One, USB 5V 0.5 Amp
Dimensions 8.5” L x 4” W x 2.2” H
Weight approximately 3.5 lbs.
REPLACEMENT PARTS11.
Model PID-410 / PIF-410
12V Accessory Plug with Cables 38-99-001511
Battery Cable with Clamps 38-99-001512
Model PID-760 / PIF-760
12V Accessory Plug with Cables 38-99-001511
Battery Cable with Clamps 38-99-001513
LIMITED WARRANTY12.
SCHUMACHER ELECTRIC CORPORATION, 801 BUSINESS CENTER DRIVE,
MOUNT PROSPECT, IL 60056-2179, MAKES THIS LIMITED WARRANTY TO THE
ORIGINAL RETAIL PURCHASER OF THIS PRODUCT. THIS LIMITED WARRANTY
IS NOT TRANSFERABLE OR ASSIGNABLE.
Schumacher Electric Corporation (the “Manufacturer”) warrants this inverter for two
years from the date of purchase at retail against defective material or workmanship
that may occur under normal use and care. If your unit is not free from defective
material or workmanship, Manufacturers obligation under this warranty is solely to
repair or replace your product, with a new or reconditioned unit, at the option of the
Manufacturer. It is the obligation of the purchaser to forward the unit, along with
mailing charges prepaid to the Manufacturer or its authorized representatives in
order for repair or replacement to occur.
All manuals and user guides at all-guides.com
all-guides.com

• 17 •

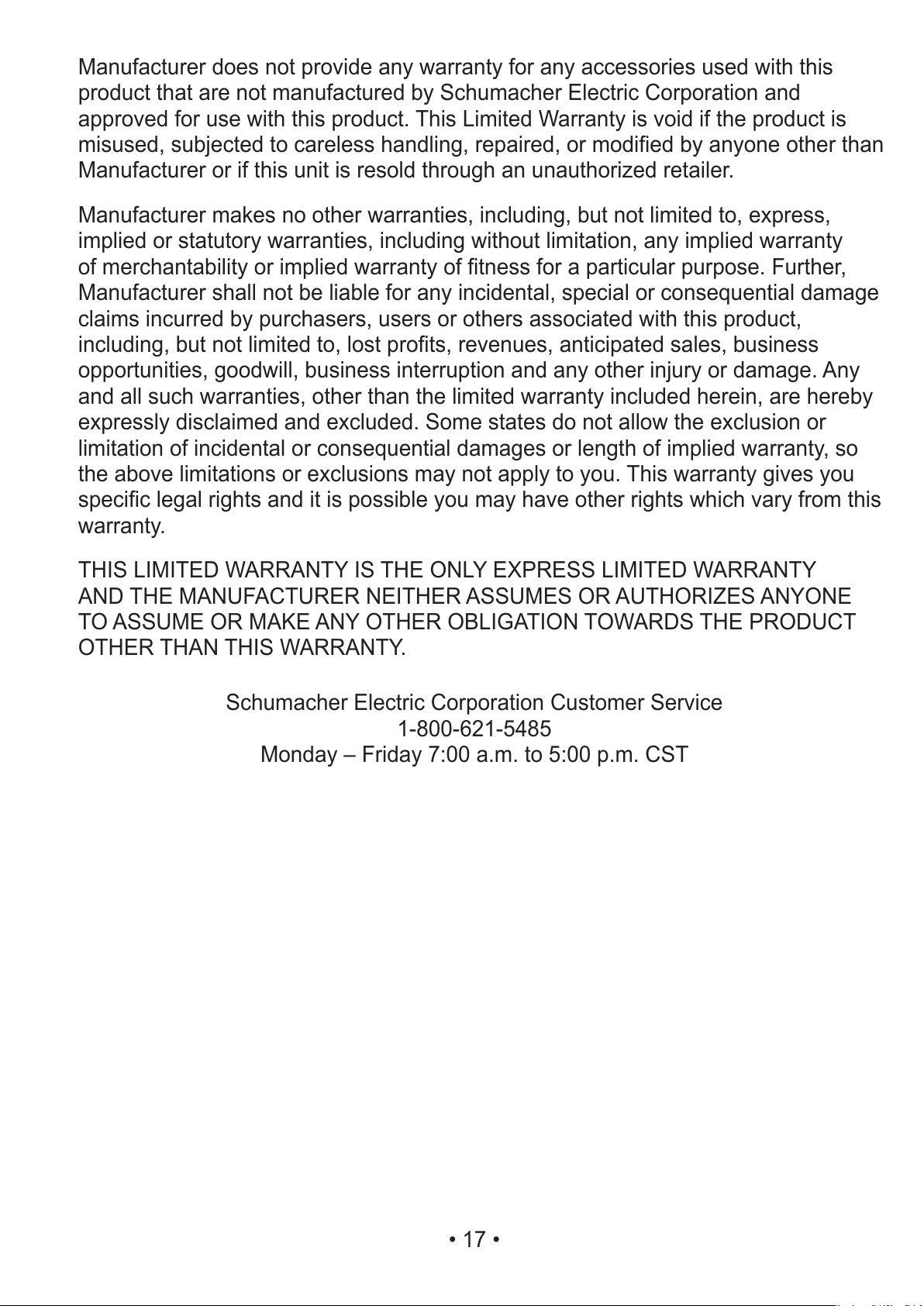

Manufacturer does not provide any warranty for any accessories used with this
product that are not manufactured by Schumacher Electric Corporation and
approved for use with this product. This Limited Warranty is void if the product is
misused, subjected to careless handling, repaired, or modied by anyone other than
Manufacturer or if this unit is resold through an unauthorized retailer.
Manufacturer makes no other warranties, including, but not limited to, express,
implied or statutory warranties, including without limitation, any implied warranty
of merchantability or implied warranty of tness for a particular purpose. Further,
Manufacturer shall not be liable for any incidental, special or consequential damage
claims incurred by purchasers, users or others associated with this product,
including, but not limited to, lost prots, revenues, anticipated sales, business
opportunities, goodwill, business interruption and any other injury or damage. Any
and all such warranties, other than the limited warranty included herein, are hereby
expressly disclaimed and excluded. Some states do not allow the exclusion or
limitation of incidental or consequential damages or length of implied warranty, so
the above limitations or exclusions may not apply to you. This warranty gives you
specic legal rights and it is possible you may have other rights which vary from this
warranty.
THIS LIMITED WARRANTY IS THE ONLY EXPRESS LIMITED WARRANTY
AND THE MANUFACTURER NEITHER ASSUMES OR AUTHORIZES ANYONE
TO ASSUME OR MAKE ANY OTHER OBLIGATION TOWARDS THE PRODUCT
OTHER THAN THIS WARRANTY.
Schumacher Electric Corporation Customer Service
1-800-621-5485
Monday – Friday 7:00 a.m. to 5:00 p.m. CST
All manuals and user guides at all-guides.com

• 18 •

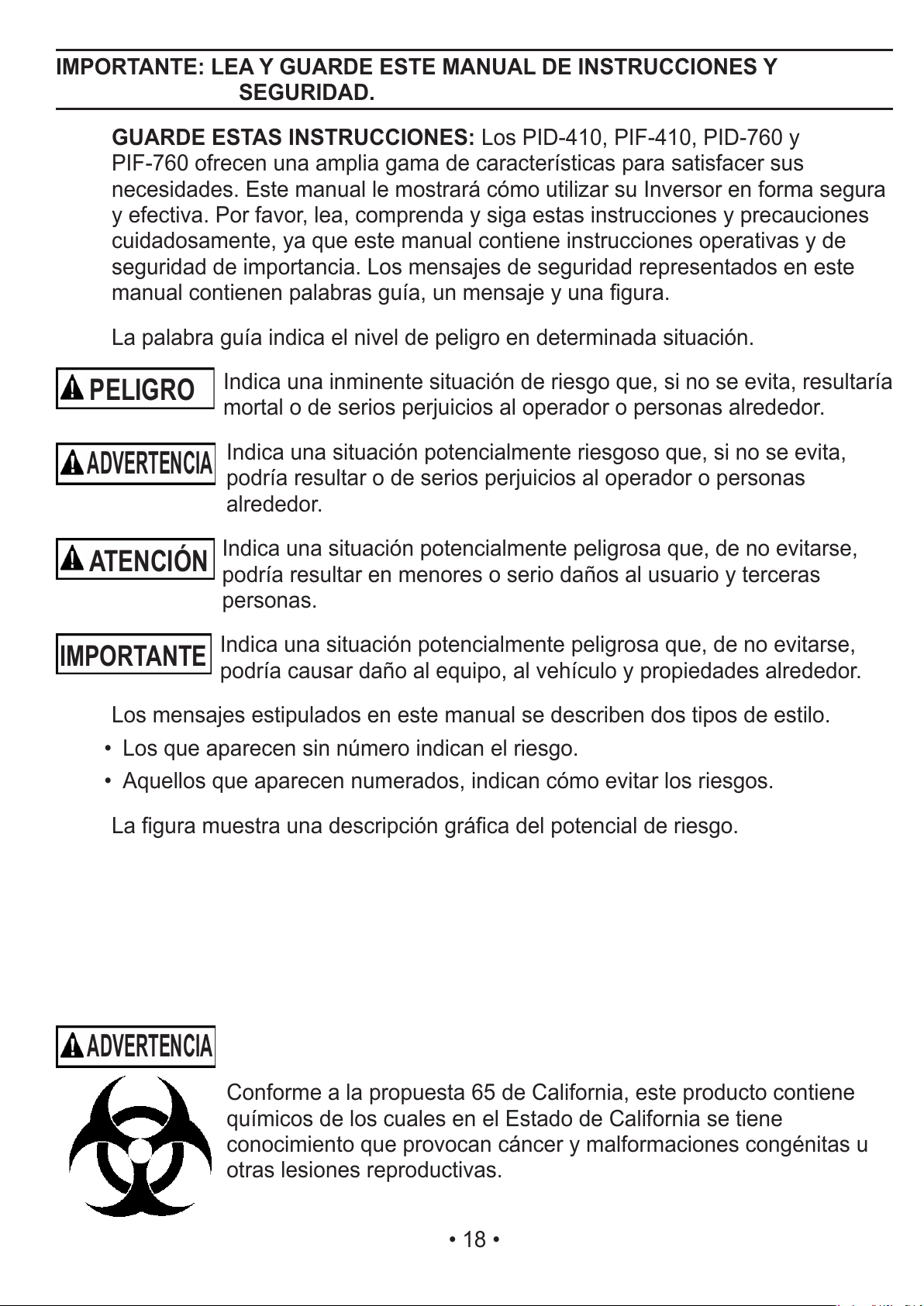

IMPORTANTE: LEA Y GUARDE ESTE MANUAL DE INSTRUCCIONES Y
SEGURIDAD.
GUARDE ESTAS INSTRUCCIONES: Los PID-410, PIF-410, PID-760 y
PIF-760 ofrecen una amplia gama de características para satisfacer sus
necesidades. Este manual le mostrará cómo utilizar su Inversor en forma segura
y efectiva. Por favor, lea, comprenda y siga estas instrucciones y precauciones
cuidadosamente, ya que este manual contiene instrucciones operativas y de
seguridad de importancia. Los mensajes de seguridad representados en este
manual contienen palabras guía, un mensaje y una gura.
La palabra guía indica el nivel de peligro en determinada situación.
Indica una inminente situación de riesgo que, si no se evita, resultaría
mortal o de serios perjuicios al operador o personas alrededor.
Indica una situación potencialmente riesgoso que, si no se evita,
podría resultar o de serios perjuicios al operador o personas
alrededor.
Indica una situación potencialmente peligrosa que, de no evitarse,
podría resultar en menores o serio daños al usuario y terceras
personas.
Indica una situación potencialmente peligrosa que, de no evitarse,
podría causar daño al equipo, al vehículo y propiedades alrededor.
Los mensajes estipulados en este manual se describen dos tipos de estilo.
Los que aparecen sin número indican el riesgo.•
Aquellos que aparecen numerados, indican cómo evitar los riesgos.•
La gura muestra una descripción gráca del potencial de riesgo.
Conforme a la propuesta 65 de California, este producto contiene
químicos de los cuales en el Estado de California se tiene
conocimiento que provocan cáncer y malformaciones congénitas u
otras lesiones reproductivas.
PELIGRO
ADVERTENCIA
ATENCIÓN
IMPORTANTE
ADVERTENCIA
All manuals and user guides at all-guides.com

• 19 •
INSTRUCCIONES IMPORTANTES DE SEGURIDAD1.
GUARDE ESTAS INSTRUCCIONES
El riesgo de descarga eléctrica o incendio
Para un uso más eciente, coloque el Inversor de poder sobre una supercie 1.1
plana.
Mantenga el Inversor bien ventilado para dispersar apropiadamente el calor1.2
generado cuando está en uso. Asegúrese de que haya varias pulgadas de
libramiento alrededor de la parte superior y lados y no bloquee las ranuras del
Inversor.
Asegúrese de que el Inversor no esté cerca de ninguna fuente potencial de1.3
gases inamables, gases o ropa.
No coloque el Inversor en áreas tales como compartimientos de baterías o1.4
compartimientos del motor donde los vapores o gases pueden acumularse.
Mantenga el Inversor seco.1.5
NO OPERE el Inversor si usted, el Inversor, el dispositivo a ser operado o1.6
cualquier otra supercie puede entrar en contacto con cualquier fuente de
energía que está húmeda. El agua y muchos otros líquidos pueden conducir
electricidad, lo cual puede llevar a una lesión seria o la muerte.
No coloque el Inversor sobre o cerca de ventilas de calefacción, radiadores u1.7
otras fuertes de calor o materiales inamables.
No coloque el Inversor en la luz directa del sol. La temperatura del aire ideal1.8
para la operación es entre 50° y 80°F.
Solamente conecte el Inversor de energía a una batería de 12 V o a un fuente1.9
de poder. No intente conectar el Inversor a cualquier otra fuente de energía,
incluyendo una fuente de energía de CA (corriente alterna). El conectarlo a
una batería de 6 V o 16 V dañará el Inversor.
Asegúrese de que la clavija de CA estén ajustadas.1.10
No modique la toma de CA de ninguna manera.1.11
No trate de extender o cambiar de forma alguna el cable de corriente de 12 V1.12
sujeto a su Inversor. Asegúrese de que las conexiones queden bien sujetas.
La operación incorrecta de su Inversor puede resultar en daño y lesión1.13
personal.
ADVERTENCIA
La salida del Inversor es de 110 V CA y puede dar
una descarga o electrocutar igual que cualquier toma de corriente de pared
doméstica de CA ordinaria.
All manuals and user guides at all-guides.com

• 20 •
No utilice el inversor con un producto que absorba mayor cantidad de watts1.14
que el inversor pueda proveer, esto podría causar daño al inversor y al
producto.
No abrir - No contiene partes que el usuario pueda reparar.1.15
Este dispositivo no incluye un Interruptor de Circuito con Conexión a Tierra1.16
(GFCI por sus siglas en inglés) interno.
CARACTERÍSTICAS DEL INVERSOR2.
Botón ENCENDIDO/APAGADO (ON/OFF)1.
Pantalla digital2.
Dos Tomas de Corriente Eléctrica Estándar de 110 V de CA3.
Un Puerto USB de 5V4.
Clavija de 12 V Energía5.
Abrazaderas de Batería6.
Abanico Criador de Alta Velocidad7.
Protección Contra Batería Baja8.
ANTES DE USAR SU INVERSOR DE ENERGÍA3.
NOTA: Este inversor está diseñado para ser usado con una sola batería, de hasta el
tipo del grupo 31 (de medida chica o de 130h)
NOTA: No utilice el inversor con un producto que absorba mayor cantidad de watts
que el inversor pueda proveer, esto podría causar daño al inversor y al producto.
Cuando usted enciende un dispositivo o una herramienta que funciona con un
motor, el dispositivo básicamente pasa a través de dos etapas:
Arranque - Requiriendo una subida inicial de voltaje (comúnmente1.
conocida como "carga de inicio o pico").
Operación Continua - el consumo de energía desciende (comúnmente2.
conocido como la "carga continua").
El vataje (WATTS) o amperaje (AMPS) pueden ser encontrados normalmente
estampados o impresos en la mayoría de los dispositivos y equipo, o en el manual
del usuario. Por lo demás, comuníquese con el fabricante para averiguar si el
dispositivo que usted quiere usar es compatible con una onda senoidal modicada.
Para calcular el vataje: Vataje = AMPS x 120 (Voltaje CA).
Para calcular la carga de arranque: Carga de Arranque = 2 x WATTS. En general,
la carga de arranque del dispositivo o herramienta eléctrica determina si su Inversor
tiene la capacidad de hacerlo funcionar.
All manuals and user guides at all-guides.com
