Schumacher PI-200 User manual

0099001246-00
Power Inverter
Convertidor de Energía
Converts 12V DC Battery Power
to 120V AC Household Power
Convierte la Energía de Baterías de 12V de CC
a 120V de CA de Energía Doméstica
Models / Modelos:
PI-200, PI-400, PI-750, XI41B
OWNER’S MANUAL
MANUAL DEL USUARIO
READ THE ENTIRE MANUAL BEFORE USING THIS
PRODUCT. FAILURE TO DO SO COULD RESULT IN
SERIOUS INJURY OR DEATH.
LEA EL MANUAL COMPLETO ANTES DE UTILIZAR ESTE
PRODUCTO. CUALQUIER FALLA PODRÍA RESULTAR EN
SERIAS LESIONES O PODRÍA SER MORTAL.
DO NOT RETURN THIS PRODUCT TO THE STORE!
Call Customer Service for assistance: 800-621-5485
¡NO LO DEVUELVA ESTE PRODUCTO A LA TIENDA!
Llame a Servicios al Cliente para asistencia: 800-621-5485

• 2 •
IMPORTANT: READ AND SAVE THIS SAFETY AND INSTRUCTION
MANUAL.
SAVE THESE INSTRUCTIONS – This manual will show you how
to use your inverter safely and effectively. Please read, understand
and follow these instructions and precautions carefully, as this
manual contains important safety and operating instructions. The
safety messages used throughout this manual contain a signal
word, a message and an icon.
The signal word indicates the level of the hazard in a situation.
Indicates an imminently hazardous situation which, if
not avoided, will result in death or serious injury to the
operator or bystanders.
Indicates a potentially hazardous situation which, if not
avoided, could result in death or serious injury to the
operator or bystanders.
Indicates a potentially hazardous situation which, if not
avoided, could result in moderate or minor injury to the
operator or bystanders.
Indicates a potentially hazardous situation which, if not
avoided, could result in damage to the equipment or
vehicle or property damage.
Pursuant to California Proposition 65, this product
contains chemicals known to the State of California to
cause cancer and birth defects or other reproductive
harm. Wash hands after handling.
IMPORTANT SAFETY INSTRUCTIONS –1. SAVE THESE INSTRUCTIONS.
This manual contains important safety and operating instructions.
RISK OF ELECTRIC SHOCK OR FIRE.
Keep out of reach of children.1.1
Keep the inverter well ventilated in order1.2
to properly disperse heat generated while it
is in use. Make sure there are several inches
of clearance around the top and sides and do
not block the slots of the inverter.

• 3 •
Make sure the inverter is not close to any potential source of1.3 ammable fumes or clothing.
Do not place the inverter in areas such as battery compartments1.4 or engine compartments where fumes may accumulate.
Keep the inverter dry.1.5
DO NOT allow the inverter to come into contact with rain or moisture.1.6
DO NOT operate the inverter if you, the inverter, the device being1.7 operated or any other surfaces that may come into contact with
any power source are wet. Water and many other liquids can
conduct electricity, which may lead to serious injury or death.
Do not place the inverter on or near heating vents, radiators or1.8 other sources of heat or ammable materials.
Do not place the inverter in direct sunlight. The ideal air1.9 temperature for operation is between 50° and 80°F.
Only connect the power inverter to a 12-volt accessory outlet. Do1.10 not attempt to connect the inverter to any other power source,
including an AC power source. Connecting to a 6-volt or 16-volt
battery will cause damage to the inverter.
Make sure the AC plug connection is tight.1.11
Do not modify the inverter in any way including cables, plugs or1.12 switches as it may result in property damage or personal injury.
1.13 Incorrect operation of your inverter may result in
damage and personal injury. The inverter output is 120V AC and
can shock or electrocute the same as any ordinary household AC
wall outlet.
Do not open – no user serviceable parts inside.1.14
This device does not include an internal Ground Fault Circuit1.15 Interrupter (GFCI).
BEFORE USING YOUR POWER INVERTER2.
NOTE: This inverter is designed to be used with a single battery,
up to group 31 (130 Ah or smaller). The recommended source of
power is a 12 volt deep cycle battery, due to their high reserve
capacity. Automotive batteries are recommended for only a short
period of time of an hour or less.

• 4 •
NOTE: Do not use the inverter with a product that draws a higher
wattage than the inverter can provide, as this may cause damage to
the inverter and product.
When you turn on a device or a tool that runs on a motor, the device
basically goes through two stages:
Start Up – Requiring an initial surge of power (commonly1. known as the “starting or peak load”).
Continuous Operation – Power consumption drops (commonly2. known as the “continuous load”).
The wattage (WATTS) or amperes (AMPS) can normally be found
stamped or printed on most devices and equipment, or in the
user’s manual. Otherwise, contact the manufacturer to nd out
whether the device you want to use is compatible with a modied
sine wave.
To calculate the wattage: Wattage = AMPS x 120 (AC Voltage).
To calculate the starting load: Starting Load = 2 x WATTS. In
general, the start up load of the device or power tool determines
whether your inverter has the capability to power it.
To calculate the continuous load: Continuous Load = AMPS x 120
(AC Voltage).
Always run a test to establish whether the inverter will
operate a particular piece of equipment or device. In the event of a
power overload, the inverter is designed to automatically shut down.
This safety feature prevents damaging the inverter while testing
devices and equipment within the wattage range of the inverter.
When using the vehicle’s 12 volt accessory port, this
inverter is designed to supply 60 to 70 watts when the vehicle is
not running. With the vehicle’s engine running, it can supply up to
100 watts. To use the full output, you must connect the inverter
directly to your battery.
NOTE: The 100 watt limit is to accommodate the fuse ratings
for all vehicles. Some vehicles may allow the full output. If the
fuse blows when you switch on the device you are trying to use,
you have to either use a smaller device or you must connect the
inverter directly to the battery.

• 5 •
This inverter uses a nonsinusoidal waveform.
Therefore, we do not recommend you use it to power the
following devices:
Switch mode power supplies1.
Linear power supplies2.
Class 2 transformers3.
Line lter capacitors4.
Shaded pole motors5.
Fan motors6.
Microwave ovens7.
Fluorescent and high intensity lamps (with a ballast)8.
Transformerless battery chargers9.
Doing so may cause the device to run warmer or overheat.
FASTENING THE INVERTER TO A FLAT SURFACE3.
For convenience, your inverter can be fastened to a at surface,
horizontally or vertically. The area where the inverter is to
be fastened must be dry, well ventilated and away from any
combustible material or fumes.
Turn off and disconnect the inverter.1.
Place the back of the inverter with the mounting bracket2. against a secure and at surface.
Attach the inverter to the at surface using corrosion-resistant 3. screws.
CONNECTING INVERTER CABLES4.
The inverter and power source must be in the OFF mode.
Make sure you connect your inverter to a 12-volt
power supply only.
Inverter connection (Models PI-400, PI-750 and XI41B):
Locate the positive and negative plastic terminals located on the1. back of the inverter and remove the terminal caps completely.
Install the positive (red) cable ring lug onto the positive (red)2. terminal screw. Install the negative (black) cable ring lug onto
the negative (black) terminal screw. Tighten each terminal, so
that the cable cannot come loose.

• 6 •
Connecting inverter cable to a vehicle (100 watts maximum)
[All models]:
Remove the cigarette lighter from its outlet.1.
Push the 12-volt power plug rmly into the outlet.2.
Connecting inverter cables to 12V battery or 12V power source
(Models PI-400, PI-750 and XI41B):
Keep hands, hair, clothing and jewelry clear of battery terminals.1.
Wear eye protection and protective clothing.2.
Connect the positive (red) inverter terminal cable to the3. power source positive (+) or battery terminal. Make sure the
connection is secure.
Connect the negative (black) inverter terminal cable to the4. power source negative (-) or battery terminal. Make sure the
connection is secure.
To disconnect the inverter, reverse the above steps.5.
NOTE: The internal speaker may make a brief “beep” when the
inverter is being connected to or disconnected from the 12-volt
power source.
Failure to make the correct connections will result in
blown fuses and permanent damage to the inverter.
OPERATING INSTRUCTIONS5.
Connect the inverter (see “CONNECTING INVERTER1. CABLES” section).
Make sure the device to be operated is turned OFF.2.
Plug the device into the inverter AC outlet.3.
Switch the inverter’s ON/OFF switch to the ON position.4.
Turn the device on.5.
To disconnect, reverse the above procedure.6.
NOTE: If more than one device is to be powered, start one device
at a time to avoid a power surge and overloading the inverter.
The surge load of each device should not exceed the inverter’s
Continuous Operation wattage rate.

• 7 •
If you are using the power inverter to operate a
battery charger, monitor the temperature of the battery charger for
about 10 minutes. If the battery charger becomes abnormally
warm, disconnect it from the inverter immediately.
NOTE: You can use an extension cord from the inverter to the
device without signicantly decreasing the power being generated
by the inverter. For best operating results, the extension cord
should be no longer than 50 feet.
Using the Inverter to operate a TV or audio device:
The inverter is shielded and ltered to minimize signal
interference. Despite this, some interference may occur with your
television picture, especially with weak signals. Below are some
suggestions to try and improve reception.
Make sure the television antenna produces a clear signal1. under normal operating conditions (i.e. at home plugged into
a standard 120-volt AC wall outlet). Also, ensure that the
antenna cable is adequately shielded and of good quality.
Try altering the position of the inverter, antenna cables, and2. television power cord. Add an extension cord from the inverter
to the TV so as to isolate its power cord and antenna cables
from the 12-volt power source.
Try coiling the television power cord and the input cables3. running from the 12-volt power source to the inverter.
Afx one or several “Ferrite Data Line Filters” to the television 4. power cord. Ferrite Data Line Filters can be purchased at
most electronic supply stores.
NOTE: You may hear a “buzzing” sound being emitted from
inexpensive sound systems when operated with the inverter. This
is due to ineffective lters in the sound system’s power supply.
Unfortunately, this problem can only be resolved by purchasing a
sound system with a higher quality power supply or higher quality lter.

• 8 •
POWER SOURCE6.
To get the best performance out of your inverter, we recommend that
you use it with the vehicle’s engine running.
Your average automobile or marine battery at full charge will provide
an ample power supply to the inverter for approximately 3 hours when
the engine is off. The actual length of time the inverter will function
depends on the age and condition of the battery and the power
demand being placed by the device being operated with the inverter.
If you decide to use the inverter while the engine is off, we
recommend you turn OFF the device plugged into the inverter
before starting the engine. To maintain battery power, start the
engine every 2 to 3 hours and let it run for approximately 10
minutes to recharge the battery.
Although it is not necessary to disconnect the inverter when turning
over the engine, it may briey cease to operate as the battery
voltage decreases. While the inverter draws very low amperage
when not in use, it should be unplugged to avoid battery drain.
LED INDICATOR AND SHUTDOWN PROTECTION7.
The LED glows GREEN automatically when plugged into a 12-volt
DC source, but will not glow under the following conditions:
When the power input from the vehicle’s battery drops to1. approximately 10-volts, low battery shutdown occurs and
inverter shuts off. Solution: Recharge or Replace the battery.
When the power input from the vehicle’s battery exceeds2. 15-volts, high voltage overload protection occurs. Solution:
Reduce the voltage range to between 12-volts and 14-volts.
The continuous load demand from the equipment or device3. being operated exceeds the continuous load rating of the
inverter being used. Solution: Use a higher capacity inverter
or lower rated device.
The case temperature becomes hot (exceeds 145°F).4. Solution: Allow the inverter to cool. Do not block the cooling
slots or air ow over and through the inverter. Reduce the
load on the inverter to the continuous rated output.

• 9 •
RESET: To reset after shutdown occurs:
Disconnect the inverter from the 12V power source.1.
Check the source of the problem and correct.2.
Reconnect the inverter to the 12V power source.3.
NOTE: If the red LED is lit and the green LED is not, see the
Troubleshooting section.
IF THE INVERTER FUSE BLOWS8.
Your power inverter is tted with a fuse, which should not have
to be replaced under normal operating conditions. A blown fuse
is usually caused by reverse polarity or a short circuit within the
device or equipment being operated.
If the fuse does blow:
Disconnect the device or equipment immediately.1.
Find the source of the problem and repair it.2.
Install a new fuse (25-amp for Models PI-200, PI-400 and3. XI41B; 45-amp for Model PI-750). The fuse can be found on
the right side of the inverter. NOTE: If you are using the 12V
accessory plug to power the inverter, there is also a 15-amp
fuse in the end of the plug.
Do not install a fuse with a higher amp rating than
the original fuse, as this may damage the inverter and any product
you use with the inverter. Make sure to correct the cause of the
blown fuse before using the inverter again.

• 10 •
TROUBLESHOOTING9.
PROBLEM REASON SOLUTION
Red LED is on,
audible alarm
is on, and/or
inverter does not
function.
Poor contact at
terminals.
Fuse blown.
Inverter
shutdown.
Inverter may
not be working
properly.
Unplug and reinsert the
12-volt plug or check
connections at power supply.
See “IF THE INVERTER
FUSE BLOWS” section.
See “LED INDICATOR
AND SHUTDOWN
PROTECTION” section.
See Warranty and call
Customer Service
1-800-621-5485 (Hours:
7:00 am – 5:00 pm CST).
The red LED is
lit and the green
LED is not.
12V Accessory
plug or clips are
not making a
good connection
to the battery.
Connections are
reversed.
Inverter may
not be working
properly.
Check for poor connection
to battery and frame. Make
sure connection points
are clean. Rock clips
back and forth for a better
connection.
Unplug the charger and
reverse the clips.
See Warranty and call
Customer Service
1-800-621-5485 (Hours:
7:00 am – 5:00 pm CST)

• 11 •
SPECIFICATIONS10.
Model: PI-200
Maximum Continuous Power ..........................................200 Watts
Surge Capability (Peak Power).......................................400 Watts
No Load Current Draw .......................................................... <0.3A
Wave Form......................................................Modied Sine Wave
Input Voltage Range...........................................10.5V – 15.5V DC
Output Voltage Range............................................. 120V ± 5% AC
Low Battery Alarm.....................................Audible, 11V ± 0.3V DC
Low Battery Shutdown .........................................10.5V ± 0.3V DC
High Battery Shutdown ........................................15.5V ± 0.5V DC
Optimum Efciency ................................................................. 85%
AC Outlet................................................... One, NEMA 5 - 15 USA
Fuse ....................................................One, 25-Amp (Spade Type)
Dimensions ............................................. 6.5" L x 3.38" W x 2.2" H
Weight..........................................................approximately 1.6 lbs.
Model: PI-400
Maximum Continuous Power ..........................................400 Watts
Surge Capability (Peak Power).......................................800 Watts
No Load Current Draw .......................................................... <0.4A
Wave Form......................................................Modied Sine Wave
Input Voltage Range...........................................10.5V – 15.5V DC
Output Voltage Range............................................. 120V ± 5% AC
Low Battery Alarm.....................................Audible, 11V ± 0.3V DC
Low Battery Shutdown ...........................................10.5V ± .3V DC
High Battery Shutdown ........................................15.5V ± 0.5V DC
Optimum Efciency ................................................................. 85%
AC Outlet................................................... Two, NEMA 5 - 15 USA
Fuse ....................................................Two, 25-Amp (Spade Type)
Dimensions ............................................. 6.5" L x 4.13" W x 2.2" H
Weight.............................................................approximately 2 lbs.

• 12 •
Model: PI-750
Maximum Continuous Power ..........................................750 Watts
Surge Capability (Peak Power).....................................1500 Watts
No Load Current Draw .......................................................... <0.4A
Wave Form......................................................Modied Sine Wave
Input Voltage Range...........................................10.5V – 15.5V DC
Output Voltage Range............................................. 120V ± 5% AC
Low Battery Alarm.....................................Audible, 11V ± 0.3V DC
Low Battery Shutdown .........................................10.5V ± 0.3V DC
High Battery Shutdown ......................................15.0V – 16.0V DC
Optimum Efciency ................................................................. 85%
AC Outlet................................................... Two, NEMA 5 - 15 USA
Fuse ....................................................Two, 45-Amp (Spade Type)
Dimensions .................................................. 8.5" L x 4" W x 2.2" H
Weight..........................................................approximately 3.5 lbs.
Model: XI41B
Maximum Continuous Power ..........................................400 Watts
Surge Capability (Peak Power).......................................800 Watts
No Load Current Draw .......................................................... <0.4A
Wave Form......................................................Modied Sine Wave
Input Voltage Range...........................................10.5V – 15.5V DC
Output Voltage Range............................................. 120V ± 5% AC
Low Battery Alarm.....................................Audible, 11V ± 0.3V DC
Low Battery Shutdown ...........................................10.5V ± .3V DC
High Battery Shutdown ........................................15.5V ± 0.5V DC
Optimum Efciency ................................................................. 85%
AC Outlet................................................... Two, NEMA 5 - 15 USA
Fuse ....................................................Two, 25-Amp (Spade Type)
Dimensions ............................................. 6.5" L x 4.13" W x 2.2" H
Weight.............................................................approximately 2 lbs.

• 13 •
REPLACEMENT PARTS11.
Fuses –Replacement fuses can be purchased at most electronic
component retailers.
Models PI-400 and XI41B:
12V accessory plug with cables............................... 38-99-001511
Battery cable with clamps ........................................ 38-99-001512
Model PI-750:
Battery cable with clamps ........................................ 38-99-001534
LIMITED WARRANTY12.
SCHUMACHER ELECTRIC CORPORATION, 801 BUSINESS
CENTER DRIVE, MOUNT PROSPECT, IL 60056-2179, MAKES
THIS LIMITED WARRANTY TO THE ORIGINAL RETAIL
PURCHASER OF THIS PRODUCT. THIS LIMITED WARRANTY
IS NOT TRANSFERABLE OR ASSIGNABLE.
Schumacher Electric Corporation (the “Manufacturer”) warrants
this inverter for two years from the date of purchase at retail
against defective material or workmanship that may occur under
normal use and care. If your unit is not free from defective material
or workmanship, Manufacturers obligation under this warranty is
solely to repair or replace your product, with a new or reconditioned
unit, at the option of the Manufacturer. It is the obligation of the
purchaser to forward the unit, along with proof of purchase and
mailing charges prepaid to the Manufacturer or its authorized
representatives in order for repair or replacement to occur.
Manufacturer does not provide any warranty for any accessories
used with this product that are not manufactured by Schumacher
Electric Corporation and approved for use with this product. This
Limited Warranty is void if the product is misused, subjected to
careless handling, repaired, or modied by anyone other than
Manufacturer or if this unit is resold through an unauthorized retailer.

• 14 •
Manufacturer makes no other warranties, including, but not limited
to, express, implied or statutory warranties, including without
limitation, any implied warranty of merchantability or implied
warranty of tness for a particular purpose. Further, Manufacturer
shall not be liable for any incidental, special or consequential
damage claims incurred by purchasers, users or others associated
with this product, including, but not limited to, lost prots,
revenues, anticipated sales, business opportunities, goodwill,
business interruption and any other injury or damage. Any and all
such warranties, other than the limited warranty included herein,
are hereby expressly disclaimed and excluded. Some states do
not allow the exclusion or limitation of incidental or consequential
damages or length of implied warranty, so the above limitations or
exclusions may not apply to you. This warranty gives you specic
legal rights and it is possible you may have other rights which vary
from this warranty.
THIS LIMITED WARRANTY IS THE ONLY EXPRESS LIMITED
WARRANTY AND THE MANUFACTURER NEITHER ASSUMES
OR AUTHORIZES ANYONE TO ASSUME OR MAKE ANY
OTHER OBLIGATION TOWARDS THE PRODUCT OTHER
THAN THIS WARRANTY.
Schumacher Electric Corporation Customer Service
1-800-621-5485
Monday – Friday 7:00 a.m. to 5:00 p.m. CST
To activate the warranty, please ll in the warranty registration card on page 15 and
mail it in, OR go to www.batterychargers.com to register your product online.
DO NOT RETURN THIS PRODUCT TO THE STORE!
Call Customer Service for assistance: 800-621-5485

• 15 •
2 YEAR LIMITED
WARRANTY PROGRAM
REGISTRATION
MODEL:___________________ DESCRIPTION:___________________________
This is the only express limited warranty, and the manufacturer neither assumes nor authorizes
anyone to assume or make any other obligation. There is no other warranty, other than what is
described in the product owner’s manual.
The warranty card should be submitted within 30 days of purchase. The customer must
keep the ORIGINAL receipt because it will be required for any warranty claims.
This warranty is not transferable.
Mail To: Schumacher Electric Corporation 801 Business Center Drive Mount Prospect, IL 60056-2179 Name_______________________________________________________________ Street Address________________________________________________________ City_________________________________State__________Zip Code__________ Phone______________________Email____________________________________ Store Name Where Purchased____________________Date of Purchase__________ Store Location_____________________UPC Number_________________________ Serial Number________________________(SEE PRODUCT)

• 16 •
PROGRAMA DE REGISTRO
DE 2-AÑOS DE GARANTÍA
LIMITADA
MODELO:___________________ DESCRIPCIÓN:___________________________
Esta es la única garantía limitada expresa, y el productor no autoriza ni otorga a alguien a realizar
alguna otra obligación. No existe ninguna otra garantía más que la descrita en el manual del dueño.
La tarjeta de garantía debe enviarse durante los primeros 30 días después de la compra.
El cliente debe mantener el recibo de compra ORIGINAL como comprobante,
el cual le otorga todo derecho a cualquier reclamo de garantía.
Esta garantía no es transferible.
Enviar a: Schumacher Electric Corporation 801 Business Center Drive Mount Prospect, IL 60056-2179 Nombre______________________________________________________________ Dirección_____________________________________________________________ Ciudad_______________________________Estado_____________C.P.__________ Tel:_______________________Correo electrónico____________________________ Nombre de la Tienda donde se Compró_________________Fecha de compra _____ Localización de la Tienda___________________Numero de Serie _______________ Código de barras ________________________(CONSULTE EL PRODUCTO)

• 17 •
IMPORTANTE: LEA Y GUARDE ESTE MANUAL DE
INSTRUCCIONES Y SEGURIDAD.
GUARDE ESTAS INSTRUCCIONES – Este manual le mostrará
cómo utilizar su convertidor en forma segura y efectiva. Por
favor, lea, comprenda y siga estas instrucciones y precauciones
cuidadosamente, ya que este manual contiene instrucciones
operativas y de seguridad de importancia. Los mensajes de
seguridad representados en este manual contienen palabras guía,
un mensaje y una gura.

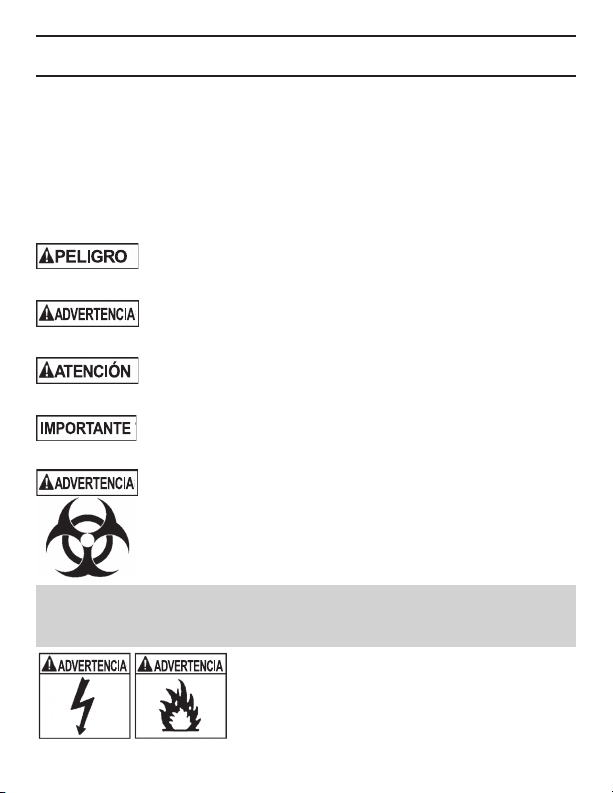

La palabra guía indica el nivel de peligro en determinada situación.
Indica una inminente situación de riesgo que, si no se
evita, resultaría mortal o de serios perjuicios al operador
o personas alrededor.
Indica una situación potencialmente riesgoso que, si
no se evita, podría resultar o de serios perjuicios al
operador o personas alrededor.
Indica una situación potencialmente peligrosa que, de
no evitarse, podría resultar en menores o serio daños al
usuario y terceras personas.
Indica una situación potencialmente peligrosa que, de
no evitarse, podría causar daño al equipo, al vehículo y
propiedades alrededor.
Conforme a la propuesta 65 de California, este
producto contiene químicos de los cuales en el
Estado de California tiene conocimiento que provocan
cáncer y malformaciones congénitas u otras lesiones
reproductivas. Lávese las manos después de usar.
INSTRUCCIONES IMPORTANTES DE SEGURIDAD –1. GUARDE ESTAS INSTRUCCIONES. Este manual contiene
instrucciones operativas y de seguridad de importancia.
EL RIESGO DE DESCARGA ELÉCTRICA
O INCENDIO.
Manténgase alejado de los niños.1.1
Mantenga el convertidor bien ventilado1.2
para dispersar apropiadamente el calor

• 18 •
generado cuando está en uso. Asegúrese de que haya varias
pulgadas de libramiento alrededor de la parte superior y lados y
no bloquee las ranuras del convertidor.
Asegúrese de que el convertidor no esté cerca de ninguna fuente1.3 potencial de gases inamables o ropa.
No coloque el convertidor en áreas tales como compartimientos1.4 de baterías o compartimientos del motor donde los vapores o
gases pueden acumularse.
Mantenga el convertidor seco.1.5
NO OPERE el convertidor si usted, el convertidor, el dispositivo a1.6 ser operado o cualquier otra supercie puede entrar en contacto
con cualquier fuente de energía que está húmeda. El agua y
muchos otros líquidos pueden conducir electricidad, lo cual puede
llevar a una lesión seria o la muerte.
NO OPERE el convertidor si usted, el convertidor, el dispositivo1.7 a ser operado o cualquier otra supercie que puede entrar en
contacto con cualquier fuente de energía está húmeda. El agua y
muchos otros líquidos pueden conducir electricidad, lo cual puede
llevar a una lesión seria o la muerte.
No coloque el convertidor sobre o cerca de ventilas de calefacción,1.8 radiadores u otras fuertes de calor o materiales inamables.
No coloque el convertidor en la luz directa del sol. La temperatura1.9 del aire ideal para la operación es entre 50° y 80°F.
Solamente conecte el convertidor de energía a una toma de1.10 corriente accesoria de 12V. No intente conectar el convertidor
a cualquier otra fuente de energía, incluyendo una fuente de
energía de CA (corriente alterna). El conectarlo a una batería de
6V o 16V dañará el convertidor.
Asegúrese de que la clavija de CA y/o la conexión USB estén1.11 ajustadas.
Por ningún motivo modique el inversor, incluyendo cables, 1.12 enchufes o interruptores debido a que podría causar daños
materiales o personales muy serios.
1.13 La operación incorrecta de su convertidor puede
resultar en daño y lesión personal. La salida del convertidor es
de 120V CA y puede dar una descarga o electrocutar igual que
cualquier toma de corriente de pared doméstica de CA ordinaria.

• 19 •
No abrir – no contiene partes que el usuario pueda reparar.1.14
Este dispositivo no incluye un Interruptor de Circuito con Conexión1.15 a Tierra (GFCI por sus siglas en inglés) interno.
ANTES DE USAR SU INVERSOR DE ENERGÍA2.
NOTA: Este inversor ha sido diseñado para ser usado con una
sola batería hasta el grupo 31 (130 Ah o menos). La fuente de
energía recomendada debe ser de una batería de ciclo profundo
de 12 voltios, debido a sus altas reservas de energía. Las baterías
regulares para automóviles son recomendadas sólo por un corto
período de tiempo de una hora o menos.
NOTA: No utilice el inversor con un producto que absorba mayor
cantidad de watts que el inversor pueda proveer, esto podría
causar daño al inversor y al producto.
Cuando usted enciende un dispositivo o una herramienta que
funciona con un motor, el dispositivo básicamente pasa a través
de dos etapas:
Arranque – Requiriendo una subida inicial de voltaje1. (comúnmente conocida como “carga de inicio o pico”).
Operación Continua – El consumo de energía desciende2. (comúnmente conocido como la “carga continua”).
El vataje (WATTS) o amperaje (AMPS) pueden ser encontrados
normalmente estampados o impresos en la mayoría de los
dispositivos y equipo, o en el manual del usuario. Por lo demás,
comuníquese con el fabricante para averiguar si el dispositivo que
usted quiere usar es compatible con una onda senoidal modicada.
Para calcular el vataje: Vataje = AMPS x 120 (Voltaje CA).
Para calcular la carga de arranque: Carga de Arranque =
2 x WATTS. En general, la carga de arranque del dispositivo
o herramienta eléctrica determina si su convertidor tiene la
capacidad de hacerlo funcionar.
Para calcular la carga continua: Carga Continua = AMPS x 120
(Voltaje CA).

• 20 •
Siempre corra una prueba para establecer si el
convertidor operará una pieza particular de equipo o dispositivo.
En caso de una sobrecarga de corriente, el convertidor está
diseñado para apagarse automáticamente. Ésa característica
de seguridad evitar dañar el convertidor mientras se prueban
dispositivos y equipo dentro del ámbito de vataje del convertidor.
Mientras el vehículo no se encuentre en marcha,
si se usa el Puerto de 12 volts, el Inversor está dideñado para
suministrar de 60 a 70 watts. En Marcha, puede llegar a abastecer
hasta 100 watts. Para usar la máxima potencia de salida, usted
debe conectar el inversor directo a la batería.
NOTA: El límite de 100 watts es para adaptar la proporción del
fusible a todos los vehículos. Algunos vehículos pueden permitir la
salida. Si el fusible se funde cuando cambie al aparato que intenta
usar, solo tiene dos opciones: Usar un aparato más pequeño o así
conectar el inversor directamente a la batería.
Este inversor usa ondas solenoids. Por lo tanto, no
recomendamos para operar los siguientes aparatos:
Fuentes energía de en forma de conmutador1.
Líneas de corriente eléctrica2.
Transformadores clase23.
Condensadores de capacidad4.
Motores ligeros.5.
Motores de ventilador6.
Hornos de microondas7.
Lámparas ourescentes y de alta intensidad (con balastra)8.
Cargadores de baterías sin tranformador9.
Al hacerlo podría operar el aparato bajo intenso calor y
sobrecalentarlo.
