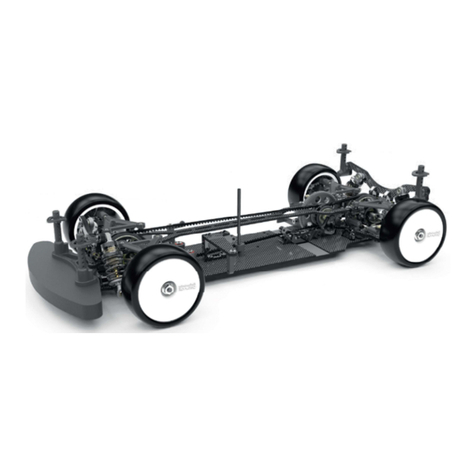

Schumacher Atom 2 User manual

S1508 ISS1
71-73 Tenter Road
Moulton Park
Northampton
NN3 6AX
U.K.
Instruction Manual

IMPORTANT SAFETY NOTES
We strongly recommend that anyone driving RC cars, or organising events, should obtain third
party liability insurance. In the UK this can be done by joining the BRCA. www.brca.org
This product is not suitable for children under the age of 14, without the direct
supervision of a responsible adult.
Select an area for assembly that is away from the reach of small children.
The parts in this kit are small and can be swallowed by children causing choking
and possible internal injuries.
Exercise care when using hand tools and sharp instruments during assembly.
Carefully read all manufacturers warnings and cautions for any additional items
used in the construction.
In line with our policy of continuous development the exact details of the kit may vary.
DO NOT use this car on public roads or in places where it can interfere with
traffic, people or animals.
Always check the operation of the radio with the wheels off the ground, before
using the car.
Make sure the radio and car batteries are fully charged before use.
Disconnect and remove the battery from the car when not in use.
Always store and charge LiPo batteries in a fireproof container.
DO NOT put fingers or any objects inside rotating or moving parts as this may
cause injury.
Make sure the charger is correctly set for the type of battery you are using.
Incorrect charging may cause a fire.
Insulate all exposed electrical wiring. Exposed or damaged wires can cause
short circuits and fire.
The motor and speed controller can become hot during use.
DO NOT touch them immediately after using your car as this may cause injury.
















AM701011 - Low Profile 4mm Connector 24K - pk2
AM701012 - Low Profile 5mm Connector 24K - pk2
E.S.C
Wheels and Tyres
Motor
Servo
CR044 Curved Body Scissors
U3107 - Solder
Soldering Iron
CR266 40w
CR275 80w
U4229 Steel Spanner - 5.5mm/3.9mm
Li-Po Battery
CR233
Piston Drilling Kit
1.1-1.8mm (8 bits)
AM110115 Allen Wrench 1.5
AM110120 Allen Wrench 2.0
AM110125 Allen Wrench 2.5
AM110130 Allen Wrench 3.0
AM150150 Nut Driver 5.0 (M2.5)
AM150155 Nut Driver 5.5 (M3)
AM150170 Nut Driver 7.0 (M4)
AM190003 Reamer With End Cap For Lexan Body
CR522 CORE RC
Pro Tyre Glue + 2 Nozzles
CORE RC Paint
CR600 to CR631
CR666 to CR672
CR115
CORE RC Silicone Wire 12AWG Red/Black/Blue 50cm
Pinion
Bodyshell
Transmitter and Receiver
Schumacher Racing stocks and
distributes the following
manufacturers products and full
product listings are
available on our website at
www.racing-cars.com
PLEASE NOTE THAT SOME OF THE
PRODUCT RANGES BELOW ARE ONLY
AVAILABLE IN THE UNITED KINGDOM.
LC RACING
ADDITIONAL ITEMS REQUIRED
PAGE 1

Leave loose for now
(adjusted later)
M3 x 25 x 1
M3 x 8
x 5
M3 Nyloc
x 1
M3 Nut
x 1
M3 x 8
x 2
M3 x 6
x 2
M2.5 x 8
x 1
STEP 1
PAGE 2
STEP 2

Use the M3x12 Cap head
screw and washers to fit the
inserts.
Tighten the screw until
the M3 thread insert is
pulled into the carbon fibre
part as shown.
Set 3.5mm for now
Note the orientation
of the inserts.
M3 Thread Insert
M3 x 4
x 2
M3 x 6
x 2
M3 x 6
x 2
M3 x 8
x 2
M3 x 12 x 1
M3 Thread Insert
x 4
M3 Washer
x 3
M3 x 8 Patched
x 1
Ball Stud Short
x 1
M3 x 8
x 2
M3 x 6
x 2
STEP 3
PAGE 3

Leave loose for now
(adjusted later)
2.00mm
M3 x 6
x 2
M2.5 x 8
x 4
x 3
Ball Stud Ultra Short
STEP 4
PAGE 4
STEP 5
A

Adjust all 5 M2.5x8 screws
to give minimal clearance
with no drag, so the pod
rotates freely.
DO NOT OVERTIGHTEN
M3 Thread Insert
x 10
x 2
Ball Stud Ultra Short
M3 x 8 Patched
x 2
M3 x 6
x 2
M3 x 12
x 4
Black 6.0 mm
x 4
A
STEP 5
PAGE 5
STEP 6
B

Leave loose for now
M3 x 8
x 2
M3 Thread Insert
x 1
M3 x 8
x 4
x 1
Ball Stud Ultra Short
STEP 6
PAGE 6
STEP 7
B

Make two side dampers
with the short sockets
Make the centre damper
with the long sockets
Use the included spanner
to tighten sockets.
SILICONE
OIL
30000 cst
M3 x 14
x 3
SILICONE
OIL
12000 cst
STEP 8
PAGE 7
STEP 8
A
B

Use the slide in spacers
to adjust ride height.
Base setting
Use all 4 spacers
Top
Bottom
Fit the beam the
correct way round
M3 x 16 x 4
STEP 9
PAGE 8
STEP 9
A
B

Set the screw flush
with the lockstop
DO NOT overtighten
M3 x 6
x 2
M3 Washer
x 2
Black 2.0 mm
x 2
M3 Nyloc
x 2
Ball Stud Long
x 2
M3 Washer
x 2
M3 x 8
x 2
STEP 10
PAGE 9
STEP 11

The kingpins may be a tight
fit in the hub carriers.
Top
Bottom
Fit the camber strap
the correct way round.
M3 x 8
x 4
e’clip
x 2
SILICONE
OIL
12000 cst
STEP 12
PAGE 10
STEP 12
A
B

Use the shims to adjust droop.
Base setting is two shims.
RH Thread
LH Thread
Longer link
Shorter link
Carefully screw the sockets onto the turnbuckle
until no threads are visible.
Then undo them to the desired length.
This allows for easier adjustment on the car.
(Greasing the threads will also help)
15.20mm
LH Thread RH Thread
Note the shape of
the turnbuckle.
This side of the
turnbuckle is the
left hand thread.
Use the included spanners
to tighten sockets.
e’clip
x 2
STEP 13
PAGE 11
STEP 14
A

Some components have been
hidden for assembly clarification
do not disassemble your car
Apply a thin layer of silicone
grease on the diff washer.
Connect up your radio gear
and set the servo to neutral
before fitting the servo saver
assembly as shown.
Then use trim to make the
servo saver vertical.
Servo not included in kit.
M3 Washer
x 2
M3 x 8
x 2
M3 x 10
x 1
ø1/4” x ø3/8”
x 2
x 2
ø1/4” x ø8mm x 0.10
B
STEP 14
PAGE 12
STEP 15
A

DIFF SETTING
Very gradually tighten the nut
until diff action begins.
Then tighten the nut 360° more.
This setting should be good
for most conditions.
NOTE
Correct disk
spring assembly.
NOTE
Correct thrust
washer assembly.
Grooved Small Washer
Grooved Large Washer
x 5
Disc spring washer
3.25 x 7.9 x 0.5
M3 Nyloc
x 1
ø1/4” x ø3/8”
x 1
Thrust Washer
x 12
ø1/8”
STEP 15
PAGE 13
STEP 16
B

The axle spacers may be
used to adjust the rear
track width of the car.
Kit setting is illustrated
After tightening this screw
ensure the axle rotates freely
with a very small amount
of end float.
We recommend
starting with the 0.00
eccentrics. This will
give 3.5mm of ride
height on 42.5mm tyres.
Axle Spacer
1/4”x 0.5
x 3
M2.5 x 10
x 1
Axle Spacer
1/4”x 2.0
x 1
1/4” x 3/8”
Flanged
x 2
STEP 17
PAGE 14

ELECTRIC - SUPASTOX CARS
K179 Atom 2 - S2 Kit
K184 Atom 2 - C/F Kit
CHASSIS PARTS
U119 Aerial Tube - Pack 4
U4137 Servo Mounts - CAT K1
U4773 Aerial Mount - CAT K2
U4950 Body Posts - Eclipse (4pcs)
U4964 C/F - Pod Rear Brace - Eclipse
U7870 Hub Carriers - Atom 2 (pr)
U7873 Lock Stop - Atom 2 (pr)
U7874 Bumper Support - Atom 2 (pr)
U7877 Manual - Atom 2
U7878 Chassis - Atom 2
U7879 Chassis Post (16mm) - Atom 2 (pr)
U7882 Foam Bumper - Atom 2
U7885 LiPo O'Ring - Atom 2 (pr)
U7892 C/F Camber Strap - Kit - Atom 2
U7893 S2 Bumper Mount - Atom 2
U7894 C/F Beam - Atom 2
U7895 25T Servo Saver Assembly - Atom 2
U7896 23T Servo Saver Assembly - Atom 2
U7901 S2 Beam - Atom 2
U7902 S2 Servo Mount + Front Height Spacers - Atom 2
U7903 S2 Camber Strap - Kit - Atom 2
U7904 S2 Rear Spring Hanger - Atom 2
U7905 S2 Pod Parts - Atom 2
U7906 S2 Multi Mount - Atom 2
U7907 S2 LiPo Stop - Atom 2
U7908 C/F Bumper Mount - Atom 2
U7909 C/F Ride Height Spacer - Atom 2 (pk4)
U7910 C/F Servo Mount - Atom 2
U7911 C/F Front LiPo Stop - Atom 2
U7912 C/F Side LiPo Stop - Atom 2 (pr)
U7913 C/F Rear Lipo Stop - Atom 2
U7914 C/F Multi Mount - Atom 2
U7915 C/F Pod Base - Atom 2
U7916 C/F Shock Mount - Atom 2
U7917 C/F Rear Spring Hanger - Atom 2
BODYSHELLS AND DECALS
CR258 Body Repair Tape - 50mm x 1Mtr
G888 SupaStox GT12 Type A Body
G890 SupaStox Hot Hatch Type TS
G891 SupaStox Hot Hatch Type RC
G892 SupaStox Hot Hatch Type P2
G893 SupaStox Hot Hatch Type FF
G894 SupaStox Touring Type M6
G898 SupaStox GT12 Body - Type AM
G902 SupaStox GT12 Body - Type F
G903 SupaStox GT12 Body - Type AU
G904 SupaStox GT12 Body - Type A - Light Weight
G905 SupaStox GT12 Body - Type F - Light Weight
G906 SupaStox GT12 Body - Type L
G907 GT12 Body Type PGT3
G908 GT12 Body Type PGT3 Lightweight
MT018001 Montech GT12 Body - MLGT3
MT018012 Montech - LTS-GT Body
MT018012L Montech - LTS-GT Light Weight Body
U3478 Decal sheet - Schumacher and racing-cars.com (pk3)
U7876 Decals - Atom 2 (pk3)
SUSPENSION
U4254 Ball Grippa Sockets Pro - Mi5 - pk8
U4298 Turnbuckle HT - 35mm - pr
U4302 Ball Socket Short (Black) - Mi5 - pk4
U4627 Chassis Post Long - SS GT/At/Ecl
U4629 Damper Piston - SS GT/At/Ecl
U4630 Damper Unit - SS GT/At/Ecl
U4631 Damper Tube - SS GT/At/Ecl
U4838 Rear Springs Black - Soft - At/Ecl - pr
U4839 Rear Springs Silver - Med/Soft - At/Ecl - pr
U4840 Rear Springs Gold -Med/Hard - At/Ecl - pr
U4841 Rear Springs Nickel - Hard - At/Ecl - pr
U4846 Spring Tuning Set Rear - At/Ecl
U4847 Rear Spring Seat - At/Ecl
U4851 Side Spring Seat (pr) - Atom/Eclipse
U4968 Ball Sockets Low Profile -Eclipse - pk4
U4972 Ride Height Adjusters- 0.00, 0.50, 1.00, 1.50 4prs
U4973 Ride Height Adjusters- 0.25, 0.75, 1.25, 1.75 4prs
SUSPENSION CONT....
U7302 Low Profile Front Axle - Atom / CC
U7322 Rear Spring Red Dot-Hard/Ultra-Atom/Eclipse-pr
U7323 Rear Spring Black - Ultra - Atom/Eclipse - pr
U7787 Shock Top Ball Dia 5.5mm - Mi7 (pk4)
U7833 Ball Stud Low (Short) (pk4)
U7871 Pivot Mouldings - Atom 2
U7872 Side Link - Atom 2 (pr)
U7880 King Pin - Atom 2 (pr)
U7881 Front End Ball Assembly - Atom 2 (pr)
U7886 Front Spring Black Soft - Atom 2 (pr)
U7887 Front Spring Silver Medium - Atom 2 (pr)
U7888 Front Spring Green Hard - Atom 2 (pr)
U7889 Front Spring Gold Super Hard - Atom 2 (pr)
U7890 Front Spring Tuning Set - Atom 2
TRANSMISSION
CR508 Kimbrough - Precision Gear 64T-48DP-#300
U1954 Pro - Thrust Bearing
U4112 S/Steel Shims 1/4x5/16x0.004-SS/At/Ecl
U4853 LH Drive Clamp - Atom
U4855 Diff Washer - Atom/Eclipse - pr
U4856 RH Washer Carrier - Atom
U4861 Diff Rebuild Kit - Atom/Eclipse
U7483 Trans Housing LH - Eclipse 2
U7484 Trans Housing RH - Eclipse 2
U7883 Steel Diff Axle - Atom 2
U7899 Diff Spacer Set - Atom 2
PINIONS
CR4815 Pinion Gear 48DP 15T (7075 Hard)
CR4816 Pinion Gear 48DP 16T (7075 Hard)
CR4817 Pinion Gear 48DP 17T (7075 Hard)
CR4818 Pinion Gear 48DP 18T (7075 Hard)
CR4819 Pinion Gear 48DP 19T (7075 Hard)
CR4820 Pinion Gear 48DP 20T (7075 Hard)
CR4821 Pinion Gear 48DP 21T (7075 Hard)
CR4822 Pinion Gear 48DP 22T (7075 Hard)
CR4823 Pinion Gear 48DP 23T (7075 Hard)
CR4824 Pinion Gear 48DP 24T (7075 Hard)
CR4825 Pinion Gear 48DP 25T (7075 Hard)
CR4826 Pinion Gear 48DP 26T (7075 Hard)
CR4827 Pinion Gear 48DP 27T (7075 Hard)
CR4828 Pinion Gear 48DP 28T (7075 Hard)
CR4829 Pinion Gear 48DP 29T (7075 Hard)
CR4830 Pinion Gear 48DP 30T (7075 Hard)
CR4831 Pinion Gear 48DP 31T (7075 Hard)
CR4832 Pinion Gear 48DP 32T (7075 Hard)
CR4833 Pinion Gear 48DP 33T (7075 Hard)
CR4834 Pinion Gear 48DP 34T (7075 Hard)
CR4835 Pinion Gear 48DP 35T (7075 Hard)
CR4836 Pinion Gear 48DP 36T (7075 Hard)
CR4837 Pinion Gear 48DP 37T (7075 Hard)
U3414 Pinion; Hard Alloy 48dp - 14T
U3415 Pinion; Hard Alloy 48dp - 15T
U3416 Pinion; Hard Alloy 48dp - 16T
U3417 Pinion; Hard Alloy 48dp - 17T
U3418 Pinion; Hard Alloy 48dp - 18T
U3419 Pinion; Hard Alloy 48dp - 19T
U3420 Pinion; Hard Alloy 48dp - 20T
U3421 Pinion; Hard Alloy 48dp - 21T
U3422 Pinion; Hard Alloy 48dp - 22T
U3423 Pinion; Hard Alloy 48dp - 23T
U3424 Pinion; Hard Alloy 48dp - 24T
U3425 Pinion; Hard Alloy 48dp - 25T
U3426 Pinion; Hard Alloy 48dp - 26T
U3427 Pinion; Hard Alloy 48dp - 27T
U3428 Pinion; Hard Alloy 48dp - 28T
U3429 Pinion; Hard Alloy 48dp - 29T
U3430 Pinion; Hard Alloy 48dp - 30T
U3431 Pinion; Hard Alloy 48dp - 31T
U3432 Pinion; Hard Alloy 48dp - 32T
U3433 Pinion; Hard Alloy 48dp - 33T
U3434 Pinion; Hard Alloy 48dp - 34T
U3435 Pinion; Hard Alloy 48dp - 35T
U3436 Pinion; Hard Alloy 48dp - 36T
SPARES LIST 1
PAGE 15

BEARINGS AND BALLS
H1031 Bearing Blaster Aerosol 500ml
U1300 Axle Grease - Pot
U1301 Silicone Diff Lube - Pot
U1957 Moly Grease - Pot 5ml
U4808 1/8 Chrome Steel Ball -At/Ecl - pk12"
U4809 Ball Bearing - 1/4x3/8x1/8 Shield - (pr)
U4811 1/8 Silicone Nitride Ball (pk12)"
U4812 Ceramic Bearing 1/8x5/16x9/64 Flanged (pr)
U4979 Ceramic Bearing 1/4 x 3/8 x 1/8 Flanged (pr)
U4980 Ball Bearing - 1/4x3/8x1/8 Flanged Yellow - (pr)
U4981 Ball Bearing-1/8x5/16 Flanged Yellow -(pr)
U7690 Pro Ball Bearings 1/4 x 3/8 x 1/8 Fl Shielded
U7691 Pro Ball Bearings 1/8 x 5/16 x 9/64 Fl Shielded
SPEED PACKS
CR517 M3 Alloy Nyloc Nuts-Low Profile-Black pk10
CR638 Rubber Body Clip Pulls - pk12
U1550 SPEED PK-Socket Wrenches-1.5/2.0/2.5/3.0mm
U1551 SPEED PACK - E Clips -2 x 8pcs
U1552 SPEED PACK - R Clips
U1606 SPEED PACK - Servo Tape - 30pk
U2128 SPEED PACK - Grub-Set Screws M3 M4
U3021 SPEED PACK - M3x6 Csk Hd - (pk10)
U3022 SPEED PACK - M3x8 Csk Hd - (pk10)
U3023 SPEED PACK - M3x10 Csk Hd - (pk10)
U3572 SPEED PACK - M3x14 Grub Screw pk4
U3938 SPEED PACK - Black nylon washer 2mm (pk 10)
U4241 SPEED PACK - M3 Alloy Nyloc Nuts - Black - pk10
U4273 Pro Ball Stud Ultra Short - pk4
U4274 Pro Ball Stud Short - pk4
U4275 Pro Ball Stud Long - pk4
U4314 SPEED PACK - Alloy Black M3 Washers - 18pc
U4351 SPEED PACK - Shims 3.2x6x0.1mm - pk8
U4650 SPEED PACK - M3 Nyloc Nut Steel - Black (10pcs)
U4837 SPEED PACK M2.5x10 Cap Hd (pk8)
U4862 Black Alloy Washers 0.50mm (pk12)
U4984 SPEED PACK M3 Alloy Nuts - Black - pk10
U4987 SPEED PACK Needle Roller 1.5x11.8 (pk8)
U7102 SPEED PACK - M3x4 Button Hd (pk10)
U7103 SPEED PACK - M3x6 Button Hd (pk10)
U7104 SPEED PACK - M3x8 Button Hd (pk10)
U7105 SPEED PACK - M3x10 Button Hd (pk10)
U7106 SPEED PACK - M3x12 Button Hd (pk10)
U7112 SPEED PACK - M3x8 Cap Hd (pk10)
U7113 SPEED PACK - M3x10 Cap Hd (pk10)
U7123 SPEED PACK - M3x16 Csk Hd (pk10)
U7125 SPEED PACK - M3x25 Csk Hd (pk10)
U7689 M3 Brass Inserts - pk10
U7707 M3 Steel Washers (pk10)
U7743 M2.5 X 8 Button Screws (pk10)
U7751 M3x8 Grub Screw Dome End (pk4)
U7884 M3x6 Grub Screw Dome End (pk4)
U7898 Black 6mm Spacer (pk4)
U7900 SPEED PACK Needle Roller 1.5x9.8 (pk10)
SPEED SECRET - OPTION PARTS
CR280 Ti Pro Ball Studs - Short - (pr)
CR281 Ti Pro Ball Studs - Ultra Short - (pr)
CR282 Ti Pro Ball Studs - Long - (pr)
CR510 Kimbrough - Spur Gear 66T - 48DP - #301
CR511 Kimbrough - Spur Gear 69T - 48DP - #150
CR512 Kimbrough - Spur Gear 72T - 48DP - #143
CR664 Alloy Motor Spacer - 1mm - pk2
CR724 GT12 Carbon Spool Axle + Clamp
U3582 Precision Balance Pivot Set
U4057 Spur Gear 48DP - 70T - SS GT
U4327 Alloy Servo Mount Black - K1/Mi5
U4970 Rear Axle - Eclipse
U7298 Alloy Rear Wheel Screws - Atom/Eclipse (pk6)
U7315 Titanium Turnbuckle - 35mm - Silver - pr
U7453 30/40mm Fan Mount Kit - ATOM
U7825 Titanium Pivot Ball 5.5mm Low (pr)
U7829 Titanium Ball Stud Low (Short) (pk4)
U7875 Chassis Skin - Atom 2
U7897 Alloy Pivot Spacer 1mm - Atom 2 (pr)
U7918 Alloy Pivot Mount - Atom 2
U7919 Alloy Pivot Block - Atom 2
U7920 Alloy Ride Height Spacer 0.5mm - Atom 2 (pk4)
U7921 Alloy Ride Height Spacer 0.75mm - Atom 2 (pk4)
U7922 C/F Camber Strap (1 Dot) - Atom 2
SPEED SECRET - OPTION PARTS CONT....
U7923 C/F Camber Strap (2 Dot) - Atom 2
U7924 C/F Camber Strap (3 Dot) - Atom 2
TYRE ADDITIVE
LRP65011 Top Grip Carpet 2
LRP65012 Top Grip Carpet 3 Tyre Traction
MR33-0002 MR33 No 1 Black Indoor/Outdoor Tyre Additive
NR96010 NOSRAM Traction additive carpet
SXT00030 SXT 3.0 Traction Compound Additive
TEAM MERCHANDISE
CR298 CORE RC Hauler Bag
G338 2 Tone Beanie Knitted Hat
G339L Jacket - 3 Layer Softshell; Black - L 44inch
G339M Jacket - 3 Layer Softshell; Black - M 41inch
G339S Jacket - 3 Layer Softshell; Black - S - 38inch
G339XL Jacket - 3 Layer Softshell; Black - XL 46inch
G339XS Jacket - 3 Layer Softshell; Black - XS - 34inch
G339XXL Jacket - 3 Layer Softshell; Black - XXL 48inch
G339XXXL Jacket - 3 Layer Softshell; Black - XXXL 50inch
G346L Schumacher Gilet - Frost Grey - Large
G346M Schumacher Gilet - Frost Grey - Medium
G346XL Schumacher Gilet - Frost Grey - X-Large
G346XXL Schumacher Gilet - Frost Grey - XX-Large
G347L Schumacher Arrows" T-Shirt - Large"
G347M Schumacher Arrows" T-Shirt - Medium"
G347S Schumacher Arrows" T-Shirt - Small"
G347XL Schumacher Arrows" T-Shirt - X-Large"
G347XS Schumacher Arrows" T-Shirt - X-Small"
G347XXL Schumacher Arrows" T-Shirt - XXL"
G347XXS Schumacher Arrows" T-Shirt - XX-Small"
G347XXXL Schumacher Arrows" T-Shirt - XXXL"
G347XXXXL Schumacher Arrows" T-Shirt - XXXXL"
G347XXXXXL Schumacher Arrows" T-Shirt - XXXXXL"
G347XXXXXXL Schumacher Arrows" T-Shirt - XXXXXXL"
G348L Schumacher Arrows" Hoody - Large"
G348M Schumacher Arrows" Hoody - Medium"
G348S Schumacher Arrows" Hoody - Small"
G348XL Schumacher Arrows" Hoody - XL"
G348XS Schumacher Arrows" Hoody - XS"
G348XXL Schumacher Arrows" Hoody - XXL"
G348XXXL Schumacher Arrows" Hoody - XXXL"
G349L Schumacher Arrows" Zipped Hoody - Large"
G349M Schumacher Arrows" Zipped Hoody - Medium"
G349S Schumacher Arrows" Zipped Hoody - Small"
G349XL Schumacher Arrows" Zipped Hoody - XL"
G349XXL Schumacher Arrows" Zipped Hoody - XXL"
G350L Schumacher Arrows" Polo Shirt-Large"
G350M Schumacher Arrows" Polo Shirt-Medium"
G350S Schumacher Arrows" Polo Shirt-Small"
G350XL Schumacher Arrows" Polo Shirt-XL"
G350XXL Schumacher Arrows" Polo Shirt-XXL"
G350XXXL Schumacher Arrows" Polo Shirt-XXXL"
G350XXXXL Schumacher Arrows" Polo Shirt-XXXXL"
G350XXXXXL Schumacher Arrows" Polo Shirt-XXXXXL"
G355 Schumacher Hauler Bag
G356 Handle for Hauler Bag
G357 Small Drawer for Hauler Bag
G358 Medium Drawer for Hauler Bag
G359 Large Drawer for Hauler Bag
G360 Schumacher Snapback Flatbill Cap-Heather
G361 Schumacher Flexfit Cap S/M - Grey
G362 Schumacher Flexfit Cap L/XL - Grey
ELECTRONICS
CR249 Futaba Servo Wires Black
CR250 JR Servo Wires Black
CR665 LiPo Voltage Checker
SK-500015 Corner Weight System
SK-600114-01 DC Power Distributor
SERVOS
CR194 CORE RC -5008- Servo 5Kg .08 Sec 12th
CR495 CORE RC - 9009LP Low Profile Servo 8Kg .09 Sec
HSBLP650 Highest BLP650 Servo
HSBLP680 Highest BLP680 Servo Yokomo BD8
HSBLP750 Highest BLP750 Servo
HSDLP650 Servo (Low Pro) - SSR 1/10 .07s 7.1kg
SPARES LIST 2
PAGE 16

SERVOS CONT....
HSDLP750 Servo (Low Pro) 1/10 .10s 11.8kg
KO30126 RSx3-12 Servo
KO30127 RSx3-12 World Spec Version Servo
KO30128 RSx3-12 GT Version Servo
KO30129 RSx3-12 HC Servo
KO92392 RS Set w/RSx3-12
SA107A53471A SDX-801 Low Profile Digital Servo
SA107A53811A SRG-HR Mini Digital Servo
SA107A54371A SRG-LS Servo
SA107A54401A Low Profile Servo - HVS-702
SA107A54471A PGS-LH Programmable Low-Height BL Servo
SA107A54513A PGS-CL Low Profile Servo
TRANSMITTERS AND RECEIVERS
CR277 CODE 2.4G FHSS Steerwheel Radio TxRx
CR278 CODE 2.4G FHSS - Rx Only
KO21005 KR-211FH 2.4GHz FHSS Receiver
KO21011 KR-418FH 4 Channels Receiver - 2.4GHz
KO80540 EX-1 Ver 3 (KIY) KR-413FH Set - TX + RX
KO80620 EX-RR w/KR-418FH
KO80641 EX-RR ST2 w/KR-418FH
KO80642 EX-RR ST2 w/KR-418FH Double Receiver
KO80643 EX-RR ST2 w/KR-415FHD Short
KO80644 EX-RR ST2 w/KR-415FHD Short Double Rec
KO80700 Esprit IV - Stick Radio Combo
KO80705 ESPRIT IV W/KR-415FHD
KO80706 ESPRIT IV W/KR-415FHD Short Antenna
SA101A31971A MT-S Radio Set with RX482
SA101A32071A EXZES ZZ Radio Set with RX472
SA101A32171A MT-44 Radio Set with RX-482
SA101A32371A M12S-RS Radio Set with RX482
SA101A32471A M17 Radio Set with RX491
SA101A32571A MX-6 Radio Set with RX-391W
SA107A40843A RX-371FS FHSS-2 Receiver
SA107A41044A RX-461 Receiver for MT-4
SA107A41074A RX-380 FHSS-3 Receiver
SA107A41111A RX-471 Receiver
SA107A41117A RX-472 Telemetry/SSL Receiver
SA107A41131A RX-471WP FH4 Waterproof Receiver
SA107A41144A RX-371WP FHSS-2 Waterproof Receiver
SA107A41151A RX-471 Dual ID Receiver
SA107A41251A RX-481 Receiver
SA107A41257A RX-482 Telemetry/SSL Receiver
SA107A41341A RX-391W Receiver
SA107A41353A RX-491 Receiver
CHARGERS AND DISCHARGERS
AM701000 AM Auto Balance Charger&Discharger
CR031 Charger Connector Set - 8pcs (10Amps max)
SK-100084 Imax B6 Mini Charger 6A 60W DC
SK-100104 Q200 Quattro Charger
SK-100122 e450 Charger 50W - 4A -AC
SK-100123 D400 Charger
SK-100124 PC1080 Dual Charger
SK-100129 Ultimate Duo D250 Charger
SK-100131 D100 v2 AC/DC Dual Balance Charger
SK-100134 B6 nano Charger
SK-100146 SKY RC B6 Nano Duo AC Charger
SK-100149 SKY RC e680 AC/DC 80W Charger
SK-100151 SKY RC B6 Lite DC Charger
SK-100152-04 S65 Charger AC 65W
SK-100155-04 SKY RC T200 AC/DC 12A Charger
SK-200013-01 eFuel 30A 540W Power Supply
SK-200015 eFuel 50A 1200W Power Supply
SK-200017-01 SKY RC 17A Power Supply (UK Plug)
SK-600123-01 BD200 Battery Discharger & Analyzer
BRUSHLESS MOTORS
DA740175 R-Tune 540 Sensored BL Motor 17.5T
DA741135 540 Sensored BL Motor 13.5T for AM Cup
FAN19313S Fantom 13.5 ICON Pro Spec Motor
HW30401130 XERUN-V10-13.5T-Black-G3R-BL-Motor
HW30404309 QUICRUN - 3650 - G2 - Motor - 10.5T
HW30404310 QUICRUN - 3650 - G2 - Motor - 13.5T
HW30408004 XERUN - Justock - G2 - Motor - 10.5T -Fixed Timing
HW30408005 XERUN - Justock - G2 - Motor - 13.5T -Fixed Timing
HW30408009 XERUN Justock G2.1 Motor 10.5T Fixed Timing
HW30408010 XERUN Justock G2.1 Motor 13.5T Fixed Timing
HW90040120 XERUN - 1/10 - Sensored - BL - Motor - 13.5T
LRP520201 X22 Stock Spec Motor - 13.5T
BRUSHLESS MOTORS CONT....
LRP520202 X22 Stock Spec Motor - 17.5T
SK-400003-58 ARES V2.1 Spec Motor 13.5T
BRUSHLESS ACCESSORIES
CR134 Core Sensor Lead; 180mm
CR254 150mm Flat Bonded Flex Sensor Wire
CR255 200mm Flat Bonded Flex Sensor Wire
CR256 270mm Flat Bonded Flex Sensor Wire
CR651 150mm Super Flex 26GA Silicone sensor Wire
CR652 125mm Super Flex 26GA Silicone Sensor Wire
LRP819315 Sensor Wire Highflex 150mm
LRP819320 Sensor Wire Highflex 200mm
MR33-CF30 MR33 Cooling Fan 30mm
BRUSHLESS SPEEDCONTROLS
CR173 PACE 45R Brushless ESC 1s/2s
CR174 PACE 45R/60R Programming Card
CR199 PACE 60R Brushless ESC 1S/2S
HW30112121051 XERUN - V3.1 - 1S - BL - ESC - 120A - Black
HW30112603 XERUN - XR10 - Pro - 1S - 120A - ESC
HW30112751 XERUN - XR10 - Pro - Stock Spec - 1S - V4 - Black
HW30112609 XERUN - XR10 - Pro-1S Heavy Duty-V4.1 Black
BATTERIES
AM700301 AM Lipo 6200mAh 1s 3.7V - 65/130C
AM700302 AM Lipo 8000mAh 1s 3.7V - 55/110C
AM700303 Lipo 8000mAh 1/12 -3.7V-60/120C Si-Graphene
CR007 CORE RC Silicone Wire 12g - Red/Black 2x50cm
CR009 CORE RC RED Connector with 2x4mm Males
CR050 CORE RC Silicone Wire 12AWG - Red 1 Metre
CR051 CORE RC Silicone Wire 12AWG - Black 1 Metre
CR052 CORE RC Silicone Wire 12AWG - Blue 1 Metre
CR115 CORE RC Silicone Wire 12g - Red/Black/Blue 3x50cm
CR279 1S Lipo 8000mAh 100C Pro Series - 3.7V
CR287 Silicone Wire Black 14 AWG - 1Mtr
CR288 Silicone Wire Black 16 AWG - 1Mtr
CR292 CORE RC-3200mAHr 3.7V 30/60C 1S Lipo
CR653 Core RC Silicone Wire 13AWG- Black-1 Mtr
DA771003 DASH 12AWG Wire Black
DA771004 DASH 13AWG Wire Black
DA771005 DASH 14AWG Wire Black
FAN26187 Fantom 1S 7800mAh Lipo - 4mm
FAN26187-5 Fantom 1S 7800mAh Lipo - 5mm
IPCC1S6600HV4 Intellect Lipo LiHV 120C 1S 6600mAh 3.8V
IPCC1S8200HV4 Intellect Lipo LiHV 120C 1S 8200mAh 3.8V
LRP430268 Lipo 8000mAh - P4 1/12 Ultra LCG - 3.7V
LRP430270 Lipo 6200mAh - P4 1/12 Ultra LCG Stock Spec - 3.7V
MR33-SB2 MR33 Lipo Battery Safety Bag - V2
MR-SB MR33 Lipo Bag
GENERAL ACCESSORIES
CR005 CORE RC Battery Tape - Black 50m
CR006 CORE RC Battery Tape - Blue 50m
CR043 CORE RC - Silver X-Weights 16pcs
CR058 CORE RC - Black X-Weights 16pcs
CR060 Small Body Clip 1/10 - Gloss Black (8)
CR061 Small Body Clip 1/10 - Silver (8)
CR062 Small Body Clip 1/10 - Gold (8)
CR063 Small Body Clip 1/10 - Fluorescent Yellow (8)
CR064 Small Body Clip 1/10 - Fluorescent Green (8)
CR065 Small Body Clip 1/10 - Fluorescent Red (8)
CR066 Small Body Clip 1/10 - Metallic Green (8)
CR067 Small Body Clip 1/10 - Metallic Red (8)
CR068 Small Body Clip 1/10 - Metallic Blue (8)
CR069 Small Body Clip 1/10 - Metallic Purple (8)
CR159 Core RC - Battery Tape - Orange 50m
CR197 CORE RC - Glass Setup Board
CR297 CORE RC - Neoprene Bag
CR518 Super Glue Nozzles - pk10
CR519 Under LiPo Weight 35g brass 1S/Shorty
CR522 CORE RC - 522 Pro Tyre Glue + 2 Nozzles
CR548 CORE RC - Tool Bag
CR549 CORE RC - Oil Bag
CR663 Slim Battery Tape - Black - 12mm x 25M
DF4260269080410 Dry-Fluid Extreme RC Car - 20ml
DF4260269080731 Dry-Fluid Extreme Gear Lube - 10ml
G353 Schumacher Glass Setup Board
G354 Schumacher - Neoprene Bag
J003 Contact RC - Glass Setup Board
SPARES LIST 3
PAGE 17

GENERAL ACCESSORIES CONT....
J006 Contact GT12 Rear Wheel Centre Finder pr
SXT00080 SXT Ice Tyre Glue
SXT00085 SXT Silk Anti Wear Grease
U4831 Aerial Tube Cap - Black - 6pk
TOOLS
CR044 CORE RC - Curved Body Scissors
CR045 CORE RC - Straight Body Scissors
CR103 Magnetic Parts Tray - Black
CR148 CORE RC - Polybutler Pit Box; Black
CR271 4 Way Wrench Small - 4.0,4.5,5.5,7.0mm
U2789 Schumacher Hex Driver - 1.5mm
U2790 Schumacher Hex Driver - 2.0mm
U2791 Schumacher Hex Driver - 2.5mm
U2792 Schumacher Hex Driver - 3.0mm
U2795 Schumacher M3 Nut Driver
U2796 Schumacher M4 Nut Driver
U2818 Schumacher Body Reamer
U4229 Steel Spanner - 5.5mm/3.9mm
1/12 FOAMS; SUPASTOX-GT12
JT2-30FB GT12-1/12 Front Bomber Gold Foam 44mm
JT2-30FJ GT12-1/12 Front Pink 30Sh J Foam - 44mm
JT2-32FJ GT12-1/12 Front Magenta 32Sh J Foam
JT2-35FJ GT12-1/12 Front Double Pink 35Sh J Foam
JT2-35FT GT12-1/12 Front T Foam 35Sh - 44mm
JT2-40FT GT12-1/12 Front T Foam 40Sh - 44mm
JG35RQ GT12 Atom Rear Q Foam 35Sh - 48mm
JG35RT GT12 Rear T Foam 35Sh - 46mm
JG40FQ GT12 Atom Front Q Foam 40Sh - 46mm
JG40RA GT12 Atom Rear A Foam 40Sh - 48mm
JG40RQ GT12 Atom Rear Q Foam 40Sh - 48mm
JG40RT GT12 Rear T Foam 40Sh - 46mm
JG42FQ GT12 Atom Front Q Foam 42Sh - 46mm
JGCF GT12 Atom Front 40Sh Control Tyres 44mm
JGCR GT12 Atom Rear 37Sh Control Tyres 46mm
U4828 Tyre Truer Rear Wheel Insert - Atom
PAINT
CR599 Spraygun Pro for Core paint
CR600 Aerosol Paint - White Knight
CR601 Aerosol Paint - Yellow Taxi
CR602 Aerosol Paint - Fire Red
CR603 Aerosol Paint - French Blue
CR604 Aerosol Paint - Petrol Blue
CR605 Aerosol Paint - Racing Green
CR606 Aerosol Paint - Jet Black
CR607 Aerosol Paint - Lime Green
CR608 Aerosol Paint - Tangerine
CR609 Aerosol Paint - Hot Pink
CR610 Aerosol Paint - Berry Purple
CR611 Aerosol Paint - Neon Yellow
CR612 Aerosol Paint - Neon Orange
CR613 Aerosol Paint - Neon Red
CR614 Aerosol Paint - Neon Green
CR615 Aerosol Paint - Neon Fire
CR616 Aerosol Paint - Neon Carrot
CR617 Aerosol Paint - Neon Pink
CR618 Aerosol Paint - Neon Blue
CR619 Aerosol Paint - Metallic Blue
CR620 Aerosol Paint - Metallic Graphite
CR621 Aerosol Paint - Metallic Silver
CR622 Aerosol Paint - Metallic Purple
CR623 Aerosol Paint - Metallic Green
CR624 Aerosol Paint - Metallic Red
CR625 Aerosol Paint - Metallic White
CR626 Aerosol Paint - Clear Sparkle
CR627 Aerosol Paint - True Chrome
CR628 Aerosol Paint - Clear Backing
CR629 Aerosol Paint - Window Tint
CR631 Aerosol Paint - Spearmint
CR666 Aerosol Paint - Flat Matt Finish
CR667 Aerosol Paint - Glacier Sapphire
CR668 Aerosol Paint - Glacier Raspberry
CR669 Aerosol Paint - Glacier Gold
CR670 Aerosol Paint - Glacier Plum
CR671 Aerosol Paint - Shark Grey
CR672 Aerosol Paint - Bullion Gold
HN20000 Airbrush Bottle Adapter for 60ml/120ml
HN20010 Airbrush Paint Clear Coat - 60ml
HN20020 Airbrush Paint SP Reducer/Cleaner 60ml
PAINT CONT....
HN20021 Airbrush Paint SP Reducer/Cleaner 120ml
HN20030 Airbrush Paint Intercoat-Clear 60ml
HN20031 Airbrush Paint Intercoat-Clear 120ml
HN21000 Airbrush Paint Chrome 60ml
HN22000 Airbrush Paint Solid White 60ml
HN22001 Airbrush Paint Solid White 120ml
HN22020 Airbrush Paint Solid Grey 60ml
HN22030 Airbrush Paint Solid Black 60ml
HN22031 Airbrush Paint Solid Black 120ml
HN22040 Airbrush Paint Solid Yellow 60ml
HN22050 Airbrush Paint Solid Orange 60ml
HN22060 Airbrush Paint Solid Red 60ml
HN22080 Airbrush Paint Solid Aqua Blue 60ml
HN22090 Airbrush Paint Solid Sky Blue 60ml
HN22100 Airbrush Paint Solid Blue 60ml
HN22110 Airbrush Paint Solid Green 60ml
HN22130 Airbrush Paint Solid Brown 60ml
HN23000 Airbrush Paint Transparent Yellow 60ml
HN23010 Airbrush Paint Transparent Orange 60ml
HN23020 Airbrush Paint Transparent Pink 60ml
HN23030 Airbrush Paint Transparent Red 60ml
HN23040 Airbrush Paint Transparent Purple 60ml
HN23050 Airbrush Paint Transparent Blue 60ml
HN23060 Airbrush Paint Transparent Green 60ml
HN23070 Airbrush Paint Transparent Grey Tint 60ml
HN24000 Airbrush Paint Pearl White 60ml
HN24010 Airbrush Paint Pearl Silver 60ml
HN24020 Airbrush Paint Pearl Gold 60ml
HN24030 Airbrush Paint Pearl Orange 60ml
HN24050 Airbrush Paint Pearl Red 60ml
HN24060 Airbrush Paint Pearl Copper 60ml
HN24070 Airbrush Paint Pearl Blue 60ml
HN24080 Airbrush Paint Pearl Key-Lime Green 60ml
HN24090 Airbrush Paint Pearl Green 60ml
HN24100 Airbrush Paint Pearl Charcoal Grey 60ml
HN24110 Airbrush Paint Pearl Black 60ml
HN25000 Airbrush Paint Neon Yellow 60ml
HN25010 Airbrush Paint Neon Flame Orange 60ml
HN25020 Airbrush Paint Neon Orange 60ml
HN25030 Airbrush Paint Neon Pink 60ml
HN25040 Airbrush Paint Neon Razberry 60ml
HN25050 Airbrush Paint Neon Red 60ml
HN25060 Airbrush Paint Neon Purple 60ml
HN25070 Airbrush Paint Neon Blue 60ml
HN25080 Airbrush Paint Neon Green 60ml
HN26000 Airbrush Paint Iridescent Yellow 60ml
HN26010 Airbrush Paint Iridescent Candy Red 60ml
HN26020 Airbrush Paint Iridescent Red 60ml
HN26030 Airbrush Paint Iridescent Purple 60ml
HN26050 Airbrush Paint Iridescent Teal Green 60ml
HN26060 Airbrush Paint Iridescent Turquoise 60ml
HN27000 Airbrush Paint Change Gold 60ml
HN27010 Airbrush Paint Change Red 60ml
HN27020 Airbrush Paint Change Purple 60ml
HN27030 Airbrush Paint Change Blue 60ml
HN27040 Airbrush Paint Change Green 60ml
SPARES LIST 4
PAGE 18

M3 x 10
x 2
M3 x 10
x 2
ø1.5 x 9.8
x 2
STEP 18
PAGE 19
A
