IMPORTANT SAFETY NOTES
We strongly recommend that anyone driving RC cars, or organising events, should obtain third party liability insurance. In the UK this
can be done by joining the BRCA. www.brca.org
This product is not suitable for children under the age of 14, without the direct supervision of a responsible adult.
Select an area for assembly that is away from the reach of small children.
The parts in this kit are small and can be swallowed by children causing choking and possible internal injuries.
Exercise care when using hand tools and sharp instruments during assembly.
Carefully read all manufacturers warnings and cautions for any additional items used in the construction.
In line with our policy of continuous development the exact details of the kit may vary.
DO NOT use this car on public roads or in places where it can interfere with traffic, people or animals.
Always check the operation of the radio with the wheels off the ground, before using the car.
Make sure the radio and car batteries are fully charged before use.
Disconnect and remove the battery from the car when not in use.
Always store and charge LiPo batteries in a fireproof container.
DO NOT put fingers or any objects inside rotating or moving parts as this may cause injury.
Make sure the charger is correctly set for the type of battery you are using.
Incorrect charging may cause a fire.
Insulate all exposed electrical wiring. Exposed or damaged wires can cause short circuits and fire.
The motor and speed controller can become hot during use. DO NOT touch them immediately after using your car as this may cause injury.

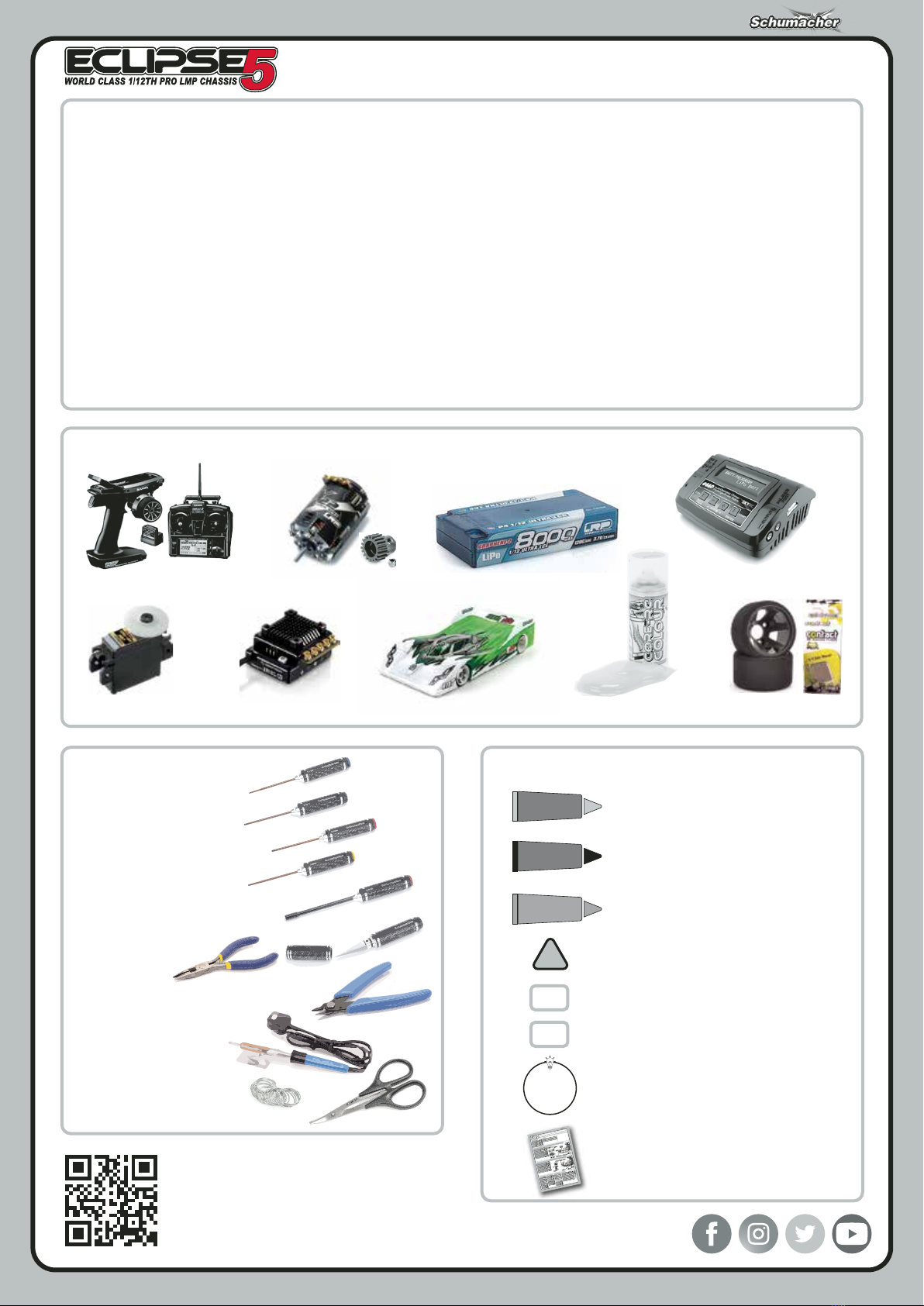

ADDITIONAL ITEMS REQUIRED
TOOLS REQUIRED ICON KEYS

















Radio Equipment
Electronic Speed Controller
1.5mm Hex Driver - U2789
2.0mm Hex Driver - U2790
2.5mm Hex Driver - U2791
3.0mm Hex Driver - U2792
5.5mm M3 Nut Driver - U2795
Body Reamer - U2818
Pliers - CR528
Side Cutters - CR527
Soldering Iron - CR275
Solder - U3107
Curved Scissors - CR044
Polycarbonate Paint
Battery Charger
Tyres and Inserts
www.racing-cars.com
CORE RC Medium Strength
Thread Lock 3ml - CR520
THREAD LOCK
CR520
CORE RC Low Strength
Thread Lock 3ml - CR865
THREAD LOCK
CR865
CORE RC 522 Pro Tyre Glue
20g + 2 Nozzles - CR522
CA GLUE
CORE CR522
Caution/Important note. Please read.
!
Left-Hand Side of car
LH
Right-Hand Side of car
RH
Advanced Set up Sheets - Page 37 - 40
The kit build will offer an easy and safe
setup option for most track conditions.
www.racing-cars.com
Driver: Date: Event/Track:
Qualify: Final: BestLap:
FRONTSUSPENSION
SETUP SHEET
REARSUSPENSION
SHOCKS
FRONT
Notes:
REAR
Body
Piston
Oil cSt cSt
Spring lb/in lb/in
Limiters(i) mm mm
Stroke mm mm
Limiters(e) mm mm
Cap V S A V S A
KEY:P= Plastic, A= Alloy, B= Brass, CF = Carbon Fibre, S2 = Schumacher Composite,
M=Medium,S=Stiff, Sh = Short, H= High, L= Low, F=Front,R=Rear, Y= Yes, N= No
KEY:P= Plastic, A= Alloy, B= Brass, CF = Carbon Fibre, S2 = Schumacher Composite,
M=Medium,S=Stiff, Sh = Short, H= High, L= Low, F= Front, R= Rear,Y= Yes, N= No
V=Vented,S=Sealed, A= Aeration
RideHeight mm
BumpSteerWashers mm
5
432
2
2
1
32
1
1
1
2
2
3
4
2
3
4
5
1
1
A
A
A
B
B
C
B
S2 CF
P A
mm
0˚5˚
HubHeight H L
M
PivotBlockHeight H L
M
MCF
S
Toe
CamberatRide Height deg
AntiRollBar 0.9 1.1 1.2 1.3
Wheelbase 0+1.5 +3.0 +4.5
FrontWing Y N
Notes:
Notes:
RideHeight mm
WingGurneyHeight mm
DriveshaftType CVD U/J
CamberatRide Height deg
AntiRollBar 1.1 1.2 1.3 1.4
1.0
Toe 3° 2.5° 2° 1.5°0.5°
3.5°
4° 1.0°
Anti-Squat 1° 2° 3° 4°
-0.75 0.75
0
Hex
Yoke
ShockMount
LinkHeight
S2 CF
A
LinkMount
Wishbone
HubCarrier
P A
TRANSMISSION
TRACKTYPE
Motor
RotorDia. mm
Timing deg
Type
GripLevel
Spur t
Pinion t
Condition
Surface
P B
A
PivotBlock
21 12
mm
Ackermann
1
CentreTrackRod
P A
DiffHeight H M L
High Medium Low
Tight Open Mixed
Weather
Flat Bumpy Mixed
Clay LongAstro Carpet
Grass ShortAstro Mixed
SlipperPlates 2 3
DiffTyp e B2g 4g
MotorPlate ACF
LockOut Y N
CHASSIS
SidePods
Chassis
1 2 3 4 5 6 7 8
RearwardShockPosition Only A B
S C/F
A C/F
EQUIPMENT
WEIGHTS
E.S.C.
Servo
RX
LiPo
Bodyshell
LiPoPosition
ChassisInsert
XBrace
RunningWeight
Notes:
S2 CF
ShockMount
mm
LinkHeight
MCF
S
Wishbone
2
1
AP
LinkMount
NY
LowRollCentreShim
-0.75 0.75
01.5 3.0
2.25
Hex
Y N
0mm +5mm
g
RadioTray
Chassis
RearStrap
RadioTray
UnderLiPo
F R
F R
Y N
Y N
Wheelbase Sh L
M
1 2 3
DiffOil cSt
mm
HubWashers
LH
PinHole
E
C
D
Notes:
deg In Out
TrishNeal N/A Tests / Multiple
N/AN/A N/A
18
18
5
1.0
-1.0
-1.0
12K Kit
550
0 0
0 0
22.0 27.3
White1.53Hole
Black4.0 Green2.2
Red1.73Hole
400
Kit
7.0Turn
12.3
20
23
LRPFlowX
KORSX3
Sanwa
LRP4000
Sunny
FRONT REAR
Wheels
Inserts
Tyres
TYRES
Notes:
YellowStagger
Kit Kit
None Medium
YellowMEZZO
Kit
80 1500
2
2.5
4
2
Steering Servo
Additional information that will help you
build a faster race car.
TEAM TIP
Bodyshell
1S LiPo BatteryMotor and Pinion Gear

www.racing-cars.com 02
F
Tighten screw ‘F’ until
the M3 thread insert ‘D’
is pulled into the carbon
fibre part as shown.
!
Use screw ‘F’ and washers
‘G’ to fit the inserts ‘D’.
(Keep ‘F’ and ‘G’ safe
for later.)
!
E
D
LiPo Positon
See Page 19 for more information
2 43
www.racing-cars.com
Driver: Date: Event/Track:
Qualify: Final: BestLap:
FRONTSUSPENSION
SETUP SHEET
REARSUSPENSION
SHOCKS
FRONT
Notes:
REAR
Body
Piston
Oil cSt cSt
Spring lb/in lb/in
Limiters(i) mm mm
Stroke mm mm
Limiters(e) mm mm
Cap V S A V S A
KEY:P= Plastic, A= Alloy, B= Brass, CF = Carbon Fibre, S2 = Schumacher Composite,
M=Medium,S=Stiff, Sh = Short, H= High, L= Low, F= Front,R=Rear,Y= Yes,N= No
KEY:P= Plastic, A= Alloy, B= Brass, CF = Carbon Fibre, S2 = Schumacher Composite,
M=Medium,S=Stiff, Sh = Short, H= High, L= Low, F= Front, R= Rear,Y= Yes, N= No
V=Vented,S=Sealed, A= Aeration
RideHeight mm
BumpSteerWashers mm
5
432
2
2
1
32
1
1
1
2
2
3
4
2
3
4
5
1
1
A
A
A
B
B
C
B
S2 CF
P A
mm
0˚5˚
HubHeight H L
M
PivotBlockHeight H L
M
MCF
S
Toe
CamberatRide Height deg
AntiRollBar 0.9 1.1 1.2 1.3
Wheelbase 0+1.5 +3.0 +4.5
FrontWing Y N
Notes:
Notes:
RideHeight mm
WingGurneyHeight mm
DriveshaftType CVD U/J
CamberatRide Height deg
AntiRollBar 1.1 1.2 1.3 1.4
1.0
Toe 3° 2.5° 2° 1.5°0.5°
3.5°
4° 1.0°
Anti-Squat 1° 2° 3° 4°
-0.75 0.75
0
Hex
Yoke
ShockMount
LinkHeight
S2 CF
A
LinkMount
Wishbone
HubCarrier
P A
TRANSMISSION
TRACKTYPE
Motor
RotorDia. mm
Timing deg
Type
GripLevel
Spur t
Pinion t
Condition
Surface
P B
A
PivotBlock
21 12
mm
Ackermann
1
CentreTrackRod
P A
DiffHeight H M L
High Medium Low
Tight Open Mixed
Weather
Flat Bumpy Mixed
Clay LongAstro Carpet
Grass ShortAstro Mixed
SlipperPlates 2 3
DiffTyp e B2g 4g
MotorPlate ACF
LockOut Y N
CHASSIS
SidePods
Chassis
1 2 3 4 5 6 7 8
RearwardShockPosition Only A B
S C/F
A C/F
EQUIPMENT
WEIGHTS
E.S.C.
Servo
RX
LiPo
Bodyshell
LiPoPosition
ChassisInsert
XBrace
RunningWeight
Notes:
S2 CF
ShockMount
mm
LinkHeight
MCF
S
Wishbone
2
1
AP
LinkMount
NY
LowRollCentreShim
-0.75 0.75
01.5 3.0
2.25
Hex
Y N
0mm +5mm
g
RadioTray
Chassis
RearStrap
RadioTray
UnderLiPo
F R
F R
Y N
Y N
Wheelbase Sh L
M
1 2 3
DiffOil cSt
mm
HubWashers
LH
PinHole
E
C
D
Notes:
deg In Out
TrishNeal N/A Tests / Multiple
N/AN/A N/A
18
18
5
1.0
-1.0
-1.0
12K Kit
550
0 0
0 0
22.0 27.3
White1.53Hole
Black4.0 Green2.2
Red1.73Hole
400
Kit
7.0Turn
12.3
20
23
LRPFlowX
KORSX3
Sanwa
LRP4000
Sunny
FRONT REAR
Wheels
Inserts
Tyres
TYRES
Notes:
YellowStagger
Kit Kit
None Medium
YellowMEZZO
Kit
80 1500
2
2.5
4
2
1
Rear
4 LiPo Stops are included.
Position 1 - Longest - Rear LiPo
Position 4 - Shortest - Forward LiPo
!
Front
Note Orientation!
This part is shown
facing upside down.
!
F
There are 2 types of
Thread Lock included.
Be careful to use the
correct colour as
instructed on the bottle
image. Only a small
drop is required.
!
C
D
A
B
G
B
STEP 1
A x1
M3 x 5 Csk Hd Screw
B x2
M3 x 8 Csk Hd Screw
C x1
M3 x 25 Csk Hd Screw
D x1
M3 Thread Insert
G x1
M3 Black Nut
F x1
M3 X 12 Cap Hd Screw
M3 Washer
E x3
THREAD LOCK
BLUE CR520
THREAD LOCK
BLUE CR520
THREAD LOCK
BLUE CR520
www.racing-cars.com

www.racing-cars.com
03
Screw ‘E’ must not be over tightened!
Allow a small clearance between the
screw head and the plastic part to
ensure a free pivot in the step 4.
!
STEP 2
A x2
B x3
M3 x 6 Csk Hd Screw
M3 x 8 Csk Hd Screw
C x2
D x1
E x1
5.5mm Pivot Ball
Ball Stud Ultra Short
M2.5 x 8 Button Hd Screw
D
A
A
B
B
B
C
C
E
THREAD LOCK
BLUE CR520
THREAD LOCK
BLUE CR520
THREAD LOCK
BLUE CR520

www.racing-cars.com 04
THREAD LOCK
BLUE CR520
THREAD LOCK
BLUE CR520
THREAD LOCK
BLUE CR520
THREAD LOCK
BLUE CR520
Setting this 1.5mm is a good starting point
and will result in a rear droop of 1mm.
!
Use only the Purple Thread Lock on
this screw! (CR865 - Included)
Using the Blue will result in insert ‘D’
falling out when setting droop.
!
THREAD LOCK
PURPLE CR865
1.5mm
C
C
D
C
C
E
E
C
C
I
G
I
B
B
A
A
H
H
FD
F
D
C
STEP 3 and 4a
A x2
M3 x 6 Csk Hd Screw
B x2
M3 x 8 Csk Hd Screw
C x7
D x4
M3 Thread Insert
G x1
M3 x 6 Button Hd Screw
F x3
E x2
5.5mm Pivot Ball
Ball Stud Ultra Short
Silver Ball Stud Short
H x2
M3 x 4 Button Hd Screw
I x2
M3 x 8 Button Hd Screw

www.racing-cars.com
05
Tighten the 4 screws ‘A’ lightly,
checking the plastic side link
pivots freely. If they won’t pivot
sideways freely, loosen screws ‘A’.
!
To position the pod onto the chassis,
firstly, put the centre ball into the
centre pivot, then lower the rear of
the pod down onto the spring screw.
!
1.5mm
This 1.5mm measurement sets the
pod height at the kit setting.
The pod base should be horizontal
when at ride height.
STEP 4b
A x4
M2.5 x 8 Button Hd Screw
A
A
A
A
Ensure the counterbore
on the side link is
facing outward.
!

www.racing-cars.com 06
A
A
B
B
C
C
D
D
D
D
DD
LiPo Positon
See Page 19 for more information
2 43
www.racing-cars.com
Driver: Date: Event/Track:
Qualify: Final: BestLap:
FRONTSUSPENSION
SETUP SHEET
REARSUSPENSION
SHOCKS
FRONT
Notes:
REAR
Body
Piston
Oil cSt cSt
Spring lb/in lb/in
Limiters(i) mm mm
Stroke mm mm
Limiters(e) mm mm
Cap V S A V S A
KEY:P= Plastic, A= Alloy, B= Brass, CF = Carbon Fibre, S2 = Schumacher Composite,
M=Medium,S=Stiff, Sh = Short, H= High, L= Low, F= Front,R=Rear,Y= Yes,N= No
KEY:P= Plastic, A= Alloy, B= Brass, CF = Carbon Fibre, S2 = Schumacher Composite,
M=Medium,S=Stiff, Sh = Short, H= High, L= Low, F= Front, R= Rear,Y= Yes, N= No
V=Vented,S=Sealed, A= Aeration
RideHeight mm
BumpSteerWashers mm
5
432
2
2
1
32
1
1
1
2
2
3
4
2
3
4
5
1
1
A
A
A
B
B
C
B
S2 CF
P A
mm
0˚5˚
HubHeight H L
M
PivotBlockHeight H L
M
MCF
S
Toe
CamberatRide Height deg
AntiRollBar 0.9 1.1 1.2 1.3
Wheelbase 0+1.5 +3.0 +4.5
FrontWing Y N
Notes:
Notes:
RideHeight mm
WingGurneyHeight mm
DriveshaftType CVD U/J
CamberatRide Height deg
AntiRollBar 1.1 1.2 1.3 1.4
1.0
Toe 3° 2.5° 2° 1.5°0.5°
3.5°
4° 1.0°
Anti-Squat 1° 2° 3° 4°
-0.75 0.75
0
Hex
Yoke
ShockMount
LinkHeight
S2 CF
A
LinkMount
Wishbone
HubCarrier
P A
TRANSMISSION
TRACKTYPE
Motor
RotorDia. mm
Timing deg
Type
GripLevel
Spur t
Pinion t
Condition
Surface
P B
A
PivotBlock
21 12
mm
Ackermann
1
CentreTrackRod
P A
DiffHeight H M L
High Medium Low
Tight Open Mixed
Weather
Flat Bumpy Mixed
Clay LongAstro Carpet
Grass ShortAstro Mixed
SlipperPlates 2 3
DiffTyp e B2g 4g
MotorPlate ACF
LockOut Y N
CHASSIS
SidePods
Chassis
1 2 3 4 5 6 7 8
RearwardShockPosition Only A B
S C/F
A C/F
EQUIPMENT
WEIGHTS
E.S.C.
Servo
RX
LiPo
Bodyshell
LiPoPosition
ChassisInsert
XBrace
RunningWeight
Notes:
S2 CF
ShockMount
mm
LinkHeight
MCF
S
Wishbone
2
1
AP
LinkMount
NY
LowRollCentreShim
-0.75 0.75
01.5 3.0
2.25
Hex
Y N
0mm +5mm
g
RadioTray
Chassis
RearStrap
RadioTray
UnderLiPo
F R
F R
Y N
Y N
Wheelbase Sh L
M
1 2 3
DiffOil cSt
mm
HubWashers
LH
PinHole
E
C
D
Notes:
deg In Out
TrishNeal N/A Tests / Multiple
N/AN/A N/A
18
18
5
1.0
-1.0
-1.0
12K Kit
550
0 0
0 0
22.0 27.3
White1.53Hole
Black4.0 Green2.2
Red1.73Hole
400
Kit
7.0Turn
12.3
20
23
LRPFlowX
KORSX3
Sanwa
LRP4000
Sunny
FRONT REAR
Wheels
Inserts
Tyres
TYRES
Notes:
YellowStagger
Kit Kit
None Medium
YellowMEZZO
Kit
80 1500
2
2.5
4
2
1
Rear Front
The LiPo position must be set to
match the front LiPo stop selected
in step one.
!
LiPo Position
1
4
3
2
!The side springs should be either
just touching the lower pod base,
or have a small gap. The spring
should not have any preload.
This is set by adjusting grub screw ‘C’.
!Note: The couterbore
is on the underside.
E
E
STEP 5
A x2
M3 x 6 Button Hd Screw
B x2
C x2
D x6
M3 Thread Insert
M3 x 6 Patched Grub Screw
Ball Stud Ultra Short
E x2
M3 x 8 Button Hd Screw

www.racing-cars.com
07
A
A
BB
C, D
C, D
Ride Height and Castor is most easily set with
spacers ‘A’ and ‘B’. (as seen in in the diagram above).
More information can be found on Page 17.
!
TEAM TIP
U7920 0.50mm and
U7921 0.75mm
alloy ride height
spacers, may be
used to set ride
height with ease!
Using ‘E’ (1mm) along with
the 1mm slide in spacer shown,
provides the kit setting.
This is 3.4 mm ride height and 3°castor
when using 40.5mm diameter tyres.
!
B x2
C x2
M3 x 6 Csk Hd Screw
M3 x 8 Csk Hd Screw
STEP 6
A x2
M3 x 6 Button Hd Screw
Grey 1.0 mm
E x2
THREAD LOCK
BLUE CR520
THREAD LOCK
BLUE CR520
E
E
D x2
M3 x 10 Csk Hd Screw
AB
Use screw D when using more
than 4mm of spacers.
!

www.racing-cars.com 08
B
B
C
C
A
A
A
A
B
B
B
B
Silicone OIL
12000 cSt
STEP 7
A x2
M3 Nyloc Nut Black
B x2
C x2
M3 x 0.5 Washer
Ball Stud Short Low
STEP 8
A x2
M3 x 6 Button Hd Screw
B x6
Droop spacer 0.25mm Black
Spacer C
Spacer D
-Increasing spacer ‘C’ increases ride height.
-Changing spacer ‘D’ doesn’t affect ride height.
-Increasing spacer ‘C’ or ‘D’ decreases droop.
!
6x Droop Spacers ‘B’ are included.
The kit setting is 2x per side, as
shown.
!
Always use at least a 0.5mm
washer below ball stud .
B
!
Silicone OIL
12000 cSt
Add several drops of silicone oil into
the top of the kingpins, until oil begins
to escape through the crossholes.
Spread the oil over the shaft and drop
the hub over the top.
!

www.racing-cars.com
09
Some parts from previous steps
have been hidden for clarity of
assembly.
!
RH
Thread
LH
Thread
LH
Thread
RH
Thread
Note the shape of the turnbuckle.
This groove indicates the left hand thread.
!
Note: Build a pair of turnbuckles
with the same length.
!
Shorter
Longer
15.6mm
Ensure the servo is
at the neutral position
before installing
the servo saver.
!
The included white servo saver
fits 25T servos such as Core Rc,
Highest, Futaba and Power HD.
-U8477 - White - 25T - Core RC
-U8478 - Black - 23T - SANWA
!
The Aerial, aerial mount, M3 x 4 grub
screw and M3 x 6 Csk screw are from
step 15. These parts are required if
you are NOT running a Sanwa servo
AND you have an aerial on your
receiver.
!
Adjust screws so that the servo
spline is mounted centrally to the car.
!
A
A
B
F
B
F
C
C
D
D
E
D
B x2
C x2
M3 x 10 Csk Hd Screw
M3 x 6 Button Hd Screw
STEP 9
A x2
M3 x 6 Csk Hd Screw
M3 x 8 Button Hd Screw
D x2
M3 x 10 Button Hd Screw
E x1
M3 x Csk Washer
F x2

www.racing-cars.com 10
STEP 10b
TEAM TIP
Press a 0.2mm feeler
gauge between
bearing ‘B’ and spacer
‘C’ when tightening
screw ‘A’. This easily
offers the perfect
setting.
A x1
M2.5 x 8 Cap Hd Screw
B x2
1/4” x 3/8” Flanged Bearing
C x4
1/4” x ø8mm x 0.50 Spacer
STEP 10a
A x3
B x1
M3 x 6 Button Hd Screw
M2.5 x 8 Cap Hd Screw
A
A
A
B
B
B
C
C
A
0.50
The eccentrics are used to adjust the ride
height. There are 8 different eccentrics, 7 of
which can be flipped to give a total of 15 options.
See page 17 to choose an appropriate one
for your tyre size.
!
Ensure the spool rotates freely
with minimum end float.
!
Eccentric Height
0.25
Eccentric Height
0.50
THREAD LOCK
BLUE CR520
THREAD LOCK
BLUE CR520

www.racing-cars.com
!
Use the included spanner to
tighten the sockets.
!
Make two side dampers the same
with the short sockets.
!
Make the centre damper
with the long sockets.
A
A
Silicone OIL
30000 cSt
Silicone OIL
12000 cSt
Step 11
A x3
M3 x 14 Grub Screw
11

www.racing-cars.com 12
Step 12
A x6
M3 x 6 Button Hd Screw
B x6
M3 x 6 Csk Hd Screw
AA
A
A
A
A
B
B
B
B
B
B

www.racing-cars.com
13
A
A
B
B
C
C
D
D
D
D
E
E
1 Dot
Low
Position
3 Dot
High
Position
2 Dot
Medium
Position
Select the correct body
washer to fine tune the
bodyshell height. Each
incremental change is
1.2mm.
Snap the body washers onto
pins ‘D’.
!
Step 13
A x2
M3 x 10 Button Hd Screw
B x2
M3 x 6 Csk Hd Screw
C
M3 x 10 Csk Hd Screw
x2
E
M3 Thread Insert
x2
D
Pin ø1.5 x 11.8
x4
!
The bodyposts may be trimmed for
looks and aerodynamics. A sharp
knife or side cutters may be used.
Alternatively use AM190041 -
Arrowmax Body Post Trimmer

www.racing-cars.com 14
B
B
A
C
C
A
C
C
Step 14
A x2
Alloy M3 Nyloc Nut
B x2
M4 Flanged Nyloc Nut
C x4
ø1/8” x ø5/16” Fl Bearing

www.racing-cars.com
15
B
B
D
D
Step 15
A x1
M3 x 6 Csk Hd Screw
B
M3 x 10 Cap Hd Screw
x2
D
Black 1.0mm Washer
x2
C
M3 x 4 Grub Screw
x1

www.racing-cars.com 16
The white servo saver included
fits 25T servo splines. For SANWA
servos use the part listed below.
U8478 - Black - 23T - SANWA
!
Build the turnbuckles
as shown on page 09.
Use from step 09.
!
A
B
CC
A
Option Fit
SANWA SERVO
U7680
A x2
Alloy M3 Nyloc Nut
C x2
M3 x 10 Button Hd Screw
B x1
M3 x 10 Csk Hd Screw

www.racing-cars.com
17
TRACK SETTINGS
ROLL SPRINGS See Page 6 - Step 5
Roll springs are used to control the cars steeing balance. A softer spring
will give an easier to drive car. Stiffer roll springs can be used to give a
more aggressive car. The standard setting has the roll springs
uncompressed and both just touching the lower pod plate when the car is
stationary. Screwing them downward and compressing the springs
creates more steering while loosening them gives an easier to drive car.
Adjusting the springs allows the tweak to be infinitely adjusted. Ensure
they are not set too unevenly. If more than 0.5mm different, further
investigation is required.
REAR BUMP SPRING See Page 5 - Step 4b
This spring is used to set the pod angle of the car. Adjust the spring
tension so that the pod is horizontal when the car is on a flat surface.
A softer bump spring will give a more aggressive car entering the corner,
but offers more grip mid corner and on corner exit. It will also improve the
cars bump handling.
RIDE HEIGHT & CASTOR
- Increasing spacer ‘C’ increases ride height.
- Changing spacer ‘D’ doesn’t affect ride height.
- Increasing spacer ‘C’ or ‘D’ decreases droop.
Spacer C
Spacer D
(Kit)
*One Black King Pin Spacer = 0.25mm
Use the eccentrics to adjust the rear ride height. Raising the axle lowers
the ride height. Lowering the axle raises the ride height.
The recommended ride height is 3.5mm on carpet.
This is measured between the bottom of the chassis and the ground with
the car in running trim. First press the car down on to the ground and
release it once or twice to settle the suspension before adjusting the ride
height. Ride Height
Spacer A
(Total)
Spacer B
(Total)
Rear
Front Ride Height & Castor Chart
See Page 7 - Step 6 & Page 8 - Step 8
Tyre Size
39.5mm 3.4mm 0.5mm
1.0mm
1.5mm
2.0mm
0.0mm
0.5mm
1.0mm
1.5mm
0.0mm
0.5mm
1.0mm
1.5mm
1.5mm
2.0mm
2.5mm
3.0mm
1.5mm
2.0mm
2.5mm
3.0mm
2.0mm
2.5mm
3.0mm
3.5mm
0.0mm
0.0mm
0.0mm
0.0mm
0.0mm
0.0mm
0.0mm
0.0mm
0.25mm
0.25mm
0.25mm
0.25mm
0.5mm
0.5mm
0.5mm
0.5mm
0.5mm
0.5mm
0.5mm
0.5mm
0.25mm
0.25mm
0.25mm
0.25mm
3º
3º
3º
3º
4º
4º
4º
4º
5º
5º
5º
5º
3.4mm
3.4mm
3.4mm
3.4mm
3.4mm
3.4mm
3.4mm
3.4mm
3.4mm
3.4mm
3.4mm
40.5mm
41.5mm
42.5mm
39.5mm
40.5mm
41.5mm
42.5mm
39.5mm
40.5mm
41.5mm
42.5mm
Ride Height Castor Spacer A Spacer B Spacer C* Spacer D*

www.racing-cars.com 18
Shore hardness
28 30 32 35 40
Softer = more grip Harder = less grip
.
CA GLUE
CORE CR522
FRONT TOE
CAMBER See Page 8 - Step 8
Parallel front wheels or a slight toe out (up to 1 degree per side) is the
recommended setting.
Toe out gives more initial steering. It does however make the car more
difficult to drive on the straight, due to increased responsiveness.
Increasing the negative camber angle will increase the cars steering. This
will make the car more difficult to drive but often faster on a lap.
Reducing the negative camber angle is a good setting change if traction
roll is a problem.
As a general rule, setting the camber so that the tyres wear without any
coning will give the most ideal setting in usual conditions.
TYRES See Page 14 - Step 14
The most important factor in racing is to get the tyres right. Contact foam tyres are designed for use
on carpet tracks.
Toe out
Negative Camber
Use softer front tyres if you want more steering, and harder front tyres if you want less steering.
In high traction conditions sometimes you can have too much overall grip. Using harder tyres all
round should make you faster through the corners with less traction rolling in these conditions.
If the track grip is not high enough, or the tyres are too hard, the car may slide and stop in the
corners, if this is the case, reduce the shore rating until the track conditions change.
RACE TIP - 41.5mm rear, 40.5mm front is a good all round tyre size, reducing this size is only
an advantage in extreme conditions to prevent grip roll. If you have too much steering then add
a thin layer of superglue (CORE Racing #CR522) to the outside edge of the front tyre to reduce
the front tyre grip. This can be used to prevent grip roll in extreme conditions.
REAR ROLL DAMPING See Page 11 - Step 11
Generally, in high traction conditions, thinner roll damping oil is better.
Low traction tracks may require thicker damping.
Thicker roll damping oil slows the weight transfer of the rear and makes
the car easier to drive. Thicker oil can help if the track surface is bumpy
and there are issues with bumps in the middle of the corner.
A good range is between 7,000cSt and 20,000cSt.

POD ANGLE AND HEIGHT
REAR DROOP See Page 4 - Step 3 and 4a
When X= 4.3mm, the pod angle is 0°. This respresents the kit setting.
This gives best support for the rear roll springs and set the kit motor height.
If this number is decreased, the motor height will drop below the chassis, and be the
ride height limitation. It is generally not best to do this, except in ultra high traction,
where lifting the chassis may also be benefitial.
This can be be adjusted in small measures to quickly change ride height, however, it
should not exceed less than 3.7mm and more than 4.8mm. Droop must be adjusted after
this is done.
Rear droop adjusts the balance of the cars handling. Less droop makes the car
more aggressive, squaring up the turns. More droop gives less corner rotation
but an easier to drive car. More droop also improves the cars bump handling.
Start with 1mm of droop.
To set this, start with the droop screw fully screwed in and back it out to reduce
droop. Measure this by measuring the cars rear ride height, then take all the
weight off the car by lifting from the rear of the centre damper tube (the wheels
must still just be touching the floor). Measure the chassis from the floor in this
position and subtract the ride height to calculate droop
REAR BUMP DAMPING See Page 11 - Step 11
Generally, in high traction conditions, thinner bump damping oil is better.
Low traction tracks may require thicker damping.
Thicker bump damping oil slows the weight transfer of the rear and
makes the car easier to drive when coming off power. Thicker oil can help
if the track surface is bumpy and there are issues with bumps when the
car is moving in a straight line.
A good range is betweeen 15,000cSt and 50,000cSt.
LIPO POSITION See Page 2 - Step 1
Moving the LiPo forward will make the car smoother and easier to drive.
Moving the LiPo rearward will make the car more aggressive and provide more steering. It may help prevent rear wheel lifting
when traction is very high.
See Page 5 - Step 4b
X
Increasing Front Droop will make the car more agressive and have more front grip.
Decreasing Front Droop makes the car smoother and easier, at the expense of rotation.
Front droop is adjusted in 0.25mm steps using the shims on the kingpin.
They can be positioned above or below the hub carrier but please note that if placed
above the hub carrier, the ride height will be decreased. Shims below will not change the
height of the car, only the droop.
Kit setting 2 shims on both kingpins.
See Page 8 - Step 8
FRONT DROOP
www.racing-cars.com
19
