Schwinn 270 Recumbent Bike User manual

Manual en Espa_ol LaSno Ar_ericano_
http://www_schwinn_itness_cor_ ASSEMBLY _ANUAL /OWNEFI_S I_/IANUAI-

Important Safety Instructions - Assembly 3
Safety Warning Labels /Serial Number 4
Specifications 5
Before Assembly 5
Parts 6
Hardware 7
Tools 7
Assembly 8
Moving the Machine 18
Leveling the Machine 19
Important Safety Instructions 20
Features 21
Console Features 22
Operations
Adjustments
Power Up /Idle Mode
Quick Start Program
User Profiles
Pausing or Stopping
Results /Cool Down Mode
GOAL TRACK Statistics
Console Service Mode
Maintenance
Maintenance Parts
Troubleshooting
Warranty
Sears Customer Warranty
27
27
27
28
28
33
34
34
36
37
38
40
42
43
To validate warranty support, keep the original proof of purchase and record the following information:
Serial Number
Date of Purchase
To register your product warranty, go to: vcw_.SchwinnFitness.com/register
Or call 1 [phone].
if you have questions or problems with your product, please call 1 (800) NAUTILUS (628-8458).
Nautilus, Inc., (800) NAUTILUS /[phone], www.Nautituslnc.com - Customer Service: North America [phone],
[email protected] I outside U.S. +01-360-859-5180, [email protected] I Printed in China I© 2013 Nautilus, Inc.

A
o
o
o
o
o
o
o
o
o
This icon means a potentially hazardous situation which, if not avoided, could result in death or serious injury.
Obeythe following warnings:
Read and understand all warnings on this machine.
Carefully read and understand the Assembly instructions.
Keep bystanders and children away from the product you are assembling at all times.
Do not connect power supply to the machine until instructed to do so.
Do not assemble this machine outdoors or in a wet or moist location.
Make sure assembly is done in an appropriate work space away from foot traffic and exposure to bystanders.
Some components of the machine can be heavy or awkward. Use a second person when doing the assembly steps
involving these parts. Do not do steps that involve heavy lifting or awkward movements on your own.
Set up this machine on a solid, level, horizontal surface.
Do not try to change the design or functionality of this machine. This could compromise the safety of this machine and will
void the warranty.
If replacement parts are necessary, use only genuine Nautilus@ replacement parts and hardware. Failure to use genuine
replacement parts can cause a risk to users, keep the machine from operating correctly and void the warranty.
Do not use until the machine has been fully assembled and inspected for correct performance in accordance with the
Manual.
Read and understand the complete Manual supplied with this machine before first use. Keep the Manual for future
reference.
Do all assembly steps in the sequence given. Incorrect assembly can lead to injury or incorrect function.
This product contains magnets. Magnetic fields can interfere with the normal use of certain medical devices at a close
range. Users may come into proximity of the magnets in the assembly, maintenance, and/or use of the product. Given the
obvious importance of these devices, such as a pacemaker, it is important that you consult with your medical provider
in connection with the use of this equipment. Please consult the "Safety Warning Labels and Serial Number" section to
determine the location of the magnets on this product.

SerialNumber
Manufacture Date: YY/MM
P-65 _.STM TPCH
compliant ;ompliant compliant
CEC..40(
compliant
SCHWINN _
Nautilus, Inc, =
18225 NE RiverSide Parkway, Poland, Or. 97230
www.nautilus.com
Phone:I-800-NAUTILUS
Brand: SCHWINN Modeh 270,Journey 2,5,
Echelon 2,5
Electrical Rating: 9V DC,1.5A Accuracy Class: n/a
Usage Class: H/Consumer use only.
Maximum User Weight: 3001b (136kg) _"*'_1-_7
Equipment Type: Fitness L-_
Made in: China
Patent: www.nautilusinc.com/IP 8002048_B
/
•Read, understand and obeyall
warnings on this machine.
• Keep children away.
• Not intended for use by anyone
under 14 years of age.
• Prior to use, read and understand
the Owner's Manual.
• Injury or death is possible if
Caution is not used while using this
machine.
• The maximum user weight for this
machine is 300 Ibs (136 kg).
• Replace any "Caution" "Warning"
or "Danger" label that is illegible,
damaged, or removed.
• The heart rate displayed may be
inaccurate and should be used for
reference only.
\
FCCCompliance
A Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the
user's authority to operate the equipment.
The machine and power supply comply with part 15 of the FCC rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2)this device must accept any interference received, including
interference that may cause undesired operation.
Note: This machine and power supply have been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if
not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.

_._ MaximumUserWeight:
49.9" PowerRequirements:
(126.8 cm) Operational Voltage:
Operating Current:
>_64" RegulatoryApprovals:
(162.5 cm) AC Power Adapter:
_" (70.3 cm)
300 Ibs. (136 kg)
Operational Voltage 9VDC
1500 mA
UL listed, CECcertified (or equivalent), Rated
120V 60Hz Input, 9VDC, 1500mA Output.
Class 2.
This product, its packaging, and components contain chemicals known to the State of California to cause cancer,
birth defects, or reproductive harm. This Notice is provided in accordance with California's Proposition 65. If you
would like additional information, please refer to our website at www.nautilus.com/prop65.
BeforeAssembly
Select the area where you are going to set up and operate your machine. For safe operation, the location must be on a
hard, level surface. Allow a workout area of a minimum 74.6" x 110.5" (189.5 cm x 280.5 cm).
BasicAssemblyTips
Follow these basic points when you assemble your machine:
• Read and understand the "Important Safety Instructions" before assembly.
•Collect all the pieces necessary for each assembly step.
Using the recommended wrenches, turn the bolts and nuts to the right (clockwise) to tighten, and the left (counterclock-
wise) to loosen, unless instructed otherwise.
When attaching 2 pieces, lightly lift and look through the bolt holes to help insert the bolt through the holes.
•The assembly can require 2 people.

17
15
16
14
12
13
/
,,'/ /
,i/ !
ii
ii
Item lily Description Item lily Description
1 1 Console 10 1 AC Adapter
2 1 Water Bottle Holder 11 1 Left Pedal
3 1 Seat Back 12 1 Front Stabilizer
4 1 Seat Cover 13 1 Right Pedal
5 1 Seat Frame Assembly 14 1 Upper Shroud
6 1 Seat Bottom 15 1 Shroud Cap
7 1 Seat Adjustment Handle 16 1 Console Mast
8 1 Rear Stabilizer 17 1 MP3 Cord
9 1 Frame

,J,,{¢>_
Item Qty Description
A 8 Button Head Hex Screw, M8x20
B 10 Button Head Hex Screw, M6x12
C 4 Flat Washer, M8
D 8 Lock Washer, M8
E 10 Flat Washer, M6
Item Qty Description
F 2 Phillips Head Screw,
G 14 Lock Washer, M6
H 4 Curved Washer, M6
I 4 Phillips Head Screw,
J 4 Curved Washer, M8
M5xl 2
M6x25
Tools
Included NotIncluded
(recommended)
4mm
6 mm

1. AttachStabilizersto Frame
Note: Hardware is pre-installed and not on the Hardware Card. *
I
/
/
/

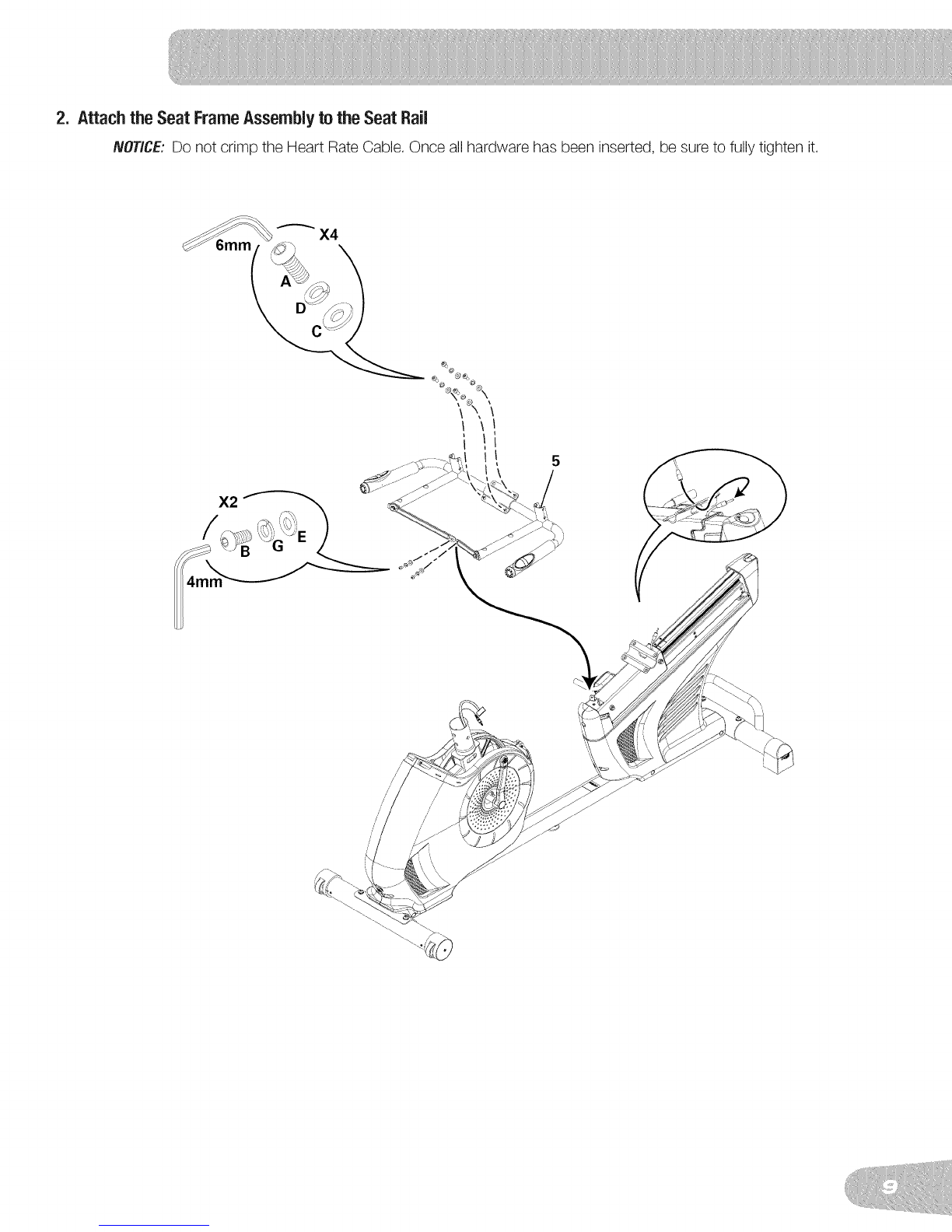

2. Attachthe SeatFrameAssemblyto the SeatRail
NOTICE: Do not crimp the Heart Rate ©able. Once all hardware has been inserted, be sure to fully tighten it.
X2
5

3. AttachSeatPadsto SeatFrameAssembly
3
X8
i
I

4. Attach Coverto Frame Assembly
4
/
/
!
/ / /

5. AttachSeatAdjustmentHandleto FrameAssembly

6. Connectthe CablesandAttachthe ConsoleMastto FrameAssembly
NOTICE: Do not crimp Console Cables.
16
X4
//
/ //
14

7. RemoveHardwarefromConsole
NOTICE: Do not crimp the cable.
Note: Hardware is pre-installed and not on the Hardware Card. *
#2
1
8. ConnectCablesand Attach Console to FrameAssembly
NOTICE:Align the clips on the cable connectors and make sure the connectors lock. Do not crimp cables.
//ii/

9. AttachPedalsto FrameAssembly
NOTICE:The Left Pedal is reverse=threaded. Be sure to attach Pedals on the proper side of the Bike. Orientation
isbased from a seated position on the bike. The Left Pedal has an "E',the Right Pedal an "R".
13
/
// // /
// /' /
11

10. AttachWaterBotUeHolderto FrameAssembly
2

11. ConnectACAdapter to FrameAssembly
10
12. Finalinspection
Inspect your machineto ensurethat all hardware istight and components are properly assembled.
Be sure to record the serial number inthe field provided atthe front ofthis manual.
Donot use until the machine has beenfully assembled and inspected for correct performance in accordance with the Owner's
Manual.

Moving the Machine
The machine may be moved by one or more persons depending on their physical abilities and capacities. Make sure that you
and others are all physically fit and able to movethe machine safely.
1. Remove the power cord.
2. Use the Transport Handle to carefully lift the machine onto the transport rollers.
3. Push the machine into position.
4. Carefully lower the machine into position.
NOTICE:Be careful when you move the bike. All abrupt motions can affect the computer operation.

Leveling the Machine
Levelers are found on each side of the Rear Stabilizer and on the Frame Rail. On the Rear Stabilizer, turn the knob to adjust
the stabilizer foot.
Do not adjust the levelers to such a height that they detach or unscrew from the machine. Injury to you or damage to
the machine can occur.
Toadjust the leveler on the Frame Rail:
1. Loosen the upper locking nut.
2. Turn the leveler to adjust the height.
Do not adjust the levelers to such a height that they detach or unscrew from the machine. Injury to you or
damage to the machine can occur.
3. Tighten the upper locking nut to lock the leveler.
Make sure the bike is level and stable before you exercise.
X2

Thisiconmeansapotentiallyhazardoussituationwhich,ifnotavoided,couldresultindeathorseriousinjury.
ABefore using this equipment, obey the following warnings:
Read and understand the complete Manual. Keep the Manual for future reference.
Read and understand all warnings on this machine. If at any time the Warning stickers become loose, unreadable or
dislodged, contact Nautilus®Customer Service for replacement stickers.
• Children must not be let on or near to this machine. Moving parts and other features of the machine can be dangerous to
children.
• Not intended for use by anyone under 14 years of age.
• Consult a physician before you start an exercise program. Stop exercising if you feel pain or tightness in your chest,
become short of breath, or feel faint. Contact your doctor before you use the machine again. Use the values calculated or
measured by the machine's computer for reference purposes only.
• Before each use, examine this machine for loose parts or signs of wear. Do not use if found in this condition. Monitor the
Seat, Pedals, and Crank Arms closely. Contact Nautilus® Customer Service for repair information.
• Maximum user weight limit: 300 Ibs. (136 kg). Do not use ifyou are over this weight.
• This machine is for home use only.
• Do not wear loose clothing or jewelry. This machine contains moving parts. Do not put fingers or other objects into
moving parts of the exercise equipment.
• Set up and operate this machine on a solid, level, horizontal surface.
• Make the Pedals stable before you step on them. Use caution when you step on and off the machine.
• Disconnect all power before servicing this machine.
• Do not operate this machine outdoors or in moist or wet locations. Keep the foot pedals clean and dry.
• Keep at least 24" (0.6 m) on each side of the machine clear. This is the recommended safe distance for access and
passage around and emergency dismounts from the machine. Keep third parties out of this space when machine is in
use.
• Do not over exert yourself during exercise. Operate the machine in the manner described in this manual.
• Correctly adjust and safely engage all Positional Adjustment Devices. Make sure that the Adjustment Devices do not hit
the user.
• Exercise on this machine requires coordination and balance. Be sure to anticipate that changes in speed and resistance
level can occur during workouts, and be attentive in order to avoid loss of balance and possible injury.
