Scientific Atlanta WebSTAR DPX2203 User manual

August 2006
Model DPX2203™ and EPX2203™ VoIP Cable
Modem User's Guide
In This Document
IMPORTANT SAFETY INFORMATION ............................................................... 2
FCC Compliance......................................................................................................... 8
Introduction ................................................................................................................ 9
What's In the Carton? .............................................................................................. 10
Front Panel Components......................................................................................... 11

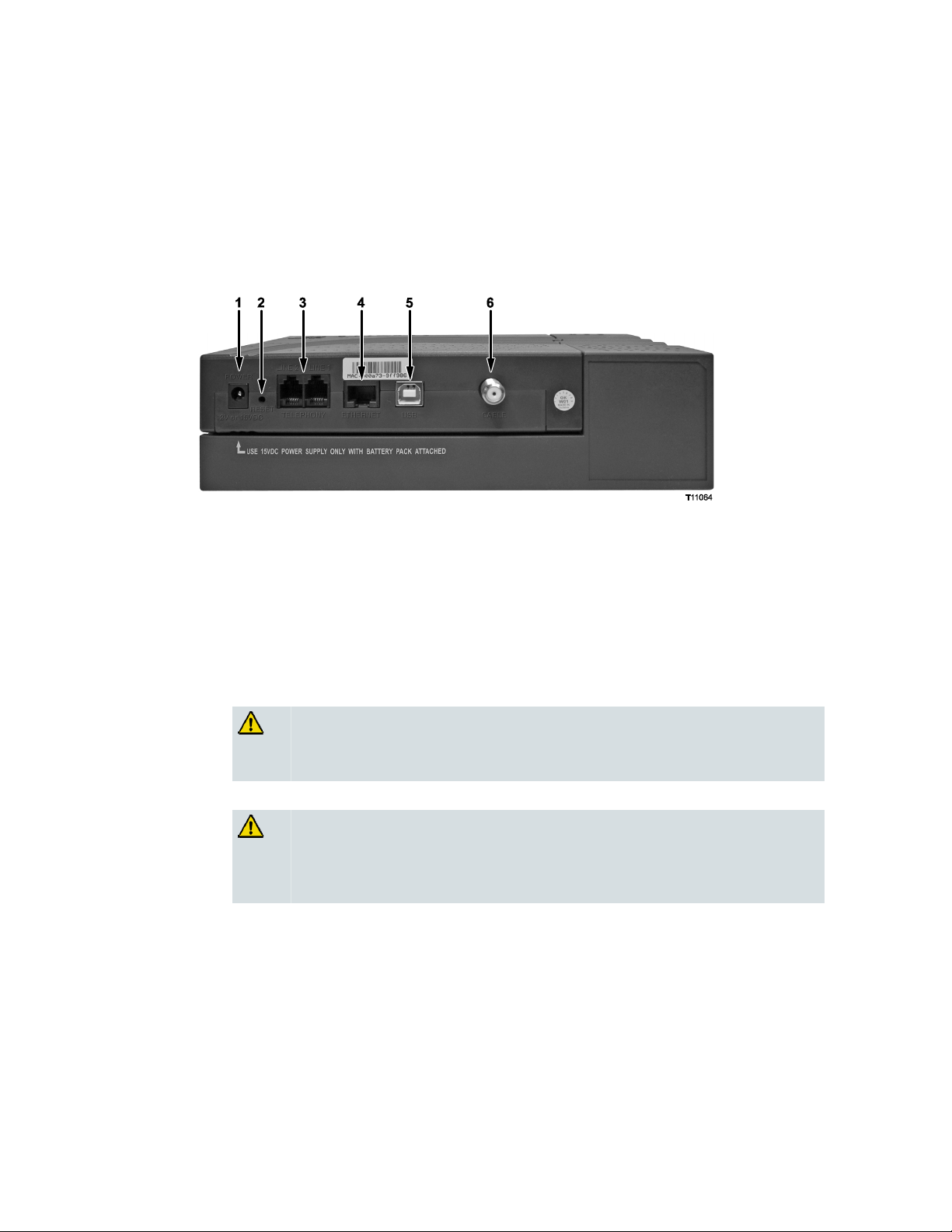

Back Panel Components.......................................................................................... 13
Where Is the Best Location for My Cable Modem? ............................................. 14
What Are the System Requirements for Internet Service? ................................. 15
How Do I Set Up My High-Speed Internet Access Account? ............................ 16
How Do I Connect My Devices to Use the Internet?........................................... 17
How Do I Configure TCP/IP Protocol? ................................................................ 19
How Do I Install USB Drivers?............................................................................... 22
What Are the Requirements for Ethernet Network Devices?............................ 24
How Do I Select and Place Ethernet Network Devices?..................................... 25
How Do I Connect Ethernet Network Devices? .................................................. 26
How Do I Troubleshoot My Internet Service Installation?................................. 28
How Do I Use My Cable Modem for Telephone Service?.................................. 31
Where Do I Place My Cable Modem for Telephone Service? ............................ 32
What Are the Requirements for Telephone Service? .......................................... 33
How Do I Install the Modem for Telephone Service? ......................................... 34
Using the Battery Pack (Optional) ......................................................................... 37
Mount the Battery Pack on a Wall ......................................................................... 40
Having Difficulty?.................................................................................................... 44
Front Panel LED Status Indicator Functions ........................................................ 47
Notices ....................................................................................................................... 50

2 4004041 Rev C
IMPORTANT SAFETY INFORMATION
IMPORTANT SAFETY INFORMATION

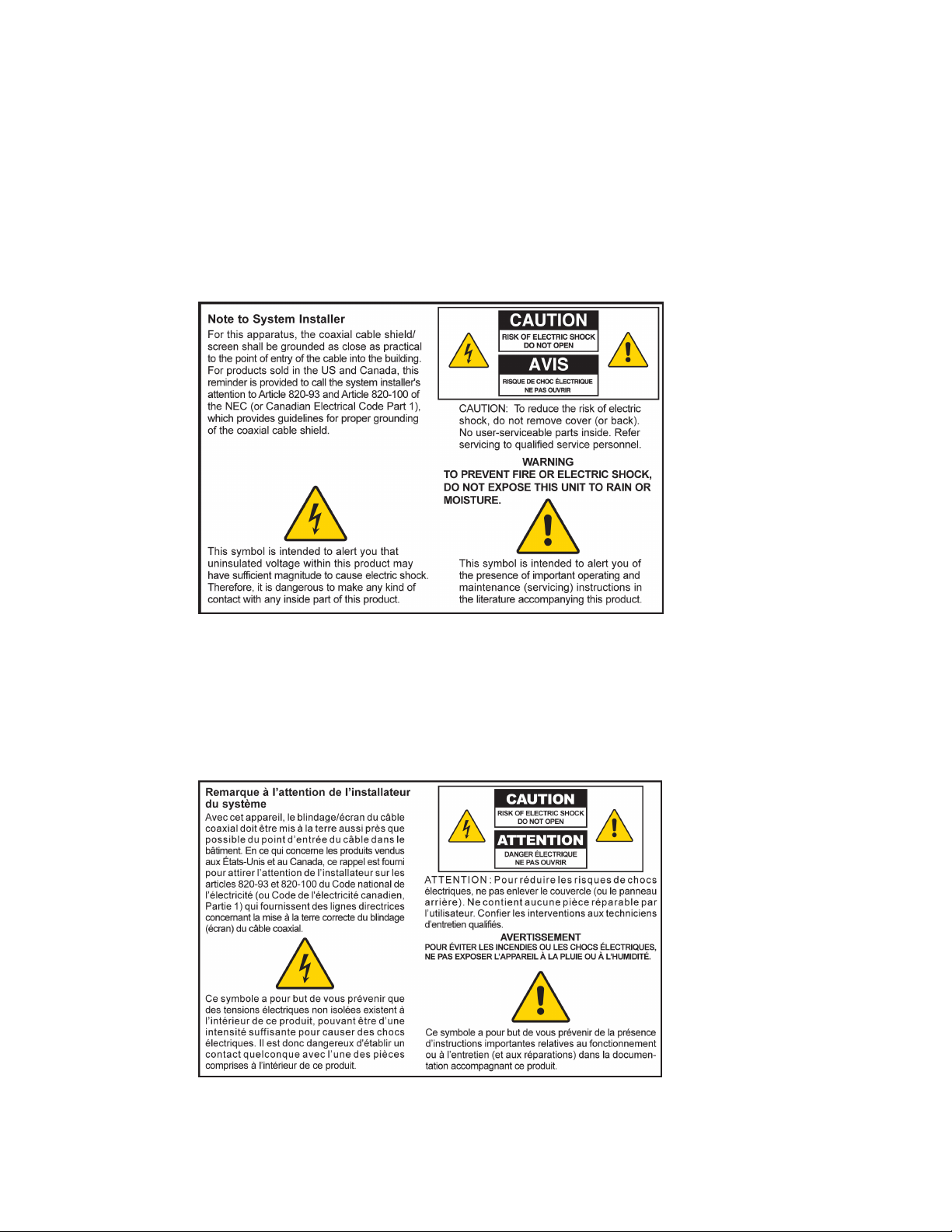

Notice to Installers
The servicing instructions in this notice are for use by qualified service personnel only. To
reduce the risk of electric shock, do not perform any servicing other than that contained in
the operating instructions, unless you are qualified to do so.
20060608SICM-EN
Notice à l’attention des installateurs de réseaux câblés
Les instructions relatives aux interventions d’entretien, fournies dans la présente notice,
s’adressent exclusivement au personnel technique qualifié. Pour réduire les risques de chocs
électriques, n’effectuer aucune intervention autre que celles décrites dans le mode d'emploi et
les instructions relatives au fonctionnement, à moins que vous ne soyez qualifié pour ce faire.
20060608SICM-FR

4004041 Rev C 3
IMPORTANT SAFETY INFORMATION

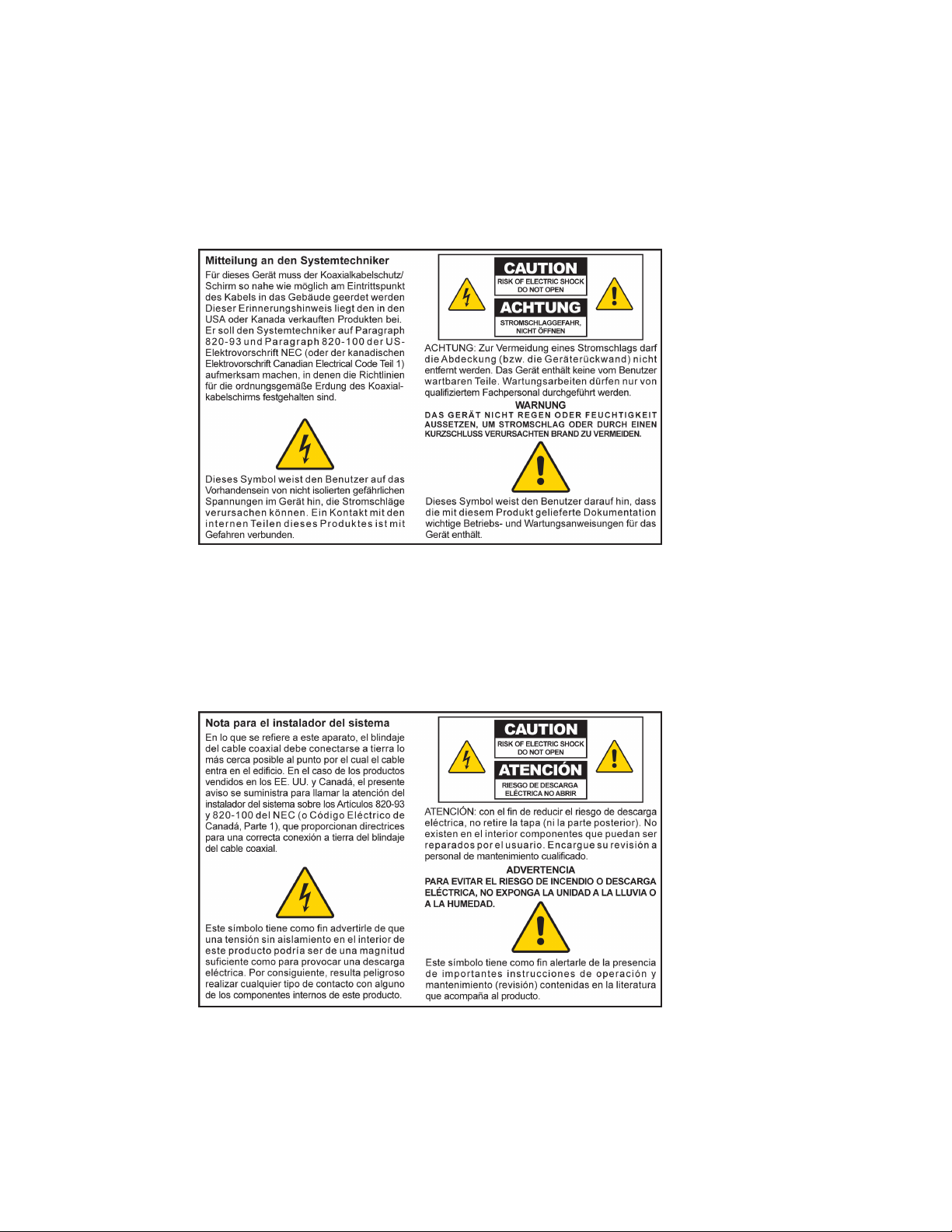

Mitteilung für CATV-Techniker
Die in dieser Mitteilung aufgeführten Wartungsanweisungen sind ausschließlich für
qualifiziertes Fachpersonal bestimmt. Um die Gefahr eines elektrischen Schlags zu
reduzieren, sollten Sie keine Wartungsarbeiten durchführen, die nicht ausdrücklich in der
Bedienungsanleitung aufgeführt sind, außer Sie sind zur Durchführung solcher Arbeiten
qualifiziert.
20060608SICM-GR
Aviso a los instaladores de sistemas CATV
Las instrucciones de reparación contenidas en el presente aviso son para uso exclusivo por
parte de personal de mantenimiento cualificado. Con el fin de reducir el riesgo de descarga
eléctrica, no realice ninguna otra operación de reparación distinta a las contenidas en las
instrucciones de funcionamiento, a menos que posea la cualificación necesaria para hacerlo.
20060608SICM-SP

4 4004041 Rev C
IMPORTANT SAFETY INFORMATION
Heed All Warnings
Adhere to all warnings on the product and in the operating instructions.
Read, Retain, and Follow These Instructions
Carefully read all safety and operating instructions before operating this product. Follow all
operating instructions that accompany this product. Retain the instructions for future use.
Give particular attention to all safety precautions.
Comply with Warnings
Avoid electric shock. Comply with all warnings and cautions in the operating instructions, as
well as those that are affixed to this product.
Power Warnings
Providing a Power Source
A label on this product indicates the correct power source for this product. Operate this
product only from an electrical outlet with the voltage and frequency indicated on the
product label.
If you are uncertain of the type of power supply to your home or business, consult your
service provider or your local power company.
Grounding This Product (U.S.A. and Canada Only)
WARNING:
To avoid electric shock and fire hazard, do not defeat the safety purpose of the
polarized or grounding-type plug. A polarized plug has two blades with one
wider than the other. A grounding-type plug has two blades and a third
grounding prong. The wide blade or the third prong is provided for your
safety. If the provided plug does not fit into your outlet, consult an electrician
for replacement of the obsolete outlet.
If this product is equipped with either a three-prong (grounding pin) safety plug or a two-
prong (polarized) safety plug, do not defeat the safety purpose of the polarized or
grounding-type plug. Follow these safety guidelines to properly ground this product:
For a 3-prong plug (consists of two blades and a third grounding prong), insert the plug
into a grounded mains, 3-prong outlet.
Note: This plug fits only one way. The grounding prong is provided for your safety. If
you are unable to insert this plug fully into the outlet, contact your electrician to replace
your obsolete outlet.
For a 2-prong plug (consists of one wide blade and one narrow blade), insert the plug
into a polarized mains, 2-prong outlet in which one socket is wider than the other.

4004041 Rev C 5
IMPORTANT SAFETY INFORMATION
Note: If you are unable to insert this plug fully into the outlet, try reversing the plug. The
wide blade is provided for your safety. If the plug still fails to fit, contact an electrician to
replace your obsolete outlet.
Overloading
WARNING:
Avoid electric shock and fire hazard! Do not overload mains AC outlets and
extension cords. For products that require battery power or other power
sources to operate them, refer to the operating instructions for those products.
Do not overload electrical outlets, extension cords, or integral convenience receptacles as this
can result in a risk of fire or electric shock. For products that require battery power or other
sources to operate, refer to the operating instructions for that product.
Preventing Power Cord Damage
Protect the power cord from being walked on or pinched, particularly at plugs, convenience
receptacles, and the point where they exit from the apparatus. Arrange all power cords so
that pets cannot walk on or disturb the cords. Do not place objects on or lean objects against
the cords, which can damage the cords.
Handling Replaceable Battery Pack
This product contains replaceable battery pack. Heed the following warning and see the
instructions later in this guide for handling, replacing, and disposing of the battery.
WARNING:
There is danger of explosion if the battery is mishandled or incorrectly
replaced. Replace only with the same type of battery. Do not disassemble it or
attempt to recharge it outside the system. Do not crush, puncture, dispose of in
fire, short the external contacts, or expose to water or other liquids. Dispose of
the battery in accordance with local regulations and instructions from your
service provider.
Usage Warnings
Providing Ventilation
Do not block any ventilation openings. Install in accordance with the manufacturer's
instructions.
Do not place this apparatus on a bed, sofa, rug, or similar surface.
Do not install near any heat sources such as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce heat.
Do not install this apparatus in an enclosure, such as a bookcase or rack, unless the
installation provides proper ventilation.
Do not place entertainment devices (such as VCRs or DVDs), lamps, books, vases with
liquids, or other objects on top of this product.
Do not use this apparatus near water.

6 4004041 Rev C
IMPORTANT SAFETY INFORMATION
Selecting a Proper Location
WARNING:
Avoid personal injury and damage to this product! An unstable surface may
cause this product to fall.
Place this product on a stable surface. The surface must support the size and weight of this
product. Any mounting accessory used must be recommended by the manufacturer. The
product should be mounted to a wall or ceiling only as recommended by the manufacturer.
Important! The power cord is the mains power supply disconnect device.
Place this product in a location that is close enough to an electrical outlet and where the
power cord is easily accessible to be disconnected from the wall outlet or from the rear panel
of the product.
Cleaning This Product
WARNING:
Avoid electric shock! Unplug this product before cleaning. Clean only with a
dry cloth.
Before cleaning this product, unplug it from the electrical outlet. Clean this product only with
a dry cloth. Do not use a liquid cleaner or an aerosol cleaner. Do not use a magnetic/static
cleaning device (dust remover) to clean this product.
Protecting This Product from Foreign Objects and Water or Moisture Damage
WARNING:
Avoid electric shock and fire hazard! Never push objects through the
openings in this product. Foreign objects can cause electrical shorts that can
result in electric shock or fire. Do not expose this product to rain or moisture.
Do not place objects filled with liquid, such as vases, on this product.
Never push objects of any kind into this product through openings as they may touch
dangerous voltage points or short out parts that could result in a fire or electric shock.
Do not expose this product to liquids or moisture. Do not place this product on a wet surface.
Do not spill liquids on or near this product.
Do not use this product near water (such as a bathtub, washbowl, sink, or laundry tub), in a
wet basement, or near a swimming pool.
Accessories Warnings
WARNING:
Avoid any potential for electric shock or fire. Only use
attachments/accessories specified by the manufacturer.
Do not use accessories or attachments with this product unless recommended by your service
provider or manufacturer.

4004041 Rev C 7
IMPORTANT SAFETY INFORMATION
Service Warnings
Servicing This Product
WARNING:
Avoid electric shock! Opening or removing the cover may expose you to
dangerous voltages. This product contains no user-serviceable parts. Refer all
servicing to qualified service personnel.
Do not open the cover of this product. If you open the cover, your warranty will be void.
Refer all servicing to qualified personnel only. Contact your service provider for instructions.
Obtaining Service for Product Damage
For damage that requires service, unplug this product from the AC outlet. Refer all servicing
to your service provider or qualified service personnel. Servicing is required when:
The apparatus has been damaged in any way
A power-supply cord or plug is damaged
Liquid has been spilled or objects have fallen into the apparatus
The apparatus has been exposed to rain or moisture
The apparatus does not operate normally
The apparatus has been dropped
Checking Product Safety
Upon completion of any service or repairs to this product, the service technician must
perform safety checks to determine that this product is in proper operating condition.
Lightning
For added protection, unplug this apparatus during lightning storms or when unused for
long periods of time. In addition to disconnecting the AC power from the wall outlet,
disconnect the signal inputs. This may prevent damage to the apparatus due to lightning and
power-line surges. Plugging this apparatus into a surge protector may reduce the risk of
damage.
20060712MDBR

8 4004041 Rev C
FCC Compliance
FCC Compliance
United States FCC Compliance
This device has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against such interference in a residential installation. This equipment generates,
uses, and can radiate radio frequency energy. If not installed and used in accordance with the
instructions, it may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which can be determined by
turning the equipment OFF and ON, the user is encouraged to try to correct the interference
by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the cable company or an experienced radio/television technician for help.
Any changes or modifications not expressly approved by Scientific-Atlanta, Inc., could void
the user's authority to operate the equipment.
The information shown in the FCC Declaration of Conformity paragraph below is a
requirement of the FCC and is intended to supply you with information regarding the FCC
approval of this device. The phone numbers listed are for FCC-related questions only and not
intended for questions regarding the connection or operation for this device. Please contact your cable
service provider for any questions you may have regarding the operation or installation of this device.
Declaration of Conformity
This device complies with Part 15 of FCC
Rules. Operation is subject to the following two
conditions: 1) the device may not cause
harmful interference, and 2) the device must
accept any interference received, including
interference that may cause undesired
operation.
VoIP Cable Modem
DPX2203/EPX2203
Scientific-Atlanta, Inc.
5030 Sugarloaf Parkway
Lawrenceville, Georgia 30044 USA
Telephone: [phone]
Canada EMI Regulation
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la class B est conforme à la norme NMB-003 du Canada.
20060628FDC

4004041 Rev C 9
Introduction
Introduction
Welcome to the world of high-speed Internet and high-quality digital telephone
service. Your new Model DPX2203 or Model EPX2203 Cable Modem with
Embedded MTA is a modem that meets industry standards for high-speed data
connectivity along with digital telephone service. The DPX2203 or EPX2203 offers
the following outstanding features:
Data Over Cable System Interface Specifications (DOCSIS) technology to deliver
high-end performance and reliability
10/100BaseT Ethernet and USB ports to provide connectivity for high-speed data
services or to other Internet devices
Two RJ-11 telephony ports for connecting conventional telephones or fax
machines
This guide provides procedures and recommendations for placing, installing,
configuring, operating, and troubleshooting your DPX2203 or EPX2203 cable modem
for high-speed Internet or digital telephone service, or both simultaneously. Refer to
the appropriate section in this guide for the specific information you need for your
situation. Contact your cable service provider for more information about
subscribing to these services.

10 4004041 Rev C
What's In the Carton?
What's In the Carton?
When you receive your DPX2203 or EPX2203, you should check the cable modem
equipment and accessories to verify that each item is in the carton and that each item
is undamaged. The carton contains the following items:
One Model DPX2203 or EPX2203
VoIP Cable Modem
One power adapter with power
cord
One Ethernet cable (CAT5/RJ-45)
One USB cable
One CD-ROM containing the
user's guide and the USB drivers
If any of the items listed are missing or damaged, please contact your service
provider for assistance.
Notes:
You will need an optional cable signal splitter and additional standard RF
coaxial cables if you want to connect a VCR, a Digital Home Communications
Terminal (DHCT) or a set-top converter, or a TV to the same cable connection as
your cable modem.
Cables and other equipment needed for telephone service must be purchased
separately. Contact your service provider to inquire about the equipment and
cables you need for telephone service.

4004041 Rev C 11
Front Panel Components
Front Panel Components
The following illustration shows the function of the front panel LED status
indicators on the DPX2203 and EPX2203 and the optional battery pack.
Note: The model shown here is the DPX2203. The EPX2203 does not attach to a
battery pack.
1REPLACE BATTERY—Illuminates to indicate that the battery could not be fully
charged. While the battery may be able to provide some backup power, it should be
replaced to restore maximum capacity. Contact your cable service provider for
instructions to replace and dispose of the old battery.
2BATTERY LOW—Illuminates to indicate that approximately 20 percent of charge is
remaining in the battery
3AC POWER—Illuminates when the cable modem is operating on AC power. AC
power must be available to recharge the battery
4LINE 2—Illuminates solid green when the telephone line 2 is in use
5LINE 1—Illuminates solid green when telephone line 1 is in use
6PC—Illuminates solid green to indicate that an Ethernet/USB carrier is present. Blinks
to indicate that Ethernet/USB data is being transferred between the PC and the cable
modem
7CABLE—Illuminates solid green when the modem is registered on the network and
fully operational. This light blinks to indicate one of the following conditions:
Booting up and not ready for data
Scanning the network and attempting to register
Lost registration on the network and will continue blinking until it registers again
Blinks very slowly (once every 5 seconds) to indicate that Cable Modem Access
Protection is enabled
8SEND—Blinks to indicate that the modem is sending data to the cable network
9RECEIVE—Blinks to indicate that the modem is receiving data from the cable network
10 POWER—Illuminates solid green to indicate that power is being applied to the cable
modem

12 4004041 Rev C
Front Panel Components
Notes:
After the cable modem is successfully registered on the network, the POWER
LED (LED 10) and the CABLE LED (LED 7) illuminate continuously to indicate
that the cable modem is active and fully operational.
If the optional battery pack is installed, the POWER LED (LED 10) and the
CABLE LED (LED 7) blink periodically and the other lights go out to indicate
that the modem is running on battery power.
Operation without AC power: Most LEDs are disabled if the unit is operating on
battery power. In this mode the POWER LED (LED 10) and CABLE LED (LED 7)
blink periodically to indicate that the unit is operating under battery power but
AC power has failed.

4004041 Rev C 13
Back Panel Components
Back Panel Components
The following illustration shows the description and function of the back panel
components on the DPX2203 and EPX2203.
Note: The model shown here is the DPX2203. The EPX2203 does not attach to a
battery pack.
Important! Do not connect your PC to both the Ethernet and USB ports at the same
time. Your modem will not function if both the Ethernet and USB ports are
connected to your PC at the same time.
Note: You can connect two separate PCs to the cable modem at the same time by
connecting one to the Ethernet port and one to the USB port. This dual-connection
requires that you purchase two IP addresses from your ISP.
1POWER—Connects the cable modem to the DC output of the AC power adapter that is
provided with your cable modem
CAUTION:
Only use the power cord and the AC power adapter that are provided with
your cable modem.
2RESET—Reset-to-Default button (Factory Reset)
CAUTION:
This button is for maintenance purposes only. Do not use unless
instructed to do so by your cable or telephone service provider! Doing so
may cause you to lose any cable modem settings you have selected.
3LINE 1/LINE 2—RJ-11 telephone ports connect to home telephone wiring to
conventional telephones or fax machines. Port 1 can connect both Line 1 and Line 2.
Port 2 connects only Line 2.
4ETHERNET—RJ-45 Ethernet port connects to the Ethernet port on your PC
5USB—12 Mbps USB port connects to the USB port on your PC
6CABLE IN—F-Connector connects to an active cable signal from your cable service
provider

14 4004041 Rev C
Where Is the Best Location for My Cable Modem?
Where Is the Best Location for My Cable Modem?
The ideal location for your cable modem is where it has access to outlets and other
devices. Think about the layout of your home or office, and consult with your
service provider to select the best location for your cable modem. Read this user's
guide thoroughly before you decide where to place your cable modem.
Consider these recommendations:
Position your PC and cable modem so that they are located near an AC power
outlet.
Position your PC and cable modem so that they are located near an existing cable
input connection to eliminate the need for an additional cable outlet. There
should be plenty of room to guide the cables away from the modem and the PC
without straining or crimping them.
Airflow around the cable modem should not be restricted.
Choose a location that protects the cable modem from accidental disturbance or
harm.

4004041 Rev C 15
What Are the System Requirements for Internet Service?
What Are the System Requirements for Internet Service?
To ensure that your cable modem operates efficiently for high-speed Internet service,
verify that all of the Internet devices on your system meet or exceed the following
minimum hardware and software requirements.
Note: You will also need an active cable input line and an Internet connection.
Minimum System Requirements for a PC
A PC with a Pentium MMX 133 processor or greater
32 MB of RAM
Web browsing software
CD-ROM drive
Minimum System Requirements for Macintosh
MAC OS 7.5
32 MB of RAM
System Requirements for an Ethernet Connection
A PC with Microsoft Windows 95 operating system (or later) with TCP/IP
protocol installed, or an Apple Macintosh computer with TCP/IP protocol
installed
An active 10/100BaseT Ethernet network interface card (NIC) installed
System Requirements for a USB Connection
A PC with Microsoft Windows 98SE, ME, 2000, or XP operating system
A master USB port installed in your PC or your Apple Macintosh computer

16 4004041 Rev C
How Do I Set Up My High-Speed Internet Access Account?
How Do I Set Up My High-Speed Internet Access Account?
Before you can use your cable modem, you need to have a high-speed Internet
access account. If you do not have a high-speed Internet access account, you need to
set up an account with your local service provider. Choose one of the two options in
this section.
I Do Not Have a High-Speed Internet Access Account
If you do not have a high-speed Internet access account, your service provider will
set up your account and become your Internet Service Provider (ISP). Internet access
enables you to send and receive e-mail, access the World Wide Web, and receive
other Internet services.
You will need to give your service provider the following information:
The serial number of the modem
The Media Access Control (MAC) address of the modem
These numbers appear on a bar code label located on the cable modem. The serial
number consists of a series of alphanumeric characters preceded by S/N. The MAC
address consists of a series of alphanumeric characters preceded by MAC. The
following illustration shows a sample bar code label.
Write down these numbers in the space provided here.
Serial Number _______________________
MAC Address ________________________
I Already Have an Existing High-Speed Internet Access Account
If you have an existing high-speed Internet access account, you must give your
service provider the serial number and the MAC address of the cable modem. Refer
to the serial number and MAC address information listed previously in this section.
Note: You may not be able to continue to use your existing e-mail account with your
cable modem. Contact your service provider for more information.

4004041 Rev C 17
How Do I Connect My Devices to Use the Internet?
How Do I Connect My Devices to Use the Internet?
You can use your cable modem to access the Internet, and you can share that
Internet connection with other Internet devices in your home or office. Sharing one
connection among many devices is called networking.
Connecting and Installing Internet Devices
You must connect and install your cable modem to access the Internet. Professional
installation may be available. Contact your local cable service provider for further
assistance.
To connect devices
The following diagram illustrates one of the various networking options that are
available to you.
LINE 2 LINE 1
TELEPHONY
POWER
12 VDC RESET ETHERNET CABLE
USB
Power
Supply
Cable-Ready TV,
VCR, or Set-Top
Converter
PC
Ethernet
Cable
RF
Cable
RF
Cables
Cable
Splitter
T10703
Power Supply
BYPASS
VOLñ VOL+
CH+
CHñ
MENU GUIDE INFO A/B POWER
Home Telephone Wiring
Line 2
Home Telephone Wiring
Line 1
Connecting the Modem for High-Speed Data Service
WARNING:
To avoid personal injury or damage to your equipment, follow these steps in
the exact order shown.
1Power off your PC and unplug it from the power source.
2Connect your PC to either the ETHERNET port or the USB port using the
appropriate data cable. Do not connect your PC to both the Ethernet and USB
ports at the same time. You can connect two separate PCs to the cable modem at
the same time by connecting one PC to the Ethernet port and one PC to the USB
port.

18 4004041 Rev C
How Do I Connect My Devices to Use the Internet?
3Connect the active RF coaxial cable to the CABLE connector. Use an optional
cable signal splitter to add a TV, a DHCT or set-top converter, or a VCR.
4Insert the AC power cord into the POWER connector on the back of the cable
modem, and then plug the cord into an AC power source.
5Plug in and power on your networked devices including your PC. The cable
modem will then begin an automatic search to locate and sign on to the
broadband data network. This process may take up to 5 minutes. The modem
will be ready for use when the ONLINE LED status indicator on the front panel
stops blinking and illuminates continuously.
6The next step in setting up your cable modem is to configure your Internet
devices for Internet access. Choose one of the following options:
If you want to use Ethernet connections, you must configure the TCP/IP
protocol. To configure the TCP/IP protocol, go to How Do I Configure
TCP/IP Protocol? (on page 19).
If you want to use USB connections, you must install the USB drivers. To
install the USB Drivers for USB, go to How Do I Install USB Drivers?
(on page 22).

4004041 Rev C 19
How Do I Configure TCP/IP Protocol?
How Do I Configure TCP/IP Protocol?
To configure TCP/IP protocol, you need to have an Ethernet Network Interface Card
(NIC) with TCP/IP communications protocol installed on your system. TCP/IP is a
communications protocol used to access the Internet. This section contains
instructions for configuring TCP/IP on your Internet devices to operate with the
cable modem in Microsoft Windows or Macintosh environments.
Configuring TCP/IP on Your Internet Devices
TCP/IP protocol in a Microsoft Windows environment is different for each
operating system. Follow the appropriate instructions in this section for your
operating system.
Configuring TCP/IP on Windows 95, 98, 98SE, or ME Systems
1Click Start, select Settings, and choose Control Panel.
2Double-click the Network icon in the Control Panel window.
3Read the list of installed network components under the Configuration tab to
verify that your PC contains the TCP/IP protocol/Ethernet adapter.
4Is TCP/IP protocol listed in the installed network components list?
If yes, go to step 7.
If no, click Add, click Protocol, click Add, and then go to step 5.
5Click Microsoft in the Manufacturers list.
6Click TCP/IP in the Network Protocols list, and then click OK.
7Click the TCP/IP Ethernet Adapter protocol, and then choose Properties.
8Click the IP Address tab, and then select Obtain an IP address automatically.
9Click the Gateway tab and verify that these fields are empty. If they are not
empty, highlight and delete all information from the fields.
10 Click the DNS Configuration tab, and then select Disable DNS.
11 Click OK.
12 Click OK when the system finishes copying the files, and then close all
networking windows.
13 Click YES to restart your computer when the System Settings Change dialog box
opens. The computer restarts. The TCP/IP protocol is now configured on your
PC, and your Ethernet devices are ready for use.
14 Try to access the Internet. If you cannot access the Internet, go to Having
Difficulty? (on page 44). If you still cannot access the Internet, contact your
service provider for further assistance.

20 4004041 Rev C
How Do I Configure TCP/IP Protocol?
Configuring TCP/IP on Windows 2000 Systems
1Click Start, select Settings, and choose Network and Dial-up Connections.
2Double-click the Local Area Connection icon in the Network and Dial-up
Connections window.
3Click Properties in the Local Area Connection Status window.
4Click Internet Protocol (TCP/IP) in the Local Area Connection Properties
window, and then click Properties.
5Select both Obtain an IP address automatically and Obtain DNS server address
automatically in the Internet Protocol (TCP/IP) Properties window, and then
click OK.
6Click Yes to restart your computer when the Local Network window opens. The
computer restarts. The TCP/IP protocol is now configured on your PC, and your
Ethernet devices are ready for use.
7Try to access the Internet. If you cannot access the Internet, go to Having
Difficulty? (on page 44). If you still cannot access the Internet, contact your
service provider for further assistance.
Configuring TCP/IP on Windows XP Systems
1Click Start, and depending on your Start menu setup, choose one of the
following options:
If you are using the Windows XP Default Start Menu, select Connect to,
choose Show all connections, and then go to step 2.
If you are using the Windows XP Classic Start Menu, select Settings, choose
Network Connections, click Local Area Connection, and then go to step 3.
2Double-click the Local Area Connection icon in the LAN or High-Speed Internet
section of the Network Connections window.
3Click Properties in the Local Area Connection Status window.
4Click Internet Protocol (TCP/IP), and then click Properties in the Local Area
Connection Properties window.
5Select both Obtain an IP address automatically and Obtain DNS server address
automatically in the Internet Protocol (TCP/IP) Properties window, and then
click OK.
6Click Yes to restart your computer when the Local Network window opens. The
computer restarts. The TCP/IP protocol is now configured on your PC, and your
Ethernet devices are ready for use.
7Try to access the Internet. If you cannot access the Internet, go to Having
Difficulty? (on page 44). If you still cannot access the Internet, contact your
service provider for further assistance.
