SCIFIT DC1000 Intelli-Fit Guide

XRevisionAssy. Inst. No:
Service Replacement
Instructions M1027
Approved Date
12/12/16
Originator
MP
Current Sub Assy. of:Operation Description:
Required Parts
PART NO. ITEMDESCRIPTION QTY.
Required Tools Tool No:
Controlled Copy
Int:_____ Date:_____
AC5/AC5M/DC1000 TOUCHSCREEN
SET-UP AND CALIBRATION
AC5/AC5M
DC1000
E
A6625 AC5-INT TREADMILL, TOUCHSCREEN CONSOLE
A4897TS DC1000-INT TREADMILL, TOUCHSCREEN CONSOLE
MP 12/12/16

RevisionAssy. Inst. No:
Approved DateOriginatorCurrent Sub Assy. of:Operation Description:
Controlled Copy
Int:_____ Date:_____
Service Replacement
Instructions M1027
MP
E
Step 1: Accessing the Set-Up Mode To select A Machine Model
After installing a treadmill touchscreen console, the next step will be to select the model type for the
treadmill it is mounted too. A calibration procedure will then follow to complete the process.
AC5/AC5M
DC1000
Method 1: Touching The Screen In Sequence:
(1) Touch the upper left corner of the screen,
(2) Then touch the left side of the “Quick Start” icon,
(3) Finally touch the upper left corner of the screen again.
Method 2: Pressing the Tactile Buttons In Sequence
(1) Press the [Stop] key,
(2) Then press the [Two Dot] key,
(3) Then press the [Five Dot] key,
(4) Finally press the [Six Dot] key.
Quick Start More
Speed
Prole
Grade
Prole
Heart
Rate
Manual
1
2 3 4
Quick Start More
Heart
Rate
Grade
Prole
Manual Speed
Prole
MP 12/12/16
12/12/16
AC5/AC5M/DC1000 TOUCHSCREEN
SET-UP AND CALIBRATION

RevisionAssy. Inst. No:
Approved DateOriginatorCurrent Sub Assy. of:Operation Description:
Controlled Copy
Int:_____ Date:_____
Service Replacement
Instructions M1027
MP
E
AC5/AC5M
DC1000
MP 12/12/16
12/12/16
AC5/AC5M/DC1000 TOUCHSCREEN
SET-UP AND CALIBRATION
+-
+-
Cancel Accept
Overlay Treadmill
Model AC5000
Language English
Use the “+/-”
arrows to change to
“Treadmill”
The screen will change to show the rst three categories, then highlight the category “Overlay” by
touching the “Up” or “Down” arrows on the right side of the screen.
Step 1: Overlay Matrix Selection
Touch either the “+” or “-” arrows to show “Treadmill” for the “Overlay” selection.
Step 2: Selecting Treadmill For The Overlay Matrix
Overlay Treadmill
Model AC5000
Language English
Touch the Up
or Down arrows
to highlight “Overlay”
Cancel Accept

RevisionAssy. Inst. No:
Approved DateOriginatorCurrent Sub Assy. of:Operation Description:
Controlled Copy
Int:_____ Date:_____
Service Replacement
Instructions M1027
MP
E
AC5/AC5M
DC1000 12/12/16
AC5/AC5M/DC1000 TOUCHSCREEN
SET-UP AND CALIBRATION
Overlay Treadmill
Model AC5000
Language English
Accept
Cancel +-
Overlay Treadmill
Model AC5000
Language English
Accept
Cancel +-
Touch the “Down” arrow to highlight the “Model” category, then press the “+” or “-” arrows to
select the type of treadmill the console is being attached too.
Touch “Accept” to save the changes and the screen will return to the main menu.
Step 4: Saving The Changes
Touch the “Down” arrow
to highlight “Model”
Use the “+/-”
arrows to select the
machine model
Touch “Accept”
to save the changes
Step 3: Selecting The Model
MP 12/12/16

RevisionAssy. Inst. No:
Approved DateOriginatorCurrent Sub Assy. of:Operation Description:
Controlled Copy
Int:_____ Date:_____
Service Replacement
Instructions M1027
MP
E
Step 1: Accessing the Test Screen
Once the machine model is selected, an elevation calibration procedure will be neccessary to complete the
process.
To access the Test Screen, in sequence:
(1) Press the [STOP] key, then
(2) Press the [Five Dot] key, then
(3) Press the [One Dot] key, then
(4) Finally press the [Two Dot] key.
1
2
34
ELEVATION CALIBRATION
AC5/AC5M
DC1000
MP 12/12/16
12/12/16
AC5/AC5M/DC1000 TOUCHSCREEN
SET-UP AND CALIBRATION

RevisionAssy. Inst. No:
Approved DateOriginatorCurrent Sub Assy. of:Operation Description:
Controlled Copy
Int:_____ Date:_____
Service Replacement
Instructions M1027
MP
E
POT: xXXXX (0.0%) (MPH): 0.1
RPM: 0 PWM: 0
Heart: 0 (BPM) Hand: (0 BPM)
CSAFE loopback: FAIL
RFID loopback: FAIL
Fan O
Battery: 11.000 (V)
Version X.XXX kX.X Touchscreen 0,0
POT: xXXXX (0.0%) (MPH): 0.1
RPM: 0 PWM: 0
Heart: 0 (BPM) Hand: (0 BPM)
CSAFE loopback: FAIL
RFID loopback: FAIL
Fan O
Battery: 11.000 (V)
Version X.XXX kX.X Touchscreen 0,0
POT: xXXXX (0.0%) (MPH): 0.1
RPM: 0 PWM: 0
Heart: 0 (BPM) Hand: (0 BPM)
CSAFE loopback: FAIL
RFID loopback: FAIL
Fan O
Battery: 11.000 (V)
Version X.XXX kX.X Touchscreen 0,0

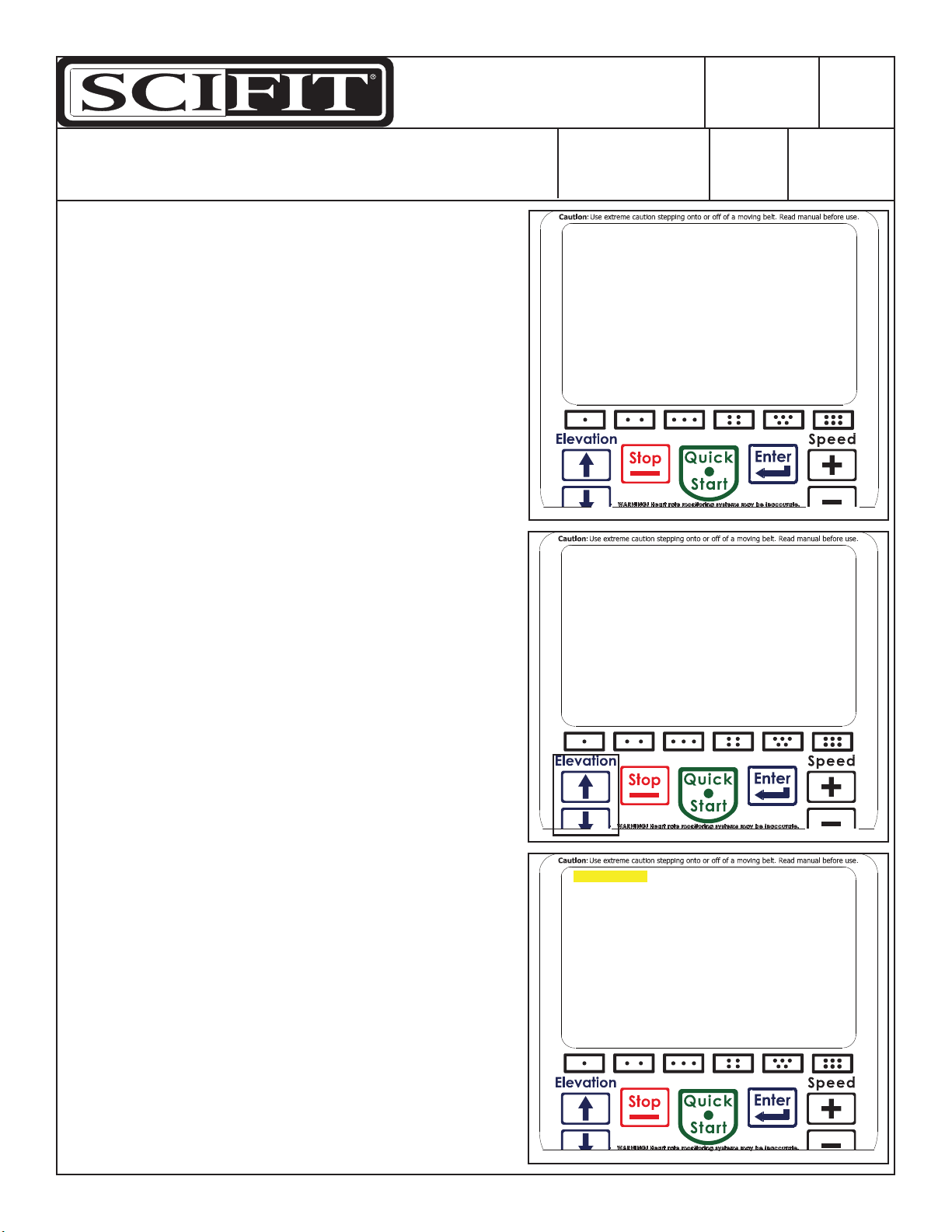

The following screen will appear.
Press the “Elevation [Up Arrow] and [Down Arrow] keys
at the same time to begin the cailbration process.
Step 2: Start Cailbration Process
The “Pot” category will highlight yellow,
this indicates that the calibration is in process
(machine will elevate up, then back down).
AC5/AC5M
DC1000
MP 12/12/16
12/12/16
AC5/AC5M/DC1000 TOUCHSCREEN
SET-UP AND CALIBRATION

RevisionAssy. Inst. No:
Approved DateOriginatorCurrent Sub Assy. of:Operation Description:
Controlled Copy
Int:_____ Date:_____
Service Replacement
Instructions M1027
MP
E
POT: xXXXX (0.0%) (MPH): 0.1
RPM: 0 PWM: 0
Heart: 0 (BPM) Hand: (0 BPM)
CSAFE loopback: FAIL
RFID loopback: FAIL
Fan O
Battery: 11.000 (V)
Version X.XXX kX.X Touchscreen 0,0
POT: xXXXX (0.0%) (MPH): 0.1
RPM: 0 PWM: 0
Heart: 0 (BPM) Hand: (0 BPM)
CSAFE loopback: FAIL
RFID loopback: FAIL
Fan O
Battery: 11.000 (V)
Version X.XXX kX.X Touchscreen 0,0
When the calibration process is complete, the “POT”
category becomes unhighlighted.
Press and hold the [One Dot] key, then press the [Stop]
key and release both keys. The console will then save the
calibration results and reset to the main screen.
Step 3: Saving The Calibration
Machine model type and elevation calibration are now complete and the machine is ready for use.
AC5/AC5M
DC1000
MP 12/12/16
AC5/AC5M/DC1000 TOUCHSCREEN
SET-UP AND CALIBRATION
