Operation Manual for Mycotoxin LFD Incubator
CUSFY-1

2
Contents
1 Introduction……………………………………………………………………………………………..3
1.1 Components…………………………………………………………………………………..….3
1.2 Primary Structure………………………………………………………………………...4
1.3 Installation…………………………………………………………………………………..5
2 Technical Parameter…………………………………………………………………………….…6
3 Safety Warning…………………………………………………………………………………………6
4.Operation Procedure...................................................................................7
4.1 Set up a new Procedure…………………………………………………………………….…7
4.2 Set S.N. of Procedure……………………………………………………………………………7
4.3 Set Temperature……………………………………………………………………………..……7
4.4 Set Time………………………………………………………………………………………….….7
4.5 Set Time Unit……………………………………………………………………………………...8
4.6 Procedure On/Off……………………………………………………………………………..8
4.7 Other Functions..……………………………………………………………………………9
5 Maintenance………………………………………………………………………………………….….10
6 Troubleshooting……………………………………………………………………………………..10

3
Thanks for purchasing Scigiene’s Mycotoxin LFD Incubator. This manual includes device
function and operation procedure. Please read the manual before operation. Please check
device components once you receive goods and contact us immediately if you found any
parts mismatched, missing or damaged.
1 Introduction
Incubator is new product controlled by microcomputer. It is widely used for sample preservation and reaction,
DNA-PCR, electrophoretic pre-degeneration, serum coagulation and etc. Please read the manual before
operation.
1.1 Components
Mainframe 1pcs
Transparency Cover 1pcs
Power Adapter 1pcs
Operation Manual 1pcs

4

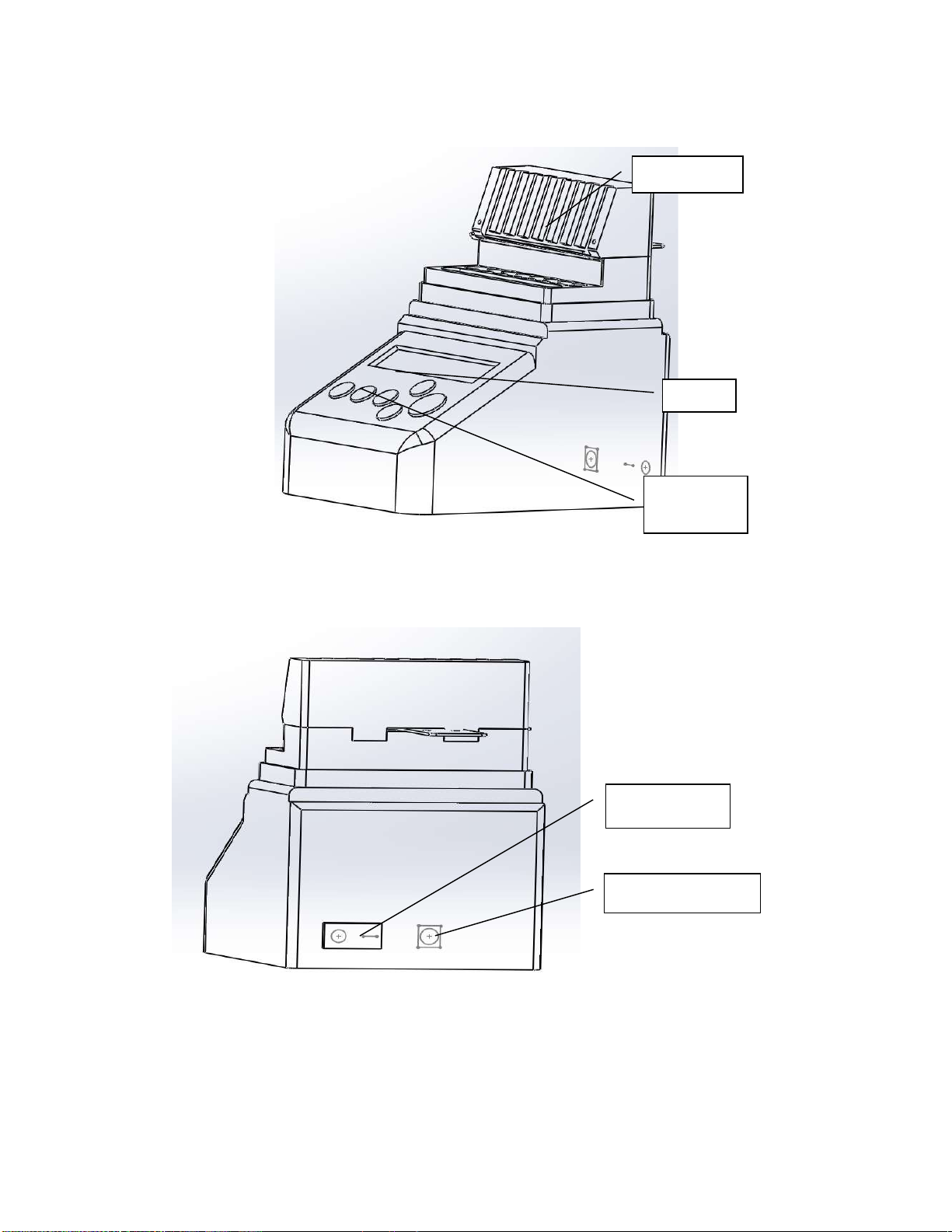

1.2 Primary Structure
Metal Module
Display
Operation
Panel
Power Switch
Power Input Socket

5
1.3 Installation
1.3.1 Put it on horizontal working table.
1.3.2 Insert cylindrical socket of power adapter into power input socket, then connect the other end of power
adapter with power grid between 100V and 240V. Check below chart.
1.3.3 Power switch on and then it will reach to setting temperature. Basically, it takes five minutes.
1.3.4 Put test tube onto metal module after reaching setting temperature. Then cover transparency cover.

6
2 Technical Parameter
Model CUSFY-1
Power Supply DC24V
MAX Power 40W
Average Power Consumption 5 W
Temperature Range RT+5 ℃ ～ 100℃
Timing Range
1sec～999sec
1min ～ 999min
1hour～99hour
Temperature Precision ≤± 0.3℃
Display Accuracy 0.1℃
Heating up Time
(from 40 ℃ to 100℃) ≤20min
Environment Temperature 5℃ ～ 35℃
Overall Dimension（W×D×H） 110mm×148mm×120mm
Net Weight 0.5 kg
3 Safety Warning
It is used indoor.
It might cause personal injury if you did not read the manual before operation. Only trained person
in installation and operation of electrical equipment are qualified to use this device.
You may get electric shock and lose warranty if you disassemble it.

7
The device is supposed to put the place where contains low humidity, little dust, well-ventilated,
avoiding water and sunshine or strong direct light or corrosive gas or high intensity magnetic field or
heating or fire or other heat source.
Power Switch. Press “ I ” , power on. Press“ O ” , power off.
Power Input is DC24V, center of socket is “+”, outer ring is “-”.
Power off when you do not need to use it. Pull out power socket if you will not use it in a long time.
Cover it with soft cloth or plastic paper to avoid dust.
4. Operation Procedure
4.1 Set up a new Procedure:
Power on and then system comes to operation
interface. Press Start/Stop key over 2 minutes,
then is goes into Setting up Procedure interface.
You can DIY 9 procedures, P1 to P9. Each
procedure includes 3 sections/move (A, B, C).
-----28.7-----
4.2 Set up S.N. of Procedure：
Cursor will point ID number of procedure by
quickly pressing P key, then you can select ID
number and section of procedure (A, B, C) by ▲
or ▼.
P2-A
55.5 095
4.3 Set Temperature：
Cursor will point temperature by quickly pressing
Temp key, then you can change temperature by
▲
or
▼
.
4.4 Set Time：
Cursor will point time by quickly pressing Timer
key, then you can change time by ▲ or ▼.
Quickly press ▼ when time parameter value
equals to 000. Time parameter value at OFF
means this procedure will not run. P2-A 55.5 032 s
P2-A 75.5 OFF
P2-A 55.5 095 M
P2-A 75.5 032 M

8
4.5 Set Time Unit：
Cursor will point time unit by quickly pressing Timer
key, then you can change time unit in second,
minute or hour by ▲ or ▼.
P2-A 55.5 032 M
P2
-
A
55.5 032
H
4.6 Procedure On/Off
4.6.1 Power on then it will increase temperature
automatically.
4.6.2 WAIT means it is heating.
4.6.3 It will send warning tone and blinking display
OK when temperature is steady. It will start
countdown of constant temperature at A section
when it comes to A/Stop key.
4.6.6 It will send warning tone at one minute at
a time and also display FINISHED after running
complete procedure. Meanwhile, it will remain
at current temperature. Please turn off the
power if you do not need to use it. If you want to
repeat the whole procedure, please press
start/stop key quickly.
4.6.4 It displays FINISHED and keeps sending
warning tone when countdown of A section
finished. Press Start/Stop key, then it begins B
section.
4.6.5 Likewise, B section and C section run the
same procedure.
P1-A FINISHED
P1-A 40.0 180 S
P1-A 40.0 OK
----28.7----
P1-A 32.5 WAIT
P2-A 55.5 032 s
Finished 40.5
P1-c FINISHED
P1-B 40.0 OK
P1-b FINISHED

9
All keys will be blocked when system comes into counterdown interface.
Please restart it if you need to config parameter or select procedure. It will
goes into running interface in 3 seconds. Then press start/stop key over 2
seconds, you will see parameter configuration interface. At last, press
start/stop key quickly to run it when you finished setting parameter.
APF & RTF are enabled, while ORF is disabled at default. It will run ORF if ORF
and APF are both enabled. Quickly press start/stop key, procedure will save the
configuration information and exit current menu. Press start/stop over 1second,
it will exit current menu without saving configuration information.
4.7.2. Automatic recovery after power failure
（ORF）:
Enable ORF, it will get back to the procedure run
before power failure, once when power on again.
Disable ORF, it requires to select procedure when
power on again.
4.7.3. Automatic Running（APF）: Enable APF,
automatic running last procedure when power on.
Disable APF, Select procedure when power on.
4.7 Other Functions
Power on, then immediately press P key and Timer key at the same time, it will enters
into Function Configuration Menu.
4.7.1. Automatically keep constant temperature
after finishing operation（RTF）：
Enable RTF, keep constant temperature after
finishing operation.
Disable RTF, start cooling after finishing operation.
APF DISABLE
APF ENABLE
ORF DISABLE
ORF ENABLE
RTF ENABLE
RTF DISABLE

10
5 Maintenance
6 Troubleshooting
Troubles Analysis of causes Resolution
Black display screen
Power off
Poor switching
Broken controller
Check power supply and re-
plug power socket;
Replace switch;
Contact us.
Display Screen shows
“PT
EEROR”
and it sends alarm
tone
Open circuit or open circuit of
temperature control sensor Contact us.
Module did not heat up Heater malfunction Contact us.
Key malfunction Broken membrane switch Contact us.
Regularly clean longhole on module with clean soft cloth that takes a
little absolute alcohol. Make sure tube contact wall of taper hole
sufficiently, good thermal conductivity and avoiding contamination. Use
soft cloth that takes cleansing cream to clean the surface.
Must turn off power before cleaning the device. Cleaning Solution is
forbidden to pour into holes on module. Do not use corrosive cleaning
solution.
