SCIWIL S810-LED User manual

Changzhou Sciwil E-
Mobility Technology Co., Ltd.
9th Huashan Road, Changzhou, Jiangsu, China- 213022
Fax: [phone] Tel: +86 519-
85600675
USERS GUIDE
S810-LED

Changzhou Sciwil E-
Mobility Technology Co., Ltd.
9th Huashan Road, Changzhou, Jiangsu, China- 213022
Fax: [phone] Tel: +86 519-
85600675
Contents
Introduction .................................................................................................................................................. 1
1. Safety Notes ............................................................................................................................................ 2
2. Assembly .................................................................................................................................................. 2
3. Product Size .......................................................................................................................................... 3
4. Working Voltage and Connection ................................................................................................ 3
4.1 Working Voltage ........................................................................................................................ 4
4.2 Connection ................................................................................................................................... 4
5. Functions and Key Pad ...................................................................................................................... 4
5.1 Functions....................................................................................................................................... 4
5.2 Control and Setting Items.......................................................................................................... 5
5.3 Display Area .................................................................................................................................. 5
5.4 Communications Protocol ........................................................................................................ 5
5.5 Key Pad ............................................................................................................................................. 6
5.6 Serial Code ..................................................................................................................................... 7
6. Quality and Warranty .......................................................................................................................... 7
7. Version....................................................................................................................................................... 8

1
Changzhou Sciwil E-Mob
ility Technology Co., Ltd.
9th Huashan Road, Changzhou, Jiangsu, China- 213022
Fax: [phone] Tel: +86 519-
85600675
Introduction
Congratulations on purchasing your e-bike smart display. Before use, please read
through this manual. It is important to acknowledge all the
WARNINGS, SAFETY
NOTES AND INSTRUCTIONS
. This manual will walk you through assembly, settings
and operations of Sciwil display products in easy steps, to facilitate operations on
your e-bike.

2
Changzhou Sciwil E-Mob
ility Technology Co., Ltd.
9th Huashan Road, Changzhou, Jiangsu, China- 213022
Fax: [phone] Tel: +86 519-
85600675
1. Safety Notes
PLEASE TAKE CAUTION WHEN USE，DO NOT PLUG OR UNPLUG THE DISPLAY WHILE
YOUR E-BIKE IS POWERED ON.
AVOID CLASHES OR BUMPS TO THE DISPLAY.
DO NOT TEAR THE WATER-PROOF FILM ON THE SURFACE OF THE SCREEN,
OTHERWISE THE WATER-TIGHT PERFORMANCE OF THE PRODUCT MAY BE
DEGRADED.
DISPLAY WATER-PROOF RATE: IP6
UNAUTHORIZED ADJUSTMENT TO DEFAULT SETTINGS IS NOT SUGGESTED,
OTHERWISE NORMAL USE OF YOUR E-BIKE CAN NOT BE GUARANTEED.
WHEN THE DISPLAY PRODUCT DOES NOT WORK PROPERLY, PLEASE SEND THE
IT FOR AUTHORIZED REPAIR IN TIME.
2. Assembly
Fix the display on the handlebar, adjust it to a proper facing angle. Make sure your
e-bike is powered off, then plug the connector on the display to the connector on
the controller (bus) to finish standard assembly.

3
Changzhou Sciwil E-Mob
ility Technology Co., Ltd.
9th Huashan Road, Changzhou, Jiangsu, China- 213022
Fax: [phone] Tel: +86 519-
85600675
3. Product Size
Material
Shell Material: ABS
Screen Cover Material: High Hardness Acrylic (same hardness as tempered glass).
Working Temperature: -20°C~60°C.
Product Size
4. Working Voltage and Connection

4
Changzhou Sciwil E-Mob
ility Technology Co., Ltd.
9th Huashan Road, Changzhou, Jiangsu, China- 213022
Fax: [phone] Tel: +86 519-
85600675
4.1 Working Voltage
DC 24V-60V compatible (can be set on display)，other voltage level can be
customized.

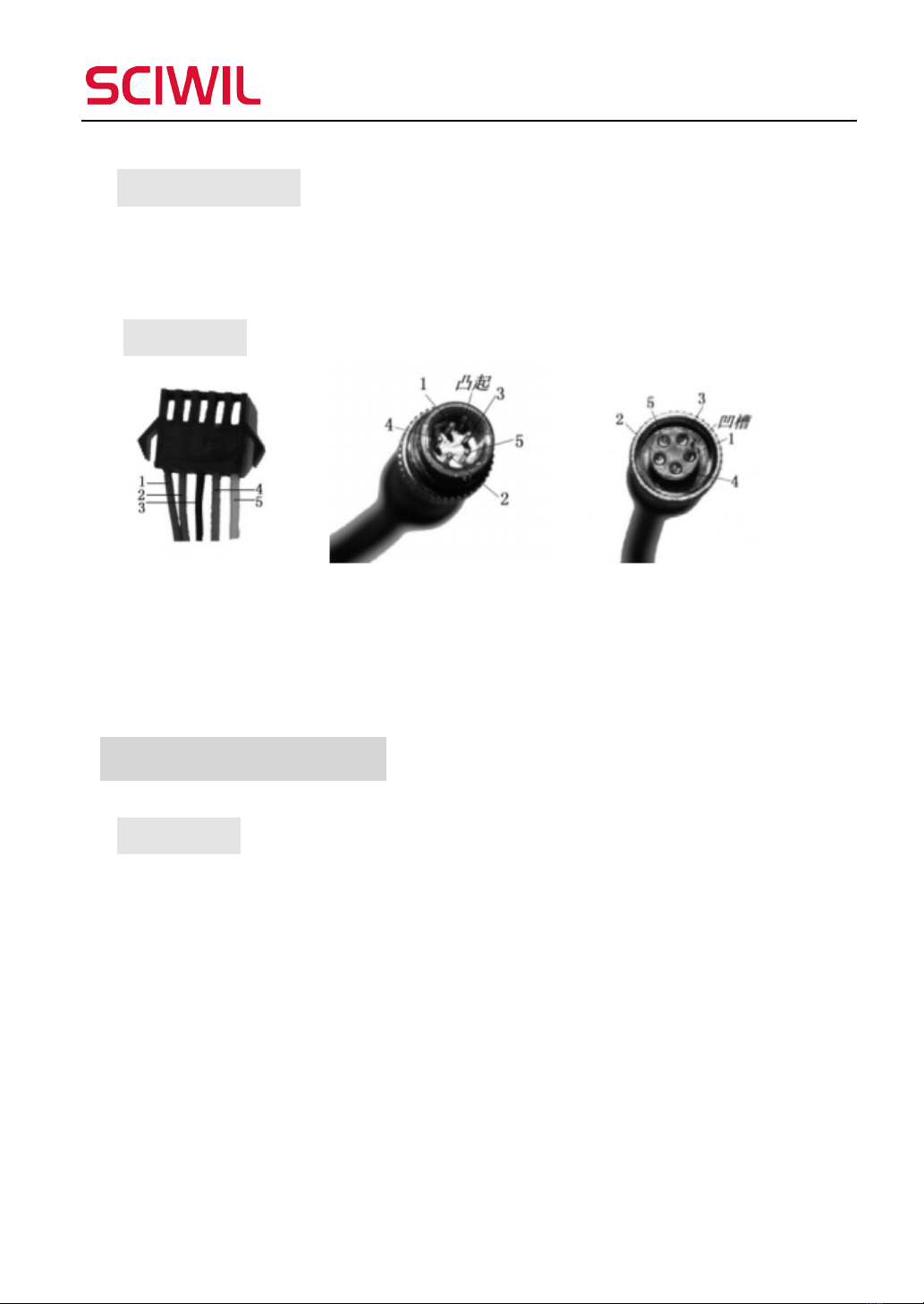

4.2 Connection
Connector to Controller Display Cable Outlet Connector Display Cable Coupling Connector
Note: Some products may use waterproof connectors, in which case the internal
wire arrangements cannot be identified from outside.
5Functions and Key Pad
5.1 Functions
These are items displayed on S810:
 Battery Level
 PAS Level

- 5 -
Changzhou Sciwil E-
Mobility Technology Co., Ltd.
9th Huashan Road, Changzhou, Jiangsu, China- 213022
Fax: [phone] Tel: +86 519-
85600675

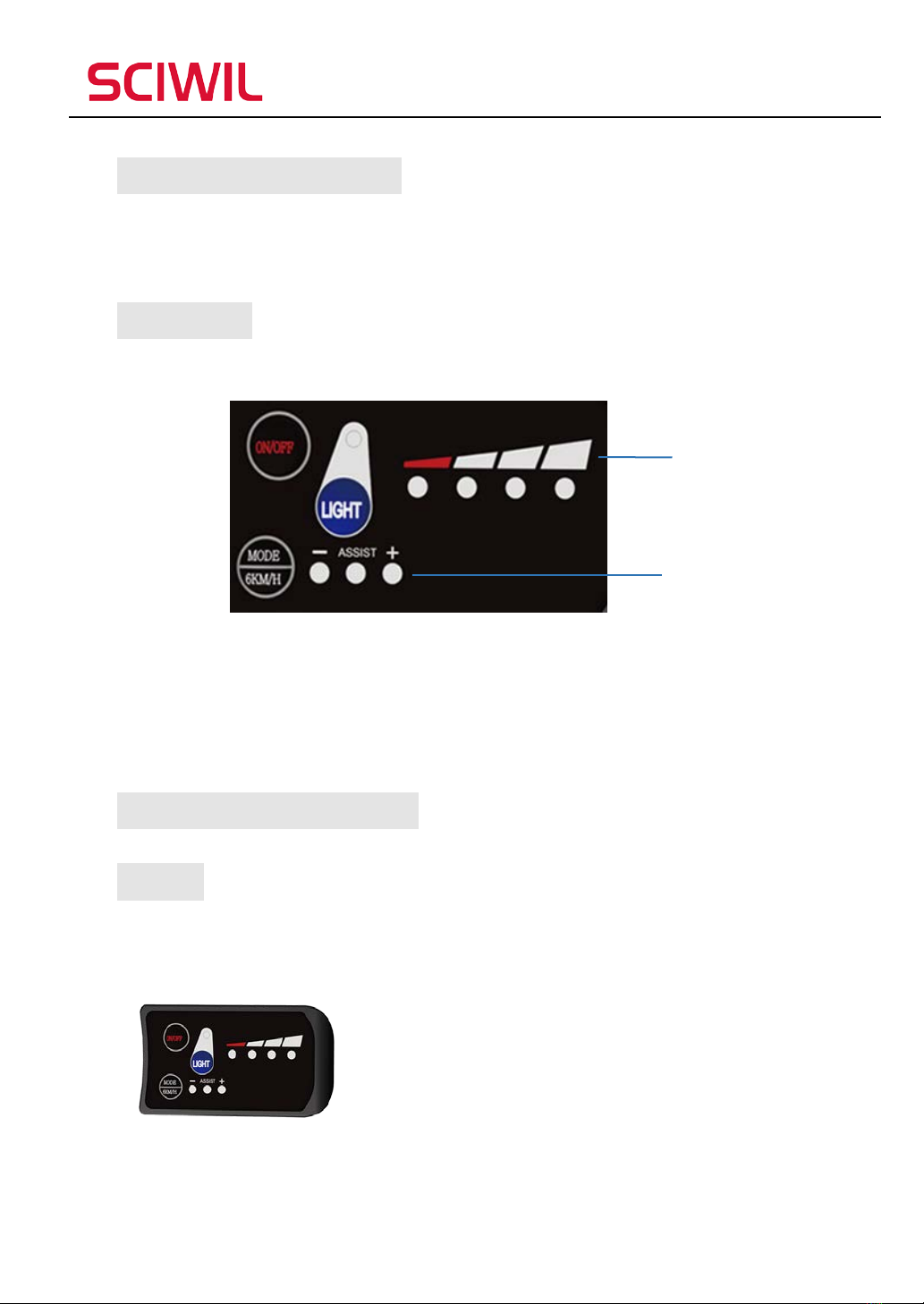

5.2 Control and Setting Items
PAS Level PWM Setting, Headlight On/Off
5.3 Display Area
1. PAS Status Indication Area
2. Battery Level
5.4 Communications Protocol：UART
5.5 Key Pad
Key pad position:
1
2

- 6 -
Changzhou Sciwil E-
Mobility Technology Co., Ltd.
9th Huashan Road, Changzhou, Jiangsu, China- 213022
Fax: [phone] Tel: +86 519-
85600675
There are 3 keys on S810 display. In following introductions:
is called “On/Off”,
is called “Light”,
is called “Mode”.
Operations:
·Switch On/Off Display and Headlight
-Press and hold On/Off to switch on or off the display.
-When the display is on, press Light to turn on/off the headlight.
-When the display is on but the static current is under 1μA, the display will
automatically turn off after 10 minutes (or any set time by P04).
·PAS/Throttle Level
-During riding, press Mode to change PAS/Throttle level.
·Walk Mode
-During riding, press and hold Mode to enter 6km/h walk mode.

- 7 -
Changzhou Sciwil E-
Mobility Technology Co., Ltd.
9th Huashan Road, Changzhou, Jiangsu, China- 213022
Fax: [phone] Tel: +86 519-
85600675
5.6 Serial Code
Each Sciwil display product bears a unique Serial Code on the back shell
(as shown in the photo below)：192 2 1 210603011
Explanation to the above Serial Code:
192：Customer Code
2：Protocol Code
1：Program can be overridden（0 means can not be overridden）
210603011：P.O. (purchase order number)
6Quality and Warranty
In compliance with local laws and normal usage, the limited warranty period covers
24 months after the date of manufacturing (as indicated by the serial number).
The limited warranty shall not be transferred to a third party other than as specified
in the agreement with Sciwil.
Other situations may be covered, depending on the agreement between Sciwil and

- 8 -
Changzhou Sciwil E-
Mobility Technology Co., Ltd.
9th Huashan Road, Changzhou, Jiangsu, China- 213022
Fax: [phone] Tel: +86 519-
85600675
the buyer.
Warranty Exclusions:
1. Sciwil products that have been modified or repaired without authorization
2. Sciwil products that have been used for rental, commercial applications, or
competition
3. Damage resulting from causes other than defects in material or manufacturing
process, including but not limited to an accident, neglect, improper assembly,
improper repair, maintenance alteration, modification, abnormal excessive wear or
improper use.
4. Damage due to buyer’s improper transportation or storage, and damage during
shipping (the responsible party should be determined using INCOTERMS
regulations).
5. Damage to the surface after leaving factory, including shell, screen, buttons, or
other appearance parts.
6. Damage to wiring and cables after leaving factory, including breaks and exterior
scratch.
7. Failure due to an improper user configuration or unauthorized changes in the
relevant accessories parameters, or debugging by the users or the third party.
8. Damage or loss due to force majeure.
9. Beyond the warranty period.
7Version
This display user manual is in compliance with the general software version (V1.0) of
Changzhou Sciwil E-Mobility Technology Co., Ltd. There are chances that display
products on some e-bikes may have a different software version, which should be
subject to the actual version in use.
